A Data Lake Metadata Enrichment Mechanism via Semantic

Blueprints

Michalis Pingos and Andreas S. Andreou

Department of Computer Engineering and Informatics, Cyprus University of Technology, Limassol, Cyprus

Keywords: Smart Data Processing, Deep Insight, Data Lakes, Heterogeneous Data Sources, Metadata Mechanism, 5Vs

Big Data Characteristics, Data Blueprints.

Abstract: One of the greatest challenges in Smart Big Data Processing nowadays revolves around handling multiple

heterogeneous data sources that produce massive amounts of structured, semi-structured and unstructured

data through Data Lakes. The latter requires a disciplined approach to collect, store and retrieve/ analyse data

to enable efficient predictive and prescriptive modelling, as well as the development of other advanced

analytics applications on top of it. The present paper addresses this highly complex problem and proposes a

novel standardization framework that combines mainly the 5Vs Big Data characteristics, blueprint ontologies

and Data Lakes with ponds architecture, to offer a metadata semantic enrichment mechanism that enables fast

storing to and efficient retrieval from a Data Lake. The proposed mechanism is compared qualitatively against

existing metadata systems using a set of functional characteristics or properties, with the results indicating

that it is indeed a promising approach.

1 INTRODUCTION

Big Data is an umbrella term referring to the large

amounts of digital data continually generated by tools

and machines, and the global population (Chen et al.,

2014). The speed and frequency by which digital data

is produced and collected by an increasing number of

different kinds of sources are projected to increase

exponentially. This increasing volume of data, along

with its immense social and economic value (Bertino,

2013; Günther et al., 2017), is driving a global data

revolution. Big Data has been called “the new oil”, as

it is recognized as a valuable human asset, which,

with the proper collation and analysis, can deliver

information that will give birth to deep insights into

many aspects of our everyday life and, moreover, to

let us predict what might happen in the future.

While Big Data is available and easily accessible,

it is evident that its great majority comes from

heterogeneous sources with irregular structures

(Blazquez & Domenech, 2018). The process of

transforming Big Data into Smart Data in terms of

making them valuable and transforming it into

meaningful information is called Smart Data

Processing (SDP) and includes a series of diverse

actions and techniques. These actions and techniques

support the processing and integration of data into a

unified view from disparate Big Data sources.

Furthermore, this field includes adaptive frameworks

and tool-suites to support smart data processing by

allowing the best use of streaming or static data, and

may rely on advanced techniques for efficient

resource management.

SDP supports the process and integration of data

into a unified view from disparate Big Data sources

including Hadoop and NoSQL, Data Lakes, data

warehouses, sensors and devices on the Internet of

Things, social platforms, and databases, whether on-

premises or on the Cloud, structured or unstructured

and software as a service application to support Big

Data analytics (Fang, 2015).

The analytics solutions, which rely on smart data

processing and integration techniques, are called

Systems of Deep Insight (SDI). These solutions

enable optimization of asset performance in SDP

systems and are geared towards systems of insight. In

addition, they sift through the data to discover new

relationships and patterns by analysing historical

data, assessing the current situation, applying

business rules, predicting outcomes, and proposing

the next best action. Despite the great and drastic

solutions proposed in recent years in the area of Big

Data Processing and SDP, treating Big Data produced

186

Pingos, M. and Andreou, A.

A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints.

DOI: 10.5220/0011080400003176

In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 186-196

ISBN: 978-989-758-568-5; ISSN: 2184-4895

by multiple heterogeneous data sources remains a

challenging and unsolved problem.

The main research contributions of this paper

include the utilization of Data Lakes as a means to

achieve the desired level of Big Data Processing and

ultimately lead to developing SDP. Along these lines,

we propose a standardization framework for storing

data (and data sources) in a Data Lake and a metadata

semantic enrichment mechanism that is able to handle

effectively and efficiently Big Data coming from

disparate and heterogeneous data sources. These

sources produce different types of data at various

frequencies and the mechanism is applied both when

this data is ingested in a Data Lake and at the

extraction of knowledge and information from the

Data Lake.

The remainder of the paper is structured as

follows: Section 2 discusses related work and the

technical background in the areas of SDP and Data

Lakes. Section 3 presents the Data Lake source

description framework and discusses its main

components. This is followed by presenting the

details of the expected features of a Data Lake’s

metadata system and compares them with several

existing works in section 4. Finally, section 5

concludes the paper and highlights future work

directions.

2 TECHNICAL BACKGROUND

Big Data Processing includes the processing of

multiple and various types of data, structured, semi-

structured, and unstructured. A Data Lake is a storage

repository that could store a vast amount of raw data

of these various types in its native format until it is

needed. In addition, a Data Lake is a centralized

repository that stores structured, semi-structured, and

unstructured data at any scale, and data is selected and

organized when needed. Data can be stored as-is,

without the need to first structure it before executing

different types of analytics, from dashboards and

visualizations to Big Data processing, real-time

analytics, and machine learning to guide better

decisions. Furthermore, Data Lakes architecture is

also used to store large amounts of relational and non-

relational data combining them with traditional data

warehouses.

Khine and Wang (2018) state that a Data Lake is

one of the arguable concepts that appeared in the era

of Big Data. A Data Lake is a place to store practically

every type of data in its native format with no fixed

limits on account size or file, offering at the same time

high data quantity to increase analytic performance

and native integration.

The idea behind Data Lakes is simple: Instead of

placing data in a purpose-built data store, move it into

a Data Lake in its original format. This eliminates the

upfront costs of data ingestion, like transformation

and indexing. Once data is placed into the lake, it is

available for analysis by everyone in the organization

(Miloslavskaya & Tolstoy, 2016). Unlike a

hierarchical Data Warehouse where data is stored in

files and folders, a Data Lake has a flat architecture.

Every data element in a Data Lake is given a unique

identifier and is tagged with a set of metadata

information. Data Lakes can provide the following

benefits:

 With the onset of storage engines like Hadoop,

storing disparate information has become easy.

 There is no need to model data into an

enterprise-wide schema with a Data Lake.

 With the increase in data volume, data quality,

and metadata, the quality of analyses also

increases.

 Data Lake offers business Agility.

 Machine Learning and Artificial Intelligence

can be used to make profitable predictions.

 It offers a competitive advantage to the

implementing organization.

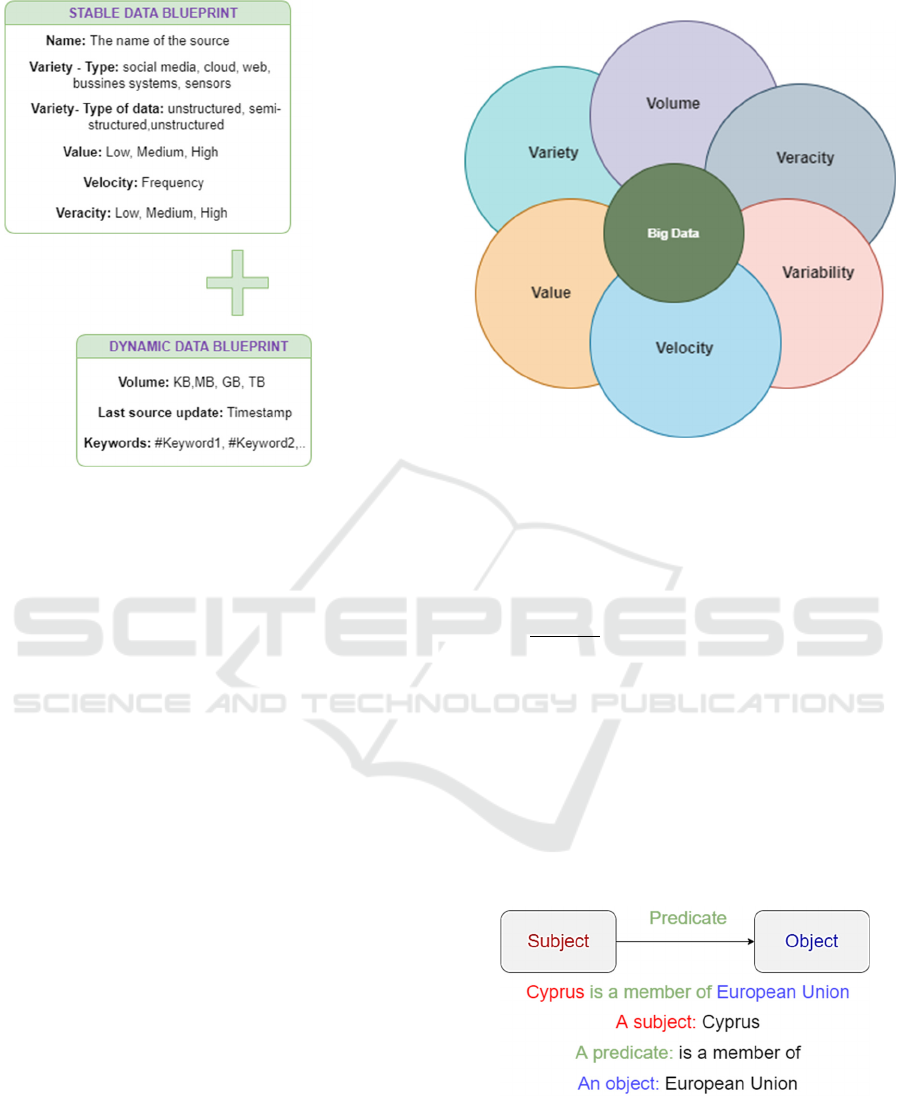

The 5Vs are the five main and innate

characteristics of Big Data. As one-dimension

changes, the likelihood increases that another

dimension will also change as a result. Knowing the

5Vs allows data scientists to derive more value from

their data, while also allowing them to become more

customer-centric (Bell et al., 2021). As far back as

2001, Doug Laney articulated the now mainstream

definition of Big Data as the 3Vs of Big Data

(Kościelniak & Putto, 2015):

 Volume - the volumes of data produced

 Velocity - the rate transfer which data produced

 Variety - heterogeneous and multiple data

In addition to the 3Vs, other dimensions of Big

Data have also recently been reported (Gandomi &

Haider, 2015). These include:

 Veracity: IBM coined Veracity as the 4

which represents the unreliability inherent in

some sources of data (Luckow et al., 2015).

 Variability: SAS introduced Variability and

Complexity as two additional dimensions of Big

Data (Herschel & Miori, 2017). Variability

refers to the variation in the data flow rates.

A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints

187

Complexity refers to the fact that Big Data are

generated through a myriad of sources.

 Value: Oracle introduced Value as a defining

attribute of Big Data (Kim et al., 2012). Based

on Oracle’s definition, Big Data are often

characterized by relatively “low value density”.

Big Data originate mostly from one of five primary

sources: Social media, Cloud, Web, traditional

business systems (e.g., ERPs), and Internet of Things

(IoT) (Sethi & Sarangi, 2017). These primary sources

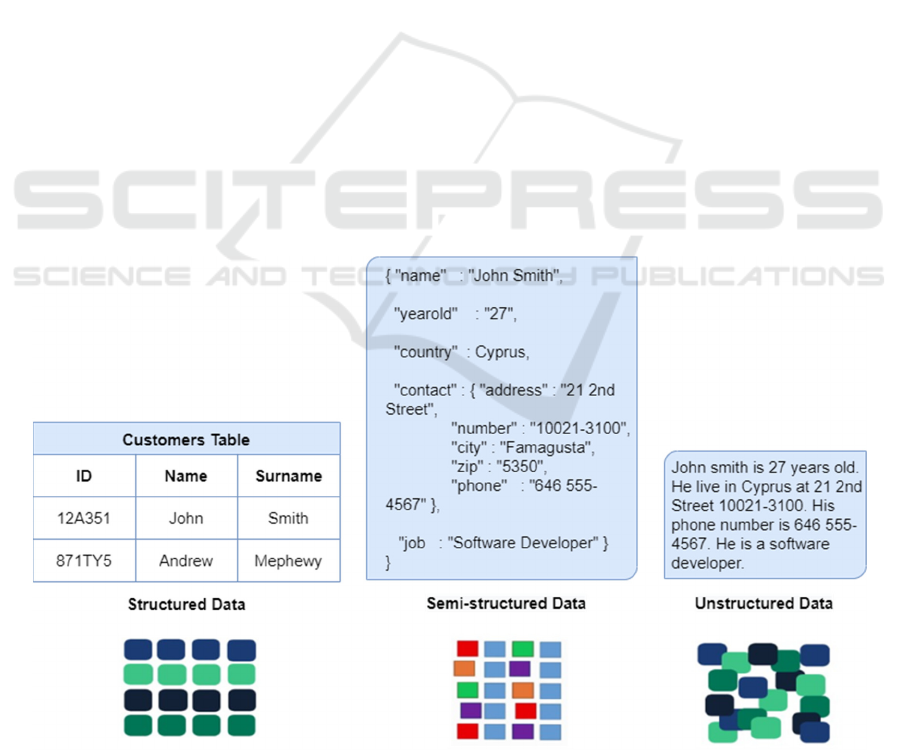

produce an enormous variety of structured,

unstructured, and semi-structured data (see figure 1).

The term structured data refers to data that resides in

a fixed field within a file or record. Structured data is

typically stored in a relational database (RDBMS). It

depends on the creation of a data model that defines

what types of data are present. Unstructured data is

more or less all the data that is not structured. Even

though unstructured data may have a native, internal

structure, it is not structured in a predefined way.

There is no data model; the data is stored in its native

format. Typical examples of unstructured data are

rich media, text, social media activity, surveillance

imagery, etc. It is essentially a type of structured data

that does not fit into the formal structure of a

relational database. But while not matching the

description of structured data entirely, it still employs

tagging systems or other markers, separating different

elements and enabling search. Sometimes, this is

referred to as data with a self-describing structure.

Media includes social networks and interactive

platforms, like Google, Facebook, Twitter, YouTube,

Instagram, as well as generic media, like videos,

audios, and images that provide qualitative and

quantitative data on every aspect of user interaction.

Private or public cloud storages include information

from real-time or on-demand business data. Web or

Internet constitutes any type of data that are publicly

available and can be used for any commercial or

individual activity. Traditional business systems

produce and store business data in conventional

relational databases or modern NoSQL databases.

Finally, IoT includes data generated from sensors that

are connected to any electronic devices that can emit

data.

Manufacturing blueprints create a basic

knowledge environment that provides manufacturers

with more granular, fine-grained and composable

knowledge structures and approaches to correlate and

systematize vast amounts of dispersed manufacturing

data, associate the “normalized” data with operations,

and orchestrate processes in a more closed-loop

performance system that delivers continuous

innovation and insight. Such knowledge is crucial for

creating manufacturing smartness in a smart

manufacturing network (Papazoglou & Elgammal,

2018).

Figure 1: Different types of data produced by Big Data sources.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

188

Figure 2: Data sources selection metadata enrichment mechanism using 5Vs.

Manufacturing blueprints provide a complete

summary of a product by juxtaposing its features with

its operational and performance characteristics, as

well as how it is manufactured, which processes are

used, and which manufacturing assets (people, plant

machinery and facilities, production line equipment)

are used to make it, as well as the suppliers who

provide/produce parts and materials. Manufacturing

blueprints also include a summary of suppliers,

including their capabilities and competencies.

Finally, manufacturing blueprints detail how

manufacturers and suppliers coordinate, arrange

manufacturing processes, expedite hand-offs, and

create the final product (Papazoglou & Elgammal,

2018).

This paper adopts the basic principles of

manufacturing blueprints and modifies their purpose

and meaning to reflect the description and

characterization of data sources and the data they

produce. Along these lines, a framework is proposed

that builds upon the utilization of the five

aforementioned Big Data characteristics (5Vs) to

describe Big Data sources. These characteristics will

guide the characterization of data sources by means

of specific types of blueprints through an ontology-

based description. Big Data sources will thus be

accompanied by this blueprint description before they

become part of a Data Lake.

3 METHODOLOGY

As mentioned above, a new standardization

framework will be introduced combining the 5Vs Big

Data characteristics and blueprint ontologies to assist

data processing (storing and retrieval) in Data Lakes

organized with pond architecture. According to the

pond architecture, a Data Lake consists of a set of data

ponds and each pond hosts / refers to a specific data

type. Each pond contains a specialized storage system

and data processing depending on the data type

(Sawadogo & Darmont, 2021).

A Data Lake with pond architecture is assumed to

use a dedicated pond to store each data source with

the same type of data, structured, unstructured, and

semi-structured as shown in figure 2. This innate

pond architecture is particularly helpful when

extracting information from the Data Lake as will be

demonstrated later on.

Big Data sources are filtered before they become

part of the Data Lake as shown in figure 2. Every data

source, which is a candidate to be part of the Data

Lake, will be characterized according to the blueprint

values shown in figure 3. Therefore, the selection of

data sources is performed according to the blueprint

of each different data source.

As previously mentioned, a dedicated blueprint is

developed to describe each data source storing data in

the Data Lake. Specifically, the blueprint of a source

consists of two interconnected blueprints as shown in

figure 3:

A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints

189

Figure 3: Data source blueprints description using 5Vs Big Data characteristics.

The first one is static and records the name and type

of the source, the type of data it produces, as well as

the value, velocity, variety, and veracity of the data

source. The second is dynamic as it changes values in

the course of time and essentially characterizes the

volume of data, the last source update, and the

keywords of the source. The dynamic blueprint is

updated every time data sources produce new data.

Figure 5 presents the ontology graph of the data

source created via Protégé, a free open-source

ontology editor and framework for building

knowledge-based solutions (http://protege.stanford.

edu). This graphical representation tool produces an

RDF ontology for the data sources.

RDF stands for Resource Description Framework

and is a framework for describing resources usually

on the Web. RDF is designed to be read and

understood by computers, is not designed for being

displayed to people, and is written in XML. RDF is a

part of the W3C’s Semantic Web Activity and is a

standard for data interchange that is used for

representing highly interconnected data. Each RDF

statement is a three-part structure consisting of

resources where every resource is identified by a URI.

Representing data in RDF allows information to be

easily identified, disambiguated and interconnected

by AI systems.

We use the Resource Description Framework to

describe a source’s stable and dynamic blueprint with

the combination of the theory of triples (subject,

predicate, object) (see figure 4). For example, let us

assume that we wish to store values in a Data Lake

produced by three candidate sources and that these

sources bear the following characteristics – attributes

according to the data source blueprints (see figure 3):

 Source 1

Stable Blueprint Attributes:

Name: Source 1

Variety-Type: Sensor

Variety-Type of data: Unstructured

Value: High

Velocity: 1sec

Veracity: Medium

Dynamic Blueprint Attributes:

Volume: KB

Last Update: 24/01/2022; 08:34

Keywords: # Products delivery

Figure 4: The basic semantic RDF triple model.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

190

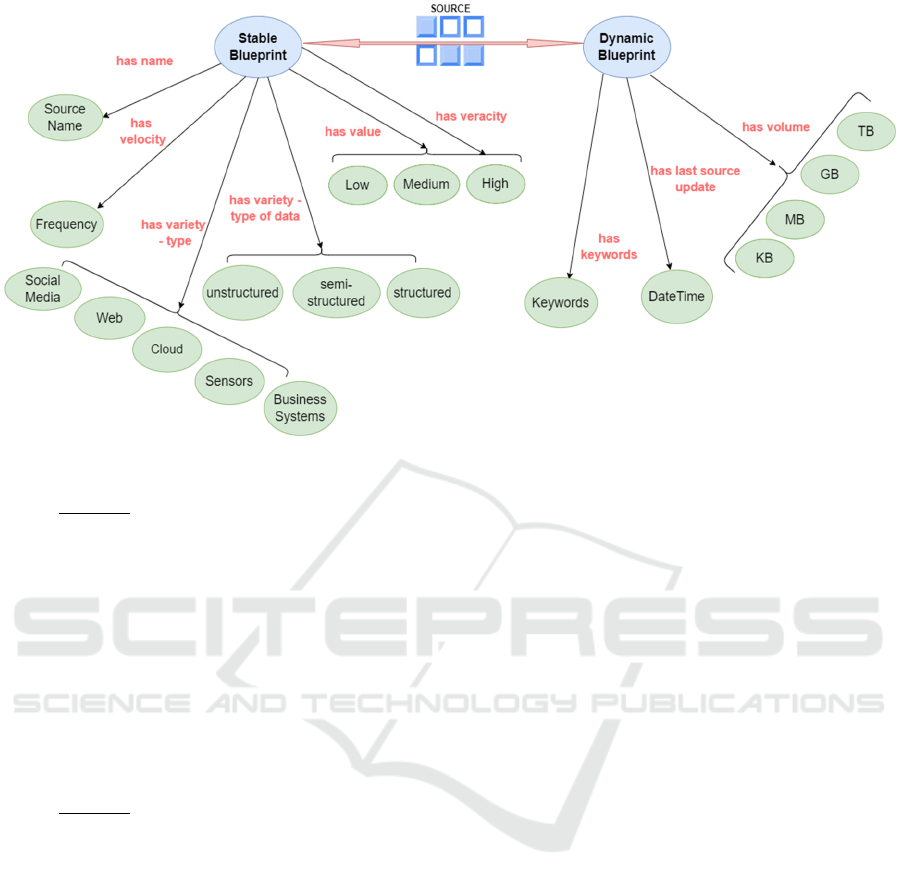

Figure 5: Stable and Dynamic data source blueprint ontology graph.

 Source 2

Stable Blueprint attributes:

Name: Source 2

Variety-Type: Business Systems

Variety-Type of data: structured

Value: High

Velocity: 1sec

Veracity: Medium

Dynamic Blueprint attributes:

Volume: KB

Last Update: 24/01/2022 08:34

Keywords: # Products delivery

 Source 3

Stable Blueprint attributes:

Name: Source 3

Variety-Type: Web

Variety-Type of data: unstructured

Value: High

Velocity: 12Hours

Veracity: High

Dynamic Blueprint attributes:

Volume: KB

Last Update: 24/01/2022 06:50

By using SPARQL (Protocol and Query Language),

or other methods, we may query all RDF resources

before being ingested into the Data Lake or after their

ingestion. This requires that each data source has its

description in RDF form as mentioned before, which

can be retrieved by a public API (RDF API) for the

sources to be queried. Figure 6 shows the RDF files

written in XML for Source 1 of the given example

based on the blueprint ontology description created.

The XML follows the same structure for every source

according to its characteristics.

Let us now assume that all three sources described

above will become members of our Data Lake.

Therefore, we must first build a specific part of the

Data Lake that consists of data sources with Value -

High, Veracity – Medium OR High, AND Keywords

- # Products delivery. A source selection middleware

is fed with these preferred rules (see figure 1) and

executes the following SPARQL query:

SELECT ? sources

WHERE {

? source <has value> High &&

<has veracity> Medium &&

<has keyword> #Products delivery

}

Once this selection process is completed, the RDF

created earlier becomes now part of the Data Lake

and contributes to the Data Lake’s metadata semantic

enrichment which is the cornerstone for addressing

the challenge of easy storing and efficient retrieval of

data. The result of the query consists of the stable and

dynamic blueprints of Source 1 and Source 2, which

satisfy the query parameters and thus will be added to

the Data Lake’s RDF schema.

A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints

191

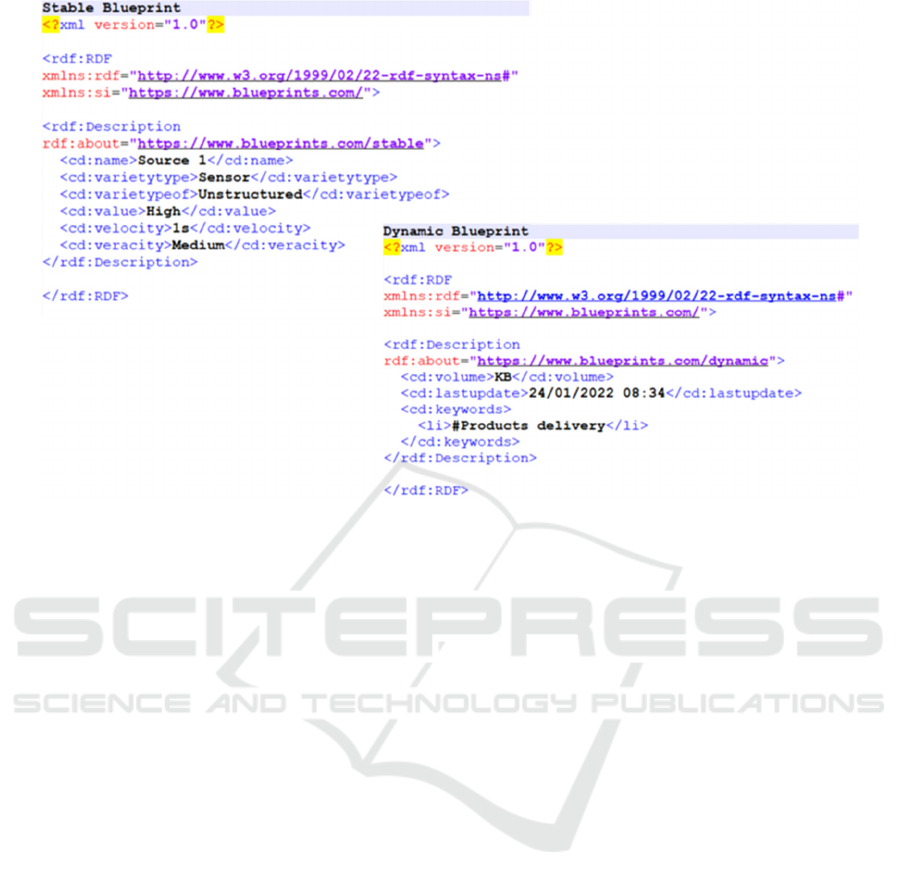

Figure 6: Stable and Dynamic Blueprint for Source 1.

The selected data sources are then distributed to

the specific Data Lake Pond for further processing

according to the corresponding attribute values.

Essentially, this process and the associated

characterization help to handle and manage multiple

and diverse types of data sources and to contribute to

the Data Lake’s metadata enrichment before and after

these sources become members.

When a data source becomes part of the Data

Lake, from that point forward the metadata schema is

utilized for filtering and retrieving data based on the

blueprints and their metadata. The latter involves

attributes such as the type of data produced by the

sources, the size of the data they produce, the speed

of production, the accuracy of the data, and the

importance of the source data, etc. Therefore, each

action for retrieving data from the Data Lake is

effectively guided by the information provided in the

metadata mechanism, that is, in the blueprints.

Especially in the case of the dynamic blueprint,

this portion of the metadata will dynamically be

updated each time new data is produced by the

sources, or when deemed necessary (e.g., when

changing the location of the associated pond).

To further demonstrate the applicability and the

value that the proposed metadata mechanism brings

to supporting the data actions in a Data Lake, and in

particular the retrieval of data, let us use once again

the example of the sources given earlier. As

previously mentioned, the selected data sources are

distributed to the specific Data Lake pond for further

processing according to the corresponding attribute

values. After the completion of the selection process,

the retrieval process is based on the metadata

semantic enrichment – RDF schema of the Data Lake

encoded in the blueprints. Let us now assume Source

1 is a member of the pond with structured data and

that Source 2 is also a member of the pond with

unstructured data. If we wish to retrieve all the

product delivery data from our Data Lake by a

middleware residing between the Data Lake and the

application layer of a system that uses the Data Lake,

then in the simplest case all that needs to be done is

to execute the following SPARQL query:

SELECT ? Dlsources

WHERE {

? source <has keyword> #Products

delivery

}

Essentially, this performs a classic retrieval action

from the Data Lake and the result is to push all the

data sources with the Product Delivery keyword to

the application layer. Therefore, the data retrieved are

larger in volume and the complexity to filter them

after retrieval is higher. If we utilize the metadata

information offered by the semantic enrichment

mechanism, then we can refine the type of

information sought in the Data Lake and get the

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

192

results we need focusing on specific values or

attributes. For example, using the attributes shown in

figure 5 it is feasible to execute more guided queries

such as:

SELECT ? DLsources

WHERE {

? source <has value> High &&

<has Variety-Type of data> Unstructured &&

<has keyword> #Product delivery

}

These guided queries can range from simple to

more sophisticated by utilizing the full spectrum of

the 5Vs data characteristics mentioned in figure 3.

Thus, they allow data scientists to derive more value

from their data and to define custom levels of

granularity and refined information in the data sought

as required. Essentially, this SPARQL query process

and the associated characterization support the

handling and management of multiple and diverse

types of data sources residing in a Data Lake in a

simple yet efficient way.

4 PRELIMINARY VALIDATION

Sawadogo et al. (2019) identified six main functional

characteristics that should ideally be provided by a

Data Lake metadata system:

 Semantic Enrichment (SE)

 Data Indexing (DI)

 Link generation and conservation (LG)

 Data Polymorphism (DP)

 Data Versioning (DV)

 Usage Tracking (UT)

Semantic Enrichment consists in generating a

description of the context of data (e.g., tags) using

knowledge bases such as ontologies. Semantic

Enrichment summarizes the datasets contained in the

lake to make it understandable and to identify data

links. For instance, data associated with the same tags

can be considered linked. Our mechanism meets this

characteristic since it utilizes both the dynamic and

the stable blueprint based on the basic RDF triple

model presented in figures 4 and 5. The second main

functionality identified by Sawadogo et al. (2019) is

Data Indexing which includes setting up a data

structure to retrieve datasets based on speciﬁc

keywords or patterns. This functionality provides

optimization of data querying in the Data Lake

through keywords ﬁltering. This characteristic is

offered in our metadata semantic enrichment

mechanism via the attribute Variety - type of data,

which is used to distribute data sources and data

ponds according to their structure and the keyword

attribute in the stable blueprint as presented in figure

3. Link generation and conservation is the process of

detecting similarity relationships or integrating pre-

existing links between datasets to identify data

clusters, data groups where data are strongly linked to

each other and signiﬁcantly diﬀerent from other data.

Our mechanism provides this functionality via the

keyword attributes in the dynamic blueprint which is

updated every time a new data source or new data that

is produced by a registered source are pushed to the

Data Lake. Data Polymorphism is defined as storing

multiple representations of the same data and Data

Versioning refers to the ability of the metadata system

to support data changes during the processing in the

Data Lake. These functional characteristics are

provided by our metadata semantic enrichment

mechanism via the process of storing the metadata

description - blueprint every time sources in the Data

Lake change or produce new data. When new data is

pushed into the Data Lake a new timestamped

representation of this data is created and stored in the

Data Lake along with the existing representations-

blueprints. During the data processing in the Data

Lake, the proposed mechanism updates the Dynamic

Blueprint, especially the keywords if deemed

necessary. Finally, the mechanism provides also the

last referred functionality Usage Tracking which is

the process of recording the interactions between

users and the Data Lake. Essentially, when data is

queried a timestamp accompanied by the user details

that executed the last query are recorded in the

Dynamic Blueprint.

Additionally, Sawadogo et al. (2019) provide a

synthetic comparison of 15 metadata systems. We

selected the two most completed systems examined in

that paper in terms of functionality, that is, CoreKG

(Beheshti et al., 2018) and MEDAL (Sawadogo et al.,

2019), with the aim to compare them with our

metadata data mechanism using a set of new

functional characteristics introduced in this paper.

These characteristics can add value to the synthetic

examination of the quality and efficiency of metadata

enrichment mechanisms for Data Lakes. The new

characteristics are:

 Granularity

 Ease of storing/retrieval

 Size and type of metadata



Expandability

A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints

193

We define Granularity as the ability to refine the

type of information that needs to be retrieved using

for example keywords. This ability is expressed by

the number of fine-grained levels the metadata

mechanism supports for defining the information

sought. Ease of storing/retrieval refers to the ability

of the metadata mechanism to store or retrieve data in

the Data Lake in a simple and easy way. It is assumed

here that the retrieval action is efficient enough to

return the desired parts of the information sought.

This characteristic is reflected on the number of steps

that need to be executed for the process of storing and

retrieving data items to be completed. The Size and

type of metadata refers to the volume and the kind of

metadata that are produced by the mechanism and

which are necessary for the efficient and accurate

retrieval of data. The larger the size and/or the higher

the complexity of the type of data needed the lower

the performance and suitability of the metadata

mechanism. Finally, we define Expandability as the

ability to expand the metadata mechanism with

further functional characteristics or other supporting

techniques and approaches, such as visual querying.

Obviously, the more open the mechanism for

expansion the better. These characteristics are

evaluated using a Likert Linguistic scale, including

the values Low, Medium, and High. Table 1 provides

a definition of Low, Medium and High for each

characteristic introduced.

Table 1: Definition of Low, Medium, and High of each

characteristic.

Characteristic Low Medium High

Granularity 1 level 2 levels

3 or more

levels

Ease of

storing/retrieval

5 or more

actions

3-4

actions

2 actions

maximum

Size of metadata KB MB GB

Expandability

No or

limited

Normal Unlimited

As previously mentioned, we used the suggested

characteristics to provide a short comparison between

our metadata enrichment mechanism and the two top

existing metadata mechanisms suggested by

Sawadogo et al. (2019), that is, MEDAL and

CoreKG.

MEDAL adopts a graph-based organization

based on the notion of object and a typology of

metadata in three categories: intra-object, inter-

object, and global metadata. A hypernode represents

an object containing nodes that correspond to the

versions and representations of an object. MEDAL is

modeled also by oriented edges which link the nodes

providing transformation and update operations.

Hypernodes of the mechanism can be linked in

several ways, such as edges to model similarity links

and hyperarcs to translate parenthood relationships

and object groupings. Finally, global resources are

present in the form of knowledge bases, indexes, or

event logs. This concept and operation of the

framework provide SE, DI, LG, DP, DV, and UT. As

a result, MEDAL can be characterized with High

Granularity, Medium Ease of storing/retrieval using

indexes and event logs, Medium Size and type of

metadata, and an undefined Expandability since no

reference is made on how it can be evolved in the

future.

CoreKG is an open-source complete Data and

Knowledge Lake Service which offers researchers

and developers a single REST API to organize,

curate, index and query their data and metadata over

time. At the Data Lake layer, CoreKG powers

multiple relational and NoSQL database-as-a-service

for developing data-driven Web applications. This

enables the creation of relational and/or NoSQL

datasets within the Data Lake, create, read, update,

and delete entities in those datasets, and apply

federated search on top of various islands of data. It

also provides a built-in design to enable top database

security threats (Authentication, Access Control and

Data Encryption), along with Tracing and Provenance

support. On top of the Data Lake layer, CoreKG

curates the raw data in the Data Lake and prepares

them for analytics. This layer includes functions such

as extraction, summarization, enrichment, linking and

classification. Another part of the mechanism is the

Notion of Knowledge Lake, a centralized repository

containing virtually inexhaustible amounts of both

raw data and contextualized data as a result to

providing the foundation for Big Data analytics by

automatically curating the raw data in data islands so

as to provide insights from the vastly growing

amounts of local, external and open data. This open-

source service provides SE, DI, LG, DP, and UT.

Based on the proposed properties scheme, CoreKG

can be evaluated to have High Granularity, Medium

Ease of storing/retrieval using the single API, with

Medium Size and type of metadata, and High

Expandability due to the use of the Hadoop

ecosystem.

As described in section 4, the proposed metadata

enrichment mechanism provides DI, LG, DP, DV and

UT. Furthermore, our mechanism presents High

Granularity, High Ease of storing/retrieval using the

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

194

stable and dynamic data source blueprint

descriptions, with a Medium Size and type of

metadata, and High Expandability. These values are

attributed as follows:

High Granularity is achieved by the use of keywords

that describe the sources and the blueprint values.

This enables the user to define details at the level of

the properties offered by these keywords and the type

of blueprint characteristics for which values are kept.

This list of features may be considered quite rich to

enable the retrieval of data based on fine-grained

query-like information. The High Ease of

storing/retrieval is achieved by the blueprint

description of the Data Lake as each time data sources

are pushed to the Data Lake a variety of types of data

attributes is produced, which helps the mechanism

place the sources to a specific pond according to the

structure of the data involved (structured, semi-

structured and unstructured). This source distribution

in the Data Lake facilitates simple and easy storing

and retrieval of the information stored. Our

framework is characterized by a low number of

actions to: (1) Select and query data sources

according to their stable and dynamic blueprint; (2)

Push data in specific Data Lake Ponds. The Size and

type of metadata produced by the mechanism has the

maximum value of High due to the creation of the

metadata description of the Data Lake every time new

sources or data are pushed to the Data Lake and the

DV characteristic that our blueprint provides by using

the 5Vs Big Data characteristics. This may be

considered a small overhead as it introduces a

considerable number of metadata features, but their

complexity is very low and their interpretation

according to the 5Vs quite straightforward. Finally,

our Data Lake implementation is based on the

Hadoop ecosystem and hence this provides High

Expandability. It should be noted here that

expandability of the proposed mechanism can be

traced in two aspects: (i) By using this simple

semantic enrichment and blueprint ontologies we can

easily apply visual querying during the source

selection or data extraction; (ii) We may improve

Data Lakes’ privacy, security, and data governance,

and, therefore, address some of the main challenges

met with Data Lakes, by storing the descriptive

metadata information to the blockchain. This enables

storing of encrypted metadata information and may

guarantee immutability of the metadata. Both aspects

are currently under development as proof of concept,

with very encouraging preliminary results thus far.

Table 2 sums up all the information of the short

comparison between the three mechanisms made in

this section. It is clear that the proposed mechanism

seems to perform at least equally well, while in some

characteristics it seems to prevail, such as Ease of

storing/retrieval and Expandability.

Table 2: Evaluation and comparison of the mechanisms.

Characteristic MEDAL CoreKG

Proposed

approach

Granularity High High High

Ease of

storing/retrieval

Medium Medium High

Size of metadata Medium Medium Medium

Expandability Undefined High High

5 CONCLUSIONS AND FUTURE

WORK

This paper proposed a novel framework for

standardizing the processes of storing/retrieving data

generated by heterogeneous sources to/from a Data

Lake organized with ponds architecture. The

framework is based on a metadata semantic

enrichment mechanism which uses the notion of

blueprints to produce and organize meta-information

related to each source that produces data to be hosted

in a Data Lake. In this context, each data source is

described via two types of blueprints which

essentially utilize the 5Vs Big Data characteristics

Volume, Velocity, Variety, Veracity and Value: The

first includes information that is stable over time,

such as, the name of the source and its velocity of data

production. The second involves descriptors that vary

as data is produced by the source in the course of time,

such as the volume and date/time of production.

Every time data sources or data are pushed in

and out of the Data Lake, the stable and dynamic

blueprints are updated thus keeping a sort of history

of these transactions. Essentially the description of

the sources helps to treat and manage many, multiple,

and different types of data sources and to contribute

to Data Lakes’ metadata enrichment before and after

these sources become members of a Data Lake. When

a data source becomes part of the Data Lake the

metadata schema is utilized, describing the whole

Data Lake ontology. The filtering and retrieval of data

is based on this metadata mechanism which involves

attributes from the 5Vs, attributes such as last source

updates and keywords.

A Data Lake Metadata Enrichment Mechanism via Semantic Blueprints

195

A short comparison to other existing metadata

systems revealed the high potential of our approach

as it offers a more complete characterization of the

data sources and covers a set of key features reported

in literature and expanded in this work. Furthermore,

it provides the means to perform efficient and fast

retrieval of the required information.

Future research steps will include the full

implementation of the proposed mechanism using our

metadata model in the context of structured, semi-

structured and unstructured data. This will allow us to

evaluate our framework in more detail, and in

particular to compare it further against other existing

systems via the use of certain performance metrics.

This, in turn, will allow us to focus on and improve

privacy, security, and data governance in Data Lakes

by using the blockchain technology and smart

contracts.

ACKNOWLEDGEMENTS

This paper is part of the outcomes of the CSA

Twinning project DESTINI. This project has received

funding from the European Union’s Horizon 2020

research and innovation programme under grant

agreement No 945357.

REFERENCES

Chen, Min, Shiwen Mao, & Yunhao Liu. (2014). “Big Data:

A Survey.” Mobile Networks and Applications 19(2):

171–209.

Bertino, Elisa. (2013). “Big Data - Opportunities and

Challenges: Panel Position Paper.” Proceedings –

International Computer Software and Applications

Conference: 479–80.

Günther, Wendy Arianne, Mohammad H. Rezazade

Mehrizi, Marleen Huysman, & Frans Feldberg. (2017).

“Debating Big Data: A Literature Review on Realizing

Value from Big Data.” Journal of Strategic Information

Systems 26(3): 191–209.

Blazquez, Desamparados, & Josep Domenech. (2018). “Big

Data Sources and Methods for Social and Economic

Analyses.” Technological Forecasting and Social

Change 130 (March 2017): 99–113.

https://doi.org/10.1016/j.techfore.2017.07.027.

Fang, Huang. (2015). “Managing Data Lakes in Big Data

Era: What’s a Data Lake and Why Has It Became

Popular in Data Management Ecosystem.” 2015 IEEE

International Conference on Cyber Technology in

Automation, Control and Intelligent Systems, IEEE-

CYBER 2015: 820–24.

Khine, Pwint Phyu, & Zhao Shun Wang. (2018). “Data

Lake: A New Ideology in Big Data Era.” ITM Web of

Conferences 17: 03025.

Miloslavskaya, Natalia, & Alexander Tolstoy. (2016). “Big

Data, Fast Data and Data Lake Concepts.” Procedia

Computer Science 88: 300–305.

http://dx.doi.org/10.1016/j.procs.2016.07.439.

Bell, David, Mark Lycett, Alaa Marshan, & Asmat

Monaghan. (2021). “Exploring Future Challenges for

Big Data in the Humanitarian Domain.” Journal of

Business Research 131(August 2019): 453–68.

https://doi.org/10.1016/j.jbusres.2020.09.035.

Kościelniak, H. & Puto, A. (2015). BIG DATA in decision

making processes of enterprises. Procedia Computer

Science, 65, pp.1052-1058.

Gandomi, Amir, & Murtaza Haider. (2015). “Beyond the

Hype: Big Data Concepts, Methods, and Analytics.”

International Journal of Information Management

35(2): 137–44. http://dx.doi.org/10.1016/j.ijinfomgt.

2014.10.007.

Luckow, Andre et al. (2015). “Automotive Big Data:

Applications, Workloads and Infrastructures.”

Proceedings - 2015 IEEE International Conference on

Big Data, IEEE Big Data 2015: 1201–10.

Herschel, R. & Miori, V.M., (2017). Ethics & big data.

Technology in Society, 49, pp.31-36.

Kim, Y., You, E., Kang, M. & Choi, J., (2012). Does Big

Data Matter to Value Creation?: Based on Oracle

Solution Case. Journal of Information Technology

Services, 11(3), pp.39-48.

Sethi, Pallavi, & Smruti R. Sarangi. (2017). “Internet of

Things: Architectures, Protocols, and Applications.”

Journal of Electrical and Computer Engineering 2017.

Papazoglou, Michael P., & Amal Elgammal. (2018). “The

Manufacturing Blueprint Environment: Bringing

Intelligence into Manufacturing.” 2017 International

Conference on Engineering, Technology and

Innovation: Engineering, Technology and Innovation

Management Beyond 2020: New Challenges, New

Approaches, ICE/ITMC 2017 - Proceedings 2018-

Janua: 750–59.

Sawadogo, Pegdwendé, & Jérôme Darmont.. (2021). “On

Data Lake Architectures and Metadata Management.”

Journal of Intelligent Information Systems 56(1): 97–

120.

Sawadogo, P. N., Scholly, É., Favre, C., Ferey, É.,

Loudcher, S., & Darmont, J. (2019). Metadata Systems

for Data Lakes: Models and Features. Communications

in Computer and Information Science, 1064, 440–451.

https://doi.org/10.1007/978-3-030-30278-8_43

Beheshti, A., Benatallah, B., Nouri, R. & Tabebordbar, A.,

(2018). CoreKG: a knowledge lake service.

Proceedings of the VLDB Endowment, 11(12),

pp.1942-1945.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

196
