Integration of the Autonomous Open Data Prediction Framework in

ERP Systems

Janis Peksa

and Janis Grabis

Institute of Information Technology, Faculty of Computer Science and Information Technology,

Riga Technical University, Kalku street 1, LV-1658, Riga, Latvia

Keywords: ERP Systems, Prediction Framework, AODPF.

Abstract: Enterprise resource planning (ERP) systems are large modular enterprise applications that are designed to

execute the majority of enterprise business processes with a focus on transaction processing. Business

processes, on the other hand, frequently necessitate complex decision-making. If data processing logic

requires complex analytical calculations and domain specific knowledge, is is considered as complex. To

externalize the analytical calculations and decouple them from the core ERP system, this paper elaborates

an integration framework fererred as to Autonomous Open Data Prediction Framework (AODPF). The

AODPF provides advanced prediction capabilities to ERP systems. It uses data integration and processing

as well as best model selection functions to generate predictions passed to the ERP system for decision-

making purposes. The framework is experimentally evaluated by prediction road conditions for the case of

winter road maintenance. The utility of the framework is evaluated in the expert survey.

https://orcid.org/0000-0003-4125-494X

https://orcid.org/0000-0003-2196-0214

1 INTRODUCTION

Enterprise resource planning (ERP) systems are

large modular enterprise applications designed for

most enterprise business processes. They are mainly

focused on transaction processing. However, many

modules have complex decision-making logic

(Holsapple et al., 2005). Data processing logic is

considered a complex decision-making logic if it

relies on analytical or management models to

determine business process execution and often it

requires domain specific knowledge. Forecasting is

used to improve the performance of business

processes. Forecasting is how the future can be

predicted based on past data, often through trend

analysis (Weigend, 2018). It is a case when an

enterprise desires an excessive demand to make

more profit and effectively run enterprise processes

(Brigham and Houston, 2021). ERP systems have

limited forecasting capabilities often hard-coded as a

part of the overall business logics (Chase et al.,

2018). Businesses undertake significant efforts to

modify existing methods to meet their requirements

(Aslan et al., 2012). Some ERP systems do not have

sufficient forecasting functionality justifying the

need for integration of forecasting algorithms into

ERP systems (Fildes and Goodwin, 2021).

Formally, forecasting in relation to ERP systems

is defined as follows. It is part of the business

process executed in the ERP system and expressed

as P. Data available in the ERP system are described

as D. The forecasting model is reffered as to M,

ultimately leading to the expression PERP, which

describes built-in ERP forecasting capabilities.

PERP = <P, D, M> (1)

There are some drawbacks to this PERP process;

one of the main disadvantages is that it is

concentrated inside the ERP systems inward.

Therefore, when defining the problem statement,

attention should also be paid to the alternative,

which is forecasting in the data warehouse, denoted

as PDW, where P' maintains the link transferred

from the ERP systems. Data from the ERP systems

are characterised as D1, and data from the outside –

as D2. Also, the prediction models can be expressed

as M. The expression PDW obtained in the end is

provided below.

Peksa, J. and Grabis, J.

Integration of the Autonomous Open Data Prediction Framework in ERP Systems.

DOI: 10.5220/0011081300003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 1, pages 251-258

ISBN: 978-989-758-569-2; ISSN: 2184-4992

251

PDW = <P', D1, D2, M> (2)

There is a problem in this process due to the

statistical nature of PDW process. Therefore, it is

linked to the data warehouse schema. The solution

installed and addressed is called integrated

forecasting, which can be expressed as IP combining

a process that is a process of the ERP systems

described as P1 and P2 as a process that occurs in

nature or actual events. For this PDW process, data

from the ERP systems as D1 and data D3 are

available from various sensors or outside the ERP

systems. Unlike D2, D3 above is not tied to a data

warehousing scheme. At the end of the IP, there is

also a model M', in which a more comprehensive

range of models can be assembled than the previous

model M.

IP = <P1, P2, D1, D3, M'> (3)

The problem being solved is mapping P2 to P1

by attaching data. For example, road maintenance in

the ERP systems P1 is the road maintenance

process; D1 is information about roads in the ERP

systems limited by a specific road section length. P2

is the actual events on the road (e.g., increased flow,

accidents, road surface icing), and D3 is sensor data

whose main problem is unevenly distributed (e.g.,

there is no sensor in one location). D1 and D2 are

the data that are evenly distributed in the ERP

systems, whereas D3 refers to the data that are

unevenly distributed. The problem is how to make

the IP process attract D3 by mapping to obtain

forecasts for all D. Another example is customer

demand forecasting. The ERP systems have a list of

customers who need to forecast PERP. At the same

time, there is an IP process when customer

information is variable and wildly different; each

customer needs a prediction. The IP can be used to

map the data so that it is possible to make the

appropriate forecast for each customer. This

definition explains what is needed in research and

how it goes from data to ERP system integration in

order to improve business values.

Business objectives lead to the need for a

prediction framework called Autonomous Open

Data Prediction Framework (AODPF). The AODPF

is to carry out forecasting with open data from

different sources and establish itself as an

autonomous system to tackle the IP challenge. The

AODPF can automatically collect algorithms and

deliver results to ERP systems. Some of the essential

technical advantages are incorporating various data

sources into one process and the prospect of

connecting the findings to ERP systems. Under

different conditions, managers may configure and

update these data sources to enhance decision-

making. The implementation of the AODPF

framework is published on GitHub (Peksa, 2021).

The application of the framework is

demonstrated using a winter road maintenance case.

The ERP is used by the maintenance company to

plan and monitor the work, while the AODPF

predicts road conditions as an input to the planning

business process. Application results will reduce the

potential for future road accidents during the winter

months when ice forms on the road surface. Also,

multiple data layers can be combined to produce

more accurate forecasts using the AODPF as a

standard solution from the knowledge gained.

The main goal is to reflect the results achieved

using the AODPF and highlight the experts’

opinions on the AODPF.

The rest of the paper is organised as follows:

Section II discusses the AODPF framework;

Section III provides a comparison of the AODPF

results, and Section IV draws up conclusions.

2 AUTONOMOUS OPEN DATA

PREDICTION FRAMEWORK

The AODPF framework has be proposed in the

previous work (Pekša and Grabis, 2018). This

section briefly recaps the framework.

The requirements towards the framework are

motivated by the winter road maintenance case.

Road maintenance activities are complex and

unique, from road surface laying to day-to-day

maintenance. Forecasting enables proactive

maintenance activities for technical advice on the

necessary maintenance activities. During winter

only, the anti-slip maintenance includes anti-slip

materials at different times and locations on the road

surface. Anti-slip management uses quantitative data

from several sources (Diène et al., 2020), including

open data sources, and decision-making outcomes

are substantially dependent on the quality of data

(Ghasemaghaei, 2019). The higher the velocity, the

greater the probability of potential accidents under

driving conditions when the speed of traffic is high

(Parsa et al., 2020).

The AODPF provides advanced forecasting

functionality to ERP systems. It is assumed that

users perform business processes using an ERP

system (see Fig. 1). The business processes require

predictions. These predictions would be made using

the internal data if only the ERP system is used.

However, the forecasting functionality is allocated to

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

252

the AODPF framework. The framework integrated

the ERP data with external data coming from

various sources, including open data sources. It also

maintains a library of models that includes data

processing methods (i.e., missing data handling) and

various forecasting models. The models from the

library are combined together and evaluated using

the Autonomous Best Model Selection (ABMS)

algorithm. The algorithm employs a search

procedure to identify the most suitable data pre-

processing and forecasting methods for the given

data set. It is executed on-demand in a container

cluster to handle potentially large volume of

computations.

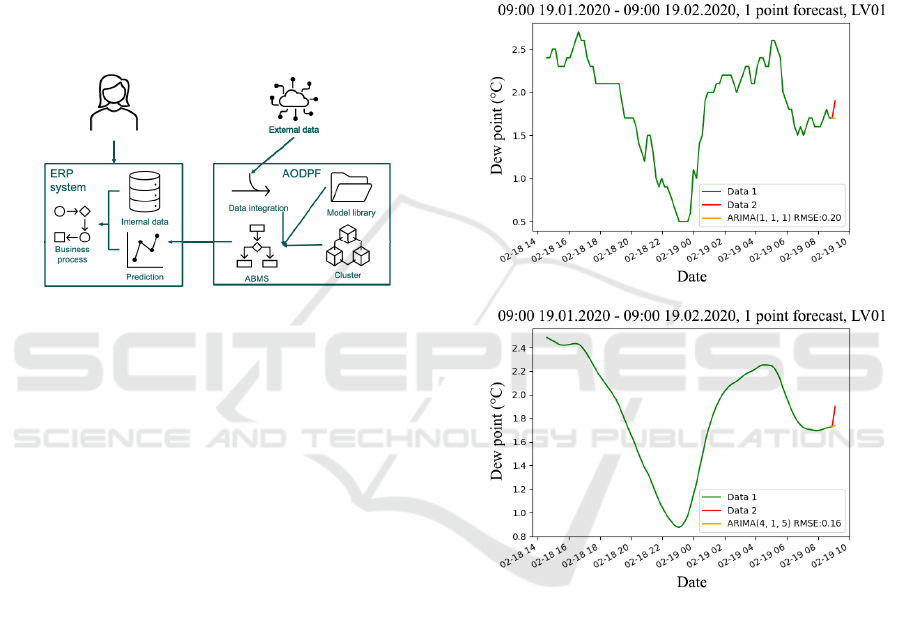

Figure 1: Interaction between ERP system and the

AODPF.

Once the best forecasting model is identified, it

is used to make predications, which are passed to the

ERP system. During the business process execution,

the AODPF continuously monitors prediction

accuracy and re-evaluates the model and decides to

update the selection, if necessary.

3 PREDICTION RESULTS

Road maintenance data from previous publications

are used, and these data ares available on the GitHub

website by searching for the author’s name and

surname. The algorithm takes all the data points for

a specific metrological station, mostly around 4000

data points. Then, dividing the data through

subtracting 200 data points from the total number it

makes a prediction and continues until it finds the

appropriate data points for a particular data source.

A forecast is made when a specific number is found,

and 10 points are predicted and compared to obtain

an RMSE value. As mentioned above, the ARIMA

consists of AR, MA models, and ARMA, which

combines and lends the ARIMA model.

Each data source has a dew point, temperature

measurement from meteorological stations in the

territory of the Republic of Latvia from 19 January

2020 to 19 February 2020, one month apart.

Metrological stations located on the road can capture

the surrounding environment, and one of them is the

dew point, which allows predicting the possible

icing of the road surface. The following figures

show the calculation of the best method (see Fig. 2).

Using the AODPF, each metrological station can be

called, and results are obtained with and without the

Kalman filter. A more repeatable AODPF shows the

results.

Figure 2: LV02 results of compensation methods w/o the

Kalman filter on the top and with the Kalman filter at the

bottom of the figure.

Each figure has the station name cypher starting

with the two capital letters LV, followed by numbers

consisting of 01–54. Thus, 30 metrological station

data are without missing data. The remaining half

has missing data from a few missing data points

because within a few months no data points were

available. For explanation purposes: 100 data points

are displayed in each image, of which ten are

predicted. The forecast is a dew point; 10 points are

predicted because about 4–6 data points are

available in one hour. Predicting 10 points provides

a forecast for the next two hours. In further

predictions, the result is closer to the average value.

Integration of the Autonomous Open Data Prediction Framework in ERP Systems

253

The business value is the obtained framework that

will forecast temperature fluctuations observed in

the next hour. As previous results have emphasised,

the framework is adaptable, which means that it is

also possible to indicate how much ahead can be

predicted. The AODPF has demonstrated an

excellent ability to make automated prediction

model choices and shows how many data points

need to be selected to make valuable predictions.

One automated approach takes and gradually

reduces the total number of data points until the

optimal number of data points is obtained. When this

happens, the number of data points is indicated, a

forecast is made starting from a specific data point,

and an automated forecast is made. As the forecasts

to be made are already known from the data, the

AODPF demonstrates the ability to perform the

calculation and adjustment algorithm using

standardised forecasting methods such as AR, MA,

ARMA, and ARIMA.

The main advantage of using the Kalman filter

can also be compared (see Fig. 2). The green lines

(Fig. 2) indicate the original data used to make the

predictions. However, the actual data with which the

forecasts are compared are already highlighted in

red. Blue colour shows the ARIMA model, the light

blue colour – the ARMA model, the black colour

refers to the AR model, while the purple colour

denotes the MA model. Parameters that are not

needed for the respective models are replaced with

0. It mainly refers to the AR and MA models. If the

model is not shown in the figure, it will not be

possible to create it; unfortunately, it happens. At the

bottom, 100 data points are shown so that it is

possible to see the predictions. The most critical

result of RMSE using each method is also

highlighted.

The final results are demonstrated in Fig. 2,

which highlights all the factors of the experiment.

There are seven different experiment situations in

the experiment plan.

First, all metrological stations with no missing

data are used in experiment scenario #1. The

ARIMA forecasting method is employed by 30 out

of 54 meteorological stations in Latvia, and the

Kalman filter is not used; the number of

observations varies depending on the meteorological

station, which averages five observations every 11

minutes. One, five, and 10 data points are forecast

using five distinct forecasting beginning points at

6:00, 9:00, 12:00, 18:00, and 21:00 in one, five, and

ten-step forecasts. The first situation is the one, in

which the AODPF framework is not used.

Second, all meteorological stations with missing

data are used in experiment scenario #2. The

ARIMA forecasting method is employed by 30 out

of 54 meteorological stations in Latvia, and the

Kalman filter is not used; the number of

observations varies depending on the meteorological

station, which averages five observations every 11

minutes. One, five, and 10 data points are forecast

using five distinct forecasting beginning points at

6:00, 9:00, 12:00, 18:00, and 21:00 in one, five, and

ten-step forecasts. Scenario #2 is an experiment with

the AODPF framework.

Third, applying the ARIMA forecasting

technique and the Kalman filter, experiment scenario

#3 is carried out using all meteorological stations

that do not have missing data, accounting for 30 out

of 54 meteorological stations in Latvia. One, five,

and 10 data points are forecast using five distinct

forecasting beginning points at 6:00, 9:00, 12:00,

18:00, and 21:00 in one, five, and ten-step forecasts.

Fourth, experiment scenario #4 uses all 54

meteorological stations, employing the missing data

filling methods for 20 meteorological stations. The

ARIMA forecasting method is utilised rather than

the Kalman filter. One, five, and 10 data points are

forecast using five distinct forecasting beginning

points at 6:00, 9:00, 12:00, 18:00, and 21:00 in one,

five, and ten-step forecasts.

Fifth, experiment scenario #5 is carried out

utilising the missing data filling methods for 20

meteorological stations, totalling 54 meteorological

stations. Again, the Kalman filter and the ARIMA

prediction algorithm are used. One, five, and 10 data

points are forecast with five distinct forecasting

beginning points at 6:00, 9:00, 12:00, 18:00, and

21:00 in one, five, and ten-step forecast.

Sixth, experiment scenario #6 is carried out using

the missing data filling methods for 20

meteorological stations, totalling 54 meteorological

stations. The ARIMA forecasting method is utilised

rather than the Kalman filter. A new data source has

been added to the Latvian Environment, Geology

and Meteorology Centre (LVGMC) dataset,

consisting of 25 additional meteorological stations in

the city’s central area. One, five, and ten data points

are forecast with five different forecasting starting

points at 6:00, 9:00, 12:00, 18:00, and 21:00 in one,

five, and ten-step forecast.

Finally, last experiment scenario #7 is performed

with all meteorological stations, making up 54

meteorological stations, using the missing data

filling methods for 20 meteorological stations. The

ARIMA prediction method and the Kalman filter are

used. Moreover, an additional data source, LVGMC

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

254

with 25 metrological stations, is added. The period is

from 19 January 2020 to 19 February 2021 – twelve

whole months, which make up one calendar year;

one, five and ten data points are forecast with five

different forecasting starting points at 6:00, 9:00,

12:00, 18:00 and 21:00 in one, five, and ten-step

forecast.

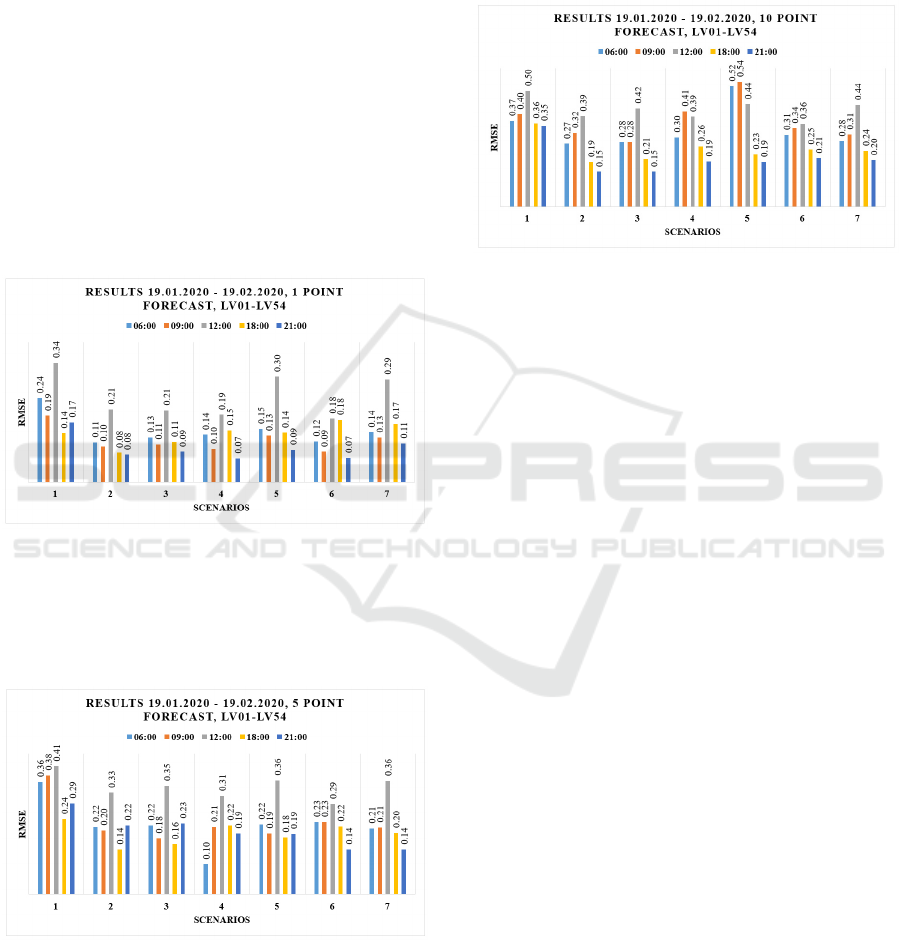

The results are shown below (see Figs. 3–5). The

results are presented in such a way as to be able to

compare scenarios #1 to #7. The number 1 to 7

indicates the sequence number of the scenario. The

Y-axis indicates the RMSE, which shows the inter-

comparison between the different scenarios. Note

that all scenarios #2 to #7 are not possible if there

are missing data. This is because the AODPF uses

the missing data filling method to perform the

experiments. In contrast, scenario #1 does not use

meteorological stations with missing data.

Figure 3: Results for 1 point forecast, LV01-LV54,

19.01.20–19.02.20.

The most accurate forecasts are at 06:00, 09:00,

18:00 and 21:00. However, the most inaccurate

prediction results are at 12:00.

Figure 4: Results for 5 point forecast, LV01-LV54,

19.01.20–19.02.20.

It should be noted that the projections are made

at a fixed time with fixed data. Also, it should be

borne in mind that a one-hour interval consists of 5

points. There are 11 minutes between points, and

when the next point is forecast, 11 minutes are

forecast in the future. Therefore, the further in time

the projections are made, the more inaccurate the

result. For example, forecasting 10 points ahead

gives a forecast almost 2 hours ahead, which in

some places remains highly inaccurate.

Figure 5: Results for 10 point forecast, LV01-LV54,

19.01.20–19.02.20.

The decision-maker who manages and

understands the data has to adjust the forecasting

step so that the result achieved satisfies the business

value in a way that facilitates its achievement. The

key advantage of the AODPF that can be exploited

is using a standard form of integration to achieve

business value in a fast and efficient way. Both open

and business data are not freely available when

combining different data sources, different

forecasting methods, and making their comparison.

A knowledge base of automated algorithms that

feeds the previous results is also obtained. There is a

significant integration with ERP systems, where an

API approach is used, and the AODPF framework

can be placed as a container and reused to run

different amounts of predictive computing in

parallel. In the next section, the AODPF is put at the

disposal of the Panel to determine the experts’ views

on the AODPF.

4 EXPERT EVALUATION

The formation of an expert group should be

understood in terms of its expertise and knowledge

in a given area. In this case, the focus is on experts

related to forecasting, time series, weather

forecasting and road condition forecasting. Using

well-known scientific portals, 64 experts are

approached, of which 21 experts are matched in

terms of focus and experience in selecting the expert

group, of which five experts participate in the

practical evaluation of the expert group. Each expert

Integration of the Autonomous Open Data Prediction Framework in ERP Systems

255

has fulfilled the requirement for expert vetting, as

the minimum number of experts involved in an

evaluation question should start from two, and

experts should have at least two years of experience

in the relevant field.

The experts are required to consult the authors’

publications and the developed AODPF framework,

which is available individually to each expert with

their username and password (see Fig. 6).

Figure 6: AODPF graphical user interface.

The AODPF GUI allows experts to configure the

required parameters with visual pre-parameter input

and then visual display of the results. When working

with the AODPF and evaluating it in practice,

experts are asked to answer the following questions

on a scale from 1 (strongly disagree) to 5 (strongly

agree) (see Table 1).

Table 1: Panel Questions.

No. Questions

1. Are additional data sources used for the

AODPF?

2. Are different forecasting models used in the

AODPF?

3. Repeating the experiment with the

meteorological station “LV52” on 25.12.2020

at 16:00 using the ARIMA method to predict

10 points ahead, can it be established that the

dew points dropped rapidly and road icing

have formed?

4. Can using an additional Kalman filter give

better results with the AODPF?

5. Does the AODPF knowledge base reduce the

recurrence of forecasting results?

6. Can the meteorological station “LV06”, which

is missing data for the period of 19.01.2020–

19.02.2020, be assessed for performance

improvement compared to other nearby

meteorological stations?

7. Does the use of different data sources in the

AODPF improve forecasting accuracy?

Question 8 is also asked in an accessible format

as possible suggestions, comments from the experts.

The information from the experts is summarised

below (see Table 2).

Table 2: Expert Information.

Expert Category Years of

experience

Expertise

Expert 1 Academic 5–10 Forecasting

scientist

Expert 2 Industry 3–5 Weather

forecasting

Expert 3 Academic 10+ Forecasting

scientist

Expert 4 Industry 6–10 Weather

forecasting

Expert 5 Academic 6–10 Forecasting

scientist

The process used to work with experts:

 An expert was trained to read the authors’

publications and have a good understanding of

the processes within the AODPF framework and

its deliverables;

 Videos with tutorials and examples were

produced to highlight how to work with the

AODPF framework;

 The AODPF framework was produced as an

online web-based framework with an individual

username and password where each expert

could access and work with the AODPF

framework;

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

256

 After reading the AODPF framework, the

expert was asked to answer a series of questions

shown above (see Table 2);

 The last stage was to summarise the results and

conclude the findings.

The expert has a vital role in ensuring that each

of the options in the AODPF framework is

appropriate for the task and the outcome to be

achieved. Furthermore, one of the key factors is

whether there is a possibility to reuse, and the

AODPF framework is helpful for both academia and

industry. The mean or median approach will be used

to calculate the assessment unit from expert

judgement. The median approach is proposed as one

of the methods to measure the ratings given by the

experts. The median is about the centre of the data

set. Since the number of experts involved in the

work is 5, which is an odd number, the average of

the scores in consecutive order will be the median.

The item analysis is shown below (see Table 3)

based on the experts’ scores.

Table 3: Item Analysis Based on Expert Assessments.

Expert ratings on a scale of 1–5, where 1 – strongly

disagree and 5 – strongly agree

Questions

Expert 1

Expert 2

Expert 3

Expert 4

Expert 5

Median

1. 3 4 4 5 4 4

2. 3 5 4 2 3 3.4

3. 4 5 3 4 4 4

4. 3 4 4 4 3 3.6

5. 4 3 4 3 4 3.6

6. 3 5 4 4 3 3.8

7. 4 3 4 4 2 3.4

After a practical evaluation of the expert group

attended by 21 experts, corresponding to the 64

experts approached, a group of 5 experts was finally

formed. The expert group unanimously underlined

that the AODPF framework was workable, and its

use helped facilitate the integration of the results

into the URP framework. The Cronbach’s alpha

value demonstrates that the experts were unanimous

in their answers to the questions. The AODPF

framework is practically reliable, as the value is

higher than 0.85, and the results are considered

significant according to Cronbach’s alpha value. The

experts successfully used the mathematical

optimization model for the road maintenance case

and extracted the results via API to implement the

URP framework.

5 CONCLUSIONS

The AODPF framework has only just started to

reach its potential and can be applied in a variety of

projects. With the automated process and the

possibilities provided by AODPF, the ability to

combine multiple data sources is a step to already

start using more than two data layers. The final

results of AODPF indicate that using two layers can

give better results than not using them. Also, the

AODPF missing data method can be used to make

predictions with data for which it was previously not

possible to make predictions, and additional data

manipulation was necessary. The experiments have

been successfully mirrored, and the experts have

identified that the AODPF is suitable for integration

with ERP systems. It is able to facilitate the process

in order to make the integration run smoothly with

the possibility to configure what is needed to

increase business value.

The objective has been achieved, and the results

reflected. However, much work is still needed to

implement the AODPF in international projects as a

dependent building block that improves the system

in a given problem area scenario.

ACKNOWLEDGEMENT

The research has been supported by the European

Social Fund within project No 8.2.2.0/20/I/008

“Strengthening of PhD Students and Academic

Personnel of Riga Technical University and BA

School of Business and Finance in the Strategic

Fields of Specialization” of the Specific Objective

8.2.2 “To Strengthen Academic Staff of Higher

Education Institutions in Strategic Specialization

Areas” of the Operational Programme “Growth and

Employment”.

This publication has been supported by the Doctoral

grant programme of Riga Technical University.

REFERENCES

Aslan, B., Stevenson, M. and Hendry, L.C., 2012.

Enterprise resource planning systems: An assessment

of applicability to make-to-order companies. In

Computers in Industry, Vol. 63, No. 7, 692-705.

Brigham, E.F. and Houston, J.F., 2021. Fundamentals of

financial management. In Cengage Learning.

Chase, R.B., Shankar, R. and Jacobs, F.R., 2018.

Operations and Supply Chain Management, 15e (SIE).

McGraw-Hill Education.

Integration of the Autonomous Open Data Prediction Framework in ERP Systems

257

Diène, B., Rodrigues, J.J., Diallo, O., Ndoye, E.H.M. and

Korotaev, V.V., 2020. Data management techniques

for Internet of Things. In Mechanical Systems and

Signal Processing, Vol. 138, 106564.

Fildes, R. and Goodwin, P., 2021. Stability in the

inefficient use of forecasting systems: A case study in

a supply chain company. In International Journal of

Forecasting, Vol. 37, No. 2, 1031-1046.

Ghasemaghaei, M., 2019. Does data analytics use improve

firm decision making quality? The role of knowledge

sharing and data analytics competency. In Decision

Support Systems, Vol. 120, 14-24.

Holsapple, C., Sena, M., Wagner, W., 2019. The perceived

success of ERP systems for decision support. In

Information Technology and Management, Vol. 20,

No. 1, 1-7. https://doi.org/10.1007/s10799-017-0285-9

Parsa, A.B., Movahedi, A., Taghipour, H., Derrible, S. and

Mohammadian, A.K., 2020. Toward safer highways,

application of XGBoost and SHAP for real-time

accident detection and feature analysis. In Accident

Analysis & Prevention, Vol. 136, 105405.

Pekša, J. and Grabis, J., 2018. Integration of Decision-

Making Components in ERP Systems. In ICEIS 2018:

Proceedings of the 20th International Conference on

Enterprise Information Systems. Vol. 1, 183-189.

https://doi.org/10.5220/0006779601830189

Pekša, J., Autonomous Open Data Prediction Framework

(AODPF), 2021. [Online]. Available:

https://github.com/JanisPeksa/Autonomous-Open-

Data-Prediction-Framework

Weigend, A.S., 2018. Time series prediction: forecasting

the future and understanding the past. In Routledge.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

258
