A Semantic Security Model for Cyber-Physical Systems to Identify
and Evaluate Potential Threats and Vulnerabilities
Andreas Aigner
a
and Abdelmajid Khelil
b
Faculty of Computer Science, Landshut University of Applied Science, Landshut, Germany
Keywords: Security, Security Model, Security Engineering, Cyber-Physical Systems, Threat Model, System Model,
Model-based Engineering, Security Analysis, Security Scoring, Security Metric.
Abstract: Establishing and sustaining a sufficient level of security in Cyber-Physical Systems (CPS) proposes a major
challenge for engineers. Key characteristics, like heterogeneity, unpredictability and safety-relevance have
the potential to significantly impact the overall level of security. However, exploited security-related
vulnerabilities may cause malfunction of critical components or result in loss of sensitive information.
Therefore, a toolkit, which is capable to identify vulnerabilities regarding security in CPS, would provide
great benefit. Although a variety of security analysis frameworks exist, they mainly do not address the
challenges proposed by CPS, which limits their applicability or accuracy. We aim to elaborate a more effective
solution for CPS by analysing security on a Systems-of-Systems level. Moreover, we focus on the semantic
relationships between essential security information, like attackers and attacks, towards the actual
specification of the CPS. Our elaborated approach produces a quantitative expression of security, based on a
variety of evaluation criteria and -policies. Ultimately, the generated output provides a quick indication about
potential security-related threats and vulnerabilities. We utilize a prototypical, but realistic car-sharing
application as a prime example for CPS, to illustrate the benefits and ease-of-use of our proposed solution.
1 INTRODUCTION
Industry 4.0, Smart Grid or Connected Vehicles
represent prime examples of Cyber-Physical Systems
(CPS). In these ecosystems, systems from the cyber-
space- and embedded domain must work hand in
hand to fulfill the desired business functionality or to
provide the necessary infrastructure. For example,
vehicles are now enhanced with the ability to
communicate and interact with their environment to
introduce new functionality for drivers.
Nevertheless, CPS also introduce a variety of
challenges (Ashibani and Mahmoud, 2017) –
especially for system engineers and administrators.
One major aspect, refers to establishing and
sustaining a sufficient level of security. The
interaction of heterogeneous systems in a highly
constrained and often unpredictable environment
opens a variety of (new) attack surfaces. As CPS
often implement critical, i.e. safety-relevant,
functionality or provide the infrastructures for such
a
https://orcid.org/0000-0001-8990-4775
b
https://orcid.org/0000-0002-4536-8058
services, exploited systems may cause harm to life of
involved humans or end in a loss of sensitive
information (O`Neil, 2016).
To counter this issue, security- or threat analysis
frameworks are used to provide information about
security-related weaknesses of a specification. In
general, they try to express the abstract term of
security based on actual measurements, parameters or
a dedicated rule set. Recent surveys (Pendleton et al.,
2017. Rudolph and Schwarz, 2021) illustrate that
several security analysis frameworks and –metrics are
available. However, the characteristics of CPS, like
(a) the interaction of heterogonous systems in a
dynamic and scalable environment, (b) the need of
reliability in an unpredictable environment or (c)
distinctive physical characteristics, the applicability
and accuracy of existing solutions may be limited.
Although solutions tailored to the application
areas of CPS have been proposed (Shevchenko et al.,
2018), they are not capable to comprehensively
address all the aspects regarding security of a highly
Aigner, A. and Khelil, A.
A Semantic Security Model for Cyber-Physical Systems to Identify and Evaluate Potential Threats and Vulnerabilities.
DOI: 10.5220/0011086300003194
In Proceedings of the 7th International Conference on Internet of Things, Big Data and Security (IoTBDS 2022), pages 249-257
ISBN: 978-989-758-564-7; ISSN: 2184-4976
Copyright
c
2022 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
249
constrained System-of-Systems (SoS). In this work,
we want to address this research gap by elaborating a
security model for CPS, which can effectively be used
in environments to comprehensively analyse and
express security. To achieve this goal, we set our
focus on the semantic relationships between the
interacting systems and their dependencies towards
security-related entities, like attackers and attacks.
In detail, we focus on the most critical aspects and
relationships, which have the ability to affect the level
of security in a negative way from one particular
systems point of view. To obtain this information, we
identify the semantic relationships between all core
security objects on a SoS level, while considering the
actual business logic. The used data is semantic, as it
is (a) directly taken from the business logic and (b)
depends on the currently analyzed system’s role,
meaning and behavior in the SoS context. In contrast
to other solutions, we do not want to interpret the
impact of attacks for all potential types of systems in
a generic way, but focus on the impact one particular
type of attack has on one specific system, within a
given (operational) context. To illustrate and
underline the thinking process of the definitions made
in this work, we utilize a prototypical car sharing
application. The usage of realistic CPS specification
should also allow us to verify the correctness of our
solution, while showcasing the benefits for engineers.
The reminder of the paper is structured as follows.
In Section 2, we start by illustrating the problem
statement regarding security engineering for CPS. In
Section 3, we take a look at existing solutions and
evaluate their effectiveness and accuracy in CPS. In
Section 4, we introduce our concept of how to analyze
security in CPS by elaborating a semantic security
model. Here, we also give insight into our conducted
case study along the made explanations and
definitions. We sum up our work in Section 5.
2 PROBLEM STATEMENT
In order to follow a hands-on approach, we first
define a concrete specification of a prototypical CPS.
This will enable us to identify the most critical
characteristics and aspects, which must be addressed,
as they potentially influence security. To this end, we

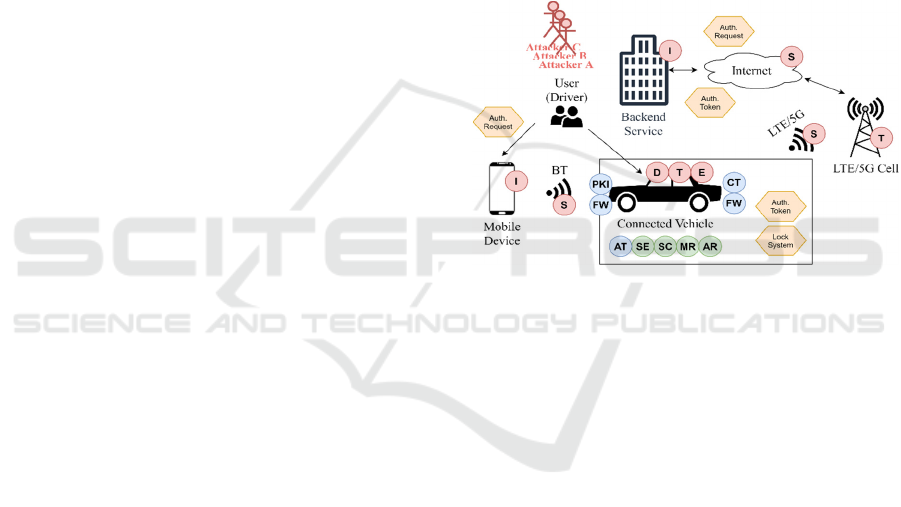

use a realistic car sharing application. Figure 1
illustrates a high-level model of this application.
It couples different types of systems from the
cyber-space- and physical domain, while showcasing
the key CPS aspects of heterogeneity,
unpredictability in an unreliable environment and
critical assets. The car sharing domain consists of
various system types, which offer different (physical)
characteristics. Additionally, human actors are also
involved, who use a mobile phone to enter their
credentials to perform an authentication. A dedicated
application on the mobile phone prepares an
authentication request, which is sent towards the
connected vehicle via Bluetooth. The connected
vehicle forwards the received requests via a 5G/LTE
uplink it has towards the backend service. The
backend service verifies, whether the received
authentication request is valid and prepares an
according response (authentication token), which is
sent back towards the vehicle. Based on the
verification result, the vehicle will be unlocked and
the end user can enter the connected vehicle, as it
unlocks its doors.
Figure 1: A prototypical Car Sharing Application.
Besides the actual business logic, we also integrate
security-related information to learn about the
dependencies between these two types of data. First,
we have added a list of threats on a SoS level. To this
end, we use the well-known STRIDE paradigm,
which defines Spoofing, Tampering, Repudiation,
Information Disclosure, Denial-of-Service and
Elevation-of-Privileges as classification from a high-
level perspective, to insert a list of potential attacks.
In contrast to the threats, we also added several
mitigation concepts. To apply an objective baseline,
we first adopt a list of security requirements (green
background in Figure 1) defined AUTOSAR (Fürst
and Bechter, 2016), i.e. access restriction (AR) at the
physical components, separation (SE) of memory,
processes and persistence and secure channels (SC).
Additionally, we integrate a set of mitigations (blue
background in Figure 1), which seem meaningful
from our point of view for a system type Vehicle. In
detail, we adopt a public-key-infrastructure (PKI),
using ciphered-transmission (CT), installing a
firewall (FW), and implementing an anti-tamper (AT)
mechanism. Later, we illustrate the benefit of our
IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security
250
proposed solution, which is the ability to compare
multiple specifications of the same CPS.
We now elaborate the challenges proposed by
CPS. First, CPS spawn a SoS environment
(Challenge-01), which consists of multiple systems.
These systems implement various dependencies to
provide the overall functionality. In contrast to
embedded systems, a CPS is not deployed to a closed
environment, but is equipped with the ability to
communicate beyond the area they operate in.
This high level of connectivity in combination
with the increased number of interfaces also extends
the options an attacker might choose from to exploit
one or multiple systems within the SoS. Moreover,
the number of interacting systems cannot be foreseen
in terms of scalability (Challenge-02). Additionally,
CPS consist of heterogeneous systems (Challenge-
03), referring to distinctive physical attributes and
capabilities, e.g. computation power or available
bandwidth. As CPS couple systems from the cyber-
and physical domain, both types must be aware of the
issues regarding security of the other type, as they
might face the same attacking scenarios.
As CPS usually build the backbone of critical
infrastructure, fulfil safety-relevant functionality or
process sensitive data, exploited vulnerabilities
potentially cause major harm. Therefore, the given
multi-criticality (Challenge-04), e.g. real-time
processing, significantly stresses the need to achieve
a sustainable level of security. In the same context,
human actors (Challenge-05) are often directly
affected by the functionality our output of CPS. On
one side, control loops in CPS do often depend on
input or triggers provided by the cyber-space domain
which leads to a critical dependency. On the other
side, they must operate in a highly unpredictable
environment. The disjunctive characteristics of
dependability in a potentially unknown environment
(Challenge-06) may create new attack surfaces, as
communication links may break down spontaneously
or systems do not provide input as expected.
As the systems within CPS are often not fixed to
a geographical area, they must also be context aware
(Challenge-07). As CPS often operate in an unknown
or unsupervised environment, attackers may face no
hurdles to gain (physical) access to the interfaces of
the (geographically) deployed systems.
All these key characteristics of CPS have the
potential to significantly impact the level of security
throughout the SoS.
3 RELATED WORK
As illustrated in Section 2, the characteristics of CPS-
like environments propose critical challenges for
security engineering in CPS engineering, as various,
often distinctive, characteristics and side effects must
be considered simultaneously. Although security has
traditionally been a point of emphasis in cyber-space
engineering, it may not have played a major role
during the design of embedded systems. Although a
number of security analysis frameworks and have
emerged in the cyber-space domain over time,
solutions for CPS (including the physical aspects) are
relatively new on the horizon.
In this work, we want to evaluate a selection of
available security analysis frameworks in terms of
evaluating their applicability, effectiveness and
accuracy in a CPS-like environment. In detail, we use
the elaborated list of key challenges (Challenge-01 to
07) proposed by CPS as evaluation criteria. The
selection of evaluated solutions has been made based
on the first impressions provided by the referenced
surveys (Pendleton et al., 2017. Rudolph and
Schwarz, 2021. Shevchenko et al., 2018), alongside
the potential challenges proposed by a CPS.
Table 1: Evaluation of Related Work in terms of their
effectiveness and accuracy in CPS security engineering.
Framework C
1
C
2
C
3
C
4
C
5
C
6
C
7
Common Vulnerability
Scoring System
(Chandramouli, 2006)
Attack Trees
(Nagaraju, 2017)
Attack Surface
(Manadhata, 2011)
STRIDE-based
(Khan, 2017)
hTTM (Mead, 2018)
Table 1 provides an overview of our evaluation
results. The first column states the framework,
whereas the following (by row) contain the evaluation
criteria, i.e. the challenges (C) 1 to 7, as introduced in
the previous section. To this end, we use three result
categories as rating schemata – a happy smiley, if the
method is able to handle and support the aspect, a
neutral one, if it is partly able to handle it, and a
frowning smiley, if this aspect is not addressed.
Consequently, we have evaluated the aspects of
applicability, effectiveness and accuracy for each
challenge to determine the overall score for the
corresponding framework. As the results in Table 1
illustrate, none of the evaluated framework is capable
to sufficiently address all of the proposed challenges.
A Semantic Security Model for Cyber-Physical Systems to Identify and Evaluate Potential Threats and Vulnerabilities
251
They either focus on aspects related to the cyber-
space attributes or focus on security derived from
safety-related engineering, whereas a concept to
simultaneously address both domains is missing.
4 SEMANTIC SECURITY MODEL
In essence, we set our goal on elaborating a security
analysis model, which considers all key challenges
and attributes proposed by CPS to provide the most
comprehensive view on security in heterogeneous
SoS-like environments.

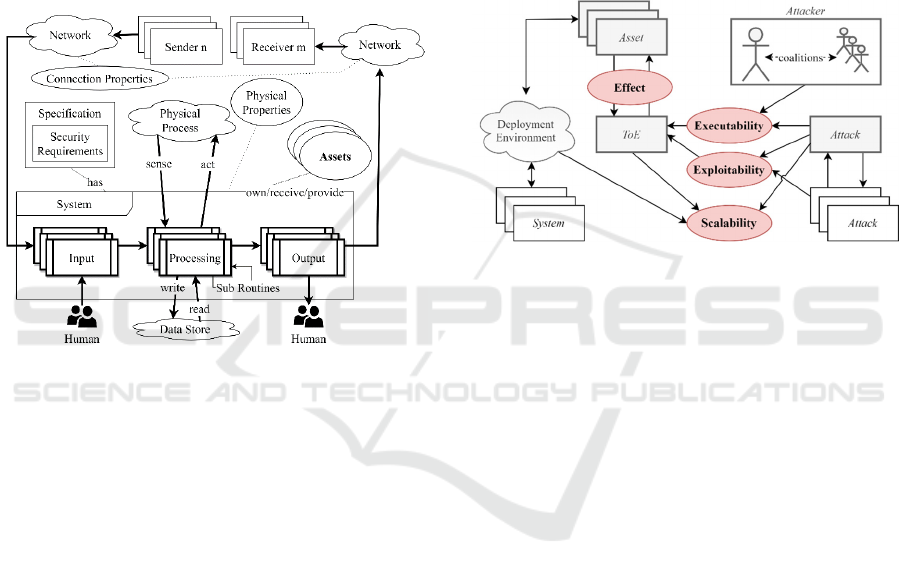

Figure 2: A System Model for CPS.
4.1 General Philosophy
Based on the elements illustrated in Figure 1, we first
generate a system model (Figure 2) for one particular
system operating in a CPS. Ultimately, this system
model allows us to identify the most critical aspects
regarding security in CPS, while also representing the
baseline for a security model for CPS. Essentially,
each system consists of one or multiple input-,
processing and output components, whereas these
components have direct relationships towards the
surrounding environment or additional CPS-related
resources. In detail, the input- and output components
realize the communication with other systems,
whereas the processing unit access physical-, e.g.
sensors, or cyber-space, e.g. data storage, resources.
Furthermore, any component may interact with
assets or human actors while being in operation. It is
important to note, that this system model is structured
to being used for either system within CPS, meaning
physical-, cyber-physical- and cyber-space systems.
Consequently, one particular system may not show all
of the listed characteristics. Based on the identified
elements and interfaces illustrated by the system
model for CPS (Figure 2), we are now able to
generate a security model, as outlined in Figure 3, for
one particular system within the CPS. The currently
analysed system is called Target of Evaluation (ToE).
This model represents an abstract view on the
relationships between the key security objects and
business entities from a SoS perspective. Overall, we
identify four critical aspects – the executability-, the
exploitability- the effect- and the scalability of one
particular attack towards a given system within the
current (semantic) operational context, i.e. the
characteristics of the system and its ecosystem.
Figure 3: A semantic Security Model for CPS.
In contrast to existing solutions, we take a SoS
perspective while analysing security in order to catch
all security-relevant side effects and dependencies.
Although we use commonly used security-relevant
entities within our analysis, i.e. attackers, attacks and
mitigation concepts, we focus on their semantic
interpretation according based on the actual business
logic and context they are analysed in. This shift of
paradigm towards a semantic approach allows us to
handle the challenges of CPS.
In essence, we are going to express security as
product (1) of these four factors. In the following, we
dive into detail about how the factors are determined.
The overall goal is to minimize the result of this
multiplication; meaning a value of zero represents the
best score in terms of security-related weaknesses
within the analysed CPS.
Security = [ Executability * Exploitability * (1 +
Effect) * (1 + Scalability)]
(1)
4.2 The Executability of Attacks
The first critical dependency illustrated in Figure 3
focuses on the fundamental question, whether a
particular attack is theoretically executable within the
current context or not. This question can be answered
by analyzing the relationship between attackers,
IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security
252
attacks and the ToE within its ecosystem. In general,
a number of attackers, e.g. Attacker A, B and C in Fig.
1, is capable to execute a set of different attacks
within the domain. In a highly constrained SoS-like
environment, multiple attacker entities might be
present. Nevertheless, different attackers may own
different characteristics, capabilities or skill sets. On
the other side, attacks require certain capabilities,
skills or resources in order to being executed by a
concrete attacker entity. In Figure 1, Attacker A
might be able to execute a Spoofing attack, as it has
access to a certain part of the network, while Attacker
B does not fulfil this requirement an can therefore not
perform a Spoofing attempt.
Moreover, the attribute of executability also
depends on the characteristics of the analysed ToE. In
detail, an attack may require fundamental properties,
i.e. a certain condition, provided by the ToE in order
to potentially being executable towards it, like
physical- or network access. Furthermore, these
elements must also be connected towards the
capabilities and resources of the attacker objects.
Exemplary, not only the system may offer physical
access, but the attacker must also be capable to
establish physical access.

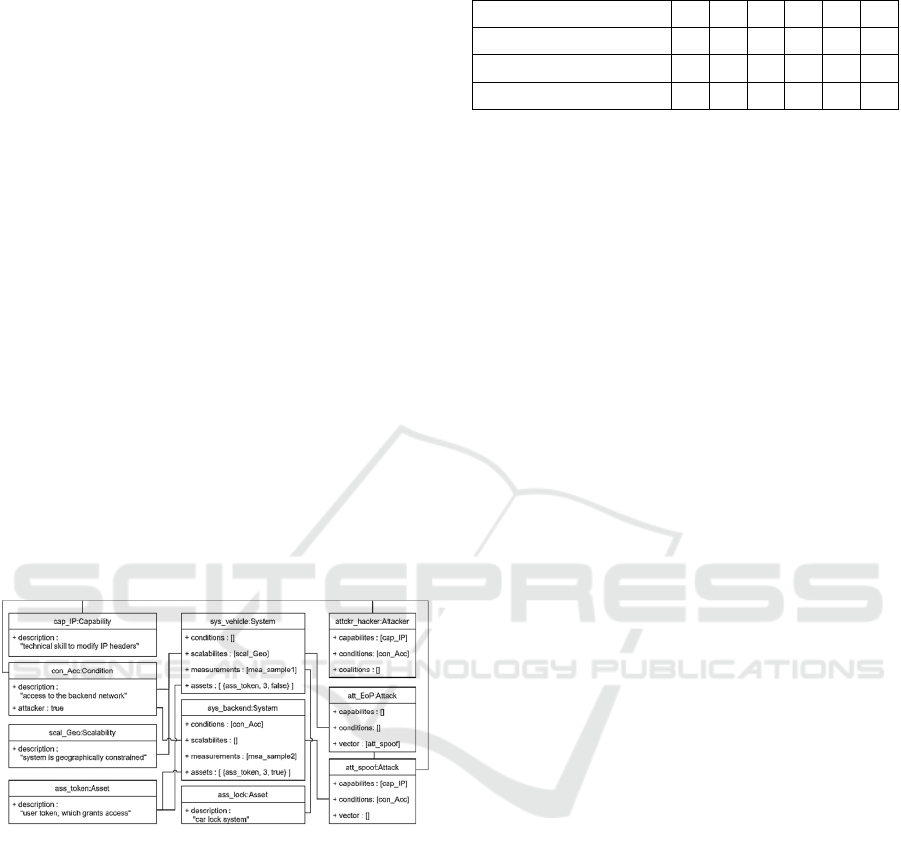

Figure 4: Data Model to store to link Security-relevant
Information and the Specification.
The data model (Figure 4) documents the
relationship between Attacker, Attack and ToE
objects, i.e. the executability. To describe the
semantic dependencies between these three objects,
we introduce two additional objects – the Capability
and Condition attributes. The content of these objects
can be customized according to the actual use case. In
general, the defined statements should be in the form
of yes-/no sentences in order to allow a verification,
i.e. a matching of attributes, between them.
The overall executability factor, which holds a
value of zero or 1, is determined by cross-checking
the capability and condition attributes of the system,
attack and attacker objects of the currently used data
model. Basically, the analysis verifies for each attack-
/system combination, whether the data model
contains a valid combination of these attributes or
not; meaning it contains an attacker object, which is
capable to perform the attack towards this type of
system, while also all condition attributes are met, i.e.
contained in both objects, as well. The attack and
attacker part of the data model can be populated by
using publicly available sources.
4.3 The Exploitability of the
ToE
The second dependency in Figure 3, refers to the
exploitability of the ToE. Besides looking at the
theoretical aspect, i.e. the executability of attacks, we
want to elaborate a verification schema, which
provides an (measureable) indicator, whether the ToE
can actually be exploited by an attack or not.

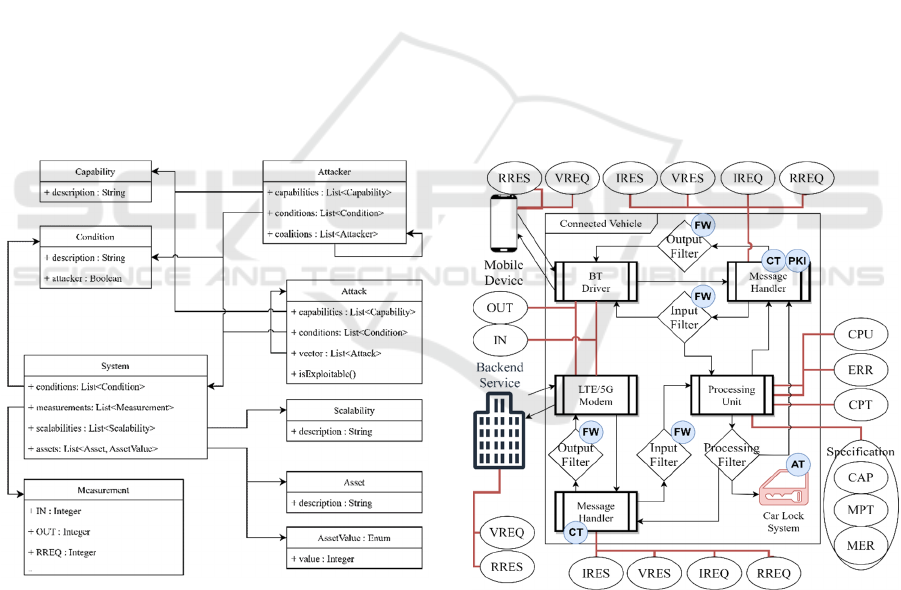

Figure 6: Abstract Specification of the Connected Vehicle.
First, certain type of attacks, e.g. Elevation of
Privileges in Figure 1, require that other attacks, e.g.
Spoofing, have successfully been performed in
advance in order to being executable themselves.
Therefore, one type of attack enables one or multiple
other types of attacks. We call this sequential
execution of attacks to exploit a system attack vector.
Especially in a highly constrained, unpredictable and
A Semantic Security Model for Cyber-Physical Systems to Identify and Evaluate Potential Threats and Vulnerabilities
253
dynamic ecosystem like CPS, attackers may perform
complete attack vectors in order to exploit the ToE.
Second, we integrate an evaluation criterion,
which indicates, whether a ToE can be exploited by
an attack, if all proceeding requirements are met to
perform the attack towards the ToE based on its
behavior security-wise. In order to construct such
evaluation criteria based on semantic data, we define
a formula for each type of attack, which utilizes actual
(quantitative) measurements. To this end, we refine
the system model (Figure 2) by identifying potential
points of measurements according to the processed
assets, i.e. requests, function calls and response.
In essence, the business process offered by CPS
usually implements a request-response mechanism,
which processing steps within. However, some
system might only provide response or formulate
requests. Based on these fundamental and highly
abstracted entities, i.e. request and response, we are
able to derive additional parameters, which have been
integrated in Figure 5. Initially, we measure the raw
data concerting incoming (IN) and outgoing (OUT)
data, followed by the number of real requests (RREQ)
and responses (VRES), alongside the number of
invalid- (IREQ) and processed requests (CPU), as
well as the number of produced errors (ERR).

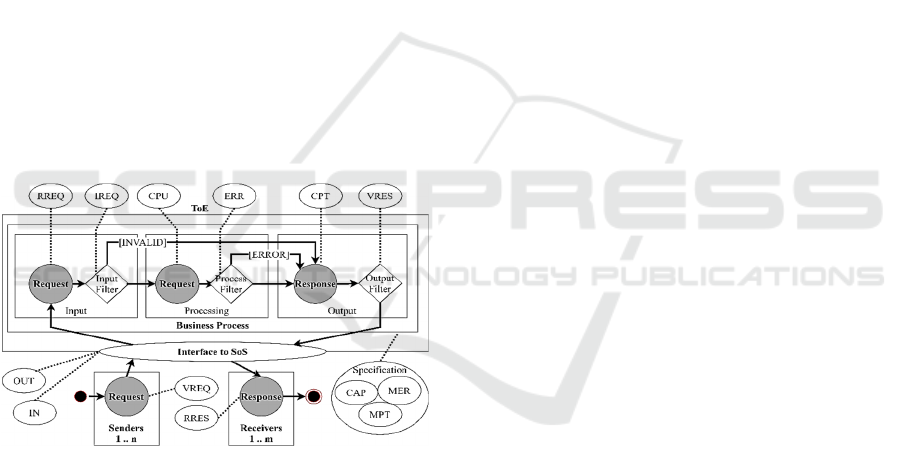

Figure 5: Measurements to determine Exploitability.
Throughout the processing sequence, we measure
the actual time (CPT) from receiving a request to
generating a response. The information about objects
marked as invalid directly reflects on the capabilities
of the ToE to detect potential threats by itself, by
aborting the processing of such request. In order to set
this security enhancing capabilities in contrast, we
utilize additional specification parameters of the ToE
within the formulas, namely the processing
capabilities (CAP), the median error rate (MER) and
the median processing time (MPT). Based on these
data points, we are now able to quantitatively
abbreviate the effects a successful attack would lead
to. This is done by defining a set of binary
expressions, based on the comparison of various
measurements, as required by the associated type of
attack. Consequently, we must identify such
expression for each type of attack we want to include
into our evaluation.
In this work, we have prepared the formulas (2) to
(7), which contain the evaluation rules for the attacks
used in Figure 1. We built these formulas by
considering the impact or outcome a successful attack
would have on the exchanged assets, i.e. requests and
response. For example, a ToE can be exploited via
Spoofing, if a modified request is not detected by the
ToE through the IREQ or ERR parameter within the
input interface or processing unit.
Nevertheless, the generic model (Figure 5)
enables engineers to easily define formulas for
additional attacks. However, the STRDIE
classification should cover a variety of different
potential attacks. In future work, we want to further
shape and refine these evaluation formulas based on
knowledge gained through applying the methodology
in real-life CPS deployments.
The evaluation formulas verify, whether the
security-enhancing capabilities, i.e. the Input-,
Processing- and Output-Filter of the ToE are strong
or sufficient enough to counter the effect of this
particular attack. The values of the measurement, can
be obtained by running a simulation, e.g. by using an
executable UML activity model of the business
process. After running the simulation, the evaluation
formulas, i.e. if-statements, are used to indicate,
whether the Filters have been able to neglect the
effect to the attack based on the conducted
measurements. Alternatively, the actually deployed
systems can be extended with the ability to conduct
the necessary measurements and forward the obtained
information for further analysis. The defined
parameters should be collectable without any user
interaction or dependencies towards other systems.
Spoofing = [(IREQ == 0) && (ERR == 0)] (2)
Tampering = [(IREQ == 0) && (RREQ == CPU) &&
(CPU == ERR * 2=]
(3)
Repudiation = [OUT > CPU] (4)
Information Disclosure = [(OUT > CPU) || (VRES !=
(CPU – ERR)) || ((VRES != (RREQ – IRES) &&
(ERR == 0))]
(5)
Denial-of-Service = [(CPU < RRES) || (CPT > MER) ||
(ERR > MER) || (RRES > CPU)]
(6)
Elevation-of-Privileges = [((RREQ – IREQ) != CPU)
&& (VRES != OUT)]
(7)
IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security
254
Concluding, the exploitability factor of an attack-
/system combination is defined as produced of two
factors. The first factor is determined by analysing the
attack vector, if applicable. Here, all attacks, which
are required by the currently analysed attack must
have an executability- and exploitability factor of 1.
If the attacks contained in the vectors do also required
other attacks to be performed in advanced, their
factors must also be 1 throughout. If one attack within
the chain holds a value of 0, the vector is not
applicable for this attack-/system combination.
Overall, this can be realized as iterative verification
process. The second parameter of the exploitability
product is determined by the result of the evaluation
formula, which leads to a value of true (=1) or false.
The data model (Figure 4) contains the necessary
attributes to evaluate the relationship between the
system- and attack-objects regarding the
exploitability potential. However, this attribute can
also be empty, which indicates, that this attack does
not require any other attack to being performed in
advance. Additionally, the attack object is extended
with a function (isExploitable), which takes a set of
measurements provided by the system object and
returns true or false by running through the formula.
To illustrate the integration of measurements, we
have refined the system type Vehicle of the car
sharing domain accordingly, as shown in Figure. 6.
4.4 The Scalability of Attacks
As highlighted in the problem statement, CPS
showcase a variety of characteristics, which have the
potential to significantly impact the overall level of
security in a negative way. We integrate these aspects
by extending the attack- and system objects within the
data model (Figure 4) with a Scalability attribute.
This attribute integrates events, properties or
characteristics of the interacting systems, which
increase the likelihood of being exploited by a certain
attack or the severity of them. To this end, we provide
a top-ten list of scalability factors (SF). This list has
been generated based on the previously described key
challenges proposed by CPS, but can easily be
tailored to the needs according to the ecosystem:
- SF-01: The system is geographically constrained
- SF-02: The system is limited in physical resources
- SF-03: The system implements or requires safety-
relevant functionality
- SF-04: The system interacts with humans
- SF-05: The system interacts with other type of
systems
- SF-06: The system processes different type of
assets
- SF-07: The system interacts with an unknown
number of systems or depends on their input
- SF-08: The system uses unsecure, unknown or
unstable communication links
- SF-09: The system changes its operational context
- SF-10: The system implements or depends on a
physical process
Consequently, the scalability attribute of the
system object contains all statements, which are given
for this particular system. However, equal to the
capability and condition attribute, this property can
also be empty. On the other side, these scalability
attributes define, whether they increase the likelihood
or impact of a given attack object. Therefore, to
evaluate this factor, the two scalability attributes of an
attack-/system combination must be cross-checked
for common entries. For each matching entry, the
overall scalability factor for the concluding
evaluation of this attack-/system combination is
increased by 0.1. We advise to use a top-10 list of
scalability statements for each security evaluation.
Consequently, the value of this factor ranges from
zero to 1.
4.5 The Effect of Attacks on Assets
If an attack is eventually able to exploit a system, we
must determine the potential harm this might cause.
If an attack might not be able to lead to any harm, the
necessity to implement counter measurements for this
particular attack might not be given. For this, we
evaluate the concrete effect the attack has on all assets
owned or accessed by the exploited system by using
a set of classification rules. In our definition, an asset
is a piece of information or functionality, which holds
a certain value from the business process perspective.
Table 2: Asset Classification Schemata.
Value Description
High
(=3)
The asset contains sensitive or critical data or
functionality, as the business process cannot be
fulfilled as designed.
Medium
(=2)
The asset holds valuable information, but the core
functionality or data can still be provided.
Low
(=1)
The asset is replaceable or sustainable by other
assets, while it does also not contain sensitive
information or logic.
n/a
(=0)
The asset does not hold any value. Its non-existence
of the asset does not lead to any limitation.
This classification also allows us to highlight the
importance of certain assets, e.g. safety-relevant
functionality. We define four classes, ranging from
not applicable (n/a), Low, Medium to High, as listed
A Semantic Security Model for Cyber-Physical Systems to Identify and Evaluate Potential Threats and Vulnerabilities
255
in Table 2. The system object within the data model
(Figure 4) contains a reference towards the asset
object, which also holds the value. This structure
allows us to display the actual relationship between
the system and asset, as one asset might have different
values for different systems. The overall effect factor
for one system is then calculated by analysing all
references it has towards asset objects. For each asset,
the effect factor is incremented by the value of the
asset. In addition, the effect factor is incremented, if
a referenced asset is also accessed or used by another
system and this system is exploitable. Especially on a
SoS level, this is critical to consider, as assets might
be corrupted by systems, which are considered valid
partners.
4.6 The Big Picture
The four factors (executability, exploitability, effect
and scalability) have now been filled with semantic
information by evaluating the dependencies between
the CPS specification and common security-related
information. In order to utilize our method, two
essential task must be performed: (a) populating the
data model and (b) conduct the measurements
through simulation or from the deployed ToE in order
to determine the exploitability.
Figure 7: Case Study – Security Data Model (Extract).
For example, Figure 7 shows an extract of the data
model used within the car sharing domain to evaluate
security. Based on this preliminary work, we are now
able to express and evaluate security for all attack-
/system combination within our ecosystem by using
the formula defined in (1). Figure 8 illustrates the
calculated results for the system type Vehicle for all
STRIDE attacks (Figure 1). As our method can
effectively be used as objective and quantitative
baseline to compare various specifications. To
illustrate this aspect, we have generated the results for
three specifications of the Vehicle: worst-case (not
mitigations), AUTOSAR solutions and with our
additional enhancements.
Table 3: Case Study – Output of the Security Model.
Vehicle Specification S T R I D E
Worst Case 20 18 0 15 15 17
AUTOSAR 18 9 0 9 6 9
Additional Enhancements 5 6 0 1 2 2
As the scores (Table 3) indicate, the AUTOSAR
mitigations are indeed capable to reduce the impact
of all attacks, although they are just implemented
within the Vehicle. This refers to the aspect, that they
directly impact the processing of the core assets
within the vehicle. However, a significant impact on
the overall results cannot be achieved. In contrast, the
enhanced solution, i.e. the implementation of
additional mitigations (blue background in Figure 1),
is capable to further lower the score, as they focus on
the way the assets are handled, exchanged and
processed between the Vehicle and the interacting
systems. Moreover, these results should then be used
by engineers to determine the most severe attacks
within the ecosystem to easily identify suitable or
more effective counter measurements.
5 CONCLUSION
In this work, we have introduced a security model for
CPS, which analyses the semantic dependencies
between interacting systems and their relationship
towards key security objects on a SoS level. In detail,
we have taken a straight-forward approach using the
main challenges proposed by CPS to generate a
system- and consequently a security model.
Concluding, this model can efficiently and effectively
be used to quantitively express security based on the
aspects of exploitability, executability, scalability and
effect of attacks on systems and assets in order to
identify actual threats or compare specifications.
Furthermore, we have been able to outline several
potential aspects in the form of mitigations, which
should be considered when engineering a (physical)
system in a connected world.
REFERENCES
Y. Ashibani and Q. H. Mahmoud (2017). Cyber physical
systems security: Analysis, challenges and solutions.
Elsevier Computers & Security 68.
M. O’Neill (2016). Insecurity by Design: Todays IoT
Device Security Problem. Elsevier Journal on
Engineering 2(1).
IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security
256
M. Pendleton, et al. (2017). A Survey on Systems Security
Metrics. ACM Computing Surveys 49(4).
M. Rudolph and R. Schwarz (2021), A Critical Survey of
Security Indicator Approaches. In Proceedings of the
7th International Conference of Availability, Reliability
and Security.
N. Shevchenko, et al. (2018). Threat Modeling for Cyber-
Physical System-of-Systems: Methods Evaluation.
Technical Report. Carnegie Mellon University.
S. Fürst and M. Bechter (2016). AUTOSAR for Connected
and Autonomous Vehicles: The AUTOSAR Adaptive
Platform. In Proceedings of the 46th Annual IEEE/IFIP
International Conference on Dependable Systems and
Networks Workshops (DSN-W).
R. Chandramouli, et al. (2006). Common Vulnerability
Scoring System. Emerging Standards. IEEE Security &
Privacy 4(6).
V. Nagaraju, et al. (2017). A survey of fault and attack tree
modeling and analysis for cyber risk management. In
Proceedings of the International Symposium on
Technologies for Homeland Security.
P. Manadhata and J. M. Wing (2011). An Attack Surface
Metric. IEEE Transactions on Software Engineering
37(3).
R. Khan, et al. (2017). STRIDE-based Threat Modeling for
Cyber-Physical Systems. In Proceedings of the IEEE
PES Innovative Smart Grid Technologies Conference.
N. R. Mead, et al. (2018). A Hybrid Threat Modeling
Method. Carnegie Mellon University.
A Semantic Security Model for Cyber-Physical Systems to Identify and Evaluate Potential Threats and Vulnerabilities
257
