From BPMN Model to Design Sequence Diagrams

Wiem Khlif, Samar Daoudi and Nadia Bouassida

Mir@cl Laboratory, University of Sfax, Sfax, Tunisia

Keywords: BPMN Model, Design Sequence Diagrams, Transformation.

Abstract: Today’s enterprises, independently of their size, depend on the successful development of an automated

Information System (IS). This moves them to the software development world. The success of this move is

often hindered by the difficulty in collecting the IS knowledge to produce a software that is aligned with the

business logic of the enterprise. For enterprise systems, this transformation must consider the enterprise

context where the system will be deployed. However, the complexity of today's Business Process (BP)-IS

alignment impedes their maintaining when the enterprise develops a new IS or changes its IS. The problem is

expressed from the dissimilarities in the knowledge of the information system developers and the business

process experts. To face these difficulties, the current paper presents a methodology to derive design sequence

diagrams. Our methodology is based on a set of rules that transform a business process model into design

sequence diagrams. Its originality resides in the Computation Independent Model (CIM) to Platform

Independent Model (PIM) transformations which account for the BP structural and semantic perspectives in

order to generate an aligned IS model.

1 INTRODUCTION

In the business world, a business process model

(BPM) represents a set of coordinated activities that

aim to accomplish business goals of any enterprise.

To facilitate the management of these goals, an

enterprise relies on an information system (IS). For

that reason, it is crucial to automate the IS supporting

the business process (BP) if its capacities are best

used. Conversely, this can not be gotten when the

business process is not aligned with its IS represented

by UML diagrams. Certainly, the alignment of these

models is key to the success of a coherent governance

of the enterprise (Aversano et al., 2016). In fact, it is

important to early start the IS modelling to obtain a

deep knowledge of the BPM. This step is crucial since

it prepares for requirement analysis.

In this context, the main problem is how to

produce and/or conserve the alignment between the

IS and BP models? This question has been attempted

within two scenarios. The first one inaugurate a

mapping approach between an existing IS and BP

(Aversano et al., 2016), or to analyze the impact of

BP changes on its IS (Rostami et al., 2017). If a

change of the IS model is needed, great efforts, is

required during the modification process to

accommodate the impact of changes. Therefore, the

need for an approach that deals with the changes of

models is of great value to software engineers.

The second scenario express the tight correlation

between the IS and objectives prompted researches to

extract requirements from business process models

denoted by UML use case diagrams, e.g. Rhazali et

al. (Rhazali et al., 2016); the relationships between

use cases, e.g. Berrocal et al. (Berrocal et al., 2014 ).

However, none of these approaches derives UML

diagrams that are documented with knowledge. In

addition, they differ in the degree of automation of the

proposed approach. Furthermore, the majority of the

works neglected the evaluation (i.e., quality,

precision, coverage) of the created diagrams.

In this research project, we focus on the second

scenario while offering a means for applying the first

scenario: we propose a model-driven approach to

automate the generation of the IS model from the BP

model. On the one hand, our approach can be used

to generate a new IS model that is aligned with the BP

model source. On the other hand, its generated IS

model can be used to identify the links between the

existing IS model and the BP model.

In (Khlif et al., 2018), we have presented a Model

Driven Architecture (MDA) approach called

DESTINY (a moDel-driven process aware

requiremenTs engineerINg methodologY).

Khlif, W., Daoudi, S. and Bouassida, N.

From BPMN Model to Design Sequence Diagrams.

DOI: 10.5220/0011089200003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 2, pages 577-588

ISBN: 978-989-758-569-2; ISSN: 2184-4992

577

It aims to automate the generation of use case,

system sequence diagrams and UML class diagrams

from BPMN models. The generated IS design can be

used either to establish a new IS system, or analyze or

maintain an existing one. It is defined in terms of

transformations that ensure the alignment of the

presented diagrams to the BPMN model by both

accounting for the semantics and structure of the

BPMN model, and providing for all business objects

and activities.

In this paper, we improve the DESTINY approach

(Khlif et al., 2018) with: 1) BPMN transformation

rules for identifying design sequence diagrams; 2)

implementing the obtained diagrams according to the

proposed transformation rules and evaluating them in

terms of their precision and domain coverage.

The rest of this paper is organized as follows. In

Section 2, we describe the related works of the

existing BP-IS alignment works. Section 3 presents

the transformation strategy rules that allow

transforming CIM models to PIM models. For a better

use of our approach, we develop in Section 4 a tool

for assessing the alignment between BPMN model

and the corresponding design sequence diagrams. In

Section 5, we conclude by specifying the current

works and by presenting future works.

2 RELATED WORK

In this section, we summarizes existing works on

aligning BPM to IS model.

Rhazali et al (Rhazali et al., 2016) the authors

propose a semi-automatic transformation from

Computation Independent Model (CIM) to platform-

independent model (PIM), based on rules.

In (Suchenia et al., 2017), the authors generate

UML sequence model from the BPMN model. Such

a model can support time specification such as

duration constraints or time constraints.

(Bouzidi et al., 2020) propose a set of rules that

transform a BPMN model into a UML sequence

diagram structured according to the model view

controller design pattern.

Overall, the above works related to BP-IS models

in (Suchenia et al., 2017) (Rhazali et al., 2016) are

purely structure-based; it ignores the remaining

aspects of a BP, which do affect the performance of a

BP. For example, the semantic type between objects

in a sequence diagram is not captured. In addition,

few are the works that automatically derive design

sequence diagrams from the BPMN model.

3 FROM BPMN TO DESIGN

SEQUENCE DIAGRAMS

To define the design sequence diagrams, we

decompose BPMN model into fragments. Each

fragment corresponds to a use case. A use case

represents a set of actions that the system(s) should or

can perform in collaboration with one or more

business workers or business actors, and it should

provide some observable result to them (Rumbaugh

et al., 2005). A business worker represents an

abstraction of a human that acts within the business

to realize a service, while a business actor represents

a role played by some person or system external to the

modeled business and interacting with the business.

Recall that we defined a pattern as a fragment F

in an annotated BPMN process model P, that is a

connected, directed sub-graph of P starting at one

activity and ending at another activity such that F

contains the maximum number of activities between

either two gateways, a start node and a gateway, or a

gateway and an end node. A fragment F can be

decomposed into sub-fragments if it contains sub-

processes, which indicates the end of sub-fragment

and the beginning of another one (khlif et al., 2018).

Since each use case is obsolete without a textual

or graphical description, we associated with each

BPMN-to-UCD pattern a set of BPMN-to-DSD rules

to model the use case behavior, which is 1:n mapping

between the concepts of BPMN model and design

sequence diagrams. To end this purpose, we lightly

extended the BPMN meta-model in (khlif et al., 2018)

to handle the business context. We added attributes

and two new classes that are Description and

ExtendedAttributes. For each BPMN element, we

associate a Description that adds a specific

information to BPMN elements in terms of the

relationships between them. The Extended Attributes

class specifies the properties of each BPMN element.

R1: For each lane whose label is a synonym to

"person", "agent" or "system", the corresponding

actor name will be the lane name. For each pool/lane

whose label is a metonymy of "department", "unit",

"division" or "management", the corresponding actor

name will be the concatenation of the pool/lane name

and the word “Agent” (khlif et al., 2018).

R2: For each pool:

R2.1: If the pool includes only business workers

(representing the system), then transform it to a set of

lifelines and an activation zone representing GUI,

entities and control classes that belong to the system

perimeter. The classes’ names follow the linguistic

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

578

patterns presented above. They are extratced from the

obtained fragments.

R2.2: If the pool contains only business actors

then transform each business actor to a lifeline and an

activation zone for the instance of the actor. Apply R1

to rename the actor.

R3: For each lane representing a business worker,

then:

a. Add an actor corresponding to the lane; apply

R1 to rename it.

b. Add a lifeline and an activation zone for the

actor generated by R1.

R4: Transform each data to a

“BusinessObjectControler, “BusinessObjectGUI,

“BusinessObjectEntity”.

R5: For each extended attribute of the data

representing a complex noun, add:

a. “BusinessObjectEntity” corresponding to the

extended attribute if it represents a complex

noun.

R6: For each extended attribute representing a

complex noun 1 that depends on another complex

noun2, add a“BusinessObjectEntity” corresponding

to the complex noun 2.

R7: For each data having an extended attribute

representing a complex noun1 that depends on

another complex noun2:

a. Apply R4.

b. Add an asynchronous message from the actor

representing a lane to the

“BusinessObjectGUI” of the data. Then, add an

asynchronous message from the

“BusinessObjectGUI” to the

“BusinessObjectContr”. The message will be:

“add” followed by the data name.

c. Add a synchronous message from the

“BusinessObjectContr” of the data to the

“BusinessObjectentity” of the data. The

response label is a concatenation between the

BusinessObject and the passive voice of the

ActionVerb “Add”.

d. Add a synchronous message from the

“BusinessObjectContr” of the data to the

“BusinessObjectentity” of the complex noun1.

The message will be: “add” followed by the

complex noun1.

e. Add a synchronous message from the

“BusinessObjectContr” of the data to the

“BusinessObjectentity” of the complex noun2.

The message will be: “add” followed by the

complex noun2.

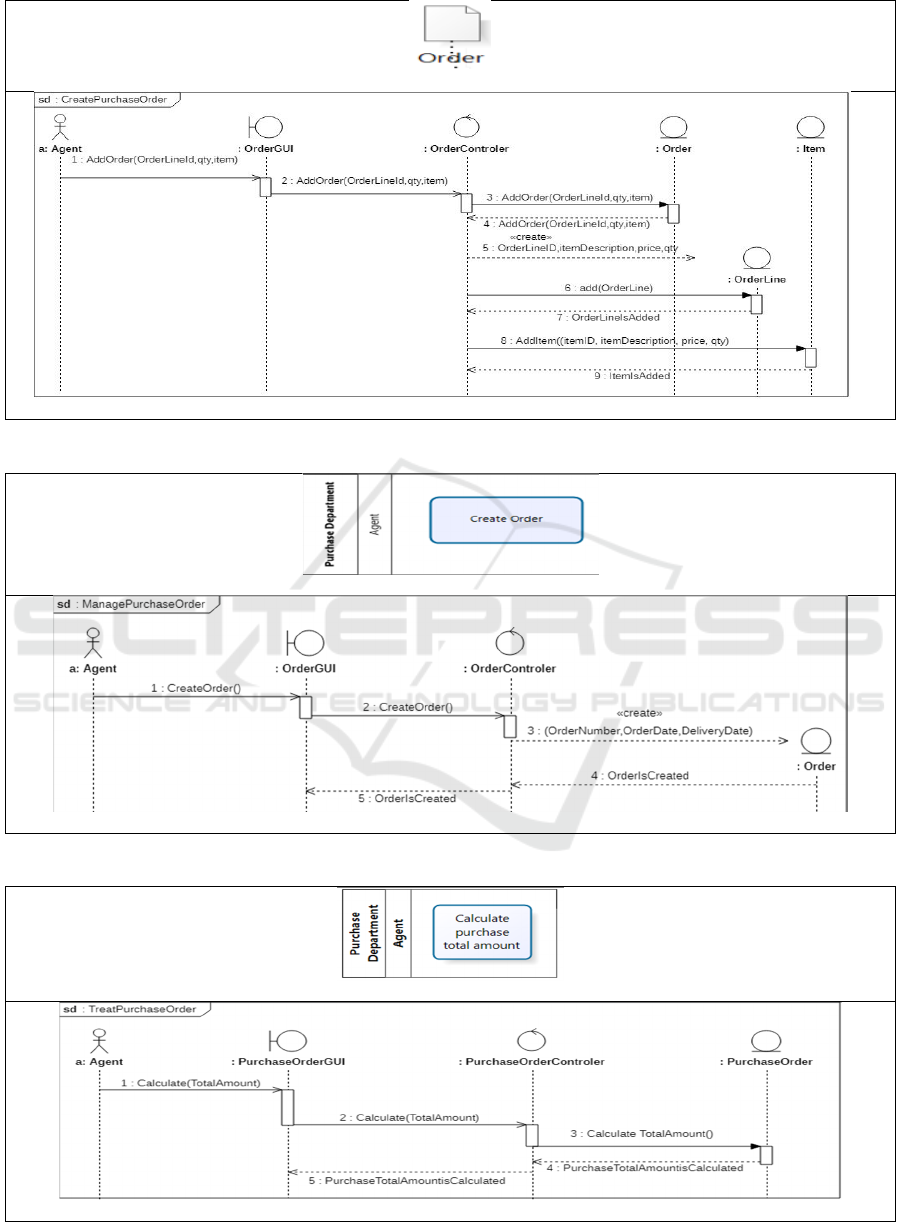

For instance, Figure 1 illustrates the annotated data

object in terms of extended attributes and description.

The description indicates a relationship between the

Purchase order data object and its extended attribute:

orderLine (Each Purchase order is composed of

order lines). The orderLine contains items (each

order lines contains a set of items). The extended

attributes of purchase order data object are

orderNumber, deliveryDate, orderDate, and

OrderLine. All of them are transformed into

parameters, except the

orderLine, which is

transformed into an entity. An orderLine contains the

attributes: orderLineID, item. All of them are

transformed into parameters, except the Item, which

is transformed into an entity.

R8: For each task performed in a lane, if the task

label respects the renaming pattern: « Action verb +

BusinessObject| NominalGroup », then generate the

elements of the sequence diagram by following these

steps:

R8.1: If the name of the task is « Action verb +

BusinessObject» (see Figure 2):

a. Add a new asynchronous message from the

actor corresponding to the lane, which is

already generated by R3.a, to the

“BusinessObjectGUI”. The message name is

ActionVerb().

b. Add a message from the

“BusinessObjectGUI” to the

“BusinessObjectControler” having the same

name of the message in (a).

c. Add a synchronous message having the same

name in (a) from the

“BusinessObjectControler” to the

“BusinessObjectEntity”. Add a response

message from the “BusinessObjetEntity” the

BusinessObjectControler. The response label

is a concatenation between the

BusinessObject and the passive voice of the

ActionVerb.

It is important to note that if the first activity SA

of a fragment F is labeled “Create x“, then the

corresponding DSD will be named “Manage x” (

Khlif

et al., 2018).

From BPMN Model to Design Sequence Diagrams

579

BPMN model

DSD

Figure 1: R7 illustration.

BPMN model

DSD

Figure 2: R8.1 illustration.

BPMN model

DSD

Figure 3: R8.2 illustration.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

580

R8.2: If the name of the task is « Action verb +

NominalGroup», then (see Figure 3):

a. Add a new asynchronous message from the

actor corresponding to the lane, which is already

generated by R3, to the “BusinessObjectGUI”.

The message name is ActionVerb(). Another

message having the same name is sent from the

“BusinessObjectGUI” to the

“BusinessObjectControler”.

b. Add parameters to the identified method

ActionVerb() as follows: If the pre/post-

modifier is a noun that merely represents a pure

value, add it as a parameter. Otherwise, if the

pre/post modifier represents an entity, consider

the extended attributes of the entity, as

parameters of the method ActionVerb().

c. In all cases, create a synchronous message from

the “BusinessObjectControler” to the

“BusinessObjectEntity”. Add a response

message from the “BusinessObjectEntity” to the

“BusinessObjectGUI”. The response label is a

concatenation between the BusinessObject and

the passive voice of the ActionVerb.

R9. If the name of the task is

«CommunicationVerb + BusinessObject + [[to

ReceiverName(s)] | [from SenderName]] », then

generate a design sequence diagram by following

these steps:

a. Add two lifelines representing respectively

instances of the “BusinessObjectControler”,

“BusinessObjectGUI”, and the sender, if they

aren’t already created. If the receiver noun is

singular (respectively plural), add also a lifeline

representing an instance of the receiver

(respectively, a multi-instance of the receiver)

b. If the task type is “send task” then, add a

asynchronous message between the instance of

Sender actor and the “BusinessObjectGUI”, as

well as a synchronous message from the

“BusinessObjectControler”, to an instance (See

Figure 4) or a multi-instance of Receiver. The

message is represented by the

CommunicationVerb() method which has three

arguments: “bo” instance of BusinessObject, “r”

(respectively, “r[]”) instance of the receiver

actor (respectively, an array of instance of all

receiver actors) and “s” instance of the actor

who sends “bo”. Finally, add a response

message from the instance or multi-instance of

Receiver to the

“BusinessObjectControler”called

BusinessObjectIsReceived. Add also a message

having the same name from the

“BusinessObjectControler” to the

“BusinessObjectGUI”. We recall that the

information related to receiver can be found

either in the activity business context or label.

If the task type is “receive task” then add an

asynchronous message called send() from the sender

to the “BusinessObjectGUI” and a synchronous

message called send() from the “BusinessObjectGUI”

to “BusinessObjectControler” and from the

“BusinessObjectControler” to the instance of

Receiver. The method has three arguments: “bo”

instance of BusinessObject, “r” instance of the

receiver actor, and “s” instance of the sender actor.

Add a response message from the instance of

Receiver to the “BusinessObjectControler” and from

the “BusinessObjectControler” to the

“BusinessObjectGUI” called

BusinessObjectIsReceived.

BPMN model

DSD

Figure 4: R9 illustration.

From BPMN Model to Design Sequence Diagrams

581

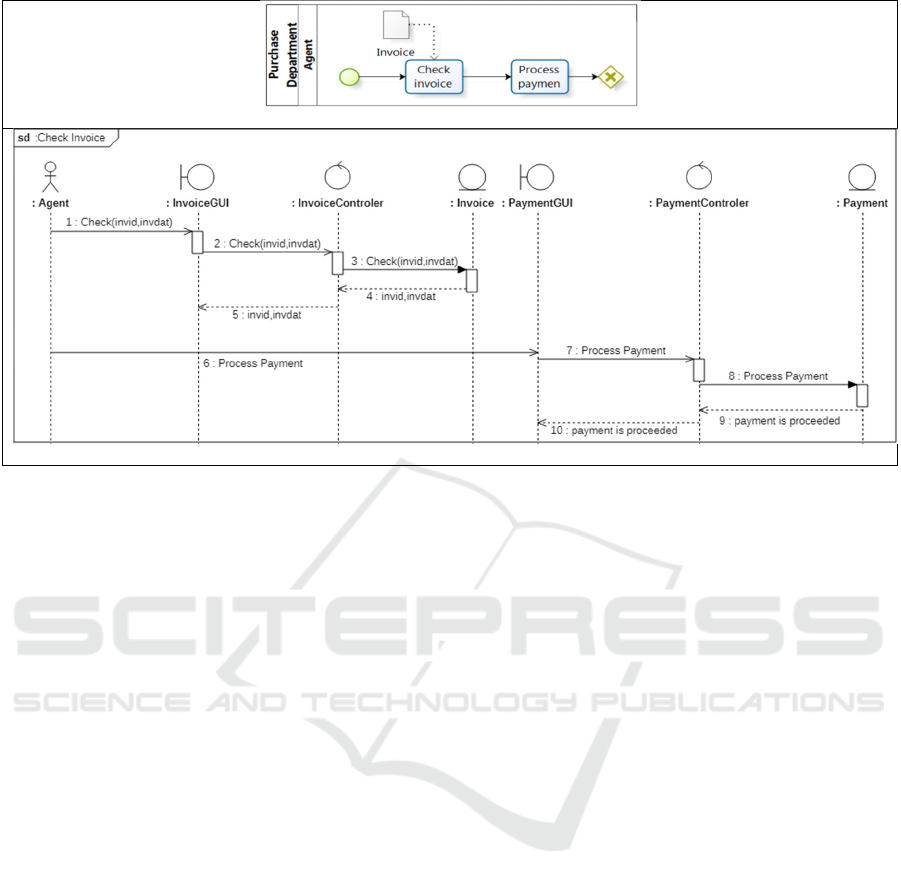

BPMN model

DSD

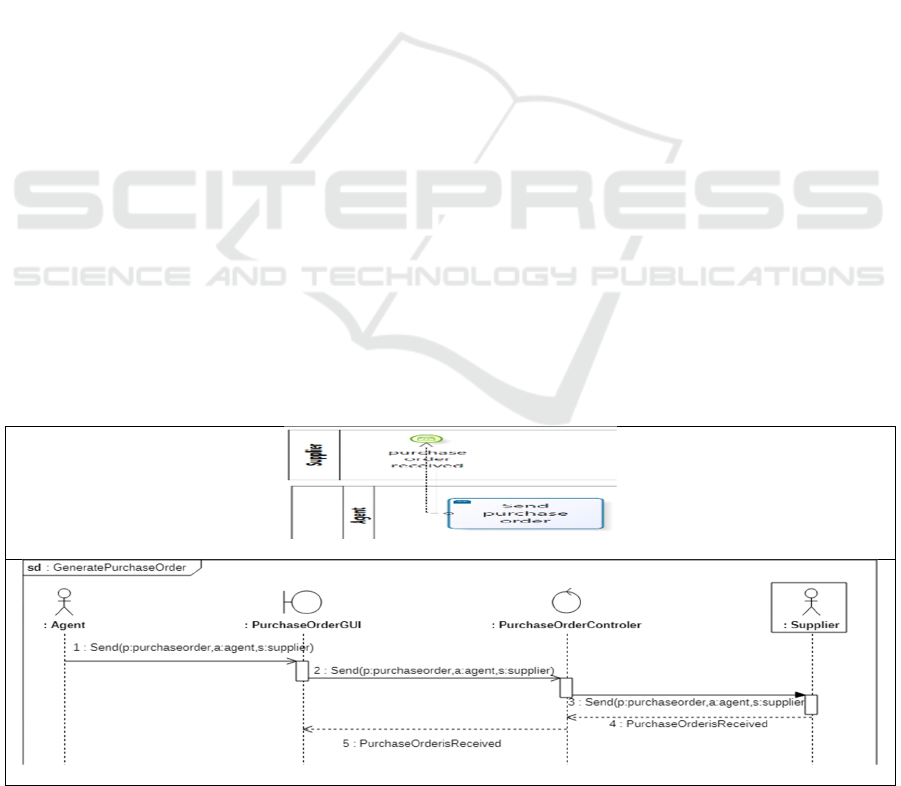

Figure 5: R10 illustration.

R10: For each fragment F in the BPMN model P:

if the fragment is composed of a set of activities

that belong to the same lane, then (see Figure 5):

a. Add asynchronous messages from the

agent to the “BusinessObjectGUI”, from

the “BusinessObjectGUI” to the

“BusinessObjectControler”

Add a synchronous message from the

“BusinessObjectControler” to the

“BusinessObjectEntity”. These messages have the

name of “ActionVerb”. Next, add a response

message from the “BusinessObjetEntity” to the

“BusinessObjectControler” and from

the“BusinessObjectControler” to the

“BusinessObjetEntity”R11: Each fragment F

composed of only one activity labeled with

R11.1: “Send x” or “Send x to y”, its

corresponding DSD will be named “Generate x”;

R11.2: “Receive x” or “Receive x from y”, its

corresponding DSD will be named “Manage x”; we

note that the information related to the sender can

be found in the business context of the activity.

R11.3: If the first activity SA of a fragment F is

labeled “Create x“, then the corresponding use case

UC_F will be named “Manage x”.

R12: For each gateway in the BPMN model P,

add:

a. An interaction operator Par with a combined

frame if the gateway is parallel. Each Par

frame has as many operands to the outgoing

flows of the parallel gateway.

b. An Alt frame if the gateway is an exclusive or

inclusive one. Each Alt frame has as many

operands to the outgoing flows of the

exclusive/inclusive gateway. We note that

when an outgoing flow contains only an end

node, it will not be calculated. If the number

of operands is equal one, then change Alt

frame to Opt frame. In all cases, the outgoing

message label is used to define the guard of

each operand.

c. a loop combined fragment corresponding to

each gateway with one of the outgoing

sequence flow is a precedent activity in the

BPMN model.

R13: For each gateway between two fragments PF

(entry) and NF (exit) such that the activities of both

fragments are in the same lane : Apply first R8 on

each BPMN fragment to derive the DSD, if they are

not already generated. Then, enhance the DSD

corresponding by applying R12. The latter adds an

Opt frame that includes another frame Ref to the

DSD corresponding to NF (exit) (see Figure 6).

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

582

BPMN model

DSD

Figure 6: R13 illustration.

4 DESTINY TOOL AND

EVALUATION

To facilitate the application of our method, we have

developed a tool for assessing the alignment between

BPMN model and the corresponding design sequence

diagrams.

Our tool is implemented as an EclipseTM plug-in

(Eclipse, 2013). It is composed of two main modules:

the generator module and the evaluator module. The

“Behavioral diagrams generator” takes a business

process modeled by BIZAGI tool (ISO/IEC 19510,

2013). Then, we transform it into XPDL file (Shapiro,

2008). Based on the generated file, the information

extracted by the extractor reflects the business

context. The latter describes each BPMN element by

a set of features. Figure 7 shows the BPMN example

“Purchase order” which is annotated according to the

renaming linguistic patterns.

Next, we tagged each pool/lane with the

stereotypes (Rumbaugh and Jacobson, 2005):

business actor and business worker. The “Manager”

and “Agent” are considered as business worker, while

the supplier is a business actor. Recall that a business

worker represents an abstraction of a human that acts

within the business to realize a service, while a

business actor represents a role played by some

person or system external to the modeled business

and interacting with the business. So that, the

activities of “supplier” pool are out of the system

scope and are ignored in the generation of the design

sequence diagrams.

Secondly, we decomposed the BPMN model on a

set of five fragments F: F1, F2, F3, F4 and F5 (See

Figure 7).

F1 is decomposed into three sub-Fragments: F1.1,

F1.2 and F1.3. The first one F1.1 “Receive purchase

request”, the second one F1.2 contains the sub-

process “Quotations”, and the third one F1.3

contains two activities which are “Create purchase

order” and “Approve purchase order”. F2, F3 and F4

are expressed respectively by “Send purchase order”,

“Receive invoice” and “Receive item” activities. F5

includes “Process payment” and “Notify payment”

activities.

From BPMN Model to Design Sequence Diagrams

583

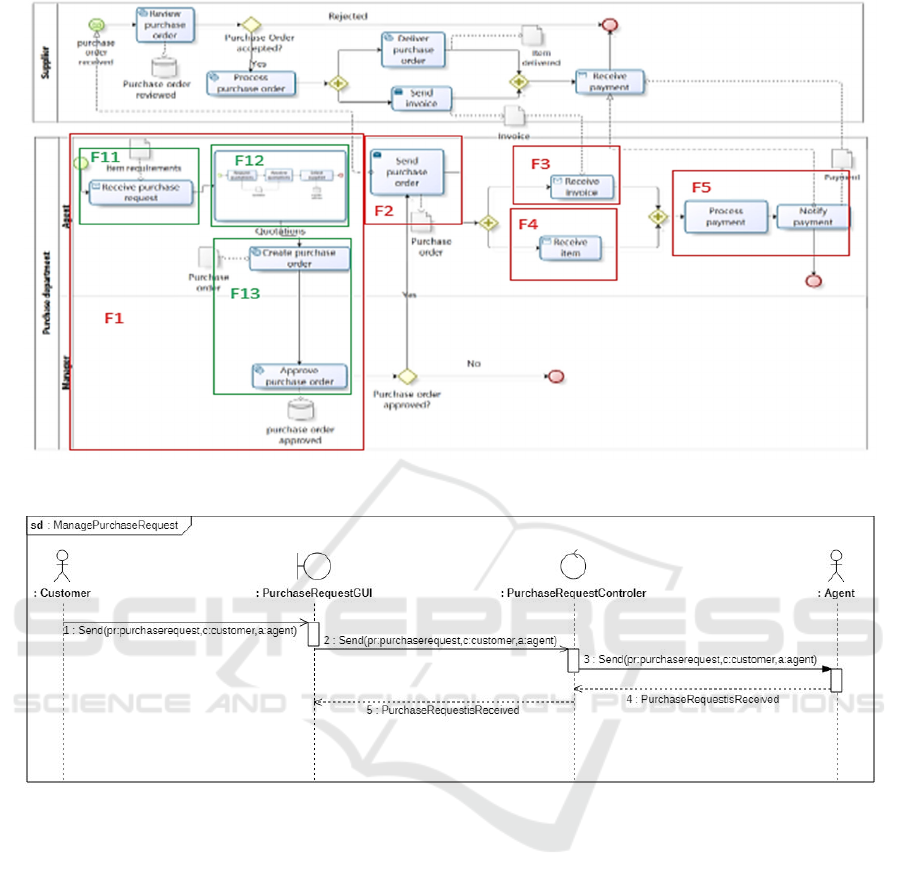

Figure 7: Purchase order Business Process in BPMN (ISO/IEC 19510, 2013).

Figure 8: ManagePurchaseRequestDSD.

To illustrate the application of our transformation

rules, we apply R2.1 that transforms the pool

“Purchase Department” containing the business

workers to a set of lifelines and an activation zone

representing GUI, entities and control classes that

belong to the system perimeter. Each pool’s lane that

represents the business workers “Agent” and

“Manager” is transformed to an actor by applying R3.

The business actor “Supplier” is transformed into a

secondary actor by applying R3.

The fragment F1.1 includes only one activity

which is “ReceivePurchaseRequest”. By applying

R11.2, we generate the design sequence diagram

called “ManagePurchaseRequest”. To describe the

behaviour of this design sequence diagram, we first

apply R3 to generate a lifeline for each actor. Finally,

we invoke R9.c that transforms the task “Receive

purchase request” to asynchronous messages called

send (from the “Customer” to the

“PurhaseRequestGUI” and from

“PurhaseRequestGUI” to the

“PurhaseRequestControler”. A synchronous message

is then added from the “PurhaseRequestControler”

to the “Agent” which represents the receiver instance.

The method has three arguments: “pr” instance of

“PurchaseRequest”, “a” instance of the receiver actor

“agent”, and “c” instance of the sender actor

“customer”. Then, the rule adds a response message

from the instance of Receiver to the

“PurhaseRequestControler” and from the latter to the

“PurhaseRequestGUI” called

“PurchaseRequestIsReceived” (See Figure 8).

The fragment F1.2 includes the “Quotation” sub

process which is composed of a set of sequential tasks

“Request quotations”, “Receive quotations” and

“Select supplier”. The structure of this sub-process

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

584

doesn’t call for applying again the fragmentation

process.

By applying R8.1 on each activity of the

fragment, we first generate a synchronous message

from the agent to the “QuotationGUI”, and then from

the “QuotationGUI” to the “QuotationControler”.

Next, an asynchronous message

“Quotationrequest()” is send from the

QuotationControler” to a multi instance “suppliers”.

The activity “Receive quotations” introduces the

lifeline corresponding to the multi-instance of

suppliers. This is inferred from the business context

of the activity. By applying R9.c, we add an

asynchronous message send() from the multi-instance

supplier lifeline to the “QuotationControler” and

from the latter to the “QuotationGUI”. Then, we add

a synchronous message called send() from the

“QuotationGUI” to the receiver instance: “agent”.

Both of them have the same arguments: “q” instance

of the business object “quotation”, “a” instance of the

agent who receives “q”, and “s” instance of the

supplier who sends “q”. We add a response message

from the “Agent” to the “QuotationGUI” called

QuotationIsReceived.

Finally, by applying R8.1, the transformation of

the activity “Select supplier” adds a new lifeline “s”

instance of “Supplier” and a message called “select(s:

Supplier)” from the agent to the “QuotationGUI” and

from the latter to the “QuotationControler” The

business context of the activity reveals that the

supplier must be notified by the agent decision. This

leads to add a synchronous message from the

“QuotationControler” to the supplier. The rule adds a

response message, called “SupplierIsSelected”, from

the instance of Receiver to the“QuotationControler”,

and from the latter to the “QuotationGUI” (See

Figure 9).

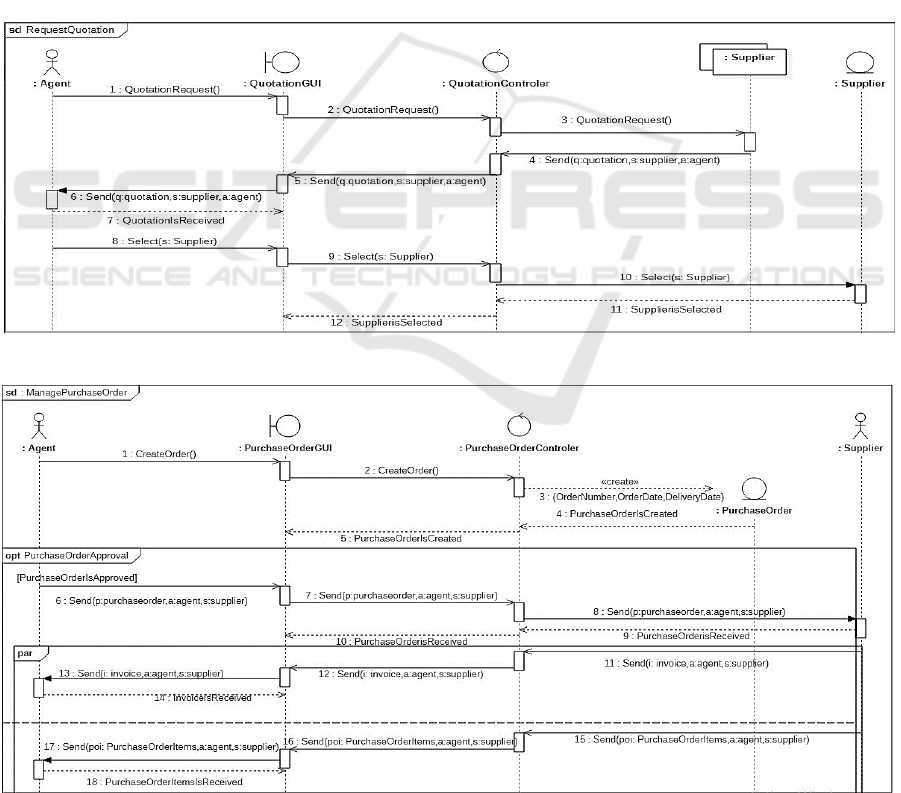

Figure 9: RequestQuotationsDSD.

Figure 10: ManagePurchaseOrderDSD.

From BPMN Model to Design Sequence Diagrams

585

Figure 11: ProcessPaymentDSD.

The fragment F1.3 includes two activities which

are “Create purchase order” and “Approve purchase

order”. Based on R11.3, the name of the fragment

will be “Manage Purchase Order”.

The design sequence diagram that describes the

behavior of the fragment “Manage Purchase Order”

(See Figure 10) is obtained by applying R8.1 and

R12. According to R8.1, the first activities of the

fragment generate an asynchronous messages from

the agent corresponding to the lane, which is already

generated by R3, to the “PurchaseOrderGUI”. Next,

we add a new asynchrous message having the name

CreateOrder(), from the “PurchaseOrderGUI” to the

“PurchaseOrderControler”. A synchronous message

having the same name is then added from the

“PurchaseOrderControler” to the

“PurchaseOrderEntity”. A response message from the

“PurchaseOrderEntity” pointing back to the original

lifeline is added. The response label is a

concatenation between the BusinessObject

“PurchaseOrder” and the passive voice of the

ActionVerb “create”.

Then, we add a synchronous message

“approve(p:purchaseOrder)”. We note that the

parameters are extracted from the business context of

the corresponding activities. The exclusive gateway

calls to apply R12.b. The latter generates an Opt

frame called “PurchaseOrderApproval” that contains

1) a sequence of messages derived by applying R9.b

on the activity “Send Purchase Order (s: supplier)”,

2) a Par frame that contains two operands. Each one

of them models the behaviour of “Receive Invoice”

and “Receive Item” (See Figure 10). This is obtained

by applying R12.a and R9.c.

The fragment F5 generates “Process Payment”.

Its design sequence diagram (See Figure 11) is

obtained by applying R8.1 and R9.b.

The “generator” applies the transformation rules to

derive design sequence diagram corresponding to

each fragment.

To validate the transformation rules, the evaluator

examines experimentally the performance of the

transformations through the calculation of recall and

precision rates. It uses them to compare the models

generated by our method to those supplied by the

expert. For each element type of the design sequence

diagram DSD (object, message, parameters, etc.), the

recall and precision rates are calculated according the

following equations:

Precision = TP/(TP+FP)

(1)

Recall = TP/(TP+FN)

(2)

Where:

• True positive (TP) is the number of existing

real elements generated by our transformation;

• False Positive (FP) is the number of not

existing real elements generated by our

transformation;

• False Negative (FN) is the number of existing

real elements not generated.

In fact, for the design sequence diagrams, the

evaluator calculates the average (AVGSSDs) of recall

and precision rates (See Figure 12).

Figure 12: Recall and precision measurement.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

586

The high scores for both ratios mean that the

generated UML diagrams cover the whole domain

precisely in accordance with the experts perspective

(See Figures 13, 14, 15, 16). We can deduce that the

performance of our method approaches the human

performance.

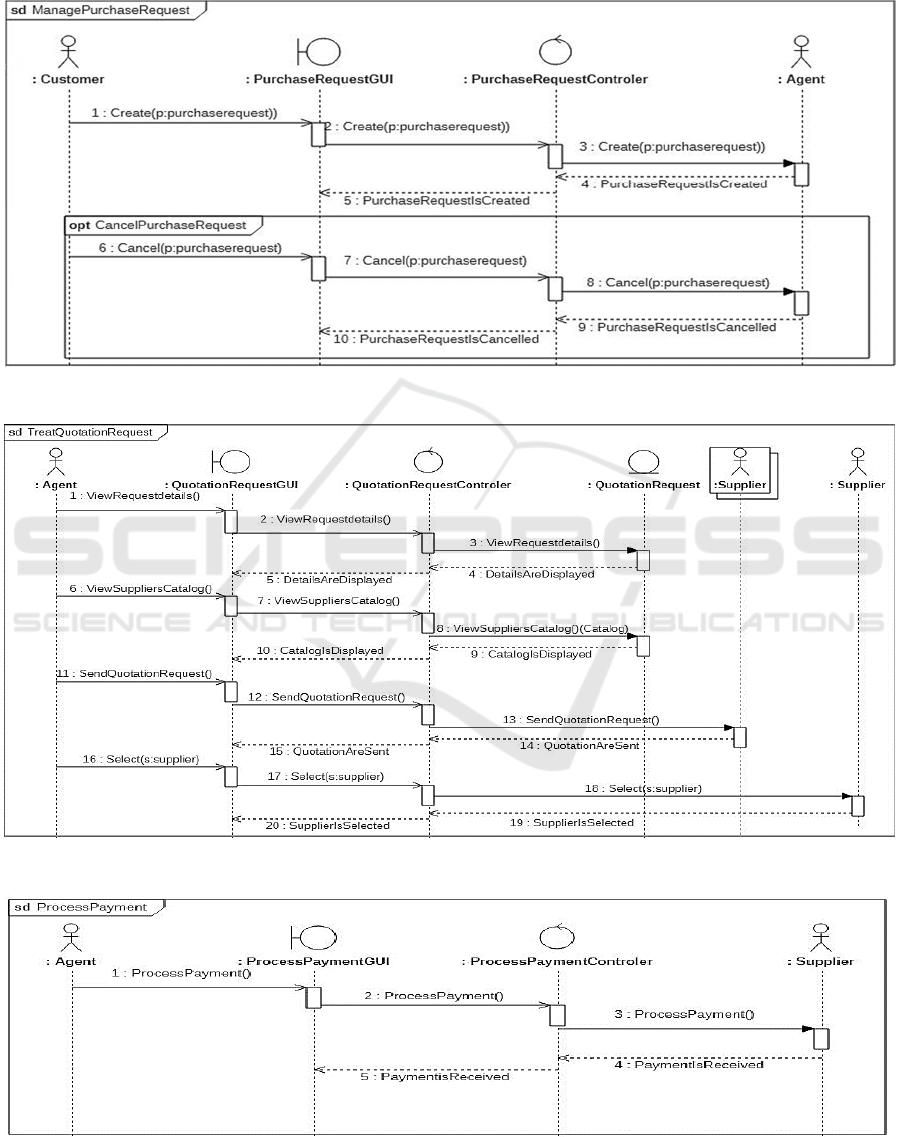

Figure 13: ManagePurchaseRequestsDSD.

Figure 14: TreatQuotationRequestsDSD.

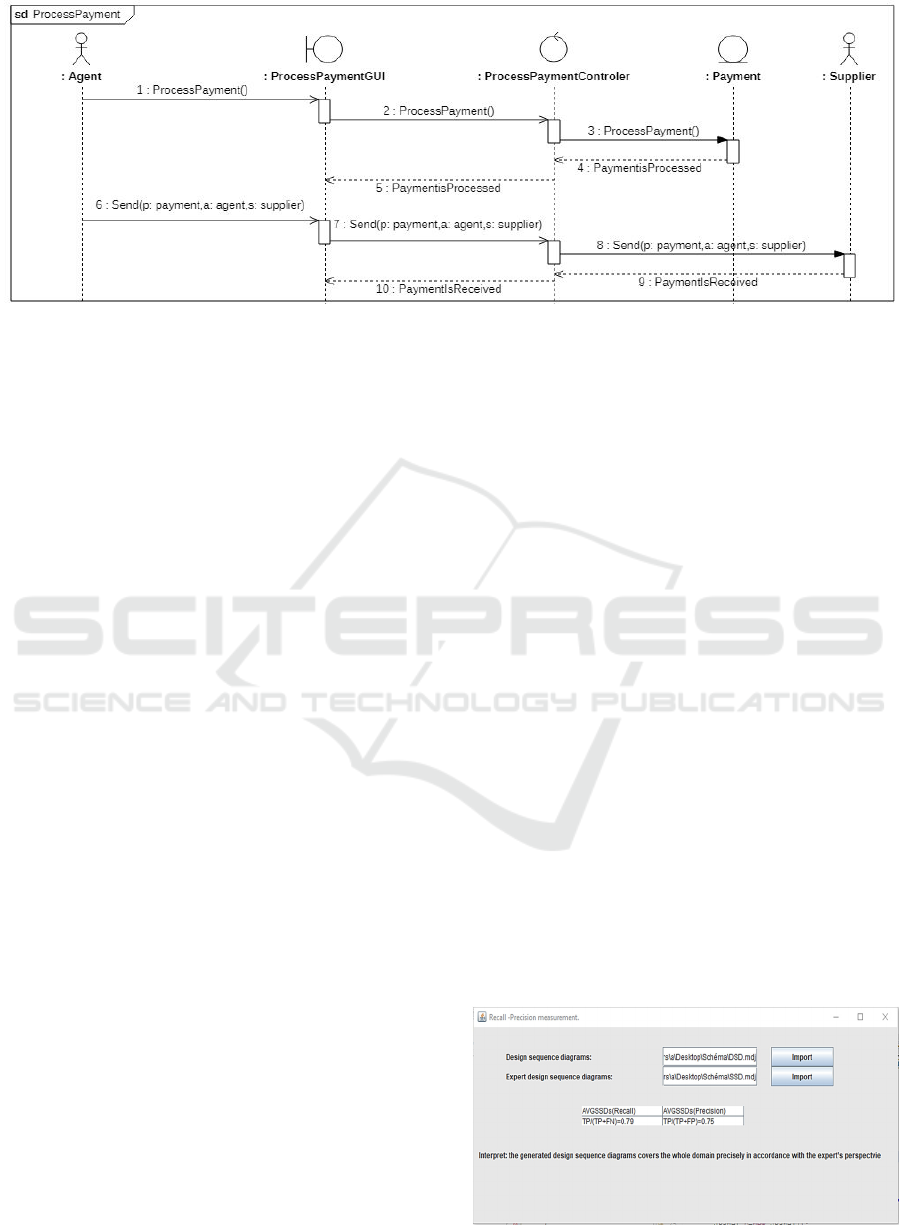

Figure 15: ProcessPaymentDSD.

From BPMN Model to Design Sequence Diagrams

587

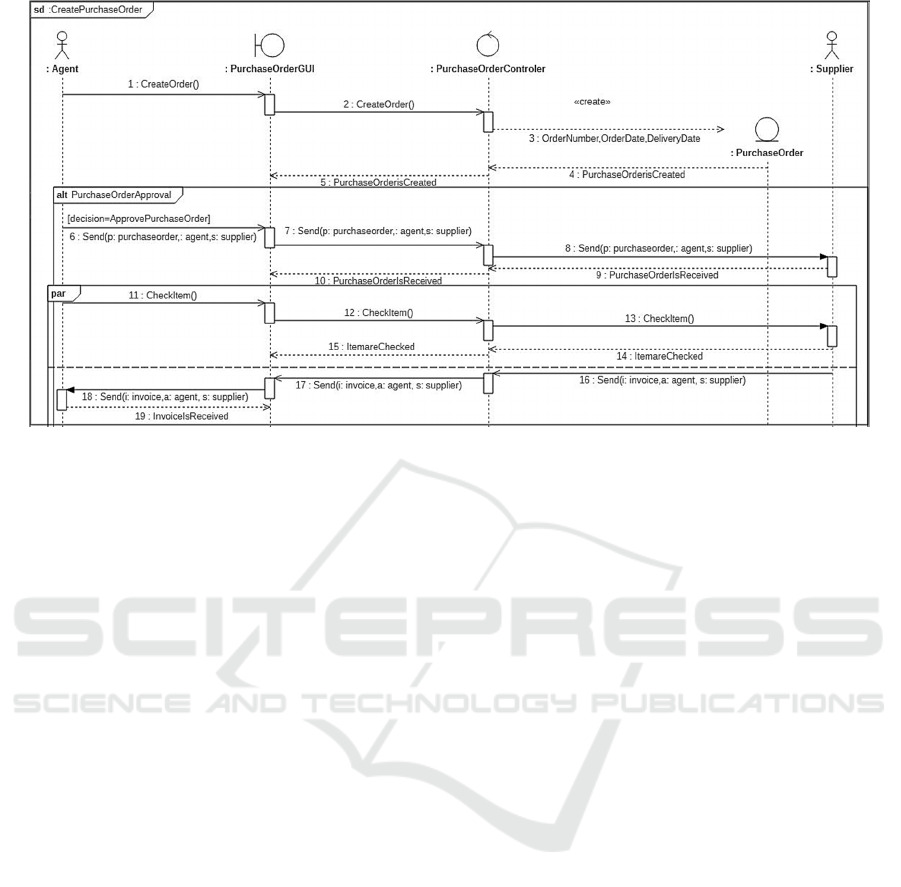

Figure 16: ManagePurchaseOrdersDSD.

5 CONCLUSIONS

This paper proposed a transformation-based

approach to generate design sequence diagrams

from business process models. It provides for the

generation of objects and their relations that are

aligned to the business logic. Compared to existing

works, our approach has the merit of accounting for

both the semantic and structural aspects of the

business process model. In addition, the proposed

rules are implemented in a tool for generating

design sequence diagrams. The produced diagrams

are evaluated based on empirical experimentation.

REFERENCES

Aversano, L., Grasso., C., Tortorella, M., 2016. Managing

the alignment between business processes and

software systems. In journal information and

software technology, v.7 (3). pp. 171-188.

Berrocal, J., Garcıa-Alonso, J., Vicente-Chicote, C. &

Murillo, J. M., 2014. A Pattern-Based and Model-

Driven Approach for Deriving IT System Functional

Models from Annotated Business Models. In

Information System Development, pp 319-332.

Bouzidi, A., Haddar, N. Z., Ben-Abdallah, M., Haddar,

K., 2020. From bpmn to sequence diagrams:

Transformation and traceability. In: ENASE, pp. 438-

445.

Eclipse, Available from: http://www.eclipse.org. (2013).

ISO/IEC 19510, 2013 ISO/IEC 19510. 2013. Information

technology -- Object Management Group Business

Process Model and Notation.

Khlif W., Ben Ayed N., Almogati E., Ben-Abdallah H.,

2018''Designing BP-IS aligned models: An MDA-

based Transformation Methodology''. In Inter. Conf.

on Evaluation of Novel approaches to software

engineering.

Rhazali, Y. Hadi, Y. Mouloudi, A., 2016. A Based-Rule

Method to Transform CIM to PIM into MDA. In

International Journal of Cloud Applications and

Computing, IJCAC., pp.11-24.

Rostami, K., Heinrich, R., Busch, A., Reussner, R. H,

2017. Architecture-Based Change Impact Analysis in

Information Systems and Business Processes. In

ICSA’17, Inter. Conf. on Software Architecture.

Rumbaugh, J., Jacobson, I., Booch, g., 2005. The Unified

Modeling Language Reference Manual, pp. 742.

Shapiro, R.M. XPDL 2.0 (2006). Integrating process

interchange and BPMN.

Suchenia, A., Kluza, K., Jobczyk, K., Wisniewski, P.,

Wypych, M., Ligeza, A., 2017. Supporting BPMN

Process Models with UML Sequence Diagrams for

Representing Time Issues and Testing Models. Pp.

589-598.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

588
