Using Deep Learning-based Object Detection to Extract Structure

Information from Scanned Documents

Alice Nannini, Federico A. Galatolo

, Mario G. C. A. Cimino

and Gigliola Vaglini

Department of Information Engineering, University of Pisa, Largo L. Lazzarino 1, Pisa, Italy

Keywords: Deep Learning, Computer Vision, Object Detection, Region Proposal, Document Layout Analysis,

Information Extraction, Transfer Learning.

Abstract: The computer vision and object detection techniques developed in recent years are dominating the state of the

art and are increasingly applied to document layout analysis. In this research work, an automatic method to

extract meaningful information from scanned documents is proposed. The method is based on the most recent

object detection techniques. Specifically, the state-of-the-art deep learning techniques that are designed to

work on images, are adapted to the domain of digital documents. This research focuses on play scripts, a

document type that has not been considered in the literature. For this reason, a novel dataset has been

annotated, selecting the most common and useful formats from hundreds of available scripts. The main

contribution of this paper is to provide a general understanding and a performance study of different

implementations of object detectors applied to this domain. A fine-tuning of deep neural networks, such as

Faster R-CNN and YOLO, has been made to identify text sections of interest via bounding boxes, and to

classify them into a specific pre-defined category. Several experiments have been carried out, applying

different combinations of data augmentation techniques.

1 INTRODUCTION

This work aims to offer a cutting-edge approach to

the processing of scanned documents that have a non-

regular text structure. As a reference domain, the one

of play scripts is considered. In this domain, a

standard script includes the following structure: title,

author, followed by a sequence of scenes and acts, a

list of sentences (lines) with an associated character,

and different types of descriptions and notes. Such

sections may be in different positions of the

document, with different formatting, including

different font sizes and styles. The purpose of this

research is to propose a deep learning approach to

automatically identify position, content, and nature of

each element, for script enrichment with metadata.

On one side, this problem can be considered as an

object detection task, since it is based on identifying

the text sections and their coordinates as objects in an

image. On the other side, the problem can be

formulated as a document layout detection, because it

is based on associating each text box with its

https://orcid.org/0000-0001-7193-3754

https://orcid.org/0000-0002-1031-1959

https://orcid.org/0000-0003-1949-6504

functionality within the script layout. A solution to

this problem is composed by a set of labelled

bounding boxes for the regions of interest (ROI) on

each document page. The considered approach is

language independent, because it does not explicitly

consider the text content. Although the text contents

of many regions can be useful for the purpose of

classification, the approach based on vision has the

advantage of generality with respect to language,

without using text features.

This paper is organized as follows. Section 2

covers a survey of related works. Then, Section 3

discusses the architectural design. Experimental

results are discussed in Section 4. Finally, Section 5

draws conclusions and future work.

2 RELATED WORK

Several tools exist to manage texts extracted from

scanned documents, and a variety of research works

are based on processing document contents. A

610

Nannini, A., Galatolo, F., Cimino, M. and Vaglini, G.

Using Deep Learning-based Object Detection to Extract Structure Information from Scanned Documents.

DOI: 10.5220/0011090600003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 1, pages 610-615

ISBN: 978-989-758-569-2; ISSN: 2184-4992

problem largely considered by the literature is related

to the analysis of scientific papers. In (Soto & Yoo,

2019) an adaptation of the Faster R-CNN (Region

Based Convolutional Neural Networks) object

detection model is proposed to facilitate the automatic

knowledge extraction from scientific articles. A

similar approach is found in (Yang & Hsu, 2021),

where the authors consider the analysis of layout of a

scientific document as an object detection task on

digital images. Here, the approach is based on fine-

tuning the two stages of the Faster R-CNN, pre-

trained on the Microsoft Common Objects in Context

(MS COCO) dataset.

A different research domain is the analysis of

historical documents, on which a variety of studies

have been done, based on text recognition. With

regard to this approach, in (Lombardi & Marinai,

2020) a survey of different deep learning techniques

used on this type of documents is provided. The most

used architectural models are Fully Convolutional

Networks (FCNs), Faster R-CNN, Mask R-CNN and

other models for object detection. In (Pondenkandath

et al., 2017) an architecture based on Long Short-

Term Memory (LSTM) technology is proposed.

Finally, in (Ziran et al., 2019), an approach based on

Faster R-CNN pre-trained on COCO data is carried

out to solve a page layout analysis problem. On the

other side, pixel-wise approaches are also

widespread, performing page segmentation and

classification by processing each pixel using a trained

CNN (Barakat & Al-Sana, 2018).

Recent works are trying new approaches based on

the YOLO (You Only Look Once) v3 model, a state-

of-the-art, real-time object detection system (Huang

et al., 2019). YOLO achieves promising and robust

performance, although it does not have a large

application in the documents domain. Overall, the

most used approach, on which more information and

data are available, is the Faster R-CNN object

detection model, pre-trained on a document-based

dataset, and then fine-tuned on a custom dataset. As a

consequence, in this paper Faster R-CNN and

YOLOv5 will be compared.

3 DATASET STRUCTURE

In the literature, there is a lack of benchmark data in

the domain of play scripts. As a consequence, it has

been necessary to create a data set. Figure 1 shows an

example of script. Specifically, an initial analysis of a

large database of more than 10k publicly vailable play

scripts (GTTempo, 2022), has been carried out. As a

result, 6 classes of interest have been identified in the

structure:

• Title: it refers to the title of the play, usually in the

first page of a script;

• Author: it refers to the name of the script’s author

and related information;

• Characters’ List: it refers to the list of all the

characters in the play, usually placed on the first

page after the title;

• Subtitle: it refers to the statement of an act or a

scene, but also to other paragraph titles;

• Description: the text section contains a scene’s

description, a global note, or similar;

• Dialogue: it refers to each line in the text, and

consists of the character's name, the text of the

line, and any related notes.

The document annotation has been carried out using

PAWLS (Neumann et al., 2021), a tool designed and

optimized for scanned documents. The resulting

machine learning set consists of 316 annotated pages,

for overall 109 documents. The distribution of the

classes is strongly unbalanced towards the Dialogue

class.

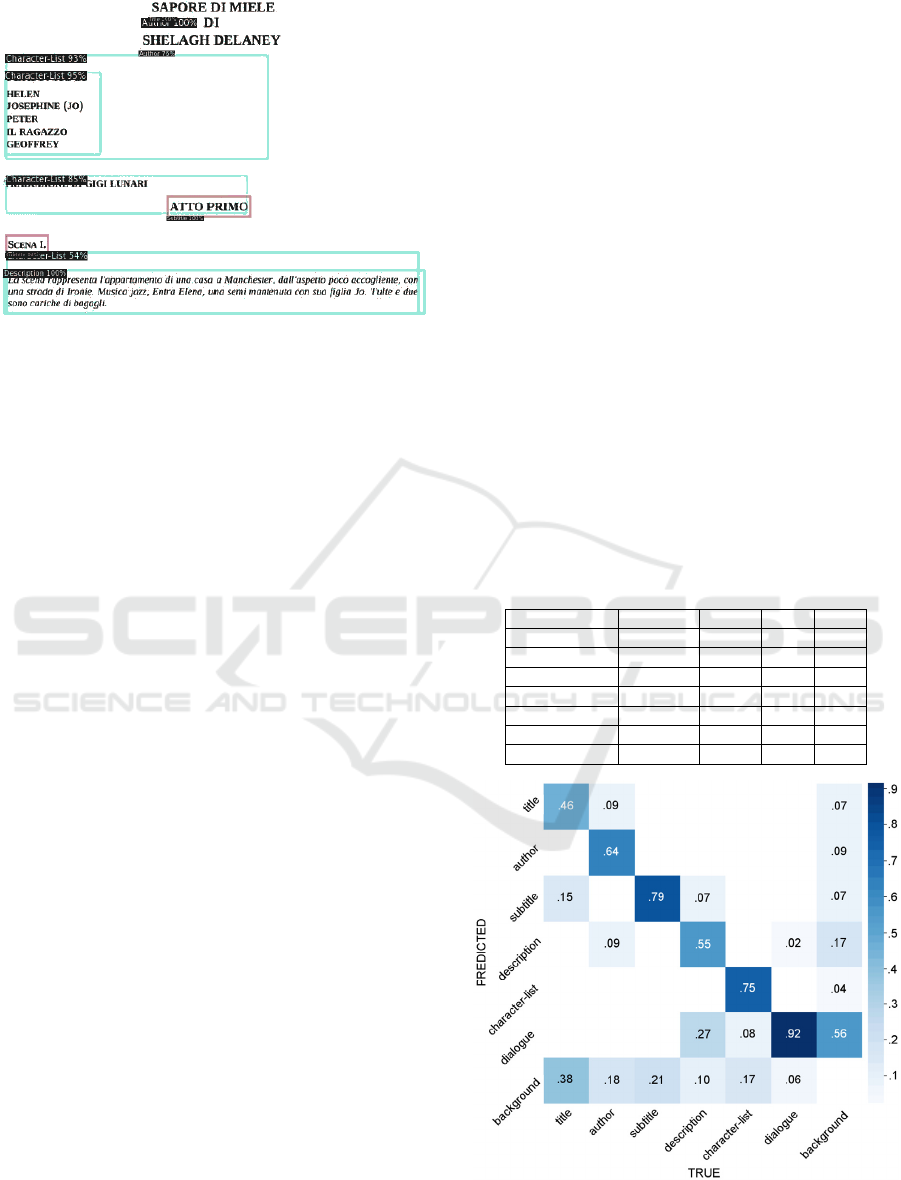

Figure 1: Example of annotated document page.

4 IMPLEMENTATION AND

EXPERIMENTS

Experiments have been carried out with the Google

Colab (Bisong, 2019) a free platform based on the

open-source Jupyter project, that allows to write and

run Python code through a browser with no

configuration required and with free access to GPUs.

The device we got to use is a NVIDIA Tesla K80

GPU.

Using Deep Learning-based Object Detection to Extract Structure Information from Scanned Documents

611

4.1 Faster R-CNN

Faster R-CNN (Ren et al., 2015) is a two-stage object

detector that belongs to the region-based CNN

family. We refer to the implementation provided by

the framework Detectron2. It has a structure based on

an initial stage where the Region Proposal is

performed, implemented by a deep fully-connected

network called RPN (“Region Proposal Network”).

The first stage of the RPN starts with the backbone,

based on a Residual Network, which extracts the

features of the input image. Subsequently, it takes the

feature maps coming out from different levels of the

backbone, to work on multiple scales, and it searches

for regions of interest via a sliding window and

various anchors of different sizes. As a result, the

bounding boxes of the Regions Of Interest (ROI) are

generated. The second stage consists in the real

detection, in which a network is trained to classify the

ROIs. This stage is implemented by the convolutional

head of the Fast R-CNN network (Girshick, 2015). It

takes as an input both the ROIs and the feature maps

extracted from the backbone.

The model is pre-trained on PubLayNet (Zhong,

2019), one of the largest datasets for document layout

analysis, counting more than 360k annotated page

images, mostly from scientific articles. The model has

been fine-tuned for 10k epochs on 283 play script

pages, and then tested on the remaining 33 pages,

with a batch size of 256, and a starting learning rate

of 5E-6 which then stabilizes at 250E-6 after 1000

warm-up iterations. Anchor scales of [32, 64, 128,

256, 512], anchor ratios of [0.5, 1.0, 2.0], and anchor

angles of [-90, 0, 90] have been set. Regarding the

data augmentation, the default setting has been

included the scale jittering. With an Intersection-

Over-Union (IOU) threshold of 0.5, the model

achieved a mean average precision (mAP@0.5) of

.566 over all six classes, with peak class performance

on Dialogue sections (.623) and lowest performance

on Author (.319).

Additional data augmentation techniques have

been integrated into the configuration. First, the

default scale jittering parameters have been updated

according to the size of the dataset images. Second,

cropping and horizontal flipping have been enabled.

Third, the augmentation techniques have been

enabled also for the test images. As a result, the model

has been retrained, achieving a mean mAP@0.5 of

.622, with peak class-performance of .636 on

Dialogue text sections, and a lowest performance of

.346 on Title class. Table 1 shows a summary of the

mAP@0.5 by class. Figure 2 shows the normalized

confusion matrix on test set. Figure 3 shows the

validation performance during the training phase.

Table 2 shows various validation results against

epochs. Finally, an example of inference on a test

image is shown in Figure 4. Finally, an example of

inference on a test image is shown in Figure 4.

Table 1: Faster R-CNN, summary of mAP@0.5 by class.

mAP

Title .346

Author .395

Subtitle .569

Description .410

Character List .420

Dialogue .636

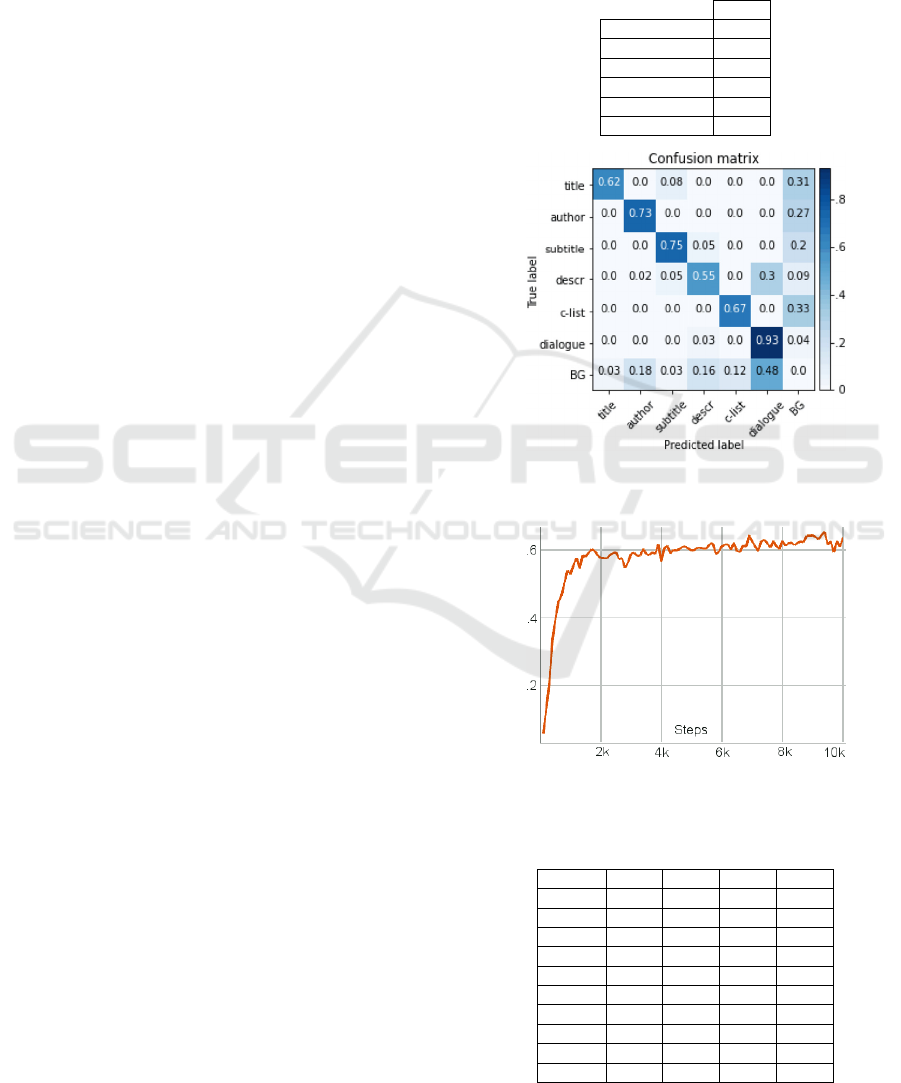

Figure 2: Faster R-CNN, normalised confusion matrix on

test set.

Figure 3: Validation mAP@0.5 trend of Faster R-CNN

model during the training phase.

Table 2: Faster R-CNN, validation results again epochs.

Epochs AP AP

Loss

1k .351 .528 .382 1.073

2k .389 .577 .427 .902

3k .422 .589 .498 .831

4k .388 .564 .445 .797

5k .435 .598 .483 .796

6k .439 .610 .528 .780

7k .462 .626 .530 .775

8k .465 .627 .531 .784

9k .474 .643 .558 .782

10k .472 .635 .543 .772

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

612

Figure 4: Faster R-CNN inference on test image.

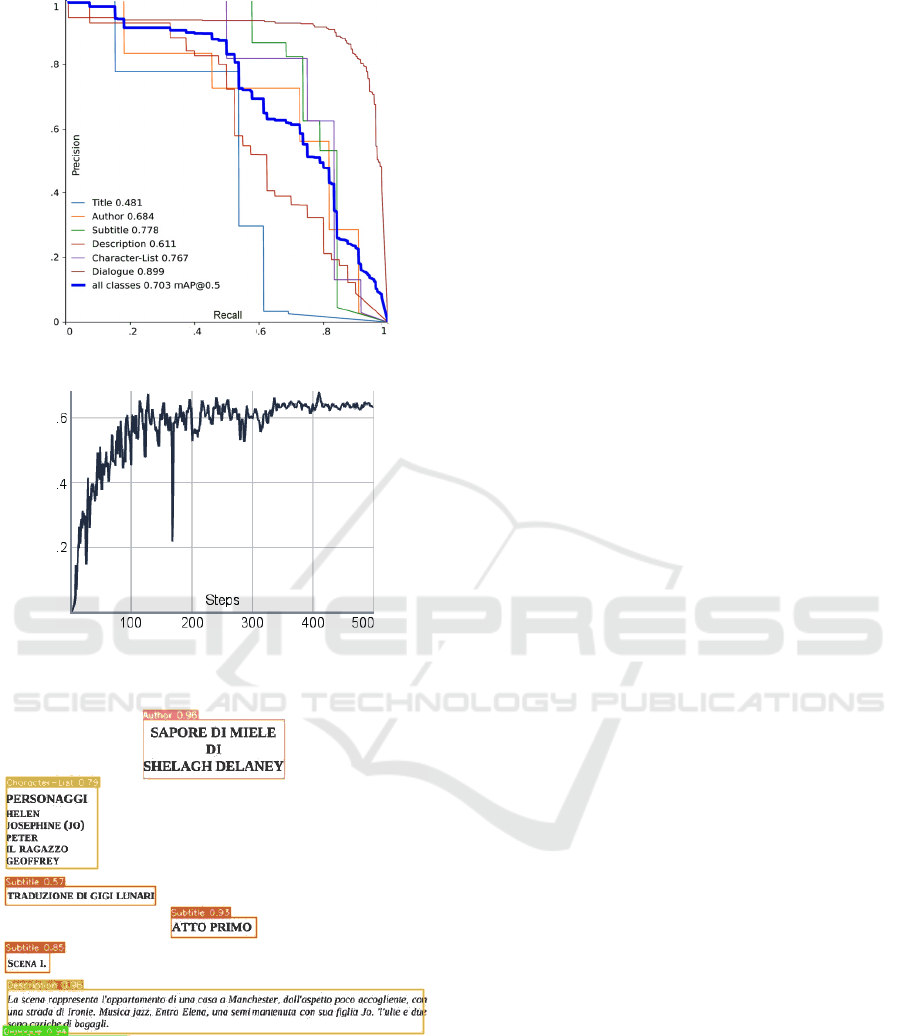

4.2 YOLOv5

For a better assessment, the results achieved by the

Faster-CNN model have been compared with a

YOLO model (Redmon et al., 2016). The purpose is

to understand whether improvements can be achieved

via a different approach.

Specifically, YOLO version 5 has been

considered, because – although under development –

it offers performance comparable to its previous

versions with shorter training and inference time.

Moreover, it is implemented on the PyTorch

framework, which makes it easier to compare with the

Faster R-CNN model. In contrast, the earlier versions

of YOLO are based on the Darknet framework.

YOLOv5 is based on a one-stage detection, an

approach resulting in a simpler structure and less time

consumption, than two-stage networks such as Faster

R-CNN. In essence, YOLOv5 processes the whole

image at once through a CNN, without making

predictions about many regions of an image.

YOLOv5 divides an input image into an S×S grid. For

each grid cell, it predicts B bounding boxes with

related confidences (called “objectness score”), and

related membership probabilities for all C classes.

The CNN is made by a backbone to extract the

features, which are then received at 3 different scales

as input by the detector. The detector predicts the

bounding boxes and the classes. The model offers a

very extensive data augmentation solution: by

default, various colour adjustment techniques,

translation, scaling, horizontal flipping, and mosaic

augmentation are provided.

YOLOv5 offers multiple model implementations

of different sizes, resulting in different trade-offs

between inference time and accuracy. The adopted

version is the “medium”, which consists of about 21

million of trainable parameters (Faster R-CNN has 41

million of them), and is more robust with respect to

previous versions.

The model has been configured with the weights

pre-trained with the COCO dataset, and it has been

trained for 500 epochs, with a batch size of 16. The

anchors have been set through the execution of a k-

means algorithm on the training data, while the

learning rate was scheduled according to the One-

Cycle policy (Smith, 2018). The Early Stopping

technique with a patience of 100 have been set.

As a result, a mAP@05 of .703 has been achieved,

which is higher than the performance of .622

achieved by Faster R-CNN. The peak performance of

.899 has been achieved with the Dialogue class, while

the worst class remains Title with a mAP of .481.

Table 3 shows a summary of validation results by

class. Figure 5 shows the normalized confusion

matrix on test set, whereas Figure 6 shows the

precision-recall ROC curve. Figure 7 shows the

validation performance during the training phase. It is

clear that YOLO achieves a higher precision with less

than an order of magnitude of steps with respect to

Faster R-CNN. Finally, Figure 8 shows an example

of inference on a test image.

Table 3: YOLOv5, validation results by class.

Class Precision Recall AP

All .763 .671 .703 .560

Title .726 .538 .481 .328

Author .710 .727 .684 .591

Subtitle .757 .737 .778 .581

Description .724 .525 .611 .508

Character List .789 .626 .767 .613

Dialogue .872 .871 .899 .738

Figure 5: YOLOv5, normalised confusion matrix on test

set.

Using Deep Learning-based Object Detection to Extract Structure Information from Scanned Documents

613

Figure 6: YOLOv5, precision-recall ROC curve.

Figure 7: Validation mAP@0.5 trend of YOLOv5

“medium” model during the training phase.

Figure 8: YOLOv5 inference on test image.

5 CONCLUSIONS

This paper compares state-of-the art deep learning

solutions for the automatic extraction of structure

information from scanned documents. The study

considers play scripts as a type of document. For this

purpose, the latest object detection techniques have

been adopted. Given the unavailability of play script

benchmark in the literature, a novel data set has been

generated, via publicly available repositories.

In the architectural design, selected technologies

for natural image processing have been adapted to the

domain of digital documents. Specifically, Faster R-

CNN and YOLOv5 have been considered.

Although a more in-depth exploration of the

approaches, and an enrichment of the benchmark are

needed, the experimental results are promising, and

the object detection technology based on deep

learning has proved to be easily adaptable and

effective for the document domain. More recently, a

novel approach of object detection has been proposed

in the literature (Carion et al., 2020). The approach,

called DEtection TRansformer (DETR), streamlines

the pipeline, by removing many hand-designed

components. DETR demonstrates accuracy and run-

time performance comparable with Faster-R-CNN.

An extensive study in this direction can be a future

work to bring a contribution in the field.

ACKNOWLEDGEMENTS

This work has been supported by: (i) the IT company

Wondersys Srl, Leghorn, Italy; (ii) the Italian

Ministry of Education and Research (MIUR) in the

framework of the CrossLab project (Departments of

Excellence); (iii) the Italian Ministry of University

and Research (MUR), in the framework of the FISR

2019 Programme, under Grant No. 03602 of the

project “SERICA”. The authors thank

teatropertutti.it, a blog founded by Rebecca Luparini.

A demonstrator of the proposed system will be hosted

on www.showteams.it

REFERENCES

Barakat, B. K., & El-Sana, J. (2018, March). Binarization

free layout analysis for arabic historical documents

using fully convolutional networks. In 2018 IEEE 2nd

International Workshop on Arabic and Derived Script

Analysis and Recognition (ASAR) (pp. 151-155). IEEE.

Bisong E. (2019) Google Colaboratory. In: Building

Machine Learning and Deep Learning Models on

Google Cloud Platform. Apress, Berkeley, CA.

https://doi.org/10.1007/978-1-4842-4470-8_7

Carion, N., Massa, F., Synnaeve, G., Usunier, N., Kirillov,

A., Zagoruyko S. (2020). End-to-End Object Detection

with Transformers. arXiv:2005.12872v3

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

614

Bochkovskiy, A., Wang, C. Y., & Liao, H. Y. M. (2020).

Yolov4: Optimal speed and accuracy of object

detection. arXiv preprint arXiv:2004.10934.

Girshick, R. (2015). Fast r-cnn. In Proceedings of the IEEE

international conference on computer vision (pp. 1440-

1448).

GTTempo, Copioni, https://www.gttempo.com/copioni,

accessed 2022.

Huang, Y., Yan, Q., Li, Y., Chen, Y., Wang, X., Gao, L., &

Tang, Z. (2019, September). A YOLO-based table

detection method. In 2019 International Conference on

Document Analysis and Recognition (ICDAR) (pp. 813-

818). IEEE.

Lombardi, F., & Marinai, S. (2020). Deep learning for

historical document analysis and recognition—a

survey. Journal of Imaging, 6 (10), 110.

Neumann, M., Shen, Z., & Skjonsberg, S. (2021). PAWLS:

PDF Annotation With Labels and Structure. arXiv

preprint arXiv:2101.10281.

Pondenkandath, V., Seuret, M., Ingold, R., Afzal, M. Z., &

Liwicki, M. (2017, November). Exploiting state-of-the-

art deep learning methods for document image analysis.

In 2017 14th IAPR International Conference on

Document Analysis and Recognition (ICDAR) . (Vol. 5,

pp. 30-35),. IEEE.

Redmon, J., & Farhadi, A. (2017). YOLO9000: better,

faster, stronger. In Proceedings of the IEEE conference

on computer vision and pattern recognition (pp. 7263-

7271).

Redmon, J., & Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv preprint arXiv:1804.02767.

Redmon, J., Divvala, S., Girshick, R., & Farhadi, A. (2016).

You only look once: Unified, real-time object detection.

In Proceedings of the IEEE conference on computer

vision and pattern recognition (pp. 779-788).

Ren, S., He, K., Girshick, R., & Sun, J. (2015). Faster r-cnn:

Towards real-time object detection with region

proposal networks. Advances in neural information

processing systems, 28, 91-99.

Smith, L. N. (2018). A disciplined approach to neural

network hyper-parameters: Part 1--learning rate, batch

size, momentum, and weight decay. arXiv preprint

arXiv:1803.09820.

Soto, C., & Yoo, S. (2019, November). Visual detection

with context for document layout analysis. In

Proceedings of the 2019 Conference on Empirical

Methods in Natural Language Processing and the 9th

International Joint Conference on Natural Language

Processing (EMNLP-IJCNLP) ,( pp. 3464-3470).

Yang, H., & Hsu, W. H. (2021, January). Vision-Based

Layout Detection from Scientific Literature using

Recurrent Convolutional Neural Networks. In 2020

25th International Conference on Pattern Recognition

(ICPR), (pp. 6455-6462,). IEEE.

Zhong, X., Tang, J., & Yepes, A. J. (2019, September).

Publaynet: largest dataset ever for document layout

analysis. In 2019 International Conference on

Document Analysis and Recognition (ICDAR) (pp.

1015-1022). IEEE.

Ziran, Z., Marinai, S., & Schoen, F. (2019) Deep learning-

based object detection models applied to document

images. UniFi.

Using Deep Learning-based Object Detection to Extract Structure Information from Scanned Documents

615
