A Novel Weight-assignment Load Balancing Algorithm for Cloud

Applications

Adekunbi A. Adewojo

and Julian M. Bass

University of Salford, The Crescent, Salford, Manchester, U.K.

Keywords:

Cloud Computing, Load Balancing, Weight Assignment, Three-tier Applications.

Abstract:

Load balancing dynamically optimizes cloud resources and performance, and enhances the performance of

applications deployed on cloud. We have chosen to investigate the class of cloud deployed web-based three-

tier business applications. There is a problem with load balancing for this class of applications when they

suffer from overload due to sudden ﬂash crowds and resource failures. We propose a novel weight assignment

load balancing algorithm to address this problem. Our approach utilises ﬁve carefully selected server metrics

to efﬁciently distribute load among virtual machines. First, we validated our novel algorithm by comparing it

with a baseline load-balancing algorithm and round-robin algorithm. Then, we experimentally evaluated our

solution, by varying the number of user requests and carefully measuring response times and throughput. The

experiments were performed on a private cloud environment testbed running OpenStack. Our experimental

results show that our approach improves the response time of user requests by 5.66% compared to the baseline

algorithm and 15.15% compared to round-robin algorithm in ﬂash crowd scenario. In addition, while handling

between 110% to 190% overload, our approach improved response times in all scenarios. Consequently, our

novel algorithm outperforms the baseline and round-robin algorithms in overload conditions.

1 INTRODUCTION

Cloud computing, a platform for deploying web-

based business applications, continues to gain rapid

adoption in business and computing world. It is re-

garded as the recent answer to scalable and elastic

computing. One of its appealing features is scalability

(Qu et al., 2017; Grozev and Buyya, 2014b): an abil-

ity of the system’s infrastructure to scale for handling

growing workload requirements while maintaining a

consistent performance.

A load balancer is commonly used to achieve con-

sistent performance in applications deployed in cloud,

while complementing the scalability of cloud. Load

balancing in cloud computing is the process of efﬁ-

ciently and equally distributing workload across avail-

able resources. It plays a crucial role in achieving low

latency, improving responsiveness, and maximising

the utilisation (Hellemans et al., 2019) of resources

in distributed systems. Load balancers use load bal-

ancing algorithm such as round-robin, least connec-

tions, hashing methods, and random algorithm to dis-

https://orcid.org/0000-0003-1482-3158

https://orcid.org/0000-0002-0570-7086

tribute workload requests among available resources.

To ensure higher availability of services and respon-

siveness, speciﬁc applications such as three-tier web-

based applications would beneﬁt more from a targeted

and improved load balancing algorithm and load bal-

ancer.

A web-based business application commonly ex-

periences ﬂash crowd: a rapid, ﬂuctuating, and ex-

ponential request surge that happens because of in-

creased users trying to access the application. The

cloud’s ability to scale, such that available resources

can cater for this need, is highly essential. However,

there is a problem with load balancing our class of ap-

plications when they experience ﬂash crowds, and/or

resource failures. The typical and common load bal-

ancing and auto-scaling strategies do not always suf-

ﬁce for these situations. Most times, these applica-

tions suffer performance degradation because of the

inability of the load balancer to effectively distribute

the workload or because the auto-scaling strategy was

too slow to scale out resources or never responded at

the required time.

Unfortunately, there has been limited research on

load balancing algorithms for web-based three-tier

business applications deployed on cloud. Even more

Adewojo, A. and Bass, J.

A Novel Weight-assignment Load Balancing Algorithm for Cloud Applications.

DOI: 10.5220/0011091600003200

In Proceedings of the 12th International Conference on Cloud Computing and Services Science (CLOSER 2022), pages 86-96

ISBN: 978-989-758-570-8; ISSN: 2184-5042

limited research on experimentally evaluating load

balancing/distribution techniques using real cloud in-

frastructures. Most studies conducted in evaluating

and developing load balancing techniques have fo-

cused on the use of simulation tools to evaluate these

cloud models (Grozev and Buyya, 2014b; Shaﬁq

et al., 2021; Kang et al., 2014; Tychalas and Karatza,

2020; Zomaya and Teh, 2001; Hellemans et al.,

2019). This is in contrast to few evaluations done

on real cloud infrastructure (Wang and Casale, 2014;

Zhang et al., 2017; Chen et al., 2018).

In this paper, we propose a novel weight assign-

ment load balancing algorithm. Our algorithm com-

bines ﬁve carefully selected key server (Virtual Ma-

chine (VM)) metrics (thread count, network buffer,

Central Processing Unit (CPU), Rapid Access Mem-

ory (RAM), and bandwidth utilisation) to properly

distribute the workload of a web-based three-tier busi-

ness application. It follows the monitor-analyse-

plan-execute loop architecture commonly adopted by

cloud-based systems (Zeng and Plale, 2014; Qu et al.,

2017). This consistently distributes workload among

available servers to maintain satisfactory response

time and throughput. We validated our algorithm by

comparing it to a baseline load balancing algorithm

by (Grozev and Buyya, 2014b).

The key contributions of this research are:

• a novel hybrid-dynamic load distribution algo-

rithm that improves response time, throughput,

and scalability of web-based three-tier business

applications; and

• an implementation of our algorithm evaluated in a

private cloud test-bed

We organized the rest of this paper as follows: we

brieﬂy summarize related work and compare them to

ours in Section 2. We motivate our research in Section

3. We illustrate the use case scenario of our solution

in Section 4. We describe the architecture of our cho-

sen application and some assumptions in Section 5.

We introduce and detail our solution, its design and

architecture in Section 6. We evaluate and present the

results of our algorithm and benchmark algorithms in

Section 9. Finally, we conclude the research in Sec-

tion 10.

2 RELATED WORK

Some efforts have been made in developing and cat-

egorising load distribution techniques for the cloud.

There are two categories of load balancing tech-

niques, namely: static and dynamic techniques (Ku-

mar and Kumar, 2019; Zomaya and Teh, 2001). Static

techniques are typically used to distribute predictable

load requests, while dynamic techniques are used to

distribute unpredictable load requests.

Based on these categories, several authors have

proposed different load balancing algorithms. Au-

thors in (Shaﬁq et al., 2021) proposed a dynamic load

balancing algorithm that addresses the VM isolation

issue in the cloud through efﬁcient task scheduling

procedures. Their algorithm focused on optimising

Quality of Service and resource allocation, thus im-

proving the load balancing process in the cloud.

Authors in (Chen et al., 2017) also proposed a new

paradigm for load balancing architecture and a new

dynamic annexed load balancing technique that can

be applied to both virtual web servers and physical

servers. Their technique considers both server pro-

cessing power and compute load to inform their load

balancing algorithm. They concluded that their ap-

proach improved the mean response time of load bal-

ancing digital applications deployed on the cloud.

Apart from the above researches, authors in

(Wang and Casale, 2014; Tychalas and Karatza, 2020;

Devi and Uthariaraj, 2016; Sahu et al., 2013) all pro-

posed dynamic load balancing algorithms that use

a weighting mechanism to load balance cloud-based

applications. They all considered speciﬁc server met-

rics such as CPU, RAM, and bandwidth in determin-

ing the dynamic weight of a particular physical server

or VM. In contrast to these, our load balancing algo-

rithm improves on those predeﬁned server metrics by

including thread count and network buffer to ensure

that we can determine accurate and precise real time

load of a server for effective routing of user’s request.

Further researches were done to not only load

balance workload but to improve on load balancing

limitations such as single point of failure (Kumar

and Kumar, 2019; Grozev and Buyya, 2014b; Cruz

et al., 2019), scalability, limitation in sensing uncer-

tainties (Zhang et al., 2017), excessive overhead and

re-routing (Zhang et al., 2017).

Building upon research works that are focused on

load balancing limitations, authors in (Zhang et al.,

2017) proposed a resilient data centre load balancer

called Hermes, which is resilient to trafﬁc dynamics,

topology asymmetry, and failures. It leverages com-

prehensive sensing to detect path conditions and ap-

ply correct re-routing of requests to the server.

Authors in (Cruz et al., 2019) proposed a task

mapping algorithm to improve communication and

load balancing in clusters of multicore systems. They

used the eagermap algorithm to determine task map-

pings, which is based on a greedy heuristic to match

application communication patterns to hardware hier-

archies and also consider task load. They claim that

A Novel Weight-assignment Load Balancing Algorithm for Cloud Applications

their algorithm design alleviates the single point of

failure problem. Our load balancing algorithm fur-

ther improves on the above-mentioned limitations-

amelioration technique by creating an architecture

that avoids single point of failure, reduces excessive

re-routing by using HAProxy, and sensing uncertain-

ties by using selected server metrics that determine a

server’s capacity.

Authors in (Grozev and Buyya, 2014b) proposed

an adaptive and dynamic resource provisioning and

load distribution algorithms for multi-cloud to heuris-

tically optimize overall cost and response delays with-

out violating essential legislative and regulatory re-

quirements.

Our solution is different from the above ap-

proaches described above. Although it is similar to

the approaches of Grozev (Grozev and Buyya, 2014b)

and Wang (Wang and Casale, 2014), but it combines

carefully selected key server metrics that are speciﬁc

for accommodating our chosen class of application.

We also adopt an architecture composed of multiple

available load balancers to alleviate the problems as-

sociated with load balancing in the cloud. Further-

more, similar to the research work of Grozev (Grozev

and Buyya, 2014b), our proposed load balancing al-

gorithm can be extended to work in a multi-cloud set-

ting.

In addition, evaluation of the above researches and

those of (Hellemans et al., 2019; Zomaya and Teh,

2001; Elgedawy, 2015) were all done using simula-

tion tools and environment. We note that there is little

research (Chen et al., 2018) on evaluating cloud com-

puting models by completely using real cloud infras-

tructures. Most times, a simpliﬁed real infrastructure

experiment is done to complement simulated experi-

ments as seen in (Wang and Casale, 2014; Grozev and

Buyya, 2014b; Zhang et al., 2017).

However, we argue that simulation experiments

rely heavily on parameters to be accurate, so there

is a challenge of knowing what an accurate param-

eter value should be. The consequence of this is an

incorrect simulation result when the parameters are

not right. Meanwhile, running experiments on real

cloud infrastructure do not require parameterisation,

we get the real behaviour of all resources used and

this produces a more realistic result. Our research val-

idates our baseline algorithm, compares our algorithm

to the baseline and round-robin algorithms, and tests

our novel algorithm using a real cloud test environ-

ment.

3 MOTIVATION

Research (Grozev and Buyya, 2014b; Chen et al.,

2017; Tychalas and Karatza, 2020) shows that stan-

dard load balancing technique does not sufﬁce for

most applications deployed on the cloud. How much

more, web applications that commonly experiences

ﬂash crowds and sometimes resource failures. These

studies corroborate the fact that there is need for a dy-

namic and real-time capacity focused load balancing

algorithm for our class of application.

An approach to alleviate issues associated with a

standard load balancing algorithm is to incorporate

into the algorithm the key factors that affect the real-

time load of a VM. Our research identiﬁed the fol-

lowing key server metrics namely: CPU utilisation,

memory utilisation, network bandwidth, number of

threads running, and network buffers, as the most rel-

evant determinants of a VM’s real-time capacity and

load. Incorporating these factors will help a load bal-

ancer to make decisions based on the current capac-

ity and real-time load of a VM, and therefore better

utilise available resources and provide improved per-

formance.

Our proposed algorithm is an enhancement of

a load balancing algorithm by (Grozev and Buyya,

2014b). It incorporates the dynamic load balancing

technique, and the above-mentioned server factors to

calculate the weight of a VM. It assigns each VM a

weight based on the current utilisation, so the weight

of each VM and the probability of each VM’s usage

dynamically changes during runtime after evaluating

its current state. We implement this idea in our novel

Load Balancing Algorithm as depicted in 1.

4 USE CASE SCENARIOS

Our load balancing algorithm will be effective in the

following scenarios:

4.1 Flash Crowds

Flash crowds are trafﬁc spikes that commonly affects

web applications (Qu et al., 2017; Ari et al., 2003; Le

et al., 2007). They happen without any prior notice

and may become difﬁcult to manage. Commercial

cloud providers use auto-scaling services to combat

ﬂash crowds. These services launch new VMs after

the application has experienced high load for a spe-

ciﬁc period of time set by the user. Our algorithm can

easily complement the role of an auto-scaler in any

cloud based deployment, by effectively balancing ap-

plication workload across available servers, thereby

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

maintaining consistent performance that do not fall

below predeﬁned service level agreement (SLA) be-

fore resources are provisioned.

4.2 Resource Failures

Cloud resource failure occurs when any of the com-

ponents of a cloud environment fails to function as it

is intended to. According to (Priyadarsini and Arock-

iam, 2013; Prathiba and Sowvarnica, 2017), the three

most common resource failures in any cloud environ-

ment are hardware, virtual machines and application

failures. Any of this cloud resource failure can hap-

pen suddenly, and immediately result into degrada-

tion of service performance or total loss of service.

Most cloud providers use the intervention of an auto-

scaler and load balancer to mitigate the effect of any

such failures. However, the time required for an auto-

scaler to provision new resources will usually result

into performance degradation if existing and new re-

quests are not well managed, so our proposed load

balancing technique will deﬁnitely help to maintain

acceptable service performance while the auto-scaler

is provisioning resource.

5 APPLICATION

ARCHITECTURE AND

REQUIREMENTS

Our target applications are three-tier web-based busi-

ness applications deployed on cloud. The three-tier

architecture is the most popular implementation of a

multi-tier architecture (Amazon, 2021). A three-tier

web application is an interactive application that can

be accessed over the internet. Its architectural layers

are divided into three, namely: presentation, domain,

and data layer.

Our approach is the foundation to tenanted multi-

cloud load distribution, hence it will require requests

that can be processed by application replicas deployed

in more than one data center. This involves some im-

portant factors, and the most important factor for this

research is session continuity.

Session continuity ensures that end user sessions,

established over any access networks, will not lose

connection or any internal state even when different

servers process the user requests. Stateless applica-

tions, such as search engines, does not save client data

generated in one session for use in the next session

with that client. Also, stateless applications can eas-

ily scale because they can be deployed across multi-

ple servers without issues while ensuring session con-

tinuity. All these properties of stateless applications

implicitly satisfy the requirement of session continu-

ity. On the other hand, stateful applications require

persistence of end-user IP and session to a speciﬁc

server. Therefore, stateful applications and services

cannot be managed by our approach.

6 THE PROPOSED APPROACH

6.1 Load Balancing Architecture

Our approach to designing a hybrid-dynamic load bal-

ancing algorithm using a novel weight-assignment

policy is depicted in Figure 1. We co-locate the

load balancer and our load balancing service in the

same data centre to achieve fast detection of ﬂash

crowds and perform quick adaptations. The load bal-

ancing service comprises a monitoring module, that

constantly monitors incoming requests and the status

of available resources to detect application or server

overload; and a control module to modify the weight

of each VM to accommodate request workload.

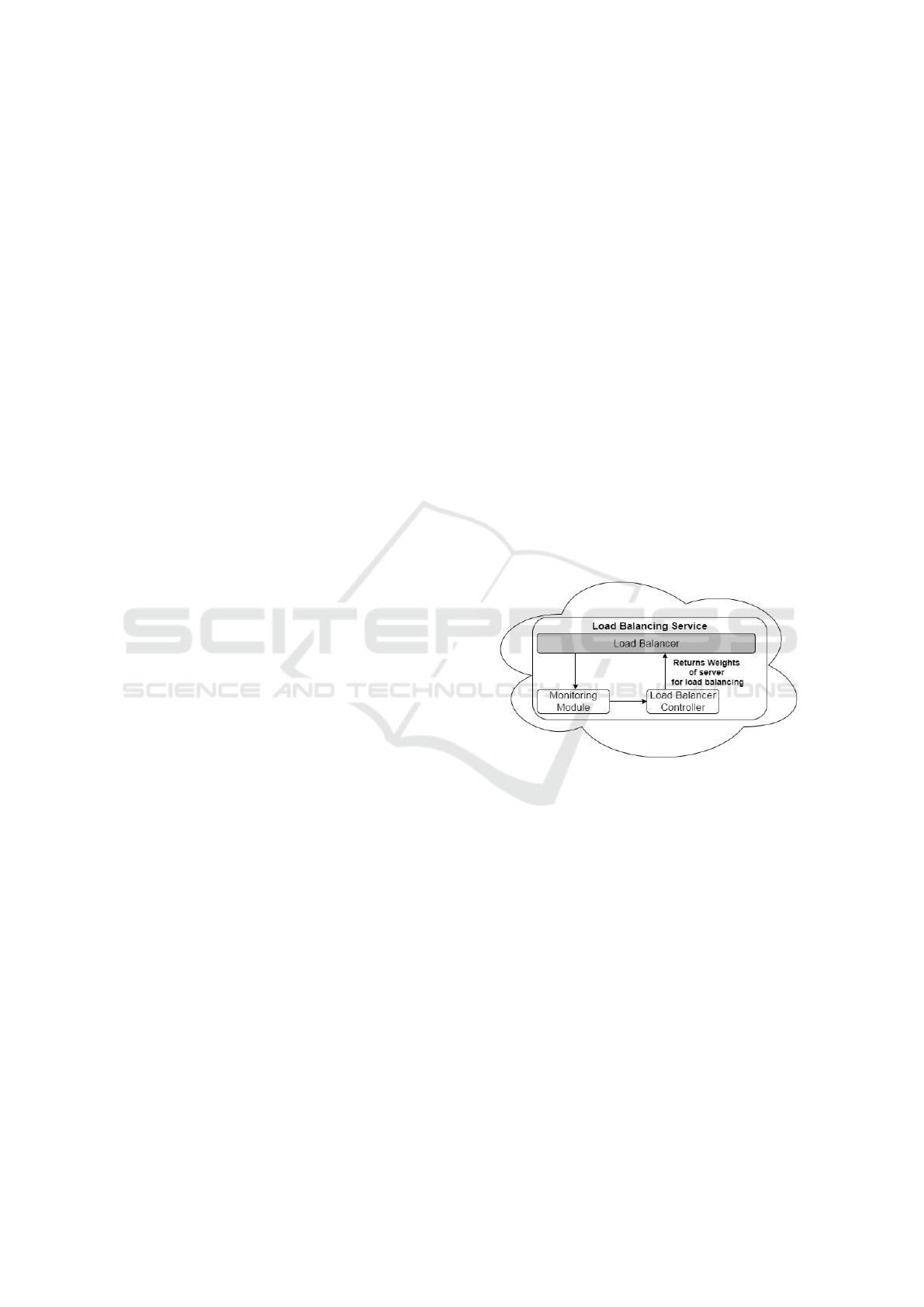

Figure 1: Proposed Load Balancing Architecture.

6.2 Overall Architecture

We depict the proposed overall architecture in Figure

2. We extend the conventional three-tier architectural

pattern with one additional layer of components. The

proposed load balancing layer comprises three dis-

tinct components: HAProxy load balancer, our load

balancing service, and an auto scaler.

Users are presented with an entry point that con-

sists of VMs that host load balancing service that dis-

tribute requests to application servers. The domain

layer is replicated over multiple Application Servers

and are hosted in separate VMs in our experimental

cloud test-bed. This enables the domain layer to be

scaled horizontally. The data layer also consists of

multiple database servers installed across VMs.

A Novel Weight-assignment Load Balancing Algorithm for Cloud Applications

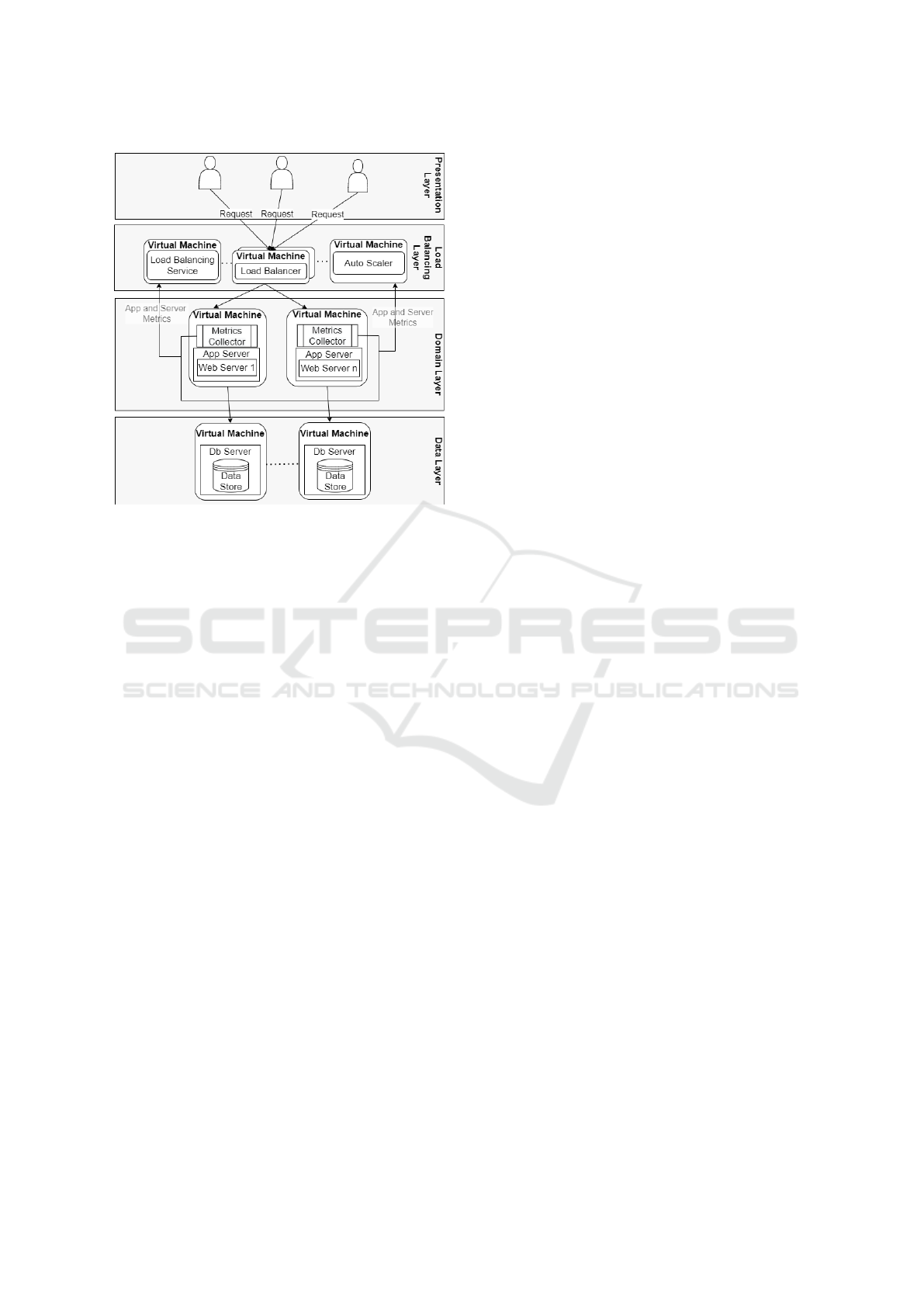

Figure 2: Proposed Overall Layered Architecture in a Sin-

gle Data Center.

6.3 Design and Deployment

Architecture

A good load balancing algorithm should reduce re-

sponse time, increase throughput and improve util-

isation of resources while enhancing system perfor-

mance. Furthermore, a suitable load balancing tech-

nique should consider different metrics to make it rel-

evant for applications whose size and needs may in-

crease suddenly, leading to the use of more resources

(Kumar and Kumar, 2019).

The issues and limitations discussed in section

2 highlights areas that need improvement in a load

balancing algorithm. We discuss relevant techniques

used in our architecture that mitigate these issues as

follows:

• Scalability: Ability of a load balancer (or al-

gorithm) to perform load balancing with any ﬁ-

nite number of nodes (Kansal and Chana, 2012).

Our proposed architecture is scalable because our

load balancing algorithm is built on a proven load

balancing system – HAProxy 2.4.2-1 (HAProxy,

2021). We have also tested our solution using

a varied number of heterogeneous VMs ranging

from one to eight VMs to test scalability. Our so-

lution has proven to load balance workload with

ﬁnite number of nodes.

• Fault Tolerance: Ability of a load balancer to

continue to deliver services despite failure (Shah

et al., 2017) of a load balancer or a server. We mit-

igate the issue of single point of failure by creating

multiple load balancing front-ends and a standby

application server, as shown in Figure 2. Our ap-

proach uses the high availability keep alive tech-

nology of HAProxy to monitor the services and

automatically switch over to a standby server. To

make the load balancer fault-tolerant, we create a

ﬂoating IP that can be moved between load bal-

ancers; if the primary load balancer goes down,

the ﬂoating IP moves to the second load balancer

automatically, allowing service to continue.

• Reduced Overhead and Latency: Overhead refers

to the extra time taken by a load balancer when

distributing workload, which increases communi-

cation cost (Zomaya and Teh, 2001; Shah et al.,

2017). The extra overhead generated by our

algorithm is negligible because it uses a de-

centralised approach to collect and maintain the

server’s metrics, as recommended by (Zomaya

and Teh, 2001). Our architecture includes VMs

with glances (Hennion, 2021) agents installed on

each of them. It uses the RESTful Application

Programming Interface (API) of glances to cap-

ture server metrics that serves as inputs to our load

balancing service. To calibrate performance indi-

cator, these agents also send server metrics to In-

ﬂuxDB — a time series database.

• Server Metrics: Ability of a load balancing algo-

rithm to make use of relevant server metrics in

deciding how to balance the workload of an ap-

plication (Chen et al., 2017). Our algorithm com-

bines carefully selected key server metrics that de-

termine a server load as evidenced in these studies

(Grozev and Buyya, 2014b; Tychalas and Karatza,

2020; Wang and Casale, 2014; Sahu et al., 2013).

We argue that aside from the common metrics

of CPU, and Memory utilisation, network band-

width utilisation and Thread Count are vital server

metrics because they determine how efﬁcient data

is transmitted in and out of a system; and sum-

marises the number of concurrent requests hap-

pening in the server at a particular time respec-

tively. These metrics help us to understand what

the general load of a server looks like from a re-

quest level, and the amount of load on the server

when running multiple threads.

7 PROPOSED LOAD BALANCING

SERVICE

This section describes our novel weight assignment

technique and load balancing algorithm.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

7.1 Proposed Weighting Technique

The weighting technique for our novel load balancing

algorithm improves the research of (Chen et al., 2018)

and (Chen et al., 2017). We made use of four of our

proposed metrics in the weighting calculation, while

we used the ﬁfth metric in the proposed algorithm.

To compute the weight of a VM, W (X

), we ﬁrst

calculated its real-time load, Lr(X

), in equation (1),

using the following server metrics. M

represents

Memory utilisation, B

represents Bandwidth utili-

sation, C

represents CPU utilisation, T

represents

Thread Count and NB

represents Transmission Con-

trol Protocol (TCP) network buffer/queues. These pa-

rameters are derived as percentages and must be con-

verted to integer values by dividing it by 100.

Lr(X

) = (e

∗ (C

/100)) + (e

∗ (M

/100))+

∗ (B

/100)) + (e

∗ (T

/100))

(1)

To acknowledge the different inﬂuences of each

metric factor on a VM, we introduce a weight factor

to the metrics used in equation (1). e

rep-

resents weight of CPU, RAM, bandwidth, and thread

count respectively. The sum of them is 1.

We carefully chose experimental proven values

for each of the weight factors. We ﬁtted these data

in experiments, and they represent best ﬁt values

of the different inﬂuence of our chosen server met-

rics of an application server for a three-tier web-

based business application. The values chosen are

w = 0.5, 0.3,0.15,0.05 for CPU, RAM, bandwidth,

and thread count respectively. CPU utilisation has

the highest weight factor because our class of ap-

plication is processor intensive. Memory utilisation

has the next highest weight factor because it makes

the VM become quickly unresponsive when being

heavily used, even when other metrics are not fully

utilised.

We did not include network buffer in equation (1),

and as a result; we did not assign a weight factor to

it. This is because this factor is used as a check of

network utilisation/availability or how busy the net-

work is at any particular time, and its inﬂuence on a

server is constant. However, we use network buffer in

our load balancing algorithm to continuously monitor

available network availability when calculating real-

time load.

We deﬁne the average value of all available appli-

cation server VM load as a threshold for load compar-

ison; this is represented in equation (2), where n rep-

resents the number of all available application server

VMs.

∑

Lr(X

)

(2)

We further improved and analysed our weight cal-

culation as follows: if Lr(X

) ≤ Lr

, this shows that

the application server VM’s load is relatively small,

so we should increase its weight. If it is the opposite,

we decrease the weight. Therefore, we deﬁne a mod-

iﬁcation parameter δ as shown in equation (3) using

the weighted averages.

δ =

Lr(X

)

∑

Lr(X

)

(3)

The least utilised application server VM will re-

turn the lowest real time load, but our load balancer,

HAProxy, functions by appropriating a bigger weight

value to the least utilised VM in a set of VMs. So to

achieve this, we computed the inverse of the real-time

load, Lr(X

), in equation (4). Doing this will make the

least utilised VM’s real load time to have the biggest

value.

Finally, because the weight used by HAProxy is

bounded for real integer values, the weight must be

a whole number; otherwise it will not be consistent

with the original intention. Our algorithm implemen-

tation rounds up any decimal value that is greater than

eight to make the value an integer. We represent the

complete weight equation in (4).

W (X

) =

(

Lr(X

)

+ δ),Lr(X

) ≤ Lr

(

Lr(X

)

− δ),Lr(X

) ≥ Lr

(4)

7.2 Proposed Load Balancing

Algorithm

Our proposed novel algorithm, Algorithm 1 abstracts

the overall ﬂow of the weighting and load balancing

algorithm. It deﬁnes a hybrid—dynamic load bal-

ancing algorithm; it computes the utilisation of each

server every two seconds and then assigns a weight

to each server during run-time using our proposed

weighting technique. The input parameters of the al-

gorithm are:

• T hc—CPU threshold;

• T hr—RAM threshold;

• T hbw—Bandwidth threshold;

• T h

r—Thread count threshold;

• V M

—list of currently deployed application

server VMs;

As the ﬁrst step in the algorithm, we receive and set

the overall threshold for the input parameters. We ex-

perimentally set values of 80%, 80%,80%,85% for

CPU, RAM, Bandwidth, and Thread count respec-

tively, by performing a proﬁling tests on one medium

A Novel Weight-assignment Load Balancing Algorithm for Cloud Applications

application server VM using synthetic workload gen-

erated according to real requests. We used a pre-

deﬁned SLA of 90% requests should be replied within

one second as recommended by (Qu et al., 2017) to

determine the average utilisation percentage.

To simplify our algorithm, we extracted the logic

for checking TCP network buffer NB

in a separate

function called TCPBufferOverloaded(). This func-

tion uses the netstat command to check if there is a

TCP socket for which any of the ratios of the buffer

sizes, Recv-Q and Send-Q values are greater than 0.9.

A ratio greater or equal to 1 mean the network buffer

is overloaded and requests will not arrive promptly at

that VM.

For each of the VM, we retrieved the utilisation

values of our chosen VM metrics. In line 2, our

algorithm loops through a list of available applica-

tion server VMs and compares each utilisation met-

ric against the set threshold for the current VM. Af-

ter that, it computes the weight as deﬁned in equation

(4) and checks the TCP network buffer NB

of each

application server VM. It assigns a weight to each

VM whose TCP network buffer is not overloaded as

shown in line 9; otherwise, if the VM is fully utilised

(100%), it assigns a weight of 0 to the VM as shown

in line 11 so that the VM does not accept any more in-

coming request until the utilisation is lower or equal

to the set threshold.

Finally, requests were distributed to each server in

turns in line 14, according to their weights. This dis-

tributes server load proportionally based on a VM’s

real-time capacity.

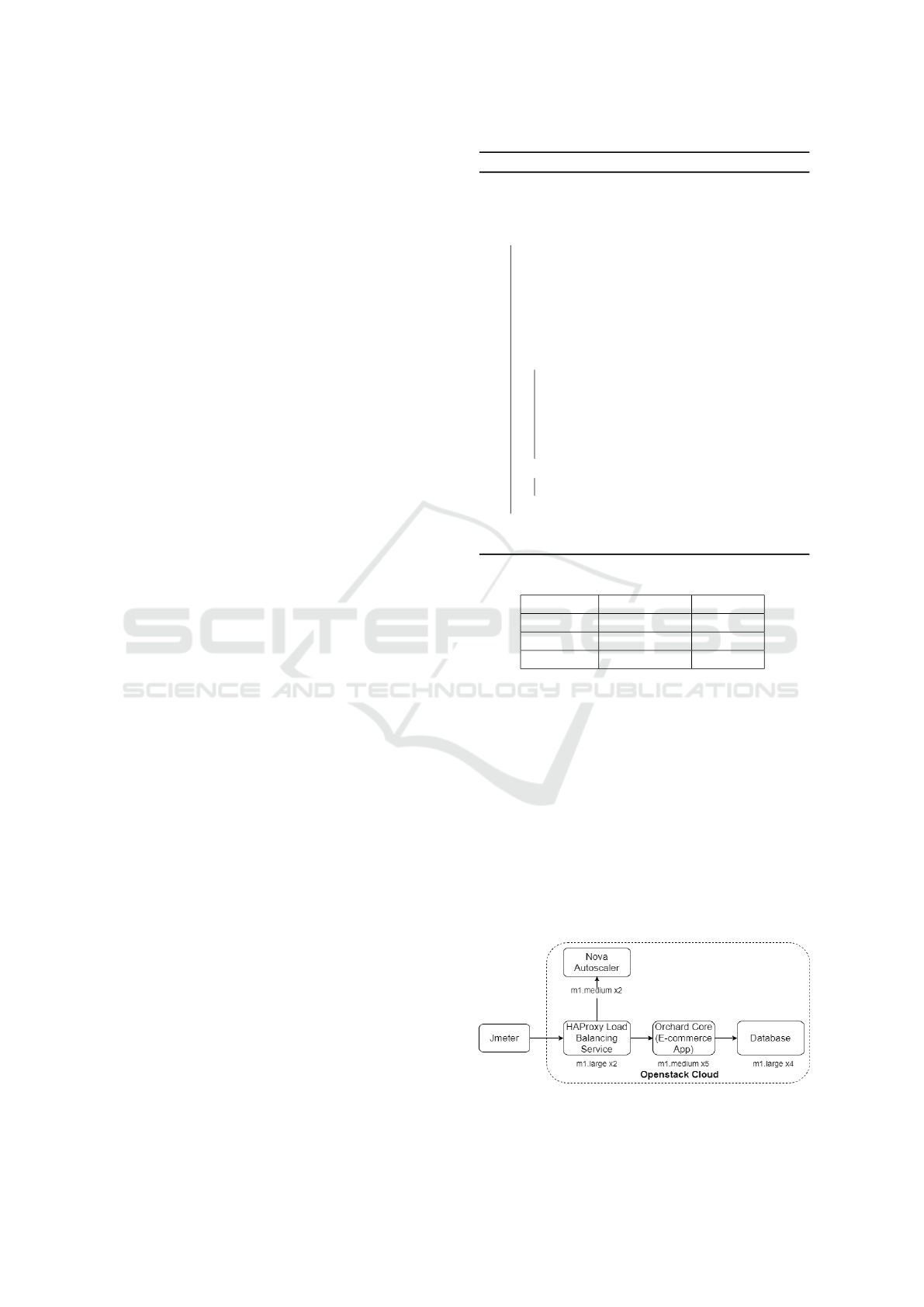

8 EXPERIMENTAL TEST-BED

We illustrate our experimental test-bed in Figure 3. It

consists of twelve heterogeneous VMs as described in

Table 1.

We deployed Apache Jmeter; a workload simula-

tor, on an external machine. We deployed HAProxy

server along with our load balancing service on two

VM instances. We launched ﬁve medium VM in-

stances of application servers and four large instances

of database server.

8.1 Case Study Application

Our case study application is a stateless, three-tier,

open source multi-tenant E-commerce application

used to buy and sell various products on the Inter-

net. It is built using Orchard Core framework cou-

pled with Elastic search for implementing its search

engine. The application is supported by MySQL

Algorithm 1: Novel Load Balancing Algorithm.

Input: s

, T hc, T hr, T hbw, T h

r, V M

1 RetrieveAllocateToInputThresholdValues

();

2 for each VM, vm

∈ V M

3 Utl

cpu

← CPU utilisation of vm

;

4 Utl

ram

← RAM utilisation of vm

;

5 Utl

← Bandwidth utilisation of vm

;

6 UtlT hreadCount ← Threadcount of vm

;

7 if (Utl

cpu

¡ T hc & Utl

ram

¡ T hr & Utl

T hbw & Utl

T hreadCount

¡ T h

r &

!TCPBufferOverloaded ()) then

8 W (X

) ←

CalculateWeightbyutilisation

(Utl

cpu

, Utl

ram

, Utl

UtlT hreadCount, V M

, vm

);

9 assignweighttoVM (vm

,W (X

));

10 else

11 assignweighttoVM (vm

,0);

12 end

13 end

14 HAProxyAssignRequest (s

,V M)

Table 1: VM Capacity.

m1.medium m1.large

VCPUs 4 8

RAM 4GB 8GB

Disk Size 40GB 80GB

database. Because this research does not consider

data deployment, we focused on the application tier.

8.2 Workload

To simulate realistic user requests and location, we

hosted JMeter on a non-cloud machine. First, we pro-

ﬁle our application instance to determine the amount

of requests that can be successfully handled within

one second. Second, we proﬁle our application in-

stance again to determine the amount of requests that

can be handled, if our SLA stipulates that 90% of re-

quests must be handled within one second, this SLA

mechanism was recommended by (Qu et al., 2017).

Figure 3: Experimental Test-Bed.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

An average combination of the two proﬁle showed

that our application server instance can handle 90 re-

quests per second. Based on this proﬁling, we cre-

ated our workload to emulate a Poisson distribution

because of the nature of user request arrival, as indi-

cated by (Chlebus and Brazier, 2007). We used Jmeter

to send requests to our deployed application using our

workload model. We repeated each experiments three

times and took the average of the repeated tests in all

our evaluations.

8.3 Baseline Application and Evaluation

To test the performance of our solution, we compared

our approach with our baseline algorithm by (Grozev

and Buyya, 2014b) and a standard load balancing

(round-robin) algorithm. Our evaluation sought to

characterise prominent load balancing performance

parameters, namely response times and throughput

(Zomaya and Teh, 2001; Shah et al., 2017).

9 PERFORMANCE ANALYSIS

AND RESULTS

In this section, we analyse and compare the perfor-

mance offered by our algorithm and the benchmarks.

9.1 Performance under Resource

Failures

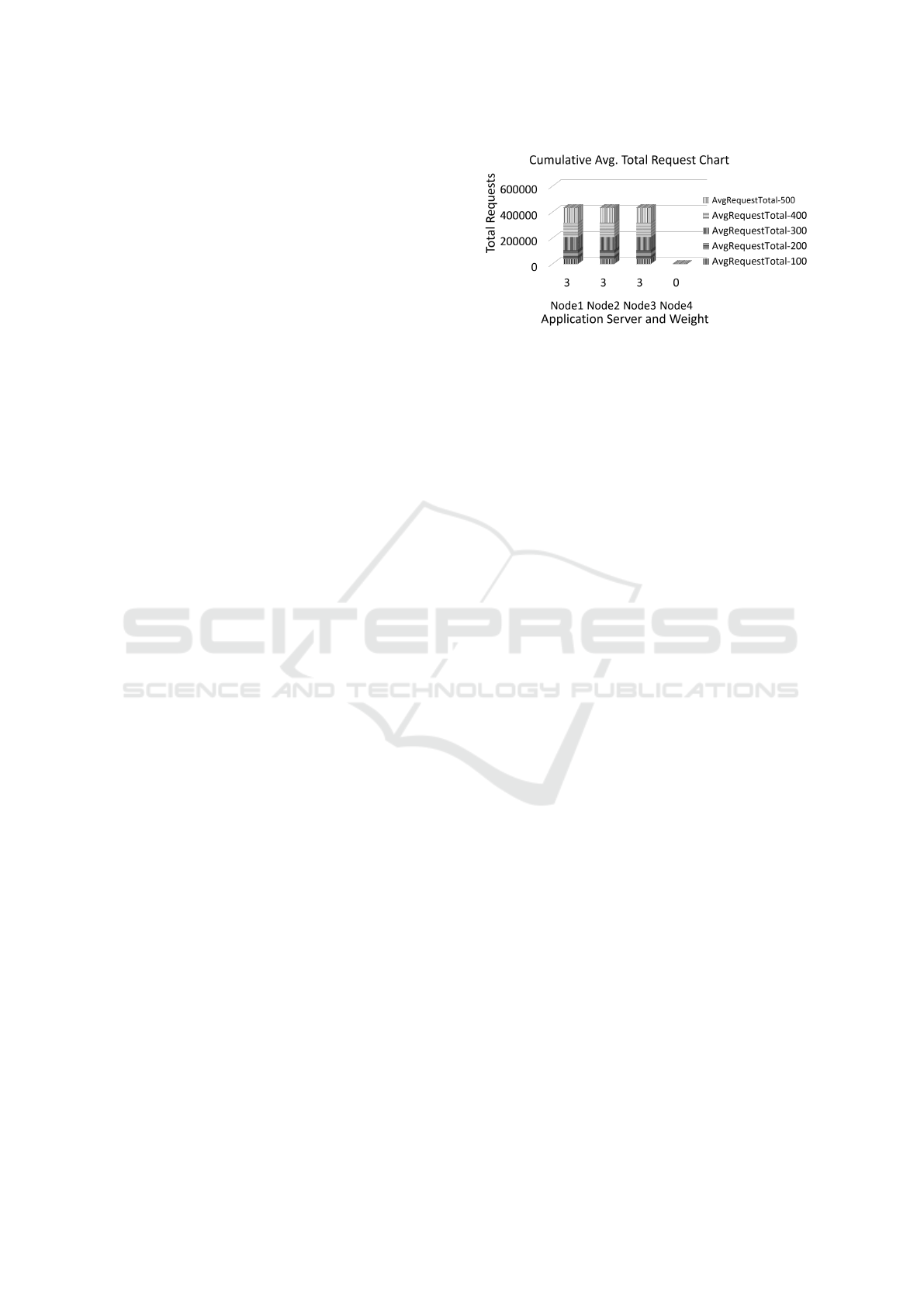

We ﬁrst validated our algorithm to determine if it will

effectively distribute requests by ﬁrst simulating over

utilized VMs as depicted in Figure 4. Our algorithm

assigned correctly a weight of 0 to overutilised VMs

and then distributed load across available VM based

on their assigned weight.

To test fault tolerance and scalability, we per-

formed tests in resource failure situations. In these ex-

periments, we remove some VMs from the available

VMs at 300ms time point. This process creates hard-

ware failure. We added the VMs back to the available

VM pool after ﬁve seconds to emulate recovery from

failure.

We compared the performance of our algorithm

with the benchmark algorithms. The baseline algo-

rithm by (Grozev and Buyya, 2014b) suffered per-

formance degradation, with very high response times,

such that the percentage of requests it could handle

declined. By the time the number of hardware fail-

ures increased to three, the algorithm’s performance

could only attend to 85% of requests within one sec-

ond, which is less than the SLA of 90% of requests

Figure 4: Overutilised VM.

to be completed within one second. The round-robin

algorithm performed worst, because the amount of re-

quests handled were much less than the SLA in all

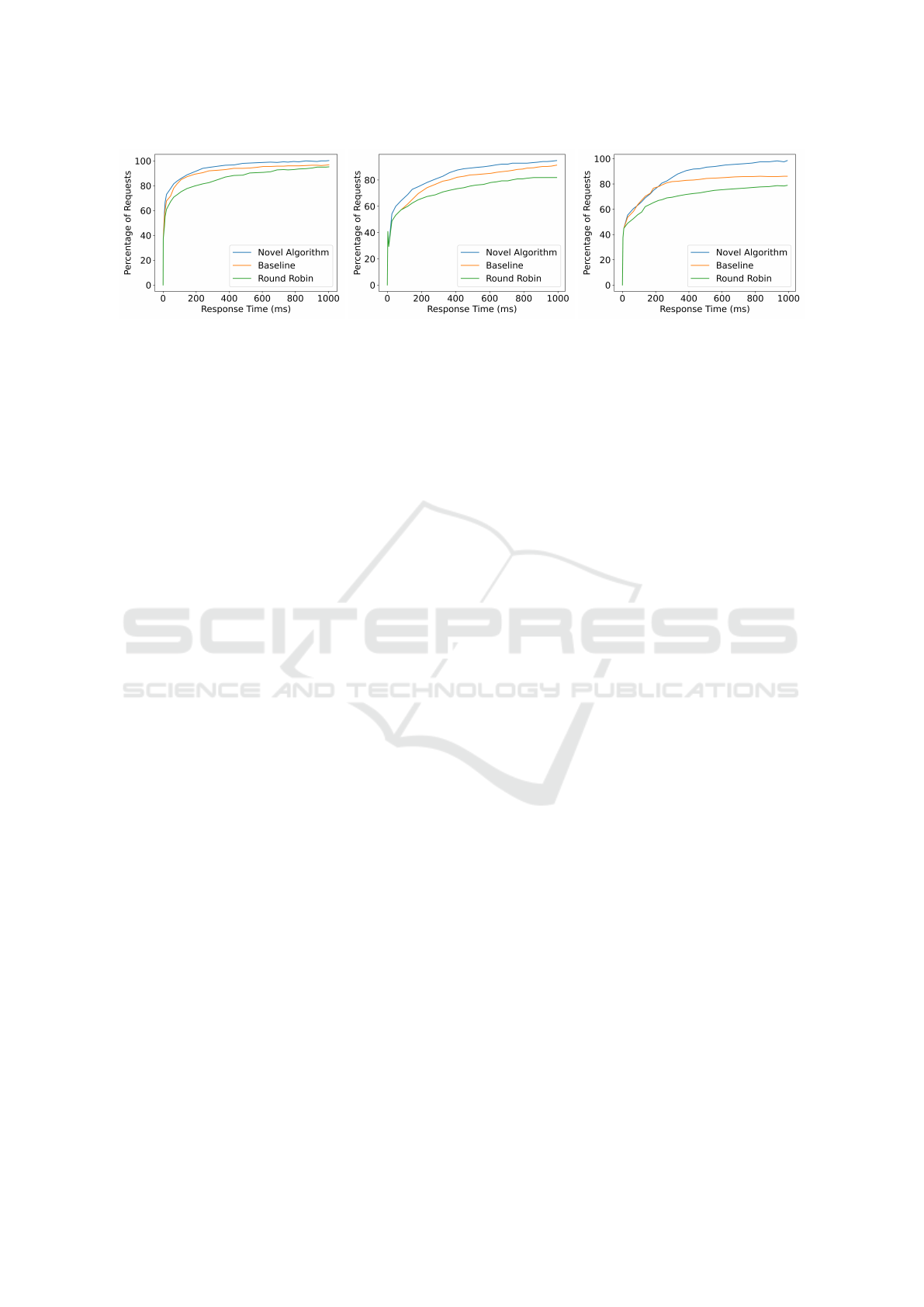

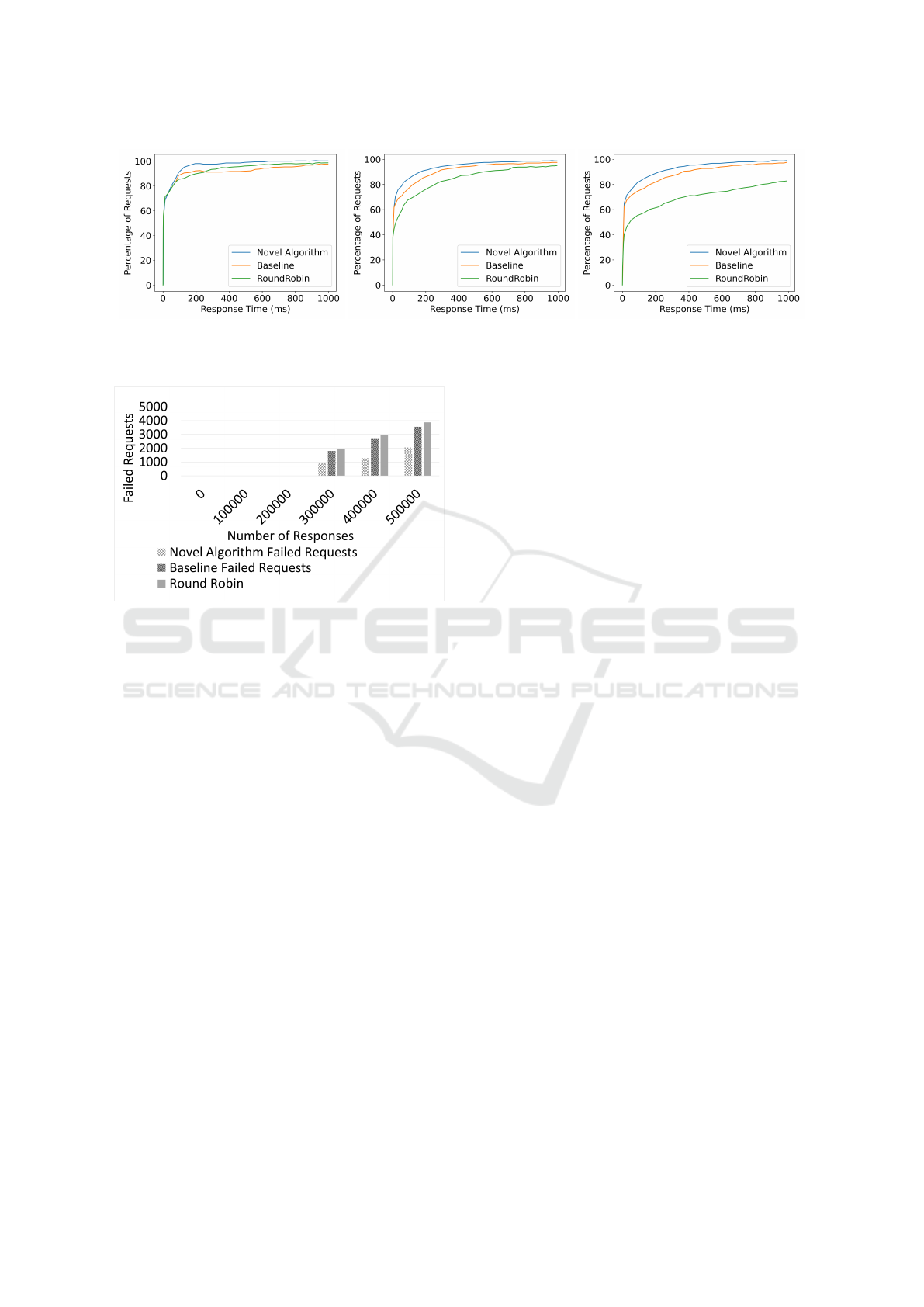

three scenarios of server failures. Figures 5a, 5b, and

5c depicts the performances of each of the algorithms

during the three different server failures. Our algo-

rithm did not violate the SLA, and it maintained low

failed requests as Figure 6. These result proved that

our algorithm can distribute requests effectively even

during server failures.

9.2 Performance under Flash Crowds

We tested the performance of our algorithm when the

application experiences ﬂash crowds. First, we satu-

rated three VMs to make them 100% utilised for a pe-

riod of ﬁve seconds. Our algorithm consistently dis-

tributed the requests, maintained SLA and the average

response time was kept low and became lower by the

time the auto-scaler provisioned a new VM. The base-

line algorithm by (Grozev and Buyya, 2014b) could

not evenly distribute requests and had more failed re-

quests within four seconds of the ﬂash crowd. The

round-robin algorithm became unresponsive because

it had a queue of requests trying to access the appli-

cation servers.

Secondly, we emulated ﬂash crowds by updating

our workload to exponentially increase requests for a

period of 300ms every ﬁve seconds within 1 minute.

The peaks of the ﬂash crowd range from 110% to

190% of the normal workload. Our algorithm still

performed better than the other two algorithms as dis-

played in Figures 7a, 7b, and 7c. Requests were

distributed without violating SLA unlike the bench-

mark algorithms, they violated SLA by the time ﬂash

crowds exceed 130% of the normal load. This con-

ﬁrms our algorithm can accommodate changing user

requests while maintaining the deﬁned SLA. This fur-

ther validates our choice of carefully selected server

metrics, because the awareness of these metrics im-

proves the accuracy of determining the capacity of

VMs handling these requests.

A Novel Weight-assignment Load Balancing Algorithm for Cloud Applications

(a) 1 Server Failure. (b) 2 Server Failures. (c) 3 Server Failures.

Figure 5: Cumulative Distribution Values of One Server Failure.

Figure 6: Failed Request Chart — Error Rates.

10 CONCLUSIONS AND FUTURE

WORK

In this paper, we proposed a novel weight assignment

load balancing algorithm for web-based three-tier ap-

plications deployed on the cloud. This class of appli-

cation commonly suffer from overload due to sudden

ﬂash crowds and resource failures. To address this

problem, our approach utilised ﬁve carefully selected

server metrics namely: thread count, CPU, RAM,

and network bandwidth utilisation. This approach ef-

fectively determines the real-time capacity of a VM,

thereby allowing an efﬁcient distribution of load. Our

novel algorithm employed the server metrics to deter-

mine the weight of a VM, and the algorithm forms

part of a load balancing service (HAProxy and auto-

scaler) to properly distribute load among virtual ma-

chines. In addition, we adopted a highly available de-

ployment architecture to overcome challenges com-

mon with load balancing architectures such as sin-

gle point of failure, reliability, and scalability. Fur-

thermore, we deployed our load balancing service on

the same data centre to enable quick adaptation to

changes in the system.

We implemented and evaluated our novel algo-

rithm on a private cloud data centre running Open-

Stack. First, we validated our novel algorithm by

comparing it to a baseline load balancing algorithm

(Grozev and Buyya, 2014a) and a standard algorithm

(round-robin). Second, we sent varied user requests

using a workload pattern in Jmeter, to deployed appli-

cations and carefully measured widely accepted per-

formance parameters – response time and throughput.

The obtained results showed that our approach is able

to distribute the workload of our chosen class of ap-

plication while maintaining a widely accepted SLA

of 90% of requests to be completed within one sec-

ond. The response times were improved by 5.66%

and 15.15% compared to the baseline algorithm and

round-robin algorithm in ﬂash crowd scenarios.

As future work, we will improve on some limit-

ing factors of this research. We aim to implement our

novel algorithm on one or more public cloud, so that

we can compare and validate the performance of the

algorithm in different clouds. Furthermore, we will

extend our load balancing algorithm to improve re-

source allocation in multi-cloud deployment of web

applications.

ACKNOWLEDGEMENTS

We thank Daniel MacDonald, for helping us to install,

and commission our private cloud environment.

REFERENCES

Amazon (2021). Aws serverless multi-tier architectures

with amazon api gateway and aws lambda aws

whitepaper.

Ari, I., Hong, B., Miller, E. L., Brandt, S. A., and Long,

D. D. (2003). Managing ﬂash crowds on the internet.

In 11th IEEE/ACM International Symposium on Mod-

eling, Analysis and Simulation of Computer Telecom-

munications Systems, 2003. MASCOTS 2003., pages

246–249. IEEE.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

(a) 135 req/s ﬂash crowd. (b) 188 req/s ﬂash crowd. (c) 240 req/s ﬂash crowd.

Figure 7: Cumulative Distribution of Flash Crowd.

Chen, S.-L., Chen, Y.-Y., and Kuo, S.-H. (2017). Clb: A

novel load balancing architecture and algorithm for

cloud services. Computers & Electrical Engineering,

58:154–160.

Chen, Z., Zhang, H., Yan, J., and Zhang, Y. (2018). Imple-

mentation and research of load balancing service on

cloud computing platform in ipv6 network environ-

ment. In Proceedings of the 2nd International Con-

ference on Telecommunications and Communication

Engineering, pages 220–224.

Chlebus, E. and Brazier, J. (2007). Nonstationary poisson

modeling of web browsing session arrivals. Informa-

tion Processing Letters, 102(5):187–190.

Cruz, E. H., Diener, M., Pilla, L. L., and Navaux, P. O.

(2019). Eagermap: A task mapping algorithm to im-

prove communication and load balancing in clusters

of multicore systems. ACM Transactions on Parallel

Computing (TOPC), 5(4):1–24.

Devi, D. C. and Uthariaraj, V. R. (2016). Load balanc-

ing in cloud computing environment using improved

weighted round robin algorithm for nonpreemptive

dependent tasks. The scientiﬁc world journal, 2016.

Elgedawy, I. (2015). Sultan: A composite data consistency

approach for saas multi-cloud deployment. In 2015

IEEE/ACM 8th International Conference on Utility

and Cloud Computing (UCC), pages 122–131.

Grozev, N. and Buyya, R. (2014a). Inter-cloud architectures

and application brokering: taxonomy and survey. Soft-

ware: Practice and Experience, 44(3):369–390.

Grozev, N. and Buyya, R. (2014b). Multi-cloud provision-

ing and load distribution for three-tier applications.

ACM Trans. Auton. Adapt. Syst., 9(3):13:1–13:21.

HAProxy (2021). Haproxy technologies — the world

fastest and most widely use load balancing solution.

Hellemans, T., Bodas, T., and Van Houdt, B. (2019). Perfor-

mance analysis of workload dependent load balancing

policies. Proceedings of the ACM on Measurement

and Analysis of Computing Systems, 3(2):1–35.

Hennion, N. (2021). Glances an eye on your system. a

top/htop alternative for gnu/linux, bsd, mac os and

windows operating systems.

Kang, S., Veeravalli, B., and Mi Aung, K. M. (2014).

Scheduling multiple divisible loads in a multi-cloud

system. In 2014 IEEE/ACM 7th International Confer-

ence on Utility and Cloud Computing, pages 371–378.

Kansal, N. J. and Chana, I. (2012). Cloud load balancing

techniques: A step towards green computing. IJCSI

International Journal of Computer Science Issues,

9(1):238–246.

Kumar, P. and Kumar, R. (2019). Issues and challenges

of load balancing techniques in cloud computing: A

survey. ACM Computing Surveys (CSUR), 51(6):1–

35.

Le, Q., Zhanikeev, M., and Tanaka, Y. (2007). Methods

of distinguishing ﬂash crowds from spoofed dos at-

tacks. In 2007 Next Generation Internet Networks,

pages 167–173. IEEE.

Prathiba, S. and Sowvarnica, S. (2017). Survey of failures

and fault tolerance in cloud. In 2017 2nd International

Conference on Computing and Communications Tech-

nologies (ICCCT), pages 169–172. IEEE.

Priyadarsini, R. J. and Arockiam, L. (2013). Failure man-

agement in cloud: An overview. International Journal

of Advanced Research in Computer and Communica-

tion Engineering, 2(10):2278–1021.

Qu, C., Calheiros, R. N., and Buyya, R. (2017). Mitigating

impact of short-term overload on multi-cloud web ap-

plications through geographical load balancing. con-

currency and computation: practice and experience,

29(12):e4126.

Sahu, Y., Pateriya, R., and Gupta, R. K. (2013). Cloud

server optimization with load balancing and green

computing techniques using dynamic compare and

balance algorithm. In 2013 5th International Confer-

ence and Computational Intelligence and Communi-

cation Networks, pages 527–531.

Shaﬁq, D. A., Jhanjhi, N. Z., Abdullah, A., and Alzain,

M. A. (2021). A load balancing algorithm for the

data centres to optimize cloud computing applica-

tions. IEEE Access, 9:41731–41744.

Shah, J. M., Kotecha, K., Pandya, S., Choksi, D., and

Joshi, N. (2017). Load balancing in cloud comput-

ing: Methodological survey on different types of al-

gorithm. In 2017 International Conference on Trends

in Electronics and Informatics (ICEI), pages 100–107.

IEEE.

Tychalas, D. and Karatza, H. (2020). An advanced weighted

round robin scheduling algorithm. In 24th Pan-

Hellenic Conference on Informatics, pages 188–191.

Wang, W. and Casale, G. (2014). Evaluating weighted

round robin load balancing for cloud web services. In

A Novel Weight-assignment Load Balancing Algorithm for Cloud Applications

2014 16th International Symposium on Symbolic and

Numeric Algorithms for Scientiﬁc Computing, pages

393–400. IEEE.

Zeng, J. and Plale, B. (2014). Multi-tenant fair share in

nosql data stores. In 2014 IEEE International Confer-

ence on Cluster Computing (CLUSTER), pages 176–

184. IEEE.

Zhang, H., Zhang, J., Bai, W., Chen, K., and Chowdhury,

M. (2017). Resilient datacenter load balancing in

the wild. In Proceedings of the Conference of the

ACM Special Interest Group on Data Communication,

pages 253–266.

Zomaya, A. Y. and Teh, Y.-H. (2001). Observations on

using genetic algorithms for dynamic load-balancing.

IEEE transactions on parallel and distributed sys-

tems, 12(9):899–911.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science
