Automatic Evaluation of Textual Cohesion in Essays

Aluizio Haendchen Filho

, Filipe Sateles Porto de Lima

, Hércules Antônio do Prado

Edilson Ferneda

, Adson Marques da Silva Esteves

and Rudimar L. S. Dazzi

Laboratory of Technological Innovation in Education (LITE), University of the Itajai Valley (UNIVALI), Itajai, Brazil

Catholic University of Brasilia, Graduate Program in Governance, Technology and Innovation, Brasilia, Brazil

Keywords: Textual Cohesion, Automated Essay Grading, Machine Learning, Text Classification.

Abstract: Aiming to contribute to studies on the evaluation of textual cohesion in Brazilian Portuguese, this paper

presents an approach based on machine learning for automated scoring of textual cohesion, according to the

evaluation model adopted in Brazil. The purpose is to verify the mastery of skills and abilities of students who

have completed high school. Based on features groups such as lexicon diversity, connectives, readability

indexes and overlap of sentences and paragraphs, 91 features, based in TAACO (Tool for the Automatic

Analysis of Cohesion), were adopted. Beyond features specifically related to textual cohesion, other were

defined for capturing general aspects of the text. The efficiency of the classification model based on Support

Vector Machines was measured. It was also demonstrated how normalization and class balancing techniques

are essential to improve results using the small dataset available for this task.

1 INTRODUCTION

The national high school examination (known as

ENEM) is an evaluation that happens annually in

Brazil to verify the knowledge of the participants

about various skills acquired during the school years.

There are four exams consisting of multiple-choice

tests, encompassing diverse contents, and a

manuscript essay. The multiple-choice or objective

questions are evaluated according to the response

indicated, but the essay needs to be evaluated by at

least two reviewers, which makes the process time-

consuming and expensive. essays were evaluated in

2017 at an individual cost of U$ 4.96, totalling nearly

U$ 32.45 million. This amount accounts for the

structure, logistics and personnel needed to evaluate

the national exam.

During the essay evaluation, two reviewers assign

scores ranging from 0 to 200, in intervals of 40, for

each of the five competencies that make up the

evaluation model. Score 0 (zero) indicates that the

author of the text does not demonstrate mastery over

the competence in question. In contrast, score 200

indicates that the author demonstrates mastery over

competence. If there is a difference of 100 points

between the scores given by the two reviewers, the

essay is analysed by a third one. If the discrepancy

persists, a group of three reviewers (INEP, 2017) will

evaluate the essay. The evaluated competencies are:

1. Domain of the standard norm of the Portuguese

language.

2. Understanding the essay proposal.

3. Organization of information and analysis of text

coherence.

4. Demonstration of knowledge of the language

necessary for the argumentation.

5. Elaboration of a proposed solution to the

problems addressed, respecting human rights,

and considering the socio-cultural diversities.

A study of ENEM essays (Klein, 2009) shows that

Competence 4 is one that poses a greatest challenge

for students. For each competence, seven categories

are established based on the scores. Two reviewers

perform the corrections. Table 1 shows the proportion

of scores given for each category, where category 1

refers to the lowest grade and category 7 refers to the

highest grade for each competence.

Table 1: Proportion of scores by categories (Klein, 2009).

634

Filho, A., Porto de Lima, F., Antônio do Prado, H., Ferneda, E., Esteves, A. and Dazzi, R.

Automatic Evaluation of Textual Cohesion in Essays.

DOI: 10.5220/0011113600003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 1, pages 634-640

ISBN: 978-989-758-569-2; ISSN: 2184-4992

Competence 4 is strongly linked to the author's

ability to write a text in a cohesive, clear, and

structured way. For this, the students use resources of

textual cohesion. The difficulty around this

competence is related to the difference between

spoken and written language. While in a conversation

the minimal grammatical structure is enough to

convey a clearly message, in a text it is necessary to

adopt a more formal and objective posture. As

opposite the conversation, the text does not provide

context signals easily perceivable by the reader senses

(Shermis, Burstein, 2013). Therefore, those who fail

to achieve high grading in this competence will have

difficulty in articulating ideas cohesively through

writing. Table 2 describes scores to be attributed for

Competence 4.

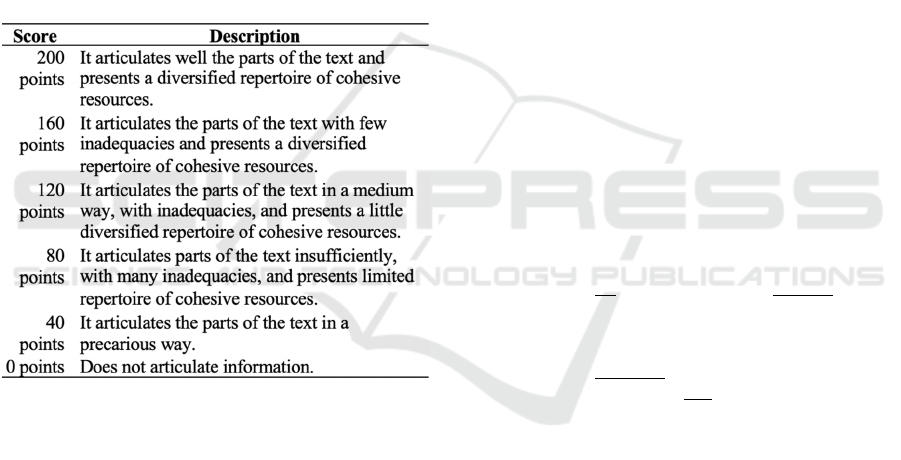

Table 2: Descriptions of Competence 4 scores (INEP,

2017).

Systems for automatic grading of essays are built

using several technologies and heuristics that allow

evaluating with certain accuracy the quality of essays.

Moreover, unlike human evaluators, these systems

maintain consistency over the assigned scores, as they

are not affected by subjective factors. They also help

to reduce costs and enable faster feedback to the

student-practicing essay (Tang, Suju, Narayanan

2009).

The main covered topics are: (i) a brief survey on

the analysis of textual cohesion, (ii) the treatment of

the corpus of essays extracted from the UOL and

Escola Brazil sites; (iii) extraction and selection of

specific features of textual cohesion; (iv) the use of

Random Under Sampler for class balancing; (v)

evaluation of the classification model based on the

Support Vector Classifier.

2 BACKGROUND

Textual cohesion refers to the use of vocabulary and

grammatical structures by means of connecting the

ideas contained in a text. This connectivity property,

also called contexture or texture by Textual

Linguistics, is one of the aspects that promote good

articulation and the logical-semantic structure of

discourse (Koch, 1989).

The main mechanisms of textual cohesion are

reference, substitution, ellipse, conjunction, and

lexical cohesion. Each one is obtained by the proper

use of cohesive links, elements that characterize a

point of reference or connection in the text.

In order to simplify the analysis of textual

cohesion, there are linguists which divide the

mechanisms of cohesion into two groups: referential

and sequential. In the first one, we considered the use

of elements that retrieve or introduce a subject or

something that is present in the text (endophoric

reference), or outside the text (exophoric reference).

The second encompasses the elements that give

cadence and sequentially to the ideas presented in the

text (Koch, 1989).

Take the following excerpt from the essay written

by an ENEM participant from 2016 whose theme was

"Pathways to combat religious intolerance in Brazil":

Brás Cubas, the deceased-author of Machado de

Assis, says in his "Posthumous Memoirs" that (he)

had no children and did not transmit to any

creature the legacy of our misery. Perhaps today he

perceived his decision to be correct: the attitude of

many Brazilians towards religious intolerance is

one of the most perverse aspects of a developing

society. With this, there arises the problem of

religious prejudice that persists is intrinsically

linked to the reality of the country, whether by

insufficiency of laws or by slow change of social

mentality.

The parts marked in bold highlight some

references, such as the resumption of "Brás Cubas" in

the apostrophe "the deceased-author of Machado de

Assis" and the reference to "many Brazilians", which

is an entity that is outside the text. The underlined

portions indicate connectives as the discourse marker

"with this". The idea pointed out in the previous

sentence serves as a basis for the argumentation that

follows. In addition, this passage presents an

important property of the Portuguese Language: the

reference by ellipse, indicated by the occurrence of

"(he)" that was not originally included in the text. The

ellipse consists in the omission of the subject before

verbs, when it is possible to infer to whom or to what

the action refers.

Automatic Evaluation of Textual Cohesion in Essays

635

When analysing textual cohesion, it is necessary

to verify, for example: (i) whether the references

agree on number and gender with those referenced;

(ii) whether the meaning of the connectives are in

accordance with the context in which they are

inserted; (iii) if the author avoided the repetition of

terms; and (iv) whether ideas are connected logical

and sequentially. That is, the analysis of textual

cohesion has a very dynamic nature since it reflects

flexibility of language use. However, a fact relevant

to this analysis is that all information about textual

cohesion exists in the text itself. Unlike textual

coherence, which depends on the reader's knowledge

of the world, cohesion is a strictly lexical-

grammatical phenomenon (

Halliday, 1976

Assuming that cohesion is fully contained in the

text, tools such as coh-metrix

and TAACO

have

been constructed to identify and measure the parts of

text that constitute the phenomenon of textual

cohesion. Both compute similar metrics that comprise

several dimensions of cohesion: (i) local cohesion,

which exists between sentences; (ii) global cohesion,

which exists in relation to the entire text; and (iii)

lexical cohesion, which emerges from the use of the

lexicon. These metrics are used to measure the quality

of writing, the readability of the text, to verify the

variation of the speech among other applications

(Graesser et al 2014).

The process of obtaining these metrics is based on

the use of natural language processing techniques,

such as tagging and morphological normalization,

textual segmentation and coreference analysis. The

outcome of this process does not necessarily indicate

the quality of use of the cohesion devices but provides

information that enables further analysis.

3 TEXTUAL COHESION

EVALUATION

The proposed approach was developed using the

Feature-Based Engineering Method by means of the

following steps: (i) organization of the corpus; (ii)

extraction and normalization of features; (iii) class

balancing, and (iv) classification. These steps are

described as follows.

Coh-metrix is a computational tool that produces indexes

on discourse. It was developed by Arthur Graesser and

Danielle McNamara. Tool documentation is available at

http://tea.cohmetrix.com/.

TAACO, as well as coh-metrix, produces measures on the

3.1 The Corpus of Essays

The essays used to construct the corpus that enabled

our experiments were obtained through a crawling

process of essays datasets from the UOL and Brazil

School

portal.

Both portals have similar processes for the

accumulation of essays: monthly a theme is proposed

and interested students submit their textual

productions for evaluation. Part of the essays

evaluated are then made available on the portal along

with the respective corrections, scores and comments

of the reviewers. For each essay, a score between 0

and 2 is assigned, varying in steps of 0.5 for the 5

competences corresponding to the ENEM evaluation

model.

To avoid possible noise in the automatic

classification process, we perform the following

processing steps:

1. Removal of special characters, numbers and

dates.

2. Transformation of all text to lowercase.

3. Application of morphological markers (POS

tagging) using the nlpnet library.

4. Inflection of the tokens by means of stemming

using the NLTK library and the RSLPS

algorithm, specific for the Portuguese language.

5. Segmentation (tokenization) by words,

sentences, and paragraphs.

In addition to these steps, only the essays with

more than fifty characters and whose scores available

in all competencies were considered. Table 3 presents

the general characteristics of the corpus after

preprocessing.

Table 3: General metrics on the essay’s corpus.

3.2 Features Extraction and

Normalization

Similarly, to Júnior, Spalenza and Oliveira (2017),

each essay was represented as a feature vector. In

linguistic characteristics of the text, but is more focused

on textual cohesion metrics. The tool is available in

http://www.kristopherkyle.com /taaco.html.

Both extractions are available at https://github.com/

gpassero/uol-redacoes-xml.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

636

total, 91 metrics of textual cohesion were calculated,

based on those established by the TAACO system,

with the appropriate adaptations to the Portuguese

language. The features comprise several dimensions

of lexical diversity, readability indexes, counting of

connectives and measures of word overlap between

sentences and between paragraphs.

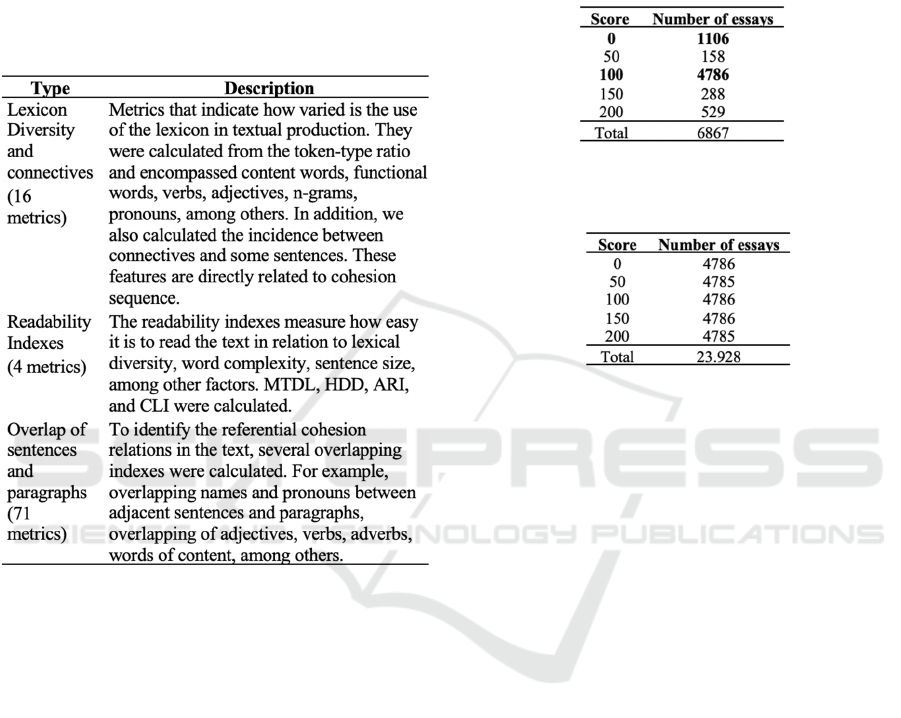

Table 4: Characteristics of textual cohesion extracted from

the corpus.

As mentioned in Géron (2017), the

standardization of the statistical distribution of

features directly influence the quality of the machine

learning model because it reduces the negative effect

that outliers may cause during the training process.

Then, to ensure the good performance of the model,

z-score standardization was applied.

3.3 Classes Balancing

It is clear that the unbalanced number of essays per

grade in Competency 4 (see Table 5) can negatively

affect the classifier efficiency. To solve this problem,

an approach based on the SMOTE (Synthetic

Minority Oversampling Technique) algorithm was

adopted. This algorithm searches the neighbours

closest to the samples that have low representation in

relation to the other classes of the dataset. From these

neighbours, which have characteristics similar to the

sample in question, the algorithm calculates a new

sample to reinforce the number of examples in each

class Chawla (2002). In this way, the set of examples

available for classifier training was reinforced (Table

6), minimizing the impact that the class imbalance

would cause in the classifier results.

Table 5: Number of essays per score in Competence 4 in the

training set.

Table 6: Number of essays per score in Competence 4 in the

training set after class balancing.

3.4 Classification

Training of the learning model was done using the

stratified cross-validation method with k = 10, that is,

the already normalized, balanced, and selected

characteristics matrix were divided into ten equal

parts, with each part containing examples of all

classes. In this way, there were ten training iterations,

so that in each iteration nine parts were used to train

and one part to test.

As described by Júnior, Spalenza and Oliveira

(2017), the problem of evaluating textual cohesion

was treated as a classification problem where each

essay receives a score between 5 possible scores. The

strategy employed was to train a classification model.

The learning algorithm used was the Support Vector

Machine with linear core and C = 7 penalty of one-

against-all type, that is, for each class a binary

classifier was trained. This algorithm was chosen to

generalize well in large dimensions in a consistent

and robust way (Joachims, 2005).

4 DISCUSSION AND RESULTS

To avoid an overfitting situation, which occurs when

the model fits the training data but does not generalize

well to unknown instances, the test step was

performed with a separate data set. It was generated

Automatic Evaluation of Textual Cohesion in Essays

637

early in the model building process and has

representation in all possible scores that can be

attributed to the essay. In this case, we decided that

the test set would be equivalent to 20% of the essays

available in the corpus.

To measure the performance of the learning

model, the classical precision and recall metrics were

calculated Júnior, Spalenza and Oliveira (2017) and

Geron (2017), as presented in Table 7.

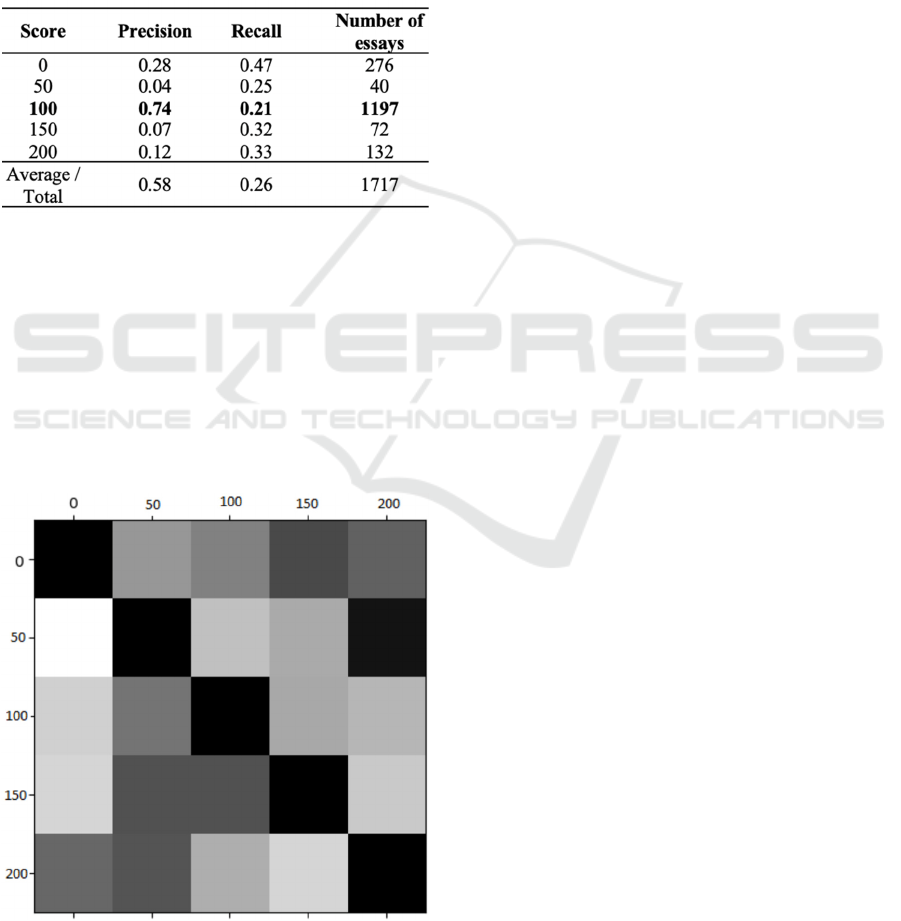

Table 7: Number of essays per score in Competence 4 in

test set.

We observed that even after applying balancing

classes, the model obtained low precision and recall for

classes with little representation, such as the cases of

the 50 and 150 scores. On the other hand, the result

provided by the model shows more adequate than the

unbalanced form. Without this balance between

classes, the model would present a high precision and

general recall but based only on the dominant class.

Another important observation is that due to SMOTE

balancing (Section 3.3), the recall for dominant classes

decreases to maintain balance with the other classes.

Figure 1: Matrix of confusion for the classifier that

evaluates textual cohesion.

To better understand the errors made by the

classifier, a confusion matrix was generated (Figure

1). It indicates, in the clearest parts, which

classification is wrong. In the darkest parts it shows

the correct classification for each score.

Although the apparent bad results shown in this

confusion matrix, it is possible to argue in favour of

the proposed approach by considering the number of

essays concentrated in 100 and 150 grades. From

6,867 essays, 4,786 (near 70%) is concentrated in this

region. Additionally, the bad results refer to the

minority classes.

5 RELATED STUDIES

The automatic evaluation of essays characterizes a

multidisciplinary area of study that encompasses

linguistics, education, and computing. In this context,

several works are carried out with the aim of

developing new techniques that facilitate the

application of these methods in production scales.

Pioneers in this area, Page and Paulus (1968)

proposed a system based on statistical methods that

associate the writing style with the final attributed

score of textual production. However, this analysis

was done only by shallow features and disregarded

the content of the text.

In order to develop systems that go beyond a

superficial analysis and that are able to provide

feedback to the student, new methods based on

machine learning and natural language processing

have been developed, now considering features such

as grammatical assertiveness, adherence to the

proposed theme, checking of facts Tang, Suju

Narayanan, (2009). Thus, the scores attributed by

these systems are based on a model closer to that used

by human evaluators.

In Brazil, we find some approaches to the

evaluation of automated essay scoring as a whole,

evaluating production without turning to specific

points such as grammar, syntax or theme. Among

works that are in this category, it can be cited Passero

et al. (2016) and Avila & Soares (2013). These works

start from a strategy based on textual and semantic

similarity, respectively, between the text written by

the student and texts references that contain answers

considered ideal. These methods are mainly used for

automatic short answer grading and are based on

metrics such as Levenshtein's distance and semantic

similarity models such as Latent Semantic Analysis

(LSA) or WordNet.

In a more focused way, some work on grading of

ENEM essays treats specific competences as in Nau

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

638

et al. (2017), where language deviations, one of the

criteria evaluated in Competence 1 of the ENEM

evaluation model, are detected based on a set of

predetermined linguistic rules. This system provides

a valuable input for more complete approaches

related to Competence 1 evaluation. Another work

also based on the ENEM model was developed by

Passero, Haendchen Filho, Dazzi (2016) where

Competence 2 regarding the deviation of the

proposed theme is treated and provides excellent

results.

Júnior, Spalenza and Oliveira (2017) presented a

framework based on machine learning and natural

language for the evaluation of Competence 1 of

ENEM. The authors establish a set of features specific

to Competence 1, as well as various ways of refining

these characteristics in order to generate a machine

learning model that achieves good results in the essay

corpus of the Brazil School.

On the evaluation of textual coherence, some

works propose ways of measuring this characteristic

of the text. The TAACO system (Crossley, Kyle, &

McNamara, 2016) and the coh-metrix (Graesser,

McNamara, McCarthy, 2014) are reference tools in

this context. In addition, extensive research was

carried out on more specific points of textual

coherence such as the analysis of co-referencing and

the use of cohesive links for the summarization of

texts.

6 CONCLUSIONS AND FUTURE

WORKS

The automated analysis of textual cohesion presents

several challenges, mainly related to the processing of

features suitable for its characterization. The shortage

of data and tools for the Portuguese language also

worsen the situation, and more work on developing

and improving NLP tools in Portuguese is needed.

One of the contributions of this work is the corpus

of ENEM-based essays that is made available ready

to use (download from <blind review>). This is

relevant for research in Portuguese, beyond the usual

English. Furthermore, the work introduces a set of

textual cohesion features adapted to Portuguese. The

adaptation had considered the linguistic differences at

the morphological and syntactic levels between

English and Portuguese. These publicly available

features can be explored in other models of machine

learning for the problem approached.

Regarding accuracy, the confusion matrix shows

that the best results were obtained in the dominant

classes, those that hold more than 80% of the

occurrences in the scores. On the other hand, there is

a need for methods capable of obtaining more

precision in the attribution of scores close to the

extremes.

The study also showed that gains in accuracy can

be obtained for true positives by applying balancing

techniques.

As future work, it is suggested: (i) to expand and

improve the quality of the essays corpus; (ii) to

evaluate other learning models based on neural

networks and deep learning; (iii) to explore the lexical

cohesion part and (iv) to compare the results here

presented for Portuguese with those in other

languages, say, English, for example.

REFERENCES

Avila, R. L. F.; Soares, J. M. (2013) Uso de técnicas de pré-

processamento textual e algoritmos de comparação

como suporte à correção de questões dissertativas:

experimentos, análises e contribuições. SBIE.

Chawla, N. V. et al. (2002) SMOTE: Synthetic Minority

oversampling technique. Journal of Artificial

Intelligence Research 16:321–357. https://

www.jair.org/media/953/live-953-2037-jair.pdf

Crossley, S. A., Kyle, K., & McNamara, D. S. (2016) The

tool for the automatic analysis of text cohesion

(TAACO): Automatic assessment of local, global, and

text cohesion. Behavior Research Methods 48(4).

INEP - Instituto Nacional de Estudos e Pesquisas

Educacionais Anísio Teixeira (2017). Redação no

ENEM 2017: Cartilha do participante.. http://

download.inep.gov.br/educacao_basica/enem/guia_par

ticipante/2017/manual_de_redacao_do_enem_2017.pd

Géron, A. (2017) Hand-On Machine Learning with Scikit-

Learn and TensorFlow. O’Reilly.

Graesser, A. C.; McNamara, D. S; McCarthy, P. M. (2014)

Automated Evaluation of Text and discourse with Coh-

metrix. Cambridge University Press.

Halliday, M. A. K; Hasan, Ruqaiya. (1976) Cohesion in

English. Routledge.

Joachims, T. (2005) Text categorization with support vector

machines: learning with many relevant features.

European Conference of Machine Learning.

Júnior, C. R. C. A; Spalenza, M. A.; Oliveira, E. (2017)

Proposta de um sistema de avaliação automática de

redações do ENEM utilizando técnicas de

aprendizagem de máquina e processamento de

linguagem natural. Computer on the Beach.

https://siaiap32.univali.br/seer/index.php/acotb/article/

view/10592

Klein, R.; Fontanive, N. (2009) Uma nova maneira de

avaliar as competências escritoras na Redação do

ENEM. Ensaio: Avaliação e Políticas Públicas em

Automatic Evaluation of Textual Cohesion in Essays

639

Educação. http://www.redalyc.org/articulo.oa?id=3995

37967002

Koch, I. V. (1989) A coesão textual. Brasil: Editora

Contexto, 1989.

Nau, J. et al. (2017) Uma ferramenta para identificar

desvios de linguagem na língua portuguesa.

Proceedings of Symposium in Information and Human

Language Technology (STIL). http://www.aclweb.org/

anthology/W17-6601.

Page, E. B.; Paulus, D. H. (1968) The Analysis of Essays

by Computer. Final Report. Connecticut Univ., Storrs.

Spons Agency-Office of Education (DHEW),

Washington, D.C. Bureau of Research, Bureau No-BR-

6-1318. Pub Date Apr 1968.

Passero, G. et al. (2017) Off-Topic Essay Detection: A

Systematic Review. CBIE. http://br-ie.org/pub/

index.php/sbie/article/viewFile/7534/5330

Passero, G.; Haendchen Filho, A.; Dazzi, R. L. S. (2016)

Avaliação do uso de métodos baseados em LSA e

WordNet para Correção de Questões discursiva. SBIE.

http://brie.org/pub/index.php/sbie/article/viewFile/679

9/4684

Pinker, S. (1994) The language instinct. William Morrow

and Company. 1994.

Shermis, M.; Burstein, J. (2013) Handbook of Automated

Essay Evaluation: Current applications and new

directions. Routledge.

Tang, L; Suju, R; Narayanan, V. K. (2009) Large Scale

multi-label classification via metabeler. Proceedings of

the 18th International Conference on World Wide Web.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

640
