Hierarchical Terrain Representation and Flood Fill-based

Computation of Large-Scale Terrain Changes for

Agent-based Simulations

Luis A. L. Silva

1,2 a

, Evaristo J. Nascimento

1,2 b

, Eliakim Zacarias

, Raul C. Nunes

1,2 d

and Edison P. Freitas

2,3 e

Graduate Program in Computer Science, Federal University of Santa Maria, Av. Roraima 1000, Santa Maria - RS, Brazil

SIS-ASTROS GMF Project, Federal University of Santa Maria, Av. Roraima 1000, Santa Maria - RS, Brazil

Informatics Institute, Federal University of Rio Grande do Sul, Av. Bento Gonçalves 9500, Porto Alegre - RS, Brazil

edisonpf@gmail.com

Keywords: Dynamic Terrain, Hierarchical Terrain Representation, Flood Fill Computation, Agent-based Simulation.

Abstract: Modern virtual training benefits from the recent advances in Agent-Based Modelling and Simulation

(ABMS), making it possible to use real-world dynamic terrain scenarios that enhance the users learning

from agent-based simulations. An important issue for distributed ABMS systems is the possibility of using

terrain services that promptly compute large-scale terrain map changes as a result of natural phenomena

such as river floods and wildfires. Performing the alterations in terrain maps is challenging since they de-

pend on the combination of terrain features and terrain sizes. To address this problem, this work proposes

the use flood fill-based techniques along with the hierarchical QuadTree approach for the terrain representa-

tion. We show that these techniques are essential to promptly compute the effects of the changes on a large

number of nodes of the hierarchical map representation that captures the terrain features in different levels

of detail. Also, a way to store and recover the QuadTree nodes in/from a dictionary-based memory is pro-

posed, improving the nodes’ refinement and restoration process when the terrain changes are required on the

simulations. Experiments with the proposed techniques show encouraging results, with reduced computing

times considering terrains with different characteristics and numbers of alterations.

1 INTRODUCTION

abcde

Agent-Based Modelling and Simulation (ABMS)

(Macal 2016) is a valuable paradigm for virtual

training and instruction in different application do-

mains. One of the main ABMS challenges is the

development of realistic simulations with non-static,

large-scale, and real-world terrain environments.

Relevant instances of the need for such virtual sce-

narios involve the simulation of flooding effects in

large urban areas (Liang, Du et al. 2008) and the

simulation of wildfires (Rui, Hui et al. 2018). Moti-

vated by these complex phenomena, this work inves-

https://orcid.org/0000-0002-6025-5270

https://orcid.org/0000-0002-2388-895X

https://orcid.org/0000-0001-7988-4141

https://orcid.org/0000-0003-3228-4071

https://orcid.org/0000-0003-4655-8889

tigates the problem of implementing optimized tech-

niques to compute the impact of these events on

large areas of the hierarchical topology of the repre-

sented terrain maps. The possibility of modelling

large-scale terrain map representations that can be

extensively modified due to the effects of these

phenomena is a key component for the simulation of

multi-agent global and local realistic agent behav-

iours. With the terrain structure and a capability of

modifying it, the agents have to sense the changing

real-world terrain characteristics to (re)plan their

tactical and strategic movement actions. The

changeable nature of the represented terrain regions

along with the targeted terrain attributes, whether

they can be sensed by the agents either as obstacles

or not, has a crucial impact on the resulting agents’

models. An important aspect is the fact that the

computations supporting these changes may impair

the fluency and realism of the simulations if conven-

Silva, L., Nascimento, E., Zacarias, E., Nunes, R. and Freitas, E.

Hierarchical Terrain Representation and Flood Fill-based Computation of Large-Scale Terrain Changes for Agent-based Simulations.

DOI: 10.5220/0011134800003274

In Proceedings of the 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2022), pages 15-25

ISBN: 978-989-758-578-4; ISSN: 2184-2841

tional regular grid-based map representations and no

other advanced technologies are used, thus negative-

ly impacting the systems’ responsiveness (Nielsen

1994) and the desired agent-based simulation real-

ism.

From a preliminary discussion presented in

(Nascimento, Zacarias et al. 2019) and the proposi-

tion of a distributed service-oriented multi-agent

simulation architecture in which the proposed tech-

niques are inserted as terrain simulation services, the

contributions of this work are:

(1) The hierarchical approach to efficiently rep-

resent real-world terrain maps for agent-based simu-

lations. To enable the development of simulations

running over large-scale dynamic terrain maps cap-

tured in different levels of representation detail, this

work proposes the use of a hierarchical QuadTree

representation (e.g. (Brondani, de Lima Silva et al.

2019)) to store data used to compute changes caused

by the effects of dynamic events. This work inno-

vates by proposing the use of this representation to

allow the optimized computation of the changing

effects due to simulated natural phenomena in the

terrain map;

(2) The use of Flood Fill-based techniques (also

known as Seed Fill algorithms (Glassner 1990)) to

execute extensive changes in the QuadTree. With

that, the general consequences of river floods and

wildfires, for instance, are represented on large areas

of the terrain maps. The implemented algorithms

guide the advance and retreat of the river floods and

the wildfires, and the efficient blocking and releas-

ing of nodes processed by the simulated agents’

algorithms;

(3) The proposition of a dictionary-based

memory for the storage and the restoration of not

only the nodes but also the branches of the Quad-

Tree that were subjected to the terrain changes. The

proposed solution explores the changing of terrain

map areas that should not simply be lost/not proper-

ly reused after they were processed. That is because

the restoration of the hierarchical terrain structure to

alternative representation states has a meaningful

impact on the realistic execution of agents’ planning

and navigation tasks.

(4) The analysis of different kinds of tests to as-

sess the enhanced performance of the proposed

techniques. The tests present computing time results

for increasing levels of changes due to river floods

and wildfires in three different real-world terrain

map models. The results are obtained with the use of

the QuadTree representation approach, and they are

contrasted with similar testing results obtained when

a regular grid structure is used in the same maps.

2 BACKGROUND AND RELATED

WORK

The exploration of irregular map representation

topologies (Algfoor, Sunar et al. 2015) for the mod-

elling of virtual terrains is important for the devel-

opment of simulation systems to real-world applica-

tion problems. While the regular grids with repre-

sentation nodes of the same size are often used in the

capture of small-scale terrains mostly for computer

games, the irregular grids are formed by nodes with

distinct dimensions and shapes.

To capture real-world terrain areas in the simula-

tion system, map cells are often modelled according

to information extracted from real-world GIS-based

maps. Depending on the level of detail that such

maps are produced, the storing and use of such ter-

rain features usually results in a high computational

cost for the Artificial Intelligence (AI) algorithms

supporting the agent simulations. This is true not

only when one considers the simulated agents and

their relationships but also when such costs are due

to the “Environment-Environment” interactions

(Hawe, Coates et al. 2012) between the simulated

terrain objects.

Simulations based on dynamic terrain scenarios

have a highly positive impact on the quality of the

simulation-based training activities in many applica-

tion problems. For instance, (Pfeiffer and Tamash

2014) describe a system that allows the simulation

of combat operations. They seek to explore the real-

ism in the physics of the simulated environment, the

use of climate changes and their effects, leading to

operational problems to be approached by the agents

deployed in the virtual scenario. Simulated natural

phenomena are presented in (Liang, Du et al. 2008),

where the algorithms simulate rescue situations due

to terrain floods. Once the terrain changes occur in

the map structure, simulated agents (and users who

may be in control of these agents) are prompted to

take new decisions along with the development of

the simulations. An algorithm to model the propaga-

tion of wildfires is presented in (Rui, Hui et al.

2018). This algorithm is applied to a non-

hierarchical grid structure that represents the virtual

terrain. The grid cells capture state information to

represent the cell situation (e.g. its burning state).

Computational techniques to dynamic virtual (syn-

thetic) environments are presented in (Smelik, van

Wermeskerken et al. 2018). To build these dynamic

terrains, a set of constraints are considered: perfor-

mance when working with terrains in different levels

of representation detail, simulation realism and con-

trol of dynamic events occurring in the terrain envi-

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

ronment, among others. Examples of terrain defor-

mations are the trails left by vehicles, the erosion

effects caused by heavy rains or river dam ruptures,

the explosion of buildings and bridges, and others.

All these events can have an impact on the terrain

representation, and the consequent computations

guiding the simulation of various kinds of agents’

movement behaviours.

Among the works that explore the hierarchical

representation of the terrain structure, the Dynamic

Probabilistic QuadTree technique is described in

(Cocaud and Jnifene 2010). There, each node con-

tains information about the probability of an obstacle

being located in it. The QuadTree node expansion

and shrinking operations are based on the alteration

of the probability value of the nodes affected by the

computed terrain changes. (Liang, Du et al. 2008)

explore the adaptive QuadTree representation in the

modelling of the surface water runoff due to floods.

In (Wouter G. van Toll, Atlas F. Cook IV et al.

2012), the costs due to the computation of alterations

in virtual terrain structures are investigated. The

situations that modify the virtual terrain map are the

insertion of obstacles in the form of point, line, or

polygon, where all of them consider the polygonal

characteristics of the NavMesh representation struc-

ture. All in all, these works discuss techniques that

support the modification of the represented terrain

topology. However, they mostly focus on the analy-

sis of small-scale and almost always local terrain

changes while many real-world simulations ought to

be based on large-scale terrain areas in which the

topology of the represented world could change

significantly over short periods of time.

3 THE SIMULATION SYSTEM

ARCHITECTURE

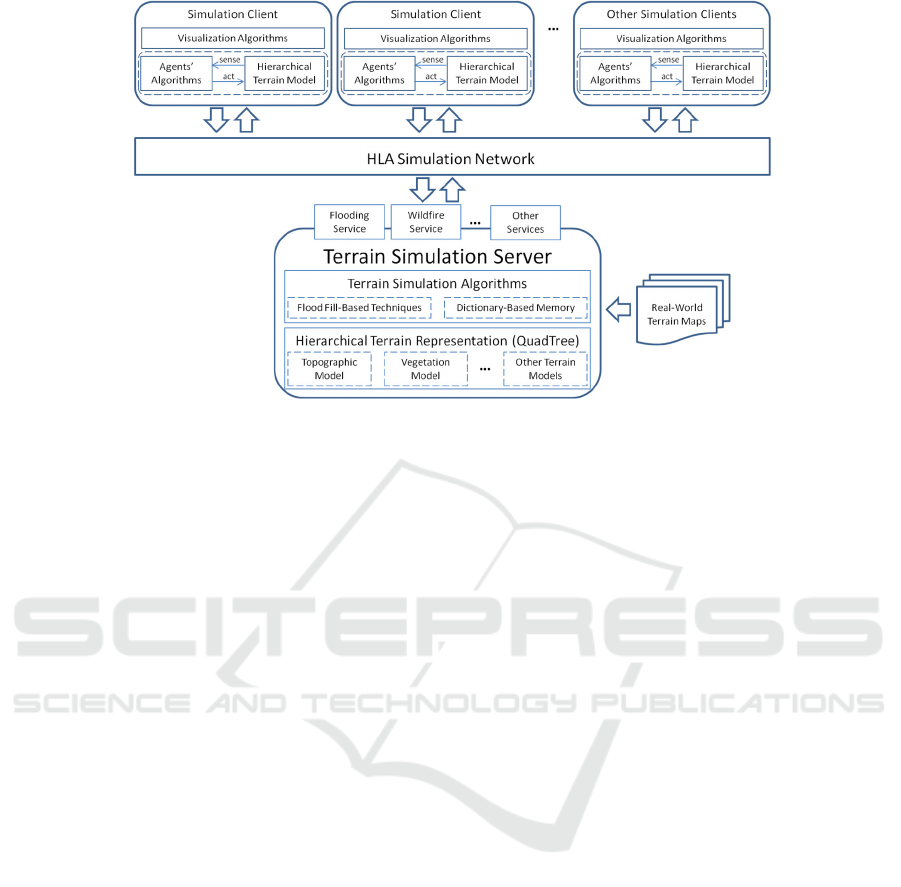

The proposed architecture for the simulation system

(Fig. 1) is based on a distributed service-oriented

multi-agent approach in which simulation services

are used by simulation systems’ clients over the web

(Byrne, Heavey et al. 2010). At its core, there is a

Terrain Simulation Server that receives as input real-

world GIS-based terrain maps to create a virtual

model for the various levels of represented terrain

information. This is a process that generates the

various navigation maps for the simulated real-world

terrains.

To develop dynamic terrain simulation services

to equip this simulation proposal, this work focuses

on the representation and prompt modification of the

structure of the terrain navigation maps used to

guide the agent-based simulations. While the terrain

representation structure by itself can be indexed by

different representation layers, such layers have the

overall aim of capturing the targeted terrain features

for the simulation purposes. Then these features are

hierarchically represented to optimize the computa-

tions of the simulation exercises. With that, the sta-

tus of the altered terrain map attributes is distributed

to/shared by the Simulation Clients, where terrain

scenarios can be visualized in different forms by

these client implementations.

The architecture is composed of core components

supporting the large-scale terrain representation and

the basic functionalities for the terrain map manipu-

lation. The Hierarchical Terrain Representation

component, which is implemented as a QuadTree, is

responsible for the basic elements that compose the

terrain navigation map. The hierarchical and irregu-

lar grid topology of the QuadTree allows the opti-

mized representation and computation of large-scale

maps. In it, the deeper the node is, the higher the

level of terrain representation detail is. The use of

this topology allows refining the representation

structure to capture the terrain features of interest for

the simulations, where alternative features can be

considered: the shapes of the terrain landscape, the

steepness of these terrain features, and the location

of rivers and other bodies of water, among others.

The component capturing the Terrain Simulation

Algorithms is responsible for providing the basic

algorithms to the management of the elementary

parts of the terrain structure, i.e. the nodes that rep-

resent the hierarchical terrain map. These algorithms

are used to implement specific Simulation Services

that provide large-scale changes in the terrain map,

such as blocking/releasing nodes affected by river

floodings and wildfires. In the proposed approach,

the alteration of terrain representation structure is

computed according to a set of reusable flood fill-

based operations. It means that the computing tech-

niques regarding graph flooding are explored to

guide the analysis and alteration of the represented

areas (nodes) of the terrain map. Such procedures

are directed by the QuadTree refinement, resulting

in the expansion and retraction of the hierarchy

levels. Similarly, terrain restoration operations are

implemented, aiming to return the QuadTree struc-

ture to its previous state. The restoration procedures

can also be concerned with the maintenance of the

altered QuadTree nodes, which are saved into and

retrieved from a Dictionary-Based Memory.

The Dictionary-Based Memory manages terrain

information that is redundant to the QuadTree.

Hierarchical Terrain Representation and Flood Fill-based Computation of Large-Scale Terrain Changes for Agent-based Simulations

Figure 1: A distributed service-oriented multi-agents’ simulation architecture.

However, it allows the implementation of simu-

lation terrain services that permit executing efficient

expansion and retraction operations on the hierar-

chical terrain map representation. In practice, the

terrain information leaves the QuadTree when the

changes in the terrain map nodes are materialized.

So the degree of terrain detail represented in the

QuadTree is reduced. Despite the fact the simulated

terrain map ends up being represented in a lower

granularity, the modified terrain map information is

maintained in the dictionary for future (re)use. In

later computations with it, the changed terrain in-

formation doesn’t need to be searched in the Quad-

Tree. This memory is implemented as a HashTable

organized as tuples (key, value), where a query to it

can be executed. This query retrieves the represented

QuadTree nodes (or entire subtrees) changed due to

the simulated natural phenomena. That restoration

also permits the reconstruction of the QuadTree in

different forms.

Several Simulation Clients can access the Simu-

lation Services provided by the above-described

server via a HLA Simulation Network (e.g. (Lees,

Logan et al. 2006)). At each client, a multi-agent

simulation engine operates over the locally stored

hierarchical representation of the simulated terrain

map, sensing and acting on it. The simulated agents

implement different types of algorithms, e.g. global

and local path planning, which need to collect data

from the simulated environment. Then they select

the best course of actions to perform a given realistic

agent behaviour in the targeted simulations. In prac-

tice, a Hierarchical Terrain Model component cap-

tures a view of the terrain map data at the clients’

systems, and uses the Simulation Services provided

by the Terrain Simulation Server to perform large-

scale changes in the hierarchical structure that com-

pose the map. These changes affect the perception of

the environment sensed by the simulated agents,

thus also their actions. They can also guide the visu-

al appearance of the simulated environment which is

presented by the alternative Visualization Algo-

rithms implemented in each Simulation Client.

The structural changes on the hierarchical terrain

representation analyzed in this work are motivated

by the advance and retreat of floods along

riverbanks and the terrain changes occurring due to

wildfires. Those changes are computed in different

representation layers of a simulated terrain. In prac-

tice, while the simulations are running in this dy-

namically changing environment, for instance, the

simulation instructor can insert these events into the

simulation exercises. Such action can cause agents’

evasive actions to avoid the flooded areas, the con-

struction of river dams, and the development of

other mitigation tasks in the simulations. As ap-

proached in this work, similar agents’ re-planning

computations can also be required due to large-scale

wildfires. From the dynamic nature of the used

simulation scenarios, practical experience with

simulations indicates that users of the implemented

simulation systems can be subjected to multi-agent

tactical and strategic simulation problems to im-

prove their decision-making capabilities.

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

4 REPRESENTATION AND

COMPUTATION OF

LARGE-SCALE TERRAIN

CHANGES

In the construction of the QuadTree, the terrain

height feature can be used in the process of subdi-

viding the hierarchical representation in its different

levels can be explored (see examples of it in Fig. 1-

3). There, relief heights are captured in different

levels of detail. In doing so, there is an “inheritance”

of terrain height values from the father to the child

nodes, where the child nodes just refine the maxi-

mum and minimum terrain heights represented at the

father node. A new level in the QuadTree hierarchy

is built whenever one of these terrain features is

identified in the analysis of the used real-world GIS-

based maps. This process is repeated until the final

QuadTree refinement condition is met. In the end,

the irregular representation of the terrain is ex-

pressed by QuadTree “leaf” nodes.

To model the terrain map structure, a directed

graph is captured as a Tree <n, maxLevel, root>.

There, a QuadTree node n consists of n <parent,

children, level, isLeaf, refined> such that n.parent

and n.children are pointers used by the hierarchy;

n.level indicates the level of the hierarchy to which

the node n belongs to; n.isLeaf indicates whether the

node is a leaf, and n.refined indicates that new nodes

were generated from the node n on a temporary

basis. Tree.maxLevel indicates the maximum hierar-

chical level where the irregular grid is captured by

the QuadTree leafs. Attributes required for the com-

putation of terrain effects due to river floods and

wild fires are modeled as n <minHeight, maxHeight,

neighbors, hasRiver, walkable, flooded, vegeta-

tionDensity, burned> such that n.minHeight and

n.maxHeight capture the minimum and maximum

terrain height values inside the terrain region repre-

sented by the node n; n.neighbors consist of a list of

neighbor nodes of node n, permitting to capture the

connection between the adjacent nodes; n.hasRiver

indicates the presence of rivers in the terrain area

covered by node n; n.walkable indicates whether the

node n is navigable by simulated agents; n.flooded

indicates whether the node n was subjected to terrain

alterations as a result of the flood fill-based compu-

tations;. n.vegetationDensity indicates the amount of

trees inside the terrain region represented by the

node n; and n.burned indicates whether the node n

was subjected to the fire alterations.

The use of the flood fill-based technique along

with this QuadTree representation occurs as follows.

An initial node is removed from a control queue.

Then the flooding test is performed on it. This per-

mits to identify (un)blocked nodes that satisfy a

“flooding condition”. Such nodes can be blocked for

the terrestrial agent movement, where the condition

for it is that (a) the terrain node represents a relief

height below a certain flood-prone height (i.e. a river

flood limit) and (b) the node captures a terrain re-

gion that is located next to the course of rivers. In

doing so, the algorithm considers the maximum and

minimum terrain relief heights. These are there in

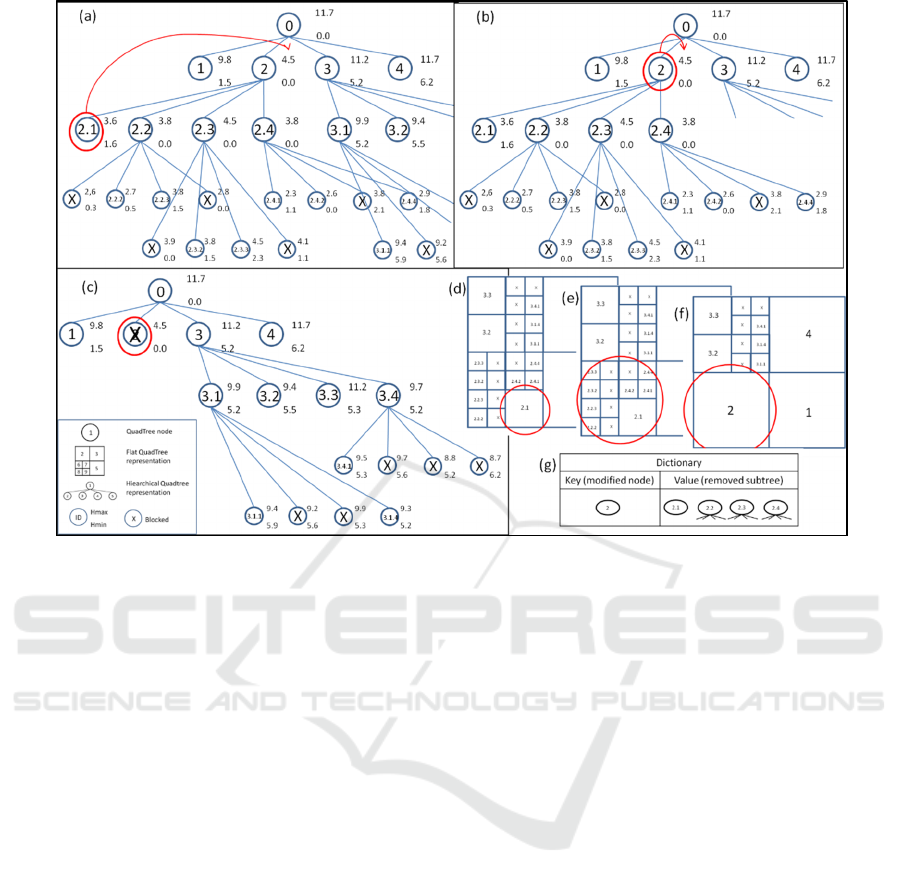

each QuadTree node as shown in Fig. 2 (this figure

illustrates some of the steps of the proposed solution

through an example of a 5m river flood).

The neighbouring nodes of a flooded one are

analyzed. When it happens, the flood limit can be a)

above the maximum terrain height, b) below the

minimum terrain height, and c) between the maxi-

mum and minimum terrain height. The nodes with

maximum terrain heights below the flood limit are

identified and added to the control queue. A node is

removed from this queue and the algorithm checks

whether its parent also meets the flooding condition.

If so, further parent nodes upwards in the hierarchy

are tested.

This process continues until a QuadTree node not

meeting the flooding condition is found. With the

non-leaf node satisfying the condition, the subtree

rooted on it is removed from the QuadTree. Then it

is added to the dictionary. The flooded node is trans-

formed into a leaf one. That ends expressing a larger

flooded terrain area in the QuadTree. This process

stops when the control queue is empty. As an exam-

ple, in Fig. 2, the subtree rooted on node 2 is memo-

rized into the dictionary and the QuadTree structure

is simplified after this process.

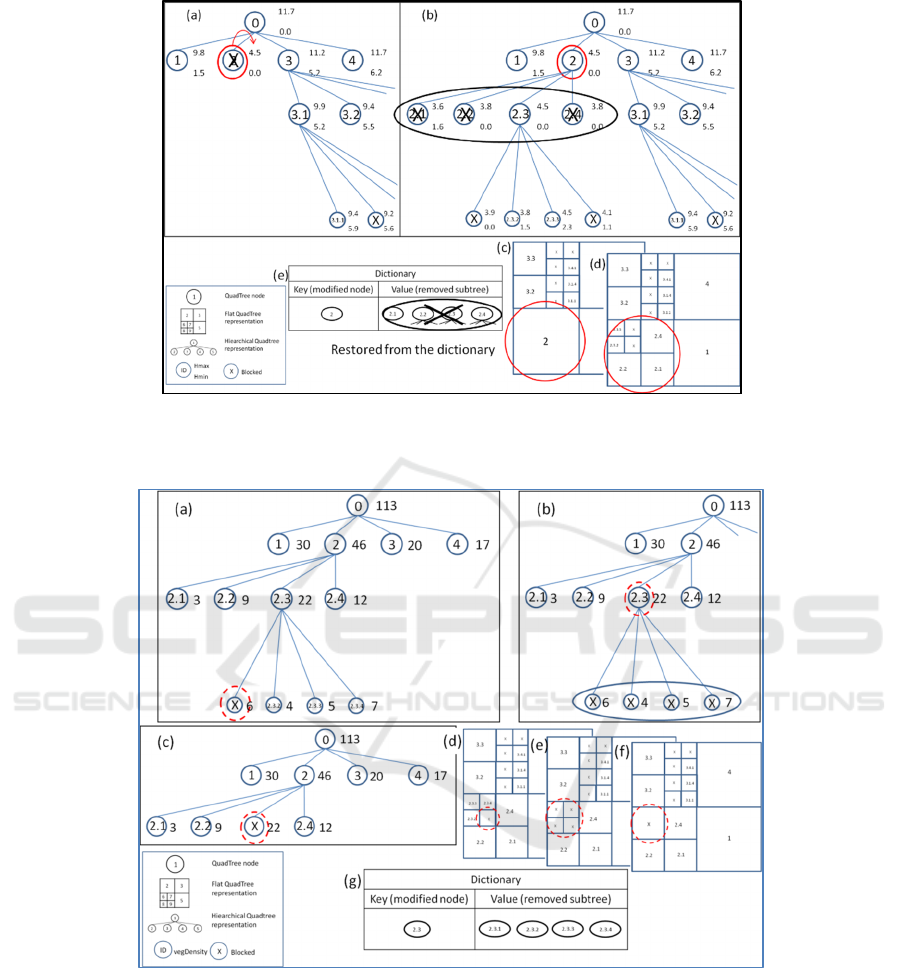

The restoration of the terrain structure consists of

rebuilding the QuadTree to a targeted state. For

instance, the reconstruction allows simulating the

return of the flooded water to the original river bed.

When analyzing an altered node, the algorithm

checks whether it was previously refined. For exam-

ple, large terrain areas could have been subdivided

in smaller pieces, where only a few of these subareas

were flooded. To do so, the alteration algorithm

checks the “refined’ attribute represented in the

QuadTree node. If the node was refined, the restora-

tion procedure carries out the (re)grouping of the

terrain representation nodes generated due to the

QuadTree refinement.

The terrain structure can also be returned to a

partial representation state, permitting to compute

the partial flood retreat, for instance. This occurs

when the restoration condition allows a portion of

Hierarchical Terrain Representation and Flood Fill-based Computation of Large-Scale Terrain Changes for Agent-based Simulations

Figure 2: River flood alteration steps computed in the QuadTree: (a) and (d) the 5.0m river flood is above the relief height

represented by the node; (b) and (e) this flood is also above the height represented by the parent node; (c) and (f) all the

terrain area covered by the parent node is flooded – a single larger size and blocked terrain area is represented in the Quad-

Tree; (g) the flooded subtree is saved in the dictionary.

the terrain structure not to be restored, while other

parts of it are kept into the dictionary.

The restoration can also result in the generation

of new terrain subareas (i.e. new nodes in the Quad-

Tree). That is because the computed flooding may

have caused the grouping of these terrain nodes,

where this grouping ended expressing a single larger

terrain area in the QuadTree representation. To re-

store terrain subareas from the dictionary, the node

that rooted the affected subtrees is used. It is kept in

the QuadTree even after the terrain changes were

computed, guiding the search of a desired terrain

subarea stored in the dictionary.

As illustrated in Fig. 3, the algorithm analyzes

the minimum and maximum heights of each restored

node from the dictionary. If the maximum height

recorded in these nodes is below the flood retreat

level, the nodes remain blocked. Otherwise, if the

minimum height is above the retreat level of the

flooding, the nodes are defined as unblocked.

In the process of releasing flooded nodes, when

the node under review has a subtree stored in the

dictionary, that subtree is restored and included in

the QuadTree. After restoring the node in which the

flooding retreat level is between the maximum and

minimum terrain relief heights, it is necessary to

refine that node to examine its possible children.

These terrain subareas can have a maximum height

below the flooding retreat level, indicating that they

should be blocked for terrestrial navigation. And if

they have a minimum height above the flooding

retreat level, they are set up as unblocked. Such

refinement is also developed as long as the maxi-

mum QuadTree refinement level is not reached.

The aimed vegetation characteristics of a simu-

lated real-world terrain can also be represented in

the QuadTree. Similar to the terrain relief represen-

tation, the hierarchical representation is used in the

indexed generation of the vegetation layer for the

simulated terrain. The computation of changes in the

terrain representation structure as to express the

effects of wildfires makes use of the numerical value

representing vegetation density characteristics in the

QuadTree. When a parent node representing a ter-

rain area has a certain vegetation density, its children

nodes may not capture the same density represented

by its parent. That is because such vegetation can be

localized in a smaller subarea of the entire area cov-

ered by the parent node. Therefore, to change the

blocking status of an internal QuadTree node due to

wildfire effects, it is necessary to analyze all chil-

dren nodes from the current one.

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

Figure 3: Restoration steps in the QuadTree: (a) and (c) the 1.0m river flood retreat is below the relief height represented by

the flooded node; (b) and (d) the flooded subtrees are restored from the dictionary: one of these subtrees returned to its

original state, and the other three remained flooded – they represent larger-size and blocked terrain areas in the QuadTree.

Figure 4: Wildfire alteration steps computed in the QuadTree: (a) and (d) a vegetation density (e.g. 10) permitting the cur-

rent wildfire propagation is higher than the density represented on the leaf node (e.g. a fire ignition point); (b) and (e) this

density is not higher than the one represented by the parent node; (c) and (f) all the terrain area covered by the parent node

is blocked due to the wildfire; (g) the subtree rooted on the parent node is saved in the dictionary.

Different from the river flooding computations, the

QuadTree alterations due to wildfire effects are

implemented as a bottom-up procedure. The algo-

rithm starts at a certain terrain location representing

an initial fire ignition point (see Fig. 4). Then it

examines the neighbouring nodes of the first node

affected by the fire. Nodes that satisfy the wildfire

condition are added to the queue that controls the

algorithm execution. A node is removed from the

queue, and it is marked as burned. Then, the algo-

rithm checks whether all siblings of the current node

have been marked as burned. If so, the node along

with its siblings are removed from the QuadTree,

and their parent node is marked as burned. Then this

Hierarchical Terrain Representation and Flood Fill-based Computation of Large-Scale Terrain Changes for Agent-based Simulations

parent is turned into a leaf node. In addition, it is

analyzed whether all the siblings of the node turned

into a leaf are burned. When these siblings capture

larger terrain areas, these nodes are refined and the

smaller ones are added into the QuadTree. It hap-

pens whenever the maximum QuadTree refinement

level is not reached. If all these children nodes satis-

fy the fire propagation condition, the parent node is

marked as burned and the QuadTree refinement is

undone. Otherwise, only the children nodes satisfy-

ing the wildfire condition are blocked.

The analysis continues until the algorithm does

not find a node in which its siblings have been sub-

jected to fire. Unlike the retreat of river floods, we

have not implemented a short-term natural phenom-

enon regarding the restoration of the terrain structure

from the wildfire effects. However, it is possible to

restore the terrain representation map to the state

prior to the computation of the wildfire changes,

restoring all the performed QuadTree refinements.

5 EXPERIMENTS AND RESULTS

The goal of the experiments was to analyze the ef-

fort to compute structural alterations in the Quad-

Tree used in the representation of different terrains.

The following terrains were used: terrain (A) with

64 km² and a QuadTree with 10 levels, terrain (B)

with 256 km² and a QuadTree with 11 levels and

terrain (C) with 1024 km² and a QuadTree with 12

levels. In all tested terrains, the deepest “leaf” nodes

in the QuadTree represent a real-world terrain region

of approximately 64 m². For comparison purposes,

versions of each terrain were represented with the

use of a regular grid structure with 64 km², 256 km²,

and 1024 km², where grid cells capture terrain re-

gions with approximately 1024 m². The terrain struc-

tures used in the tests have an increasing number of

areas that are susceptible to changes caused by river

floods and wildfires. In this case, 8%, 16%, and 32%

of the total area of these terrains have areas covered

by rivers, while 16%, 31%, and 64% of their areas

are covered by forests. Different levels of floods

were used in the experiments: 2.5m and 5.0m above

the level of the represented rivers. Similarly, differ-

ent wildfire burning effects were computed in these

terrain structures. Finally, the relief characteristics

and the distributions of fire-prone areas (i.e. forests)

in the tested terrains are different, where the larger-

size terrains are not simply larger versions of the

smaller ones. This should be noted when drawing

conclusions from the test results. The algorithms

were executed 50 times in each test scenario. The

tests were executed in the Unity 3D engine (Unity

Technologies 2018). With many relevant industrial

applications, that is the engine used in the develop-

ment of computer games and simulation systems. An

Intel I7 4790 processor with 10 GB RAM was used

to perform the experiments.

Regarding the advance of the river floods, the

highest computing time to execute the terrain struc-

ture alteration algorithms was 31.65ms with the

QuadTree and 89.14ms with the regular grid (Fig.

5). Thus the execution time of the algorithms with

the QuadTree was much lower than the time re-

quired to performing similar alterations with the

regular grid. This is mostly due to the blockage of

internal QuadTree nodes as a consequence of the

floods, causing the blockage of a larger number of

“leaf” nodes (when blocking a root node of the

QuadTree, its children are also blocked). This hap-

pens when all children nodes represent terrain areas

with relief elevations below the flood level being

computed.

Regarding the retreat of the floods, the highest

computing time was 9.64ms with the QuadTree and

2.48ms with the regular grid (Fig. 6). Although the

retreat of the floods with the QuadTree presented a

higher computing time than with the regular grid, the

computation of the flood retreat consequences was

much slower than the computations for the advance

of the floods.

First, tests were performed to assess the river

flood advance computations. For the 2.5m and 5.0m

flood advance computations (Fig. 5), the time to

compute the 2.5m flood consequences was smaller

than the time for computing 5.0m flood effects. That

was observed when both the QuadTree and the regu-

lar grid structures were used. In case of small ampli-

tude floods (i.e. 2.5m), the execution of the imple-

mented algorithms show that most of the time the

nodes analyzed are adjacent to the ones representing

the rivers, where small-size affected areas do not

require the analysis of the internal nodes of the

QuadTree (i.e. the nodes representing larger pieces

of terrain). Thus the floods affecting small areas of

the terrain structure do not result in a thoughtful

exploration of the QuadTree hierarchy, increasing

the execution time of the algorithms. That did not

happen when the 5.0m floods were computed in the

terrains (B) and (C). However, there are exceptions

to this pattern: due to the topography of the terrain

(A), the time to compute 5.0m flood effects in it was

smaller than the time to compute similar 2.5m

floods.

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

(a) (b)

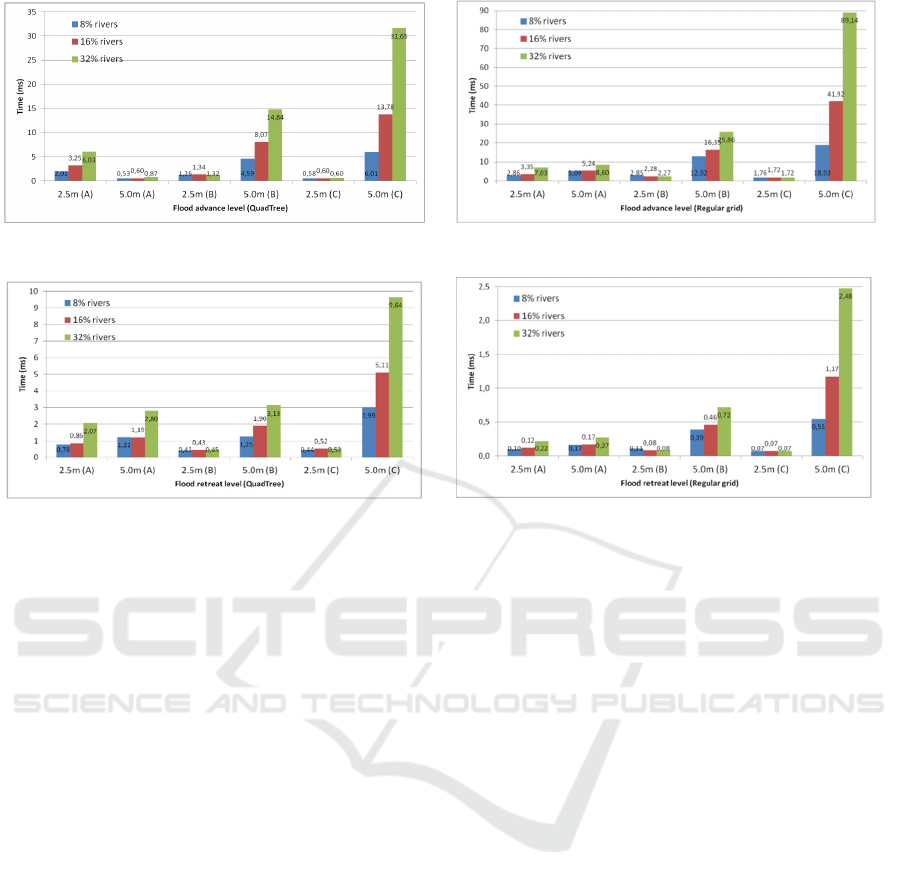

Figure 5: Execution time results of river flood advance computations for terrains (A), (B) and (C).

(a) (b)

Figure 6: Execution time results of river flood retreat computations for terrains (A), (B) and (C).

Fig. 5 shows that the increase in the percentage

of rivers from 8% to 32% in the terrains (B) and (C)

did not present a relevant increase/decrease in the

time required to compute the 2.5m flood effects in

these terrains with the QuadTree and the regular grid

structures. Conversely, the increase of the percent-

age of rivers increased the time to compute the

flooding consequences when the terrain (A) was

used. For the 5.0m computations with the QuadTree

and the regular grid structures, the time to compute

the flood effects increased with the increase of the

percentage of rivers in the terrain. Similarly, the

time for this kind of flood advance computations

also increased with the increase of the size of the

terrains, even considering that the tested terrains

have different topographic characteristics. That

increase in the computing time was not related to the

increase of the terrain size when the 2.5m flood

advances were executed in the terrain structures.

Second, tests were performed to assess the per-

formance of the flood retreat algorithms. In doing

so, a previously computed flooding was applied to

the tested representation structures. The results pre-

sented in Fig. 6 shows that the time to execute such

flood retreat consequences in the QuadTree was

higher than the time to compute similar aspects in

the regular grid. For the retreat of the 5.0m floods,

the time for these computations increased with the

increase of the percentage of rivers in the terrains

when using the QuadTree and the regular grid struc-

tures. That increase of the computing time with the

increase of the percentage of rivers was also ob-

served when 2.5m flood retreats were executed in

the terrain (A) representation structure even though

it was not observed in the terrains (B) and (C) with

the QuadTree and the regular grid representations.

For the 5.0m flood retreat computations, the compu-

ting time increased with the increase of the size of

the terrains from (A) to (C). For similar 2.5m flood

retreat computations, the computing time with the

terrain (A) was higher than with the terrains (B) and

(C). In each individual terrain, the time to compute

the effects of the flood retreat in the QuadTree and

the regular grid structures increased when the flood

retreat varied from 2.5m to 5.0m. The 5.0m flood

retreat computations were slower than the similar

2.5m flood retreat computations.

Experiments of wildfire propagation effects were

also conducted. The highest computing time was

43.3ms with the QuadTree, while it was 246.5ms

with the regular grid. There are several clearings

inside the forests represented in the hierarchical

QuadTree structure of the terrain. To faithfully rep-

resent these areas, a larger number of “leaf” nodes in

the QuadTree were used, generated at deeper hierar-

chical levels. This larger number of “leaf” nodes is

analyzed by the fire propagation algorithm, increas-

ing the execution time of the structural terrain altera

tions. In this case, it is often necessary to refine the

large-size nodes representing these clearings, where

Hierarchical Terrain Representation and Flood Fill-based Computation of Large-Scale Terrain Changes for Agent-based Simulations

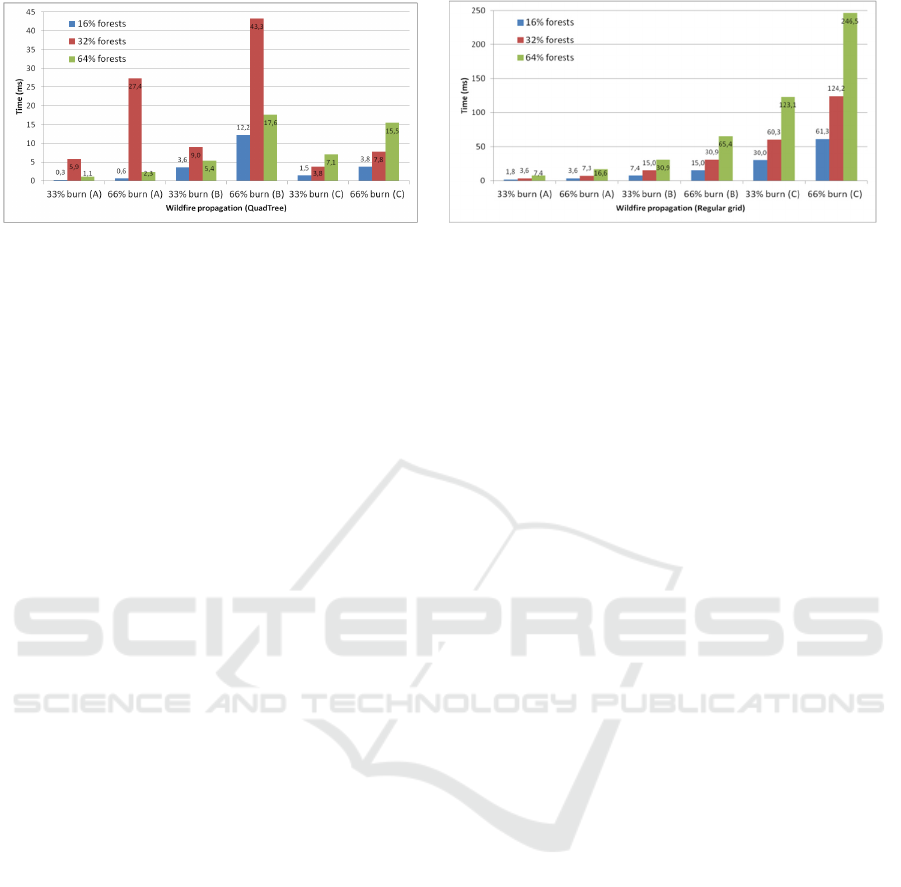

(a) (b)

Figure 7: Execution time results of wildfire propagation computations for terrains (A), (B) and (C).

this refinement implies a better detail of the burn-

ing/fire consequences simulated. Despite these facts,

the computing times were much higher when the

terrains were represented with the regular grid struc-

ture in all tested scenarios.

Regarding the use of regular grids (Fig. 7), a pat-

tern of increasing computing times was related to the

increase of the burned area from 33% to 66%, the

increase of fire-prone areas from 16% to 64%, and

the size of the terrains from (A) to (C). However, a

similar pattern was not observed when the terrains

were represented with the QuadTree. Terrains (A)

and (B) with the QuadTree representation have a

similar computing time pattern related to the in-

crease of fire-prone areas from 16% to 64%. In these

terrains, the time to compute the fire propagation

effects was higher when 32% of the burning area of

the terrains (A) and (B) with the QuadTree were

analyzed. That pattern appeared even when the burn-

ing areas was varied from 33% to 66% in these ter-

rain structures. An exception to it was the terrain

(C), where the computing time increased with the

increase of the fire-prone areas of this terrain from

16% to 64% and the burned areas from 33% to 66%.

In summary, the increase of the percentage of

rivers and the percentage of fire-prone areas in the

tested terrains did not necessarily increase the time

to change the terrain structures due to the flood ad-

vance and wildfire-propagation computations exe-

cuted with the QuadTree. However, the increase of

the computing time for these terrain structure altera-

tions was related to the amplitude of the required

floods and percentage of the burned areas, consider-

ing the tested 2.5m and 5.0m flooding and the 33%

and 66% burning consequences. A similar pattern

was observed when the effects of the flood retreat

were computed in the tested terrain structures. Not

surprisingly, the size of the terrains also had a con-

tribution to the required computing time to change

these terrain structures accordingly.

6 CONCLUDING REMARKS

The use of ABMS is a valuable asset to low-cost,

low-risk training and instruction activities in differ-

ent application fields. In the context of a distributed

simulation architecture in which simulation services

are used to produce dynamic terrain maps for agent-

based simulations, this work proposes the hierar-

chical QuadTree representation for the modelling

and computation with large-scale, real-world ter-

rains. The approach permits to efficiently use the

terrain information captured in the representation

structure, and to make computations with it to ex-

press the terrain changes in the hierarchical terrain

model. This work shows how to do it with the use of

flood fill-based techniques, which are applied to the

analysis and alteration of the QuadTree along with

the exploration of a dictionary-based memory. Based

on two different case studies, ways of working with

the hierarchical structure are discussed, and the

effectiveness of the proposed techniques is demon-

strated. In addition to tests with other terrains, future

works can involve the use of the proposed tech-

niques in the computation of terrain map effects due

to the occurrence of other natural phenomena.

ACKNOWLEDGEMENTS

We thank the Brazilian Army Strategic Program

ASTROS for the financial support through the SIS-

ASTROS GMF project (898347/2020).

REFERENCES

Algfoor, Z. A., M. S. Sunar and H. Kolivand. 2015. A

Comprehensive Study on Pathfinding Techniques for

Robotics and Video Games. International Journal of

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

Computer Games Technology: 11.

Brondani, J. R., L. A. de Lima Silva, E. Zacarias and E. P.

de Freitas. 2019. Pathfinding in hierarchical

representation of large realistic virtual terrains for

simulation systems. Expert Systems with Applications

138: 112812.

Byrne, J., C. Heavey and P. J. Byrne. 2010. A review of

Web-based simulation and supporting tools. Simulation

Modelling Practice and Theory 18(3): 253-276.

Cocaud, C. and A. Jnifene. 2010. Environment mapping

using probabilistic quadtree for the guidance and

control of autonomous mobile robots. International

Conference on Autonomous and Intelligent Systems,

AIS 2010, Povoa de Varzim, Portugal, IEEE.

Glassner, A. 1990. Graphics Gems. San Francisco, CA,

Morgan Kaufmann Publishers Inc.

Hawe, G. I., G. Coates, D. T. Wilson and R. S. Crouch.

2012. Agent-based simulation for large-scale

emergency response: A survey of usage and

implementation. ACM Computing Surveys (CSUR)

45(1): 8.

Lees, M., B. Logan and G. K. Theodoropoulos. 2006.

Agents, games and HLA. Simulation Modelling

Practice and Theory 14: 752–767.

Liang, Q., G. Du, J. W. Hall and A. G. Borthwick. 2008.

Flood inundation modeling with an adaptive quadtree

grid shallow water equation solver. Journal of

Hydraulic Engineering 134(11): 1603-1610.

Macal, C. 2016. Everything you need to know about

agent-based modelling and simulation. Journal of

Simulation 10: 144–156.

Nascimento, E. J., E. Zacarias, D. M. Doebber, E. P. de

Freitas and L. A. de Lima Silva. 2019. Flooding-

Driven Modifications of a Hierarchical and Irregular

Navigation Grid Structure for Large Virtual Terrains

used in Simulation Systems. 2019 IEEE 31st

International Conference on Tools with Artificial

Intelligence (ICTAI), IEEE.

Nielsen, J. 1994. Usability engineering, Elsevier.

Pfeiffer, K. D. and T. Tamash. 2014. Measuring the

impact of natural environment representation on

combat simulation outcomes. Interservice/Industry

Training, Simulation, and Education Conference

(I/ITSEC), Orlando, FL.

Rui, X., S. Hui, X. Yu, G. Zhang and B. Wu. 2018. Forest

fire spread simulation algorithm based on cellular

automata. Natural hazards 91(1): 309-319.

Smelik, R., F. van Wermeskerken, R. Krijnen and F.

Kuijper. 2018. Dynamic synthetic environments: a

survey. The Journal of Defense Modeling and

Simulation.

Unity Technologies, I. 2018. "Software Unity®."

Wouter G. van Toll, Atlas F. Cook IV and R. Geraerts.

2012. A navigation mesh for dynamic environments.

Computer Animation and Virtual Worlds 23(6): 535-

546.

Hierarchical Terrain Representation and Flood Fill-based Computation of Large-Scale Terrain Changes for Agent-based Simulations
