Towards an Automated Business Process Model Risk Assessment:

A Process Mining Approach

Panagiotis Dedousis

, Melina Raptaki

, George Stergiopoulos

and Dimitris Gritzalis

Dept. of Informatics, Athens University of Economics & Business, Athens, Greece

Dept. of Information & Communication Systems Engineering, University of the Aegean, Samos, Greece

Keywords: Cybersecurity, Risk Assessment, Process Mining, Business Process Management, Dependency Risk Graphs.

Abstract: Cybersecurity Risk Assessment reports (RAs) on an organization’s information systems are fundamental to

supporting its entire information security management. Proper assessments do not restrict their analysis only

to tangible assets of an information system (e.g., servers, personal computers, databases) but also delve into

the company’s day-to-day business flows that utilize its information system. Business processes, whether

internal (i.e., payments) or external (i.e., paid services to customers or products), must also be analyzed in

terms of impact and threat exposure, an approach often coined “process-based risk assessment.” Most modern

ISO27000 methods and relevant tools include business flow models in their analysis, either as assets or as

processes themselves. Process mining defines methods and techniques able to construct graphs that demon-

strate the various business flows that are taking place in an information system. However, while process min-

ing methods are of significant interest in general risk analysis, supply chain, and business restructuring, they

seem to be neglected in cybersecurity risk assessments. In this paper, we propose an automated method for

leveraging process mining to conduct faster and more thorough cybersecurity risk assessments. Our enhanced

process mining creates graphs that incorporate weights from typical risk assessment methodologies and pro-

vide helpful information on risk and potential attack vectors on business-driven events by correlating and

analyzing the steps of the business processes depicted in the graph to the assets used to complete each step.

We evaluate our approach and proof-of-concept tool by modeling a real-world company’s business flows and

incorporating them into a risk assessment model to detect and analyze potential attack sources and their re-

spective impact on everyday business work.

1 INTRODUCTION

Risk assessments (e.g., methods and associated tech-

niques) provide an analytical and structured walk-

through for setting up and maintaining an organiza-

tion’s security posture. By doing that, it outlines risk

scenarios and identifies their consequences, the fre-

quency or likelihood of them occurring, and the possi-

ble treatment options, along with the associated costs

(BS ISO/IEC 27001, 2013). These information pieces

are crucial and allow managers to balance the security

budget and better distribute security spending.

Current standards and methodologies consider as-

sets that are part of the information system (e.g., serv-

https://orcid.org/0000-0002-3081-4019

https://orcid.org/0000-0002-5336-6765

https://orcid.org/0000-0002-7793-6128

ers, computers, databases). All of them mention busi-

ness processes, and most relate to them being used in

RAs, albeit indirectly through subjective analysis and

loose correlation to assets (BS ISO/IEC 27001, 2013;

NIST SP 800-30, 2012). As a result, the analyst is

burdened with accounting for particular business

flows, often manually, through hearsay or interviews,

which leave much information outside the scope. For

example, it is crucial to identify the actual business

process that utilizes a database, how often the process

is performed, from which users (power or simple us-

ers), and with which tools.

Information about business flows and assets usage

is associated with the knowledge of the business pro-

cesses in the organization and can be extracted from

Dedousis, P., Raptaki, M., Stergiopoulos, G. and Gritzalis, D.

Towards an Automated Business Process Model Risk Assessment: A Process Mining Approach.

DOI: 10.5220/0011135600003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 35-46

ISBN: 978-989-758-590-6; ISSN: 2184-7711

the information system event logs using a variety of

process mining methods. Even though there is a

growing body of research concerning risk-aware bu-

siness process management, which recognizes the be-

nefits of analyzing and examining business processes

during risk assessment, still, to our knowledge, no

prior work focuses on how to extract meaningful data

from event logs using process mining to assess the

risk of an information system (Cardoso et al., 2021;

Caron et al., 2013; Lamine et al., 2020; W. van der

Aalst et al., 2012; W. van der Aalst & de Medeiros,

2005). Utilizing process mining on event logs to ac-

quire knowledge of the underline business process

provides several benefits, such as reducing the cost

and time required for modeling and, more important-

ly, allowing for fast remodeling in case of business

process changes.

The addition of business context to risk assess-

ment provides valuable insights for the information

systems under examination, drives the creation of bet-

ter policies and measures, and, in general, leads to a

more holistic approach where the systems are exami-

ned as a whole and not as the individual assets that

comprise them.

We propose a new method for automatically ex-

tracting complex business flow interdependencies in

organizations and incorporating them to risk assess-

ment analysis. The presented approach utilizes tech-

niques used in the field of process mining to (i) ana-

lyze information systems event logs and (ii) construct

graphs that demonstrate the various business proces-

ses that are taking place in an information system, ba-

sed on the steps that are a part of each process.

Then the approach leverages methodologies and

tools from cybersecurity risk assessments to (iii) cal-

culate the likelihood value for each graph node and

edge, considering their respective frequency of use,

exposure to cyber threats, and amount of influence of

each node to an organization’s business needs.

To achieve the migration of business mining

graphs to risk assessment analyses, we utilize risk de-

pendency analysis to (i) evaluate the cascade impacts

of process disruptions and the overall risk affecting

the organization and (ii) identify and prioritize high-

risk processes and business flows (paths). Our ap-

proach can identify possible points of potential fail-

ures in the business process workflows. In addition,

the analysis of process dependency graphs offers the

advantage of discovering unknown attack surfaces

and vectors by locating improper sequences of acti-

ons/activities. By identifying such hotspots and attack

vectors, countermeasures can be integrated directly

into the existing workflow, improving system relia-

bility and resiliency.

To evaluate our approach, we utilize a dataset

(collection of event logs) supplied by an anonymised

company in the paints industry based in Southern Eu-

rope. The data have been collected from an ERP-like

system on which internal and external users/vendors

operate. The dataset contains data concerning the pro-

curement process (i.e., purchase and order handling)

and consists of over 50.000 events for purchase orders

entered in the company’s systems in 2021.

In summary, our paper contributes the following:

1) A process mining approach for incorporating

complex business flow interdependencies into

dependency graphs to map process activities and

their interdependencies based on the business

process model.

2) A likelihood assessment technique to estimate

the probability of a future risk event occurring for

each business process activity based on their re-

spective frequency of use.

3) Critical process activity identification and prior-

itization utilizing risk analysis.

4) High-risk chain (path) identification and prioriti-

zation utilizing dependency risk analysis.

The rest of the paper is organized as follows: Section 2

discusses related work and compares risk assessment

and process mining methods. Section 3 describes the

proposed risk analysis method for mined business pro-

cesses. Section 4 describes the fundamental building

blocks of our analysis approach. Section 5 discusses

the methodology implementation and the evaluation in

a real-world example and presents our findings to val-

idate the methodology. Finally, the conclusion dis-

cusses paper results and potential future research in

Section 6.

2 RELATED WORK

Several risk assessment tools and methods assess the

factors that influence risk levels in organizations and

their business workflows. The main intention of such

high-level methodologies is to analyze the multi-di-

mensional impacts of disruptive incidents in organiza-

tions and critical infrastructures in multiple sectors

(Ani et al., 2019; Aven, 2016).

Traditional risk assessment methodologies usually

focus on individual vulnerabilities on already opera-

tional systems (BS ISO/IEC 27001, 2013; NIST SP

800-30, 2012). The most common ones are asset-based

and require a knowledgeable team (e.g., analysts, sys-

tem administrators, users) with comprehensive skills

and experience. In addition, most methodologies, like

MAGERIT, CORAS, and MEHARI, involve their us-

ers in the assessment process (Gritzalis et al. 2018;

SECRYPT 2022 - 19th International Conference on Security and Cryptography

Amutio et al., 2014; CLUSIF, 2010; CORAS, 2010;).

However, traditional risk assessments focus on manag-

ing uncertainties around physical and financial assets

neglecting business processes and their correlation to

company assets. Furthermore, they are performed on

already established and functioning systems resulting

in added layers of cybersecurity on top of existing sys-

tems. Finally, the increasing interconnection of sys-

tems indicates a need for novel approaches utilizing

multiple data sources to address different types of

threats and manage attack surfaces (Rubio et al., 2017;

Lopez et al., 2013).

Several authors stressed the importance of model-

ing organizations as interconnected systems to assess

the cascade effects due to their strong interdependen-

cies. (Azzini et al., 2018; Kotzanikolaou et al., 2013a;

Min et al., 2007). Most approaches utilize graph visu-

alization or cascade diagrams to model the interde-

pendencies among system components (e.g., CI, net-

work components, business processes) and assess the

cascading risk. For example, in (Stergiopoulos et al.,

2016), the authors proposed to use graphs for time-

based critical infrastructure dependency analysis for

large-scale and cross-sectoral failures in CIs. In (Ster-

giopoulos et al., 2017, 2020), authors, focus on indi-

vidual organizations, mainly industry IT and ICT net-

works, by evaluating the cascading failures, in terms of

risk, between assets involved in and among different

business processes. Although the modeling and assess-

ment of interdependencies can effectively identify and

minimize the cascading risk, it still requires an exten-

sive amount of data from a previous risk assessment to

acquire impact and likelihood values.

A significant challenge for asset-based and pro-

cess-based approaches that estimate risk is collecting

required input information, as it is a rather time-con-

suming and costly process. However, in the case of

process-based approaches, the business process work-

flow of an organization can be efficiently extracted uti-

lizing process mining techniques (W. van der Aalst &

Dustdar, 2012). Process mining aims at extracting in-

formation from event logs to capture the business pro-

cess as it is being executed (W. van der Aalst et al.,

2012). For example, in (Caron et al., 2013), the authors

explore and investigate the applicability of process

mining for enterprise risk management utilizing an

analysis of infrequent behavior and extreme situations.

Furthermore, in (W. van der Aalst & de Medeiros,

2005), authors utilize process mining to analyze audit

trails for security violations from low-level intrusion

detection to high-level fraud prevention. Still, these

process mining approaches do not address the cascade

risk between business processes or analyze subliminal

attack paths. To the best of our knowledge, there have

been no attempts until now to utilize business process

chains mined from a system to conduct a risk assess-

ment or study the risk interdependencies and cascading

effects.

Our proposed process-based risk analysis approach

and tool use utilize multiple methods to mine, analyze

and assess business processes. We utilize (i) the pro-

cess mining techniques and concepts from (W. van der

Aalst et al., 2012; W. van der Aalst & Dustdar, 2012),

(ii) the quantitative input from RA reports since we opt

to automate a cost-benefit analysis on asset dependen-

cies in business processes (BS ISO/IEC 27001, 2013;

NIST SP 800-30, 2012) (iii) the risk dependency anal-

ysis for attack paths from (Stergiopoulos et al., 2017,

2020). Our solution considers and examines the busi-

ness workflow integrating potential risks in all business

processes. The integration of process mining expands

the accuracy of the business process model under ex-

amination and improves the cost and time efficiency by

automating the process. In addition, our implementa-

tion can automatically analyze process dependency

graphs providing solutions for risk mitigation and pri-

oritization, detect the highest risk attack paths, and of-

fer metric analysis of existing vulnerability effects on

the overall system to help managers, experts, and secu-

rity officers make justifiable decisions on security di-

lemmas (Gritzalis et al, 2018; Dewri, 2007; Kotzani-

kolaou at al., 2013b).

3 ANALYSIS OF PROCESS

MINED BUSINESS

WORKFLOWS

This section explains how we leverage process mining

to conduct faster and more comprehensive cybersecu-

rity risk evaluations. We first explain the fundamental

steps of the proposed methodology to analyze and as-

sess process mined business workflows. Then, we

briefly describe the required input and expected output

of our model.

3.1 Methodology

The presented approach utilizes numerous steps to

achieve its goals. Each step of the presented methodol-

ogy utilizes a collection of mapping procedures and al-

gorithms. Each one provides insight into the organiza-

tion’s business process model analysis and outputs in-

formation to be used as input by the following step.

This process uses three fundamental steps:

Towards an Automated Business Process Model Risk Assessment: A Process Mining Approach

Step 1: Business Process Mining: Extracts busi-

ness processes from event logs readily available in the

organization's information systems and identifies pro-

cess activities. Output results are modeled as transition

diagrams.

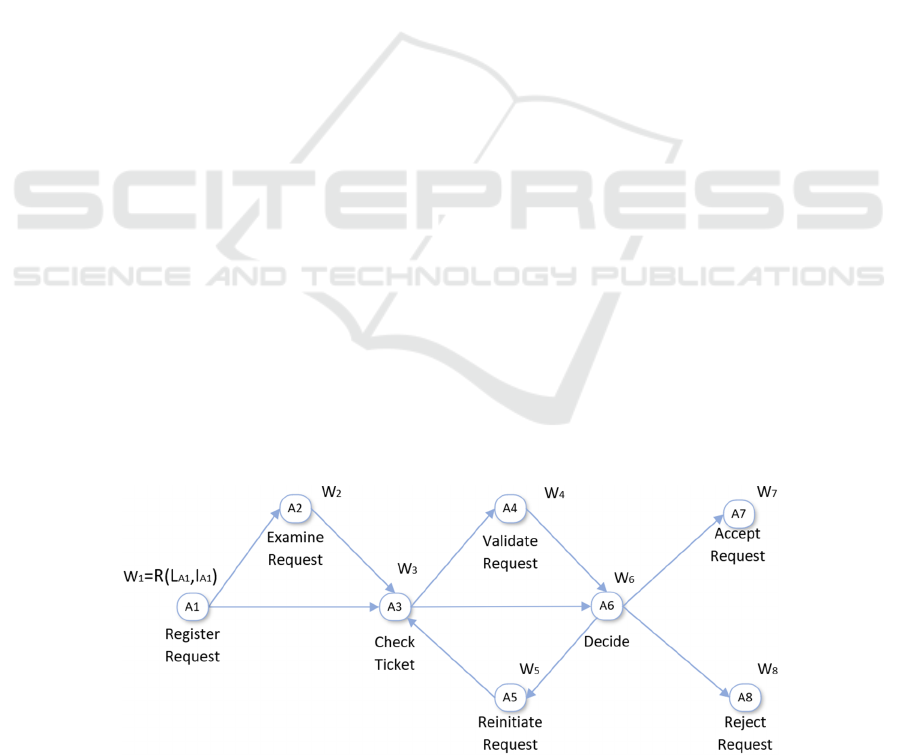

Step 2: Process Dependency Modeling: Maps

previously produced process transition diagrams into a

risk process dependency graph. Also, this step calcu-

lates the likelihood of disruption and assigns impact

values, thus estimating the risk for each activity based

on the mapped process dependency graph.

Step 3: Dependency Risk Analysis: The algo-

rithm pre-computes all n-order dependencies using the

process dependency graph. Then, for each process de-

pendency chain, outputs the cumulative dependency

risk of each disruption path. Finally, we identify and

prioritize high-risk activities and dependencies (activ-

ity chains) for risk mitigation.

3.2 Model Inputs and Outputs

The required input for our algorithmic approach is a

collection of event logs from ERP-like and/or CRM

systems on which an organization’s internal and exter-

nal users/vendors operate. The overall output of our

methodology comprises from:

• metrics that assess the performance of the

flow network (i.e., the flow network graph

overall dependency risk, the top and average

cumulative dependency risk, the number of

attack paths),

• an identification of the most critical (in terms

of risk) dependencies (flows) and paths be-

tween business process activities, and

• an identification of the most critical business

process activities based on their risk and their

appearance in critical dependencies and paths

In the following section, we discuss in detail the build-

ing blocks that are utilized and essentially compose our

methodology.

4 BUILDING BLOCKS

This process mining risk analysis methodology uses

four building blocks:

1) A process mining method for extracting business

process models and subprocesses from infor-

mation system event logs.

2) A modeling method that maps and converts the

business process models into dependency graphs

based on the discovered business process model.

3) A risk calculation methodology to estimate the

likelihood of a threat disrupting internal and/or

external business processes.

4) A multi-risk dependency analysis methodology

for assessing risk of graph’s dependency paths.

4.1 Process Mining

To discover and analyze the business process model of

an organization, we utilize process mining. Process

mining provides valuable fact-based insights and sup-

ports process improvements (W. van der Aalst, 2016).

The concept is fast gaining popularity and attracting in-

terest since the release of the Process Mining Mani-

festo with various open-source tools such as ProM,

ProM Lite, and RapidProM available (W. van der Aalst

et al., 2012). This discipline aims to discover, monitor,

and improve business processes by extracting

knowledge from event logs readily available in an or-

ganization’s information system (van der Aalst, 2014).

Some of the process mining techniques include auto-

mated process discovery, conformance checking, so-

cial network mining, trace clustering, construction of

simulation models, and history-based recommenda-

tions (Caron et al., 2013).

The starting point of the process mining analysis is

the event log which is the data resulting from the use

of information systems (van der Aalst, 2014). Process

mining assumes the existence of an event log where

each event refers to a case, an activity, and a point in

time; for example, on 20/1/2021 at 13:45:14, user X

placed an order with ID 124. To that end, an event log

is a collection of cases, and each case is a sequence of

events. Event data may come from a wide variety of

sources such as a database system (e.g., patient data in

a hospital), a transaction log (e.g., a trading system), an

ERP system (van der Aalst, 2016; van der Aalst &

Dustdar, 2012). In addition, depending on the infor-

mation systems used to support the business processes,

data might be in different formats (e.g., XES, OCEL,

CSV).

Process mining is not applied to the entirety of the

event logs extracted from a system as this would re-

quire significant computational power, and the result-

ing chains would not make sense. Based on this re-

striction, most mining processes are applied to parts of

the event logs related to a specific process (Marin-Cas-

tro & Tello-Leal, 2021).

In our approach, to study and analyze the business

flows of an organization, we focus on specific business

processes (e.g., a procurement process). To do that, we

SECRYPT 2022 - 19th International Conference on Security and Cryptography

utilize process mining discovery techniques to extract

process knowledge from event logs and identify the

business process model. In addition, we utilize trace

clustering techniques to analyze the business process

activities in terms of risk. Finally, we should note that

our implementation can analyze one business process

at a time. However, in the case of multiple business

processes (e.g., order to cash, procure to pay), we ex-

tract process transition diagrams and analyze them se-

quentially. Hereafter, we briefly describe the process

discovery and trace clustering techniques used in this

paper.

4.1.1 Process Discovery

Process discovery aims at discovering a model from an

event log. Literature suggests many process mining al-

gorithms to discover a model (van der Aalst, 2014).

Process mining algorithms require a simple event log

file as input. In our approach, we utilize the α-algo-

rithm for process discovery. The algorithm inputs a

collection of event logs. Then, the algorithm starts by

scanning the event log collection for activity patterns.

If an activity  is followed by , but  is never fol-

lowed by , then it assumes a causal dependency be-

tween  and . Successively, the algorithm includes a

node connecting  to  to the corresponding output

graph (i.e., transition diagram) to reflect this depend-

ency.

The process mining results are presented with pro-

cess modeling notations. The most basic process mod-

eling notation is a transition diagram (e.g., Petri Net).

A transition diagram consists of places and transitions

(i.e., arcs). The diagram’s transitions correlate to busi-

ness process activities, and diagram places reflect their

dependencies. Each transition connects two places and

is labeled the activity’s name; each place has its label

that serves as a unique identifier. Multiple arcs, on the

other hand, can share the same label. For example, Fig-

ure 1 illustrates an indicative output of the process dis-

covery algorithm (i.e., a transition diagram) consisting

of seven positions. The transition diagram models and

illustrates the handling of a request in the context of an

information system.

4.1.2 Process Trace Clustering

Process trace clustering provides crucial insights into

the actual process activities in domains requiring flex-

ibility where there is much diversity leading to com-

plex models that are difficult to interpret (Song et al.,

2009). In our approach, we are interested in the fre-

quency of occurrence and participation of a business

process activity in different subprocesses.

To calculate the frequency of occurrence for each

business process activity, we must first decompose the

business process under study into subprocesses. To

achieve that, we utilize trace clustering techniques

from the process mining field (Carmona, 2018). Trace

clustering techniques partition the event log () first,

creating a set of clusters (sub logs) 



,



,…,



 in-

stead of extracting the process model. Strictly, trace

clustering techniques partition the activities (traces) in

the event log into multiple clusters (sets of traces), such

that each activity (trace) in the original log can be

found in one or more clusters (sub logs). Each cluster

generated by trace clustering is a set of “similar” activ-

ities, and it corresponds to a variant of the process

(Hompes et al., 2015). Intuitively, each produced clus-

ter corresponds to a subprocess, or more generally, a

“fragment” of the actual process.

The process trace clustering outputs a set of clusters

of similar activities and a collection of clusters for each

activity representing the clusters in which that activity

is located. Based on these, we can calculate the fre-

quency of occurrence of each business process activity

in different sub-processes to estimate the likelihood of

a threat to disrupt their operation (see Section 4.3.2 for

more on that).

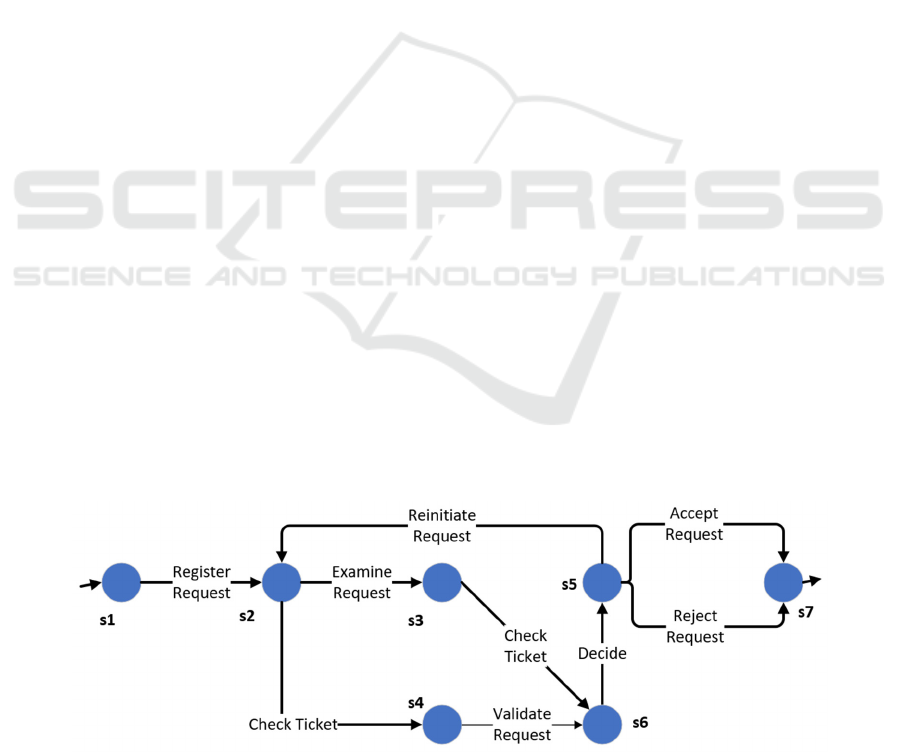

Figure 1: An indicative business process transition diagram having one initial state and one final state.

Towards an Automated Business Process Model Risk Assessment: A Process Mining Approach

4.2 Modelling Dependency Graph

To analyze and assess the process activities risk and

evaluate the company’s overall risk, we need to map

the mined process transition diagram into a risk de-

pendency graph. We should note that the process min-

ing results (e.g., process transition diagrams) can be

easily converted into another notation such as BPMN,

BPEL, or UML activity diagram (List & Korherr,

2006; Peixoto et al., 2008). These diagrams are usually

enhanced with various performance trackers and met-

rics to provide insights and assess the performance of

business workflows, especially in business scenarios

(Kalenkova et al., 2017).

During the second step of the presented work, we

convert the process transition diagram arcs (e.g., Petri

net transitions) to activity nodes and the process transi-

tion diagram nodes (e.g., Petri net places) into depend-

encies between them, thus producing a (process) activ-

ity dependency graph.

The algorithm maps and converts transition dia-

gram nodes into input and output dependencies from

one possible failure node to another. Note that if an arc

appears more than once in a transition diagram, it is

modeled only once as a unique dependency node (ac-

tivity) based on its label identifier.

In this pre-processing stage, dependencies are mod-

eled in directed, weighted graphs =(,), where

the nodes  represent the possible failure activity

nodes of the process transition diagram, and edges 

represent the dependencies between them. Figure 2 il-

lustrates a business process dependency graph gener-

ated using the process model transition diagram of Fig-

ure 1. The weight of each activity node quantifies the

estimated dependency risk of activity node B on re-

sources provided by activity node A. This weight de-

rives from the dependency between activity nodes, and

we utilize it to assess the performance, in terms of risk,

of business workflows.

4.3 Risk Calculation

In this section, we examine how to measure risk in the

context of the presented methodology, which is as-

signed to the graph as the weight of the activity nodes.

4.3.1 Risk Factors

Risk is the degree of possible failure that may occur in

an established business process, and risk assessment is

one of the critical activities in the risk management

process. The standard reference of risk as a cybersecu-

rity assessment metric is the following Risk =

Likelihood∗Impact. Assessing risk means identify-

ing the threats and determining the likelihood and im-

pact (BS ISO/IEC 27001, 2013; NIST SP 800-30,

2012). To calculate the risk, we must first estimate and

set the likelihood and impact values for each possible

failure node in the modeled dependency graph.

Impact as a metric depicts the magnitude of harm

due to the loss of availability or integrity of a network

node (i.e., activity). For example, the loss of a business

process activity due to a threat realized affects all de-

pendent activities in the business workflow. Also, in

many cases, a compromised process could result in

high economic costs, material harm, and public service

disruption.

In our approach, we utilize traditional risk analysis

methods, such as ISO/IEC 27001, to estimate the im-

pact of cyber threats for each process activity node in

the system. To do that, we correlate the activities of the

business process model to the company assets used to

complete each activity. This way, each process activity

node on the dependency graph is assigned with an im-

pact value on a scale of 1-5 based on the severity of the

consequences to resources, work performance, prop-

erty, and/or reputation.

Figure 2: Graphical representation of a business process dependency graph generated using the transition diagram of Fig. 1.

The weight () of each activity node quantifies the risk () that derives from the dependency between activity nodes. To

evaluate risk, we calculate the likelihood () and assign the impact () values for each activity node.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

On the other hand, we utilize the system event logs

to estimate the likelihood for each process activity

node. The likelihood calculation is thoroughly dis-

cussed in the following section.

4.3.2 Likelihood Calculation

The likelihood for each activity (i.e., node in the graph)

is calculated based on the results of the trace clustering

(see Section 4.1.2) and depicts how likely it is for an

activity to be carried out in different scenarios or chains

of activities that are part of the graph. If an activity is

part of many clusters implies that it participates in

many subprocesses, thus should be assigned with a

higher likelihood. The high frequency of occurrence

and participation of an activity in different subpro-

cesses indicates a high probability of dysfunction and

disturbance in case of a threat realized.

Based on the above, the likelihood for each activity

can be calculated as follows. Let A

be an activity (or

node of the graph). Let N be the total number of clus-

ters found in the event log , and 



be a cluster of 

activities Eq. 1:



…











,…,







(1)

Then the set S

for each activity A

, that represents the

clusters an activity is found in, is defined using Eq. 2:





=

…





∈





(2)

Based on the above, the likelihood L

for each activity





is the number of clusters 

(





)

it is found in, di-

vided by the total number of clusters , and it is com-

puted using Eq. 3:





(



)



(3)

4.4 Dependency Risk Analysis

Potential disruption to a business process activity is

transferred from the previous connection to the next.

For example, the disruption of the completion/fulfil-

ment of an activity, regardless of the cause, may prop-

agate to all dependent activities in the business process

workflow.

To calculate and assess the n

-order cascading

risks propagated in a series of process activities, we use

the following method that utilizes a recursive algo-

rithm based on (Kotzanikolaou et al., 2013; Ster-

giopoulos et al., 2017, 2020). Given 



→



→⋯→





is an n

-order dependency between  connected

components, with weights 

,

=

,



,

corres-

ponding to each first-order dependency of the path,

then the cascading risk exhibited by 



for this process

activity dependency path is computed using Eq. 4:



,…,

=(

,





)

,

(4)

The cumulative dependency risk is the overall risk ex-

hibited by all the activities in the sub-chains of the nth-

order dependency. If 



→



→⋯→



is a chain

of process activity dependencies of length n then the

cumulative dependency risk, denoted as 

,…,

, is de-

fined as the cumulative risk produced by an n

-order

dependency Eq. 5.



,…,

=(

,





)







,

(5)

Eq. 5 assess the cumulative dependency risk as the sum

of the dependency risks of the affected nodes in the

chain due to a disruption realized in the source node of

the dependency chain. The main output of this analysis

is a collection of activity dependency chains along with

their cumulative dependency risk.

5 EVALUATION

To validate this approach, we developed a proof-of-

concept tool and modeled the business flows of a real-

world company. We analyze and assess the process

network to provide helpful information on risk and po-

tential attack vectors on business-driven events. Our

aim here is not to evaluate all the business workflows

of the company but to evaluate whether and to what

degree our approach can provide valuable information

based on specific metrics (e.g., cumulative dependency

risk).

5.1 Tool Implementation

For our implementation, we opt to use the ProM fra-

mework as it is a world-leading tool in process mining

with various research-related functionalities (Aalst et

al., 2009; Viner et al., 2021).

ProM (2022) is an open-source framework devel-

oped by scientists in the Department of Technology

Management of the Eindhoven University of Technol-

ogy in 2005 that can be utilized for reading, storing,

and analyzing event log files in various formats, as well

as presenting the results of process mining (van

Dongen et al., 2005). To achieve that, ProM has been

structured as a “pluggable” environment, where all

functionality is delivered in plugins. We should note

that more than 200 plugins offer various options for

analysis (e.g., control-flow mining techniques) and vis-

ualization, importing, filtering, and exporting data (W.

Aalst et al., 2009). This plugin architecture allows for

Towards an Automated Business Process Model Risk Assessment: A Process Mining Approach

a “mixed and matched” approach to achieve the desired

functionality and outcome. As such, in our implemen-

tation, we utilized a collection of ProM plugins for (i)

importing the event logs (Import plugin), (ii) extracting

the business process model (Discover Graph plugin),

and (iii) trace clustering for risk analysis (Discover

Clusters plugin) to achieve the functionality described

in our methodology (see Sections 4.1.1 and 4.1.2).

For risk dependency analysis, we utilize the Neo4j

graph database (2000). Neo4J is a highly flexible, scal-

able, and efficient database and framework (Jouili &

vansteenberghe, 2013; Shao et al., 2012) for these

types of tools since it builds on the property graph

model. We used Neo4J to model activity dependencies

in business process workflows. Nodes labeling allows

us to input various information (from likelihood and

impact metrics to descriptive activities). Nodes are

connected via directed relationships and can hold arbi-

trary properties (key-value pairs). By utilizing the

Neo4J technology, our proof-of-concept tool can rep-

resent complex graphs of even thousands of dependent

activities through a weighted, directed graph.

The implemented tool was developed as a distrib-

uted application, including a desktop and a web appli-

cation. The desktop application builds on and expands

the ProM framework, and it was developed in Java.

The desktop application handles the process mining

functionalities and the preliminary risk analysis. The

web application is developed in Java Spring using the

Neo4j graph database and handles the risk dependency

analysis.

The desktop application responsible for the process

mining by utilizing the ProM Import plugin can accept

and parse event log files in any XES compliant format.

In addition, the ProM Import plugin provides addi-

tional capabilities that could be utilized, like importing

zipped files, to process immense size event logs. The

desktop application mines and processes the parsed

collections of events logs into a weighted risk depend-

ency graph and outputs the results by converting them

in JSON format. Due to this, the weighted risk depend-

ency graph can be uploaded to the web application for

the risk dependency analysis.

5.2 Case Study Dataset

The company under study is based in Southern Europe

and operates in the paints industry. The company pro-

vided us with a small dataset containing around 50,000

records/events from the company’s ERP information

system. The dataset contains events for purchase orders

entered in the company’s systems in 2021. The pro-

vided event log file was IEEE-XES compliant and is

structured in the usual format of such data in ERP sys-

tems. The company name, as well as any related infor-

mation, was anonymized and sanitized for security

considerations.

5.2.1 Step 1: Business Process Mining

The provided dataset includes the typical flows of pro-

curement (e.g., invoicing, goods receipts, consign-

ment). To that end, each purchase order (or purchase

document) contains line items representing the sequ-

ence of activities (series of events) performed. Also,

because the dataset contains events mainly from the

procurement process and its relatively small size, we

apply process mining on the entirety of the event logs

extracted from the system.

Utilizing process mining techniques (see Section

4.1) on the provided dataset, we identified 40 activities

performed by 50 users (43 human users and seven

batch users indicating automated processing of the rel-

evant activities) (see Table 1). In addition, our tool out-

puts a transition diagram where each activity corre-

sponds to a transition (arc). The generated transition di-

agram consists of 42 places and 51 arcs (activities that

occur sequentially).

Following that, we validated the produced chains

of activities described in the transition diagram, given

how the purchase process is often carried out. For ex-

ample, an invoice can be created only once a purchase

order has been established and accepted in the system.

Finally, it is worth noting that the process model tran-

sition diagram includes (performs) the 40 unique activ-

ities we identified multiple times. Table 1 displays the

extracted business process activities. Process activities

depicted use generic terms and IDs in the lists below.

Table 1: Business process model activities as identified by

the process mining step.

Activity ID

Block Purchase Order A1

Cancel Goods Receipt A2

Cancel Invoice Receipt A3

Cancel Subsequent Invoice A4

Change Purchase Order Approval A5

Change Currency A6

Change Delivery Indicator A7

Change Final Invoice Indicator A8

Change Price A9

Change Quantity A10

Change Rejection Indicator A11

Change Storage Location A12

Change Payment Term A13

Clear Invoice A14

Create Purchase Order A15

Create Purchase Requisition Item A16

SECRYPT 2022 - 19th International Conference on Security and Cryptography

Table 1: Business process model activities as identified by

the process mining step (cont.).

Activity ID

Delete Purchase Order A17

Reactivate Purchase Order A18

Receive Order Confirmation A19

Record Goods Receipt A20

Record Invoice Receipt A21

Record Service Entry Sheet A22

Record Subsequent Invoice A23

Release Purchase Order A24

Release Purchase Requisition A25

Remove Payment Block A26

Approve Awaiting Vendor Order A27

Transmit Vendor Order Change A28

Complete Vendor Order A29

Create Vendor Order A30

Delete Vendor Order A31

Complete Vendor Order Document A32

Execute Vendor Order Transfer A33

Submit Vendor Order A34

Complete Vendor Order Transfer A35

Set Vendor Order Transfer To Failed A36

Block Payment A37

Update Order Confirmation A38

Create Vendor Debit Note A39

Create Vendor Invoice A40

5.2.2 Step 2: Dependency Modelling

The tool automatically maps the output transition di-

agram into a dependency graph based on the method

described in Section 4.2. To evaluate the risk of the

business process workflow, we must set the likeli-

hood and impact values for each possible failure node

(activity) in the modeled dependency graph.

First, we calculate the likelihood of disruption of

each node in the dependency graph (see Table 2) based

on the method proposed in Section 4.3.2. The highest

likelihood for an activity is 0.79, and the lowest likeli-

hood recorded for an activity is 0.07.

Based on these results, we observe that high likeli-

hood activity nodes exist in several different chains of

activities (workflows) and, more importantly, none of

them is a start or an end node. That means that any is-

sues that delay or affect their successful processing or

completion would impact several other activities.

For example, the Create Purchase Order (A15) ac-

tivity with a likelihood value of 0.62 always proceeds

the Release Purchase Order (A24) with a likelihood

value of 0.33. On the other hand, the low likelihood

activity nodes indicate issues encountered when infor-

mation is transferred to external systems (e.g., Execute

Vendor Order Transfer) or points where the business

process (i.e., the processing) is over, such as the

Change Rejection Indicator (A11) activity.

Also, we assigned the impact values of each node

(see Table 2) based on a risk assessment and infor-

mation concerning the specific process and the assets

involved in each process activity provided by the com-

pany. Based on the assigned impact values indicated in

table 2, we observe that the Execute Vendor Order

Transfer (A33) activity presents the highest impact

while activities such as the Remove Payment Block

(A26) and Update Order Confirmation (A38) present

the lowest.

Table 2: Dependency nodes (business process activities)

with impact-likelihood values.

Dependency

Node ID

Likelihood Impact

A1 0.36 2

A2 0.60 1

A3 0.41 2

A4 0.33 1

A5 0.45 1

A6 0.21 3

A7 0.60 1

A8 0.24 1

A9 0.76 2

A10 0.55 2

A11 0.07 2

A12 0.43 1

A13 0.14 2

A14 0.71 3

A15 0.62 2

A16 0.10 3

A17 0.60 1

A18 0.41 3

A19 0.41 4

A20 0.74 2

A21 0.76 2

A22 0.43 3

A23 0.26 2

A24 0.33 2

A25 0.07 1

A26 0.55 1

A27 0.12 2

A28 0.29 3

A29 0.36 2

A30 0.41 2

A31 0.36 1

A32 0.26 2

A33 0.52 5

A34 0.31 3

A35 0.14 2

A36 0.07 2

A37 0.21 1

A38 0.29 1

A39 0.60 3

A40 0.79 5

Towards an Automated Business Process Model Risk Assessment: A Process Mining Approach

The Execute Vendor Order Transfer (A33) activity

handles and transmits sensitive data to third-party ven-

dors. Therefore, various attacks can exploit it to expose

private data and, more importantly, gain access to the

ERP system. However, activities such as Remove Pay-

ment Block (A26) and Update Order Confirmation

(A38) deal with minor actions (i.e., the change of an

indicator in a document) in terms of potential conse-

quences and so, if they were compromised, it would be

possible to enact workarounds.

Based on the calculated likelihood and the assigned

impact values, the tool calculates the risk value of each

node in the dependency graph based on the methods

proposed in Section 4.3. For example, the Create Ven-

dor Invoice (A40) activity introduces the highest risk,

with a risk value of 3.93, followed by the Execute Ven-

dor Order Transfer (A33) activity with a risk value of

2.62. On the other hand, the Release Purchase Requi-

sition (I12) activity introduces the minimum risk with

a value of 0.07. In table 3, we list the top 5 highest risk

dependencies nodes (activities) based on the output of

our tool.

By examining the two worst activities in terms of

risk, we observe some common characteristics and pat-

terns of execution/operation. In particular, an invoice

is created either by automatic transfer from another

system to a company’s IT systems, a third-party sup-

plier, or an employee who manually enters the data.

Similarly, the Execute Vendor Order Transfer (A33)

activity requires external communication to handle and

transmit data to third-party vendors. As such, activities

that require third-party access for their execution are

associated with significant information system vulner-

abilities (e.g., authorization violation, bypassing con-

trols, eavesdropping, information leakage) and, de-

pending on their importance on the business process,

introduce high risk.

Table 3: Top 5 dependency nodes output from the risk anal-

ysis step (ascending).

Dependency Node ID Risk

A40 3.93

A33 2.62

A14 2.14

A39 1.78

A19 1.62

5.2.3 Dependency Risk Analysis

Finally, the tool computed the complete set of risk

paths on the risk dependency graph based on the met-

hod described in Section 4.4. Paths have an order not

greater than 5. Depicted paths correspond to activity

flows from the business process under study.

Forty network flow nodes produced more than 532

dependency chains with orders ranging from two to

five and potential risk values between 0.07 and 10.13.

Table 4 lists the top 2 highest risk dependency paths

according to each one’s total cumulative risk. Security

experts can use this step’s output to identify business

process activities and related company assets with po-

tential risk values above a threshold value. The thresh-

old is subjective; a decision-maker can define it based

on specific characteristics or requirements of the com-

pany-under-assessment.

Table 4: Top 2 activity dependency paths output from the

risk dependency analysis step (ascending).

Activity Dependency Paths

Cumulative

Path Risk

A15  A22  A34  A40 10.13

A23  A14  A33 A26  A38 6.66

In our case, path A15  A22  A34  A40 is the worst

dependency with a risk value of 10.13. This depend-

ency path contains four activities and represents a busi-

ness flow that begins with a payment term adjustment

and ends with the vendor invoice creation. The second

worst dependency path has a risk value of 6.66 and in-

dicates a business flow of five activities that begins

with recording a subsequent invoice and finishes with

an order confirmation update. We should highlight that

the Execute Vendor Order Transfer (A33) and Clear

Invoice (A14) activities are included in the second-

worst path, indicating their importance.

Hence, based on our analysis, nodes A40, A33, and

A19 are the most critical. In particular, node A40 is the

highest risk node included in the worst dependency

path, and nodes A33 and A19 are in the top 5 highest

risk nodes included in the second-worst dependency.

Therefore, Supplier Invoice Generation (A40) is

deemed the most critical activity, followed by the Exe-

cute Vendor Order Transfer (A33) and Clear Invoice

(A14). That is to be expected, as the Supplier Invoice

Generation (A40) activity is essential to the procure-

ment process; its execution is required before and after

many other activities, thus creating multiple dependen-

cies that increase the risk of interruption due to an at-

tack.

6 CONCLUSIONS

In this work, we propose a method to automatically

model individual business process activities in an or-

SECRYPT 2022 - 19th International Conference on Security and Cryptography

ganization and analyze the risk of cybersecurity disrup-

tions on business process model workflows. We

achieved this by utilizing process mining to extract

graphs depicting business processes and the relevant

importance of their underlying activities to the infor-

mation system and embed them into the standardized

risk assessment process.

The proposed methodology incorporates weights

into the extracted graphs from typical risk assessment

methodologies to provide helpful information on risk

and potential attack vectors on business-driven events

by correlating and analyzing the steps of the business

processes depicted in the graph to the assets used to

complete each step.

Our methodology and developed tool map the ex-

tracted (mined) business process activity graphs to as-

sess the risk of disruptions due to accidental or inten-

tional events and produce weighted risk dependency

graphs presenting how a disruption in one activity may

affect other dependent activities. This automated pro-

cess-based risk dependency analysis allows managers

and security experts to identify security risks and ad-

dress them accordingly, considering the company’s

specific characteristics and requirements.

The implemented tool and evaluation results of a

real-world company showcase that the presented ap-

proach is effective and trustworthy. Results also indi-

cate that process mining can be helpful in risk assess-

ment, as it provides automation and valuable insights

in business process model workflows with minimum

resources compared to manually discovering individ-

ual process activities and their interactions.

Therefore, our approach supports the proactive stu-

dy and analysis, in terms of risk, of business processes

with many process activities and interdependencies,

promoting the concept of process-based risk assess-

ment in business process management.

6.1 Restrictions and Future Work

The presented approach has certain limitations. Like

other empirical risk approaches that analyze dependen-

cies, it relies on previous risk assessments and expert

knowledge to correlate assets to process activities to

evaluate impact. Also, while this approach can identify

paths and activities as high-risk items, it is challenging

to decide the proper mitigation measures to reduce

those risks. Furthermore, process mining is optimized

for individual business processes, which is a restriction

that applies to the proposed methodology. Finally, we

utilized a small dataset of event logs to evaluate our

method. However, adequate for our proof-of-concept

analysis, a larger, well-documented dataset is required

for further examination.

Future work should concentrate on overcoming the

limitations mentioned above. In particular, the consol-

idation of the results for multiple processes should be

addressed so that the methodology can be applied to an

organization. Additionally, the scalability of this ap-

proach should be further examined; the implementa-

tion of this method, and thus the underlying algorithms,

would have to be able to handle large datasets.

ACKNOWLEDGEMENTS

This work has been partially supported by a research

grant offered by the Hellenic Ministry of Digital Gov-

ernance to Athens University of Economics & Busi-

ness (MoDG/AUEB Cybersecurity R&D (2021-22)).

REFERENCES

Aalst, W. van der. (2016). Process mining: Data Science in

action (2

ed.). Springer.

Aalst, W., Dongen, B., Günther, C., Rozinat, A., Verbeek,

E., & Weijters, A. (2009, January). ProM: The Process

Mining Toolkit. Allergy.

Amutio, M., Candau, J., & Mañas, J. (2014). MAGERIT,

Methodology for Information Systems Risk Analysis &

Management. Min. de Administraciones Publicas.

Ani, U., McK Watson, J., Nurse, J., Cook, A., & Maples, C.

(2019). A review of critical infrastructure protection ap-

proaches: Improving security through responsiveness to

the dynamic modelling landscape. Living in the Internet

of Things, 6 (15 pp.)-6 (15 pp.).

Aven, T. (2016). Risk assessment and risk management:

Review of recent advances on their foundation. Euro-

pean Journal of Operational Research, 253(1), 1–13.

Azzini, I., Dido, M., Giannopoulos, G., & Galbusera, L.

(2018). GRRASP: User Manual. Publications Office.

BS ISO/IEC 27001. (2013). Information Technology–Secu-

rity Techniques–Information Security Management Sy-

stems–Requirements. BSI.

Cardoso, P., Respício, A., & Domingos, D. (2021). Riska-

BPMN - a BPMN extension for risk assessment. Pro-

cedia Computer Science, 181, 1247–1254.

Carmona, J. (2018). Decomposed Process Discovery and

Conformance Checking. In S. Sakr & A. Zomaya

(Eds.), Encyclopedia of Big Data Technologies (pp. 1–

7). Springer.

Caron, F., Vanthienen, J., & Baesens, B. (2013). A compre-

hensive investigation of the applicability of process mi-

ning techniques for enterprise risk management. Com-

puters in Industry, 64(4), 464–475.

CLUSIF. (2010). Mehari: Information risk analysis and

management methodology. Club de la Sécurité de

l’Information Français.

http://www.clusif.asso.fr/en/production/mehari/index.a

Towards an Automated Business Process Model Risk Assessment: A Process Mining Approach

CORAS. (2010). A Guided Tour of the CORAS Method.

http://www.springer.com/cda/content/docu-

ment/cda_downloaddocument/ 9783642123221-c3.pdf

Gritzalis, D., Iseppi, G., Mylonas, A., & Stavrou, V. (2018).

Exiting the risk assessment maze: A meta-survey. ACM

Computing Surveys, 51, 1, 1-30.

Hompes, B., Verbeek, H., & van der Aalst, W. (2015). Find-

ing Suitable Activity Clusters for Decomposed Process

Discovery. In P. Ceravolo, et al. (Eds.), Data-Driven

Process Discovery and Analysis (Vol. 237, pp. 32–57).

Springer International Publishing.

Jouili, S., & Vansteenberghe, V. (2013). An Empirical

Comparison of Graph Databases. 2013 International

Conference on Social Computing, 708–715.

Kalenkova, A., van der Aalst, W., Lomazova, I., & Rubin,

V. (2017). Process mining using BPMN: Relating event

logs and process models. Software & Systems Model-

ing, 16(4), 1019–1048.

Kotzanikolaou, P., Theoharidou, M., & Gritzalis, D.

(2013a). Assessing n-order dependencies between crit-

ical infrastructures. International Journal of Critical In-

frastructures, 9(1/2), 93.

Kotzanikolaou, P., Theoharidou, M., Gritzalis, D. (2013b).

Cascading effects of common-cause failures on Critical

Infrastructures. Proc. of the 7

IFIP International Con-

ference on Critical Infrastructure Protection, 171-182,

Springer (AICT 417).

Lamine, E., Thabet, R., Sienou, A., Bork, D., Fontanili, F.,

& Pingaud, H. (2020). BPRIM: An integrated frame-

work for business process management and risk man-

agement. Computers in Industry, 117, 103199.

List, B., & Korherr, B. (2006). An evaluation of conceptual

business process modelling languages. Proc. of the

ACM Symposium on Applied Computing, 1532.

Lopez, J., Alcaraz, C., & Roman, R. (2013). Smart control

of operational threats in control substations. Computers

& Security, 38, 14–27.

Marin-Castro, H. M., & Tello-Leal, E. (2021). Event Log

Preprocessing for Process Mining: A Review. Applied

Sciences, 11(22), 10556.

Min, H.-S., Beyeler, W., Brown, T., Son, Y., & Jones, A.

(2007). Toward modeling and simulation of critical na-

tional infrastructure interdependencies. IIE Transac-

tions, 39(1), 57–71.

Neo4j Graph Database. (2000). Neo4j Graph Database

Platform. https://neo4j.com/product/neo4j-graph-data-

base/

NIST SP 800-30. (2012). Guide for conducting risk assess-

ments (NIST SP 800-30r1). National Institute of Stand-

ards and Technology.

Peixoto, D., A. Batista, V., Atayde, A., Borges, E., Resen-

de, R., Isaías, C., & Pádua, P. (2008). A Comparison of

BPMN and UML 2.0 Activity Diagrams.

ProM. (2022). https://www.promtools.org/doku.php

Rubio, J., Alcaraz, C., Roman, R., & Lopez, J. (2017). A-

nalysis of Intrusion Detection Systems in Industrial E-

cosystems. Proc. of the 14

International Joint Confe-

rence on E-Business and Telecoms, 116–128.

Shao, B., Wang, H., & Xiao, Y. (2012). Managing and min-

ing large graphs: Systems and implementations. Pro-

ceedings of the 2012 International Conference on Man-

agement of Data - SIGMOD ’12, 589.

Song, M., Günther, C., & van der Aalst, W. (2009). Trace

Clustering in Process Mining. In D. Ardagna, et al.

(Eds.), Business Process Management Workshops (pp.

109–120). Springer Berlin Heidelberg.

Stergiopoulos, G., Dedousis, P., & Gritzalis, D. (2020).

Atomatic network restructuring and risk mitigation

through business process asset dependency analysis.

Computers & Security, 96, 101869.

Stergiopoulos, G., Kotzanikolaou, P., Theocharidou, M.,

Lykou, G., & Gritzalis, D. (2016). Time-based critical

infrastructure dependency analysis for large-scale and

cross-sectoral failures. International Journal of Critical

Infrastructure Protection, 12, 46–60.

Stergiopoulos, G., Kouktzoglou, V., Theocharidou, M., &

Gritzalis, D. (2017). A process-based dependency risk

analysis methodology for critical infrastructures. Inter-

national Journal of Critical Infrastructures, 13(2/3),

184.

van der Aalst, W., Adriansyah, A., de Medeiros, A., & Ar-

cieri, F. (2012). Process Mining Manifesto. In Business

Process Management Workshops Vol. 99, pp. 169–194.

Springer Berlin Heidelberg.

van der Aalst, W. (2014). Process Mining Discovery, Con-

formance and Enhancement of Business Processes. Sp-

ringer.

van der Aalst, W., & de Medeiros, A. (2005). Process Min-

ing and Security: Detecting Anomalous Process Execu-

tions and Checking Process Conformance. Electronic

Notes in Theoretical Computer Science, 121, 3–21.

van der Aalst, W., & Dustdar, S. (2012). Process Mining

Put into Context. IEEE Internet Computing, 16(1), 82–

86.

van Dongen, B., de Medeiros, A., Verbeek, H., Weijters,

A., & van der Aalst, W. (2005). The ProM Framework:

A New Era in Process Mining Tool Support, Applicati-

ons and Theory of Petri Nets 2005 (pp. 444–454). Sp-

ringer.

Viner, D., Stierle, M., & Matzner, M. (2021). A Process

Mining Software Comparison. ArXiv:2007.14038 [Cs].

http://arxiv.org/abs/2007.14038

SECRYPT 2022 - 19th International Conference on Security and Cryptography
