Startable: Multidimensional Modelling for Column-Oriented NoSQL

Leandro Mendes Ferreira

, Solange Nice Alves-Souza

and Luciana Maria da Silva

2,3 c

Departamento de Engenharia de Computação e Sistemas Digitais (PCS), Universidade de São Paulo (USP), Brazil

Department of Mathematical Sciences, Durham University, U.K.

Centro de Estudos de Petróleo (CEPETRO), University of Campinas (Unicamp), Brazil

Keywords: NoSQL, Multidimensional Modelling, Data Modelling, Database Query Processing and Optimisation

(Theory).

Abstract: NoSQL Database Management Systems (DBMS) can be an alternative for analytical systems and have been

used in this regard. As analytical systems often use multidimensional data modelling, which was created for

relational databases, a new logical data modelling is necessary for NoSQL Column-Oriented Databases. We

developed logical modelling (Startable) and applied NoSQL oriented to the family of columns. Furthermore,

a logical model for the application of Startable modelling is presented in this research and a benchmark where

the performance of the proposed modelling is demonstrated compared to traditional approaches to

multidimensional modelling.

1 INTRODUCTION

Decision-making systems are fundamental to many

organisations in the most diverse businesses. These

systems are considered key parts of organisations'

business development, and for many years, they were

seen as a competitive differential. In the 1990s, these

decision-making systems were defined as Business

Intelligence (BI) and comprised modelling tools and

technologies to analysis tools (Duan and Xu, 2012).

Data Warehouse (DW), a database dedicated to

the decision-making context, is one of the main

components in BI environments (Yessad and Labiod,

2016). According to Lins and Ferreira (2016), the

multidimensional model is the most adopted.

The big data systems with Hadoop and NoSQL

have significant differences concerning the

Relational Database Management Systems (RDBMS)

in several characteristics. NoSQL uses non-relational

data structures, does not have an SQL query language

(present in the vast majority of RDBMSs), does not

meet ACID characteristics (an acronym for

Atomicity, Consistency, Isolation, and Durability),

and has the persistence of distributed data

(Moniruzzaman and Hossain, 2013). Thus, data

https://orcid.org/0000-0003-0680-1100

https://orcid.org/0000-0002-6112-3536

https://orcid.org/0000-0001-9544-9748

modelling with the ER and Multidimensional

Modelling are not applied to these new technologies

since they are designed to assist RDBMS.

This research has the main focus on analytical

systems. We developed the modelling of logical data

called Startable, which needs the Column-Oriented

NoSQL physical model. This modelling pretends to

be simple, based on the business rules of the users and

widely known concepts of modelling. Finally, we

propose that the modelling improves the efficiency of

the return of queries.

This paper is structured as follows: Session 2

presents Column-Oriented NoSQL; Session 3

presents related research and with subsidies for the

development of this article; Session 4 offers an

explanation of the importance of partitioning

mechanisms for NoSQL; Session 5 shows the

building of Startable modelling; Session 6 presents

the Star Schema Benchmark (SSB), the benchmark

applied for testing of modelling performance; Session

7 presents the modelling performance results over the

benchmark in a controlled laboratory; Session 8

presents the conclusion and proposals for future

work.

Ferreira, L., Alves-Souza, S. and Maria da Silva, L.

Startable: Multidimensional Modelling for Column-Oriented NoSQL.

DOI: 10.5220/0011142100003269

In Proceedings of the 11th International Conference on Data Science, Technology and Applications (DATA 2022), pages 21-30

ISBN: 978-989-758-583-8; ISSN: 2184-285X

2 COLUMN-ORIENTED NoSQL

NoSQL is a term that groups non-relational DBMS,

which serve large volumes of data with high

performance and high availability. According to

Moniruzzaman and Hossain (2013), NoSQL has the

following characteristics:

 Absence of the standard SQL-ANSI query

language

 Horizontal scalability

 Schemaless or Schema Free

 Sharding and Replication

NoSQL DBMSs are highly relevant for

applications that need a technology which supports

large volumes of data management and scalability

efficiently and straightforwardly (Lóscio et al., 2011).

Currently, NoSQL DBMSs are classified into four

basic types of architectures: Key-Value, Document

Oriented, Column Family and Graph Oriented

(Moniruzzaman and Hossain, 2013). This research

focuses on Oriented Column (Family Column)

NoSQL, as shown in Figure 1.

Figure 1: Example of Oriented Column Data Model -

(Manoj V, 2014)

Column-family or column-oriented NoSQL has

extensible record storage and large columnar stores.

This type of NoSQL was initially inspired by

Google's Bigtable, a distributed DBMS based on

structured data built to handle vast volumes of data.

Column-oriented NoSQL data stores are hybrid

row/column storage, with significant differences

from common relational databases. Despite having a

similar concept to column-by-column storage of

columnar databases and columnar extensions to row-

based databases, column-oriented NoSQL does not

persist data in tables. Instead, it stores the data in

massively distributed architectures. A key is

associated with one or more attributes (columns).

This type of columnar storage persists its data to be

optimally aggregated to lower I/O costs and offers

high scalability in data storage. Data stored in the

database is based on column family sort order (Manoj

V, 2014). The most popular column-oriented NoSQL

on the market are Apache HBase, Apache Cassandra

and Google Big Table.

3 RELATED WORKS

Different researchers developed papers regarding the

problem of modelling for analytical systems focusing

on the use of a NoSQL database and adaptation of

multidimensional modelling for new non-relational

database types. We highlight the three significant

modelling concentrations proposals:

1º: The purpose of the classic Star Schema model

in NoSQL, for example, Carniel et al. (2012)

proposed applying a multidimensional normalised

model, or the classic "star schema" modelling over

columns-oriented NoSQL.

2º: Several authors among them (Carniel et al.,

2012; Chevalier et al., 2015a; Ferreira, 2015;

Murazza and Nurwidyantoro, 2016) proposed the

Fully Non-Normalised Multidimensional Modelling

(FNMM), which is a joining of a fact table with its

dimensions of Star Schema model in a single table.

The physical implementation of FNMM in

column-oriented NoSQL facts and their dimensions

are gathered in the same table, using a single column

family as seen in Dehdouh et al. (2014). Also,

Scabora et al. (2016a) call a similar approach

SameCF. Another option for a physical model for

column-oriented NoSQL is proposed in Chevalier et

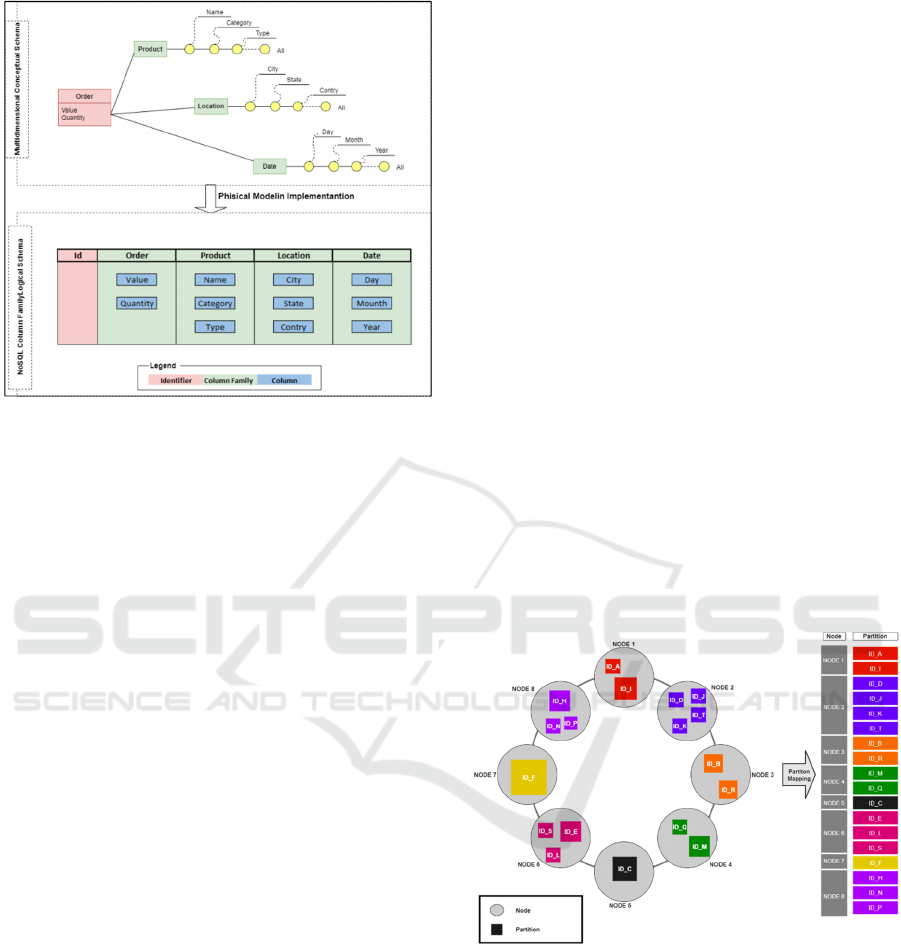

al. (2015b), outlined in Figure 2. Facts and

dimensions belong to the same table; however, facts

and each dimension are represented in separated

column families. Scabora et al. (2016a) also

proposed this same option, called CNSSB; Bouaziz et

al. (2019) suggest the same. This approach for

physical implementation is similar to non-nested

document-oriented NoSQL.

It is worth highlighting that each specific NoSQL

from the same type of family has different

implementations. For example, HBase and Cassandra

belong to the same NoSQL family, but each has its

implementation. Thus, the physical model of non-

normalised data for column-family-oriented NoSQL

is adapted according to a specific NoSQL.

Using FNMM for complex hierarchies in

document-oriented NoSQL, Bonnet et al. (2011a),

Chevalier et al. (2015a), and Tournier (2017a) suggest

the use of arrays to construct the hierarchies. For

column-family-oriented NoSQL, Chevalier et al.

(2015b) show that dimension hierarchy should be

mapped as a column for each dimension, i.e., physical

columns in column families representing each

dimension.

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

Figure 2: Physical model Implementation in Column-

Oriented NoSQL - (Max Chevalier et al., 2015).

3º: The FNMM variations adding the

materialisation of aggregations are pre-computation

of fields are used for aggregates to persist along to

this model physically. More details can be seen in

(Carniel et al., 2012; Zhao and Ye, 2014; Chavalier et

al., 2016), among other works. It is worth mentioning

that some researchers suggest tools to improve the

indexing way of data (Vasilakis et al., 2017), or tools

for a better choice of partitioning models, automating

this partitioning in an automated way through

Machine Learning algorithms (statistical models)

(Boussahoua et al., 2017; Cugnasco et al., 2016).

These models use techniques such as clustering using

K-Means, Linear Regression, or Hash algorithms.

They automatically discover the best indexing or

partitioning, not considering the users' business rules,

query needs, or even data recovery.

Another note is that many works use tools or

frameworks in conjunction with NoSQL to aid

queries, generally using a traditional query language

like SQL ANSI. The authors used the structures of the

following frames Apache Hive (Cugnasco et al.,

2016), Apache Phoenix (Dehdouh et al., 2014), as

well as the built by their researchers for this task

(Zhao and Ye, 2014). Regarding the Apache Hive, it

is used with NoSQL to assist in the exposure of

metadata and queries on NoSQL.

Nevertheless, the modelling developed by

(Amirthalingam and Rais, 2018) is also an adaptation

of the FNMM, but the authors do not encourage the

total merging of dimensions and facts. The authors

used a set of rules for joining some dimension tables

and tables with pre-computed aggregations, adding

structures of partitions and buckets of Hive. This use

depends exclusively on the cardinality of the data,

having no relation to business rules.

Concerning the FNMM, Chebotko et al. (2015)

proposed that this modelling can be firmly based on

the business rules, and the applications will carry out

queries. Another predominant factor in the modelling

developed by the authors is the primary keys model,

which involves hard work in the concepts of and the

idea of partitions. Although the model developed by

the authors is efficient in meeting the business

requirements of several methods, they designed it for

transactional systems. Also, this modelling is linked

intrinsically to the NoSQL Cassandra and its physical

model of persisting data.

4 PARTITIONING AND

CLUSTERING OF DATA ON

NoSQL

Data partitioning and primary keys modelling are the

main mechanisms used by NoSQL databases for a

balanced distribution of data in the cluster. These

concepts have fundamental importance in the

performance of these technologies. Figure 3 presents

the effect of data partitioning on a Cassandra cluster.

Figure 3: Partitioning on Clustering Cassandra.

As shown in Figure 3, the Cassandra cluster is

represented as a ring. The fields belonging to the

cluster key are responsible for distributing data in the

cluster (Hewitt and Carpenter, 2020).

Besides, Cassandra and other NoSQL and

distributed data systems utilise indexing algorithms

and hashing based on partitions and buckets to aid in

insertion and data query. The incorrect choice of

fields in the keys and partitions of each NoSQL and

Hive can cause data to unbalance in the cluster. It can

have partitions with excess data on a single node or

Startable: Multidimensional Modelling for Column-Oriented NoSQL

with little or no data on the nodes. So, the correct use

of the designated fields as partitions or buckets can

increase the efficiency of the queries. Besides, it is

possible to avoid the Full Scan. It also potentiated the

indexing and hashing algorithms to aid the systems in

retrieving data to answer the queries. See more details

in (Hewitt and Carpenter, 2020; Chodorow and

Bradshaw, 2018; Du, 2018).

5 STARTABLE – LOGICAL

MULTIDIMENSIONAL

MODELLING FOR NoSQL

As a basis for the development of Startable, we use

the Star Schema multidimensional modelling

proposed by (Inmon, 2002; Kimball and Ross 2002)

and the principles of modelling presented by

(Chebotko, Kashlev and Lu 2015). We modified and

adapted the modelling to meet the physical data

model present on columns-oriented NoSQL. Beyond

the Startable modelling, we proposed a set of

principles and a flow of processes that guide the

application of the logical model of the data. We tested

the modelling and flow (Figure 4) in a controlled

environment to verify their applicability and

efficiency.

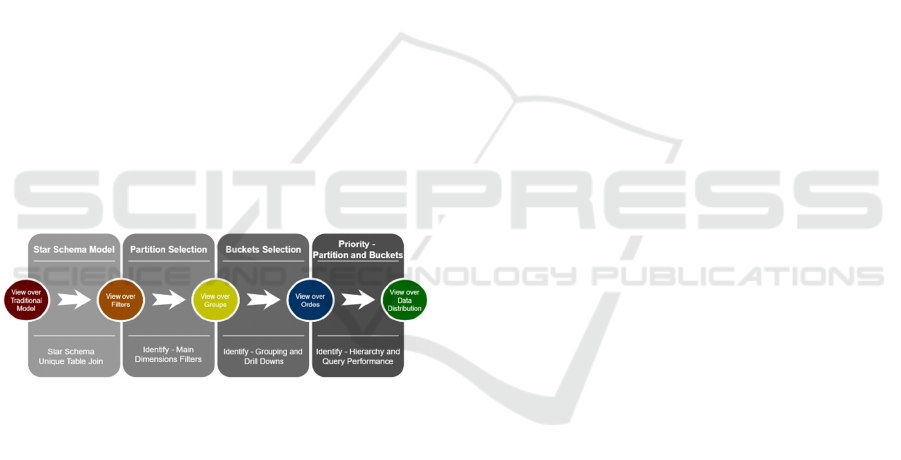

Figure 4: Logical Flow of Startable Modelling.

We highlighted and discussed, Figure 4, the four

main stages for creating the Startable modelling and

the tasks involved in each of these stages:

1. Star Schema Modelling:

 Develop the standard process of

multidimensional modelling seen in (Kimball

and Ross, 2002; Inmon, 2002);

 Perform complete denormalisation by

transforming the Star Schema model into a

single table composed of facts and all

dimensions, as proposed in (Chevalier et al.,

2015a; Ferreira, 2015; Dehdouh et al., 2014).

2. Partition Selection:

 Identify the dimensions that are most used as

filters in queries, for example, Dates,

Geolocalization (country, states, cities),

Organizational Data (company name, branch

name);

 Identify the mandatory filters applied in

proportion to Pareto. According to the

theoretical concept of Pareto, in most cases, we

asked 80% of the examples to use 20% of the

dimensions as filters (Zhu and Xiang, 2016;

Vandewalle et al., 2007);

 Identify the dimensions that have a distribution

more uniform of data in the cluster; for example,

a more granular data dimension is probably

more evenly distributed. Therefore, among the

aspects that identify geolocation data, for

example, the City dimension should probably

have a better distribution characteristic between

the cluster than the Country or State dimensions;

 Minimise the number of fields for partitions (1

to 5 partition fields generally) (Chebotko et al.,

2015);

 Do not use partition fields that are not used as

filters in queries. Not using this task can

generate a Full Scan in the database.

3. Buckets Selection:

 Identify the frequency of use of filters not

required;

 Identify the frequency of ordering data usage

(order by);

 Identify the frequency of data usage in the

grouping (group by) and drill-down;

 Identify the order of the granularity of the

dimensions and insert them in a reverse way

(less granular to the more granular). For

example, we can have the following hierarchy:

Year, Month, Day. The Year field is the least

granular of this aspect. If we need the three

fields in the buckets, we must first insert the year

field, followed by month and day, as this

facilitates the sorting and grouping the data and

drill-downs.

4. Priority - Partition and Buckets:

 Select, like partitions and buckets, fields that

appear in most queries answering the business

questions;

 If there is a possibility of performance testing of

queries, then we must select partitions and

buckets which we can use in the consultations

with the most impact on the workload of the

analytical system;

 When more than one field is partitioned, first

use the minor granularity field, followed by the

more granular area. For example, for the

dimension Date, we must first use the Year field,

then the Month field and so forth;

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

 In the case of hierarchies of dimensions, use the

most specific field as a bucket, for example, for

the hierarchy of Date (YYYYMMDD). But, if

there is not or need to use more than one

hierarchy field, first use the areas with less

granularity, for example, (Year, Month, Day);

 All fields used as a partition should be filtered

in the queries to avoid a Full Scan.

Another essential point in Figure 4 is the "views,"

which permeate each stage. "Views," Figure 4,

focused on data and the business model concerning

the steps of the transition. We highlighted five views

in Figure 4:

 View over Traditional Model - Develop

the Star Schema traditional model on

existing data;

 View over Filters - Establish the primary

filters used in the business for most of the

questions that the data in the model will

answer;

 View over Groups - Establish the main

groupings used by the business;

 View over Order - Establish the order and

priorities that the queries will present;

 View over Data Distribution - Focus on the

data distribution in the cluster. We need to

ponder the model, improving the data

distributed through the clusters. We can

improve its efficiency in processing the

queries.

6 BENCHMARK – DATA

MODELLING

We applied an analytical benchmark to the distributed

and controlled environment before of test the

performance of the logical model proposed in this

research (Startable). The chosen Benchmark model

was the Star Schema Benchmark (SSB), proposed by

O'Neil et al. (2009). In the scientific community, this

benchmark stands out for its simplicity of application

and for being a specific reference for

multidimensional modelling. Also, it is a

simplification of the TPH-C benchmark model. TPH-

C follows the Snowflake modelling based on Star

Schema but with high normalisation of dimensions.

SSB transforms the Snowflake model on the Star

Schema multidimensional model.

SSB has a data generator and a set of 13 ready

queries, by which one can measure the query

performance on several aspects such as filters,

equalities, inequalities, groupings, and ordering. SSB

data model consists of a fact table and four

dimensions modelled in Star Schema format, as

shown in Figure 5.

Figure 5: SSB Data Model.

We applied the SSB data model, the FNMM, and

the Startable modelling. We pass by the four steps of

the Startable modelling flow proposed in item 4.

Firstly, we transform the SSB data model into the

FNMM data model, in the following, in the Startable

model. So, we replicated the Startable modelling over

a Cassandra NoSQL database cluster (oriented to the

column-family. Also, we measured the performance

of the Startable model concerning the Star Schema

traditional model and a version of the Star Schema

modelling unifying facts and dimensions in a single

table. Several authors proposed the last modelling

(Carniel et al., 2012; Chevalier et al., 2015a; Ferreira,

2015; Dehdouh et al., 2014; Dehdouh, 2016a).

We cannot interfere in the SSB business model,

for example, defining a mandatory field as a filter in

all queries. Then, we studied the data and tables

involved in understanding the business model

implicit in the SSB. After applying the four steps of

the Startable model, we kept the views of each of

these. We obtained the Startable final model. We

counted the fields with 13 queries, facilitating queries

and SSB fundamental business models. Table 1

shows how the counting of fields is accomplished in

queries of the SSB model.

Startable: Multidimensional Modelling for Column-Oriented NoSQL

Table 1: Count of Queries Arguments on SSB Model.

Line Labels

Field

Count

Where

Sum

Group

Sum

Order

Sum

c_city 3 0 3 0

c_nation 3 1 2 1

c_region 4 4 0 0

d_year 12 7 10 10

d_yearmonth 1 1 0 0

d_yearmonthnum 2 2 0 0

lo_discount 3 3 0 0

lo_quantity 3 3 0 0

p_brand1 4 2 4 4

p_category 3 2 1 1

p_mfgr 2 2 0 0

s_city 4 1 4 1

s_nation 3 1 2 1

s_region 7 7 0 0

General Total 54 36 26 18

In Table 1, the d_year field is often used as an

argument in the queries, especially "where." Also, the

d_year field appears as an argument in 12 of the 13

queries for the SSB. With this information described

and interpreting the data of the SSB model, we

applied and analysed the Startable modelling based

on the four main steps presented in Figure 5.

Step 1 – Star Schema Model:

 No action was required to perform Star

Schema modelling since the SSB data

model was already in this modelling.

 We only perform the joining of the facts

and dimensions by changing the Star

Schema model to an FNMM by

suppressing the primary key columns of

the dimension tables.

Step 2 – Partition Selection:

 We identified that the d_year field was

more used as a filter, following a

proportion of Pareto (Zhu and Xiang,

2016; Vandewalle et al., 2007). This field

also had a uniform data distribution, which

qualified him as a candidate for partition.

 The s_region field could also be used as a

partition because we often used it as a

filter, and it could distribute the partitions

into the smallest segments. However, this

could also expressively fragment the

partitions, so we only used the d_year field

as a partition.

Step 3 – Buckets Selection:

 We identified the fields s_region 7 (seven)

times and c_region 4 (four) times as filters.

 We identified the p_mfgr, p_category, and

p_brand1 fields at least 2 (two) times, each

one in clauses "order by" and "group by."

 Another vital piece of information to note

is that we organised the hierarchical fields

in the "part" dimension, where the

"p_mfgr" is the less granular and the

"p_brand1" the most granular.

Step 4 – Priority - Partition and Buckets:

 We applied the d_year field only for

partition due to filter clauses' queries and

the homogeneous distribution of data.

 We chose the s_region and c_region fields

as the primary bucket due to the frequency

in the queries of filter clauses. We used

"s_region" and " c_region " in 7 queries as

filters and did not apply them for grouping

or ordination any single time. The

"s_region" field has a smaller distribution,

so we chose it as the primary bucket,

followed by "c_region".

 By frequency of use in grouping and

sorting clauses, we used the p_mfgr,

p_category, and p_brand1 fields as a

bucket following the dimension's

hierarchy for this use.

The final modelling of partitions and buckets was

defined, as shown in Table 2. We presented the order

of the fields will be the order for the physical ordering

of the data in the partitions. For NoSQL Apache

Cassandra, we have the following structure of

Clusters (in the Startable model refers to partitions)

and partitions (in the Startable model refers to

buckets):

"PRIMARY KEY ((D_YEAR), S_REGION,

C_REGION, P_MFGR, P_CATEGORY,

P_BRAND1))"

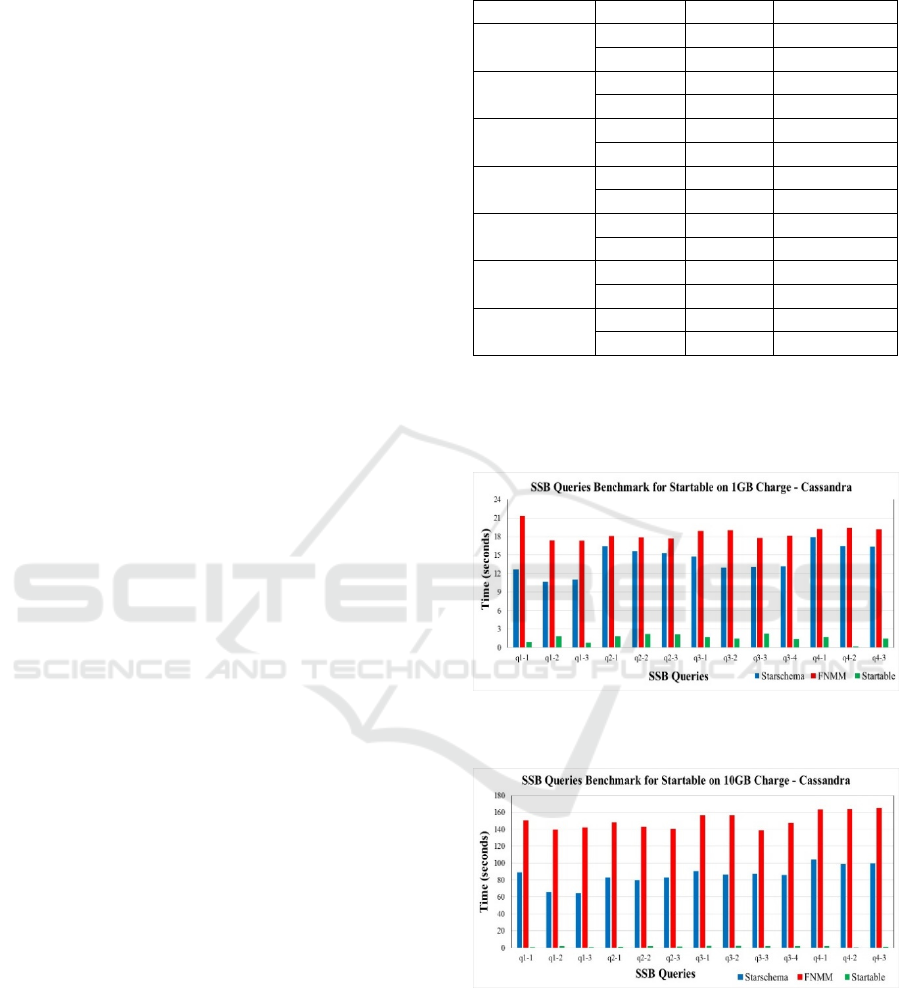

Table 2: Partitions and Buckets model applied to the SSB.

Startable

Field Partitions Buckets

d_year X -

s_region - X

c_region - X

p_mfgr - X

p_category - X

p_brand1 - X

For Apache Cassandra, the most internal

parentheses refer to the fields defined as the clusters,

and the most external refers to the fields defined as a

partition.

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

We accomplished two tests with loads of different

order data from the model developed. The first load

had about 1GB of data, and the second load had 10GB

of data. We tested two different data models and

compared the results (as shown in section 7). Thus,

the models tested were the traditional Star Schema,

the FNMM, and the modelling proposed in this work:

Startable.

To perform the benchmark, we used a distributed

cluster. We built the cluster with four machines and

used the Google Cloud Platform (as Platform as a

Service (PaaS)). The machines used had the

following configurations: 200 GB Hard Disk (not

SSD), 8 CPUs (Intel Skylake), 48 GB Memory, and

Operating System CentOS 7. The version of

Cassandra was Cassandra 3.11.4, and we also used

PrestoDB 0.214 as an auxiliary framework to perform

the queries. The Cassandra Cluster was composed of

4 (four) nodes ring with identical configurations for

each node. Cassandra clusters do not have a

master/slave architecture, requiring only the

processing nodes.

7 PERFORMANCE RESULTS OF

THE STARTABLE

MODELLING APPLICATION

We present the results concerning the methodology

described above. To analyse the Startable model, we

carried out two tests with data loads of different

orders, about 1GB of data and 10GB of data. Also, we

tested for each load of data the three data models:

Traditional Star Schema, FNMM, and Startable

modelling. Besides, we tested each modelling with

the two data volumes on Apache Cassandra.

We can observe in Table 3 the total volume of data

and the number of records generated for each

modelling. Also, we can see in Table 3 that the

volume of data is not much of a difference in storage

for each model, as the most significant volume of data

is in the line order fact table. There is no high volume

increase when we perform the join for the FNMM

model. The volume of data in the FNMM and

Startable model is identical since, structurally, the

data model is different only in partition and bucket

selection.

The tests were based on the response time of each

SSB query performed on each of the persistence

systems. Remember that we performed all the queries

to the PrestoDB applied on Apache Cassandra. We

triggered the queries to the PrestoDB through a

Python script that calculated the time spent for each

Table 3: Benchmark Data Volumetry.

Modelling Volume Storage Quantity

customer

1GB

5.5M 60000

10GB

47M 510000

supplier

1GB

328K 4000

10GB

2.8M 34000

dim_date

1GB

228K 2556

10GB

228K 2556

part

1GB

33M 400000

10GB

83M 1000000

lineorder

1GB

1.2G 11998051

10GB

9.9G 101987916

FNMM

1GB

1.2G 11998051

10GB

10G 101987916

Startable

1GB

1.2G 11998051

10GB

10G 101987916

of them. After the tests, we compiled the data and

showed the results from Figures 6 and 7. We

compared the response times of queries in seconds for

the three models, Star Schema, FNMM, and Startable.

Figure 6: SSB Query Benchmark for Startable over 1GB

Charge – Cassandra.

Figure 7: SSB Query Benchmark for Startable over 10GB

Charge – Cassandra.

When we analysed the results from 1 GB and 10

GB of data for Startable modelling compared to other

modellings, we observed a substantial performance

gain in the return of the queries in both volumes.

Concerning the charge of 10GB data, the Startable

modelling with column-oriented NoSQL (Apache

Startable: Multidimensional Modelling for Column-Oriented NoSQL

Cassandra) was dozens of times faster than the Star

Schema traditional model. We can verify a

performance increase in the application of Startable

modelling in large data volumes.

The turnaround time of queries on Startable

modelling remained practically the same in 1GB and

10GB volumes; however, in traditional Star Schema

and FNMM modelling, there was an increase

proportional to the data volume.

We saw that the correct application of the

Startable modelling could be 100 to 150 times more

efficient than the Star Schema and FNMM modelling

on queries in large volumes of data.

Through the tests carried out, we were able to

verify that our central hypothesis regarding the

Startable modelling proposition showed up to be

coherent. Correctly defining the partitioning and

buckets according to the needs of the business rules,

rules that were expressed in SQL queries, can

significantly reduce the query time in analytical

environments based on column-oriented NoSQL.

The results of the performance of queries in

FNMM modelling compared to traditional Star

Schema modelling were surprisingly negative. It is

common in the literature to verify that joining into a

single table of facts and dimensions brings

performance gains in queries (Dehdouh, 2016b;

Scabora et al., 2016b; Chevalier et al., 2017; Bouaziz

et al., 2017; Bonnet et al., 2011b; Tournier, 2017b).

However, in our tests, there was an inverse result.

Joining the fact and dimensions into a single table

made the performance of queries worse. We believe

that the better performance of traditional Star Schema

than FMNN is due to optimisations of the PrestoDB

processing framework, which applies advanced

optimisations in its execution plan to improve

performance in federated queries. PrestoDB may

have used the primary keys of each of the tables in the

Star Schema physical model to improve the

performance of the queries, especially in the joining

of tables and data selection. On the other hand, tables

in the FNMM model have only a single partition

primary key, which may have made PrestoDB's

optimisations unfeasible. In later works, these

suspicions need to be validated by scientific tests in

controlled environments.

Finally, we can observe that the increase in

performance in the queries on the Startable modelling

occurred in all the proposed queries and the two-

volume scenarios, maintaining a similar time for the

return of the query regardless of the volume, which

indicates substantial gains even with the addition of

10 times the volume of data. Other data quantities

must be tested in later works to verify the continuity

of the performance gain of the Startable modelling

even over vast volumes of data.

8 CONCLUSIONS AND FUTURE

WORKS

We proposed in this work logical modelling for

analytical systems with persistence in Column-

oriented NoSQL, Startable modelling. Our modelling

was able to unify two different concepts of

multidimensional modelling, the Star Schema and

fully non-normalised. Besides, it consolidated facts

and dimensions in a single table and focused on

modelling partitioning, bucket, and data ordering.

Startable modelling met the initial requirements

for independent simplicity applicability of the

business domain. It is modelling that bases its

development on the business rules of each case,

mainly to answer business questions more efficiently.

The proposed methodology for developing the

model based on logical flow met the requirements of

data queries and the better distribution of the data on

the persistence system. We proposed and followed all

steps of the workflow. Each of these steps must have

a specific view of the process development,

facilitating the replicability of the model in any data

domain. Concerning the applicability, the results

were successful since we obtained them from

benchmark tests defined in the academic community

and used for performance testing on a logical,

analytical data model. We can highlight another

reason for success in the analysis and results of

modelling. We suggested and followed the steps in

the Logical Flow of Development of the Startable

modelling.

The performed tests showed significant gains in

the performance of the organised data according to

the Startable modelling about the classic Star Schema

and the FNMM modelling. Several queries had

substantial performance gains when running on

Startable-organized data, especially on large data

volumes (10GB of data) in data persistence on

NoSQL Apache Cassandra.

We believe that Startable is flexible enough to

adapt to other families of NoSQL, such as document-

oriented ones. We also believe that its application can

be helpful in Big Data distributed file systems such as

HDFS S3, among others. Another exciting

implementation that can be performed on top of

Startartable is on distributed relational databases

specific to Data Warehouse, like Amazon Redshift,

Azure Synapse, Google Big Query, Snowflake, and

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

Apache Druid, among others, which can benefit from

the partitioning and buckets implementation model.

Thus, we suggest implementing Startable over other

data persistence models and NoSQL Document-

oriented, HDFS/S3 and Distributed Relational Data

Warehouse DBMS as future works.

REFERENCES

Amirthalingam, T, and HM Rais (2018). Automated Table

Partitioner (ATAP) in Apache Hive. At 2018 4th

International Conference on Computer and

Information Sciences (ICCOINS). IEEE.

Bonnet, L, A Laurent, M Sala, B Laurent, and N Sicard

(2011a). Reduce, you say: What NoSQL can do for data

aggregation and BI in large repositories.

Bonnet, L, A Laurent, M Sala, B Laurent, and N Sicard

(2011b). Reduce, you say: What NoSQL can do for data

aggregation and BI in large repositories.

Bouaziz, S, A Nabli, and F Gargouri (2017). From

Traditional Data Warehouse To Real Time Data

Warehouse. Vol. 557, nan.

Bouaziz, S, A Nabli, and F Gargouri (2019). Design a data

warehouse schema from document-oriented database.

vol. 159.

Boussahoua, M, O Boussaid, and F Bentayeb (2017).

Logical Schema for Data Warehouse on Column-

Oriented NoSQL Databases. In Database and Expert

Systems Applications, D. Benslimane, E. Damiani, W.I.

Grosky, A. Hameurlain, A. Sheth, R.R. Wagner (eds.).

vol. 10439, Springer International Publishing.

Carniel, AC, A de Aguiar Sa, VHP Brisighello, MX

Ribeiro, R Bueno, RR Ciferri, and CD de Aguiar Ciferri

(2012). Query processing over data warehouse using

relational databases and NoSQL. In 2012 XXXVIII

Conferencia Latinoamericana En Informatica (CLEI).

IEEE.

Chevalier, M, M El Malki, A Kopliku, O Teste, and R

Tournier (2016). Document-oriented data warehouses:

Models and extended cuboids, extended cuboids in

oriented document. The 2016 IEEE Tenth International

Conference on Research Challenges in Information

Science (RCIS). IEEE.

Chebotko, A, A Kashlev, and S Lu (2015). A Big Data

Modeling Methodology for Apache Cassandra. In 2015

IEEE International Congress on Big Data.

Chevalier, M, M El Malki, A Kopliku, O Teste, and R

Tournier (2015a). Implementation of Multidimensional

Databases with Document-Oriented NoSQL. In Big

Data Analytics and Knowledge Discovery, S. Madria,

T. Hara (eds.). vol. 9263, Springer International

Publishing.

Chevalier, M, M El Malki, A Kopliku, O Teste, and R

Tournier (2015b). Implementing multidimensional data

warehouses into NoSQL. H.S. Maciaszek L. Maciaszek

L.,. Teniente E. (ed.). vol. 1.

Chevalier, M, M El Malki, A Kopliku, O Teste, and R

Tournier (2017). Document-Oriented Data

Warehouses: Complex Hierarchies and

Summarizability. In Advances in Ubiquitous

Networking 2, R. El-Azouzi, D.S. Menasche, E. Sabir,

F. De Pellegrini, M. Benjillali (eds.). vol. 397, Springer

Singapore.

Chodorow, K, and S Bradshaw (2018). MongoDB: The

Definitive Guide. 3rd ed., 'O'Reilly Media.

Cugnasco, C, Y Becerra, J Torres, and E Ayguadé (2016).

D8-tree: a de-normalised approach for

multidimensional data analysis on key-value databases.

In Proceedings of the 17th International Conference on

Distributed Computing and Networking - ICDCN' '16.

ACM Press.

Dehdouh, K (2016a). Building OLAP Cubes from

Columnar NoSQL Data Warehouses. In Model and

Data Engineering, L. Bellatreche, Ó. Pastor, J.M.

Almendros Jiménez, Y. Aït-Ameur (eds.). vol. 9893,

Springer International Publishing.

Dehdouh, K (2016b). Building OLAP Cubes from

Columnar NoSQL Data Warehouses. In Model and

Data Engineering, L. Bellatreche, Ó. Pastor, J.M.

Almendros Jiménez, Y. Aït-Ameur (eds.). vol. 9893,

Springer International Publishing.

Dehdouh, K, F Bentayeb, O Boussaid, and N Kabachi

(2014). Columnar NoSQL CUBE: Agregation operator

for columnar NoSQL data warehouse. At 2014 IEEE

International Conference on Systems, Man, and

Cybernetics (SMC). IEEE.

Du, D (2018). Apache Hive Essentials: Essential

Techniques to Help You Process, and Get Unique

Insights from, Big Data, 2nd Edition. 2nd ed., Packt

Publishing.

Duan, L, and LD Xu (2012). Business Intelligence for

Enterprise Systems: A Survey. IEEE Transactions on

Industrial Informatics, 8(3), 679–687.

Ferreira, LM (2015). Modelo de Processo para Criação de

BI em Banco de Dados NoSQL Orientado a Colunas. In

Conferencia Ibero Americana WWW/Internet - CIAWI.

vol. 1, IADIS.

Hewitt, E, and J Carpenter (2020). Cassandra: The

Definitive Guide. 3rd ed., 'O'Reilly Media, Inc.

Inmon, WH (2002). Building the Data Warehouse,3rd

Edition. 3rd ed., John Wiley & Sons, Inc.

Kimball, R, and M Ross (2002). The data warehouse

toolkit: the complete guide to dimensional modeling.

2nd ed, Wiley.

Lins, MTS, and LM Ferreira (2016). Estudo de Caso de

Processamento de ETL em Plataforma Big Data. In

Conferências Ibero-Americanas WWW/Internet e

Computação Aplicada 2016. vol. 1, IADIS.

Lóscio, BF, H de OLIVEIRA, and J de S PONTES (2011).

NoSQL no desenvolvimento de aplicações Web

colaborativas. VIII Simpósio Brasileiro de Sistemas

Colaborativos, 10(1), 11.

Moniruzzaman, ABM, and S Hossain (2013). NoSQL

Database: New Era of Databases for Big data Analytics

- Classification, Characteristics and Comparison. Int J

Database Theor Appl, 6.

Murazza, MuhR, and A Nurwidyantoro (2016). Cassandra

and SQL database comparison for near real-time

Startable: Multidimensional Modelling for Column-Oriented NoSQL

Twitter data warehouse. In the 2016 International

Seminar on Intelligent Technology and Its Applications

(ISITIA). IEEE.

O'neil, P, B O'neil, and X Chen (2009). The Star Schema

Benchmark (SSB).

O'Neil, P, E O'Neil, X Chen, and S Revilak (2009). The Star

Schema benchmark and augmented fact table indexing.

Springer.

Scabora, LC, JJ Brito, RR Ciferri, and CD de Aguiar Ciferri

(2016a). Physical Data Warehouse Design on NoSQL

Databases OLAP Query Processing over HBase. S.

Hammoudi, L. Maciaszek, M. Missikoff, O. Camp, J.

Cordeiro (eds.).

Scabora, LC, JJ Brito, RR Ciferri, and CD de Aguiar Ciferri

(2016b). Physical Data Warehouse Design on NoSQL

Databases OLAP Query Processing over HBase. S.

Hammoudi, L. Maciaszek, M. Missikoff, O. Camp, J.

Cordeiro (eds.).

Tournier, MCEMKT (2017a). Document-Oriented Data

Warehouses: Complex Hierarchies and

Summarizability. Springer Singapore.

Tournier, MCEMKT (2017b). Document-Oriented Data

Warehouses: Complex Hierarchies and

Summarizability. Springer Singapore.

V, Manoj (2014). Comparative Study of NoSQL

Document, Column Store Databases and Evaluation of

Cassandra. International Journal of Database

Management Systems, 6(4), 11–26.

Vandewalle, B, J Beirlant, A Christmann, and M Hubert

(2007). A robust estimator for the tail index of Pareto-

type distributions. Computational Statistics & Data

Analysis, 51(12), 6252–6268.

Vasilakis, N, Y Palkhiwala, and JM Smith (2017). Query-

efficient Partitions for Dynamic Data. In Proceedings

of the 8th Asia-Pacific Workshop on Systems. ACM.

Yessad, L, and A Labiod (2016). Comparative study of data

warehouses modeling approaches: Inmon, Kimball and

Data Vault. At 2016 International Conference on

System Reliability and Science (ICSRS). IEEE.

Zhao, H, and X Ye (2014). A Practice of TPC-DS

Multidimensional Implementation on NoSQL Database

Systems. In Performance Characterisation and

Benchmarking, R. Nambiar, M. Poess (eds.). vol. 8391,

Springer International Publishing.

Zhu, Q, and H Xiang (2016). Differences of Pareto

principle performance in e-resource download

distribution: An empirical study. The Electronic

Library, 34(5), 846–855.

DATA 2022 - 11th International Conference on Data Science, Technology and Applications
