Highly Automated Corner Cases Extraction: Using Gradient Boost

Quantile Regression for AI Quality Assurance

Niels Heller and Namrata Gurung

QualityMinds GmbH, N

urnberg, Germany

Keywords:

Artiﬁcial Intelligence, Quality Assurance, AI Quality, Data Quality, Corner Cases, Autonomous Driving.

Abstract:

This work introduces a method for Quality Assurance of Artiﬁcial Intelligence (AI) Systems, which identiﬁes

and characterizes “corner cases”. Here, corner cases are intuitively deﬁned as “inputs yielding an unexpectedly

bad AI performance”. While relying on automated methods for corner case selection, the method relies also

on human work. Speciﬁcally, the method structures the work of data scientists in an iterative process which

formalizes the expectations towards an AI under test. The method is applied in a use case in Autonomous

Driving, and validation experiments, which point at a general effectiveness of the method, are reported on.

Besides allowing insights on the AI under test, the method seems to be particularly suited to structure a

constructive critique of the quality of a test dataset. As this work reports on a ﬁrst application of the method,

a special focus lies on limitations and possible extensions of the method.

1 INTRODUCTION

Artiﬁcial Intelligence (AI) applications, especially

applications of deep neural networks, have found a

variety of application domains in the recent years. Of

special concern are safety relevant AI applications,

where automatically taken decisions may cause dam-

age in case of failure, or prevent that damage in case

of success. Most prominent examples of such do-

mains are Autonomous Driving and medical applica-

tions. Especially in these domains calls for quality

assurance measures for AI applications were recently

expressed (Tian et al., 2018; Hamada et al., 2020;

Challen et al., 2019).

Obviously, arguments for the safety of an AI ap-

plication must involve more than simply reporting

performance readings on a test dataset. A prominent

incident which illustrates the dangers of malfunction-

ing AIs in Autonomous Driving happened in 2016,

when an AI misclassiﬁed a truck as an underpass

which caused an accident (referenced for instance in

(Tian et al., 2018)). Nobody wants to be surprised by

such an error of an AI that is already in use. More

speciﬁcally, a safety argumentation for an AI needs to

encompass a consideration of what is difﬁcult for the

AI and why this does or does not impede its use.

Several examples of such “difﬁcult inputs” are

canon for speciﬁc ﬁelds of application: Image recog-

nition for Autonomous Driving is often concerned

with AI brittleness and adversarial attacks (Tian et al.,

2018; Huang et al., 2017), while medical applica-

tions often struggle with unbiased training datasets

(Challen et al., 2019) and domain gaps (Reinke et al.,

2021) where inputs from different data sources cause

erroneous behaviours. The automated search for

such difﬁcult inputs is addressed in the literature:

Hendrycks et al. impressively demonstrated that a

dataset containing “naturally occuring” adversarial

examples can be curated from a dataset for a vari-

ety of computer vision AIs (Hendrycks et al., 2021),

other approaches use heuristic methods for speciﬁc

AIs (Kwiatkowska, 2019).

Such difﬁcult inputs are sometimes referred to as

“corner cases” (albeit the term “corner case” being

subject to conﬂicting deﬁnitions which are discussed

in Section 2). Arguably, the identiﬁcation and char-

acterization of such corner cases plays a major role

for AI quality assurance. The authors propose the fol-

lowing intuition for corner cases: Before evaluation,

it cannot be known what poses a problem for a trained

AI. Yet, while there are “intuitive” inhibitors, which

are more or less aligned with what humans perform-

ing the same task might ﬁnd difﬁcult, there are also

“non-intuitive” ones which are speciﬁc to the AI sys-

tem under test. For instance, an image classiﬁcation

AI might be distracted by dark or low contrasted im-

ages just as a human might be (which is an intuitive

inhibitor), but it might also react heavily to adversar-

Heller, N. and Gurung, N.

Highly Automated Corner Cases Extraction: Using Gradient Boost Quantile Regression for AI Quality Assurance.

DOI: 10.5220/0011152200003269

In Proceedings of the 11th International Conference on Data Science, Technology and Applications (DATA 2022), pages 62-73

ISBN: 978-989-758-583-8; ISSN: 2184-285X

ial attacks or uncommon surface structures. Cases

of non-intuitive inhibitions can be considered corner

cases (because no one thought of them before) and

it is in the best interest of an AI vendor to know as

many non-intuitive inhibitors as possible before tak-

ing an AI into production.

Painted with a broad brush we can deﬁne a corner

case as an input yielding an “unexpectedly poor AI

performance”. Finding a new performance inhibitor

means updating one’s expectation towards an AI, and

this can yield corner cases: Bad performances which

are not explained by the current expectation. Such

inhibitors may be not initially recognizable in a test

dataset, and might require extensive feature engineer-

ing in order to be deﬁned. For instance, image recog-

nition AIs may be disturbed by subtle texture patterns,

but rarely does a dataset contain the respective labels.

It is hence the work of a data scientist in the role of

a “feature engineer” to ﬁnd, model, and test possible

performance-inhibiting features.

Feature engineering typically aims at improving

AI-performances by providing a model with features

it cannot infer on its own (Heaton, 2016). This is

explicitly not the aim of the approach introduced in

this report. Instead, we aim at guiding a feature en-

gineering and testing process which, as a ﬁnal out-

come, produces formal performance expectations to-

wards an AI and corner cases (i.e. inputs which fall

below these expectations). In that, the following work

pertains not only to the ﬁeld of AI quality, but also to

dataset quality. Further it aims at producing a human-

understandable descriptions of what the AI under test

struggles with.

Contribution. This work introduces a method for

analysing AI-models aiming at the detection and ex-

traction of corner cases from a test dataset. The appli-

cation of this method is highly (but not completely)

autonomous and relies on human work in the form of

feature engineering.

This report is structured as follows: Section 2 dis-

cusses related work, Section 3 describes the proposed

method in detail, Section 4 illustrates the results of

applying the method in a concrete use case in Au-

tonomous Driving, and these results are discussed in

Section 5. Section 6 concludes this report.

2 RELATED WORK

Corner Cases. Ensuring the robustness and pre-

dictable performance of an AI, even when faced with

rare, unexpected, situations is an important concern

especially in Autonomous Driving. A broad deﬁni-

tion of corner case in Autonomous Driving can be

found in (Bolte et al., 2019) “A corner case is given,

if there is a non-predictable relevant object/class in

relevant location”. There are several methods devel-

oped for automatic corner case detection, especially

for Deep Neural Networks (DNNs), which will be

elaborated on below.

One approach to detect corner cases is based on

transforming the input data. When a transformed in-

put results in a different class label prediction of a

DNN, the input is considered a corner case. Glob-

ally effective transformations such as changes in con-

trast, brightness and saturation are presented in (Hos-

seini and Poovendran, 2018). Additionally, locally

restricted interventions, such as blur or the insertion

of lens ﬂares representing sensor damage can be also

be used to detect corner cases (Secci and Ceccarelli,

2020).

Apart from transformation of inputs, metamorphic

relations (Xie et al., 2011) such as effect of an input

on steering angle output is described in the DeepTest

framework (Tian et al., 2018). For example, a slight

change in contrast of an input frame should not affect

the steering angle of a car (while Tian et al. report

on such cases). Thus, input-output pairs that violate

those metamorphic relations can be considered corner

cases.

Further, a white-box testing framework, DeepX-

plore (Pei et al., 2017) presents a method to solve

the joint optimization problem that maximizes both

differential behaviors and neuron coverage of DNNs

by using gradient ascent to ﬁnd corner cases. Start-

ing from a seed input, DeepXplore performs a guided

search following the gradient in the input space of

two similar DNNs supposed to perform the same task

such that it ﬁnally uncovers the test inputs that lie be-

tween the decision boundaries of these DNNs. Such

test inputs that are classiﬁed differently by the two

DNNs are then labelled as corner cases. Additionally,

custom domain speciﬁc constraints can also be prede-

ﬁned in DeepXplore.

Corner cases can also arise depending on scene

constellations. In particular, with increasing degree

of occlusion of relevant objects such as pedestrians, it

can become increasingly difﬁcult for the DNN to rec-

ognize relevant objects. Wu et al. present a method

to overcome this by combining occlusion modelling

with multiple view representation in a complex dy-

namic Bayesian network (Wu et al., 2003). Isele et

al. look at occlusions occurring at lane intersections

and its effect on autonomous vehicles’ navigation us-

ing deep reinforcement learning (Isele et al., 2018).

By synthetically generating such occluded data, cor-

Highly Automated Corner Cases Extraction: Using Gradient Boost Quantile Regression for AI Quality Assurance

ner case scenarios can be identiﬁed.

Another method to detect corner cases presented

by Hanhirova et al. is based on using a simulated

environment using the CARLA software (Dosovit-

skiy et al., 2017), which was connected to a Machine

Learning framework. Herein, a client drives a vehi-

cle with AI-subsystem within a simulated environ-

ment. The vehicle-state information about the sim-

ulated world (ground truth) and the perception of the

AI agent within the same-deﬁned simulated condition

are recorded and compared. The scenarios that yield

in conﬂicting states are marked as corner cases (Han-

hirova et al., 2020).

Bolte et al. present a framework for a detection

system that is based on the ability of DNNs to predict

the next frame when given a certain sequence of input

frames. The difference between the actual frame and

the predicted frame gives a corner case score (Bolte

et al., 2019). Through this method it is possible to

identify scenarios which could lead to high corner

case probability.

As mentioned, there are several ways of automati-

cally generating and detecting corner cases. However,

depending on the operational domain, the variability

of possible inputs can be very large. Also, certain

types of corner cases can be speciﬁc to the type of

DNN used. For the work in this report, an AI model

trained on synthetically generated dataset is used. For

testing, DeepLabV3+ (Chen et al., 2018) with pre-

trained weights on a test dataset was used. Corner

cases arising due quantitative, perceptual and situa-

tional inhibitors in the test dataset will be discussed

in the next sections. Further, ability of augmented im-

ages to produce corner cases will also be explored.

Anomaly Detection. Anomalies (also referred to as

outliers) can be deﬁned as “observations which de-

viate so much from other observations as to arouse

suspicions that it was generated by a different mech-

anism” (Hawkins, 1980). Note that this deﬁnition

relates well to the introductory deﬁnition of cor-

ner cases as “unexpectedly bad performances” as it

stresses the surprise an expert might experience to-

wards an observation. The detection of such anoma-

lies is a very important, and extensively studied, as-

pect of statistical analysis, which has found numerous

application domains (Chandola et al., 2009; Hawkins,

1980). While the abstract method proposed in Section

3 does not specify how “expectations towards an AI”

are to be formulated, the concrete application of that

method reported in Section 4 relies heavily anomaly

detection in the statistical sense.

An extensive literature review on anomaly detec-

tion can be found in (Chandola et al., 2009), which

provides a well-structured classiﬁcation framework

for different approaches. According to that frame-

work, the approach used in Section 4 uses unsuper-

vised anomaly detection (without a training set of ex-

amples of anomalies) and ﬁnds contextual anomalies

(values are only anomalies because their divergence

from their context). Speciﬁcally, the method could

be seen as “regression model based” where a regres-

sion model is ﬁtted to deﬁne the contextual normal-

ity of a value, and residuals from that normality are

interpreted as their anomaly score (Chandola et al.,

2009). The regression models used in Section 4 are

Quantile Regression models, which try to predict val-

ues splitting all values according to a ﬁxed ratio (for

instance, ﬁtting a curve such that 10% of the obser-

vations lie below a curve). A pleasant introduction

to this technique and some applications can be found

in (Waldmann, 2018). Unsurprisingly, Quantile Re-

gression has found applications in anomaly detection

such as ﬁnding anomalies in health insurance claims

(Nortey et al., 2021) and mechanical fault detection

(Xu et al., 2019).

As mentioned in the introduction, the method in-

troduced in this report relies on human work, which

is not uncommon for anomaly detection approaches.

Several approaches, for instance, incorporate human

judgement on automatically selected examples to im-

prove (Chai et al., 2020; Islam et al., 2018) or even to

choose (Freeman and Beaver, 2019) anomaly detec-

tion mechanisms.

AI Quality Assurance and AI Safety. The process

of quality assurance for AI directly translates from

Quality Assurance (QA) processes used in software

development. Poth et al. focus in (Poth et al., 2020) on

a systematic methodical approach (the evAIa method:

evaluate AI approaches) that evaluate risks of the ma-

chine learning model using a questionnaire speciﬁ-

cally for AI products and services and outputs rele-

vant QA recommendations. Lenarduzzi et al. focus

their consideration on AI Software Development i.e.

the software-driven deﬁnition, training, testing, and

deployment of AI systems (Lenarduzzi et al., 2021).

Hamada et al. provide general guidelines for AI QA

for different application domains, one of which being

Autonomous Driving (Hamada et al., 2020). Similar

to the method proposed in this report, the method pro-

posed by Hamada et al. “helps to create test cases”,

which, in their description, appear similar to exam-

ples shown in Section 4.

Besides general guidelines for AI QA, the notion

of “AI robustness” is of special interest in the Au-

tonomous Driving domain. Several approaches as-

sess the robustness of the DNNs to adversarial per-

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

turbations (Kwiatkowska, 2019) exist. One of the ap-

proaches is heuristic search for adversarial examples,

which is done by searching for images created by

changing the important pixels of an image in the clas-

siﬁcation decision (Wicker et al., 2018). Another ap-

proach is based on automated veriﬁcation approaches

which aim to provide formal guarantees on the ro-

bustness of DNNs (Tjeng et al., 2017). Herein, the

maximal safe radius is deﬁned as the maximum size

of the perturbation that will not cause a misclassiﬁ-

cation. With this approach, one can encode the set

of necessary constraints for AI safety. Lastly, since

neural networks are based on probabilistic interpre-

tation, this leads to deﬁning probabilistic guarantees

on their robustness and is presented in (Cardelli et al.,

2019) wherein Bayesian neural networks (BNNs) can

capture the uncertainty within the learning model.

Thus, probabilistic veriﬁcation for DNNs is another

approach to ensure AI safety.

Note that the method introduced in this report po-

sitions itself somewhat in between existing AI QA

approaches: It is more speciﬁc than general guide-

lines on AI Software and dataset quality, while also

being more general than analyses of speciﬁc Machine

Learning models (such as DNNs).

3 METHOD

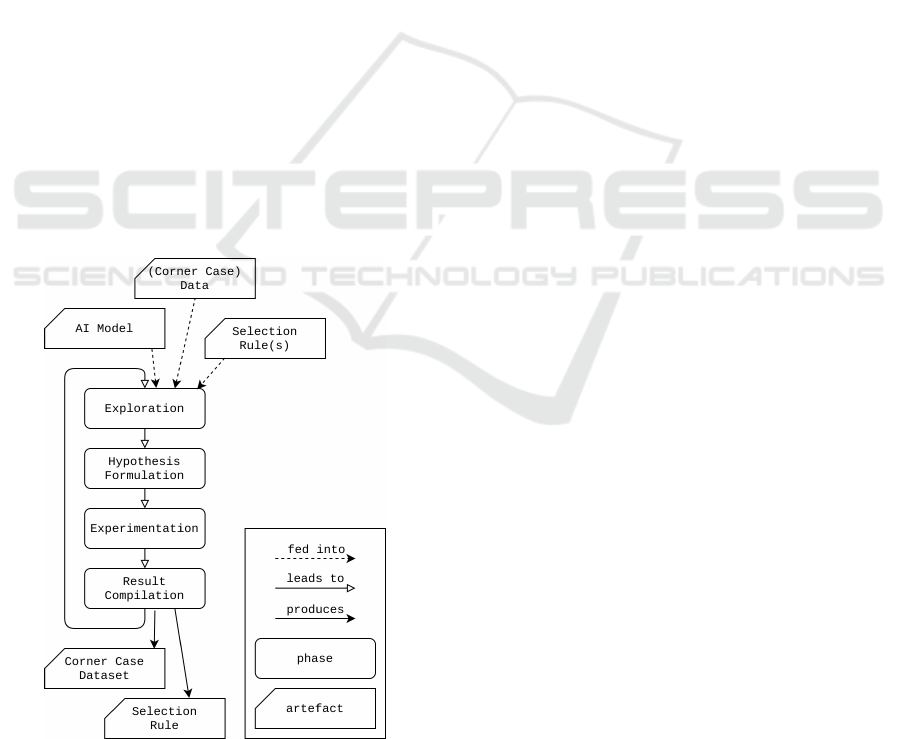

Figure 1: The phase iteration model.

In the following, a structured approach to be carried

out by data scientists (or teams of data scientists) is

described. It aims at operationalizing the loose intu-

ition of a corner case as a “performance below expec-

tation” in so-called selection rules which encompass

the decision whether an input is below of what was

“expected”.

The proposed method consists of four phases

which are carried out in iterations. Each iteration re-

ceives the AI-model to be examined, a (sufﬁciently

large) test dataset, and a set of selection rules as input.

Then, an additional selection rule and a corner case

dataset are produced, where the corner case dataset is

a subset of the input test dataset. The next iteration

then receives the output of the current iteration as in-

put and so forth. Obviously, the test dataset should

not be used for training of the AI as this might lead to

over-ﬁtted selection rules.

Formally, a selection rule S is a binary func-

tion which maps an input i to a decision: S : i 7→

{true, false}. Selection rules rely on an “expectation

of performance” as well as the actual performance

recorded for the input. Performance expectations can

be expressed as simple value cut-offs such as “this

natural language processor cannot comprehend sen-

tences longer than n items” or as general functional

relationships such as “an image with brightness x

should at least yield an AI performance of f (x)”. The

performance expectations deﬁned Section 4 are ex-

pressed as Gradient Boost Quantile Regression mod-

els. For the image brightness example, input images

are chosen for which the performance is below the

10th percentile for its brightness.

The corner case dataset is produced by applying

all current selection rules to the test dataset and ﬁl-

tering for observations which are selected by all cur-

rent rules. The iteration is stopped when one does not

ﬁnd a new rule which provides more insights into the

performance inhibitors of the AI. While this stopping

criterion seems quite imprecise, its concrete imple-

mentation depends on the use case (the AI under test,

the test dataset, etc.). In Section 4, the stopping point

is chosen by quantifying how much new information

a new selection rule provides.

Note that the approach as a whole follows a simple

intuition data scientists might have when looking for

performance inhibitors: If a large portion of the input

data consists of images which are to dark for the AI to

cope with, it might be wise to “ﬁlter out these cases”,

in order to focus any further analyses: Other effects

might have smaller inﬂuences while still being of im-

portance. This explicitly does not mean that the per-

formance inhibitor “darkness” is not important for a

safety argumentation, rather that a dark image is not a

corner case (because bad performance was expected).

The main “human” work the data scientists carry

Highly Automated Corner Cases Extraction: Using Gradient Boost Quantile Regression for AI Quality Assurance

out in this approach can be seen as feature engi-

neering, deﬁned as “the act extracting features from

raw data and transforming them into formats suitable

for the machine learning model” (Zheng and Casari,

2018). While, as mentioned above, the purpose of this

process is to ﬁnd human-understandable descriptions

of performance inhibitors, not necessarily to fuel bet-

ter ML-models.

Phases. The phases in the method are inspired by

what is colloquially known as “the scientiﬁc method”

(an extensive summary on the term and applications

are provide e.g. in (Gauch Jr et al., 2003)) which typ-

ically consists in making an observation, formulating

a hypothesis on the explanation of the phenomenon,

and conducting experiments testing the hypothesis.

The observations in this case are behaviours or de-

cisions made by an AI and their comparison against

what the AI was expected to provide.

In the Exploration phase, the data scientists ex-

plore the dataset using the methods typical for their

domain, such as plotting data, and evaluating speciﬁc

observations which yielded a bad AI-performance. In

the Hypothesis Formulation phase, a concrete perfor-

mance inhibitor is hypothesised (sentence length, im-

age brightness, ...), and measurements of these fea-

tures are implemented. Note that there might com-

peting measures of the same inhibitor: While deter-

mining the length of a sentence might be straight for-

ward, there are numerous ways of measuring the (per-

ceived) brightness of an image. The experimentation

phase aims at choosing a concrete inhibitor feature

and evaluating whether this feature is both new (i.e.

it is not already modelled by previous inhibitors) and

important (i.e. it actually has an inﬂuence on perfor-

mance). When the experimentation phase fails for in-

stance due to the inhibitor not being signiﬁcant, the

process is reset to the experimentation phase. Finally,

the Result Compilation phase consists in applying the

newly found selection rule along with all old rules to

produce a new corner case dataset.

Considerations. Arguably, applying the method to

a concrete AI and a test dataset requires making nu-

merous decisions. How is novelty and importance

of an inhibitor determined? For quantile regression

models, suitable quantile thresholds must be chosen.

Also, there are often a number of AI-performance

metrics to choose from. All these considerations de-

pend heavily on the AI under test and the available test

dataset. In Section 4, the method is applied to a use

case from Autonomous Driving, and the rationales for

the regarding choices were are presented there.

The data scientists play a major role in the process,

which would not motivate the method’s name “Highly

Autonomous Corner Case Extraction”. Yet, the pro-

cess of applying new selection rules, testing their nov-

elty and importance can be automated. Also, it can be

expected that selection rules found with this method

require more and more intricate feature engineering

the later they are found. Indeed, in the application

presented in Section 4, the ﬁrst rules relied on features

already present in the dataset and the regarding selec-

tion rules could have been applied completely auto-

matically. In this way, the goal of the method is to

provide the data scientist with the problems which re-

quire human intervention as fast as possible.

It has to be noted that, by applying the method,

one may ﬁnd not only performance inhibitors and re-

garding corner cases, but also bugs in the data, and

one may learn about the shortcomings of the applied

performance metric. In the greater context of AI-

quality assurance, all of this is valuable information,

and a discussion of how such secondary ﬁndings can

be used, are given in Section 5. Extending on this

thought, an aspect crucial for the successful applica-

tion of this method, which will remain untouched in

this report, is the provision of adequate tooling espe-

cially when large datasets are evaluated.

4 APPLICATION RESULTS

The method described in the previous section was ap-

plied to an autonomous driving scenario: The AI un-

der test performs semantic group segmentation (La-

teef and Ruichek, 2019) of trafﬁc images taken from

a vehicle camera. The AI performs a perceptual

interpretation of the scenario recorded by the cam-

era: Identifying cars, roads, street signs, pedestri-

ans, and so forth. Obviously, such an AI is safety-

critical as failing to detect vulnerable road users, for

instance, can easily lead to serious accidents. There-

fore the evaluation presented in the following focuses

on pedestrian detection speciﬁcally.

The AI under test is a DeepLabV3+ model (Chen

et al., 2018) with a ResNet (He et al., 2016) backbone

(here, the backbone of a model is a feature extracting

neural network within the larger DeepLabV3+ archi-

tecture). It was trained with a batch size of 6 over 50

epochs on a synthetically generated dataset contain-

ing 21884 frames of inner-city trafﬁc scenarios. Each

frame was rendered in an 1920 by 1280 pixel image.

An additional set of 5173 frames were used for vali-

dation during training, and an additional set of 9897

frames were held back for testing. These test frames

were used to carry out the method.

The test frames contained in total 206767 pedes-

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

trians, which are denoted as instances in the follow-

ing. This number of instances (in average 20.9 per

frame) is obviously very high for “real world” traf-

ﬁc scenarios. Yet, the test dataset was speciﬁcally

produced to test pedestrian detection performances,

and the synthetic nature of the production lead to a

very generous ground truth data which contained in-

stances which were barely visible. This made two ﬁl-

ter steps necessary: Firstly, all instances which were

to far from the camera to be safety relevant were

dropped from the dataset. Secondly, data bugs (mis-

labeled data, instances being completely occluded be-

hind walls etc.) were removed. In a way this second

ﬁlter step already constituted the application of a se-

lection rule as described by the method. One does not

expect any performance (of this model) for instances

that are not visible.

After these primary ﬁlter steps,

a set of 58809 instances were left for the method ap-

plication.

The AI performance was measured using the Jac-

card Index (also known as “Intersection over Union”

or simply IoU in the following) of the ground truth

segmentation, which contained a pixel-exact labelling

of all instances, and the inferred segmentation by the

AI.

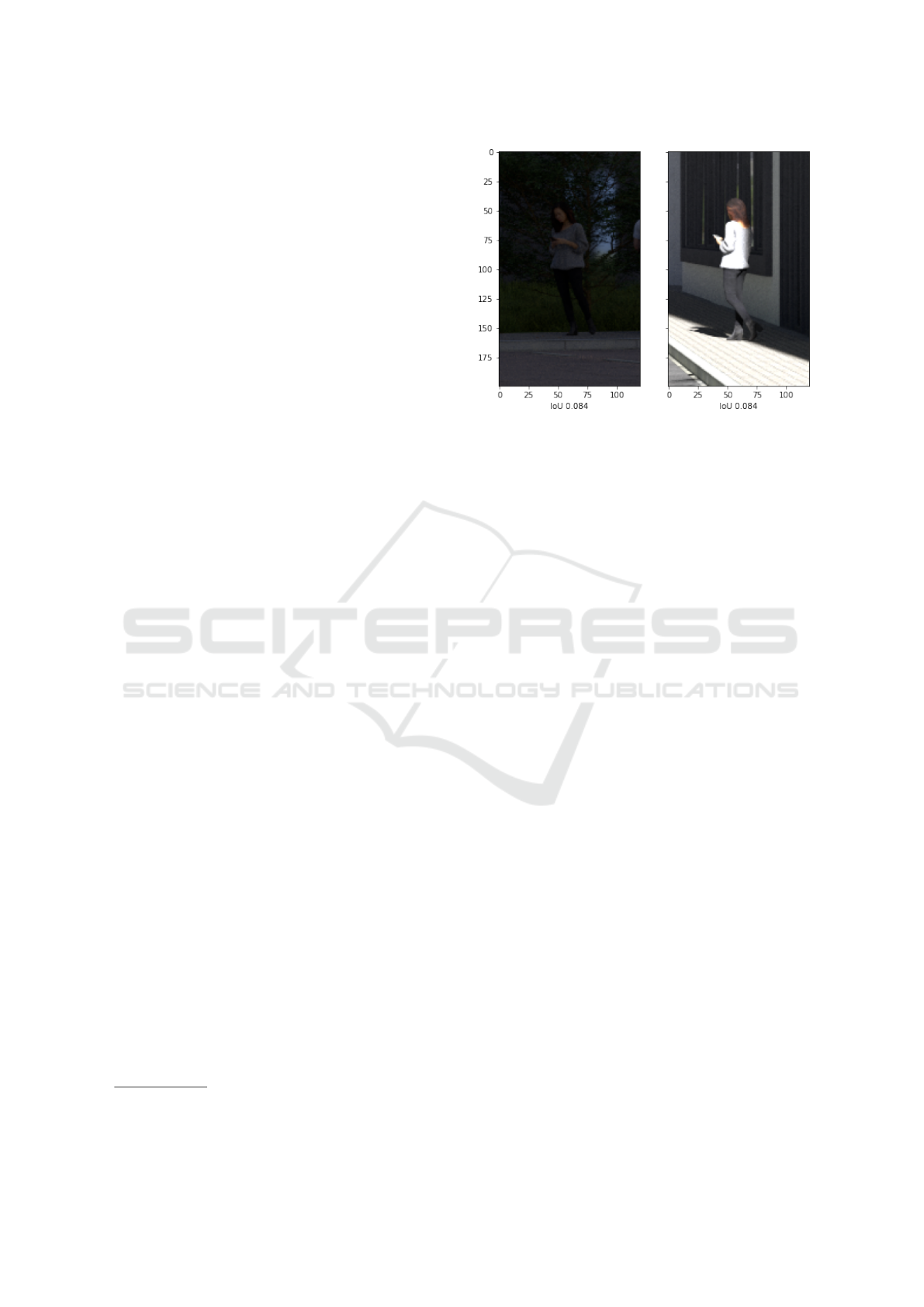

Figure 2 shows two frame sections containing in-

stances which were not sufﬁciently detected by the AI

(both yielding an IoU of 0.084). Yet, while the rea-

son for this bad recognition of the left instance seems

to be obvious (the image being quite dark and low

contrasted), such simple reasons can not be found for

the instance on the right: Is it the person’s clothing?

The contrast to their background being to high? Their

posture? The method proposed in this report tries to

ﬁnd such surprising instances as the one on the right,

which was indeed a selected corner case, while disre-

garding instances as given on the left.

Performance Inhibitors and Selection Rules. Af-

ter applying the method described in Section 3, a to-

tal of 8 selection rules were found, which were each

based on a distinct performance-inhibiting feature. As

mentioned in Section 3, including a new rule requires

the assurance of its importance and novelty. To as-

sure an inhibitor’s importance (i.e. an inﬂuence on

AI-performance), common statistical measures where

used: Producing and evaluating scatter, box, and vio-

lin plots as well as relying on linear or polynomial re-

gression and associated ﬁtness values. Figure 3 shows

two examples of such inhibitors: depth (the distance

of an instance to the camera) and brightness (mea-

sured by evaluating the colours proximate to the in-

Note that an AI capable of object permanence might

be able infer the existence of invisible instances

Figure 2: Sections of two frames with poorly detected in-

stances. Left: Low brightness (not selected as corner case),

right: selected corner case.

stance). While the inﬂuence of depth on performance

seems to be linear, the inﬂuence of brightness on per-

formance is more intricate as the evaluated AI seems

to prefer a “sweet spot” of brightness values where it

performs best.

The plots also elicit the intuition of the approach:

Outliers (instances below the 10th percentile within

their bin) are instances which are for example “well

lit” or “close enough” while still being poorly de-

tected. Hence, by relying on quantile regression mod-

els, which can be trained to predict for instance the

10th performance percentile for a given an input fea-

ture, a performance-inhibiting feature can be associ-

ated with a selection rule. Given a feature F, mod-

elled by the quantile regression model M

the associ-

ated selection rule is given by

: i 7→ M

(i) < per f ormance(i)

A combined selection rule S

,...F

is deﬁned as the

selection rule which chooses instances chosen by all

, .. . S

To judge the novelty of a selection rule S

, the

information content of the rule I(S

) can be deﬁned

as the negative logarithm of the probability of the rule

choosing an instance.

I(S

) := −log

(p(S

= True))

Note that the information content of a selection rule

is simply the “self-information value” (used in infor-

mation theory (Jones, 1979)) of a possitive selection.

Self-information is often described to measure the

“surprisal” of a (rare) event, which ﬁts the intuition

of corner cases as “unexpectedly bad performances”.

The information gain of a new selection rule

with respect to a set of existing selection rules

Highly Automated Corner Cases Extraction: Using Gradient Boost Quantile Regression for AI Quality Assurance

,...,F

n−1

can then simply be deﬁned as this differ-

ence

I(S

,...,F

) − I(S

,...,F

n−1

)

Figure 3: Violin plots with overlaid box plots of the perfor-

mance inhibitors “brightness” and “depth”. The data was

sorted into bins of equal size in the inhibitor domain.

The performance inhibitors found while carrying

out the method were classiﬁed in 4 categories: Data

bugs, quantitative inhibitors, perceptual inhibitors,

and situational inhibitors. As mentioned above, data

bugs were caused in the data production, and encom-

passed mislabeled instances, completely invisible in-

stances, instances with bounding box of width 0, etc.

As this category is a bit apart from the others, it is

only mentioned but not further discussed.

Quantitative inhibitors are features relating to “the

amount of information” available for inference, such

as the distance of the instance to the car (far-away

instances are smaller), or simply the number of vis-

ible instance pixels. Perceptual inhibitors are features

which are encoded by parameters known in image

processing such as an instances brightness or its con-

trast to the background. Finally, situational inhibitors

describe an instance’s surrounding, such as whether

and how much an instance is occluded by other in-

stances, or whether there is vegetation in its back-

ground.

Note that quantitative inhibitors were readily

available in the dataset, while all other features re-

quired (in part substantial) feature engineering. Fur-

ther, it has to be noted that the inhibitor classiﬁca-

tion is not very strict. The quantitative inhibitor “pixel

count”, for instance, is reduced by occluding objects,

yet occlusion would count as an situational inhibitor.

The most impactful “contrast” measure found, mea-

sured an instances contrast against its background,

which obviously changes with an instance’s situation.

Table 1 summarizes the deﬁnition all found in-

hibitors, ordered (in general) by the iteration they

were found in. Also, in the authors’ experience, the

discovery of earlier inhibitors eased the discovery of

later inhibitors: After ﬁltering out all instances that

were just “too small” or provided “too few pixels” to

be correctly identiﬁed by the AI, it became very ev-

ident that brightness and contrast might be the next

candidates for exploration.

Table 1: Description of all Evaluated Inhibitors.

Quantitive Inhibitors

depth distance of ego car to in-

stance measured in meters

contained human the fraction of a bounding

box occupied by the in-

stance.

log pixels the logarithm of the number

of image pixels making up

the instance

Perceptual Inhibitors

contrast the contrast of the instance

measured against its back-

ground

brightness the average luminance

within a bounding box

situational Inhibitors

fg share person the fraction of the in-

stance’s contour occupied

by another person

fg share vegetation the fraction of the in-

stance’s contour occupied

by vegetation

fg share car the fraction of the in-

stance’s contour occupied

by a vehicle

Gradient Boosting Quantile Regression. Deci-

sion rules were derived using Gradient Boosting

Models for Quantile Regression. Gradient Boosting

is a tree-based ensemble learning technique ﬁrst de-

scribed in (Friedman, 2001), which has found various

applications, such as travel time prediction (Zhang

and Haghani, 2015) and energy consumption predic-

tion (Touzani et al., 2018). Quantile regression is a

statistical analysis aiming at the prediction of a vari-

able’s quantiles (i.e. values such that a ﬁxed portion

of the observations lies below these values). Gradient

Boosting can be used for quantile regression when an

appropriate asymmetric loss function is chosen.

The 0.1-quantile was chosen for this analysis:

each selection rule was trained to select 10% of the

data. To train the Gradient Boosting Models, the input

dataset was split into 12597 training and 46212 test

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

instances. Evaluated on the test instances, the trained

selection rules showed a good ﬁt of to the data, select-

ing between 9.1% and 10.2% of the instances. Figure

4 shows the instance selection performed by S

depth

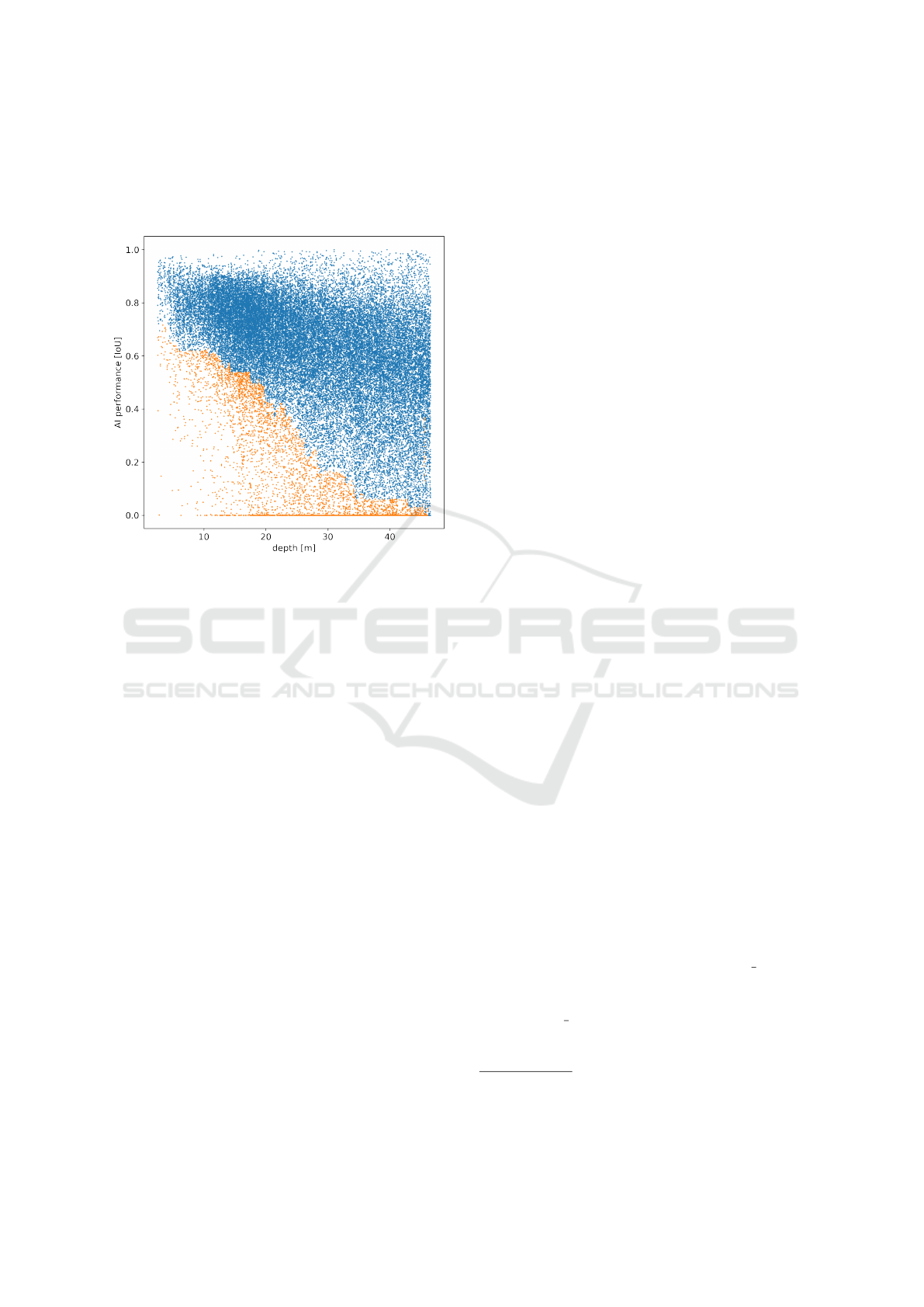

Figure 4: Scatter plot of AI-performance over instance

depth. Dots represent instances, orange dots are labelled

as corner case with respect to depth.

Selector Novelty and Method Termination. Each

additionally applied selection rule reduces the num-

ber of selected instances, and a selection rule based

on a 0.1-Quantile Regression Model would have, if

perfectly ﬁt to the data, an information content of

3.21 ≈ −log

(0.1). In the following, an empirical in-

formation content value is used by replacing the prob-

ability of choosing an instance by its observed relative

frequency. In this way, a set of ﬁtted selection rules

can be associated with their combined information

content value, and a new inhibitor candidate, found

in the hypothesis formulation phase, can be evaluated

by the extends it adds to this value.

Note that one could also use relative changes in

the size of the selected dataset to make this analysis

(halving the size of the current dataset increases the

information content value by exactly one), but the no-

tion of “adding n bits of information” instead of “de-

creasing a fraction by n percent” proved just to be the

more intelligible way of displaying this information.

Another way to describe the novelty a new in-

hibitor presents, is to use correlation measures be-

tween inhibitors (such as that brightness naturally cor-

relates with contrast), or set similarity measures be-

tween the regarding corner case datasets (a “bright-

ness corner case” might also be a “contrast corner

case”, etc.). Yet, all corner case are datasets are, to

some degree, expected to be similar, because they all

ﬁlter for the common property of relatively low AI-

performance.

As motivated in Section 3, the (empirical) infor-

mation gain of a new selection rule encodes “how

much more surprising a corner case is” when includ-

ing the new selection rule. This can be used to set

a threshold for the termination: If no new selection

rules with a information gain above a ﬁxed threshold

can be found, the method terminates with the produc-

tion of a ﬁnal corner case dataset (which contain up

to date unexplained corner cases).

Figure 5 (left) shows the growth of information

content provided by increasing the number of selec-

tion rules. The “later” rules seem to contribute less

information, which might be in part due to the fact

that these rules have less observations cut away from:

The order of rule application might inﬂuence their in-

formation gain. To explore this effect, Figure 5 (right)

shows the mean information gain added by each se-

lection rule, when compared to a ﬁxed number of pre-

viously applied selection rules. The ﬁgure suggests

that ﬁrstly, selection rules provide less information if

they are introduced later, and secondly that the situa-

tional inhibitors yield in general less informative se-

lection rules.

Validation Experiments. The introductory exam-

ple shown in Figure 2 suggests that the corner cases

selected after the ﬁnal iteration are indeed “interest-

ing or “surprising”, yet such a claim needs substanti-

ation. If the selection rules worked as intended, then

distorting an input image in a way that distracts the

AI, while using measures that the selection rule does

not account for (i.e. without changing any of the in-

hibiting features), should lead to higher corner case

selection rates. Similarly, if one distracts the AI with

measures that are accounted for (for instance by dark-

ening the image; brightness is an inhibitor), no further

corner cases should be selected.

To test this hypothesis, 6 frame augmentation

techniques were implemented, and hypotheses on

the effects on corner case rates were made. Fig-

ure 6 gives examples for each of the applied aug-

mentations. The augmentations were chosen such

that AI-performance could be reduced by manipu-

lating a single augmentation property. Fog augment

adds a blur effect of adjustable strength to the frame,

which is implemented by the python automold li-

brary

. Noise augment adds normally distributed ran-

dom values to the frame’s color values, the variance

https://towardsdatascience.com/automold-specialize

d-augmentation-library-for-autonomous-vehicles-1d085ed

1f578

Highly Automated Corner Cases Extraction: Using Gradient Boost Quantile Regression for AI Quality Assurance

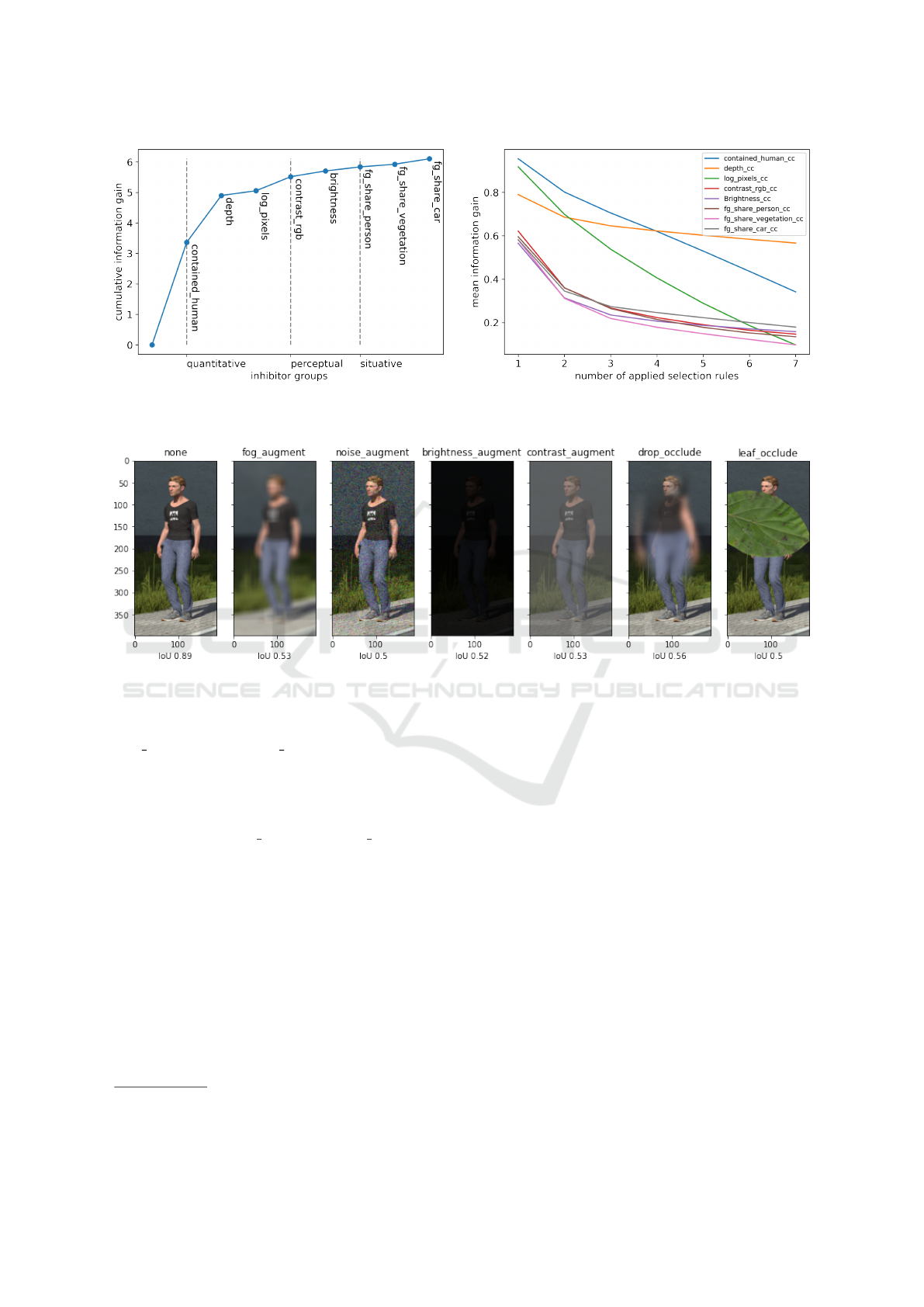

Figure 5: Information gain for different selection rules. Left: Cumulative information gain in order of discovery. Right: Mean

information gain for a varying number of previously applied rules.

Figure 6: Examples of augmented images, using different augmentation algorithms. Left-most: The original image. All

augmenters were calibrated to inhibit the AI to a similar degree.

of which can be varied to control effect size. Bright-

ness augment and contrast augment are implemented

using the python PIL ImageEnhance module

, each

allowing to adjust target values (0 brightness result-

ing in a perfectly black image, and 0 contrast result-

ing in a single-color image of the average brightness

of the original). Drop occlude and leaf occlude are

original implementations adding drop effects or over-

laying the image with images of leafs. In both cases,

effect placements and sizes can be adjusted, while ef-

fect size had the most predictable effect on AI perfor-

mance.

The examples in Figure 6 show applied augmen-

tations which were calibrated to reduce the AI perfor-

mance by about 0.35% (note that due to the random

nature of some of the augmentations, perfect values

were not striven for). It was quickly found that, by

sampling over a sufﬁciently large dataset, AI inhibi-

tion was a sufﬁciently continuous and monotone func-

tion over the augmenter-speciﬁc arguments: Altering

https://pillow.readthedocs.io/en/stable/reference/Imag

eEnhance.html

the augmenter little resulted in little performance dif-

ference, and increasing suited arguments (leaf size,

noise level, etc) resulted consistently in reduced per-

formance.

As for hypotheses, it could be expected that leaf

occlusion (which reduces the number of visible pix-

els) and reducing brightness would result in few se-

lected corner cases. Further, as the net seems to be

very brittle against added noise, and because such

noise should not largely inﬂuence features the cor-

ner case selector accounts for, added noise should re-

sult in many corner cases. It was also expected that

adding fog, adding droplet effects, and reducing con-

trast, should result in similar corner case rates because

the results are very similar in nature.

Figure 7 shows the mean frequency of identi-

ﬁed corner cases over mean AI inhibition for differ-

ent augmenters which were “turned up” to increas-

ingly inhibit AI performance. Note that the mean

AI-performance on the sample is at 57.0%, limiting

mean inhibition rates to that value. Further, the cor-

ner case rate among the not augmented instances was

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

at 0.15%. In general, the hypotheses were found to be

true. Adding noise was, as expected, very effective in

producing corner cases. For high inhibitions, reduc-

ing brightness does not yield corner cases which is in

line with the intuition: It is not surprising that a very

dark image is unrecognizable to the AI. An interest-

ing effect is recorded for leaf occlusions: After start-

ing at an expectedly low slope, corner case rates rise

strongly for larger inhibitions. It can only be assumed

that at at a certain leaf size, the AI got distracted, un-

able to recognize a consistent instance behind the leaf.

Note that the inhibition recorded in the example (Fig-

ure 6) of 39% required a fairly large leaf to be added

to the frame.

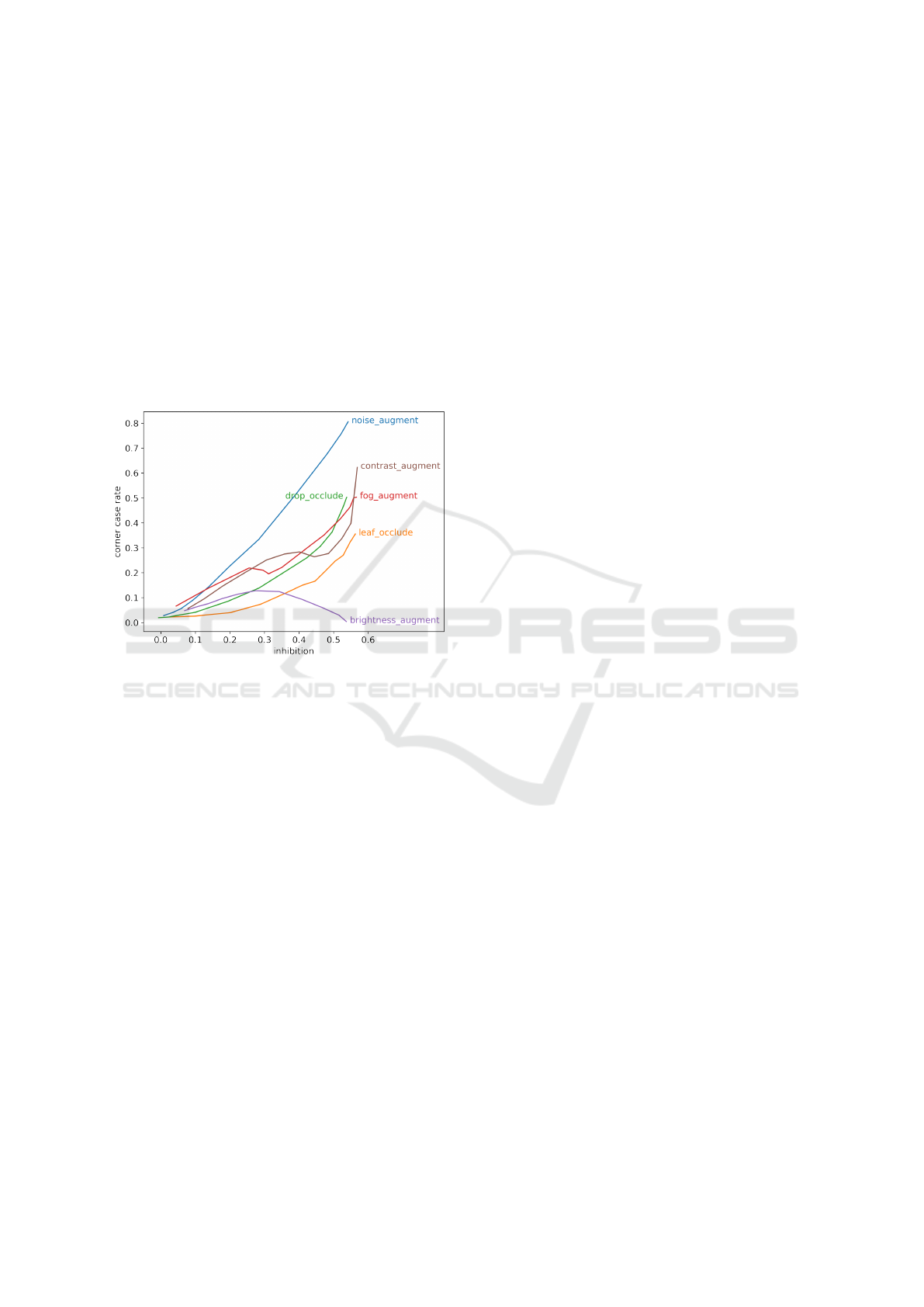

Figure 7: Corner case rates for different augmentation algo-

rithms over their caused inhibition.

Interestingly, all augmenters produced many cor-

ner cases, surpassing the corner case baseline of

0.15% with relative small inhibitions. In other words:

If one of these effects had been present in the original

dataset it would have probably been discovered in one

of the exploration phases.

5 DISCUSSION

In the following, the results presented in Section 4

are discussed. By using the method, a total of 8

performance-inhibiting features were found in 8 iter-

ations, and the derived selection rules showed a rela-

tively good ﬁt to the data which was shown by using

a train test split.

The novelty of additional selection rules was mea-

sured using their added information content (informa-

tion gain). Rules that were found in later iterations

showed a smaller information gain, even when cor-

recting for selection rule order. This suggests that

the method had more or less “exhausted” the dataset.

A ninth iteration, which tested several other inhibitor

candidates was attempted, but failed. This does not

mean that all AI inhibitors were found, but it is a

strong indicator, that the dataset does not allow fur-

ther conclusions. To illustrate this (arguably subtle)

statement, results from the ﬁnal (failed) iteration are

brieﬂy illustrated: By analysing the ﬁnal corner case

dataset, it became apparent the selection was biased

for instances wearing muted colors, with the few in-

stances wearing bright colors being signiﬁcantly less

often selected in the corner case dataset. A feature

measuring the mean color saturation of an instance

was deﬁned, tested, and did indeed reﬂect the in-

tended purpose; yet the derived selection rule showed

only a minimal information gain, the main problem

being that there were simply very few “colorful in-

stances” in the dataset.

Validation experiments testing the sensibility of

the selection rules showed positive results: Effects de-

terring the AI, which were unaccounted for by the se-

lection rules, did indeed yield to very high corner case

selection rates. This suggests that the method would

have found these effects if they had been present in

the dataset. While this is a promising result, it would

have been interesting to ﬁnd more AI inhibitors within

the original dataset. The experiments suggest that

strange clothing, optical effects, and occlusions of

speciﬁc body parts might deter the AI. Yet this would

have required more, and different, test data including

more ground truth information on the one hand, and

a bigger variety of instances on the other. It has to be

noted that the production of such data is, at time of

writing this report, still ongoing, aiming among oth-

ers speciﬁcally at these shortcomings of the data. In

general, the method seems to allow for a constructive

critique of a test dataset.

Apart from validating the method, the augmen-

tation experiments resulted in other ﬁndings. Most

surprising was the brittleness of the AI towards ran-

dom noise, and other blurring effects, while seeming

very robust against dark images. This validates, once

more, the underlying assumption that, while imple-

menting human-like perception, AI models may be-

have “non-intuitively” from a human perspective.

Method Limitations. A major critique that can be

brought up against the method is that it can only ﬁnd

corner cases which are present within the dataset.

And while the method yielded suggestions on what

to include in additional datasets, for the evaluated use

case, this must not hold for any future application.

Yet, it is the authors’ impression that such evalua-

tions will most likely yield constructive critiques on

the data quality, features to be included (and bugs to

Highly Automated Corner Cases Extraction: Using Gradient Boost Quantile Regression for AI Quality Assurance

be ﬁxed) even if applied in other domains.

The second main limitation of the method lies in

its hunger for data. The application discussed above

relied on a very generous test dataset, which even al-

lowed further splitting. As any data scientist may tell,

this cannot be expected in any project.

Future Work. As mentioned above, the work pre-

sented in Section 4 is still ongoing, with more

data being produced and robustiﬁed AI-models being

trained. The immediate future work will include re-

running the method on that new input.

Besides these works, two additions to the method

were motivated by the current results. Firstly, vali-

dation experiments, which were initially conducted to

validate the method in general, may become a part

of any application. It was by attempting such ex-

periments, i.e. trying to manufacture speciﬁc corner

cases, that much information on the AI was gained.

Secondly, the method may reﬂect on the possibil-

ity to choose different performance measures. To

come back to the introductory example shown in Fig-

ure 3 one more time: The well contrasted and well

lit instance was wrongly classiﬁed as “building” and

the dark instance was misclassiﬁed as “vegetation”.

There could be general rules underlying patterns of

misclassiﬁcation, but with a single performance mea-

sure (IoU in this case) these could not be found. A

next step could involve starting anew with the same

AI and dataset, yet evaluating against a different per-

formance measure. Note that these further evaluations

would be motivated by the ﬁndings of the ﬁrst appli-

cation.

Finally, future work will attempt to apply the

method to new use cases so as to reﬁne and rework

the method.

6 CONCLUSION

In this report, a novel method for AI quality assur-

ance was proposed. The method aims at ﬁnding “cor-

ner cases” which are loosely deﬁned as “unexpect-

edly bad AI performances” in an input dataset. To

this end, an iterative approach is used where each it-

eration produces selection rules modelling the current

expectations towards the AI. Statistical measures on

how to measure a rule’s novelty were proposed, and

suggestions on deﬁning termination rules are given

(while these will arguably depend largely on the spe-

ciﬁc use case). The method was applied to a use case

in Autonomous Driving on a synthetically generated

dataset, which generally validated the effectiveness of

the approach. Apart from showing the method’s gen-

eral effectiveness, the method’s strength seems to lie

in producing ﬁndings on the AI and the dataset as a

bi-product. The method’s limitations and future work

were discussed.

ACKNOWLEDGEMENTS

The research leading to these results is funded by the

German Federal Ministry for Economic Affairs and

Energy within the project “KI Absicherung – Safe AI

for Automated Driving”. The authors would like to

thank the consortium for the successful cooperation,

speciﬁcally partners from the Robert Bosch GmbH

for providing the constrast measures, and the Intel

Coorperation for providing the trained AI for evalu-

ation.

REFERENCES

Bolte, J.-A., Bar, A., Lipinski, D., and Fingscheidt, T.

(2019). Towards corner case detection for autonomous

driving. In 2019 IEEE Intelligent vehicles symposium

(IV), pages 438–445. IEEE.

Cardelli, L., Kwiatkowska, M., Laurenti, L., and Patane,

A. (2019). Robustness guarantees for bayesian in-

ference with gaussian processes. In Proceedings of

the AAAI Conference on Artiﬁcial Intelligence, vol-

ume 33, pages 7759–7768.

Chai, C., Cao, L., Li, G., Li, J., Luo, Y., and Madden,

S. (2020). Human-in-the-loop outlier detection. In

Proceedings of the 2020 ACM SIGMOD International

Conference on Management of Data, pages 19–33.

Challen, R., Denny, J., Pitt, M., Gompels, L., Edwards, T.,

and Tsaneva-Atanasova, K. (2019). Artiﬁcial intelli-

gence, bias and clinical safety. BMJ Quality & Safety,

28(3):231–237.

Chandola, V., Banerjee, A., and Kumar, V. (2009).

Anomaly detection: A survey. ACM computing sur-

veys (CSUR), 41(3):1–58.

Chen, L.-C., Zhu, Y., Papandreou, G., Schroff, F., and

Adam, H. (2018). Encoder-decoder with atrous sepa-

rable convolution for semantic image segmentation. In

Proceedings of the European conference on computer

vision (ECCV), pages 801–818.

Dosovitskiy, A., Ros, G., Codevilla, F., Lopez, A., and

Koltun, V. (2017). Carla: An open urban driving sim-

ulator. In Conference on robot learning, pages 1–16.

PMLR.

Freeman, C. and Beaver, I. (2019). Human-in-the-loop se-

lection of optimal time series anomaly detection meth-

ods.

Friedman, J. H. (2001). Greedy function approximation: a

gradient boosting machine. Annals of statistics, pages

1189–1232.

DATA 2022 - 11th International Conference on Data Science, Technology and Applications

Gauch Jr, H. G., Gauch Jr, H. G., and Gauch, H. G. (2003).

Scientiﬁc method in practice. Cambridge University

Press.

Hamada, K., Ishikawa, F., Masuda, S., Myojin, T., Nishi,

Y., Ogawa, H., Toku, T., Tokumoto, S., Tsuchiya, K.,

Ujita, Y., et al. (2020). Guidelines for quality assur-

ance of machine learning-based artiﬁcial intelligence.

In SEKE, pages 335–341.

Hanhirova, J., Debner, A., Hyypp

a, M., and Hirvisalo, V.

(2020). A machine learning environment for eval-

uating autonomous driving software. arXiv preprint

arXiv:2003.03576.

Hawkins, D. M. (1980). Identiﬁcation of outliers, vol-

ume 11. Springer.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In 2016 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 770–778.

Heaton, J. (2016). An empirical analysis of feature en-

gineering for predictive modeling. In SoutheastCon

2016, pages 1–6. IEEE.

Hendrycks, D., Zhao, K., Basart, S., Steinhardt, J., and

Song, D. (2021). Natural adversarial examples. In

Proceedings of the IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition, pages 15262–

15271.

Hosseini, H. and Poovendran, R. (2018). Semantic adver-

sarial examples. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition

Workshops, pages 1614–1619.

Huang, X., Kwiatkowska, M., Wang, S., and Wu, M.

(2017). Safety veriﬁcation of deep neural networks.

In International conference on computer aided veriﬁ-

cation, pages 3–29. Springer.

Isele, D., Rahimi, R., Cosgun, A., Subramanian, K., and Fu-

jimura, K. (2018). Navigating occluded intersections

with autonomous vehicles using deep reinforcement

learning. In 2018 IEEE International Conference on

Robotics and Automation (ICRA), pages 2034–2039.

IEEE.

Islam, M. R., Das, S., Doppa, J. R., and Natara-

jan, S. (2018). Glad: Glocalized anomaly detec-

tion via human-in-the-loop learning. arXiv preprint

arXiv:1810.01403.

Jones, D. S. (1979). Elementary information theory. Oxford

University Press, USA.

Kwiatkowska, M. Z. (2019). Safety veriﬁcation for deep

neural networks with provable guarantees. In 30th

International Conference on Concurrency Theory

(CONCUR 2019). Schloss Dagstuhl-Leibniz-Zentrum

fuer Informatik.

Lateef, F. and Ruichek, Y. (2019). Survey on semantic seg-

mentation using deep learning techniques. Neurocom-

puting, 338:321–348.

Lenarduzzi, V., Lomio, F., Moreschini, S., Taibi, D., and

Tamburri, D. A. (2021). Software quality for ai:

Where we are now? In International Conference on

Software Quality, pages 43–53. Springer.

Nortey, E. N., Pometsey, R., Asiedu, L., Iddi, S., and Mettle,

F. O. (2021). Anomaly detection in health insurance

claims using bayesian quantile regression. Interna-

tional Journal of Mathematics and Mathematical Sci-

ences, 2021.

Pei, K., Cao, Y., Yang, J., and Jana, S. (2017). Deepxplore:

Automated whitebox testing of deep learning systems.

In proceedings of the 26th Symposium on Operating

Systems Principles, pages 1–18.

Poth, A., Meyer, B., Schlicht, P., and Riel, A. (2020). Qual-

ity assurance for machine learning–an approach to

function and system safeguarding. In 2020 IEEE 20th

International Conference on Software Quality, Relia-

bility and Security (QRS), pages 22–29. IEEE.

Reinke, A., Tizabi, M. D., Eisenmann, M., and Maier-Hein,

L. (2021). Common pitfalls and recommendations for

grand challenges in medical artiﬁcial intelligence. Eu-

ropean Urology Focus, 7(4):710–712.

Secci, F. and Ceccarelli, A. (2020). Rgb cameras failures

and their effects in autonomous driving applications.

arXiv preprint arXiv:2008.05938.

Tian, Y., Pei, K., Jana, S., and Ray, B. (2018). Deeptest:

Automated testing of deep-neural-network-driven au-

tonomous cars. In Proceedings of the 40th inter-

national conference on software engineering, pages

303–314.

Tjeng, V., Xiao, K., and Tedrake, R. (2017). Evaluating

robustness of neural networks with mixed integer pro-

gramming. arXiv preprint arXiv:1711.07356.

Touzani, S., Granderson, J., and Fernandes, S. (2018). Gra-

dient boosting machine for modeling the energy con-

sumption of commercial buildings. Energy and Build-

ings, 158:1533–1543.

Waldmann, E. (2018). Quantile regression: a short story on

how and why. Statistical Modelling, 18(3-4):203–218.

Wicker, M., Huang, X., and Kwiatkowska, M. (2018).

Feature-guided black-box safety testing of deep neu-

ral networks. In International Conference on Tools

and Algorithms for the Construction and Analysis of

Systems, pages 408–426. Springer.

Wu, Y., Yu, T., and Hua, G. (2003). Tracking appearances

with occlusions. In 2003 IEEE Computer Society

Conference on Computer Vision and Pattern Recogni-

tion, 2003. Proceedings., volume 1, pages I–I. IEEE.

Xie, X., Ho, J. W., Murphy, C., Kaiser, G., Xu, B., and

Chen, T. Y. (2011). Testing and validating machine

learning classiﬁers by metamorphic testing. Journal

of Systems and Software, 84(4):544–558.

Xu, Q., Fan, Z., Jia, W., and Jiang, C. (2019). Quantile re-

gression neural network-based fault detection scheme

for wind turbines with application to monitoring a

bearing. Wind Energy, 22(10):1390–1401.

Zhang, Y. and Haghani, A. (2015). A gradient boosting

method to improve travel time prediction. Trans-

portation Research Part C: Emerging Technologies,

58:308–324.

Zheng, A. and Casari, A. (2018). Feature engineering for

machine learning: principles and techniques for data

scientists. ” O’Reilly Media, Inc.”.

Highly Automated Corner Cases Extraction: Using Gradient Boost Quantile Regression for AI Quality Assurance
