Distributed Simulations of DNA Multi-strand Dynamics

Frankie Spencer

1 a

, Usman Sanwal

1,2 b

and Eugen Czeizler

3,4 c

Department of Information Technologies,

Abo Akademi University, Turku, Finland

Malardalen University, Sweden

Faculty of Medicine, University of Helsinki, Finland

National Institute for Research and Development of Biological Sciences, Bucharest, Romania

Keywords:

DNA Self-assembly, Simulation Optimization, Computational Modelling, Multi-threaded Computing,

Rule-based Modelling.

Abstract:

In a recent study, Spencer et al. 2021, we have proposed a computational modeling framework for DNA multi-

strand dynamics implemented using the agent- and rule-based modeling methodology. While this modeling

methodology allows for compact representations for systems with large numbers of different species and

complexes, such as the case of self-assembly systems, one of its main drawbacks concerns its scalability.

Since each agent is individually represented and modeled in the system, the framework becomes slow when

dealing with tens- and hundreds of thousands of individual components. In this study we introduce a method

to parallelize the computational modeling process by distributing it over several CPU’s. We show that such

multi-thread models remain equivalent to their sequential counterpart, while the speedup of the computational

process can reach even a one-fold increase.

1 INTRODUCTION

Self-assembly of biological living organisms takes

place as a result of a natural phenomenon. There is

a well-deﬁned assembly instrument built into DNA

itself which is directed by the Watson-Crick com-

plementarity mechanism. By exploiting these or-

ganic assembly instructions researchers were able to

build computational models that simulate the self-

assembly process of DNA single-stranded molecules.

Recently developed computational models show par-

ticular promising results (Mohammed et al., 2017;

Spencer. et al., 2021; Lakin and et al., 2011; Popple-

ton and et al., 2020). The dynamics of bio-chemical

systems is deﬁned by the laws of physics and chem-

istry. However, computational models are running

by user-given criteria within a synthetic simulation

process. This is where Rule-Based Modeling (Har-

ris et al., 2015) comes into practice as a modeling

methodology. Here we can describe the systems dy-

namics by assigning local interaction rules.

When considering the computational modeling as-

https://orcid.org/0000-0002-1751-6770

https://orcid.org/0000-0002-2178-3329

https://orcid.org/0000-0002-1607-1554

pect, it is a profoundly difﬁcult task to capture the

complexity of a structural self-assembly system. This

is due to the inherent nature of these systems which

have a theoretical un-bounded number of structural

and morphological different conﬁgurations, thus gen-

erating a combinatorial burst of the number of species

needed to mathematically capture these systems. In

our computational modeling approaches we faced this

challenge by applying a rule-based modeling method-

ology.

Rule-based modeling has a unique way of captur-

ing the different “species” of a DNA self-assembly

system (Spencer. et al., 2021). In our abstract model-

ing environment, DNA nucleotides within a (single-

stranded) molecule are implemented as individual

agents, each being assigned 3 speciﬁc docking sites.

Two of these, denoted as 5’ and 3’ sites, respectively,

are used to anchor the nucleotide within a single-

stranded DNA molecule (ssDNA), while the third

docking site, denoted as W, is used to bind the nu-

cleotide to a complementary pair, placed itself within

a different (or even from the same) ssDNA. While the

5’ and 3’ sites are to be initialized/bound only once,

as the ssDNA is created (or introduced) in the sys-

tem, and are never to be modiﬁed, the W sites usu-

ally undergo multiple agent-to-agent bindings and un-

234

Spencer, F., Sanwal, U. and Czeizler, E.

Distributed Simulations of DNA Multi-strand Dynamics.

DOI: 10.5220/0011266400003274

In Proceedings of the 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2022), pages 234-243

ISBN: 978-989-758-578-4; ISSN: 2184-2841

3’ 5’

5’

3’

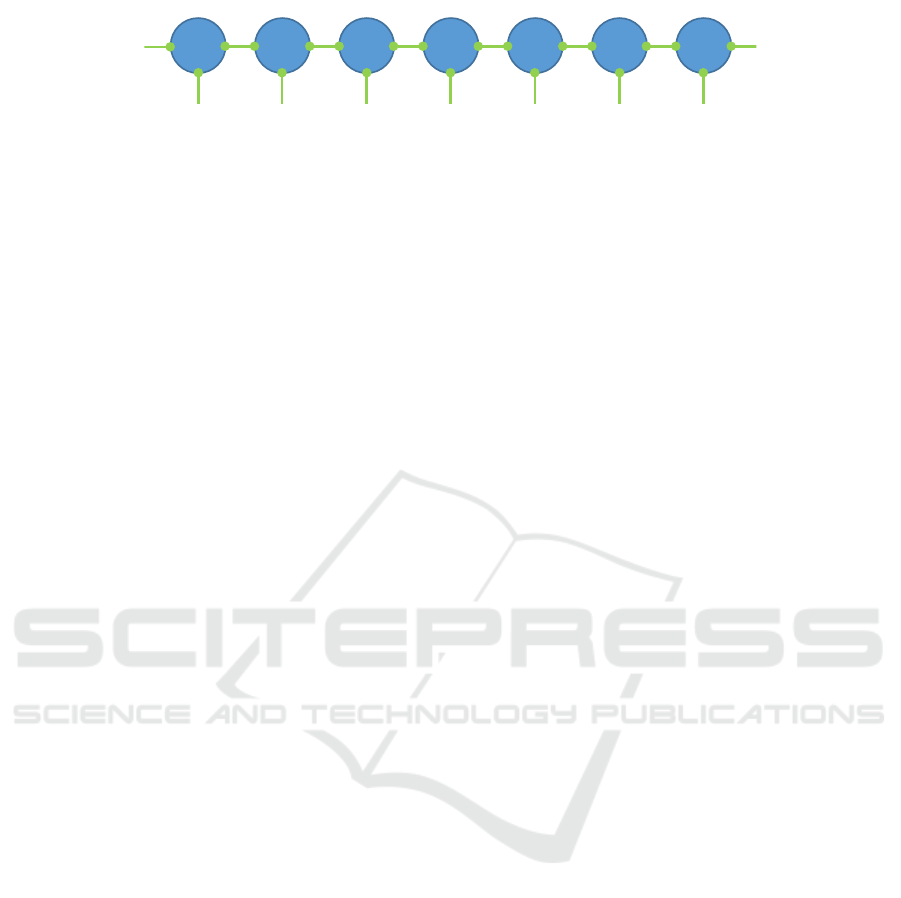

Figure 1: The schematic representation of the ssDNA complex ATTGCTA within our BNGL model.

bindings, thus leading to the development of double-

and multi-strand DNA molecular complexes. Reac-

tion rules are created based on provided local inter-

action patterns rather than the whole deﬁnition of the

reactants, thus providing a concise description of how

agents connect and interact. As a result, instead of

dealing with a huge number of model variables, we

only have a small number of local interaction rules to

deal with under this framework. Thus, the rule-based

regime is ideally suited to dealing with the issue of the

state space combinatorial burst (Harris et al., 2015).

The appropriateness of this approach for modeling

self-assembly systems has been formerly explored,

see e.g. (Am

arioarei et al., 2021; Sorokin et al., 2018;

Thomas and Schwartz, 2017), along with its use for

the computational modeling of other types of DNA

assembly systems, see e.g. (Gautam. et al., 2020),

(Mohammed et al., 2017).

Computational rule-based models of biological

systems can be formulated by using the BioNetGen

(BNGL) language (Harris et al., 2015), which pro-

vides a text-based representation of such systems. We

can deﬁne reactions in terms of writing rules that

specify the necessary and inherit properties of the re-

actants, a transformation, and a rate law.

In (Spencer. et al., 2021) the authors have in-

troduced the VDNA-Lab platform (online available

on (Spencer et al., 2021)) as a generic computa-

tional modeling framework for DNA multi-strand dy-

namics using the BNGL Language formalism (Har-

ris et al., 2015) and the NFsim computational plat-

form (Sneddon et al., 2011). The DNA molecules

and the subsequent interactions are captured starting

from nucleotide level. Each nucleotide (as a bio-

entity) is represented as an individual instance of a

generic agent N (from nucleotide) which has 1 state-

characteristic site, b (from base), and 3 connecting

sites: 5’, 3’, and W. Relating to its biological coun-

terpart, the site b can be in exactly one of the four

possible states: A (Adenine), G (Guanine), C (Cyto-

sine), or T (Thymine); moreover, once initialized, site

b will never change its state. The remaining sites of

agent N are used for connecting the nucleotide within

the single-stranded molecule it is part of, i.e., us-

ing sites 5’ and 3’, and for connecting the nucleotide

with a complementary base-pair, using site W. For ex-

ample, within our rule-based model, the basic struc-

ture for the single-stranded DNA (ssDNA) molecule

ATTGCTA is shown in Figure 1.

Currently we observe parallelism in many other

ﬁelds such as machine learning, AI, scientiﬁc com-

puting, computer graphics, etc. allowing those ﬁelds

to grow in both complexity and usability. However

according to the current state of the art for rule-based

modeling, and particularly for the BioNetGen mod-

eling formalism, we ﬁnd a lack of methodological

approaches involving parallel processing/simulation

which in turn creates a technical requirement bar-

rier to push this ﬁeld forward. This technical bar-

rier appeared with the need of processing power, even

though computer processors become faster and more

powerful with their each newer generations. These

processors achieve higher performance mainly by

packing more processing cores. However, their sin-

gle thread clock frequency improvements are incre-

mental but not signiﬁcant. This technological shift

did not provide the computational requirement for

the stochastic simulations employed in the case of

rule-based modeling, since in this case the employed

computation is channeled towards a single processing

thread per execution. Therefore, we had to look for al-

ternative methods in order to gain faster performance.

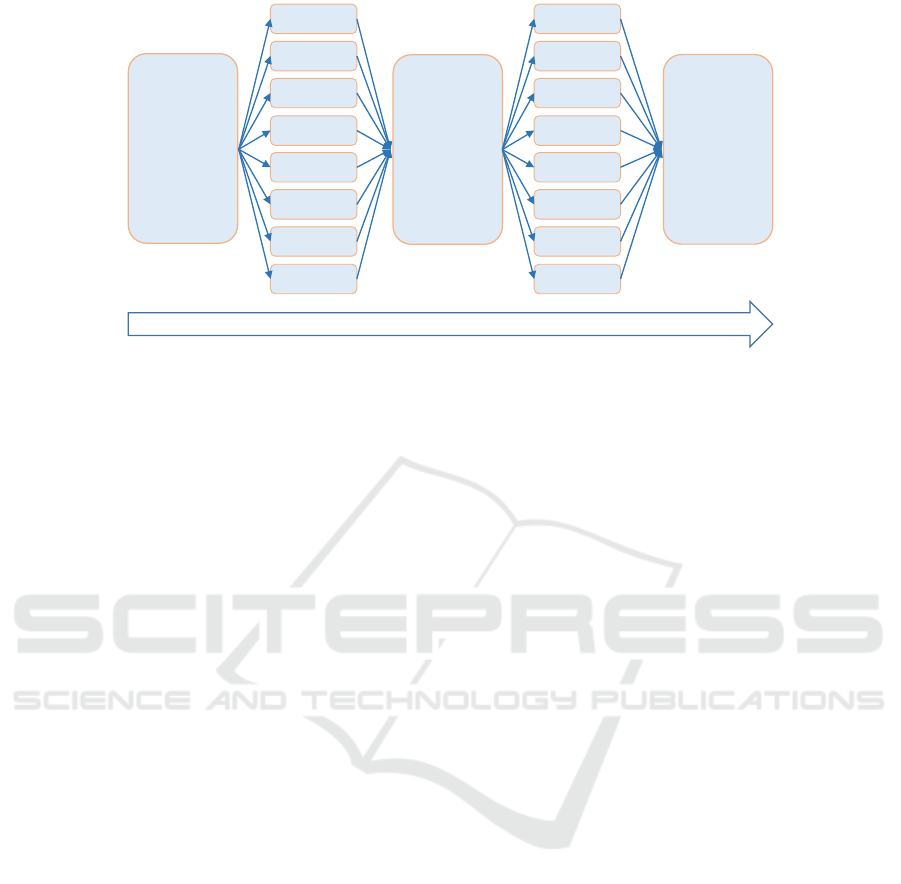

In this study we introduce a method to parallelize

the computational modeling process of DNA multi-

strand dynamics by distributing the computational ef-

fort over several CPU’s of a computing device. Our

approach automatically translates a sequentially de-

signed BNGL model implementation into a family

of corresponding models which can be run indepen-

dently on different slices of the state-space. These

models are run for a relatively small amount of time,

before aggregating their predictions into a new up-

dated state-space. The reaction rates of the new mod-

els are automatically adjusted such that even if now

the computational simulation is performed on just a

section of the entire state-space, the overall kinetics

of the reactions is comparable to their counterpart in

the sequential model implementation. The process of

state-space splitting, independent parallel simulation,

and state-space aggregation is repeated until the de-

sired time-span of the simulation is achieved.

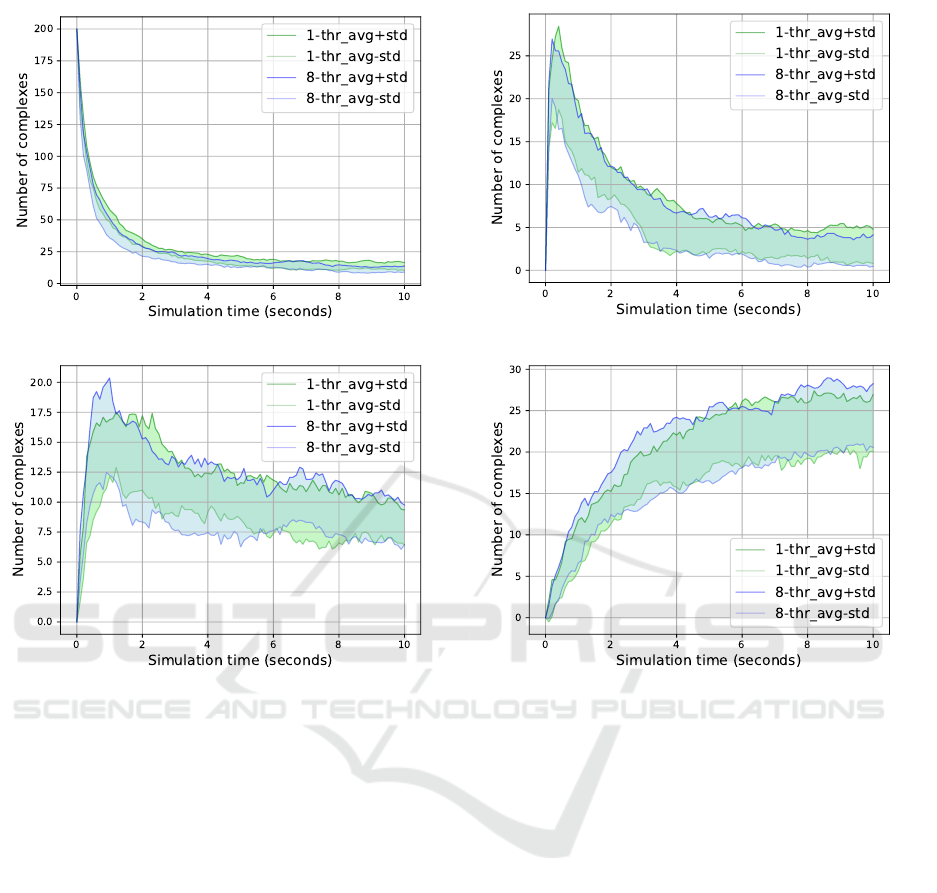

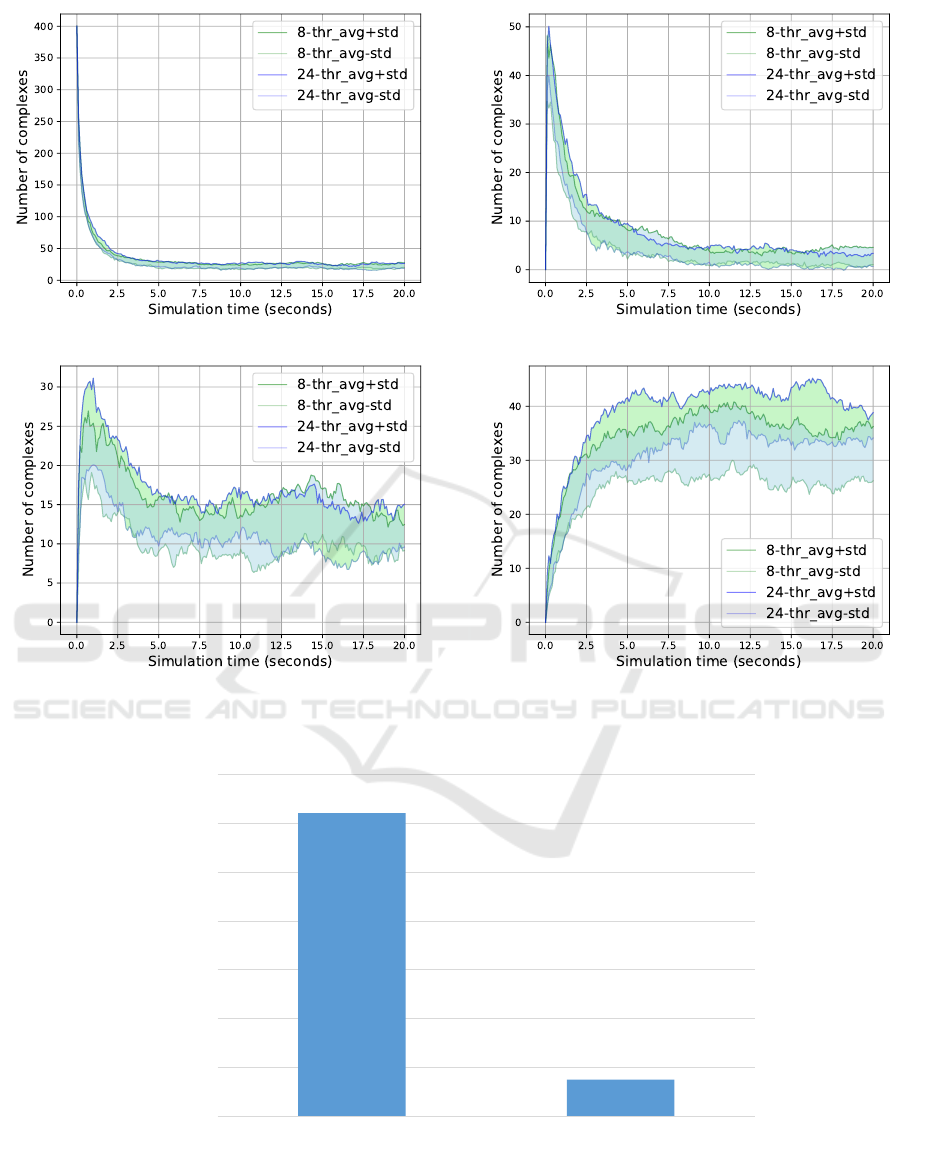

Our results show that the predictions generated by

the multi-threaded distributed simulations are compa-

rable to those generated by the sequential simulation

(i.e., our reference model). Namely, we show that the

differences between these two models concerning the

Distributed Simulations of DNA Multi-strand Dynamics

235

Table 1: (Spencer. et al., 2021) The list of 12 rules governing the dynamics of the DNA self-assembly process, and the default

values of their associated kinetic rate constants. The kinetic rate constants are scaled according to the rate of the intra-complex

toehold binding of complementary segments, i.e., Rule 4, which is normalized to value 1.

Rule# Description of rule action kinetic

param.

(k.p.)

default

val. of

k.p.

Rule 1 toehold binding of compl. seq. (3-to-7 bases) of 2 un-connected ssDNA k

0.001

Rule 2 binding of s.c.b.

of two immediately-connected ssDNA segments

300

Rule 3 binding of s.c.b. of two closely-connected (1-off neighbor connection) ssDNA

segments

Rule 4 toehold binding of compl. seq. (3-to-7 bases) of two connected ssDNA k

Rule 5 un-binding of s.c.b. positioned at a split

Rule 6 un-binding of s.c.b. positioned in the middle of a compl. sequence k

0.1

Rule 7 un-binding of s.c.b. where at least one ssDNA ends on that position k

Rule 8 very rapid (instantaneous) un-binding between s.c.b. in abnormal conditions

max

Rule 9 random unbinding of a pair of bound nucleotides k

0.01

Rule

rapid un-binding of a size-2 comp. seq. in the middle of non-compl./non-bound

seq.

300

Rule

rapid un-binding of a size-3 comp. seq. in the middle of non-compl./non-bound

seq.

100

Rule

rapid un-binding of a size-4 comp. seq. in the middle of non-compl./non-bound

seq.

number of ssDNA complexes formed and their sizes

are in average statistically insigniﬁcant. However, we

gained a signiﬁcant computer runtime efﬁciency: the

total runtime of the distributed model is from approx.

45% to up to a one-fold decrease of the sequential

model, depending on the number of threads the model

is split into. The python script of our automated

model translation from sequential to multi-threaded

implementation is freely available at (Spencer et al.,

2022).

Single complementary bases

The two interacting ssDNA segments can be part of

the same ssDNA molecule, i.e., a hairpin loop, or be two

distinct ssDNA molecules bound within the same complex.

That is, both ssDNA strands continue with pairwise

non-bounded sequences to one direction -at least one strand

should not be bound to anything else- and bound sequences

of length at least 1 to the other direction

There are several cases within the model where two

nucleotides become/remain bounded, although such a sit-

uation might not occur experimentally. These situations

are: i) single complementary bases in the middle of two

non-complementary (or non-bound) ssDNA sequences; ii)

single complementary base positioned at the end of a non-

complementary (or not-bound) sequence; iii) single com-

plementary base, where the complement is on the same ss-

DNA, at distance 0 or 1; iv) single complementary base

when the opposite neighbors of the pair are bound but not

complementary, i.e., are bound but not to each-other

The default value of the kinetic rate constant K

max

im-

plementing an instantaneous reaction is set to 10

2 MATERIAL AND METHODS

In (Spencer. et al., 2021) we have intro-

duced a computational modeling framework, VDNA-

Lab (Spencer et al., 2021), for DNA multi-strand dy-

namics, paired with an intuitive Graphical User In-

terface (GUI) for non-expert (i.e. non-computational

modeling expert) user interaction. The platform em-

ploys a course-grained modeling approach, where

each DNA nucleotide has its individual model coun-

terpart, while the overall employed modeling method-

ology is that of agent- and rule-based interac-

tions. Particularly, we use the BioNetGen Language

(BNGL) formalism (Harris et al., 2015) in order to

deﬁne our model, and the NFsim computational plat-

form (Sneddon et al., 2011) for numerical integration.

The platform accepts as input either simple se-

quences of ssDNA molecules (as A-T-C-G strings)

and their multiplicity, or more-complex, e.g. partially

bounded multi-ssDNA, structures such as those ob-

tained during previous simulations of the platform.

The system simulates the subsequent binding and dis-

sociation interactions of the input structures based

on 12 binding and un-binding local interaction rules.

Each of these rules has its own, user-adjustable, ki-

netic rate constant and each of them is implemented

through one or several rule-based reactions. The list

of these 12 local-interaction rules is presented in Ta-

ble 1 (Spencer. et al., 2021), together with the default

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

236

(normalized) kinetic rate constants associated to each

of these rules.

In order to track and/or report the global mapping

of the components within a heterogeneous complex,

VDNA-Lab is equipped with a custom visualization

subroutine. The entire conﬁguration of the dynami-

cal system is unloaded at user-deﬁned time-intervals

within the simulation, and it is re-assembled for visu-

alization and further numerical analysis. A represen-

tative 2D graphical presentation of the various assem-

bled complexes is also displayed, in which one can

track the ssDNAs within the complex as well as all

the Watson-Crick (WK) binding interactions between

the various nucleotides.

Being designed on a rule-based modeling method-

ology, and moreover since its numerical integration

is implemented using a network-free approach where

model variables are created on a need-based manner,

VDNA-Lab can deal with the combinatorial explo-

sion of the different sub-assemblies, i.e., species, gen-

erated by an aggregating system such as the ssDNA

self-assembly process. However, as a classical exam-

ple of course-grain modeling methodology, its disad-

vantage lays in the difﬁculty to manage systems with

tens- and hundreds-of-thousands of individual com-

ponents. Since in the case of VDNA-Lab the unit-

elements to be modeled are the individual nucleotides,

such high number of individual units to be modeled

are quickly reached and exceeded.

To mitigate this situation, in the current study

we develop a distributed approach towards modeling

of DNA-assembly dynamics via rule-based modeling

approaches and respectively via BNGL/NFsim.

Distributed computing is one of the stan-

dard algorithmic approaches for reducing computa-

tional/simulation time, allowing in the same time to

increase the simulation scalability (Mazumder et al.,

2017). On a standard distributed processing model,

see Figure 2, one ﬁrst splits the whole process into

several equally weighted modules, and then allocates

a single processing thread to each module to perform

computations independently. We can aggregate the

obtained results either at the ﬁnal step, or during mid-

simulation/intermediary computational steps, see e.g.

Figure 3.

Within a standard parallel processing model, the

individual processing modules are required to be to-

tally independent of each other. However, the stochas-

tic synthetic simulations that we perform are based

on the Continuous-Time Markov Chain (CTMC)

paradigm, which does not always allow for a straight-

forward split of the processes into separate modules.

We remodeled our CTMC based simulation into a dis-

tributed model by using process clusters (aka threads)

1 + 1

2 + 1

3 + 1

4 + 1

5 + 1

6 + 1

7 + 1

8 + 1

Figure 2: Standard parallel processing model.

and process time-splits mechanism. We split the

total simulation time into separate processing time-

intervals and for each of these time-intervals we split

the populations of complexes and the computational

modeling process into N separate (and independent)

threads. Then, for each of the time-interval, at the end

of the parallel simulation processes of all the threads,

we shufﬂe the emerged distributed populations within

one common simulation pool, and continue to repeat

this routine for the next time-interval, until the time-

span of the entire simulation is covered, see Figure 3.

The above process clustering is not the only ad-

justment we have to perform to distribute our com-

putational modeling protocol. Some of the kinetic

rate constants of our reactions, where the modeling

paradigm is given by the Principle of Mass Action Ki-

netics (Voit et al., 2015), have to be modiﬁed too. De-

pending on the number of reactants within a modeled

reaction, we have reaction-rules with one and respec-

tively two reactants. Let us consider ﬁrst the case of

one-reactant reaction rules:

A −→ C + D; (1)

the reasoning is similar if the number of products of

this reaction is different than two. We will denote

with k

and k

the kinetic rate constants of this reac-

tion in the initial vs. the distributed implementation of

this model. Also, let N be the number of distributed

threads in which the process is split; for ease of ap-

proximation, let us assume initially that all N threads

are split with an equal number of all of the species

populations, i.e., it is enough to analyze the popula-

tion changes within one thread, and multiply it with

Considering the initial (non-distributed) model,

the rate ν

of reaction (1) is proportional to the ac-

tive mass of species A, denoted as [A], i.e., ν

[A]. In the distributed model case, for each of the

N threads we have that the rate ν

of this reaction

Distributed Simulations of DNA Multi-strand Dynamics

237

Simulation

pool

cluster 1

cluster 2

cluster 3

cluster 4

cluster 5

cluster 6

cluster 7

cluster 8

Simulation

pool

shuffle

cluster 1

cluster 2

cluster 3

cluster 4

cluster 5

cluster 6

cluster 7

cluster 8

Simulation

pool

result

---->| 5sec |--------------------------------------->| 5sec |---->

Figure 3: Distributed computational model; simulation time is 10 seconds.

is ν

= k

[A]/N, as the active mass of species A is

equally distributed in the N clusters. Since overall we

want the two models to behave in an equivalent man-

ner, we have that k

[A] = N × k

[A]/N, that is, k

= k

So, for reactions with only one reactant, the kinetic

rate constant of the reaction in the distributed model

is equal to the rate constant of the corresponding re-

action in the initial (non-distributed) model.

Let us consider now reactions involving two reac-

tants; as before, the number of products can be either

one or two, without any differences in reasoning:

A + B −→ C + D (2)

The rate ν

of reaction (2) in the initial model is ν

[A][B], while for the distributed case we have ν

· [A]/N · [B]/N. By equalizing the reaction rates in

the two models, i.e., ν

= N × ν

, we obtain that for

this type of reactions, k

= Nk

, i.e., the kinetic rate

constant of reaction (2) has to be updated accordingly

in the distributed model, depending on the number of

threads we decide to split the initial model.

In practice, we can not assume that all species

are equally split in between the N clusters. Let

,...,A

be the populations of reac-

tants within the N threads, where [A

] + [A

] + ... +

] = [A], and [B

] + [B

] + ... + [B

] = [B]. For re-

action (1) we have k

[A] = k

] + ... + k

], so

also in this case we have k

= k

. For reaction (2)

we have k

[A][B] = k

][B

] + ... + k

][B

]. It

is impossible to correctly evaluate a unique value k

(as a function of k

and N) for the equation to be true

for all possible A and B population splits. We can

only say with certainty that k

≥ Nk

. We will ap-

proximate k

= ρNk

, where we have numerically es-

timated ρ as ρ = 1.225 after performing several test

samples with an increment of ρ by 0.025. In order

for this approximation of the distributed model not to

diverge too much from the initial model, even if same-

species populations are proportionally distributed be-

tween the N clusters, we have to simulate each of the

distributed processes for a reasonable short amount of

time before merging all the clusters within one popu-

lation pool, and then re-distributing the population for

the next time-unit simulation, see Figure 3.

In our numerical simulations we have considered

both the possibility of implementing constant time-

splits for the distributed model, e.g. time-splits of 0.1

seconds, as well as variable time-splits, depending on

the size of the populations in the model. In princi-

ple, we have observed that equal time-splits perform

marginally better, and we have generally considered

splitting the simulation time into 100 equally timed

intervals.

Regarding the process of splitting the various pop-

ulations of complexes i.e., ssDNA molecules or com-

plexes of partially bounded ssDNAs, into N balanced

clusters, we have implemented it by trying to balance

the total “weight” of these clusters, where each nu-

cleotide in a complex would add 1 to the weight of

the cluster in which that complex is placed. First, we

place the N largest complexes (taken each complex

individually) each into one of the N clusters. Then,

we pick one complex at random from the remaining

(merged) population of complexes, and we place it

into the cluster with the lowest weight. This process

is repeated as long as there are still complexes in the

(merged) population that have not been assigned into

a cluster.

In our numerical simulations we have run

distributed simulations where the number of

threads/clusters varied between N=2, 4, 6, 8, and 24.

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

238

(a) Complex size = 1.

(b) Complex size = 2.

Figure 4: The Sequential vs 8-Thread Model; Complex sizes 1 to 4.

3 RESULTS

In order to compare our two simulation models, we

employed a two-step comparison method. First, we

ran a relatively smaller test trials to establish a base-

line on the accuracy of multi-threaded model to the

sequential model. Then we scaled up to larger test tri-

als by doubling the capacity of the tests we performed

while also increasing the number of CPU threads to be

utilized for processing. We observed how the single

strands of the simulation pool dissipate in both mod-

els throughout the process time, see Figure 4a. This

gave us an indication that the single strands bind to-

gether and form complexes or join an already formed

complex. Then we compared the number of formed

complexes, broken out by their size category; we

measured the size of a complex by the number of ss-

DNAs it consists of.

Since we are working on a highly stochastic com-

putational model, it is unrealistic to expect the same

type of complex formed in different occasions. How-

ever, in averages of 10 simulations we estimated that

all models should have approximately the same num-

ber of complexes by their sizes both during compar-

ative mid-simulation times, as well as at the end of

the simulation. To demonstrate that we employed the

following steps for all analyzed models:

• We identiﬁed the sizes of all available complexes

formed within the simulation and their count for

all test rounds, i.e. complexes of size 1 (i.e. single

ssDNA molecules), size 2, 3, 4, etc.

• We calculated the average number of complexes

(as well as the standard deviation σ+ and σ−) be-

longing to each category size in each time step.

• We performed a hypothesis test on the number of

complexes, distributed by their sizes, at the end

time of the simulation for the sequential vs the

multi-threaded simulations.

• We setup multi-line charts where X=Time and

Y= the number of complexes of a given size; the

Distributed Simulations of DNA Multi-strand Dynamics

239

Table 2: T-Test results. Columns represents the size of the complex. Tick, cross and hyphen shows whether the differences

are statistically insigniﬁcant, signiﬁcant and not available respectively.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

2-Threads vs Sequential X X X X X X X X X X X - X X X - - X X - - - X

4-Threads vs Sequential X X X X X X X X X X X - X X X - - X - - X - -

6-Threads vs Sequential X X X X X X X X X X X X X X X - - X - - - X X

8-Threads vs Sequential X X X X X X X X X X X - X X X - - - - - - - -

100

200

300

400

500

600

700

800

single-thread 2-threads 4-threads 6-threads 8-threads

RUNTIME

IN MINUTES

Figure 5: Runtime comparison of the simulation models from single threaded sequential model to 8-threads model by subse-

quent increases of two threads.

lines and their shaded area illustrate the margins

between σ+ and σ− of the simulation results.

• For each complex size, we made a compara-

tive analysis between the multi-line charts of the

single- and multi-threaded models.

Our null hypothesis is given by the assumption that at

the end of the simulated time, the sum of all com-

plexes of a given size N is equal in the sequential

model vs any of the multi-thread models. By com-

paring the complex sizes by the t-test using α = 0.01,

we were able to conclude that the differences between

any of the compared two models, i.e., sequential vs 2-

threaded model, vs 4-threaded model, vs 6-threaded

model, and vs 8-threaded model, respectively, are due

to a random chance. Our t-test results showed that

there were no statistically signiﬁcant differences be-

tween the sequential vs any of the multi-(i.e., 2-, 4-,

6-, and 8-) threaded models on all cases and size cate-

gories, see Table 2. In Figure 4 we also illustrated the

similarities between the sequential and the 8-threaded

model during mid-simulation from 0 to 10 sec. This

further strengthens our assumption that the sequential

vs multi-thread models are evolving in a similar man-

ner, up to some reasonable level of stochasticity.

The main goal of this study was to build an efﬁ-

cient distributed processing system to reduce the sim-

ulation runtime, while preserving the accuracy of the

initial (i.e., sequential) model. Our distributed models

showed a signiﬁcant reduction in runtime in compar-

ison to the sequential model. In Figure 5 we identify

not only an improved time efﬁciency for the multi-

thread models, but also further scalability of the pro-

cess by utilizing more CPU threads for larger test

cases.

However, we also noticed a limitation associated

with this method. The more processing threads we

add, the more pre-processing the program has to per-

form in order to prepare the simulation loads for each

processing thread. Also, each thread has to initialize

its relevant simulation variables at the beginning of a

simulation round, thus consuming a lot of computa-

tional power. Thus, we estimate that from some level

on, adding more threads to a computational process

will stop generating a signiﬁcant speedup, or even

would slow-down the overall simulation time.

After assessing the accuracy of the distributed

model by comparing it to its sequential counterpart,

we also investigated the level of scaling this approach

can lead to by exposing it to more complex simula-

tions. In our scalability test we ﬁrst doubled the in-

puts of the same simulation such that the amount of

ssDNAs copies was set to 100 and simulation time to

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

240

(a) Complex size = 1. (b) Complex size = 2.

Figure 6: 8-Threads vs 24-Threads; Complex sizes 1 to 4.

1000

2000

3000

4000

5000

6000

7000

8-threads 24-threads

RUNTIME IN MINUTES

Figure 7: Runtime comparison of the large scale simulation model run by 8-threads vs 24-threads.

20 seconds. Then, we run our simulation using an

8- and a 24-thread model, respectively. In Figure 6

and Figure 7 we reported on the performance of the

two models by examining the number of complexes of

Distributed Simulations of DNA Multi-strand Dynamics

241

each size category that was produced throughout the

process, as well as the total running time of the two

simulations. The comparison demonstrated that both

models produced very close results, while the runtime

of the 24-threaded model was signiﬁcantly reduced.

The python script of our automated model trans-

lation from sequential to multi-threaded implementa-

tion is freely available at (Spencer et al., 2022).

4 CONCLUSIONS

In (Spencer. et al., 2021) we have intro-

duced a computational modeling framework, VDNA-

Lab (Spencer et al., 2021), for DNA multi-strand dy-

namics. The platform employs a course-grained mod-

eling approach and is implemented using the agent-

and rule-based modeling methodology. While one of

the main advantages of this methodology is the abil-

ity to deal with arbitrary large numbers of different

(macro-)complexes, one of its main drawbacks con-

cerns the scalability of the model. Since each agent,

i.e., in the case of our DNA model each nucleotide,

is individually represented and modeled in the sys-

tem, the framework becomes slow when dealing with

tens- and hundreds of thousands of individual com-

ponents. In order to address this issue in this research

we have introduced a distributed implementation of

the VDNA-Lab framework, which is able to speed up

the computational modeling process even by a one-

fold increase.

The distribution of the modeling environment did

not come as an off-the-shelf implementation. The ki-

netic rate constants of bi-reactant rules had to be ad-

justed, and the distribution process had to be split

up in shorter simulation rounds in order to com-

pensate for going from a one-pot (well-mixed) as-

sembly to a distributed compartmentalized simula-

tion process. Moreover, each simulation round had

to be preceded by a process of distributing the one-

pot species content into balanced-weighted compo-

nents, and succeeded by merging back the results of

the simulation round. Since neither BNGL nor NF-

sim had pre-developed procedures for generating a

sound split/merger of two (or more) simulation out-

puts, i.e., identifying similar macro-components in

two (or more) output ﬁles, such procedures had to be

implemented de novo.

The current implementation of the computational

distribution process of a rule-based model for DNA

multi-strand dynamics takes some advantages from

the particularities of the considered model. However,

it would be extremely useful for the rule-based re-

search community in large if this process could be

generalized for arbitrary rule-based model implemen-

tations. This remains as a relevant open problem for

further consideration.

ACKNOWLEDGEMENTS

This work was partially supported by Academy of

Finland under the grant 311371.

REFERENCES

arioarei, A., Spencer, F., Barad, G., Gheorghe, A.-M.,

It¸cus¸, C., Tus¸a, I., Prelipcean, A.-M., P

aun, A., P

aun,

M., Rodriguez-Paton, A., Trandaﬁr, R., and Czeizler,

E. (2021). Dna-guided assembly for ﬁbril proteins.

Mathematics, 9(4).

Gautam., V., Long., S., and Orponen., P. (2020). Ruledsd:

A rule-based modelling and simulation tool for dna

strand displacement systems. In Proceedings of the

13th International Joint Conference on Biomedical

Engineering Systems and Technologies - Volume 3:

BIOINFORMATICS,, pages 158–167.

Harris, L. A., Hogg, J. S., Tapia, J.-J., Sekar, J. A. P., Gupta,

S. A., Korsunsky, I., Arora, A., Barua, D., Sheehan,

R. P., and Faeder, J. R. (2015). BioNetGen 2.2: Ad-

vances in Rule-Based Modeling. arXiv e-prints, page

arXiv:1507.03572.

Lakin, M. R. and et al. (2011). Visual dsd: a design

and analysis tool for dna strand displacement systems.

Bioinformatics, 27:3211–3213.

Mazumder, S., Bhadoria, R., and Deka, G. (2017). Dis-

tributed Computing in Big Data Analytics: Concepts,

Technologies and Applications.

Mohammed, A., Czeizler, E., and Czeizler, E. (2017).

Computational modelling of the kinetic tile assembly

model using a rule-based approach. Theoretical Com-

puter Science, 701:203 – 215. At the intersection of

computer science with biology, chemistry and physics

- In Memory of Solomon Marcus.

Poppleton, E. and et al. (2020). Design, optimization and

analysis of large DNA and RNA nanostruc through in-

teractive visualization, editing and molecular simula-

tion. Nucleic Acids Research, 48(12):e72–e72.

Sneddon, M., Faeder, J., and Emonet, T. (2011). Efﬁcient

modeling, simulation and coarse-graining of biologi-

cal complexity with nfsim. Nat Methods, 8(2):177–

183.

Sorokin, A., Heil, K., Armstrong, J., and Sorokina, O.

(2018). Rule-based modelling provides an extendable

framework for comparing candidate mechanisms un-

derpinning clathrin polymerisation. Scientiﬁc Reports,

Spencer, F., Sanwal, U., and Czeizler, E. (2021). VDNA-

Lab. Available at https://github.com/Frankie-Spencer/

virtual dna lab, version 1.0.

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

242

Spencer., F., Sanwal., U., and Czeizler., E. (2021). Vdna-

lab: A computational simulation platform for dna

multi-strand dynamics. In Proceedings of the 11th In-

ternational Conference on Simulation and Modeling

Methodologies, Technologies and Applications - SI-

MULTECH,, pages 288–294. INSTICC, SciTePress.

Spencer, F., Sanwal, U., and Czeizler, E. (2022).

An automated procedure for multi-threaded

transformation of rule-based models for DNA

multi-strand dynamics simulations. Avail-

able at https://github.com/Frankie-Spencer/

Distributed DNA Multi-strand Simulator, version

1.0.

Thomas, M. and Schwartz, R. (2017). Quantitative compu-

tational models of molecular self-assembly in systems

biology. Physical Biology, 14(3):035003.

Voit, E. O., Martens, H. A., and Omholt, S. W. (2015). 150

years of the mass action law. PLOS Computational

Biology, 11(1):1–7.

Distributed Simulations of DNA Multi-strand Dynamics

243
