A Real-time Method for CAN Bus Intrusion Detection by Means of

Supervised Machine Learning

Francesco Mercaldo

1,2 a

, Rosangela Casolare

, Giovanni Ciaramella

Giacomo Iadarola

, Fabio Martinelli

, Francesco Ranieri

and Antonella Santone

University of Molise, Campobasso, Italy

Institute for Informatics and Telematics, National Research Council of Italy (CNR), Pisa, Italy

{francesco.mercaldo, fabio.martinelli}@iit.cnr.it, {g.ciaramella1, f.ranieri1}@studenti.unimol.it

Keywords:

Automotive, CAN, Machine Learning, Classiﬁcation, Security.

Abstract:

Nowadays vehicles are not composed only of mechanical parts, exits a plethora of electronics components in

our cars, able to exchange information. The protection devices such as the airbags are activated electronically.

This happens because the braking or acceleration signal from the pedal to the actuator arrives through a packet.

The latter is an electronic and not a mechanical signal. For packets transmission a bus, i.e., the Controller Area

Network, was designed and implemented in vehicles. This bus was not designed to receive access from the

outside world, which happened when info-entertainment systems were introduced, opening up the possibility

of accessing bus information from devices external to the vehicle. To avoid the possibility of those attacks,

in this research article, we propose a method aimed to detect intrusions targeting the CAN bus. In particular,

we analyze packets transiting through the CAN bus, and we build a set of models by exploiting supervised

machine learning. We experiment with the proposed method on three different attacks (i.e., speedometer

attack, arrows attack, and doors attack), obtaining interesting performances.

1 INTRODUCTION

Currently, cars are no longer just mechanical vehi-

cles: they contain a plethora of electronic collabo-

rating components connected to the network, that al-

lows monitoring and controlling of the status of the

vehicle. Each electronic component can continuously

communicate with other nearby components, produc-

ing a continuous ﬂow of data in real-time for instance,

to monitor the state of several components, the state

of the vehicle in general, and in particular, is used to

increase road safety (Martinelli et al., 2017).

CAN is short for Controller Area Network: it is

an electronic communication bus deﬁned by the ISO

11898 standards designed to permit the packet ex-

change between vehicle electronic components: each

CAN message contains the priority and the content

of the transmitted data. Moreover, this standard de-

ﬁnes how communication happens, how the wiring is

conﬁgured, and how messages are constructed. Col-

lectively, this system is referred to as a CAN bus.

The introduction of electronic devices into vehi-

https://orcid.org/0000-0002-9425-1657

cles turned cars into cyber-attack targets and allowed

a plethora of new kinds of cyber-attacks, increasingly

complex and arduous to mitigate. Most of them have

the purpose of altering the normal functioning of the

car itself, and it represents a fatality for anyone on

board the vehicle or near it.

Attacks targeting the latest generation cars are in-

creasingly frequent and dangerous. An attacker in the

automotive context has a wide choice of attack sur-

faces (Keuper and Alkemade, 2018). Some cyber-

attacks have to be launched in the proximity of the

car, while other attacks can be carried out from any-

where in the world through wireless connections that

the cars have on board.

For this reason, we propose a method for intrusion

detection of malicious packets targeting the CAN bus.

The method can identify an attack in progress in real-

time. This technique uses supervised machine learn-

ing to distinguish between three different forms of at-

tacks (speedometer attack, arrows attack, and doors

attack), obtaining interesting performances.

The paper has been organized as follows: in Sec-

tion 2 we report current state-of-art literature in au-

tomotive cybersecurity in the automotive context; in

534

Mercaldo, F., Casolare, R., Ciaramella, G., Iadarola, G., Martinelli, F., Ranieri, F. and Santone, A.

A Real-time Method for CAN Bus Intrusion Detection by Means of Supervised Machine Learning.

DOI: 10.5220/0011267500003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 534-539

ISBN: 978-989-758-590-6; ISSN: 2184-7711

Section 3 we provide background notions about the

CAN bus; in Section 4 the proposed intrusion detec-

tion method is presented; in Section 5 we show the

experimental analysis results; in the last section con-

clusion and future research directions are drawn.

2 RELATED WORK

Road safety is an ever-present topic, researchers are

constantly working to improve and increase controls

on the trafﬁc of information exchanged by the elec-

tronic components that make up the computer systems

of modern cars. Several works in the literature focus

on this very important issue.

In (Amato et al., 2021) authors propose a method

that uses deep learning techniques to detect attacks

targeting the CAN-bus. This method is based on the

use of Neural Networks and MultiLayer Perceptrons,

and for the analysis is considered a real-world dataset

that has the injection of messages belonging to differ-

ent types of attacks, such as denial of service, attacks

against particular components and other. Differently,

the proposed method is evaluated on three different

kinds of attacks i.e., speedometer, doors, and arrows.

In (Checkoway et al., 2011), authors sought to an-

swer the question ”whether automobiles can also be

susceptible to remote compromise”, and to do so they

analyzed the outer attack surface of a modern auto-

mobile. They found that remote exploitation is possi-

ble through a wide range of attack vectors (i.e., me-

chanical tools, CD players, Bluetooth, and cellular ra-

dios) highlighting that wireless communication chan-

nels allow for long-distance vehicle control, allowing

for detecting the position of the vehicle and also to

carry out a theft. In this paper, the authors propose

a mitigation strategy for each aforementioned attack,

which is different from the attacks considered by us

(i.e., speedometer attack, arrow attack, and doors at-

tack).

By exploiting vulnerabilities in the external inter-

faces of the car, such as Wi-Fi, Bluetooth and physical

connections, it is possible to access the CAN bus of

the automobile and send commands to control the car.

To mitigate this threat, it is necessary to detect ma-

licious behavior on the CAN bus and in this regard,

Taylor et. colleagues (Taylor et al., 2016) propose an

anomaly detector based on a long-term memory neu-

ral network; we have also used the neural network, but

we have not limited ourselves only to the use of this

technique. The operation of the detector is based on

learning to predict the next words of data sent by the

various senders on the bus. The unexpected bits con-

tained in the next word are ﬂagged as anomalous. In

this regard, the authors evaluate the detector by syn-

thesizing anomalies (which are designed to mimic at-

tacks reported in literature) using modiﬁed CAN bus

data.

The latter work is always focused on intrusion

detection, but it is a little different from the afore-

mentioned, and in particular from our method, as it

is based on a sort of physical intrusion: car theft.

Here (Kwak et al., 2016) the authors have thought

of detecting car thefts through the behavior of users

while driving the vehicle, then analyzing and recog-

nizing their driving style through some measurements

of speciﬁc values, carried out with the vehicle sen-

sors. Speciﬁcally, to detect theft, they worked on a

method to which they add mechanical characteristics

of automotive parts usually excluded in other works

in the literature, which can be useful for identifying

the driving behavior of drivers, thanks to the variation

they undergo depending on different driving styles.

This work involves the analysis of CAN packets and

demonstrates that the model adopted is reliable and

discriminates between car owners and impostors.

3 BACKGROUND

In this section preliminary notions about CAN bus

and the attacks targeting this protocol are provided.

3.1 CAN Bus

CAN bus is a protocol based on packets exchanged

between the electronic components of cars. It works

in multimaster - multislave mode, i.e., the units con-

nected to the bus (called nodes) work either as a mas-

ter, sending and receiving information, or as a slave,

receiving only information and providing it on re-

quest. The CAN-bus communication takes place via

sensors or actuators capable of producing data inde-

pendently and then putting them on the BUS i.e., by

generating CAN packets.

The CAN packets are contained in a message and

each message is composed of the following values:

• Timestamp: recorded time (s);

• CAN ID: identiﬁer of CAN message in HEX (i.e.,

03B1);

• DLC: number of data bytes, from 0 to 8;

• DATA[0 7]: data value (byte);

To generate CAN packets, in this paper we resort

to the ICSim simulator

, a tool for learning the main

https://github.com/zombieCraig/ICSim

A Real-time Method for CAN Bus Intrusion Detection by Means of Supervised Machine Learning

535

functions of the CAN bus and simulating CAN traf-

ﬁc. To allow a correct simulation of the activities of

the CAN bus, the CAN-utils

package was installed:

this package enables ICSim to imitate the communi-

cations between the CAN network and the vehicle.

CAN-utils provide ﬁve sub-modules as explained be-

low:

• cangen: it is able to generate CAN frames for test-

ing purposes. To take advantage of its functions,

it is necessary to specify the interface in which the

CAN frame is to be generated (in this case, the in-

terface is vcan0) and then execute the command;

• candump: aimed to store CAN frames, which in

turn are saved in a folder chosen by the user. In

addition to the store, candump also has the CAN

packet recording function;

• canplayer: it provides the user with the right to re-

produce CAN frames. Since it is a utility unable to

generate data but only reproduce it, its functions

are closely related to the candump utility;

• cansniffer: it is a utility used to observe changes

in real-time during CAN frame trafﬁc

• cansend: it is used to send CAN frames to a spe-

ciﬁc interface.

3.2 The Attacks

In this paper, we experiment with three types of at-

tacks targeting the CAN network. The attacks sim-

ulation is shown in Figure 1, where it is possible to

see the simulation of one of the attacks under analysis

(i.e., the speedometer attack) carried out thanks to IC

Simulator.

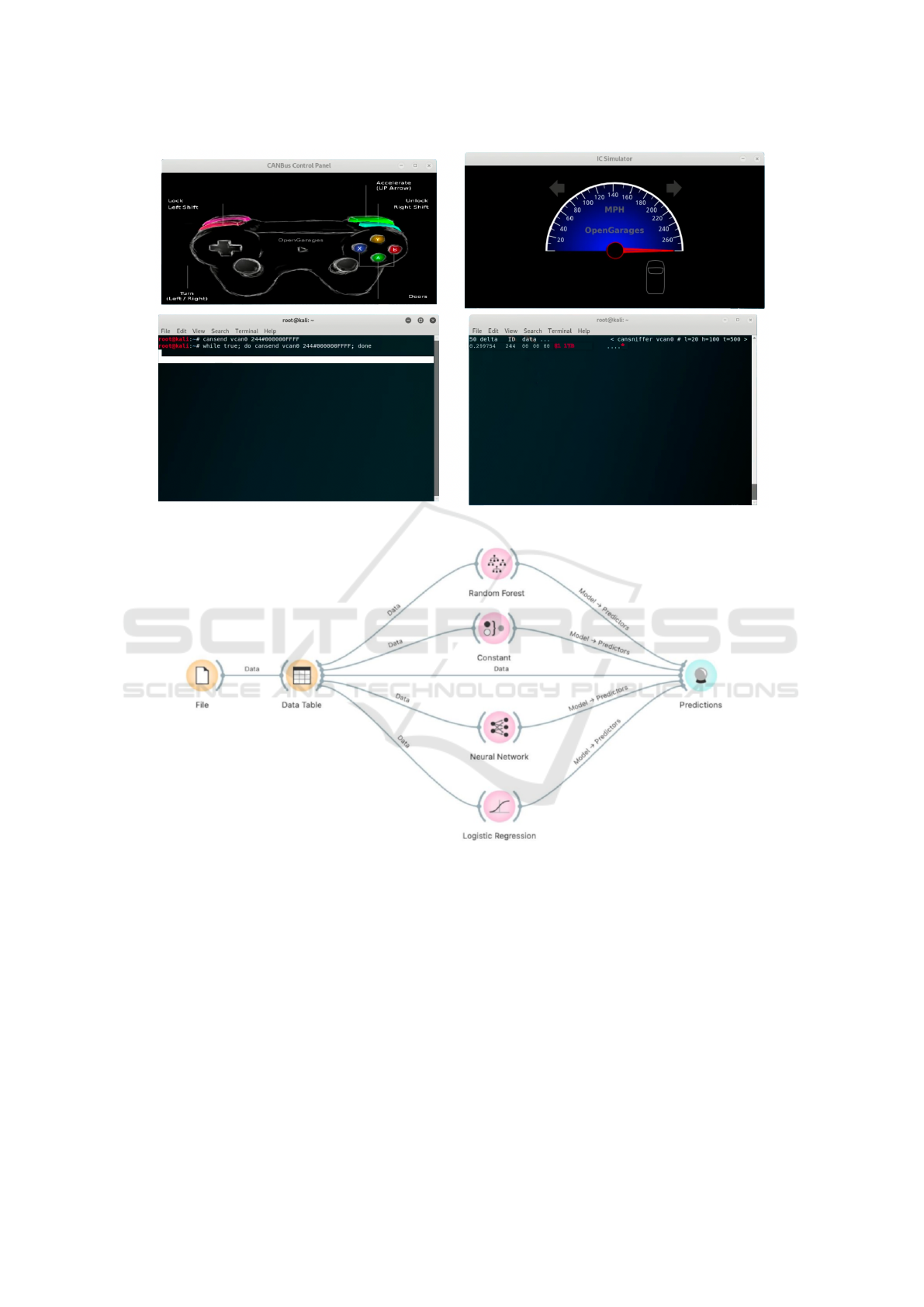

To simulate the attacks, after having correctly in-

stalled and set up the ICSim software, it is possible

to generate and read the CAN data trafﬁc through the

use of different windows, as shown in Figure 1; to ac-

tivate the simulated dashboard, it is necessary to start

the CANBus Control Panel (i.e., the window at the

top left in Figure 1), which is the interface that allows

control of the simulator and performs the attacks. The

second window on the top right is the one relating to

IC Simulator which simulates part of the dashboard

of a common car we can observe the presence of the

speedometer and directional arrows. At the bottom

left there is the Terminal window that allows control-

ling the joystick in the Control Panel, while on the

right there is the window that reports CAN trafﬁc in

real-time, showing all its changes.

The considered attacks are described below.

https://github.com/linux-can/can-utils

Speedometer Attack: during the simulation phase,

we identiﬁed the packet containing the information

relating to the speedometer in the CAN trafﬁc, with

the help of the cansniffer utility: this packet, which

is identiﬁed with the ID 244, allows an attacker to al-

ter the normal operation of the speedometer, by mov-

ing the needle indicating the speed, to a level set by

the attacker. This type of attack can be implemented

through the use of the command:

cansend vcan0 244 \# 000000FFFF

The packet containing the attack is sent thanks to

the cansend utility, which is followed by the name of

the virtual interface, the packet ID, and ﬁnally a se-

ries of data that allow the attacker to set the speed (for

example, if at the end of the code the attacker writes

50FF, the needle reaches the middle of the speedome-

ter). To repeatedly send this defective packet, making

the attack permanent all the time, we use the com-

mand:

While true;

do cansend vcan0 244 \# 000000FFFF;

done

Arrows Attack: this attack involves tampering with

the packet containing the data relating to the operation

of the position lights. In this case, a possible attacker

violates CAN trafﬁc frame 188 by making the arrows

of a car continuously lit or not, checking the intermit-

tence and duration. In the simulated environment, this

type of attack is implemented with the command:

cansend vcan0 188 \# 01

The position of the arrows can be checked by al-

ternating the values 01 (left), 02 (right), and 03 (both

on) respectively. The following command is used to

carry out the attack:

While true;

do cansend vcan0 188 \# 01;

done

Doors Attack: the latest simulated attack tampered

with the doors of a car, controlling opening and clos-

ing and thus making them completely unusable. The

packet containing the data relating to the operation is

designated with the ID 19B and in the simulation, this

type of attack was implemented with the command:

cansend vcan0 19B \# 00000F

Similarly to the previous cases, the connection al-

lows to tamper with some or all the doors modify-

ing the last character of the code with the values: F -

doors closed; A - left side doors open; 5 - right side

doors open; C - front doors open; 3 - rear doors open.

By typing the characters E, B, D, and S it is possible

to check the status of every single door.

To make the attack we have to use the following

command:

While true;

SECRYPT 2022 - 19th International Conference on Security and Cryptography

536

do cansend vcan0 19B \# 00000F;

done

4 A METHOD FOR CAN BUS

INTRUSION DETECTION

In this section, we describe the proposed method for

the detection of intrusion targeting the CAN bus.

Figure 2 shows the workﬂow relating to the pro-

posed method. As can be seen in the ﬁrst step de-

picted in Figure 2, we start from a dataset composed

of (legitimate and malicious CAN packets) stored in

csv ﬁles.

In order to discriminate packets injected by an at-

tacker from the normal ones, we consider these bytes

as the feature vector composed in the following way:

• 1st byte: F1 feature;

• 2nd byte: F2 feature;

• 3rd byte: F3 feature;

• 4th byte: F4 feature;

• 5th byte: F5 feature;

• 6th byte: F6 feature;

• 7th byte: F7 feature;

• 8th byte: F8 feature.

We resort to supervised machine learning 2, in

particular to enforce the conclusion validity four dif-

ferent algorithms are exploited: Random Forest, Con-

stant, Neural Network and Logistic Regression.

The classiﬁcation analysis consists of building

classiﬁers to evaluate the feature vector accuracy to

distinguish between injected and normal messages.

For classiﬁer training, we deﬁned T as a set of la-

beled messages (M, l), where each M is associated to

a label l ∈ {IM, NM}. For each M we built a feature

vector F ∈ R

, where y is the number of the features

used in training phase (y = 8).

For the learning phase, we use a k-fold cross-

validation: the dataset is randomly partitioned into

k subsets. A single subset is retained as the valida-

tion dataset for testing the model, while the remaining

k − 1 subsets of the original dataset are used as train-

ing data. We repeated the process for k = 5 times;

each one of the k subsets has been used once as the

validation dataset. To obtain a single estimate, we

computed the average of the k results from the folds.

We evaluated the effectiveness of the classiﬁcation

method with the following procedure:

1. build a training set T⊂D;

2. build a testing set T

′

= D÷T;

3. run the training phase on T;

4. apply the learned classiﬁer to each element of T’.

Each classiﬁcation was performed using 80% of

the dataset as a training dataset and 20% as a testing

dataset employing the full feature set.

5 EVALUATION

For dataset generation we resort to a simulated en-

vironment i.e., we installed on a Linux virtual ma-

chine the ICSim tool, a trafﬁc simulator, and, start-

ing from it, we generated (malicious and legitimate)

CAN packets. The generated packets were stored by

exploiting the Candump CAN utility.

For each attack, we considered ﬁve minutes of

CAN trafﬁc.

To build and evaluate the considered supervised

machine learning models, we resort to the Orange

tool-suite, an open-source data mining software. Or-

ange allows performing data analysis by building a

visual scheme of them. It also allows an interactive

data exploration for a quick qualitative analysis.

The effectiveness of the four different algorithms

for intrusion detection is evaluated through four dis-

tinct metrics: Accuracy, Precision, Recall, and F-

Measure.

Table 1 shows the results obtained from the exper-

imental analysis.

By analyzing the results reported in Table 1, we

observe that among all the models, the Constant is

the model that gives lower values if compared to the

others.

The best performances are given by the remain-

ing algorithms (i.e., Random Forest, Neural Network,

and Logistic Regression), which reach a value of 1,

indicating that for each prediction made, it is possible

to recognize and distinguish every malicious packet

present in the registered CAN trafﬁc. Only for the

Logistic Regression algorithm applied to the Doors

attack, the values obtained for each metric are equal

to 0.99, still representing a satisfying result.

As for the analysis carried out on all the attacks,

we have the values relating to Random Forest, Neural

Network, and Logistic Regression equal to 1; In the

Constant model, values are all greater than 0.9, except

for the Precision which is equal to 0.89. In general,

we can say that the performances obtained are very

satisfactory.

https://orangedatamining.com/

A Real-time Method for CAN Bus Intrusion Detection by Means of Supervised Machine Learning

537

Figure 1: The simulation environment: the speedometer attack trafﬁc is generated in the command prompt window.

Figure 2: Workﬂow of the proposed method for intrusion detection.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we propose a method aimed to discrim-

inate between malicious and legitimate CAN packets

with supervised machine learning. As evidenced by

the experimental analysis results, the approach sug-

gested in this paper achieved good results.

For future works, as a ﬁrst aim, we would like to

introduce new types of attack, for example, we could

conduct detailed experimentation on the replay attack.

This attack permits the attacker to record CAN trafﬁc

related to the driver’s actions and make the vehicle

reproduce the same actions. Furthermore, the replay

attack turns out to be very difﬁcult to identify, as it is

based on sequences of legitimate CAN packets repro-

duced from a previous transmission.

ACKNOWLEDGEMENTS

This work has been partially supported by MIUR -

SecureOpenNets, EU SPARTA, CyberSANE and E-

CORRIDOR projects.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

538

Table 1: Classiﬁcation result.

Model applied to Speedometer attack Accuracy Precision Recall F-Measure

Random Forest 1.00 1.00 1.00 1.00

Constant 0.96 0.93 0.96 0.95

Neural Network 1.00 1.00 1.00 1.00

Logistic Regression 1.00 1.00 1.00 1.00

Model applied to Doors attack Accuracy Precision Recall F-Measure

Random Forest 1.00 1.00 1.00 1.00

Constant 0.99 0.98 0.99 0.99

Neural Network 1.00 1.00 1.00 1.00

Logistic Regression 0.99 0.99 0.99 0.99

Model applied to Arrows attack Accuracy Precision Recall F-Measure

Random Forest 1.00 1.00 1.00 1.00

Constant 0.98 0.97 0.98 0.98

Neural Network 1.00 1.00 1.00 1.00

Logistic Regression 1.00 1.00 1.00 1.00

Model applied to all attacks Accuracy Precision Recall F-Measure

Random Forest 1.00 1.00 1.00 1.00

Constant 0.94 0.89 0.94 0.91

Neural Network 1.00 1.00 1.00 1.00

Logistic Regression 1.00 1.00 1.00 1.00

REFERENCES

Amato, F., Coppolino, L., Mercaldo, F., Moscato, F., Nar-

done, R., and Santone, A. (2021). Can-bus attack de-

tection with deep learning. IEEE Transactions on In-

telligent Transportation Systems.

Checkoway, S., McCoy, D., Kantor, B., Anderson, D.,

Shacham, H., Savage, S., Koscher, K., Czeskis, A.,

Roesner, F., and Kohno, T. (2011). Comprehensive

experimental analyses of automotive attack surfaces.

In 20th USENIX Security Symposium (USENIX Secu-

rity 11).

Keuper, D. and Alkemade, T. (2018). ‘the connected car

ways to get unauthorized access and potential implica-

tions. Computest, Zoetermeer, The Netherlands, Tech.

Rep.

Kwak, B. I., Woo, J., and Kim, H. K. (2016). Know your

master: Driver proﬁling-based anti-theft method. In

2016 14th Annual Conference on Privacy, Security

and Trust (PST), pages 211–218. IEEE.

Martinelli, F., Mercaldo, F., Nardone, V., and Santone, A.

(2017). Car hacking identiﬁcation through fuzzy logic

algorithms. In 2017 IEEE international conference on

fuzzy systems (FUZZ-IEEE), pages 1–7. IEEE.

Taylor, A., Leblanc, S., and Japkowicz, N. (2016). Anomaly

detection in automobile control network data with

long short-term memory networks. In 2016 IEEE

International Conference on Data Science and Ad-

vanced Analytics (DSAA), pages 130–139. IEEE.

A Real-time Method for CAN Bus Intrusion Detection by Means of Supervised Machine Learning

539
