Discovering How to Attack a System

Fabrizio Baiardi

, Daria Maggi

2,3,∗

and Mauro Passacantando

1 a

Dipartimento di Informatica, Universita di Pisa, Largo B. Pontecorvo 3, Pisa, Italy

Dipartimento di Ingegneria Informatica, Universita of Pisa, Pisa, Italy

Cisco Systems Portugal, Portugal

Keywords:

Genetic Algorithm, Rule based System, Attack Strategy, Digital Twin.

Abstract:

We evaluate the performance of a genetic algorithm to discover the best set of rules to implement an intrusion

against an ICT network. The rules determine how the attacker selects and sequentializes its actions to imple-

ment an intrusion. The ﬁtness of a set of rules is assigned after exploiting it in an intrusion. The evaluation of

the distinct sets of rules in the populations the algorithm considers requires multiple intrusions. To avoid the

resulting noise on the ICT network, the intrusions target a digital twin of the network. We present a prelimi-

nary experimental results that supports the feasibility of the proposed solution.

1 INTRODUCTION

This paper discusses the adoption of a genetic algo-

rithm, GA, to discover a set of rules that implements

the best attack strategy against an ICT network. Each

rule implements an attacker action; the GA returns

the best ones to implement an intrusion and control

some network modules. To evaluate each rule set, we

use it to drive an intrusion and the ﬁtness of a set de-

creases with the time to reach the goal. Intrusions tar-

get a digital twin of the network, i.e. a labeled graph.

The ﬁrst experimental results conﬁrm that a GA can

discover the best strategy. This work is organized as

follows. Sect.2 brieﬂy discusses the emulation of an

intelligent adversary. Sect.3 describes the kernel ideas

of the proposed solution and the modeling of both the

attacker and target network. It also introduces the GA

design and how it generates and reﬁne the set of rules.

Sect.4 presents the rule-based system and details the

prototype implementation. The last section presents

ﬁrst experimental results.

2 STATE OF THE ART

We discuss strategies for adversary emulation and de-

note by intrusion the sequence of attacker actions to

control some network modules.

https://orcid.org/0000-0003-2098-8362

∗

Consulting Engineer

2.1 Adversary Emulation

Attackers are intelligent and alternate attacks and col-

lection of information on the vulnerabilities of net-

work modules to discover the shortest sequence of

actions to reach a goal, the control of some module.

The knowledge of the attacker strategy to select ac-

tions is fundamental to detecting and stopping intru-

sions. This requires accurate information on both the

selection and the actions.

A penetration test is an emulation exercise where

a red team implements an intrusion. Proper counter-

measures are adopted if the team is successful. The

team lacks information on the module vulnerabili-

ties to mimic that an attacker collects it as the intru-

sion goes on. The accuracy of this test is low be-

cause, due to the network size, the time to consider

all the vulnerabilities might as well encompass the

exercise time frame. Hence, the red team cannot dis-

cover all the intrusions. Furthermore, real attackers

may apply strategies that differ from those of the red

team because, while they are interested in the quick-

est intrusion they also prefer to use the same exploits

against distinct targets (Allodi et al., 2021). Lastly,

information collection is as important as attack exe-

cution (Applebaum et al., 2017). Hence, the same red

team should attack a network at most twice: to dis-

cover critical vulnerabilities and then to verify they

have been removed. Further exercises to discover

other intrusions require a new team, because the pre-

vious ones have already collected information on the

548

Baiardi, F., Maggi, D. and Passacantando, M.

Discovering How to Attack a System.

DOI: 10.5220/0011270000003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 548-553

ISBN: 978-989-758-590-6; ISSN: 2184-7711

modules and their vulnerabilities. Tools to automate

the intrusion and emulate the attackers can solve the

shortcomings of human teams and time constraints

but multiple tests results in a large noise in a network.

To avoid the noise, we introduce a digital twin, i.e.,

a digital version of the network (Baiardi and Tonelli,

2022). A twin abstracts most of the target details but

it represents system assets, i.e. nodes with their mod-

ules, vulnerabilities and connections. Furthermore, it

describes the attacks these vulnerabilities enable in

terms of preexploitation and postexploitation states,

as in (Inokuchi et al., 2019). When using a twin, in-

trusions are automated through a software platform

that emulates the red team actions. Distinct emula-

tions return information on the effectiveness of dis-

tinct strategies.

2.2 Neural Networks

The abstraction capabilities (LeCun et al., 2015) of

deep learning favor its adoption in several domains.

However, deep learning - and in general, machine

learning - is yet to gain momentum in offensive se-

curity. (Aiyanyo et al., 2020) reviews its performance

but there are some reasons why deep learning could

not be the best solution in this ﬁeld (Marcus, 2018):

1. an intrusion is a hierarchical composition of ac-

tivities, and the current performance of neural

networks is not satisfactory for similar prob-

lems (Lake and Baroni, 2018);

2. while an attacker collects information during the

intrusion, deep learning requires structured infor-

mation on the target;

3. emulation is much more a common sense problem

than a classiﬁcation one.

Hence, we have investigated a GA as an alternative.

3 The Proposed Solution

This section outlines the proposed solution and dis-

cusses how a twin models the target network, the at-

tacker, and their interactions. Then, it outlines the def-

inition of the GA.

3.1 The Network and Its Twin

A target network is deﬁned by its modules, hardware

and software ones, their connections and their vulner-

abilities. An attacker exploits these vulnerabilities to

acquire access rights on some modules and take ac-

tion on other ones.

A twin represents a network as a labeled graph

where each node n(m) represents a module m and is

labeled by the vulnerabilities of m. An edge from

n(m1) to n(m2) denotes that an attacker can exploit

from m1 a vulnerability in m2 and gain access rights

on the latter. Each edge is labeled by an attack and by

attributes that quantify the attack complexity, its exe-

cution time, success probability, and the largest num-

ber of repetitions. Since a module m1 can take an

action on module m2 if it can interact with m2, the

edges also take into account the network topology.

3.2 Attackers

We describe how attackers behave and how the GA

models them and evaluates their ﬁtness.

3.2.1 Modelling Attacker

In an intrusion, an attacker chains actions and attacks

to gain some rights on modules and reach its ﬁnal

goal, the control of some modules. Before attacking

a module, an attacker scans it to discover the module

vulnerabilities. Thus, at each step of an intrusion, the

attacker decides whether to attack a module it has al-

ready scanned, or to look for a new potential target

among the modules it can reach from those it has al-

ready attacked. Attacking is usually preferred in the

earlier steps of an intrusion, to increase the number of

sources of a scan. Moreover, by acquiring informa-

tion on promising nodes, an attacker can avoid wast-

ing time and attempts.

We describe an attacker as a rule-based system

where a rule consists of a premise and a conclusion,

according to modus ponens. Each rule models one at-

tacker action and the ﬁring of a rule corresponds to

the action execution. The whole set of rules codi-

ﬁes the attacker strategy. A rule may include distinct

premises, each a condition on some fact in a domain.

In our domain, facts convey information on the sys-

tem assets and the current attack status or on the nodes

the action can target. As an example, a precondition

may check if the attacker has previously scanned a

module or if the module is affected by a vulnerabil-

ity. A rule is activated if all its premises are satis-

ﬁed. The rule conclusion consists of a set of post-

conditions. The intended meaning is that when a rule

ﬁres the corresponding action is executed and, if suc-

cessful, it affects the environment and/or the attacker

so that each rule postconditions becomes true. As an

example, a postcondition may change the state of a

module to scanned or add a new module to those an

attacker can target or control. Distinct rules are ac-

tivated anytime the attacker can execute distinct ac-

tions. To solve this conﬂict, each rule is paired with

Discovering How to Attack a System

549

an importance value, the salience, that determines the

probability it is chosen and ﬁred.

3.2.2 Emulating Attackers

To evaluate an individual, i.e. an attacker, the GA

executes the corresponding rules. This results in a se-

quence of steps where at each step, the attacker exe-

cutes an action according to the ﬁred rule. The emu-

lation stops when the attacker has reached its goal or

all options have been exhausted and no rules can ﬁre.

Each rule action is associated with a cost and the cost

of a sequence is the sum of the cost of the rules it has

ﬁred, where each action repetition contributes to the

overall cost.

To determine activated rules, an emulation needs

an efﬁcient representation of the security status. This

status is a set of parameters for each module that may

be updated any time a rule ﬁres. The minimal set of

parameters to model both information acquisition and

attack consists of two Boolean values for each mod-

ule. They record, respectively whether the module

has already been scanned and whether the attacker has

acquired some rights on it. A rule precondition may

match some of these values. Anytime a rule ﬁres, the

success or the failure of the action, its outcome, is

determined because a successful action updates the

security status. The outcome is decided through the

output of a random generator according to the action

success probability. If an action may fail, the repeti-

tion factor in the twin determines the number of pos-

sible repetitions. The only action that is always suc-

cessful is the scanning of a module so that a module

is scanned only once. The security status also records

the number of attacks that have used each graph edge.

In general, the structure of a rule is

⟨security state⟩, ⟨vulnerabilities⟩, ⟨connections⟩ → ⟨

action, security state ⟩

where securitystate, vulnerabilities and connections

are premises, i.e. conditions on the security status,

on module vulnerabilities and connections. If the rule

ﬁres and the action is successful, the security status

is updated. As an example, if the attacker controls

, it has scanned but does not control N

(security

state premise), there is a vulnerability in N

(vulner-

abilities premise) and N

is connected to N

(connec-

tion premise), then it can attack N

(action). If this

rule ﬁres and the attack is successful, the attacker will

control N

(new security state).

3.2.3 Evaluating Attackers

If we only consider rule premises and post-conditions,

each attacker is described by the same rules. As an ex-

ample, a rule may state that after scanning a module

M the module can be attacked or that a successful at-

tack to M enables an attack to a module connected to

To pair distinct attacker, i.e. individuals, with dis-

tinct rules, the GA pairs each individual with two

sets that convey information on the network topology

and include, respectively, promising modules and the

deadpoints. A promising module leads the attacker to

its goal, while a deadpoint has no outbound edge or

has resisted all the attack attempts.

The same rule may differ in distinct attackers be-

cause its salience depends upon the nodes it matches.

The salience of a rule that matches a promising mod-

ule is larger than when the rule matches another one.

Hence, the salience of a rule that scans or attacks a

promising module is larger than those of rules target-

ing not promising ones. Furthermore, a rule where

the action targets a deadpoint, has lower salience than

rules that do not match a deadpoint.

To discover promising modules and deadpoints,

the GA analyses a log that stores the actions of an

attacker and the modules it has targeted in an emula-

tion. The GA classiﬁes attackers in three categories.

It also pairs an attacker with a priority and a distance

from the target module in terms of the number of hops

or the success probabilities paired with arcs. Each at-

tacker may be:

• successful if it reaches its goal. Its distance is

0 and the priority decreases with the sum of the

costs of its actions;

• close if its distance is lower than a threshold δ. Its

priority decreases with this distance;

• unsuccessful if its distance from the goal is larger

than δ.

The distance and the priority of an individual deter-

mine its ﬁtness.

3.3 Algorithm Set Up

The GA is applied to a population after evaluating

each of its individuals, i.e. a set of rules plus the set of

promising nodes and the one of the deadpoints. Some

parameters of the GA are set a priori such as the elite

size namely the number of individuals that reproduce.

Other parameters will be determined by the GA, such

as the probability of choosing an action, that is a func-

tion of the salience of the rule, and the sets of, respec-

tively, promising nodes and deadpoints a parent will

transmit to its descendants.

The selection operator analyzes each individual in

the current population and classiﬁes it as either suc-

cessful, close, or unsuccessful. Then, it ranks individ-

uals in a listby increasing distance from the goal. The

SECRYPT 2022 - 19th International Conference on Security and Cryptography

550

last attackers in the list are the unsuccessful ones.

The crossover operator selects the parents of the

next population with a probability that decreases as

the position of an individual in the list increases.

Thus, given two individuals, the operator prefers the

one paired with:

• the highest priority if at least one is successful;

• the lowest distance if they are promising or unsuc-

cessful candidates.

After choosing the parents, the GA transmits to

the offspring the salience, promising nodes, and dead-

points. If both parents are successful, the salience of

each action of a descendant inherits is the weighted

average of those of the parents. The most inﬂuential

parent is the most successful one. The individual also

inherits a subset of shared deadpoints and its size is

randomly generated according to a uniform probabil-

ity distribution. If only one parent is successful, its

promising modules are transmitted only. Otherwise,

the sets of promising modules and of deadpoints are

those of the one with the shortest distance.

The mutation operator updates the salience of

each rule to explore the solution space.

In our solution, the features an offspring receives

are either network-speciﬁc or network independent.

Promising modules and deadpoints are network spe-

ciﬁc, while rule salience is network independent.

4 PROTOTYPE

IMPLEMENTATION

We have implemented a prototype to evaluate the GA

performance and the time to converge to an optimal

solution. In the prototype, the action space for an at-

tacker is the minimal one and it includes two actions:

to scan and discover the vulnerabilities of a device,

and to attack. Actions such as exﬁltrating information

or evading some defence mechanism are neglected

because the attacker executes them only if it is suc-

cessful. In general, an attack success probability is the

sum of a base success probability (inferred from pub-

lic databases (The MITRE Corporation, 1999)) plus

a bias factor, depending on the attack complexity. To

simplify the twin, any attack has a success probability

equal to 0.7. Furthermore, a twin node corresponds to

a network node rather than to a module.

The rule-based system is implemented in

CLIPS (Cafasso, 2016) that supports the specializa-

tion of rules for promising nodes and deadpoint and

it offers conﬂict resolution strategies. CLIPS creates

a stack of rules that match distinct facts, nodes in the

prototype. A rule position depends on its salience. A

resolution mechanism use salience to solve conﬂicts.

We have embedded CLIPS in the Python environment

because CLIPS lacks granular control on the order of

fact presentation in the ﬁring of a rule. A dynamic

update of the salience ensures that a rule will be ﬁred

before other ones, but there is no control in CLIPS on

the order to match rule premises to the security state,

vulnerabilities and connections. We have mitigated

this through Python-calls that update a rule salience

according to the promising or deadpoint nodes it

matches. Further criteria to update the salience will

be described in the following.

5 RESULTS

In the experiments to evaluate the GA performances,

the ﬁrst parameter is the network size, and, inciden-

tally, its density. We gradually increase this size. In

a small network, the number of paths from the source

to the target gains too much weight in the evaluation.

If there are very few winning options, the population

will converge very quickly to them without a detailed

evaluation of alternative solutions.

The population size, i.e. the number of distinct

attackers the GA considers, is another parameter and

the parent pool is tuned according to this size. The

larger the population size, the larger the breadth size

of the search for the optimal solution. This speeds up

the convergence to the optimal path but larger popu-

lations are not effective for small networks. Notice

that we do not assume each member of a population

will actually attack the target system. The population

size is interesting only to evaluate how it inﬂuences

the GA convergence.

The third parameter is the network complexity and

the complexity of exploiting each edge. Ideally, the

larger the edge weight, the harder the success of the

corresponding attack.

5.1 Full Exploration

Here, the Python environment updates the rules so

that an agent fully explores the subtree rooted in a

promising node before moving to another one. As ex-

pected, the convergence slows down and the time to

discover the optimal paths decreases with a larger par-

ent pool. Instead, the time to reach the 100% hitmark

increases with the network size.

5.1.1 20 Nodes, 100 Attackers

In these experiments the system graph is not weigthed

so that the best path is the shortest one and its length

Discovering How to Attack a System

551

Figure 1: 20 Nodes, 100 attackers, 200 generations.

is four. We have tested four distinct elite sizes but all

the attackers are tested on the same path. In Fig. 1

x axis is the number of generations, while the y one

is the number of successful attackers, i.e. that have

reached the target node. A small elite size results

in a steeper growth of successful attackers, with the

80% threshold being hit at around 100 generations.

When the size of the mating pool is larger, in the ﬁrst

10/20 generations at least, some parents are not suc-

cessful and have reached a ’close-enough’ node with

a small cost. A larger diversity results in slower but

more stable growth. The 80% benchmark is hit after

100 generations. However, the progress in both cases

slows down and neither of the populations reaches the

100% mark in the given number of generations. Fig.

1 shows that an elite size of 15 results in the most

linear growth before the 80% mark and it is the only

case reaching the 100% mark. Furthermore, all the

population has learned how to reach the goal.

5.1.2 80 Nodes, 100 Attackers

The network is larger but with the same edge density

as the 20 nodes one. The length of the path to be dis-

covered is six. This strongly increases the problem

complexity because of the larger network size. The

curve shapes in Fig. 2 are similar to those for the cor-

responding elite size ratios. Due to the larger solution

space, the parent pool will be richer and broader even

if we reduce its size.

5.1.3 80 Nodes, 1000 Attackers

Here we analyze the performance of a large pop-

ulation targeting a large network. We assume the

larger population compensates for the larger number

of paths so that the initial exploration of the solution

space should result in a broader frontier of the search.

Then, the genetic operators will focus the search on

the cheaper paths. Fig. 3 shows the number of suc-

cessful attackers per generation for distinct elite sizes.

The curves are similar independently of this size.

5.2 Breadth-ﬁrst Exploration

In these experiments, we update rule salience so that

an attacker adopts a breadth-ﬁrst strategy. We ex-

pected that the 100 attackers hitmark would have been

reached sooner due to both the network size and the

breadth-ﬁrst search. In fact, the method analyzes all

promising nodes the attacker can reach almost simul-

taneously. The 20 nodes network is included to high-

light the distinct behaviours for the various sizes.

5.2.1 20 Nodes, 100 Attackers

As in the previous experiments, we have made some

preliminary observations on the 20 nodes network.

Fig. 4 summarizes the curves produced by varying the

elite size. It conﬁrms that the time to reach the 100%

hit-mark depends upon the elite size rather than upon

individual performances.

5.2.2 80 Nodes, 100 Attackers

The number of paths and of the paths to a goal is much

larger than in the 20 nodes case. Moreover, the ratio

of the population size to the number of edges implies

that a smaller elite size might result in a converge to

a local minimum and not to the global one. Fig. 5

compares the various curves and shows how a larger

elite size slows down the convergence.

(a) 10 elite size

(b) 30 elite size

Figure 2: 80 Nodes, 100 attackers, 50 generations.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

552

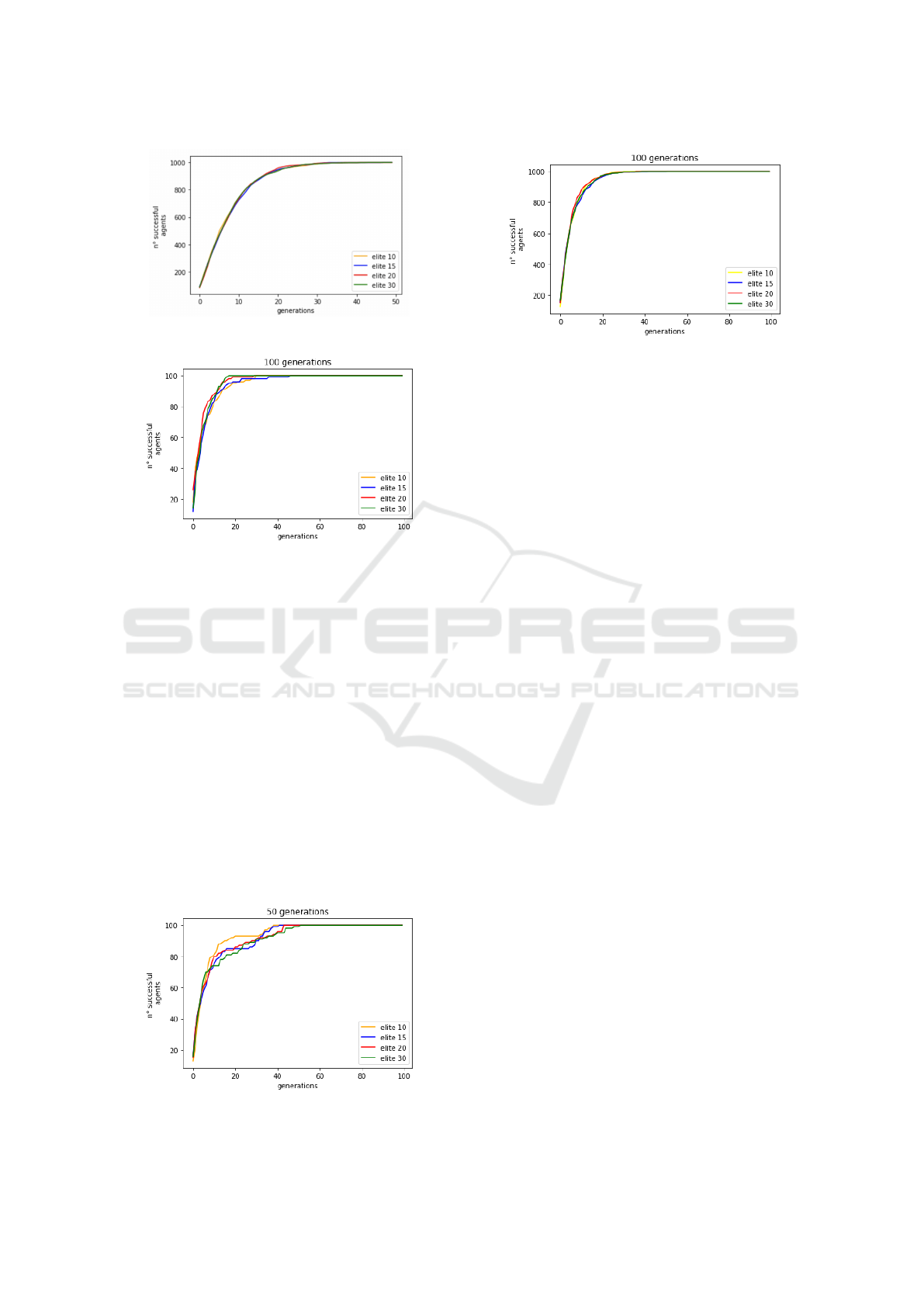

Figure 3: 80 Nodes, 1000 attackers, 50 generations.

Figure 4: 20 Nodes, 100 attackers, 100 generations.

5.2.3 80 Nodes, 1000 Attackers

The population size may result in a convergence be-

fore the 15th generation. Fig. 6 compares the vari-

ous curves for the 10% to 30% of the population size.

Here a larger elite size speeds up the convergence.

6 CONCLUSIONS

The results of our prototype conﬁrm that a GA can

discover the best strategy, i.e., the best set of rules, to

attack a network. Further experiments will assess the

performance of the GA against larger networks and

with distinct attack success probabilities. Another in-

teresting point is transfer learning. This is related to

the learning speed-up when some rules of the popu-

Figure 5: 80 Nodes, 100 attackers, 100 generations.

Figure 6: 80 Nodes, 1000 attackers, 100 generations.

lation we train to acquire the control of a module M1

have previously learned to acquire the control of a dis-

tinct module of the same network.

REFERENCES

Aiyanyo, I., Samuel, H., and Lim, H. (2020). A systematic

review of defensive and offensive cybersecurity with

machine learning. Applied Sciences, 10:5811.

Allodi, L., Massacci, F., and Williams, J. (2021). The

work-averse cyberattacker model: Theory and evi-

dence from two million attack signatures. Risk Analy-

sis, https://doi.org/10.1111/risa.13732.

Applebaum, A., Miller, D., Strom, B., Foster, H., and

Thomas, C. (2017). Analysis of automated adversary

emulation techniques. In Proceedings of the Summer

Simulation Multi-Conference, SummerSim ’17, San

Diego, CA, USA. Society for Computer Sim. Int.

Baiardi, F. and Tonelli, F. (2022). Twin based continuous

patching to minimize cyber risk. Eur. Journal for Se-

curity Research, pages 1–17.

Cafasso, M. (2016). CLIPS. https://clipspy.readthedocs.io/

en/latest/. Accessed: 2020-02-26.

Inokuchi, M., Ohta, Y., Kinoshita, S., Yagyu, T., Stan, O.,

Bitton, R., Elovici, Y., and Shabtai, A. (2019). De-

sign procedure of knowledge base for practical attack

graph generation. In Proceedings of the 2019 ACM

Asia Conference on Computer and Communications

Security, Asia CCS ’19, page 594–601, New York,

NY, USA. Association for Computing Machinery.

Lake, B. and Baroni, M. (2018). Still not systematic after all

these years: On the compositional skills of sequence-

to-sequence recurrent networks. https://openreview.

net/forum?id=H18WqugAb.

LeCun, Y., Bengio, Y., and Hinton, G. (2015). Deep learn-

ing. Nature, 521:436–44.

Marcus, G. (2018). Deep learning: A critical appraisal.

https://doi.org/10.48550/arXiv.1801.00631.

The MITRE Corporation (1999). CVE. https://www.cve.

org/. Accessed: 2020-09-09.

Discovering How to Attack a System

553
