World State-dependent Action Graph: A Representation of Action

Possibility and Its Variations in Real Space based on World State

Yosuke Kawasaki

1 a

and Masaki Takahashi

2 b

Graduate School of Science and Technology, Keio University, 3-14-1 Hiyoshi, Kohoku-ku, Yokohama 223-8522, Japan

Department of System Design Engineering, Keio University, 3-14-1 Hiyoshi, Kohoku-ku, Yokohama 223-8522, Japan

Keywords:

Service Robot, Environmental Representation, Action Possibility.

Abstract:

For intelligent systems, it is important to understand the action possibility for agent in real space. As the

action possibility varies with the subsystem conﬁguration of the agent and its states, the possibilities should be

understood based on the world state comprising the agent’s state as well as the environmental state. However,

most conventional methods consider only the environmental state. Therefore, this study proposes a world state-

dependent action graph based on knowledge representation using scene graphs which allows the capturing of

the action possibility of agents, which implies the feasible actions and their positions in real space, and their

recursive variations depending on the world state. Moreover, the effectiveness of the proposed method was

veriﬁed with simulations, assuming a coffee shop environment.

1 INTRODUCTION

The feasible actions for intelligent systems such as

robots and other agents such as humans or robots in

real space are required to be understood. In particular,

understanding the feasible actions facilitates various

kinds of reasoning, such as planning, understanding

instructions from humans, and behavior prediction.

The feasible actions for the agent depend on the

environment state such as the objects and scenes in

the environment. Also, the feasible actions for the

agent depend on the subsystem conﬁguration of the

agent and their states. For instance, if an agent’s grip-

per is grasping an object, the gripper cannot feasibly

grasp onto other objects. In summary, the feasible ac-

tions for the agent depend on the world state, i.e., the

states of both agent and environment. On the contrary,

the world state varies with the actions executed by the

agent. Thus, the action of the agent alters the world

state, which consequently modify the agent’s feasible

actions. To understand the feasible action including

its variations, the mutual interaction between the fea-

sible action according to the world state and the action

executions involving the varying world state.

Conventionally, several methods of affordance

estimation have been proposed for associating ac-

https://orcid.org/0000-0002-3076-3258

https://orcid.org/0000-0001-8138-041X

tions to objects and scenes in an environment, such

as the image segmentation method based on affor-

dance(Do et al., 2018; Chu et al., 2019). Then, the

mutual interaction between the feasible actions and

the action executions are represented by using con-

ventional symbolic representations such as STRIPS

and PDDL(Fikes and Nilsson, 1971; Fox and Long,

2003). However, existing studies do not focus on un-

derstanding the feasible actions in real space, and it

can be actually difﬁcult for the agent to execute asso-

ciated actions.

As an approach for understanding the action

possibility, which implies the feasible actions and

their positions in real space, certain methods have

been proposed to map the feasible actions into real

space. One such method constitutes the action

graph(Kawasaki et al., 2021), which is an environ-

mental representation method pivoted on the feasible

actions in real space. In this graph, the edges indicate

actions and the nodes denote the executable locations

of the actions to represent the connections between

actions. Speciﬁcally, the multilayered graph structure

of the action graph enables the representation of vari-

ations in action possibility. However, the action graph

handles not the agent’s state but the conﬁguration of

the subsystem. In addition, only once change of the

action possibility is taken into account, making it dif-

ﬁcult to represent the mutual interaction between the

action possibility and the action.

Kawasaki, Y. and Takahashi, M.

World State-dependent Action Graph: A Representation of Action Possibility and Its Variations in Real Space based on World State.

DOI: 10.5220/0011298000003271

In Proceedings of the 19th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2022), pages 459-466

ISBN: 978-989-758-585-2; ISSN: 2184-2809

459

By extending the action graph, this study aims to

understand the action possibility and its variations in

real space based on the world state. The requirements

for constructing an action graph considering the world

state are stated as follows: 1) Construction of a frame-

work for symbolic reasoning to understand the feasi-

ble actions and its effects on the world state. 2) Rep-

resentation of mutual interaction between the action

possibility and action execution involving the varia-

tions in the world state.

Therefore, to fulﬁll the objective, we propose a

world state-depended action graph (WDAG) based on

knowledge representation with scene graphs. In par-

ticular, the scene graph is an environmental represen-

tation that is compatible with the world state and con-

tains both geometric and semantic information. For

this reason, we adopted the scene graph to repre-

sent knowledge about action, speciﬁcally the precon-

ditions for actions and the changes in the world state

caused by the action. Additionally, the WDAG repre-

sents the mutual interaction between the action possi-

bility and the action in a recursive multilayered graph

structure.

2 RELATED WORK

Our work is related to the study of understanding fea-

sible actions.

As an approach to understanding feasible actions,

segmentation of images based on object affordance

has been proposed (Do et al., 2018; Chu et al., 2019).

The AffordanceNet is a deep learning approach that

assigns affordance to each pixel of the object in real-

time (Do et al., 2018). In addition, T. L

uddecke et

al. proposed a method to rate the action plausibili-

ties in accordance to the object set present in the im-

age (L

uddecke and W

org

otterr, 2020). In the research

ﬁeld of predicting human activity, the consideration of

the agent’s state can improve the performance of the

prediction (Koppula and Saxena, 2016; Liang et al.,

2019). Thus, ATCRF is proposed to obtain a distri-

bution for predicting human activities based on their

posture and the surrounding environment (Koppula

and Saxena, 2016). Nonetheless, these studies do not

consider the possibility of action in real space.

Thus, methods have been proposed to map the ac-

tion possibility onto real space for understanding the

action possibility in real space(Ziaeetabar et al., 2017;

Rhinehart and Kitani, 2016). In particular, the mul-

tilayer environmental affordance map is proposed to

represent the traversability into the grid map follow-

ing the arrangement and affordance of the object set in

the environment (Ziaeetabar et al., 2017). Moreover,

an action map is proposed, wherein the actions other

than the movement are mapped in real space (Rhine-

hart and Kitani, 2016). However, these methods do

not consider the variations in action possibility occur-

ring as a consequence of performing the action. The

most relevant study pertains to the action graph, repre-

senting the action possibility and its variations in real

space (Kawasaki et al., 2021). We propose an action

graph based on the agent’s state, which is not typically

considered, to capture the feasible actions depending

on the world state in the real world.

3 WORLD STATE-DEPENDENT

ACTION GRAPH

3.1 Overview

WDAG G

is an environmental representation that de-

picts an agent’s action possibility in a world state W

along with its variations.

The world state W =

{

o|o ∈ R oro ∈ O

}

can be

described as a set of N

objects comprising the robot

state R and environment state O. The object o details

the following information:

• l

: Label of the object

• p

: Position of the object in a two-dimensional

absolute coordinate system

• θ

: Direction of the object in a two-dimensional

absolute coordinate system

• s

: Shape data of the object comprising geometric

primitives such as square or circle and size.

The objects in the robot state R =



o|p

= p



are

whose position p

is p

, e.g., a manipulator, speaker,

or an object grasped by the manipulator, where p

denotes a parameter reﬂecting the robot’s position for

convenience. Conversely, the elements of the envi-

ronmental state E =



o|p

6= p



include the objects

o with their position p

indicated as not p

but as a

three-dimensional coordinate in real space.

More importantly, the WDAG G

deﬁnes a pair of

sets G

= (N

, E

), where N

and E

denote the set

of nodes and edges. The nodes, n

, represent the po-

sitions in which the robot can perform actions in real

space. Furthermore, the actions a are assigned to the

edges e, and a transition between the nodes implies

the performance of the set action a.

The WDAG G

comprises multiple action possi-

bility graphs G

1∼N

. In particular, the action possi-

bility graph G

describes feasible actions for the agent

as well as the positions corresponding to the perfor-

mance of the actions based on the world state W

. In

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

460

3. Action possibility graph

construction

speech

place

4(a). Update world state

1. Scene graph construction

2. Action association

4(c) World state-dependent action graph

construction

Action possibility graph

construction

Action

World state, Scene graph

speech

pickup

push

4(b). Recursive construction of action possibility graph

Initial world state

place

speech

push

speech

Action possibility graph

Scene graph

Worl d state

Scene graph

World state-dependent action graph

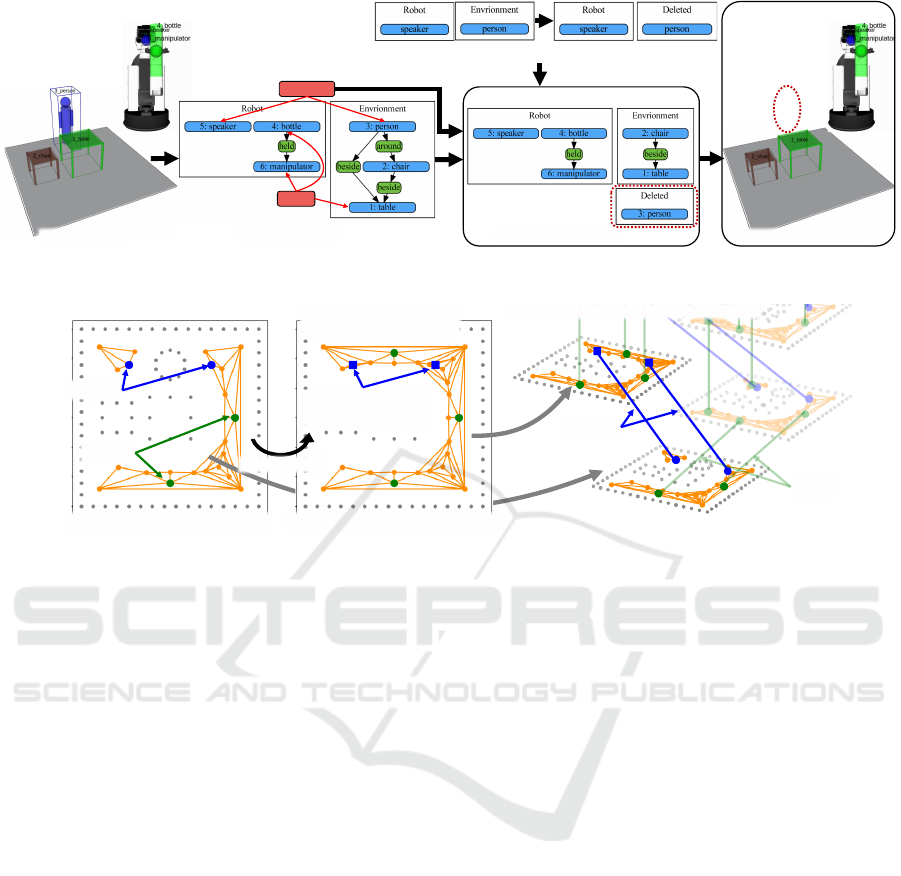

Figure 1: Pipeline diagram of WDAG construction.

the action possibility graph, the edges represent ac-

tions excluding the transition of the world state, such

as the movement action in real space. On the other

hand, the feasible action involving the state transi-

tion of the world is denoted by the edges connecting a

prior action possibility graph G

with a posterior one

to the state transition.

Thus, a symbolic inference associating the actions

to the world state is required for constructing the ac-

tion graph. Therefore, we construct a scene graph that

includes both the symbolic and geometric informa-

tion from the world state and incorporates them into

the inference. The scene graph G

deﬁnes a pair of

sets G

= (N

, E

), where N

and E

denote the set

of nodes and edges, respectively. The objects o in

the world state W correspond to the nodes in the G

Furthermore, the edges reﬂect the spatial relation be-

tween the objects.

The pipeline diagram of the automatic construc-

tion of the WDAG is illustrated in Fig. 1.

1. Construction of the scene graph G

based on the

world state W to derive the geometric and sym-

bolic information of the W (Section 3.3)

2. Association of actions with the scene graph G

based on the prior action knowledge (Sections 3.2

and 3.4)

3. Construction of action possibility graph G

based

on the scene graph G

and associated actions (Sec-

tion 3.5)

4. Recursive construction of action possibility

graphs (Section 3.6)

(a) Updating scene graph and world state accord-

ing to the effect of feasible action

(b) Recursive construction of action possibility

graphs based on the updated world state

by connecting the

action possibility graphs

Steps 1, 2, 4(a), and 4(b) were modiﬁed or added

from the conventional method of constructing action

graphs.

3.2 Action Knowledge Representation

The prior knowledge of the actions is represented

using the scene graphs that are compatible with the

world state and symbolic reasoning.

Each property of the action is described below.

• l

: Label of the action

• S

: Scene graph as affordance that affords this ac-

tion

• d

: Appropriate distance from the target object to

execute the action

• S

: Scene graph after execution of action

The examples of action labels l

include “move-

ment,” “pick up” (to pick up the bottle), “place” (to

place the bottle on the table), “push”(to push the chair

underneath the table), “speech”(to ask a person to al-

low passing movement), and “do not disturb” (to dis-

miss all actions). In particular, the “do not disturb”

action is associated with situations involving a seated

customer for courteous service. The prior knowledge

about action are detailed in Table 1. In this study, we

assume that robots can acquire the prior knowledge

about action with the affordance classiﬁcation and the

action understanding (Chu et al., 2019; Dreher et al.,

2019).

World State-dependent Action Graph: A Representation of Action Possibility and Its Variations in Real Space based on World State

461

Table 1: Prior knowledge of action.

label precondition

appropriate distance

effect

pick up 0.5m

place 0.5m

push 0.7m

speech 0.4m

don’t disturb

3.3 Scene Graph Construction

A scene graph is constructed based on the world state

obtained beforehand by semantic slam, etc. The scene

graph G

is a directed graph in which the nodes indi-

cate objects and edges denote relations based on the

world state W . The adjacency matrix of G

is derived

by classifying the relational position into the relation

label r for every combination of two objects in the

world state. Generally, a positional relation r labels a

relative position from a larger object to a smaller one.

The considered labels of positional relations are

“around” (distance A from B is 1.0– 2.0 m), “beside”

(distance A from B is 0–1 m), “in,” “on,” “held,” and

“free” based on previous research (Kim et al., 2019;

Armeni et al., 2019). In particular, “held” and “free”

are positional relations related to the manipulator. In

the case the positions of a manipulator and the other

object are the same, the relative position is labeled

“held.” A self-looping relation labeled as “free” is as-

sociated with the manipulator, if the manipulator does

not relate to any object.

3.4 Association of Actions with Scene

Graph

The feasible actions for the agent depend on the world

state W comprising the agent state R and environmen-

tal state E. Therefore, the feasible actions are associ-

ated with the world state based on the precondition

of each action in the prior knowledge. Accordingly,

the subgraph isomorphism problem is applied to the

action association. The subgraphs of the world-state

scene graph G

are isomorphic to the precondition

scene graph of an action, which were associated with

the action and determined using the VF2 algorithm

(Cordella et al., 2004). Thus, multiple actions can be

associated with the same object.

3.5 Construction of Action Possibility

Graph

3.5.1 Sparse Representation of Reachable

Positions

The positions sparsely representing the accessible lo-

cations of the agent are determined as nodes focused

on the movement.

First, the object footprints including the wall are

expressed using a set of points in a two-dimensional

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

462

: Table

: Chair

: Person

(a) Environment (b) Reachable positions

speech

place

: infeasible movement

(d) Connecting nodes

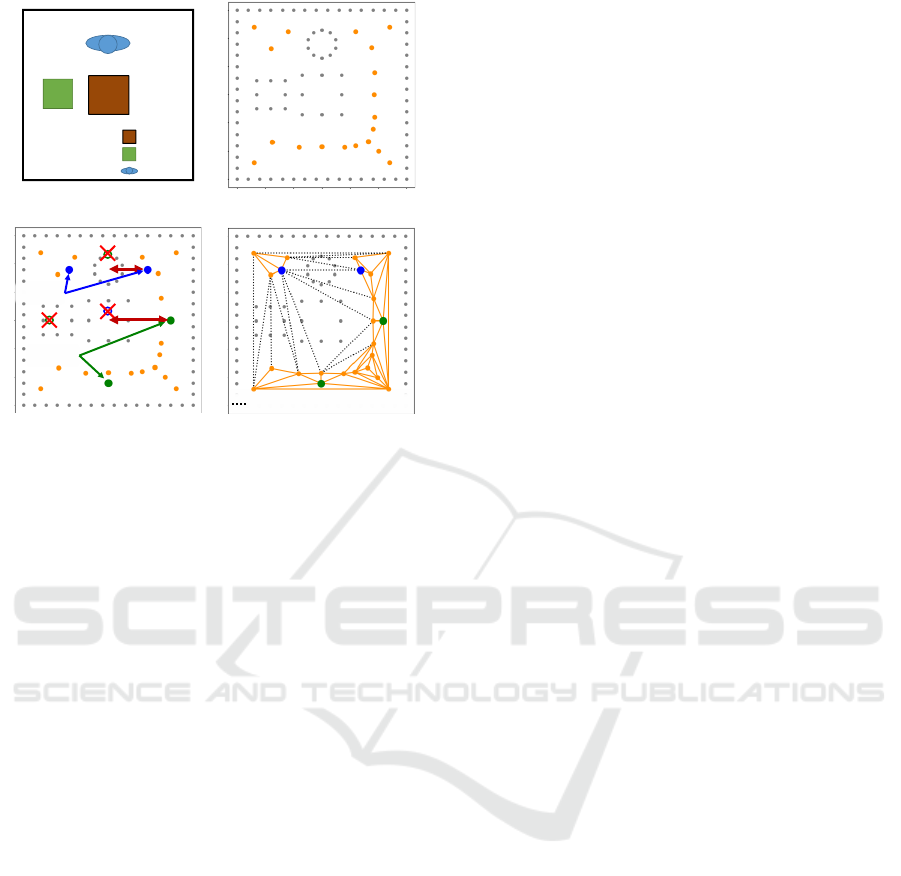

Figure 2: Construction of action possibility graph.

space. Thereafter, the generalized Voronoi diagram

is generated by setting the base points of the diagram

equal to the object points. As the generalized Voronoi

diagram contains untraversable edges and nodes in-

accessible by the robot, the invalid nodes and edges

were deleted with reference to the robot’s footprint.

Furthermore, neighboring nodes are merged together

to more efﬁciently represent the space, as portrayed

in Fig. 2b.

3.5.2 Adding Appreciate Action Positions for

Associated Actions

The nodes are added to positions considered appropri-

ate for executing the actions associated with the world

state, as depicted in Fig. 2c. In particular, certain re-

quirements that ensure the suitability of a given posi-

tion to perform the action include an appropriate dis-

tance to the target object o

and accessibility to the

target object position o

based on the agent’s foot-

print and surrounding obstacles. The position candi-

dates suitable for executing the actions are determined

based on the appropriate distance d

to the target ob-

ject o

in the prior knowledge of the action, includ-

ing the position and posture of the target object o

. In

this study, the candidates are simply determined as the

four points on the circle whose center denotes the po-

sition of the target object and radius is d

, as depicted

in the ﬁgure. Thereafter, among the candidates, the

nodes are selected if it did not overlap with any object

in the environment, and if there is no object situated

between itself and the target object o

3.5.3 Connecting Nodes

The edges connecting the nodes are determined based

on inspecting the movement feasibility through geo-

metric reasoning.

Subsequently, the edge candidates are obtained

by applying Delaunay triangulation to the determined

nodes. In addition, the edges are adopted by review-

ing the intersection based on the object placement in

the environment and the agent’s footprint. Ultimately,

an action possibility graph is obtained, as illustrated

in Fig. 2d.

3.6 Recursive Construction of Action

Possibility Graph

The actions involving the state transitions of the en-

vironment are represented with directed edges that

connect the action possibility graphs before and after

the state transition. Thus, the exhaustive understand-

ing of the connections between the action possibility

graphs is essential to represent the mutual interaction

between the action possibility and actions in WDAG.

Accordingly, the construction of the action possibility

graph in the world state and updating the world state

by executable actions are recursively repeated to de-

rive the exhaustive action possibility graphs. There-

after, the WDAG is obtained by connecting each ac-

tion possibility graph with edges indicating the action,

which is the cause of variation in the action possibil-

ity.

The speciﬁc process of constructing the WDAG is

described below.

3.6.1 Update Scene Graph and World State

According to Effect of Action

Herein, the action possibility graph derived in Sec-

tion 3.5 is used as a starting point. First, the prior

scene graph is updated based on each action associ-

ated with the obtained action possibility graph, and

the posterior scene graph to the action is obtained, as

depicted in Fig. 3. The subgraph associated with the

action in the prior scene graph is adjusted according

to the inﬂuence of the action in the prior knowledge.

Subsequently, the new scene graphs are obtained for

the number of associated actions.

Thereafter, the nodes of the scene graph, i.e., the

world states, are updated based on the freshly ob-

tained scene graph, as portrayed in Fig. 3. In particu-

lar, the object positions are updated following the re-

lationship altered by the action. Overall, the updated

positions of the object are determined following sim-

ilar rules as those applied for constructing the scene

World State-dependent Action Graph: A Representation of Action Possibility and Its Variations in Real Space based on World State

463

Posterior Scene graph

Knowledge of speech action

Precondition

Effect

Posterior world statePrior world state

Update scene graph

Interpret scene graph

speech

Prior Scene graph

place

Figure 3: Updating scene graph and world state based on action knowledge.

Connecting action possibility graphs

Prior action possibility graph

speech

place

Posterior action possibility graph

Construction of

action possibility graph

After speech

speech

place

Add the position

of executed action

Figure 4: Connecting action possibility graphs.

graph based on the relative position classiﬁcation al-

gorithm.

3.6.2 Construction of Action Possibility Graph

The subsequent step involves the construction of the

new action possibility graphs based on the updated

scene graph and world state. Predominantly, the ac-

tion possibility graph is constructed based on the pro-

cess described in Sections 3.4 and 3.5. The method

was modiﬁed with the addition of a node to be consid-

ered. Moreover, the executive positions of the actions

altering the prior action possibility graph are added

as nodes in the new action possibility graph, which

enabled the connection of edges before and after the

adjustment of the graphs, as shown in Fig. 4.

3.6.3 Iterative Processing

The above process is repeated for each new action

possibility graph and its associated actions. In this it-

eration, as the same scene graph may occur in various

backgrounds, they are considered as a single scene

graph. This integration limits the number of world

states to be considered. In particular, the iteration is

terminated when the actions associated with all the

graphs were processed. Eventually, all possible ver-

sions of the action possibility graphs are obtained.

3.6.4 Connecting the Action Possibility Graphs

The multilayered graph is constructed by connecting

the action possibility graphs with edges. Speciﬁcally,

the action possibility graphs before and after the ad-

justments are connected using the edges assigned to

the actions causing the modiﬁcation, as exempliﬁed

in Fig. 4. The edges are directed from the prior graph

to the posterior graph. Ultimately, the obtained mul-

tilayered graph is WDAG.

4 EXPERIMENT

To verify the effectiveness of the proposed method,

we qualitatively evaluated the following terms: 1)

The proposed method can capture the action possibil-

ities depending on the agent’s state. 2) The proposed

method can capture the variations in the action possi-

bilities caused by the agent’s actions.

4.1 Setting

In this experiment, we assumed that an agent is HSR

(Human support robot), a mobile manipulator, and the

environment was similar to that of a caf

e. As dis-

played in Fig. 6, the target world state included two

world states with distinct agent states. In world state

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

464

(a) World state 1 (G

)

(b) World state 2

(d) G

Figure 5: Mutual interaction between action possibility

and action.

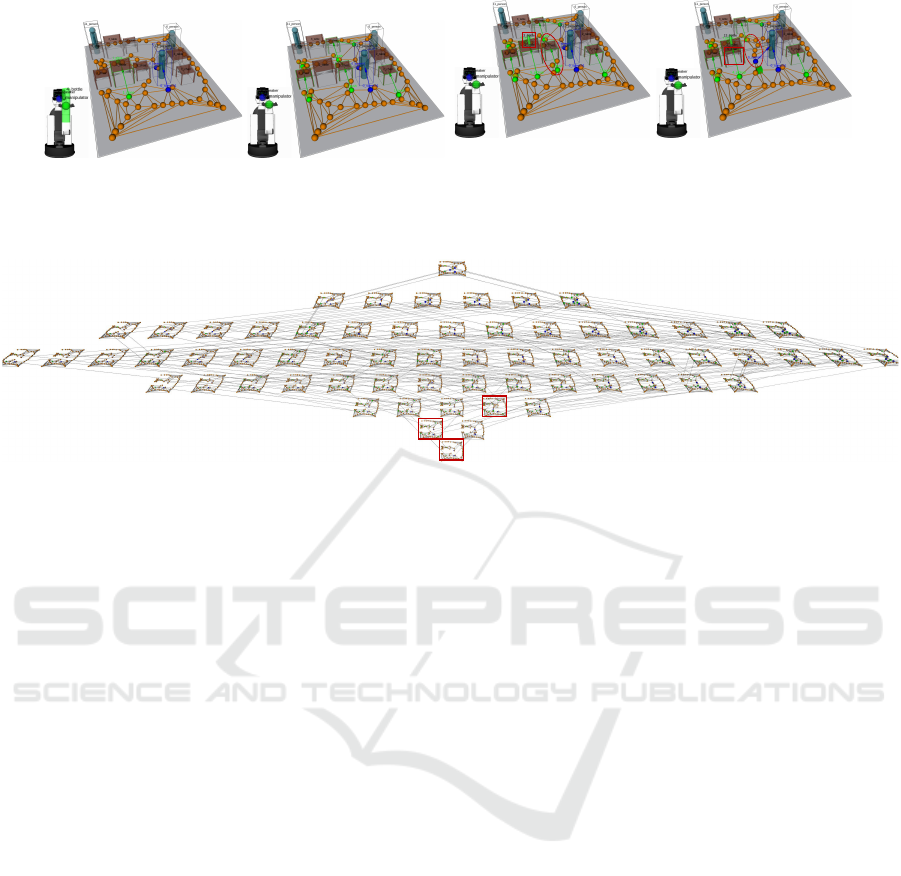

Figure 6: Difference of action possibility graph depending on agent’s state.

Figure 7: World state-dependent action graph based on world state 1.

1, the agent grasped the bottle, and in world state 2,

the agent grasped nothing.

4.2 Result

First, the action possibility graphs constructed based

on the world states with the two distinct agent’s states

are displayed in Fig. 6. The action possibility graphs

represent feasible actions for the agent and their po-

sitions in real space. According to Fig. 5a, the fea-

sible actions involved placing the bottle on the table

and speech toward the person in the world state 1.

In comparison, pushing the chair and speech to the

person are feasible in the world state 2 according to

Fig. 5b. Thus, the proposed method can capture the

action possibilities of the agent based on the state of

its manipulator.

The WDAG constructed based on the world state

1 is illustrated in Fig. 7. As the WDAG comprised

64 action possibility graphs, the robot could real-

ize 64 world states. In WDAG, the variations in

the action possibility graph in case the agent exe-

cutes the “place” and “push” from the initial state



⇒ G



are displayed in Fig. 6 The com-

parison of G

and G

displayed in Fig. 5c revealed

that “placing” the bottle on the table enabled the agent

to “push” the chair in a new manner. Moreover, the

comparison of G

and G

unveiled that the agent

could render the location of the chair traversable by

pushing the chair, as displayed in Figs. 5c and 5d.

Furthermore, the connection of the action possibil-

ity graphs displayed that the variations of the world

state and the action possibility caused by actions such

as that a blocked passage by a chair can be rendered

traversable. In summary, the proposed method could

capture the mutual interaction between the action and

its possibility in the recursive multilayered structure.

Individual action possibility graphs in WDAG

represent feasible actions and their positions in real

space based on geometric reasoning. Also, the con-

nection of the action possibility graph in WDAG rep-

resents the possible world states by executing ac-

tions, as well as the conventional symbolic repre-

sentations. Thus, it is expected that task planning

based on WDAG will derive more suitable sequences

of actions according to the evaluation index because

WDAG combines both symbolic and geometric infer-

ence and can comprehensively capture feasible action

sequences in real space.

5 CONCLUSION

The understanding of feasible actions for agents re-

quires further detail to realize intelligent systems in

real space. Essentially, the feasible actions for the

agent vary with the subsystem conﬁguration of the

agent and their states. Therefore, the feasible ac-

tions depending on the world state that comprises the

agent’s state and environmental state should be com-

prehended with clarity. Conventionally, the mutual

interaction between the feasible actions and the action

World State-dependent Action Graph: A Representation of Action Possibility and Its Variations in Real Space based on World State

465

executions are represented by using symbolic repre-

sentations. However, the approaches did not consider

the feasibility of actions.

This study aimed to understand the action possi-

bility, which implies the feasible actions and their po-

sitions in real space, and its variations in real space

based on the world state. To archive the objective,

we proposed a WDAG based on knowledge represen-

tation using scene graphs. In particular, we adopted

the scene graph to represent the knowledge of action,

because it is an environmental representation that is

compatible with the world state and contains both ge-

ometric and semantic information. In addition, the

WDAG represented the mutual interaction between

the action and its possibility in a recursive multi-

layered graph structure. Accordingly, a construction

method of an action graph was established based on

the scene graph-based representation of action effects

and a recursive multilayered graph structure. This al-

lowed the capturing of the action possibility of agents

and the recursive variations of the action possibility

depending on the world state. The effectiveness of

the proposed method was veriﬁed by simulation, as-

suming a coffee shop environment. Moreover, the fol-

lowing two points were veriﬁed. 1) WDAG represents

the action possibility in real space based on the world

state. 2) WDAG represents the variations in the action

possibility caused by the agent’s action on the recur-

sive multilayered structure.

In future, we will validate the effectiveness of

WDAG in practice by implementing a planning

method of action sequences based on WDAG and ap-

plying to task plannings in real space. Task planning

based on WDAG is expected to yield more efﬁcient

plans, such as plans with shorter movement distances,

by considering geometric information such as object

placement.

ACKNOWLEDGMENTS

This study was supported by the Core Research for

Evolutional Science and Technology (CREST) of the

Japan Science and Technology Agency (JST) under

Grant Number JPMJCR19A1.

REFERENCES

Armeni, I., He, Z.-Y., Zamir, A., Gwak, J., Malik, J., Fis-

cher, M., and Savarese, S. (2019). 3d scene graph:

A structure for uniﬁed semantics, 3d space, and cam-

era. In 2019 IEEE/CVF International Conference on

Computer Vision (ICCV), pages 5663–5672.

Chu, F.-J., Xu, R., Seguin, L., and Vela, P. A. (2019).

Toward affordance detection and ranking on novel

objects for real-world robotic manipulation. IEEE

Robotics and Automation Letters, 4(4):4070–4077.

Cordella, L., Foggia, P., Sansone, C., and Vento, M. (2004).

A (sub)graph isomorphism algorithm for matching

large graphs. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 26(10):1367–1372.

Do, T.-T., Nguyen, A., and Reid, I. (2018). Affordancenet:

An end-to-end deep learning approach for object af-

fordance detection. In 2018 IEEE International Con-

ference on Robotics and Automation (ICRA), pages

5882–5889.

Dreher, C. R., Waechter, M., and Asfour, T. (2019).

Learning Object-Action Relations from Bimanual Hu-

man Demonstration Using Graph Networks. IEEE

Robotics and Automation Letters.

Fikes, R. E. and Nilsson, N. J. (1971). Strips: A new ap-

proach to the application of theorem proving to prob-

lem solving. Artiﬁcial Intelligence, 2(3):189–208.

Fox, M. and Long, D. (2003). PDDL 2.1: An extension to

pddl for expressing temporal planning domains. Jour-

nal of artiﬁcial intelligence research, 20:61–124.

Kawasaki, Y., Mochizuki, S., and Takahashi, M. (2021).

Astron: Action-based spatio-temporal robot naviga-

tion. IEEE Access, 9:141709–141724.

Kim, U.-H., Park, J.-M., Song, T.-J., and Kim, J.-H. (2019).

3-D Scene Graph: A Sparse and Semantic Representa-

tion of Physical Environments for Intelligent Agents.

IEEE Transactions on Cybernetics, pages 1–13.

Koppula, H. S. and Saxena, A. (2016). Anticipating human

activities using object affordances for reactive robotic

response. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 38(1):14–29.

Liang, J., Jiang, L., Niebles, J. C., Hauptmann, A. G., and

Fei-Fei, L. (2019). Peeking into the future: Predict-

ing future person activities and locations in videos. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 5725–5734.

uddecke, T. and W

org

otterr, F. (2020). Fine-grained action

plausibility rating. Robotics and Autonomous Systems,

129:103511.

Rhinehart, N. and Kitani, K. M. (2016). Learning action

maps of large environments via ﬁrst-person vision. In

Proceedings of the 2016 IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

580–588.

Ziaeetabar, F., Aksoy, E. E., W

org

otter, F., and Tamosiu-

naite, M. (2017). Semantic analysis of manipula-

tion actions using spatial relations. In 2017 IEEE In-

ternational Conference on Robotics and Automation

(ICRA), pages 4612–4619.

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

466
