Veriﬁcation of PUF-based IoT Protocols with AVISPA and Scyther

Tom

s Rabas

, R

obert L

orencz

and Ji

ı Bu

cek

Faculty of Information Technology, Czech Technical University, Thakurova, Prague, Czech Republic

Keywords:

Authentication, PUF, IoT, Formal Veriﬁcation.

Abstract:

Paper from 2020 (Buchoveck

a et al., 2020) suggests protocols suitable for lightweight IoT Devices. They are

based on physical unclonable functions (PUF) which among others simplify the problem of key management

on simple hardware devices and microcontrollers. These protocols are supposed to authenticate a device and

distribute keys safely so that only the intended parties can know the key. We analysed suggested protocols

using two automated veriﬁcation tools AVISPA and Scyther. The analysis shows that there are several issues

concerning the authentication property. We demonstrate the results from the tools and describe several attacks

that exploit this vulnerability. Finally, we provide modiﬁed versions of these protocols that are resistant to

those attacks and satisfy authentication as desired.

1 INTRODUCTION

Related Work

Physical Unclonable Functions (PUFs) allowed for

the introduction of new cryptographic schemes and

protocols that intend to be used in special constrained

environments where standard protocols are too expen-

sive in terms of space, energy or power consumption.

Such protocols were introduced for example in (Ma-

jzoobi et al., 2012), (Idriss and Bayoumi, 2017) or

(Chatterjee et al., 2017).

Unfortunately, not all of such proposals indeed

satisfy the intended security properties as shown for

example in (Braeken, 2018).

Therefore, the need for formal veriﬁcation is clear.

Such analysis can be done by several tools. One of

them is called AVISPA and it was used in (Zargar

et al., 2021) or (Nimmy et al., 2021). Another one

called Scyther was used in (Ray et al., 2016).

Organization of the Paper

We divided the paper into the following sections.

First, we give the necessary background on for-

mal veriﬁcation, automated tools, physical unclonable

functions and our formal model of PUF in section

2. Then, we describe original protocols from (Bu-

https://orcid.org/0000-0002-0924-359X

https://orcid.org/0000-0001-5444-8511

https://orcid.org/0000-0003-1359-4285

choveck

a et al., 2020) in Section 3. We do the analy-

sis and describe found attacks in section 4. Finally, we

suggest corrections and modiﬁcations of the original

protocols that are necessary to fulﬁll desired security

properties in section 5.

2 BACKGROUND KNOWLEDGE

AND TERMINOLOGY

2.1 Dolev-Yao Model

The Dolev-Yao model is named after its authors D.

Dolev and A. Yao. It is a formal model used to prove

the security properties of cryptographic protocols.

Both veriﬁcation tools we used follow the Dolev-Yao

model. This model represents cryptographic primi-

tives as abstract operators with certain properties and

it speciﬁes intruder capabilities as follows.

The intruder cannot decrypt a message without the

key and he cannot guess a secret key or a nonce. In

other words, it says that cryptography is safe.

Then, we assume that the intruder has full con-

trol over the network, speciﬁcally he can read, store,

block every message, he can build and send mes-

sages, he can compose/decompose messages, he can

encrypt/decrypt if he has the key, he knows all the

public data of the protocol, and he has all the privi-

leges/keys of corrupted agents.

In general, the Dolev-Yao model allows treating

cryptography in automated tools, because it abstracts

Rabas, T., Lórencz, R. and Bu

cek, J.

Veriﬁcation of PUF-based IoT Protocols with AVISPA and Scyther.

DOI: 10.5220/0011299000003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 627-635

ISBN: 978-989-758-590-6; ISSN: 2184-7711

627

cryptography by deterministic operations on abstract

terms and simple cancellation rules. This simpliﬁca-

tion enables the tools to treat larger overall systems

automatically than with more detailed models of cryp-

tography (Backes et al., 2006).

2.2 AVISPA+SPAN

AVISPA (Armando et al., 2005) is a tool for auto-

mated veriﬁcation of protocols (Vigano, 2006). It in-

troduces High-Level Protocol Speciﬁcation Language

(HLPSL) in which you implement the protocol as in-

put for AVISPA. You can choose from four different

back-ends included in AVISPA to verify the imple-

mented protocol. In case that the back-end ﬁnds an

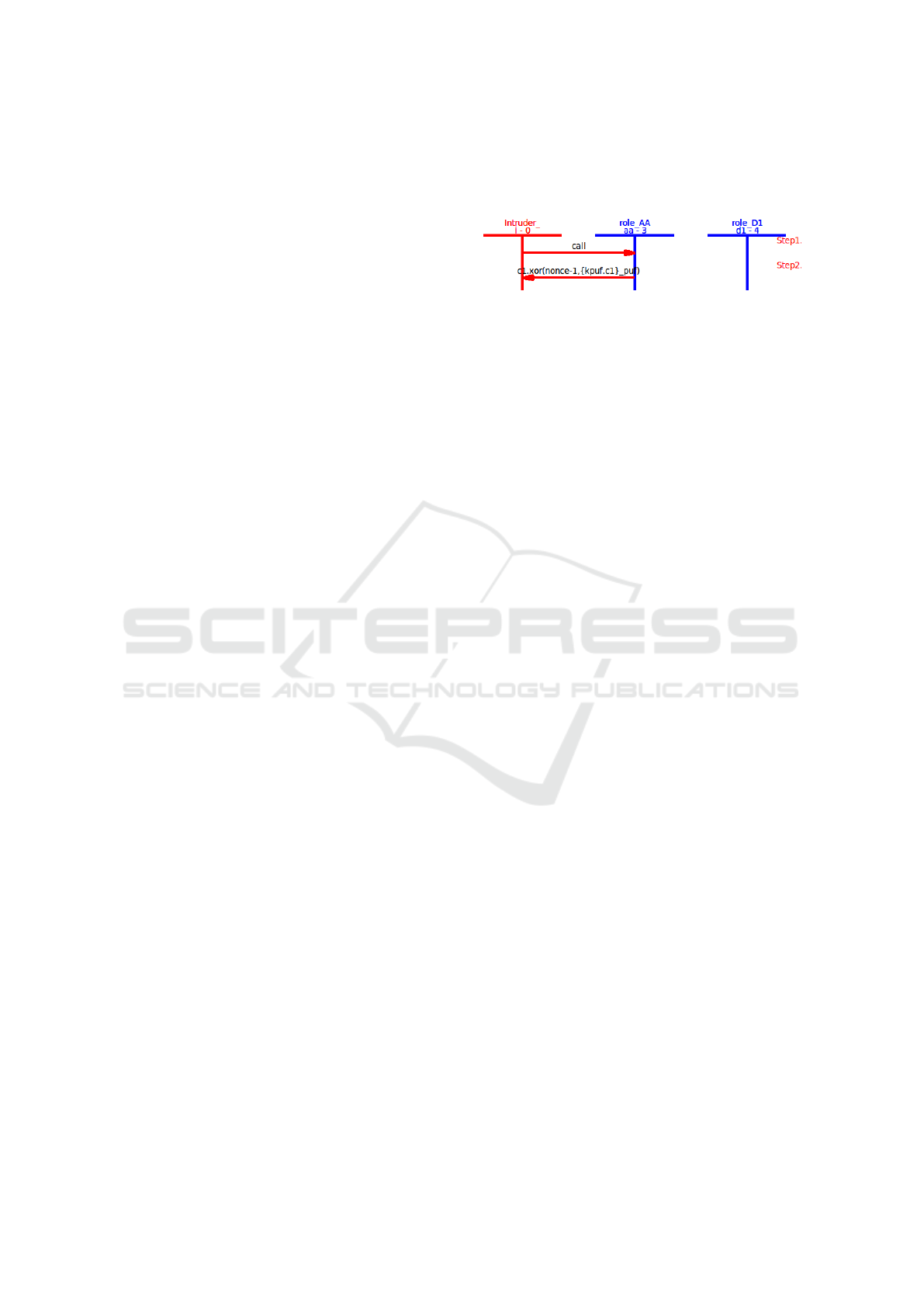

attack, Security Protocol ANimator (SPAN) produces

a message sequence chart that graphically describes

the attack. Otherwise, the back-end evaluates that the

protocol is safe.

2.3 Scyther

Similarly as AVISPA, Scyther (Cremers, 2008) is a

push-button tool for veriﬁcation, falsiﬁcation, and

analysis of protocols. It provides a graphical inter-

face for verifying and understanding of a protocol.

It also provides a command line and scripting inter-

faces for large-scale protocol veriﬁcation tests. It of-

fers state-of-the-art performance and novel features

like multi-protocol analysis. It accepts the description

of a protocol in easy-to-read language SPDL based on

C/Java-like syntax.

We used Scyther as a tool of second-opinion since

we encountered some bugs and questionable behav-

ior of AVISPA which slightly undermined our conﬁ-

dence in that tool. Speciﬁcally, the results of different

back-ends contradicted each other. We describe that

in section 5.1.

2.4 Physical Unclonable Function

Physical Unclonable Functions (Herder et al., 2014)

offer a physically-based digital ﬁngerprint of a de-

vice. The ﬁngerprint is unpredictable and unique for

every device and every challenge if used in challenge-

response mode. Unfortunately, PUFs are not error-

free which can be mitigated by many techniques, and

one of them is Error Correcting Codes (ECC).

There are many different types of PUFs. One of

them is called SRAM PUF (B

ohm et al., 2011). It is

based on the behavior of Static Random Access Mem-

ory (SRAM) that is available in any digital chip. Each

SRAM cell provides a zero or a one after powering

the circuit. The subset of such SRAM cells deﬁnes

the output of the SRAM PUF. Since each cell tends to

be in its preferred state, we get quite stable, yet ran-

domly looking, patterns of 0s and 1s that work as a

ﬁngerprint of the chip and the concrete subset of cells

on the chip. We can refer to this subset of SRAM cells

as a challenge C.

2.5 Security Properties

Let us deﬁne several terms that we will use to describe

properties of the protocols. Although different for-

mal veriﬁcation tools may use slightly different def-

initions, deﬁnitions described below should provide

as much insight and level of formalism as needed for

understanding the attacks. Especially in case of au-

thentication, there are many ways of formal deﬁnition

with different strength. For more information we re-

fer reader to (Cremers and Mauw, 2012) chapters 4.3

and 8.2 or (Lowe, 1997) – Lowe’s article from 1997

Hierarchy of Authentication Specifciations.

We say that protocol ensures secrecy of message

s if an adversary cannot syntactically deduce s. An

agent B authenticates a message m if B knows which

agent builds m. An agent A authenticates an agent

B if, after the successful session of the protocol, A

knows that he has run the protocol with B. During a

protocol session, a message is fresh if this message

has speciﬁcally been built for this protocol session.

2.6 Compromising Adversary

In 1978 (Needham and Schroeder, 1978) Needham-

Schroeder Protocol was proposed that achieves mu-

tual authentication of both parties. It was assumed to

be secure for over 20 years. In 1989 (Burrows et al.,

1989) Burrows, Abadi and Needham conﬁrmed its se-

curity using formal methods of veriﬁcation which was

seen as a formal proof of an intuitively straightfor-

ward protocol. Surprisingly in 1996 (Lowe, 1995) an

attack was found by Gavin Lowe. The reason for that

is not a more powerful analysis method but rather ex-

tended possibilities of the adversary.

In the eighties, users in the network were assumed

to be honest. Later, the view of networks changed.

Not all users were necessarily trusted, and so network

protocols in a formal analysis should assume that an

intruder can play one part in the protocol (or, the in-

truder has compromised a regular user). We say that

a protocol is safe with (resp. without) presence of a

compromising adversary (or internal intruder) if we

(do not) add this extra possibility to the intruder.

The veriﬁcation tool Scyther during its analysis

automatically assumes the presence of a compromis-

ing adversary.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

628

3 ORIGINAL PROTOCOLS

Here we describe three protocols and a unique enrol-

ment phase that is supposed to be exchanged through

a secure channel before the start of each protocol,

which were published in (Buchoveck

a et al., 2020)

(and later in extended form also in (Buchoveck

a et al.,

2022)). We denote Authentication Authority as AA

and its public key as PK

3.1 Enrolment Phase

During the Enrolment phase where the AA commu-

nicates with some device D1, see Fig. 1, a database

is created and securely stored at the AA. It con-

tains challenge/response pair(s) (C, R) that are mea-

sured from the targeted device D1. Speciﬁcally for

Protocol 1, public key PK

is stored in the device

D1 (lines 5 and 6).

Common for Protocols 1-3:

1. AA → D1: Challenges (C1, C2, ...)

2. D1: R1 = PUF(C1), R2 = PUF(C2), ...

3. D1 → AA: Responses (R1, R2, ...)

4. AA: Store (C

) to DB

Speciﬁc only for Protocol 1:

5. AA → D1: Public key PK

6. D1: Store(PK

)

Figure 1: Enrolment phase – stores the database of chal-

lenge response pairs at authentication authority.

3.2 Protocol 1 Description

Protocol 1 provides authentication of a device D1 to

authority AA. See Fig. 2. The authentication au-

thority chooses a challenge-response pair (C, R) from

and sends the challenge C together with a fresh

nonce N to device D1. It creates a response R’=

PUF(C) and concatenates it with N. Then, the device

encrypts R’||N with the public key PK

as CR =

PK AA

(R’|| N) and sends it to AA. In the end, AA

decrypts the message and checks if the accepted re-

sponse R’ corresponds to the response R from the

database DB

and it checks that the accepted nonce

is the same as the sent one.

Note that R’ and R are responses that are from

their very nature probabilistic values meaning there is

a chance of having a false negative in the protocol.

In our formal analysis, we disregard this probabilistic

nature and we assume that our PUF construction is

perfect. Therefore, instead of symbol

∼

in step 5,

we could have used just equality =, yet we left the

description as it was published in the original article.

0. Enrolment phase (secure environment)

1. AA: Choose (C,R) from DB

2. AA → D1: Challenge C, Nonce N

3. D1: R’ = PUF(C)

4. D1 → AA: CR = E

PK AA

(R’||N)

5. AA: (R’, N’) = D

SK AA

(CR)

Compare(R

∼

R’), Compare(N = N’)

Figure 2: Protocol 1 provides authentication of a device D1

to authority AA.

3.3 Protocol 2 Description

Protocol 2 is described in Fig. 3. It provides authenti-

cation of the device D1 to the authority AA as Proto-

col 1, but on top of that, it establishes shared symmet-

ric key K for future encrypted communication starting

from step 10.

In the beginning, device D1 notiﬁes the author-

ity that it would like to start protocol 2 by sending

the message Call(D1) (step 1). Then, authority gener-

ates a random data r, chooses challenge-response pair

(C,R) from its database DB

, creates helper string

H = R xor Encode(r) and derives K by key derivation

function as K = KDF(r) (steps 2-5). Authority sends

the challenge C and the helper string H to the device

(step 6). The device creates the response R’ from the

accepted challenge as R’ = PUF(C). It obtains the se-

cret random data r = Decode(R’ xor H) and derives

the shared key K = KDF(r) (steps 7-9).

Usage of helper data in protocols is described for

example in (Delvaux et al., 2014), (Merli et al., 2013)

or (Maes et al., 2009).

Notice that it is a key distribution protocol and not

a key agreement protocol, since the random data r are

generated solely by the AA and distributed to the de-

vice xored with the response so that one can deter-

mine the value r only with knowledge of the response.

Since we assume that our PUF is perfect, the En-

code and Decode functions are in our case just identi-

ties. Yet, in real implementation, they implement the

usage of Error Correction Code that makes otherwise

very probabilistic PUF constructions useful. There-

fore, we left them in the description.

3.4 Protocol 3 Description

The last protocol provides mutual authentication be-

tween devices D1 and D2 and establishes shared sym-

metric key K between those devices for future en-

crypted communication starting from step 19. Sim-

ilarly, as in protocol 2, it is in fact distribution pro-

tocol and authentication authority takes an essential

role. See Fig. 4 for the description.

Let us assume that device D1 wants to connect

to device D2. It initiates the protocol by sending

Veriﬁcation of PUF-based IoT Protocols with AVISPA and Scyther

629

0. Enrolment phase (secure environment)

1. D1 → AA: Call(D1)

2. AA: r = TRNG()

3. Choose (C,R) from DB

4. H = R xor Encode(r)

5. K = KDF(r)

6. AA → D1: Challenge C, Helper string H

7. D1: R’ = PUF(C)

8. r = Decode(R’ xor H)

9. K = KDF(r)

10. D1 ↔ AA: Authentication + Encryption with K

Figure 3: Description of Protocol 2 that authenticates a de-

vice to the authority and distributes the shared key from the

authority to the device.

message Call(D1, D2) to authority AA which iden-

tiﬁes both devices in step 1. Authority generates

two random components r

and r

from the set of

preimages of ECC and encodes them, thereby form-

ing randomly chosen codewords. In our case, ECC

is just identity since our PUF is error-free. Never-

theless, the code length should in reality correspond

to the PUF response length. Then, authority creates

helper strings H

and H

by xoring the expected

PUF responses R

and R

to the corresponding

codewords. In step 8, both random components are

hashed and xored together resulting in r = Hash(r

)

xor Hash(r

Authority then sends triplet with the correspond-

ing challenge, helper data and r to both devices in

steps 9 and 10. In addition, it relays the initial re-

quest for communication Call(D1, D2) from D1 to

D2. Both devices then create their responses to the ac-

cepted challenges as R’

= PUF(C

). Devices xor it

with helper data H

and decode it, so they get the ran-

dom component r

which they are entitled to (steps

12 and 16). Let us note that they are not able to recre-

ate the random component for the other device. Nev-

ertheless, they can compute its hash (by xoring r with

the hash of its own random component), and use it

to recover the ﬁnal shared secret key K (steps 14 and

18).

4 ANALYSIS AND ATTACKS

In this section, we will discuss the results of our anal-

ysis and elaborate on found attacks. You can see sum-

marization in Table 1. You can see Just before that, we

explain how we model PUF in the veriﬁcation tools.

4.1 Model of PUF

The aim of AVISPA and Scyther is to verify the logic

of protocols and they are abstracted away from im-

plementation details. Therefore, it is not possible to

0. Enrolment phase (secure environment)

1. D1 → AA: Call(D1, D2)

2. AA: r

= TRNG()

3. r

= TRNG()

4. Choose (C

, R

) from DB

5. Choose (C

, R

) from DB

6. H

= R

xor Encode(r

)

7. H

= R

xor Encode(r

)

8. r = Hash(r

) xor Hash(r

)

9. AA → D1: (C

, H

, r)

10. AA → D2: Call(D1,D2), (C

, H

, r)

11. D1: R’

= PUF(C

)

12. r

= Decode(R‘

xor H

)

13. Hash(r

) = Hash(r

) xor r

14. K = KDF(Hash(r

) || Hash(r

))

15. D2: R‘

= PUF(C

)

16. r

= Decode(R‘

xor H

)

17. Hash(r

) = Hash(r

) xor r

18. K = KDF(Hash(r

) || Hash(r

))

19. D1 ↔ D2: Authentication + Encryption with K

Figure 4: Description of Protocol 3 that provides mutual au-

thentication between devices D1 and D2 using central au-

thentication authority which also distributes shared secret

key K between both devices for further communication.

Table 1: Table summarizing our results of veriﬁcation of

each protocol without a compromising adversary.

Protocol

1 2 3 1 ext. 2 corr.

secrecy X X X X X

authent. of D1 X × × X X

authent. of AA × × × X X

implement PUF with its errors and we made an as-

sumption that our PUF is perfect, ergo no Error Cor-

rection Codes are needed. Also, our perfect PUF has

the same formal properties like MAC

with unique K

for every device.

This way, we are able to model the one-wayness

property of PUF (MAC is one-way with respect to its

input), and also the unclonability property (MAC is

also one-way with respect to the key). The per-device

unique key represents the uniqueness property of PUF

that would normally be derived from manufacturing

process variations.

Protocol veriﬁcation tools usually implement

only encryption/decryption algorithms and hash algo-

rithms. Others, like the MAC algorithm, veriﬁcation

tools derive from these two. The most popular way is

to concatenate secret key K to the message M and then

apply hash, i.e. MAC

(M) = Hash(M||K). For ex-

ample, this model of MAC was also used by Cas Cre-

mers during its analysis of IKE protocols in (Cremers,

2011). It also corresponds to the way how HMAC is

constructed. Let us note that in our case the message

M will be in fact a challenge C.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

630

4.2 Protocol 1 Veriﬁcation

We run the OFMC back-end of AVISPA on Protocol

1. The result of the analysis without a compromising

adversary has shown that the protocol is safe. When

we assumed the presence of a compromising adver-

sary, AVISPA showed a theoretical attack. Only real-

ization of the theoretical attack that we could think of

are the following:

Let us say that the adversary plays the role of au-

thority in one run of the protocol. After accepting the

message from device with the secret response, he im-

mediately knows the secret response and is able to in-

terpersonate the device in future runs. It is described

in Fig. 5.

This attack could happen for example if authority

is compromised (during one session) or if we let an

adversary inject his PK

Intruder

and the device trusts the

adversary in one session.

Nevertheless, these scenarios are unrealistic and

this type of protocols where the authority knows the

secret material of the device cannot resist these types

of attack.

% session 1 - between device and

intruder as an authority:

% i -> D1: C,Ni

% D1 -> i: {R,Ni}_pki

% session 2 - compromising

authentication of the device:

% AA -> i(D): C,Naa

% i -> AA: {R,Naa}_pkAA

Figure 5: Attack trace of an attack on Protocol 1 in the pres-

ence of a compromising adversary. He runs session 1 as the

authority which gives him knowledge of R and then he can

impersonate device in session 2 being authenticated by hon-

est authority.

We would like to also point out that in this proto-

col a device authenticates to the authority, but not the

other way around. In other words, the devices can-

not know if the ﬁrst message was sent by the author-

ity, therefore an adversary can easily pretend to be the

authority. We suggest an extension of the protocol 1

providing mutual authentication in next section.

4.3 Protocol 2 Veriﬁcation

This protocol correctly protects the conﬁdentiality of

intended secret messages, but unfortunately, it does

not provide the assumed authentication of the device.

We found an attack on authentication property when

we analysed it with AVISPA. Screenshot of AVISPA

with an attack is in Fig. 6. According to deﬁnitions

from (Lowe, 1997), the attack breaks aliveness – the

weakest form of authentication.

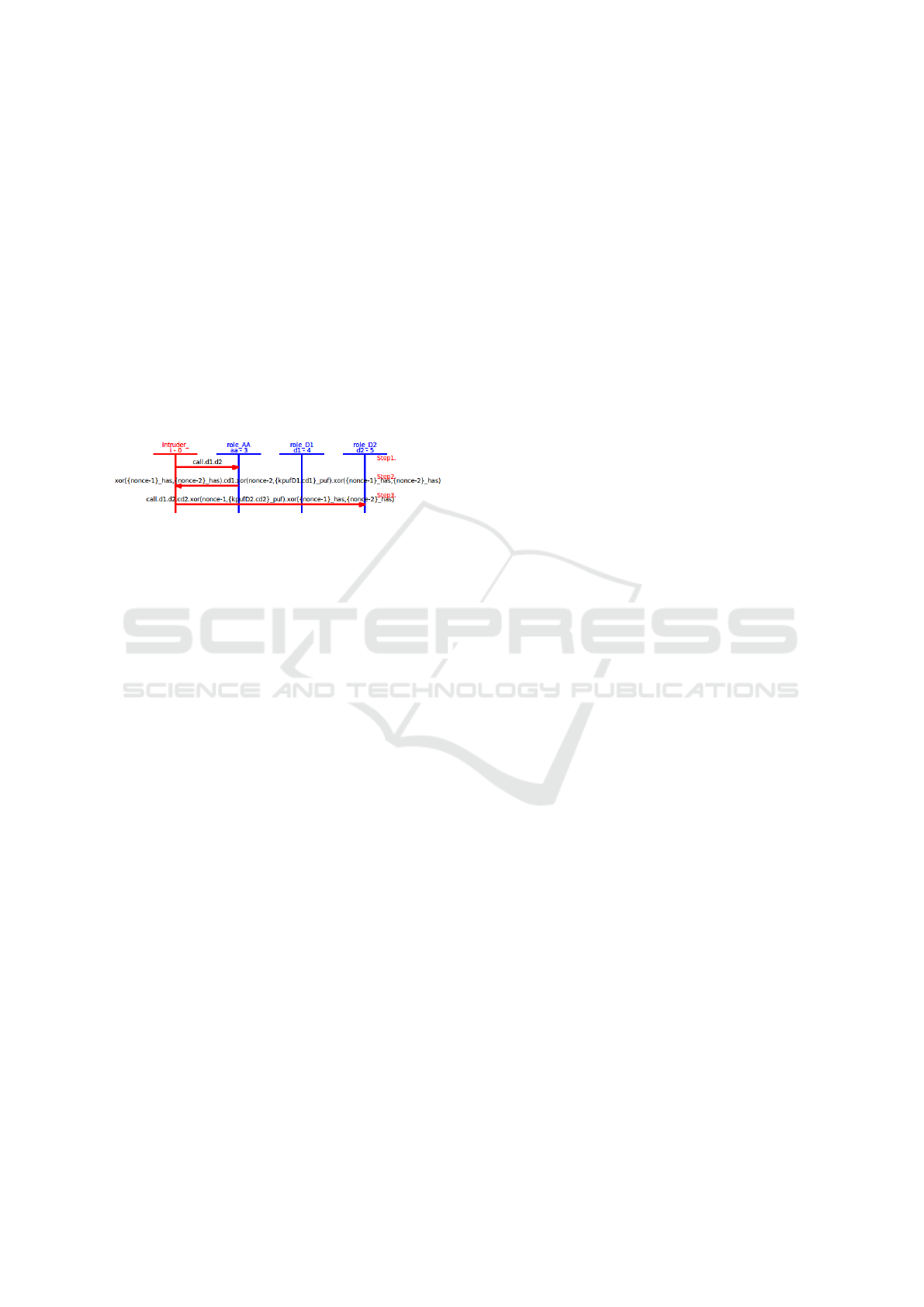

Figure 6: Screenshot from AVISPA with an attack on Pro-

tocol 2 breaking authentication property – aliveness.

We then analysed it and constructed two different

approaches how intruder could take advantage of this

vulnerability. Description of the ﬁrst variant is in Fig.

7. Here, the device is not part of the communication

at all. Yet the authority trusts the other participant to

be the device. The problem is that the device does not

prove itself to the authority in any way (it does not

even reply), hence the authority cannot really authen-

ticate the device.

Another way how to exploit this error is by com-

pleting the protocol with both roles (authority and de-

vice) but ending up with different keys for each of

them. See Fig. 8. The problem is that at the end of

the protocol both roles will think they have the same

key, but they do not verify it.

Let us also note, that if a key is distributed in a

protocol, it is essential to authenticate the party that

the key comes from or at least authenticate the key.

Otherwise, the accepting party cannot trust this key

(and its origin). In other words, one cannot achieve

safe key distribution if the accepting role does not au-

thenticate the key and does not verify his freshness

(otherwise replay attack might be possible). Unfor-

tunately, the original protocol is not (actually it was

not supposed to be) constructed in that way, that these

properties are also achieved. In the next section, we

suggest a correction of the protocol fulﬁlling these

properties.

4.4 Protocol 3 Veriﬁcation

After modeling Protocol 3 in AVISPA, we quickly

found an attack on authentication properties. Screen-

0. Enrolment phase (secure environment)

1. I → AA: Call(D1)

2. AA: r = TRNG()

3. Choose (C,R) from DB

4. H = R xor Encode(r)

5. K = KDF(r)

6. AA → I(D1): Challenge C, Helper string H

Figure 7: Attack v1 on Protocol 2 by capturing.

Veriﬁcation of PUF-based IoT Protocols with AVISPA and Scyther

631

0. Enrollment phase (secure environment)

1. D1 → AA: Call(D1)

2. AA: r = TRNG()

3. Choose (C,R) from DB

4. H = R xor Encode(r)

5. K = KDF(r)

6a. AA → I(D1): Challenge C, Helper string H

6b. I → D1: Challenge C, Helper string H

tampered

7. D1: R‘ = PUF(C)

8. r

tampered

= Decode(R‘ xor H

tampered

)

9. K

tampered

= KDF(r

tampered

)

10. D1 6↔ AA: Authentication + Encryption with K

Figure 8: Attack v2 on Protocol 2 by tampering.

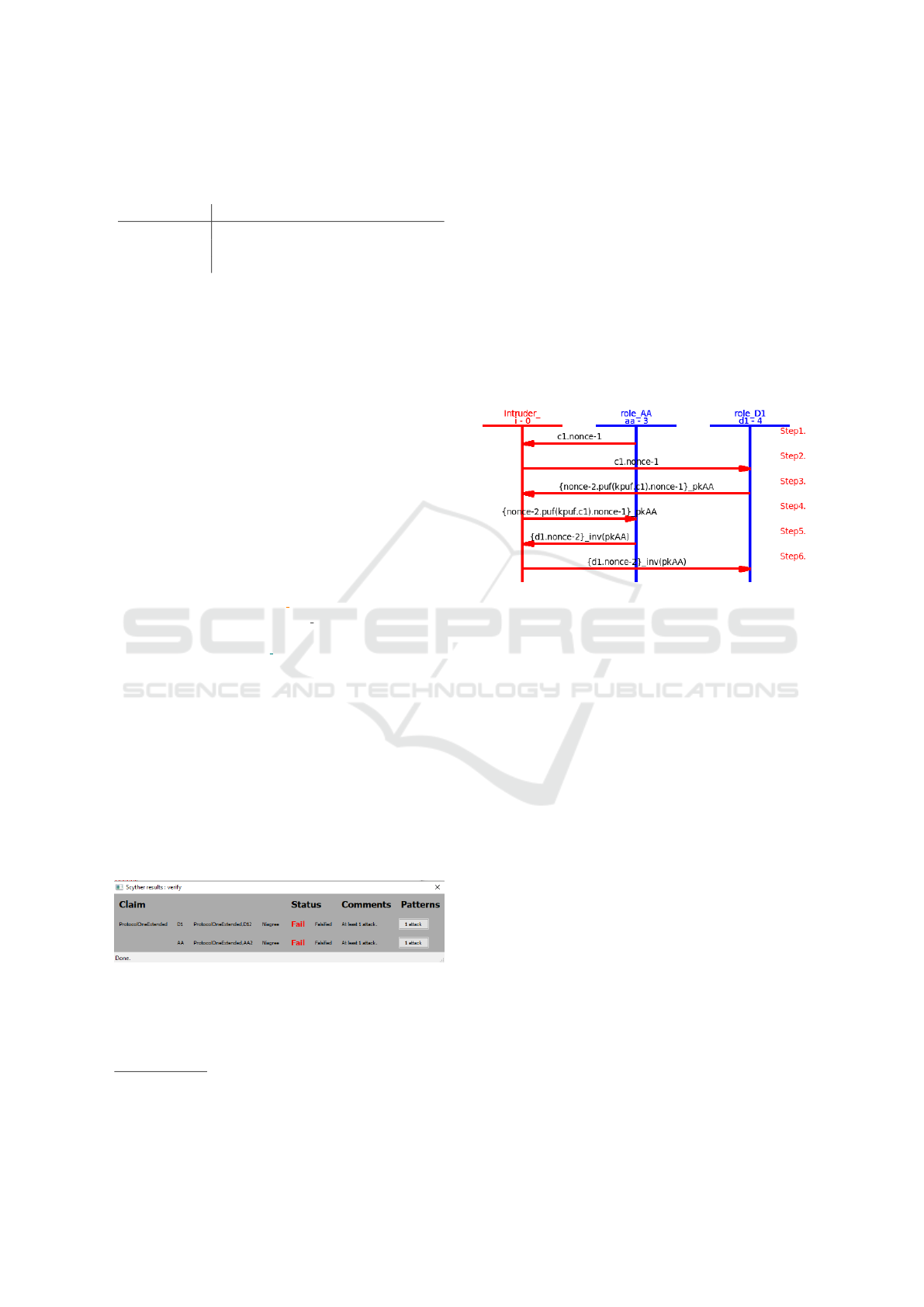

shot is in Fig. 9. Again, according to formal deﬁni-

tions from (Lowe, 1997), the attack breaks aliveness

of D1 – the weakest form of authentication.

Figure 9: Screenshot from AVISPA with an Attack on Pro-

tocol 3 breaking authentication property – aliveness of D1.

Subsequent analysis of the results provided by

AVISPA showed that Protocol 3 suffers from a sim-

ilar error as protocol 2. After receiving public infor-

mation from a device, authority responds to both de-

vices. The necessary information to derive the shared

key lies in these responses. Unfortunately, that does

not authenticate the messages and also it does not en-

sure its freshness.

The original protocol means to achieve mutual au-

thentication of devices, but there is no stated commu-

nication between them. How can devices know that

they have the same distributed key? How can one of

them know that the other one obtained some key at

all?

The ﬁrst variant of an attack on Protocol 3, see

Fig. 10, consists of impersonating D1 by sending ini-

tial constant Call to authority by adversary and cap-

turing the message for device D1. Since message for

device D2 would be correct, device D2 would assume

it successfully shares the fresh secret key K ready to

safely communicate with device D1, but device D1

won’t be even participating in the communication.

In the second variant of an attack, see Fig. 11, an

adversary tampers one of the messages, making one

of the devices accept a false key. Of course, an adver-

sary could tamper with messages for both devices as

well. Since devices do not authenticate the messages,

both devices blindly believe that they share the same

secret key K at the end of the protocol, which is not

true.

0. Enrolment phase (secure environment)

1. I(D1) → AA: Call(D1, D2)

2. AA: r

= TRNG()

3. r

= TRNG()

4. Choose (C

, R

) from DB

5. Choose (C

, R

) from DB

6. H

= R

xor Encode(r

)

7. H

= R

xor Encode(r

)

8. r = Hash(r

) xor Hash(r

)

9. AA → I(D1): (C

, H

, r)

10. AA → D2: Call(D1,D2), (C

, H

, r)

11. D2: R‘

= PUF(C

)

12. r

= Decode(R‘

xor H

)

13. Hash(r

) = Hash(r

) xor r

14. K = KDF(Hash(r

) || Hash(r

))

15. D1 6↔ D2: Authentication + Encryption with K

Figure 10: Attack v1 on Protocol 3 by capturing.

0. Enrolment phase (secure environment)

1. D1 → AA: Call(D1, D2)

2. AA: r

= TRNG()

3. r

= TRNG()

4. Choose (C

, R

) from DB

5. Choose (C

, R

) from DB

6. H

= R

xor Encode(r

)

7. H

= R

xor Encode(r

)

8. r = Hash(r

) xor Hash(r

)

9. AA → D1: (C

, H

, r)

10a. AA → I(D2): Call(D1,D2), (C

, H

, r)

10b. I(AA) → (D2): Call(D1,D2), (C

, H

, r

tampered

)

11. D1: R‘

= PUF(C

)

12. r

= Decode(R‘

xor H

)

13. Hash(r

) = Hash(r

) xor r

14. K = KDF(Hash(r

) || Hash(r

))

15. D2: R‘

= PUF(C

)

16. r

= Decode(R‘

xor H

)

17. Hash(r

)

tampered

Hash(r

) xor r

tampered

18. K

tampered

KDF(Hash(r

)

tampered

|| Hash(r

))

19. D1 6↔ D2: Authentication + Encryption with K

Figure 11: Attack v2 on Protocol 3 by tampering.

5 SUGGESTED IMPROVEMENTS

In this section, we suggest extension of Protocol 1 that

offers mutual authentication (without a compromising

adversary), since in many cases unilateral authentica-

tion may not be enough, and we analyse this protocol

by veriﬁcation tools AVISPA and Scyther. Then we

suggest correction and extension of Protocol 2 provid-

ing mutual authentication. Former protocol offered

just unilateral authentication, but we argued that mu-

tual authnetication is needed since it is necessary to

authenticate the key from authority as well. You can

see the results of different back-ends in Table 2.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

632

Table 2: Table summarizing concrete results of different

back-ends of our suggested protocols without a compromis-

ing adversary.

Back-end Protocol 1 – ext. Protocol 2 – corr.

OFMC-64bit UNSAFE

SAFE

OFMC-32bit SAFE SAFE

Cl-ATSE SAFE SAFE

5.1 Protocol 1: Extension

Here we suggest extension of the protocol 1 pro-

viding mututal authentication in Fig. 12. We add

creating random nonce Nb by device D1 that is sent

to authority AA in step 4. Authority signs it and

sends it back to the device with its identity in step 6.

Thanks to randomness (in veriﬁcation tools modeled

as uniqueness) of this nonce generated by the device,

it would be sure that the message is fresh and could

not be replayed from later runs. Result of its analysis

by AVISPA back-ends Cl-ATSE and OFMC-32bit

says it is safe.

0. Enrolment phase (secure environment)

1. AA: Choose (C,R) from DB

2. AA → D1: C, N

3. D1: R‘ = PUF(C)

4. D1 → AA: CR = E

PK AA

(Nb || R‘|| N)

5. AA: (R‘,N‘) = D

SK AA

(CR)

Compare(R

∼

R‘), Compare(N=N‘)

6. AA → D1: Sign

SK AA

(D1||Nb)

Figure 12: Extension of the protocol 1 that provides mutual

authentication without a compromising adversary.

This protocol does not offer safe mutual authen-

tication with compromising adversary. If Intruder

would play a role of authority in one session, he

would (similarly as in Protocol 1 Fig. 5) obtain the

secret response R. Then it could imitate the device

in another future session. Note that for this reason

its safety could not be fully proved by the veriﬁcation

tool Scyther that automatically takes into account a

compromising adversary. It can be seen in Fig. 13.

Figure 13: Screenshot of Scyther results when verifying

Protocol 1 – extension with presence of a compromising

adversary.

When we tested Protocol 1 – extension with

AVISPA, we came across an interesting problem. Dif-

As we comment later, the result (i.e. unsafe) is most

probably caused by a mistake in the back-end OFMC 64-bit

version.

ferent back-ends gave us different results contradict-

ing each other. Cl-ATSE returned that the protocol is

SAFE and no attack was found. The same result came

from OFMC-32bit version. Surprisingly, OFMC-64

bit version returned an attack that assumed just one

session of the protocol and it consisted of just for-

warding messages between the device and authority

by an intruder, see Fig. 14. Since we follow Dolev-

Yao model in which ”intruder is the network”, this

cannot be seen as valid attack. Therefore, we believe

that it is caused by a bug in the program and our pro-

tocol 1 - extension is secure without a compromisign

adversary as Cl-ATSE and OFMC-32 bit version con-

ﬁrmed.

Figure 14: Screenshot of AVISPA with the (False?) Attack

on Protocol 1 – extension by OFMC-64 bit version (contra-

dicting the result of Cl-ATSE and OFMC-32 bit version).

5.2 Protocol 2: Correction

We tried to modify original protocol 2 in such a way

that it will, in fact, provide authentication of the de-

vice D1 and on top of that authentication of the au-

thority AA as well. Our suggested modiﬁcation of

Protocol 2 can be seen in Fig. 15.

We added random nonce Nd created by D1 and

sent to AA in step 1. In step 6, AA creates random

nonce NA and among the challenge C and Helper

string H it also sends data (AA,D1,Nd,Na) encrypted

by symmetric key K = KDF(r). Lastly, we added

new step number 10, where D1 sends a nonce Na en-

crypted with the key K to AA.

Nonce Na gives assurence to AA that D1 owns the

key K and that D1 recently (after Na was generated)

used this key to encrypt Na freshly generated by AA.

Similarly, nonce Nd gives assurance to D1 that AA

owns the key K and recently used this key to encrypt

Nd freshly generated by D1.

We analysed our correction of Protocol 2 with

backends OFMC-64 bit version, OFMC-32 bit ver-

sion, and Cl-ATSE. All of them returned the same re-

sult that the protocol is safe.

Similarly to extension of Protocol 1, this protocol

is not safe with assumption of compromising adver-

Veriﬁcation of PUF-based IoT Protocols with AVISPA and Scyther

633

0. Enrolment phase (secure environment)

1. D1 → AA: Call(D1,Nd)

2. AA: r = TRNG()

3. Choose (C,R) from DB

4. H = R xor Encode(r)

5. K = KDF(r)

6. AA → D1: Challenge C, Helper string H,

Enc

(AA,D1,Nd,Na)

7. D1: R‘ = PUF(C)

8. r = Decode(R‘ xor H)

9. K = KDF(r)

10. D1 → AA: Enc

(Na)

11. D1 ↔ AA: Authentication + Encryption with K

Figure 15: Description of Protocol 2 – correction that pro-

vides mutual authentication without compromising adver-

sary.

sary. If one session is run with Intruder as authority, it

gains the response R. Thanks to that, it can interper-

sonate the device in another run of the protocol.

5.3 Compromising Adversary as Too

Strong for PUF-based Protocols

We believe that no small change of any of the proto-

cols would make it safe with presence of a compro-

mising adversary, since the safety of both protocols

utterly rely on the fact that the response is known just

to the device and the authority.

Compared to Difﬁe-Hellman key-exchange proto-

col that provides forward secrecy, our key-distribution

PUF-based protocol does not. Since the response is

the only long-term secret between device and author-

ity and this response is the only protection of session

secrets like r or K=KDF(r), protocol does not satisfy

(weak) perfect forward secrecy. If the response is

compromised, all the communication is then public

if the adversary just recorded the messages.

Even more of a concern is the fact that compro-

mising just the session secret r from just one recorded

session makes the long-term secret response R deriv-

able, and consequently all other session keys as well.

Nevertheless, we believe that the model (i.e. in the

presence of compromising adversary) is too strong for

this type of protocol. The discussion was motivated

by Scyther that does assume the model automatically,

and therefore returned negative results even for other-

wise safe protocols.

6 CONCLUSION

We explained the security problems with original pro-

tocols, and we showed the results of formal analysis.

This analysis was done with two tools for formal ver-

iﬁcation AVISPA and Scyther. We also constructed

several attacks exploiting the vulnerabilities.

Then, we proposed new protocols that intend to

achieve security property mutual authentication and,

in the second protocol, also secrecy of the distributed

key. We successfully veriﬁed these protocols with the

tool AVISPA. During this analysis, we encountered

wrong behavior of AVISPA whose back-ends contra-

dicted each other. That was caused probably due to a

bug.

To compensate this discrepancy we also con-

ducted formal veriﬁcation by another veriﬁcation tool

Scyther whose natural behavior is to apply the model

with compromising adversary. After consideration we

concluded that this model is unreasonably strong for

our case where authority must know the secret re-

sponses of the device.

To conclude our paper, we repaired and strength-

ened original protocols that now provides all desired

security properties.

ACKNOWLEDGEMENTS

The authors acknowledge the support of the OP VVV

MEYS funded project CZ.02.1.01/0.0/0.0/16 019/

0000765 ”Research Center for Informatics”. The re-

search was partly carried out under the project of

NCISA of the Czech Republic – Software tools for

cryptographic security assessment – therefore, we

would like to thank them for their support. Also, we

would like to thank Thomas Genet for his advice with

the AVISPA tool.

REFERENCES

Armando, A., Basin, D., Boichut, Y., Chevalier, Y., Com-

pagna, L., Cu

ellar, J., Drielsma, P. H., H

eam, P.-

C., Kouchnarenko, O., Mantovani, J., et al. (2005).

The avispa tool for the automated validation of in-

ternet security protocols and applications. In Inter-

national conference on computer aided veriﬁcation,

pages 281–285. Springer.

Backes, M., Pﬁtzmann, B., and Waidner, M. (2006). Sound-

ness limits of dolev-yao models. In Workshop on For-

mal and Computational Cryptography (FCC 2006).

ohm, C., Hofer, M., and Pribyl, W. (2011). A microcon-

troller sram-puf. In 2011 5th International Confer-

ence on Network and System Security, pages 269–273.

IEEE.

Braeken, A. (2018). Puf based authentication protocol for

iot. Symmetry, 10(8):352.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

634

Buchoveck

a, S., L

orencz, R., Bucek, J., and Kod

ytek, F.

(2020). Lightweight authentication and secure com-

munication suitable for iot devices. In ICISSP, pages

75–83.

Buchoveck

a, S., L

orencz, R., Bu

cek, J., and Kod

ytek,

F. (2022). Symmetric and asymmetric schemes for

lightweight secure communication. In Information

Systems Security and Privacy, Basel, CH. Springer

Nature Switzerland AG.

Burrows, M., Abadi, M., and Needham, R. M. (1989). A

logic of authentication. Proceedings of the Royal So-

ciety of London. A. Mathematical and Physical Sci-

ences, 426(1871):233–271.

Chatterjee, U., Chakraborty, R. S., and Mukhopadhyay, D.

(2017). A puf-based secure communication protocol

for iot. ACM Transactions on Embedded Computing

Systems (TECS), 16(3):1–25.

Cremers, C. (2011). Key exchange in ipsec revisited: For-

mal analysis of ikev1 and ikev2. In European Sympo-

sium on Research in Computer Security, pages 315–

334. Springer.

Cremers, C. and Mauw, S. (2012). Security properties.

In Operational Semantics and Veriﬁcation of Security

Protocols, pages 37–65. Springer.

Cremers, C. J. (2008). The scyther tool: Veriﬁcation, falsi-

ﬁcation, and analysis of security protocols. In Inter-

national conference on computer aided veriﬁcation,

pages 414–418. Springer.

Delvaux, J., Gu, D., Schellekens, D., and Verbauwhede, I.

(2014). Helper data algorithms for puf-based key gen-

eration: Overview and analysis. IEEE Transactions

on Computer-Aided Design of Integrated Circuits and

Systems, 34(6):889–902.

Herder, C., Yu, M.-D., Koushanfar, F., and Devadas,

S. (2014). Physical unclonable functions and ap-

plications: A tutorial. Proceedings of the IEEE,

102(8):1126–1141.

Idriss, T. and Bayoumi, M. (2017). Lightweight highly se-

cure puf protocol for mutual authentication and secret

message exchange. In 2017 IEEE International Con-

ference on RFID Technology & Application (RFID-

TA), pages 214–219. IEEE.

Lowe, G. (1995). An attack on the needham- schroeder

public- key authentication protocol. Information pro-

cessing letters, 56(3).

Lowe, G. (1997). A hierarchy of authentication speciﬁca-

tions. In Proceedings 10th Computer Security Foun-

dations Workshop, pages 31–43. IEEE.

Maes, R., Tuyls, P., and Verbauwhede, I. (2009). A soft

decision helper data algorithm for sram pufs. In 2009

IEEE international symposium on information theory,

pages 2101–2105. IEEE.

Majzoobi, M., Rostami, M., Koushanfar, F., Wallach, D. S.,

and Devadas, S. (2012). Slender puf protocol: A

lightweight, robust, and secure authentication by sub-

string matching. In 2012 IEEE Symposium on Security

and Privacy Workshops, pages 33–44. IEEE.

Merli, D., Stumpf, F., and Sigl, G. (2013). Protecting puf

error correction by codeword masking. Cryptology

ePrint Archive.

Needham, R. M. and Schroeder, M. D. (1978). Using en-

cryption for authentication in large networks of com-

puters. Communications of the ACM, 21(12):993–999.

Nimmy, K., Sankaran, S., and Achuthan, K. (2021). A

novel lightweight puf based authentication protocol

for iot without explicit crps in veriﬁer database. Jour-

nal of Ambient Intelligence and Humanized Comput-

ing, pages 1–16.

Ray, B. R., Chowdhury, M. U., and Abawajy, J. H. (2016).

Secure object tracking protocol for the internet of

things. IEEE Internet of things Journal, 3(4):544–553.

Vigano, L. (2006). Automated security protocol analysis

with the avispa tool. Electronic Notes in Theoretical

Computer Science, 155:61–86.

Zargar, S., Shahidinejad, A., and Ghobaei-Arani, M.

(2021). A lightweight authentication protocol for iot-

based cloud environment. International Journal of

Communication Systems, 34(11):e4849.

Veriﬁcation of PUF-based IoT Protocols with AVISPA and Scyther

635
