A Lightweight Machine Learning Pipeline for LiDAR-simulation

Richard Marcus

1 a

, Niklas Knoop

, Bernhard Egger

1 b

and Marc Stamminger

1 c

Chair of Visual Computing, Friedrich-Alexander-Universit

at Erlangen-N

urnberg, Germany

Elektronische Fahrwerksysteme GmbH, Germany

Keywords:

Autonomous Driving, LiDAR, General Adversarial Neural Network, Image-to-image Translation.

Abstract:

Virtual testing is a crucial task to ensure safety in autonomous driving, and sensor simulation is an important

task in this domain. Most current LiDAR simulations are very simplistic and are mainly used to perform initial

tests, while the majority of insights are gathered on the road. In this paper, we propose a lightweight approach

for more realistic LiDAR simulation that learns a real sensor’s behavior from test drive data and transforms this

to the virtual domain. The central idea is to cast the simulation into an image-to-image translation problem.

We train our pix2pix based architecture on two real world data sets, namely the popular KITTI data set and

the Audi Autonomous Driving Dataset which provide both, RGB and LiDAR images. We apply this network

on synthetic renderings and show that it generalizes sufﬁciently from real images to simulated images. This

strategy enables to skip the sensor-speciﬁc, expensive and complex LiDAR physics simulation in our synthetic

world and avoids oversimpliﬁcation and a large domain-gap through the clean synthetic environment.

1 INTRODUCTION

Even though Autonomous Driving (AD) and Ad-

vanced Driver Assistance Systems (ADAS) have been

a major research areas for more than a decade, the

adoption into practical driving systems is dragging on.

With the lacking capabilities of current algorithms to

adapt to unforeseen situations, a big challenge is test-

ing the performance of such systems safely. A key

part to achieve this vision is the realistic simulation of

the car sensors such as cameras, LiDAR or RADAR.

Simulating such sensors in a virtual environment is

costly, in particular if the virtual sensors should suffer

from the same physical limitations and imperfections

as their real counterpart.

A typical approach are physical based simula-

tions, which require extensive data about the sensor

speciﬁcs and a careful implementation. A more desir-

able option is to learn the behavior of a particular sen-

sor from recorded real test drive data and to transfer

this to a virtual sensor. The process should be mostly

automatic, in order to easily adapt the simulation to

new models and types of sensors.

The core idea of this paper is to tackle the problem

as an image-to-image translation task. In particular,

https://orcid.org/0000-0002-6601-6457

https://orcid.org/0000-0002-4736-2397

https://orcid.org/0000-0001-8699-3442

we consider the simulation of LiDAR sensors, which

send out light beams in a uniform cylindrical grid and

measure the time of ﬂight and thus the distance of the

scene point visible in this particular direction. If there

is no hit point (sky), the hit point absorbs the light

(dark surfaces), or does not reﬂect back (mirroring

surface) or multiple reﬂections interfere, no measure-

ment is returned. Of course, the possibilities to learn

sensor behavior strongly depend on the available test

drive (and thus ground truth data).

Relevant for our purpose are a RGB camera

stream and a synchronized stream of LiDAR points.

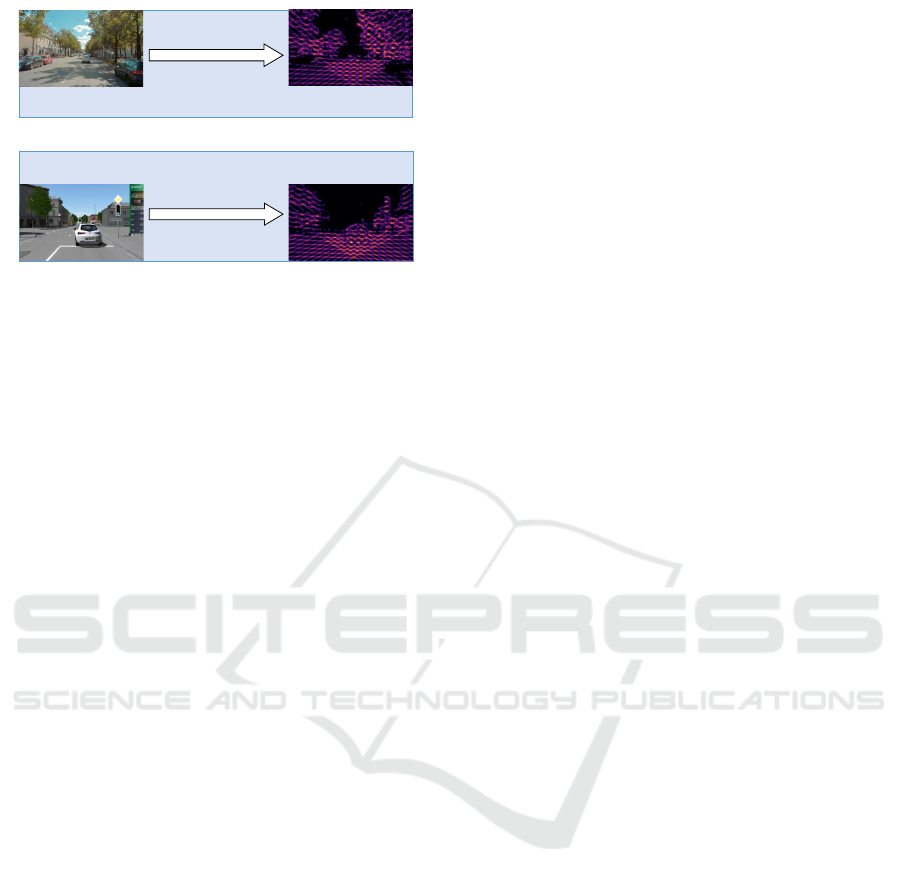

Our concept is shown in Fig. 1: from recorded test

drive data, we learn the transfer from RGB camera

images to LiDAR images using the Pix2Pix architec-

ture (Isola et al., 2018). Fig. 1 already shows a po-

tential challenge of the approach: real and simulated

RGB images still have signiﬁcantly different charac-

teristics. It is unclear, how much this gap between real

and simulated imagery inﬂuences the outcome in the

simulation. We thus examine other input image types,

e.g. depth images, or segmentation images, where the

real-2-sim gap might be smaller.

In this study, we explore variants of this idea and

show that it is possible to learn a plausible LiDAR

simulation solely from test drive data, in our case

KITTI and A2D2. Our simulation runs in real-time

and can thus be integrated in a virtual test drive sys-

176

Marcus, R., Knoop, N., Egger, B. and Stamminger, M.

A Lightweight Machine Learning Pipeline for LiDAR-simulation.

DOI: 10.5220/0011309100003277

In Proceedings of the 3rd International Conference on Deep Learning Theory and Applications (DeLTA 2022), pages 176-183

ISBN: 978-989-758-584-5; ISSN: 2184-9277

simulation

training

test drive data

rendered data

test drive LiDAR

simulated LiDAR

image-to-image translation

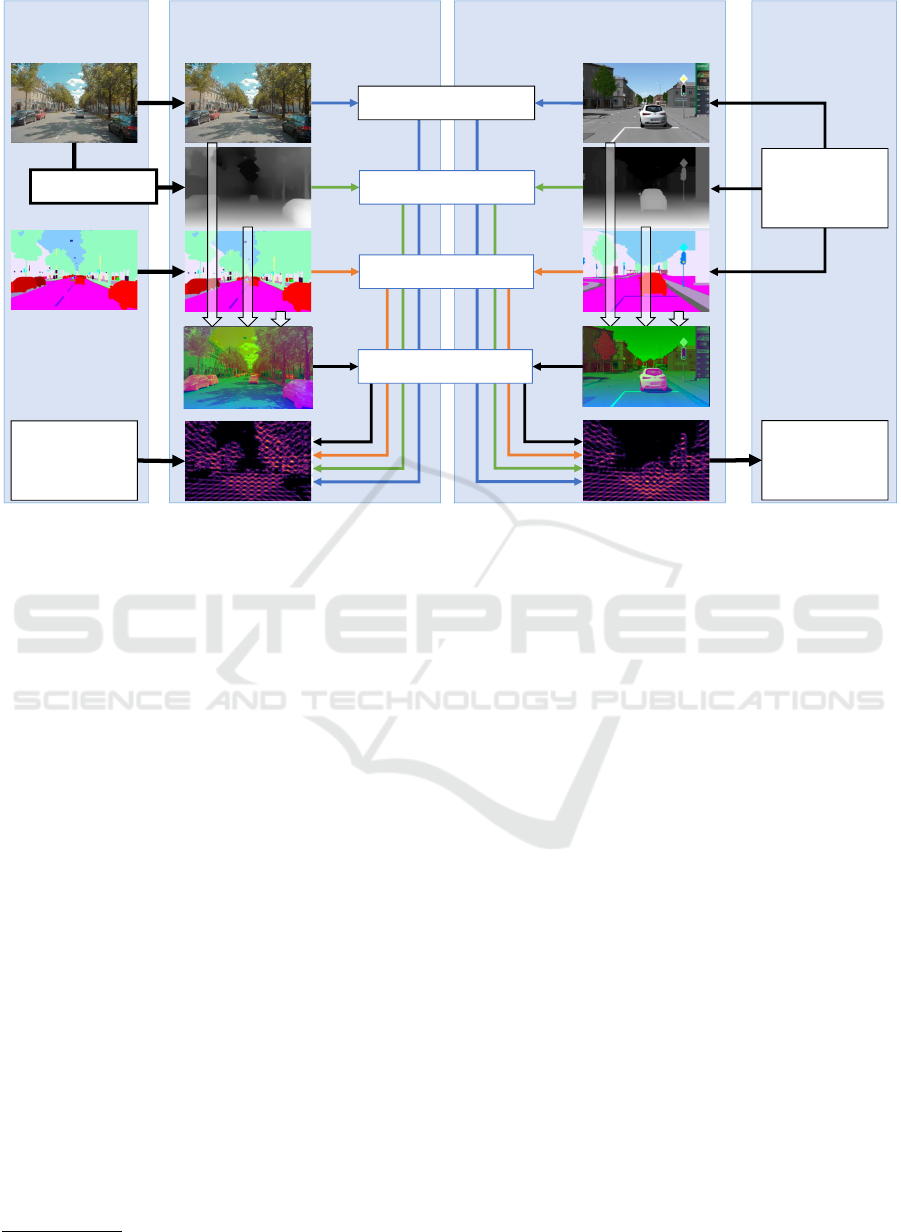

Figure 1: We learn the translation from real world RGB to

LiDAR data from test drives. We use this learned mapping

to derive LiDAR output from rendered RGB images.

tem. We compare the different modalities of input

images and ablate which are most suitable for our

learned LiDAR simulation strategy. We evaluate our

idea by examining how well ground truth LiDAR data

can be reproduced with our approach, and how well

we can predict real LiDAR measurements from syn-

thetic rendered data using the second revision (Cabon

et al., 2020) of the Virtual KITTI data set (VKITTI).

2 RELATED WORK

Simulation Environments. Many modern sim-

ulation environments like LGSVL (LG, 2021),

CARLA (Dosovitskiy et al., 2017) or Intel Air-

sim (Shah et al., 2017) build on game engines to offer

high quality graphics and proﬁt from their develop-

ment and communities. Additionally, there are dif-

ferent ADAS integrations, sensor conﬁgurations and

simulation settings, e.g. weather or trafﬁc, to support

many use cases of automotive simulation. Other tools

like VTD (VTD, 2021) or IPG Carmaker (Automo-

tive, 2020) focus on supporting their own software

stack and promise a more complete solution.

These environments also offer sensor simulations.

Yet, existing LiDAR simulations are usually simplis-

tic and not sufﬁcient to test ADAS or autonomous ve-

hicles, so we see potential for our approach here. To

integrate our approach into these systems, we only

need to get access to rendered RGB images, their

depth buffer, or segmentation masks, so the integra-

tion of a new module that transfers these images to

LiDAR sensor output is very simple.

Nvidia DRIVE Sim (NVIDIA, 2021) is different

in this regard, as it builds on the direct cooperation

with LiDAR companies to offer better integrations.

However, while there exist relatively realistic physics

based simulations, these are locked into the Nvidia

ecosystem, so we see them as rather complementary

to our accessible data based approach.

Furthermore, our approach makes it possible to

learn the behavior of new LiDAR sensor boxes only

based on test drive data, without knowing or tuning

the internal physical parameters.

Data Sets. Many high quality data sets from test

drives have emerged in recent years (Sun et al., 2020)

(Uhrig et al., 2017) and the trend continues (Liao

et al., 2021). LiDAR data is very common to be in-

cluded in these data sets, which makes them compat-

ible with our approach. The usual representation for-

mat are LiDAR point clouds. For each such point,

there is a position, an intensity value and a time stamp.

Using the sensor orientation and offset between the

RGB camera, it is possible to compute a 2D LiDAR

projection. Often, this format is already included in

the data sets directly or the necessary projection ma-

trices are given. Notably, (Gaidon et al., 2016; Cabon

et al., 2020) replicates KITTI scenes virtually with a

semi-manual process, thereby providing ground truth

data like depth and semantic segmentation. This al-

lows us to compare how well our trained network is

able to generalize between synthetic and real data on

the same driving data sequences.

Image-to-image Translation. In a way, the 2D Li-

DAR projection can be interpreted as a special seg-

mentation of the RGB image using two classes: vis-

ible by the LiDAR sensor and not visible. Conse-

quently, the popular U-Net architecture (Ronneberger

et al., 2015), using an encoder network, followed by a

decoder network, immediately suggests itself. How-

ever, to simulate the actual LiDAR pattern in the

projection, it is also important that unrealistic out-

puts are penalized. This can be achieved efﬁciently

with General Adversarial Networks (GANs) (Good-

fellow et al., 2014), where a discriminator is opti-

mized that estimates whether an image is fake or not.

Pix2pix (Isola et al., 2018) combines the strength of

U-Nets and an adversarial loss and demonstrated suc-

cess for very diverse image domains. There are also

approaches that perform this task in an unpaired fash-

ion (Zhu et al., 2020), but for the pipeline proposed in

this paper, we can assume that paired images exist.

Building on pix2pix, pix2pixHD (Wang et al.,

2018a) and SPADE (Park et al., 2019) have improved

the quality of results via adapting the architecture

more towards speciﬁc data domains.An alternative

would be the direction of style transfer (Johnson et al.,

2016). Following this approach, one could use an av-

erage LiDAR projection and apply it to different im-

ages. Given the available data, which offers a spe-

ciﬁc LiDAR projection for each individual input im-

A Lightweight Machine Learning Pipeline for LiDAR-simulation

177

age, image-to-image translation is a better ﬁt for our

purposes.

Learning based Sensor Simulation. A very in-

teresting approach for LiDAR simulation is pseudo-

LiDAR (Wang et al., 2018b). It is similar in regard

to how point clouds are generated based on RGB im-

ages and depth prediction networks. However, the end

goal of this method is to improve image based ob-

ject detection, while our pipeline is more general and

generates realistic LiDAR data on purpose as an in-

termediate representation to be used to train various

downstream applications.

On a conceptual level, we pursue the same ap-

proach as L2R GAN (Wang et al., 2020), but try to

learn the mapping between camera images and cam-

era LiDAR projections instead of the one between

bird’s eye view LiDAR and radar images.

The closest approach to ours is LiDARsim (Mani-

vasagam et al., 2020). It also aims at realistic simu-

lation of LiDAR leveraging real world data but use a

physics based light simulation as foundation. To ob-

tain realistic geometry, a virtual copy is reconstructed

by merging multiple scans from test drives. Instead

of directly predicting the LiDAR point distribution

based on camera images, LiDARsim ﬁrst uses ray

casting in this virtual scene to create a perfect point

cloud. Based on these and the LiDAR scans from the

test data, the network then learns to drop rays from

the ray casted point clouds for enhanced realism.

With our method, we try to achieve a more

lightweight LiDAR simulation for situations where

such preprocessing is not feasible. For direct integra-

tion into external simulation environments, a solution

is required that does not dependend on high quality

geometry data.

3 TRAINING AND SIMULATION

3.1 LiDAR Images

To learn and simulate the behaviour of LiDAR sen-

sors, we map our problem to an image-to-image trans-

lation task. Therefore, we convert the LiDAR output

to an image which we call LiDAR image. We notice

that the problem of LiDAR simulation in a virtual en-

vironment is not the measured distance of a particular

sample, as this can easily be determined by ray cast-

ing. Instead, we need to decide which LiDAR rays

return an answer and which do not, e.g. due to ab-

sorption, specular reﬂection, or diffusion. We map

this information to a LiDAR image, that tells us for a

particular view direction, whether a ray in this direc-

tion is likely to return an answer.

To this end, we project the LiDAR point cloud into

the camera view, which requires that we know the rel-

ative pose of LiDAR and camera and that the outputs

of all devices are aligned temporally and have a times-

tamp. An example is shown in Fig. 2(b). The binary

image shows, which regions are visible for the sensor,

but also which problems arise when trying to predict

them: Since camera and LiDAR sensor usually do not

have the same optical center, the position of the pro-

jection varies with depth. A network has to predict

depth implicitly to output dots at the proper position.

We thus blur the binary image with a simple Gaus-

sian ﬁlter, as shown in Fig. 2(c), Note that we color

coded the result for better visualization. The result-

ing map is denser, so (i) it better abstracts from the

exact sample positions and (ii) the map is easier to

predict. The size of the Gaussian ﬁlter is chosen such

that gaps between neighboring dots are ﬁlled, but also

such that invisible regions are not ﬁlled up wrongly.

It depends on the scan pattern of the LiDAR and the

image resolution, which we choose in turn depending

on the horizontal and vertical distribution. In our ex-

amples, we use a Gaussian blur with σ = 8 to make

up for the sparsity in the A2D2 data set (image reso-

lution 1920 × 1208) and a rather small intervention

for KITTI (image resolution 1242 × 375), only us-

ing a small 5x5 custom kernel as shown in Fig. 2(c).

There are also more elaborate ways of augmenting the

data (Shorten and Khoshgoftaar, 2019), but the basic

blurring we use is well suited for LiDAR data and re-

sulted in a sufﬁcient improvement of the training re-

sults.

The blurring also helps to hide another, more sub-

tle inconsistency: usually, the camera frame rate is

higher than that of the LiDAR. However, to get a full

LiDAR pattern, we project all points from a single

complete LiDAR scan to each camera frame. Ad-

ditionally, each LiDAR sample comes from another

time interval, resulting in a rolling shutter effect. By

blurring and interpolating all this, we achieve a less

sharp, but more consistent visibility mask. The Li-

DAR image also contains information about the scan

pattern of the LiDAR, and can even be used to repre-

sent the result of multiple LiDAR sensors, as in the

A2D2 dataset shown in Fig. 2(d).

3.2 LiDAR Simulation

Our hypothesis is that an image-to-image translation

of an RGB image to a LiDAR image should be well

possible, since in an RGB image it is possible to

detect LiDAR-critical regions, such as sky, far dis-

DeLTA 2022 - 3rd International Conference on Deep Learning Theory and Applications

178

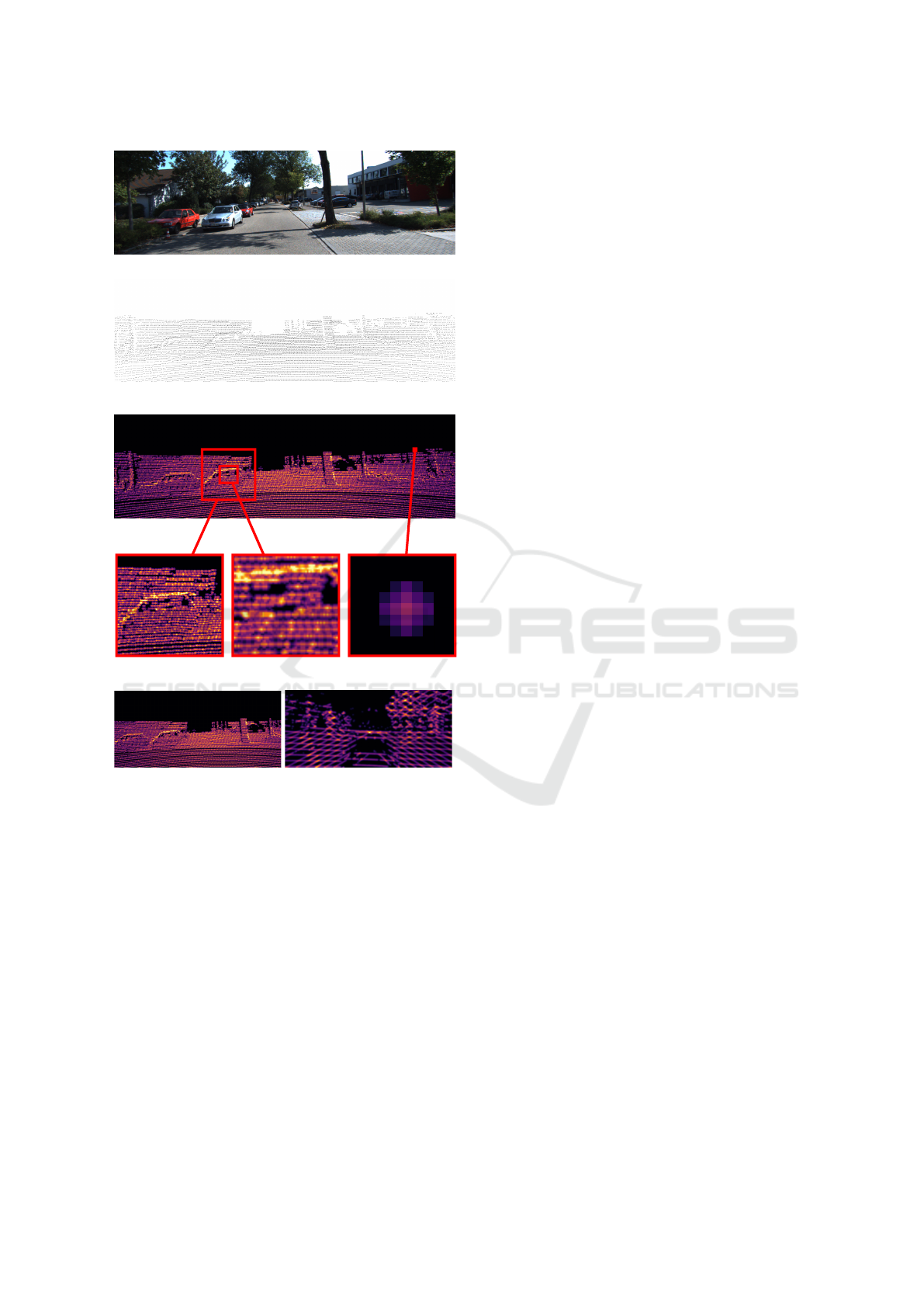

(a) RGB image from the KITTI data set.

(b) LiDAR points projected into same view.

(d) LiDAR images from two different data sets (left: KITTI,

right: A2D2 with ﬁve sensors resulting in a grid pattern)

Figure 2: LiDAR image generation.

tances, or transparent/mirroring surfaces (e.g., win-

dows). However, it is unclear how well the network

trained on real data generalizes to rendered and thus

much cleaner images.

We furthermore hypothesize that a translation to

LiDAR images is also possible from depth images

or from segmentation images. Such images are very

simple to generate in a driving simulation, however

these are not generally available as ground truth data

for training and thus have to be derived (e.g. using

depth estimation networks), or generated manually

(e.g. segmentation masks).

In the following, we explore all these options, see

Fig. 3. In particular, we describe how to generate the

input data, how our image-to-image transformation is

done, and how we integrated all this into a virtual test

environment.

3.3 Training Data

We use two data sets to generate our training data:

• KITTI: We use the training set (Weber et al.,

2021) from the Segmenting and Tracking Every

Pixel Evaluation benchmark, since it also includes

segmentation data. We make a slight variation to

the validation set and only include the sequences

that are present in VKITTI. This results in roughly

6000 training and 2000 validation images

• A2D2: We leave about 20000 images for train-

ing and create a validation set from three different

test drives, one in a urban setting, one on a high-

way and one on a country road making up 6000

images. In contrast to many other data sets, A2D2

uses ﬁve low resolution LiDAR sensors in tandem

to achieve sufﬁcient point density.

The KITTI and A2D2 dataset create different Li-

DAR patterns, which allows us to test our approach

on different point layouts (see Fig. 2d). Our learn-

ing based approach overcomes the need to implement

the physics of each sensor for implementation and en-

ables to learn the sensor properties for a simulated en-

vironment.

As input to our image-to-image network we con-

sider RGB camera images, depth images, and/or seg-

mentation masks. Ground truth depth maps are usu-

ally not available, so we derive them using mono

depth estimation (Ranftl et al., 2021). If ground truth

segmentation masks are not available, they can be

estimated using segmentation networks, e.g. (Ranftl

et al., 2021; Kirillov et al., 2019). As forth option,

we combine camera, depth, and segmentation images

by merging a grey scale version of the camera image,

depth, and segmentation label. To avoid the use of the

same value for different semantic objects, the colors

of the class labels are mapped to speciﬁc grey values.

Overall, we follow the set of more than 50 different

classes deﬁned by A2D2. The color encoding also in-

cludes instance segmentation of up to four instances

per class so that overlapping objects can be discerned.

3.4 Image-to-image Translation

Many different network architectures for image-to-

image translation have been presented, our exper-

iments have shown that pix2pix and even sim-

pler encoder-decoder architectures like U-Nets (Ron-

neberger et al., 2015) deliver satisfying results as also

shown by LiDARsim (Manivasagam et al., 2020). We

A Lightweight Machine Learning Pipeline for LiDAR-simulation

179

inferencetrainingtest drive data

a2d2 / KITTI

LiDAR

point cloud

training images

combined combined

RGB → depth

RGB → LiDAR

depth → LiDAR

seg → LiDAR

com → LiDAR

simulation

environment

Virtual

Test

Drive

rendered images

LiDAR

point cloud

Figure 3: Overview over training and inference of our LiDAR simulation. We explore prediction of LiDAR point clouds

based on RGB, depth and segmentation images separately and combined. We train on real RGB and LiDAR pairs and apply

the learned mapping on rendered image to synthesize realistic LiDAR images.

apply a widely used implementation

which is based

on a U-Net architecture and a convolutional Patch-

GAN classiﬁer as proposed in the original pix2pix

paper (Isola et al., 2018). We leave the network ar-

chitecture unchanged but omit the preprocessing step

that crops and ﬂips the pictures randomly. This step

is problematic for LiDAR projections as they are de-

pendent on the camera perspective and not necessarily

symmetric.

Our experiments have shown that deviations in the

basic parameters of the architecture only show little

effect. For the presented results we used the follow-

ing conﬁguration: Adam optimizer with learning rate

of 2 ∗ 10

−4

and β

= 0.5 and λ = 100 for computing

Generator Loss = Adversarial Loss + λ ∗ L1 Loss.

3.5 Integration

Once training is completed, we integrate the learned

LiDAR sensor network into our simulation environ-

ment and our network then predicts a LiDAR image,

as shown in Fig. 3. To convert back to a LiDAR point

cloud, a simple approach is to sample the map di-

rectly: (i) sample the visibility map, e.g. on a uni-

form grid, (ii) discard all points with small visibility,

(iii) determine the remaining samples’ depth from the

https://tensorﬂow.org/tutorials/generative/pix2pix

depth map, (iv) reproject the points into a 3D coordi-

nate space.

The resulting point cloud mimics the behavior of

the real sensor, in particular typically invisible points

are missing, but the original LiDAR pattern is proba-

bly not represented well.

A more expensive, but also more precise solution

is to generate virtual rays for the original LiDAR sam-

ples, compute their hit point by ray casting, and check

the visibility of the hit point in the predicted LiDAR

visibility map. This approach can also consider the

car movement during a LiDAR scan and thus repro-

duce the rolling shutter effect.

4 EXPERIMENTS AND RESULTS

Overall, our implementation achieves a visually rea-

sonable mapping between input image and LiDAR

projection. The training on the data translates well

to the test data sets and also generalizes on synthetic

data to a sufﬁcient degree.

4.1 Qualitative Evaluation

Both, KITTI and A2D2 work with the same network

conﬁguration and only require different ﬁlter kernels

to be applied as described in Section 3.3. Naturally,

DeLTA 2022 - 3rd International Conference on Deep Learning Theory and Applications

180

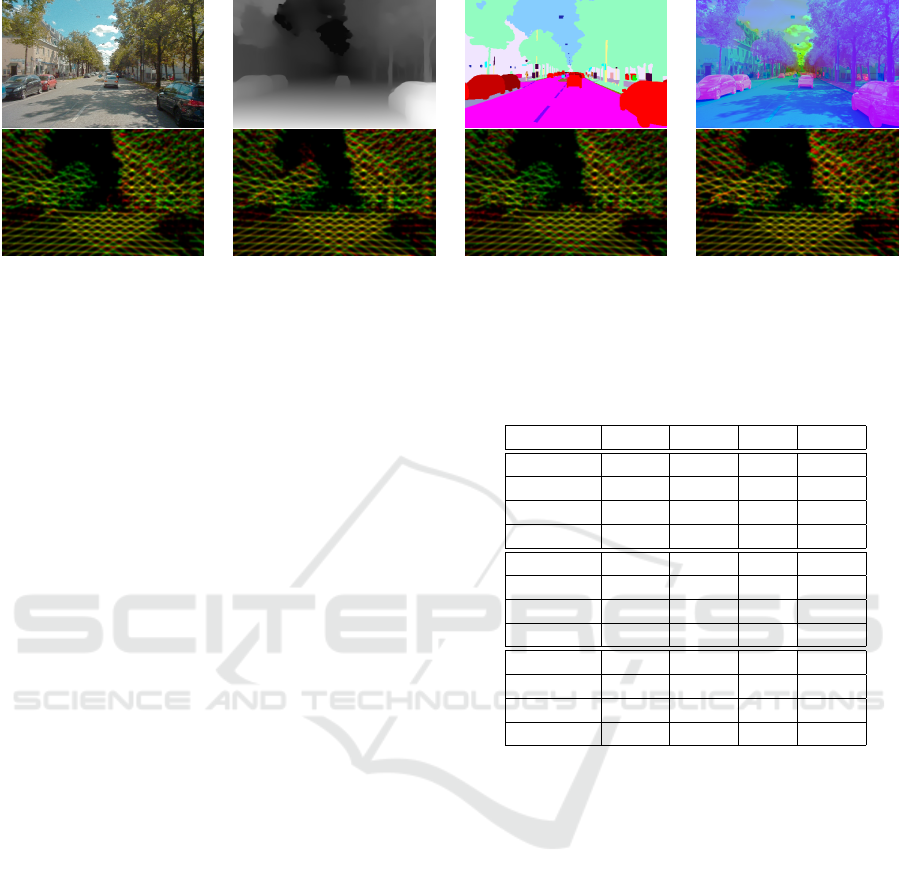

(a) Trained on Camera Im-

ages

(b) Trained on Depth Maps (c) Trained on Segmentation

Maps

(d) Trained on Combined

Images

Figure 4: Results on the A2D2 data set: lower image shows prediction (red) and ground truth (green), correctly predicted

pixels are consequently yellow.

there are signiﬁcant differences resulting from the dif-

ferent training data sets and sensor conﬁgurations;

KITTI has higher LiDAR density, but a smaller up-

wards angle. This means that elevated objects like

trafﬁc lights or trees are often not detected correctly.

Due to the reduced number of training samples

compared to A2D2, the KITTI results lack in visual

quality. Concerning the sensor artifacts, we observe

that the general projection pattern is acquired very

well by the network. The points in the distance are

also cut as limited by the sensor range but especially

the variants without depth are less effective here. In-

dividual objects, however, are harder to distinguish

by eye and reﬂection effects are inconsistent. With

a learning based approach, there is an upper limit to

what is possible, given the available input. In reality,

there are objects that appear very similar on camera

but have very different reﬂection attributes.

4.2 Quantitative Evaluation

For training we have used an Nvidia RTX 3080. We

use 32k training steps which can be completed in

less than half an hour, so our pipeline can be trained

quickly for new sensor conﬁgurations. Depending on

the data set, the network has not necessarily seen ev-

ery input picture once, but since consecutive frames

are very similar, more training has shown no beneﬁt

in our experiments. Inference on the same GPU takes

17ms without any optimizations, which allows real-

time LiDAR simulation.

To evaluate the quality of our results, we predict

LiDAR images on real-world input from KITTI and

A2D2 and compare these with ground truth LiDAR

data. Depth images are estimated from the RGB im-

ages and as segmentation masks we use ground truth

data from the data sets.

We compute the L1 error (L1 = |A − B|) where A

Table 1: Evaluation on KITTI, A2D2 and VKITTI: Errors

on respective test set in percent.

L1 L1

−

KITTI RGB 8.64 6.14 2.50 14.33

KITTI Depth 8.08 4.92 3.16 13.58

KITTI Sem 8.72 5.90 2.82 14.44

KITTI Com 8.63 4.96 3.67 14.36

A2D2 RGB 10.52 5.44 5.08 17.02

A2D2 Depth 10.22 5.36 4.86 16.63

A2D2 Sem 10.55 10.16 0.39 17.02

A2D2 Com 10.38 6.01 4.38 16.90

VKITTI RGB 8.33 4.28 4.05 14.06

VKITTI Depth 8.64 4.88 3.76 14.26

VKITTI Sem 8.26 3.94 4.32 13.89

VKITTI Com 8.39 4.71 3.68 13.98

is the prediction and B is the ground truth). Moreover,

we deﬁne a positive error L1

= max(A−B, 0), where

the network predicts points that are not present in the

ground truth, and a negative error L1

−

= max(B −

A, 0), where points are missing in the prediction. Ad-

ditionally, we compute the L2 error.

The results in Tab. 1 show that the prediction re-

sults for RGB, depth, segmentation, and combined are

relatively close. Prediction on KITTI data works bet-

ter than for A2D2, which partly results from the larger

black space in the LiDAR projections. Depth seems

to work generally well, and since it is generated in

any simulation anyhow, it looks like a good candidate

for integration. However, one would have to examine

closer, whether features important for the following

task are well represented, e.g. car windows. The com-

bined mode showed no advantage, however smarter

ways to combine the three modalities might deliver

better results.

Overall, the quality of images trained in a network

like pix2pix cannot fully be estimated by pixel-wise

A Lightweight Machine Learning Pipeline for LiDAR-simulation

181

errors. Small shifts in the LiDAR pattern, for exam-

ple, result in large errors. Fig. 4 overlays the ground

truth and the prediction, showing deviations between

the different input types, most prominently in the dis-

tant parts, where a correct depth estimation becomes

important.

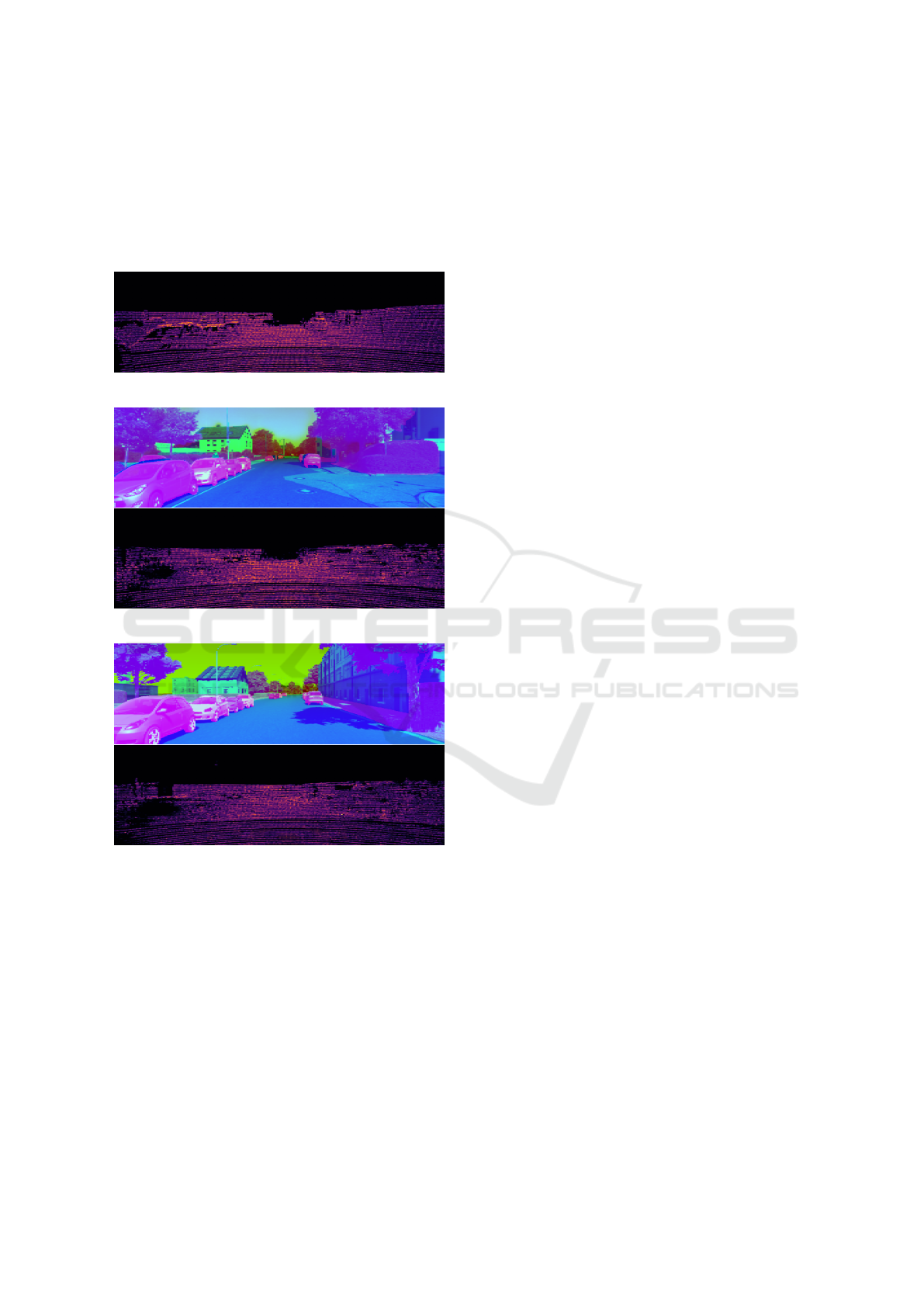

(a) Ground Truth LiDAR Image

(b) KITTI Prediction from Combined Image

Figure 5: Comparing Results on VKITTI and KITTI. The

input image on top of (b) and (c) shows the combined image

with RGB (grayscale), depth and segmentation in the color

channels.

For an evaluation of the generalization of our

method to synthetic data, we use paired data from

KITTI and VKITTI. We use networks trained on real-

world data and apply them to synthetic images from

VKITTI. We predict LiDAR images and compare the

results with the ground truth LiDAR data from KITTI

as shown in Fig. 5. Results are shown in Tab. 1. Re-

sults of this comparison strongly depend on the devi-

ation between KITTI and VKITTI data, however, our

results still show good correspondence and a behavior

comparable to real world data.

5 DISCUSSION

With our approach of trying to obtain typical and real-

istic LiDAR data, we accept a higher numerical error.

The problem here is that there is no reference for a

visual or numerical comparison to existing data based

approaches. The quality of physics based simulation

on the other hand depends not only on the implemen-

tation of the sensor system but also on the environ-

ment. Even LiDARsim already operates on the ag-

gregated real world data geometry data, which makes

a direct result based comparison unfeasible.

The consequence would be to use indirect mea-

sures, e.g. follow the sim-to-real approach and se-

lect appropriate machine learning algorithms that take

point clouds as input and are trained on real data.

This allows to compare the performance between us-

ing real and synthetic point cloud sources. A second

option would be to augment training data for such

a network with synthetic point clouds to reduce the

need for real world data collection. But only a high

quality virtual twin of an environment would allow a

direct comparison. Especially the geometry ground

truth data does not align closely enough in VKITTI

(cf. Fig: 5, as the scene is here constructed from a pre-

deﬁned set of objects. We believe that ﬁnding ways to

better measure realistic simulation will be an impor-

tant task to achieve virtual testing of ADAS.

Based on the results of LiDAR simulation with

pix2pix, experiments with other architectures become

very interesting. However, these often make speciﬁc

assumptions. So there is a need for an architecture

that is also specialized for this task and can make bet-

ter use of combined input data.

On the other hand, the quality of the training data

is arguably even more important. There are develop-

ments that can signiﬁcantly improve this: Better sen-

sors and thus denser LiDAR scans would reduce the

resolution discrepancy between camera images and

LiDAR scans. Similarly, progress in 3d scene re-

construction can improve the data situation as well,

but the issues with dynamic objects and movement in

general currently can introduce further problems.

Given these possible developments, it is impor-

tant to have a baseline for future performance com-

parisons, which our pipeline provides.

DeLTA 2022 - 3rd International Conference on Deep Learning Theory and Applications

182

6 CONCLUSION

We have presented a pipeline for data based simu-

lation of LiDAR sensor behaviour, that generalizes

rather well for synthetic data inputs in simulation en-

vironments. While the general quality is not reli-

able enough for prediction of frame-accurate sensor

artefacts, the LiDAR simulation is capable of repro-

ducing them in general. We believe it is sufﬁcient

for many use cases, that analyse the performance of

ADAS functions over many virtual road miles. With

the rapid developments of LiDAR technology, better

data sets will emerge naturally, while existing data

sets can be enhanced with new data fusion techniques

to exploit multiple consecutive frames.

ACKNOWLEDGEMENTS

Richard Marcus was supported by the Bayerische

Forschungsstiftung (Bavarian Research Foundation)

AZ-1423-20.

REFERENCES

Automotive, I. (2020). CarMaker. Publisher: IPG Automo-

tive GmbH.

Cabon, Y., Murray, N., and Humenberger, M. (2020). Vir-

tual kitti 2.

Dosovitskiy, A., Ros, G., Codevilla, F., Lopez, A., and

Koltun, V. (2017). CARLA: An Open Urban Driv-

ing Simulator. arXiv:1711.03938 [cs]. arXiv:

1711.03938.

Gaidon, A., Wang, Q., Cabon, Y., and Vig, E. (2016). Vir-

tual worlds as proxy for multi-object tracking analy-

sis.

Goodfellow, I. J., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial networks.

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2018).

Image-to-Image Translation with Conditional Adver-

sarial Networks. arXiv:1611.07004 [cs]. arXiv:

1611.07004.

Johnson, J., Alahi, A., and Fei-Fei, L. (2016). Per-

ceptual Losses for Real-Time Style Transfer and

Super-Resolution. arXiv:1603.08155 [cs]. arXiv:

1603.08155.

Kirillov, A., Wu, Y., He, K., and Girshick, R. B. (2019).

Pointrend: Image segmentation as rendering. CoRR,

abs/1912.08193.

LG (2021). LGSVL Simulator,

https://www.lgsvlsimulator.com/.

Liao, Y., Xie, J., and Geiger, A. (2021). KITTI-360: A

novel dataset and benchmarks for urban scene under-

standing in 2d and 3d. arXiv.org, 2109.13410.

Manivasagam, S., Wang, S., Wong, K., Zeng, W.,

Sazanovich, M., Tan, S., Yang, B., Ma, W.-C.,

and Urtasun, R. (2020). LiDARsim: Realistic Li-

DAR Simulation by Leveraging the Real World.

arXiv:2006.09348 [cs]. arXiv: 2006.09348.

NVIDIA (2021). Nvidia drive sim,

https://developer.nvidia.com/drive/drive-sim.

Park, T., Liu, M.-Y., Wang, T.-C., and Zhu, J.-Y. (2019).

Semantic image synthesis with spatially-adaptive nor-

malization. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition.

Ranftl, R., Bochkovskiy, A., and Koltun, V. (2021). Vision

transformers for dense prediction. ArXiv preprint.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation.

Shah, S., Dey, D., Lovett, C., and Kapoor, A. (2017). Air-

Sim: High-Fidelity Visual and Physical Simulation

for Autonomous Vehicles. arXiv:1705.05065 [cs].

arXiv: 1705.05065.

Shorten, C. and Khoshgoftaar, T. M. (2019). A survey on

Image Data Augmentation for Deep Learning. Jour-

nal of Big Data, 6(1):60.

Sun, P., Kretzschmar, H., Dotiwalla, X., Chouard, A., Pat-

naik, V., Tsui, P., Guo, J., Zhou, Y., Chai, Y., Caine,

B., Vasudevan, V., Han, W., Ngiam, J., Zhao, H., Tim-

ofeev, A., Ettinger, S., Krivokon, M., Gao, A., Joshi,

A., Zhao, S., Cheng, S., Zhang, Y., Shlens, J., Chen,

Z., and Anguelov, D. (2020). Scalability in Percep-

tion for Autonomous Driving: Waymo Open Dataset.

arXiv:1912.04838 [cs, stat]. arXiv: 1912.04838.

Uhrig, J., Schneider, N., Schneider, L., Franke, U., Brox,

T., and Geiger, A. (2017). Sparsity invariant cnns. In

International Conference on 3D Vision (3DV).

VTD (2021). Virtual Test Drive.

Wang, L., Goldluecke, B., and Anklam, C. (2020). L2r gan:

Lidar-to-radar translation. In Proceedings of the Asian

Conference on Computer Vision (ACCV).

Wang, T.-C., Liu, M.-Y., Zhu, J.-Y., Tao, A., Kautz, J., and

Catanzaro, B. (2018a). High-resolution image synthe-

sis and semantic manipulation with conditional gans.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition.

Wang, Y., Chao, W.-L., Garg, D., Hariharan, B., Camp-

bell, M., and Weinberger, K. Q. (2018b). Pseudo-

LiDAR from Visual Depth Estimation: Bridging the

Gap in 3D Object Detection for Autonomous Driving.

arXiv:1812.07179 [cs]. arXiv: 1812.07179.

Weber, M., Xie, J., Collins, M., Zhu, Y., Voigtlaender, P.,

Adam, H., Green, B., Geiger, A., Leibe, B., Cremers,

D., Osep, A., Leal-Taixe, L., and Chen, L.-C. (2021).

Step: Segmenting and tracking every pixel. In Neural

Information Processing Systems (NeurIPS) Track on

Datasets and Benchmarks.

Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2020).

Unpaired Image-to-Image Translation using Cycle-

Consistent Adversarial Networks. arXiv:1703.10593

[cs]. arXiv: 1703.10593.

A Lightweight Machine Learning Pipeline for LiDAR-simulation

183
