Interpretable Malware Classiﬁcation based on Functional Analysis

Miles Q. Li

1 a

and Benjamin C. M. Fung

2 b

School of Computer Science, McGill University, Montreal, Canada

School of Information Studies, McGill University, Montreal, Canada

Keywords:

Malware Classiﬁcation, Interpretable Machine Learning, Neural Networks.

Abstract:

Malware is the crux of cyber-attacks, especially in the attacks of critical cyber(-physical) infrastructures, such

as ﬁnancial systems, transportation systems, smart grids, etc. Malware classiﬁcation has caught extensive

attention because it can help security personnel to discern the intent and severity of a piece of malware before

appropriate actions will be taken to secure a critical cyber infrastructure. Existing machine learning-based

malware classiﬁcation methods have limitations on either their performance or their abilities to interpret the

results. In this paper, we propose a novel malware classiﬁcation model based on functional analysis of malware

samples with the interpretability to show the importance of each function to a classiﬁcation result. Experiment

results show that our model outperforms existing state-of-the-art methods in malware family and severity

classiﬁcation and provide meaningful interpretations.

1 INTRODUCTION

In the Internet age, malicious software (malware),

as the major means for cyber attacks, has been an

increasing threat to legitimate Internet users, ﬁnan-

cial systems, and government organizations (Ye et al.,

2017; Abusitta et al., 2021). It is not uncommon to

receive phishing emails, accidentally download ad-

ware/ransomware

, or experience privacy informa-

tion breach from a giant ﬁnancial corporation

in re-

cent years. There is thus a pressing need to identify

malware and discern its intent and severity before it

achieves its nefarious goals.

Manual reverse engineering, as the primary step

taken to gain an in-depth understanding of a piece of

malware, is a time-consuming process. Due to the

increasing volume and complexity of malware, au-

tomatic malware analysis techniques have to be ap-

plied so as to recognize malware in a timely man-

ner. Signature-based methods have been extensively

applied in antivirus engines. Filename, text strings,

and regular expressions of byte code etc., can be

used as signatures to recognize known malware sam-

ples and their non-signiﬁcant variants. However, they

https://orcid.org/0000-0001-7091-3268

https://orcid.org/0000-0001-8423-2906

https://techcrunch.com/2019/05/12/wannacry-two-

years-on/

https://www.upguard.com/blog/biggest-data-breaches

cannot be used to recognize new malware or signif-

icant variants of malware samples with evasive tech-

niques (Abusitta et al., 2021). Machine learning based

malware classiﬁcation methods have been proposed

to have better generalizability to identify new mal-

ware samples and signiﬁcant variants.

Different static features have been applied for

malware classiﬁcation, such as PE headers (Bal-

dangombo et al., 2013), byte sequences (Schultz

et al., 2001; Saxe and Berlin, 2015), printable

strings (Schultz et al., 2001; Saxe and Berlin,

2015), PE imports (Schultz et al., 2001; Saxe and

Berlin, 2015), and assembly code (Li et al., 2021b;

Moskovitch et al., 2008) etc. Among these methods,

Li et al. (2021b) propose to group semantically equiv-

alent assembly code functions into clusters and clas-

sify an unknown sample based on the matching be-

tween its assembly functions and the known assem-

bly function clusters. Comparing with previous mal-

ware classiﬁcation methods, it has the ability to tell

which functions of the unknown sample contribute to

the classiﬁcation result. Their work is then extended

through integrating a feedforward neural network as

the classiﬁcation module (Li and Fung, 2022). The

extended method yields more accurate classiﬁcation

results for severity classiﬁcation but loses the inter-

pretability to tell the contribution of each assembly

function to the classiﬁcation result.

When malware analysts analyze a malware sam-

500

Li, M. and Fung, B.

Interpretable Malware Classiﬁcation based on Functional Analysis.

DOI: 10.5220/0011310900003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 500-507

ISBN: 978-989-758-588-3; ISSN: 2184-2833

Executable Disassembling

Asm2Vec

Representation

Learning

Function

Representation

Database

Discriminative

Clustering

Function

Cluster

Database

Function

Clone

Classification and

Interpretation with IFFNN

Training

Test

Feature

Vector

Formation

Feature Vector

Formation

IFFNN

Training

Trained

IFFNN

Figure 1: Workﬂow of our interpretable malware classiﬁcation model.

ple, they usually do not examine the full set of assem-

bly functions of the sample. Rather, they try to locate

and examine only the core functions that are related

to the major malicious behaviors so as to discern the

intent of the sample or to validate the result of an au-

tomatic malware classiﬁcation system.

In this paper, we improve the aforementioned mal-

ware classiﬁcation method Li and Fung (2022) by

integrating an interpretable feedforward neural net-

work (Li et al., 2022) to enhance both the classiﬁca-

tion performance and interpretability. The proposed

classiﬁcation model is the ﬁrst that can show the im-

portance/contribution of each assembly function to

determine the unknown sample’s class. This interpre-

tation capability can signiﬁcantly improve malware

analysts efﬁciency in analyzing an unknown sample.

Experiment results show that our proposed malware

classiﬁcation model outperforms previous classiﬁca-

tion methods based on different kinds of static fea-

tures and provide meaningful interpretations.

We organize this paper as follows. Section 2 dis-

cusses related work. Section 3 describe the proposed

malware classiﬁcation model. Section 4 show the ex-

periment setting and results. Section 5 concludes this

paper.

2 RELATED WORK

Malware analysis can be conducted dynamically or

statically. Dynamic analysis methods require a vir-

tual machine (VM) or simulator to execute the tar-

get sample and record its executed assembly instruc-

tions (Royal et al., 2006; Anderson et al., 2011),

memory image (Dahl et al., 2013; Huang and Stokes,

2016), invoked system calls (Fredrikson et al., 2010),

or its high level behaviors (Bayer et al., 2006), such as

stealing credentials, key logging, downloading pay-

load etc. The execution process is time-consuming

and dynamic analysis methods can be evaded with an

embedded sandbox detector

. The focus of this pa-

per is static methods that do not require any execu-

tion of the target sample. The analysis is conducted

on the binary content of the sample itself. The com-

mon static features extracted from a sample include

byte sequences (Schultz et al., 2001; Saxe and Berlin,

2015), assembly code (Li et al., 2021b; Moskovitch

et al., 2008), PE header numerical ﬁelds (Baldan-

gombo et al., 2013), PE imports (Schultz et al., 2001;

Saxe and Berlin, 2015), printable strings (Schultz

et al., 2001; Saxe and Berlin, 2015), and malware

images (Nataraj et al., 2011; Mourtaji et al., 2019)

etc. These features can be represented as sequences,

vectors, matrices, and graphs. A variety of machine

learning models have been applied on those features

for malware classiﬁcation, such as naive Bayes, deci-

sion trees, support vector machines, and artiﬁcial neu-

ral networks.

Among the malware classiﬁcation studies, the

dedicated machine learning model for malware clas-

siﬁcation proposed by Li et al. (2021b) and then ex-

tended with a feedforward neural network (Li and

Fung, 2022) is the most related to our proposed

method. Their methods are based on grouping seman-

tically equivalent functions in known malware sam-

ples into clusters, and classify an unknown malware

sample based on the matching between its functions

and the known function clusters in different classes.

The nature of this kind of methods allows them to

show malware analysts the reason for the classiﬁcas-

ion so that they can examine or justify a classiﬁcation

result. The limitation with their methods is that they

cannot tell the importance of each function among the

tens or hundreds of matched functions to the classiﬁ-

cation result.

Li et al. (2021a) propose an interpretable feedfor-

https://www.ptsecurity.com/ww-en/analytics/antisan

dbox-techniques/

Interpretable Malware Classiﬁcation based on Functional Analysis

501

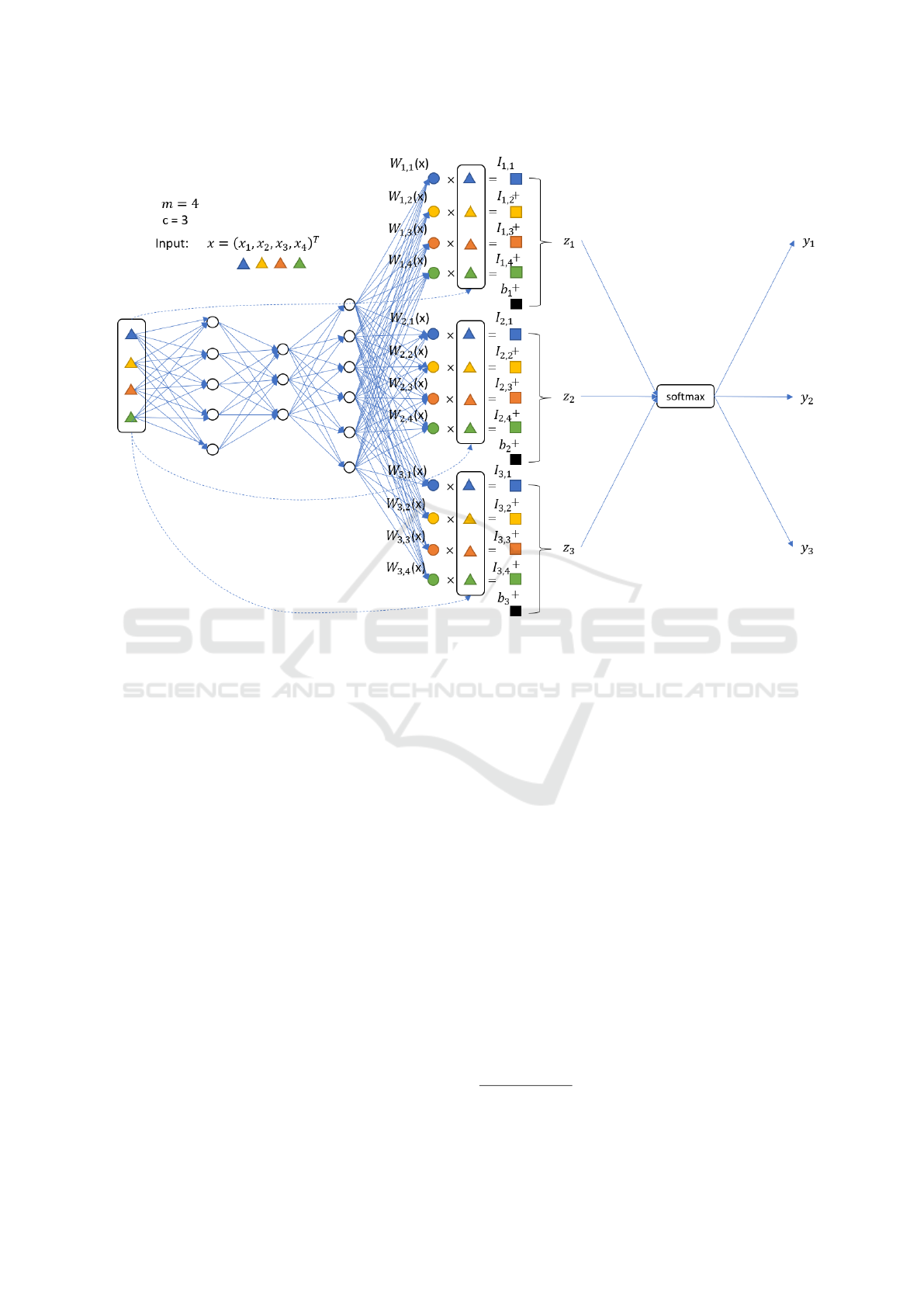

Figure 2: An example to show the IFFNN to classify a sample of dimension 4 and to explain the contribution of each feature

to each class. For example, I

1,2

is the importance of feature 2 to class 1.

ward neural network (IFFNN) for binary classiﬁca-

tion that can show the importance of each feature to

the classiﬁcation result. The IFFNN is then general-

ized for multi-class classiﬁcation and the classiﬁca-

tion performance and interpretability have been com-

prehensively evaluated and experiment results show

that the classiﬁcation performance of IFFNNs is sim-

ilar to their non-interpretable counterparts (i.e., nor-

mal feedforward neural networks) and the interpreta-

tions are accurate (Li et al., 2022). In this work, we

integrate the IFFNN to the dedicated malware classi-

ﬁcation model (Li et al., 2021b) so that it forms the

ﬁrst interpretable malware classiﬁcation model that

can show the importance of each assembly function

to the classiﬁcation result.

3 METHODOLOGY

Figure 1 presents the workﬂow of our interpretable

malware classiﬁcation engine for both training and

test. We provide the details of the training and test

steps in this section.

3.1 Executable Disassembling

As the malware classiﬁcation model is based on func-

tional analysis, we disassemble every sample for

training or test to get its assembly code functions.

IDA Pro

and Ghidra

are two commonly used dis-

assemblers to achieve this purpose.

3.2 Assembly Function Representation

Learning

For training, we apply Asm2Vec, an assembly func-

tion function representation learning method pro-

posed for assembly function clone search, to the as-

sembly functions of all training samples. The training

of Asm2Vec and the generation of vector representa-

tions for the assembly functions in the training sam-

ples happen simultaneously. The vectors represent-

ing semantically equivalent assembly functions have a

large cosine similarity. For test, we feed the assembly

functions of a target sample to the trained Asm2Vec,

to generate their vector representations.

https://www.hex-rays.com/products/ida/

https://ghidra-sre.org/

ICSOFT 2022 - 17th International Conference on Software Technologies

502

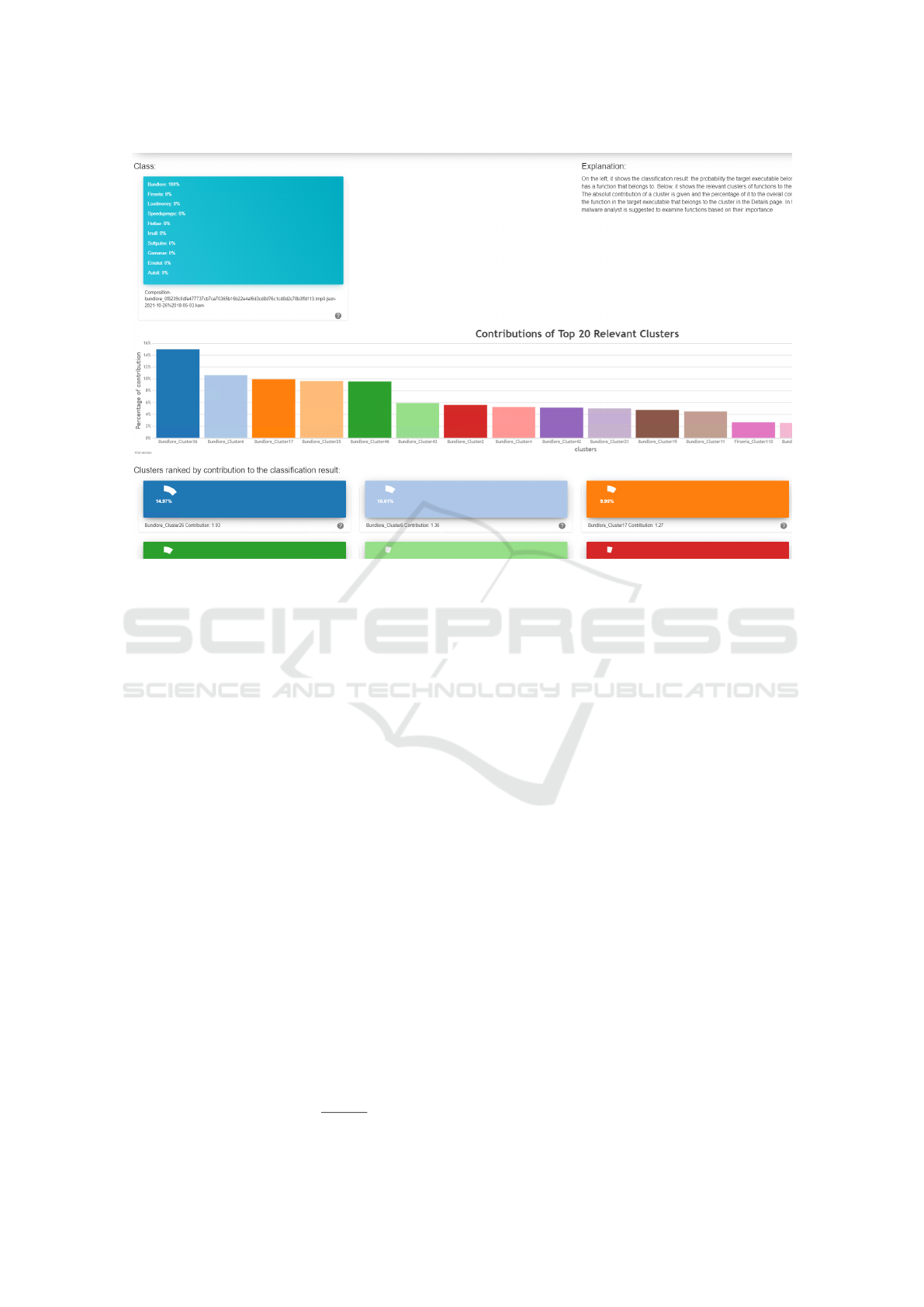

Figure 3: An example of the Summary page of the classiﬁcation result.

3.3 Discriminative Assembly Function

Clustering

In the training process, we then group the semanti-

cally equivalent assembly functions into clusters. The

assembly functions in each cluster are programmed

to achieve the same (or at least similar) purpose. As a

clone search engine, Asm2Vec uses the vector repre-

sentations it generates to determine whether two as-

sembly functions are equivalent to each other. We

apply a Union-Find algorithm, namely the Weighted

Quick-Union with Path Compression algorithm, to

gradually aggregate semantically equivalent assembly

functions to a cluster. This algorithm is optimized by

locality-sensitive hashing (LSH).

The family of LSH functions (Charikar, 2002) can

be described as follows: each hash function corre-

sponds to a random vector r which has the same di-

mension as the vector representation of an assembly

function. The hash value of an assembly function rep-

resented as vector u is computed as follows:

(u) =



1 u · r > 0

0 u · r ≤ 0

The probability that two assembly functions rep-

resented as u and v have the same hash value is as

follows:

Pr[h

(u) = h

(v)] = 1 −

θ(u,v)

(1)

By applying a set of n such LSH functions to the

representation of an assembly function, we obtain an

n-bits signature of it. Assembly functions that are

semantically equivalent have a large probability to

have the same signature. Therefore, we only apply

the Union-Find algorithm to the assembly functions

that have the same signatures. We apply l sets of

LSH functions to create l signatures for each assem-

bly function to increase the chance that the assembly

functions with equivalent semantics to have the same

signature at least once so that they can be grouped

to the same cluster. We use the way proposed by Li

et al. (2021b) to determine the hyper-parameters n and

l. We refer the readers to their paper to ﬁnd the com-

plete details.

After we get the assembly function clusters with

the aforementioned method, we need to ﬁlter them

based on their discriminative power. This is because

some clusters are the sets of assembly functions that

are commonly seen in all classes, and they cannot

be used to determine the class of a sample that has

a function belongs to them. Hence, they should be ﬁl-

tered. Formally, the discriminative power of a cluster

can be deﬁned as follows.

Let ∥com f (G

)∥ be the number of assembly

function shared by class C

and cluster G

divided by

the number of executables in class C

. The popular-

ity of malware class C

in cluster G

is deﬁned as fol-

Interpretable Malware Classiﬁcation based on Functional Analysis

503

Table 1: Statistics of the datasets.

Malware family classiﬁcation dataset Malware severity classiﬁcation dataset

Family Number of Samples Severity Number of Samples

Autoit 102 Level 1 237

Bundlore 218 Level 2 1052

Emotet 223 Level 3 175

Fireseria 147 Level 4 109

Gamarue 141 Level 5 128

Hotbar 144 Level 6 64

Imali 136 Level 7 66

Loadmoney 200 Level 8 99

Softpulse 93

Speedingupmypc 107

Total 1,511 Total 1,930

lows:

pop(G

) =

∥com f (G

)∥

∑

j=1

∥com f (G

)∥

(2)

The discriminative power of cluster G

d p(G

) = 0 if G

contains only 1 function; and

d p(G

) = max

{pop(G

)} − min

{pop(G

)}

otherwise.

We ﬁlter clusters of which the discriminative

power is lower than a threshold θ and only keep the

rest for use in the next steps.

3.4 Assembly Function Clone Search

For a target sample, we use the trained Asm2Vec

to determine whether each of its assembly functions

is equivalent to an assembly function in one of the

discriminative assembly function clusters. This is

achieved by comparing the vector representations of

the assembly functions of the target sample and the

vector representations of the assembly functions in

the clusters. If an assembly function of the target sam-

ple is semantically equivalent to an assembly function

of a cluster, the function belongs to that cluster and

the test sample is related to the cluster.

3.5 Feature Vector Formation

For each training sample and test sample, we form a

feature vector of dimension m, where m is the total

number of discriminative assembly function clusters.

The value of each entry is 1 if there is at least one

assembly function of the sample belongs to the corre-

sponding cluster; otherwise, the value is 0.

3.6 Classiﬁcation with Interpretable

Feedforward Neural Network

To classify a sample to a malware class, we feed the

feature vector formed in the previous step to an in-

terpretable feedforward neural network (IFFNN) pro-

posed by Li et al. (2022). In addition to the classiﬁca-

tion result, the IFFNN also shows the importance of

the clusters for the classiﬁcation result. An example

is shown in Figure 2. The details of the IFFNN are

as follows. Let x ∈ R

represent the vector formed in

the previous step. It is fed to l fully-connected (FC)

hidden layers with Relu as the activation function:

(x) = FC

(...FC

(x)...) (3)

(v) = Relu(W

v + b

) (4)

W (x) = Reshape(W

(x),(c × m)) +B

(5)

y = so f tmax(W (x)x + b) (6)

The contribution/importance of cluster i for classify-

ing the sample to class j is W (x)

j,i

. This is the

interpretation for the classiﬁcation result. The most

important clusters and the corresponding functions in

the target sample are supposed to be examined by a

malware analyst with high priority.

In the training phase, we use the feature vectors

of training samples and their class labels to train the

IFFNN. We use cross entropy loss as the objective

function and Adam (Kingma and Ba, 2014) as the op-

timizer with the initial learning rate 1e− 4. In the test

phase, we use the trained IFFNN to classify an un-

known sample and interpret the result. An example

of the user interface to display the interpretation of a

classiﬁcation result is shown in Figure 3.

ICSOFT 2022 - 17th International Conference on Software Technologies

504

Table 2: Classiﬁcation results of different methods on the test sets for malware family classiﬁcation and severity classiﬁcation.

Method

Family Classiﬁcation Severity Classiﬁcation

Accuracy P-value Accuracy P-value

Mosk2008OpBi 82.9 1.1e-11 78.7 1.0e-12

Bald2013Meta 89.5 3.5e-8 88.2 2.6e-3

Saxe2015Deep 92.8 2.7e-2 88.1 2.1e-4

Mour2019CNN 51.3 2.9e-17 22.8 7.5e-18

Li2021Func 87.1 9.9e-11 70.3 2.9e-15

Li2022Sev 93.2 0.36 89.0 0.22

Our Model 93.5 N/A 89.1 N/A

4 EXPERIMENTS

We conducted experiments to evaluate the proposed

interpretable malware classiﬁcation model in terms of

classiﬁcation performance and interpretability. Fol-

lowing the literature of multi-class classiﬁcation re-

search, the accuracy of the classiﬁcation results is

used to indicate the classiﬁcation performance. Accu-

racy is the ratio of correctly classiﬁed samples to all

test samples. We use student t-test to indicate statisti-

cally signiﬁcant difference in accuracy between other

models and our model.

4.1 Datasets

We evaluate our interpretable malware classiﬁcation

model on malware family classiﬁcation and severity

classiﬁcation. The malware family dataset contains

malicious executables of 10 malware families. The

gold standard labels are acquired with the AVClass

malware labeling tool (Sebastián et al., 2016) based

on analysis reports from VirusTotal

. The malware

severity dataset contains malicious executables of 8

severity levels that are labelled based on the Kasper-

sky Lab Threat Level Classiﬁcation tree

. We ex-

clude packed or encrypted samples, so that the as-

sembly functions of the malware samples can be ana-

lyzed. We use Peﬁle

and Yara rules

to detect pack-

ing. The statistics of the datasets are given in Table 1.

We use k-fold cross-validation where k = 5 to evalu-

ate the models. One fold is chosen as the validation

set, and one fold is chosen as the test set.

https://www.virustotal.com/

https://encyclopedia.kaspersky.com/knowledge/rules-

for-classifying/

https://gist.github.com/islem-esi/334d223b3088e0be

c5adc75f010c83c2

https://gist.github.com/islem-esi/cef15f99db844fe1cf

e596656dfe9bb2#file-detect_packer_cryptor-py

4.2 Malware Classiﬁcation Methods For

Comparison

In the evaluation, we use the following state-of-the-

art malware classiﬁcation methods to compare with

our model:

• Mosk2008OpBi: Moskovitch et al. (2008) pro-

pose to use TF or TF-IDF of opcode bi-grams as

features and to use document frequency (DF), in-

formation gain ratio, or Fisher score as the cri-

terion for feature selection. They apply Arti-

ﬁcial Neural Networks, Decision Trees, Naïve

Bayes, Boosted Decision Trees, and Boosted

Naïve Bayes as their malware classiﬁcation mod-

els.

• Bald2013Meta: Baldangombo et al. (2013) pro-

pose to extract multiple raw features from PE

headers and to use information gain and calling

frequencies for feature selection and PCA for di-

mension reduction. They apply SVM, J48, and

Naïve Bayes as their malware classiﬁcation mod-

els.

• Saxe2015Deep: Saxe and Berlin (2015) propose

a deep learning model that works on four differ-

ent features: byte/entropy histogram features, PE

import features, string 2D histogram features, and

PE metadata numerical features.

• Mour2019CNN: Mourtaji et al. (2019) convert

malware binaries to grayscale images and apply a

convolutional neural network on malware images

for malware classiﬁcation. Their CNN network

has two convolutional layers followed by a fully-

connected layer.

• Li2021Func: Li et al. (2021b) propose to group

assembly functions to clusters, and compute the

similarity of a query executable to a malware fam-

ily based on the comparison of the number of clus-

ters of the family related to it and the number of

clusters related to a median sample of the training

set in the family.

Interpretable Malware Classiﬁcation based on Functional Analysis

505

• Li2022Sev: Li and Fung (2022) extend

Li2021Func with a normal feedforward neural

network and they show that the new model

achieves better accuracy on malware severity

classiﬁcation.

We use grid search to tune the hyper-parameters

for all methods on the validation set.

4.3 Classiﬁcation Performance

Table 2 shows the experiment results of state-of-the-

art malware classiﬁcation methods for comparison

and our interpretable malware classiﬁcation engine.

As can be seen, the new interpretable malware classi-

ﬁcation engine outperforms all other methods in both

malware family classiﬁcation and severity classiﬁca-

tion. It achieves much higher classiﬁcation perfor-

mance than Li2021Func and slightly higher perfor-

mance than Li2022Sev in malware family classiﬁca-

tion and severity classiﬁcation. The advantage of our

model compared to Li2022Sev is the interpretability.

In many cases, there is a common trade-off between

classiﬁcation performance and interpretability (Arri-

eta et al., 2020; Rai, 2020). However, the integration

of the explainable AI into our engines does not harm

the classiﬁcation performance. In addition, it does not

bring much extra computational overhead. This is be-

cause the explainable AI module, namely, IFFNN, is

intrinsically interpretable, rather than a post-hoc ex-

planation method.

Table 3: The Spearman’s Rank Correlation Coefﬁcients be-

tween the feature importance rank given by our novel in-

terpretable malware classiﬁcation engine, Gini importance

(GI), and information gain (IG).

Malware family classiﬁcation

IG GI Our Engine

IG 1 0.61 0.58

GI 0.61 1 0.62

Malware severity classiﬁcation

IG GI Our Engine

IG 1 0.06 0.19

GI 0.06 1 0.72

4.4 Interpretability

4.4.1 Quantitative Evaluation

We compute the Gini importance (GI) and informa-

tion gain (IG) of the clusters for the classiﬁcation re-

sults, and then rank them based on those criteria. We

also rank the clusters by their importance for individ-

ual predictions. The i-th important cluster among all

m is given a score of 1/m for individual predictions.

We then accumulate the scores of the clusters on all

test samples. The clusters are then ranked by their

accumulated scores. Table 3 shows the Spearman’s

Rank Correlation Coefﬁcients between the ranks of

these three methods. As can be seen, for malware

family classiﬁcation, the importance ranks of clusters

by IG, GI, and our engine have high correlation; for

malware severity classiﬁcation, the ranks given by GI

and our engine have higher correlation and they have

relatively lower correlation with the rank given by IG.

This means that our engine relies more on the clusters

that are statistically more important clusters.

4.4.2 Qualitative Evaluation

We also require a malware analyst to manually evalu-

ate the interpretations. He uses the Softpulse and Hot-

bar malware families for the case study. He ﬁrst sum-

marizes the most common behaviors of the samples in

those malware families. Then, he ﬁnds that the most

important assembly functions/clusters determined by

the engine are indeed part of the characteristic behav-

iors/patterns of the respective malware families, such

as loading malicious DLLs, writing unwanted con-

tent to disks, establishing connections to external ma-

licious servers for Softpulse, creating pop-up adver-

tisements, establishing a connection to another socket

application, and manipulation of browsers for Hotbar.

This result conﬁrms that the interpretations given by

our engine are valid.

5 CONCLUSION

In this paper, we propose a novel interpretable mal-

ware classiﬁcation model that can show the impor-

tance of each assembly function cluster to the clas-

siﬁcation result of a sample. It is an improved ver-

sion of a malware classiﬁcation model based on func-

tional analysis (Li et al., 2021b). Experiment re-

sults show that our classiﬁcation model outperforms

existing state-of-the-art models in terms of classiﬁ-

cation accuracy and provide meaningful interpreta-

tion. Therefore, in addition to identifying the malware

class in a timely manner, the proposed malware clas-

siﬁcation method can also tremendously improve the

efﬁciency of malware analysts in real-world malware

analysis scenarios.

ACKNOWLEDGMENT

This research is supported by Defence Research and

Development Canada (contract no. W7714-217794),

ICSOFT 2022 - 17th International Conference on Software Technologies

506

the Discovery Grants (RGPIN-2018-03872) from the

Natural Sciences and Engineering Research Coun-

cil of Canada, and Canada Research Chairs Program

(950-232791).

REFERENCES

Abusitta, A., Li, M. Q., and Fung, B. C. M. (2021). Malware

classiﬁcation and composition analysis: A survey of

recent developments. Journal of Information Security

and Applications (JISA), 59(102828):1–17.

Anderson, B., Quist, D., Neil, J., Storlie, C., and Lane,

T. (2011). Graph-based malware detection using

dynamic analysis. Journal in computer Virology,

7(4):247–258.

Arrieta, A. B., Díaz-Rodríguez, N., Del Ser, J., Bennetot,

A., Tabik, S., Barbado, A., García, S., Gil-López, S.,

Molina, D., Benjamins, R., et al. (2020). Explainable

artiﬁcial intelligence (xai): Concepts, taxonomies, op-

portunities and challenges toward responsible ai. In-

formation Fusion, 58:82–115.

Baldangombo, U., Jambaljav, N., and Horng, S.-J. (2013).

A static malware detection system using data mining

methods. arXiv preprint arXiv:1308.2831.

Bayer, U., Moser, A., Kruegel, C., and Kirda, E. (2006).

Dynamic analysis of malicious code. Journal in Com-

puter Virology, 2(1):67–77.

Charikar, M. S. (2002). Similarity estimation techniques

from rounding algorithms. In Proceedings of the 34th

annual ACM Symposium on Theory of Computing,

pages 380–388.

Dahl, G. E., Stokes, J. W., Deng, L., and Yu, D. (2013).

Large-scale malware classiﬁcation using random pro-

jections and neural networks. In Acoustics, Speech

and Signal Processing (ICASSP), 2013 IEEE Interna-

tional Conference on, pages 3422–3426. IEEE.

Fredrikson, M., Jha, S., Christodorescu, M., Sailer, R., and

Yan, X. (2010). Synthesizing near-optimal malware

speciﬁcations from suspicious behaviors. In Security

and Privacy (SP), 2010 IEEE Symposium on, pages

45–60. IEEE.

Huang, W. and Stokes, J. W. (2016). Mtnet: a multi-task

neural network for dynamic malware classiﬁcation. In

Proceedings of the International Conference on De-

tection of Intrusions and Malware, and Vulnerability

Assessment, pages 399–418. Springer.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Li, M. Q., Fung, B. C., Charland, P., and Ding, S. H.

(2021a). I-mad: Interpretable malware detector

using galaxy transformer. Computers & Security,

108:102371.

Li, M. Q. and Fung, B. C. M. (2022). Software Technolo-

gies, chapter A novel neural network-based malware

severity classiﬁcation system. Communications in

Computer and Information Science (CCIS). Springer.

Li, M. Q., Fung, B. C. M., and Abusitta, A. (2022). On the

effectiveness of interpretable feedforward neural net-

work. In Proceedings of the International Joint Con-

ference on Neural Networks (IJCNN), Padova, Italy.

IEEE.

Li, M. Q., Fung, B. C. M., Charland, P., and Ding, S. H. H.

(2021b). A novel and dedicated machine learning

model for malware classiﬁcation. In Proceedings of

the 16th International Conference on Software Tech-

nologies, pages 617–628.

Moskovitch, R., Feher, C., Tzachar, N., Berger, E., Gitel-

man, M., Dolev, S., and Elovici, Y. (2008). Unknown

malcode detection using opcode representation. In

Proceedings of the IEEE International Conference on

Intelligence and Security Informatics, pages 204–215.

Springer.

Mourtaji, Y., Bouhorma, M., and Alghazzawi, D. (2019).

Intelligent framework for malware detection with con-

volutional neural network. In Proceedings of the 2nd

International Conference on Networking, Information

Systems & Security, pages 1–6.

Nataraj, L., Karthikeyan, S., Jacob, G., and Manjunath, B.

(2011). Malware images: visualization and automatic

classiﬁcation. In Proceedings of the 8th international

symposium on visualization for cyber security, page 4.

ACM.

Rai, A. (2020). Explainable ai: From black box to glass

box. Journal of the Academy of Marketing Science,

48(1):137–141.

Royal, P., Halpin, M., Dagon, D., Edmonds, R., and Lee,

W. (2006). Polyunpack: Automating the hidden-code

extraction of unpack-executing malware. In Computer

Security Applications Conference, 2006. ACSAC’06.

22nd Annual, pages 289–300. IEEE.

Saxe, J. and Berlin, K. (2015). Deep neural network based

malware detection using two dimensional binary pro-

gram features. In Proceedings of the 10th Interna-

tional Conference on Malicious and Unwanted Soft-

ware (MALWARE), pages 11–20. IEEE.

Schultz, M. G., Eskin, E., Zadok, F., and Stolfo, S. J. (2001).

Data mining methods for detection of new malicious

executables. In Proceedings of the IEEE Symposium

on Security and Privacy (S&P), pages 38–49. IEEE.

Sebastián, M., Rivera, R., Kotzias, P., and Caballero, J.

(2016). Avclass: A tool for massive malware labeling.

In Proceedings of the International Symposium on Re-

search in Attacks, Intrusions, and Defenses, pages

230–253. Springer.

Ye, Y., Li, T., Adjeroh, D., and Iyengar, S. S. (2017). A

survey on malware detection using data mining tech-

niques. ACM Computing Surveys (CSUR), 50(3):41.

Interpretable Malware Classiﬁcation based on Functional Analysis

507
