Web based User Interface Solution for Remote Robotic Control and

Monitoring Autonomous System

Hugo Perier

, Eloise Matheson

and Mario Di Castro

CERN, EN-IM-PLM, 1217 Geneva, Switzerland

CERN, BE-CEM-MRO, 1217 Geneva, Switzerland

Keywords: Robotic, User Interface, User Experience, Web Design, Web Application, Software Solution.

Abstract: The area of robotic control and monitoring, or automated systems, covers a wide range of applications. The

operating system, the kind of control, and the size of the screen used to present information to the user all

vary in different robotic or industrial systems. This article proposes a system based on a user interface for

real-time robotic control or monitoring of autonomous systems using web technologies laid on open-source

projects. The purpose of this software is to be highly scalable over time and easily pluggable into different

types of robotic solutions and projects. It must offer a high user experience and an appealing modern UI

design, allowing technicians not expert in robot operation to perform interventions or maintenance tasks. The

web environment provides an ideal platform to ensure the portability of the application so that it can be

released on a multitude of devices, including laptops, smartphones, and tablets. This article introduces and

describes the module, features, and advantages of the Neutron Framework. It presents how the users can

interact with it and how to integrate this solution inside the CERN's Mechatronic Robotic and Operation

solution.

1 INTRODUCTION

The increase of new technologies and innovation in

the domain of digital technology has pushed robotics

as a major research domain in 2022. While industry

4.0 is already a revolution (I-Scoop, 2022), there are

many fields which will continue to be impacted by the

innovation in robotics, such as education (Eguchi,

2014), logistics (Day, 2021), transport (Forrest &

Konca, 2007), and the space industry (Katz, D. &

Some, R., 2003), among others. One of the key points

of a robotic solution is its ability to be controlled in

real time by an operator or monitored in the case of

an autonomous system. CERN's Mechatronics,

Robotics, and Operation (BE-CEM-MRO) section is

undertaking research and development on robotic

systems for achieving interventions in hazardous

areas. CERN's MRO section has developed its own

framework for robotics, the CernTauro (Di Castro et

al., 2018), also called the Cern Robotic Framework

(CRF). The CRF is built as a micro-services

https://orcid.org/0000-0002-5201-9817

https://orcid.org/0000-0002-1294-2076

https://orcid.org/0000-0002-2513-967X

architecture that consists of a collection of separate

components that operate on the system that powers

the robot. It is possible to connect to and interact with

the components using the TCP or UPD protocol. The

CRF uses a structured way to exchange messages to

receive information or to make requests to trigger

action, with a bi-directional voluntary messaging

system so that the client receives information about

the status of their requests. The Neutron solution has

been designed to cover a wide range of use cases and

different scenarios, from planning to the realization of

a robotic intervention. The software also allows the

monitoring of an autonomous robotic system. It is

possible for users to benefit from a rich API to create

robotic behaviours using visual programming (Davis

et al., 2011) to cover specific needs or for educational

purposes. The program also contains a plugin

mechanism that allows users to simply enhance the

app's functionality in the event of unusual

requirements.

680

Perier, H., Matheson, E. and Di Castro, M.

Web based User Interface Solution for Remote Robotic Control and Monitoring Autonomous System.

DOI: 10.5220/0011318800003271

In Proceedings of the 19th Inter national Conference on Informatics in Control, Automation and Robotics (ICINCO 2022), pages 680-687

ISBN: 978-989-758-585-2; ISSN: 2184-2809

Figure 1: An overview of the proposed framework.

2 GENERAL OVERVIEW

The proposed solution includes multiple client

applications that will be used by the end user, as well

as a REST API (Li et al., 2016) running on a server.

The setup of these clients consists of a combination

of user-side applications (React and React Native)

and custom backend code written in NodeJS to allow

communication with the robotic solution, as well as

our REST API. React and React Native are used to

power the clients; the usage of these front-end

frameworks allows for a high level of interoperability

as well as software portability between computers,

laptops, smartphones, and tablets. Electron is used

here to embed the React web-application into a

desktop application (Kredpattanakul, 2019). The

Neutron Library, written in NodeJS and Typescript,

provides each client with the tools they need to

interface with the robotic system and access the

REST API's services. NodeJS and Express have been

used to create the REST API. This is designed to

provide services to clients' applications, to centralize

data, and to act as an inference server that can be used

to run powerful machine learning algorithms. The

desktop application may be used to organize a robotic

intervention, including defining the aim and reasons

for the intervention, the materials required, and the

general prerequisites for a successful outcome. It is

possible to define objectives and have an overview of

the completion of those in the event of recurrent

interventions, allowing participants to observe the

overall progress unless the objectives are met. The

database stores and centralizes all information

regarding a previous intervention or the monitoring of

an autonomous system. This enables powerful

analytical capabilities and simplifies the process of

debugging potential issues, as well as encourages

iteration based on data acquired by robotic systems

(Cabi et al., 2019). The software's user interface and

user experience are both built following the rules

promoted by the atomic design principles (Frost,

2016).

3 SOFTWARE SOLUTION

3.1 HTTP Rest Api

The Rest Api is written in Node and is uses the

Express framework. This API's primary objective is

to provide services to the clients, such as an

authentication system, information about the

planification and progress of a robotic intervention,

synchronization of configuration files, log

aggregation, serving information about the connected

robotic systems, or to be used as an inference server

to benefits from powerful machine learning

algorithms. The Rest API has security features to

ensure that illegitimate foreign clients cannot connect

to or transfer data to a robot. The information about

the connection attempt is recorded every time a client

makes a request to the API, allowing the

administrator to keep track of the request flow.

Protection against spam and SQL injection are in

place to assure the API is not vulnerable from a

malicious tier. To access the interface's functions, a

client must be authenticated with the server. During

the authentication procedure, an internet connection

is necessary in order to get a token, which is

subsequently provided to the robot so that it knows

the client is trustworthy (Figure 2).

The process of gathering the logs of the robotic

system in the database provides a powerful tool for

data analysis. When the internet bandwidth permits it

or when real-time control is off, actions performed on

the software and in the robotic systems are registered

Web based User Interface Solution for Remote Robotic Control and Monitoring Autonomous System

681

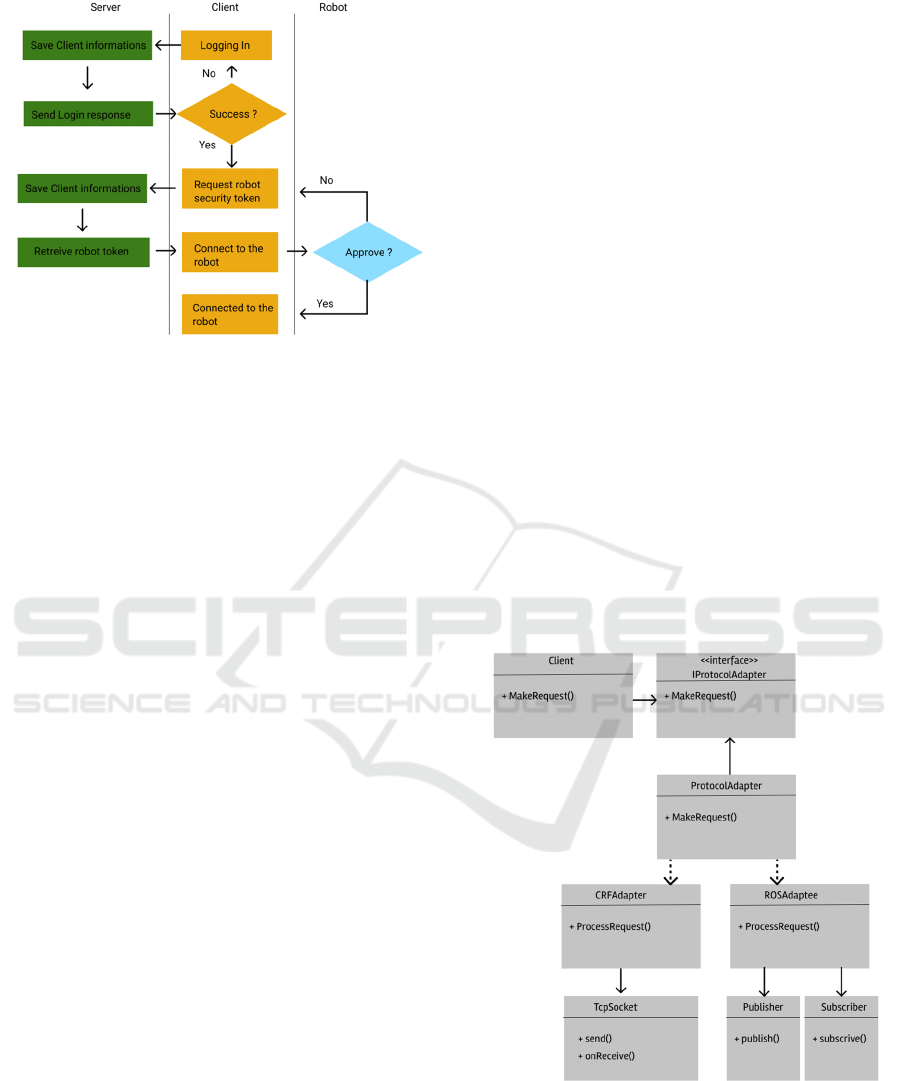

Figure 2: The connection lifecycle.

and forwarded to a server. These data can be analysed

to help enhance the overall robotic system by

identifying time-consuming human behaviours and

recognizing recurrent patterns that might be

automated (Cabi et al., 2019). This also provides a

means of identifying and eliminating what went

wrong in the event of a collision, a crash, or undesired

robot or operator conduct. The database can also be

used to track system metrics and as an operation

history log that might be useful in future manual or

autonomous operations (Fourie et al., 2017). The

choice of MongoDB has been made because of its

flexible schema requirements and its ability to handle

large amounts of data efficiently by partitioning the

database into shards, making it a very scalable

solution as a database. It is possible to benefit from

MongoDB Compass, which is an interactive and

open-source tool for querying, optimizing, and

analysing MongoDB data. This visual editing tool

also enables users to understand and analyse data sets

without a formal education in MongoDB query

syntax and addresses MongoDB’s inability to

natively support SQL. MongoDB’s data can easily be

extracted into JSON format and then be analysed with

external tools such as Python or R programming

(Mahmood & Risch, 2021).

3.2 The Neutron Library

The Neutron Library provides all the necessary tools

in order to connect, control or interact with the robotic

solution. The library is written in Nodejs and

Typescript. These technologies are easy to bundle,

allowing the library to be used by all the available

GUIs as well as the REST API. The main concept of

the library is to create a Neutron Context. This

context can be used to create one or multiple

connections to a robotic system. A connection is an

object that contains a collection of clients, connected

to the robotic system's processes. This object provides

useful functionality for monitoring the connection's

lifetime as well as exposing the robotic system's API.

The library’s plugin-based approach allows to easily

implement extensions during runtime.

3.2.1 Dynamic Protocol

The Neutron Library uses a strongly dynamic

protocol in order to be able to support a large range of

different robot operating system APIs. Adapters

(Alves & Borba, 2002) are available to define the

method of communication with one or multiple

servers (Figure 3). This dynamic protocol can be

defined as a combination of one or multiple transport

layers (TCP, UPD, RPC) and a communication

protocol (plain text, json, xml). The Neutron Library

can handle multiple nodes, each using a different

protocol. It is possible to connect to a REST server, a

basic TCP server, and lastly, a ROS node, for

example. Configuration files will be required to

define the protocol of a robotic system, and an update

will be necessary only when the protocol is modified.

Configurations are stored and sourced on the Rest

API and are synchronized across the many clients of

the program used by the solution's customers.

Figure 3: The communication and protocol adapters.

3.2.2 Capacitor

The Neutron Library provides the capability to

operate as a capacitor. A client can make a request to

the Neutron Library, which will be forwarded to a

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

682

specific host. A system like this is valuable for

coordinating multiple robotic systems or dealing with

the situation when one system is not connected to

another. It is sometimes necessary to isolate a section

of a system for security concerns. Using the client as

a proxy allows to take advantage of such a system

while maintaining its flexibility. By changing

protocol while the request is forwarded, a web

application hosted on a browser can communicate

with a robotic system that does not support web

socket-based communication protocol.

3.2.3 Plugin System

At any time, plugins can be mounted and unmounted.

A class that implements the NeutronPlugin interface

is referred to as a Neutron Plugin. The NeutronPlugin

interface is designed to walk the plugin developer

through all the requirements and options provided by

the Neutron Library. A validation method is used to

mount a plugin based on specified requirements or

dependencies. Plugins are designed to enhance or

modify the software's functionality. They can adapt

and respond to an incoming message from the server

or a request that is about to be made to a host. Plugins

also allow the user to alter the behaviour of parts of

the software's services, such as the robotic system's

connection process, the logger, or, in some situations,

to build custom functionality. Plugins can be loaded

at the start of the software's execution or during

runtime to add new functionality to the program. It is

a clever technique to provide certain attachable and

detachable features for a specific need (Chatley et al.,

2003).

3.3 User Interfaces

The Neutron desktop application uses React as the

front-end framework and Electron to turn the web

application into a desktop application. React is an

open-source framework created by Meta. React-

based applications can be used as PWAs (Progressive

Web Applications) (Biørn-Hansen et al., 2017).

Electron is used to transform the web application into

a desktop application. It runs on top of chromium and

the Node V8 motor. Electron is an open-source

project and has been used for popular applications

such as Microsoft Teams, Figma, or even VsCode. In

order to use this user interface, the user must first be

authenticated to the server. The user can then see

information about future interventions and their

general goals, as well as edit data about the ones they

are a part of. Thanks to a novel modulable system

based on components, it is possible to connect to a

robotic system from the interface and control it in real

time. Fully automated systems can be monitored

using the same modulable interface. It is possible to

navigate through the interface and operate in real-

time on a real-time system using a keyboard, mouse,

or controller. The customization of the interface has

been pushed so the user can assign key bindings to

actions for more rapidity. Finally, a visual scripting

framework has been implemented to enable the

creation of robot behaviours using the Neutron API.

3.3.1 Authentication

The authentication view is the first page that the user

sees. It is possible to both sign in and register from

this page. A user who has just created an account must

verify it via mail for it to become active. Because the

administrator may have retrained the account creation

to a domain, this verification ensures that the user is

a member of the organization. During a connection,

the software can be set to remember the credentials.

During log in, the software will request that the server

generates or refreshes the token that will be used to

connect to a robotic solution and verify that the user

is not a foreign client. A pop-up will appear if the user

is unable to access the server because the token has

expired.

3.3.2 Operation Overview

The Neutron GUI's home page is a dashboard that

displays information to the user such as a calendar

that notifies them of upcoming robotic interventions,

charts that provide information about a task's general

objective, and a list of possible connections to a

robotic system via a direct connection or a

customized one created from a configuration file. A

mission editor is included in the interface for directly

planning the prerequisites, objectives, and general

procedure of a robotic intervention. Multiple users

can be assigned to a mission. They will have access

to its details and will receive the required information

for its successful realization once it is completed. A

mission is a recurring or one-time task that may be

broken down into phases and completed by a system

user under particular conditions. The manipulation

and installation of equipment at a remote location, for

example, is a task that would be manually confirmed

by the individuals in charge of this stage. The data

gathered during the robotic intervention might

subsequently be utilized to confirm a second mission

task autonomously. Missions may be set up to require

specified materials, to be defined by a specific date or

a range of dates, and to include attachments like

pictures or PDFs. Mission information is saved on the

Web based User Interface Solution for Remote Robotic Control and Monitoring Autonomous System

683

server and synced in real time among all users. It is

possible to send a notification by mail to the parties

involved when a modification is made to an existing

mission.

3.3.3 Control and Supervision

From the dashboard, it is possible to open the robot

connection menu. Users can connect using a standard

configuration, a custom one, or by creating a

connection from this view. A standard configuration

handles the connection to a robotic system that is

referenced by the server in the database. Those would

generally be production ready and display

information such as status, location, battery level, and

information about the component mounted on them.

Custom configurations are used in situations when the

user wants to connect to a specific part of the robotic

system using a different protocol or communication

layer. This great level of customization for the

connection to a robotic system is useful for

development and testing purposes.

The real-time control and monitoring user

interface is a set of adaptable, configurable, and

interchangeable components. When a connection

with a robotic system is made, the software will load

the pre-defined components that will handle every

functionality of the robotic system. Components can

be used to visualize data received by the server or

stored in a database or execute actions in the robotic

system in real-time. All the components rely on the

same basis: a component can be opened, closed,

reduced, dragged and resized according to some limit.

A component can be configured to match the needs of

its present application as closely as practicable. It is

possible that different components cover the same

functionality, but that does not imply that they will all

be shown. Each component can be used in the way

that the user wants. It is their responsibility to create

the UI that fully satisfies the requirements. A

configuration file can be used to save component

selections, positions, and settings. This configuration

can be loaded by a user to obtain the exact same

interface setup. In order to improve the user

experience, components also attach their actions to an

input handler. The aspects and functionalities of a

component will vary depending on its own size, the

selected input handler, the mounted plugins, and the

ability of the computer to access the Internet.

Components are classified into two types: active and

passive. When an active component is selected, key-

bindings are activated, allowing the user to operate a

real-time system with the best possible experience.

Selecting an active robot arm control component, for

example, would bind the direction of the joints to the

active input handler's selected key. A passive

component is mainly used to display information.

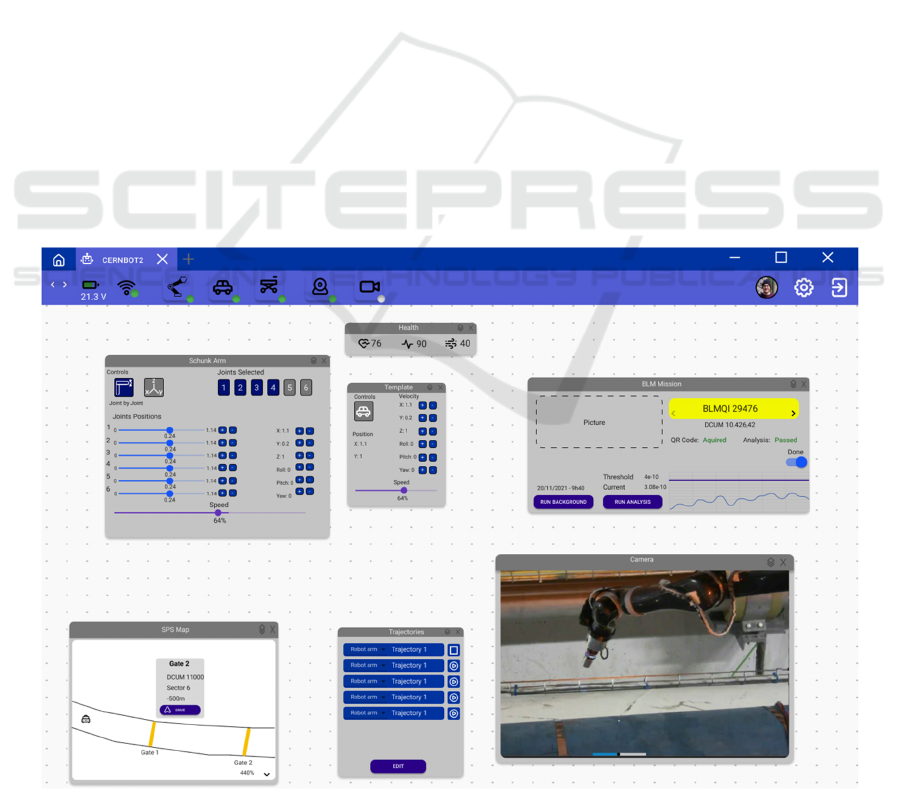

Figure 4: Multiple components are mounted in the real-time control view.

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

684

However, passive components can display buttons

and inputs, but they will not bind keys to any actions.

In Figure 4, the Schunk Arm component and the

Robot Base component are active components. All

the other components present in the figure are

passive. Selecting the Schunk arm component will

highlight it to indicate that it is active. The Schunk

arm component will no longer be active if the user

selects the Robot base component, and the key that

was supposed to execute some action on this

component will be disabled. The RobotBase is the

only component that is highlighted and responds to

inputs. The trajectory component is a passive

component. It is possible to interact with this

component to run a pre-recorded trajectory on one of

the actuators available on the robotic system, but no

binding will take place. While hitting keys on the

input handler to conduct actions on the active

component, the user may interact with a passive

component.

3.3.4 Input Handlers

The Electron GUI supports a variety of input

handlers. A keyboard with a mouse or trackpad, an

Xbox or PS5 controller, or a handmade controller are

all possibilities. The commander design pattern

(Alexandrescu, 2001) is used in the software

architecture that handles user input. When a user

presses an input, the program looks for an action that

is associated with that input.

In this case, this action will be produced, perhaps

with parameters, and submitted to an action

dispatcher, who will carry it out. The program is built

to handle robotic operations with any input device

that is supported. The user may simply switch

between active and passive components without

using the mouse since the UI components can change

their look and bindings to the presently selected input

device.

3.3.5 Visual Scripting

The Neutron Library includes a system of visual

scripting (Figure 5). In the visual scripting view, users

can arrange and configure blocks to construct basic or

complicated programs that can subsequently be

utilized as components in the control view. Visual

scripting is a graphical way to manipulate objects and

behaviour in the Neutron GUI without writing code

from scratch. The logic is constructed by connecting

visual nodes, allowing users or programmers to

quickly develop intelligent and interactive systems.

Visual scripting makes the process of getting a

product from concept to production much faster and

easier. Loops and conditions (if, while, and, or, nor,

not...), math (additions, multiplications...), variables,

actions, events, and custom nodes are the six main

categories of basic visual nodes. The actions block

refers to an actual action inside the software, such as

sending a request to the robotic system or selecting a

different input handler. A script can then be exported

as a visual component or as a custom node that can be

Figure 5: Implementation through visual scripting of the "Greet Humans" program.

Web based User Interface Solution for Remote Robotic Control and Monitoring Autonomous System

685

reused in another script. When two nodes are

connected directly, the second node receives the prior

node's output value as input. Users do not need to

assign and parse each output into a variable before

reprocessing it into a second node since the system

has been created that way. It is possible to assign the

output, or a portion of the output, to a variable in some

circumstances where this method is necessary. Every

script must be composed of at least one start and one

end node, defining the starting and ending points of

the script.

The visual script presented in Figure 5 works in

this way: The process begins on the "start" node. One

way is through the "Keyboard Input" node. This node

will register user input on a keyboard as events. When

one of those events occurs, the following node is

executed. A variable definition is the second block

connected by start. The value of the virtual variable

"human" is set to "null." It does imply that the

variable has been registered; it exists but has no value.

The flow immediately moves to a "While" node after

defining this variable. The criteria "human == null"

will be checked by this node. The nodes registered in

the "true" output will be performed when this

condition is true. Those nodes will request a camera

frame, run a remote machine learning algorithm to

recognize a person, and assign the algorithm's result

to the "Human" variable. The "machine learning"

node's output contains a JavaScript object, which is

assigned to the variable "human." The while loop will

cycle again if the "MachineLearning" node's output

fails to retrieve a human in the provided image.

Otherwise, the while loop will end, and the "logging"

node will fire, notifying the user. Heading back to the

Keyboard Input Node, if the key "F" is pressed on the

keyboard after a human has been detected, the

microphone mounted on the robotic system will speak

the text described in the node, then the variable will

be set to null again and the "while" node will restart,

as requested by the software. The welcome will not

be shown if the user pushes Esc. Finally, a lengthy

press of the Esc key will bring the script to the "End"

node, which will bring the entire visual scripting

program to a stop.

3.3.6 Fault Tolerant System

The process of controlling a robotic system can be

fraught with faults, timeouts, and delays. Some rules

have been created to provide the user with an

understanding of what is going on in order to promote

consistency. When a button-triggered action is in

progress, the button is disabled until the action is

finished. Furthermore, when the user needs to be

aware of an issue or an essential message, a pop-up

will display on the bottom right of the screen. In some

cases, the pop-up will require the user's

acknowledgement before it vanishes.

4 CONCLUSIONS

The proposed framework offers a scalable and highly

distributable solution for the real-time control of

robotic systems and for the monitoring of

autonomous systems. Users merely need to extract

the already used protocol, export it into the

framework, and configure the appropriate settings to

link this solution with an existing robotic solution.

The use of the framework will assist administrators

and operators from the planning stage to the

realization of a real-time intervention. Operators can

prepare for the intervention by customizing their user

interface or by creating scripts and plugins, ensuring

that the intervention is carried out under the best

conditions. The framework also allows for

autonomous system monitoring by customizing the

dashboard so that all essential information is provided

to the administrator, either on a screen installed on the

machine or remotely on a computer. All the data

collected by the program is centralized on a server to

simplify the process of data-driven enhancement of

the entire system and operator behaviour analysis.

REFERENCES

I-Scoop (Ed.). (2022, April 4). Industry 4.0 and the fourth

industrial revolution explained. I-SCOOP; www.i-

scoop.eu. https://www.i-scoop.eu/industry-4-0/

Eguchi, A. (2014, July). Robotics as a learning tool for

educational transformation. In Proceeding of 4th

international workshop teaching robotics, teaching with

robotics & 5th international conference robotics in

education Padova (Italy) (pp. 27-34).

Day, M. (2021, September 12). In Amazon’s

Flagship Fulfillment Center, the Machines Run

the Show. Bloomberg; www.bloomberg.com.

https://www.bloomberg.com/news/features/2021-09-

21/inside-amazon-amzn-flagship-fulfillment-center-

where-machines-run-the-show

Forrest, A., & Konca, M. (2007). Autonomous cars and

society. Worcester Polytechnic Institute, 15, 23

Katz, D., & Some, R. (2003). NASA advances robotic

space exploration. Computer, 36(1), 52-61.

Di Castro, M., Ferre, M., & Masi, A. (2018).

CERNTAURO: A Modular Architecture for Robotic

Inspection and Telemanipulation in Harsh and Semi-

Structured Environments. IEEE Access, 6, 37506-

37522.

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

686

Davis, D., Burry, J., & Burry, M. (2011). Understanding

Visual Scripts: Improving Collaboration through

Modular Programming. International Journal of

Architectural Computing, 9(4), 361–375.

https://doi.org/10.1260/1478-0771.9.4.361

Li, L., Chou, W., Zhou, W., & Luo, M. (2016). Design

Patterns and Extensibility of REST API for Networking

Applications. IEEE Transactions on Network and

Service Management, 13, 154-167.

Kredpattanakul, Y. (2019). Transforming JavaScript-Based

Web Application to Cross-Platform Desktop with

Electron. In Information Science and Applications 2018

(pp. 571–579). Springer Singapore.

Cabi, S., Colmenarejo, S. G., Novikov, A., Konyushkova,

K., Reed, S., Jeong, R., ... & Wang, Z. (2019). A

framework for data-driven robotics. arXiv preprint

arXiv:1909.12200.

Frost, B. (2016). Atomic Design. Brad Frost Web.

Fourie, D., Claassens, S., Pillai, S., Mata, R., & Leonard, J.

(2017). SLAMinDB: Centralized graph databases for

mobile robotics. In Book title is required! (pp. 6331-

6337).

Mahmood, K., & Risch, T. (2021). Scalable Real-Time

Analytics for IoT Applications. In 2021 IEEE

International Conference on Smart Computing

(SMARTCOMP) (pp. 404-406).

Alves, V., & Borba, P. (2002). Distributed Adapters

Pattern: A Design Pattern for Object-Oriented

Distributed Applications.

Chatley, R., Eisenbach, S., & Magee, J. (2003). Painless

plugins. London: Imperial College.

Biørn-Hansen, A., Majchrzak, T. A., & Grønli, T. M. (2017,

April). Progressive web apps for the unified

development of mobile applications. In International

Conference on Web Information Systems and

Technologies (pp. 64-86). Springer, Cham.

Alexandrescu, A. (2001). Modern C++ design: generic

programming and design patterns applied. Addison-

Wesley.

Web based User Interface Solution for Remote Robotic Control and Monitoring Autonomous System

687
