A Formal Approach for Complex Attacks Generation based on Mutation

of 5G Network Trafﬁc

Zujany Salazar

1 a

, Fatiha Zaidi

2 b

, Wissam Mallouli

1 c

, Ana Rosa Cavalli

1 d

Huu Nghia Nguyen

1 e

and Edgardo Montes De Oca

1 f

Montimage EURL, Paris, France

Université Paris-Saclay, CNRS, ENS Paris-Saclay, Laboratoire Méthodes Formelles, 91190, Gif-sur-Yvette, France

Keywords:

Formal Approach, Mutation Technique, Network Trafﬁc, 5G Networks, Fuzzing Techniques.

Abstract:

We present a formal approach based on mutation techniques for the modelling of cybersecurity attacks and

its application to 5G networks. We introduce formal deﬁnitions of the main concepts of network protocols,

mutation operators, ﬂow of network packets and network trafﬁc. We design a formal approach based on

different mutation operators that allows to design models that can be assimilated with known and unknown

attacks. This approach has been implemented in our open source 5G network trafﬁc fuzzer, 5Greplay, and has

been applied to two use cases that are representative of attacks against 5G networks.

1 INTRODUCTION

Different techniques have been developed in order to

detect and execute attacks in 5G networks. One of

the techniques used is fuzz testing, which is a soft-

ware testing technique that relies on the injection of

random, invalid or unexpected data to cause the mal-

functioning or a crash of the system.

The work described in this paper extends the re-

search and open-source solution 5Greplay, presented

by the authors in (Salazar et al., 2021). Notably, in

this paper, we present a formal approach based on

mutation techniques for the modelling of cybersecu-

rity attacks and its application to 5G networks, that

we demonstrate by means of our 5G network trafﬁc

fuzzer, 5Greplay.

The idea is to develop a formal approach based

on different mutation operators that will allow to de-

sign models that can be assimilated with known at-

tacks and with 0-day attacks. Attacks can be simple

attacks consisting of simple actions, or more complex

attacks based on the composition of different actions.

This approach will facilitate the description and exe-

cution of attacks in order to check the robustness of

https://orcid.org/0000-0002-8655-0585

https://orcid.org/0000-0003-3414-8815

https://orcid.org/0000-0003-2548-6628

https://orcid.org/0000-0003-2586-9071

https://orcid.org/0000-0002-5778-0752

https://orcid.org/0000-0001-6771-0689

5G networks and their components. It will also facili-

tate the automated detection and design of mitigation

techniques to resist attacks.

The main contribution of this paper is the design

of a formal approach for mutation techniques by in-

troducing a formal deﬁnition of the concepts of net-

work protocol, mutation operators, network packet,

ﬂow of network packets, network trafﬁc, as well

as, the notion of independence of network protocols

ﬁelds, packets and ﬂows.

The paper is organized as follows: Section 2 in-

troduces related work; Section 3 presents the 5G net-

work fuzzer; Section 4 presents the formalization of

the network mutation functions, and Section 5 the ex-

perimentation to illustrate our approach. Finally, Sec-

tion 6 provides the conclusion and perspectives.

2 RELATED WORK AND

BACKGROUND

In this Section we present the research works that deal

different topics of this paper, and the gaps we could

identify in the literature.

2.1 5G Core Network

5G networks divide the LTE core and implement net-

work functions separately, so that they can run inde-

pendently from each other. Moreover, 5G network

234

Salazar, Z., Zaidi, F., Mallouli, W., Cavalli, A., Nguyen, H. and Montes De Oca, E.

A Formal Approach for Complex Attacks Generation based on Mutation of 5G Network Trafﬁc.

DOI: 10.5220/0011319000003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 234-241

ISBN: 978-989-758-588-3; ISSN: 2184-2833

functions are virtualized, therefore they do not need

dedicated hardware. 5G core Service-Based Archi-

tecture proposed by the 3GPP

is composed of the

following major components (Brown, 2017):

1. The Access and Mobility Management Function

(AMF) is as a single-entry point for the UE con-

nection. Based on the service demanded by

the UE, the AMF selects a Session Management

Function (SMF) for handling the user session.

2. The User Plane Function (UPF) transports the IP

data trafﬁc (user plane) between the User Equip-

ment (UE) and the external networks.

3. Further functions like the Session Management

Function (SMF), the Policy Control Function

(PCF), the Application Function (AF) and the

Uniﬁed Data Management (UDM) function man-

age the policy control framework, applying policy

decisions and accessing subscription information,

to control the network behavior.

2.2 Network-enabled and 5G Protocol

Fuzzers

Dedicated fuzzers for protocols commonly used in

telecommunications have been proposed. T-Fuzz

(Johansson et al., 2014) follows a generation-based

fuzzing approach, relying on message models with

full protocol speciﬁcations to test the 3GPP Non-

Access Stratum (NAS) protocol, used in LTE and

5G networks. For the Resource Control layer (RCC)

protocol that operates between the UE and gNB, a

fuzzer based on the ASN.1 description language has

been proposed (Potnuru and Nakarmi, 2021). The

fuzzer extracts information about ongoing RRC mes-

sages by means of protocol description ﬁles of RRC

from 3GPP, and uses it to mutate RRC messages.

The adaptive fuzzer recognizes individual ﬁelds, sub-

messages, and custom data types according to spec-

iﬁcations when fuzzing the content of existing mes-

sages.

The Next Generation Application Protocol

(NGAP) that operates between the UE and the

AMF, has been also tested with fuzzing techniques.

Mutation algorithms based on partition weight have

shown to be able to reduce fuzzing time by generating

samples that are more likely to produce anomalies in

the 5G core (Hu et al., 2022). The main limitation

of this approach is that the number of samples

that are required to test and calculate the weights

of each protocol ﬁeld during the tuning phase of

https://www.enisa.europa.eu/publications/sdn-threat-

landscape

the algorithm, must be adequate to get an accurate

calculation of ﬁeld weights, and this process could

take a considerable amount of time.

2.3 Complex Attack Deﬁnition and

Generation

In the context of this paper, we deﬁne the following

complex attacks:

• Multi-layers attacks: these attacks that are com-

posed of two events happening on at least two lay-

ers (for instance, transport layer and application

layer). At the network level, this can impact at

least 2 different protocols.

• Collaborative attacks: these attacks have differ-

ent sources of packets and needs coordination be-

tween them to succeed the attack. A typical at-

tack of this kind is a Distributed Denial of Service

(DDoS) attacks.

• Multi-target attacks: these attacks targets at least

two different nodes (or virtual functions) in the

network following thus two different paths or in-

terfaces.

• Distributed attacks: these attacks combines the

two last types of attacks where we can have multi-

source and/or multi-target ﬂows.

2.4 Mutation-based Fuzzing Testing

Formalization

Various formal bases to improve this critical fuzzing

approaches has been proposed in the literature. On

the software testing ﬁeld, research (Salls et al., 2020)

has characterized the input evaluation and selection

components of fuzzing, based on static analysis con-

cepts. In their model, they deﬁne the notions of in-

put, concrete and abstract states, and how the inputs

are mapped from a concrete state trace to an abstract

state by an abstraction function. Moreover, authors

have deﬁned some of the software fuzzing technique

using their model concepts in order to demonstrate its

generality. Their results proved that the choice and

combination of abstraction functions are signiﬁcant

and can modify the effectiveness of fuzzing.

Fuzzing testing has been also represented using

mutation trees, in particular (Dong et al., 2018) ap-

plied it to an industrial control systems, in order to

improve the efﬁciency of the mutation process and the

insufﬁcient amount of tests in the old fuzzing technol-

ogy for industrial control systems (ICS).

In conclusion, nowadays fuzzing testing is com-

mon practice for searching vulnerabilities. Neverthe-

less, to the best of our knowledge there is an absence

A Formal Approach for Complex Attacks Generation based on Mutation of 5G Network Trafﬁc

235

of an uniﬁed formalism for describing network trafﬁc

mutation. Some works have approached this problem,

but mainly in the software engineering domain. We

believe that such a formalism would improve network

security by allowing automation of test case creation,

and facilitating the creation of complex test cases sce-

narios.

The formalism we described in Section 4 differs

from the state of the art because it was specially de-

signed to mutate network protocols and also allows

the design of complex attacks. Network-enabled mu-

tation has the peculiarity that there may be depen-

dency between network packets or between packet

ﬂows. Therefore, when mutating a packet, our for-

malism also considers the packets that depend on it,

in addition to other characteristics of its context that

we will discuss later in this article. Finally, the opera-

tors that we deﬁned in our formalism can be combined

to create complex protocol-based attacks.

3 5G NETWORK FUZZER:

5Greplay

is an open-source solution entirely devel-

oped by the authors that generates mutants of the net-

work trafﬁc by using mutant operators, in order to

perform speciﬁed security and functional tests on a

system, as well as, fuzzing testing. In (Salazar et al.,

2021) we presented 5Greplay mutant operators, and

rule syntax. 5Greplay needs the following elements

as an input to operate:

A ﬁltering set of rules, that explicitly indicating

which packets must be considered and ignored, to

perform 5Greplay actions

A conﬁguration ﬁle, that specify the default actions

to be applied on the packets that are not managed

by the rules, i.e., if they should be forwarded or

not

Network trafﬁc, online or ofﬂine, i.e. a pcap ﬁle

When deﬁning a 5Greplay rule, users must indi-

cate the following three elements in the rule: (i) which

packet will be processed, (ii) which action will be ap-

plied, and in the case where the actions is a modiﬁca-

tion (iii) how to modify the packet.

Today, 5Greplay can operate over NAS-5G and

NGAP protocols. However, the tool incorporates a

plugin architecture for the addition of new protocols.

In order to perform different mutations on the incom-

ing 5G trafﬁc, 5GReplay deﬁned a set of mutation op-

erator that can be applied either on the packet or on

http://5greplay.org

the ﬂow levels. The list of these operators are pro-

vided in the Table 1.

4 NETWORK MUTATION

FUNCTIONS FORMALIZATION

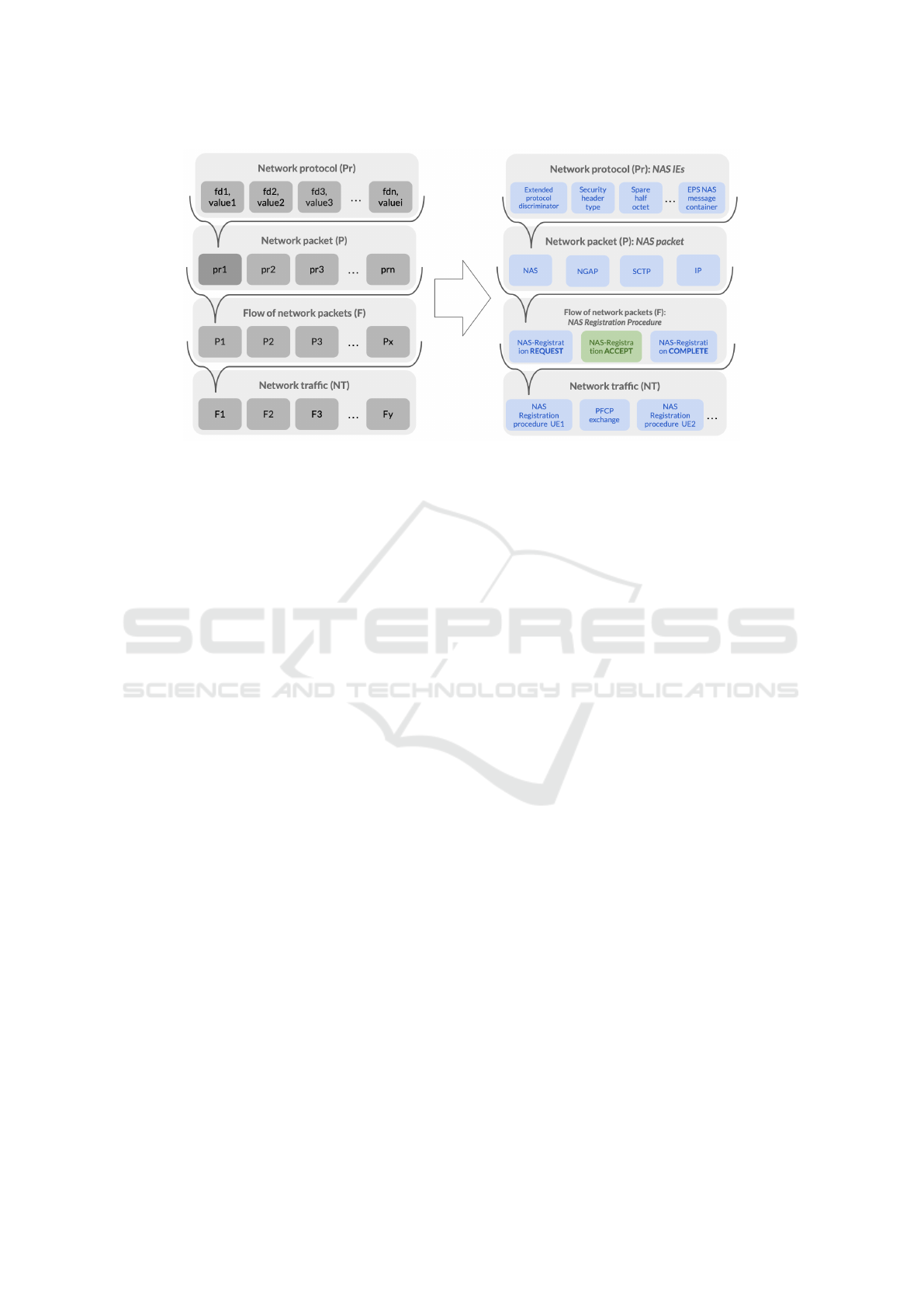

We propose a formalism to handle combinations of

mutation operators applied to network trafﬁc. The

proposed approach relies on syntactic and behavioral

changes.

Indeed, we consider that network protocols can be

studied from several perspectives. Every protocol has

a syntax that deﬁnes sequencing of data elements or

bits that are considered to be valid, and determines

how to read the data in the form of ﬁelds

a semantic that refers to the interpretation or mean-

ing that computers give to each ﬁeld, and

a behavior that considers the data in its context, this

is when the data should be sent, and how fast for

non-functionnal behavioral aspects.

To illustrate our formalism, let us consider as a

running example, a small part of Non-Access-Stratum

(NAS) protocol for 5G System (5GS)

. NAS-5G pro-

tocol operates between user equipment (UE) and

AMF, through 5G N1 interface. Its main function

is to support of mobility of the UE, together with

procedures such as authentication, identiﬁcation, and

generic UE conﬁguration update and security control

mode procedures.

The NAS-5G syntax is the group of rules that de-

ﬁnes, for example, that during the UE registration

procedure for mobility and periodic registration up-

date a NAS REGISTRATION REQUEST message is

composed by pieces of information of a determined

length, that must be interpreted as different ﬁelds. The

semantics of the protocol gives to the ﬁrst ﬁeld in the

header the meaning of the Extended protocol discrim-

inator, followed Security header type, etc. Finally,

the functional behavior determines that for instance

a NAS REGISTRATION ACCEPT message must ar-

rive after a NAS REGISTRATION REQUEST mes-

sage.

In a mutation-based fuzzing testing strategy, the

idea is to generate new test cases, called also mutants,

by making syntactic operations changes in already ex-

isting test cases, to therefore inject them into the sys-

tem under test. Ideally, the mutants must be syntacti-

cally correct in order to discard test cases that the sys-

tems under test cannot interpret. Syntactic operators

https://itectec.com/archive/3gpp-speciﬁcation-ts-24-

501/

ICSOFT 2022 - 17th International Conference on Software Technologies

236

Table 1: 5Greplay mutantion operators.

Level Atomic operator Description

Packet, Flow

DROP Delete a packet/ﬂow of packets

DUPLICATE Duplicate packet/ﬂow of packets

PERMUTE Exchange the order of two consecutive packets/ﬂow of packets

MODIFY Change a speciﬁc attribute on the header of a network packet/ﬂow of packets

generate new network packets by making operations

in a recorded packet. The syntactically incorrect and

repeated packets must be discarded.

Moreover, mutants can be also generated by mod-

ifying the inputs from a behavioral’ perspective. This

is the packet in its context. Furthermore, these op-

erators consider the time between two packets, and

the order of the packets. Behavioral operators oper-

ate in a group of network packets, that later we will

deﬁne as network packet ﬂows to generate a new ﬂow

of packets with different time delay between them, re-

peated packets, or different order. Analogous to syn-

tactic operators, syntactically incorrect and repeated

sequences of packets must be discarded.

Considering the NAS-5G protocol, supposing that

the system under test is an AMF, and a test case is a

group of NAS-5G packets, that semantically consti-

tute the UE authentication procedure. A syntactical

mutant would be a NAS-5G packet with the ﬁeld Ex-

tended protocol discriminator modiﬁed. A behavioral

mutant of the test case can be the same message ex-

change but with a NAS REGISTRATION ACCEPT

message before the UE sends the NAS REGISTRA-

TION REQUEST message. The AMF authentication

response would be syntactically and semantically cor-

rect, but it would violate the behavior of the protocol.

In our methodology, mutant operators can only

make changes of the syntax, and behavior of an ob-

ject. Semantic changes are not possible as the ulti-

mate objective of this formalization is to represent a

testing process, and modifying the interpretation or

meaning of a message would imply to modify the sys-

tem under test.

4.1 Basic Deﬁnitions

In the following subsection we present some deﬁni-

tions that will be used throughout our mutation for-

malism:

Let Pr denote a network protocol formed

by i number of ﬁelds, which are or-

dered pairs of ﬁeld names FD =

{ f d1, f d2, ..., f di} with input domain

D f d = {D f d1, D f d2, ..., D f di}, and ﬁeld values

V = {value1, value2, ..., valuei}, such that Pr =

{( f d1, value1), ( f d2, value2), ..., ( f di, valuei)},

where valuei ∈ D f di

Let P denote a network packet formed by n number

of network protocols with input domain Dp, such

that P = {pr1, pr2, ..., prn}, where prn ∈ Dp

Let F denote a ﬂow of network packets formed by

x number of network packets with input domain

D f , such that F = {P1, P2, ..., Px}, where Px ∈

D f

Let NT denote a network trafﬁc formed by y num-

ber of ﬂow of network packets with input do-

main Dnt, such that NT = {F1, F2, ..., Fy}, where

Fy ∈ Dnt

4.2 Notions of Independence

In the following subsection we deﬁne the indepen-

dence notions applied to the 4 basic concepts we de-

ﬁned in the Section above.

Two ﬁelds are independents, if a change on the ﬁeld

value of one does not affect the ﬁeld value of the

other. This notion applies for ﬁelds in the same

and in different protocols in the same packet, or

for ﬁelds in different packets. We represent this

as: f di ⊥⊥ f d j

Two protocols are independent if all their ﬁelds are

independent. pri ⊥⊥ pr j

Two packets are independent if all their protocols

are independent. Pi ⊥⊥ P j

Two ﬂow of packets are independent if all their

packets are independent. Fi ⊥⊥ F j

4.3 Mutants

Let P

′

, F

′

, NT

′

be a syntactically correct network

packet, ﬂow of network packets, and network trafﬁc

respectively, obtained by making a syntactic, or be-

havioral changes of P, F, NT . P

′

, F

′

, NT

′

are known

as mutants of P, F, NT .

4.4 Mutant Operators

Let R be a rule according to which P, F, or NT are

changed. R is known as a mutant operator, and it

is composed by a context γ and an action σ such that

R = {γ, σ}.

A Formal Approach for Complex Attacks Generation based on Mutation of 5G Network Trafﬁc

237

Figure 1: Summary of the basic deﬁnitions of our formalism (left), and instantiation using 5G protocols (right). Messages

sent by the UE are in blue, and messages sent by the AMF are in green.

The context determine if the operation will be per-

formed in a single packet, a ﬂow of packets, or the

whole network trafﬁc. It is a ﬁlter function γ of NT

with image egal to

1. A single network packet: γ : NT → P or

2. A ﬂow of network packets: γ : NT → F or

3. The whole network trafﬁc: γ : NT → NT

For describing the context, we use the following

notation:

γ(NT ) = [Level(P or F)].[protocol].[ f ield].[value]

Where level, indicates if the results of the ﬁlter-

ing will be individual packets (P), or a ﬂow of net-

work packets (F). Protocol, ﬁeld, and value refer to

the name of network protocol, its respective ﬁeld, and

the ﬁeld value according to which the ﬁltering will be

done. For example:

1. γ(NT ) = P.NAS_5G.message_type is a function

that ﬁlters all the network packets of NAS_5G

protocol, with and speciﬁc message_type value

2. γ(NT ) = F.IP.ip_source is a function that ﬁlters

all the network ﬂows with a speciﬁc IP source ad-

dress.

And, the action is a function σ of P, F, or NT . We

deﬁne the different actions applicable to P, F, or NT

in Sections 4.5, 4.6, and 4.7.

4.5 Mutation of a Single Packet

Let R be a mutant operator, with context γ ap-

plied to a network trafﬁc NT , such that, the im-

age of γ(NT ) is equal to a single network packet

Pi = {pr1, pr2, ..., pri, ..., prh, ..., prn}, where Fx =

{P1, P2, ..., Pi, P j, ..., Px} ⊆ NT , there are the follow-

ing list of mutation operators applicable to Pi:

1. Drop: Drop a packet.

σ = P_DROP(Pi)

⇒ Fx = {P1, P2, ..., P j, ..., Px}

2. Duplicate: Duplicate a packet or a group of pack-

ets.

σ = P_DUPLICAT E(Pi)

⇒ Fx = {P1, P2, ..., Pi, Pi, P j, ..., Px}

3. Permute: Swap the position of Qx with Pi.

σ = P_PERMUT E(Qx, Pi)

(a) Permute Two Single Packets: Qx is a single

packet Px.

⇒ Fx = {P1, P2, ..., Px, P j, ..., Pi}

(b) Permute a group of packets: Qx is a group of

packets {Pi, P j}.

⇒ Fx = {P1, P2, ..., Px, ..., Pi, P j}

4. Modify Field Value: Change the value of ﬁeld

f di, in the protocol pri, of the packet Pi, for the

value valuei

′

. As a result we get a mutation of Pi,

that we call Pi

′

σ = P_MODIFY(Pi, pri, f di, valuei

′

)

(a) Independent Fields: If the ﬁeld f di of the

protocol pri is independent from all the other

ﬁelds on the same protocol, which is indepen-

dent from all the other protocols in the packet

Pi, then

⇒ Fx = {P1, P2, ..., Pi

′

, P j, ..., Px}, where

′

= {pr1, pr2, ..., pri

′

, ..., pn}, with pri

′

{( f d1, value1), ( f d2, value2), ..., ( f di, valuei

′

)}

(b) Dependent Fields in the Single Protocol: If

the ﬁeld f di of the protocol pri is dependent on

ICSOFT 2022 - 17th International Conference on Software Technologies

238

a another ﬁeld f dh in the same protocol, which

is independent from all the other protocols in

the packet Pi, then

⇒ Fx = {P1, P2, ..., Pi

′

, P j, ..., Px}, where

′

= {pr1, pr2, ..., pri

′

, ..., prn}, with pri

′

( f d1, value1), ( f d2, value2), ..., ( f dh, valueh

′

( f di, valuei

′

)}

ﬁeld f di of a network protocol pri is dependent

on one ﬁeld f dh in another protocol prh of the

same packet Pi, which is independent from all

the other packets in its ﬂow Fx, then

⇒ Fx = {P1, P2, ..., Pi

′

, P j, ..., Px}, where

′

= {pr1, pr2, ..., prh

′

, pri

′

, ..., prn}

(d) Dependent Packets: If the ﬁeld f di of the

network protocol pri on the packet Pi is

dependent on one ﬁeld f dh in another protocol

prh of another packet Px in the same ﬂow Fx,

which is independent from all the other ﬂows

in its network trafﬁc NT , then

⇒ Fx = {P1, P2, ..., Pi

′

, P j

′

, ..., Px

′

}, where

′

= {pr1, pr2, ..., pri

′

, ..., prn} and

P j

′

= {pr1, pr2, ..., prh

′

, ..., prn}

5. Function Composition: Two operators f and g

produces a new operator h such that h(Px) =

g ◦ f (Px) = g( f (Px)). In this operation, the op-

erators g is applied to the result of applying the

function f to Px. Operator composition is not nec-

essarily commutative. Successive transformations

applying and composing to the right agrees with

the left-to-right reading sequence.

4.6 Mutation of a Flow of Packets

Let R be a mutant operator, with context γ applied to

a network trafﬁc NT , such that the image of γ(NT )

is equal to Fi = {P1, P2, ..., Pi, ..., Px}, where Fi ⊆

NT = {F1, F2, ..., Fi, F j, ..., Fy}, there are the fol-

lowing list of mutation operators applicable to Fi:

1. Drop: Drop all the packets contained in a ﬂow

of packets.

σ = F_DROP(Fi)

⇒ NT = {F1, F2, ..., F j, ..., Fy}

2. Duplicate: Duplicate all the packets in a ﬂow of

packets.

σ = F_DUPLICAT E(Fi)

⇒ NT = {F1, F2, ..., Fi, Fi, F j, ..., Fy}

3. Permute: Swap two ﬂow of packets.

σ = F_PERMUT E(Fx, Fi)

⇒ NT = {F1, F2, ..., Fy, F j, ..., Fi}

4. Modify Field Value: Change the value of ﬁeld

f di, in the protocol pri, in all the the packets Pi

of the ﬂow Fx, for the value valuei

′

. As a result

we get a mutation of Pi, that we call Pi

′

σ = F_MODIFY(Fi, Pi, pri, f di, valuei

′

)

(a) Independent Flows: Fi is an independent ﬂow

of packets from all the other ﬂows in network

trafﬁc NT .

⇒ NT = {F1, F2, ..., Fi

′

, F j, ..., Fy}, where

′

= {P1, P2, ..., Pi

′

, ..., Px}

(b) Dependent Flows: Fi is dependent on the ﬂow

F j in the network trafﬁc NT .

⇒ NT = {F1, F2, ..., Fi

′

, F j

′

, ..., Fy}, where

′

= {P1, P2, ..., Pi

′

, ..., Px} and

F j

′

= {P1, P2, ..., Ph

′

, ..., Px}

Furthermore, all mutation operators for ﬂow pack-

ets can be seen as a composition of operators of single

packets. For example:

F_DROP(Fx) = P_DROP(P1) ◦ P_DROP(P2) ◦ ... ◦

P_DROP(Px) = {}

4.7 Mutation of a Network Trafﬁc

The formalization described in Section 4.6 can be

generalized to be applied to the entire network traf-

ﬁc input.

4.8 Theorems

From our formalism deﬁnitions the following theo-

rems can be deduced. These theorems allow opti-

mization of the mutation process by reducing the pos-

sible number of mutants, and they are easily provable

through mathematical manipulations.

1. PERMUTATION is commutative operation: The

arguments of the PERMUTATION operation can

be exchanged without altering the result

2. DUPLICATE and MODIFY are commutative:

Both mutant operators can be exchanged without

altering the result

3. Composition with DROP operator is always equal

to an empty ﬂow: Any operator composition in-

cluding the DROP operator will be equal to an

empty ﬂow

4.9 Generating Complex Attacks

The proposed formalism envisage the possibility of

combining mutation operators, in order to enable

fuzzing testing and the generation of complex attacks,

according to the deﬁnition proposed in Section 2.3.

As a ﬁrst approach, we proposed the combination of

these operators to be performed randomly. Although

inefﬁcient in terms of the number of mutations that

A Formal Approach for Complex Attacks Generation based on Mutation of 5G Network Trafﬁc

239

we could generate, this ﬁrst approach has allowed us

to ﬁnd vulnerabilities in the 5G core (see Section 5).

Furthermore, thanks to the theorems proposed in Sec-

tion 4.8, the number of possible mutants can be re-

duced.

5 EXPERIMENTAL EVALUATION

To illustrate our formalism, we have formalized

the experiments we already performed in our previ-

ous work, where we presented our 5Greplay fuzzer

(Salazar et al., 2021).

We performed these scenarios against two 5G

core open-source solutions, free5GC and open5GS. In

both cases we used the RAN simulator UERANSIM.

5.1 Threat 1: NAS Replay Attack

Attackers with access to the NAS trafﬁc (described

in Section 4) in the 5G interface N1, could intercept

a NAS SMC Security Mode command clear message

sent from the AMF to the UE, copy its NAS sequence

number (NAS SQN), and use it to build a NAS SMC

Security Mode complete message that is replayed to

the AMF, or directly intercept a NAS SMC Security

Mode complete message and replay it to the AMF. If

the AMF does not implement a proper integrity pro-

tection against this type of attack, the network will not

drop the replayed packet.

5.1.1 Formalization of Threat 1

To perform the NAS-5G SMC Replay attack, a mali-

cious actor must perform the two following actions:

• Duplicate a NAS SMC packet with a

speciﬁc Security Mode Complete ﬁeld.

(NAS_5G.message_type == 93 means that it

is a SMC packet)

• Change the value of this Security Mode Com-

plete ﬁeld to a lower level and recompute

the checksum of the packet. (for instance,

NAS_5G.security_type == 4 means that there will

be no encryption)

The formalization of this threat is a follow:

Let NT = {F1, F2, ..., Fi, ..., Fy}, where

Fi = {P1, P2, ..., Pi, ..., Px}, where Pi =

{pr1, pr2, ..., pri, ..., pn}, where pri corre-

sponds to the NAS_5G protocol and pri =

{( f d1, value1), ( f d2, value2), ..., (message_type,93),

..., ( f di, valuei)}. And R = {γ, σ} a mutant operator,

according to which a subset of NT will be ﬁltered,

and mutated.

if γ(NT ) == P.NAS_5G.message_type.93 → Pi

⇒ σ = P_MODIFY (Pi, NAS_5G, security_type, 4) ◦

P_DUPLICAT E(Pi)

⇒ NT = {F1, F2, ..., Fi, ..., Fy},

Fi = {P1, P2, ..., Pi

′

, Pi

′

, ..., Px},

Pi = {pr1, pr2, ..., pri

′

, ..., pn}, and

pri

′

= NAS_5G = {( f d1, value1), ( f d2, value2), ...,

(message_type,4), ..., ( f di, valuei)}.

5.1.2 Experimentation

We implement a mutant operator in 5Greplay with

context: NAS SMC Security Mode complete mes-

sages sent by the UE after its authentication; and ac-

tion: replay it twice to the AMF. Then, we checked

the AMF logs and we monitored the network to ver-

ify that the AMF actually received the same packet

twice.

After the NAS SMC Security Mode Command

message, the AMF received a legitimate NAS SMC

Security Mode complete message, and two NGAP

packets with the same UE NGAP ID as the legitimate

user. The AMF identiﬁed this as not belonging to the

same NGAP security context. These two packets cor-

responded to the replayed packets by 5Greplay and

allow us to conclude that the free5Gc AMF is pro-

tected again this type of replay attack.

5.2 Threat 2: Denial of Service by

Sending Malformed NGAP Packets

This threat intends to check the robustness of the

AMF function by sending inconsistent values of

NGAP protocol sent over SCTP protocol. For in-

stance, we can change the SCTP protocol identiﬁer

from 60 to 0 , and put the UE identiﬁer of NGAP to

an arbitrary value.

5.2.1 Formalization of Threat 2

To perform this attack, a malicious actor must per-

form the two following actions:

• Change the value of the SCTP protocol identiﬁer

to 0. (This identiﬁer should be SCTP.protoid ==

60)

• Change the value of the UE identiﬁer

ﬁeld to a random value. (for instance,

NAS_5G.amf_UE_id == 1234 which is an

random value)

This actions can be done for an authen-

tication response identiﬁed by a message type

NAS_5G.message_type == 93. The formalization

of this threat is a follow:

ICSOFT 2022 - 17th International Conference on Software Technologies

240

Let NT = {F1, F2, ..., Fi, ..., Fy}, where

Fi = {P1, P2, ..., Pi, ..., Px}, where Pi =

{pr1, pr2, ..., pri, pr j, ..., pn}, pri corresponds

to the SCT P protocol, and

pri = {( f d1, value1), ( f d2, value2), ..., (proto_id,60)

, ..., ( f di, valuei)}; pr j corresponds to the NAS_5G

protocol, and

pr j = {( f d1, value1), ( f d2, value2), ..., (amf_UE_id,

93), ..., ( f di, valuei)}. And R = {γ, σ} a mutant op-

erator, according to which a subset of NT will be

ﬁltered, and mutated.

if γ(NT ) == P.NAS_5G.message_type.93 → Pi

⇒ σ = P_MODIFY(Pi, NAS_5G, am f _UE_id,

1234) ◦ P_MODIFY (Pi, SCT P, proto_id, 0)

⇒ NT = {F1, F2, ..., Fi, ..., Fy},

Fi = {P1, P2, ..., Pi

′

, ..., Px},

Pi = {pr1, pr2, ..., pri

′

, pr j

′

, ..., pn},

pri = SCT P = {( f d1, value1), ( f d2, value2), ...,

(proto_id,0), ..., ( f di, valuei)}, and

pr j = NAS_5G = {( f d1, value1), ( f d2, value2), ...,

(amf_UE_id,1234), ..., ( f di, valuei)}.

5.2.2 Experimentation

We implement a mutant operator in 5Greplay with

context: NGAP protocol messages sent by the UE

during the authentication exchange; and action: re-

play them to the AMFs with two modiﬁcation of the

SCTP and NAS_5G ﬁelds. Then, we checked the

AMF logs and we monitored the network to verify

that the AMF actually received the same packet twice.

When replaying against free5GC, we got an AMF

warning, but the simulator keep running and allowed

new UE connections. On the other hand, open5GS

was not able to handle this packet and the simulator

crashed, preventing new connections to the AMF.

6 CONCLUSION AND FUTURE

WORK

In this paper we have deﬁned a formal approach for

network mutation that provides a scientiﬁc basis for

research work and application of these techniques.

Based on this formalism, we have designed models

of simple and complex attacks that we have applied

to 5G networks. The proposed approach has been

applied to two use cases that represent different at-

tacks against a 5G network. In future work, we plan

to introduce ML/AI techniques in order to improve

the perform a smart fuzzing.

ACKNOWLEDGEMENTS

This research is supported by the H2020 projects

SANCUS N° 952672, INSPIRE-5Gplus N° 871808,

and SPATIAL N° 101021808.

REFERENCES

Brown, G. (2017). Service-based architecture for 5g core

networks. Huawei White Paper, 1.

Dong, G., Sun, P., Shi, W., and Choi, C. (2018). A novel val-

uation pruning optimization fuzzing test model based

on mutation tree for industrial control systems. Ap-

plied Soft Computing, 70:896–902.

Hu, Y., Yang, W., Cui, B., Zhou, X., Mao, Z., and Wang, Y.

(2022). Fuzzing method based on selection mutation

of partition weight table for 5g core network ngap pro-

tocol. In Barolli, L., Yim, K., and Chen, H.-C., editors,

Innovative Mobile and Internet Services in Ubiquitous

Computing, pages 144–155, Cham. Springer Interna-

tional Publishing.

Johansson, W., Svensson, M., Larson, U. E., Almgren, M.,

and Gulisano, V. (2014). T-fuzz: Model-based fuzzing

for robustness testing of telecommunication protocols.

In 2014 IEEE Seventh International Conference on

Software Testing, Veriﬁcation and Validation, pages

323–332.

Potnuru, S. and Nakarmi, P. K. (2021). Berserker: Asn.1-

based fuzzing of radio resource control protocol for

4g and 5g. In 2021 17th International Conference

on Wireless and Mobile Computing, Networking and

Communications (WiMob), pages 295–300.

Salazar, Z., Nguyen, H. N., Mallouli, W., Cavalli, A. R., and

Montes de Oca, E. (2021). 5greplay: A 5g network

trafﬁc fuzzer - application to attack injection. In The

16th International Conference on Availability, Relia-

bility and Security, ARES 2021, New York, NY, USA.

Association for Computing Machinery.

Salls, C., Machiry, A., Doupe, A., Shoshitaishvili, Y.,

Kruegel, C., and Vigna, G. (2020). Exploring abstrac-

tion functions in fuzzing. In 2020 IEEE Conference on

Communications and Network Security (CNS), pages

1–9.

A Formal Approach for Complex Attacks Generation based on Mutation of 5G Network Trafﬁc

241
