Sitar: A Cycle-based Discrete-Event Simulation Framework for

Architecture Exploration

Neha Karanjkar

1 a

and Madhav Desai

Indian Institute of Technology Goa, India

Indian Institute of Technology Bombay, India

Keywords:

Simulation Framework, Discrete-Event, Cycle-based, Open-source, Parallel, C++.

Abstract:

Sitar is an open-source framework for modeling discrete-event, discrete-time systems. It consists of a modeling

language and a lightweight simulation kernel. Sitar is speciﬁcally targeted for architecture-level modeling and

fast simulation of computer systems, though it can be used for other kinds of discrete-time systems as-well.

The modeling language allows the description of a system’s structure as an interconnection of hierarchical,

concurrent entities. The behavior of each entity can be described in an imperative manner using constructs such

as time-delays, conditional wait statements, fork-join concurrency and loops. C++ code can be embedded

directly into the description in a well-deﬁned manner, allowing the modeler to use the ﬂexibility and object-

oriented features of C++. A model written in this language gets translated to C++ code, which can in-turn be

compiled with the simulation kernel to obtain a single simulation executable, or can be linked with external

libraries for co-simulation. The simulation kernel uses a two-phase, cycle-based execution algorithm, and

has been parallelized using OpenMP for fast and scalable simulation on modern multi-core systems. The

framework provides several features to ease the modeling effort, such as in-built logging, syntax highlighting

and systematic error reporting for the Sitar language. In this paper, we describe the design and architecture of

Sitar, and brieﬂy discuss our experience with its use for multi-core design exploration studies.

1 INTRODUCTION

Simulation plays a key role in system-level design ex-

ploration and optimization of modern computer sys-

tems. The systems to be modeled are often very large

and complex, and therefore initial design exploration

makes use of models written at a high level of ab-

straction. Creating such models necessitates frame-

works that can support fast, efﬁcient and scalable sim-

ulations, while also being expressive enough to ease

modeling and debugging effort.

Most simulators used in computer architecture re-

search provide the user parametrized models of com-

ponents such as processors, caches, and interconnects

built directly using a high-level programming lan-

guage such as C/C++ or Java (Akram and Sawalha,

2019). Although these programming languages allow

modular descriptions, they have no built-in features

for describing system structure (as an interconnection

of concurrent entities) or the behavior of entities with

respect to simulation time. Therefore such simulators

https://orcid.org/0000-0003-3111-1435

bundle together the model description along with cus-

tom code for advancement of simulation time.

When the focus is on creating new models rather

than using pre-existing conﬁgurable models provided

by simulators, discrete-event modeling frameworks

may be used. Discrete-event frameworks can be

broadly divided into Event-Driven and Cycle-based

(also known as Time-stepped) based on the simula-

tion approach. An event-driven approach requires the

use of a global Event Queue (often implemented as

a Priority queue data structure) for keeping track of

dynamically scheduled events, sorted by their time-

stamp. Time advancement is performed by directly

updating the simulation time variable to the time-

stamp of the earliest scheduled, unprocessed event

in the queue. All events scheduled at this time are

processed one-by-one. Actions or state-updates to be

triggered by the occurrence of an event are executed

using callbacks. On the other hand, a cycle-based ap-

proach assumes that all activities in the system oc-

cur only at integer multiples of some ﬁxed time unit.

Time advancement occurs in ﬁxed-size steps. At each

time-step, active entities/processes may be executed

142

Karanjkar, N. and Desai, M.

Sitar: A Cycle-based Discrete-Event Simulation Framework for Architecture Exploration.

DOI: 10.5220/0011320000003274

In Proceedings of the 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2022), pages 142-150

ISBN: 978-989-758-578-4; ISSN: 2184-2841

to update model state. Cycle-based simulation is par-

ticularly suited to systems that naturally have a ﬁxed

time-step (such as clocked digital systems, discrete-

time queues and computer networks).

An event-driven approach may be more efﬁcient

for simulating systems where the frequency of activi-

ties vary widely over time or across components in the

system. However it is fundamentally difﬁcult to paral-

lelize the event-driven simulation algorithm, although

there exists a large body of research in this direction

(Fujimoto, 1990). This is because the event queue

either needs to be shared across multiple parallel pro-

cesses/threads, or divided in a coherent manner. The

difﬁculty also arises because the time increments are

dynamically computed and are not known up-front.

VHDL, Verilog and SystemC (OSCI, 2021) are

some examples of discrete-event frameworks that al-

low modeling of system structure and behavior of

concurrent entities with respect to simulation time.

While VHDL and Verilog are meant for detailed

hardware-level modeling, SystemC has been used

for hardware-level, Register-Transfer-Level(RTL) as-

well-as system-level simulations (Fummi et al., 2008)

and is designed to support incremental transition from

abstract descriptions to detailed hardware-level mod-

els.

For building purely architecture-level models of

large clocked systems for rapid design exploration,

SystemC may not be the best choice. This is be-

cause SystemC uses an event-driven simulation ap-

proach which is fundamentally difﬁcult to parallelize.

SystemC was intended to also support hardware-level

modeling and provides constructs such as signals. (A

signal is essentially a state variable which when up-

dated, can automatically trigger activity in other com-

ponents that are sensitive to the signal.) Although

parallelization of SystemC simulations using paral-

lel discrete-event (PDES) algorithms has been ex-

plored (D

omer et al., 2012) the achievable speedup is

low for most benchmarks. General-purpose discrete-

event simulation frameworks such as SimPY (SimPY,

2021) typically do not provide any special constructs

for modeling system structure and use event-driven

approach since their primary focus is on model-

ing ﬂexibility. A cycle-based simulation approach

can be easier to parallelize and is often well-suited

for architecture-level modeling of clocked-systems.

Cycle-based simulation has been used in libraries

such as Cascade (Grossman et al., 2013) and Sys-

temCASS(Buchmann and Greiner, 2007), which is a

cycle-accurate variant of the SystemC kernel.

This paper describes Sitar - a framework for mod-

eling discrete-event, discrete-time systems. It con-

sists of a modeling language and a cycle-based sim-

ulation kernel. The design of Sitar is driven by the

goal of supporting fast, scalable and parallel simu-

lation, while also being expressive enough to ease

modeling and validation effort. Its key design feature

is a two-phase, cycle-based simulation algorithm

which makes the simulation efﬁcient and easy to par-

allelize.

Sitar has been in development since 2013. It

was initially developed as an internal tool, specif-

ically targeted for creating architecture-level mod-

els of Multi-core systems for design exploration.

Subsequently the design and simulation kernel were

improved and simpliﬁed, retaining the most useful

features to create Sitar Version 2.0 which is avail-

able as open-source under an MIT licence. The

online repository is present at the following url:

https://nehakaranjkar.github.io/sitar/.

The main focus of this paper is on presenting the

design and architecture of Sitar, along with its ratio-

nale. We ﬁrst summarize the differentiating aspects

of Sitar in the following paragraphs. In Section 2, we

present an overview of Sitar, describe its underlying

execution model and discuss the parallel simulation

strategy. In Section 3 we present an overview of the

Sitar modeling language, using illustrative examples.

The framework has been used for creating a detailed

cycle-accurate model of a multi-core system for de-

sign exploration studies. In Section 4 we describe our

experience and the performance and scalability ob-

served for this use case. We present a summary and

discuss future work and conclusions in Section 5.

1.1 Related Work

The differentiating aspects of Sitar in the context of

other cycle-based simulation frameworks are summa-

rized below:

• Sitar uses a two-phase cycle-based execution

model (described in detail in the next section)

which makes it possible to execute components of

the model in parallel, in a deterministic way.

Parallel execution is non-trivial because the exact

order in which the individual components in the

model are executed can affect the results, leading

to a race condition. In frameworks such as Cas-

cade (Grossman et al., 2013) and SystemCASS

(Buchmann and Greiner, 2007), deterministic ex-

ecution is achieved by ﬁrst building a static de-

pendency graph between the components. The be-

havior of components in each cycle is executed in

this statically-computed order. If there are loops

in this dependency graph, the components within

the loop are executed multiple times until conver-

gence.

Sitar: A Cycle-based Discrete-Event Simulation Framework for Architecture Exploration

143

This is not the approach used in Sitar. In Sitar,

each cycle is divided into two phases. Individual

components (modules) are allowed to perform in-

put and state-update actions in the ﬁrst phase, and

output actions exclusively in the second phase.

Parallel execution is performed simply by map-

ping these components to separate threads, which

synchronize at the end of every phase. Conse-

quently, the order of execution among individual

threads does not affect the results. A similar two-

phase approach has been reported in the Hornet

Multi-core simulator (Ren et al., 2012). How-

ever, Hornet is not a modeling framework. Rather,

it is a speciﬁc conﬁgurable model of a multicore

system. Sitar is a framework and a language for

modeling cycle-based systems and can be used for

modeling any kind of discrete-time system.

• Another important aspect that differentiates Sitar

from frameworks such as SystemC is that Sitar

provides a rich, custom modeling language. De-

scriptions in this language can be translated au-

tomatically to more verbose C++ code. In con-

trast, SystemC is a C++ library. Constructs such

as time-delays are to be expressed in SystemC us-

ing macros. This often leads to verbose model

descriptions that may be difﬁcult to maintain or

debug. The utility and conciseness of the model-

ing language is illustrated by examples in Section

2 ARCHITECTURE

2.1 Overview

The Sitar framework consists of a modeling language

and a lightweight, cycle-based simulation kernel. A

system in Sitar can be described as a set of modules

(which are behavioral entities or active processes in

the system) communicating over channels called nets.

All modules are assumed to run concurrently on a

global clock. The language provides a means for de-

scribing the system structure (as an interconnection of

modules) in a hierarchical and modular way. The be-

havior of each module can be described in an impera-

tive manner as a sequence of statements. The state-

ments include conditional and unconditional time-

delays, branch and loop constructs, parallel blocks

and instantaneous code blocks. In addition, C++

code can be embedded into a module description in

a straightforward and well-deﬁned manner. Descrip-

tions written in this language get translated to C++

code and can be compiled to get a simulation exe-

cutable. Listing 1 shows a simple example and its

//A hello−world example

module Top

behavior

$ log<<endl<<"Hello World!"; $;

wait(2,0); //wait 2 clock cycles

$ log<<endl<<"Hello again!"; $;

wait(3,0); //wait 3 clock cycles

$ log<<endl<<"Bye!"; $;

stop simulation;

end behavior

end module

//Output:

// (0,0)TOP :Hello World!

// (2,0)TOP :Hello again!

// (5,0)TOP :Bye!

// simulation stopped at time (5,0)

Listing 1: A Hello-World Example.

simulation output. The Sitar language parser/transla-

tor has been built using Antlr V3 (Parr, 2009). It trans-

lates each module description into a C++ class. The

generated classes inherit methods from the simulation

kernel to allow execution of their behavior. They can

be compiled along with the simulation kernel code to

obtain a single simulation executable, or linked to ex-

ternal models (such as processor front-ends) for co-

simulation using direct function calls or through inter-

process communication.

The Sitar framework includes systematic support

for logging. The logging mechanism is implemented

using C++’s std::ostream library. Individual mod-

ules can send their logs to a common stream or sepa-

rate streams. A module instance’s hierarchical name

and the time-stamp are preﬁxed automatically to each

log message. The logging can be enabled/disabled

at compile-time or run-time, and the framework also

provides ﬁne-grained control to enable/disable log-

ging for speciﬁc modules during simulation. This fea-

ture is quite useful when debugging very large sys-

tems or long simulations. By enabling logging for

only speciﬁc modules in the system under speciﬁc

conditions, it is possible to generate a focussed ac-

tivity trace without having to change the model code.

The simulation kernel is cycle-based and uses

a two-phase execution algorithm for deterministic

simulation. It has been parallelized using OpenMP

for fast simulation on shared-memory multi-core sys-

tems. Individual modules or a group of modules can

be mapped to separate OpenMP threads that synchro-

nize at ﬁxed time-steps. The execution model and

parallelization are described in detail in the following

paragraphs.

2.2 Execution Model

The basic components in a Sitar system are modules

and nets. Modules are behavioral entities in the sys-

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

144

tem and nets are channels of communication between

them. All modules run concurrently on a single clock.

A module can communicate with another module via

transfer of data tokens (which are packets of informa-

tion) over a net connecting the two modules. Each net

provides a ﬁxed amount of FIFO buffering for data

tokens. Nets are passive components, and their state

can change only upon input or output actions by mod-

ules. A module’s interface to a net is called a port. A

port can either be an inport or an outport. Each net

is connected to exactly one inport and one outport.

Modules can be hierarchical, containing instances of

other modules. The system description must contain

a single module named Top which represents the top-

level module in the hierarchy to be instantiated for

simulation. Modules can optionally have a behavior

block which describes the behavior of the model over

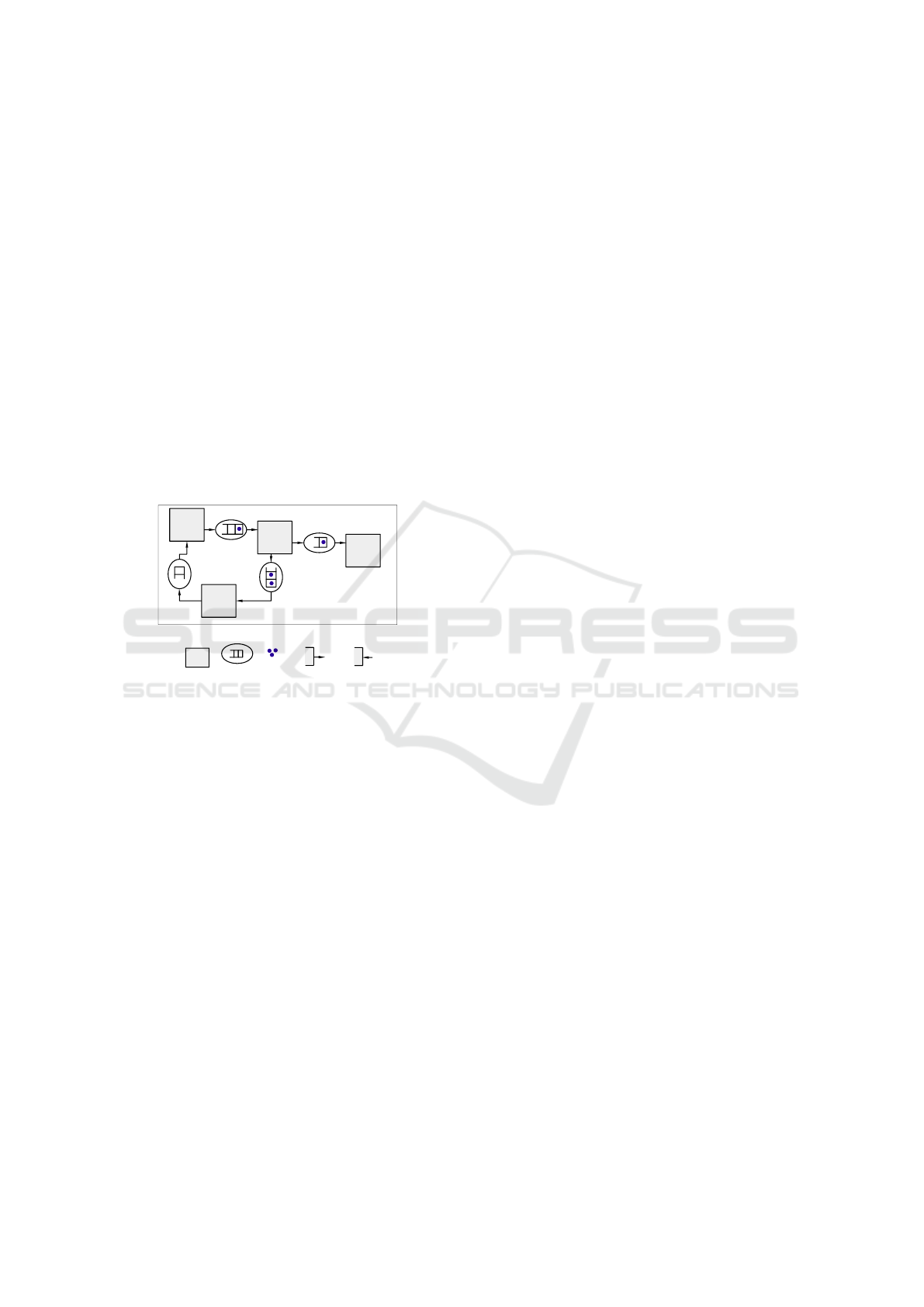

time. Figure 1 illustrates a system with four modules

contained inside the Top module.

tokens

outport inport

net

Top

module

Figure 1: Example of a system in Sitar.

Simulation is cycle-based and uses a two-phase exe-

cution algorithm. In this algorithm, each clock cycle

is divided into two phases : phase 0 and phase 1. A

module is allowed to input tokens from a net in phase

0 only, and output tokens to a net in phase 1 only.

Thus the state-updates to a net occur in a race free (de-

terministic) manner. This restriction leads to a simple

simulation algorithm that is easy to parallelize. In this

simulation algorithm, in each phase, the behavior of

each module in the system is executed exactly once,

as follows:

cycle = 0

while (cycle < total_simulation_cycles)

{

phase=0

for each module m :

m.execute_behavior(cycle,phase)

phase=1

for each module m :

m.execute_behavior(cycle,phase)

cycle=cycle+1

}

The two phase approach avoids race conditions in

simulation as the result does not depend on the or-

der of execution among modules. This is the key for

enabling straightforward parallelization. To perform

parallel simulation, the set of modules may be divided

and mapped to different threads running concurrently

and synchronizing at the end of each phase. It is

important that between any pair of modules that are

mapped to separate threads, the communication must

occur solely via nets, and not through other shared

variables in an ad-hoc manner. Updating the state of a

net by input/output from modules need not be placed

within a critical section, as the algorithm guarantees

that at-most one module will update the net in a single

phase.

As a consequence of the two-phase execution, the

propagation of information from one module to an-

other over a net incurs a delay of at-least one clock

cycle. This is similar to the communicating Moore-

machines paradigm. If there are cycles in the struc-

ture (for example, the loop via modules A, B and C

in Figure 1), and if the restriction of 1-cycle delay

is not applied, events can propagate from input of a

module, to its output, and back to its input instan-

taneously, requiring multiple executions of module

behavior within a cycle until convergence, or neces-

sitating building a dependency graph and executing

module behavior in the order of dependency. (The

later approach is in-fact used by the Cascade frame-

work (Grossman et al., 2013).) The two-phase restric-

tion imposed by Sitar leads to an efﬁcient, easy-to-

parallelize simulation.

Instantaneous communication or instantaneous

dependency loops between concurrent components in

the system can be modeled by placing these concur-

rent components within a single module as parallel

branches of a fork-join construct. The modeling lan-

guage supports this via procedures and parallel

constructs as described in Section 3 (see Listings 4

and 5 as examples). These concurrent branches can

be executed multiple times until convergence within a

single module. The execution order of individual par-

allel components within a module’s behavior block is

ﬁxed (determined by the order of component declara-

tions in the model), and thus cannot lead to race con-

ditions.

The simulation kernel has been parallelized using

OpenMP. The division of the set of modules and their

mapping to OpenMP simulation threads can be dy-

namically determined using OpenMP’s default sched-

uler or statically speciﬁed by the modeler for a bal-

anced work-division.

Sitar: A Cycle-based Discrete-Event Simulation Framework for Architecture Exploration

145

3 MODELING LANGUAGE

In this section, we present an overview of the Sitar

modeling language using illustrative examples. The

language is case-sensitive, and supports embedding

of C++ code at several places in a well-deﬁned man-

ner. The basic design units in a sitar description are

modules and procedures. Modules are the basic struc-

tural entities that can be instantiated independently.

A module can be hierarchical (containing instances

of other modules) and can optionally also have a be-

havior block, describing its behavior with time as a

sequence of statements. A procedure describes a se-

quence of actions that can be invoked from within the

behavior block of a module or from within another

procedure (nesting of procedures is allowed). This

construct is meant for making behavior descriptions

modular and reusable. A design unit can be deﬁned

once and instantiated multiple times.

3.1 Describing System Structure

The modeling language supports description of sys-

tem structure (interconnection and hierarchy of mod-

ules) and attributes such as capacities of nets and

widths of ports (to model communication bandwidth).

A module can contain instances of other modules,

declared using the submodule keyword. Module

descriptions can be parameterized, and multiple in-

stances can be created with different parameter val-

ues. Generation of regular structures such as arrays

of modules and nets and their connections in a regu-

lar pattern is supported via generate constructs. This

is similar to, and inspired from the generics and

generate constructs in VHDL language. These as-

pects are illustrated by an example of a Shift-Register

model in Listing 2 where the number of stages and

delay of each stage are parameterized.

3.2 Describing Module Behavior

The behavior of a module can be described within

a behavior block as a sequence or statements sep-

arated by semicolons. The statements execute one by

one and can be of two types:

• Atomic Statements: These can be C++ code

snippets, wait(duration), conditional wait

until (condition) or simulation control state-

ments that are used for stopping the simulation of

a particular module or the entire system upon cer-

tain conditions.

• Compound Statements: are statements that can

in-turn contain a nested sequence of any state-

ments. Examples of compound statements are

// The system consists of a Producer and a Consumer

// connected via a ShiftRegister. The number of stages and

// delay of each stage of the ShiftRegister are parameters.

module Top

//Instantiate a shift register

//with 3 stages, and a per−stage delay of 1

submodule S : ShiftRegister<3,1>

//Instantiate the Producer and Consumer

submodule P : Producer

submodule C : Consumer

//Connect the Producer and Consumer

//to the two ends of the ShiftRegister

P.out port => S.n[0]

C.in port <= S.n[3]

end module

module ShiftRegister

//declare module parameters

//and their default values

parameter int N = 1 //number of stages

parameter int DELAY = 1 //delay of each stage

//The ShiftRegister consists of N stages

submodule array stage[N] : Stage<DELAY>

//N+1 nets to connect all stages

net array n[N+1] : capacity 1

//connect the stages via nets

for i in 0 to (N − 1)

stage[i].in port <= n[i]

stage[i].out port => n[i+1]

end for

end module

module Stage

parameter int DELAY = 1

inport in port

outport out port

behavior

// describe the behavior of each stage

//...

end behavior

end module

Listing 2: A Shift Register model in Sitar.

do-while loops, if-else statement, parallel

blocks and procedures.

Listing 3 shows examples of some of these statements

used inside a behavior block. C++ code snippets de-

limited by dollar $ characters can be used for embed-

ding C++ code into a description. The embedded code

gets pasted as-is in the generated C++ classes at vari-

ous locations. Inside a behavior block, it can be used

as an atomic statement or an expression. Code snip-

pets preﬁxed by incl, decl and init can be used to

add code to the header section, declarations region in

the class body or the class constructor of a module

respectively.

Parallel Block Statements: are used for model-

ing fork-join concurrency within a module. A parallel

block is a compound statement containing nested se-

quences (separated by || symbols) that are concur-

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

146

//An example showing atomic and compound statements

module Top

behavior

//Declare a variable. This becomes a data member

decl $int x;$;

//This goes into the constructor

init $x=0;$;

//An atomic statement to read user−input

$ std::cout<<"\nEnter a number:";

std::cin>>x;$;

//An if−else statement containing

//nested do−while and other statements

if($x%2==0$) then

//Enter this branch if x is even

//Print the time in every phase

//until time exceeds 3.

wait(0,1); //wait for one phase

$std::cout<<"\nTIME="<<current_time;$;

while($current_time<=time(3,0)$) end do;

stop simulation;

else

//Enter this branch if x is odd

//stop simulation after 2 cycles

wait (2,0);

stop simulation;

end if;

end behavior

end module

// Output:

// Enter a number:4

// TIME=(0,1)

// TIME=(1,0)

// TIME=(1,1)

// TIME=(2,0)

// TIME=(2,1)

// TIME=(3,0)

// TIME=(3,1)

// simulation stopped at time (3,1)

Listing 3: An example showing Atomic and Compound

statements in Sitar.

rently active. Listing 4 shows an example and its

output. As shown in this example, there can be de-

pendencies between the branches of a parallel block.

In the implementation, each branch may be executed

multiple times in a single phase until convergence.

The entire parallel block terminates once all of the

constituent sequences terminate or until a stop state-

ment is encountered. Procedures are a useful feature

in Sitar meant for modular description. A Procedure

encapsulate a sequence of statements that need to be

invoked multiple times or at multiple locations in a

description. They can have local variables and pa-

rameters, similar to a module. A procedure deﬁni-

tion also gets translated to C++ class. An instance of

this class becomes a data member of the module in-

voking it. An example is shown in Listing 5. Other

features such as the use of data-tokens, logging con-

trol and simulation control statements are described

with examples in the user manual available inside the

//An example showing Parallel block statement

module Top

behavior

decl $bool x;$;

init $x=false;$;

wait(1,0);

[

//This is the ﬁrst branch

wait (2,0);

$x=true;$; //Set x

$log<<endl<<"In branch A, set x";$;

wait until($x==false$);

while(1) end do;

//This is the second branch

wait until($x==true$);

wait(1,0);

$x=false;$; //Reset x

$log<<endl<<"In branch B, reset x";$;

while(1) end do;

//This is the third branch

wait(4,0);

stop simulation;

];

end behavior

end module

// Output:

// (3,0)TOP :In branch A, set x

// (4,0)TOP :In branch B, reset x

// (4,0)TOP :In branch A, set x

// (5,0)TOP :In branch B, reset x

// (5,0)TOP :In branch A, set x

// simulation stopped at time (5,0)

Listing 4: A Parallel block statement.

online repository (Karanjkar and Desai, 2022). The

repository also includes a syntax speciﬁcation for the

language and Syntax highlighting support for the Vim

text editor tool.

4 USE-CASE

In this section we discuss a particular use-case of Sitar

and describe the modeling experience and simulation

performance/speedup obtained.

System Model: The Sitar framework was used for

creating a cycle-accurate, parameterized model of a

Multi-core system for design exploration studies. The

system is illustrated in Figure 2. It consists of m pro-

cessors, with n cores per-processor (where m and n are

model parameters). The processors are connected to

m memory modules, forming an m-way Non-Uniform

Memory Access (NUMA) conﬁguration. Each core

implements the Sparc V8 instruction set. The cache

subsystem comprises per-core split L1 I/D caches, a

per-core uniﬁed L2 cache, and a shared L3 cache. Co-

herency is maintained using a hierarchical directory-

Sitar: A Cycle-based Discrete-Event Simulation Framework for Architecture Exploration

147

//Deﬁnition of a procedure

//that performs some action periodically

procedure MyProcedure

parameter int PERIOD=1

behavior

wait(PERIOD,0);

$cout<<"\nTIME="<<current_time;$;

$cout<<"in Procedure "<<instanceId();$;

while(1) end do;

end behavior

end procedure

module Top

//Create two instances of the

//Procedure with different periods

procedure p1 : MyProcedure<1>

procedure p2 : MyProcedure<2>

behavior

//run p1 and p2 in parallel,

//stop simulation after 5 cycles.

[run p1 || run p2 || wait(5,0); stop simulation;]

end behavior

end module

// Output:

// TIME=(1,0)in Procedure p1

// TIME=(2,0)in Procedure p1

// TIME=(2,0)in Procedure p2

// TIME=(3,0)in Procedure p1

// TIME=(4,0)in Procedure p1

// TIME=(4,0)in Procedure p2

// TIME=(5,0)in Procedure p1

// simulation stopped at time (5,0)

Listing 5: A Procedure block.

based MESI protocol. Interconnect between succes-

sive levels in the memory hierarchy is a full-crossbar

(labeled X in Figure 2) with parametrized link delays.

Architectural components in the memory subsys-

tem (such as caches, memory modules and intercon-

nect switches) are modeled at the functional as well

as cycle-accurate timing levels. Thus, the timing of

loads/stores and coherence requests ﬂowing through

the memory subsystem is modeled in detail. The

cores are in-order and all instructions other than load-

s/stores are assumed to execute in one cycle. The

model can run binaries compiled for Sparc V8. In

the implementation, the purely functional aspects of

the model (such as the instruction decoder, the co-

herence protocol etc) are described as C++ classes.

This code is imported into the Sitar module descrip-

tion of components such as cores and caches to cre-

ate a cycle-accurate model. The modeling language

features such as generate statements, parameters

and procedures were found to be highly useful in

making the description modular and conﬁgurable.

The number of cores, cache conﬁgurations and the

delay parameters in every module can be conﬁg-

ured at the time of instantiation. Each module de-

scription is instrumented with detailed logging state-

ments. The Logging can be selectively enabled/dis-

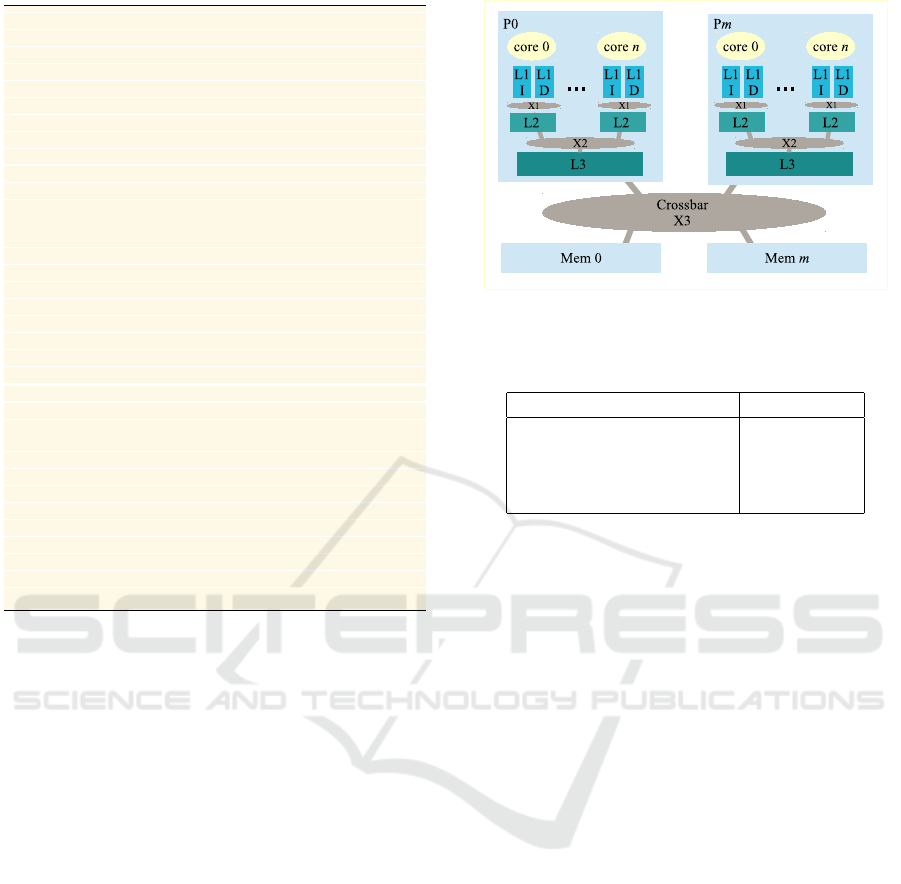

Figure 2: Multi-core system modeled using Sitar.

Table 1: NAS benchmark kernels used as workload and

their problem sizes.

Kernel Problem Size

Embarrassingly Parallel (EP) 2

Multigrid (MG) 16

3-D FFT PDE solver (FT) 32

Integer Sort (IS) 2

+ 2

abled for speciﬁc modules, supporting focussed de-

bugging. The model has been validated thoroughly

using unit tests for individual components and shared-

memory benchmarks for the whole model. For all

simulations results discussed in the following para-

graphs, the number of processors in the model(m) and

the number of cores per-processor(n) are set to 2 and

4 respectively, to model an 8-core system.

Workload: Four kernels from the NAS parallel

benchmark suite (NPB)(Bailey et al., 1991) are used

as workload running on the 8-core model. The kernels

and their problem sizes are listed in Table 1. Each ker-

nel is 1 to 2 million instructions long.

Host Conﬁguration: Simulations were performed on

a 3.3 GHz Intel machine with 4 physical cores, run-

ning Linux (Ubuntu 18.04). The real time for simu-

lating the execution of the complete benchmark kernel

on the 8-core model was measured for parallel simu-

lations using 1,2 and 4 OpenMP threads to measure

the speedup.

Speedup and Performance: Table 2 summarizes

the performance and the speedup obtained for each

of the benchmark workloads. The results indicate

that a decent speedup is possible with minimal addi-

tional modeler effort for parallelizing the simulations.

A more detailed scalability evaluation on a many-

core system for benchmark designs is necessary and

planned as future work.

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

148

Table 2: Simulation time and Speedup obtained for simulat-

ing the execution of NAS benchmark kernels on the multi-

core cycle-accurate simulation model.

Workload

(Sim Cycles)

Simulation time in seconds

and (Speedup)

1 thread 2 threads 4 threads

EP (9781300) 954 (1x) 622 (1.5x) 442 (2.2x)

FT(16578568) 1710 (1x) 1112 (1.5x) 855 (2x)

IS(1434771) 156 (1x) 102 (1.5x) 78 (2x)

MG(13728356) 1452 (1x) 944 (1.5x) 726 (2x)

5 SUMMARY AND

CONCLUSIONS

This paper presented Sitar- an open-source cycle-

based modeling framework. The key design aspects

of Sitar are summarized here:

1. Cycle-base, Two-phase Execution: The two-

phase, cycle-based execution algorithm used by

Sitar makes the simulation deterministic and easy

to parallelize. Sitar differs from other cycle-based

tools such as Cascade as it uses a two-phase sim-

ulation algorithm. The two-phase approach elim-

inates the need for building a static dependency

graph of the components to determine the order

of execution among modules. However, there are

two execution iterations required in every clock

cycle, which may lead to some performance over-

heads.

2. Lightweight Simulation Kernel The two-phase

approach makes the simulation kernel simple and

extremely lightweight in terms of code size. The

kernel comprises about 1000 lines of C++ code,

inclusive of comments. Consequently the trans-

lated model code which inherits from the simula-

tion kernel classes is also small. The kernel has

no external dependencies. The translated code

can be compiled to run on any system that sup-

ports the gcc compiler and OpenMP. The only de-

pendency that Sitar has is in the translation phase

as the translator uses the Antlr V3 library. The

Antlr V3 runtime library is bundled along with the

Sitar distribution and gets installed automatically

by Sitar’s installation scripts. The Sitar transla-

tion and compilation scripts are written for being

run from a Linux terminal, and are well-tested on

Ubuntu 18.04 and Ubuntu 20.04.

3. Domain Speciﬁc Modeling Language Frame-

works such as SystemC or Cascade are C++ li-

braries. The modeler invokes the modeling con-

structs via C++ macros deﬁned by the framework.

This may sometimes lead to verbose model de-

scriptions. Sitar consists of a modeling language

that provides several features for easing modeling

effort and may produce more concise and readable

model descriptions. The descriptions get trans-

lated to readable C++ code. The translated code

contains line numbers of the corresponding sitar

source code to help in debugging compilation-

time errors in the embedded C++ code. On the

downside, a new user would need to learn the

modeling language instead of being able to de-

scribe the model solely using a popular program-

ming language like C++ or Python.

4. Fine-grained Logging Support: The built-in

logging support was found to be one of the most

useful features for creating and validation of the

Multi-core model. The modeler can instrument

each module with detailed log statements. During

simulation, it is often desired to view logs from

only certain components or during a certain time

period in a very long simulation. Saving all logs

to a ﬁle for later ﬁltering is difﬁcult, as the full log

ﬁles can quickly reach an enormous size. Thus

the ﬁne grained logging control provided in Sitar

becomes highly useful for large, complex models.

Logs from different modules can be enabled/dis-

abled as and when needed. The log streams from

each module can be sent to a single ﬁle/screen or

can also be redirected to separate ﬁles if neces-

sary. Further, all logging can be disabled at com-

pile time if required for a fast simulation in design

exploration experiments.

In this paper, we brieﬂy discussed the perfor-

mance and scalability observed for a particular use

case of multi-core modeling. However, a detailed per-

formance review of Sitar and performance compari-

son with other frameworks such as SystemC is neces-

sary and is planned as future work.

REFERENCES

Akram, A. and Sawalha, L. (2019). A Survey of Computer

Architecture Simulation Techniques and Tools. IEEE

Access, 7:78120–78145.

Bailey, D. H., Barszcz, E., Barton, J. T., Browning, D. S.,

Carter, R. L., Dagum, L., Fatoohi, R. A., Freder-

ickson, P. O., Lasinski, T. A., Schreiber, R. S., Si-

mon, H. D., Venkatakrishnan, V., and Weeratunga,

S. K. (1991). The NAS Parallel Benchmarks Sum-

mary and Preliminary Results. In Proceedings of the

1991 ACM/IEEE Conference on Supercomputing, Su-

percomputing ’91, New York, NY, USA. ACM.

Buchmann, R. and Greiner, A. (2007). A fully static

scheduling approach for fast cycle accurate systemC

Sitar: A Cycle-based Discrete-Event Simulation Framework for Architecture Exploration

149

simulation of MPSoCs. In 2007 Internatonal Confer-

ence on Microelectronics, pages 101–104.

omer, R., Chen, W., and Han, X. (2012). Parallel dis-

crete event simulation of transaction level models. In

17th Asia and South Paciﬁc Design Automation Con-

ference, pages 227–231.

Fujimoto, R. M. (1990). Parallel Discrete Event Simulation.

Communications of the ACM, 33(10):30–53.

Fummi, F., Quaglia, D., and Stefanni, F. (2008). A

SystemC-based framework for modeling and simula-

tion of networked embedded systems. In 2008 Forum

on Speciﬁcation, Veriﬁcation and Design Languages,

pages 49–54.

Grossman, J., Towles, B., Bank, J. A., and Shaw, D. E.

(2013). The role of Cascade, a cycle-based simulation

infrastructure, in designing the Anton special-purpose

supercomputers. In 2013 50th ACM/EDAC/IEEE De-

sign Automation Conference (DAC), pages 1–9.

Karanjkar, N. and Desai, M. (2022). Sitar:

Online repository and documentation

(https://nehakaranjkar.github.io/sitar/).

OSCI (2021). SystemC - The language for System-level de-

sign, modeling and veriﬁcation (https://systemc.org/).

Parr, T. (2009). Antlr V3 -ANother Tool for Language

Recognition (http://www.antlr3.org).

Ren, P., Lis, M., Cho, M. H., Shim, K. S., Fletcher, C. W.,

Khan, O., Zheng, N., and Devadas, S. (2012). Hornet:

A cycle-level multicore simulator. IEEE Transactions

on Computer-Aided Design of Integrated Circuits and

Systems, 31(6):890–903.

SimPY, T. (2021). SimPY - Discrete-Event Simulation for

Python (https://simpy.readthedocs.io).

SIMULTECH 2022 - 12th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

150
