Novel Design for IE-Cache to Mitigate Conﬂict-based Cache-side

Channel Attacks with Reduced Energy Consumption

Saqib Javed

, Muhammad Asim Mukhtar

, Muhammad Khurram Bhatti

and Guy Gogniat

Information Technology University, Lahore, Pakistan

Universite Bretagne Sud, Lorient, France

Keywords:

IE-Cache, V-Way Cache, Timing Cache Side Channel Attacks, Prime+Prune+Probe, Prime+Probe Attack.

Abstract:

Cache-based side-channel attacks have raised serious security concerns in the contemporary cache architec-

tures. To mitigate these attacks, various cache architectures have been proposed that rely on cache partitioning

and random memory-to-cache mapping based methods. Unfortunately, these cache methods are not adopted

by the mainstream processors because of unfavorable security and performance trade-off. In literature, the

Indirect-Eviction Cache (IE-Cache), a random memory-to-cache mapping based cache architecture, has shown

high security and faster execution time by introducing the principles of multi-indexing and relocating the cache

lines. However, IE-Cache requires relocation of cache lines that result in high energy consumption along with

security. In this paper, we alleviate the energy consumption issue in IE-Cache by introducing a pointer-based

mapping between tag and data store, which we call PIE-Cache (Pointer-based IE-Cache). This enables relo-

cation of pointers in the tag-store without relocating a large cache line in the data-store, yielding low energy

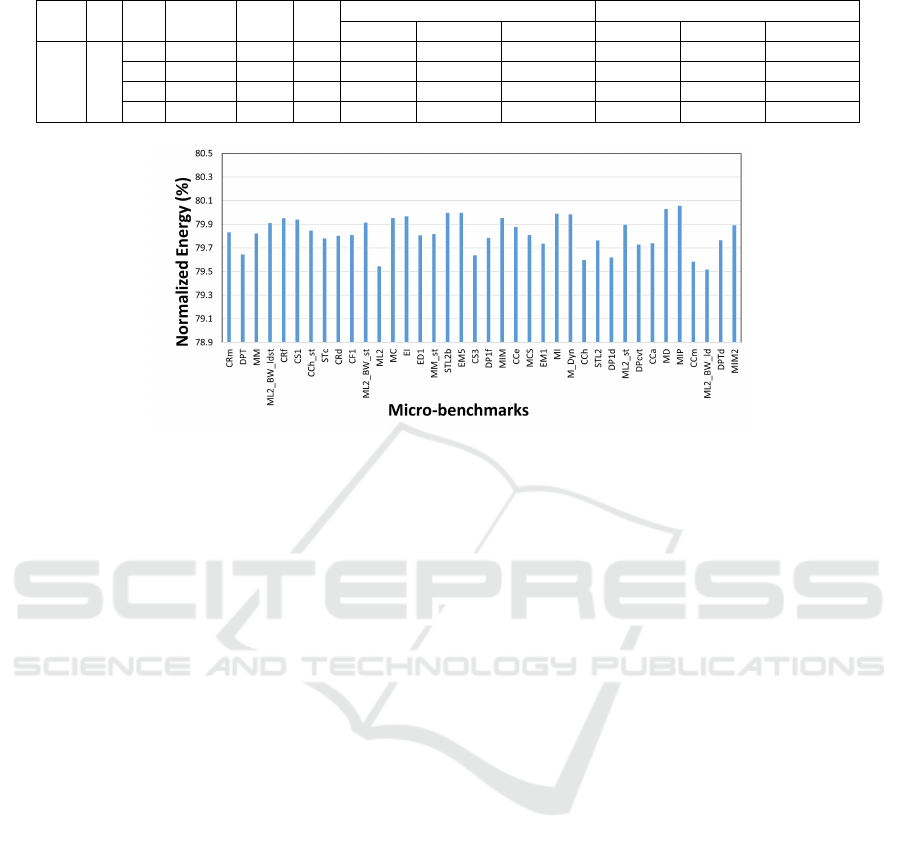

consumption compared to IE-Cache. We have developed the PIE-Cache model in the gem5 simulator to eval-

uate the energy consumption with Micro-benchmark. The results show that the energy consumption of 1MB

PIE-Cache with 4 ways and 3 levels is 20% less compared to IE-Cache with the same capacity, ways and

levels over Micro-benchmark. Moreover, we have performed the security evaluation of PIE-Cache in the same

way as proposed in IE-Cache study to compare the learning time of eviction sets. These results show that the

complexity of learning eviction sets is similar to IE-Cache.

1 INTRODUCTION

Cache-based side-channel attacks have raised serious

security concerns in the contemporary cache archi-

tectures. To mitigate these attacks, various cache

architectures have been proposed. Among these

countermeasures, indirect eviction cache (IE-Cache)

has shown a high security against conﬂict-based

cache side-channel attacks and faster execution time

(Mukhtar et al., 2020). It introduces the cache line

relocation and multi-indexing mechanism to generate

a sequence of random cache conﬂicts on one mem-

ory access, and the cache line is evicted as a result

of the last cache conﬂict. This introduces the non-

evicting cache conﬂicts, which has shown impractical

to learn by the attacker using existing and expected

eviction set proﬁling techniques. However, this incurs

high energy consumption because of the cache lines

relocation. In this paper, we provide a solution for

the high energy utilization problem so that IE-Cache

can provide prevention against eviction-base cache

side-channel attacks along with low energy consump-

tion. We have observed that two types of relocation

are happening in IE-Cache, i.e., tag lines and data

lines relocation. We have replaced the direct map-

ping of tag-to-data lines with pointers-based mapping.

This mapping allows for the relocation of tag lines

only. This reduces the relocation overhead and en-

ergy consumption along with the same security level

against conﬂict-based cache side-channel attacks as

IE-Cache. The contribution of this paper are men-

tioned below:

• A solution is proposed for low energy utilization

in IE-Cache by adding a pointer in tag-store to-

wards data-store.

• The performance of PIE-Cache is analyzed ex-

perimentally using gem5 simulator and compared

with IE-Cache and set-associative cache.

• Security performance is also analyzed and as ex-

pected, the security performance of IE-cache re-

mains intact in PIE-Cache.

Javed, S., Mukhtar, M., Bhatti, M. and Gogniat, G.

Novel Design for IE-Cache to Mitigate Conﬂict-based Cache-side Channel Attacks with Reduced Energy Consumption.

DOI: 10.5220/0011326700003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 675-680

ISBN: 978-989-758-590-6; ISSN: 2184-7711

675

• Energy utilization and cache performance are

evaluated on gem5 simulator using Micro-

benchmark. Energy utilization is reduced of about

20% on average for 1MB PIE-Cache with 4 ways

and 3 levels.

2 BACKGROUND AND

MOTIVATION

This section describes the background on conﬂict-

based cache side-channel attacks, IE-Cache and evic-

tion set proﬁling techniques.

2.1 Conﬂict-based Cache Side-Channel

Attacks

In conﬂict-based cache side-channel attacks, the at-

tacker tries to observe the conﬂicts on speciﬁc cache

lines with a victim program. For example, in

Prime+Probe attack (Liu et al., 2015), the attacker ex-

ecutes an attack in four steps to observe cache con-

ﬂicts: proﬁling of eviction set, initialization of cache

state, waiting state, observation of cache state. Using

this memory access pattern, the attacker can steal se-

cret information (Liu et al., 2015; Gruss et al., 2016;

Yarom and Falkner, 2014).

2.2 Indirect Eviction Cache (IE-Cache)

Indirect eviction cache (IE-Cache) belongs to the

class of random memory-to-cache mapping based

countermeasures. IE-Cache basic organization is like

skew associative cache with one way in each skew. To

make it resilient against the conﬂict-based cache at-

tacks, IE-cache proposed multi-indexing and reloca-

tion of cache lines for eviction. On cache miss, cache

controller selects the cache line from each way and

picks one of them at random, let us say this picked

cache line as ﬁrst level candidate. This ﬁrst level can-

didate is indexed again for ﬁnding further cache lines

where it can be relocated in cache. After passing ﬁrst

level candidates via indexing function of each cache

way except in which it is already residing, multiple

cache lines are selected. Then, again one cache line is

selected from these, which we call second level candi-

date. This is repeated multiple times depending on the

design limit. On the last indexing level, one cache line

selected at random will be evicted. This selection pro-

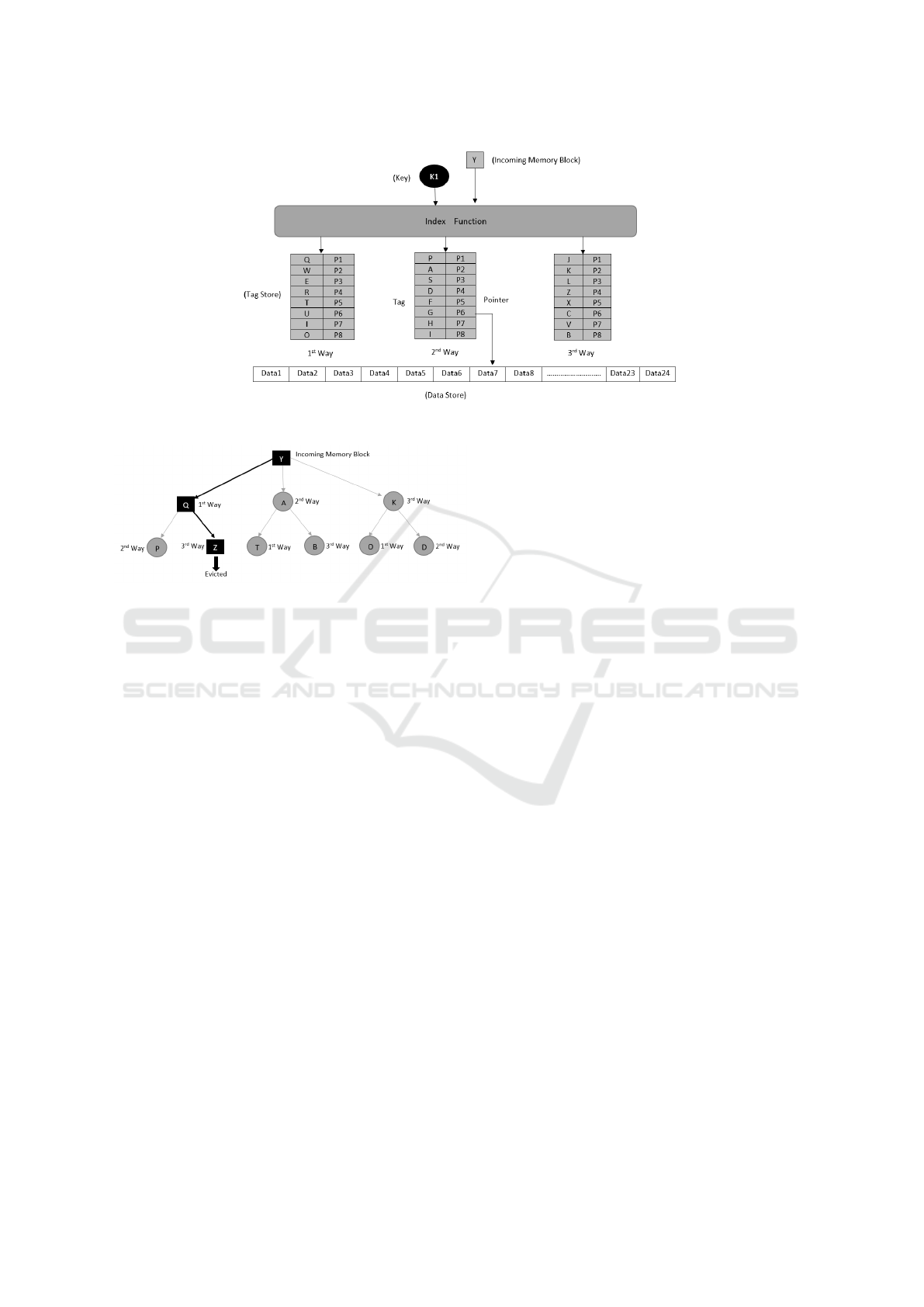

cess is like breadth-ﬁrst graph walk. Assuming each

search step as level and each cache line as graph node,

the selection process can be represented in a tree form

as shown in Figure 2. Lastly, each cache line selected

at the lower level is relocated to the higher level cache

lines to accommodate the incoming memory address

in the lowest level. In a security perspective, this en-

tire indexing process introduces the cache conﬂicts

that relocates instead of eviction, which are called

non-evicting members of eviction set. Finding these

non-evicting members are impractical in IE-Cache

because of these cannot be directly observed via tim-

ing channels attack like Prime+Prune+Probe proﬁling

techniques (Purnal and Verbauwhede, 2019).

2.3 Prime+Prune+Probe and

Branch-breaking

Prime+Prune+Probe is an advanced proﬁling tech-

nique to learn the eviction sets in existing famous

random memory-to-cache mapping countermeasures

(ScatterCache (Werner et al., 2019) and Ceaser

(Qureshi, 2018)). It has shown that the eviction set in

these countermeasures can be learned in few seconds

(Purnal and Verbauwhede, 2019). This technique is

also like Prime+Probe attack instead to starting with

random memory addresses. First, the attacker devel-

ops a group of randomly selected memory addresses

(say G) and ﬁlls the cache with the memory addresses

belonging to group G. After that, attacker measures

the access latency of the group members by access-

ing them again. In case of long access latency, at-

tacker excludes that memory address from the group

G. The attacker repeats these steps till he ﬁnds all

memory addresses with the short memory access la-

tency. This reduces the G size, say G’. Lastly, attacker

uses this G’ group to learn the conﬂict behaviour

with the victim execution. However, he can only

learn the conﬂict behaviour via timing channel, non-

evicting members of IE-Cache cannot be learned via

Prime+Prune+Probe technique. To learn non-evicting

members of the IE-Cache, authors of IE-Cache pre-

sented the expected technique which is called branch-

breaking technique (Mukhtar et al., 2020). In this

technique, the attacker uses same group G’ to ﬁnd the

non-evicting members indirectly. In branch-breaking

technique, the attacker excludes one memory address

from the group and observes the evicting behaviour of

already found evicting members. If the attacker ﬁnds

the evicting members remain in the cache in multiple

turns, it means the excluded member is the parent (or

non-evicting member) of the evicting member.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

676

3 POINTER-BASED INDIRECT

EVICTION CACHE

(PIE-CACHE)

We observed in IE-Cache that the actual conﬂict hap-

pens at tag-store of cache. Because of the direct

mapping between tag-store and data-store, data-store

also needs to relocate along with tag on conﬂict at

tag-store level. We ﬁnd that the relocation of tag-

store only is sufﬁcient in IE-Cache to achieve security

against conﬂict-based cache side-channel attacks. On

relocation of tag-store, if data remains at same place

in data-store, this will not depict an observable timing

effect. This is because the both tag and data remains

in cache after relocation of tag only.

In order to alleviate the high energy consumption

issue of IE-Cache without degrading the security, the

insight is to reduce the number of bytes needed to

be relocated by introducing the novel pointer-based

mapping between tag-store and data-store, we call

this proposed cache as Pointer-based Indirect Eviction

Cache (PIE-Cache). This allows to relocate tag with-

out moving data lines as pointer deﬁnes the respective

line in data-store. This replaces relocation of 64 bytes

cache line with only few bytes pointer in tag-store.

The number of pointer bytes depends on the data-

store size Reduction of such number of bytes in re-

location impacts the energy consumption. We exper-

imentally evaluated the impact of energy consump-

tion in Section 5 for varied cache sizes over Micro-

benchmark.

PIE-Cache threat model is identical to IE-Cache,

which we now make explicit. The attacker has user-

level privileges only. The attacker can measure mem-

ory access latency using hardware timers and also

via other methods like threads as counters. We also

consider that the memory de-duplication feature is

not enabled, which is a fair assumption as it is of-

ten disabled in real environment for security rea-

sons(Mukhtar et al., 2019). This also eliminates

the shared memory cache-based side-channel attacks

such as Flush+Reload and its variants.

Structurally, PIE-Cache is similar to IE-Cache. It

also contains skews with one cache way and each

cache way is indexed by cryptographic based index-

ing function. The indexing process uses the multi-

indexing and relocation of cache lines in the same

way as IE-Cache discussed in Section 2. PIE-Cache

implements random replacement policy to select the

cache line for relocation on each indexing level. The

main difference of PIE-Cache compared to IE-Cache

is the mapping mechanism between tag-store and

data-store. Each entry of PIE-Cache tag-store is intro-

duced with pointer that identiﬁes the mapping to the

entry in data-store. Pointer in each tag-store points to

a unique entry in the data-store.

On cache hit, PIE-Cache behaves in the same way

as IE-Cache On cache miss, indexing mechanism of

PIE-Cache is same as IE-Cache but relocation behav-

ior is different. Assuming that the indexing mech-

anism has ﬁnalized the cache line (or candidate) at

each level. Then, candidate at each lower level of in-

dexing will be relocated to location of higher level

candidate along with the pointers. The last level can-

didate, which is selected for eviction, will be evicted

but its pointer will be assigned to the tag entry where

incoming memory address is being placed.

We explain the operation of eviction process in de-

tail using the example in Figure 1. The example uses

a small 3 ways cache with 8 cache lines per way. Let-

ters A-Z indicate the memory addresses stored in the

tag entry and numbers P1 − P24 denote the pointers

to data line. Figure 2 shows the eviction process to

place a memory block (Y ) in cache with a two level-

of-indexing (Mukhtar et al., 2020). In the ﬁrst level,

indexing function using Y selects a tag-store’s entry

(or tag line) from each way (let us say, Y selects Q, A

and K). Then, one tag line is selected for relocation at

random, let us say Q is selected. In second level-of-

indexing, Q is given to indexing function to ﬁnd line

in tag-store where it can be relocated, let us say these

lines are P and Z. Again, one cache line is selected at

random, say Z. As this is the last level-of-indexing, Z

is evicted. Afterwards, series of relocation are made

to accommodate the incoming memory address. Q

will relocate to Z’s position and similarly Y to Q loca-

tion. The pointer of each tag entry is also relocated to

each new line. The pointer associated with the evicted

cache line is assigned to the tag entry belonging to Y .

Final state of cache after eviction process would con-

tain Y with pointer P4 at the location of Q and Q with

P1 at location of Z.

3.1 Security Perspective

With the addition of pointers the security perspec-

tive remains unchanged in PIE-Cache compared to

IE-Cache. 1) It increases the size of eviction set,

which increases the effort of the attacker for proﬁl-

ing the eviction set. 2) It adds conﬂicting members in

the eviction set that relocate within the cache instead

of eviction, we call these members as non-evicting

members of an eviction set. As these do not evict,

non-evicting members cannot be observed via mem-

ory access latency.

Novel Design for IE-Cache to Mitigate Conﬂict-based Cache-side Channel Attacks with Reduced Energy Consumption

677

Figure 1: PIE-Cache Architecture.

Figure 2: Relocated Candidate Tree.

3.1.1 Large Eviction Set Size

Eviction set is the group of memory addresses that are

used to generate the cache conﬂict with the targeted

victim’s memory address. For instance, in conven-

tional set-associative cache, each memory address is

mapped to one cache set due to which the attacker re-

quires to ﬁll all cache lines belonging to a targeted

cache set for cache conﬂict on the targeted victim

memory access. Assuming 8 cache lines in cache

set, attacker needs 8 memory addresses belonging to

cache set to ﬁll it. However, in PIE-Cache, each mem-

ory address can be said as member of multiple sets

compared to set-associative cache. This is because of

the implementation of skew in PIE-cache. The way

and skew can be used interchangeably in our case be-

cause each skew has one way in PIE-Cache. There is a

probability that the victim memory address only con-

ﬂicts with the attacker memory address in only one

way. To guarantee the conﬂict in that case, if the at-

tacker tries to ﬁll the speciﬁc cache way by accessing

a speciﬁc memory address, random placement makes

it uncertain for the attacker about placement of mem-

ory address in speciﬁc cache way. This forces the at-

tacker to access multiple memory addresses related to

speciﬁc cache way to guarantee the ﬁlling of certain

cache way. The number of memory addresses can be

seen as popular bin-and-ball problem that how many

balls are required to ﬁll the speciﬁc bin with a certain

conﬁdence. Using this analysis, cache with 2 level-of-

indexing and 4 ways, the eviction set size is 768. If

number of ways is increased to 8 ways, then the evic-

tion set size becomes 8432. Similarly, if we increase

level-of-indexing to 3 for 4 and 8 ways, the eviction

sets become 29552 and 253535, respectively.

3.1.2 Learning Non-evicting Members

The next difﬁcult task for the attacker is to identify

non-evicting members. The attacker does not get ac-

cess to direct information through timing channel be-

cause the non-evicting cache line does not evict due to

victim access. However, through indirect timing anal-

ysis the attacker can analyze the connection between

evicting and relocating cache lines. For instance, Fig-

ure 2 shows that if K is not present in cache then it is

impossible to evict D from cache. Here D and K are

evicting and non evicting cache lines respectively. If

attacker is able to ﬁnd D in proﬁling step then he can

come to conclude that K is also in G’ group. In order

to ﬁnd K, all the memory addresses of G’ are accessed

by the attacker. Then the attacker waits for the victim

to access, with the purpose that if randomly selected

address is K then cache line D will not evict. To de-

termine if eviction occurred or not, the attacker again

accesses D during its time measurement. The attacker

can monitor that, if K is not a selected candidate to be

evicted then D will be evicted multiple times. If the

attacker determines that selected member has lowered

the eviction chances of D in numerous trials, then he

predicts that the selected member is K.

According to (Mukhtar et al., 2020), 2

years are

required by attacker to ﬁnd single eviction set for IE-

Cache of 3 levels, 2

cache lines and 4 ways. In our

case we have discussed 8 ways IE-cache, for which

attacker will require far more time. To notice the evic-

SECRYPT 2022 - 19th International Conference on Security and Cryptography

678

tion behavior on next selected candidate, the attacker

needs to ﬂush and ﬁll members of G’ again. It is difﬁ-

cult to place non-colliding members in cache because

two members can collide in any other replacement if

not in ﬁrst. Random replacement policy changes the

placement of members for every access, even in the

case of same memory access. Therefore, multiple ac-

cesses of all group members is required to measure

access latency. If any access comes up with prolonged

latency then he has to iterate the action of ﬂush and

ﬁlling again with the purpose to avoid self-eviction of

group members.

3.2 Experimental Evaluation

This section ﬁrst presents the security results of PIE-

Cache by showing the work effort required to learn

the non-evicting members. Lastly, performance re-

sults are presented.

4 SECURITY EVALUATION

We have built the python model of PIE-Cache to ex-

perimentally verify the attacker efforts to proﬁle the

eviction set, as mentioned in (Mukhtar et al., 2020).

Following assumptions have been taken during the

experiment. Firstly, cache uses random replacement

policy and ﬁlls the invalid cache line ﬁrst. Second,

keys of indexing function are created using random

function and remained same in whole experiment.

Third, pointers are also assigned randomly to each en-

try in tag using randint method of random library of

python. Lastly, only victim and attacker processes are

executing, which favors the attacker in terms of less

noise.

We have used Prime+Prune+Probe technique to

learn the last level members of eviction set. To ﬁnd

the non-evicting members of the eviction set, break-

branch technique has been executed on the group used

in Prime+Prune+Probe technique. We have averaged

the number of memory accesses required by the at-

tacker to ﬁnd 1000 evicting and non-evicting mem-

bers. Then, this average number of memory accesses

is multiplied with the number of evicting and non-

evicting members required in the eviction set dis-

cussed in Section 3.1.1. To calculate the time, we

have used the following time for each event: cache hit

9.5 ns, cache miss 50 ns, cache ﬂushing 3.6 ms, vic-

tim process execution time 0.5ms. Table 1 shows the

results of the experiment in terms of number of mem-

ory accesses and time needed to learn an eviction set

in PIE-Cache having 4 ways. In Table 1 CL is number

of cache lines, L is number of relocation levels, G is

group size selected, G’ is group in which members do

not collide, n

rmv

is turns required to determine non-

colliding members, n

is number of turns required to

load non colliding members in cache, avg

is average

number of victim accesses and avg

is average num-

ber of attacker accesses for victim access.

Results in Table 1 show the results with selec-

tion of varied sizes of groups G. For small sizes, it

shows that the number of memory accesses and time

are increased. This is because the small group size de-

creases the probability of collision and attacker needs

to repeat multiple times to occur the cache conﬂict

with the victim. Inversely, in case of large G, the

number of memory accesses and time is reduced but

still impractical. The reason of impractical time is

because of the self collisions among the members of

large G that still remain even after the attacker com-

pletely pruned the G. This is because the attacker has

only pruned in the one way of G placement in the

cache but there is so many possible combinations of

placement. To place the pruned in a way such that no

self conﬂicts happen takes longer time. These results

approximately match with the results of the IE-cache

of same conﬁguration, mentioned in research work

of IE-Cache (Mukhtar et al., 2020). Therefore, PIE-

Cache provides same protection against Prime+Probe

attack as of IE-Cache.

5 PERFORMANCE EVALUATION

For performance evaluation, PIE-Cache model was

developed on gem5 simulator. We have modeled a

2 level cache where L1 has split data cache (64 KB)

and instruction cache (16 KB). L2 cache is a shared

cache of size 1 MB. Each entry of tag-store and data-

store is of 44 and 64 bytes respectively. Tag-store en-

try consists of 4 bytes pointer. Energy consumption is

evaluated of PIE-Cache and IE-Cache having 4 ways.

This energy consumption is normalized over energy

consumption of set-associative cache with same con-

ﬁgurations as PIE-Cache and IE-Cache. 40 workloads

of Micro-benchmark are used to evaluate the energy

consumption. Figure 3 presents the result for nor-

malized energy consumption of PIE-Cache over IE-

Cache having 4 ways.

In Figure 3, as PIE-Cache energy consumption is

normalized over IE-Cache energy consumption, bar

less than 100% indicates the less energy consumption

compared to IE-Cache. Results in this ﬁgure show

that the energy consumption for 4 ways PIE-Cache is

reduced by 20.8% on average compared to IE-cache.

This reduction is because of the elimination of energy

to read and write data entries during the cache miss in

Novel Design for IE-Cache to Mitigate Conﬂict-based Cache-side Channel Attacks with Reduced Energy Consumption

679

Table 1: Time Calculation for Building Eviction Set.

CL L G G’ (k) n

rmv

Evicting Non-Evicting

avg

Time(hr) avg

avg

Time(hr)

16 13534 161 59 1.17E7 5.83E13 302 5.84E17 1.24E17 6.82E12

15 13659 147 88 1.52E7 6.76E13 1254 9.95E18 3.06E21 1.41E13

14 13311 151 43 3.25E7 2.03E13 1379 2.16E18 2.74E18 2.56E12

13 13308 27 31 5.93E7 8.36E13 1709 2.03E18 4.02E20 2.37E12

Figure 3: Normalized Energy in 4 ways Last Level Cache.

PIE-Cache compared to IE-Cache. We also observed

that the cache miss behavior of both caches are similar

in experiments, which indicates that the effect on exe-

cution time will be the same in both caches. In exper-

iments, maximum and minimum energy consumption

are observed at MIP and ML2 respectively. Overall,

the variation in energy consumption among the work-

loads are slightly different because of same last level

cache miss behaviour is observed among the work-

loads. We have also evaluated the energy consump-

tion for cache sizes with greater number of ways.

6 CONCLUSION

This paper proposes a cache which reduces the high

energy utilization of IE Cache by introducing pointer-

based mapping between tag-store and data-store. It

skips the re-locations occurring in data-store entries.

It reduces energy utilization of about 20% compared

to IE-Cache for Micro-benchmark. Moreover, PIE-

Cache replacement process is identical to IE-Cache

that increases the eviction set size and introduces the

non-evicting members in the eviction set. Because of

this, the learning factor of the attacker in IE-Cache

remains same as of IE-Cache.

REFERENCES

Gruss, D., Maurice, C., Wagner, K., and Mangard, S.

(2016). Flush+Flush: A fast and stealthy cache at-

tack. In Proceedings of the 13th International Con-

ference on Detection of Intrusions and Malware, and

Vulnerability Assessment, pages 279–299.

Liu, F., Yarom, Y., Ge, Q., Heiser, G., and Lee, R. B. (2015).

Last-level cache side-channel attacks are practical. In

2015 IEEE Symposium on Security and Privacy, pages

605–622.

Mukhtar, M. A., Bhatti, M. K., and Gogniat, G. (2019).

Architectures for Security: A comparative analysis

of hardware security features in Intel SGX and ARM

TrustZone. In 2019 2nd International Conference on

Communication, Computing and Digital systems (C-

CODE), pages 299–304.

Mukhtar, M. A., Bhatti, M. K., and Gogniat, G. (2020).

IE-cache: Counteracting eviction-based cache side-

channel attacks through indirect eviction. pages 32–

45.

Purnal, A. and Verbauwhede, I. (2019). Advanced proﬁl-

ing for probabilistic Prime+Probe attacks and covert

channels in ScatterCache. ArXiv, abs/1908.03383.

Qureshi, M. K. (2018). Mitigating conﬂict-based

cache attacks via encrypted-address and remapping.

IEEE/ACM International Symposium on Microarchi-

tecture, pages 775–787.

Werner, M., Unterluggauer, T., Giner, L., and Schwarz, M.

(2019). ScatterCache: Thwarting cache attacks via

cache set randomization. In 28th USENIX Security

Symposium, pages 675–692.

Yarom, Y. and Falkner, K. (2014). FLUSH+RELOAD: A

high resolution, low noise, L3 cache side-channel at-

tack. In 23rd USENIX Security Symposium, pages

719–732.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

680
