Implementation of a Stateful Network Protocol

Intrusion Detection Systems

S. Seng

1,2

, J. Garcia-Alfaro

and Y. Laarouci

TelecomSud Paris, Palaiseau, France

EDF R&D, Palaiseau, France

Keywords:

Statechart, Protocol Modeling, Intrusion Detection System, Anomaly Detection, Industrial System, Critical

Infrastructures.

Abstract:

The deployment of a Network Intrusion Detection System (NIDS) is one of the imperatives for the control of

an information system. Today, almost all intrusion detection systems are based on a static vision of network

exchanges, whether for detection engines based on signatures or on behavioral models. However, this approach

is limited: it does not allow to directly take into account past exchanges and thus to fully model normal or

abnormal behavior, such as verifying that an authentication has taken place before authorizing a privileged

request or detecting a replay attack. We propose to add an additional dimension to NIDS by performing

stateful monitoring of communication protocols. Uniﬁed Modeling Language (UML) statecharts have been

chosen to model the protocols and to perform the stateful monitoring. An implementation of this solution is

integrated within an existing NIDS and validated on two industrial protocols IEC 60870-5-104 and Modbus

TCP. This implementation has been realized by dissociating the stateful monitoring and the NIDS with the

help of an abstraction interface allowing an easy integration of new communication protocols.

1 INTRODUCTION

1.1 Context

Faced with cybersecurity issues, the implementa-

tion of cybersecurity information systems monitor-

ing tools is increasingly needed and even becomes a

compulsory requirement. Many companies are invest-

ing in setting up a Security Operation Center (SOC),

equipped with a Security Information Management

System (SIEM) for the recognition and management

of alerts. The origin of these alerts comes from

various sensors such as Intrusion Detection Systems

(IDSs).

In this paper, we focus only on Network Intru-

sion Detection System (NIDS). We do not distinguish

on the type of detection methodology (i.e., Signature-

based or Behavior-based).

1.2 Static Vision of Exchange

NIDS use ﬁlters called dissectors to identify and inter-

pret the network packets they capture. These dissec-

tors extract the various ﬁelds, options and structured

data contained in packets. This data, once extracted,

will then be transmitted to a detection engine that will

determine if it is a healthy packet or a potentially ma-

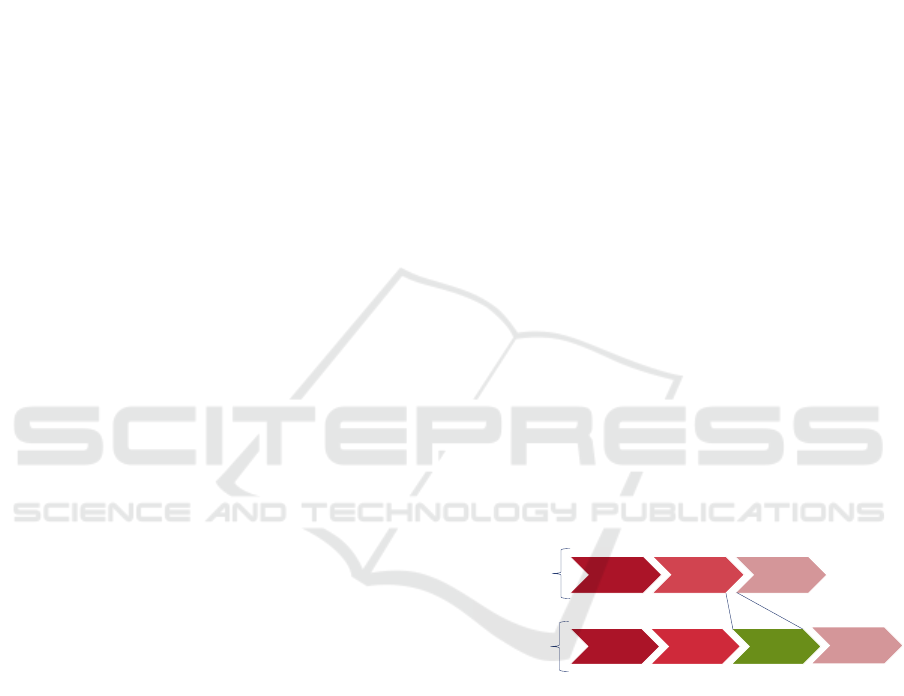

licious packet. Figure 1 depicts the idea, in which the

ﬁrst line represents the different stages of a NIDS.

Capture Dissector Detection

Capture Dissector Stateful Détection

Existing

Proposition

Detection

Figure 1: Addition of the stateful stage.

Almost all dissectors are static. They do not take

into account the dynamics of network protocols. This

static operation does not allow to directly take into

account past exchanges, which signiﬁcantly reduces

the possibilities of predicting an attack. For example,

it is not possible to verify that an authentication has

taken place before authorizing a privileged request or

to detect a replay attack.

1.3 Proposal and Experimentation

We propose to overcome this limitation by adding an

incremental dimension to NIDS through stateful mon-

itoring of communication protocols. As illustrated in

the second row of Figure 1, the stateful monitoring

398

Seng, S., Garcia-Alfaro, J. and Laarouci, Y.

Implementation of a Stateful Network Protocol Intrusion Detection Systems.

DOI: 10.5220/0011327400003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 398-405

ISBN: 978-989-758-590-6; ISSN: 2184-7711

stage is inserted after the dissectors and before the de-

tection engine. The latter then takes advantage of the

data enriched with the history of exchanges and the

conformity of the packet with respect to the protocol.

Our proposed solution has a secondary goal. It

has to be as agnostic as possible of use cases, i.e., it

has to be as independent as possible of the NIDS by

proposing an abstraction interface for the modeling

of the stateful monitoring. By focusing our work on

the modeling of the communication protocol and not

on the modeling of the use case, we enter the ﬁeld of

Protocol-speciﬁcation-based NIDS — which are rela-

tively little studied (Uppuluri and Sekar, 2001). This

allows us to be use case agnostic.

A prototype of our stateful monitoring solution

has been developed. It is based on the open source

NIDS Zeek

which it completes with a plugin. In ad-

dition, Harel’s statecharts have been used to model the

protocols and thus allow stateful monitoring. They

seem to be more adapted to the modeling of com-

plex systems than the traditional Finite State Machine

(FSM). The prototype has been tested with the indus-

trial communication protocols Modbus TCP and IEC

61870-5-104.

The rest of the paper is structured as follows. Sec-

tion 2 elaborates further on our problem domain. Sec-

tion 3 surveys related work. Sections 4 and 5 provide

our contribution and reports experimental work. Sec-

tion 6 provides some additional discussions. Section

7 concludes the work.

2 PROBLEM DOMAIN

The main objective of our work is to complement the

dissectors of a NIDS in order to take into account

the dynamic aspect of a network exchange. This re-

quires modeling the behavior of network communica-

tion protocols. In practice, in the context of network

communication protocols, this is similar to stateful

monitoring.

2.1 Use and Relevance of Stateful

Monitoring

Stateful monitoring of network communication pro-

tocols is not new and is already applied in several

domains such as testing, simulation or compliance

veriﬁcation. For cybersecurity, the best known use

of stateful monitoring concerns ﬁrewalls (Gouda and

Liu, 2005). It allows a much ﬁner control on network

https://zeek.org

exchanges. For example, it allows to manage in a ﬁner

way the two directions of communication of proto-

cols such as TCP or the capacity to take into account

by ﬁrewalls protocols that use a dynamic allocation of

network ports such as FTP in active mode or Remote

Procedure Call (RPC). Still in the ﬁeld of cybersecu-

rity, stateful monitoring is also used for application or

protocol fuzzing, in Host-based Intrusion Detection

System (HIDS) or, like in this article, in NIDS.

The use of stateful monitoring adds a dynamic

view of a system, providing an additional dimension

to tools.

2.2 Modeling Usability Problem and

UML Statechart Contribution

The simplest and most common method to perform

stateful monitoring is based on automata, especially

FSM or its derivatives (Mealy machines, nondeter-

ministic FSM, etc.) (Qin-Cui et al., 2009; Goldenberg

and Wool, 2013).

The majority of tools or studies that use state-

ful monitoring for communication protocols simplify

the protocols or processes to avoid the combinatorial

explosion of the number of states. This is notably

the case of the Netﬁlter/iptables ﬁrewall, which only

manages four states for the TCP protocol (NEW, ES-

TABLISHED, RELATED and INVALID), or of stud-

ies (Qin-Cui et al., 2009) that do not take into account

some elements that are considered superﬂuous, such

as the control of timeouts, re-transmissions, or some

internal signals (synchronization, keep-alive, etc).

However, we consider that in a NIDS context, all

elements are important and can constitute anomalies

or weak signals of an attack.

This difﬁculty from traditional FSM for stateful

monitoring is already known. In (Yu et al., 2015), the

authors evoke the problem of the combinatorial ex-

plosion of the number of states and more generally

the lack of ergonomics (readability and editing) of

FSMs for humans. They propose to use Harel’s state-

charts (Harel, 1987) which offer concepts missing in

FSMs such as hierarchy or parallelization which al-

low to signiﬁcantly improve the readability of an au-

tomaton.

2.3 Importance of Stateful Monitoring

for ICS

2.3.1 Higher Cybersecurity Risks and Impacts

We believe that Industrial Control System (ICS) are

less well prepared to face cybersecurity attacks. In-

deed, some speciﬁcities of ICS offer a greater expo-

Implementation of a Stateful Network Protocol Intrusion Detection Systems

399

sure to cyber-attacks. First, industrial equipment de-

signers, industrial solution integrators and operators

are still not very aware of cybersecurity, which is why

there are rarely effective protection measures against

cybersecurity risks. Secondly, ICS are often designed

for a much longer lifespan than in IT. It is common

to still ﬁnd ICS in operation 20 to 30 years after their

initial setup. However, cybersecurity evolves quickly

and requires regular software and hardware updates.

But the availability of ICS is often a more impor-

tant criterion than for IT, the updates of ICS are of-

ten grouped during the planned maintenance opera-

tions. Thus, a critical vulnerability on a system can

sometimes be ﬁxed several months, or even years, af-

ter the publication of a patch. This is even more true

for critical ICS where a hardware or software update

can jeopardize safety qualiﬁcations. In these cases,

operational safety has priority over cybersecurity, and

operators are reluctant to perform updates. Finally, at-

tacks on ICS and especially critical ICS, due to their

interaction with the physical world, can have ﬁnan-

cial, environmental and even human impacts that are

much more signiﬁcant than in IT. All these elements

imply that the need for monitoring ICS is probably

more important than for IT.

2.3.2 Effective Monitoring

On another level, some speciﬁcities about ICS seem

favorable to monitoring solutions. Indeed, compared

to IT systems, ICS do not evolve much. They have

equipment, especially Programmable Logic Con-

trollers (PLC), that are deterministic in their opera-

tions. This provides industrial communication proto-

cols with interesting properties for network monitor-

ing (Mitchell and Chen, 2014):

• relatively simple protocols;

• deterministic communication, based on iterative

and continuous polling between, for example, a

PLC and its sensors/actuators or between a super-

visory console and its PLCs;

• strict timing requirement.

These properties make industrial communications

easier and more efﬁcient to monitor than IT com-

munications which are often more complex, evolve

rapidly and have a high variability due to human ac-

tivities (Cheung et al., 2006). This facilitates the cre-

ation of anomaly detection models.

2.3.3 Network-protocol-based Intrusion

Detection System and Modbus

The two aforementioned points about ICS when com-

paring it to IT (i.e., higher cybersecurity risks and ef-

fective monitoring), are complementary and make the

use of IDSs even more important. However, the het-

erogeneity of industrial solutions, their low hardware

resources and their closed (proprietary) aspects limit

the possibilities for an HIDS. That is why we focus

our work on Network-based Intrusion Detection on

ICS and we propose to add stateful monitoring sup-

port in industrial protocols.

Modbus TCP is a simple, open speciﬁcation in-

dustrial communication protocol. It has been widely

used for several years in ICS. It is supported by the

majority of devices and is often the only protocol of-

fering interoperability between devices of different

technologies. Moreover, it is probably the most stud-

ied industrial protocol in the scientiﬁc literature. For

these reasons, Modbus will be the use case of this ar-

ticle.

3 RELATED WORK

Stateful monitoring of communication protocols

within NIDS is not new, the ﬁrst NIDS performing

this date back to before 2002 (Kruegel et al., 2002).

After Behavior-statistical-based NIDS, Stateful NIDS

was probably one of the ﬁrst behavioral models. The

number of articles on this subject being relatively

high, we will focus on those dealing with ICS and,

in particular, the Protocol-Speciﬁcation-based NIDS

and those whose work is close to our work.

Tidjon et al. (Tidjon et al., 2020) notes the current

shortcoming of NIDS in not having a dynamic vision

of network data exchanges. They proposed a state-

ful modeling method based on an algebraic language,

to overcome this shortcoming. However, the method

suggested by Tidjon et al. applies to the rules and sig-

natures engine, rather than the protocols.

Carcano et al. (Carcano et al., 2010) proposes

a modeling of an ICS using a virtual representa-

tion divided between coherent and incoherent states

of the system. The entry in an incoherent state

raises an alert. For this modeling they use standard

Backus-Naur Form (BNF) notation. In a similar way,

Monzer (Monzer, 2020) proposes to model an indus-

trial system using a hybrid automaton for anomaly

detection. Monzer also proposes a methodology to

convert PLC programs from Grafcet language to hy-

brid automata. These two studies are clearly oriented

on detection methods speciﬁcally related to use cases

and do not offer model abstraction.

Two studies closely related to ours are Cheung

et al. (Cheung et al., 2006) and Goldenberg and

Wool (Goldenberg and Wool, 2013). They both

propose Protocol-speciﬁcation-based NIDS. The ﬁrst

SECRYPT 2022 - 19th International Conference on Security and Cryptography

400

one (Cheung et al., 2006) proposes three methods to

model the behavior of Modbus TCP within NIDS, in-

cluding one at the protocol level. One of the authors

will propose in (Dutertre, 2008) a formal method

based on Prototype Veriﬁcation System (PVS) to de-

scribe Modbus and to perform conformance check-

ing. Like us, Goldenberg and Wool (Goldenberg and

Wool, 2013) proposes stateful monitoring on Modbus

protocol using an FSM. However, both of these stud-

ies act as the ﬁnal detection engine, while we propose

a stateful engine at an intermediate level allowing to

keep the original detection engine which is enriched

with new data.

A search on the IEC 60870-5-104 protocol also al-

lows to identify some interesting articles for the mod-

eling of this protocol (Yang et al., 2014). In particular,

(Yu et al., 2015) reminds us of the relevance of FSM

to model communication protocols and more gener-

ally event driven systems. However, he points out

that traditional FSMs have intrinsic usability prob-

lems that make it difﬁcult for humans to use them in

practice. As an alternative, he proposes the use of

Harel’s Statecharts or its variant standardized in the

UML standard: the UML Statechart.

There is no study proposing to integrate, in a

complementary way, a stateful monitoring stage to a

NIDS, which is both independent of the use case and

the detection engine. The latter will keep its proper-

ties and will beneﬁt from complementary data linked

to the stateful monitoring to make its predictions.

4 DESIGN AND

IMPLEMENTATION

4.1 NIDS Framework

The main objective of this paper is to realize a state-

ful NIDS. As mentioned in Section 1.2, compared to

existing NIDS, our contribution focuses on the state-

ful aspect. The different existing stages of NIDS,

namely capture, dissection and detection being rela-

tively complex and in order not to redevelop existing

things, we will rely on free NIDS that we will modify.

We chose the Open Source NIDS Zeek as it allow

to easilly extend its functionalities. Moreover, Zeek

also seems to be the most used NIDS in the scientiﬁc

literature, probably for these same reasons of expand-

ability.

4.2 Modeling Stateful

Our secondary goal is to implement protocol stateful

monitoring in the most generic way and to provide

an abstraction level between the communication pro-

tocol and the NIDS. To meet this objective, we pro-

pose to use standard modeling methods such as FSM.

However, we also propose to take into account the dif-

ﬁculties mentioned in Section 2.2 about FSM and will

use Harel’s Statecharts.

We have choosen the W3C SCXML format to rep-

resent Harel’s statecharts because it is well known, it

is a standard and for the existence of several tools,

such as SCXMLCC and SCXMLGUI.

4.3 Implementation

Zeek, as a framework, provides an Application Pro-

gram Interface (API) and documentation for plugin

integration. It is accessible in the Zeek language,

C++, but also in an internal language, more abstract

and simpler: BINPAC.

The implementation of our solution then consists

in creating a Zeek plugin which will have to fulﬁll the

following goals:

1. Modeling/Stateful, which consists in modeling,

with the help of a Statechart, one, or more, given

communication protocol, described in SCXML

format.

2. Interfacing. which consists of:

• Interface with the dissector of the communica-

tion protocol and take into account its events to

transmit them to the model realized in Step 1.

This last one will then be able to carry out the

stateful monitoring.

• Generate events in case of anomaly in the state-

ful model.

• Provide to Zeek’s detection engine API with the

internal state of the Statechart and its context.

According to Zeek’s philosophy, Step 1 will be

done in C++ and Step 2 will be done using a BIN-

PAC script.

4.3.1 Modelisation/Stateful

Several development libraries in C++ implement Stat-

echarts. The two best known libraries are Boost and

Qt. The Qt library offers the advantage of directly tak-

ing into account the SCXML format, but this support

seems incomplete. It is the Boost library which was

selected because it seems more tested, has a better

documentation, a community and updates more im-

portant. The lack of SCXML format support by Boost

is compensated by the existence of the SCXMLCC

tool which allows to generate C++ code implementing

Boost Statecharts from a model in SCXML format.

Implementation of a Stateful Network Protocol Intrusion Detection Systems

401

This Stateful modeling is then partly generated

automatically from a Statechart model described in

SCXML.

The remaining implementation consists in export-

ing functions to manipulate this model. These func-

tions will be called by the interfacing script. Here are

the three main functions:

• init: initialize an instance of a statechart for each

new session of the protocol.

• dispatch: sends to the model an event received

from the dissector. This event will ﬁre a statechart

transition or raise an anomaly.

• get states: returns the current states and their con-

texts.

4.3.2 Interface

The implementation of the interfacing part of the

Zeek plugin is relatively classic and resembles what

is traditionally found in existing plugins. However, it

should be noted that the taking into account of a pro-

tocol by our plugin requires the existence of a Zeek

dissector for this protocol.

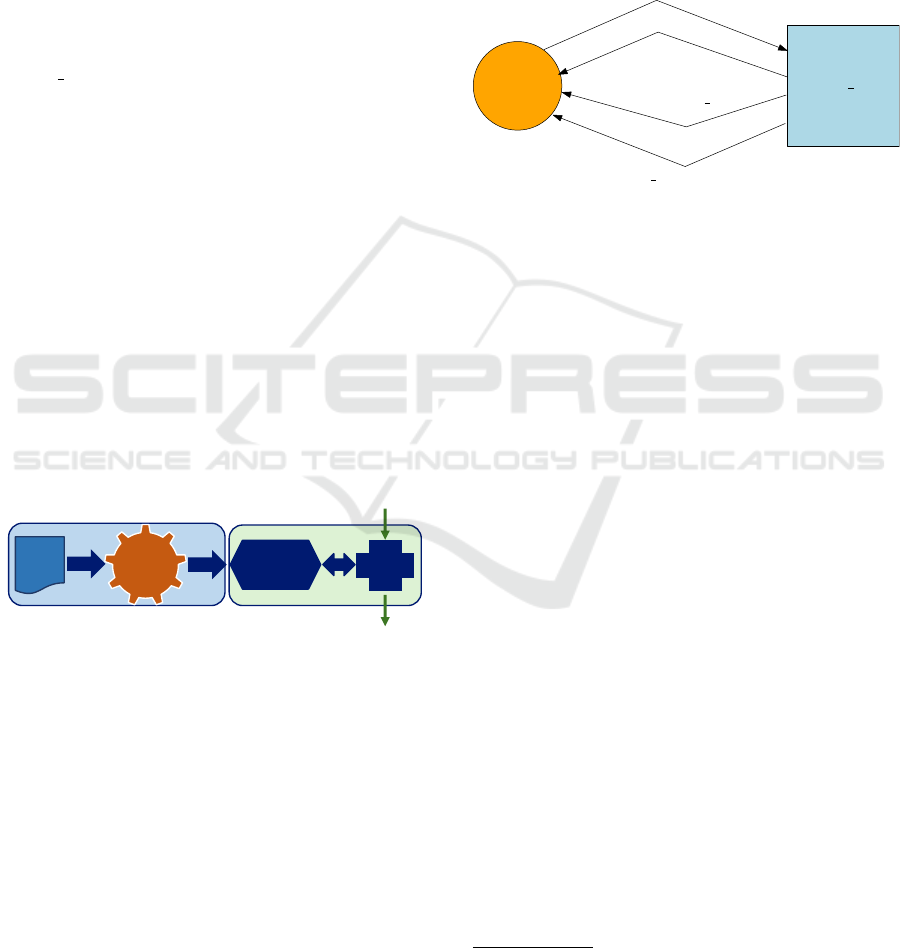

Figure 2 represents the global architecture of the

Zeek plugin. The left-hand (light blue) rectangle rep-

resents the action that generates the plugin code as-

sociated with each protocol. The right-hand (light

green) rectangle represents the Zeek plugin, com-

posed of the Stateful stage (previously generated part

and exported functions) and the BINPAC interface

that interacts with Zeek.

To do for each protocol

Plugin Zeek

SCXMLCC

Statechart

(C++/Boost)

Protocol

model in

SCXML

Interface

Events from dissector

Events generate to Zeek (logs, alert)

Figure 2: Zeek stateful-plugin architecture.

4.4 Modeling Modbus TCP

The use case chosen for this experimentation is the in-

dustrial communication protocol Modbus TCP. It is a

very simple communication protocol, working on the

master/slave principle. Here is a simpliﬁed descrip-

tion of the functioning of Modbus: A Modbus mas-

ter (TCP client), sends a request to a Modbus slave

(TCP server) by sending a message, this last one an-

swers to the master by returning a message. Each re-

quest from the master corresponds to a single network

packet and have a single network packet in response

from the slave. The slave does not have the capac-

ity to initiate an exchange with the master, it can only

answer its requests. The absence of response from a

slave to a master request within a deﬁned time (time-

out) is foreseen by the protocol. In the same way, a

slave which would not understand a request or would

be unable to answer it will return an error message.

Each Modbus message have a fully deﬁned format in

the standard according to its type.

Figure 3 represents a possible very simpliﬁed stat-

echart model of the Modbus TCP protocol. Figure 3

is an extract of scxmlgui.

Process reply

request

Idle

response error

response timeout

Figure 3: Statechart simpliﬁed modeling of Modbus TCP.

4.5 Modbus Dataset

Finding a dataset to test our prototype was not easy.

We initially wanted to use the network exchanges of a

real industrial system including a supervisory console

Schneider Magelis GTU and a Schneider M340 PLC.

However, we realized that Schneider does not use the

standard Modbus TCP functions. Instead, Schnei-

der reimplements its own protocol on top of the 0x90

function of Modbus TCP which is not documented.

We then thought of using Modbus TCP datasets

listed by (Choi et al., 2019). Unfortunately, the con-

tent and the operating mode of these datasets are not

fully described and require a consequent cleaning to

extract the useful data. Finally, for our experimenta-

tion, we simulated a system composed of two Modbus

TCP simulators.

The ﬁrst simulator uses software Modbus Poll

simulate a Modbus master and the second simulator

uses software Diagslave Modbus Slave Simulator

simulate a slave. Our platform is composed of two

simulated devices that communicate directly through

a network interface.

The dataset thus generated represents 124 Mod-

bus TCP packets corresponding to 62 requests and 62

associated responses over a time span of 62 seconds.

The tcpreplay

tool is used to replay the dataset ac-

cording to the same time periodicity as the simulated

platform.

https://www.modbustools.com

https://www.modbusdriver.com/diagslave.html

https://tcpreplay.appneta.com/

SECRYPT 2022 - 19th International Conference on Security and Cryptography

402

5 RESULTS

The dataset generated in Section 4.5 does not contain

any anomaly of use of the Modbus TCP protocol. Fig-

ure 4 is an extract from the event log of the Zeek plu-

gin which illustrates after an initialization phase the

succession of events:

• [OnEventRequest] ‘Request’: corresponding to

the arrival of a Modbus TCP request, followed

by the change of state Idle − > Process reply

where the automaton goes from state Idle to Pro-

cess reply

• [OnEventReply] ‘Reply’: corresponding to the ar-

rival of a Modbus TCP reply, followed by the

change of state Process reply − > Idle where the

automaton goes from state Process reply to Idle

scxml -> global

global -> Idle

[OnEventRequest] ‘Request’

Idle -> Process

[OnEventReply] ’Reply’

Process reply -> Idle

[OnEventRequest] ‘Request’

Figure 4: Modbus TCP Plugin logs.

5.1 Missing Reply

In order to highlight the anomaly detection, we modi-

ﬁed the dataset by removing a Modbus TCP response.

The deletion of the network packet causes a desyn-

chronism in the TCP exchanges. This has no impact

on Zeek and our plugin. Figure 5 corresponds to the

event log of our plugin and shows on line 3 that an

anomaly is reported following the reception of a Re-

quest event when we are in the state Process reply.

This event does not correspond to a valid transition

according to our Modbus TCP model represented in

Figure 3.

[OnEventRequest] ‘Request’

Idle -> Pro cess

[Anomaly] On event: request

Process

reply -> Process reply

[OnEventReply] ‘Reply’

Process

reply -> Idle

Figure 5: Modbus TCP Plugin logs with missing Reply.

5.2 Reply Timeout

In a similar way to the deletion of a packet, we wanted

to check that the timeout management is well taken

into account. To do this, we have voluntarily delayed

the arrival of a response so that it causes a timeout.

Figure 6 corresponds to the event log of our plugin

and shows on line 3 that a timeout has been applied.

The management of timeouts has been taken into ac-

count in our Modbus TCP model represented in Fig-

ure 3, i.e., it is a valid transition which has not raised

any anomaly but which has caused a change of state

from Process reply to Idle. In line 5, the late arrival

of the response is no longer expected and causes an

anomaly.

[OnEventRequest] ‘Request’

Idle -> Process

[OnEventResponseTimeout] ‘Response

timeout’

Process

reply -> Idle

[Anomaly] on event Reply

Idle -> Idle

Figure 6: Modbus TCP Plugin logs with Reply timeout.

5.3 Stateful NIDS

The implementation of the Zeek plugin and the exper-

imentation with Modbus TCP show that our prototype

works. A stateful monitoring is correctly done. The

live evolution of the statechart can be visually con-

sulted using the scxmlgui tool which allows to see the

states being activated and deactivated according to the

events received from the dissector. The network pack-

ets corresponding to the Modbus TCP protocol that do

not respect our simpliﬁed model generate anomalies

which are logged.

5.4 Abstraction

Our secondary goal of designing an abstract imple-

mentation that can take into account several proto-

cols without having to modify the plugin is theoreti-

cally achieved because it consists to add the statechart

modeling description of protocols in SCXML format.

In practice, the description of a protocol model in

SCXML format must use the same naming scheme

for the transitions as the dissector events for this pro-

tocol.

6 DISCUSSION

Our solution is positioned as a new protocol stateful

monitoring stage within a NIDS. It is a complemen-

tary stage that does not aim to replace existing ones.

In particular, it is not intended to replace the ﬁnal de-

tection engine. In its current state, it only allows to

generate new events in Zeek (anomalies) when a pro-

tocol model is not respected. The current treatment

of these events is a logging. Our solution does not

explicitly generate alerts because this is the responsi-

bility of the detection engine. In any case, it would be

Implementation of a Stateful Network Protocol Intrusion Detection Systems

403

unable to detect attacks that would respect our mod-

eling of this protocol.

To improve the detection performance of the

NIDS, the detection engine would have to take into

account the new events generated by our plugin or be

able to query it. For example, for a signature-based

detection engine, it is possible to write new rules that

directly take into consideration events generated by

the plugin and corresponding to anomalies. In addi-

tion, rules of a signature-based detection engine can

now check the state of a protocol session as an addi-

tional criterion, thus reducing the risk of false posi-

tives. However, this requires rewriting the signatures

to integrate these new additional capacities. In addi-

tion, this also requires to build a comparative bench-

mark with quality datasets. These conditions are gen-

erally quite difﬁcult to meet.

This work was initially done with an industrial use

case concerning a remote control system for electrical

networks with the IEC 61870-5-104 communication

protocol. This protocol is more complex, less known,

but especially the dissector and the dataset that we

used are not public. This is why, for this article, we

have redeﬁned the use case using Modbus TCP. The

stateful monitoring of Modbus TCP has been done

using a very simpliﬁed model that does not consider

broadcast messages and has only two states. It would

of course be possible to make a more complete model,

which would allow to identify more anomalies. For

example, we could consider checking for each differ-

ent type of request that the associated answer corre-

sponds to this request.

Our prototype on the IEC 61870-5-104 protocol

has been tested on several real systems. It has allowed

to identify several anomalies in equipment implemen-

tations. However, since no attack took place on these

platforms, the prototype can only detects errors in the

implementation of the protocols. Following these ex-

periments, our prototype should be deployed as a con-

formity checker tool for the IEC 61870-5-104 proto-

col.

We have not measured the cost in hardware re-

sources of our plugin, but no doubt that this cost is

signiﬁcant. Indeed, our solution requires to keep in

memory all active network sessions. The overall per-

formance of the NIDS is reduced. However, our solu-

tion is aimed at industrial systems where the number

of sessions is reduced and in this context, the addi-

tional cost is probably negligible.

7 CONCLUSION

We have proposed a new method based on commu-

nication protocol stateful monitoring to improve the

performance of existing NIDS. Stateful monitoring,

although existing for several years, is proposed here

with two novelties:

• It is positioned as an intermediate and comple-

mentary stage that remains agnostic of the use

case. The NIDS retains all its original capabilities

and is provided with new information on the his-

tory of past exchanges and protocol compliance.

• It uses a level of abstraction with the NIDS allow-

ing the easy addition of new protocols and pos-

sible sharing of protocol models using the open

format SCXML.

The results obtained are encouraging and show

that this solution works: anomalies are well detected

and the detection engine has access to the current state

of the state graph.

Future work will consist in experimentally verify-

ing the effective improvement of the performance of a

NIDS. This would require rewriting the signatures of

the signature detection engines or adapting the mod-

els of the anomaly detection engines to take into ac-

count the new information available. This would then

require comparing solutions with and without stateful

monitoring using a quality dataset.

Other future work consists in improving the state-

ful monitoring engine by correcting a speciﬁc prob-

lem that can occur in NIDS: packet loss. Indeed, al-

though it did not appear in our experimentation, the

loss of one or more packets is a very probable situa-

tion in NIDS. It can lead to a desynchronism between

the real state of a network exchange and the state-

ful monitoring. This would require resynchronization

methods such as automaton branch prediction.

REFERENCES

Carcano, A., Fovino, I., Masera, M., and Trombetta, A.

(2010). State-Based Network Intrusion Detection Sys-

tems for SCADA Protocols: A Proof of Concept. In

Rome, E. and Bloomﬁeld, R., editors, Critical In-

formation Infrastructures Security, Lecture Notes in

Computer Science, pages 138–150, Berlin, Heidel-

berg. Springer.

Cheung, S., Dutertre, B., Fong, M., Lindqvist, U., Skinner,

K., and Valdes, A. (2006). Using Model-based Intru-

sion Detection for SCADA Networks. Proceedings

of the SCADA security scientiﬁc symposium. Vol. 46.

2007.

Choi, S., Yun, J.-H., and Kim, S.-K. (2019). A Compari-

son of ICS Datasets for Security Research Based on

SECRYPT 2022 - 19th International Conference on Security and Cryptography

404

Attack Paths. In Critical Information Infrastructures

Security, volume 11260, pages 154–166. Springer In-

ternational Publishing, Cham. Lecture Notes in Com-

puter Science.

Dutertre, B. (2008). Formal Modeling and Analysis of

the Modbus Protocol. In Critical Infrastructure Pro-

tection, IFIP International Federation for Information

Processing, pages 189–204, Boston, MA. Springer

US.

Goldenberg, N. and Wool, A. (2013). Accurate modeling of

Modbus/TCP for intrusion detection in SCADA sys-

tems. International Journal of Critical Infrastructure

Protection, 6(2):63–75.

Gouda, M. and Liu, A. (2005). A model of stateful ﬁre-

walls and its properties. In 2005 International Confer-

ence on Dependable Systems and Networks (DSN’05),

pages 128–137. ISSN: 2158-3927.

Harel, D. (1987). Statecharts: a visual formalism for com-

plex systems. Science of Computer Programming,

8(3):231–274.

Kruegel, C., Valeur, F., Vigna, G., and Kemmerer, R.

(2002). Stateful intrusion detection for high-speed

network’s. In Proceedings 2002 IEEE Symposium on

Security and Privacy, pages 285–293. ISSN: 1081-

6011.

Mitchell, R. and Chen, I. (2014). A survey of intrusion de-

tection techniques for Cyber-Physical Systems. ACM

Computing Surveys, 46(4):55:1–55:29.

Monzer, M.-H. (2020). Model-based IDS design pour ICS.

PhD Thesis, Universit

e Grenoble Alpes.

Qin-Cui, F., Zi-ying, L., and Ke-jia, F. (2009). Implementa-

tion of IEC60870-5-104 protocol based on ﬁnite state

machines. In 2009 International Conference on Sus-

tainable Power Generation and Supply, pages 1–5.

ISSN: 2156-969X.

Tidjon, L., Frappier, M., and Mammar, A. (2020). Intru-

sion Detection Using ASTDs. In Barolli, L., Amato,

F., Moscato, F., Enokido, T., and Takizawa, M., edi-

tors, Advanced Information Networking and Applica-

tions, Advances in Intelligent Systems and Comput-

ing, pages 1397–1411, Cham. Springer International

Publishing.

Uppuluri, P. and Sekar, R. (2001). Experiences with

speciﬁcation-based intrusion detection. In Interna-

tional Workshop on Recent Advances in Intrusion De-

tection, pages 172–189. Springer.

Yang, Y., McLaughlin, K., Sezer, S., Yuan, Y., and Huang,

W. (2014). Stateful intrusion detection for IEC 60870-

5-104 SCADA security. In 2014 IEEE PES General

Meeting | Conference Exposition, pages 1–5. ISSN:

1932-5517.

Yu, C., Shen, Y., Huang, L., Huang, H., Zhang, X., Jia, S.,

and Liu, J. (2015). The implementation of IEC60870-

5-104 based on UML statechart and Qt state machine

framework. In 2015 IEEE 5th International Confer-

ence on Electronics Information and Emergency Com-

munication, pages 392–397.

Implementation of a Stateful Network Protocol Intrusion Detection Systems

405
