HTTPFuzz: Web Server Fingerprinting with HTTP Request Fuzzing

Animesh Kar

, Andrei Natadze

, Enrico Branca

and Natalia Stakhanova

Department of Computer Science, University of Saskatchewan, Saskatoon, Canada

Keywords:

Web Server Fingerprinting, Protocol Fuzzing.

Abstract:

Web server-based ﬁngerprinting is a type of ﬁngerprinting that allows security practitioners, penetration

testers, and attackers to distinguish between servers based on the set of information these servers disclose.

A common approach to hide this information is to apply ﬁngerprinting mitigating techniques. In this work,

we present a new approach for ﬁngerprinting web server software irrespective of the applied ﬁngerprinting

mitigation techniques. The premise of our approach is based on the simple insight, i.e., web servers handle

different types of HTTP requests differently. We use the fuzzing approach for intelligent and adaptive selection

of HTTP requests that are able to provoke servers to disclose their service-level information.

1 INTRODUCTION

Web services are pervasive in the modern Internet, so

are the attacks on web applications. The attacks on

the underlying web server technology or web appli-

cations often leverage the server’s misconﬁgurations

or security ﬂaws of web application software. The

presence and the extent of security misconﬁgurations

are typically uncovered through web server ﬁnger-

printing process that allows to determine type, version

of server software, used libraries, and application-

related vulnerabilities.

Fingerprinting web technology installed on the

server is routinely used by network security admin-

istrators for security assessment (Abdelnur et al.,

2008), security analysts for penetration testing, and

by researchers for research purposes (Li et al., 2009;

Shamsi and Loguinov, 2017).

Web server ﬁngerprinting is also a common ap-

proach that enables the adversaries to explore the ex-

isting conﬁgurations, collect information, and prepare

for a more sophisticated compromise.

The arsenal of server ﬁngerprinting techniques

falls into two groups: passive and active techniques.

Passive ﬁngerprinting techniques rely on snifﬁng

mechanisms to infer the web server applications. Al-

though stealthy, they are known to be less accurate.

On the other hand, active ﬁngerprinting can achieve

https://orcid.org/0000-0003-1931-2234

https://orcid.org/0000-0003-2764-0991

https://orcid.org/0000-0001-6316-7789

https://orcid.org/0000-0003-1923-319X

higher accuracy, but requires active and often aggres-

sive probing of a remote server.

The classical approach to an active web server ﬁn-

gerprinting relies on banner grabbing through HTTP

protocol that involves sending crafted requests to

server to illicit a response. The information available

in a returned banner often contains speciﬁc markers

that can be associated with the web application tech-

nology. Unless modiﬁed, these markers remain sta-

ble and can be easily matched with application ﬁn-

gerprints. Hence, a common mitigation approach fol-

lowed by practitioners is to manipulate or obfuscate

the identiﬁable information preventing ﬁngerprinting.

The existing ﬁngerprinting countermeasures typically

aim to modify banner information (Apache, 2022;

Microsoft, 2009) or introduce variations in the server

response to render automatic ﬁngerprinting ineffec-

tive (Yang et al., 2010). In spite of the long history

of ﬁngerprinting countermeasures, their effectiveness

against ﬁngerprinting techniques has not been stud-

ied.

In this work, we present a ﬁrst study that inves-

tigates this. Speciﬁcally, we explore the capabilities

of prevalent web server ﬁngerprinting tools in a pres-

ence web server identity masking. We explore eight

available server ﬁngerprinting mechanisms, primarily

open-source and widely used in practice, on the exam-

ple of four popular web servers: Apache, Microsoft

IIS, Nginx and Lighttpd. We discover that most of the

ﬁngerprinting mechanisms fail even in the presence

of not sophisticated mitigation measures.

Kar, A., Natadze, A., Branca, E. and Stakhanova, N.

HTTPFuzz: Web Server Fingerprinting with HTTP Request Fuzzing.

DOI: 10.5220/0011328900003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 261-271

ISBN: 978-989-758-590-6; ISSN: 2184-7711

261

To this extend, we propose a new method for ﬁn-

gerprinting web server applications irrespective of ap-

plied ﬁngerprinting mitigation techniques. We design

HTTPFuzz approach that leverages random mutation

fuzzing.

Coming from software testing, fuzzing is a well

known technique that allows to generate massive

amounts of erroneous, unexpected, or random test

cases to observe their effects on the target program

aiming to identify cases that can trigger software

problems or bugs. In our context, we leverage fuzzing

approach to generate unexpected HTTP requests that

may consequently illicit unexpected response reveal-

ing the true identity of a web server. Note that while in

a traditional setting fuzzing often aims to crash a tar-

get application or a system, in our context, this is an

undesirable outcome. Our goal is to determine a set

of HTTP requests that produce server responses that

can most accurately expose web server technology.

As opposed to fuzzing that generates massive

amounts of cases, most modern servers are equipped

to rate-limit the amount of incoming trafﬁc, hence re-

stricting the number of requests that can be poten-

tially sent to a server for ﬁngerprinting. We thus fur-

ther design fuzzing-guided heuristics to select HTTP

requests agnostic to the applied ﬁngerprinting mea-

sures.

Our contributions in this work are as follows:

• We present an effectiveness analysis and dis-

cuss limitations of ﬁngerprinting countermeasures

against prevalent in industry web server ﬁnger-

printing techniques.

• We propose a new method called HTTPFuzz for

ﬁngerprinting web server applications agnostic to

the applied ﬁngerprinting mitigation techniques.

• We explore the proposed HTTPFuzz approach in

practice by performing a ﬁngerprinting of over

100K unknown servers.

We offer a prototype of HTTPFuzz to the security

community in an effort to facilitate research in this

area

2 BACKGROUND

A web server is a combination of hardware and soft-

ware that uses HTTP/HTTPS protocols as a conven-

tion to respond to client requests. An example of

HTTP exchange of request and response message

from IIS conﬁgured Virtual Machine is given in Fig-

ure 1.

https://cyberlab.usask.ca/datasets/httpfuzz-main.zip

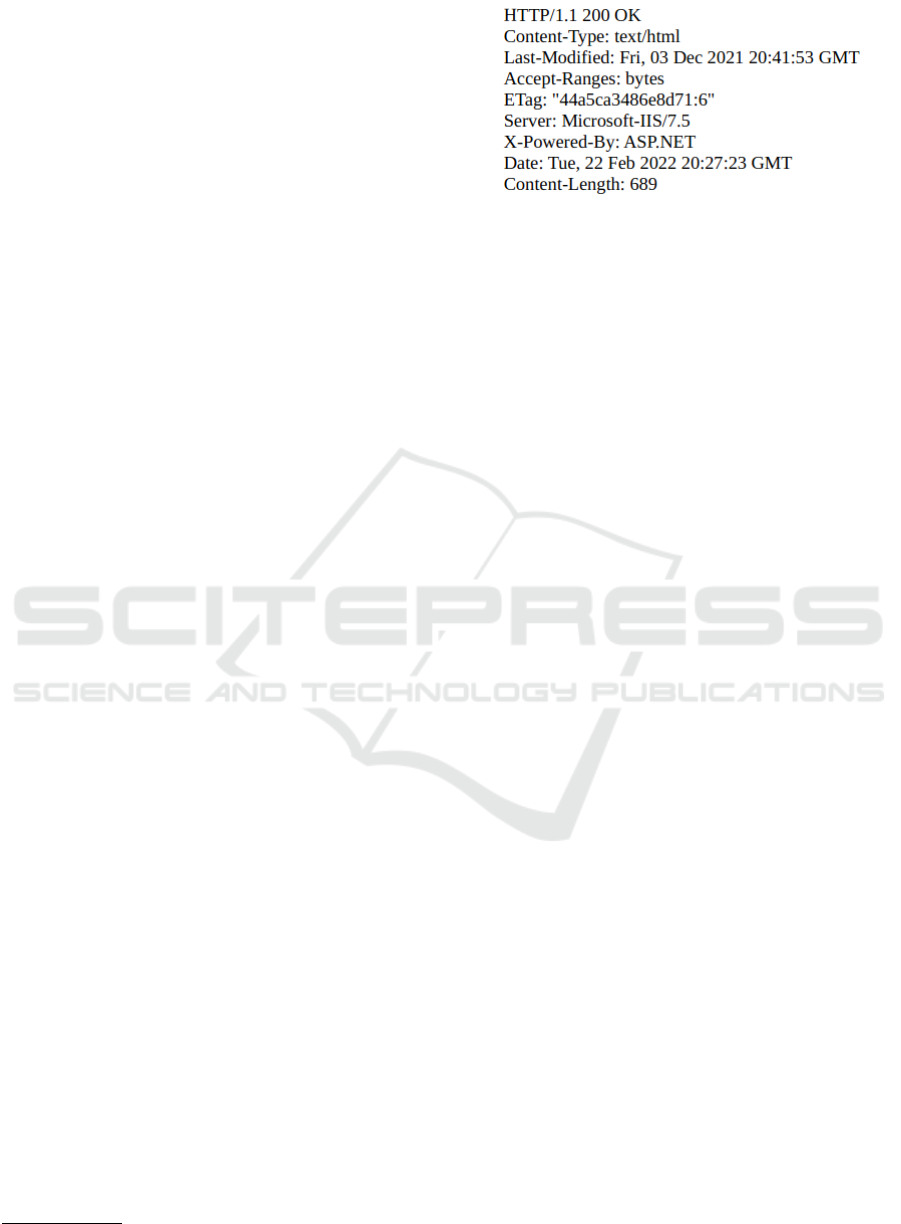

Figure 1: An example of HTTP response from IIS web

server to ’GET / HTTP/1.1’ request.

The structure of the typical HTTP request includes

several elements:

• Request-Line: the ﬁrst line of an HTTP request

that typically contains a <method> token, that tells

the server what to do with the resource (e.g., GET,

HEAD, POST), followed by the <URI>, that spec-

iﬁes the resource on the server, <protocol> and

its <version>. The tokens in the request line

are separated by ’/’. Nine methods have been

standardized for use in HTTP requests. Among

them, web servers are required to support the GET

and HEAD methods, while other methods are op-

tional (Fielding and Reschke, 2014).

• Request Headers: may be present to provide

additional context for a request. For example,

by including conditional ﬁelds for the resource

state, indicating accepted formats for the response

or media types (e.g., Content-Length, Accept-

Encoding), or including information about the

user, user agent, and resource (e.g., User-Agent,

Referer, From).

• Request Body: an optional part that may pro-

vide additional information to correctly retrieve

requested data.

When a request is received, the server constructs a

HTTP response that includes several elements:

• Status-line: contains the protocol and its version

followed by a numeric status code with its short

textual description of the status code. The status

code is a 3-digit number that indicates a result of

HTTP request execution.

• Response Headers: similar to a request header,

response header aims to provide additional infor-

mation to complement what is already given in

status-line. Note that the header is optional, and

the response may contain 0 or more headers.

• Response Body: typically provides the resource

requested by a client or an error message in case

of failure.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

262

3 RELATED WORK

Web server ﬁngerprinting is a widely-studied topic.

Early studies leveraged differences in TCP/IP stack

implementation for ﬁngerprinting servers. For ex-

ample, host operating system identiﬁcation based on

analysis of encrypted communication was introduced

by Beverly (Beverly, 2004). Shamsi et al. proposed

to automatically generate server signatures based on

TCP/IP packets for large-scale ﬁngerprinting (Shamsi

and Loguinov, 2017).

Differences in network system implementation

were also leveraged by Yang et al. (Yang et al., 2019)

for ﬁngerprinting of IoT devices. The approach re-

lied on Neural Network classiﬁcation model build

with features extracted from the network layer, trans-

port layer, and application layer. Another concept of

ﬁngerprinting for the IoT platform trafﬁc was intro-

duced by designing a set of IoT platform ﬁngerprint-

ing workﬂows via trafﬁc analysis (He et al., 2022).

The authors manually analyzed the deciphered traf-

ﬁc and found that some trafﬁc in IoT platforms using

private protocols had obviously distinguishable char-

acteristics.

There has been a signiﬁcant research done in the

area of browser ﬁngerprinting. Browser ﬁngerprint-

ing is the process of collecting data from a client’s

web browser in order to create a device’s ﬁnger-

print (Laperdrix et al., 2020). Browser ﬁngerprint-

ing usually gathers a massive amount of data about

a user’s device, ranging from hardware to operating

system to browser conﬁguration (e.g., user’s device

model, operating system, screen resolution, user time-

zone, preferred language setting, browser version,

tech speciﬁcation of user’s CPU, graphics card, and

etc.).

As opposed to browser ﬁngerprinting, web server

ﬁngerprinting aims to determine the software char-

acteristics of the server. Lee was one of the ﬁrst

researchers to point out that different web servers

implement the HTTP response differently despite

RFC speciﬁcation outlining the proper HTTP re-

sponse (Lee et al., 2002). Hence, Lee developed

HMAP, an automated tool that leveraged a method

that uses the characteristics of HTTP messages to de-

termine the identity of an HTTP server with high re-

liability. For ﬁngerprinting web servers, three types

of characteristics from HTTP responses were taken

into consideration: syntactic, semantic, and lexical.

HMAP works with variations of GET, HEAD request

lines using the wrong capitalization of protocol name,

version, and long URIs and compares each of the re-

sponses with a list of known server characteristics.

The tool does not take into consideration of other

available HTTP methods (e.g., DELETE, TRACE).

The approach is based on the explicit assumption that

server header is present and provides trustworthy in-

formation.

The study performed by Saumil et al. applied

the tool HTTPrint to analyze web server ﬁngerprint-

ing (Shah, 2003b). The primary focus of this work

was the analysis of server banners from common web

servers. Only a few HTTP requests were considered

including DELETE, improper HTTP version, junk re-

quest.

Shrivastava (Shrivastava, 2011) provides exam-

ples of ﬁngerprinting mechanisms such as HTML

data inspection, presence of the ﬁles based on HTTP

response codes, checksum-based identiﬁcation. The

author focused on the application ﬁngerprinting on

the application level.

Auger outlined ﬁngerprinting techniques based on

web architecture, server, application software, back-

end database version. Banner grabbing technique of

the HTTP responses were highlighted as server head-

ers are likely to reveal identifying information, e.g.,

intermediate agents, via header, server version, and

error pages (Auger, 2009). The study analyzed the

lexical, syntactic, and semantic information provided

in HTTP response produced by abnormal requests.

Lavrenovs et al.(Lavrenovs and Mel

on, 2018) car-

ried out analysis of website extracted from Alexa’s

top one million list and presented a research on the

security of the most known websites. Although the

study was not focused on server ﬁngerprinting, it pro-

vided an insight on how much information can be

revealed through server-side headers. The analysis

reached two conclusions: a) the more popular do-

mains leak less information and b) HTTP sites are less

restrictive than HTTPS served sites in terms of the in-

formation that they provide, mostly for server related

headers.

The study conducted by Book et al. (Book et al.,

2013) applied machine learning techniques for gen-

erating server ﬁngerprinting automatically. The au-

thors used Bayesian inference without building ini-

tial server features. They used a set of 10 specialized

HTTP requests on 110,000 live servers. The analy-

sis was performed on the response codes and MIME

types returned by the server. The authors calculated

unique ﬁngerprint for each type of web server and

then matched the responses of unknown web servers

against the developed ﬁngerprint set.

Techniques for detecting web servers from the

banner information, HTTP response characteristics

(order of server and date headers), and special HTTP

requests were introduced by Huang et al. (Huang

et al., 2015). Through special HTTP requests which

HTTPFuzz: Web Server Fingerprinting with HTTP Request Fuzzing

263

included correct and undeﬁned request methods,

the authors analyzed the web servers based on the

servers’ different processing procedures.

In this work, we leverage fuzzing to create am-

biguous HTTP requests that may potentially provoke

servers to disclose identiﬁable information. This is

not the ﬁrst use of fuzzing for security purposes. Bar-

reaud et al (Barreaud et al., 2011) examined imple-

mentations of the HTTP protocol embedded in smart

cards for the presence of vulnerabilities. The authors

created mutators to represent the various mutation

types that were then used to automatically evaluate

the application’s behavior with the goal of exploit-

ing vulnerabilities on the servers. In a similar vein,

Jabiyev et al. (Jabiyev et al., 2021) looked at HTTP

protocol exploitation through HTTP Smuggling. Us-

ing a grammar-based fuzzer, the approach aimed to

automatically exploit the HTTP communication.

4 MITIGATING

FINGERPRINTING

The majority of the web server applications are

shipped with numerous conﬁguration options. These

settings are easily identiﬁable and in essence form

a server ﬁngerprint that can be later matched during

a ﬁngerprinting process. Based on the complexity

of the ﬁngerprint and the process, the ﬁngerprinting

techniques can be broadly divided into several groups:

• A direct identiﬁcation of a technology-based on

server response ﬁelds, e.g., X-POWERED-BY or

SERVER values in Figure 1.

• Inference-based identiﬁcation that leverages in-

formation leading to server technology identiﬁca-

tion (e.g., presence of ﬁles, libraries identiﬁcation

by tools like Aquatone, WhatWeb, Wappalyzer,

Nikto).

• Heuristics-based ﬁngerprinting that infers the cor-

responding web technology by combining and an-

alyzing various patterns of HTTP response ele-

ments to those contained in the database of ﬁn-

gerprints (e.g., httprint, httprecon).

4.1 Fingerprinting Tools

Nmap. is arguably one of the most dominant and

versatile tools for network analysis and ﬁngerprint-

ing (Lyon, 2009). By default, for an open port, nmap

produces a series of TCP packets that constitute a

generic ’null’ probe followed by a 5 second pause.

The probe packets typically include a probe string,

i.e., an arbitrary ASCII string. The server response,

if any is produced, is compared to a list of signature

regular expressions within nmap database. If a full

match is not found, nmap proceeds with a more spe-

ciﬁc (usually probably service-oriented) probes that

may also be strengthened by increased probe inten-

sity. To avoid contamination of results, Nmap typ-

ically starts a new connection for each probe which

adds a signiﬁcant overhead to a ﬁngerprinting pro-

cess. While the tool is favored by practitioners for

isolated scans, the process is clearly unfeasible for

large-scale ﬁngerprint analysis. Nmap generally does

not anticipate signiﬁcant variations from the expected

server response, as a result, various system modiﬁca-

tions might produce an illusion of a completely dif-

ferent service.

HTTPrint. (Shah, 2003a) aims to overcome the

challenges of pure signature-based approaches that

can be easily deceived with web server banner con-

ﬁguration. The server customization might produce

various deviations in HTTP response. To account for

these variations, HTTPrint leverages fuzzy logic and

assigns conﬁdence ratings to choose the most proba-

ble signature and consequently to determine the type

of HTTP server.

Httprecon. (Ruef, 2017) was designed as the suc-

cessor to the HTTPrint. Similarly, Httprecon aims to

leverage the fact that most servers may exhibit dom-

inant behavior which allows for their quick identiﬁ-

cation. The tool sends 9 HTTP requests (including

malicious requests), each of which might be repeated

22 times resulting in 198 requests per server. The

obtained responses are analyzed for the presence of

known dominant characteristics which are then sum-

marized and matched to a database containing known

Key Analysis Indexes (KAI).

Wappalyzer. (Alias, 2017) is an open-source

community-driven tool. Among other things, Wappa-

lyzer can recognize CMS (content management sys-

tems), web server software, web frameworks, analyti-

cal tools, and commonly used web front-end libraries.

The approach is based on the premise that every tech-

nology leaves distinct traces, hence, as opposed to

many other techniques, Wappalyzer uses HTML code

and web page content to determine the presence of

web technology.

Aquatone. (Henriksen, 2019). Designed for re-

connaissance, Aquatone is a versatile tool capable of

discovering subdomains, ﬁngerprinting servers, and

identifying visually similar web pages. Based on

SECRYPT 2022 - 19th International Conference on Security and Cryptography

264

Wappalyzer’s ﬁngerprinting engine, Aquatone sends

one HTTP GET request per host with a randomly

selected set of HTTP headers. If a server response

is produced, it is analyzed using regular expression

pattern matching with respect to the ﬁngerprints con-

tained in the corresponding ﬁngerprint database.

WhatWeb. (Horton, 2017) is a ﬁngerprinting tool

for identiﬁcation of web technology installed on the

web server. Similar to other ﬁngerprinting techniques,

WhatWeb analyzes the HTTP responses using regular

expression pattern matching and fuzzy logic to illumi-

nate variations in server response. In addition to this,

WhatWeb considers meta-data of the webpage (e.g.,

email addresses, web framework modules) to recog-

nize potential web technology.

FavFreak. (Batham, 2020) uses a direct approach

to web server ﬁngerprinting based on the hash values

of favicon icon ﬁle present on the website.

Nikto. (Andress, 2011) is an open-source Web

server analysis tool that tests for vulnerabilities on

the server-side. Nikto indexes all the ﬁles and direc-

tories, that it encounters on the target web server to

locate the technical information. The ﬁngerprinting

approach is based on the presence of identiﬁable and

traceable web components (e.g., favicon.ico ﬁles).

4.2 Fingerprinting Countermeasures

A ﬁngerprinting mitigation approaches tend to ma-

nipulate or obfuscate the identiﬁable information pre-

venting ﬁngerprinting. The existing ﬁngerprinting

countermeasures typically fall into the following cat-

egories:

• Hiding Identiﬁable Information: this includes re-

moving response headers containing identiﬁable

information (e.g., <Server>), or completely dis-

abling banners to limit the information disclosure.

• Deceiving the Fingerprinting Process: the decep-

tion techniques range from modifying or misrep-

resenting banner information to replacing exter-

nal libraries or ﬁles to mislead the ﬁngerprint-

ing and cause incorrect identiﬁcation. These

methods often target inference-based ﬁngerprint-

ing tools. Other techniques include modiﬁca-

tion of HTTP responses to introduce variations

and render heuristic-based ﬁngerprinting ineffec-

tive (Yang et al., 2010).

Table 1: Conﬁgurations of servers in a controlled environ-

ment.

Web server OS (Mis)Conﬁgurations

No conﬁguration

Microsoft-IIS

v.7.5

Windows

Server 2008

Plain

Nginx v.1.14.1 Centos

8.5.2111

Plain

Nginx v.1.18 Fedora 32 Plain

Lighttpd

v.1.4.55

Centos

8.5.2111

Plain

Lighttpd

v.1.4.59

Debian 11.0 Plain

Lighttpd

v.1.4.45

Ubuntu 18.04.6 Plain

Apache

v.2.4.37

Centos

8.3.2011

Plain

Conﬁgured

Microsoft-

IIS/10.0

Windows

Server 2016

Disabled Server Ban-

ner

Microsoft-IIS

v.8.5

Windows

Server 2012

Disabled Server Ban-

ner

Microsoft-

IIS/10.0

Windows

Server 2016

Disabled X-

Powered-By

Nginx v.1.16 Debian 11.0 Disabled Server Ban-

ner

Nginx v.1.18 Ubuntu 20.04.3 Set <Server> value

to Apache/2.4.52

Lighttpd

v.1.4.55

Fedora 30 Set <Server> value

to Microsoft-IIS/7.5

Apache

v.2.4.29

Ubuntu 18.04.3 Disabled X-

Powered-By

Apache

v.2.4.51

Fedora 34 Set <Server> value

to lighttpd/1.4.55

Apache

v.2.4.46

Ubuntu 21.04 Disabled Server

header and X-

Powered-By

4.3 Analysis of Fingerprinting Tools

To evaluate the accuracy of ﬁngerprinting in the

presence of various countermeasures, we have setup

and conﬁgured four different types of web servers:

Microsoft-IIS, Nginx, Apache, and Lighttpd. The

servers were installed on different operating systems

to explore the behaviour of the mentioned ﬁngerprint-

ing techniques. Since the objective of this work is to

explore the ﬁngerprinting capabilities in a presence of

mitigation, we further apply various mitigation mea-

sures resulting in the nine conﬁgurations presented in

Table 1.

Hiding Identiﬁable Information. As a ﬁrst ap-

proach, we conﬁgured servers to remove response

headers that directly state the installed web server

software (such as <Server>, <X-Powered-By>,

<X-AspNet-Version><X-AspNetMvc-Version>).

To disable this information, we installed and conﬁg-

ured libapache2-mod-security2 module on Apache

servers (Apache, 2022), nginx-extras package on

HTTPFuzz: Web Server Fingerprinting with HTTP Request Fuzzing

265

Nginx servers and conﬁgured system settings on IIS

servers. It was not possible to completely remove

response headers and disable banner information for

Lighttpd servers.

Deceiving the Fingerprinting Process. To de-

ceive the ﬁngerprinting, we have modiﬁed the exist-

ing HTTP headers to supply incorrect information.

<Server> header.

• for Apache, using libapache2-mod-security2, we

modiﬁed the server value in security.conf ﬁle.

• for Nginx, we added more set headers variable

in nginx.conf ﬁle to change the Server header

value.

• for Lighttpd, we modiﬁed the value of

lighttpd.conf ﬁle’s server.tag variable.

• We were not able to modify the Server header

value for IIS server.

Since at least two of the tools are known to rely on

the presence of favicon.ico ﬁle in their ﬁngerprinting

process, we have created random icon ﬁles to replace

favicon.ico in two of the servers.

Our goal was to mitigate ﬁngerprinting by con-

ﬁgured the servers and application settings without

crashing the servers or making the applications fail

to run or behave unexpectedly/abruptly.

4.4 Results

To create a baseline for our analysis, we launch all ﬁn-

gerprinting tools against plain installations of seven

servers. All tools were able to correctly identify web

server technology for all server installations. The ﬁn-

gerprinting results were drastically different when ﬁn-

gerprinting mitigation measures were applied as the

results in Table 2 show.

After modifying and hiding the headers along

with technology information, the majority of the tools

failed to detect the accurate environment on the web

servers. For servers, the identiﬁcation was mostly

blank or incorrect detection.

None of the inference-based tools could give any

proper information regarding technology and server

information against the 9 conﬁgured servers. It is

quite obvious that they largely rely on the banner

grabbing information in spite of their difference in

ﬁngerprinting approaches. For example, with modi-

ﬁed Server header, the majority of tools (5 out of 8)

simply extracted the value without any further veri-

ﬁcation. In cases when the identiﬁable headers were

present, the majority of tools provided no identiﬁca-

tion returning blank response.

Hence, even in a presence of simple mitigation

these techniques failed to properly recognize the tech-

nology. Among the heuristic-based tools, Nmap and

HTTPrint tool were able to detect only one IIS server

despite of information hiding. Httprecon tool per-

formed the best among the tools only misclassify-

ing Nginx server as IIS. However, the versions of the

servers were not detected properly.

5 HTTPFuzz DESIGN

Our analysis of ﬁngerprinting techniques revealed

their inadequacy to provide accurate recognition of

web server technology in a presence of even small

deviations from the expected results. Our goal is to

design an automated approach for ﬁngerprinting web

server applications insensitive to variations that might

be introduced by various mitigation techniques. The

ﬂow of the proposed HTTPFuzz approach is intro-

duced in Figure 2.

HTTPFuzz is a multi-stage approach that lever-

ages fuzzing to generate mutated HTTP requests.

These requests are directed towards conﬁgured HTTP

servers set up in our controlled environment for test-

ing. The responses are collected and analyzed to re-

duce the massive set of mutated requests and to select

mutations that are likely to produce correct identiﬁca-

tion. Finally, the requests generated for the selected

mutation types are deployed to ﬁngerprint technology

of unknown web servers in the wild.

Fuzzing Module. One of the insights our analysis

of ﬁngerprinting techniques revealed is that differ-

ent technologies respond to ambiguities in HTTP re-

quest’s ﬁelds differently, hence our approach aims to

systematically explore possible discrepancies.

Our fuzzing module uses a grey box paradigm,

i.e., it generates mutated requests given a valid

HTTP request syntax and elements. Although

HTTP speciﬁcations allow an HTTP request to con-

tain several elements, our fuzzer restricts its muta-

tions to <request-line> ﬁelds, i.e., optional ele-

ments (<headers> and <body>) are not generated.

All <request-line> ﬁelds are considered mutable

and undergo character-level manipulations: insertion,

deletion, swapping. The character pool includes

ASCII character set, i.e., capital and small letters are

considered to be different characters. For insertion,

up to 256 random characters can be appended. In ad-

dition to that, protocol <version> included the use

of ﬂoat and integer values.The examples of mutations

are shown in Table 3.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

266

Table 2: Fingerprinting servers with the existing techniques.

Hiding Headers Deceptions

Tools Default Con-

ﬁguration

Server X-Powered-By Server Value Changed Modiﬁed

favicon.ico

Nginx IIS Apache IIS Apache Nginx Lighttpd Apache All Servers

Whatweb X 5 5 5 5 5 Apache IIS Lighttpd 5

Aquatone X 5 5 5 5 5 Apache IIS Lighttpd 5

Nikto X 5 5 5 5 5 Apache IIS lighttpd 5

Wappalyzer X 5 5 5 5 5 Apache IIS Lighttpd 5

Nmap X 5 X 5 5 5 Apache IIS Lighttpd 5

FavFreak X 5 5 5 5 5 5 5 5 5

Httprint X 5 X 5 5 5 5 Apache X 5

HttpRecon X IIS/6.5 X X 5 5 IIS/7.5 X X 5

correct identiﬁcation

blank/no identiﬁcation

value

identiﬁed information (correct/incorrect)

Figure 2: The ﬂow of HTTPFuzz approach.

Table 3: The examples of a HTTP GET request mutations.

Mutation HTTP request line

Deletion GT / HTTP/1.1

Insertion GETA / HTTP/1.1

Swapping GxT / HTTP/1.1

Analysis Module. The HTTP responses from the

mutated requests are collected and parsed to extract

features for further ﬁngerprinting. The analysis stage

aim is two-fold: reducing the number of request and

selecting the elements of response that are indicative

of the employed web technology.

The fuzzing approach generates a signiﬁcant num-

ber of requests. Using all mutated requests is infeasi-

ble due to trafﬁc rate-limiting policies commonly set

by servers. Flooding servers with the requests is sim-

ilarly not efﬁcient for large-scale analysis. Hence, we

need to select requests that trigger discrepancies and

are likely to produce behaviour indicative of the em-

ployed web applications. Similarly, since the mutated

requests produce often unexpected HTTP response,

we need to select elements of the response that we

can use for accurate ﬁngerprinting.

For these purposes, we leverage machine learning

classiﬁcation. In this work, we explore three classi-

ﬁcation algorithms: Neural Networks (NN), Decision

Trees (DT), and Random Forest (RF). The classiﬁ-

cation parameters of the algorithms employed in this

study are shown in Table 4.

For classiﬁcation, we derive features that charac-

terize any HTTP response, i.e., all elements that might

be potentially present in the response, including status

line, headers, and body, and characteristics of the ap-

plied request mutations. For each response header, we

create three additional features: indicating the pres-

ence of a header, its value, name, and capitalization

pattern. Since this initial step is performed on the

known servers, the corresponding server’s technology

is used as a ground truth label in this classiﬁcation.

In essence, classiﬁcation analysis allows for intel-

ligent and adaptive selection of requests that are able

to provoke servers to disclose their service-level in-

formation. Note that this process is not reliant on the

stability of server behaviour or the knowledge of ap-

plied ﬁngerprinting mitigation mechanisms.

The corresponding mutation information for re-

sponses that are successfully classiﬁed are forwarded

HTTPFuzz: Web Server Fingerprinting with HTTP Request Fuzzing

267

Table 4: The parameters of the classiﬁcation algorithms.

Alg. Hyperparameters

Neural Net-

works

max iter=10000, learning rate=’adaptive’,

solver=’adam’, alpha=0.001, random state=42

Decision

Tree

max depth=6, criterion=’entropy’, splitter=’best’

Random

Forest

n estimators=50, criterion=’entropy’, bootstrap=True,

min samples split=2, min samples leaf = 1, oob score

= True, max features=”auto”, max leaf nodes=None,

min impurity decrease=0.0, max depth=6

to the fuzzing module to further guide fuzzing for ﬁn-

gerprinting in the wild.

Fingerprinting Module. The classiﬁcation analy-

sis yields a small set of mutated requests are then used

for ﬁngerprinting unknown servers. The mutated re-

quests are sent to target servers and the received re-

sponses are forwarded to the ﬁngerprinting module.

6 EXPERIMENTS

Experimental Setup. Our approach was imple-

mented using the Python language (v 3.9) with the

scikit-learn library (v 0.23.2). The request to web

servers were sent using CURL utility. A summary of

the classiﬁcation algorithms’ parameters used in the

prediction module is given in Table 4. A 5-fold cross-

validation was employed to measure the accuracy of

all machine learning models.

6.1 Experiments with Servers in a

Controlled Environment

As the ﬁrst step of the experiments, we focused on

analysis of ﬁngerprinting accuracy on a diverse set

of web servers set up in the controlled environment

(steps 1-3 of the HTTPFuzz approach). For the four

different servers set up in the controlled environment,

the fuzzing module generated 7,411 mutated requests

that were sent to 16 web servers which included both

plain and conﬁgured ones to mitigate ﬁngerprinting.

The obtained servers’ responses were collected

and parsed to remove features with a low variance

(var = 0) as they are unlikely to contribute to the

classiﬁcation model. We also standardized features

by removing the mean and scaling them to unit vari-

ance. As servers unless conﬁgured to hide informa-

tion, commonly respond with (optional) headers that

indicate the server’s web technology (e.g., Server

and X-Powered-by), we excluded these headers from

the analysis. The resulting set contained 68 features.

To shed light on the most statistically relevant fea-

tures, we have decided to utilize Information Gain

(IG) to identify the importance of each feature. Ta-

bles 6 show the top selected features with IG > 0.01.

All further experiments were conducted with this se-

lected set of 11 features.The highly ranked feature is

’ﬁltered headers’, a string indicating an order in which

headers appear in the server response. Note that this

feature does not contain header values but rather indi-

cates that depending in the server technology headers

appear in a distinct order which allows the ﬁngerprint-

ing of the server technology.

We have further classiﬁed the parsed requests

from our controlled four web servers with the selected

features using three machine learning algorithm. Ta-

ble 7 shows the accuracy of these classiﬁers for ﬁn-

gerprinting.

Our results show that we can fairly accurately

(93.67% accuracy with RF and DT) identify the type

of web technology even in the presence of ﬁnger-

printing countermeasures. Compared to the results of

commonly employed ﬁngerprinting utilities (Table 2),

this is a signiﬁcantly improved performance.

A close manual analysis of the results revealed

that only a few mutation categories were able to pro-

voke the servers to disclose their information. Among

them are insertion by appending a random number

of characters on several request line methods (GET,

HEAD, DELETE, TRACE, OPTIONS), protocol and

its version, and swapping of characters on request line

method and protocol. The total of 32 categories listed

in Table 5.

6.2 Fingerprinting Web Servers in the

Wild

The selected mutation categories are forwarded to

the fuzzing engine for ﬁngerprinting servers in the

wild. Based on these categories, HTTPFuzz generates

HTTP requests (one per category) and sends them to

web servers to be identiﬁed.

Collected Data. For this step, we selected domain

names from a list of the top 1 million domains called

Majestic Million list

. From the list of ranked do-

mains, a set of 350,000 domains has been selected

at random for our experiments. These domains were

scanned using nmap utility for possible web server

ﬁngerprinting. Out of these servers, 127,169 re-

sponded. The vast majority of the servers (89%) were

not identiﬁed by nmap, i.e., nmap produced no-match

results (Table 8). 12,450 (10%) of domains were

identiﬁed by nmap. Furthermore, 10,091 (82%) of

these domains sent HTTP responses that contained

https://majestic.com/reports/majestic-million

SECRYPT 2022 - 19th International Conference on Security and Cryptography

268

Table 5: The categories of mutated requests.

Mutation Mutation Cate-

gory

Request

Insertion Target: GET GETA / HTTP 1.1

Insertion Target: OPTIONS OPTIONSA / HTTP 1.1

Insertion Target: HEAD HEADA / HTTP 1.1

Insertion Target: DELETE DELETEA / HTTP 1.1

Insertion Target: TRACE TRACEA / HTTP 1.1

Insertion Target: URI GET /A HTTP 1.1

Insertion Target: URI OPTIONS /A HTTP 1.1

Insertion Target: URI DELETE /A HTTP 1.1

Insertion Target: Protocol GET / HTTPA 1.1

Insertion Target: Protocol OPTIONS / HTTPA 1.1

Insertion Target: Protocol HEAD / HTTPA 1.1

Insertion Target: Protocol DELETE / HTTPA 1.1

Insertion Target: Protocol TRACE / HTTPA... (18 ”A”

appended) 1.1

Insertion Target: Protocol

version

OPTIONS / HTTP 1.11

Insertion Target: Protocol

version

HEAD / HTTP

1.11111111111111111

Insertion Target: Protocol

version

DELETE / HTTP

1.111111111

Insertion Target: Protocol

version

TRACE / HTTP 1.111... (180

1 appended)

Insertion Target: Protocol

version

GET / HTTP 1.111111

Insertion Target: URI TRACE /A HTTP 1.1

Swapping Target: HEAD aEAD / HTTP 1.1

Swapping Target: DELETE DELERE / HTTP 1.1

Swapping Target: GET aET / HTTP 1.1

Swapping Target: Protocol DELETE / HpTP 1.1

Swapping Target: Protocol GET / HlTP 1.1

Swapping Target: Protocol TRACE / HVTP 1.1

Swapping Target: Protocol OPTIONS / HSTP 1.1

Swapping Target: Protocol HEAD / HcTP 1.1

Swapping Target: Protocol HEAD / HTTd 1.1

Swapping Target: Protocol

version

GET / HTTP 5.1

Swapping Target: OPTIONS aPTIONS / HTTP 1.1

Swapping Target: TRACE dRACE / HTTP 1.1

Deletion Target: Protocol

version

GET / HTTP .1

<Server> header and the value of this header agreed

with the server identiﬁcation produced by nmap.

The servers were then sent the selected mutated

requests. We have further performed two sets of ex-

periments targeting web servers labeled by nmap and

those that were not identiﬁed by nmap.

Evaluating HTTPFuzz on Wild Servers Identiﬁed

by Nmap. As another validation step, and in an

absence of large datasets with labeled web servers,

we have turned to a list of domains that their HTTP

responses provided web server identiﬁcation in the

<Server> header. We have selected a subset that was

also correctly (according to the value of this header)

ﬁngerprinted by Nmap. Although the correct server

Table 6: Feature Importance.

Feature IG

ﬁltered headers 0.506496

content-type value 0.166241

connection value 0.040618

accept-ranges case 0.039472

status message 0.039399

accept-ranges value 0.033453

status code 0.033364

allow value 0.029266

content-length case 0.026900

allow case 0.017372

content-type case 0.011032

Table 7: Classiﬁcation accuracy of ﬁngerprinting web

servers.

NN DT RF

Controlled environment 93.9% 94.29% 94.29%

Web servers on the wild

identiﬁed by nmap

87.66% 98.39% 98.45%

recognition by Nmap cannot be guaranteed, we feel

that this was a reasonable veriﬁcation.

To evaluate our ﬁngerprinting approach, we apply

the HTTPFuzz to this subset of 10,091 servers. In

this analysis, we retain the selected set of 15 features,

i.e., Server and X-Powered-by related features are

excluded from this analysis.

The results given in Table 7 conﬁrm the effective-

ness of the proposed approach. With fairly high accu-

racy (98.8% with RF), HTTPFuzz is able to determine

the web server technology. Since this set provided

a larger pool of samples (including other servers be-

yond the originally considered), we have further re-

trained the model on this set. The results were similar

to the ones archived with an earlier model (97% with

RF). Similarly, the top 10 features included the fea-

tures selected with controlled servers. We therefore

used this model in ﬁngerprinting unknown servers.

Fingerprinting Unknown Servers. We explore the

practicality of our approach on the set of 102,752

servers not identiﬁed by Nmap. In this analysis, we

have leveraged the model built by HTTPFuzz during

the validation step allowing us to label unidentiﬁed

servers. Similar to the previous experiments, we have

relied on a small set of features that excluded server

identiﬁable information if it was present.

Since these servers have no corresponding ground

truth, the resulting responses were classiﬁed and the

ﬁnal result was selected based on the majority label of

the classiﬁed responses (over 80% of responses con-

tained the corresponding label). The prediction re-

sults are given in Table 9. The majority of the servers

were classiﬁed as Apache and Nginx. This is a pre-

HTTPFuzz: Web Server Fingerprinting with HTTP Request Fuzzing

269

Table 8: Data collected in the wild.

Total Domains 127,169

Invalid Domains 11,967 (9.4%)

Valid Domains 115,202 (90.6%)

Domains not identiﬁed by NMAP 102,752 (89.2%)

Domains ﬁngerprinted by NMAP 12,450 (10.8%)

Among them: 11,881 (95.4%)

Apache 5,995 (50.45%)

IIS 148 (1.24%)

Lighttpd 17 (0.1%)

Nginx 5,721 (48.1%)

Domains with no <Server> 20,727 (18%)

Domains with known <Server> 94,475 (82%)

Domains ﬁngerprinted by NMAP with known

<Server> header value:

Results do not agree 2,161 (17.6%)

Results agree 10,091 (82.4%)

Among them:

APACHE 5536 (55.21%)

IIS 51 (0.50%)

LIGHTTPD 9 (0.09%)

NGINX 4431 (44.19%)

Table 9: Fingerprinting unknown servers.

Server Frequency

Tengine 41

Lighttpd 112

Varnish 170

Microsoft-IIS 579

Cowboy 709

Python 852

Caddy 1,703

Apache 37,648

Nginx 60,938

Total 102,752

dictable outcome as these two servers have the major-

ity market share.

7 CONCLUSIONS

In order to ﬁngerprint the technological aspects of a

web server, gathering proper information plays a vi-

tal role. In the modern cyber world, the cyber at-

tackers try to build intelligent attack methods and ex-

ploit remote web servers by gathering vendor name,

vendor versions and the services running on the web

servers. When speciﬁc software version of the server

is revealed, the server becomes susceptible to attacks

against software that is known to contain security vul-

nerabilities.

In this work, we proposed a novel web server

ﬁngerprinting approach that utilizes HTTP request

fuzzing and machine learning classiﬁcation algo-

rithms to analyze the behavioural characteristics

found in web server responses. We showed that tech-

nology detection does not require the server to dis-

close its exact identity and a small set of requests can

be sufﬁcient to achieve highly accurate ﬁngerprinting

without any advance knowledge of applied mitigation

techniques.

REFERENCES

Abdelnur, H., State, R., and Festor, O. (2008). Advanced

Network Fingerprinting. In Trachtenberg, A., editor,

Recent Advances in Intrusion Detection, volume Vol-

ume 5230/2008 of Computer Science, pages 372–389,

Boston, United States. MIT, Springer Berlin / Heidel-

berg.

Alias, E. (2017). Wappalyzer Project. https://github.com/A

liasIO/wappalyzer.

Andress, J. (2011). Http ﬁngerprinting and advanced as-

sessment techniques.

Apache (2022). Apache Module mod headers. https://http

d.apache.org/docs/current/mod/mod headers.html.

Auger, R. (2009). Project: WASC Threat Classiﬁcation.

http://projects.webappsec.org/w/page/13246925/Fin

gerprinting.

Barreaud, M., Bouffard, G., Kamel, N., and Lanet, J.-L.

(2011). Fuzzing on the http protocol implementation

in mobile embedded web server. In C&ESAR.

Batham, D. (2020). FavFreak project. https://github.com/d

evanshbatham/FavFreak.

Beverly, R. (2004). A robust classiﬁer for passive tcp/ip

ﬁngerprinting. In International Workshop on Passive

and Active Network Measurement, pages 158–167.

Springer.

Book, T., Witick, M., and Wallach, D. S. (2013). Automated

generation of web server ﬁngerprints. arXiv preprint

arXiv:1305.0245.

Fielding, R. T. and Reschke, J. (2014). Hypertext Transfer

Protocol (HTTP/1.1): Semantics and Content. RFC

7231.

He, X., Yang, Y., Zhou, W., Wang, W., Liu, P., and Zhang,

Y. (2022). Fingerprinting mainstream iot platforms

using trafﬁc analysis. IEEE Internet of Things Jour-

nal, 9(3):2083–2093.

Henriksen, M. (2019). AQUATONE project. https://github

.com/michenriksen/aquatone.

Horton, A. (2017). WhatWeb project. https://github.com/u

rbanadventurer/WhatWeb.

Huang, Z., Xia, C., Sun, B., and Xue, H. (2015). Analyzing

and summarizing the web server detection technology

based on http. In 2015 6th IEEE International Con-

ference on Software Engineering and Service Science

(ICSESS), pages 1042–1045.

Jabiyev, B., Sprecher, S., Onarlioglu, K., and Kirda, E.

(2021). T-Reqs: HTTP Request Smuggling with Dif-

ferential Fuzzing. In Proceedings of the 2021 ACM

SIGSAC Conference on Computer and Communica-

tions Security, pages 1805–1820.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

270

Laperdrix, P., Bielova, N., Baudry, B., and Avoine, G.

(2020). Browser ﬁngerprinting: A survey. ACM

Transactions on the Web (TWEB), 14(2):1–33.

Lavrenovs, A. and Mel

on, F. J. R. (2018). Http security

headers analysis of top one million websites. In 2018

10th International Conference on Cyber Conﬂict (Cy-

Con), pages 345–370.

Lee, D., Rowe, J., Ko, C., and Levitt, K. (2002). Detecting

and defending against web-server ﬁngerprinting. In

18th Annual Computer Security Applications Confer-

ence, 2002. Proceedings., pages 321–330.

Li, Z., Goyal, A., Chen, Y., and Paxson, V. (2009). Au-

tomating analysis of large-scale botnet probing events.

In Proceedings of the 4th International Symposium

on Information, Computer, and Communications Se-

curity, ASIACCS ’09, page 11–22, New York, NY,

USA. Association for Computing Machinery.

Lyon, G. F. (2009). Nmap Network Scanning: The Ofﬁcial

Nmap Project Guide to Network Discovery and Secu-

rity Scanning. Insecure, Sunnyvale, CA, USA.

Microsoft (2009). IIS ServerMask. https://www.iis.net/do

wnloads/community/2009/01/servermask.

Ruef, M. (2017). httprecon - Advanced Web Server Finger-

printing. https://www.computec.ch/projekte/httprec

on/.

Shah, S. (2003a). Http ﬁngerprinting and advanced assess-

ment techniques.

Shah, S. (2003b). An Introduction to Http Fingerprinting.

Shamsi, Z. and Loguinov, D. (2017). Unsupervised cluster-

ing under temporal feature volatility in network stack

ﬁngerprinting. IEEE/ACM Transactions on Network-

ing, 25(4):2430–2443.

Shrivastava, A. (2011). Web Application ﬁnger printing.

https://anantshri.info/articles/web app finger printin

g.html.

Yang, K., Li, Q., and Sun, L. (2019). Towards automatic

ﬁngerprinting of iot devices in the cyberspace. Com-

puter Networks, 148:318–327.

Yang, K.-x., Hu, L., Zhang, N., Huo, Y.-m., and Zhao, K.

(2010). Improving the defence against web server ﬁn-

gerprinting by eliminating compliance variation. In

2010 Fifth International Conference on Frontier of

Computer Science and Technology, pages 227–232.

IEEE.

HTTPFuzz: Web Server Fingerprinting with HTTP Request Fuzzing

271
