GAN-based Approach to Crafting Adversarial Malware Examples

against a Heterogeneous Ensemble Classifier

Saad Al-Ahmadi

and Saud Al-Eyead

Computer Science, King Saud University, Riyadh, Saudi Arabia

Computer Science, Prince Sattam Bin Abdulaziz, Kharj, Saudi Arabia

Keywords: GAN, Machine Learning, Deep Learning, Ensemble Classifier, Adversarial Malware Examples.

Abstract: The rapid advances in machine learning and deep learning algorithms have led to their adoption to tackle

different security problems such as spam, intrusion, and malware detection. Malware is a type of software

developed with a malicious intent to damage, exploit, or disable devices, systems, or networks. Malware

authors typically operate through black-box sitting when they have a partial knowledge about the targeted

detection system. It has been shown that supervised machine learning models are vulnerable to well-crafted

adversarial examples. The application domain of malware classification introduces additional constraints in

the adversarial sample crafting process compared to the computer vision domain: (1) the input is binary and

(2) retaining the visual appearance of the malware application and its intended functionality. In this paper, we

have developed a heterogeneous ensemble classifier that combines supervised and unsupervised models to

hinder black-box attacks designed by two variants of generative adversarial network (GAN). We

experimentally validate its soundness on a corpus of malware and legitimate files.

1 INTRODUCTION

Malware refers to a malicious software that has the

intent to damage, disrupt, destroy, or perform harmful

actions on a computer system. The detection of

malicious software through ML-based methods has

received an increasing amount of attention in

cybersecurity. To build a malware classifier, the

features are extracted from legitimate and malicious

files either statically or dynamically. The techniques

that extract static features do not execute the file and

only examine the code structure and other binary

properties. On the other hand, dynamic features are

obtained by observing the execution behavior of the

program. The selected features, be they static,

dynamic features or both, are then fed into the ML

model to discriminate between legitimate and

malicious files. These models can be embedded in

antivirus software to provide an automatic detection

tool for incoming files.

The advances and presence of intelligence in the

adversaries’ techniques have facilitated the need to

craft adversarial examples that are rarely identified by

https://orcid.org/0000-0001-9406-6809

https://orcid.org/0000-0001-6784-1291

deployed ML models such as Decision tree (DT),

Support Vector Machine (SVM), Logistic Regression

(LR), and Artificial Neural Network (ANN). To

attack a deployed malware detection system, three

assumptions are made in the literature about the

knowledge available to the adversaries, namely

white-box, black-box, and gray box. In the white-box

scenario, the adversaries have immediate access to

the ML system’s architecture, its parameters, and its

training data. However, adversaries in reality do not

have access to this kind of information. Thus, the

adversaries operate instead in a black-box threat

model. They use the target classifier as an oracle to

label their adversarial examples. These labels are then

used to train a surrogate model to approximate the

target classifier. In the gray box model, an adversary

is expected to know the architecture of the target

model but have no access to its parameters. A number

of attack algorithms have been proposed to generate

adversarial samples for the white-box threat model

such as FGSM, L-BFGS, C&W attacks, JSMA, and

DeepFool. These algorithms can be exploited in many

black-box and gray-box settings due to the

Al-Ahmadi, S. and Al-Eyead, S.

GAN-based Approach to Crafting Adversarial Malware Examples against a Heterogeneous Ensemble Classiﬁer.

DOI: 10.5220/0011338800003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 451-460

ISBN: 978-989-758-590-6; ISSN: 2184-7711

451

transferability of the adversarial samples among the

models (Liu et al., 2016; Papernot, McDaniel, &

Goodfellow, 2016). However, there are two main

methods of black-box attack: transferability-based

methods (Hu & Tan, 2018; Papernot et al., 2017;

Rosenberg et al., 2018) and GAN-based methods (Hu

& Tan, 2017; Zhao et al., 2017). In this paper, we use

GAN to construct adversarial examples to bypass a

black-box malware detection system.

Cryptanalysts are in a battle with malware

authors to develop countermeasures to solidify

malware classification systems. Building a secure and

robust machine learning-based detection model is

considered to be an open research problem. GAN,

unlike other gradient-based approaches, needs to

reverse engineer the target classifier to

mathematically prepare the adversarial examples.

Therefore, we suggest using a heterogeneous

ensemble classifier that combines classification and

clustering to produce consolidated classification

results. Many researchers have been focused on the

use of supervised ML algorithms to detect malicious

software. In this paper, we show that the combination

of cluster and classifier ensembles can improve the

malware detection rate. To the best of our knowledge,

no study has investigated the combination of

supervised and unsupervised models for malware

classification. Our study makes use of the algorithm

introduced in (Acharya et al., 2011), whose name is

C3E (from the Consensus between Classification and

Clustering Ensembles). This algorithm assumes that

clusters can provide supplementary constraints that

help to classify new data. The task of combining

classification and clustering at the output level is

mapped into an optimization problem. To classify

new malware and legitimate files, we have used a

C3E based on Squared loss, C3E-SL (Coletta et al.,

2015). This algorithm needs two hyper-parameters:

the relative importance of the classifier and cluster

ensembles (σ), and the number of iterations of the

algorithm (N).

The rest of this paper is organized as follows.

Section 2 presents the related work, Section 3

provides a detailed description of our methodology,

Section 4 explains the implementation of our

proposed method, Section 5 discusses the evaluation

results, and Section 6 describes the future work and

concludes the paper.

2 RELATED WORK

Classifying malware programs using ML-based

algorithms instead of traditional techniques such as

signature-based algorithms, heuristic-based methods

and behavior-based methods has been studied

intensively (Gibert et al., 2020). Several research

papers have been proposed to use standalone

classifiers for malware classification. Nevertheless,

the findings show that using standalone classifiers is

not adequate enough to generalize and identify the

adversarial examples. For instance, deep learning is

claimed to be vulnerable to the manipulation of its

input (Szegedy et al., 2013). As a result, major recent

research has been devoted to hardening the

supervised learning algorithm by incorporating

defensive techniques during the training phase. In this

section, we initially review the most common papers

that propose and investigate countermeasures and

adversarial malware examples. Next, we briefly

outline the ensemble learning techniques that

combine either supervised models, unsupervised

models, or both supervised and unsupervised models.

Grosse and her colleagues (Grosse et al., 2016)

showed how to successfully implement adversarial

examples to bypass feed forward neural networks.

They adopted a forward derivative-based approach

(Papernot, McDaniel, Jha, et al., 2016) to craft the

adversarial examples. The reason for focusing on

forward derivative approaches instead of gradient

descent techniques is that the forward derivatives are

applicable to both supervised and unsupervised

models as well as allowing the adversaries to generate

information for broad families of adversarial samples.

This approach exploits the Jacobian Matrix which

contains the forward derivative of the cost function of

a trained classifier with respect of its input. These

derivatives are used to estimate the direction in which

a perturbation in the input sample can change the

classifier’s output. The adversarial example is

generated by adding a perturbation with a maximal

positive gradient to the benign class to a malicious

sample. Their results indicate that neural networks

should not be used without hardening them against

adversarial samples.

Wang et al (Wang et al., 2017) proposed a

Random Feature Nullification (RFN) which is an

adversary resistant method that prevents attackers

from creating adversarial samples by randomly

nullifying features within the samples. Their

techniques can be viewed as stochastically

“dropping” or omitting neuronal along with their

connections. The results show that the combination of

RFN with Adversarial Training reaches the best level

of resistance.

On the other hand, Ngoc vi et al (Vi et al., 2019)

proposes a solution to the malware classification

SECRYPT 2022 - 19th International Conference on Security and Cryptography

452

problem in a different way which is motivated by the

significant success of a convolutional neural network.

Their method is based on the gradient to attack image-

based malware classification systems by introducing

perturbations to the resource section of PE files. They

apply the FGSM method to generate adversarial

images by adding perturbations to the resource

section of PE files. They conclude that training with

the adversarial examples created by their method can

improve the robustness of a malware classifier.

Grosse et al. (Grosse et al., 2017) introduces two

procedures to detect adversarial examples, namely

statistical tests and training with an outlier class. The

first procedure investigates the ability of a statistical

test to distinguish between benign and adversarial

data points. They claim that the distribution of

original legitimate data is different from the

distribution of adversarial examples. They

empirically proved that statistical tests can be used to

detect adversarial examples before they are fed into a

ML model. In the second procedure, they augment

their ML model with an additional class to represent

the adversarial examples and train the model to

recognize adversarial examples as part of this new

class. They expect that the integration of the two

approaches will be beneficial.

GAN (Goodfellow et al., 2014) has been used

extensively to generate synthetic images to augment

small datasets for DNNs models. Hu and Tan (Hu &

Tan, 2017) exploited GAN to simulate attacks to

evade a black-box malware detection system. The

difference between their proposed algorithm –

MalGAN- and the existing ones is that the adversarial

examples are dynamically generated according to the

feedback of the black-box detector. The generator

transforms a malware binary feature vector into its

adversarial version and then its output is fed to a

black-box detector to label it. The substitute detector,

also known as a discriminator, is used to fit the black-

box detector and provide the gradient information to

train the generator. Both the generator and substitute

detector are part of a multi-layer feed-forward neural

network.

AdvGAN (Xiao et al., 2018) has been proposed to

generate adversarial examples using generative

adversarial networks (GANs). Once AdvGAN is

trained, the feed-forward generator can produce

adversarial perturbations efficiently. The model is

applied in both a semi-white-box and black-box

settings with a high attack success rate. The

adversarial examples generated by AdvGAN on

different target models have achieved higher attack

success rate under state-of-the-art defenses compared

to other adversarial example generating methods.

Jin et al. (Shen et al., 2017) proposed an

adversarial perturbation elimination framework

named APE-GAN to eliminate the perturbation of the

adversarial examples before feeding it into

classification networks. They evaluated their work

under different settings and the results show that the

error rates of the adversarial inputs are significantly

decreased after its perturbation is eliminated by APE-

GAN. Unlike the previous GAN-based methods, AI-

GAN (Bai et al., 2021) presents a new variant of GAN

to generate adversarial examples. In AI-GAN, the

attacker is added to train the discriminator

adversarially. The evaluation of AI-GAN’s attack

ability is applied in white-box with different attack

settings as well as a complicated dataset. AI-GAN

achieves a high attack success rate with a low

generation time in various settings as well as

scalability to complicated datasets.

Ensemble learning has been used for both

unsupervised and supervised models and it has a

better accuracy result than its individual components.

Bagging, Boosting, XG-Boost, Rule Aggregation,

Stacking, and an adaptive mixture of experts are state-

of-the-art supervised ensemble approaches derived

from multiple base classifiers. These ensemble

methods need a huge amount of labeled data and work

at the raw data level. On the other hand, ensemble

techniques in the unsupervised learning are mainly

focused on generating more stable clustering results

by combining multiple partitions or performing

distribution computing under privacy or sharing

constraints (Strehl & Ghosh, 2002). There have been

very limited efforts that combine multiple base

classifiers and clusters (Acharya et al., 2011; Ao et

al., 2014; Chakraborty, 2017; Gao et al., 2011). Every

attempt uses a different strategy to combine

classification and clustering to refine the final

classification results but all of them work at the meta-

output level without accessing the raw data. For

malware classification, few studies have been

conducted leveraging ensemble learning techniques

to improve the malware detection rate (Chen et al.,

2017; Kong & Yan, 2013; Yan et al., 2018; Ye et al.,

2010). As far as we know, there is no study in the

literature that has considered a heterogeneous

ensemble classifier that merges classification and

clustering as a malware classification system.

GAN-based Approach to Crafting Adversarial Malware Examples against a Heterogeneous Ensemble Classiﬁer

453

3 METHODOLOGY

3.1 Problem Definition and

Formalization

Given the deployed malware classification system

under the threat model described below, the adversary

attempts to bypass this system to increase the

misclassification rate of adversarial examples. In

short, a substitute classifier is trained on a dataset that

contains a thousand of binary legitimate and

malicious vectors. Then, an adversarial malicious

sample is generated iteratively by modifying the

limited features of malicious sample until a

misclassification occurs. Finally, the deployed

malware classification system is evaluated under the

attacks at test time.

3.2 Threat Model

We considered black-box attacks during the test time

where the adversary does not know the targeted

malware classifier’s architecture and parameters. Its

knowledge is limited to the type of features and the

predicted class of the target classifier. The adversary’

s goal is to find a sample x that is similar to an original

sample x but classified differently. To achieve this,

we used the MalGAN algorithm (Hu & Tan, 2017) to

find the minimum perturbation to add to x to craft an

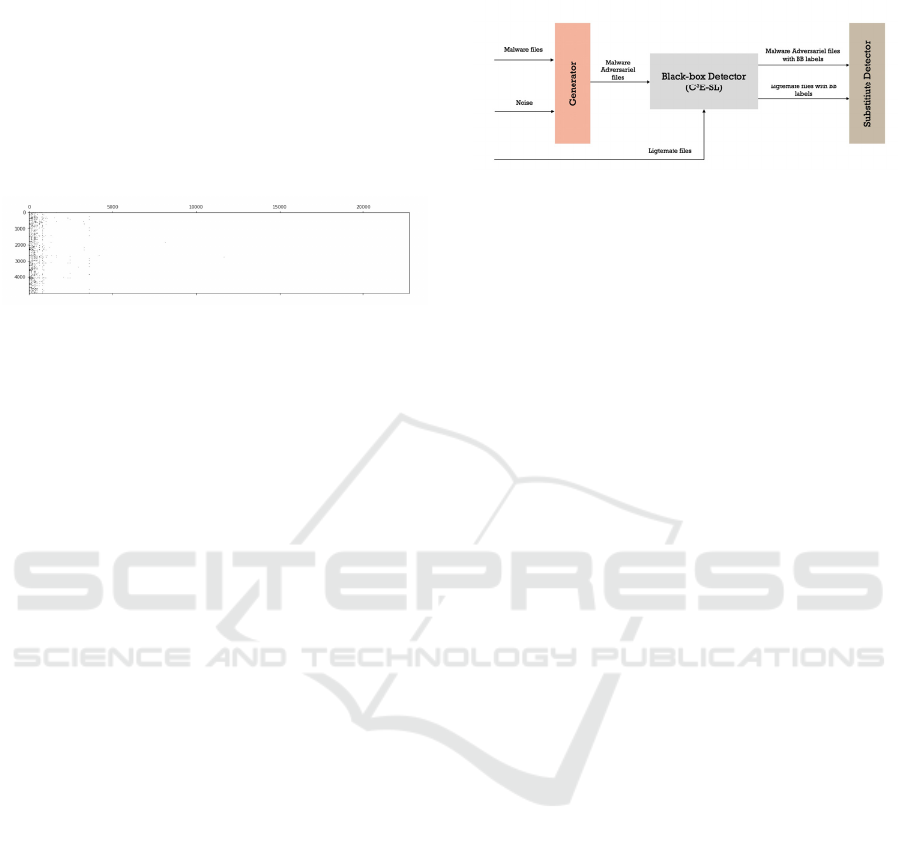

adversarial example. MalGAN has three basic

elements: the generator, the black-box detector, and

the surrogate detector.

The generator produces a perturbation vector O

from a concatenation of malware feature vector m and

a random noise vector z. Each element of z is a

random number sampled from normal distribution

with a mean of 0 and a standard deviation of 1. Since

malware feature values are binary, binarization

transformation is applied to O according to whether

an element is greater than 0.8 or not. This process

produces a binary vector O0. The final generated

adversarial malware example can be expressed as:

= m|O

where ”|” is the element-wise binary

OR operation.

Since m

is a binary vector, this will make the

gradients unable to back propagate from the surrogate

detector to the generator. Therefore, a smooth

function G is defined to receive gradient information

from the surrogate detector as shown below:

G(m, z) = max (m, o) where max(.,.) represents

element-wise max operation such that : When an

element of m is 1, the result of G will be 1 as well

and this will prevent from back propagate the

gradients. When an element of m is 0, the result of G

is the neural network’s real number output in the

corresponding dimension, and the gradient

information can back propagate.

The ground truth classes of training data are not

used to train the surrogate detector. Alternatively, the

black-box detector detects the training data that

consisted of adversarial malware examples from the

generator, and legitimate programs from an additional

legitimate dataset to predict whether a program is

benign or malware. Then the predicted labels from the

black-box detector is used to train the surrogate

detector.

The surrogate detector distinguishes the

adversarial malware samples from legitimate files.

Practically speaking, the generator is trained to

minimize the probability of generated adversarial

malware examples being classified as false by the

surrogate detector while the surrogate detector tries to

maximize the probability of generated adversarial

malware. The surrogate detector tries to mimic the

predications of the black-box detector and provide

gradient information to train the generator. The

generator and the surrogate detector work together to

deceive our heterogeneous ensemble classifier.

GANs come in three popular loss functions: the

original Jensen-Shanon divergence (Goodfellow et

al., 2014), least squares GANs (LSGAN) (Mao et al.,

2017), and Wasserstein distance (WGAN) (Arjovsky

et al., 2017). In this paper, we exploit two variants of

GAN: vanilla GAN and WGAN. WGAN uses

Wasserstein distance for the divergence between

model distribution and target distribution and it has a

smoother gradient which in turn helps to stabilize

training. The MalGAN algorithm does not offer a

mechanism to bound the number of feature

modifications. In this paper, we will tackle this

weakness to ensure the functionality of the

adversarial malware examples.

3.3 Victim Model

The victim model is an ensemble classifier that

combines both classification and clustering. In this

paper, we are trying to verify our hypothesis which

states that a heterogeneous ensemble classifier is

robust against GAN attacks. We adopted the

algorithm introduced by (Acharya et al., 2011) to

build our ensemble classifier. Their algorithm (C3E)

consists of three steps.

1. An ensemble of r1 trained classifiers is applied

to new data X=





i=1

The output of each

constitute classifier for each xi is a k-

dimensional class probability vector πi . From

SECRYPT 2022 - 19th International Conference on Security and Cryptography

454

the set of such vectors 



1=1

, an average

vector can be computed for xi as:





1=1

2. A similarity (co-association) matrix S is

computed after an ensemble of r

trained

clusters are applied on a new data X=





i=1

Each entry in this matrix represents the

similarity between two objects which is simply

the fraction of the r2 cluster solutions in which

the two objects lie in the same cluster.

3. The consolidated result of C3E is achieved

after finding the minimum solution of the

following objective function.

j = x



 + σ

𝑠

j









i ∈ x



i,j



(1)

• The quantity L(.,.) denotes a loss function.

• The first term captures the dissimilarities

between the class probabilities provided by the

ensemble of classifiers and the output vectors

y



i=1

• The second term encodes the weighted

dissimilarity between all possible pairs (yi,yj).

The weights of these pairs are assigned in

proportion to the similarity values sij of matrix

• σ is a hyper-parameter which controls the

relative importance of the classifier and cluster

ensembles.

The problem of classifying the new data X can be

approached as an optimization problem whose

objective is to minimize J. In (Acharya et al., 2011),

the authors state that any Bregman divergence can be

used as the loss function L(.,.) in the last equation.

Bregman divergences include a large number of

useful loss functions such as the well-known squared

loss, KL-divergence, logistic loss, Mahalanobis

distance, and I-divergence. As in (Coletta et al.,

2015), we selected this to exploit a squared loss (SL)

function, hence the optimization over y



i=1

can be a

closed form solution. The objective function in

equation (1) is rewritten as

j =𝑥

‖



 —





‖



+ σ

𝑠

j









i ∈ x



i,j



(1)

By keeping y



j=1

y

 fixed and sitting

∂

0, we

get



 

∑









  

∑





(3)

Equation (3) can be computed iteratively, for all i

∈ {1,2,...,n}, until a maximum number of iterations is

reached, in order to obtain posterior class probability

distributions for the instances in X (Coletta et al.,

2015). The objective of combining unsupervised

models is to provide supplementary constraints for

classifying new data (Banerjee & Ghosh, 2008). This

point of view presumes that the similar new data

points in the test set that lie in the same cluster are

more likely to share the same class label. Thus, we

believe these constraints will improve the

generalization capability of our ensemble classifier.

4 DEFENSIVE MECHANISMS

The most common defensive mechanisms mentioned

in the literature are randomness (Biggio et al., 2010),

preventing overfitting, feature selection (Xu et al.,

2016), distillation (Papernot, McDaniel, Wu, et al.,

2016), ensemble adversarial training (Chinavle et al.,

2009), denoising, random input transformation, non-

linearity (Šrndic & Laskov, 2013), and micro-

detectors (Saad et al., 2019). Our hybrid machine

learning model introduces randomness to the

classifier system through the ensemble of classifiers

and clusters. This randomness prevents the

adversaries accessing the parameters of the

classification system. As a result, we believe this

information hiding technique will be able to avoid

GAN’s attacks.

5 IMPLEMENTATION

5.1 Dataset

The dataset we used in our experiments was

generated as a part of (Al-Dujaili et al., 2018)

collected from Portable Execution (PE) files. This

dataset contains 22,761 binary features. These binary

features are the API calls extracted from malware and

legitimate PE files. The PE format enfolds the

information necessary for Windows OS to manage

the wrapped code. The authors of (Al-Dujaili et al.,

2018) create a corpus of 38,000 malicious and

legitimate PE files. Each PE file is represented as a

binary indicator feature vector. Each index of the

feature vector represents a unique Windows API call

where ”1” represents the presence of the

GAN-based Approach to Crafting Adversarial Malware Examples against a Heterogeneous Ensemble Classiﬁer

455

corresponding API call. We divided the dataset into

training, validation and test sets and the number of

samples in each set is 22800, 7600, and 7600

respectively. Since the dataset is a Boolean matrix,

we can visualize its sparsity using the

Matplotlib.spy() method in Python. As shown in

Figure 1, the dataset is apparently sparse as the graph

is mostly white. Thus, we decided to apply

VarianceThreshold to remove the features with a

variance of less than 20%.

Figure 1: 2D plot to visualize the sparsity of our input

matrix.

5.2 Threat Model's Architecture

As we mentioned in the methodology, we exploited

MalGAN (Hu & Tan, 2017) to simulate evasion

attacks against the proposed black-box detector. The

architecture of MalGAN is presented in Figure 2. We

used ANN with one hidden layer for both the

generator and surrogate detector. To confirm our

selection, we tried different architectures with

different numbers of hidden layers. We found that

using ANN with one hidden layer does not degrade

the performance of both vanilla GAN and WGAN.

On the contrary, it shows comparable results with

ANNs with two and three hidden layers. We set the

number of neurons in the hidden layer to 200 and

added a dropout layer in the surrogate detector after

the hidden layer to ensure it does not overfit the

training set, and the L2 Regularizer applies the loss

function of the generator.

The black-box detector is a trained heterogeneous

ensemble classifier that combines clusters and

classifiers (C3E-SL). The surrogate detector uses the

black-box detector as an oracle to label the

adversarial malware and legitimate files. During

training, the surrogate detector tries to fit the black-

box detector and push the generator to craft

indistinguishable adversarial malware files.

The objective of GAN is to generate

perturbations and add them to malware files to

deceive our black-box detector system. In our

experiments, we considered adding perturbations to

modify the malware files because removing features

may crack the malware files. In this paper, we want

to show that crafting adversarial malware samples by

GAN can transfer across different models.

Nonetheless, they hardly bypassed our hybrid model

and achieved a low fooling rate.

Figure 2: Architecture of our proposed method.

5.3 Restrictions on Adversarial

Crafting

We applied two restrictions to the perturbations

generated by the MalGAN algorithm. First, in the

original implementation of MalGAN, the number of

modifications applied to the original malware files

were not restricted. During the training of MalGAN,

the API call is enabled if the corresponding

dimension of the generator’s output has a value

greater than 0.5. We believe that this threshold will

change the malware application too much, hence it

may not preserve its utility. We decided to increase

this threshold to 0.8. Second, the number of epochs

for training GAN model is a critical hyperparameter

that should be selected carefully. GAN generally is

exploited to synthesize new images that resemble real

images. Thus, the GAN model should be trained for

quite a long time to reach its intended purpose.

However, this cannot be applied to malware files

because we want the generator to enable API calls as

little as possible to fool the discriminator. Therefore,

we have tried a different number of epochs and

discovered that 100 and 50 epochs are a reasonable

choice for vanilla GAN and WGAN, respectively.

5.4 Victim Model's Architecture

As we discussed in the methodology, we consider

randomness to be our defensive technique. This could

be built using combination of classifiers and clusters.

We leveraged (C3E-SL) to refine the initial class

probabilities estimated by the ensemble of classifiers

(Neural Network, SVM, Logistic Regression, and

Random Forest) with the help of the ensemble of

clusters (K-means, Mean-shift, and GMM). All the

classifiers and clusters were trained on the reduced

features set (199 dimensions) after applying

VarianceThreshold.

According to (IBM Support, 2020), Boolean data

is not preferred with K-means. Thus, we converted

our categorical features to continuous features using

SECRYPT 2022 - 19th International Conference on Security and Cryptography

456

PCA before feeding the training set to the K-means

cluster. To evaluate the clustering results of the three

clusters, we exploit Adjusted Rand index (ARI),

which is a function that measures the similarity of two

assignments - the one given by the clustering process

and the other by the true label. Unfortunately, we do

not have knowledge of the ground truth for clustering.

Thus, we alternatively consider analyzing how

similar the clustering results generated by K-means

with GMM and Mean Shift are. More specifically, we

used ARI to calculate the agreement score between

K-means and (GMM and Mean Shift). The aim of this

test was to verify two things. First, we want to

indicate whether similar objects lie in the same

group/cluster in all clustering models. Secondly, is

the similar score going to differ if continuous features

are used instead of categorical features in the GMM

and Mean Shift models? After conducting this test,

we found that using continuous features yields a

higher agreement score by about 99% between the

clustering models.

6 EXPERIMENTAL SETUP

This section discusses the empirical evaluation of our

proposed method. Since it is infeasible that the

authors of malware files and antivirus vendors collect

the same dataset, the attack model (MalGAN) and the

victim model (an ensemble of classifiers and clusters)

were trained on different training sets. The number of

samples in the dataset totaled 38,000 and this total

was distributed according to 22800, 7600, 7600

among the training set, validation set, and test set

respectively. We split the training set into A (20%)

for training the attack model and B (80%) for training

the victim model. To avoid overfitting the standalone

classifiers while tuning their hyper-parameters, we

used the whole validation set. The Adam optimizer

with a learning rate of 0.001 and RMSProp with a

learning rate of 0.0001 were selected as the

optimizers for vanilla GAN and WGAN,

respectively.

To validate the efficiency of the proposed method

in terms of the malware detection rate, we conducted

two experiments where in the first experiment the

adversarial malware examples are crafted by the

vanilla GAN and in the second experiment, they are

crafted by WGAN. In both experiments, we

compared its performance with SVM, RF, LR and

ANN. To guarantee a compatible comparison

between our hybrid model and the base classifiers and

to prevent overfitting, we utilized two generalization

techniques - dropout and L2 regularization. We added

both techniques to the ANN model and L2

regularization to LR and SVM. Dropout randomly

drops hidden units (along with their connections)

from the neural network during training. This

enhances the model generalization and provides a

way of approximately combining many different

neural network architectures efficiently. L2

regularization reduces the likelihood of ANN model

overfitting by preventing the weight of any values

from getting large in magnitude. This is done by

adding a weight penalty to the cost function.

Training both vanilla and Wasserstein GAN

models is hard as they require a delicate balance

between the generator and discriminator. We have

spent a sufficient time tuning the hyper-parameters

considering the constraints we imposed in Section

4.3. We will discuss a few of the findings we noticed

during the training of the threat model before giving

our remarks about the empirical results. First, the

user-defined parameter σ in the (C3E-SL) algorithm

should be assigned a low value because values higher

than 0.0001 will cause C3E-SL to be susceptible to

adversarial attacks during testing. Second, the

generator of WGAN starts to construct

undiscriminating adversarial samples between epoch

35 and epoch 50. Third, vanilla GAN suffers from

gradient fluctuations, hence the loss of the plots

obtained during training is not indicative of getting

highly effective adversarial samples. Table (1) shows

the detection rate of the adversarial malware files

according to five models. As we can see, our model

has achieved the highest rate of 42.8%. The

combination of clusters and classifiers is evidenced to

improve the malware detection rate. It is worth noting

in Figure 3 that the generated adversarial examples

are increasingly rejected by our model after epoch 60.

This is evidence that the surrogate detector of vanilla

GAN is not strong enough to stimulate the generator

to craft adversarial examples that are hardly detected.

On the other hand, the ANN model attained the

second highest detection rate and this is due to a

couple of reasons. First, the two generalization

mechanisms dropout and L2 regularization has

empowered the ANN model to expose 35.6% of the

adversarial malware files. Second, both the attack and

victim models use the same ML algorithm, hence the

adversarial malware files are readily transferred from

MalGAN to ANN. For Random Forest, Logistic

Regression, and SVM, the TPR ranges from 26.8% to

30%.

GAN-based Approach to Crafting Adversarial Malware Examples against a Heterogeneous Ensemble Classiﬁer

457

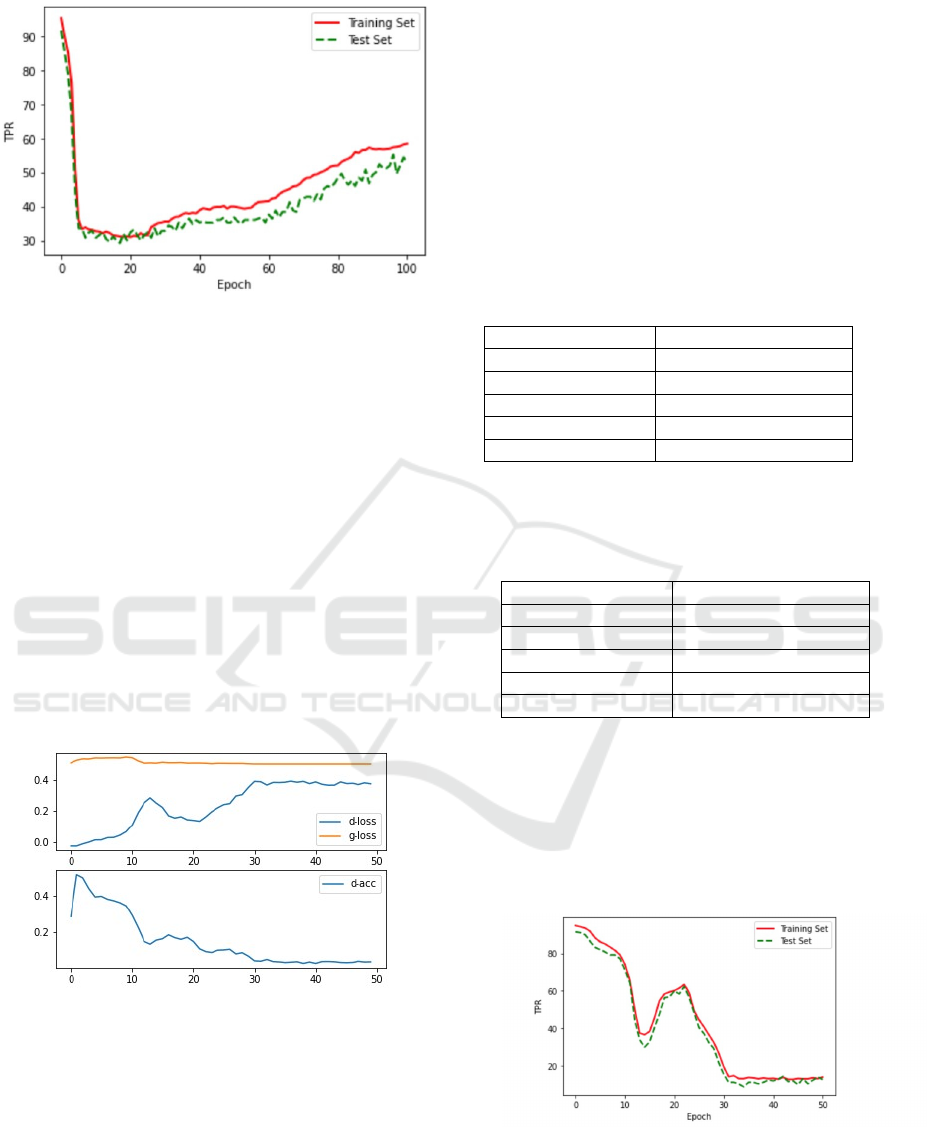

Figure 3: The change in the true positive rate of the training

and test sets during the training of the GAN for 100 epochs.

The black-box detector here is our heterogeneous ensemble

classifier.

One of the tedious issues of training vanilla GAN

is instability, which leads to gradient fluctuations

(Salimans et al., 2016). Wasserstein GAN (WGAN)

overcomes this difficulty. The graphs with a learning

curve and accuracy line for WGAN are presented in

Figure 4. The top subplot shows the line plots for the

average discriminator loss for both malware and

legitimate samples (blue), and the generator loss for

generated adversarial malware samples (orange). We

can see that the discriminator loss is somewhat erratic

in the beginning of the training before stabilizing

around epoch 30. The loss remains stable after that,

even though the variance between the generator and

discriminator increases.

Figure 4: Line plots of loss and accuracy for WGAN.

Table (2) presents the detection rate of the

adversarial examples constructed using WGAN

against the proposed hybrid model. The figures

dramatically decreased for all classification methods.

WGAN-based attacks were able to fool our model

and only 19.2% of adversarial examples were

detected. We justify this result as the ensemble of the

clusters was not able to cluster the adversarial

examples correctly. This affected the final result of

(C3E-SL). The convergence curve of TPR on the

training set and test set is shown in Figure 5. For both

the training and test sets, TPR starts to fall sharply

near the epoch 35. This is due to WGAN starting to

create indistinguishable adversarial examples that

were hardly detected by our model. For the

standalone classifiers, SVM obtained the highest

detection rate at 18% and LR obtained the lowest at

12.4%.

Table 1: True positive rate of the adversarial malware

examples when the attack model is vanilla GAN and the

victim models are four standalone classifiers and our hybrid

model trained on a different training set.

Models Test set

NN 35.6 %

LR 26.8%

SVM 30%

RF 30.4%

Hybrid model 42.8 %

Table 2: True positive rate of the adversarial malware

examples when the attack model is WGAN and the victim

models are four standalone classifiers and our hybrid model

trained on a different training set.

Models Test set

NN 16.4 %

LR 12.4%

SVM 18 %

RF 15.2%

Hybrid model 19.2%

The differences in the detection rate of the

malware samples in Tables (1) and (2) lead us to this

observation. WGAN trains the discriminator more

than the generator and in turn it pushes the generator

to design indistinguishable adversarial samples.

Thus, the highly effective adversarial samples were

solely able to bypass the black-box detector systems.

Figure 5: The change in the true positive rate of the training

and test sets during the training of the WGAN for 50

epochs. The black-box detector here is our heterogeneous

ensemble classifier.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

458

7 CONCLUSION AND FUTURE

WORK

In this paper, we have proposed a framework that has

investigated the viability of heterogeneous machine

learning model against GAN-based evasion attacks.

These kinds of attack are rarely detected by ML-

based malware detectors that are not backed by

defensive techniques. For instance, 87.6% of

adversarial malware examples constructed by

WGAN bypass the Logistic Regression classifier.

The presented empirical results have proven that

combining supervised and unsupervised models can

thwart roughly 42.8% of vanilla GAN-based attacks

and 19.2% of WGAN-based attacks.

There are several aspects that can be investigated

in the future. First, there is the impact of increasing

the number of clusters and classifiers in C3E-SL to

improve the malware detection rate. Second, there is

changing the squared loss in equation (1) for another

Bregman divergence. The third is by applying our

model in different application examples such as spam

and intrusion detection to definitely verify our claims

about the hardness of our proposed method. Fourth is

injecting adversarial examples in the training set and

retraining the hybrid model. We believe that

adversarial retraining will improve the heterogeneous

model’s robustness and encourage it to generalize

well to unseen data.

REFERENCES

Acharya, A., Hruschka, E. R., Ghosh, J., & Acharyya, S.

(2011). C 3 e: a framework for combining ensembles of

classifiers and clusterers. International Workshop on

Multiple Classifier Systems, 269–278.

Al-Dujaili, A., Huang, A., Hemberg, E., & O’Reilly, U.-M.

(2018). Adversarial deep learning for robust detection

of binary encoded malware. 2018 IEEE Security and

Privacy Workshops (SPW), 76–82.

Ao, X., Luo, P., Ma, X., Zhuang, F., He, Q., Shi, Z., & Shen,

Z. (2014). Combining supervised and unsupervised

models via unconstrained probabilistic embedding.

Information Sciences, 257, 101–114.

Arjovsky, M., Chintala, S., & Bottou, L. (2017).

Wasserstein generative adversarial networks.

International Conference on Machine Learning, 214–

223.

Bai, T., Zhao, J., Zhu, J., Han, S., Chen, J., Li, B., & Kot,

A. (2021). Ai-gan: Attack-inspired generation of

adversarial examples. 2021 IEEE International

Conference on Image Processing (ICIP), 2543–2547.

Banerjee, A., & Ghosh, J. (2008). Clustering with balancing

constraints. Constrained Clustering: Advances in

Algorithms, Theory, and Applications, 171–200.

Biggio, B., Fumera, G., & Roli, F. (2010). Multiple

classifier systems for robust classifier design in

adversarial environments. International Journal of

Machine Learning and Cybernetics, 1(1), 27–41.

Chakraborty, T. (2017). Ec3: Combining clustering and

classification for ensemble learning. 2017 IEEE

International Conference on Data Mining (ICDM),

781–786.

Chen, L., Hou, S., & Ye, Y. (2017). Securedroid:

Enhancing security of machine learning-based

detection against adversarial android malware attacks.

Proceedings of the 33rd Annual Computer Security

Applications Conference, 362–372.

Chinavle, D., Kolari, P., Oates, T., & Finin, T. (2009).

Ensembles in adversarial classification for spam.

Proceedings of the 18th ACM Conference on

Information and Knowledge Management, 2015–2018.

Coletta, L. F. S., Hruschka, E. R., Acharya, A., & Ghosh, J.

(2015). A differential evolution algorithm to optimise

the combination of classifier and cluster ensembles.

International Journal of Bio-Inspired Computation,

7(2), 111–124.

Gao, J., Liang, F., Fan, W., Sun, Y., & Han, J. (2011). A

graph-based consensus maximization approach for

combining multiple supervised and unsupervised

models. IEEE Transactions on Knowledge and Data

Engineering, 25(1), 15–28.

Gibert, D., Mateu, C., & Planes, J. (2020). The rise of

machine learning for detection and classification of

malware: Research developments, trends and

challenges. Journal of Network and Computer

Applications, 153, 102526.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., & Bengio,

Y. (2014). Generative adversarial nets. Advances in

Neural Information Processing Systems,

27.

Grosse, K., Manoharan, P., Papernot, N., Backes, M., &

McDaniel, P. (2017). On the (statistical) detection of

adversarial examples. ArXiv Preprint

ArXiv:1702.06280.

Grosse, K., Papernot, N., Manoharan, P., Backes, M., &

McDaniel, P. (2016). Adversarial perturbations against

deep neural networks for malware classification. ArXiv

Preprint ArXiv:1606.04435.

Hu, W., & Tan, Y. (2017). Generating adversarial malware

examples for black-box attacks based on GAN. ArXiv

Preprint ArXiv:1702.05983.

Hu, W., & Tan, Y. (2018). Black-box attacks against RNN

based malware detection algorithms. Workshops at the

Thirty-Second AAAI Conference on Artificial

Intelligence.

IBM Support. (2020). Clustering binary data with K-Means

(should be avoided). IBM.

Kong, D., & Yan, G. (2013). Discriminant malware

distance learning on structural information for

automated malware classification. Proceedings of the

GAN-based Approach to Crafting Adversarial Malware Examples against a Heterogeneous Ensemble Classiﬁer

459

19th ACM SIGKDD International Conference on

Knowledge Discovery and Data Mining, 1357–1365.

Liu, Y., Chen, X., Liu, C., & Song, D. (2016). Delving into

transferable adversarial examples and black-box

attacks. ArXiv Preprint ArXiv:1611.02770.

Mao, X., Li, Q., Xie, H., Lau, R. Y. K., Wang, Z., & Paul

Smolley, S. (2017). Least squares generative

adversarial networks. Proceedings of the IEEE

International Conference on Computer Vision, 2794–

2802.

Papernot, N., McDaniel, P., & Goodfellow, I. (2016).

Transferability in machine learning: from phenomena

to black-box attacks using adversarial samples. ArXiv

Preprint ArXiv:1605.07277.

Papernot, N., McDaniel, P., Goodfellow, I., Jha, S., Celik,

Z. B., & Swami, A. (2017). Practical black-box attacks

against machine learning. Proceedings of the 2017

ACM on Asia Conference on Computer and

Communications Security, 506–519.

Papernot, N., McDaniel, P., Jha, S., Fredrikson, M., Celik,

Z. B., & Swami, A. (2016). The limitations of deep

learning in adversarial settings. 2016 IEEE European

Symposium on Security and Privacy (EuroS\&P), 372–

387.

Papernot, N., McDaniel, P., Wu, X., Jha, S., & Swami, A.

(2016). Distillation as a defense to adversarial

perturbations against deep neural networks. 2016 IEEE

Symposium on Security and Privacy (SP), 582–597.

Rosenberg, I., Shabtai, A., Rokach, L., & Elovici, Y.

(2018). Generic black-box end-to-end attack against

state of the art API call based malware classifiers.

International Symposium on Research in Attacks,

Intrusions, and Defenses, 490–510.

Saad, S., Briguglio, W., & Elmiligi, H. (2019). The curious

case of machine learning in malware detection. ArXiv

Preprint ArXiv:1905.07573.

Salimans, T., Goodfellow, I., Zaremba, W., Cheung, V.,

Radford, A., & Chen, X. (2016). Improved techniques

for training gans. Advances in Neural Information

Processing Systems, 29.

Shen, S., Jin, G., Gao, K., & Zhang, Y. (2017). Ape-gan:

Adversarial perturbation elimination with gan. ArXiv

Preprint ArXiv:1707.05474.

Šrndic, N., & Laskov, P. (2013). Detection of malicious pdf

files based on hierarchical document structure.

Proceedings of the 20th Annual Network \& Distributed

System Security Symposium, 1–16.

Strehl, A., & Ghosh, J. (2002). Cluster ensembles---a

knowledge reuse framework for combining multiple

partitions. Journal of Machine Learning Research,

3(Dec), 583–617.

Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Erhan,

D., Goodfellow, I., & Fergus, R. (2013). Intriguing

properties of neural networks. ArXiv Preprint

ArXiv:1312.6199.

Vi, B. N., Nguyen, H. N., Nguyen, N. T., & Tran, C. T.

(2019). Adversarial examples against image-based

malware classification systems. 2019 11th

International Conference on Knowledge and Systems

Engineering (KSE), 1–5.

Wang, Q., Guo, W., Zhang, K., Ororbia, A. G., Xing, X.,

Liu, X., & Giles, C. L. (2017). Adversary resistant deep

neural networks with an application to malware

detection. Proceedings of the 23rd ACM Sigkdd

International Conference on Knowledge Discovery and

Data Mining, 1145–1153.

Xiao, C., Li, B., Zhu, J.-Y., He, W., Liu, M., & Song, D.

(2018). Generating adversarial examples with

adversarial networks. ArXiv Preprint

ArXiv:1801.02610.

Xu, W., Qi, Y., & Evans, D. (2016). Automatically evading

classifiers. Proceedings of the 2016 Network and

Distributed Systems Symposium, 10.

Yan, J., Qi, Y., & Rao, Q. (2018). Detecting malware with

an ensemble method based on deep neural network.

Security and Communication Networks, 2018.

Ye, Y., Li, T., Chen, Y., & Jiang, Q. (2010). Automatic

malware categorization using cluster ensemble.

Proceedings of the 16th ACM SIGKDD International

Conference on Knowledge Discovery and Data Mining,

95–104.

Zhao, Z., Dua, D., & Singh, S. (2017). Generating natural

adversarial examples. ArXiv Preprint

ArXiv:1710.11342.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

460
