An Object Oriented Approach for Ontology Modeling and Reasoning

Ouassila Labbani Narsis

and Christophe Nicolle

CIAD UMR 7533 Laboratory, Univ. Bourgogne Franche-Comt

e, 21000 Dijon, France

Keywords:

Ontology Engineering, Reasoning, UML Modeling, OCL Constraints Veriﬁcation.

Abstract:

In Industry, IT personnel commonly manipulate the object paradigm for software engineering. Industry 4.0

with its profusion of data requires the implementation of a knowledge engineering approach, breaking with

data processing habits. The way from an object practice to an ontological vision is a gap for most of the

staff, and transition from a business expert model to software implementation is the source of many errors and

delays. Moreover, in ontology engineering, namely that domain experts have signiﬁcant difﬁculties learning

ontology languages and correctly using them. To overcome this problem, this paper presents the ﬁrst results

of a modeling and reasoning approach based on the object paradigm by combining UML modeling and rea-

soning by constraint resolution with OCL. The ontology produced by domain experts can then be checked and

improved by a UML/OCL approach which is easily understandable and often more familiar to engineers.

1 INTRODUCTION AND

MOTIVATION

Ontology Engineering is a subﬁeld of artiﬁcial in-

telligence. It provides a set of activities that con-

cerns methodologies, tools, and languages for build-

ing knowledge models or ontologies in the form of

concepts and their relationships (Corcho et al., 2004;

Mizoguchi, 2004). Deviating from its original philo-

sophical meaning, ontology in computer science de-

notes a formal explicit description of concepts and

their relationships in a speciﬁc domain. The role of

ontologies is to capture domain knowledge generi-

cally and provides a shared and commonly agreed-

upon understanding of a domain (Maedche et al.,

2000).

Various ontology research activities and develop-

ment methodologies are available. They deal with

the process and methodological aspects of ontology

engineering that enable the construction of ontolo-

gies from scratch at the knowledge level (Fern

andez-

opez et al., 1997). Despite all these advancements,

ontology engineering is still a difﬁcult process, and

many difﬁculties remain to be solved. Potential on-

tology developers are facing several challenges, in

particular a steep learning curve and the difﬁculty

of modeling, as well as choosing the right ontology

https://orcid.org/0000-0001-5521-0126

https://orcid.org/0000-0002-8118-5005

tools and dealing with technological limitations (Tu-

dorache, 2020).

Ontology engineering is then a labor-intensive ef-

fort and the cost of entry for a developer into the

ontology engineering area is high (Stadnicki et al.,

2020). As of today, ontologies are mainly created

by highly specialized ontology engineers, and there

is no tool support for the methodology. They are

mainly based on approaches, criteria, and develop-

ment guides related to the skills of experts in a partic-

ular ﬁeld, and are usually inﬂuenced by the targeted

application. Developing, understanding, and using

an ontology becomes a complex task and needs ad-

ditional skills especially for IT people coming from

software engineering and object-oriented program-

ming. This places strong requirements on the com-

petence and experience of the ontology engineering

team which in turn represents a major hurdle to the

industrial adoption of semantic technologies (Lupp

et al., 2020). It is then important to propose new

approaches inspired by the main activities performed

in the software engineering development process to

help users to create formalized knowledge, qualify

their coherence, and be able to adapt and enrich them

according to their needs and constraints. Our expe-

riences in developing ontology-based modeling and

reasoning solutions in an industrial environment are

hampered by a technical ignorance of this knowledge

engineering approach where the vast majority of the

company’s IT personnel have been trained in object

128

Narsis, O. and Nicolle, C.

An Object Oriented Approach for Ontology Modeling and Reasoning.

DOI: 10.5220/0010642800003064

In Proceedings of the 13th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2021) - Volume 2: KEOD, pages 128-135

ISBN: 978-989-758-533-3; ISSN: 2184-3228

programming and UML modeling for software engi-

neering.

In software engineering, Object-Oriented Model-

ing (OOM) has several interesting characteristics in

the representation and conceptualization of knowl-

edge (Engels and Groenewegen, 2000). It allows the

description of a collection of objects to describe sim-

ilar individuals, and relationships or associations to

group similar links between these objects. In this

ﬁeld, the Uniﬁed Modeling Language (UML

) dia-

grams are created and used to visualize and concep-

tualize the design of a system. Moreover, UML mod-

eling, which a user can more readily understand, is

widely used in the industry on large projects to com-

municate and design processes.

Several research works adapt existing object-

oriented development methodologies, in particular

UML modeling, for the task of ontology develop-

ment (Mkhinini et al., 2020). Their objectives are

mainly to propose graphical modeling of ontologies

using UML diagrams, to unify knowledge representa-

tion models, or to validate UML diagrams. However,

no study addresses the perspective of using object-

oriented modeling for reasoning purposes to infer new

knowledge and help users to better understand and

adapt the ontology reasoning process to their needs

and constraints. We believe that this lack is mainly

related to the fact that the ontology is theoretically

found on Description Logic (DL) allowing automated

reasoning, which is not the case for UML modeling.

To deal with this limitation, we propose to add a logic

capability to object-oriented modeling by using Ob-

ject Constraint Language (OCL

). In this paper, we

discuss how OCL constraints veriﬁcation on the UML

model can be used to, on the one hand, verify the con-

sistency of the ontology, and on the other hand, infer

new knowledge according to the veriﬁcation results

of OCL constraints related to the semantics of ontol-

ogy’s axioms. The results can help engineers better

understand their models, easily manage the reasoning

process, detect possible inconsistencies, and provide

solutions.

2 COMBINING OBJECT

ORIENTED MODELING AND

ONTOLOGY ENGINEERING

Ontology development has many parallels with soft-

ware development for knowledge representation.

Object-oriented modeling, and in particular UML

https://www.omg.org/spec/UML/About-UML

https://www.omg.org/spec/OCL/About-OCL

models, are often accepted as a practical ontology

speciﬁcation, mostly because of their ability to model

knowledge in a natural way, and their widespread use

in industry. The similarity between these two lan-

guages has been studied in different research work

combining UML and ontologies (Mkhinini et al.,

2020). In this work, UML is regarded as a suitable

candidate for ontology modeling. In particular, UML

class diagrams provide a rich notation for deﬁning

classes, their attributes, and the relationships between

them. Compared to existing research work combining

UML modeling and ontologies, few studies propose

the integration of OCL language and even less for a

reasoning objective. In (Craneﬁeld and Purvis, 1999;

Craneﬁeld et al., 2001), Craneﬁeld and Purvis discuss

the potential for reasoning about ontologies expressed

using UML with logical expressions in OCL, and

present it as an important subject for future research.

In (Craneﬁeld et al., 2001), authors compared De-

scription Logic (DL) and UML in terms of different

categories of reasoning. They afﬁrm that is possible to

equip UML design tools with similar capabilities, and

further research is needed to clarify what types of in-

ference it would be desirable and possible to support

for ontologies represented in UML. In many cases, we

believe that OCL constraints can be regarded as ex-

tra detail specifying how systems that implement the

ontology should behave, and new knowledge can be

derived from UML models by reasoning about their

contents. To our knowledge, no effort or research

work has been done to prove or implement this per-

spective, and few research work exists on the use of

OCL language in ontology development. In (Fu et al.,

2017) for example, we can ﬁnd an inverse approach

in which authors propose to translate OCL invariant

into OWL2 DL axioms for checking inconsistency of

UML models. An automatic approach to analyze the

consistency and satisﬁability of UML statechart dia-

grams with OCL state invariants using logic ontology

reasoners is presented in (Khan and Porres, 2015).

Some research work is interested in proposing a solu-

tion to interchanging rules and queries between OCL

language and semantic web language (Parreiras and

Staab, 2010; Hafeez et al., 2018; Milanovi

c et al.,

2006; Timm and Gannod, 2007), and others mention

OCL language to represent some attribute constraints

to facilitate the mapping from knowledge model to

software model (Wang and Chan, 2001; Baclawski

et al., 2001).

An Object Oriented Approach for Ontology Modeling and Reasoning

129

3 ONTOLOGY REASONING

USING OCL CONSTRAINTS

VERIFICATION

Ontology reasoner or inference engine is mostly used

to derive new facts from the existing knowledge and

can be used to verify the logical consistency of the

ontology model. There are several types of reasoner

tools proposed by many researchers (Abburu, 2012).

Some of the most popular reasoners are Pellet (Par-

sia and Sirin, 2004), HermiT (Shearer et al., 2008),

and FACT++ (Horrocks, 1998). The inference rules

are commonly speciﬁed by means of a Description

Logic (DL) to perform reasoning tasks about individ-

uals, classes, and properties.

In this section, we describe our approach using the

object-oriented paradigm, in particular, UML/OCL

modeling, to verify the consistency of an ontology

and infer new knowledge. The idea is to automati-

cally generate the UML model from ontology descrip-

tion with OCL constraints related to the semantics of

ontology axioms

. Our approach allows, on the one

hand, to ensure the consistency of the ontology, and

on the other hand, to provide a reasoning system able

to generate and integrate new knowledge according

to OCL constraint veriﬁcation results on the associ-

ated UML model. The obtained results will be used

to help ontology designers by alerting them to pos-

sible inconsistencies or knowledge lacks. This will

increase the level of expressiveness and decidability

of the ontology, and allow it to reach the closed world

assumption (CWA) necessary for the reasoning pro-

cess in the case of critical systems. The purpose of

this work is to provide a conﬁgurable tool allowing to

assist the design, the enrichment, and the consistency

veriﬁcation of an ontology using UML modeling and

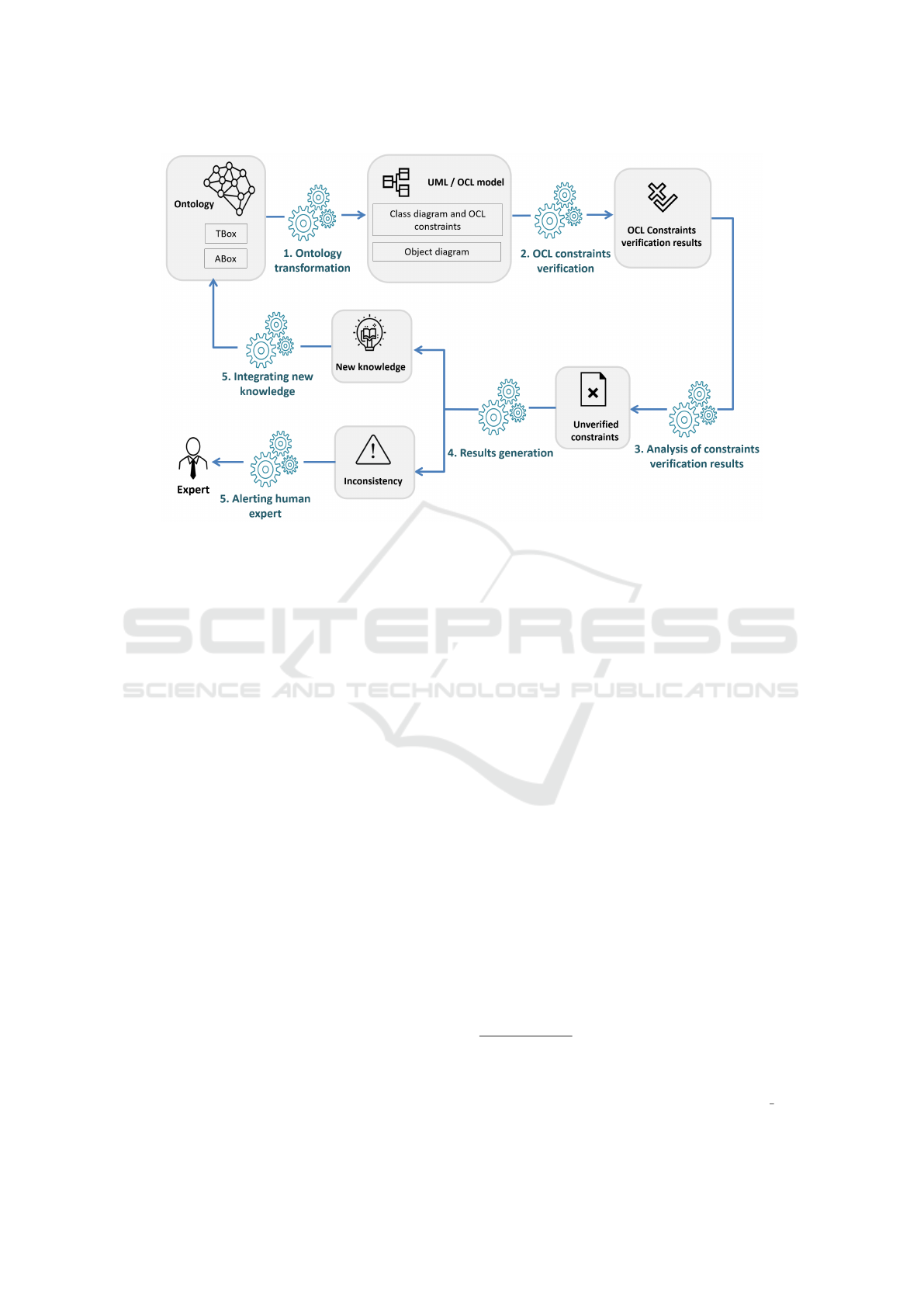

OCL constraint veriﬁcation. The main steps of our

approach are described in ﬁgure 1. We have mainly

ﬁve tasks in our reasoning process:

3.1 Ontology Transformation

The objective of this task is to automatically generate

the UML/OCL model related to the input ontology.

This transformation process allows the deﬁnition of

the class diagram and OCL constraints related to the

ontology terminological components and axioms se-

mantics (TBox level), and object diagram represent-

ing individuals deﬁned in the ontology and their re-

lationships (ABox level). An example of transforma-

tion rules is described in section 4.

In this paper, we only present the ﬁrst results on atomic

classes and object properties.

In UML modeling, OCL constraints veriﬁcation

must be performed on instances of the model de-

scribed by a UML object diagram. To ensure the

veriﬁcation of all generated OCL constraints and not

be limited by individuals deﬁned in the ontology, and

also to take into account unpopulated ontologies, we

propose to automatically generate an object diagram

with an instance of each class of the ontology.

3.2 OCL Constraints Veriﬁcation

After generating the UML/OCL model, constraints

veriﬁcation will be applied to the object diagram

to ﬁnd unveriﬁed constraints. There are several

UML/OCL tools allowing efﬁcient and automatic

constraints veriﬁcation and analysis (Gonz

alez and

Cabot, 2014; Richters and Gogolla, 2002). In our ap-

proach, we propose to use the UML Speciﬁcation En-

vironment USE

which supports UML modeling and

OCL constraints description and validation (Gogolla

et al., 2007). The purpose of this task is to provide the

veriﬁcation result of each OCL constraint, as well as

the list of individuals concerned by this veriﬁcation.

3.3 Analysis of Constraints Veriﬁcation

Results

In this task, we proceed to the extraction and analysis

of unveriﬁed constraints with concerned individuals.

In the object-oriented paradigm, if an OCL constraint

is not veriﬁed, this may be related to either an error in

the design of the model or a knowledge lack in the on-

tology description. This is the closed world assump-

tion (CWA) which asserts that a statement is true only

if it is known to be true and that knowledge of a sys-

tem is known to be complete. The result of this analy-

sis task will be used to detect inconsistency or missing

knowledge that can be generated and integrated into

the ontology.

3.4 Results Generation

Depending on the unveriﬁed constraint type and the

semantics of ontology axioms, this task allows detect-

ing either the presence of an inconsistency in the on-

tology and then alert the designer, or a lack of knowl-

edge that can be automatically generated and inte-

grated into the ontology using our transformation pro-

cess and after expert validation.

https://sourceforge.net/projects/useocl

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

130

Figure 1: Main steps of the UML/OCL reasoning process.

3.5 Integrating New Knowledge or

Alerting Human Expert

According to the result of the previous task, this step

consists of displaying a warning message to alert the

designer in the case of inconsistency detection or dis-

playing the list of new knowledge that can be inte-

grated into the ontology. This process is iterative and

will continue until all OCL constraints are veriﬁed

and no new knowledge to generate.

4 TRANSFORMATION EXAMPLE

OF ONTOLOGY IN UML/OCL

MODEL

This section presents a simple example of transforma-

tion rules of OWL2 axioms to the UML/OCL model

for reasoning purpose. In our approach, we use

UML class diagram and OCL constraints to model

the domain of interest as a set of terminological ax-

ioms (TBox statements); and UML object diagram

to model individuals as a set of assertional axioms

(ABox statements), and on which OCL constraints

will be veriﬁed to prove the consistency of the model

and infer new knowledge.

All transformation rules are based on the seman-

tics of OWL2 axioms according to the W3C struc-

tural speciﬁcation and fonctional-style syntax

. In our

study, we use the Prot

e tool

for ontology descrip-

tion, and the UML Speciﬁcation Environment USE

to support UML modeling and OCL constraints veri-

ﬁcation.

Our transformation process is mainly based on

two steps:

1. Transforming each element of the ontology to its

equivalent in the UML model with the associated

OCL constraints.

2. Adding OCL constraints describing the semantics

of each axiom and its relation to other axioms in

the model.

For the subclass axiom SubClassOf (C

)

for

example, which means that C

is a subclass of C

we, ﬁrst, translate the axiom on its equivalent in the

UML model. In this case, we propose to use the

UML generalization to express subclass relations and

hierarchy. The subclass axiom is then represented in

the UML model by a generalization link between C

and C

, and the following OCL constraint to ensure

this property:

context C

inv:

self.oclIsKindOf(C

)

https://www.w3.org/TR/owl2-syntax/

https://protege.stanford.edu/

https://sourceforge.net/projects/useocl

https://www.w3.org/TR/owl2-syntax/#Subclass

Axioms

An Object Oriented Approach for Ontology Modeling and Reasoning

131

Table 1 gives a simple example of the application

of this ﬁrst transformation step.

Table 1: First transformation step example.

Input OWL2 model:

SubClassOf(Child Person)

Output UML/OCL model:

context Child inv:

self.oclIsKindOf(Person)

Second, we generate for this subclass axiom all

OCL constraints allowing us to ensure its semantics

in relation to the other ontology’s axioms. For ex-

ample, in relation to the equivalent classes axiom

EquivalentClasses(C

... C

), which states that

all of the classes C

, 1≤i≤n, are semantically equiv-

alent to each other, if C

is a subclass of C

, and if an

equivalent classes axiom is deﬁned between C

and C

then C

is also a subclass of C

, and a subclass of each

class deﬁned as equivalent to C

. To ensure this prop-

erty, we add the following OCL constraints:

context C

inv:

self.oclIsKindOf(C

and:

context C

inv:

self.oclIsKindOf(C

), for each C

equivalent to

Table 2 gives a simple example of the application

of this second transformation step. In this example,

we show only the UML model and OCL constraints

related to the subclass axiom. Those related to the

equivalent classes axiom are not described in the ex-

ample.

The veriﬁcation of generated OCL constraints al-

lows the detection of errors or missing information in

the ontology if C

is not deﬁned as a subclass of C

(or a subclass of C

in the case of equivalent classes).

Based on this veriﬁcation result, we can automati-

cally generate the associated new knowledge that can

be added to the ontology. This new knowledge is

Table 2: Second transformation step example.

Input OWL2 model:

SubClassOf(Child Person)

EquivalentClasses (Human Person)

Output UML/OCL model:

context Child inv:

self.oclIsKindOf(Person)

context Child inv:

self.oclIsKindOf(Human)

related to the following axioms: SubClassOf(C

and SubClassOf(C

), for each C

equivalent to C

In our example (Table 2), the second OCL constraint

verifying that any individual of type Child must also

be of type Human will not be veriﬁed since in the auto-

matically generated UML model, the Child class does

not inherit from the Human class. This veriﬁcation re-

sult will be used to automatically generate the new

knowledge SubClassOf(Child Human) that can be in-

tegrated into the ontology.

We note that in our transformation process, and

to resolve the semantic difference between UML and

OWL2 languages, we proposed in some speciﬁc cases

adapted transformation rules. For example, the equiv-

alent classes axiom between C

and C

means that

every instance of C

class is also an instance of C

class, which is equivalent to the following two ax-

ioms: SubClassOf(C

), SubClassOf(C

). How-

ever, in UML modeling, it is not possible to deﬁne

cycle in generalization hierarchy. We cannot express

in the same model that C

is a subclass of C

, and C

is a subclass of C

. To address this limitation, we

proposed in the transformation process to add a new

generic class C

that inherits from C

and C

. In this

case, each individual in the ontology of type C

or C

will be implicitly transformed and considered in the

UML model as an instance of the new generic class

. Another speciﬁc case is related to the transfor-

mation of object properties. We proposed to repre-

sent each object property by an association class in-

stead of a simple association link. This allows to eas-

ily associate OCL constraints to the object property

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

132

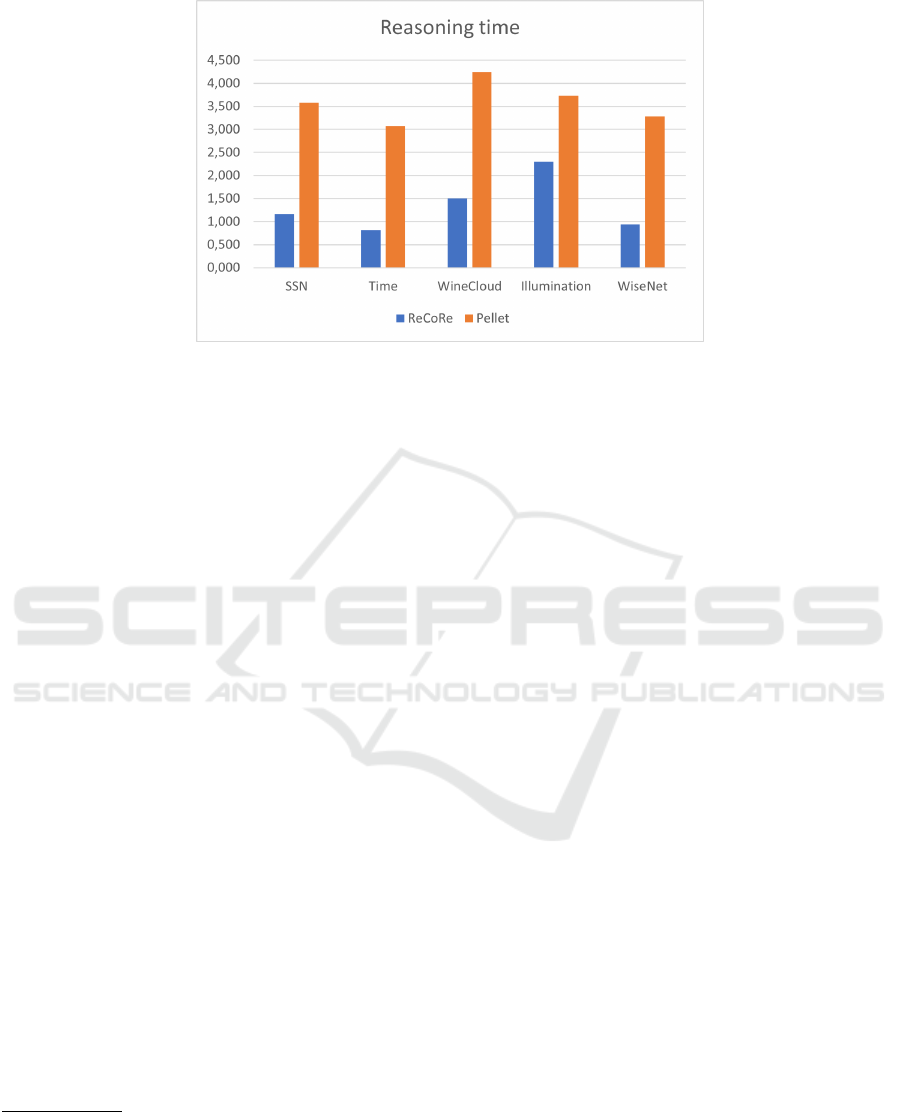

Figure 2: Reasoning time comparison.

that are necessary for the generation of new knowl-

edge related to its axioms. We note that the obtained

UML model can be simpliﬁed by removing speciﬁc

elements like generic classes and association classes

to be more intuitive and easy to understand for users.

Due to the page limit, we can’t detail all transforma-

tion rules and speciﬁc adaptations we have done to

deal with the modeling difference between semantic

paradigm and object-oriented paradigm.

5 IMPLEMENTATION AND

EXPERIMENTATION

To test our approach, we have implemented ReCoRe

(Reasoning by Constraint Resolution) application to

automate all steps described in ﬁgure 1, and we tested

its application for several ontologies such as: SSN

Time

, Winecloud

, Illumination

, and WiseNet

The number of inferred triples generated by our

application is summarized in table 3 and ﬁgure 3. We

have compared all inferred triples generated by our

application with that generated by Pellet reasoner

and it matches for studied axioms related to atomic

classes and object properties. We have also compared

time reasoning and the obtained results are interesting

as shown in table 3 and ﬁgures 2. We are rather care-

ful in interpreting the results given by the comparison

tests with Pellet. We see in table 3 that the Pellet rea-

soner is slower. However, we have only dealt with

https://www.w3.org/2005/Incubator/ssn/ssnx/ssn

https://www.w3.org/TR/owl-time/

https://ontology.winecloud.checksem.fr

https://hal.archives-ouvertes.fr/hal-02329636

https://hal.archives-ouvertes.fr/hal-01342886

https://github.com/stardog-union/pellet

a sub-part of the constraints that Pellet can manage.

Our goal is not to do faster than Pellet but to build a

bridge between knowledge engineering and software

engineering. This result shows the feasibility of our

approach using UML modeling and OCL constraint

veriﬁcation to infer new knowledge. In our applica-

tion, each inferred knowledge is explained, and the

user can select which ones he wants to be integrated

into the ontology according to its needs.

6 CONCLUSIONS AND FUTURE

WORK

Industry 4.0 is a new challenge for IT departments.

Used to the development of data storage, exchange,

and visualization solutions, they must now manage

the meaning of data with regard to its context of cre-

ation and operation. Unfortunately, knowledge engi-

neering methods and tools are still poorly understood

and little practiced in these environments. To facili-

tate the adoption of these approaches by IT person-

nel, we have developed an approach based on UML

and OCL to model knowledge and allow reasoning.

This paper presents the ﬁrst results of our ap-

proach using UML modeling and OCL constraints

veriﬁcation to infer new knowledge from an ontology.

Our approach consists of transforming ontology in a

UML model with OCL constraints according to the

semantics of ontology axioms. We have shown that

OCL constraint veriﬁcation results can be used to au-

tomatically infer new knowledge from an ontology.

The objective of this approach is to facilitate the use

of ontologies in the industrial ﬁeld. Obtained results

clearly show the feasibility of our approach, and that

UML and OCL modeling has good promises in mod-

An Object Oriented Approach for Ontology Modeling and Reasoning

133

Table 3: Experimentation results.

Ontology Number

of triples

Number

of classes

Number

of inferred

triples

ReCoRe rea-

soning time

(s)

Pellet reason-

ing time (s)

SSN 156 51 60 1,160 3,576

Time 146 20 155 0,815 3,079

WineCloud 244 42 231 1,507 4,241

Illumination 289 49 778 2,302 3,726

WiseNet 177 27 212 0,943 3,280

Figure 3: Number of inferred triples.

eling and reasoning on ontologies.

This study is part of ongoing work. Presented

results mainly concern transformation rules related

to atomic classes and object properties. Less triv-

ial transformations of other parts of the ontology are

in progress and under evaluation. Future works will

ﬁnalize transformation rules of all ontology axioms,

do a comparative study with several reasoners such

as HermiT

and FACT++

. A comparative study

of our approach with other validation models such as

ShEx (Shape Expression Schema) (Prud’hommeaux

et al., 2014; Staworko et al., 2015) and SHACL

(Shapes Constraint Language)

will be conducted,

and a template or a common structure will be pro-

posed to help users in writing OCL constraints to con-

trol and specialize their ontology. Other perspectives

are related to the use of UML modeling to implement

the ontology as an object-oriented program and man-

age its dynamic part.

http://www.hermit-reasoner.com/

http://owl.cs.manchester.ac.uk/tools/fact/

https://www.w3.org/TR/shacl/

ACKNOWLEDGEMENTS

The author would like to thank Nicolas Gros, the en-

gineer who implemented transformation rules and the

ReCoRe application interface.

REFERENCES

Abburu, S. (2012). A survey on ontology reasoners and

comparison. International Journal of Computer Ap-

plications, 57(17).

Baclawski, K., Kokar, M. K., Kogut, P. A., Hart, L., Smith,

J., Holmes, W. S., Letkowski, J., and Aronson, M. L.

(2001). Extending uml to support ontology engineer-

ing for the semantic web. In International Conference

on the Uniﬁed Modeling Language, pages 342–360.

Springer.

Corcho, O., G

omez-P

erez, A., and Fern

andez-L

opez, M.

(2004). Ontological engineering. With examples from

the areas of Knowledge Management, e-Commerce

and the Semantic Web (Advanced Information and

Knowledge Processing).

Craneﬁeld, S., Haustein, S., and Purvis, M. (2001). Uml-

based ontology modelling for software agents.

Craneﬁeld, S. and Purvis, M. K. (1999). Uml as an on-

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

134

tology modelling language. In Intelligent Information

Integration.

Engels, G. and Groenewegen, L. (2000). Object-oriented

modeling: a roadmap. In Proceedings of the Con-

ference on the Future of Software Engineering, pages

103–116.

Fern

andez-L

opez, M., G

omez-P

erez, A., and Juristo, N.

(1997). Methontology: from ontological art towards

ontological engineering.

Fu, C., Yang, D., Zhang, X., and Hu, H. (2017). An ap-

proach to translating ocl invariants into owl 2 dl ax-

ioms for checking inconsistency. Automated Software

Engineering, 24(2):295–339.

Gogolla, M., B

uttner, F., and Richters, M. (2007). Use:

A uml-based speciﬁcation environment for validat-

ing uml and ocl. Science of Computer Programming,

69(1-3):27–34.

Gonz

alez, C. A. and Cabot, J. (2014). Formal veriﬁca-

tion of static software models in mde: A system-

atic review. Information and Software Technology,

56(8):821–838.

Hafeez, A., Musavi, S. H. A., and ur Rehman, A. (2018).

Ontology-based veriﬁcation of uml class/ocl model.

Mehran University Research Journal of Engineering

& Technology, 37(4):521–534.

Horrocks, I. (1998). The fact system. In Interna-

tional Conference on Automated Reasoning with Ana-

lytic Tableaux and Related Methods, pages 307–312.

Springer.

Khan, A. H. and Porres, I. (2015). Consistency of uml

class, object and statechart diagrams using ontology

reasoners. Journal of Visual Languages & Comput-

ing, 26:42–65.

Lupp, D. P., Hodkiewicz, M., and Skjæveland, M. G.

(2020). Template libraries for industrial asset mainte-

nance: A methodology for scalable and maintainable

ontologies. In CEUR Workshop Proceedings, volume

2757, pages 49–64. Rheinisch-Westfaelische Technis-

che Hochschule Aachen* Lehrstuhl Informatik V.

Maedche, A., Schnurr, H.-P., Staab, S., and Studer, R.

(2000). Representation language-neutral modeling of

ontologies. In Proceedings of the German Workshop”

Modellierung-2000”. Koblenz, Germany, pages 129–

142.

Milanovi

c, M., Ga

sevi

c, D., Giurca, A., Wagner, G., and

Deved

c, V. (2006). On interchanging between

owl/swrl and uml/ocl. In Proceedings of 6th Workshop

on OCL for (Meta-) Models in Multiple Application

Domains (OCLApps) at the 9th ACM/IEEE Interna-

tional Conference on Model Driven Engineering Lan-

guages and Systems (MoDELS), Genoa, Italy, pages

81–95.

Mizoguchi, R. (2004). Tutorial on ontological engineering

part 2: Ontology development, tools and languages.

New Generation Computing, 22(1):61–96.

Mkhinini, M. M., Labbani-Narsis, O., and Nicolle, C.

(2020). Combining uml and ontology: An exploratory

survey. Computer Science Review, 35:100–223.

Parreiras, F. S. and Staab, S. (2010). Using ontologies

with uml class-based modeling: The twouse approach.

Data & Knowledge Engineering, 69(11):1194–1207.

Parsia, B. and Sirin, E. (2004). Pellet: An owl dl reasoner.

In Third international semantic web conference-

poster, volume 18, page 13. Citeseer.

Prud’hommeaux, E., Labra Gayo, J. E., and Solbrig, H.

(2014). Shape expressions: an rdf validation and

transformation language. In Proceedings of the 10th

International Conference on Semantic Systems, pages

32–40.

Richters, M. and Gogolla, M. (2002). Ocl: Syntax, seman-

tics, and tools. In Object Modeling with the OCL,

pages 42–68. Springer.

Shearer, R., Motik, B., and Horrocks, I. (2008). Hermit: A

highly-efﬁcient owl reasoner. In Owled, volume 432,

page 91.

Stadnicki, A., Pietro

n, F. F., and Burek, P. (2020). Towards a

modern ontology development environment. Procedia

Computer Science, 176:753–762.

Staworko, S., Boneva, I., Gayo, J. E. L., Hym, S.,

Prud’Hommeaux, E. G., and Solbrig, H. (2015). Com-

plexity and expressiveness of shex for rdf. In 18th

International Conference on Database Theory (ICDT

2015).

Timm, J. T. and Gannod, G. C. (2007). Specifying se-

mantic web service compositions using uml and ocl.

In IEEE International Conference on Web Services

(ICWS 2007), pages 521–528. IEEE.

Tudorache, T. (2020). Ontology engineering: Current

state, challenges, and future directions. Semantic Web,

11(1):125–138.

Wang, X. and Chan, C. W. (2001). Ontology modeling us-

ing uml. In OOIS 2001, pages 59–68. Springer.

An Object Oriented Approach for Ontology Modeling and Reasoning

135
