Accurate 3D Object Detection from Point Cloud Data using Bird’s Eye

View Representations

Nerea Aranjuelo

1,2

, Guus Engels

, David Montero

1,2

, Marcos Nieto

Ignacio Arganda-Carreras

2,4,5

, Luis Unzueta

and Oihana Otaegui

Vicomtech, Basque Research and Technology Alliance (BRTA), San Sebastian, Spain

University of the Basque Country (UPV/EHU), San Sebastian, Spain

AI In Motion (AIIM), Eindhoven, The Netherlands

Ikerbasque, Basque Foundation for Science, Bilbao, Spain

Donostia International Physics Center (DIPC), San Sebastian, Spain

Keywords:

Point Cloud, Object Detection, Deep Neural Networks, LiDAR.

Abstract:

In this paper, we show that accurate 3D object detection is possible using deep neural networks and a Bird’s

Eye View (BEV) representation of the LiDAR point clouds. Many recent approaches propose complex neural

network architectures to process directly the point cloud data. The good results obtained by these methods

have left behind the research of BEV-based approaches. However, BEV-based detectors can take advantage of

the advances in the 2D object detection ﬁeld and need to handle much less data, which is important in real-

time automotive applications. We propose a two-stage object detection deep neural network, which takes BEV

representations as input and validate it in the KITTI BEV benchmark, outperforming state-of-the-art methods.

In addition, we show how additional information can be added to our model to improve the accuracy of the

smallest and most challenging object classes. This information can come from the same point cloud or an

additional sensor’s data, such as the camera.

1 INTRODUCTION

Over the last years, object detection has attracted

much research attention in the computer vision ﬁeld.

Different methods have emerged related to an increas-

ingly improved 2D object detection thanks to the ad-

vances in Deep Learning (DL) (Ren et al., 2015; Du

et al., 2020). However, many applications, such as ad-

vanced driving, need 3D object detection. 3D object

detection is a less mature problem compared to 2D

detection, but it is fundamental for perception sys-

tems in the automotive ﬁeld. In the last years, the

rapid progress of deep neural networks (DNNs) and

the emergence of the LiDAR sensor for the automo-

tive, have promoted the research in 3D object detec-

tion from LiDAR data.

Data captured by the LiDAR sensor is used to

construct 3D point clouds, which can be interpreted

as sparse 3D reconstructions of the ego-vehicle sur-

roundings, as shown in Figure 1. Different data repre-

sentations have been explored to adequate these point

clouds for the object detection algorithms. The ﬁrst

methods mainly focused on converting the point cloud

to image-like representations, most of the time Bird’s

Eye View (BEV) or front view representations (Zhou

et al., 2019b). Recently, methods that process the

3D point clouds directly have gained popularity (Yan

et al., 2018; Lang et al., 2019). These methods show

good results and have replaced most of the previous

image-based models in the 3D object detection bench-

marks, such as the KITTI benchmark (Geiger et al.,

2012).

In this work, we show that accurate 3D object de-

tection can be done using the BEV representation of

LiDAR point clouds. We design a two-stage object

detection network architecture, which processes BEV

images and predicts robust 3D object detections. We

validate our approach in the KITTI benchmark and

show state-of-the-art results with no need for complex

detection pipelines. Our work proves that BEV-based

detection research should not be left behind. BEV-

based object detection has advantages compared to

direct point cloud processing. For example, it relies

on a light-weight representation of the scene. A Velo-

246

Aranjuelo, N., Engels, G., Montero, D., Nieto, M., Arganda-Carreras, I., Unzueta, L. and Otaegui, O.

Accurate 3D Object Detection from Point Cloud Data using Bird’s Eye View Representations.

DOI: 10.5220/0010688400003063

In Proceedings of the 13th International Joint Conference on Computational Intelligence (IJCCI 2021), pages 246-253

ISBN: 978-989-758-534-0; ISSN: 2184-3236

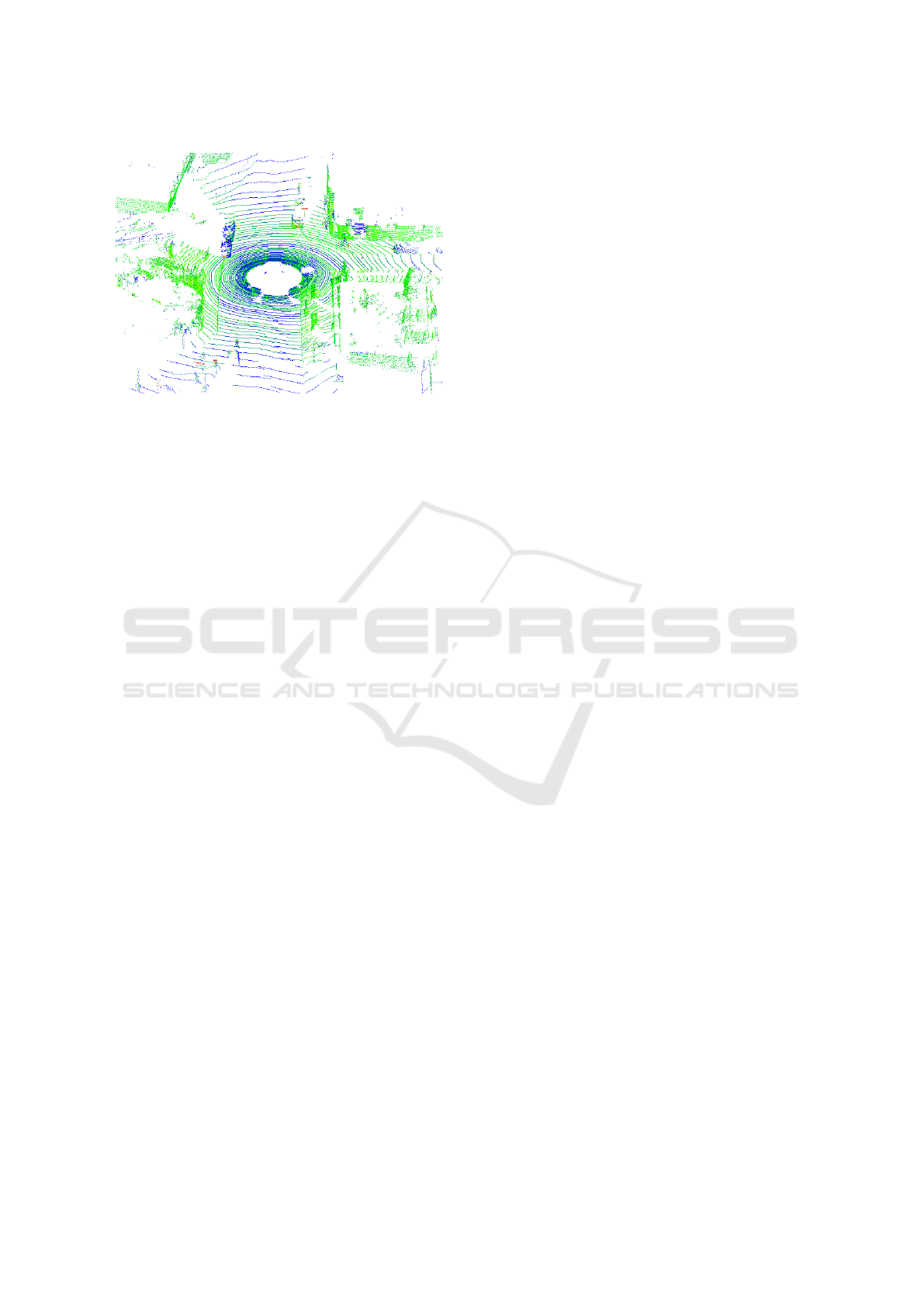

Figure 1: 3D point cloud generated using the data captured

by a LiDAR (example scan from the KITTI benchmark).

dyne HDL-64E generates a point cloud up to 2.2 mil-

lion points per second, but the BEV representation re-

duces this point cloud to a 3-channel image covering

the area of interest. This image could be easily shared

with other agents in a cooperative scenario, allows a

fast inference, and is less resource-demanding than

processing a 3D point cloud. Our results demonstrate

that these conveniences are not at odds with high de-

tection accuracy.

Our contribution is twofold:

• We propose an object detection neural network for

LiDAR data that achieves state-of-the-art accu-

racy in the KITTI BEV benchmark with a simple

and reproducible object detection pipeline based

on BEV representations.

• We show how different additional data can be

added to the point cloud BEV representation to

boost small objects’ accuracy using the proposed

architecture.

2 RELATED WORK

2.1 Point Cloud Representations for

Image-oriented Architectures

When 3D object detection using DNNs and the Li-

DAR started gaining attention, most of the focus was

still on 2D object detection for image data. Con-

sequently, many methods converted point clouds to

image-like data so that state-of-the-art detectors could

be used.

In the literature, we ﬁnd two main ways to do

the conversion from point cloud to image. The ﬁrst

way is using a front view image in a polar coordinate

representation, which is the native representation of

the LiDAR sensor. 3D points from the LiDAR data

are projected on a depth map to create a front view

image (Zhou et al., 2019b). The images produced

are similar to the images from a camera. These im-

ages have a dense pixel representation. Consequently,

there may be occlusions between the objects in the

image, and the objects’ size is related to the distance

to the sensor. Different works use the front view as

the only or as a complementary representation (Chen

et al., 2017).

The second approach is creating a BEV im-

age (Yang et al., 2018), which represents the point

cloud from a top view perspective. With this ap-

proach, there might be a big compression in the height

dimension. This could be a challenge for classes that

are difﬁcult to see from a top view perspective (e.g.,

pedestrians) because most of their information is in

the height dimension. However, thanks to the top-

view perspective, objects are clearly separated and

there are no occlusions between them. Moreover, all

objects of a speciﬁc class are the same size, indepen-

dent of the distance to the sensor, as the object di-

mensions are proportional to the real ones. The BEV

representation has been the most used pre-processing

step for 3D object detection from the LiDAR data and

is used by many methods (Yang et al., 2018; Simon

et al., 2019).

DNNs are not limited to one of the described rep-

resentations and some methods combine the beneﬁts

of both. Some of these networks do not only rely on

the LiDAR but they also add front camera data (Qi

et al., 2018).

2.2 Image-oriented Architectures for

Object Detection

Object detection DNN architectures are often divided

in two main categories. The ﬁrst is a single-stage

approach like YOLO (Redmon and Farhadi, 2018)

where anchor boxes are directly related to output

boxes. Two-stage methods like Faster R-CNN (Ren

et al., 2015) ﬁrst try to identify regions of interest

(ROIs) that are likely to hold an object and then, in the

second stage, ﬁt the bounding more tightly around the

object and decide to which class the object belongs

to. Generally the single stage models are faster while

the two-stage methods are more accurate. Both cate-

gories are the base of most 3D object detection works

(Simon et al., 2019; Chen et al., 2017).

Accurate 3D Object Detection from Point Cloud Data using Bird’s Eye View Representations

247

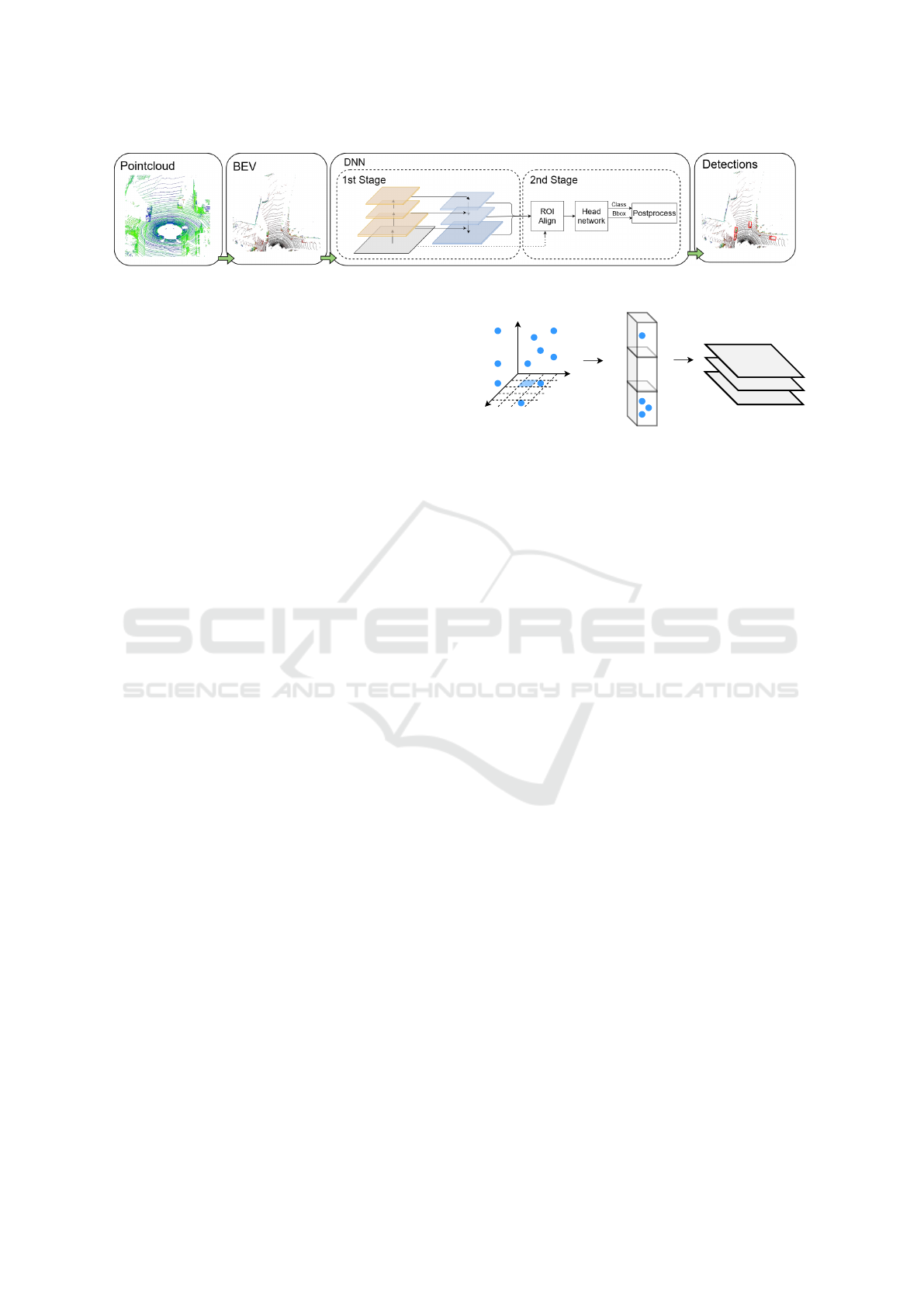

Figure 2: Proposed 3D object detection pipeline from LiDAR point cloud data.

2.3 Point Cloud Processing

Architectures

Converting point clouds to images involves gener-

ating a representation based on engineered features.

Some recent architectures for 3D object detection pro-

pose to learn on the point cloud data directly without

the conversion to image-like data. One of the ﬁrst

methods that applied this idea is VoxelNet (Zhou and

Tuzel, 2018). They use a VFE-layer to learn fea-

tures from all the raw points in a particular voxel.

PointNet (Qi et al., 2017) goes a step further and can

directly consume points without any voxelization or

pre-processing. Although the original paper is not ap-

plied to the KITTI benchmark, it is the foundation for

many other methods (Yan et al., 2018; Lang et al.,

2019; Zhou et al., 2020; Shi et al., 2018). Due to the

improved accuracy of these methods in benchmarks

such as KITTI, little attention is paid now to the devel-

opment of better BEV-based methods. Most state-of-

the-art networks are based on a VoxelNet or PointNet-

like approach. Handling directly the point cloud data

involves some extra challenges, such as the volume of

data to be processed in real-time or the unstructured

form of the data. BEV-based methods are left behind

without a clear answer to the following questions: is it

better to process point clouds directly? Is it possible

to achieve similar results with BEV-based methods?

In this work, we aim at answering these questions.

3 METHODS

We propose a DNN that takes as input the BEV rep-

resentation of a point cloud and outputs the 2D ori-

ented bounding boxes corresponding to the detected

objects. The heights of the 3D boxes are estimated

based on the highest point inside each box. The entire

pipeline is shown in Figure 2.

3.1 Point Cloud to BEV Representation

Our approach ﬁrst converts the point clouds to BEV

images. Different works use varying conﬁgurations,

resolutions and amount of height channels for this

Figure 3: Point cloud conversion to BEV representation.

step. We opt for keeping the height of the highest

points in every voxel as in (Aranjuelo et al., 2020).

This process is shown in Figure 3.

We consider a resolution of 0.1m for discretiz-

ing the point cloud in a grid of columns from a

top-view perspective. We keep the height informa-

tion in 3 channels to have an RGB-like data struc-

ture. Each column is divided into three voxels. Each

voxel is of size 0.1m × 0.1m × 1m, which results in

a 700 × 700 × 3 image (we consider a maximum dis-

tance of 70m in the longitudinal direction and 35m in

both sides in the lateral direction). For every pixel,

there will be three voxels. From all the points in each

voxel, we only keep the highest point’s height infor-

mation and discard the rest. This process compresses

the data but leaves enough information to detect ob-

jects.

3.2 Baseline Architecture

We base our network on Faster R-CNN (Ren et al.,

2015) with a ResNet50 (He et al., 2016) backbone

with some modiﬁcations related to the BEV repre-

sentations used as the input data. The BEV images

used in our research contain small objects, which are

challenging for being detected. In addition, we want

to detect oriented bounding boxes, rather than axis-

aligned detections as done in (Ren et al., 2015). Next,

we describe the proposed changes.

Our ﬁrst modiﬁcation is using a Feature Pyramid

Network-like architecture (Lin et al., 2017) to detect

objects at the higher-resolution feature maps and not

just at the ﬁnal output maps of the ResNet.

Secondly, we adjust the stride of the third ResNet

blocks from 2 to 1. This prevents the feature maps

from being downsampled too quickly, which would

NCTA 2021 - 13th International Conference on Neural Computation Theory and Applications

248

lose detailed spatial information.

Thirdly, we remove the last ResNet block since we

empirically found that it did not improve the results

and allows for faster processing. The features ex-

tracted in this block probably do not contribute much

because of the too large receptive ﬁeld of the pixels at

this depth. The receptive ﬁeld after the third ResNet

block for each output value is already 195 pixels of

the original BEV image, which corresponds with al-

most a 20m x 20m area when using a 0.1m resolu-

tion. Although the context can help to detect the ob-

jects and the effective receptive ﬁeld is smaller than

the theoretical one (Luo et al., 2016), it seems to be

already a large enough region.

We also use custom anchor boxes. The size of a

car is consistent everywhere in the image because of

the relation between their real size and their represen-

tation in the BEV image. This allows designing an-

chor boxes that best ﬁt cars, pedestrians, and cyclists.

In the second stage of the network, we use ROI-

Align (He et al., 2017) to get 14×14 candidate ROIs,

which are max pooled with a 2 × 2 kernel and fed

to three fully connected layers with 1024 parameters

each. After each layer, a ReLU activation function is

used.

Lastly, the output detection bounding boxes are

processed by the non-maximum suppression (NMS)

method (Ren et al., 2015), so that unwanted bounding

boxes are removed based on their classiﬁcation score

and the overlap between the boxes. If the classiﬁca-

tion scores of overlapping correct and incorrect boxes

are mistaken by the DNN, this may lead to poor re-

sults. To make these classiﬁcation scores more robust

based on the LiDAR data peculiarities, we compute

the percentage of non-empty pixels of each candidate

box. The correctly oriented boxes are mostly the ones

with a higher density of points, so we add this value

to the classiﬁcation score to help the NMS choose the

correct detections.

3.2.1 Bounding Box Regression

The original Faster R-CNN network regresses axis-

aligned bounding boxes (with no orientation). The

bounding box regression is done in two stages. The

ﬁrst bounding box regression step is in the Region

Proposal Network (RPN). In addition, the network

does a second bounding box regression at the end

of the second stage. Both steps regress axis-aligned

bounding boxes, which are represented by the cen-

ter of the bounding box (x, y) and the dimensions of

the bounding box (h, w). For an accurate 3D detec-

tion we need to detect oriented bounding boxes, so an

additional parameter (theta) has to be added for re-

gressing the angle of the bounding box. We maintain

the axis-aligned regions’ regression in the RPN but

regress ﬁve parameters in the second stage, which in-

clude the orientation of the box. The oriented bound-

ing box parameters can be regressed individually with

a loss function like L1, L2, or smooth L1. The un-

derlying assumption is that regressing these param-

eters individually will lead to a global optimum for

the bounding box estimation. For axis-aligned boxes,

this seems to work, but for oriented bounding boxes

does not. Qian et al. (2019) show the conﬂicting inter-

est between the angle regression and the other regres-

sions. A way to solve this problem is to directly min-

imize the loss for what you are evaluating on, which

is the intersection over union (IoU) between ground

truth and estimated bounding boxes. We use the IoU

loss for the second stage (Zhou et al., 2019a).

3.2.2 Loss Function

Regarding the loss function, both network stages have

a regression loss and a classiﬁcation loss. Conse-

quently, the total loss is a combination of four losses.

The ﬁrst stage is the RPN and uses the same loss ob-

jectives as the original Faster R-CNN. Four regres-

sion parameters are optimized with a smooth L1 loss,

being (x, y) the center and (h, w) the dimensions of

the bounding box. Once the difference between the

ground truth parameter and the estimated one is com-

puted (d), the smooth L1 loss is used according to the

following Equation 1:

L1(d) =

(

0.5d

σ if |d| <

0.5

|d| −

0.5

otherwise

(1)

where σ is a tuning hyperparameter. We use σ = 3

for the RPN network and σ = 1 for the head network,

as in the Faster R-CNN implementation (Ren et al.,

2015). The RPN classiﬁcation loss is binary cross-

entropy with foreground and background boxes. In

the second stage, we use a IoU regression loss with

ﬁve regression parameters instead of four (Zhou et al.,

2019a). For the classiﬁcation we use a multi-class

cross-entropy loss.

4 NETWORK EXTENSIONS

One of the biggest challenges for the BEV-based ob-

ject detection methods is to distinguish the smallest

objects (e.g., pedestrians). When converting point

clouds to BEV images a compression takes place

where some data are lost. This is not a problem if

there is enough data left to accurately perform detec-

tion of the target objects. When looking at the BEV

images, this clearly seems to be the case of the cars.

Accurate 3D Object Detection from Point Cloud Data using Bird’s Eye View Representations

249

Many points are discarded but they still show a clear

structure which makes it possible to detect them. This

is not so clear for small classes such as the pedestri-

ans and the cyclists. The top view perspective only

covers a small area of these objects. This might be al-

leviated with additional data that helps to distinguish

these objects from others. For this reason, we test two

network extensions. The ﬁrst one uses data already

provided in the BEV image and the second one incor-

porates external data.

Each point in a LiDAR point cloud is represented

by its 3D coordinates and its reﬂectance values. These

values are related to the object class it represents and

can provide meaningful information. Even if some

of the values are stored in the BEV image, the spe-

ciﬁc pixel values are often lost along the network’s

operations (Engels et al., 2020). The detectors conse-

quently rely on the shape patterns in the BEV image

more than on the extra information provided by the

speciﬁc values. In order to test if these data could

complement the patterns learnt by the network, we

add a skip connection from the input BEV map to the

head network. This connection adds the raw values to

the data received in the head network (feature maps

of the candidate ROIs from the RPN) so that we guar-

antee that the values do not get discarded in the back-

bone and they can be used in the second stage of the

network. In addition, we add two fully connected lay-

ers to the input values before concatenating them to

the input data of the head network. These layers al-

low the network to learn a better fusion mechanism

from the two feature spaces. Figure 4 shows the fu-

sion scheme.

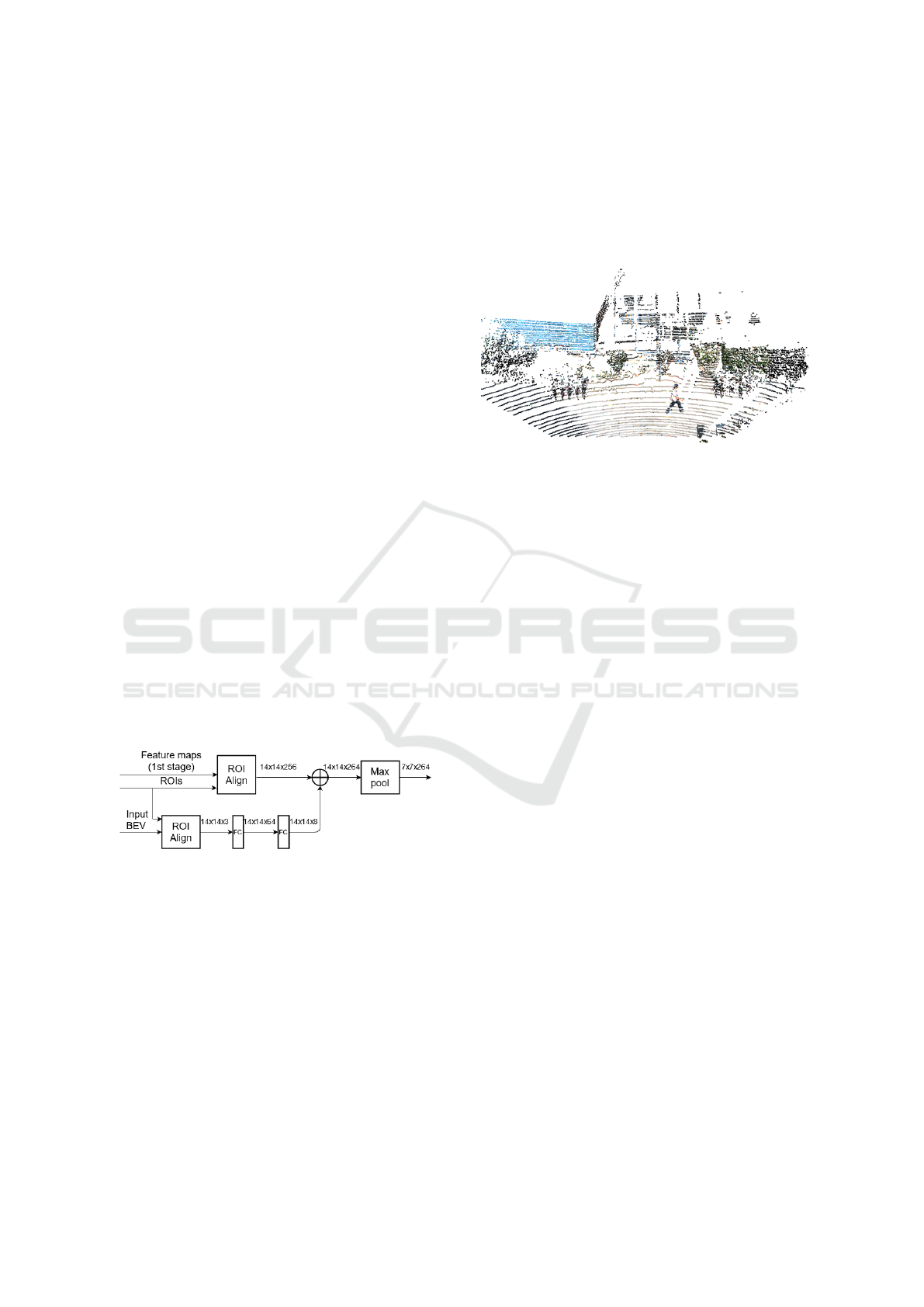

Figure 4: Fusion scheme to add information to the head

network from a BEV image.

Based on the same fusion scheme, we could add

information from a different BEV image instead of

the heights-based one we use as input to the network.

For instance, we can add data related to another sen-

sor, such as the camera. The camera captures infor-

mation about the textures and appearances of the ob-

jects. The information provided by the camera pixel

values about the object appearances is complimentary

to the data from the LiDAR and might help in gaining

robustness. To test this, we project the camera im-

age pixel values from the camera to the point cloud.

An example of the resulting point cloud is shown in

Figure 5. Next, we compute the BEV representation

which contains in each cell the pixel color informa-

tion instead of the height. Figure 6 shows an example

of this kind of BEV. The new BEV image is added to

the head network with the same fusion mechanism as

with the heights-based BEV image (Figure 4).

Figure 5: A LiDAR scan of the KITTI benchmark to which

its corresponding camera image RGB values are projected.

5 NETWORK OPTIMIZATION

The use of BEV images for 3D object detection re-

duces the amount of data to be handled. This trans-

lates into less processing time and makes the ap-

proach suitable for real-time applications or collab-

orative environments. The Faster R-CNN network is

more accurate than most single-stage object detection

architectures but also slower. Consequently, to make

the inference faster without reducing the architecture

complexity, we optimize the model after its training.

The number of proposals generated in the ﬁrst net-

work stage varies in every image. However, the input

batch of the second stage remains ﬁxed. If the num-

ber of generated proposals is smaller than the batch

number, the missing proposals need to be simulated

with empty ones. To avoid this processing, we di-

vide the network into two parts which correspond to

each stage and are treated as two independent net-

works running asynchronously. Thus, the ﬁrst net-

work processes batches of N images and generates a

different number of proposals for each image, which

are processed together in one batch by the second net-

work. This way, the batch of the second network is

optimized for the total number of proposals.

Using a dynamic batch for the second network

may lead to time overheads, as the network needs

to be re-adapted for the new size. To avoid this,

the proposals are grouped together in batches of a

ﬁxed size M and fed asynchronously to the network.

Once the proposals are classiﬁed, they are returned

again to their original batches according to the image

they belong to. We optimize the models with Ten-

sorRT (NVIDIA, 2021).

NCTA 2021 - 13th International Conference on Neural Computation Theory and Applications

250

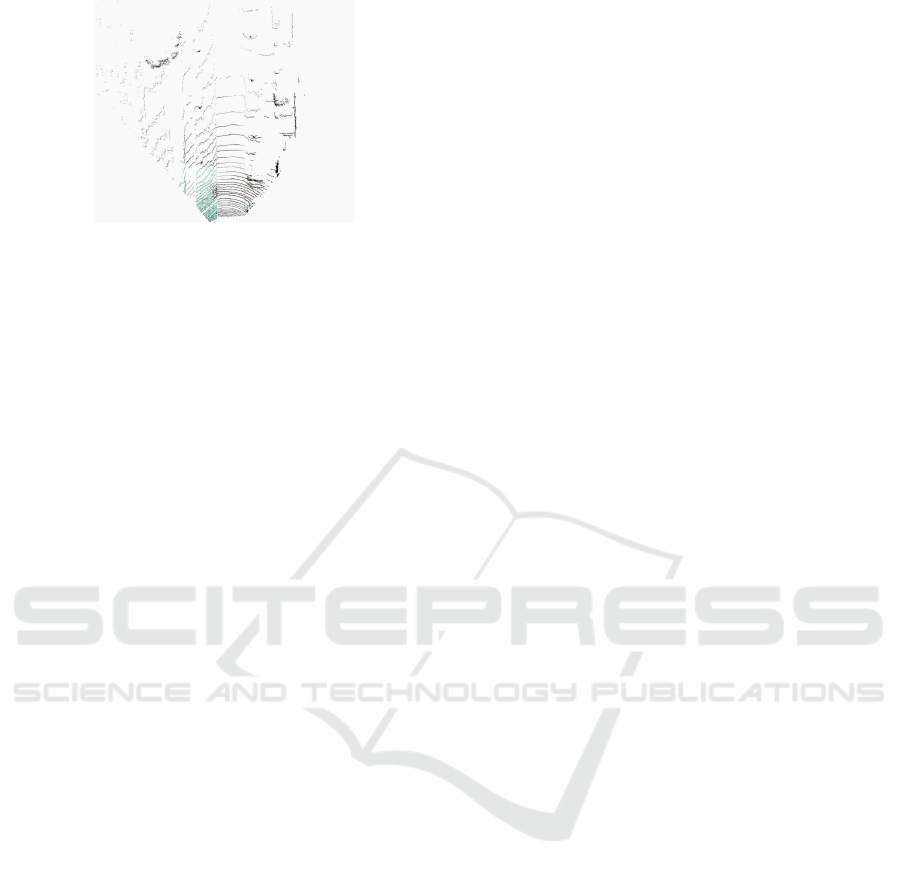

Figure 6: A BEV image which contains the projected image

pixels color information instead of the heights of the points.

6 EXPERIMENTS

We test our approach on the KITTI dataset, which

has 7, 158 training samples. We use a 50/25/25 split

for training/validation/test sets. We convert the point

clouds to 700 × 700 × 3 images with a 0.1m resolu-

tion. Only the annotated area is considered, which

corresponds to the ﬁeld of view of the camera. We

evaluate the network on the three classes of the bench-

mark but we train two separate networks, one for cars

and another for pedestrians and cyclists. For each net-

work, we train and evaluate three variants: the base-

line model, the baseline with the fusion of the input

BEV in the head network, and the same model but

with the fusion of the RGB data-based BEV. The car

class has by far the most objects, which is the rea-

son to train it apart. Otherwise, the network would be

very biased in favor of this class. The KITTI results

are evaluated by calculating average precision (AP)

for three difﬁculty categories (easy, moderate, hard)

for every class. We consider a x, y, z range of [(0, 70),

(-35, 35), (0, 3)] meters respectively for the car class

and [(-35, 35), (-35, 35), (0, 3)] meters for pedestri-

ans and cyclists. As proposed in the benchmark, we

use an IoU threshold of 0.7 for the cars, and 0.5 for

pedestrians and cyclists.

Regarding the training, our loss function is opti-

mized with stochastic gradient descent with a momen-

tum of 0.9. An initial learning rate of 0.003 is used

with decay steps at 35 and 42 epochs, with a factor of

0.1. The total network is trained for 70 epochs with a

batch size of 1 and a mini-batch size of 256. The mini-

batch corresponds to the number of region proposals

which are fed to the second stage. Weight decay is set

at 0.0001. The entire baseline model has 19M learn-

able parameters. The backbone is initialized with pre-

trained weights from ImageNet, whereas the head net-

work is trained from scratch. All tests are done on a

single Nvidia Tesla V100 GPU. All other hyperpa-

rameters are the same as used for the Faster R-CNN.

7 RESULTS AND DISCUSSION

Table 1 shows the AP obtained by our method com-

pared to other state-of-the-art approaches for car,

pedestrian and cyclist classes. In the same way as

in (Simon et al., 2019), we validate our results on

our splitted validation dataset, whereas the others are

validated on the ofﬁcial KITTI test set. Our mod-

els outperform most of the works with only LiDAR

data for the three classes and difﬁculties. Our pro-

posed CNN architecture achieves a higher AP than

other BEV-based pipelines, such as (Yang et al., 2018)

and (Simon et al., 2019). These models mainly dif-

fer in the proposed backbone architecture and the re-

gression loss. In addition, our work also surpasses

the approaches which process raw point clouds, such

as (Yan et al., 2018) and (Lang et al., 2019). Only the

method in (Zhou et al., 2020) presents a slightly bet-

ter accuracy for cars in the hard category. This shows

that using a BEV-based approach is not a limitation

for obtaining a high detection accuracy.

Regarding the network extension tests, no im-

provement is obtained for the car class. This may be

because the cars had already enough points and in-

formation for being accurately detected in the BEV

image. This is not the case of smaller objects such as

pedestrians and cyclists. Adding the skip connection

with the input values to the head network boosts the

accuracy of the cyclist class. Regarding the addition

of the camera-based BEV image, it increments the ac-

curacy of the pedestrian and cyclist detections. When

comparing this network to another multimodal ap-

proach like (Qi et al., 2018), we observe that the accu-

racy obtained by Frustum PointNets is higher for the

pedestrian class, but not for the cars and the cyclists.

This may happen because of the feature space where

the detections are estimated. Frustum PointNets de-

tect the object proposals on the RGB image and then,

computing a 3D viewing frustum, they predict the ﬁ-

nal 3D box on the point cloud. Therefore, the accu-

racy is closely related to the 2D detector for the RGB

image. This differs from our approach, which projects

the RGB values to the point cloud instead of detecting

the objects in the RGB image. For small classes in the

BEV representation, the camera detections seem to be

more reliable, even if the projected information boosts

the BEV-based detection accuracy.

Figure 7 shows some qualitative results of the

baseline model on the BEV images. The left image

corresponds to the model trained on cars, whereas the

right image shows the detections from the pedestrian

and cyclist model (only pedestrians are present in the

image). The mean inference time per scan (entire

pipeline) is 30 ms. Figure 8 shows the same detec-

Accurate 3D Object Detection from Point Cloud Data using Bird’s Eye View Representations

251

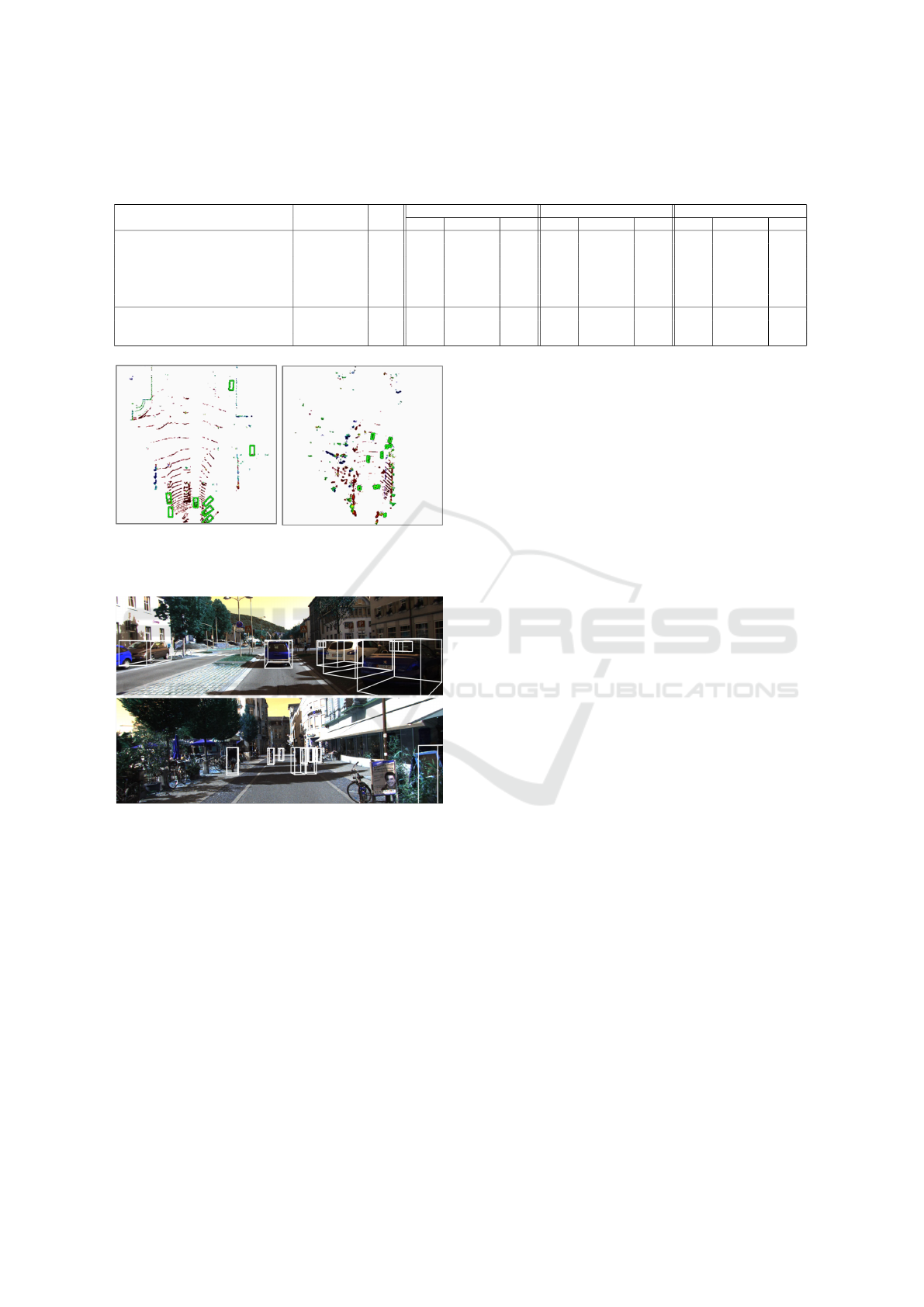

Table 1: Our proposed approach compared to other state-of-the-art methods on our KITTI val set based on the AP. Note that

our work and (Simon et al., 2019) are validated on our split validation dataset, whereas all others are validated on the ofﬁcial

KITTI test set.

Method Modality BEV

Car Pedestrian Cyclist

Easy Moderate Hard Easy Moderate Hard Easy Moderate Hard

PIXOR (Yang et al., 2018) LiDAR Yes 81.70 77.05 72.95 N/A N/A N/A N/A N/A N/A

Complex-YOLO (Simon et al., 2019) LiDAR Yes 85.89 77.40 77.33 46.08 45.90 44.20 72.37 63.36 60.27

PointPillars (Lang et al., 2019) LiDAR No 88.35 86.10 79.83 58.66 50.23 47.19 79.14 62.25 56.0

SECOND (Yan et al., 2018) LiDAR No 88.07 79.37 77.95 55.10 46.27 44.76 73.67 56.04 48.78

Joint 3D (Zhou et al., 2020) LiDAR No 90.23 87.53 86.45 N/A N/A N/A N/A N/A N/A

F-PointNets (Qi et al., 2018) RGB+LiDAR No 88.16 84.02 76.44 72.38 66.39 59.57 81.82 60.03 56.32

Baseline LiDAR Yes 97.3 89.6 85.0 54.1 52.5 51.0 73.2 60.7 58.7

Baseline + input BEV LiDAR Yes 93.7 88.7 84.4 52.9 51.7 49.1 80.4 66.6 64.2

Baseline + camera-based BEV RGB+LiDAR Yes 94.6 87.1 83.3 56.1 54.0 50.7 82.6 73.1 70.5

Figure 7: Qualitative results on our KITTI val set. Detec-

tions are shown on the BEV representation for the car class

(left) and the pedestrian class (right).

Figure 8: Qualitative results on our KITTI val set. Detec-

tions are shown on the BEV representation (left) and pro-

jected to the camera image (right).

tions projected to the camera images for better visual-

ization of the results.

The optimization applied to the trained DNNs al-

lows scaling the detection task to process different

BEV images at the same time. The batch-oriented op-

timization may be interesting for processing the data

from the different LiDARs of a vehicle or for an au-

tomotive ground truth annotation application that re-

quires handling batches of scans. Compared to a 3D

CNN, the computational cost of a BEV-based CNN is

lower. The computational complexity of a 3D CNN

grows cubically with the voxel resolution (Yan et al.,

2018). In addition, the BEV representation reduces

the target raw point cloud (up to millions of points) to

a 3-channel image covering the area of interest and

ﬁltering many points that are not signiﬁcant. The

biggest challenge for BEV-based methods is the de-

tection of the objects covering a small area in the BEV

image.

Given the advantages of a BEV-based method and

the accuracy achieved by the proposed DNNs, we

conclude that methods processing raw point clouds

should not be led to abandon or replace the BEV-

based detection research.

8 CONCLUSIONS

In this paper, we propose a 3D object detection

pipeline based on a two-stage neural network archi-

tecture for detecting objects from LiDAR point cloud

data. Our method relies on BEV representations and

does not need to process entire raw point clouds. We

propose two network extensions for boosting the ac-

curacy of the most challenging object classes, based

on adding BEV data to the head network. We evaluate

our method on the KITTI BEV benchmark and show

that it achieves state-of-the-art results. It surpasses

recent methods based both on BEV images or raw

point clouds. Moreover, our results show that BEV-

based detection research should not be replaced with

complex point cloud-based detectors. Using a BEV

representation does not limit the detection accuracy

and provides advantages such as the light-weight rep-

resentation of the scene, which is suitable for being

shared in a cooperative scenario or for a fast infer-

ence.

Future work includes improving the model to han-

dle different classes which have different sizes in the

BEV images (e.g., trucks, pedestrians) and are mostly

unbalanced in the public datasets. We also plan to val-

idate our approach in benchmarks with different types

of LiDAR sensors.

NCTA 2021 - 13th International Conference on Neural Computation Theory and Applications

252

ACKNOWLEDGEMENTS

This work has received funding from Basque Govern-

ment under project AUTOLIB of the program ELKA-

RTEK 2019.

REFERENCES

Aranjuelo, N., Engels, G., Unzueta, L., Arganda-Carreras,

I., Nieto, M., and Otaegui, O. (2020). Robust 3d ob-

ject detection from lidar point cloud data with spatial

information aggregation. In International Workshop

on Soft Computing Models in Industrial and Environ-

mental Applications, pages 813–823. Springer.

Chen, X., Ma, H., Wan, J., Li, B., and Xia, T. (2017). Multi-

view 3d object detection network for autonomous

driving. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

1907–1915.

Du, X., Lin, T.-Y., Jin, P., Ghiasi, G., Tan, M., Cui, Y., Le,

Q. V., and Song, X. (2020). SpineNet: Learning scale-

permuted backbone for recognition and localization.

In Proceedings of the IEEE/CVF conference on com-

puter vision and pattern recognition, pages 11592–

11601.

Engels, G., Aranjuelo, N., Arganda-Carreras, I., Nieto, M.,

and Otaegui, O. (2020). 3d object detection from li-

dar data using distance dependent feature extraction.

arXiv preprint arXiv:2003.00888.

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we ready

for autonomous driving? the KITTI vision benchmark

suite. In 2012 IEEE conference on computer vision

and pattern recognition, pages 3354–3361. IEEE.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask r-cnn. In Proceedings of the IEEE international

conference on computer vision, pages 2961–2969.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Lang, A. H., Vora, S., Caesar, H., Zhou, L., Yang, J., and

Beijbom, O. (2019). Pointpillars: Fast encoders for

object detection from point clouds. In Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 12697–12705.

Lin, T.-Y., Doll

ar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017). Feature pyramid networks

for object detection. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2117–2125.

Luo, W., Li, Y., Urtasun, R., and Zemel, R. (2016). Under-

standing the effective receptive ﬁeld in deep convo-

lutional neural networks. In Proceedings of the 30th

International Conference on Neural Information Pro-

cessing Systems, pages 4905–4913.

NVIDIA (2021). TensorRT: A platform for high-

performance deep learning inference. https://

developer.nvidia.com/tensorrt. Accessed: 07.01.2021.

Qi, C. R., Liu, W., Wu, C., Su, H., and Guibas, L. J. (2018).

Frustum pointnets for 3d object detection from rgb-d

data. In Proceedings of the IEEE conference on com-

puter vision and pattern recognition, pages 918–927.

Qi, C. R., Su, H., Mo, K., and Guibas, L. J. (2017). Point-

net: Deep learning on point sets for 3d classiﬁcation

and segmentation. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 652–660.

Qian, W., Yang, X., Peng, S., Guo, Y., and Yan, J. (2019).

Learning modulated loss for rotated object detection.

arXiv preprint arXiv:1911.08299.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv preprint arXiv:1804.02767.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster R-

CNN: Towards real-time object detection with region

proposal networks. Advances in neural information

processing systems, 28:91–99.

Shi, S., Wang, X., and Li, H. (2018). PointRCNN: 3d object

proposal generation and detection from point cloud.

CoRR, abs/1812.04244.

Simon, M., Amende, K., Kraus, A., Honer, J., Samann,

T., Kaulbersch, H., Milz, S., and Michael Gross, H.

(2019). Complexer-yolo: Real-time 3d object detec-

tion and tracking on semantic point clouds. In Pro-

ceedings of the IEEE/CVF Conference on Computer

Vision and Pattern Recognition Workshops, pages 0–

Yan, Y., Mao, Y., and Li, B. (2018). Second:

Sparsely embedded convolutional detection. Sensors,

18(10):3337.

Yang, B., Luo, W., and Urtasun, R. (2018). Pixor: Real-time

3d object detection from point clouds. In Proceedings

of the IEEE conference on Computer Vision and Pat-

tern Recognition, pages 7652–7660.

Zhou, D., Fang, J., Song, X., Guan, C., Yin, J., Dai, Y., and

Yang, R. (2019a). Iou loss for 2d/3d object detection.

In 2019 International Conference on 3D Vision (3DV),

pages 85–94. IEEE.

Zhou, D., Fang, J., Song, X., Liu, L., Yin, J., Dai, Y., Li, H.,

and Yang, R. (2020). Joint 3d instance segmentation

and object detection for autonomous driving. In Pro-

ceedings of the IEEE/CVF Conference on Computer

Vision and Pattern Recognition, pages 1839–1849.

Zhou, J., Tan, X., Shao, Z., and Ma, L. (2019b). FVnet:

3d front-view proposal generation for real-time ob-

ject detection from point clouds. In 2019 12th In-

ternational Congress on Image and Signal Process-

ing, BioMedical Engineering and Informatics (CISP-

BMEI), pages 1–8. IEEE.

Zhou, Y. and Tuzel, O. (2018). Voxelnet: End-to-end learn-

ing for point cloud based 3d object detection. In Pro-

ceedings of the IEEE conference on computer vision

and pattern recognition, pages 4490–4499.

Accurate 3D Object Detection from Point Cloud Data using Bird’s Eye View Representations

253
