Automatic Detection of Timed-up and Go Tests with IMU Sensor Data

Franz Kroll, Sven Löfﬂer, Ilja Becker and Petra Hofstedt

Brandenburg University of Technology, Cottbus, Germany

Keywords:

Timed-up and Go, Machine Learning, Wearable Devices, Activity Recognition, Accelerometer, Gyroscope,

Physical Activities, Assessment System, Automatic Segmentation.

Abstract:

The evaluation of the current state and examination of geriatric patients is a time consuming process for

the medical staff and the patients. The independence of the geriatric patients is further reduced through the

interruptions in their daily life caused by these examinations. One of these evaluation techniques is the so

called Timed-Up and Go test (TUG). The test uses a simple sequence of motions to assess the fall risk of a

person. Advances in the technology of wearable sensors and machine learning make it possible to automate

these evaluation methods with a compact system. This paper continues the research that was already done in

the ﬁelds of human activity recognition and automatic TUG detection and proposes a novel method for the

automatic detection of the Timed-Up and Go without interrupting the daily life of the patients.

1 INTRODUCTION

The number of geriatric patients in German hospitals

alone rose by around 80 percent from 2006 to 2015

(Augurzky et al., 2017). This number will probably

continue to rise in the future due to the aging popula-

tion in Germany. This phenomenon can also be seen

in other countries.

To make the everyday life easier for geriatric pa-

tients and the associated nursing staff, the automation

of geriatric techniques and examination procedures

should be investigated. One of these geriatric proce-

dures is the so called Timed-Up and Go test (TUG). It

was originally developed by Podsiadlo and Richard-

son in 1991 as an extension to the Get-Up and Go

test (Podsiadlo and Richardson, 1991). The person

to be examined stands up from a chair, walks 3 m,

turns around, walks back and sits down. The time

needed for this movement is measured and subse-

quently gives a rough measure for the fall risk of the

person.

In the following we will brieﬂy examine the re-

search that has already been done in the ﬁelds of hu-

man activity recognition and automation of the TUG.

However of the in Section 2 examined papers, none

present a complete solution for the automatic detec-

tion of the TUG or they additionally use video cam-

eras. Our approach deliberately avoids the use of

cameras in favor of a less complex and more privacy

friendly system.

The rest of this paper will introduce and evalu-

ate a method for the realization of a completely au-

tomated TUG that doesn’t interrupt the daily life of

the patients. This is done with the help of sensor data

(collected with an inertial measurement unit (IMU))

and different machine learning methods. Our scenario

also represents a realistic scenario for the use of such

methods in a real life situation, because the collected

data for the training and evaluation of the classiﬁers

represents a quite diverse dataset from multiple, dif-

ferent sources.

Outline. The rest of this article is structured as fol-

lows: The next Section gives an overview of re-

lated work corresponding to human activity recogni-

tion and the automated detection and segmentation of

Timed-Up and Go tests. Section 3 introduces the used

hardware, software and the experimental setup. The

following Section 4 describes the developed proce-

dure in detail, while Section 5 shows the experimental

results. The last section gives a conclusion and also

presents possible future extensions and improvements

of the developed method.

2 RELATED WORK

Many papers have already dealt with the topics of hu-

man activity recognition and the automation of the

TUG. Comparatively, approaches, where video cam-

Kroll, F., Löfﬂer, S., Becker, I. and Hofstedt, P.

Automatic Detection of Timed-up and Go Tests with IMU Sensor Data.

DOI: 10.5220/0010775300003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 1: BIODEVICES, pages 15-24

ISBN: 978-989-758-552-4; ISSN: 2184-4305

eras are used are considered as well. Although the

proposed method forgoes the use of video cameras

or other ambient sensors (see Section 3 for an ex-

planation), they are used in a lot of other similar ap-

proaches.

The following sections ﬁrst describe related work

in the ﬁeld of human activity recognition and sec-

ondly in the ﬁeld of the automation and automatic

evaluation of the TUG.

2.1 Human Activity Recognition

A fair amount of research has been done in the ﬁeld

of human activity recognition. This section presents

methods with relevancy to the human activity recog-

nition method presented in this paper.

A lot of systems use smartphones, presumably

because their ease of use. With a smartphone and

its inbuilt sensors, one can build a system with only

one hardware component. However the reliance on

a smartphone makes these systems not very ﬁtting for

the use with elderly persons or persons with dementia.

One of these systems was developed by Kwapisz et al.

It uses a single smartphone carried in the front pants

leg pocket for data collection. Furthermore it uses

a multilayer perceptron among other algorithms and

reached an overall accuracy of 91.7% while classify-

ing different daily activities (Kwapisz et al., 2011).

The research in the works of (Attal et al., 2015),

(Liu et al., 2017) and (Paraschiakos et al., 2020) all

concentrated on developing a system for tracking the

activity of elderly people using wearable sensors. All

three systems propose a system in which two or more

wearables are attached to the body of the person. At-

tal et al. examined the use of the k-nearest neigh-

bors (k-NN), support-vector machine (SVM), Gaus-

sian mixture model (GMM), and random forest (RF)

algorithms for the evaluation of the sensor data col-

lected from healthy subjects. The system is able to

recognize twelve different activities with k-NN reach-

ing the highest accuracy and precision (99.25% and

98.85%, respectively) after a previous feature extrac-

tion step. Paraschiakos et al. proposed a similar ap-

proach focusing only on a random forest classiﬁer.

They found that the combination of data from an ac-

celerometer mounted on the ankle and wrist showed

the best results. The system is able to detect 16 move-

ments with an accuracy of above 85% when addi-

tional physiological data is used. The accuracy is

further increased when the number of classes is re-

duced, with seven classes (lying down, sitting, stand-

ing, household, walking, cycling, jumping) providing

the best results.

Contrary to the other systems, (Liu et al., 2017)

used a rule-based algorithm. It works by ﬁrst detect-

ing if the ﬁltered data from the wearables represents a

static posture or dynamic activity. Static postures are

detected by estimating the orientation of the different

wearables. The rule-based algorithm detects activities

and activity transfers by examining the transitions be-

tween the postures. Overall they reached a detection

rate of 97.2%.

2.2 Automating the TUG

To complete the previous section, this section exam-

ines papers which already dealt with the topic of an

automatic segmentation of the different parts of the

TUG or automatic fall risk calculation for the partici-

pating persons.

(Green, 2018) developed a method, which is able

to automatically segment the data (the test was split

into seven segments: Sitting, Standing-Up, Walking-

Forward, Turning, Walking-Back, and Sitting-Down)

of a TUG. The start of the segments could be recog-

nized with an accuracy of 83.6% and their duration

with an accuracy of 83.4%. However the system re-

lied on video-based training data, which makes the

initial data collection more time consuming.

(Nguyen et al., 2015) also developed a similar sys-

tem. Two modiﬁed TUGs with an extended length of

5m and 10 m of the walking path of the TUG were

tested. The system using the longer walking path of

10m was able to detect a simpliﬁed set of activities

(standing, walking, turning, and sitting) with a sen-

sitivity and speciﬁcity of 100%. However the sys-

tem used 17 inertial motion sensors. Data from the

sensors was detrended, normalized and band pass ﬁl-

tered. This reveals kinematic peaks, which were used

to identify the different activities by picking out the

minima or maxima next to these peaks.

A different approach was considered by (Seo

et al., 2019). Its goal was to develop a fall predic-

tion model based on the instrumented TUG (iTUG) (it

improves the limitations of the standard TUG (Weiss

et al., 2011)). 69 subjects were included in the study

and performed a yearly iTUG using an IMU sensor

system. All in all 26 people fell during the duration,

43 didn’t experience a fall. The developed logistic re-

gression model was able to distinguish between fall-

ers and non-fallers with an accuracy of 69.9% and

used ﬁve variables (duration of the total and the sit-

to-stand phase, peak velocity of trunk sagittal plane

and range of motion of trunk horizontal plane during

gait phase and peak turn velocity during the turn to sit

phase) for the classiﬁcation.

As one can see, much research has been done in

the ﬁeld of automatic TUG-detection. However none

BIODEVICES 2022 - 15th International Conference on Biomedical Electronics and Devices

of the examined systems present a fully automatic

TUG detection without any user interaction.

3 WEARABLE AND

EXPERIMENTAL SETUP

This section describes the hardware and software that

was used in more detail. The following section de-

scribes the “Movesense Active” wearable used for the

data collection in more detail. The second section de-

picts the experimental setup used for the data collec-

tion and for testing the developed method.

3.1 Movesense Wearable

The system uses a wearable from the company “Su-

unto” (Suunto, 2021). The so-called “Movesense Ac-

tive” (see Figure 1) is based on a Nordic Semicon-

ductor system on a chip and has the following main

features (Suunto, 2020b).

The main system on a chip is a nRF52832 and in-

tegrates a 32-bit ARM-Cortex-M4, 64 kB of on-chip

RAM, 512 kB of on-chip FLASH and a Bluetooth

Low Energy (BLE) Radio. Its sensors include an ac-

celerometer, gyroscope and magnetometer (as a com-

bined inertial measurement unit). Other (not used)

sensors are a temperature sensor and a heart rate sen-

sor.

Further notable features are 3 Mbit of EEPROM

logging memory and a status LED. The wearable is

cell battery. Its long battery runtime (up to multi-

ple months, depending on the use case) and multi-

ple sensors, combined with the ease of use make the

Movesense Active a great choice for an autonomous

movement detection system. Multiple hardware (a

belt and different attachment straps) for attaching the

wearable to the body is also included in the developer

kit.

Figure 1: Movesense Active wearable (Suunto, 2021).

Smartphone

Actor

Laptop

Perform TUG or

other movements

Save collected

data

Stream IMU data

Wearable 1

Wearable 2

Develop app, create

and evaluate

models

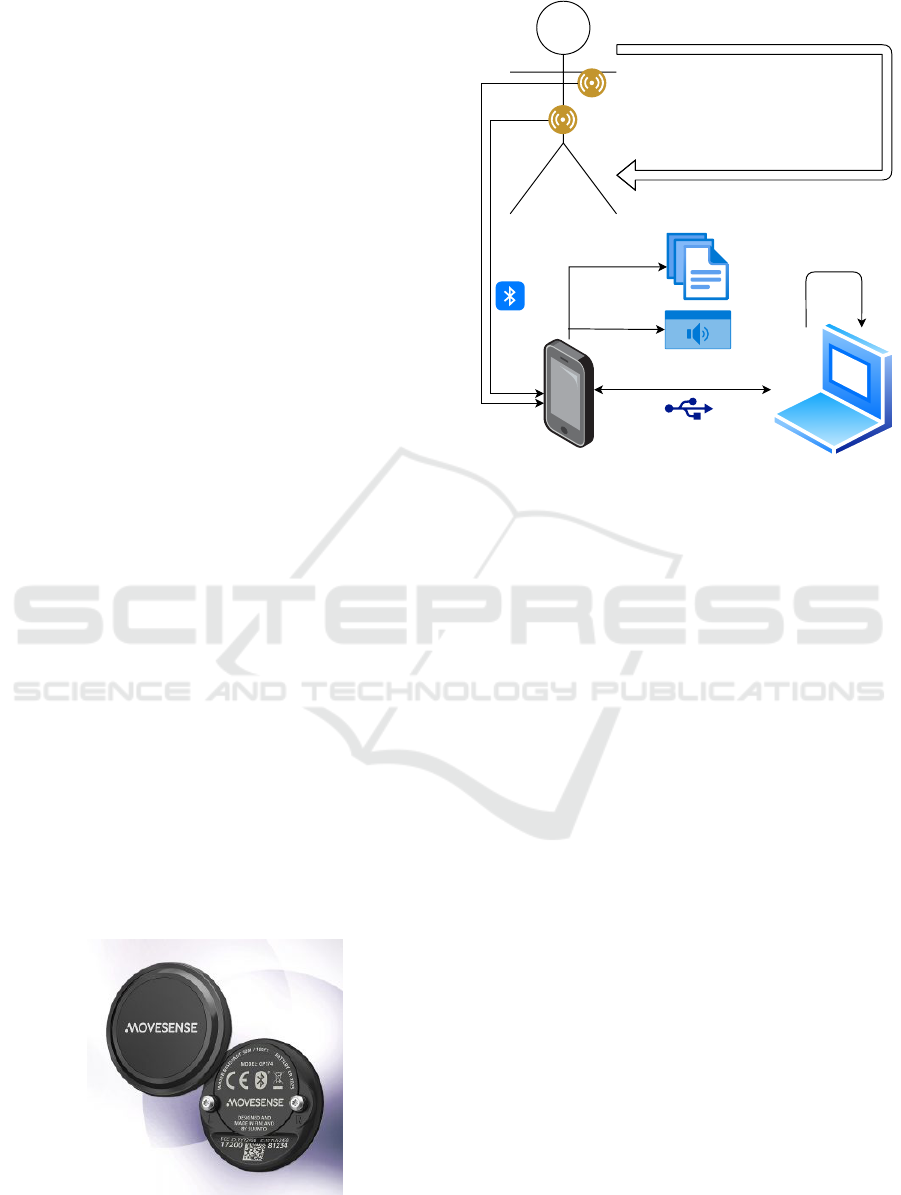

Figure 2: Visualization of the experimental setup.

As described in Section 2, other work in this ﬁeld

often uses additional video cameras or ambient sen-

sors. The proposed method forgoes this choice of

hardware on purpose for a more compact and easy to

use system. This also makes the system more compli-

ant with current rules of data protection and privacy,

as less personal data is collected.

3.2 Software and Experimental Setup

More hardware and software was used in addition to

the actual Movesense Wearables. This section shows

the complete experimental setup. Figure 2 shows a

visualization of the experimental setup which is ex-

plained in detail in the following paragraphs.

Two different smartphones (Google Pixel 3a and

Xiaomi Redmi Note 5) based on the Android oper-

ating system were used for the data collection and

recording via Bluetooth. However any modern An-

droid smartphone with a BLE version of greater than

4.2 should sufﬁce for the data collection. An Android

application was developed in Android Studio and with

the help of the provided Movesense software develop-

ment kit (SDK) (Suunto, 2020a) to realize the data

collection in a user-friendly way. The SDK offers

multiple ways of interacting with the wearable. The

developed application communicates with the wear-

able via Bluetooth and receives data from up to two

Movesense wearables. The raw sensor data is then

formatted and saved on the device in the CSV format.

At ﬁrst a Bluetooth connection is established with

Automatic Detection of Timed-up and Go Tests with IMU Sensor Data

up to two wearables. The wearables are worn by the

user on a belt (centered on the front pelvis) and right

upper arm (attached to the sleeve with the provided

clip and with the wearable facing outwards). After-

wards the connection status is displayed in the mobile

application and a query of the battery status is pos-

sible. The data collection can be started through a

different menu. The smartphone then receives data

from the multiple sensors (X,Y and Z axes from ac-

celerometer, gyroscope and magnetometer) continu-

ously, formats the data and saves it to a ﬁle on the

smartphone. If required, a simultaneous audio record-

ing is also possible, this function was used for eval-

uation of the TUG detection (see Section 5.2). The

audio is recorded using the microphone of the smart-

phone. The data ﬁles can be subsequently read from

the smartphone via a USB connection.

The application could also be expanded to a fully

working prototype in a further development stage. For

that, another menu could be easily integrated into the

app. This menu could start or stop the automatic de-

tection of TUGs. A second additional view could

show a simple menu with an overview of the last de-

tected TUGs and their calculated durations. In a later

stage the algorithm could also be implemented on any

device with enough computation capacity (for exam-

ple a Raspberry Pi or other small computation devices

with the required connectivity could be used as a hub

and detection unit with automatic submission of the

recorded TUG sequences to the medical staff).

4 RECOGNITION OF TUG

SEQUENCES

In this section the method developed for the human

activity recognition and automatic TUG detection is

introduced.

The next section details the data collection and the

type of data that was collected. Next the preprocess-

ing of the data is described, including data formatting

and feature extraction with the help of the Short-time

Fourier transform. Finally, the human activity classi-

ﬁcation and afterwards the TUG detection algorithm

are presented.

4.1 Data Acquisition

Data is needed for the training of the different ma-

chine learning methods and veriﬁcation of the devel-

oped method. Therefore multiple datasets were col-

lected from volunteers. This section describes the dif-

ferent datasets, the amount of collected data and how

it was collected.

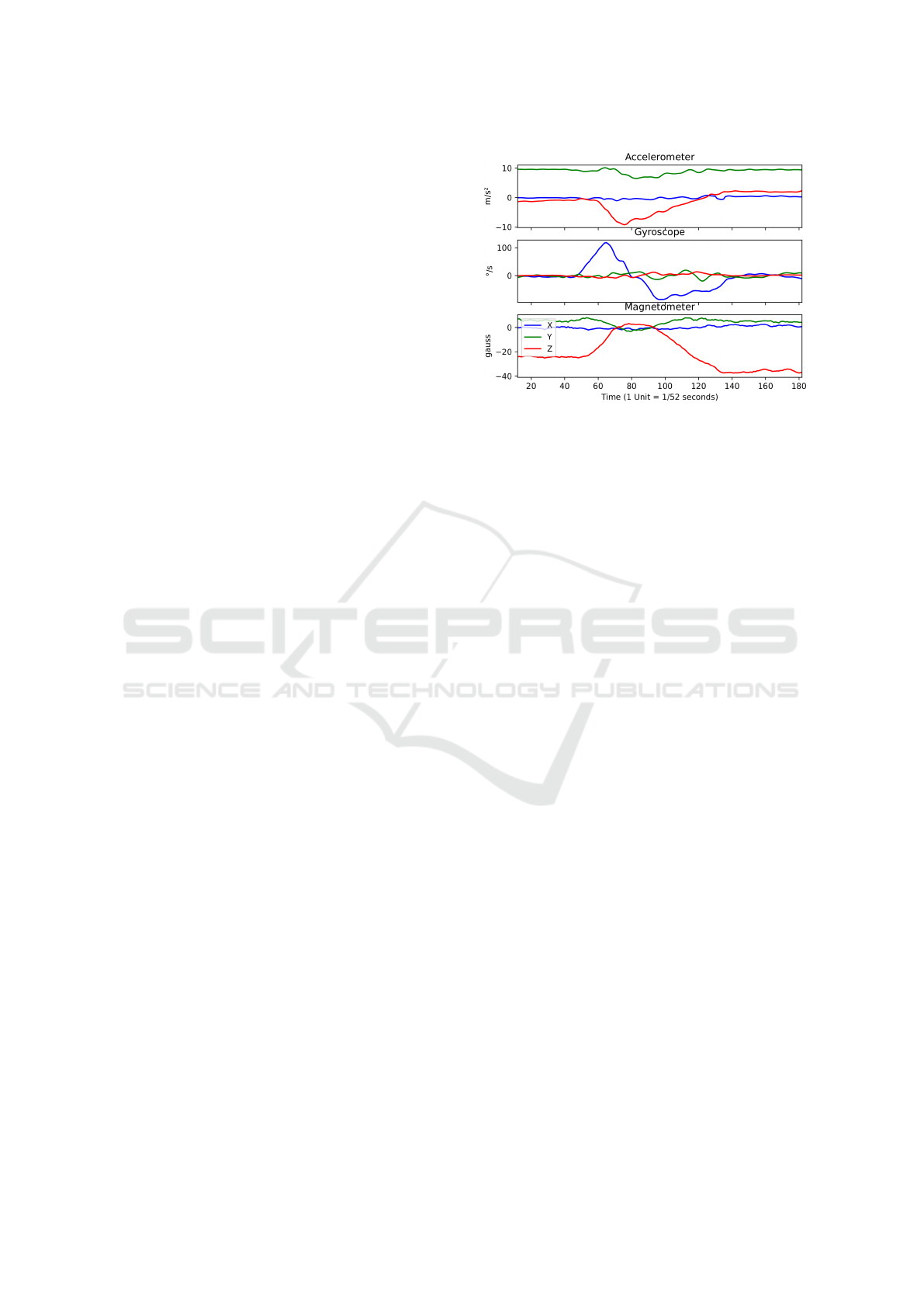

Figure 3: Accelerometer data from the movement of stand-

ing up from a chair. Recorded by a wearable worn on the

belt.

Data was collected from two different sources.

One of the collected datasets came from volunteers

from the department of “Programming Languages

and Compiler Construction” (Brandenburg University

of Technology). Multiple students and staff collected

the majority of the datasets and all of the audio data

recordings. The other source of data was the nursing

home “ASB Alten- und Pﬂegeheim Betriebs gGmbH

Haus Abendsonne” in Frankfurt (Oder). Several el-

derly inhabitants collected data consisting of different

movements and activities.

People were able to record different movements

on their own without supervision, which could in-

troduce possible errors in the data collection. This

was done to comply with the public health guide-

lines resulting from the COVID-19 pandemic at the

time of the experiments. The list of possible move-

ments was: walking, sitting, standing, getting up, sit-

ting down and complete TUG sequences. Sitting and

standing were later combined into “Resting Position”.

The recording of movements at the ASB in Frankfurt-

Oder was supervised by the local nursing stuff, which

received a brief introduction prior to the data collec-

tion.

In total data was recorded from 21 (of which eight

were recorded by elderly inhabitants) different per-

sons. All in all 432 different movement ﬁles (every

ﬁle contains a single movement, e.g. walking, resting

position, turning, getting up, sitting down or TUG)

could be extracted from the recorded data. Figure 3

shows an example of a ﬁltered data recording from

all three sensors (accelerometer, gyroscope, magne-

tometer) of a user standing up from a chair (all three

sensor use the same labels for the x-axis). The dif-

ferent phases of getting up from the chair are clearly

visible in the sensor data. The wearer leans forward

BIODEVICES 2022 - 15th International Conference on Biomedical Electronics and Devices

after sitting still, gets up, then leans backwards and

ﬁnally stands still again.

The ﬁnal developed algorithm only uses the data

from the accelerometer and gyroscope and omits the

data collected by the magnetometer. We found that

the data from the magnetometer is subject to inter-

ferences in the current environment, more speciﬁcally

from electronics and ferromagnetic materials and thus

doesn’t provide reliable enough data for training the

different machine learning algorithms.

Finally, there was another type of data collected

for the veriﬁcation of the human activity recognition

which consisted of the sensor data stream combined

with an audio recording. This audio recording was

synchronized with the sensor data and contained com-

ments from the user that documented which move-

ment were executed. Both the audio and movement

ﬁles are annotated with timestamps in Universal Time

Coordinated (UTC) for synchronization. Almost ar-

bitrary movements and different TUGs were recorded

in this step to allow for a realistic evaluation.

4.2 Preprocessing of the Data

The collected sets of raw sensor data were evaluated

and the usable segments extracted. Afterwards its fea-

tures were extracted with the help of the Short-time

Fourier transform. This process is described in this

section.

Formatting of the Data. First the collected data

had to be surveyed and formatted manually. Some-

times the recorded data contained assumed measure-

ment errors (spikes or discontinuities in the data) or

human errors made while collecting the data. Data

with such errors was discarded and not used in the

training of the machine learning algorithms. Move-

ment data was extracted from the remaining datasets.

When extracting the movements, care was taken to

choose roughly the same size of excerpts whenever

possible. However the sizes of the excerpts range

from around 74 to 514 samples (≈ 1.4 s to 9.9s at

a sampling rate of 52 Hz) because of the different

lengths of the movements. Datasets containing com-

plete TUG sequences were used for the extraction of

movements as well as for the veriﬁcation of the auto-

matic TUG detection.

Sliding Window Approach and Short-time Fourier

Transform. To reduce the input size for the ma-

chine learning algorithms and to extract the most im-

portant features (namely the change of the frequency

spectrum over time), the Short-time Fourier transform

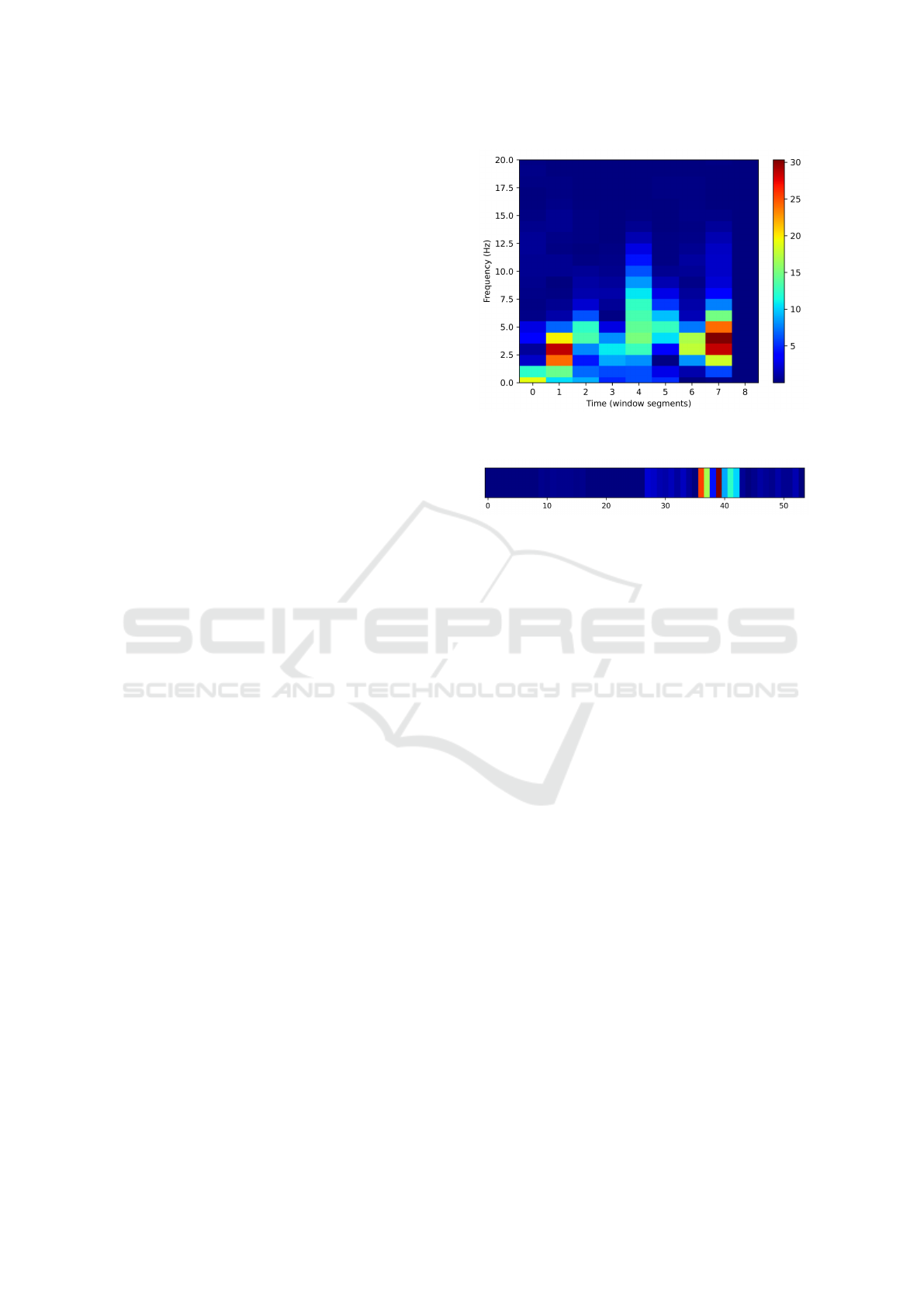

Figure 4: Visualization of a Short-time Fourier transform of

data from one gyroscope axis of a single movement.

Figure 5: Complete calculated averages of the previously

shown data in Figure 4 from a walking sequence. Averaged

data from the accelerometer (x = 0, . . . , 26) and gyroscope

(x = 27, . . . , 53) is shown.

(STFT) was used. The Python code used for the im-

plementation of the STFT was adapted from (Nelson,

2014).

First, the size of the individual STFT segments is

calculated by dividing the input size by four. This

guarantees a similar output size for movements of dif-

ferent original lengths. Every movement is then split

into multiple windows of this predetermined size. Af-

terwards we can calculate the STFT of every segment.

Figure 4 shows a visualization from an example

of the Short-time Fourier transform applied to sen-

sor data from a walking movement (speciﬁcally from

one of the axis of the accelerometer) from a healthy

test subject. The x-axis of the diagram represents the

different segments that result from the sliding win-

dow algorithm used by the STFT. The y-axis shows

the calculated intensity of the different frequency con-

tents in each step.

Data from all six axes is then averaged, meaning

that the average frequency intensity of every window

segment (x-axis of Figure 4) is calculated. The exam-

ple in Figure 4 results in nine average values. This is

then done for every axis of the accelerometer and gy-

roscope, resulting in 54 values for our example (see

Figure 5). This approach was inspired by the method

used in (Mühle, 2019) for pre-processing audio sensor

data.

All in all every movement is converted to an ar-

ray containing 48 to 54 average values. Not all ar-

Automatic Detection of Timed-up and Go Tests with IMU Sensor Data

rays have size 54 due to ﬂuctuations in the size of the

different movements. In that case the last entries are

ﬁlled with high values to guarantee similar input sizes

for the next step. These pairs (each consisting of an

array and a label) can then be used for training the

different machine learning models.

4.3 Classiﬁcation of Activities

Four different machine learning algorithms were eval-

uated for the classiﬁcation of the sensor data. All

models were trained with the help of the Scikit-

learn library (Pedregosa et al., 2011) for Python.

More precisely, the models “RandomForestClassi-

ﬁer”, “MLPClassiﬁer”, “GradientBoostingClassiﬁer”

and “KNeighborsClassiﬁer” were used.

All models use the same training and test data

as input (see Section 4.1) and output the determined

class. All classiﬁers used a split of 70% for training

data and 30% for test data, resulting in 130 movement

ﬁles used for the evaluation and 302 ﬁles used for

training the classiﬁers. The hyperparameters of each

classiﬁer were optimized with the help of the “Ran-

domizedSearchCV” method. It performs a cross-

validated randomized search on a speciﬁed list of pos-

sible hyperparameters. The TUG detection combines

these four classiﬁers with the help of the “VotingClas-

siﬁer”, which is also provided by the Scikit-learn li-

brary (see Section 4.4 for further explanations). All

classiﬁers have ﬁve possible classes as their output:

getting up, walking, sitting down, resting, position

and turning.

4.4 TUG Sequence Detection Algorithm

Finally, we reach the last step in our pipeline, the ac-

tual detection of TUG sequences. The developed al-

gorithm is represented by the ﬂow chart in Figure 6.

The algorithm is split into four main parts: First the

stream of sensor data is split into smaller windows

with a sliding window algorithm. Then the features

of each segment are extracted with the Short-time

Fourier transform. After that the resulting data is clas-

siﬁed with the VotingClassiﬁer. Afterwards the se-

quence of movements is checked for a possible TUG

sequence (TUG detection). The numbers in the ﬂow

chart correspond with the numbers in the following

headings.

Sliding Window based Data Segmentation (1).

First, we split the stream or ﬁle of input data into

smaller segments. This is done with a sliding win-

dow approach. Multiple window sizes were tested

before choosing the ﬁnal window-size of 132 sam-

Sensor Data

Frame X

Acc. / Gyro. -

data from

Wearable

Sliding window

algorithm

Algorithm start

Feature

extraction

with STFT

TUG detection

No TUG

detected

TUG

detected

Classify data with

4 methods

Majority Voting

with

Classifier

Save TUG time

and sensor data

Preprocessing

of the

movement list

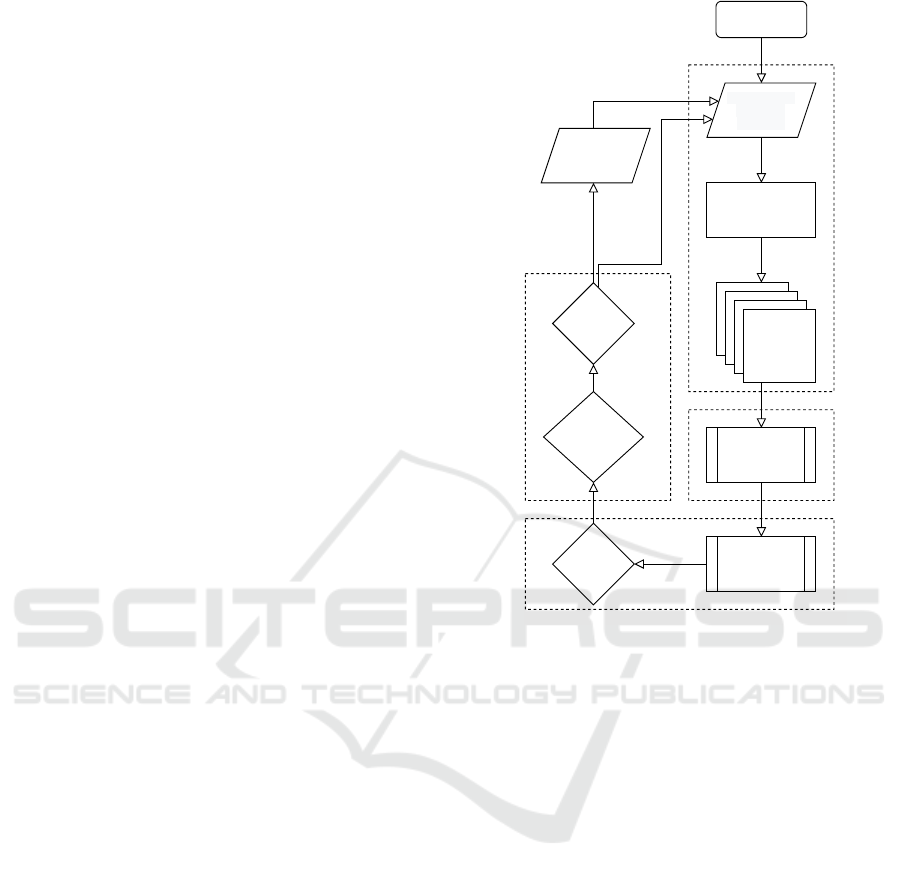

Figure 6: Flow chart of the TUG detection algorithm.

pling points (≈ 2.5s). The size of the windows was

determined empirically while giving care to choose

roughly the same size as the movements that were

used as input. The chosen window size also corre-

sponds with the average number of movements in a

standard TUG sequence. The windows are overlap-

ping by 50% to allow for the recognition of the move-

ments that would otherwise stretch across two win-

dows. In the next step the segments are further ana-

lyzed with the STFT.

Preparation for Classiﬁcation (2). The next step

applies the previously mentioned STFT to the data.

The STFT is calculated of every segment as described

in Section 4.2. The data is then treated in the same

way as the training and test data before and the aver-

age of every STFT is calculated and added together.

Classiﬁcation of Movements (3). In this step, the

four previously described machine learning methods

(random forests, k-nearest neighbors, multilayer per-

ceptron, gradient boosting classiﬁer) are combined.

The VotingClassiﬁer simply combines the four

algorithms by performing a prediction using all

four classiﬁers. After that the probabilities for

BIODEVICES 2022 - 15th International Conference on Biomedical Electronics and Devices

each class are stored and the class with the high-

est value of the sums of the stored probabilities

of the predictions is chosen (this is called “soft

voting” by Scikit-learn). For example if the four

methods produce the following summed probabili-

ties of Getting Up = 0.73, Walking = 0.9, Turning =

0.3, Sitting Down = 0.65 and Resting Position = 0.1,

then the class “Walking” is chosen because it has the

highest overall probability. The ﬁnal predicted move-

ment is then stored in a list for further processing and

the actual TUG detection.

Actual TUG Detection (4). Finally, the created se-

quence of movements from the last step is checked

for a possible TUG sequence. This is relatively sim-

ple and done with the help of a list containing possible

TUG sequences.

This list was constructed empirically with possi-

ble TUG sequences. Every TUG sequence in the pre-

compiled list is then checked against the recent move-

ments from the last step. Duplicate entries are com-

bined beforehand (e.g. “getting up, walking, walk-

ing, walking, sitting down” → “getting up, walking,

sitting down”). A TUG is found if one of the pos-

sible TUG sequences is contained in the recent list

of movements. Afterwards the time the original se-

quence of movements took is calculated with the help

of timestamps in the sensor data. (These timestamps

are sent with every data packet of the sensor as UTC

in milliseconds.)

5 EXPERIMENTAL RESULTS

The developed method was evaluated in two differ-

ent ways. First the human activity recognition itself is

assessed. In a second step the complete TUG detec-

tion algorithm is evaluated with the help of additional

sensor and audio data.

5.1 Human Activity Recognition

The human activity recognition was evaluated sepa-

rately from the complete TUG detection algorithm.

All of the four machine learning algorithms were

evaluated separately from each other as well as the

combined classiﬁer (the way they are used in the TUG

detection algorithm). First we compare the overall re-

sults with the help of the precision, recall and F-score

measures (see equations 1 to 3). An explanation of

these measures can be found in (Sokolova and La-

palme, 2009). Afterwards the confusion matrices of

the random forest, gradient boosting classiﬁer and the

combined VotingClassiﬁer are examined in detail.

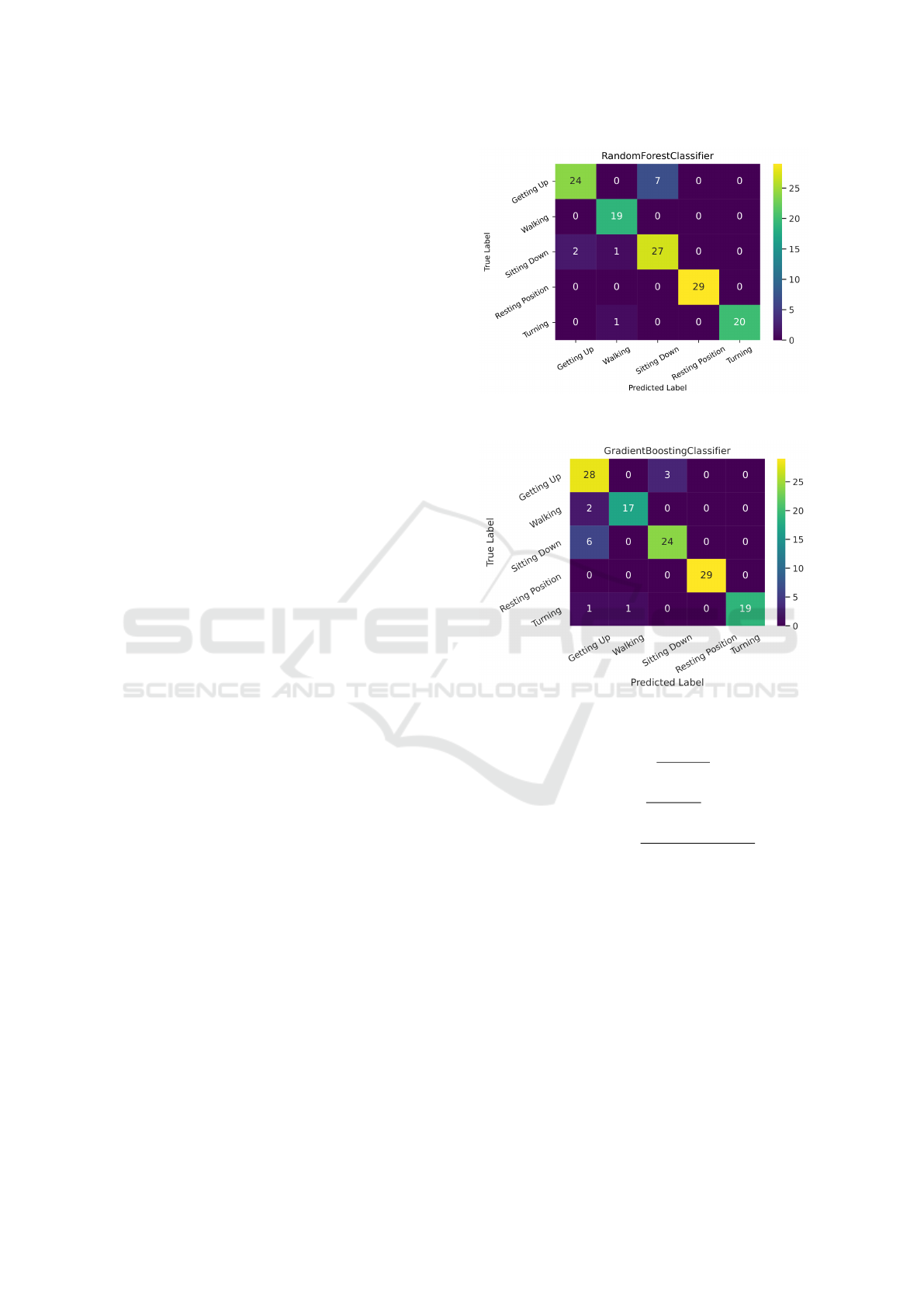

Figure 7: Confusion matrix of the human activity recogni-

tion (random forest classiﬁer).

Figure 8: Confusion matrix of the human activity recogni-

tion (gradient boosting classiﬁer).

Precision =

TP + FP

(1)

Recall =

TP + FN

(2)

F-measure = 2 ∗

Precision ∗ Recall

Precision + Recall

(3)

where:

TP = True positive

FP = False positive

FN = False negative

All of the four classiﬁers were evaluated in the

same way. Table 1 shows the precision, recall and F-

score of all the tested machine learning methods. The

scores were calculated with the help of the “preci-

sion_recall_fscore_support” method provided by the

scikit-learn library. One can see that the random for-

est algorithm gives the best results overall (regarding

precision, recall and F-score), followed by the gradi-

ent boosting algorithm. Nevertheless the k-NN and

multilayer perceptron produce respectable results as

Automatic Detection of Timed-up and Go Tests with IMU Sensor Data

Figure 9: Confusion matrix of the human activity recogni-

tion (combined VotingClassiﬁer).

Table 1: Precision, recall and F-score of all evaluated ma-

chine learning methods. See equations 1 to 3 for the used

measures.

Precision Recall F-score

Random Forest 92.44% 92.53% 92.23%

k-NN 87.44% 87.62% 87.41%

Gradient Boosting 91.8% 90.05% 90.7%

MLP 87.28% 86.9% 86.87%

Combined 89.69% 89.54% 89.44%

well. Despite the slightly better results of some classi-

ﬁers, all results are approximately located in the same

range. Interestingly some of the simpler methods, like

k-NN and random forest outperform the multilayer

perceptron despite its much higher computational ex-

pense and bigger model size.

Figure 7 (random forest classiﬁer) and 8 (gradi-

ent boosting classiﬁer) show the confusion matrices

of the two best performing methods. The ﬁrst thing

that stands out regarding the confusion matrices is that

almost all errors made by the classiﬁers concern the

confusion of getting up and sitting down, most likely

due to the similarity of the sensor data of these two

movements, which is ampliﬁed in the feature extrac-

tion step. However the classiﬁers make almost no er-

rors regarding the other movements.

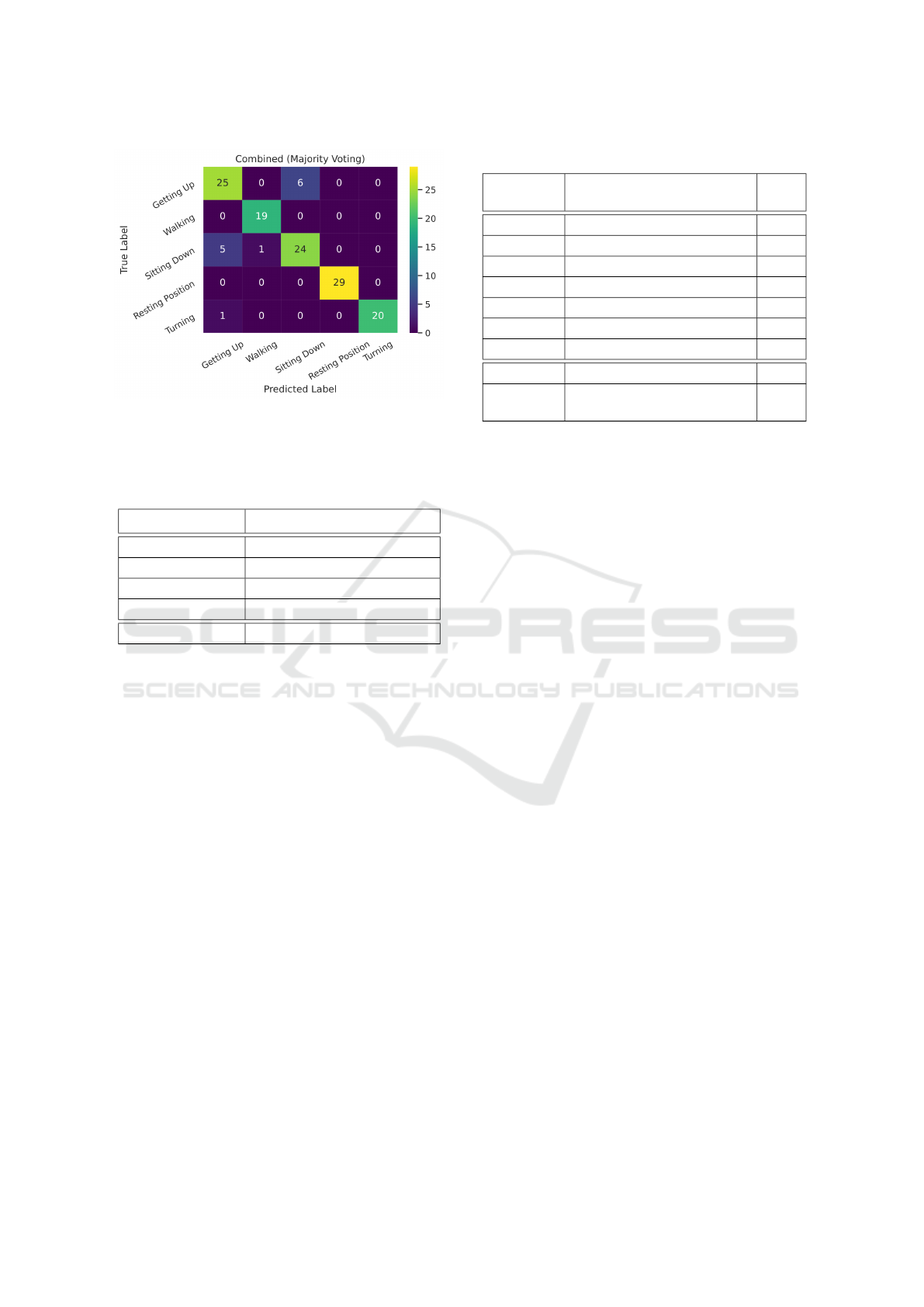

Figure 9 shows the combined results of all four

classiﬁers (using the VotingClassiﬁer provided by

scikit-learn). Unfortunately the previously men-

tioned confusion of getting up and sitting down re-

mains. However this combined classiﬁer combines

the strengths of all classiﬁers and is able to im-

prove the results of the classiﬁcation slightly. This

is not necessarily reﬂected in the traditional evalua-

tion methods, but proven true in the TUG detection

results.

Table 2: Results of the TUG detection evaluation.

Total Time Lab.

TUGs

Det.

TUGs

Other

TUGs

Person 1 21 min 34 s 14 9 5

Person 2 4 min 36 s 4 0 2

Person 3 10 min 38 s 7 5 0

Person 4 11 min 1 s 6 4 0

Person 5 5 min 30 s 4 1 0

Person 7 29 min 57 s 13 6 3

∑

1h 23 min 16 s 48 25 10

Person 6 16 min 33 s 14 1 0

∑

(with

person 6)

1h 39 min 49 s 62 26 10

It has to be mentioned that the results of the hu-

man activity recognition are highly dependent on the

chosen window size (see Section 4.4). This means

that probably a different size has to be chosen when

using different training data or data from different age

groups.

5.2 TUG Detection

The TUG recognition accuracy was evaluated with

specially collected sensor data. We collected sen-

sor data which was annotated by the user collecting

the data (see Section 4.1). In doing so 22 datasets

(with the individual lengths ranging from 1min 55 s

to 11 min 11 s) were gathered. All in all data was

recorded by seven persons, every person recorded two

or more datasets. These audio recordings were then

parsed manually to a text ﬁle containing the move-

ment events and their corresponding timestamps and

contained multiple, random TUG sequences. These

ﬁles were then compared with the results from the

TUG detection algorithm. The algorithm was previ-

ously modiﬁed to be able to load a ﬁle of sensor data

and check this ﬁle for possible TUG sequences.

Table 2 shows the results from the TUG detec-

tion evaluation with the help of real world data. The

summed lengths of all data recordings of each person

are given in the second column of the table. The third

column (“Lab. TUGs”) shows the number of TUGs

labeled by the user. Column four (“Det. TUGs”)

shows the number of TUGs that were labeled by

the user and recognized by the algorithm, while col-

umn ﬁve (“Other TUGs”) shows TUGs which weren’t

labeled by the user but consist of TUG-like move-

ments which were additionally recognized by the al-

gorithm. Overall this shows promising results in de-

tecting TUG sequences in the daily life of people.

The algorithm misses some of the executed TUG se-

quences and produces a detection rate of the labeled

BIODEVICES 2022 - 15th International Conference on Biomedical Electronics and Devices

TUGs of 52.08% (without person 6, see last para-

graph for an explanation). This is however a good

result, as the main goal of the algorithm is to rec-

ognize some of the TUG-like sequences and not ev-

ery single sequence executed by the person wearing

the wearables. The results of the TUG recognition

also seems to vary from person to person, indicating

further needed research in the determination of con-

stants like the window size. The quality of the results

differs a lot from the results of the previously evalu-

ated movement detection. This could be explained by

the different data structure, movements have to be de-

tected in a continuous data stream containing move-

ments, whereas the movements used for training the

machine learning algorithms were manually selected

and trimmed.

Some movement sequences contained in the eval-

uation data are very similar to the movements found in

a typical TUG sequence, but weren’t speciﬁcally la-

beled as a TUG sequence by the person recording the

data. When taking these additional recognized TUGs

into account the algorithm is able to collect more data

about possible TUGs, as shown in the last column of

Table 2 (labeled as “Other TUGs”). This also yields

a detection of a TUG in almost every data recording,

further proving the feasibility of the algorithm. Over-

all the algorithm shows a good detection rate when

keeping the relatively short length of the test data in

mind. The algorithm should more than fulﬁll its goal

to detect TUGs when running for at least a few hours

in a real life scenario.

It has to be mentioned here that TUG sequences

which are normally too long (this means sequences

where the walking path is longer than 3 m) get rec-

ognized as well. This can however be easily miti-

gated by taking the walking speed of the person into

account. One possible solution for that is explained

in more detail in Section 6.1. Testing data was also

only collected from healthy individuals. Further test-

ing should also include data from older and geriatric

people.

Special attention must also be given to the results

of person 6. At ﬁrst none of the labeled TUGs could

be detected in the data. After evaluating the data fur-

ther, it is suspected that the orientation of the wear-

ables was possibly swapped when collecting the data.

However, after swapping the axis of the sensor data to

the suspected correct orientation of the sensors, the re-

sults didn’t improve much. Due to the stark difference

in result quality, we consider this an outlier. For that

reason Table 2 includes a second summary without

the results of person 6. While we suspect a technical

or human error due to the unsupervised experimen-

tal setup, further research with more participants and

a supervised experiment should bring conﬁrmation to

our suspicion.

6 CONCLUSION AND FUTURE

WORK

In this paper we presented a method for an automatic

TUG detection that works without interrupting the

daily life of the patients. This section ﬁrst presents

a summary of the ﬁndings and results. The last sec-

tion shows some ways in which the developed method

could be improved.

The evaluation of the human activity recognition

showed very promising results with the performance

metrics of precision and recall exceeding values of

90%. The only notable errors are made concerning

the two movements of getting up and sitting down.

The human activity recognition can not only be used

for the developed TUG detection, but could also be

used for a standalone activity recognition of elderly or

geriatric persons. The actual TUG detection delivers

good results as well. More than half of the performed

and labeled TUG sequences are recognized. Move-

ment sequences with high similarity to the TUG (but

which weren’t labeled by the testers) are recognized

as possible TUG sequences as well.

The only downside being that the method also rec-

ognizes sequences which contain walking movements

longer than 3 m. A possible solution for this prob-

lem is brieﬂy described in Section 6.1. All in all it

is deﬁnitely possible to detect and evaluate TUG-like

sequences without disrupting the daily life of the pa-

tients or additional user inputs. Nevertheless some

improvements are required for a fully autonomous

system. Some of these possible improvements are

shown in the next section.

6.1 Future Work

All in all the developed method represents a good way

for the automatic detection of the TUG. Nonetheless,

there is room for improvement and extension of the

presented method. This section describes how the

method could be further improved.

At ﬁrst, the developed method should be ported to

and tested on a standalone hub (for example a Rasp-

berry Pi, see Section 3.2). This would remove the

need for a smartphone and make the system more au-

tonomous. It also increases the usability for different

age groups and for people with dementia.

The developed method has the disadvantage that it

detects TUG sequences that are longer than 3 m (see

Automatic Detection of Timed-up and Go Tests with IMU Sensor Data

Section 5.2). This could be mitigated by also calcu-

lating the walking speed of the wearer of the wearable

from the collected IMU data. This could be done with

the help of the accelerometer data (for example by de-

tecting the frequency of peaks in the accelerometer

data of the walking sequences). One can then cal-

culate the walking distance when the walking speed

and the length of the walking sequence is known. Af-

terwards the algorithm could discard detected TUG

sequences containing walking lengths which deviate

too much from the standard walking length of 3m.

Libraries like GaitPy (Czech and Patel, 2019) for

Python also provide methods for the extraction of gait

characteristics from accelerometer data.

Our developed method is also limited to the detec-

tion of the individual phases of the TUG and the time

the user took to complete the test. A future expansion

of the algorithm could also calculate and evaluate fur-

ther fall risk indicators. For example the movement or

turn speed in every phase of the detected TUG could

be calculated. Every phase can then be further eval-

uated with the help of a machine learning algorithm

and expert knowledge from medical staff with experi-

ence in the ﬁeld of fall risk assessment. For this more

test data from geriatric persons would be needed. In

combination with this the TUG sequence could also

be displayed visually for a more intuitive interpreta-

tion. Approaches, for example from (Seo et al., 2019)

already tried to use an extended TUG to discern peo-

ple with higher fall risk from those with a lower fall

risk. The system measures multiple variables in each

of the single phases of the TUG. These in turn are

analyzed with regression to determine the fall risk.

ACKNOWLEDGEMENTS

Research reported in this publication was partially

supported by the Central Innovation Programme for

small and medium-sized enterprises (SMEs) of the

German Federal Ministry for Economic Affairs and

Energy under grant number 16KN075223 (MoDiSeM

- Spur).

REFERENCES

Attal, F., Mohammed, S., Dedabrishvili, M., Chamroukhi,

F., Oukhellou, L., and Amirat, Y. (2015). Physical hu-

man activity recognition using wearable sensors. Sen-

sors, 15(12):31314–31338.

Augurzky, B., Hentschker, C., Pilny, A., and Wübker, A.

(2017). Krankenhausreport. Barmer, Berlin.

Czech, M. and Patel, S. (2019). Gaitpy: An open-source

python package for gait analysis using an accelerom-

eter on the lower back. Journal of Open Source Soft-

ware, 4:1778.

Green, A. M. (2018). Automatic “Timed-Up and Go”

(TUG) Test Segmentation. Master’s thesis, Mas-

sachusetts Institute of Technology.

Kwapisz, J. R., Weiss, G. M., and Moore, S. A. (2011).

Activity recognition using cell phone accelerometers.

SIGKDD Explor. Newsl., 12(2):74–82.

Liu, J., Sohn, J., and Kim, S. (2017). Classiﬁcation of daily

activities for the elderly using wearable sensors. Jour-

nal of Healthcare Engineering, 2017:1–7.

Mühle, M. (2019). Entwicklung eines Lernverfahrens zur

Beurteilung von Kompressoren anhand akustischer

Signale. Master’s thesis, BTU Cottbus-Senftenberg.

Nelson, K. (2014). Short time fourier transform using

python and numpy. https://kevinsprojects.wordpress.

com/2014/12/13/short-time-fourier-transform-using-

python-and-numpy/. Accessed: 02.09.2021.

Nguyen, H., Ayachi, F., Rahimi, F., Boissy, P., Jog, M.,

Blamoutier, M., and Duval, C. (2015). Auto detec-

tion and segmentation of physical activities during a

timed-up-and-go (tug) task in healthy older adults us-

ing multiple inertial sensors. Journal of NeuroEngi-

neering and Rehabilitation.

Paraschiakos, S., Cachucho, R., Moed, M., van Heemst, D.,

Mooijaart, S., Slagboom, E., Knobbe, A., and Beek-

man, M. (2020). Activity recognition using wearable

sensors for tracking the elderly. User Modeling and

User-Adapted Interaction.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Podsiadlo, D. and Richardson, S. (1991). The timed up and

go: a test of basic functional mobility for frail elderly

persons. Journal of the American Geriatrics Society,

39(2):142—148.

Seo, J., Kim, T., Lee, J., Kim, J., and Tack, G. (2019).

Fall prediction of the elderly with a logistic regression

model based on instrumented timed up & go. Journal

of Mechanical Science and Technology, 33.

Sokolova, M. and Lapalme, G. (2009). A systematic analy-

sis of performance measures for classiﬁcation tasks.

Information Processing & Management, 45(4):427–

437.

Suunto (2020a). Movesense-device-lib. https://bitbucket.

org/suunto/movesense-device-lib/src/master/. Ac-

cessed: 15.07.2021.

Suunto (2020b). Movesense Sensor. Suunto, Vantaa, Fin-

land. v2.0.

Suunto (2021). Movesense - Open Wearable Tech Platform.

https://www.movesense.com/. Accessed: 15.07.2021.

Weiss, A., Herman, T., Plotnik, M., Brozgol, M., Giladi,

N., and Hausdorff, J. (2011). An instrumented timed

up and go: The added value of an accelerometer for

identifying fall risk in idiopathic fallers. Physiological

measurement, 32:2003–18.

BIODEVICES 2022 - 15th International Conference on Biomedical Electronics and Devices
