Object Detector Differences When using Synthetic and Real Training

Data

Martin Georg Ljungqvist

, Otto Nordander

, Arvid Mildner

, Tony Liu

and Pierre Nugues

2 b

Axis Communications AB, Lund, Sweden

Department of Computer Science, Lund University, Lund, Sweden

Keywords:

Object Detection, Layer Similarity, Centered Kernel Alignment.

Abstract:

To train well-behaved generalizing neural networks, sufﬁciently large and diverse datasets are needed. Col-

lecting data while adhering to privacy legislation becomes increasingly difﬁcult and annotating these large

datasets is both a resource-heavy and time-consuming task. An approach to overcome these difﬁculties is to

use synthetic data since it is inherently scalable and can be automatically annotated. However, how training on

synthetic data affects the layers of a neural network is still unclear. In this paper, we train the YOLOv3 object

detector on real and synthetic images from city environments. We perform a similarity analysis using Cen-

tered Kernel Alignment (CKA) to explore the effects of training on synthetic data on a layer-wise basis. The

analysis captures the architecture of the detector while showing both different and similar patterns between

different models. With this similarity analysis we want to give insights on how training synthetic data affects

each layer and to give a better understanding of the inner workings of complex neural networks. The results

show that the largest similarity between a detector trained on real data and a detector trained on synthetic data

was in the early layers, and the largest difference was in the head part.

1 INTRODUCTION

Using convolutional neural networks (CNNs) is a

popular approach to solve the object detection prob-

lem in computer vision. A lot of effort has been

put into developing accurate and fast object detectors

leveraging the structure of convolutional layers (Liu

et al., 2016; Lin et al., 2017; Redmon and Farhadi,

2018; Tan et al., 2020). This has led to a dras-

tic increase in performance of object detectors dur-

ing the past few years. However, these models gen-

erally require massive amounts of labeled training

data to achieve good performance and generalization

(Nowruzi et al., 2019). Building these datasets can be

both time consuming and resource heavy.

First, the raw data needs to be collected, often

involving complex data acquisition setups and gath-

ering schemes. Adhering to privacy, data protection

regulations and ensuring the diversity and quantity of

the data becomes an increasingly difﬁcult challenge.

Second, the data needs to be annotated. Since

datasets for deep learning often include several thou-

sand images, the annotation process becomes a very

mundane, time-consuming, and error-prone task.

https://orcid.org/0000-0002-0115-869X

https://orcid.org/0000-0002-9563-4000

One way of avoiding these issues is using syn-

thetic data for training. Generated synthetic datasets

are inherently scalable and labelling of the data can

be done automatically. These datasets can for exam-

ple be generated using a data generation tool such as

Carla (Dosovitskiy et al., 2017), or sampling videos

from open-world video games like Grand Theft Auto

V (GTA V) (Richter et al., 2017; Johnson-Roberson

et al., 2017).

A general problem with deep neural networks is

that their complexity makes it difﬁcult to understand

exactly why a certain prediction has been made. This

has led to neural networks often being considered

as black boxes (Alain and Bengio, 2016; Fong and

Vedaldi, 2017), where one only looks at the input and

the output, while relying on trial and error when cre-

ating a well-working system. CNNs are less regarded

as black boxes since they are suitable for visualisa-

tion, but that renders a vast amount of information to

overview and may not tell everything about the net-

works inner workings. There have been many stud-

ies on understanding and visualizing the inner work-

ings of deep neural networks (Hardoon et al., 2004;

Zeiler and Fergus, 2014; Alain and Bengio, 2016;

Fong and Vedaldi, 2017; Raghu et al., 2017; Morcos

et al., 2018; Kornblith et al., 2019; Zhang et al., 2019;

Ljungqvist, M., Nordander, O., Mildner, A., Liu, T. and Nugues, P.

Object Detector Differences When using Synthetic and Real Training Data.

DOI: 10.5220/0010778200003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

48-59

ISBN: 978-989-758-555-5; ISSN: 2184-4321

Hermann and Lampinen, 2020; Nguyen et al., 2021;

Ge et al., 2021).

In this work, we investigate how object detection

models are affected when trained on synthetic data

versus real data by exposing the inner workings of

the network. One key element will be the comparison

between the outputs from individual hidden layers in

the models using the recently proposed idea of simi-

larity measurement (Kornblith et al., 2019). Our work

builds upon Liu and Mildner (2020).

Our aim is to investigate how synthetic data af-

fects the performance of object detection models as

well as how hidden layers in the CNNs are affected

by different types of training data. More speciﬁcally:

1. How does a model trained on synthetic data differ

from one trained on real data and what network

layers are affected?

2. Does freezing the backbone affect this?

To the best of our knowledge, no such analysis has

been made on a CNN object detector using real and

synthetic data.

Our main contributions are:

• We show what parts of the network are most sim-

ilar for a detector trained on real image data com-

pared to when it is trained on synthetic data.

• We also determine the consequences of freezing

the backbone or not when further training a detec-

tor on synthetic data.

2 RELATED WORK

2.1 Object Detection

One-stage detectors are suitable for use in real-time

object detection in video. These methods sample

densely on the set of object locations, scales, and as-

pect ratios. Proposed methods are for example YOLO

(Redmon and Farhadi, 2018), RetinaNet (Lin et al.,

2017), SSD (Liu et al., 2016) and EfﬁcientDet (Tan

et al., 2020). These networks are signiﬁcantly faster

while having comparable performance to the con-

ventional two-stage methods. Because of its speed,

comparable accuracy, and relatively light-weightness,

YOLOv3 (Redmon and Farhadi, 2018) was chosen

for our experiments.

2.2 Synthetic Data

There are several synthetic datasets of city environ-

ments available and severalexperiments of training on

synthetic data have been conducted. VKITTI (Gaidon

et al., 2016; Cabon et al., 2020) is a synthetic ver-

sion of the KITTI dataset (Geiger et al., 2013), but it

does not contain persons. Synthia (Ros et al., 2016)

is another synthetic dataset of images from urban

scenes, where the results showed increased perfor-

mance when training on a mixture of real and synthe-

sized images. The video game GTA V has been used

to generate synthetic datasets (Richter et al., 2017;

Johnson-Roberson et al., 2017).

The experiments conducted in Johnson-Roberson

et al. (2017) showed that training a Faster R-CNN on

a GTAV synthetic dataset of at least 50,000 images in-

creased the performance compared to training on the

smaller real dataset Cityscapes (Cordts et al., 2016)

when evaluated on the real KITTI dataset (Geiger

et al., 2013). However, these experiments only used

cars as labels, disregarding other labels such as per-

sons and bicycles.

The Synscapes dataset is a synthetic version of

Cityscapes (Wrenninge and Unger, 2018). The au-

thors claim that training on only Synscapes yields

decent results, but lowers performance compared to

training on real data when evaluated on Cityscapes.

However, their experiments showed that models

trained on Synscapes outperformed both models

trained only on GTAV (Richter et al., 2017) and Syn-

thia (Ros et al., 2016).

Furthermore, Wrenninge and Unger (2018)

claimed that training on a mixture of synthetic and

real data can further improve performance, outper-

forming models trained only on real data. Results

from Nowruzi et al. (2019) showed that training on

synthetic data and ﬁne-tuning on real data yielded

better performance than training on a mixed real-

synthetic dataset. The authors also concluded that

photo-realism in the synthetic data was not necessar-

ily as important as other factors in the training such as

diversity.

Non-artistically generated images have been pro-

duces by domain randomization (Tremblay et al.,

2018), where parameters such as lighting, pose, and

textures were randomized. The authors showed that

with additional ﬁne-tuning on real data, their model

outperformed models trained only on real data for ob-

ject detection of cars on the KITTI dataset. Further-

more, they argued that letting the backbone be train-

able during training on synthetic data yielded bet-

ter performance compared to freezing the backbone

weights.

Synthetic data have been used for pedestrian de-

tection and pose estimation (Hattori et al., 2018). The

authors showed that training on synthetic images only

yielded a model that outperformed a model trained

on real data only. However, the models were scene-

Object Detector Differences When using Synthetic and Real Training Data

speciﬁc and location-speciﬁc where they used a priori

knowledge about the camera parameters and the scene

geometry.

Hinterstoisser et al. (2018) superimposed 3D ren-

dered models of toys with different lighting and poses

onto real backgrounds. As opposed to Tremblay

et al. (2018), the authors argued that freezing back-

bone weights (when they are initialized from a pre-

trained backbone) during training on the synthetic

data yielded better performance compared to letting

the backbone be trainable. The authors of Tremblay

et al. (2018) argued that a possible explanation could

be that the dataset that they used was large and diverse

enough to further improve the backbone.

2.3 Similarity of Neural Networks

One way of obtaining more insight on how a CNN

network behaves is looking at the outputs layer-wise.

By comparing layer outputs from two different mod-

els, one can determine the similarity between the lay-

ers. One method of measuring the similarity of layer

outputs is the singular value canonical correlation

analysis (SVCCA) (Raghu et al., 2017). SVCCA

uses singular value decomposition (SVD) (Golub and

Reinsch, 1971) for dimensionality reduction and then

canonical correlation analysis (CCA) (Hardoon et al.,

2004) which was previously used to learn seman-

tic representations for web images. A further im-

provement of SVCCA is the projection weighted CCA

(PWCCA) (Morcos et al., 2018), which uses projec-

tion weighting to calculate the similarity measure as a

weighted mean instead of a naive mean as in SVCCA.

Both metrics are invariant to invertible linear

transformations which according to Kornblith et al.

(2019) leads to some major issues. Kornblith et al.

(2019) instead proposed a metric called centered ker-

nel alignment (CKA) which, according to the authors,

better captures similarity representationsbetween net-

work layers.

Later work (Raghu et al., 2017; Morcos et al.,

2018) have shown that the Euclidean distance is not

an ideal measurement of similarity between hidden

layer outputs, but it can still give some useful insights.

While there exist several papers that attempt to an-

swer how initialization, model complexity, or dataset

size affect the similarity between models (Raghu

et al., 2017; Morcos et al., 2018; Kornblith et al.,

2019), no attempts have been made to compare the

difference between models trained on synthetic and

real data. As CKA gives a layer-wise similarity of

hidden layers within the network, it can give insights

of how such networks differ from each other on a

layer-basis. These insights could be leveraged for ex-

ample during training to target speciﬁc layers inside

networks to improve performance.

3 MATERIALS AND METHODS

3.1 Datasets

3.1.1 Berkeley Deep Drive

The Berkeley Deep Drive (BDD) dataset (Yu et al.,

2020) consists of 100,000 driving images collected

from 50,000 rides, with 720p resolution. The images

were collected from diverse scenes such as cities, resi-

dential areas, and highways, recorded during different

hours of the day and in different weather conditions.

The images are annotated with bounding boxes and

class label.

20,000 out of the 100,000 images are reserved for

the test set. Since the labels for the test set are un-

available, we use only the remaining 80,000 images

for our experimentsrandomly divided into 60/20/20%

for training, validation, and testing

3.1.2 Grand Theft Auto V

The Playing for Benchmarks dataset, here denoted

GTAV, consists of 1080p images sampled from video

sequences from the video game Grand Theft Auto V

(Richter et al., 2017). Each rendered image has infor-

mation about the objects’ labels and positions.

The training set consists of about 134,000 images

which were collected on different time of day, in dif-

ferent weather conditions in the ﬁctional city. Those

images were here divided into 60/20/20% for training,

validation, and testing, for the experiments

The GTAV dataset consists of labels of objects

that can be very far away or persons inside vehicles

which makes them very hard or sometimes impossi-

ble to spot. Therefore, we ﬁltered out small bound-

ing boxes with an area smaller than 100 pixels. This

area was chosen by empirical visual inspection of the

ground-truth bounding boxes.

Furthermore, in the GTAV dataset, the hood of the

driving car is labeled while it is not labeled in the

BDD dataset. Therefore, we also removed the hood

annotations from the dataset.

3.2 Intersection of Class Labels

The GTAV (Richter et al., 2017) and BDD (Yu et al.,

2020) datasets use different class labels. GTAV has

https://github.com/ljungqvistmartin/datasplits

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

32 classes while BDD has 10. Moreover, label names

in the datasets also differ.

Therefore, a common subset of ﬁve classes was

selected. This label space is called the common la-

bels: car, person, cycle, truck, bus. The mapping

from BDD and GTAV labels to the common labels

are shown in Table 1.

3.3 YOLOv3

YOLOv3, You Only Look Once version 3, (Red-

mon and Farhadi, 2018) is a one-stage object detec-

tor. Compared to similar performing object detec-

tion methods, YOLOv3 claims to be faster at infer-

ence due to its one-stage detection process. The high

inference speed is especially attractive in a real-time

detection application.

The YOLOv3 architecture builds on extracting

features from an image using Darknet-53, a backbone

built of 23 residual blocks including 52 convolutional

layers, which down-samples along the network depth

using the stride length instead of max pooling.

The backbone is divided into residual blocks i.e.

leveraging shortcut connections similarly to ResNet

backbones (He et al., 2016). The beneﬁt of such skip

connections is that they deal with vanishing gradients

and at the same time encourage feature reuse, which

makes the model more parameter-efﬁcient.

The YOLOv3 network contains 107 layers in total

(numbered 0 to 106), of which 75 are convolutional

layers, 23 residual (shortcut) layers (all in the back-

bone), 4 route layers where shortcuts end up (all in

the head). Downscaling is done by a factor of two at

layers 1, 5, 12, 37, and 62 in the backbone. Of the

convolutional layers, 38 have a kernel of 3× 3 and 37

have a kernel of 1× 1.

The YOLOv3 network predicts bounding boxes at

three resolution levels. These ﬁnal prediction layers

are referred to as detection layers; layers 82, 94, and

106. Each detection layer consists of a grid, where

each cell contains the prediction of a bounding box,

its objectness score, and a classiﬁcation score for each

class. All three detection layers are immediately pre-

ceded by seven convolutional layers.

After the low-resolution detection layer (layer 82),

responsible for detecting high-level objects, the out-

put is up-sampled (85) and concatenated (83 and

86) with intermediate output from Darknet-53 (61),

which corresponds to the same up-sampled resolu-

tion. This concatenated tensor is passed through

seven convolutional layers (87-93) and ﬁnally through

the second detection layer (94). The same procedure

is then repeated for the layers preceding the third and

last detection layer (106).

The detection layers are grids, where the cells are

responsible for predicting the bounding boxes as well

as containing the predicted object and class probabil-

ity. In inference, bounding boxes are non-maximum

suppressed according to their objectiveness score, ﬁl-

tering out instances which the network believes have

low probability of containing objects. The remaining

bounding box predictions are then used in the actual

prediction of the model.

3.4 The Models

CNNs are often divided into two parts: a backbone re-

sponsible for feature extraction and a detection head

or classiﬁer. Since training a backbone can be time

consuming, training of CNNs often uses pre-trained

backbone weights at initialization to reduce the com-

putations needed. It is also advantageous for general-

ization.

The feature extraction layers could be considered

general enough and that it is beneﬁcial to freeze the

layers as a kind of regularization (Hinterstoisser et al.,

2018). On the other hand, the feature extraction layer

weights may still have room for actual improvement

and further training could increase the overall per-

formance. Therefore, we analyze three differently

trained models.

All trained models use the same hyperparameters:

a learning rate of 10

−4

, a batch size of 8, the Adam

optimizer, 100 epochs with patience 10 (early stop-

ping). Also, the random seed was set to the same

value for all training sessions for them to have the

same prerequisites, to be reproducible and reduce dif-

ferences between models.

The images were scaled to 416 × 416 pixels for

training, test, and analysis. However, the CKA

comparison analysis was performed feeding images

rescaled to 32 × 32 pixels to the networks to make

the large matrices of concatenated activations ﬁt in

the working memory. Even though the models were

not trained for this resolution, they have seen simi-

lar downscale resolution inside the network, but for a

smaller input. The downscale inside the network will

render correspondingly lower scale so each layer has

not seen this particular scale at training. Touvron et al.

(2019) have shown that for the convolutional part of

a CNN the receptive ﬁeld is unaffected by the input

size. We focus on the similarity between the models

and assume that the workings of the models are still

viable.

There are multiple datasets with real and synthetic

image data. For our experiments, we chose BDD to

represent a dataset of real images, along with GTAV

to represent a dataset of synthetic images.

Object Detector Differences When using Synthetic and Real Training Data

Table 1: The label map between BDD, GTAV labels and the common labels.

Common BDD GTAV

person person, rider person

cycle bike, motor bicycle, motorcycle

car car car, van

bus bus bus

truck truck truck, trailer

All models were initialized with the ImageNet

pre-trained Darknet-53 backbone which populates

layers 0 to 74. Layers 75 up to layer 106 was pop-

ulated randomly according to Kai-Ming uniform dis-

tribution.

U-Real – Further trained with all layers trainable

(unfrozen) on our training set of BDD.

U-Synthetic – Further trained on the GTAV training

set with all layers trainable (unfrozen).

F-Synthetic – Further trained on the GTAV training

set with only detection head trainable i.e. layer

75-106 and thus leaving the backbone untrainable

(frozen).

3.5 Similarity Metric

Comparing the similarity between two neural net-

works can be done in many ways. One approach is to

look at the output for each individual layer and com-

pare the outputs between networks. The problem can

be described in the following way (Kornblith et al.,

2019):

Let X

∈ R

p×n

and Y

∈ R

p×n

be the output of

layer i in form of matrices from two networks

with p neurons each, fed with the same n in-

puts. We want to introduce a metric function

s(X

, Y

) that can be used to compare the simi-

larity between two output matrices, to give in-

sight of the behaviour and similarities between

the hidden layers inside the models.

Several measures of similarity complying with

this deﬁnition have been suggested. SVCCA (Raghu

et al., 2017) and PWCCA (Morcos et al., 2018) are

two examples of measuring representational similar-

ity. Both metrics are invariant to invertible linear

transforms i.e.

s(X, Y) = s(AX, BY) (1)

for any invertible matrices A and B. This is argued

to be an important property for comparing layer out-

puts. However, according to Kornblith et al. (2019), a

metric with invariance to invertible linear transforma-

tions has the limitation of yielding the same similarity

for all outputs with a greater width than the number of

datapoints i.e. p ≥ n.

The authors further argue that the scale of layer

outputs also is important for representations. There-

fore, similarity indices that preserve scale informa-

tion, such as the Euclidean distance, can be helpful

on giving insights of the activations. For a metric

that is invariant to invertible transforms, the magni-

tude of the vectors in the activation space is irrele-

vant and therefore ignores this important information.

Instead of requiring the similarity index to be invari-

ant to invertible linear transform, a weaker invariance

condition can be considered: invariance to orthogonal

transformations. Invariance to orthogonal transforma-

tions means that s(X, Y) = s(UX, VY) for any orthog-

onal matrices U and V. A property is that invariance

to orthogonal transformations also means invariance

to permutations which is important since the convolu-

tional layer outputs should have the same representa-

tions independent of channel-wise permutations.

One such similarity index is linear CKA (Korn-

blith et al., 2019). CKA is not only invariant to

orthogonal transforms but also invariant to isotropic

scaling i.e. s(X, Y) = s(αX, βY) for any α, β ∈ R

For the matrices X and Y, the CKA with a linear ker-

nel is deﬁned as:

CKA(X, Y) =

||Y

X||

||X

X||

||Y

Y||

, (2)

where || · ||

is the Frobenius norm and n is the

number of data points i.e. columns in X and Y.

With this index deﬁnition, Kornblith et al. (2019) have

shown that the CKA captures intuitive similarity ideas

such as models trained in the same way with different

initialization should be similar.

In our experiments, we used linear CKA.

3.5.1 Convolutional Layers

While the CKA analysis requires matrices, the convo-

lutional layers in the network output tensors. To solve

this problem, we follow the line of Kornblith et al.

(2019) and treat the output tensors of shape (n, h, w, c)

as a collection of vectors of the shape (n, h · w · c)

where n is the number of images fed through the net-

work, w and h are the width and height of the image,

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

and c is the number of output channels (activations)

i.e. the number of convolutional kernels for the spe-

ciﬁc layer.

3.6 Representational Similarity

Model U-Real gives us an indication of the perfor-

mance we can obtain by only collecting a lot of real

data.

Convolutional layers of the same layer index may

have different roles in different networks trained on

different data. Arguments can be made that the output

of individual layers is not as important as the resulting

output after a block of layers. However, here we focus

on interpreting the single layer outputs.

The experiments used the CKA method described

by Kornblith et al. (2019) to analyze the similarity be-

tween layers of several models.

The layer-wise similarity analysis was done by

feeding 200 random images from our BDD test set

through the trained networks and performing CKA on

the layer outputs to ﬁnd which layers are similar and

which are not.

Residual layers i.e. shortcut layers essentially just

sum outputs from two layers without any weights,

they are though included in the CKA analysis for

completeness of including all layers.

3.7 Implementation

The experiments were performed using the open-

source implementation of YOLOv3 developed by Ul-

tralytics (2019), using PyTorch 1.4 and the CKA im-

plementation by Kornblith et al. (2019).

The performances presented as mean average pre-

cision (mAP) in the experiments are for all ﬁve com-

mon classes using mAP@0.5 i.e. mAP at 0.5 inter-

section over union (IoU).

4 RESULTS

In order to see that the trainings were successful, the

resulting mAP of the trained models evaluated on our

test set of the synthetic GTAV dataset and our test set

of the real BDD dataset using image size 416× 416

are presented in Table 2.

The models yielded best mAP on the type of

data they were trained for, where U-Real got about

0.43 mAP on BDD while model U-Synthetic and F-

Synthetic both only got about 0.12 mAP. Tested on

GTAV model U-Synthetic and F-Synthetic both got

about 0.89 mAP while U-Real got about 0.44 mAP.

It can be seen that model U-Synthetic and F-

Synthetic had comparable mAP on both BDD and

GTAV respectively, considering variations of train-

ings with different random seeds, see Table 2.

4.1 Layer-wise Analysis

The objective was to observe differences in models

trained on real and synthetic data. Model U-Real was

trained on real data only (ImageNet + BDD), while

the head parts of U-Synthetic and F-Synthetic were

trained on synthetic data only. Figures 1 and 2 show

the results of the CKA similarity analysis using 200

images from our BDD test set that were fed through

the models.

Summary statistics of all layer outputs (activa-

tions), averaged over all layers, are presented in Ta-

bles 3 and 4. A small difference in distribution can

be observed between model U-Real trained on real

data and the models trained on synthetic data: Mod-

els U-Synthetic and F-Synthetic. The difference was

mostly in the mean and standard deviation. Compa-

rably, models U-Synthetic and F-Synthetic have quite

similar layer output value distribution. This can be

observed both for image size 416× 416 and 32× 32,

making it consistent between the mAP analysis and

CKA analysis.

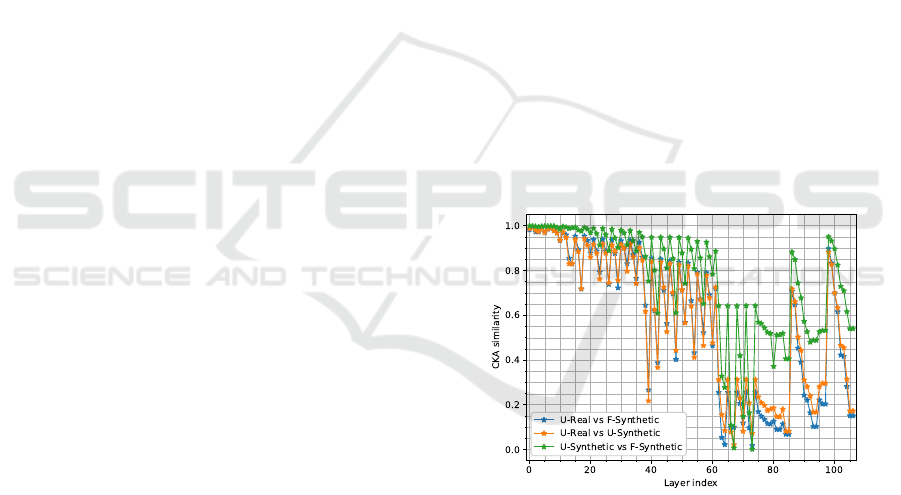

Figure 1: CKA similarity for all layers in entire YOLOv3

when images from our BDD test set were passed through

the networks that were trained with seed 0.

The CKA similarity can be seen in Figures 1

and 2, where there was high similarity between real

and synthetic models for both U-Synthetic and F-

Synthetic in the ﬁrst 13 layers of the network where

all have similarity above 0.9 and most of them above

0.95. The similarity was above 0.7 for the ﬁrst layers

until layer 37. After layer 37 there was more variation

in the similarity between the models. The similarity

was quite high in most of the backbone until layer 61.

Comparing model U-Real with the synthetic mod-

els, the similarity from layer 62 to 85 was under 0.35.

Object Detector Differences When using Synthetic and Real Training Data

Table 2: Performance of models trained on GTAV synthetic data: U-Synthetic and F-Synthetic as well as model U-Real

trained on our BDD training set. All evaluated for mAP on our GTAV test set and our BDD test set.

Model mAP on BDD mAP on GTAV

seed 0 seed 1 seed 0 seed 1

U-Real 0.428 0.430 0.440 0.439

U-Synthetic 0.122 0.124 0.886 0.893

F-Synthetic 0.125 0.121 0.892 0.884

Table 3: Summary statistics of all layer outputs when feeding the network with 200 images of size 416× 416 from our BDD

test set. Values were averaged over all layers.

Model seed mean median std min max

U-Real 0 -0.0165 -0.116 0.961 -21.8 54.4

U-Real 1 -0.0145 -0.113 0.959 -21.0 52.1

U-Synthetic 0 -0.0272 -0.113 0.986 -22.0 52.4

U-Synthetic 1 -0.0269 -0.110 0.995 -22.3 50.3

F-Synthetic 0 -0.0263 -0.111 1.00 -22.2 51.0

F-Synthetic 1 -0.0235 -0.110 0.983 -23.2 48.0

Figure 2: CKA similarity for all layers in entire YOLOv3

when images from our BDD test set were passed through

the networks that were trained with seed 1.

The similarity was relatively low for the three detec-

tion layers in the head (layers 82, 94, 106), includ-

ing their preceding layer, where all have similarity be-

tween 0.05 and 0.2.

In the head part, there were two peaks, at route

layers 86 (concatenating the previous layer output

with the output from layer 61) and 98 (concatenat-

ing the previous layer output with the output from

layer 36), both routing from layers in the backbone.

Since the similarity was high in the backbone overall,

it is reasonable that there were similarity peaks where

those two backbone layers are routed in the head part.

In the head part, each detection layer and the one

immediately preceding convolutional layer had the

same similarity values.

The average of CKA similarity was higher in the

backbone than in the head part for both comparisons

of U-Real vs the synthetic models, see Table 5. Like-

wise, the similarity between model U-Synthetic and

model F-Synthetic was overallhigher than when com-

pared to model U-Real. The head part had lower sim-

ilarity than the backbone and lower than the mean of

all layers, for all comparisons.

Note the part between layer 62 and 85 in Figures

1 and 2 that all had lower values than the rest of the

network in all comparisons.

The input images of size 32 × 32 have the size

1 × 1 in this region, which was lower than the con-

volutional kernel of 3 × 3 used in most layers in the

entire network. However, for larger image sizes, it

was not possible to perform these CKA calculations

for the entire network since it would demand a vast

amount of working memory. However, they could be

performed for large parts of the network and larger

image input sizes such as 128 × 128 showed similar

patterns in that region, see Figure 7.

No difference was found for the U-Synthetic un-

frozen model or the F-Synthetic frozen model in

terms of overall average similarity with the unfrozen

model U-Real, considering trainings with different

random seeds, see Table 5. Thus, there was no overall

impact of frozen or unfrozen in this regard.

4.2 Layer vs Layer Analysis

Looking at CKA similarity between layers shows how

each layer compares to all other layers in the network,

see Figures 3, 4, 5, and 6.

A row in these plots consists of the CKA similarity

values between one layer in the model on the y-axis

and all layers in the model on the x-axis.

A block-like structure was visible for different

parts of the YOLOv3 architecture. Layers 0 to 12

were mostly similar to each other within the same

model, as well as with other models, in all compar-

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

Table 4: Summary statistics of all layer outputs when feeding the network with 200 images of size 32× 32 from our BDD test

set. Values were averaged over all layers.

Model seed mean median std min max

U-Real 0 0.0613 -0.105 0.812 -16.8 36.8

U-Real 1 0.0634 -0.107 0.817 -17.0 33.8

U-Synthetic 0 0.0909 -0.103 0.743 -15.3 40.1

U-Synthetic 1 0.0989 -0.104 0.720 -15.8 37.3

F-Synthetic 0 0.0996 -0.105 0.726 -15.0 38.2

F-Synthetic 1 0.0925 -0.102 0.731 -15.2 39.5

Table 5: Mean CKA similarity for the models, for all layers, backbone and head.

Model all backbone head

seed 0 seed 1 seed 0 seed 1 seed 0 seed 1

U-Real vs U-Synthetic 0.5865 0.5895 0.6925 0.7112 0.3379 0.3042

U-Real vs F-Synthetic 0.5734 0.6054 0.6931 0.7318 0.2930 0.3092

U-Synthetic vs F-Synthetic 0.7597 0.7845 0.8264 0.8461 0.6115 0.6508

isons. Blocks can be seen for layers 0 to 12, 14 to

37, 42 to 61, 62 to 74, 75 to 82, 83 to 94, and 95

to 106. This represents the architectural structure of

YOLOv3.

As could be seen in the CKA plot in Figures 1

and 2, the impact of the routing layers (86 and 98) in

the head part can be seen near the diagonal here. The

part with the maximum downscale between layers 62

and 85 can be seen here as well, this part had lower

similarity with most other layers in the network.

Figure 3 shows the similarity of all the layers

against each other in model U-Real; self-similarity

symmetric around the diagonal.

The diagonals of the plots of model U-Real vs U-

Synthetic, U-Real vs F-Synthetic, and U-Synthetic vs

F-Synthetic, seen in Figures 4, 5, and 6, are the same

as the curves seen in Figure 1. The valuesoff the diag-

onal thus show the similarity of layers with differing

layer numbers.

The last layers in the backbone differs between

comparisons of U-Real vs U-Synthetic, and U-Real

vs F-Synthetic.

Most of the differences for real and synthetic were

between layer 62 and 85, where the image was down-

scaled to the lowest scale. There U-Real seems more

similar to layers in U-Synthetic and F-Synthetic, than

U-Synthetic and F-Synthetic were similar to layers in

U-Real.

Model U-Synthetic and F-Synthetic similarity to

model U-Real for each layer can be seen in Figures

4 and 5. The similarity between all layers in model

U-Synthetic (unfrozen) and F-Synthetic (frozen) can

be seen in Figure 6. In comparison with the simi-

larity plots of U-Real vs U-Synthetic, and U-Real vs

F-Synthetic, the similarity between U-Synthetic and

F-Synthetic was overall higher. There was high simi-

larity in most of the backbone, specially the ﬁrst part,

even though model U-Synthetic had trainable back-

bone and model F-Synthetic had frozen backbone.

However, a few layers in the backbone differs, for ex-

ample the last layers in the backbone. The largest dif-

ferences were thus in the head part, except for higher

similarity around the route layers 86 and 98.

Figure 3: CKA similarity between layers of model U-Real

that was trained with seed 0, for all layers in YOLOv3.

Figure 4: CKA similarity between layers of model U-Real

(y-axis) vs model U-Synthetic (x-axis) that were trained

with seed 0, for all layers in YOLOv3.

Object Detector Differences When using Synthetic and Real Training Data

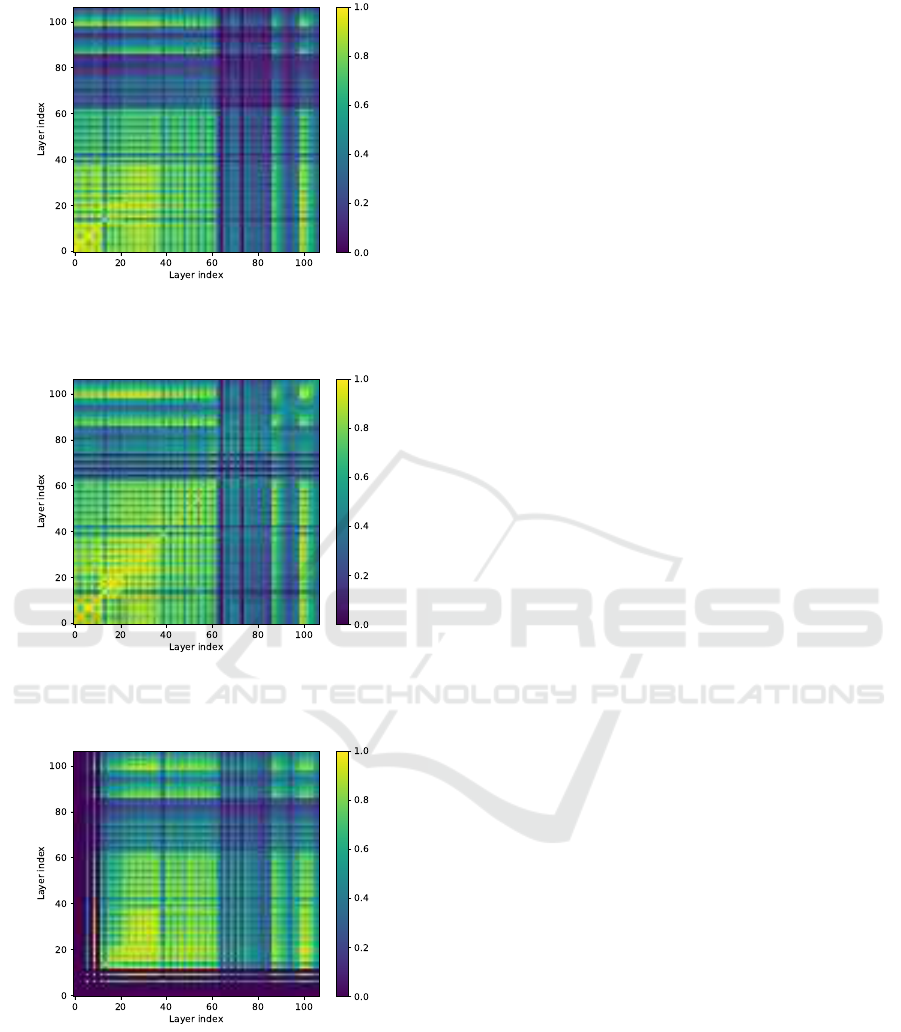

Figure 5: CKA similarity between layers of model U-Real

(y-axis) vs model F-Synthetic (x-axis) that were trained with

seed 0, for all layers in YOLOv3.

Figure 6: CKA similarity between layers of model U-

Synthetic (y-axis) vs model F-Synthetic (x-axis) that were

trained with seed 0, for all layers in YOLOv3.

Figure 7: CKA similarity between layers of model U-Real

(y-axis) vs model U-Synthetic (x-axis) that were trained

with seed 0 and input size of 128 × 128. Results for lay-

ers 6, 9, 12 to 106 in YOLOv3.

5 DISCUSSION

The results overall showed small differences between

model U-Real trained on real data and the models

trained on synthetic data: Models U-Synthetic and F-

Synthetic. The ﬁrst part of the models showed high

CKA similarity in all comparisons, while the head

part showed more differences. All models had the

same backbone pre-trained on real image data from

ImageNet and model F-Synthetic did not have further

training of the backbone. The high similarity between

all models in the backbone means that the pre-trained

backbone is rather dominant in all models, even after

further training of the backbone in model U-Real and

model U-Synthetic.

The ﬁrst 13 layers in the backbone had very high

similarity between all models, with similarity well

above 0.9. Thus, the ﬁrst layers in the network were

not affected much by the dataset type and are likely

mostly from the pre-trained backbone. These lay-

ers are likely targeting generic features. All models

had the same backbone pre-trained on real image data

from ImageNet, but that does not explain why the ﬁrst

13 layers would be more similar than the rest of the

backbone. The high similarity shows that the early

layers of the different models develop similar repre-

sentations, irrespective of if the dataset is real or syn-

thetic.

The similarity between model U-Synthetic and

model F-Synthetic was higher than when these mod-

els were compared to model U-Real. It seems like

models trained on the same dataset develop similar

representations. However, it could be further explored

how much of this is due to real vs synthetic data and

different datasets in general.

The F-Synthetic model with frozen backbone and

the U-Synthetic model with unfrozen backbone, both

further trained on the synthetic GTAV dataset, both

had comparable mAP on BDD and GTAV respec-

tively. No particular difference could be seen in the

CKA analysis between frozen and unfrozen back-

bone. In Hinterstoisser et al. (2018), freezing the

backbone during training on synthetic images yielded

better performance on a real dataset compared to us-

ing an unfrozen backbone. However, Tremblay et al.

(2018) showed promising results for unfrozen back-

bone. The diversity of the domain randomized dataset

that they used could be the explanation to why they

ﬁnd differing results. To sum up, it seems that there is

not a consensus whether freezing the backbone or not

is preferred in all cases.

Comparing model U-Synthetic with unfrozen

backbone and model F-Synthetic with frozen back-

bone, there were high similarity in most of the back-

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

bone between the two, specially the ﬁrst part. How-

ever, a few layers in the backbone differ, for example

the last layers in the backbone. Both models were

derived from the same pre-trained backbone and per-

haps the training of model U-Synthetic with trainable

backbone did not result in large updates in the back-

bones.

In all comparisons, CKA similarity was lower

than the rest of the network in the part between layer

62 and 85. The images used for CKA analysis were

downscaled successively in the network and between

layer 62 and 85 they have the smallest size. However,

analysing larger image sizes show the same effect (see

Figure 7) so the downscale cannot explain this solely.

The largest differences between model U-

Synthetic and F-Synthetic were in the head part.

Since model U-Synthetic had trainable backbone

while model F-Synthetic had frozen backbone it

would be expected that their backbones differ. Both

networks were trained on the same detection task on

the same dataset, so the head parts could likely be-

come similar due to that. However, the head parts in-

tegrate information from multiple layers in the back-

bone that all have differences. Also, the receptive

ﬁeld increases with layer number and thus is quite

large in the head part. These factors may explain why

the largest differences were in the head part.

Kornblith et al. (2019) applied image classiﬁca-

tion on two different datasets with real images of res-

olution 32 × 32 using a 9 layer CNN network. The

CKA similarity between the trained models was close

to 1 for all comparisons for layers 1-4 irrespective of

dataset, then dropped somewhat for later layers, es-

pecially after about layer 6. Similarity between the

trained and untrained models was about 0.8 for the

ﬁrst layer and then dropped in a slope towards near

zero for the last layer. This implies that a CKA sim-

ilarity value of 0.8 could mean that the ﬁrst layer of

the trained model, which usually targets generic fea-

tures, was somewhat similar to random noise. In an-

other experiment with two untrained models with dif-

ferent initializations, the CKA similarity of the ﬁrst

layer was near 1 and for the ﬁrst couple of layers were

about 0.8 approximately. Our results are consistent

with these results in that the early layers of the mod-

els showed high similarity, in our case above 0.9.

Higher CKA similarity values mean high similar-

ity and vice versa, but in between high and low it is

not entirely clear how different CKA similarity values

should be interpreted.

Nguyen et al. (2021) showed further analyses of

CKA on different ResNet architectures for image

classiﬁcation. They investigated the block structure

of deep models, mainly ResNet. Since the backbone

of YOLOv3 has similarities with ResNet, our analysis

showed similar results on block structure.

Here we trained on image size 416 × 416 while

analysing CKA on image size 32×32 which is a scale

that the models were not trained for, which is a lim-

itation, but we focus on the similarity between the

models. Furthermore, in this work, one network ar-

chitecture was analysed and trainings using one real

image dataset with one synthetic image dataset were

compared. In future work, the analysis would bene-

ﬁt of looking at multiple real and synthetic datasets

and compare them as groups. Furthermore, different

network architectures could also be analysed.

6 CONCLUSIONS

In our paper, we dissected models trained on real and

synthetic images. We started from a backbone pre-

trained on ImageNet real image data. Then:

• One model, U-Real, was further trained on real

image data (BDD).

• Two other models were further trained on syn-

thetic data (GTAV):

– Model U-Synthetic with all layers trainable

(unfrozen), and

– Model F-Synthetic with a frozen backbone.

The trained models were evaluated on our test set

of the synthetic GTAV dataset and our test set of the

real BDD dataset. The trained models yielded best

mAP on the type of data they were trained for.

Summary statistics of all layer outputs showed

a small difference in distribution between model U-

Real trained on real data and the models trained on

synthetic data; models U-Synthetic and F-Synthetic.

Comparably, models U-Synthetic and F-Synthetic

have quite similar layer output value distribution.

The CKA similarity was calculated for comparing

the model trained on real data, model U-Real, with

models trained on synthetic data, models U-Synthetic

and F-Synthetic. The average CKA similarity was

higher in the backbone than in the head part when

comparing the model trained on real data with the two

models trained on synthetic data. Specially the ﬁrst

13 layers in the backbone had very high similarity be-

tween all models, thus the ﬁrst layers in the network

were not affected much by the dataset type.

The similarity was quite high in most of the back-

bone until layer 61. From layer 62 to 85, the image

size was the lowest and the similarity was relatively

low.

The head part had lower similarity than the back-

bone, which was also lower than the mean of all lay-

Object Detector Differences When using Synthetic and Real Training Data

ers. The similarity was relatively low for the three

detection layers in the head.

Comparing CKA similarity values for layers vs

layers showed a block-like structure resembling the

different parts of the YOLOv3 architecture.

Model F-Synthetic with frozen backbone and

model U-Synthetic with unfrozen backbone that were

further trained on synthetic data had comparable mAP

with each other, on both BDD and GTAV datasets. No

particular difference could be seen in the CKA analy-

sis between frozen and unfrozen backbone.

No difference was found for the U-Synthetic un-

frozen model or the F-Synthetic frozen model in

terms of average similarity with the unfrozen model

U-Real. Thus, there was no overall impact of frozen

or unfrozen according to CKA similarity.

The largest difference between model U-Synthetic

and model F-Synthetic according to CKA was in the

head part. Hence models U-Synthetic and F-Synthetic

were more similar to each other in the backbone part

than in the head part, even though their backboneshad

different training settings.

With this similarity analysis, we want to give in-

sights on how training synthetic data affects each

layer and to give a better understanding of the inner

workings of complex neural networks. A better un-

derstanding is a step towards using synthetic data in

an effective way and towards explainable and trust-

worthy models.

REFERENCES

Alain, G. and Bengio, Y. (2016). Understanding intermedi-

ate layers using linear classiﬁer probes. In ICLR 2017

workshop.

Cabon, Y., Murray, N., and Humenberger, M. (2020). Vir-

tual KITTI 2. CoRR, abs/2001.10773.

Cordts, M., Omran, M., Ramos, S., Rehfeld, T., Enzweiler,

M., Benenson, R., Franke, U., Roth, S., and Schiele,

B. (2016). The cityscapes dataset for semantic urban

scene understanding. In Proc. of the IEEE Conference

on Computer Vision and Pattern Recognition (CVPR).

Dosovitskiy, A., Ros, G., Codevilla, F., L´opez, A., and

Koltun, V. (2017). CARLA: An open urban driving

simulator. In Proceedings of the 1st Annual Confer-

ence on Robot Learning, pages 1–16.

Fong, R. C. and Vedaldi, A. (2017). Interpretable explana-

tions of black boxes by meaningful perturbation. In

The IEEE International Conference on Computer Vi-

sion (ICCV).

Gaidon, A., Wang, Q., Cabon, Y., and Vig, E. (2016). Vir-

tual worlds as proxy for multi-object tracking analy-

sis. In Proceedings of the IEEE conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

4340–4349.

Ge, Y., Xiao, Y., Xu, Z., Zheng, M., Karanam, S., Chen,

T., Itti, L., and Wu, Z. (2021). A peek into the reason-

ing of neural networks: Interpreting with structural vi-

sual concepts. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 2195–2204.

Geiger, A., Lenz, P., Stiller, C., and Urtasun, R. (2013). Vi-

sion meets robotics: The KITTI dataset. International

Journal of Robotics Research (IJRR).

Golub, G. H. and Reinsch, C. (1971). Singular Value De-

composition and Least Squares Solutions, pages 134–

151. Springer Berlin Heidelberg, Berlin, Heidelberg.

Hardoon, D. R., Szedmak, S., and Shawe-Taylor, J. (2004).

Canonical correlation analysis: An overview with ap-

plication to learning methods. Neural Computation,

16(12):2639–2664.

Hattori, H., Lee, N., Boddeti, V. N., Beainy, F., Kitani,

K. M., and Kanade, T. (2018). Synthesizing a scene-

speciﬁc pedestrian detector and pose estimator for

static video surveillance. International Journal of

Computer Vision, 126:1027–1044.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition (CVPR).

Hermann, K. and Lampinen, A. (2020). What shapes fea-

ture representations? Exploring datasets, architec-

tures, and training. In Advances in Neural Information

Processing Systems, volume 33, pages 9995–10006.

Curran Associates, Inc.

Hinterstoisser, S., Lepetit, V., Wohlhart, P., and Konolige,

K. (2018). On pre-trained image features and syn-

thetic images for deep learning. In Proceedings of the

European Conference on Computer Vision (ECCV)

Workshops.

Johnson-Roberson, M., Barto, C., Mehta, R., Sridhar, S. N.,

Rosaen, K., and Vasudevan, R. (2017). Driving in the

matrix: Can virtual worlds replace human-generated

annotations for real world tasks? In IEEE Interna-

tional Conference on Robotics and Automation, pages

1–8.

Kornblith, S., Norouzi, M., Lee, H., and Hinton, G. E.

(2019). Similarity of neural network representations

revisited. In Proceedings of the 36th International

Conference on Machine Learning, ICML, volume 97

of Proceedings of Machine Learning Research, pages

3519–3529. PMLR.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Dollar, P.

(2017). Focal loss for dense object detection. In

Proceedings of the IEEE International Conference on

Computer Vision (ICCV).

Liu, T. and Mildner, A. (2020). Training deep neu-

ral networks on synthetic data. http://lup.lub.lu.se/

student-papers/record/9030153. Master’s Thesis.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S. E.,

Fu, C., and Berg, A. C. (2016). SSD: Single shot

multibox detector. In Computer Vision – ECCV 2016,

pages 21–37. Springer International Publishing.

Morcos, A., Raghu, M., and Bengio, S. (2018). Insights

on representational similarity in neural networks with

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

canonical correlation. In Bengio, S., Wallach, H.,

Larochelle, H., Grauman, K., Cesa-Bianchi, N., and

Garnett, R., editors, Advances in Neural Information

Processing Systems 31, pages 5727–5736. Curran As-

sociates, Inc.

Nguyen, T., Raghu, M., and Kornblith, S. (2021). Do wide

and deep networks learn the same things? Uncovering

how neural network representations vary with width

and depth. In International Conference on Learning

Representations ICLR.

Nowruzi, F. E., Kapoor, P., Kolhatkar, D., Hassanat, F. A.,

Lagani`ere, R., and Rebut, J. (2019). How much real

data do we actually need: Analyzing object detec-

tion performance using synthetic and real data. ICML

Workshop on AI for Autonomous Driving.

Raghu, M., Gilmer, J., Yosinski, J., and Sohl-Dickstein, J.

(2017). SVCCA: Singular vector canonical correla-

tion analysis for deep learning dynamics and inter-

pretability. In Guyon, I., Luxburg, U. V., Bengio, S.,

Wallach, H., Fergus, R., Vishwanathan, S., and Gar-

nett, R., editors, Advances in Neural Information Pro-

cessing Systems, volume 30. Curran Associates, Inc.

Redmon, J. and Farhadi, A. (2018). YOLOv3: An incre-

mental improvement. arXiv.

Richter, S. R., Hayder, Z., and Koltun, V. (2017). Playing

for benchmarks. In Proceedings of the IEEE Interna-

tional Conference on Computer Vision (ICCV).

Ros, G., Sellart, L., Materzynska, J., V´azquez, D., and

L´opez, A. (2016). The SYNTHIA dataset: A large

collection of synthetic images for semantic segmenta-

tion of urban scenes. In Proceedings of the 29th IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), pages 3234–3243.

Tan, M., Pang, R., and Le, Q. V. (2020). EfﬁcientDet: Scal-

able and efﬁcient object detection. In Proceedings of

the IEEE/CVF Conference on Computer Vision and

Pattern Recognition (CVPR).

Touvron, H., Vedaldi, A., Douze, M., and Jegou, H. (2019).

Fixing the train-test resolution discrepancy. In Wal-

lach, H., Larochelle, H., Beygelzimer, A., d'Alch´e-

Buc, F., Fox, E., and Garnett, R., editors, Advances in

Neural Information Processing Systems, volume 32.

Curran Associates, Inc.

Tremblay, J., Prakash, A., Acuna, D., Brophy, M., Jam-

pani, V., Anil, C., To, T., Cameracci, E., Boochoon,

S., and Birchﬁeld, S. (2018). Training deep networks

with synthetic data: Bridging the reality gap by do-

main randomization. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR) Workshops.

Ultralytics (2019). Ultralytics implementation of YOLOv3.

https://github.com/ultralytics/yolov3.

Wrenninge, M. and Unger, J. (2018). Synscapes: A pho-

torealistic synthetic dataset for street scene parsing.

CoRR, abs/1810.08705.

Yu, F., Xian, W., Chen, Y., Liu, F., Liao, M., Madhavan, V.,

and Darrell, T. (2020). BDD100K: A diverse driving

video database with scalable annotation tooling. In

Proc. of the IEEE Conference on Computer Vision and

Pattern Recognition (CVPR).

Zeiler, M. D. and Fergus, R. (2014). Visualizing and under-

standing convolutional networks. In Fleet, D., Pajdla,

T., Schiele, B., and Tuytelaars, T., editors, Computer

Vision – ECCV 2014, pages 818–833, Cham. Springer

International Publishing.

Zhang, C., Bengio, S., and Singer, Y. (2019). Are all layers

created equal? In ICML 2019 Workshop Deep Phe-

nomena.

Object Detector Differences When using Synthetic and Real Training Data
