Visually Improved Erosion Algorithm for the Procedural Generation of
Tile-based Terrain
Fong Yuan Lim, Yu Wei Tan and Anand Bhojan
a
Department of Computer Science, National University of Singapore, Singapore
Keywords:
PCG, Procedural, Terrain, Generation, Modelling, Games, Virtual World, Erosion, Natural.
Abstract:
Procedural terrain generation is the process of generating a digital representation of terrain using a computer
program or procedure, with little to no human guidance. This paper proposes a procedural terrain genera-
tion algorithm based on a graph representation of fluvial erosion that offers several novel improvements over
existing algorithms. Namely, the use of a height constraint map with two types of locally defined constraint
strengths; the ability to specify a realistic erosion strength via level of rainfall; and the ability to carve real-
istic gorges. These novelties allow it to generate more varied and realistic terrain by integrating additional
parameters and simulation processes, while being faster and offering more flexibility and ease of use to terrain
designers due to the nature and intuitiveness of these new parameters and processes. This paper additionally
reviews some common metrics used to evaluate terrain generators, and suggests a completely new one that
contributes to a more holistic evaluation.
1 INTRODUCTION
Terrain graphics are integral to many applications in
the real world, primarily in the entertainment indus-
try such as games and movies, but also holding value
in various other industries such as education, train-
ing and engineering. Capturing and rendering real ter-
rain has several drawbacks, such as requiring a large
amount of storage space, losing detail at high zoom
levels, and covering a finite area.
Procedural terrain generation (PTG) is the gener-
ation of terrain by an automated process with limited
to no human input, which overcomes the limitations
of using only hard terrain data. Due to its automated
nature, it is a scalable method for generating large
amounts of content with minimal costs in time and
human labour. There are professional PTG tools such
as Terragen, World Creator and E-on Vue in the in-
dustry today, and many successful movies and games
have utilized PTG in their production as well, such
as Pirates of the Caribbean: Dead Man’s Chest, The
Golden Compass, Far Cry 5, and Minecraft.
Despite the benefits of PTG, there remain limita-
tions and room for further improvement in various as-
pects, such as efficiency, variety and realism. This
paper proposes an erosion-based PTG algorithm that
a
https://orcid.org/0000-0001-8105-1739
offers improvements in several visual and technical
aspects over current solutions. A teaser output of the
algorithm is shown in Figure 1. The contributions of
this work are as follows:
1. A new way to specify terrain constraints in terms
of a constraint map with local value and gradient
constraint strengths empowers the terrain designer
with greater flexibility, accuracy and intuition in
controlling the output, along with making the sim-
ulation converge faster.
2. The additional moisture parameter is a powerful
dictator of how much erosion should occur at a
particular region of terrain, and thus provides a
high degree of controllability to the terrain de-
signer over the distribution of flat vs mountainous
areas, as well as greater variety and realism.
3. The algorithm’s ability to generate convincing
gorges improves the realism of the output terrain.
4. Proposal of a set of metrics, including an original
metric, to evaluate terrain generators with. Mod-
ern terrain generators and the new proposed gen-
erator are compared using these metrics.
The rest of this paper is structured as follows: Sec-
tion 2 briefly discusses related work. Section 3 ex-
plains the proposed algorithm. Section 4 analyzes the
algorithm and compares it to existing solutions. Sec-
Lim, F., Tan, Y. and Bhojan, A.
Visually Improved Erosion Algorithm for the Procedural Generation of Tile-based Terrain.
DOI: 10.5220/0010799700003124
In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 1: GRAPP, pages
49-59
ISBN: 978-989-758-555-5; ISSN: 2184-4321
Copyright
c
2022 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
49

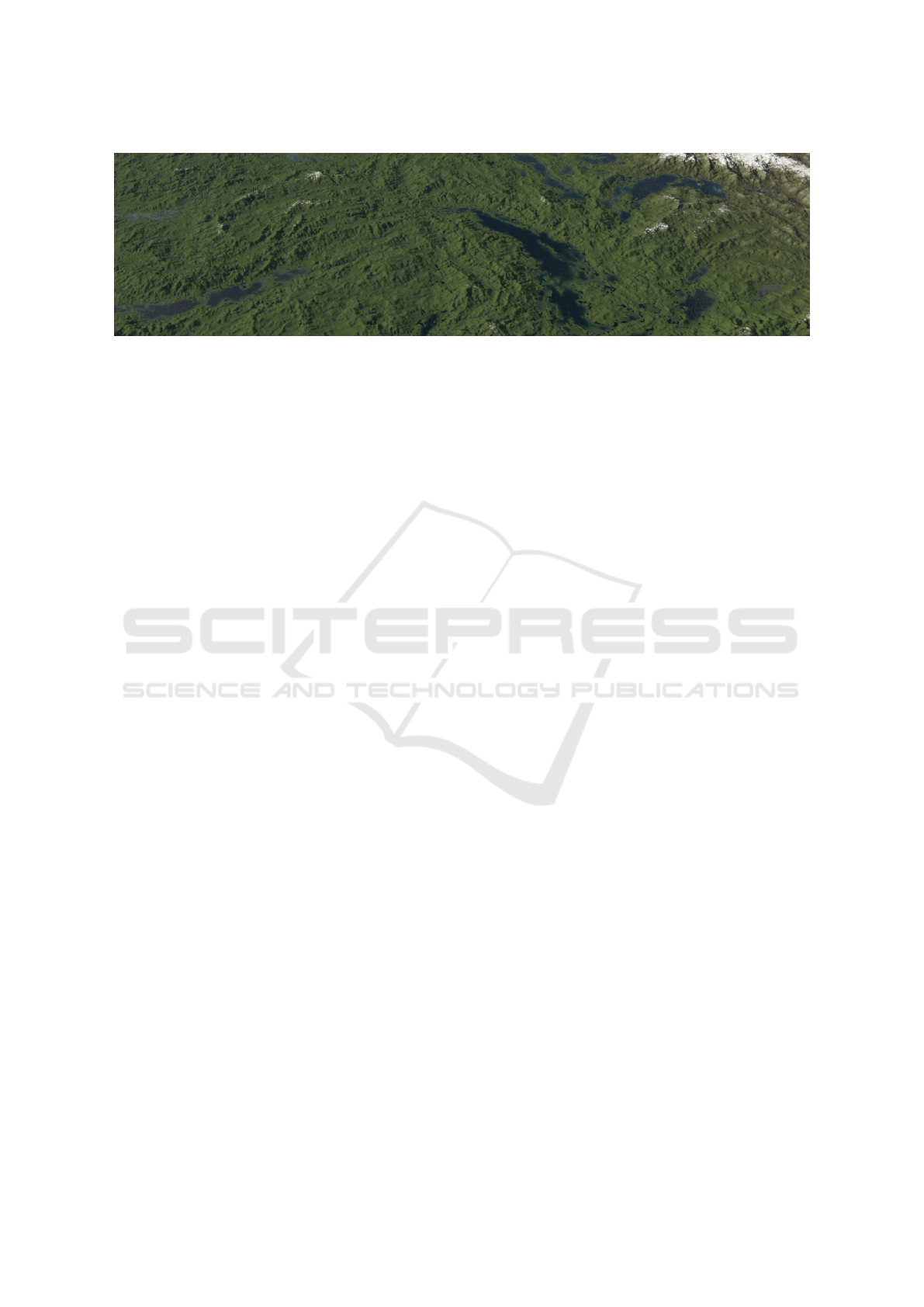

Figure 1: Sample output of the algorithm, rendered in Terragen 4.
tion 5 concludes this paper and highlights some po-
tential areas for future research.
2 RELATED WORK
In this section, we discuss the current PCG algo-
rithms in four categories, Stochastic Algorithms, Ero-
sion Simulation Algorithms, Graph-based Algorithms
and Machine Learning.
2.1 Stochastic Algorithms
The most common method to automatically gener-
ate terrain by far has been with fractal noise. This
method originated in (Perlin, 1985), and is explained
in (Shaker et al., 2016) chapters 4.2-3, as well as var-
ious online tutorials.
This approach has been further improved in (Per-
lin, 2002). An alternative noise generation algorithm
called simplex noise that improved upon the short-
comings of Perlin noise was also presented in (Perlin,
2001).
The diamond-square algorithm (Miller, 1986) is
an alternative approach to this method that produces a
similar result, albeit with more axis-aligned artifacts.
(Belhadj, 2007) constrains the diamond square al-
gorithm to be of a certain height at user-specified
points, thus demonstrating that the method is control-
lable. This method was successfully used to increase
the resolution of satellite DEMs.
(Bangay, 2017) attempts to avoid some common
pitfalls of other methods, such as visible seams and
repetitive elements, by working with gradient maps
instead of height-maps. A variant of Wang tiling is
used to generate the gradient maps, and the height-
map is reconstructed from there by solving a re-
lated Poisson equation. The designer has the free-
dom to specify what the Wang tiles are, which cre-
ates overlap with an example-based methodology, but
the algorithm otherwise pieces the Wang tiles together
stochastically with no designer input. The resulting
terrain has a messy, crumpled appearance, which is
somewhat unrealistic especially at lower elevations.
(Gasch et al., 2020) presents a noise-based method
that allows procedural terrains creation with elevation
constraints.
2.2 Erosion Simulation Algorithms
The effects of rivers and erosion have been recog-
nized as the most important contributing factor to the
shape of terrain as early as (Kelley et al., 1988) and
(Musgrave et al., 1989) respectively. Erosion simu-
lation algorithms excel at producing realistic terrain,
particularly the generation of creases on hillsides that
strongly imply water erosion. However, their main
drawback is a slow generation speed.
(Benes and Forsbach, 2002) elaborates on hy-
draulic erosion and its basis in the real world. (Bene
ˇ
s
et al., 2006) and (Bene
ˇ
s, 2006) base hydraulic erosion
on the Navier-Stokes equations that describe viscous
fluid dynamics in real world physics. (Neidhold et al.,
2005) augments the standard algorithm with interac-
tive terrain manipulation tools such as painting water
or water sources directly onto the terrain as the simu-
lation is running.
(Musgrave et al., 1989) is an early paper that sim-
ulates both thermal weathering and hydraulic erosion.
For hydraulic erosion, the terrain height as well as
amount of water and sediment are tracked for each
pixel. As water flows out of a pixel into neighbouring
pixels, a proportionate amount of sediment is trans-
ported as well. The ground is eroded or sediment is
deposited depending on the sediment carrying capac-
ity of the water. A fixed amount of water is added
to every pixel at regular intervals to simulate rain.
(
ˇ
St’ava et al., 2008) adopts the same approach for hy-
draulic erosion, and adds that water penetrates into
the ground and turns it into slushy regolith, which is
simulated as a slow-moving liquid.
(Hud
´
ak and
ˇ
Durikovi
ˇ
c, 2011) is able to simu-
late landslides by tracking the wetness of the soil.
GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications
50
However, the soil is represented as discrete particles,
which is unrealistic for large-scale terrain and compu-
tationally expensive as it involves particle collisions.
More recent papers focus on the efficiency of such
algorithms. (Anh et al., 2007) and (Mei et al., 2007)
propose to run the simulation on the GPU. (Vanek
et al., 2011) proposes to speed up hydraulic erosion
simulation by using a quadtree representation for the
terrain.
The standard way to simulate water, as used in
the majority of the papers cited above, is to track the
amount of water held by each tile, then distributing
that water to its neighbouring tiles. This mechanism
restricts water to flow at a maximum of one tile per
simulation tick, which is highly unfeasible for simu-
lation at geological time and space scales.
2.3 Graph-based Algorithms
Graph-based algorithms attempt to draw a graph - typ-
ically a river network - onto a terrain, then use this
graph to fill in the terrain height. This may be done
in either a stochastic or a simulation fashion. Graph-
based algorithms tend to be more structured and re-
alistic than the standard stochastic methods due to
their attention to the dendritic nature of real terrain
features, and they are generally faster than the stan-
dard simulation methods due to their efficient way of
defining rivers and water flow.
(Kelley et al., 1988) defines an initial main river,
then generates a complete river network by recur-
sively generating branches along the river, calculates
the height at varying points on the river based on how
much erosive power that part of the river has, and fi-
nally constructs the rest of the terrain from using the
heights of the points on the river. (G
´
enevaux et al.,
2013) adopts the same general approach, with more
developed geological theories. (Zhang et al., 2016)
also uses the same general approach, but they gener-
ate the terrain between rivers using the midpoint dis-
placement algorithm, and their usage of an L-system
to generate the river network results in distinct regions
of terrain with regular hills.
(Gaillard et al., 2019) generates a random den-
dritic fractal shape that can be explicitly used as
mountain ridges. The height of the terrain at any point
is proportionate to its distance from the closest branch
of the fractal. The fractal can be controlled to take on
a particular shape.
(Cordonnier et al., 2016) implements erosion sim-
ulation on a graph-based terrain. The underlying phi-
losophy of the algorithm is that terrain is shaped by
two processes: tectonic uplift and river erosion. Up-
lift raises the terrain, while erosion lowers the terrain.
The simulation runs until the terrain reaches a stable
state where the uplift balances out the erosion at every
pixel.
Every pixel of the height-map is given a point with
a random position within it. Each point is also asso-
ciated a fixed drainage area - representing the area of
locality from which it collects water, and thus how
much water has to be drained from it. Finally, each
pixel also keeps track of an uplift value - how much
the terrain (rock) at that point is raised every tick.
Within a simulation tick, uplift is applied every
pixel, then erosion. For the erosion step, every pixel
first identifies its neighbour with the lowest height.
This represents the neighbour that all its collected wa-
ter is going to flow to. If all its neighbours are higher
than it, it aborts the erosion step. Once every pixel
determines its lowest neighbour, the total drainage A
of each pixel is calculated. The total drainage is the
total sum of the current pixel’s drainage area and the
drainage areas of everything upstream of it. Simulta-
neously, the slope s of each pixel is calculated to be
the gradient between its own point and the point of the
neighbour that it is emptying into. Finally, erosion is
calculated as ks
A, where k is an experimentally de-
rived erosion constant. Every pixel’s terrain height is
reduced by this erosion value for this tick.
2.4 Machine Learning
Machine learning (ML) has in recent years found
many applications throughout the field of informa-
tion technology and beyond, and terrain generation is
no exception. When one regards terrain height-maps
as images, it is clear that existing ML techniques are
highly compatible with height-map generation, given
a large enough database of existing terrain samples to
learn from. (Summerville et al., 2018) is a survey on
ML techniques being used for PCG for functional el-
ements in games.
(Yeu et al., 2006) is an early attempt at generat-
ing terrain using ML techniques - in this case, an ex-
treme learning machine (ELM). (Gu
´
erin et al., 2017)
proposes to use a Conditional Generative Adversarial
Network (cGAN) that has been trained on real terrain
in order to generate new terrain. (Wulff-Abramsson
et al., 2018) uses a Deep cGAN to generate alpine
height-maps. (Spick and Walker, 2019) uses a GAN
to generate both a height-map and a corresponding
satellite image.
ML techniques have the capability to produce
high-quality terrain output with fast speed and sim-
ple inputs. However, they can only do so with the
help of many auxiliary resources: First of all, there
needs to be a database of realistic and properly for-
Visually Improved Erosion Algorithm for the Procedural Generation of Tile-based Terrain
51
matted terrain samples to learn from. Then, the algo-
rithm itself has to be engineered to learn from these
samples effectively. Finally, a terrain designer has to
specify where major terrain features should actually
be. Without any of these components, the quality of
terrain output is heavily compromised.
3 DESIGN
In this section, we will describe our terrain generation
algorithm and we evaluate it for its performance and
quality in next section.
3.1 Background & Overview
Our algorithm represents the terrain with a layered
height-map (Benes and Forsbach, 2001). However,
what is tracked per tile is not layers of material, but
more abstract quantities such as hardness and mois-
ture that are discussed further in this section. This ter-
rain representation was chosen to provide compatibil-
ity with other software and the opportunity for inter-
active manipulation. The abstract quantities are core
to the simulation itself, but may also prove useful in
later stages of the terrain generation pipeline, such as
moisture determining where vegetation grows.
Each heightmap tile tracks the following persis-
tent quantities:
Node Offset (x,y): Each tile is treated as a point
position (a node), and these coordinates represent
the node’s position offset from the bottom left cor-
ner of the tile, ranging from 0 to 1 each. Variance
in this offset minimises axis-aligned artifacts in
the terrain, by varying the distance and thus gra-
dient with respect to the neighbouring tiles.
Land Height: The height of the terrain in the tile.
Water Height: The amount of water in the tile.
This essentially indicates that the tile is part of
a water body, and it should not undergo erosion.
The total height of a tile refers to the sum of its
land height and water height.
Height Constraint and Constraint Strengths:
The ideal land height of the terrain, and how
strongly to bind the terrain to this ideal height.
Moisture: How much rain falls on the tile.
There are additional quantities that each tile keeps
track of, but they are only temporary and will be re-
set at the end of the simulation phase or simulation
tick. They will be brought up and explained in the
later subsections as they become relevant to the simu-
lation.
On algorithm initialization:
Node Offset [0,1]
2
: Each of x and y are inde-
pendently set to a uniformly distributed random
value between 0 and 1.
Height Constraint: Specifiable.
Height Value Constraint Strength [0,1]: Con-
stant low value, such as 0.02. Alternatively, the
same as the height constraint, re-mapped to be be-
tween 0 and 1.
Height gradient constraint strength [0,1]:
Specifiable. Generally, a uniform low value can
be used for a height constraint map with low de-
tail, and a uniform high value can be used for a
height constraint map with high detail.
Moisture 0: Specifiable. It could be set to ran-
dom Perlin noise, or a uniform high value.
Land Height: Initialized to be the same as the
height constraint.
Water 0: Any tile below sea level is filled with
water until it becomes sea level.
The terrain designer ideally loads an initial height-
map as the height constraint map. To prevent unnat-
ural behaviour when simulating the rivers, small ran-
dom noise is added to the constraint map.
The simulation phase comes after the initialization
phase. On each simulation tick, the set of processes
are executed on the terrain are shown in Algorithm 1.
Algorithm 1: Simulation Algorithm.
for Each Simulation Tick do
1. For each tile, determine a neighbouring tile (one of
the four tiles adjacent to it, i.e. its Von Neumann
neighbourhood) to drain all its water to, if any.
2. Calculate the total amount of water flowing into each
tile (total drainage), which is the sum of how much
rain it catches, and how much water it receives from
its tributary neighbours.
3. Connect local minima together by carving gorges be-
tween them.
4. Erode each tile based on how much total drainage it
has and its slope.
5. Apply the height constraints.
6. Reset the sea level.
end for
Each step is elaborated in the further subsections
below.
3.2 Drainage Direction Calculation
It makes physical sense that the water in a tile will be
drained to some neighbour of a lower total height than
GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications
52
the tile. If more than one such neighbour exists, we
wish to drain to at most one neighbour only, in order
to exploit the tree structure that emerges. We choose
this neighbour as the one which creates the steepest
gradient with the current tile, calculated as their total
height difference divided by the horizontal distance
between the two tiles’ nodes. If no such neighbour
exists, then this tile does not drain to any node, and is
a local minimum on the terrain.
Each tile also tracks which neighbours drain to
it. These neighbours are called tributaries. To re-
fer to more distant tiles along the same drainage net-
work, the terms upstream tiles and downstream tiles
are used.
The local minima are recorded down, to be
utilised later for erosion. Minima that have water on
them are discarded, as erosion should not occur on
them.
3.3 Drainage Calculation
Each tile has a local drainage and a total drainage
value. The local drainage indicates how much rain
is collected by that tile, which is simply the mois-
ture parameter of that tile. The total drainage is the
total amount of water collected by each tile from all
sources, which is the sum of the local drainage, and
the total drainage from its tributary neighbours. Nat-
urally, the total drainage of a leaf node is simply its
local drainage, as it has no tributaries.
The contribution from the tributaries is reduced by
a constant factor k
d
[0,1] at each tile, with a cumu-
lative effect on tiles further upstream. Physically, this
represents water loss over the course of a river, due
to various processes such as evaporation and seepage
into the ground. Mechanically, this helps to prevent
too much water and thus too much erosion happening
downstream. k
d
is usually set to 0.68.
The total drainage is calculated by recursively
calculating the total drainage of the tile’s tribu-
taries, multiplying it by k
d
, then adding on the local
drainage. Due to the tree structure of the drainage net-
work, the total drainage of all tiles may be accurately
calculated in linear time with respect to the number of
tiles in the simulation.
3.4 Minima Connection / Gorge
Carving
Simply eroding based on the drainage basin formed
is not good enough, as the drainage basin quickly be-
comes static, and forms very cellular regions on the
terrain, separated by mountain ranges of unnatural
straightness and uniformity in height. To counteract
this, drainage basins need a mechanism to connect to
one another in some way. However, the difficulty in
doing so is maintaining the connection over a path of
greater resistance, in the sense that water has to drain
uphill, antagonistic to the terrain height and rate of
height increase.
For each local minimum M, a depth-first search is
performed to iterate through all its leaf nodes. The
leaf node with the lowest total height is selected.
Its neighbour in the opposite direction of the current
neighbour it is draining to is also noted. By running
downslope from both of these slopes, a complete path
from the M to an adjacent local minimum M
0
can be
derived. Along this path, the ideal height of each
node n is calculated as the linearly interpolated height
of the two local minima, with respect to the distance
along the path. The height of n is then updated to be
a linear weighted average of its current height and its
ideal height, if the current height is above the ideal
height. The weight w [0, 1] is a function of the to-
tal drainage D(M) of M. w should be non-decreasing
with respect to D(M), be 0 when there is no drainage
(so there is no carving), and approach 1 when there
is high drainage (so carving is at full strength). The
function used in the experiments is
w = max{k
g
D,1} (1)
where the constant k
g
is set to 0.1.
To preserve the gorge, the height gradient con-
straint strength of each node along the path is also
weakened, by a factor of 1 w.
3.5 Fluvial Erosion
All tiles that drain to another tile are subject to fluvial
erosion. The decrease in height due to fluvial erosion
is given by the stream equation:
h = k
e
D
n
s
m
(2)
where
1. k
e
is the erosion constant, and usually set to 0.5.
2. D is the total drainage on that tile.
3. s is the slope of that tile, calculated as the gradient
from this tile to the tile it is draining to.
4. n and m are arbitrary constants. Only their ratio
seems to affect the actual look of the terrain, and
the ratio n/m = 1/2 seems most ideal. We thus
set n = 1 and m = 2.
The decrease in height is capped at the difference in
height between the current tile and the tile it is drain-
ing to. This is to prevent an oscillating feedback loop
between two adjacent tiles alternately draining into
each other, and pulling the higher one below the lower
one, creating an infinitely sinking hole.
Visually Improved Erosion Algorithm for the Procedural Generation of Tile-based Terrain
53
3.6 Height Constraints
Height constraints are applied to the terrain in order
to let it maintain its shape and altitude amidst the ero-
sion processes. There are two types of constraints
employed: the value constraint and the gradient con-
straint.
The value constraint simply attempts to pull the
height of the terrain back to its ideal height, as speci-
fied in the height constraint map. The height of each
tile is updated to be a linear weighted average of its
current height and its ideal height, with the weight
being the strength of the value constraint.
The role of the value constraint is mainly to ensure
that the whole terrain does not continuously sink to a
lower and lower height, due to the erosion processes.
At the same time, if it is set too high, then the terrain
is too resistant to change and the erosion processes
will have no effect on the terrain. Thus, it is ideal
to set the value constraint to a low uniform value. In
our experiments, we set it to 0.02. Even though this
constraint is conceptually able to pull terrain both up
and down, in practice, it only pulls the terrain up, as
all the other processes only pull the terrain down.
The gradient constraint attempts to preserve the
local height relationship between adjacent pixels.
Given a tile t, each of its neighbours n asserts the most
desired height h
0
t,n
of t as h
n
+ (c
t
c
n
), where h
x
and
c
x
are the current height and constraint height of tile
x respectively. The ideal height h
0
t
for t is simply the
average of these desired heights from all the neigh-
bours. The height of t is then updated to be a linear
weighted average of its current height and its ideal
height, with the weight being the strength of the gra-
dient constraint.
A high gradient constraint strength preserves de-
tails that are present in the constraint map, and thus
should be used if the constraint map has desirable lo-
cal features. Conversely, a low gradient constraint
strength gives the erosion processes more freedom to
shape the terrain, and would be ideal to use in regions
where the constraint map has few or undesirable lo-
cal features. The terrain designer can exploit this by
specifying a high strength over regions with high de-
tail, and low strength over regions that they want to
erode and add detail to, such as cliffs and smooth sur-
faces. In our experiments (Figure 2 and 3), we con-
sider 0.8 a good value for high strength and 0.02 for
low strength.
3.7 Sea Level
For every tile, if its height is below sea level, the
amount of water it has is set so that its height is sea
Initial High Strength Low Strength

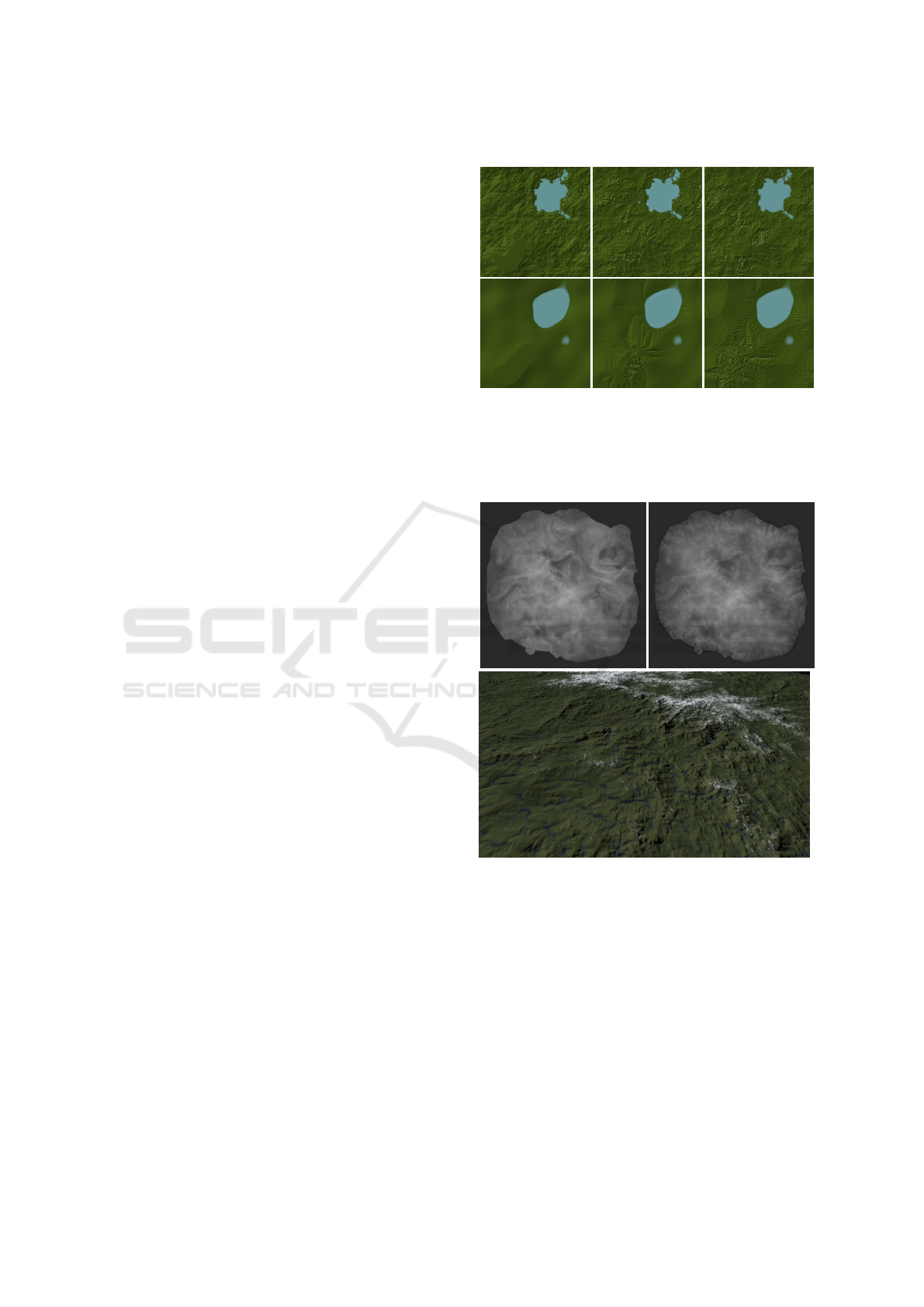

Figure 2: Comparison of a high gradient constraint strength
(0.8) with a low gradient constraint strength (0.02) on two
constraint maps, filled with 3 and 8 octaves of fractal Perlin
noise respectively. 100 iterations. Value constraint strength
of 0.02. Uniform moisture of 1.
Initial 100 iterations
Figure 3: Sample output heightmap of the algorithm,
960x960, after 100 iterations. Value constraint strength of
0.02. Gradient constraint strength of 0.8. Uniform moisture
of 1.
level. Otherwise, the tile will have no water.
This is a simple yet necessary step in the simula-
tion. A tile’s height may be reduced not only from
the erosion processes (which would never erode be-
low the local minimum height), but also from satisfy-
ing the height gradient constraint, which could push
the height below sea level. Without adding water to
compensate, the erosion processes will reinforce this
dip in height and allow further dips to accumulate.
GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications
54
4 RESULTS
This section presents the output of the proposed algo-
rithm and compares it to existing cutting-edge algo-
rithms for performance and quality.
4.1 Performance
Table 1 below lists some timing results for our al-
gorithm and the graph-based erosion algorithm from
(Cordonnier et al., 2016) (”Cordonnier’s algorithm”).
The input is as shown in Figure 4. The algorithms
were implemented in C++ and tested on a machine
running 64-bit Windows 7 with an Intel®Core™i5-
4690 processor clocked at 3.50 GHz, and 8 GB of
RAM. The results are the average of 10 measure-
ments.
As shown, our algorithm runs only marginally
slower than Cordonnier’s algorithm. Furthermore,
when comparing the output of the two algorithms (see
Figure 4 below), our algorithm converges to a realis-
tic output in a fewer number of iterations - achieving a
realistic output in 50 iterations compared to 150, and
thus takes less time overall.
Table 1: Time taken in seconds (s) for Cordonnier’s (Cor-
donnier et al., 2016) and our algorithms to generate a n ×n
square of terrain with 100 iterations.
n Cordonnier’s algorithm Our algorithm
256 7.3 7.5
512 29.4 31.3
1024 124.8 115.6
Similarly demonstrated in Figure 4 is the in-
creased realism our algorithm provides even at later
iterations. Cordonnier’s algorithm generates highly
cellular drainage basins, separated by very chiselled
and uniform mountain ranges. Both are unrealistic
features, and furthermore destroy any visually inter-
esting details and directional biases in the uplift map.
The basins merge and grow bigger and stronger as the
simulation stabilizes, exacerbating this effect. Our al-
gorithm resolves this by directly reducing the height
over the drainage path, in order to produce much
more pronounced gorges that influence the shape of
the drainage basins more drastically. In addition, our
replacement of the uplift map with a constraint map
system allows us to respect aforementioned visually
interesting properties in the initial terrain.
The tile-based representation of our terrain allows
for easy adaptation and modification for further tech-
niques. For example, the concept of a talus angle -
the maximum angle the terrain can make with the hor-
izontal before material starts to fall down the slope -

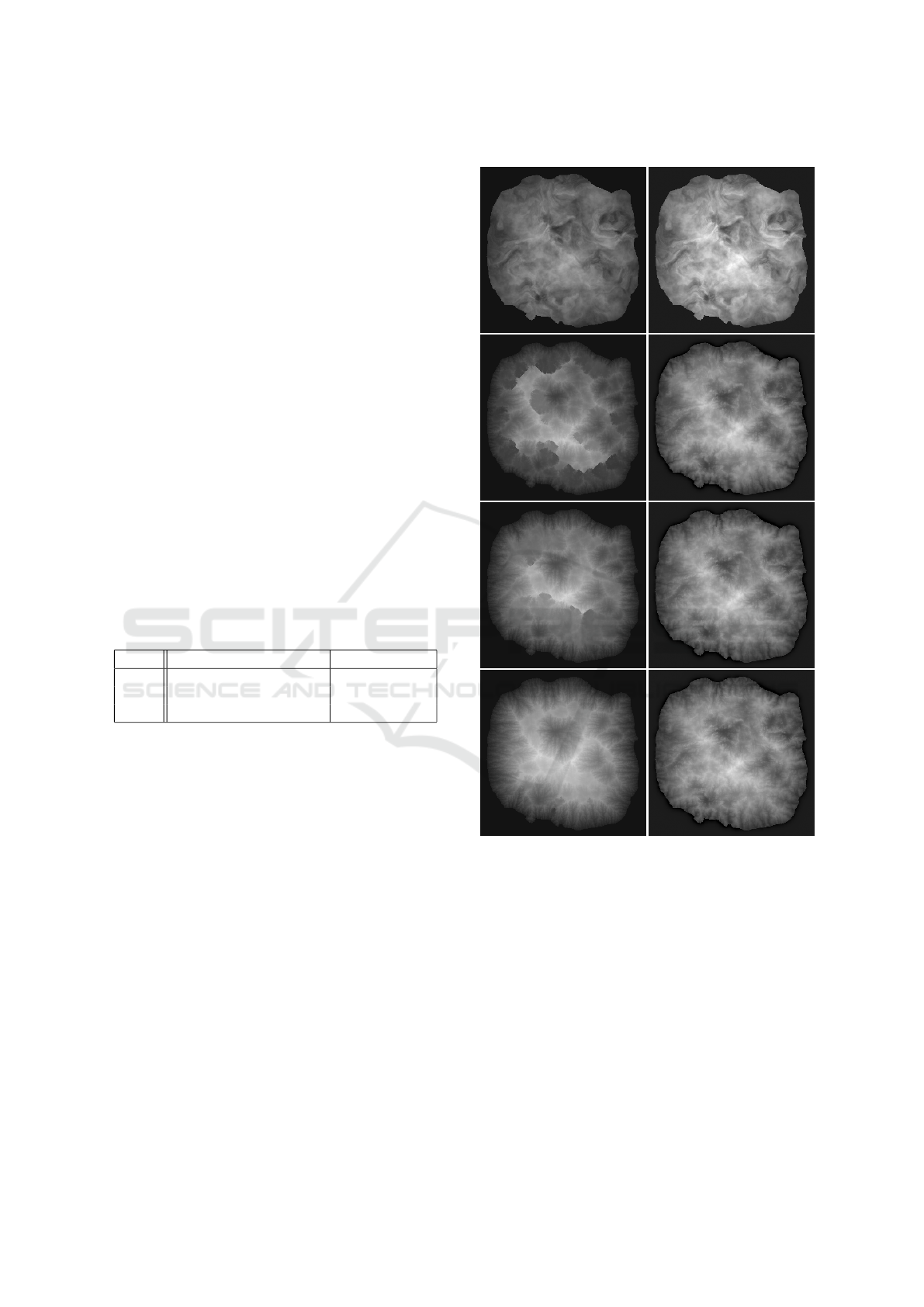

Cordonnier’s algorithm Our algorithm
Figure 4: Side-by-side comparison of the output of Cordon-
nier’s (Cordonnier et al., 2016) and our algorithms. From
top to bottom: State of the terrain at 0, 50, 100 and 150
iterations.
may be implemented by asserting that terrain is not al-
lowed to rise past the lost maximum height allowable
by its neighbours and the talus angle.
4.2 Metrics and Comparison
A list of useful evaluation metrics for generators are
provided at (Cantero et al., 2014), some of which are
shared by (Doran and Parberry, 2010). Some of them
relevant to our work are:
Visually Improved Erosion Algorithm for the Procedural Generation of Tile-based Terrain
55
Table 2: Evaluation of relevant terrain generators based on established metrics.
Generator metrics Output metrics
Efficiency Interactivity Independence Variety Realism
Stochastic
Algo-
rithms
(Perlin,
2001;
Belhadj,
2007)
Very fast. Millisec-
onds.
Poor controllability, as generation is
mostly left to random processes with
no human input. However, recent
works (Belhadj, 2007) allow some de-
gree of control by constraining the ter-
rain height according to designer spec-
ifications or by fixing river paths. High
usability. The controls are in the form
of points and curves, which are intu-
itive for the designer.
Very high independence.
The algorithms defer most
work to stochastic sources.
Poor variety. Algo-
rithms tend to gener-
ate only one partic-
ular shape of moun-
tainous terrain.
Unrealistic. Only su-
perficially mimics the
statistical distribution
and shape of terrain.
Erosion
Simu-
lations
(
ˇ
St’ava
et al.,
2008)
Slow. Simulations
take at least 50 and
usually a few hundred
iterations to stabilize,
generally speaking.
Takes a few minutes
in total.
Poor controllability. The running
simulation may generate or remove
features against the designer’s wishes.
Designer is largely limited to tweak-
ing global variables, and/or modifying
the setup if the simulation runs inter-
actively. Generally high usability, as
the algorithm parameters reflect real
life physical parameters. However, the
parameters of some algorithms may
have an indirect if not obscure effect
on the final terrain.
High independence. Only re-
quires another algorithm or de-
signer to provide initial terrain
to run simulations on, and the
initial terrain can be very sim-
ple or artificial.
Generally poor
variety. The main
source of variety
is from the initial
terrain, which may
or may not be var-
ied. The terrain is
then run through
generally the same
global processes
every time.
Generally very
realistic, as they
mimic actual physical
processes. The con-
ventional hydraulic
erosion algorithms
such as (Musgrave
et al., 1989; Mei et al.,
2007;
ˇ
St’ava et al.,
2008) simulate water
as it acts in real time
(i.e. time steps of
seconds), which is un-
realistic for geological
time scales.
Machine
Learning
Algo-
rithms
(Gu
´
erin
et al.,
2017)
Very fast. Millisec-
onds, once the algo-
rithm has been trained.
High interactivity. Designer is gen-
erally able to specify placement and
distribution of terrain features, which
the algorithm then fits with good pre-
cision.
Very poor independence. A
large database of realistic ter-
rain samples has to be ac-
quired to train the algorithm.
One or more data scientists
have to engineer and refine the
algorithm so that it generates
good output. The algorithm
requires a terrain designer at
runtime to specify placement
of terrain features.
Generally very var-
ied. Depends on
training data and de-
signer specifications.
Generally very real-
istic. Depends on
training data and com-
petency of the ma-
chine learning algo-
rithm.
Graph-
based
Erosion
(Cor-
donnier
et al.,
2016)
Slow. Takes about
100-300 iterations to
stabilise. Takes up to
3 minutes in total.
Medium interactivity. Designer is
limited to specifying the uplift map,
which indirectly affects the distribu-
tion and shape of mountains. The up-
lift map is generally intuitive, however
some unintuitive creativity is needed in
order to manipulate the shape of the
mountains, e.g. making the uplift map
piecewise instead of smooth.
High independence. The up-
lift map may be fed with
output from another fast ter-
rain generator, such as frac-
tal noise, which can be very
simple or artificial. Uplift
and other parameters may be
tweaked mid-simulation.
Good variety. Up-
lift is a locally vary-
ing parameter of the
simulation.
Very realistic. Up-
lift and fluvial erosion
mimic actual physical
processes.
Our algo-
rithm
Medium-Slow. Takes
about 50-150 iter-
ations to achieve
realistic terrain, de-
pending on how
isolated the most
inland regions are,
although the simula-
tion can go on forever
without stabilizing.
Takes up to 2 minutes
in total.
High interactivity. Designer is able
to specify the constraint, constraint
strengths, and moisture maps. Each
provides high and intuitive control
over the distribution and shape of
mountains, details, and erosion.
High independence. The con-
straint map may be fed with
output from another fast ter-
rain generator, such as fractal
noise, and good default values
have been recommended for
the rest, generating competi-
tive results. Constraints, mois-
ture and other parameters may
be tweaked mid-simulation.
Good variety. Con-
straint and moisture
are locally varying
parameters of simu-
lation. The height
value and gradient
constraints preserve
variety at the large
and small scales re-
spectively.
Very realistic. Fluvial
erosion mimics the ac-
tual physical process,
while gorge carving
generates visually
similar gorges to the
real world.
GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications
56
Efficiency: How fast the generator is expected to
run before outputting a final terrain result. While
conventional time complexity analysis may be ap-
plied, most algorithms already run at an optimal
O(A) time where A is the area of the generated
terrain. (Algorithms that achieve even lower com-
plexity typically use resolution-independent rep-
resentations of terrain.) It is instead more useful
to measure the real time taken to generate terrain
directly.
Interactivity: How easily can a terrain designer
affect the output of the generator. This may be di-
vided into: Usability: How intuitive the controls
are, opposed to abstract or technical. And Con-
trollability: How much power the designer has in
controlling the final terrain, such as the placement
and appearance of various terrain features.
Variety: How much expressive power the gen-
erator has, or how varied are the features that it
can generate. A greater variety generates more in-
terest, aesthetically and mechanically, for the end
user, motivating them to explore and experiment
with the terrain.
Realism: How physically plausible or sensible is
the final terrain. For example, floating islands or
tall thin spikes on the ground would be regarded as
unrealistic in a non-fantasy setting. Realism lends
to believability and immersion in the terrain.
Additionally, we believe that another metric is im-
portant for our purposes:
Independence: How little resources are required
to set up the generator and to run the generator to
produce quality output.
These aforementioned resources may be in terms of
legal, financial, time and labour. A common re-
source is a dedicated terrain designer, which resource-
constrained teams may not have (the money to hire
one; the time opportunity cost for a team member to
take on the role themselves; the expertise needed to
control the generator etc.). While the ability to in-
volve a designer is always beneficial (and factored in
with the Interactivity metric above), there are scenar-
ios where it is optimal to let the algorithm make its
own design decisions, such as a random map gen-
erator shipped with a strategy game, e.g. The Sid
Meier’s Civilization or Heroes of Might and Magic
series, or an endless map generator in a flight simu-
lator or exploratory or sandbox RPG, e.g. Minecraft.
While any algorithm is arguably independent by sim-
ply inputting randomly generated parameter values,
the generated result may not always meet the stan-
dards of the other metrics above, and thus should be
discounted.
Some standard and recent algorithms have already
been evaluated in Section 2. In this section, we com-
pare our algorithm to two other modern competi-
tive algorithms based on the aforementioned metrics;
namely, the graph-based fluvial erosion algorithm as
described in (Cordonnier et al., 2016), and the ML al-
gorithm with a cGAN as described in (Gu
´
erin et al.,
2017).
Our algorithm improves upon (Cordonnier et al.,
2016) in all aspects. Instead of specifying a simple
uplift map, we specify a much more expressive con-
straint map with two types of locally varying con-
straint strengths. This gives the terrain designer much
more freedom and intuition in specifying terrain fea-
tures, improving interactivity. Whereas in Cordon-
nier’s algorithm, the uplift map has to be used cre-
atively and unintuitively - such as posterising it - in or-
der to achieve desired terrain patterns. It is also com-
mon in Cordonnier’s algorithm for relatively straight
and uniform mountain ridges to form, almost equidis-
tant from water bodies and thus creating very cellular
drainage basins, as these ridges demarcate the edges
of the drainage basins, which tend to be simple and
static. This change from an uplift map to a constraint
map also lets the simulation converge faster, improv-
ing efficiency. The additional moisture parameter is
a powerful dictator of how much erosion should oc-
cur at a particular region of terrain, thus improving
controllability, variety and realism in the final terrain.
The algorithm’s ability to generate convincing gorges
also improves the realism of the output terrain. Fi-
nally, the new parameters may be procedurally gener-
ated without requiring manual input, thus preserving
the high level of independence in the original algo-
rithm.
As mentioned previously in Section 2, the main
drawback of ML algorithms such as (Gu
´
erin et al.,
2017) are their very poor independence, whereas our
algorithm maintains a high level of independence.
Furthermore, our algorithm remains competitive in
interactivity, variety, and realism, and may even ex-
ceed the ML algorithm in these aspects if the latter is
poorly implemented.
5 CONCLUSION AND FUTURE
WORK
This paper has proposed an improved erosion algo-
rithm to generate highly varied and realistic terrain,
with improved efficiency, and with a competitive per-
formance both with or without manual specification
of terrain features. The algorithm achieves this by
specifying a constraint map with two types of con-
Visually Improved Erosion Algorithm for the Procedural Generation of Tile-based Terrain
57
straint strengths, which provides a stronger and more
expressive specification of desired terrain features.
The algorithm also employs a moisture map, which
dictates how much erosion happens at any given re-
gion. Finally, the algorithm is able to generate realis-
tic gorges that cut into mountains, creating dramatic
and realistic features. Overall, our algorithm works
very well and it is practically feasible to integrate with
the design process.
5.1 Limitations
The biggest limitation of this algorithm, and indeed of
PTG algorithms in general, is a set of objective met-
rics with which to validate the quality of generators
and their generated terrain. This is a difficult problem
to address, as terrain is visual by its very nature, and
aesthetic quality is hard to formalize. Nevertheless,
visual comparison to real terrain height-maps suggest
that our algorithm is at least close to being realistic.
The adaptation to a tile-based representation in-
troduces axis-aligned tendencies in the terrain. While
this is mitigated somewhat by the random tile offsets
and small perturbations in height, perhaps this could
be further improved by having several nodes per tile,
instead of just one.
The use of a constraint map instead of an uplift
map arguably detracts from the actual realism, as do
several other aspects of the algorithm - such as the
formula to convert the total drainage into an abstract
strength for gorge carving, which were artificially for-
mulated without justification from the real world.
5.2 Potential Areas for Future Research
In the future, we would like to explore various im-
provements to the currently proposed algorithm.
One such improvement is a way to simulate a re-
alistic moisture distribution, based on the presence of
mountains and water bodies, so that features such as
rain shadows are automatically simulated.
Our algorithm accounts only for fluvial erosion,
and not other forms of erosion that may be more
prominent in various regions of the world. For exam-
ple, glacier erosion may be more prominent in cold
areas, while wind erosion may be more prominent
in hot, dry areas. We have started some preliminary
studies on these new areas and we will explore them
in detail.
ACKNOWLEDGEMENTS
This work is supported by the Singapore Min-
istry of Education Academic Research grant T1
251RES1812, “Dynamic Hybrid Real-time Render-
ing with Hardware Accelerated Ray-tracing and Ras-
terization for Interactive Applications”.
REFERENCES
Anh, N. H., Sourin, A., and Aswani, P. (2007). Physically
based hydraulic erosion simulation on graphics pro-
cessing unit. In GRAPHITE ’07 Proceedings of the
5th International Conference on Computer Graphics
and Interactive Techniques in Australia and Southeast
Asia, pages 257–264, New York, NY, USA. ACM.
Bangay, S. (2017). Deterministic procedural generation of
mesh detail through gradient tiling. In ACSW ’17 Pro-
ceedings of the Australasian Computer Science Week
Multiconference, New York, NY, USA. ACM.
Belhadj, F. (2007). Terrain modeling: A constrained fractal
model. In AFRIGRAPH ’07 Proceedings of the 5th
International Conference on Computer Graphics, Vir-
tual Reality, Visualisation and Interaction in Africa,
pages 197–204, New York, NY, USA. ACM.
Bene
ˇ
s, B. (2006). Physically-based hydraulic erosion. In
SCCG ’06 Proceedings of the 22nd Spring Conference
on Computer Graphics, pages 17–22, New York, NY,
USA. ACM.
Bene
ˇ
s, B., Tesınsky, V., Hornys, J., and Bhatia, S. K.
(2006). Hydraulic erosion. Computer Animation and
Virtual Worlds, 17(2):99–108.
Benes, B. and Forsbach, R. (2001). Layered data represen-
tation for visual simulation of terrain erosion. In Pro-
ceedings Spring Conference on Computer Graphics,
page 80, Budmerice, Slovakia, Slovakia. IEEE.
Benes, B. and Forsbach, R. (2002). Visual simulation of
hydraulic erosion. In Journal of WSCG, volume 10,
pages 79–94, Pilsen, Czech Republic. World Society
for Computer Graphics.
Cantero, X., Salazar, M., Devesa, J., Santos, I., Huerta, S.,
and Bringas, P. G. (2014). Procedural approach to
volumetric terrain generation. The Visual Computer,
30(9).
Cordonnier, G., Braun, J., Cani, M.-P., Benes, B.,
´
Eric
Galin, Peytavie, A., and
´
Eric Gu
´
erin (2016). Large
scale terrain generation from tectonic uplift and fluvial
erosion. Computer Graphics Forum, 35(2):165–175.
Doran, J. and Parberry, I. (2010). Controlled procedural ter-
rain generation using software agents. IEEE Transac-
tions on Computational Intelligence and AI in Games,
2(2):111–119.
Gaillard, M., Benes, B., Gu
´
erin, E., Galin, E., Rohmer,
D., and Cani, M.-P. (2019). Dendry: A procedural
model for dendritic patterns. In I3D ’19 Proceed-
ings of the ACM SIGGRAPH Symposium on Interac-
tive 3D Graphics and Games, pages 1–9, New York,
NY, USA. ACM.
GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications
58
Gasch, C., Chover, M., Remolar, I., and Rebollo, C. (2020).
Procedural modelling of terrains with constraints.
Multimedia Tools and Applications, 79(41):31125–
31146.
G
´
enevaux, J.-D.,
´
Eric Galin, Gu
´
erin, E., Peytavie, A., and
Benes, B. (2013). Terrain generation using procedural
models based on hydrology. ACM Transactions on
Graphics, 32(4).
Gu
´
erin, E., Digne, J., Galin, E., Peytavie, A., Wolf, C.,
Benes, B., and Martinez, B. (2017). Interactive
example-based terrain authoring with conditional gen-
erative adversarial networks. ACM Transactions on
Graphics, 36.
Hud
´
ak, M. and
ˇ
Durikovi
ˇ
c, R. (2011). Terrain models for
mass movement erosion. pages 9–16.
Kelley, A. D., Malin, M. C., and Nielson, G. M. (1988).
Terrain simulation using a model of stream erosion.
In SIGGRAPH ’88: Proceedings of the 15th Annual
Conference on Computer Graphics and Interactive
Techniques, volume 22, pages 263–268, New York,
NY, USA. ACM.
Mei, X., Decaudin, P., and Hu, B.-G. (2007). Fast hydraulic
erosion simulation and visualization on gpu. pages
47–56.
Miller, G. S. P. (1986). The definition and rendering of ter-
rain maps. In SIGGRAPH ’86: Proceedings of the
13th Annual Conference on Computer Graphics and
Interactive Techniques, volume 20, pages 39–48, New
York, NY, USA. ACM.
Musgrave, F. K., Kolb, C. E., and Mace, R. S. (1989).
The synthesis and rendering of eroded fractal terrains.
In SIGGRAPH ’89: Proceedings of the 16th Annual
Conference on Computer Graphics and Interactive
Techniques, volume 23, pages 41–50, New York, NY,
USA. ACM.
Neidhold, B., Wacker, M., and Deussen, O. (2005). Interac-
tive physically based fluid and erosion simulation. In
NPH’05 Proceedings of the First Eurographics con-
ference on Natural Phenomena, pages 25–33, Aire-
la-Ville, Switzerland, Switzerland. Eurographics As-
sociation.
Perlin, K. (1985). An image synthesizer. In SIGGRAPH
’85: Proceedings of the 12th Annual Conference on
Computer Graphics and Interactive Techniques, vol-
ume 19, pages 287–296, New York, NY, USA. ACM.
Perlin, K. (2001). Noise hardware. In Real-Time Shading
SIGGRAPH Course Notes.
Perlin, K. (2002). Improving noise. In SIGGRAPH
’02: Proceedings of the 29th Annual Conference on
Computer Graphics and Interactive Techniques, vol-
ume 21, pages 681–682, New York, NY, USA. ACM.
Shaker, N., Togelius, J., and Nelson, M. J. (2016). Pro-
cedural Content Generation in Games. Computa-
tional Synthesis and Creative Systems. Springer In-
ternational Publishing AG, Gewerbestrasse 11, 6330
Cham, Switzerland.
Spick, R. R. and Walker, J. (2019). Realistic and textured
terrain generation using gans. In European Confer-
ence on Visual Media Production, CVMP ’19, pages
3:1–3:10, New York, NY, USA. ACM.
Summerville, A., Snodgrass, S., Guzdial, M., Holmg
˚
ard,
C., Hoover, A. K., Isaksen, A., Nealen, A., and To-
gelius, J. (2018). Procedural content generation via
machine learning (pcgml). IEEE Transactions on
Games, 10(3):257–270.
ˇ
St’ava, O., Bene
ˇ
s, B., Brisbin, M., and K
ˇ
riv
´
anek, J. (2008).
Interactive terrain modeling using hydraulic erosion.
In SCA ’08 Proceedings of the 2008 ACM SIG-
GRAPH/Eurographics Symposium on Computer An-
imation, pages 201–210, New York, NY, USA. ACM.
Vanek, J., Benes, B., Herout, A., and Stava, O. (2011).
Large-scale physics-based terrain editing using adap-
tive tiles on the gpu. Computer Graphics and Appli-
cations, IEEE, 31:35–44.
Wulff-Abramsson, A., Rant, N. N., Møller, T. N., and
Billeskov, J. A. (2018). Deep convolutional genera-
tive adversarial network for procedural 3d landscape
generation based on dem. In Interactivity, Game
Creation, Design, Learning, and Innovation, Lecture
Notes of the Institute for Computer Sciences, Social-
Informatics and Telecommunications Engineering,
LNICST, pages 85–94, Germany. Springer.
Yeu, C.-W. T., Lim, M.-H., and Huang, G.-B. (2006). Ter-
rain modeling using machine learning methods. In
2006 9th International Conference on Control, Au-
tomation, Robotics and Vision, pages 1–4.
Zhang, H., Qu, D., Hou, Y., Gao, F., and Huang, F. (2016).
Synthetic modeling method for large scale terrain
based on hydrology. IEEE Access, 4.
Visually Improved Erosion Algorithm for the Procedural Generation of Tile-based Terrain
59
