Detection and Remediation of Malicious Actors for Studies Involving

Remote Data Collection

Bethany K. Bracken

, John Wolcott

, Isaac Potoczny-Jones

, Brittany A. Mosser

Isabell R. Griffith-Fillipo

and Patricia A. Arean

Charles River Analytics, 625 Mount Auburn St., Cambridge, MA, U.S.A.

Tozny, LLC, 411 NW Park Ave. Ste 400, Portland, OR 97209, U.S.A.

Department of Psychiatry & Behavioral Sciences, University of Washington,

1959 NE Pacific Street, Seattle, WA, 98195, U.S.A.

Keywords: Remote Data Collection, Malicious Actors, Bots, Bad Actors.

Abstract: Although most human subjects research requires data collection by contacting local participants who visit a

research site, some studies require increasingly large troves of data collected continuously during their typical

daily lives using sensors (e.g., fitness trackers) and ecological momentary assessments. Long-term,

continuous collection is becoming more feasible as smartphones become ubiquitous. To enable remote

collection of these rich data sets while ensuring privacy, we built a system to allow secure and fully human-

out-of-the-loop participant recruitment, screening, onboarding, data collection on smartphones, data

transmission to the cloud, data security in the cloud, and data access by analysis and modeling teams. Study

participants were paid for completion of daily ecological momentary assessments in keeping with standards

of research equipoise, fairness, and retention strategies. However, our study attracted “malicious actors” who

were pretending to be study participants, but were not, in order to receive payment. This opinion piece outlines

how we initially detected malicious actors, and the steps we took in order to prevent future malicious actors

from enrolling in the study. This opinion piece outlines several lessons learned that we think will be valuable

for future studies that recruit, enroll, and maintain study participants remotely.

1 INTRODUCTION

Currently, most human-subjects data collection is

done by recruiting participants through fliers or

advertisements, and requiring that they visit the lab

over the course of the study. However, this is costly,

time-consuming, and results in decreasing subject

retention with each required visit. Moreover, data

collection in discrete time points only offers a small

window into participants’ lives and relies heavily on

participant recall between visits to complete

important behavioral and environmental data. Such

data collection is flawed and rife with assumptions

about data accuracy that may very well influence

research into disease phenotyping, prediction

analyses, and other important analyses (Areàn et al.,

2016). With the advent of personal digital technology

(e.g., fitness trackers, smartphone sensors), scientists

are now in the position to collect such information as

it happens in real time and with greater accuracy than

ever before. For example, there are is an increasing

number of studies to measure health outcomes over

the longer term.

Our project, titled Health and Injury Prediction

and Prevention Over Complex Reasoning and

Analytic Techniques Integrated on a Cellphone App

(HIPPOCRATIC App), requires just such a dataset.

The goal of this study is to develop algorithms that

enable continuous and real-time assessment of

individuals’ health by leveraging data that is

passively and unobtrusively captured by smartphone

sensors. While the potential medical outcomes are

positive, the potential privacy outcomes are negative

and invasive, so extraordinary care must be taken to

protect both the security and privacy of user data

throughout the data lifecycle.

To address this, we built a system to allow fully

human-out-of-the-loop management of participants

including participant recruitment, screening,

onboarding, data collection on smartphones, data

transmission to the cloud, data security in the cloud,

and data access by analysis and modeling teams

Bracken, B., Wolcott, J., Potoczny-Jones, I., Mosser, B., Grifﬁth-Fillipo, I. and Arean, P.

Detection and Remediation of Malicious Actors for Studies Involving Remote Data Collection.

DOI: 10.5220/0010805500003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 5: HEALTHINF, pages 377-383

ISBN: 978-989-758-552-4; ISSN: 2184-4305

377

(Bracken et al., 2020). Our approach improves

privacy by allowing all stages of recruitment and

participation without human access to private or

Personally Identifying Information (PII). This

requires a human-in-the-loop process for payment

processing and support. Study participants were paid

in keeping with standards of research equipoise and

fairness. Providing incentive payments for

completing study activities is a common strategy

utilized by researchers to increase retention and

engagement with study procedures (Wurst et al.,

2020). Our Administration Dashboard allows for

anonymized information review of all information

required to address participants’ concerns including:

random unique user IDs (UUID's), surveys

completed, incoming messages, and the ability to

respond, all while preserving PII anonymity. This

includes information such as information on date and

amount of gift card delivery. However, since this is a

remote study where no human has direct contact with

any study participants, the study attracted “malicious

actors” who faked upload of data in order to access

payments. This is a common problem in research of

this nature; methods for identifying bots and

malicious actors are needed (Pozzar et al., 2020).

2 STUDY METHOD

Our study involved recruiting participants through

social media (e.g., Facebook and Google

advertisements). Participants visited a landing page

that described the study and what participation

entailed. Participants then completed an enrollment

questionnaire. If participants were eligible to

participate, they proceeded to read the consent form,

take a short quiz to ensure they understood consent

content, and then electronically sign the form. They

were then sent a link to download our smartphone

app. The smartphone app collected data from the

smartphone sensors (e.g., accelerometer/gyroscope),

but did not access any other app data (e.g., visits to

social media sites or texts). The app also delivered a

baseline survey asking general questions such as

demographics, habits of smartphone use, and daily

routine information, as well as shorter, twice-daily

surveys asking questions about health (e.g., diagnosis

with cold or flu), activity (e.g., sleeping patterns), and

mood. Participation lasted up to 12 weeks, and

participants were paid based on how many surveys

they completed. Total potential payment for

participants was $90 (in US dollars), with payment

amount for the baseline and final (the longer surveys)

being the largest, and the remaining payments split

across the remaining surveys (twice daily for 12

weeks), increasing gradually throughout the 12

weeks.

Data collection successfully kicked off with

recruiting starting March 15

, 2020 and subject

onboarding beginning immediately after that. By the

end of April, we saw over 3,000 subjects onboarded

(driven in part by positive press coverage) and over

60,000 surveys uploaded as well as the smartphone

sensor data for the participants. In May, 2020 we

continued to monitor the platform usage as the study

progressed through the first sixteen weeks of data

collection including the completion of the 12 week

study by some participants. In July, 2020, we started

to observe a significant increase in study participant

enrollment that was inconsistent with recruitment

activity. We were excited about the numbers, but we

also noticed some red flags that led to more

investigation. The analysis eventually led to the

conclusion that fraudulent participants were

attempting to game the study to illegitimately obtain

Amazon gift card incentives from the program.

Note that no systems were breached and no

data was exposed. Malicious actor activity was

limited to automation of fake users in order to

receive payments. In addition, throughout the

process, we remained in close communication with

the University of Washington’s (UW’s) Institutional

Review Board (IRB) about the fraudulent actors and

the team’s work to respond to that situation. Once

observed, we analyzed the traffic and behavior, put

models in place to help identify the malicious actors

with increasing confidence, and deployed initial

mitigation strategies. Over the course of the

remainder of the study, we refined the rules used to

detect and block these fraudulent users as well as to

refine the enrollment and payment processes.

3 MALICIOUS ACTOR

DETECTION AND

REMEDIATION

3.1 Malicious Actor Detection

Our first indication that we had attracted malicious

actors was that although we were not running new ads

to drive recruitment and there was no additional press

coverage, the daily enrollment numbers were rising

rapidly from 50’s per day into the 100’s per day

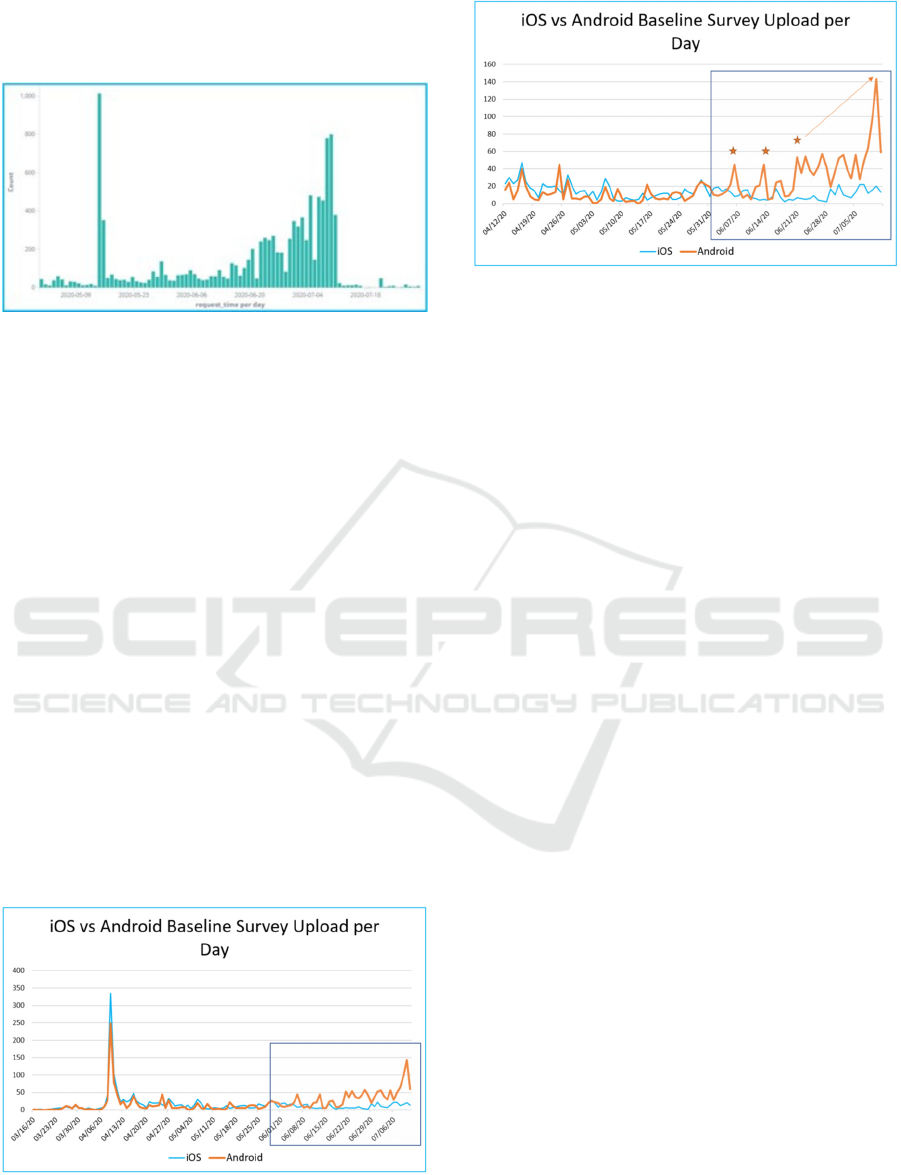

without an explanation. Figure 1 shows registration

events from May 1

through the end of July 2020. The

large spike around May 15

was expected due to the

HEALTHINF 2022 - 15th International Conference on Health Informatics

378

app team having to redeploy an update to the iOS app.

The unexpected ramp in registration activity started

to become apparent in late June.

Figure 1: Registration events from May 1st to June 30th

2020.

Second, the number of registered devices (users)

that was being reported in our data tracking portal for

experimenters (which reflected data directly from the

smartphone apps) was much higher than what we

were seeing in our data storage platform, TozStore,

(which reflected true data upload metrics) – by as

much as 3x. This indicated that many of these surveys

were faked. Malicious actors were calling endpoints

on the data tracking portal to indicate that a survey

was uploaded, however no survey was actually

uploaded.

Third, we started to see a large increase in the

number of recent Android users, which was far too

high in comparison to iOS users (initially a ratio of

2:1). Throughout the course of the study these

numbers should track relatively closely, with the ratio

of iOS to Android devices sold within the country in

which participants are recruited. Figure 2 shows iOS

vs. Android registration count divergence from the

start of data collection. Figure 3 shows iOS vs.

Android registration count divergence focusing on

June and July.

Figure 2: Number of Android and iOS devices registered

from start of data collection.

Figure 3: Number of Android and iOS devices registered in

June and July of 2020.

Fourth, our baseline survey collected city

information, which was a freeform field in the

demographics section of the questionnaire. We

analyzed this data and saw an inordinate number of

participants reporting "Los Angeles" and “Brooklyn”

as the city. This led to additional analysis of baseline

survey metadata showing scripted responses that

were repetitive and not representative of the expected

demographics. Further analysis again found that in

most cases, malicious actors did NOT upload daily

surveys, which gave us confidence that most of the

data collected was from legitimate study participants.

Fifth, we saw unusual IP traffic. Because it is very

typical for services on the Internet to see traffic from

a variety of IP addresses all over the world, and for

some of that traffic to be large-scale automated bot

traffic, the traffic itself did not raise any red flags.

However, once we started the deeper analysis we

determined much of the initial malicious actor traffic

that was gaming the platform were concentrated in a

small number of IP ranges in non-US countries that

the study was not advertised in. These IP ranges were

displaying automation-like behavior like repeated

and fast endpoint access.

Our conclusion was that due to the nature of bad-

actor activity, the large majority of actual survey

and sensor data was by legitimate study

participants. Furthermore, we were confident that

we would be able to identify and remove the bad data.

Once the malicious-actor activity was identified,

our first concern was in halting payments to these

actors while continuing to pay the legitimate study

participants acting in good faith. We paused

payments and implemented a new capability to allow

applying an exclusion list when we ran our payment

algorithm to pay participants. Once the exclusion list

was available, we ran a catch-up payments cycle

without paying the malicious actors in the exclusion

list.

Detection and Remediation of Malicious Actors for Studies Involving Remote Data Collection

379

The first pass of the identification effort was

focused on identifying unique payees in order to

avoid sending incentives payments to malicious

actors. This effort also provided an initial means to

identify data that could be distinguished from the

legitimate study participants’ data that the data

analytics teams could use for their analysis.

We reviewed and tested many approaches to

detect malicious actors. We looked at baseline survey

content, time-in-study and related behavior, existence

of surveys and sensor data, registration email

domains and formats, types of sensors uploaded, etc.

The strongest indicators of malicious actors were in

cross-referencing TozStore metadata and the

smartphone app and payment data. As mentioned

above, the data for this included all users of the

system from the start of data collection; though note

that this did not rely on the use of PII, i.e., no email

addresses, location data, etc. were used. Future work

could leverage a no-human-in-the-loop, secure

compute approach to review raw GPS sensor data

from the devices. This raw GPS data was encrypted

and stored in TozStore, but due to its sensitive nature

in terms of identifying information, this sensor type

was not authorized for access by humans.

From the above efforts, an exclusion ruleset was

developed per analysis and observed vs. expected

study participation. See Exclusion Ruleset in Table 1.

We also performed basic baseline survey analysis,

though this was limited since it used information only

available in the most recent surveys (e.g., city), but

this turned out to be a good sanity check for future

approaches to identify malicious actors based on

survey responses as the small subset we identified

were also flagged by the detection rules. False

positives (not paying) are easy to correct whereas

false negatives (paying malicious actors) are not. We

paid participants using this exclusion list and then

worked at refining our ruleset to rule-in some false

positives (legitimate study participants). It should be

noted we concluded that there were likely multiple

malicious actors involved, or the same malicious

actors using multiple approaches. We did see clear

patterns of behavior from the majority of the

identified malicious actors, but there were some

behaviors unique to a smaller set of users appearing

to try to game the study.

We developed a spreadsheet model to easily apply

rules to flag users as “malicious actors.” The model

allowed for turning rules on and off to create a final

exclusion list. The rules we applied to begin payments

to participants again are shown in Table 1.

Table 1: Rules first applied.

Rule Description Notes

Reused devices detected

with repeated use of the

same UUID.

Assume fraudulent

behavior based on reusing

devices; may include some

valid users if include 2x

times (difference = 140 if

screen > 3 devices)

No baseline survey

uploaded (smartphone app

vs data storage database

Mismatch): Malicious

actor if smartphone app

received confirmation of

baseline survey

completion, but the

baseline survey is not

uploaded

Indication that malicious

actors are quickly “re-

paving” devices to try

again (the user’s app

indicates the survey was

completed, but the

malicious actor started

over with a new

install/registration before

the survey was uploaded)

Long delay before

registration: Malicious

actor if user signs up

after a longer than

normal period of time

Assume they're caching

codes

No registration date:

Malicious actor is

assumed if user is not

registered

Likely caching registration

codes

Table 2 shows rules that were considered, but for

which we concluded that more analysis was needed

to refine and qualify them further to increase

confidence that they were accurate.

Table 2: Rules initially considered, but not applied.

Rule Description Notes / Why They Were

Not Applied

Baseline completed

quickly (suspect data):

Malicious actor if

completion time for SID1

is < 2 min (should take 5-

10 minutes)

The results are suspect due

to very short or very long

durations in the metadata –

even for automation; more

analysis is required

Participation duration

check #1 - any uploads:

Malicious actor if user

doesn't participate in the

study for more than a N

days (sans if recent

registration)

Applying this rule will

include real people who

just dropped after a short

period; “N” is

parameterized; default=7

HEALTHINF 2022 - 15th International Conference on Health Informatics

380

Table 2: Rules initially considered, but not applied (cont.).

Rule Description Notes / Why They Were

Not Applied

Participation duration

check #2 - surveys (similar

to above): Malicious actor

if user submits surveys

for less than N days (sans

if recent registration)

Applying this rule will

include real people who

just dropped after a short

period; “N” is

parameterized; default=7

Participation duration

check #3 - sensor data:

Malicious actor if user

loads sensor data for less

than N days (sans if

recent registration)

Data is incomplete; also,

users could initially turn

off sensor collection while

still submitting surveys &

MFCC; “N” is

parameterized; default=7

3.2 Malicious Actor Remediation

Once we identified malicious actors, we paused study

recruitment for 45 days while we integrated several

mitigation strategies. We then re-started the study, but

continued to integrate additional strategies as the

study progressed. Our mitigation strategies were as

follows.

First, the initial mitigations we deployed were

designed based on the initial red flags we saw that

alerted us to the malicious actors. We (1) paused

incentive payments, (2) modified the enrollment

website to pause enrollments, (3) disabled the

backend registration endpoints as we saw some

malicious actors were bypassing the website to call

the end-point directly, and (4) blocked access to all

connections from the suspicious IPs outside the

regions we advertised in.

Second, we made changes to the smartphone app

to mitigate automation of the survey fulfillment and

other gaming, including (1) updating the app to detect

rooted devices, geo location, and device emulation;

(2) detecting and blocking previously used Device

IDs, and (3) invalidating unused registration codes.

Third, we made several changes to our payment

process including modifying the secure payments

processing software to receive an exclusion list of

malicious actors to not pay. We performed dry runs

to test payment totals with and without the list of rules

initially applied (see Table 1).

Fourth, we made several modifications to our

study methods (with an university IRB and

government Human Research Protection Office

(HRPO)-approved modification in place) to prevent

future malicious actors from enrolling. (1) We first

deployed a CAPTCHA mechanism within the landing

and consent webpages to improve automated

fraudulent activity deterrence. (2) Participants were

required to provide certain information (e.g., zip

code, state, height, weight) and allow collection of

passive data from accelerometer and gyroscope

sensors. These requirements limited the ability of

malicious actors to create numerous accounts using a

single mobile device and provided more data to

inform other mitigation efforts. (3) We modified the

payment cycles to run approximately on a monthly

basis rather than weekly. This allowed us the time to

run an analysis step prior to payments processing in

order to refine the exclusion ruleset and update the

exclusion list, and to give malicious actors less time

to detect our methods and adapt. The exclusion list

generation spreadsheet also provides a list of

malicious actors that we have leveraged to separate

out the good study data from malicious actor data so

that we can share them as completely different data

sets with the data analysis teams. (4) We also reverted

to relying on the data in our primary database

(TozStore) rather than the data tracking portal

connected to the smartphone app as the source of truth

for completed surveys when calculating the payment

amounts.

As expected, attempts by fraudulent participants

to game the study continued, but the mitigations

slowed them down. We monitored the effectiveness

of our combined remediation efforts as recruitment

and registration efforts ramped up. We continually

monitored registration logs as well as CAPTCHA

challenge failures. Unexpected rates of either

registration or CAPTCHA challenge failures are an

indication of malicious actor activity. The

CAPTCHA is a deterrence, but it is a statistics game,

so we expected some malicious actors to adapt and

use means to bypass the challenge (e.g., humans vs.

bots). The alerts were deployed to prompt analysis

and expansion of the IP/VPN blocklist. This is an

effective means to slow down fraudulent registrations

while the malicious actors spin up new VPNs.

We implemented an Access Control List (ACL)

mechanism using a static list of CIDR blocks (IP

address ranges) that are known to originate outside

the country of interest (in our case, outside of the

United States). This approach allows for adding

access for specific countries if the program wants to

expand outside the US (e.g., Canada, Australia, New

Zealand, etc.). We noticed that within a few hours of

enacting IP address blocks, the malicious actor traffic

transitioned to VPNs in the US. This ACL mechanism

was then also used to block all VPNs. We

investigated methods and services for automated

detection of VPNs, but as we find additional

malicious actor IP addresses and VPNs, new ones

could be easily added to the list.

Detection and Remediation of Malicious Actors for Studies Involving Remote Data Collection

381

4 MIS-IDENTIFIED MALICIOUS

ACTORS

There were several cases in which our exclusion rules

mis-characterized a legitimate study participant as a

malicious actor. For example, one exclusion rule

triggered when no smartphone data were uploaded to

the database, although survey data was uploaded.

However, there were instances in which the

smartphone app malfunctioned and did not upload

sensor data for legitimate study participants.

One function of the human-out-of-the-loop

participant handling approach that we developed, but

that is outside the scope of this paper (Bracken et al.,

2020) is a portal through which experimenter teams

can communicate with participants. The experimenter

sees only the random ID assigned to the participant,

but the participant receives communication within the

study application’s chat feature and/or emails through

the email address they signed up for the study with

(mapping between the two occurs in the cloud out of

reach of the human experimenters). Through this

portal using anonymous communication and case-by-

case analysis of user participant activity information,

we identified many of the mis-labelled participants

who we then re-characterized as good participants

after email exchanges. Catch up runs of incentive

payments were performed for these users and their

data was reclassified as good for use by analysis

teams.

5 CONCLUSIONS

We built a system to allow fully human-out-of-the-

loop management of patients including patient

recruitment, screening, onboarding, data collection

on smartphones, data transmission to the cloud, data

security in the cloud, and data access by analysis and

modeling teams. However, since no human has direct

contact with any study participants, the study

attracted “malicious actors” who faked upload of data

in order to access payments. We identified and put

into place mechanisms to block malicious actors. As

expected, attempts by fraudulent participants to game

the study continued, but the mitigations slowed them

down.

However, we believe that this work to identify and

prevent malicious actors has had several positive

results. First, the lessons learned here can result in

improvement of future remotely conducted studies by

integrating these malicious actor mitigation strategies

from study initiation.

Second, it improved the study outlined here. It

caused us to closely monitor study data, which has led

to higher confidence results. It has improved dataset

quality for the data analysis teams, and reduced the

burden of dataset cleanup. The process has identified

data integrity and upload issues that otherwise would

have been missed until late in the data collection

process. These would not have been found until data

analysis teams were deeper into their analysis. In

addition, malicious actor identification and early

analysis of profiles has led to improved quality

assurance of the smartphone app used in the study.

In future studies, we will also explore integration

of additional strategies not used in this study. We can

use data that was deemed too sensitive for humans to

access (e.g., email addresses, IP addresses, GPS

location) to identify potential malicious actors. This

can be done without humans accessing the data as we

have now developed a tool for humans to apply

analysis techniques to data that may be identifiable

that is stored in the cloud, then pull down the results

of the analysis that are not identifiable. For example,

a researcher can write code that will access and search

for matching IP addresses, then only see the randomly

assigned participant IDs that have matching IP

addresses.

ACKNOWLEDGEMENTS

This material is based upon work supported by United

States Air Force and DARPA under Contract No.

FA8750-18-C-0056 entitled Health and Injury

Prediction and Prevention Over Complex Reasoning

and Analytic Techniques Integrated on a Cellphone

App (HIPPOCRATIC App). The views, opinions

and/or findings expressed are those of the author and

should not be interpreted as representing the official

views or policies of the DoD or the U.S. Government.

REFERENCES

Bracken, B.K., Potoczny-Jones, I., Wolcott, J., Raffaele, E.,

Woodward, L., Gogoel, C., Kiourtis, N., Schulte, B.,

Arean, P.A., and Farry, M. Development of Human-

Out-of-the-Loop Participant Recruitment, Data

Collection, Data Handling, and Participant

Management System. Proceedings of the Annual

International Human Factors and Ergonomics Society,

October 5-10, 2020.

Pozzar, R., Hammer, M. J., Underhill-Blazey, M., Wright,

A. A., Tulsky, J. A., Hong, F., Gundersen, D. A., &

Berry, D. L. (2020). Threats of bots and other bad actors

to data quality following research participant

HEALTHINF 2022 - 15th International Conference on Health Informatics

382

recruitment through social media: Cross-sectional

questionnaire. Journal of Medical Internet Research,

22(10), e23021.

Wurst, R., Maliezefski, A., Ramsenthaler, C., Brame, J., &

Fuchs, R. (2020). Effects of Incentives on Adherence to

a Web-Based Intervention Promoting Physical

Activity: Naturalistic Study. Journal of Medical

Internet Research, 22(7), e18338.

Detection and Remediation of Malicious Actors for Studies Involving Remote Data Collection

383
