1 INTRODUCTION

Digital humans have become a consolidated area of

research in the last ﬁve or six years. Also called em-

bodied conversational agents (ECA) or virtual avatars,

they are now part of the Hype Cycle of Emerging

Technologies in 2021(Burke, 2021). This visual rep-

resentation of a digital human requires a diverse set

of technologies and an extensive list of factors that

must be achieved, such as realistic graphics (Zibrek

and McDonnell, 2014), emphatic response (Seymour

et al., 2017b), or a correct model that can make repli-

cate the facial expressions and performance coming

from a speciﬁc real human (Krumhuber et al., 2012).

A wide array of applications in the industry

makes Digital Humans part of the options to cre-

ate computer-human interfaces; these include e-

commerce, agent services, government communica-

tion, customer services, etc. Even the simple option

of seeing a future including automated AI-based hu-

mans, with a smile and all, serving customers 24/7,

https://orcid.org/0000-0001-5289-6070

https://orcid.org/0000-0001-6451-9109

https://orcid.org/0000-0002-0703-2131

https://orcid.org/0000-0002-3551-7689

https://orcid.org/0000-0001-6451-9109

https://orcid.org/0000-0002-1672-1756

makes it a relevant area of research.

A small group of companies in the ﬁeld has ac-

cess to a fully developed framework to create Digi-

tal Humans with Deep Learning-based tracking. (An-

toniades, 2016) (Motion, 2017) (Moser et al., 2017).

Such systems are based on taking a real human per-

son, analyzing their facial performance, extracting the

uniqueness of its movements inside a discrete model,

and replicating it into a 3D model or avatar. A dig-

ital 3D model with a high level of detail (most of

the cases requiring the use of photogrammetry) (Gi-

antStep, 2019), is able to collect all the detailed ani-

mation inside a set of constraints and controllers en-

abling to drive a system named rig (Ca

namero and

Aylett, 2008). This rig will be in charge of driving

all the collected information inside the traditional an-

imation pipeline or, for purposes of this analysis: a

real-time engine (Aneja et al., 2019). Lastly, the way

humans build a particular observed link between an-

thropomorphism and emotional response is contem-

plated by the concept of the Uncanny Valley (Mori

et al., 2012), and it is a crucial component inside this

process to improve digital humans.

All the processes mentioned earlier can be sum-

marized as a simple phrase: ”framework for digital

humans”. There is a limited number of them that are

public and open research. As the tools needed to repli-

154

Vilchis, C., Gonzalez-Mendoza, M., Chang, L., Navarro-Tuch, S., Ruiz, G. and Rudomin, I.

A Study of the Frameworks for Digital Humans: Analyzing Facial Tracking evolution and New Research Directions with AI.

DOI: 10.5220/0010823600003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 2: HUCAPP, pages

154-162

ISBN: 978-989-758-555-5; ISSN: 2184-4321

cate it (hardware and software) are not easy to inte-

grate, fully operational frameworks are rare.

In order to understand how a framework for digital

humans integrates different key processes, we need to

split the frameworks into different areas. The ﬁrst is

the physical aspect of the digital-human, the expres-

sion set of how this digital human performs and talks

(most of the time, extracted from a real human be-

ing). The process ends in the real-time delivery of

data and 3D graphics, using cutting-edge techniques

to solve a real human face into a digital face in real-

time; commonly, this is done using deep learning for

prediction(Roble et al., 2019a).

The way facial expressions of a digital human are

constructed to recreate all of what the human face

does, when talking, expressing positive emotions or

disgust, is called facial codiﬁcation. The initial fa-

cial codiﬁcation was standardized in the industry back

in 1995 (MPEG, 2021), and while more than two

decades have passed, both academics and industry are

still using it as the most popular method. Facial An-

imation Parameters (FAP), based on control points

codiﬁcation, lacks a relation between muscles and

expressions. Therefore, the use of facial expression

methodologies, such as Facial Action Code System

(FACS), proposed by Paul Ekman (Ekman, 1997), in-

cludes this. Popular research, databases, and meth-

ods use this facial codiﬁcation; some of them also in-

clude a validation process to certify the codiﬁcation

of FACS with an expert demonstrating a success rate

of more than 72% (Amini et al., 2015).

Common approaches are used to improve the

study, analysis, and extraction of a realistic facial

codiﬁcation from real-world face recognition of real

subject faces. This helps to improve the validation

and in obtaining information from the wild. To ana-

lyze this imagery, state-of-the-art science and compu-

tational techniques such as including AI-based tools

is essential. This trend includes Convolutional Neu-

ral Networks using computer vision-based recogni-

tion (Bouaziz et al., 2013)(Krumhuber et al., 2012).

Several challenges were found when developing

these frameworks, and due to the increased need of

the industry to achieve better, faster, and reliable digi-

tal humans, most of the key factors that the main play-

ers in the industry consider important to overcome

are:

• The more signiﬁcant challenge is to improve the

quality of rendered the 3D model. This means

achieving photorealism. (Zibrek et al., 2018)

• To reduce the Uncanny Valley effect, some com-

ponents considered are improved animation, lip-

sync capabilities, facial deformations, and expres-

sions.

• Interactivity increases the chances of success in

convincing the user of the uniqueness and indi-

vidual identity of a digital human; this means,

the possibility of not rendering performances lin-

early when using real-time graphics. (Hyde et al.,

2015)(Seymour et al., 2017b)

In perspective, with past studies and research pa-

pers trying to describe how to integrate an open

framework(van der Struijk et al., 2018)(Aneja et al.,

2019), we explore and study the speciﬁcations, ef-

ﬁciency rate, and quality of the results when us-

ing state-of-the-art frameworks to complete this task.

The main aspects analyzed for each framework are

the facial expression recognition method, the inte-

gration of the best facial codiﬁcation available, real-

time control, and adequate evaluation of the emphatic

response. This survey also covers the most recent

tools, methodologies, and new research horizons in

facial expression recognition with deep learning in the

digital-human ﬁeld.

As the main objective, this paper contributes as

follows:

• Providing in-depth analysis and formalization of

the processes required of a framework for real-

time digital humans.

• Providing a complete study of the elements cov-

ered in existing frameworks, as well as what is

lacking to approach new methodologies for real-

time digital humans.

• Providing a perspective for the future in the real-

time facial tracking ﬁeld of digital humans.

2 DIGITAL HUMANS FACIAL

ANIMATION FRAMEWORK

2.1 Facial Codiﬁcation and Rigs

Understanding facial animation based on expression

recognition, means talking about a facial codiﬁcation

method. The two main codiﬁcation approaches are

FAP (MPEG, 2021) and FACS (Ekman, 1997) . These

are the most accepted methodologies in the facial an-

imation ﬁeld. FACS was proposed almost 42 years

ago, FAP almost 26 and, until now, are still used

to replicate avatar faces in almost any professional

ﬁeld inside human representation (Moser et al., 2017).

FAP was originally designed as an industry standard

to approach the fast growth of the animation industry

to standardize it, and FACS was originally achieved as

a theory in the ﬁeld of psychology to observe, study

and analyze how facial expressions describe emotions

A Study of the Frameworks for Digital Humans: Analyzing Facial Tracking evolution and New Research Directions with AI

155

and intentions. The facial codiﬁcation era in anima-

tion started in 2000s to parametrize facial controls

in animated characters (commonly named rigs) by

videogames/animation companies and studios. Sev-

eral authors(Pandzic and Forchheimer, 2003) consid-

ered a closer relationship between FAP and FACS.

FAP is oriented towards parametrizing the controls to

manipulate the face like a puppet, useful for speech-

driven avatars and performance animation by motion

capture. FACS, on the other hand, was originally

developed to parametrize emotions and their relation

with muscle groups by observation.

2.2 FAP Codiﬁcaion / Traditional Rig

Over several decades the Facial Animation Param-

eters (FAP) methodology has become the most ac-

cepted standard for facial control of 3D avatars and

digital characters. Originally inspired by AMA (Ab-

stract Muscle Actions), was later developed by re-

quest by MPEG (Moving Picture Expert Group) and

became standard codiﬁcation. .

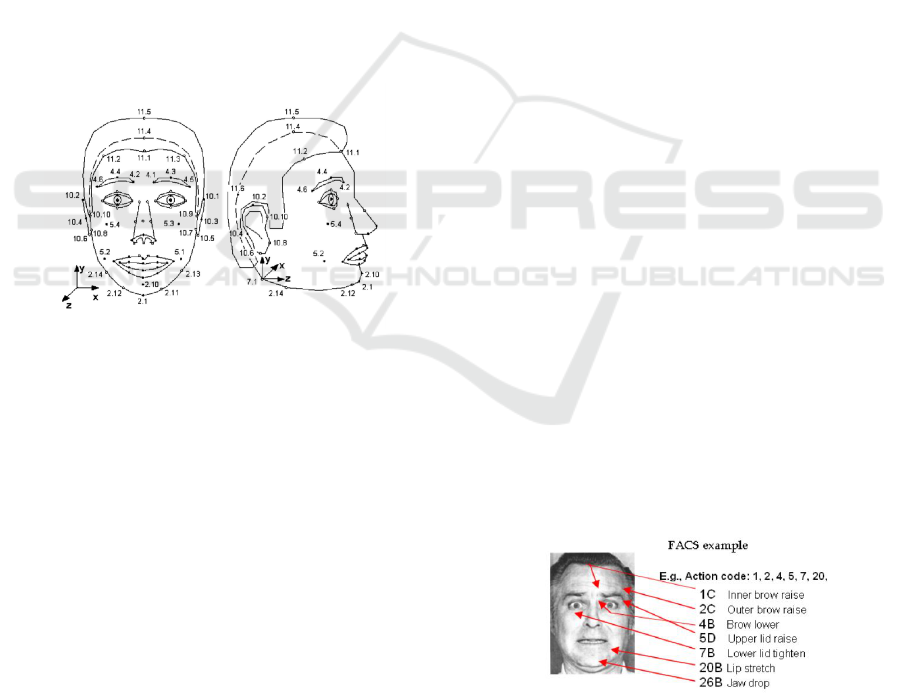

Figure 1: The set of MPEG-4 Face Action Parameter (FAP)

feature points (MPEG, 2021).

In the ﬁeld of emotion recognition, FAP has

been used as the main coding system by several re-

searchers, not just in the animation ﬁeld (Pardas et al.,

2002) were is more popular due to being easy to inte-

grate as a traditional rig as Figure 1 . Therefore, a few

contents in this ﬁeld have been published to codify fa-

cial recognition or to be used inside a contemporary

AI framework.

In order to get successful and realistic human an-

imatable faces, some authors have proposed better

modeling techniques based on FAP (Fratarcangeli and

Schaerf, 2004). This includes a mixture of hand-

modeled morph targets and considering how this lin-

ear animation was related to facial muscle structure,

where the controls of the face were closely related

to muscular descriptions. Several research results

were published into digital humans (Pasquariello and

Pelachaud, 2002), with a particular pioneering ap-

proach to handle skin deformation with wrinkles and

bulges in combination with FAP codiﬁcation.

Facial Expression Synthesis with FAP have their

research origins in the animation ﬁeld thanks to

some published papers (Malatesta et al., 2009), which

looked for an improved way to create better affective

computing interfaces with Embodied Conversational

Agents (ECA). The need to generate emotion and em-

phatic results while using FAP codiﬁcation drove the

researchers into the need to model universal expres-

sions; this is how the Ekman theory of FACS ap-

pears in the facial animation research ﬁeld for the ﬁrst

time. Facial Action Tracking with parametrized FAP

(2001) was fundamental to complete several frame-

works proposed to improve the use of ECA in web

and mobile platforms back in 2002. As the web con-

tents were rapidly increasing, the use of Active Ap-

pearance Models (AAMs) (Pandzic and Forchheimer,

2003) as a statistical model-based method for estimat-

ing the 3D pose and deformation of faces in real-time.

This model included a Geometry, Pose, and Texture

parametrization tool inside an analysis-synthesis pro-

cess. Along with the 2000s, FAP codiﬁcation has be-

come increasingly popular as the main facial anima-

tion and mocap methodology (Li et al., 2010) with a

mix of blendshapes and joints until today.

2.3 FACS Codiﬁcation / 3D based

Scanned Rigs

Early FACS codiﬁcation in animation approaches be-

came popular at the end of the 2000’s in research

ﬁelds due to interest take human 3D models from real

human inverse engineering. The real muscular sys-

tem of the face needed to be coded to split informa-

tion of subject faces to de-code it again and represent

like Figure 2 shows. As soon as the methodology

was reborn in the animation ﬁeld, more researchers

used it to validate 3D human facial models (Cosker

et al., 2011) in order to improve the quality of Con-

versational Agents and standardize the rules of facial

expression into it.

Figure 2: An example of expression coded by Facial Action

Code System (Ekman, 1997).

FACS became essential thanks due to the increas-

ing importance of 3D facial scanning in the ﬁeld as it

helped to capture single shots of facial geometry and

HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications

156

obtain an accurate representation of muscles, wrin-

kles, and skin folding. Now is a well-established tech-

nique used in movies to represent real actors in VFX.

Better achievements in photogrammetry scan helped

researchers separate different groups of textures such

as albedo, normals, specular, etc. However, the em-

phatic response related to feeling less uncanny digi-

tal humans (Tinwell et al., 2011) pushes the research

to continuously retake the FACS methodology under

new tools and new methods.

Alongside better quality methods to scan FACS

from real people, better techniques to represent the

facial movements were needed. The ﬁrst attempts

to include FACS codiﬁcation in 3D facial rig con-

struction (Villagrasa and Sus

ın S

anchez, 2009) al-

lowed getting a better understanding of how the face

moves, using 3D model blendshapes to generate cus-

tom controls. Hybrid methods combining scanned

blendshapes and bones become the newest standard

in the digital-humans ﬁeld (Ravikumar et al., 2016).

Better techniques for the interpolation of blendshapes

based on FACS (Alkawaz et al., 2015) include some

newer algorithms to interpolate traditional face mod-

els between expressions inside a contemporary frame-

work. Some results showed a strong relationship be-

tween the color of skin, FACS and emphatic perfor-

mance (Alkawaz et al., 2014) on digital humans, this

way, the different human expressions can be achieved

realistically with easily replicated workﬂows. New

techniques related to Machine Learning training mod-

els (Radzihovsky et al., 2020) have proven the im-

provement of facial rig construction using informa-

tion previously trained in deep learning models, mak-

ing it easier to integrate into frameworks and to reuse

facial animation easily.

FACS Validation by an expert coder becomes real

(Rothkrantz et al., 2009) in animation framework

to validate rig blendshapes and expressions (Cosker

et al., 2011) . In the beginning, just a small sample of

20 expressions from upper and lower face Actor Units

(AU) was enough to let experts validate the precision

of 3D face models. Later the need to code validated

FACS in linear and nonlinear motion faces became a

challenging goal in computer graphics (Cosker et al.,

2010), results about how nonlinear blending of ex-

pressions is more convincing to facial expert coders

than simple linear ones.

FACS databases are used to study, train and eval-

uate expression inside a digital human framework

(Aneja et al., 2018)(Aneja et al., 2019), were com-

posed by libraries such as MMI(Pantic et al., 2005)

with 10,000 images, DISFA(Mavadati et al., 2013)

with 50,00 images, CK+[53] with 593 videos, and

KDEF(Calvo and Lundqvist, 2008) with 4900 Im-

ages. Novel databases such as AMFED(McDuff

et al., 2016) are based on YouTube content, with a

large dataset of 1.8 million recordings of YouTubers

in front of the camera. Thanks to web services and

the cloud. Researchers such as Benitez-Quiroz et al.

(Fabian Benitez-Quiroz et al., 2016) with Emotionet,

and Mollahosseini et al. (Mollahosseini et al., 2017)

in AffectNet, annotate, classify and code actor units

from facial expressions obtained from the Web to get

bigger and better datasets to improve new algorithms

of facial research.

3 FACIAL EXPRESSION

RECOGNITION AND REAL

TIME RETARGETING INTO A

3D ENGINE

The facial tracking process and the facial expression

recognition process, has been evolving over the past

years. Facial tracking to get an actor’s performance

into 3D animation has research papers dated from

2000(Valente and Dugelay, 2000) and was a basic

linear interpretation of distances between points or

reﬂective markers in the eyebrows, lips, etc. The

translation movement was tracked and processed by

several human hours as Vicon and Faceware. The

next milestone was related to research about im-

proving tracking in real-time (Valente and Dugelay,

2000) without human interaction, based on image-

based tracking and computer vision to complete high-

performance FER. The process is made taking infor-

mation from physical markers, skin marks (Moser

et al., 2017), or directly from contours of the lips,

eyes, and eyebrows using computer vision recogni-

tion (Reverdy et al., 2015) and advanced methods like

Machine Learning to recognize expressions, forecast

facial movements, and retarget accurate data into the

digital humans(Bhat et al., 2013).

Connection to real-time animation retargeting is

part of the complete framework for digital humans

under interactive circumstances. Experiments in the

last years using both traditional rendering engines

or game engines due to ﬂexibility to perform high-

quality graphics for a fraction of the cost of render-

ing digital humans (Eckschlager et al., 2005). The

achievement made by Ninja Theory with Hellblade

(Antoniades, 2016), and collaboration in 2017 be-

tween Epic Games, Vicon, Cubic Motion, 3lateral to

get Siren (CubicMotion, 2018) showed the path of

real-time expression recognition and real-time retar-

geting into a 3D engine. Research made by Mike Sey-

mour under Unreal Engine(Seymour et al., 2017a),

A Study of the Frameworks for Digital Humans: Analyzing Facial Tracking evolution and New Research Directions with AI

157

has strengthened the research into cross the uncanny

valley with real-time interaction.

3.1 Democratized Facial Tracking Tools

for Digital Humans.

Understanding a democratized FER with FACS for

digital humans means to dont depending on commer-

cial tools like mentioned before. This means to pro-

cess all the actor’s facial expressions or databases

from the acquisition step, commonly related to us-

ing a 3D-Convolutional Neural Network or Genera-

tive Adversarial Networks for this type of AI training.

We will talk about tools based on different Artiﬁcial

Intelligence methodologies, STRUIJK with FACS-

vatar(van der Struijk et al., 2018), Aneja with Avatar-

Sim, Project Vincent(GiantStep, 2019), Doug Roble

Masqarade(Moser et al., 2017), but several tools like

Amini HapFACS(Amini et al., 2015),Gilbert FAC-

Shuman(Gilbert et al., 2018), Krumhuber with FAC-

SGen2.0(Krumhuber et al., 2012), are not considered

due to their lacking AI or their not being created to be

integrated into a full FACS framework.

3.2 Truly AI Tools for Digital Human

Face Tracking in Real Time with

FACS.

DeepExpr. Aneja’s research into virtual humans

started in 2016 with DeepExpr (Aneja et al., 2016),

a deep learning method to create static facial expres-

sions in 3D characters using FACS codiﬁcation. The

method was focused on creating emphatic cartoonish

characters expressions based on two basic CNN with

Gabor Filters, ﬁrst trained with standard databases

(CK+, DISFA, MMI) to recognize features, the sec-

ond CNN to do the same process into a 3D digi-

tal cartoon character, then, using transfer learning by

Oquab (Oquab et al., 2014), to create a shared embed-

ding feature space. They ﬁne-tuned the pre-trained

CNN on the human dataset with the character dataset

by continuing the backpropagation step. Finally, a

fully connected layer of the human-trained model was

ﬁxed, so earlier layers were kept ﬁxed to avoid over-

ﬁtting problems.

ExprGen. ExprGen, later by Aneja et al. in 2018,

was into 3D Character FACS expression generation

(Aneja et al., 2018), but the method was optimized

into a 3D CNN. This end-to-end system worked in a

perceptually valid and geometrically consistent man-

ner. They trained a Pseudo-Siamese network named

fused-CNN (f-CNN) composed of 2 branches, Human

CNN (HCNN) and Shared CNN (SCNN). In the last

step, with a similar transfer to their past work, they

trained the f-CNN based on the distance between two

image encodings. The ﬁnal match of geometry is per-

ceptually method matched. The last work of Aneja et

al. (Aneja et al., 2019) in 2019 was related to a full

framework for virtual characters, composed of a real-

time recognition tool for FACS, translation of values

into a facial expression tool, and direct transfer into a

real-time 3D engine.

FACSvatar. Struijk et al. (Hasani and Mahoor,

2017) presented FACSvatar at 2018 as the ﬁrst full

framework to have real-time facial recognition based

on FACS as an open source for digital humans.

FACSvatar allows the integration of models gener-

ated by MakeHuman Project (MakeHuman, 2021),

a full 3D environment for creating digital characters

in 3D, which is integrated with the plugin FACSHu-

man(Gilbert et al., 2018). Several researchers devel-

oped all this suite of tools and made it open for re-

search. This framework takes a modiﬁed version of

OpenFace2.0 (Baltrusaitis et al., 2018) as the main

tool to recognize AU, eye gaze, and head rotation in

real-time via RGB simple camera (no special setup

is needed), and process data inside a simple Gated

Recurrent Unit Neural Network to enable generative

data-driven facial animation with Keras. It uses 17

AU intensities and training with MAHNOB Mimicry

Database. Specially designed modules in Python with

help in this framework’s operation as a GUI, which

controls AU’s parameters and values in real-time. The

information between all these modules is driven using

a distributed messaging library ZeroMQ. The devel-

opment of extra features in FACSvatar allows the user

to drive facial expressions with a CVS Ofﬂine ﬁle, so

a live human performer is not always needed in the

framework.

AvatarSim. Aneja et al. work concluded in a

full framework end-to-end named AvatarSim (Aneja

et al., 2019). This real and contemporary frame-

work was proposed in 2019. Setup made with

Unreal Engine and a CNN, FACS, and a recogni-

tion model trained with Emotionet (Fabian Benitez-

Quiroz et al., 2016), including a phoneme extraction

based on the audio wave. AvatarSim works with a

simple RGB camera, recognizes 12 FACS AU from

the user-detected face, and then synthesizes the ex-

pression. The Action Unit Recognizer is the same as

ExprGen; just with a small difference, these frame-

works do not retarget the movements into a midway

character but directly send the data to an expression

synthesizer. A Python interface made in PyThorch

transforms the 12-dimensional feature vector repre-

senting the probability of each AU with an aver-

age F1 score of 0.78. There is an option to use an

HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications

158

external off-the-shelf FACS AU detection SKD like

AFFDEX(McDuff et al., 2016). Finally, the Expres-

sion Syntethizer, made in Python, drives 38 Bone, 24

FACS, and 19 phonetic controls in the ﬁnal target dig-

ital avatar. The ﬁnal character is real-time driven in-

side Unreal Engine with traditional blendshapes. The

AI model was based on a CNN of the input image

with 49 FACS detection and trained with MMI, CK+,

KDEF, and DISFA. The result of this training model

(HCNN) was connected to a second CNN in a pseudo-

siamese network (fused CNN). The second CNN (

Shared CNN) was designed to recognize 10 cartoon

expressions. All character expressions were validated

to 70% with Mechanical Turk (50 test subjects) but

not a FACS expert. Both CNN, HCNN, and SCNN,

inside the f-CNN, were trained to get a similarity

score between human and primary character expres-

sions.

Project Vincent by GIANTSTEP. Like the work done

by Digital Domain and Cubic Motion for Siren, is the

case of GianStep(SouthKorea, ) from project Vincent,

an experimental project of a Digital human-based in

a private research framework but with better results

than all the ones previously mentioned in this doc-

ument. Sakamoto et al.(GiantStep, 2019) developed

an internal framework based on facial 3d scans to ac-

quire the set of expressions with the FACS methodol-

ogy. Sakamoto developed a Machine Learning Facial

Capture tool based on Keras and Python with a CNN

model. No external database was used for the Neu-

ral Networks, as information was taken from just one

face and all the possible expressions. The framework

uses two Neural networks. First, a Facial Marker

Tracker was designed to ﬁnd and predict the coordi-

nate system of 3D markers with marker-less 2D im-

ages of facial expressions. The face was segmented

into six areas, and every area learns separately with

35 expressions to have a total of 210 different blend-

shapes of the face. A second Neural Network, de-

signed as a Blend-shape mapper, was connected with

the 6 areas to ﬁnd an appropriate blend-shape inten-

sity for the AU with the information of the 3D marker

coordinates. Final results are delivered in real-time to

the 3D model inside Unreal Engine.

Masquerade by Digital Domain. are one of the

newest unsupervised AI methods. Private solutions

made by cutting-edge companies like Digital Do-

main (Roble et al., 2019b) to improve the quality,

realism and to drive emotional characters such as

Thanos (Ennis et al., 2013) in the Avengers Endgame

movie(Hendler et al., 2018). They have been testing

GANs to train and facial recognition. Above the CNN

methods, some researchers have chosen a Generative

Adversarial Network to complement their tools. Few

details are public about this project than a couple of

neural networks (generative and discriminator) take

the role of recognizing markers painted in the actor’s

face. Later, the solution is complemented with an-

other set of AI tools to train data like CNN and label

it and predict like the other solutions before studied.

4 RESULTS OF THE STATE OF

THE ART

This section discusses, and analyzes the state-of-the-

art frameworks reviewed, the importance of facial

codiﬁcation methodologies, and how they become

important inside tracking faces to drive digital hu-

mans in real-time.

4.1 Discussion on Codiﬁcation for

Real-time Tracking on Digital

Humans

Native FAP codiﬁcation is not considered in the ﬁeld

of study of this article, but we considered as a com-

mon solution used in traditional keyframe animation.

Important solutions like ARKit from Apple, the most

adopted solution due to the democratization of RGB-

D cameras inside Apple phones, have 51 basic coded

expressions but are not considered a tool to customize

or modify. Professional solutions in digital humans

like Faceware and Dynamixyz, based on 48 and 47

coded expressions, cannot allow custom expressions

or modify them. These tools, being commercial-born,

have become extremely popular around the world.

As we analyzed previously, the use of an

expressive-emotional solution-oriented to drive fa-

cial performance in digital humans adds extra ﬁdelity

because it matches with real 3D scanned humans,

whether the accessibility to access facial database to

train the AI model results in the digital-human. Us-

ing FACS as a codiﬁcation method to classify fa-

cial expressions has become common in the computer

graphics ﬁeld. But there is no customization and pa-

rameterization in commercial solutions. FACS gener-

ation tools and solutions are available using it, but the

lack of full frameworks options makes it more inter-

esting to further research.

4.2 Discussion on Digital Humans and

Open Frameworks

We studied options that begin as simple facial expres-

sion recognition and transferred knowledge to digital

avatars to complete solutions with real-time tracking

A Study of the Frameworks for Digital Humans: Analyzing Facial Tracking evolution and New Research Directions with AI

159

Table 1: Analyzed frameworks (FW) and expression

generators (GEN), their respective and recognition rates.

*Frameworks discarded in the survey because are not FACS

based or AI techniques used.

Facial Resarch / Type

Recognition

Rate /

Certiﬁed by coder

AvatarSim (FW) Unknown / No

HapFACS* (FW) 72.5% / Yes

FACSHuman* (FW) Unknown / No

FACSGen* (Gen) 72% / Yes

ExprGen (Gen) 75.5% / No

DeepExpr (Gen) 89% / No

FACSvatar (FW) 88% / No

Masquerade (FW) N/A

Vincent (FW) N/A

into live 3D digital humans. All the options analyzed

were based on FACS codiﬁcation as a basic way to

understand the human face. Several frameworks and

solutions were discarded because they were not ori-

ented to this methodology. As well discarded solu-

tions just made to extract FACS like ExprGen, FACS-

Gen (Krumhuber et al., 2012) and DeepExpr were not

related to this survey as you can see at Table 1.

An important part of the research was to cross-

match frameworks, FACS and Digital humans, show-

ing the importance of validating FACS working with

certiﬁed coders in some parts of the process. Different

Frameworks were subject of emFACS(Friesen et al.,

1983) recognition test protocols with test subjects

to compare the recognition rate presented in all the

frameworks and tools. Not all the frameworks studied

included the results of this test. A certiﬁed coder was

used to validate the codiﬁcation of input/output on the

models in HapFACS (Amini et al., 2015), FACSGen,

with the highest recognition rate (72.5% and 72%),

but was also discarded as a being a Generator and

incomplete framework, respectively. Some of these,

like FACSvatar, DeepExpr had results up to 89 per-

cent of recognition rate for the emFACS model, but,

is important to clarify is not Certiﬁed by Coders.

Suppose we ﬁlter all the options to determine the

complete open frameworks with an updated state to-

day. In that case, we will ﬁnd a niche interesting to re-

search with certiﬁed coder validation, deep learning-

based, and the highest recognition rate.

4.3 Discussion on Future Work

The high demand for solutions for conversational as-

sistants, chatbots, virtual inﬂuencers, streaming video

hosts, etc., combined with the expectation to democ-

ratize the use of these tools, will cause more options

to push the industry to have improved solutions. The

need to research to have democratic options of frame-

works, with documented solutions for the right way

to get scanned persons, AI models, trained databases

will be predominant.

By March 2021, Epic Games had released the ini-

tial version of MetaHuman Creator(Games, 2021), a

tool created to help independent and small studios

easily create digital human assets with photorealistic

results. This tool represents a huge leap in the democ-

ratization of digital-human tools, but the lack of to in-

put custom face scans to create a digital human based

on a real human shows the limitation of this tool and

how there is still a long road to place custom FACS in

easy-to-use tools such as MetaHuman.

Research and development in real-time facial

tracking solutions, with easier and affordable options,

aligned the same way to improve the democratization

of these technologies is an essential direction. The

starting point is better portable devices as HMC with

computer vision, from a fraction of the cost and open

to be customized (different than iPhone ARKit) are

the starting point. If we consider the last standard-

ization for a facial codiﬁcation was the one made by

the MPEG group, without an updated version or new

alternatives, we can deduce that it is time to gener-

ate newly standardized protocols for FACS methodol-

ogy. Standardizing modern facial codiﬁcations based

on emotional expression and skin/muscle activity is

another direction of research. Proven methods should

be analyzed, while correctly documented protocols

and data labeling homologation are other topics to re-

search.

5 CONCLUSIONS

We have reviewed digital humans’ main concepts and

elements inside a real-time rendering framework to

introduce deep learning facial tracking. The analyzed

frameworks for real-time digital humans provide a

wide study of the elements covered. The review of

every step to distinguish limitations and advantages

let us check and compare actual options. Future steps

will include the test of each solution to compare ef-

fectiveness with Unreal Metahumans, and prototype

a custom FACS and CNN-based tracking inside a val-

idated FACS codiﬁcation. Future research and exper-

iments in this ﬁeld are priority to our research group.

REFERENCES

Alkawaz, M. H., Basori, A. H., Mohamad, D., and Mo-

hamed, F. (2014). Realistic facial expression of vir-

HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications

160

tual human based on color, sweat, and tears effects.

The Scientiﬁc World Journal, 2014.

Alkawaz, M. H., Mohamad, D., Basori, A. H., and Saba, T.

(2015). Blend shape interpolation and facs for realistic

avatar. 3D Research, 6(1):6.

Amini, R., Lisetti, C., and Ruiz, G. (2015). Hapfacs 3.0:

Facs-based facial expression generator for 3d speak-

ing virtual characters. IEEE Transactions on Affective

Computing, 6(4):348–360.

Aneja, D., Chaudhuri, B., Colburn, A., Faigin, G., Shapiro,

L., and Mones, B. (2018). Learning to generate 3d

stylized character expressions from humans. In 2018

IEEE Winter Conference on Applications of Computer

Vision (WACV), pages 160–169. IEEE.

Aneja, D., Colburn, A., Faigin, G., Shapiro, L., and Mones,

B. (2016). Modeling stylized character expressions

via deep learning. In Asian conference on computer

vision, pages 136–153. Springer.

Aneja, D., McDuff, D., and Shah, S. (2019). A high-ﬁdelity

open embodied avatar with lip syncing and expres-

sion capabilities. In 2019 International Conference

on Multimodal Interaction, pages 69–73.

Antoniades, T. (2016). Creating a live real-time

performance-captured digital human. In ACM SIG-

GRAPH 2016 Real-Time Live!, SIGGRAPH ’16, New

York, NY, USA. Association for Computing Machin-

ery.

Baltrusaitis, T., Zadeh, A., Lim, Y. C., and Morency,

L. (2018). Openface 2.0: Facial behavior analysis

toolkit. In 2018 13th IEEE International Conference

on Automatic Face Gesture Recognition (FG 2018),

pages 59–66.

Bhat, K. S., Goldenthal, R., Ye, Y., Mallet, R., and Kop-

erwas, M. (2013). High ﬁdelity facial animation cap-

ture and retargeting with contours. In Proceedings of

the 12th ACM SIGGRAPH/eurographics symposium

on computer animation, pages 7–14.

Bouaziz, S., Wang, Y., and Pauly, M. (2013). Online model-

ing for realtime facial animation. ACM Trans. Graph.,

32(4).

Burke, B. (2021). Hype cycle for emerging technologies,

2021. Technical report, Stamford, CT 06902 USA.

Calvo, M. G. and Lundqvist, D. (2008). Facial expres-

sions of emotion (kdef): Identiﬁcation under different

display-duration conditions. Behavior research meth-

ods, 40(1):109–115.

namero, L. and Aylett, R. (2008). Animating Expressive

Characters for Social Interaction, volume 74. John

Benjamins Publishing.

Cosker, D., Krumhuber, E., and Hilton, A. (2010). Percep-

tion of linear and nonlinear motion properties using

a facs validated 3d facial model. In Proceedings of

the 7th Symposium on Applied Perception in Graph-

ics and Visualization, APGV ’10, page 101–108, New

York, NY, USA. Association for Computing Machin-

ery.

Cosker, D., Krumhuber, E., and Hilton, A. (2011). A facs

validated 3d human facial model. In Proceedings

of the SSPNET 2nd International Symposium on Fa-

cial Analysis and Animation, FAA ’10, page 12, New

York, NY, USA. Association for Computing Machin-

ery.

CubicMotion, U. (2018). Siren case study. https://

cubicmotion.com/case-studies/siren/.

Eckschlager, M., Lankes, M., and Bernhaupt, R. (2005).

Real or unreal? an evaluation setting for emotional

characters using unreal technology. In Proceedings

of the 2005 ACM SIGCHI International Conference

on Advances in Computer Entertainment Technology,

ACE ’05, page 375–376, New York, NY, USA. Asso-

ciation for Computing Machinery.

Ekman, R. (1997). What the face reveals: Basic and applied

studies of spontaneous expression using the Facial Ac-

tion Coding System (FACS). Oxford University Press,

USA.

Ennis, C., Hoyet, L., Egges, A., and McDonnell, R. (2013).

Emotion capture: Emotionally expressive characters

for games. In Proceedings of Motion on Games, pages

53–60.

Fabian Benitez-Quiroz, C., Srinivasan, R., and Martinez,

A. M. (2016). Emotionet: An accurate, real-time algo-

rithm for the automatic annotation of a million facial

expressions in the wild. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 5562–5570.

Fratarcangeli, M. and Schaerf, M. (2004). Realistic model-

ing of animatable faces in mpeg-4. In Computer Ani-

mation and Social Agents, pages 285–297.

Friesen, W. V., Ekman, P., et al. (1983). Emfacs-7:

Emotional facial action coding system. Unpublished

manuscript, University of California at San Fran-

cisco, 2(36):1.

Games, I. E. (2021). Epic games metahuman creator. https:

//metahuman.unrealengine.com/.

GiantStep, S. (2019). Project vincent. http://www.giantstep.

co.kr/. (2F, 8, HAKDONG-RO 37-GIL, GANGNAM-

GU, SEOUL 06053).

Gilbert, M., Demarchi, S., and Urdapilleta, I. (2018). Fac-

shuman a software to create experimental material by

modeling 3d facial expression. In Proceedings of the

18th International Conference on Intelligent Virtual

Agents, pages 333–334.

Hasani, B. and Mahoor, M. H. (2017). Facial expres-

sion recognition using enhanced deep 3d convolu-

tional neural networks. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR) Workshops.

Hendler, D., Moser, L., Battulwar, R., Corral, D., Cramer,

P., Miller, R., Cloudsdale, R., and Roble, D. (2018).

Avengers: capturing thanos’s complex face. In ACM

SIGGRAPH 2018 Talks, pages 1–2.

Hyde, J., Carter, E. J., Kiesler, S., and Hodgins, J. K. (2015).

Using an interactive avatar’s facial expressiveness to

increase persuasiveness and socialness. In Proceed-

ings of the 33rd Annual ACM Conference on Human

Factors in Computing Systems, pages 1719–1728.

Krumhuber, E. G., Tamarit, L., Roesch, E. B., and Scherer,

K. R. (2012). Facsgen 2.0 animation software: Gener-

ating three-dimensional facs-valid facial expressions

for emotion research. Emotion, 12(2):351.

A Study of the Frameworks for Digital Humans: Analyzing Facial Tracking evolution and New Research Directions with AI

161

Li, H., Weise, T., and Pauly, M. (2010). Example-based

facial rigging. ACM Trans. Graph., 29(4).

MakeHuman (2021). Make-human. http://www.

makehumancommunity.org/. (Accessed on

11/02/2020).

Malatesta, L., Raouzaiou, A., Karpouzis, K., and Kollias, S.

(2009). Mpeg-4 facial expression synthesis. Personal

and Ubiquitous Computing, 13:77–83.

Mavadati, S. M., Mahoor, M. H., Bartlett, K., Trinh, P., and

Cohn, J. F. (2013). Disfa: A spontaneous facial ac-

tion intensity database. IEEE Transactions on Affec-

tive Computing, 4(2):151–160.

McDuff, D., Mahmoud, A., Mavadati, M., Amr, M., Tur-

cot, J., and Kaliouby, R. e. (2016). Affdex sdk: a

cross-platform real-time multi-face expression recog-

nition toolkit. In Proceedings of the 2016 CHI confer-

ence extended abstracts on human factors in comput-

ing systems, pages 3723–3726.

Mollahosseini, A., Hasani, B., and Mahoor, M. H. (2017).

Affectnet: A database for facial expression, valence,

and arousal computing in the wild. IEEE Transactions

on Affective Computing, 10(1):18–31.

Mori, M., MacDorman, K. F., and Kageki, N. (2012). The

uncanny valley [from the ﬁeld]. IEEE Robotics & Au-

tomation Magazine, 19(2):98–100.

Moser, L., Hendler, D., and Roble, D. (2017). Masquer-

ade: ﬁne-scale details for head-mounted camera mo-

tion capture data. In ACM SIGGRAPH 2017 Talks,

pages 1–2.

Motion, C. (2017). Realtime live [cubic motion web site].

MPEG (2021). Movie picture expert group. https://mpeg.

chiariglione.org/standards/mpeg-4.

Oquab, M., Bottou, L., Laptev, I., and Sivic, J. (2014).

Learning and transferring mid-level image represen-

tations using convolutional neural networks. In Pro-

ceedings of the IEEE conference on computer vision

and pattern recognition, pages 1717–1724.

Pandzic, I. S. and Forchheimer, R. (2003). MPEG-4 facial

animation: the standard, implementation and appli-

cations. John Wiley & Sons.

Pantic, M., Valstar, M., Rademaker, R., and Maat, L.

(2005). Web-based database for facial expression

analysis. In 2005 IEEE international conference on

multimedia and Expo, pages 5–pp. IEEE.

Pardas, M., Bonafonte, A., and Landabaso, J. L. (2002).

Emotion recognition based on mpeg-4 facial anima-

tion parameters. In 2002 IEEE International Con-

ference on Acoustics, Speech, and Signal Processing,

volume 4, pages IV–3624. IEEE.

Pasquariello, S. and Pelachaud, C. (2002). Greta: A simple

facial animation engine.

Radzihovsky, S., de Goes, F., and Meyer, M. (2020). Face-

baker: Baking character facial rigs with machine

learning. In ACM SIGGRAPH 2020 Talks, SIG-

GRAPH ’20, New York, NY, USA. Association for

Computing Machinery.

Ravikumar, S., Davidson, C., Kit, D., Campbell, N. D.,

Benedetti, L., and Cosker, D. (2016). Reading be-

tween the dots: Combining 3d markers and facs classi-

ﬁcation for high-quality blendshape facial animation.

In Graphics Interface, pages 143–151.

Reverdy, C., Gibet, S., and Larboulette, C. (2015). Optimal

marker set for motion capture of dynamical facial ex-

pressions. In Proceedings of the 8th ACM SIGGRAPH

Conference on Motion in Games, pages 31–36.

Roble, D., Hendler, D., Buttell, J., Cell, M., Briggs, J., Red-

dick, C., Iannazzo, L., Li, D., Williams, M., Moser,

L., et al. (2019a). Real-time, single camera, digital

human development. In ACM SIGGRAPH 2019 Real-

Time Live!, pages 1–1.

Roble, D., Hendler, D., Buttell, J., Cell, M., Briggs, J., Red-

dick, C., Iannazzo, L., Li, D., Williams, M., Moser,

L., Wong, C., Kachkovski, D., Huang, J., Zhang, K.,

McLean, D., Cloudsdale, R., Milling, D., Miller, R.,

Lawrence, J., and Chien, C. (2019b). Real-time, sin-

gle camera, digital human development. In ACM SIG-

GRAPH 2019 Real-Time Live!, SIGGRAPH ’19, New

York, NY, USA. Association for Computing Machin-

ery.

Rothkrantz, L., Datcu, D., and Wiggers, P. (2009). Facs-

coding of facial expressions. In Proceedings of the

International Conference on Computer Systems and

Technologies and Workshop for PhD Students in Com-

puting, CompSysTech ’09, New York, NY, USA. As-

sociation for Computing Machinery.

Seymour, M., Evans, C., and Libreri, K. (2017a). Meet

mike: epic avatars. In ACM SIGGRAPH 2017 VR Vil-

lage, pages 1–2.

Seymour, M., Riemer, K., and Kay, J. (2017b). Interactive

realistic digital avatars-revisiting the uncanny valley.

SouthKorea, G. Gx-lab. http://www.gxlab.co.kr/. (Accessed

on 11/02/2020).

Tinwell, A., Grimshaw, M., Nabi, D. A., and Williams, A.

(2011). Facial expression of emotion and perception

of the uncanny valley in virtual characters. Computers

in Human Behavior, 27(2):741–749.

Valente, S. and Dugelay, J.-L. (2000). Face tracking and re-

alistic animations for telecommunicant clones. IEEE

MultiMedia, 7(1):34–43.

van der Struijk, S., Huang, H.-H., Mirzaei, M. S., and

Nishida, T. (2018). Facsvatar: An open source mod-

ular framework for real-time facs based facial anima-

tion. In Proceedings of the 18th International Confer-

ence on Intelligent Virtual Agents, pages 159–164.

Villagrasa, S. and Sus

ın S

anchez, A. (2009). Face! 3d facial

animation system based on facs. In IV Iberoamerican

symposium in computer graphics, pages 203–209.

Zibrek, K., Kokkinara, E., and McDonnell, R. (2018). The

effect of realistic appearance of virtual characters in

immersive environments-does the character’s person-

ality play a role? IEEE transactions on visualization

and computer graphics, 24(4):1681–1690.

Zibrek, K. and McDonnell, R. (2014). Does render style

affect perception of personality in virtual humans? In

Proceedings of the ACM Symposium on Applied Per-

ception, pages 111–115.

HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications

162
