Iris Segmentation based on an Optimized U-Net

Sabry Abdalla M.

1 a

, Lubos Omelina

1,2 b

Jan Cornelis

1 c

and Bart Jansen

1,2 d

Department of Electronics and Informatics, Vrije Universiteit Brussel, Pleinlaan 2 1050 Brussels, Belgium

imec, Kapeldreef 75, B-3001 Leuven, Belgium

Keywords:

Iris Segmentation, Deep Learning, CNN, U-Net, Parameter Optimization.

Abstract:

Segmenting images of the human eye is a critical step in several tasks like iris recognition, eye tracking or

pupil tracking. There are a lot of well-established hand-crafted methods that have been used in commercial

practice. However, with the advances in deep learning, several deep network approaches outperform the hand-

crafted methods. Many of the approaches adapt the U-Net architecture for the segmentation task. In this paper

we propose some simple and effective new modiﬁcations of U-Net, e.g. the increase in size of convolutional

kernels, which can improve the segmentation results compared to the original U-Net design. Using these

modiﬁcations, we show that we can reach state-of-the-art performance using less model parameters. We

describe our motivation for the changes in the architecture, inspired mostly by the hand-crafted methods and

basic image processing principles and ﬁnally we show that our optimized model slightly outperforms the

original U-Net and the other state-of-the-art models.

1 INTRODUCTION

The iris is a part of the human body that does not

change substantially its appearance throughout a per-

son’s life unless it is damaged by an external force.

Iris patterns are genetically unique, identical twins

have different iris patterns, and even one person’s

eye patterns are different from each other (Daugman,

2009). These characteristics make iris recognition an

interesting topic for studies, and in fact it is largely

present in biometric and medical studies, e.g. in bio-

metric passports. Although the iris features have been

proven unique, the segmentation of the iris region

from the input image remains a challenging prob-

lem. We can split the segmentation approaches into

convolutional and non-convolutional methods. Tra-

ditionally, the segmentation has been solved using

non-convolutional techniques and considerable per-

formance has already been achieved on numerous

datasets (Shah and Ross, 2009). However, convo-

lutional endeavors using deep networks have taken

place recently since they could improve the state-

of-the-art more robustly than the non-convolutional

methods. Hence, in this paper we focus on impro-

https://orcid.org/0000-0001-8815-9697

https://orcid.org/0000-0002-2500-5217

https://orcid.org/0000-0002-1180-1968

https://orcid.org/0000-0001-8042-6834

ving the recent popular convolutional methods for ac-

curate iris segmentation. Popular non-convolutional

methods are contour-based and texture-based meth-

ods. The contour-based methods are based on integro-

differential operators, and Hough transforms. The

principle of integro-differential algorithms is based on

searching for the largest difference of intensity over a

parameter space, which normally corresponds to the

pupil and iris boundaries. Methods based on Hough

transform try to ﬁnd the optimal circle (or possibly

ellipse) parameters by exploring binary edge maps.

Performance of these methods is highly dependent on

the image quality, clear contours and the boundary

contrast. However, in normal conditions, limbic or

pupillary boundaries in the images are often of low-

contrast, or may have non-circular shape. In addition,

the occlusions and specular reﬂections may introduce

further contrast artifacts in the images. Plenty of im-

provements were achieved, such as: occlusion detec-

tion, circle model improvement, deformation correc-

tion, noise reduction, boundary ﬁtting and many other

methods to compensate for non-idealities in the im-

age. Nevertheless, due to their global and generic

approach to segmentation, the performance of these

methods can be undermined by the above mentioned

speciﬁc artifacts, occurring in human eye images.

Even in some cases, they may result in total failure

of the system (Tian et al., 2004).

176

M., S., Omelina, L., Cornelis, J. and Jansen, B.

Iris Segmentation based on an Optimized U-Net.

DOI: 10.5220/0010825800003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 4: BIOSIGNALS, pages 176-183

ISBN: 978-989-758-552-4; ISSN: 2184-4305

The texture-based methods exploit the individual

pixel’s visual aspects and their neighbourhood infor-

mation, such as intensity, color, and their local pat-

terns to classify the iris pixels separately from the rest

of the image. The most promising methods in this cat-

egory use some commonly known pixel-wise image

classiﬁers such as: support vector machines (SVMs),

Neural networks, and Gabor ﬁlters to separate iris pix-

els from the rest of the image pixels. In spite of the

efforts to improve the performance of this group of

algorithms, these methods also suffer from the same

type of problems, e.g. diffusion, reﬂection, and oc-

clusions (Heikkila and Pietikainen, 2006).

The convolutional methods which are nowadays

incorporated into the convolutional neural networks

(CNN), have lately been used widely to tackle the

segmentation problem. There have been many CNN-

based methods proposed, and most of them relate to

fully convolutional networks (FCN).

In this paper we will contribute to the iris seg-

mentation problem by optimizing the best performing

convolutional solution, found in our analysis of the

related work. Semantic segmentation will be used be-

cause of the nature of the considered image patches,

containing the picture of one single eye. After hav-

ing identiﬁed some baseline architectures in literature

for our work in Section 2, we address the following

problems in the remainder of the paper:

• The performance improvement of the convolu-

tional approach for iris segmentation.

• The reduction of the number of internal parame-

ters of the model without sacriﬁcing segmentation

quality.

• Optimizing the convolutional kernel sizes based

on lessons learned from handcrafted convolutions.

• Increasing/maintaining the generalization proper-

ties for the selected data sets, based on parameter

reduction.

• Comparison with some state-of-the-art models.

The objective of this paper is to reach or to sur-

pass the state of the art in the convolutional iris seg-

mentation ﬁeld in order to establish a good baseline

for other iris-based applications.

The iris segmentation is a semantic segmentation

problem, which could be deﬁned as a pixel wise su-

pervised learning binary classiﬁcation problem. In

Figure 1, an example illustrates semantic segmenta-

tion on some CASIA dataset images (CAS, 2004).

The structure of the paper is as follows. In sec-

tion 2, we describe and qualitatively compare dif-

ferent convolutional approaches for iris segmentation

and select U-Net as the baseline for our own architec-

tural design and parameter optimization. In section 3

Figure 1: Iris semantic segmentation (Lozej et al., 2018).

we deﬁne our own model and its parameters. Section

4 contains the experimental results, Section 5 contains

a discussion of the results and Section 6 summarizes

the conclusions.

2 RELATED WORK

Lately, the iris segmentation problem has been tack-

led using convolutional solutions due to the high per-

formance and accuracy of the convolutional neural

networks - CNNs. Plenty of papers and research exist.

We selected some of the most relevant ones reﬂecting

the state of the art in the ﬁeld.

Sclera Segmentation Benchmarking Competition-

SSBC 2020 (Vitek et al., 2020) is a competition

and a group benchmarking effort held in conjunction

with the International Joint Conference on Biometrics

2020 focusing on the problem of sclera segmentation.

Results from this competition clearly highlight poten-

tial of the U-Net architecture and its derivates.

In the work of (Bazrafkan et al., 2018), the models

are fully convolutional networks (FCN) (Long et al.,

2015) with different depths, kernel sizes - each de-

signed to extract different levels of details - and lack-

ing pooling. The proposed network is evaluated on

four databases - Bath800, CASIA1000, UBIRIS, and

MobBio.The highest F1-score has been achieved on

CASIA1000 dataset with 97.5% .

Another paper tackles the problem with a similar

technique (Jalilian and Uhl, 2017). A fully convolu-

tional encoder-decoder network (FCEDN) represents

a core segmentation engine for pixel-wise semantic

segmentation. The core segmentation engine includes

a 44-layered encoder network, and the correspond-

ing decoder network. The highest F1-score has been

achieved in this paper by Bayesian-Basic FCN net-

work with 89.85%.

In (Lozej et al., 2018), the original U-Net is the

only model which has been used and the used dataset

is CASIA1000. The evaluation metric is mean av-

erage precision which is a popular evaluation met-

ric in semantic segmentation. The depth represents

the number of the corresponding concatenated layers.

The highest Average-Precision has been achieved on

Iris Segmentation based on an Optimized U-Net

177

Figure 2: mAP evaluation metric (Lian et al., 2018).

the UNet model and CASIA1000 dataset with 5 layers

depth and 0.70 threshold with 94.8%.

In (Lian et al., 2018), the used models are FCN

and U-Net, but in addition they introduced some mod-

iﬁcation to the U-Net and called it Att-UNet (At-

tention Guided U-Net), and the used datasets are

UBIRISv2 and CASIAv4-distance. The main idea is

to add an attention mask generation step to estimate

the potential area where the iris is most likely to ap-

pear. They used a bounding box regression module

to estimate the coordinates. This regression step is

used to guide the ﬁnal segmentation, which forces the

model to focus on a speciﬁc region. The used eval-

uation metric in this work is also Average-Precision

(mTPR) - see Figure 2. The modiﬁcation they did

on the original U-Net yields better performance than

FCN and the original U-Net. The highest Average-

Precision has been achieved on the ATT-UNet model

and UBIRISv2 dataset with 96.812%.

3 METHOD

In this work, based on the papers mentioned in sec-

tion 2, we propose a modiﬁed version of U-Net in

which we adopt intuition from the image processing

domain.

3.1 Motivation

As it has been demonstrated in (Le and Kayal, 2020;

Brachmann and Redies, 2016), the early layers of

convolutional networks perform simple tasks, mainly

edge detection. However, empirically, from our expe-

rience with handcrafted image processing operators,

we can demonstrate that edge detectors with kernel

size 3x3 do not perform well on this task. Fig. 3

shows results from the Laplace operator, frequently

used for edge detection, applied on an iris image. As

we can observe, smaller kernels have weaker response

mainly on the outer boundary of the iris. Fig. 3 sug-

gests that it is useless to start with kernels that are

smaller than 7x7 in size.

Figure 3: Responses of Laplace operator with different sizes

of convolutional kernels.

Input

480X480X3

16 16

U8= U8 + C2

32 32

input

U7= U7 + C3

128

U6= U6 + C4

256

Final

Output

Padding = Same.

Conv

7X7 filter size.

Conv 5X5 filter size.

Maxpool 2x2 with stride = 2

Upsample 2x2

Final conv 1x1

MDF-U-Net

U9= U9 + C2

Figure 4: The proposed model (MoDiFied U-Net:

MDF-U-Net) architecture.

3.2 Proposed Model

The proposed modiﬁcations are two-fold, namely to

increase the size of the convolutional kernels as ex-

plained in Figure 4, and to reduce the number of ﬁl-

ters for each layer to 1/4 of the number of ﬁlters in the

original network.

The feature extraction part (the contracting path)

is a typical convolutional network. The ﬁrst layer ap-

plies 16 convolutional kernels with size 7X7 to detect

the edges, followed by a 2X2 max-pooling layer with

stride 2 to downsample feature maps and hence sum-

marizing the presence of features in the iris images.

The same technique has been applied to the rest of

the contracting path but with 5x5 kernels as shown

in Figure 4. The expansive path combines the fea-

ture and spatial information through a sequence of up-

convolutions then concatenates it with high-resolution

features from the contracting path. The upsampling

is 2 × 2, and the ReLU activation function is used in

each convolutional layer, while at the output the sig-

moid activation function is used. The used cost func-

tion is binary cross-entropy since we have to solve a

pixel wise binary classiﬁcation problem. The modi-

ﬁed U-Net has a total of 5,079,409 trainable param-

eters, while the original U-Net has 31,032,837 train-

able parameters.

3.3 Datasets and Preprocessing

In this paper, we used 2 datasets, CSIP and UBIRIS-

v2. The CSIP database (Santos et al., 2015) contains

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

178

images acquired with four different mobile devices:

Sony Ericsson Xperia Arc S (rear 3,264 × 2,448 pix-

els), iPhone 4 (front 640 × 480 pixels, rear 2,592 ×

1,936 pixels), THL W200 (front 2,592 × 1,936 pix-

els, rear 3,264 × 2,448 pixels), and Huawei U8510

(front 640 × 480 pixels, rear 2,048 × 1,536 pixels).

The database contains 2,004 images from 50 sub-

jects and for each image, a binary iris segmentation

mask is provided. These masks were automatically

obtained using a state-of-the-art iris segmentation ap-

proach particularly suitable for uncontrolled acquisi-

tion conditions, which has been corroborated by the

winning contribution at the Noisy Iris Challenge Eval-

uation (Proença and Alexandre, 2007).

The UBIRIS.v2 dataset (Proenca et al., 2010) con-

tains 11,102 iris images from 261 subjects with 10 im-

ages for each subject. The images were captured un-

der unconstrained conditions (at-a-distance, on-the-

move and in the visible spectrum), with realistic noise

factors. The database does not contain the segmen-

tation masks, however segmentation masks for 2250

images are available through the work of (Hofbauer

et al., 2014a). In this paper we only used 2250 images

for which the masks were available. The dimensions

of the UBIRIS.v2 images are uniﬁed to 400x300 pix-

els, all containing 3 color channels as captured by the

camera.

The primary goal of the preprocessing of the im-

ages is to obtain iris images without downsampling.

After detailed inspection on CSIP, we observed that

all irises (even those in the highest resolution images)

have iris diameters smaller than 480 pixels. Hence,

the 2004 input image patches to our network, obtained

by cropping, have 480x480 pixels with three channels

(RGB), as shown in Figure 5

Figure 5: 480x480 eye-cropping example (an example from

the CSIP dataset).

For UBIRIS.v2 dataset, the original images and

masks are 400x300 pixels. There is a need to extend

the dimensions to 480x480 pixels. The solution as it

appears in Figure 6 is the conversion of the 400x300

image to a 480x480 image as well as the correspond-

ing mask, by padding to all sides of the image and

the mask: border-replicate padding is applied, i.e. the

row or column at the border of the original image is

replicated till the size of 480x480 pixels is reached.

Figure 6: Padding processing example for an UBIRIS.v2

image.

After the preprocessing, we have 2,004 480x480

CSIP images with their segmented masks and 2250

UBIRIS.v2 images with their corresponding seg-

mented masks with the dimensions of 480x480 pix-

els. Finally, both of the datasets have been divided

into 80% randomly selected images for the training

set and 20% for the test set.

4 EXPERIMENTAL RESULTS

4.1 Model Characteristics

To guarantee a fair comparative evaluation, we choose

the same characteristics for both the original U-

Net and our proposed modiﬁed model (MDF-U-Net).

First, the used activation function in all layers ex-

cept the output layer is ReLU. The two well-known

major beneﬁts of ReLU compared to other activation

functions are (1) sparsity and (2) reduction of the van-

ishing gradient problem. (2) arises when the input x of

RELU is bigger than 0, where its slope has a constant

value, in contrast to the slope of a sigmoid becoming

smaller as the x value increases. The constant slope of

ReLUs results in faster learning as it prevents vanish-

ing of the gradients and thus better error back propa-

gation. (1) Sparsity arises when the input of the acti-

vation function is lower than or equal to 0. The more

such units exist in a layer, the more sparse the result-

ing representation will be (Goodfellow et al., 2016).

At the output layer sigmoid non-linearity will be used,

since we have to solve a binary classiﬁcation prob-

lem. The vector of raw values at the output layer will

contain per pixel the conﬁdence index result, which is

obtained by applying a sigmoid activation function.

The used optimisation algorithm is the Adaptive

Moment Estimation Algorithm (ADAM). Its superi-

ority compared to the other optimisation algorithms

comes from applying both RMSprop

(Tieleman and

RMSprop— is an unpublished optimization algorithm

designed for neural networks, ﬁrst proposed by Geoff Hin-

ton in lecture 6 of the online course “Neural Networks for

Machine Learning” (Vit, 2018). RMSprop lies in the realm

of adaptive learning rate methods.

Iris Segmentation based on an Optimized U-Net

179

Hinton, 2012) and Momentum gradient descent op-

timization, whereby the ADAM algorithm stores

both the exponentially decaying average of the past

squared gradients and also the exponentially decay-

ing average of past gradients. Then, ADAM uses the

squared gradients to scale the learning rate like RM-

Sprop and it takes advantage of momentum by using

the moving average of the gradient instead of the gra-

dient itself (just like in Stochastic Gradient Descent

- SGD with momentum), which makes it faster than

SGD. Besides, ADAM is an adaptive learning rate

method, which means, it computes individual learn-

ing rates for different parameters. Its name is derived

from adaptive moment estimation, and the reason it

is called like that is because ADAM uses estimations

of ﬁrst and second moments of gradient to adapt the

learning rate for each weight of the neural network.

We set the initial learning rate to 0.001.

The number of trainable parameters in the origi-

nal U-Net limited us to ﬁx the batch size to 4, de-

spite that the modiﬁed proposed model (MDF-U-Net)

which has signiﬁcantly less parameters could work

correctly with higher batch sizes, e.g. 8. But as men-

tioned, we need uniform training conditions to guar-

antee fair comparison and evaluation. Finally, an ini-

tial number of 25 epochs is selected to reevaluate the

loss/accuracy evolution during training of the model.

4.2 Evaluation Metrics

In this paper we use the DICE Coefﬁcient (F1-Score),

precision-recall curve and mean average precision

(mAP) metrics to evaluate the models.

4.3 Hyperparameter Optimization

Table 1 summarises the Hyperparameter selection

section. The 5th-Approach U-Net will be selected be-

cause of its superiority over all the other models in

terms of F1-Score and the number of parameters.

The proposed model (MDF-U-Net) will be evalu-

ated using F1-Score, precision-recall curve (PR) and

AUC, and mean average precision (mAP) evalua-

tion methods for the CSIP and UBIRIS.v2 datasets.

Besides, the evaluation includes comparisons with

the original U-Net as well as another state-of-the-art

method.

4.4 Results

4.4.1 (MDF-U-Net) Evaluation on CSIP Dataset

As reported in Table 1, the F1-score of our proposed

architecture (MDF-U-Net) is actually slightly better

than the Original U-Net when evaluated on the CSIP

dataset. The precision-recall curve of both of the

models over the test dataset is shown in Figure 7. The

MDF-U-Net gives the best precision for all thresholds

when the recall is between 0 and 0.6 roughly speak-

ing, then it starts breaking down but not drastically

(e.g. for the recall = 0.90, the precision is still above

0.9) which indicates very good classiﬁcation. For the

original U-Net for all thresholds for a recall value be-

tween 0 and 0.9, the precision is lower than for the

proposed MDF-U-Net model. Only when the recall is

between 0.85 and 1, the original U-Net is superior -

see Figure 7.

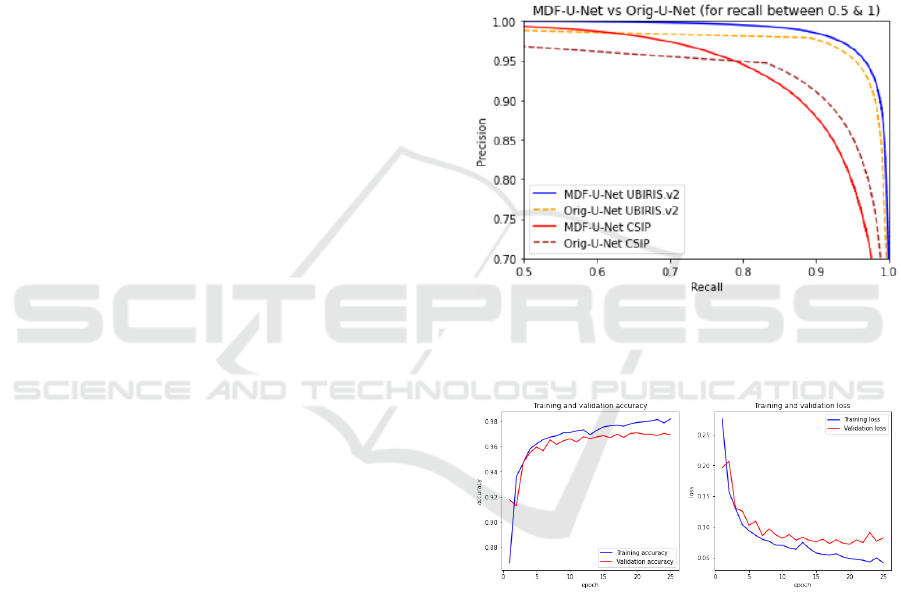

Figure 7: Precision-Recall Curve on the chosen datasets.

The total Area under the curve (AUC) as well as

mAP is higher for the proposed model (see Table-2).

Figure 8: MDF-U-Net training vs validation sets accuracy

and loss during training on CSIP.

The observation of both training and validation

accuracies during the training (Figure 8) yields good

conﬁdence about the classiﬁcation result on the CSIP

dataset.

4.4.2 (MDF-U-Net) Evaluation on UBIRIS.v2

Dataset

The MDF-U-Net works better on the UBIRIS.v2

dataset than on the CSIP dataset; this is appearing

very clearly during the training as shown in Figure 9.

The precision-recall curve clearly illustrates that

the MDF-U-Net works better than the original U-Net,

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

180

Table 1: Hyperparameters selection summary.

Model Architecture Number of param. F1-Score

Orig.U-Net Orig.U-Net with 3 Channels input layer. 31,032,837 0.9685

1st-Appr.U-Net 3x3 f-size 1,941,105 0.9272

2nd-Appr.U-Net 5x5 f-size 5,079,409 0.9571

3rd-Appr.U-Net 7x7 f-size 9,786,8657 0.9664

4th-Appr.U-Net 7x7 i&o - 3x3 for the rest. // 0.9509

5th-Appr.U-Net(MDF-U-Net) 7x7 i&o - 5x5 for the rest. 5,105,137 0.9711

Table 2: Original U-Net vs MDF-U-Net PR-AUC.

Dataset Original U-Net MDF-U-Net

mAP AUC mAP AUC

Ubiris.v2 0.973 0.983 0.993 0.993

CSIP 0.938 0.962 0.973 0.973

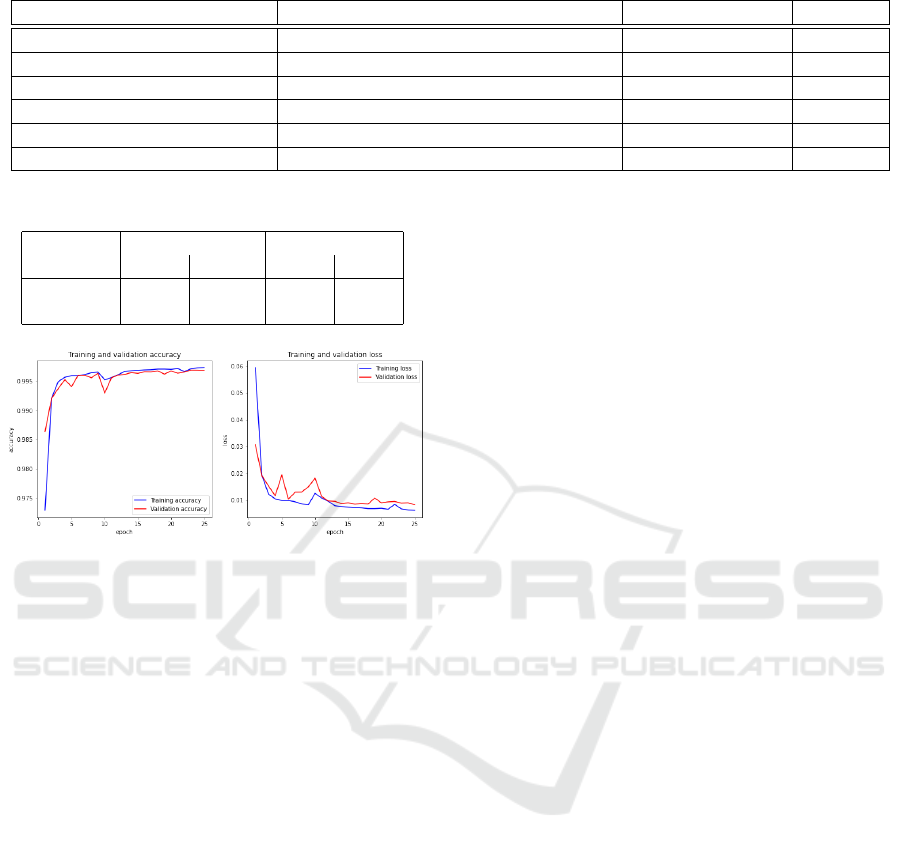

Figure 9: MDF-U-Net training vs validation set accuracy

and loss during training on UBIRIS.v2.

and for all the thresholds of the recall between 0 and

0.8, the MDF-U-Net has almost ideal precisions (i.e.

1), and between 0.8 and 0.95, the precision is more

than 0.95 as shown in Figure 7.

In Table 2, the total Area under the curve (AUC)

and mAP for both models illustrates again a slight su-

periority for the MDF-U-Net.

5 DISCUSSION

The number of trainable parameters in MDF-U-Net

is close to 1/7 of the number of the Original U-Net

parameters. Still it performs better in terms of mAP.

This shows that more parameters or deeper networks

do not always imply higher performance of the mod-

els. In fact, what matters is the architecture and the

design, which should ideally result in better perfor-

mance with fewer parameters. We show that edge de-

tectors (typically used by handcrafted methods) give

strong response to the outer boundary of the iris when

larger kernel sizes are used (especially, 7x7 or larger).

We took inspiration from this result and investigated

increased kernel sizes in the U-Net architecture. The

original U-Net uses the 3x3 ﬁlter size in all layers

starting with 64 ﬁlters in the ﬁrst layer (i.e. 64 ﬁlters

for the ﬁrst layer, multiplied with 2 for each succes-

sive next layer).

In Section 4, we compared the proposed MDF-U-

Net with the original U-Net. Here we compare MDF-

U-Net with another state-of-the-art method that was

already discussed in Section 2 (Lian et al., 2018).

We need to highlight that our version of the dataset

UBIRIS.v2 is not identical to the one used in (Lian

et al., 2018). The 1000 segmented masks they used

are not standard part of the UBIRIS.v2 dataset but

given by NICE.I competition (Proença and Alexan-

dre, 2007), which we do not have access to. We

used 2250 segmentation masks published by (Hof-

bauer et al., 2014b). Since the dataset containing 2250

masks is larger and more recent, we believe it can

better capture the performance of the segmentation

algorithm. As the evaluation dataset is not identical

and other image/masks pairs are used, the provided

comparison is not completely objective. However, we

are convinced that the comparison could still have

its scientiﬁc value. In their proposed model ATT-

U-Net , all the blocks suggest multi-channel feature

maps. The contracting path of ATT-UNet uses the

same architecture as VGG16 (Simonyan and Zisser-

man, 2014).

The ATT-UNet network (Lian et al., 2018) per-

forms two main functions, attention mask generation

and segmentation. Firstly, they added an attention

mask generation step to estimate the potential area

where the iris is most likely to appear. They used a

bounding box regression module to estimate the co-

ordinates. Besides, they added a pooling layer and

a fully connected layer at the end of the contracting

path as a regression module. (Lian et al., 2018) adopt

Mean Squared Error (MSE) as loss function in this

step. After rectangle arrays are predicted, in the at-

tention mask generation, they ﬁrst create the atten-

tion mask and then use this mask to guide the ﬁnal

segmentation which forces the model to focus on this

speciﬁc region instead of doing a hard attention that

only segments pixels inside the mask.

In contrast to the previously described approach,

in our model (Figure 4), the input is the preprocessed

image and not the original one. The preprocessing is

Iris Segmentation based on an Optimized U-Net

181

Table 3: ATT-UNet vs MDF-U-Net mAP on UBIRIS.v2.

Dataset ATT-UNet MDF-U-Net

UBIRIS.v2 96.812 0.99314

done by a simple padding to the images and the masks

from all sides to obtain one input image size. This is

done before training the model. Our approach is less

complex and we do not observe miss-segmentation

patches that are not connected to the iris region in the

results.

Since our method can reach better performance

we conclude that the larger convolution kernels can

prevent many of the errors in the segmentation.

Table 3, shows better mAP results for MDF-

U-Net than those obtained with ATT-UNet on the

UBIRIS.v2 dataset. Visual comparison can be made

from images, shown in Figure 10 (illustrating ATT-

UNet performance) and Figure 11 (illustrating perfor-

mance of MDF-U-Net).

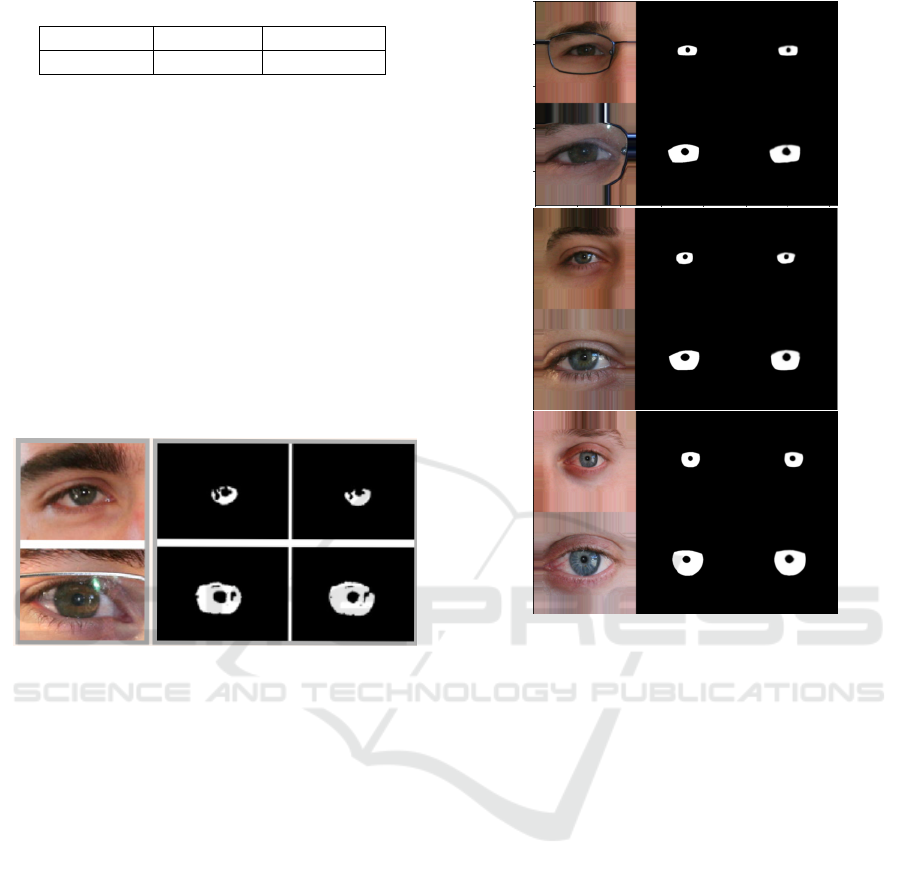

Figure 10: UBIRIS.v2 image, groundtruth and predicted

masks using ATT-UNet (Lian et al., 2018).

In Figure 11, we observe better segmentation

results using MDF-U-Net: the iris pixels in the

groundtruth masks (middle column) and the predicted

masks (right column) are more similar.

These visualizations conﬁrm better performance

of MDF-U-Net compared to ATT-UNet on the

UBIRIS.v2 dataset. For the CSIP dataset, MDF-U-

Net is compared with the Original U-Net only, as we

did not ﬁnd recent segmentation work that uses this

dataset (see Table 2).

6 CONCLUSIONS

In this paper, the popular deep network architecture,

U-Net, is tuned to get more accurate and faster run-

ning models for the task of iris segmentation. We

adopt intuition from handcrafted methods and in-

crease the size of convolutional ﬁlters to achieve bet-

ter segmentation results. As we wanted to avoid in-

terpolating or downsampling the images in the pro-

cess, a simple preprocessing is done on two datasets,

the CSIP dataset and the UBIRIS.v2 dataset. The

Figure 11: UBIRIS.v2 image, groundtruth and predicted

masks using MDF-U-Net.

more challenging CSIP dataset, containing images

with various iris sizes, was cropped to 480X480 di-

mensions for all the 2,004 images and masks to man-

age the different image dimensions. The UBIRIS.v2,

more discussed and referenced in scientiﬁc literature,

contains smaller images. We added a padding step

that copies border pixels to be able to reuse the same

architecture for both datasets.

Along with other modiﬁcations (using 3 channel

color input, reduction of number of ﬁlters) we reached

the state-of-the-art performance that we even slightly

surpassed. The proposed model contains 5,105,137

instead of 31,032,837 trainable parameters in the orig-

inal U-Net. F1-Score, PR curve and its AUC, mAP

evaluation methods are applied on both models and

our proposed model achieves better scores than the

original U-Net on both datasets. We compared this

work with another state-of-the-art method, and our

model scored better in mAP and achieves a lower

computational complexity. We approached an ideal

mAP score. Our model scored 0.973 and 0.993 mAP

on CSIP and UBIRIS.v2 respectively. The proposed

model could be a starting point for multi-class classi-

ﬁcation and/or recognition as future work.

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

182

Generally, the achievements in this paper can be

summarized as follows:

• We reproduced results obtained in literature by the

simple architecture U-Net and propose a modiﬁed

model.

• The proposed network has signiﬁcantly fewer pa-

rameters (approximately 6x less).

• The proposed model yields better performance re-

sults compared to other related works.

• We reach and outperform the state of the art.

REFERENCES

(2004). CASIA-IrisV3. http://www.cbsr.ia.ac.cn/english/

IrisDatabase.asp. Accessed: 2021-05-13.

(2018). Understanding RMSprop — faster neural net-

work learning. https://towardsdatascience.com/

understanding-rmsprop-faster-neural-network-

learning-62e116fcf29a. Accessed: 2021-05-3.

Bazrafkan, S., Thavalengal, S., and Corcoran, P. (2018). An

end to end deep neural network for iris segmentation

in unconstrained scenarios. Neural Networks, 106:79–

95.

Brachmann, A. and Redies, C. (2016). Using convolu-

tional neural network ﬁlters to measure left-right mir-

ror symmetry in images. Symmetry, 8(12).

Daugman, J. (2009). How iris recognition works. In The

essential guide to image processing, pages 715–739.

Elsevier.

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep

Learning. Adaptive computation and machine learn-

ing. MIT Press.

Heikkila, M. and Pietikainen, M. (2006). A texture-based

method for modeling the background and detecting

moving objects. IEEE transactions on pattern anal-

ysis and machine intelligence, 28(4):657–662.

Hofbauer, H., Alonso-Fernandez, F., Wild, P., Bigun, J., and

Uhl, A. (2014a). A ground truth for iris segmenta-

tion. In 2014 22nd international conference on pat-

tern recognition, pages 527–532. IEEE.

Hofbauer, H., Alonso-Fernandez, F., Wild, P., Bigun, J., and

Uhl, A. (2014b). A ground truth for iris segmenta-

tion. In 2014 22nd International Conference on Pat-

tern Recognition, pages 527–532.

Jalilian, E. and Uhl, A. (2017). Iris segmentation using fully

convolutional encoder–decoder networks. In Deep

Learning for Biometrics, pages 133–155. Springer.

Le, M. and Kayal, S. (2020). Revisiting edge detection in

convolutional neural networks.

Lian, S., Luo, Z., Zhong, Z., Lin, X., Su, S., and Li, S.

(2018). Attention guided u-net for accurate iris seg-

mentation. Journal of Visual Communication and Im-

age Representation, 56:296–304.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3431–3440.

Lozej, J., Meden, B., Struc, V., and Peer, P. (2018). End-

to-end iris segmentation using u-net. In 2018 IEEE

International Work Conference on Bioinspired Intelli-

gence (IWOBI), pages 1–6. IEEE.

Proença, H. and Alexandre, L. A. (2007). The nice. i: noisy

iris challenge evaluation-part i. In 2007 First IEEE

International Conference on Biometrics: Theory, Ap-

plications, and Systems, pages 1–4. IEEE.

Proenca, H., Filipe, S., Santos, R., Oliveira, J., and Alexan-

dre, L. (2010). The UBIRIS.v2: A database of visi-

ble wavelength images captured on-the-move and at-

a-distance. IEEE Trans. PAMI, 32(8):1529–1535.

Santos, G., Grancho, E., Bernardo, M. V., and Fiadeiro,

P. T. (2015). Fusing iris and periocular information

for cross-sensor recognition. Pattern Recognition Let-

ters, 57:52–59. Mobile Iris CHallenge Evaluation part

I (MICHE I).

Shah, S. and Ross, A. (2009). Iris segmentation using

geodesic active contours. IEEE Transactions on In-

formation Forensics and Security, 4(4):824–836.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Tian, Q.-C., Pan, Q., Cheng, Y.-M., and Gao, Q.-X. (2004).

Fast algorithm and application of hough transform in

iris segmentation. In Proceedings of 2004 interna-

tional conference on machine learning and cybernet-

ics (IEEE Cat. No. 04EX826), volume 7, pages 3977–

3980. IEEE.

Tieleman, T. and Hinton, G. (2012). Lecture 6.5-rmsprop:

Divide the gradient by a running average of its recent

magnitude. COURSERA: Neural networks for ma-

chine learning, 4(2):26–31.

Vitek, M., Das, A., Pourcenoux, Y., Missler, A., Paumier,

C., Das, S., Ghosh, I., Lucio, D. R., Zanlorensi, L.,

Menotti, D., Boutros, F., Damer, N., Grebe, J., Kui-

jper, A., Hu, J., He, Y., Wang, C., Liu, H., Wang, Y.,

and Vyas, R. (2020). Ssbc 2020: Sclera segmenta-

tion benchmarking competition in the mobile environ-

ment.

Iris Segmentation based on an Optimized U-Net

183
