On the Cross-dataset Generalization in License Plate Recognition

Rayson Laroca

1 a

, Everton V. Cardoso

1 b

, Diego R. Lucio

1 c

Valter Estevam

1,2 d

and David Menotti

1 e

Federal University of Paran

a, Curitiba, Brazil

Federal Institute of Paran

a, Irati, Brazil

Keywords:

Deep Learning, Leave-one-dataset-out, License Plate Recognition, Optical Character Recognition.

Abstract:

Automatic License Plate Recognition (ALPR) systems have shown remarkable performance on license

plates (LPs) from multiple regions due to advances in deep learning and the increasing availability of datasets.

The evaluation of deep ALPR systems is usually done within each dataset; therefore, it is questionable if such

results are a reliable indicator of generalization ability. In this paper, we propose a traditional-split versus

leave-one-dataset-out experimental setup to empirically assess the cross-dataset generalization of 12 Optical

Character Recognition (OCR) models applied to LP recognition on 9 publicly available datasets with a great

variety in several aspects (e.g., acquisition settings, image resolution, and LP layouts). We also introduce a

public dataset for end-to-end ALPR that is the ﬁrst to contain images of vehicles with Mercosur LPs and the

one with the highest number of motorcycle images. The experimental results shed light on the limitations of

the traditional-split protocol for evaluating approaches in the ALPR context, as there are signiﬁcant drops in

performance for most datasets when training and testing the models in a leave-one-dataset-out fashion.

1 INTRODUCTION

The global automotive industry expects to sell more

than 83 million light vehicles in 2021 alone, despite

the ongoing coronavirus pandemic and chip supply is-

sues (GlobalData, 2021; Statista, 2021). In addition to

bringing convenience to owners, vehicles also signif-

icantly modify the urban environment, posing chal-

lenges concerning pollution, privacy and security –

especially in large urban centers. The constant mon-

itoring of vehicles through computational techniques

is of paramount importance and, therefore, it has been

a frequent research topic. In this context, Automatic

License Plate Recognition (ALPR) systems (Weihong

and Jiaoyang, 2020; Lubna et al., 2021) stand out.

ALPR systems exploit image processing and pat-

tern recognition techniques to detect and recognize

the characters on license plates (LPs) from images or

videos. Some practical applications for an ALPR sys-

tem are road trafﬁc monitoring, toll collection, and ve-

hicle access control in restricted areas (

Spa

nhel et al.,

https://orcid.org/0000-0003-1943-2711

https://orcid.org/0000-0003-4845-6050

https://orcid.org/0000-0003-2012-3676

https://orcid.org/0000-0001-9491-5882

https://orcid.org/0000-0003-2430-2030

2017; Henry et al., 2020; Wang et al., 2021).

Deep ALPR systems have shown remarkable per-

formance on LPs from multiple regions due to ad-

vances in deep learning and the increasing availabil-

ity of datasets (Henry et al., 2020; Silva and Jung,

2021). In the past, the evaluation of ALPR systems

used to be done within each of the chosen datasets,

i.e., the proposed methods were trained and evalu-

ated on different subsets from the same dataset. Such

an evaluation was carried out independently for each

dataset. Recently, considering that deep models can

take considerable time to be trained (especially on

low- or mid-end GPUs), the authors have adopted a

protocol where the proposed models are trained once

on the union of the training images from the chosen

datasets and evaluated individually on the respective

test sets (Selmi et al., 2020; Laroca et al., 2021b). Al-

though the images for training and testing belong to

disjoint subsets, these protocols do not make it clear

whether the evaluated models have good generaliza-

tion ability, i.e., whether they perform well on im-

ages from other scenarios, mainly due to domain di-

vergence and data selection bias (Torralba and Efros,

2011; Tommasi et al., 2017; Zhang et al., 2019).

In this regard, many computer vision researchers

have carried out cross-dataset experiments – where

166

Laroca, R., Cardoso, E., Lucio, D., Estevam, V. and Menotti, D.

On the Cross-dataset Generalization in License Plate Recognition.

DOI: 10.5220/0010846800003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

166-178

ISBN: 978-989-758-555-5; ISSN: 2184-4321

training and testing data come from different

sources – to assess whether the proposed models per-

form well on data from an unknown domain (Ashraf

et al., 2018; Zhang et al., 2019; Chen et al., 2020).

However, as far as we know, there is no work focused

on such experimental settings in the ALPR context.

Considering the above discussion, in this work we

evaluate for the ﬁrst time various Optical Character

Recognition (OCR) models for LP recognition in a

leave-one-dataset-out experimental setup over nine

public datasets with different characteristics. The

results obtained are compared with those achieved

when training the models in the same way as in

recent works, that is, using the union of the training

set images from all datasets (hereinafter, this protocol

is referred to as traditional-split).

Deep learning-based ALPR systems have often

achieved recognition rates above 99% in existing

datasets under the traditional-split protocol (some

examples are provided in Section 2). However, in

real-world applications, new cameras are regularly

being installed in new locations without existing

systems being retrained as often, which can dramati-

cally decrease the performance of those models. A

leave-one-dataset-out protocol enables simulating

this speciﬁc scenario and providing an adequate

evaluation of the generalizability of the models.

ALPR is commonly divided into two tasks: LP de-

tection and LP recognition. The former refers to lo-

cating the LP region in the input image, while the lat-

ter refers to extracting the string related to the LP. In

this work, we focus on the LP recognition stage since

it is the current bottleneck of ALPR systems (Laroca

et al., 2021b). Thus, we simply train the off-the-shelf

YOLOv4 model (Bochkovskiy et al., 2020) to detect

the LPs in the input images. For completeness, we

also report the results achieved in this stage on both

of the aforementioned protocols.

As part of this work, we introduce a publicly avail-

able dataset, called RodoSol-ALPR

, that contains

20,000 images captured at toll booths installed on a

Brazilian highway. It has images of two different LP

layouts: Brazilian and Mercosur

, with half of the ve-

hicles being motorcycles (see details in Section 3).

To the best of our knowledge, this is the ﬁrst public

dataset for ALPR with images of Mercosur LPs and

the largest in the number of motorcycle images. This

last information is relevant because motorcycle LPs

The RodoSol-ALPR dataset is publicly available to

the research community at https://github.com/raysonlaroca/

rodosol-alpr-dataset/

Mercosur (Mercado Com

un del Sur, i.e. Southern

Common Market in Castilian) is an economic and political

bloc comprising Argentina, Brazil, Paraguay and Uruguay.

have two rows of characters, which is a challenge for

sequential/recurrent-based methods (Silva and Jung,

2021), and therefore have been overlooked in the eval-

uation of LP recognition models (see Section 2).

Our paper has two main contributions:

• A traditional-split versus leave-one-dataset-out

experimental setup that can be considered a

valid testbed for cross-dataset generalization

methods proposed in future works on ALPR. We

present a comparative assessment of 12 OCR

models for LP recognition on 9 publicly available

datasets. The main ﬁndings were that (i) there are

signiﬁcant drops in performance for most datasets

when training and testing the recognition models

in a leave-one-dataset-out fashion, especially

when there are different fonts of characters in the

training and test images; (ii) no model achieved

the best result in all experiments, with 6 different

models reaching the best result in at least one

dataset in the leave-one-dataset-out protocol; and

(iii) the proposed dataset proved very challeng-

ing, as both the models trained by us and two

commercial systems failed to reach recognition

rates above 70% on its test set images.

• A public dataset with 20,000 images acquired in

real-world scenarios, being half of them of vehi-

cles with Mercosur LPs. Indeed, one of the objec-

tives of this work is to provide a reliable source of

information about Mercosur LPs, as many news

– often outdated – have been used as references.

The remainder of this paper is organized in the fol-

lowing manner. In Section 2, we brieﬂy review related

works. The RodoSol-ALPR dataset is introduced in

Section 3. The setup adopted in our experiments is

thoroughly described in Section 4. Section 5 presents

the results achieved. Finally, Section 6 concludes the

paper and outlines future directions of research.

2 RELATED WORK

In this section, we ﬁrst present concisely recent works

on LP recognition. Then, we situate the current state

of ALPR research in terms of cross-dataset experi-

ments, Mercosur LPs, and motorcycle LPs.

The good speed/accuracy trade-off provided by

YOLO networks (Redmon et al., 2016; Bochkovskiy

et al., 2020) inspired many authors to explore similar

architectures targeting real-time performance for LP

recognition. For example, Silva and Jung (2020) pro-

posed a YOLO-based model to simultaneously detect

and recognize all characters within a cropped LP. This

model, called CR-NET, consists of the ﬁrst eleven

On the Cross-dataset Generalization in License Plate Recognition

167

layers of YOLO and four other convolutional layers

added to improve non-linearity. Impressive results

were achieved through CR-NET both in the original

work and in more recent ones (Laroca et al., 2021b;

Oliveira et al., 2021; Silva and Jung, 2021).

While Kessentini et al. (2019) applied the

YOLOv2 model without any change or reﬁnement

to this task, Henry et al. (2020) used a modiﬁed

version of YOLOv3 that includes spatial pyramid

pooling. Although these two models achieved high

recognition rates in multiple datasets, they are very

deep for LPs recognition, making it difﬁcult to meet

the real-time requirements of ALPR applications.

Rather than exploring object detectors, Zou et al.

(2020) adopted a bi-directional Long Short-Term

Memory (LSTM) network to implicitly locate the

characters on the LP. They explored a 1-D attention

module to extract useful features of the character

regions, improving the accuracy of LP recognition.

In a similar way, Zhang et al. (2020) used a 2-D

attention mechanism to optimize their recognition

model, which uses a 30-layer Convolutional Neural

Network (CNN) based on Xception for feature ex-

traction. An LSTM model was adopted to decode the

extracted features into LP characters.

There are also several works where multi-task net-

works were designed to holistically process the en-

tire LP image and, thus, avoid character segmentation,

such as (

Spa

nhel et al., 2017; Gonc¸alves et al., 2018).

As these networks employ fully connected layers as

classiﬁers to recognize the characters on the prede-

ﬁned positions of the LPs, they may not generalize

well with small-scale training sets since the probabil-

ity of a speciﬁc character appearing in a speciﬁc po-

sition is low. To deal with this, Wang et al. (2021)

proposed a weight-sharing classiﬁer, which is able to

spot instances of each character across all positions.

As the recognition rates achieved in the

traditional-split protocol have signiﬁcantly in-

creased in recent years, some authors began to

conduct small cross-dataset experiments to analyze

the generalization ability of the proposed methods.

For example, Silva and Jung (2020); Laroca et al.

(2021b) used all 108 images from the OpenALPR-EU

dataset for testing, rather than using some for train-

ing/validation. Nevertheless, the results achieved in

so few test images are susceptible to tricks, especially

considering that heuristic rules were explored to

improve the LP recognition results in both works.

As another example, Zou et al. (2020); Zhang

et al. (2020); Wang et al. (2021) trained their recogni-

tion models speciﬁcally for Chinese LPs on approx-

imately 200K images from the CCPD dataset (Xu

et al., 2018) and tested them on images from other

datasets that also contain only Chinese LPs. In this

case, it is not clear whether the proposed models per-

form well on LPs from other regions. In fact, the au-

thors trained another instance of the respective mod-

els to evaluate them in the AOLP dataset (Hsu et al.,

2013), which contains LPs from the Taiwan region.

Recently, Mercosur countries adopted a uniﬁed

standard of LPs for newly purchased vehicles, in-

spired by the integrated system adopted by European

Union countries many years ago. Although the new

standard has been implemented in all countries in the

bloc, there is still no public dataset for ALPR with

images of Mercosur LPs as far as we know.

In this sense, Silvano et al. (2020) presented a

methodology that couples synthetic images of Mer-

cosur LPs with real-world images containing vehicles

with other LP layouts. A model trained exclusively

with synthetic images achieved promising results on

1,000 real images from various sources; however, it is

difﬁcult to assess these results accurately since the test

images were not made available to the research com-

munity. The LP recognition stage was not addressed.

Despite the fact that motorcycles are one of the

most popular transportation means in metropolitan ar-

eas (Hsu et al., 2015), they have been largely over-

looked in ALPR research. There are works where the

authors even excluded images of motorcycles from

the experiments (Gonc¸alves et al., 2018; Silva and

Jung, 2020), mainly because LPs of motorcycles usu-

ally have two rows of characters, which are challeng-

ing to sequential/recurrent-based methods (Kessentini

et al., 2019; Silva and Jung, 2021), and also because

they are generally smaller in size (having less space

between characters) and are often tilted.

In this regard, there is a great demand for a public

dataset for end-to-end ALPR with the same number

of images of cars and motorcycles to give equal im-

portance to LPs with one or two rows of characters in

the assessment of ALPR systems.

3 RodoSol-ALPR DATASET

The RodoSol-ALPR dataset contains 20,000 images

captured by static cameras located at pay tolls owned

by the Rodovia do Sol (RodoSol) concessionaire (Ro-

doSol, 2021) (hence the name of the dataset), which

operates 67.5 kilometers of a highway (ES-060) in the

Brazilian state of Esp

ırito Santo.

As can be seen in Figure 1, there are images of dif-

ferent types of vehicles (e.g., cars, motorcycles, buses

and trucks), captured during the day and night, from

distinct lanes, on clear and rainy days, and the dis-

tance from the vehicle to the camera varies slightly.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

168

Figure 1: Some images extracted from the RodoSol-ALPR dataset. The ﬁrst and second rows show images of cars and

motorcycles, respectively, with Brazilian LPs (i.e., the standard used in Brazil before the adoption of the Mercosur standard).

The third and fourth rows show images of cars and motorcycles, respectively, with Mercosur LPs. We show a zoomed-in

version of the vehicle’s LP in the bottom right corner of the images in the last column for better viewing of the LP layouts.

All images have a resolution of 1,280 ×720 pixels.

An important feature of the proposed dataset is

that it has images of two different LP layouts: Brazil-

ian and Mercosur. To maintain consistency with pre-

vious works (Izidio et al., 2020; Oliveira et al., 2021;

Silva and Jung, 2021), we refer to “Brazilian” as the

standard used in Brazil before the adoption of the

Mercosur standard. All Brazilian LPs consist of three

letters followed by four digits, while the initial pattern

adopted in Brazil for Mercosur LPs consists of 3 let-

ters, 1 digit, 1 letter and 2 digits, in that order. In both

layouts, car LPs have the seven characters arranged in

one row, whereas motorcycle LPs have three charac-

ters in one row and four characters in another. Even

though these LP layouts are very similar in shape and

size, there are considerable differences in their colors

and also in the font of the characters.

The 20,000 images are divided as follows: 5,000

images of cars with Brazilian LPs; 5,000 images of

motorcycles with Brazilian LPs; 5,000 images of cars

with Mercosur LPs; and 5,000 images of motorcy-

cles with Mercosur LPs. For the sake of simplicity

of deﬁnitions, here “car” refers to any vehicle with

four wheels or more (e.g., passenger cars, vans, buses,

trucks, among others), while “motorcycle” refers to

both motorcycles and motorized tricycles. As far as

we know, RodoSol-ALPR is the public dataset for

ALPR with the highest number of motorcycle images.

We randomly split the RodoSol-ALPR dataset as

follows: 8,000 images for training, 8,000 images for

testing and 4,000 images for validation, following

the split protocol (i.e., 40%/40%/20%) adopted in the

SSIG-SegPlate (Gonc¸alves et al., 2016) and UFPR-

ALPR (Laroca et al., 2018) datasets. We preserved

the percentage of samples for each vehicle type and

LP layout, for example, there are 2, 000 images of

cars with Brazilian LPs in each of the training and test

sets, and 1,000 images in the validation one. For re-

producibility purposes, the subsets generated are ex-

plicitly available along with the proposed dataset.

Every image has the following information avail-

able in a text ﬁle: the vehicle’s type (car or motorcy-

cle), the LP’s layout (Brazilian or Mercosul), its text

(e.g., ABC-1234), and the position (x, y) of each of

its four corners. We labeled the corners instead of just

the LP bounding box to enable the training of methods

that explore LP rectiﬁcation, as well as the application

of a wider range of data augmentation techniques.

The datasets for ALPR are generally very unbal-

anced in terms of character classes due to LP alloca-

tion policies (Zhang et al., 2020). In Brazil, for ex-

ample, one letter can appear much more often than

others according to the state in which the LP was is-

sued (Gonc¸alves et al., 2018; Laroca et al., 2018).

This information must be taken into account when

training recognition models in order to avoid unde-

sirable biases – this is usually done through data aug-

mentation techniques (Zhang et al., 2020; Hasnat and

Nakib, 2021); for example, a network trained exclu-

sively in our dataset may learn to always classify the

ﬁrst character as ‘P’ in cases where it should be ‘B’

or ‘R’ since it appears much more often in this posi-

tion than these two characters (see Figure 2).

Regarding privacy concerns related to our dataset,

we remark that in Brazil the LPs are related to the re-

spective vehicles, i.e., no public information is avail-

On the Cross-dataset Generalization in License Plate Recognition

169

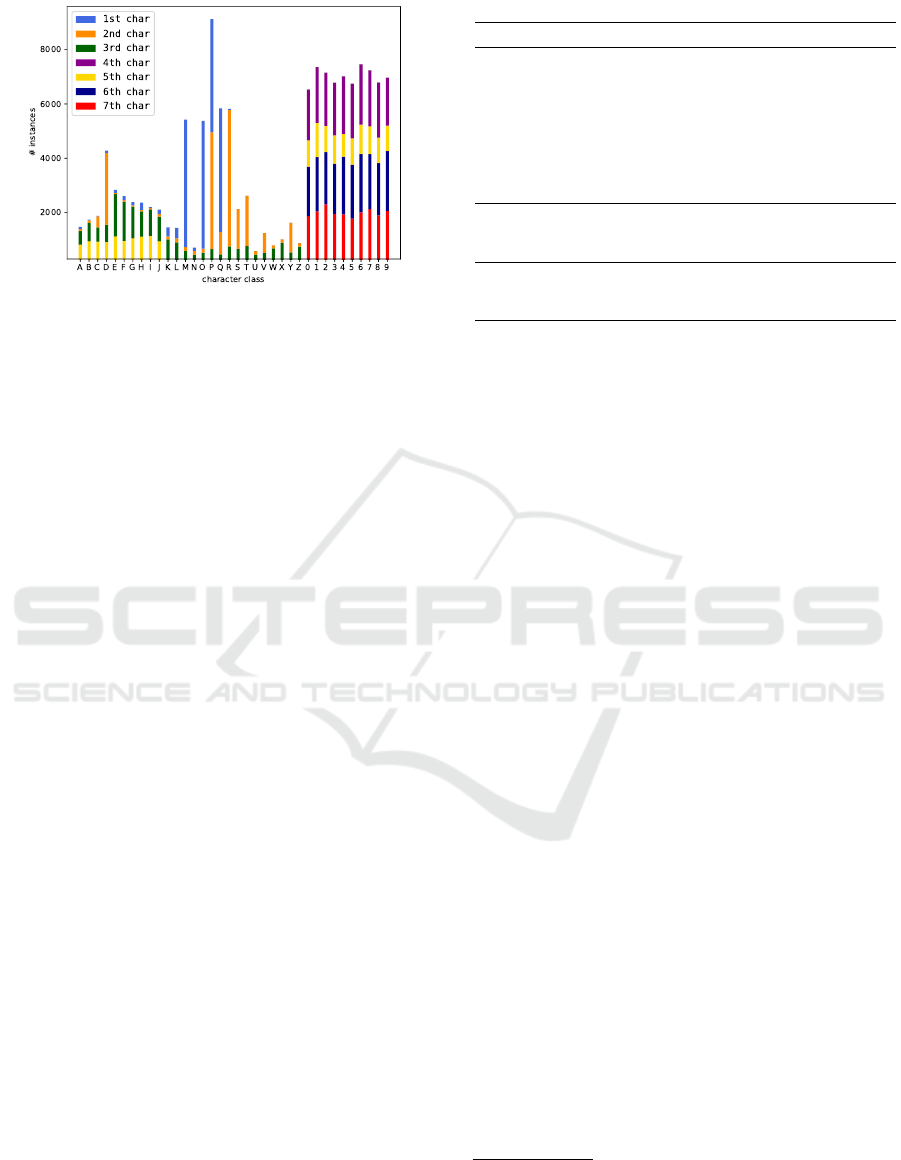

Figure 2: The distribution of character classes in the

RodoSol-ALPR dataset. Observe that there is a signiﬁcant

imbalance in the distribution of the letters (due to LP allo-

cation policies), whereas the digits are well balanced.

able about the vehicle drivers/owners (Presid

encia da

Rep

ublica, 1997; Oliveira et al., 2021). Moreover, all

human faces (e.g., drivers or RodoSol’s employees)

were manually redacted (i.e., blurred) in each image.

4 EXPERIMENTS

In this section, we describe the setup adopted in our

experiments. We ﬁrst list the models we implemented

for our assessments, explaining why they were cho-

sen and not others. Afterward, we provide the im-

plementation details, for example, which framework

was used to train/test each model and the respective

hyperparameters. We then present and brieﬂy de-

scribe the datasets used in our experiments, as well

as the data augmentation techniques explored to avoid

overﬁtting. Lastly, we detail the evaluation protocols

adopted by us, that is, which images from each dataset

were used for training or testing in each experiment,

and how we evaluate the performance of each method.

4.1 Methods

In this work, we evaluate 12 OCR models for LP

recognition: RARE (Shi et al., 2016), R2AM (Lee

and Osindero, 2016), STAR-Net (Liu et al., 2016),

CRNN (Shi et al., 2017), GRCNN (Wang and Hu,

2017), Holistic-CNN (

Spa

nhel et al., 2017), Multi-

task (Gonc¸alves et al., 2018), Rosetta (Borisyuk et al.,

2018), TRBA (Baek et al., 2019), CR-NET (Silva and

Jung, 2020), Fast-OCR (Laroca et al., 2021a), and

ViTSTR-Base (Atienza, 2021). Table 1 presents an

overview of these methods, listing the original OCR

application for which they were designed as well as

the framework we used to train and evaluate them.

Table 1: OCR models explored in our experiments.

Model Original Application

Framework: PyTorch

R2AM (Lee and Osindero, 2016) Scene Text Recognition

RARE (Shi et al., 2016) Scene Text Recognition

STAR-Net (Liu et al., 2016) Scene Text Recognition

CRNN (Shi et al., 2017) Scene Text Recognition

GRCNN (Wang and Hu, 2017) Scene Text Recognition

Rosetta (Borisyuk et al., 2018) Scene Text Recognition

TRBA (Baek et al., 2019) Scene Text Recognition

ViTSTR-Base (Atienza, 2021) Scene Text Recognition

Framework: Keras

Holistic-CNN (

Spa

nhel et al., 2017) License Plate Recognition

Multi-task (Gonc¸alves et al., 2018) License Plate Recognition

Framework: Darknet

CR-NET (Silva and Jung, 2020) License Plate Recognition

Fast-OCR (Laroca et al., 2021a) Image-based Meter Reading

These models were chosen/implemented by us for

two main reasons: (i) they have been employed for

OCR tasks with promising/impressive results (Baek

et al., 2019; Atienza, 2021; Laroca et al., 2021a), and

(ii) we believe we have the knowledge necessary to

train/adjust them in the best possible way in order

to ensure fairness in our experiments, as the authors

provided enough details about the architectures used,

and also because we designed/employed similar net-

works in previous works (even the same ones in some

cases) (Gonc¸alves et al., 2018, 2019; Laroca et al.,

2019, 2021a). Note that we are not aware of any

work in the ALPR literature where so many recog-

nition models were explored in the experiments.

The CR-NET and Fast-OCR models are based

on the YOLO object detector (Redmon et al., 2016).

Thus, they are trained to predict 35 classes (0-9, A-Z,

where ‘O’ and ‘0’ are detected/recognized jointly)

using the bounding box of each LP character as

input. Although these methods have been attaining

impressive results, they require laborious data anno-

tations, i.e., each character’s bounding box needs to

be labeled for training them (Wang et al., 2021). All

the other 10 models, on the other hand, output the LP

characters in a segmentation-free manner, i.e., they

predict the characters holistically from the LP region

without the need to detect/segment them. According

to previous works (Gonc¸alves et al., 2018; Atienza,

2021; Hasnat and Nakib, 2021), the generalizability

of such segmentation-free models tends to improve

signiﬁcantly through the use of data augmentation.

https://github.com/clovaai/deep-text-recognition-

benchmark/

https://keras.io/

https://github.com/AlexeyAB/darknet/

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

170

4.2 Setup

All experiments were carried out on a computer with

an AMD Ryzen Threadripper 1920X 3.5GHz CPU,

96 GB of RAM (2133 MHz), HDD 7200 RPM, and

an NVIDIA Quadro RTX 8000 GPU (48 GB).

Although run-time analysis is considered a

critical factor in the ALPR literature (Lubna et al.,

2021), we consider such analysis beyond the scope

of this work since we used different frameworks

to implement the recognition models and there

are probably differences in implementation and

optimization between them – we implemented

each method using either the framework where it

was originally implemented or well-known public

repositories. For example, the YOLO-based models

were implemented using Darknet

while the models

originally proposed for scene text recognition were

trained and evaluated using a fork

of the open

source repository of Clova AI Research (PyTorch)

used to record the 1st place of ICDAR2013 fo-

cused scene text and ICDAR2019 ArT, and 3rd

place of ICDAR2017COCO-Text and ICDAR2019

ReCTS (task1) (Baek et al., 2019; Atienza, 2021).

For completeness, below we list the hyperpa-

rameters used in each framework for training the

OCR models; we remark that these hyperparameters

were deﬁned based on previous works as well as

on experiments performed in the validation set.

In Darknet, we employed the following parame-

ters: Stochastic Gradient Descent (SGD) optimizer,

90K iterations (max batches), batch size = 64, and

learning rate = [10

-3

, 10

-4

, 10

-5

] with decay steps

at 30K and 60K iterations. In Keras, we used the

Adam optimizer, initial learning rate = 10

-3

(with Re-

duceLROnPlateau’s patience = 5 and factor = 10

-1

batch size = 64, max epochs = 100, and patience = 11

(patience refers to the number of epochs with no

improvement after which training is stopped). In

PyTorch, we adopted the following parameters:

AdaDelta optimizer, whose decay rate is set to

ρ = 0.99, 300K iterations, and batch size = 128.

4.3 Datasets

Our experiments were conducted on images from the

RodoSol-ALPR dataset and eight publicly available

datasets that are often employed to benchmark

ALPR algorithms: Caltech Cars (Weber, 1999),

EnglishLP (Srebri

c, 2003), UCSD-Stills (Dlagnekov

and Belongie, 2005), ChineseLP (Zhou et al., 2012),

AOLP (Hsu et al., 2013), OpenALPR-EU (Ope-

nALPR Inc., 2016), SSIG-SegPlate (Gonc¸alves

et al., 2016), UFPR-ALPR (Laroca et al., 2018).

Table 2 shows an overview of these datasets. They

were introduced over the last 22 years and have

considerable diversity in terms of the number of

images, acquisition settings, image resolution, and

LP layouts. As far as we know, there is no other

work in the ALPR literature where experiments were

carried out on images from so many public datasets.

Table 2: The datasets used in our experiments. In this work,

the “Chinese” layout refers to LPs of vehicles registered in

mainland China, while the “Taiwanese” layout refers to LPs

of vehicles registered in the Taiwan region.

Dataset Year Images Resolution LP Layout

Caltech Cars 1999 126 896 × 592 American

EnglishLP 2003 509 640 × 480 European

UCSD-Stills 2005 291 640× 480 American

ChineseLP 2012 411 Various Chinese

AOLP 2013 2049 Various Taiwanese

OpenALPR-EU 2016 108 Various European

SSIG-SegPlate 2016 2000 1920 × 1080 Brazilian

UFPR-ALPR 2018 4500 1920 × 1080 Brazilian

RodoSol-ALPR 2022 20000 1280 × 720 Brazilian/Mercosur

Figure 3 shows the diversity of the chosen datasets

in terms of LP layouts. It is clear that even LPs from

the same country can be quite different, e.g., the Cal-

tech Cars and UCSD-Stills datasets were collected in

the same region (California, United States), but they

have images of LPs with signiﬁcant differences in

terms of colors, aspect ratios, backgrounds, and the

number of characters. It can also be observed that

some datasets have LPs with two rows of characters

and that the LPs may be tilted or have low resolution

due to camera quality or vehicle-to-camera distance.

In order to eliminate biases from the public

datasets, we also used 772 images from the internet –

those labeled and provided by Laroca et al. (2021b) –

to train all models. These images include 257 Ameri-

can LPs, 347 Chinese LPs, and 178 European LPs.

We chose not to use two datasets introduced recently:

KarPlate (Henry et al., 2020) and CCPD (Xu et al.,

2018). The former cannot currently be downloaded

due to legal problems. The latter, although already

available, was not employed for two main reasons:

(i) it contains highly compressed images, which

signiﬁcantly compromises the readability of the

LPs (Silva and Jung, 2021); and (ii) it has some large

errors in the corners’ annotations (Meng et al., 2020)

– this was somewhat expected since the corners were

labeled automatically using RPnet (Xu et al., 2018).

Additionally, we could not download the CLPD

dataset (Zhang et al., 2020), as the authors made

it available exclusively through a Chinese website

where registration – using a Chinese phone number

or identity document – is required (we contacted the

authors requesting an alternative link to download the

dataset, but have not received a response so far).

On the Cross-dataset Generalization in License Plate Recognition

171

(a) Caltech Cars

(b) EnglishLP

(d) ChineseLP

(e) AOLP

(f) OpenALPR-EU

(g) SSIG-SegPlate

(h) UFPR-ALPR

Figure 3: Some LP images from the public datasets used

in our experimental evaluation. We show some LP images

from the RodoSol-ALPR dataset in the last column of Fig 1.

4.3.1 Data Augmentation

As shown in Table 2, two-thirds of the images used in

our experiments are from the RodoSol-ALPR dataset.

In order to prevent overﬁtting, we initially balanced

the number of images from different datasets through

data augmentation techniques such as random crop-

ping, random shadows, conversion to grayscale, and

random perturbations of hue, saturation and bright-

ness. We used Albumentations (Buslaev et al., 2020),

which is a well-known Python library for image aug-

mentation, to apply these transformations. Neverthe-

less, preliminary experiments showed that some of the

recognition models were prone to predict only LP pat-

terns that existed in the training set, as some patterns

were being fed numerous times per epoch to the net-

works – especially from small-scale datasets, where

many images were created from a single original one.

Therefore, inspired by Gonc¸alves et al. (2018), we

also randomly permuted the position of the characters

on each LP to eliminate such biases in the learning

process (as illustrated in Figure 4). As the bounding

box of each LP character is required to apply this data

augmentation technique – these annotations are very

time-consuming and laborious – we do not augment

the training images from the RodoSol-ALPR dataset.

We believe this is not a signiﬁcant problem as the pro-

posed dataset is much larger than the others. The im-

ages from the other public datasets were augmented

using the labels provided by Laroca et al. (2021b).

Figure 4: Illustration of the character permutation-based

data augmentation technique (Gonc¸alves et al., 2018) we

adopted to avoid overﬁtting. The images in the ﬁrst row are

the originals, while the others were generated automatically.

In this process, we do not enforce the generated

LPs to have the same arrangement of letters and dig-

its of the original LPs so that the recognition models

do not memorize speciﬁc patterns from different LP

layouts. For example, as described in Section 3, all

Brazilian LPs consist of 3 letters followed by 4 dig-

its, while Mercosur LPs have 3 letters, 1 digit, 1 let-

ter and 2 digits, in that order. Considering that LPs

of these layouts are relatively similar (in size, shape,

etc.), the segmentation-free networks would probably

predict 3 letters followed by 4 digits for most Merco-

sur LP when holding the RodoSol-ALPR dataset out

in a leave-one-dataset-out evaluation, as none of the

other datasets have vehicles with Mercosur LPs.

4.4 Evaluation Protocols

In our experiments, we consider both traditional-split

and leave-one-dataset-out protocols. In the following

subsections, we ﬁrst describe them in detail. Then, we

discuss how the performance evaluation is carried out.

4.4.1 Traditional Split

The traditional-split protocol assesses the ability of

the models to perform well in seen scenarios, as each

model is trained on the union of the training set im-

ages from all datasets and evaluated on the test set

images from the respective datasets. In recent works,

the authors have chosen to train a single model on

images from multiple datasets (instead of training a

speciﬁc network for each dataset or LP layout as was

commonly done in the past) so that the proposed mod-

els are robust for different scenarios with considerably

less manual effort since their parameters are adjusted

only once for all datasets (Selmi et al., 2020; Laroca

et al., 2021b; Silva and Jung, 2021).

For reproducibility, it is important to make clear

how we divided the images from each of the datasets

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

172

to train, validate and test the chosen models. The

UCSD-Stills, SSIG-SegPlate, UFPR-ALPR and

RodoSol-ALPR datasets were split according to the

protocols deﬁned by the respective authors, while

the other datasets, which do not have well-deﬁned

evaluation protocols, were divided following previ-

ous works. In summary, as in (Xiang et al., 2019;

Henry et al., 2020), the Caltech Cars dataset was

randomly split into 80 images for training/validation

and 46 images for testing. Following (Panahi and

Gholampour, 2017; Berato

glu and T

oreyin, 2021),

the EnglishLP dataset was randomly divided as

follows: 80% of the images for training/validation

and 20% for testing. For the ChineseLP dataset,

we employed the same protocol as Laroca et al.

(2021b): 40% of the images for training, 20% for

validation and 40% for testing. We split each of

the three subsets of the AOLP dataset (i.e., AC, LE,

and RP) into training and test sets with a 2:1 ratio,

following (Xie et al., 2018; Liang et al., 2021), with

20% of the training images being used for validation.

Finally, as most works in the literature (Masood et al.,

2017; Laroca et al., 2021b; Silva and Jung, 2021),

we used all the 108 images from the OpenALPR-EU

dataset for testing (this division has been considered

as a mini leave-one-dataset-out evaluation in recent

works). Table 3 lists the exact number of images used

for training, validation and testing the chosen models.

Table 3: An overview of the number of images from each

dataset used for training, validation, and testing.

Dataset Training Validation Testing Discarded Total

Caltech Cars 61 16 46 3 126

EnglishLP 326 81 102 0 509

UCSD-Stills 181 39 60 11 291

ChineseLP 159 79 159 14 411

AOLP 1,093 273 683 0 2,049

OpenALPR-EU 0 0 108 0 108

SSIG-SegPlate 789 407 804 0 2,000

UFPR-ALPR 1,800 900 1,800 0 4,500

RodoSol-ALPR 8,000 4,000 8,000 0 20,000

As also detailed in Table 3, a few images (0.01%)

were discarded in our experiments because it is im-

possible to recognize the LP(s) on them due to occlu-

sion, lighting or image acquisition problems

. Such

images were also discarded by Masood et al. (2017)

and Laroca et al. (2021b).

4.4.2 Leave-one-dataset-out

The leave-one-dataset-out protocol evaluates the

generalization performance of the trained models by

testing them on the test set of an unseen dataset, that

The list of discarded images can be found at

https://raysonlaroca.github.io/misc/visapp2022/discarded-

images.txt

is, no images from that dataset are available during

training. For each experiment, we hold out the test

set of one dataset as the unseen data, and train every

model on all images from the other datasets. As an

example, if AOLP’s test set is the current unseen

data, the models are trained on all images from

Caltech Cars, EnglishLP, UCSD-Stills, ChineseLP,

OpenALPR-EU, SSIG-SegPlate, UFPR-ALPR and

RodoSol-ALPR, in addition to the images taken from

the internet and provided by Laroca et al. (2021b).

We evaluate the models only on the test set images

from each unseen dataset, rather than including the

training and validation images in the evaluation, so

that the results achieved by each model on a given

dataset are fully comparable with those achieved by

the same model in the traditional-split protocol.

4.4.3 Performance Evaluation

As mentioned in Section 1, in our experiments, the

LPs fed to the recognition models were detected using

YOLOv4 (Bochkovskiy et al., 2020) – with an input

size of 672 × 416 pixels – rather than cropped directly

from the ground truth. This procedure was adopted to

better simulate real-world scenarios, as the LPs will

not always be detected perfectly, and certain OCR

models are not as robust in cases where the region of

interest has not been detected so precisely (Gonc¸alves

et al., 2018). We employed the YOLOv4 model for

this task because impressive results are consistently

being reported in the ALPR context through YOLO-

based models (Weihong and Jiaoyang, 2020). Indeed,

as detailed in Section 5, YOLOv4 reached an aver-

age recall rate above 99.5% in our experiments (we

considered as correct the detections with Intersection

over Union (IoU) ≥ 0.5 with the ground truth).

For each experiment, we report the number of cor-

rectly recognized LPs divided by the number of LPs

in the test set. A correctly recognized LP means that

all characters on the LP were correctly recognized, as

a single incorrectly recognized character can result in

the vehicle being incorrectly identiﬁed.

Note that the ﬁrst character in Chinese LPs is

a Chinese character that represents the province in

which the vehicle is afﬁliated (Xu et al., 2018; Zhang

et al., 2020). Even though Chinese LPs are used in

our experiments (see Figure 3d), the evaluated models

were not trained/adjusted to recognize Chinese char-

acters; that is, only digits and English letters are con-

sidered. This same procedure was adopted in previous

works (Li et al., 2018; Selmi et al., 2020; Laroca et al.,

2021b) for several reasons, including scope reduction

and the fact that it is not trivial for non-Chinese speak-

ers to analyze the different Chinese characters in or-

der to make an accurate error analysis or to choose

On the Cross-dataset Generalization in License Plate Recognition

173

which data augmentation techniques to explore. Fol-

lowing Li et al. (2018), we denoted all Chinese char-

acters as a single class ‘*’ in our experiments. Ac-

cording to our results, the recognition models learned

well the difference between Chinese characters with

others – i.e., digits and English letters – and this pro-

cedure did not affect the recognition rates obtained.

5 RESULTS AND DISCUSSION

First, we report in Table 4 the recall rates obtained by

the YOLOv4 model in the LP detection stage. As can

be seen, it reached surprisingly good results in both

protocols. More speciﬁcally, recall rates above 99.9%

were achieved in 14 of the 18 assessments. As in

previous works (Laroca et al., 2018; Gonc¸alves et al.,

2018; Silva and Jung, 2020), the detection results are

slightly worse for the UFPR-ALPR dataset due to its

challenging nature, as (i) it has images where the ve-

hicles are considerably far from the camera; (ii) some

of its frames have motion blur because the dataset was

recorded in real-world scenarios where both the ve-

hicle and the camera – inside another vehicle – are

moving; and (iii) it also contains images of motorcy-

cles, where the backgrounds can be much more com-

plicated due to different body conﬁgurations and mix-

tures with other background scenes (Hsu et al., 2015).

Considering the discussion above, we assert that

deep models trained for LP detection on images from

multiple datasets can be employed quite reliably on

images from unseen datasets (i.e., leave-one-dataset-

out protocol). Of course, this may not hold true in

extraordinary cases where the test set domain is very

different from training ones, but this was not the case

in our experimental evaluation carried out on images

from nine datasets with different characteristics.

Regarding the recognition stage, the results

achieved by all models across all datasets on the

traditional-split and leave-one-dataset-out protocols

are shown in Table 5 and Table 6, respectively.

In Table 6, we included the results obtained

by Sighthound (Masood et al., 2017) and Ope-

nALPR (OpenALPR API, 2021), which are two

commercial systems frequently used as baselines

in the ALPR literature, since in principle they are

trained on images from large-scale private datasets

and not from the public datasets explored here (i.e.,

leave-one-dataset-out protocol).

The ﬁrst observation is that, as expected, the best

results – on average for all models – were attained

when training and evaluating the models on different

subsets from the same datasets (i.e., traditional-split

protocol). The only case where this did not occur was

precisely in the OpenALPR-EU dataset, where no im-

ages are used for training even in the traditional-split

protocol (see Table 3). We kept this division for three

main reasons: (i) to better evaluate the recognition

models on European LPs; (ii) to maintain consistency

with previous works (Masood et al., 2017; Laroca

et al., 2021b; Silva and Jung, 2021), which also used

all images from that dataset for testing; and (iii) to an-

alyze how the models perform with more training data

from other datasets, which in this case corresponds

to the leave-one-dataset-out protocol since all images

from the other datasets – and not just the training set

ones – are used for training. Although some studies

have shown that the performance on the test set of a

particular dataset often decreases when the training

data is augmented with data from other datasets (Tor-

ralba and Efros, 2011; Khosla et al., 2012), the recog-

nition rates reached in the OpenALPR-EU dataset

were higher. In the same way, CR-NET performed

better in the EnglishLP dataset when using all images

from the OpenALPR-EU dataset for training (both

datasets contain images of European LPs).

The average recognition rate across all datasets

decreased from 82.4% in the traditional-split protocol

to 74.5% in the leave-one-dataset-out evaluation.

This drastic performance drop was accentuated by

the poor results achieved on the EnglishLP and

AOLP datasets in the leave-one-dataset-out protocol.

For instance, the average recognition rate of 90.8%

obtained in the AOLP dataset in the traditional-split

protocol drops to 62.7% in the leave-one-dataset-out

protocol. These results caught us by surprise, as

both datasets have been considered to be relatively

simple due to the fact that recent works have reported

recognition rates close to 97% for the EnglishLP

and above 99% for the AOLP dataset (Henry et al.,

2020; Laroca et al., 2021b; Silva and Jung, 2021;

Wang et al., 2021). According to our analysis, most

of the recognition errors in the leave-one-dataset-out

protocol occurred due to differences in the fonts of

the LP characters in the training and test images,

as well as because of speciﬁc patterns in the LP

(e.g., a coat of arms between the LP characters or

a straight line under them). To better illustrate,

Figure 5 shows three LPs from the AOLP dataset

where the TRBA model, which performed best

on that dataset, recognized at least one character

incorrectly in the leave-one-dataset-out protocol but

not in the traditional split. We consider that such

analysis highlights the importance of performing

cross-dataset experiments in the ALPR context.

The second observation is that, regardless of the

evaluation protocol adopted, no recognition model

achieved the best results in every single dataset we

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

174

Table 4: Recall rates obtained by YOLOv4 in the LP detection stage.

Approach

Test set

Caltech Cars EnglishLP UCSD-Stills ChineseLP AOLP OpenALPR-EU SSIG-SegPlate UFPR-ALPR RodoSol-ALPR Average

YOLOv4 (traditional-split) 100.0% 100.0% 100.0% 100.0% 100.0% 100.0% 99.9% 99.1% 100.0% 99.9%

YOLOv4 (leave-one-dataset-out) 100.0% 100.0% 100.0% 100.0% 99.9% 99.1% 100.0% 96.8% 99.6% 99.5%

Table 5: Recognition rates obtained by all models in the traditional-split protocol, which assesses the ability of the models to

perform well in seen scenarios. Each model (rows) was trained once on the union of the training set images from all datasets

and evaluated on the respective test sets (columns). The best recognition rate achieved in each dataset is shown in bold.

Approach

Test set Caltech Cars

# 46

EnglishLP

# 102

UCSD-Stills

# 60

ChineseLP

# 159

AOLP

# 683

OpenALPR-EU

# 108

SSIG-SegPlate

# 804

UFPR-ALPR

# 1,800

RodoSol-ALPR

# 8,000

Average

CR-NET (Silva and Jung, 2020) 95.7% 92.2% 100.0% 96.9% 97.7% 97.2% 97.1% 78.3% 55.8%

‡

90.1%

CRNN (Shi et al., 2017) 87.0% 81.4% 88.3% 88.2% 87.6% 89.8% 93.4% 64.9% 48.2% 81.0%

Fast-OCR (Laroca et al., 2021a) 93.5% 81.4% 95.0% 85.1% 95.8% 91.7% 87.1% 65.9% 49.7%

‡

82.8%

GRCNN (Wang and Hu, 2017) 93.5% 87.3% 91.7% 84.5% 85.9% 87.0% 94.3% 63.3% 48.4% 81.7%

Holistic-CNN (

Spa

nhel et al., 2017) 89.1% 68.6% 88.3% 90.7% 86.3% 78.7% 94.8% 70.3% 49.0% 79.5%

Multi-task (Gonc¸alves et al., 2018) 87.0% 62.7% 85.0% 86.3% 84.7% 66.7% 93.0% 65.3% 49.1% 75.5%

R2AM (Lee and Osindero, 2016) 84.8% 70.6% 81.7% 87.0% 83.1% 63.9% 92.0% 66.9% 48.6% 75.4%

RARE (Shi et al., 2016) 91.3% 84.3% 90.0% 95.7% 93.4% 91.7% 93.7% 69.0% 51.6% 84.5%

Rosetta (Borisyuk et al., 2018) 87.0% 75.5% 81.7% 90.1% 83.7% 81.5% 94.3% 63.9% 48.7% 78.5%

STAR-Net (Liu et al., 2016) 95.7% 93.1% 96.7% 96.9% 96.8% 95.4% 96.1% 70.9% 51.8% 88.2%

TRBA (Baek et al., 2019) 91.3% 87.3% 96.7% 96.9% 99.0% 93.5% 97.3% 72.9% 59.6% 88.3%

ViTSTR-Base (Atienza, 2021) 84.8% 80.4% 90.0% 99.4% 95.6% 84.3% 96.1% 73.3% 49.3% 83.7%

Average 90.0% 80.4% 90.4% 91.5% 90.8% 85.1% 94.1% 68.7% 50.8% 82.4%

‡

Images from the RodoSol-ALPR dataset were not used for training the CR-NET and Fast-OCR models, as each character’s bounding box needs to be labeled for training them (as detailed in Section 4.1).

Table 6: Recognition rates obtained by all models in the leave-one-dataset-out protocol, which assesses the generalization

performance of the models by testing them on the test set of an unseen dataset. For each dataset (columns), we train the

recognition models (rows) on all images from the other datasets. The best recognition rates achieved are shown in bold.

Approach

Test set Caltech Cars

# 46

EnglishLP

# 102

UCSD-Stills

# 60

ChineseLP

# 159

AOLP

# 683

OpenALPR-EU

# 108

SSIG-SegPlate

# 804

UFPR-ALPR

# 1,800

RodoSol-ALPR

# 8,000

Average

CR-NET (Silva and Jung, 2020) 93.5% 96.1% 96.7% 88.2% 76.9% 96.3% 94.7% 61.8% 45.4% 83.3%

CRNN (Shi et al., 2017) 91.3% 62.7% 75.0% 76.4% 59.4% 88.0% 91.3% 61.7% 38.8% 71.6%

Fast-OCR (Laroca et al., 2021a) 93.5% 91.2% 95.0% 90.1% 77.0% 94.4% 91.2% 53.2% 47.8% 81.5%

GRCNN (Wang and Hu, 2017) 95.7% 65.7% 90.0% 80.7% 53.9% 88.9% 90.3% 60.8% 39.8% 74.0%

Holistic-CNN (

Spa

nhel et al., 2017) 80.4% 40.2% 73.3% 81.4% 59.7% 83.3% 93.4% 61.8% 33.4% 67.4%

Multi-task (Gonc¸alves et al., 2018) 82.6% 34.3% 66.7% 77.6% 50.8% 79.6% 89.9% 57.9% 44.8% 64.9%

R2AM (Lee and Osindero, 2016) 89.1% 52.9% 66.7% 74.5% 52.5% 80.6% 93.5% 57.9% 40.7% 67.6%

RARE (Shi et al., 2016) 84.8% 50.0% 85.0% 88.8% 62.9% 91.7% 93.5% 71.3% 40.1% 74.2%

Rosetta (Borisyuk et al., 2018) 89.1% 63.7% 68.3% 83.2% 51.1% 81.5% 94.4% 61.8% 42.5% 70.6%

STAR-Net (Liu et al., 2016) 89.1% 80.4% 91.7% 95.0% 79.3% 93.5% 94.0% 69.1% 43.6% 81.8%

TRBA (Baek et al., 2019) 95.7% 66.7% 93.3% 95.0% 70.0% 92.6% 96.9% 73.2% 42.6% 80.7%

ViTSTR-Base (Atienza, 2021) 89.1% 58.8% 90.0% 95.0% 59.2% 89.8% 97.9% 69.6% 41.7% 76.8%

Average 89.5% 63.6% 82.6% 85.5% 62.7% 88.3% 93.4% 63.3% 41.8% 74.5%

Average (traditional-split protocol) 90.0% 80.4% 90.4% 91.5% 90.8% 85.1%

†

94.1% 68.7% 50.8% 82.4%

Sighthound (Masood et al., 2017) 87.0% 94.1% 90.0% 84.5% 79.6% 94.4% 79.2% 52.6% 51.0% 79.2%

OpenALPR (OpenALPR API, 2021)

∗

95.7% 99.0% 96.7% 93.8% 81.1% 99.1% 91.4% 87.8% 70.0% 90.5%

†

In the traditional-split protocol, no images from the OpenALPR-EU dataset were used for training. This is the protocol commonly adopted in the literature (Laroca et al., 2021b; Silva and Jung, 2021).

∗

OpenALPR contains specialized solutions for LPs from different regions and the user must enter the correct region before using its API. Hence, it was expected to achieve better results than the other methods.

LODO: 7615BG

Trad.: 7615RG

LODO: PG379I

Trad.: P63791

LODO: 0X7655

Trad.: DX7655

Figure 5: The predictions obtained by TRBA on three im-

ages of the AOLP dataset. In general, the errors (outlined in

red) in the leave-one-dataset-out (LODO) protocol did not

occur in challenging cases (e.g., blurry or tilted images);

therefore, they were probably caused by differences in the

training and test images. Trad.: traditional-split protocol.

performed experiments on. For instance, although

the CR-NET model obtained the best average

recognition rates, corroborating the state-of-the-art

results reported recently in (Laroca et al., 2021b;

Silva and Jung, 2021), it did not reach the best

results in the ChineseLP, AOLP, SSIG-SegPlate and

RodoSol-ALPR datasets in either protocol. These

results emphasize the importance of carrying out

experiments on multiple datasets, with LPs from

different countries/regions, especially in the leave-

one-dataset-out protocol since six different models

obtained the best result in at least one dataset.

The third observation is that the RodoSol-ALPR

dataset proved very challenging since all the recogni-

tion models trained by us, as well as both commer-

cial systems, failed to reach recognition rates above

70% on its test set images. The main reason for

such disappointing results is the large number of mo-

torcycle images, which are very challenging in na-

ture (as discussed in Section 2). For example, the

OpenALPR commercial system correctly recognized

3,772 of the 4,000 cars in the test set (94.3%) and

only 1,827 of the 4,000 motorcycles in the test set

(45.7%). These results emphasize the importance of

the proposed dataset, as it avoids bias in the assess-

ments by having the same number of “easy” (one-row

LPs) and “difﬁcult” (two-row LPs) samples.

On the Cross-dataset Generalization in License Plate Recognition

175

We also did not rule out challenging images when

selecting the images for the creation of the dataset.

Figure 6 shows some of these images along with

the predictions returned by TRBA and OpenALPR,

which were the model trained by us and the com-

mercial system that performed better on this dataset.

The results are in line with what was recently stated

by Zhang et al. (2020), i.e., that recognizing LPs in

complex environments is still far from satisfactory.

TRBA: HLPA594

OpenALPR: HLP4594

GT: HLP4594

TRBA: PPY6026

OpenALPR: PPY6026

GT: PPY6C26

TRBA: QRE4E6Z

OpenALPR: QRE4E62

GT: QRE4E62

TRBA: QRG6D57

OpenALPR: -------

GT: QRG6D57

TRBA: OOM8060

OpenALPR: OOM8060

GT: ODM8060

TRBA: MRO3095

OpenALPR: MRO3095

GT: MRU3095

Figure 6: Some LP images from RodoSol-ALPR along with

the predictions returned by TRBA and OpenALPR. Observe

that one character may become very similar to another due

to factors such as blur, low/high exposure, rotations, occlu-

sions. For correctness, we checked if the ground truth (GT)

matched the vehicle make and model on the National Trafﬁc

Department of Brazil (DENATRAN) database.

Lastly, it is important to highlight the number of

experiments we carried out for this work. We trained

each of the 12 chosen OCR models 10 times: once

following the split protocols traditionally adopted in

the literature (see Table 5) and nine for the leave-one-

dataset-out evaluation (see Table 6). We remark that

a single training process of some models (e.g., TRBA

and ViTSTR-Base) took several days to complete on

an NVIDIA Quadro RTX 8000 GPU. In fact, we be-

lieve that this large number of necessary experiments

is precisely what caused a leave-one-dataset-out eval-

uation to have not yet been performed in the literature.

6 CONCLUSIONS

As the performance of traditional-split LP recognition

is rapidly improving, researchers should pay more at-

tention to cross-dataset LP recognition since it better

simulates real-world ALPR applications, where new

cameras are regularly being installed in new locations

without existing systems being retrained every time.

As a ﬁrst step towards that direction, in this work

we evaluated 12 OCR models for LP recognition on 9

public datasets with a great variety in several aspects

(e.g., acquisition settings, image resolution, and LP

layouts). We adopted a traditional-split versus leave-

one-dataset-out experimental setup to empirically as-

sess the cross-dataset generalization of the chosen

models. It is noteworthy that we are not aware of any

work in the ALPR context where so many methods

have been implemented and compared or where so

many datasets have been explored in the experiments.

As expected, the experimental results showed that

there are signiﬁcant drops in performance for most

datasets when training and testing the recognition

models in a leave-one-dataset-out fashion. The fact

that very low recognition rates (around 63%) were

reported in the EnglishLP and AOLP datasets under-

scored the importance of carrying out cross-dataset

experiments, as very high recognition rates (above

95% and 99%, respectively) are frequently achieved

on these datasets in the traditional-split protocol.

The importance of exploring multiple datasets in

the evaluation was also demonstrated, as no OCR

model performed better than the others in all exper-

iments. It was quite unexpected for us the fact that 6

different models reached the best result in at least one

dataset in the leave-one-dataset-out protocol. In this

sense, we draw attention to the fact that most works in

the literature used three or fewer datasets in the exper-

iments, although this has been gradually changing in

recent years (Selmi et al., 2020; Laroca et al., 2021b).

We also introduced a publicly available dataset for

ALPR that, to the best of our knowledge, is the ﬁrst

to contain images of vehicles with Mercosur LPs. We

expect it will assist in developing new approaches for

this LP layout and the fair comparison between meth-

ods proposed in different works. Additionally, the

proposed dataset includes 10,000 motorcycle images,

being by far the largest in this regard. RodoSol-ALPR

has proved challenging in our experiments, as both

the models trained by us and two commercial systems

reached recognition rates below 70% on its test set.

As future work, we plan to gather images from the

internet to build a novel dataset for end-to-end ALPR

with images acquired in various countries/regions, by

many different cameras, both static or mobile, with a

well-deﬁned evaluation protocol for both within- and

cross-dataset LP detection and LP recognition. In ad-

dition, we intend to leverage the potential of Gener-

ative Adversarial Networks (GANs) to generate hun-

dreds of thousands of synthetic LP images with dif-

ferent transformations and balanced character classes

in order to improve the generalization ability of deep

models. Finally, we would like to carry out more ex-

periments to quantify the inﬂuence of each dataset,

especially RodoSol-ALPR, on the generalizability of

the models in the leave-one-dataset-out protocol.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

176

ACKNOWLEDGMENTS

This work was supported in part by the Coordina-

tion for the Improvement of Higher Education Per-

sonnel (CAPES) (Social Demand Program), and in

part by the National Council for Scientiﬁc and Tech-

nological Development (CNPq) (Grant 308879/2020-

1). The Quadro RTX 8000 GPU used for this research

was donated by the NVIDIA Corporation. We also

thank the Rodovia do Sol (RodoSol) concessionaire,

particularly the information technology (IT) manager

Marciano Calvi Ferri, for providing the images for the

creation of the RodoSol-ALPR dataset.

REFERENCES

Ashraf, A., Khan, S. S., Bhagwat, N., and Taati, B. (2018).

Learning to unlearn: Building immunity to dataset

bias in medical imaging studies. In Machine Learn-

ing for Health Workshop at NeurIPS 2018.

Atienza, R. (2021). Vision transformer for fast and efﬁcient

scene text recognition. In International Conference on

Document Analysis and Recognition (ICDAR).

Baek, J. et al. (2019). What is wrong with scene text recog-

nition model comparisons? dataset and model analy-

sis. In IEEE/CVF International Conference on Com-

puter Vision (ICCV), pages 4714–4722.

Berato

glu, M. S. and T

oreyin, B. U. (2021). Vehicle license

plate detector in compressed domain. IEEE Access,

9:95087–95096.

Bochkovskiy, A., Wang, C.-Y., and Liao, H.-Y. M. (2020).

YOLOv4: Optimal speed and accuracy of object de-

tection. arXiv preprint, arXiv:2004.10934:1–14.

Borisyuk, F., Gordo, A., and Sivakumar, V. (2018). Rosetta:

Large scale system for text detection and recognition

in images. In ACM SIGKDD International Conference

on Knowledge Discovery & Data Mining, page 71–79.

Buslaev, A. et al. (2020). Albumentations: Fast and ﬂexible

image augmentations. Information, 11(2).

Chen, Y. et al. (2020). CDEvalSumm: An empirical study

of cross-dataset evaluation for neural summarization

systems. In Conference on Empirical Methods in Nat-

ural Language Processing, pages 1–13.

Dlagnekov, L. and Belongie, S. (2005). UCSD

dataset. http://vision.ucsd.edu/belongie-grp/research/

carRec/car data.html.

GlobalData (2021). Global vehicle market re-

covery on track, says GlobalData. https:

//www.globaldata.com/global-vehicle-market-

recovery-track-says-globaldata/.

Gonc¸alves, G. R., da Silva, S. P. G., Menotti, D., and

Schwartz, W. R. (2016). Benchmark for license plate

character segmentation. Journal of Electronic Imag-

ing, 25(5):1–11.

Gonc¸alves, G. R., Diniz, M. A., Laroca, R., Menotti, D., and

Schwartz, W. R. (2019). Multi-task learning for low-

resolution license plate recognition. In Iberoamerican

Congress on Pattern Recognition, pages 251–261.

Gonc¸alves, G. R. et al. (2018). Real-time automatic license

plate recognition through deep multi-task networks. In

Conference on Graphics, Patterns and Images (SIB-

GRAPI), pages 110–117.

Hasnat, A. and Nakib, A. (2021). Robust license plate

signatures matching based on multi-task learning ap-

proach. Neurocomputing, 440:58–71.

Henry, C., Ahn, S. Y., and Lee, S.-W. (2020). Multinational

license plate recognition using generalized character

sequence detection. IEEE Access, 8:35185–35199.

Hsu, G., Zeng, S., Chiu, C., and Chung, S. (2015). A com-

parison study on motorcycle license plate detection. In

IEEE International Conference on Multimedia Expo

Workshops (ICMEW), pages 1–6.

Hsu, G. S., Chen, J. C., and Chung, Y. Z. (2013).

Application-oriented license plate recognition. IEEE

Trans. on Vehicular Technology, 62(2):552–561.

Izidio, D. M. F. et al. (2020). An embedded automatic li-

cense plate recognition system using deep learning.

Design Automation for Embedded Systems, 24:23–43.

Kessentini, Y., Besbes, M. D., Ammar, S., and Chabbouh,

A. (2019). A two-stage deep neural network for multi-

norm license plate detection and recognition. Expert

Systems with Applications, 136:159–170.

Khosla, A., Zhou, T., Malisiewicz, T., Efros, A. A., and

Torralba, A. (2012). Undoing the damage of dataset

bias. In European Conference on Computer Vision

(ECCV), pages 158–171.

Laroca, R., Araujo, A. B., Zanlorensi, L. A., de Almeida,

E. C., and Menotti, D. (2021a). Towards image-

based automatic meter reading in unconstrained sce-

narios: A robust and efﬁcient approach. IEEE Access,

9:67569–67584.

Laroca, R., Barroso, V., Diniz, M. A., Gonc¸alves, G. R.,

Schwartz, W. R., and Menotti, D. (2019). Convolu-

tional neural networks for automatic meter reading.

Journal of Electronic Imaging, 28(1):013023.

Laroca, R. et al. (2018). A robust real-time automatic li-

cense plate recognition based on the YOLO detector.

In International Joint Conference on Neural Networks

(IJCNN), pages 1–10.

Laroca, R., Zanlorensi, L. A., Gonc¸alves, G. R., Todt, E.,

Schwartz, W. R., and Menotti, D. (2021b). An efﬁ-

cient and layout-independent automatic license plate

recognition system based on the YOLO detector. IET

Intelligent Transport Systems, 15(4):483–503.

Lee, C. and Osindero, S. (2016). Recursive recurrent nets

with attention modeling for OCR in the wild. In

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 2231–2239.

Li, H., Wang, P., and Shen, C. (2018). Toward end-to-

end car license plate detection and recognition with

deep neural networks. IEEE Transactions on Intelli-

gent Transportation Systems, pages 1–11.

Liang, J. et al. (2021). EGSANet: edge–guided sparse at-

tention network for improving license plate detection

in the wild. Applied Intelligence, pages 1–15.

On the Cross-dataset Generalization in License Plate Recognition

177

Liu, W., Chen, C., Kwan-Yee K. Wong, Z. S., and Han, J.

(2016). STAR-Net: A spatial attention residue net-

work for scene text recognition. In British Machine

Vision Conference (BMVC), pages 1–13.

Lubna, Mufti, N., and Shah, S. A. A. (2021). Automatic

number plate Recognition: A detailed survey of rele-

vant algorithms. Sensors, 21(9):3028.

Masood, S. Z. et al. (2017). License plate detection and

recognition using deeply learned convolutional neural

networks. arXiv preprint, arXiv:1703.07330.

Meng, S., Zhang, Z., and Wan, Y. (2020). Accelerating au-

tomatic license plate detection in the wild. In IEEE

Joint International Information Technology and Arti-

ﬁcial Intelligence Conference, pages 742–746.

Oliveira, I. O. et al. (2021). Vehicle-Rear: A new dataset

to explore feature fusion for vehicle identiﬁcation us-

ing convolutional neural networks. IEEE Access,

9:101065–101077.

OpenALPR API (2021). http://www.openalpr.com/.

OpenALPR Inc. (2016). OpenALPR-EU dataset.

https://github.com/openalpr/benchmarks/tree/master/

endtoend/eu.

Panahi, R. and Gholampour, I. (2017). Accurate detec-

tion and recognition of dirty vehicle plate numbers for

high-speed applications. IEEE Transactions on Intel-

ligent Transportation Systems, 18(4):767–779.

Presid

encia da Rep

ublica (1997). LEI N

9.503, DE

23 DE SETEMBRO DE 1997 - C

odigo de Tr

ansito

Brasileiro. http://www.planalto.gov.br/ccivil 03/leis/

l9503compilado.htm.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time object

detection. In IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 779–788.

RodoSol (2021). Concession

aria Rodovia do Sol

S/A. https://www.rodosol.com.br/blog/conheca-a-

rodosol-2. Accessed: 2021-09-10.

Selmi, Z., Halima, M. B., Pal, U., and Alimi, M. A. (2020).

DELP-DAR system for license plate detection and

recognition. Pattern Recog. Letters, 129:213–223.

Shi, B., Bai, X., and Yao, C. (2017). An end-to-end train-

able neural network for image-based sequence recog-

nition and its application to scene text recognition.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 39(11):2298–2304.

Shi, B., Wang, X., Lyu, P., Yao, C., and Bai, X. (2016).

Robust scene text recognition with automatic rectiﬁ-

cation. In IEEE/CVF Conference on Computer Vision

and Pattern Recognition (CVPR), pages 4168–4176.

Silva, S. M. and Jung, C. R. (2020). Real-time license

plate detection and recognition using deep convolu-

tional neural networks. Journal of Visual Communi-

cation and Image Representation, page 102773.

Silva, S. M. and Jung, C. R. (2021). A ﬂexible approach for

automatic license plate recognition in unconstrained

scenarios. IEEE Transactions on Intelligent Trans-

portation Systems, pages 1–11.

Silvano, G. et al. (2020). Synthetic image generation for

training deep learning-based automated license plate

recognition systems on the Brazilian Mercosur stan-

dard. Design Automation for Embedded Systems,

pages 1–21.

Spa

nhel, J. et al. (2017). Holistic recognition of low qual-

ity license plates by CNN using track annotated data.

In IEEE International Conference on Advanced Video

and Signal Based Surveillance (AVSS), pages 1–6.

Srebri

c, V. (2003). EnglishLP database. http://www.zemris.

fer.hr/projects/LicensePlates/english/baza

slika.zip.

Statista (2021). Projected worldwide light ve-

hicle sales growth from 2019 to 2023.

https://www.statista.com/statistics/267128/outlook-

on-worldwide-passenger-car-sales/.

Tommasi, T., Patricia, N., Caputo, B., and Tuytelaars, T.

(2017). A deeper look at dataset bias. In Domain

Adaptation in Computer Vision Applications, pages

37–55. Springer.

Torralba, A. and Efros, A. A. (2011). Unbiased look at

dataset bias. In IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 1521–1528.

Wang, J. and Hu, X. (2017). Gated recurrent convolution

neural network for OCR. In Annual Conference on

Neural Information Processing Systems (NeurIPS).

Wang, Y., Bian, Z.-P., Zhou, Y., and Chau, L.-P. (2021). Re-

thinking and designing a high-performing automatic

license plate recognition approach. IEEE Trans. on

Intelligent Transportation Systems, pages 1–13.

Weber, M. (1999). Caltech Cars dataset.

http://www.vision.caltech.edu/Image Datasets/

cars markus/cars markus.tar.

Weihong, W. and Jiaoyang, T. (2020). Research on license

plate recognition algorithms based on deep learning in

complex environment. IEEE Access, 8:91661–91675.

Xiang, H., Zhao, Y., Yuan, Y., Zhang, G., and Hu, X.

(2019). Lightweight fully convolutional network for

license plate detection. Optik, 178:1185–1194.

Xie, L., Ahmad, T., Jin, L., Liu, Y., and Zhang, S. (2018).

A new CNN-based method for multi-directional car

license plate detection. IEEE Transactions on Intelli-

gent Transportation Systems, 19(2):507–517.

Xu, Z. et al. (2018). Towards end-to-end license plate detec-

tion and recognition: A large dataset and baseline. In

European Conf. on Computer Vision, pages 261–277.

Zhang, J., Li, W., Ogunbona, P., and Xu, D. (2019). Recent

advances in transfer learning for cross-dataset visual

recognition: A problem-oriented perspective. ACM

Computing Surveys, 52(1):1–38.

Zhang, L., Wang, P., Li, H., Li, Z., Shen, C., and Zhang,

Y. (2020). A robust attentional framework for license

plate recognition in the wild. IEEE Transactions on

Intelligent Transportation Systems, pages 1–10.

Zhou, W., Li, H., Lu, Y., and Tian, Q. (2012). Princi-

pal visual word discovery for automatic license plate

detection. IEEE Transactions on Image Processing,

21(9):4269–4279.

Zou, Y., Zhang, Y., Yan, J., Jiang, X., Huang, T., Fan, H.,

and Cui, Z. (2020). A robust license plate recognition

model based on bi-LSTM. IEEE Access, 8:211630.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

178
