Hypoxic-Ischaemic Encephalopathy Prognosis using Susceptibility

Weighted Image Analysis based on Histogram Orientation Gradient

Zhen Tang

, Sasan Mahmoodi

, Angela Darekar

and Brigitte Vollmer

School of Electronics and Computer Science, University of Southampton, Southampton SO17 1BJ, U.K.

Department of Medical Physics, University Hospital Southampton NHS Foundation Trust, Southampton So16 6YD, U.K.

Clinical Neurosciences and Clinical and Experimental Sciences, Faculty of Medicine,

University of Southampton, SO17 1BJ, U.K.

Keywords: Hypoxic-Ischaemic Encephalopathy, Susceptibility-weighted Imaging, HOG, Motor, Cognitive Outcomes.

Abstract: The aim of this study is to analyse the susceptibility-weighted magnetic resonance images (SWI) by using

Histogram of Oriented Gradients (HOG) as a global feature to identify areas of the neonatal brain affected by

Hypoxic-ischaemic encephalopathy (HIE). 42 infants with neonatal HIE have undergone under SW imaging

in the neonatal period and have been investigated through neurodevelopmental assessment at 24 months of

age. HOG features are used to represent the whole brain SW images and the region of interest separated from

the brain image registration algorithm. We use k-nearest neighbours (kNN) and random forest to classify the

SWI images into normal and abnormal groups, and then we compare our results to our previous work. The

result shows an effective classification, which achieved an accuracy of 76.25±10.9. Our research suggests

that automated analysis of neonatal SWI images can identify brain regions affected by HIE on SWI images

and predict motor and cognitive outcomes.

1 INTRODUCTION

Hypoxic-ischaemic (HI) is a type of neonatal brain

damage caused by oxygen deprivation and limited

blood flow, and it is an important cause of perinatal

death or neurodevelopmental (motor, cognitive,

behavioural and speech impairments) impairment in

newborns worldwide (Nadeem et al., 2011; Massaro

et al., 2015). Due to the complexity of neonatal brain

damaged by HI, traditional methods of diagnosing

hypoxic-ischeamic encephalopathy (HIE) results are

time-consuming and inefficient (Macleod et al.,

2020). Therefore, the application of an automatic

method will be useful to streamline the procedure for

specialists to diagnose an early diagnosis.

Magnetic resonance imaging (MRI) has become

the standard for the assessment and study of neonatal

HI injury and developmental abnormalities (Midiri et

al., 2021). Susceptibility weighted image (SWI) is

increasingly used in clinical practice because of its

sensitivity to haemorrhage and calcification (Mittal et

al., 2009; Sehgal et al., 2005). SWI images of infants

with HIE may be useful biomarkers for diagnosis and

https://orcid.org/0000-0002-9154-5182

outcome prediction (Zhang et al., 2019). Quantitative

analysis of deep medullary venous structures in SWI

images were used to assess the severity of HI injury

(Kim et al., 2020), and the first-order texture

parameters derived from SWI were employed to

distinguish between infants with HIE and infants

without HIE. An approach (Li et al., 2019) combined

the SWI images and magnetic resonance

spectroscopy (MRS) for early diagnosis in infants

with HIE. Another approach of automatic detection

for infants injured by HI was offered (Wu et al.,

2017), and the Hessian eigenvalue of the vessels in

SWI images was applied to classify the 48 infants

with HIE and 10 infants without HIE based on a

scoring system suggested by Kitamura (Kitamura et

al., 2011). In (Citraro et al., 2017), they developed an

extended 3D local binary pattern to distinguish the

images of a three-dimensional SWI dataset of infants

with HIE based on their oxygenation status. In our

previous work (Tang et al., 2020), balanced datasets

of SWI images of newborns with HIE and the

neurological outcomes of these infants at age 24

months were used for classification, as well as the

Tang, Z., Mahmoodi, S., Darekar, A. and Vollmer, B.

Hypoxic-Ischaemic Encephalopathy Prognosis using Susceptibility Weighted Image Analysis based on Histogram Orientation Gradient.

DOI: 10.5220/0010856800003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 4: BIOSIGNALS, pages 57-62

ISBN: 978-989-758-552-4; ISSN: 2184-4305

motor and cognitive outcomes for regression analysis.

From the above study, we see that there are two major

issues in SWI analysis in the context of neonatal HIE:

(a) unbalanced data and (b) segmentation and

extraction of different brain regions.

In the present paper, we propose an automatic

framework to detect neonatal hypoxic-ischaemic

brain injury by extracting the HOG features of the

brain and vessels in SWI images to analyse SWIs of

HIE infants. Then, an image registration technique

(Avants et al., 2009) is used to identify the brain

regions by matching the SWIs with a brain template.

The HOG is utilised to extract features of these brain

regions. All extracted feature vectors as the input are

fed into kNN and random forest algorithms for

classification of HIE infants with developmental

outcome at age 24 months.

2 DATA ACQUISITION

This use of anonymised, routinely collected clinical

data have been granted an ethical approval from the

Health Research Authority (HRA), Health and Care

Research Wales (IRAS ID 279072; REC reference

20/HRA/0260), and the National Research Ethics

Service London, City & East (IRAS ID 143392; REC

reference 13/LO/1948).

3 METHODS

In this study, 42 infants with neonatal HIE born at

gestational age >36+6 weeks who underwent

hypothermia treatment were scanned using a 1.5T

Siemens Symphony MRI scanner. The scan included

proton density, T1-weighted, T2-weighted, turbo

inversion recovery and SWI. SWI data was acquired

using a flow-compensated, spoiled gradient echo

(FLASH) sequence, with the following pulse

sequence parameters: TR/TE/flip angle = 50 ms/40

ms/12°, voxel size = 0.9 × 0.9 × 2 mm

, bandwidth =

70 Hz/pixels.

The participants in this study were scanned at a

mean age of 7.8 days (min 1 day, max 34 days) after

birth. Assessment of cognitive, motor, and language

development with the Bayley Scales of Infant and

Toddler Development 3 (Bayley-3; Edmonds et al.,

2020) were done at age 24 months.

The composite scores calculated from Bayley-3, a

standardised tool used to assess neurodevelopment,

including cognitive, language and motor of infants

aged from 1–42 months (Edmonds et al., 2020), are

used. Bayley-3 composite scores have a mean of 100

and a standard deviation (SD) of 15. In the case of a

Bayley-3 composite score within less than one SD of

the mean (>85), development is considered age-

appropriate; mild delay based on a composite score

greater than 1–1.5 SD below the mean (77.5–85), and

moderate or severe delays if the score is more than

1.5 SD below the mean (<77.5). In our research, the

focus is on cognitive and motor development.

Bayley-3 outcome data could be obtained for 29

children on the cognitive scale and 28 children on the

motor scale (some children were unable to complete

the motor tasks because of impaired motor function).

3.1 Image Processing

We applied an active contour model (Kass et al.,

1988) for the brain segmentation to remove the skull,

eyes and the background from the SWI images to

reduce the noise in the images as shown in Figure

1(b).

3.2 Feature Extraction of HOG

This section must be in one column. As SWI images

can sensitively capture the blood vessels and vascular

structures in the brain (Reichenbach, 2020), we

employ the Histogram of Oriented Gradients (HOG)

feature descriptors for object detection (Dalal and

Triggs, 2005). HOG is a powerful feature extraction

technique that calculates the occurrences of gradient

orientation in local parts of an image. Before

proceeding with the calculation of HOG feature

vectors, we crop the SWI images into an image of

110×130 pixels (110 pixels width and 130 pixels

height) to avoid the effect of redundant HOG features

from the background in SWI images, as shown in

Figure 1. Then, the first step of HOG is to calculate

the gradient of each pixel. We denote I(x, y) to be the

SWI image and use a Sobel kernel of size (3×3) to

obtain the horizontal and vertical gradients of each

pixel. The gradient is composed of magnitude and

angle from SWI image using following formulae:

𝑀



𝑥,𝑦





𝐺





+𝐺





)

𝜃=

𝐴

𝑟𝑐𝑡𝑎𝑛

𝐺



𝐺



)

Here, 𝐺



and 𝐺



are the gradients of each pixel in

x and y direction. M(x, y) denotes the magnitude and

𝜃 denotes gradient direction for the pixel. After

obtaining the gradient (including magnitude and

direction) of each pixel, the cropped SWI images are

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

divided into 10×10 pixels to form a cell. For each cell,

a histogram with four bins and an angle range of 45

degrees is developed. Finally, one cell is formed into

a block. The histogram vector and the normalization

process can be calculated as follows:

𝑣

= {𝑏



,𝑏



,…,𝑏



}

(3)

𝑣

’

𝑣



‖

𝑣

‖



+𝜀



(4)

where 𝑏 is the value of each bin, ε is a small positive

value used for regularization to avoid division by

zero.

For each SWI image of each infant with HIE, the

total length of HOG features is 4×11×13 = 572. We

sum up the HOG features of each SWI image

belonging to the same infant with neonatal HIE to

create a feature vector, 𝑉



, describing the image,

and then the feature vector for each infant is

normalised. Figure 1 shows HOG of SWI image with

HIE.

(a) (b)

(c)

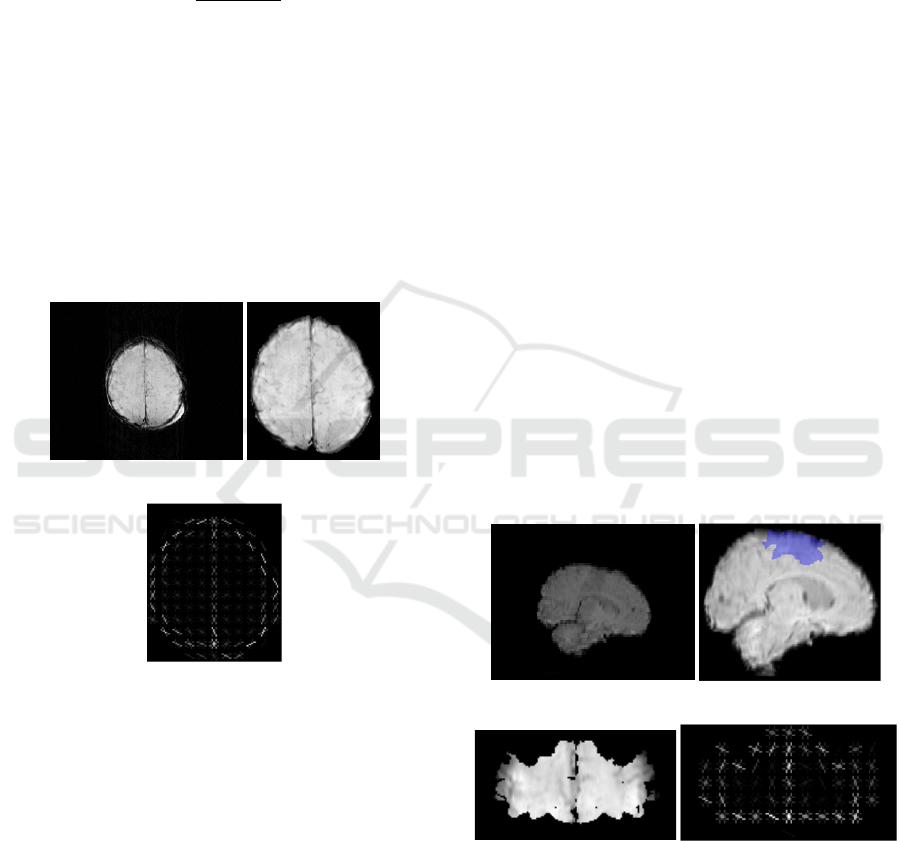

Figure 1: (a) Original SWI image (b) Cropped image after

active contour (c) HOG image.

3.3 Image Registration

In order to look for the brain regions affected by

hypoxic-ischaemic, we register the atlas, including

the average intensity image, the tissue density maps,

the structure density maps, and the maximum

probabilistic maps and labels, as a reference template

with the SWIs to identify individual lopes in SWIs.

The brain template, LPBA40/AIR, (https://

resource.loni.usc.edu/resources/atlases-downloads/)

is selected for this study. The image registration of

SWI datasets is carried out using Advanced

Normalisation Tools (ANTs) (Avants et al., 2009),

which has the best quality for registration of brain

magnetic resonance images. We convert all SWI

images of each infant in our dataset into 3D brain

images to be registered. The strategy on ANTs

registration programme for which we opt for, is to

map the SWI images to the template brain images

using similarity transform and obtain the registered

SWI images.

The LPB40/AIR template provides a standard

normalised space containing 56 brain structures and

partition labels, such as frontal lobe and parietal lobe

(Shattuck et al., 2008). Since SWI images of each

infant with neonatal HIE are transformed/registered

into a template brain of an atlas based on an image

registration method, we map the 56 labels of the

maximum probabilistic maps onto the new registered

SWI images for analysis. We eventually consider the

primary motor area, premotor area, and

supplementary motor area of 3D images to explore

the relationship between the SWI features in these

areas and motor outcomes at 24 months of age. To

explore the relationship with cognitive outcomes

frontal lobe, parietal lobe and temporal lobe of the

brain as a 3D brain were examined. As shown in

Figure 2(b), the area covered in blue represents the

motor area. The motor areas of the brain in SWI

images are therefore selected by registering SWI

images to the template brain and the motor areas are

left in the 3D image with the rest of the brain being

ignored (i.e. set to zero).

(a) (b)

Figure 2: (a) Original brain image. (b) Brain image after

registration and motor area covered by blue (c) 2D image

of motor area (d) HOG of motor area.

Finally we consider the 3D motor region images

as slices and compute HOG feature vector 𝑉



associated with the motor region. In a similar fashion,

we select frontal, parietal and temporal lobes for

Hypoxic-Ischaemic Encephalopathy Prognosis using Susceptibility Weighted Image Analysis based on Histogram Orientation Gradient

cognitive regions of the brain by using the

aforementioned registration method. Then by only

considering these three lobes on the 3D SWIs and

ignoring the rest of the brain, we measure the HOG

feature vectors 𝑉



associated with these three

lobes.

4 RESULT

4.1 Classification for Motor Outcome

For the 28 infants with HIE who were assessed with

Bayley-3 scales, 25 infants have normal motor

development (scores>85), two infants have mild

motor delay (scores between 77.5–85), and one has

severe motor delay (score<77.5). The normal group

with normal motor outcomes and the abnormal group

with mild motor delays and severe motor delays are

used as two classes for classification.

We employ HOG feature vectors 𝑉



and

𝑉



for each infant of two classes as training data.

kNN and RF classifications are performed based on

these feature vectors.

Likewise, balanced data based on three infants

with delayed motor scores and three infants with

normal motor scores randomly selected from a group

of 25 infants with normal motor scores has been used

for classification. By repeating the above process ten

times with random selections from normal group, the

mean and standard deviation of classification

accuracies are calculated. Leave-one-out strategy is

employed here, and final accuracy is reported in

Table 1.

4.2 Classification for Cognitive

Outcome

29 infants, of which 25 have normal cognitive

outcome (scores>85), three had mild cognitive delay

(scores between 77.5–85) and one had severe

cognitive delay (scores <77.5), are partitioned by two

groups: the normal group with normal cognitive

outcomes and the abnormal group with mild and

severe cognitive delay outcomes. Here, we use HOG

feature vectors 𝑉



and 𝑉



for each infant with

cognitive outcome as an input of kNN and RF

classifications.

Again, we utilise the balanced data, in which four

infants with delayed cognitive scores and four infants

with normal cognitive scores were randomly selected

from the 25 infants in the normal cognitive score

group to measure the performance of kNN and RF

classification with a leave-one-out strategy. By

repeating ten times the aforementioned classification,

the mean and standard deviation of final accuracy is

computed in Table 1.

4.3 Experimental Result

The classification analysis based on the motor

outcome and cognitive outcome of infants with HIE

all are a two class tasks: normal group and abnormal

group. HOG feature vectors from whole brain 𝑉



and from different functional areas, including motor

area 𝑉



and cognitive regions of the brain 𝑉



are fed to kNN and RF classification for comparison.

All classification performances are compared to our

previous work (Tang et al., 2020), which means we

extract features from motor area and frontal, temporal

and parietal lobes by using the method (Tang et al.,

2020) to classify.

Table 1: Classification performance comparison.

Features kN

Motor

outcome

Whole

brain

Tang et

al., 2020

48.33±9.46 69.91±18.92

𝑉



55.01±8.05 63.33±7.03

Motor

area

Tang et

al., 2020

41.52±16.14 68.83±14.59

𝑉



61.67±15.81 71.67±11.24

Cognitive

outcome

Whole

brain

Tang et

al., 2020

53.75±15.64 61.25±13.75

𝑉



53.75±13.24 70.00±6.45

Frontal+

temporal+

parietal

lobes

Tang et

al., 2020

56.25±13.5 62.5±10.2

𝑉



57.5±8.74 76.25±10.9

Table 1 shows the different classification results

using features from different strategies. For motor

development outcome, features from (Tang et al.,

2020) still produce better accuracy than HOG features

represented by vector 𝑉



in whole brain area. But

in the motor area of the brain, the classification

performance of feature vector 𝑉



using HOG

feature descriptor exceeds that of features in (Tang et

al., 2020). Compared with methods (Tang et al.,

2020), HOG features we propose in this paper

perform higher accuracy in both whole brain area and

motor area of the brain for cognitive outcome. From

Table 1, HOG features obtained from only the motor

areas show better classification accuracies for HIE

motor development outcome prognosis in SWI

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

images. Also the feature vectors generated by HOG

descriptors in frontal, parietal and temporal lobes for

cognitive regions of the brain are effective in

classifying infants with cognitive outcome in SWI

images.

Figure 3 shows the inter/intra- class variations for

two normal and abnormal groups for motor outcome

(a) (b)

(e) (f)

(g)

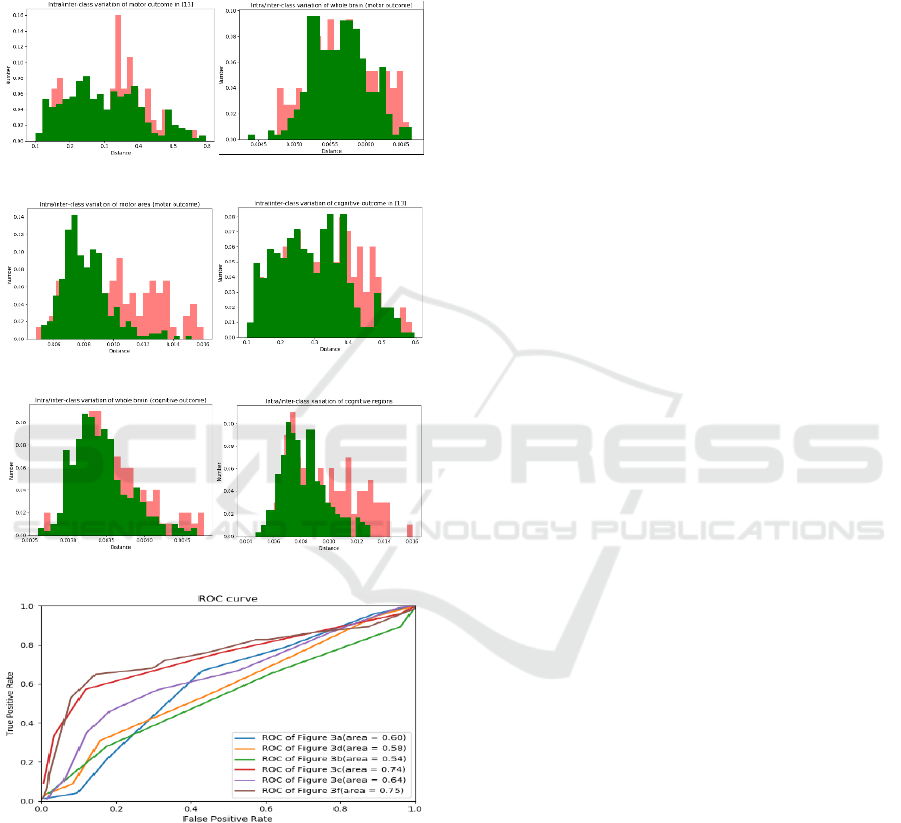

Figure 3: Inter/intra-class variations associated with motor

outcome for: (a) features obtained from (Tang et al., 2020);

(b) HOG features of whole brain with motor outcome; (c)

HOG features of motor area. Inter/intra-class variations

associated with cognitive outcome for: (d) features obtained

from (Tang et al., 2020); (e) HOG features of whole brain

with cognitive outcome; (f) HOG features of cognitive

regions. (g) ROC curves of above inter/intra- class

variations plots.

(Figure 3(a, b and c)), and cognitive outcome (Figure

3(d, e and f)). The green histograms represents the

intra-class variation for infants in the same group and

the red histograms show the inter-class for infants

from two different groups. Histograms of features

extracted using methods in (Tang et al., 2020) (figure

3(a and d)) and using methods in this paper (figure

3(b, c, e, and f)) are normalised to the area below each

histogram. As shown in figure 3(a and d), the two

histograms are highly overlapped. Figure 3(b)

presents the inter- and intra- class variation

histograms of HOG feature vectors from whole brain

area between normal and abnormal groups in infants

with motor outcome, and furthermore figure 3(c)

shows the inter- and intra-class variations of HOG

features from motor area of brain. Figure 3(e) shows

the inter/intra-class variation histograms of HOG

features from whole brain area between normal and

abnormal groups in infants with cognitive outcome,

while figure 3(f) shows the variations of HOG

features from cognitive regions. The Receiver

Operator Characteristic (ROC) curves corresponding

to the inter- and intra- class variations are shown in

figure 3(g). As observed from figure 3(c and f), the

overlap between two histograms and the areas under

the ROC curves (brown and red curves) illustrate a

better performance after using image registration to

extract the HOG features of motor areas and cognitive

areas.

5 CONCLUSIONS

In this paper, a HOG feature extraction method for

detection of neonatal hypoxic-ischeamic brain injury

in SWI images has been used. We design a HOG

feature descriptor to gain feature vectors to classify

HIE SWI images along with kNN and random forest

classifiers into normal and abnormal groups based on

motor and cognitive assessments of infants with HIE

at age 24 months. In addition, we map our SWI

images to a brain template containing different

function regions by an image registration algorithm to

obtain motor and cognitive regions of the brain. Then

HOG feature vectors of motor and cognitive regions

are used for classification to help us identify which

areas of the brain are responsible for abnormal

outcome. Compared to our previous work (Tang et al.,

2020), we achieve outstanding performance in the

classification experimentations on HIE infants with

regards to motor development outcome by using

HOG features of motor areas of the brain in SWI

images, 71.67±11.24, and similarly HOG features of

frontal, temporal and parietal lobes of the brain show

Hypoxic-Ischaemic Encephalopathy Prognosis using Susceptibility Weighted Image Analysis based on Histogram Orientation Gradient

better classification performance for cognitive

outcome, 76.25±10.9. In the future, we plan to

explore the relationship between other regions of the

brain and assessment outcome at two years of age.

One interesting future work is to combine our

previous method (Tang et al., 2020) with the method

presented in this paper to improve the performance of

our system.

REFERENCES

Nadeem, M., Murray, D. M., Boylan, G. B., Dempsey, E.

M., & Ryan, C. A. (2011). Early blood glucose profile

and neurodevelopmental outcome at two years in

neonatal hypoxic-ischaemic encephalopathy. BMC

Pediatrics, 11(1), 1–6.

Massaro, A. N., Evangelou, I., Fatemi, A., Vezina, G.,

Mccarter, R., Glass, P., & Limperopoulos, C. (2015).

White matter tract integrity and developmental

outcome in newborn infants with hypoxic‐ischemic

encephalopathy treated with hypothermia.

Developmental Medicine & Child Neurology, 57(5),

441-448.

Mittal, S., Wu, Z., Neelavalli, J., & Haacke, E. M. (2009).

Susceptibility-weighted imaging: Technical aspects

and clinical applications, part 2. American Journal of

Neuroradiology, 30(2), 232–252.

Sehgal, V., Delproposto, Z., Haacke, E. M., Tong, K. A.,

Wycliffe, N., Kido, D. K., & Reichenbach, J. R. (2005).

Clinical applications of neuroimaging with

susceptibility‐weighted imaging. Journal of Magnetic

Resonance Imaging: An Official Journal of the

International Society for Magnetic Resonance in

Medicine, 22(4), 439–450.

Macleod, R., O’Muircheartaigh, J., Edwards, A. D.,

Carmichael, D., Rutherford, M., & Counsell, S. J.

(2020). Automatic Detection of Neonatal Brain Injury

on MRI. In Medical Ultrasound, and Preterm,

Perinatal and Paediatric Image Analysis (pp. 324–

333). Springer, Cham.

Midiri, F., La Spina, C., Alongi, A., Vernuccio, F., Longo,

M., Argo, A., & Midiri, M. (2021). Ischemic hypoxic

encephalopathy: The role of MRI of neonatal injury and

medico-legal implication. Forensic Science

International, 110968.

Zhang, X., Zhang, Y., & Hu, Q. (2019). Deep learning

based vein segmentation from susceptibility-weighted

images. Computing, 101(6), 637–652.

Kim, H. G., Choi, J. W., Han, M., Lee, J. H., & Lee, H. S.

(2020). Texture analysis of deep medullary veins on

susceptibility-weighted imaging in infants: Evaluating

developmental and ischemic changes. European

Radiology, 30(5), 2594–2603.

Li, X., Zhang, W., Liu, D., & Zeng, Y. W. (2019). Effect of

3.0 T magnetic resonance SWI and MRS on early

diagnosis of neonatal HIE and regression analysis of

related predictive factors. Journal of Hainan Medical

University, 25(1), 75–78.

Wu, S., Mahmoodi, S., Darekar, A., Vollmer, B., Lewis, E.,

& Liljeroth, M. (2017, July). Feature extraction and

classification to diagnose hypoxic-ischemic

encephalopathy patients by using susceptibility-

weighted MRI images. In Annual Conference on

Medical Image Understanding and Analysis (pp. 527–

536). Springer, Cham.

Kitamura, G., Kido, D., Wycliffe, N., Jacobson, J. P.,

Oyoyo, U., & Ashwal, S. (2011). Hypoxic-ischemic

injury: Utility of susceptibility-weighted imaging.

Pediatric Neurology, 45(4), 220–224.

Citraro, L., Mahmoodi, S., Darekar, A., & Vollmer, B.

(2017). Extended three-dimensional rotation invariant

local binary patterns. Image and Vision Computing, 62,

8–18.

Tang, Z., Mahmoodi, S., Dasmahapatra, S., Darekar, A., &

Vollmer, B. (2020, July). Ridge detection and analysis

of susceptibility-weighted magnetic resonance imaging

in neonatal hypoxic-ischaemic encephalopathy. In

Annual Conference on Medical Image Understanding

and Analysis (pp. 307–318). Springer, Cham.

Edmonds, C. J., Helps, S. K., Hart, D., Zatorska, A., Gupta,

N., Cianfaglione, R., & Vollmer, B. (2020). Minor

neurological signs and behavioural function at age 2

years in neonatal hypoxic ischaemic encephalopathy

(HIE). European Journal of Paediatric Neurology, 27,

78–85.

Kass, M., Witkin, A., & Terzopoulos, D. (1988). Snakes:

Active contour models. International Journal of

Computer Vision, 1(4), 321–331.

Reichenbach, J. R. (2020). Susceptibility weighted

imaging. In Neuroimaging Techniques in Clinical

Practice (pp. 165–187). Springer, Cham.

Dalal, N., & Triggs, B. (2005, June). Histograms of oriented

gradients for human detection. In 2005 IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition (CVPR'05) (Vol. 1, pp. 886–893). IEEE.

Avants, B. B., Tustison, N., & Song, G. (2009). Advanced

normalization tools (ANTS). Insight j, 2(365), 1-35.

Shattuck, D. W., Mirza, M., Adisetiyo, V., Hojatkashani,

C., Salamon, G., Narr, K. L, & Toga, A. W. (2008).

Construction of a 3D probabilistic atlas of human

cortical structures. Neuroimage, 39(3), 1064–1080.

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing
