An Occlusion Aware Five-view Stereo System and Its Application in

Video Post-production

Changan Zhu

, Taryn Laurendeau and Chris Joslin

School of Information Technology, Carleton University, 1125 Colonel By Drive, Ottawa, Canada

Keywords:

Stereo Vision, Disparity Enhancement, Image and Video Processing, Post Production, Visual Effects.

Abstract:

Extracting the live-action elements from videos has been a time-consuming process in the post-production

pipeline. The disparity map, however, shows the order of elements in a scene by indicating the distance

between the elements and the camera, which could potentially become an effective tool for separating videos

into ordered layers and preserving the 3D structure of the elements. In this research, we explored the possibility

of simplifying the live-action video element extraction technique with disparity sequences. We developed a

ﬁve-view disparity estimation and enhancement system with a two-axis setup that helps reduce the occlusions

in stereo vision. The system is independent from temporal reconstruction hence is compatible with both

dynamic and stationary camera paths. Our results show that the disparities from our system have visually and

quantitatively better performance than the traditional binocular stereo method, and its element extraction result

is comparable with the existing mature matting techniques in most cases. Ideally, the system design could be

applied in cinematography by replacing the center camera with a cinematographic camera, and the output can

be used for video object extraction, visual effects composition, video’s 2D to 3D conversion, or producing the

training data for neural-network-based depth estimation research.

1 INTRODUCTION

Video element extraction is one of the most widely

used techniques in the current post-production

pipeline. Media such as movies, television series, and

advertisements all use the technique to either replace

the background or composite visual effects (VFX)

into the original scene.

Chromakey, also known as color keying, is an ef-

fortless approach for element extraction that the in-

dustry has loved for decades. However, the element

extraction result from it can be easily inﬂuenced by

lighting conditions and the foreground objects; it also

requires a large scale of preliminary setup and is re-

stricted by the environment (Gvili et al., 2003). For

areas that are not covered by green screen or situa-

tions that the background needs to be preserved, Ro-

toscoping would be used. Yet the extraction quality

of Rotoscoping is highly dependent on the manual ef-

forts, it has a simple mechanism and is widely used

but also high-cost in terms of time consumption and

workload (Li et al., 2016). Other element extraction

https://orcid.org/0000-0002-2980-813X

https://orcid.org/0000-0002-6728-2722

Before

Aer

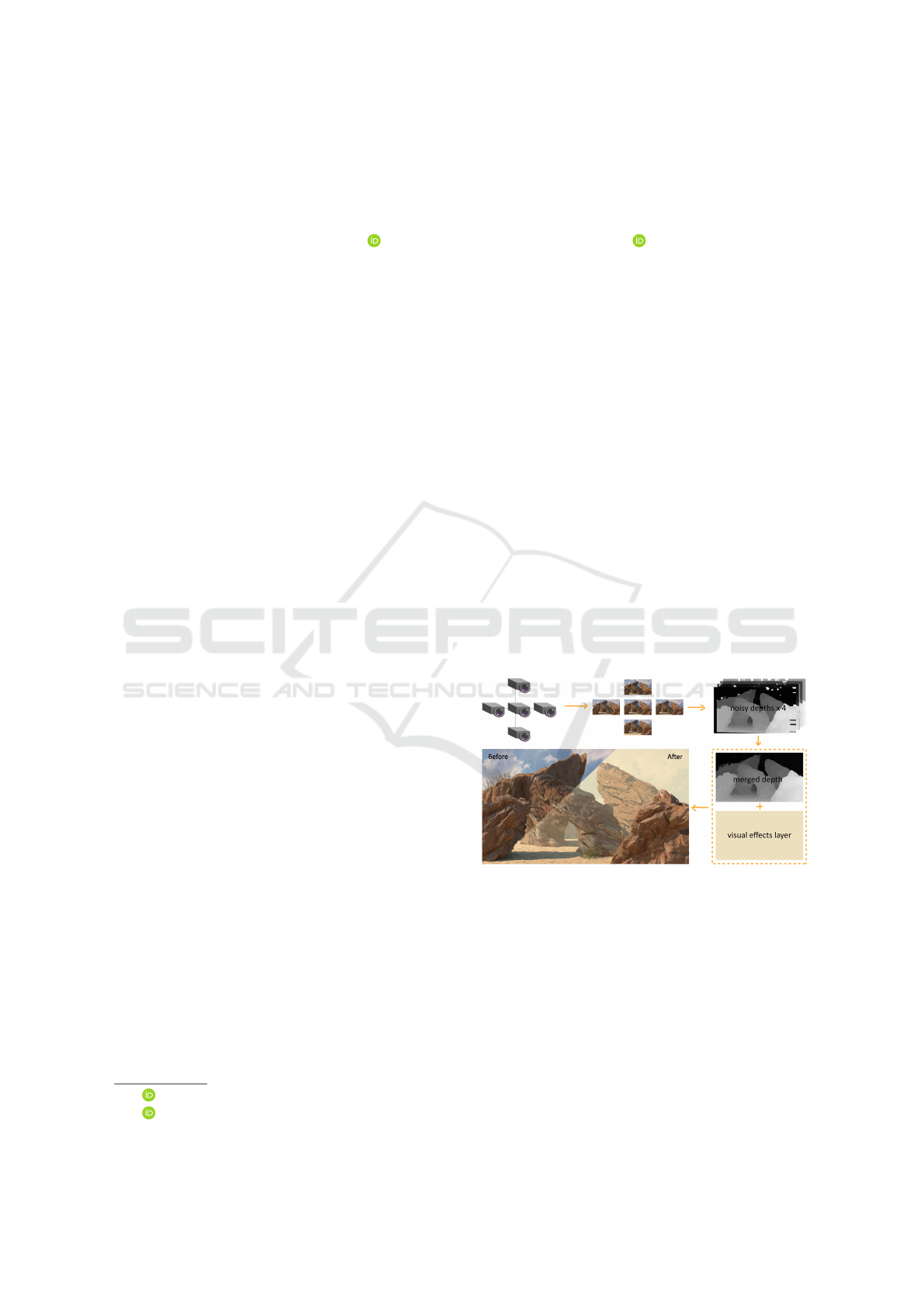

Figure 1: System procedure.

approaches in the industry, such as motion tracking

and auto-roto-painting, are either constrained by cam-

era movement or objects’ texture similarity. Addition-

ally, the mattes acquired from these techniques cut out

the elements as 2D planes, which only slice a scene

into few layers and provides limited composition ca-

pability. On the other hand, the disparity map reﬂects

an element’s position in a 3D scene, presenting the

element’s 3D structure and its order in the environ-

ment. The post-production pipeline usually adapts

depth maps from CG objects to enhance their compo-

sition results in live-action scenes (FXGuide, 2014).

844

Zhu, C., Laurendeau, T. and Joslin, C.

An Occlusion Aware Five-view Stereo System and Its Application in Video Post-production.

DOI: 10.5220/0010884400003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

844-854

ISBN: 978-989-758-555-5; ISSN: 2184-4321

Hence, having the disparity information of the live-

action objects might also effectively assist the matting

and visual effects composition. According to our lit-

erature review, existing accurate disparity estimation

methods such as LiDAR, Time-of-Flight have limits

in the distance and usually provide sparse depth data

that requires completions (Ma et al., 2019); Multi-

view methods like Structure-from-Motion (SfM) are

normally based on a static world assumption (Vi-

jayanarasimhan et al., 2017), thus are hardly appli-

cable on dynamic objects. Supervised and semi-

supervised monocular depth estimation networks re-

quire ground truth depth input that involves inten-

sive labor work; while the unsupervised networks rely

on adjacent frames for depth reﬁnement that a mov-

ing camera shot is often needed (Ming et al., 2021).

Stereo vision, as one of the most well-studied depth

estimation techniques, is more ﬂexible with the chal-

lenges from spatial density, non-stationary elements,

and camera paths while its accuracy and visual output

suffer from matching issues brought by feature mis-

match and occlusion (Bleyer and Breiteneder, 2013).

Therefore, we proposed a stereo system (see in Fig-

ure 1) that aims to simplify the element extraction

in post-production and solve the occlusion problem

in stereo matching. Our system acquires four stereo

pairs from horizontal and vertical axes by perceiving

a scene from ﬁve views, then centripetally align and

merge the disparity results. In this case, we can com-

pensate the occlusions from one axis with the infor-

mation from another axis. If we compare the occluded

area to shadow, our system reduces the occluded ar-

eas like a shadow-less lamp. We evaluated our system

quantitatively by comparing its results with traditional

binocular stereo. Also, we provided a visual compari-

son of the matting results from our method and indus-

try standard method. Accordingly, we contributed:

• A depth acquisition system that is fully compati-

ble with two non-overlapped baseline axes, which

generates quantitatively and visually better dispar-

ity than the state-of-the-art binocular stereo meth-

ods.

• A two-axis stereo rectiﬁcation solution.

• A stereo dataset that provides stereo pairs from

ﬁve views and two axes with corresponding

ground truth.

• A matting method that could simplify the element

extraction process and provide a 3D matting op-

tion for more realistic visual effects.

2 RELATED WORKS

2.1 Element Extraction Approaches

In our research, the term element extraction refers

to the process of pulling target elements out from a

video, which relates to concepts such as video mat-

ting and segmentation. Available matting solutions

can be categorized into color keying, alpha matting,

and other innovative methods such as depth and defo-

cus.

2.1.1 Color Keying

Color keying provides high-quality matting results for

evenly lit-up objects that are ﬁlmed against a blue

or green screen. Commercial tools such as the Ul-

timatte (Blackmagic, 2021) and Keylight (Foundry,

2021) both provide outstanding foreground isolation

results. However, the method is restricted by the en-

vironment, the lighting condition, and foreground col-

ors.

2.1.2 Alpha Matting

Alpha matting is well discussed in academia but has

not been widely applied in the industry as it provides

limited robustness when dealing with fuzzy edges and

homogeneous regions. In pixel-sampling-based alpha

matting, it always requires well-speciﬁed trimaps (a

map showing the deﬁnite foreground, deﬁnite back-

ground, and the blended regions with both foreground

and background pixels) for accurate matting results,

and the result can be noisy when the provided trimap

is rough or when the input image contains highly

textured regions (Chuang et al., 2002). The pixel-

afﬁnity-based alpha matting method has better per-

formance in terms of matte continuity and complex

background while it usually requires manual annota-

tion to help reducing errors from propagation (Levin

et al., 2008).

2.1.3 Depth Keying

The idea of using depth as an element extraction tool

was present early. Kanade et al. (Kanade et al.,

1996) addressed the possibility of using depth to iso-

late elements from a video clip automatically. Givili

et al. (Gvili et al., 2003) suggested the concept of

”depth keying” that extracts foreground objects from

the background using depth. After this, approaches

that use depth as guide information for more accurate

matting results were presented (Wang et al., 2012; Lu

and Li, 2012).

An Occlusion Aware Five-view Stereo System and Its Application in Video Post-production

845

2.1.4 Other Approaches

Researchers also propose many other innovative mat-

ting approaches such as segmentation, contour track-

ing, and light ﬁeld. Li et al. (Li et al., 2005) pro-

posed to extract video objects with a 3D graph-cut-

based segmentation and a tracking-based local reﬁne-

ment. Chung and Chen (Chung and Chen, 2009)

present a video segmentation method with Markov

Random Field (MRF) based contour tracking. The

limitations of these methods are that most of them

require manual annotations, and discontinuities can

be introduced due to the feature points lying beyond

the image boundaries. Wu et al. (Wu et al., 2017)

mentioned in their work about the matting problem

that could be solved with light ﬁeld, but also pointed

out the restrictions from computational resources and

running time for light-ﬁeld data.

2.2 Depth Estimation and Enhancement

Traditional vision-based stereo has advantages in

fewer environment constraints, consistent spatial res-

olution, high portability, and low cost, hence com-

monly used in the applications and research of depth

estimation. However, since it relies on ﬁnding cor-

respondence points from a stereo pair, errors are fre-

quently arisen by correspondence mismatch and oc-

clusion. To improve the accuracy of depth estimation,

researchers have explored both hardware and software

sides to produce or enhance disparities. For example,

existing solutions such as using light and laser (Zhu

et al., 2008; Silberman and Fergus, 2011; Ferstl et al.,

2013), optical features (Jeon et al., 2015; Zhou et al.,

2009; Tao et al., 2015), camera arrangement (Kanade

et al., 1996; Honegger et al., 2017), different kinds

of ﬁlters (Park et al., 2011; Yang et al., 2007; Barron

et al., 2015), and most recent research with the assis-

tance from neural networks (Park et al., 2018; Kopf

et al., 2020).

2.2.1 Light & Laser

Methods such as Time-of-Flight and LiDAR are ac-

curate within a certain distance and are used to create

ground truth disparity for many depth-estimation re-

lated researches (Scharstein et al., 2014). However,

both techniques create sparse data that requires com-

pletion (Ma et al., 2019). The distance limit and their

synthesizing with the cinematographic camera (Nair

et al., 2013) are also challenges lying ahead.

2.2.2 Optical Features & Camera Arrangement

Methods such as light ﬁeld or camera arrays also

provide exciting accuracy. To acquire depth from

light-ﬁeld, techniques such as pixel variations (Man-

akov et al., 2013; Heber et al., 2013), and graph-cut

(Jeon et al., 2015) are commonly used, while since it

does not model the occlusion boundaries, the perfor-

mance could be limited in object boundaries (Ihrke

et al., 2016) and noisy backgrounds, when it comes to

handling dynamic objects, light-ﬁeld-based methods

could become very high-cost. Research using cam-

era array were also frequently proposed in the 2000s

and 2010s (Zhang and Chen, 2004; Fehrman and Mc-

Gough, 2014; Tao et al., 2018). The method is dif-

ferent from light-ﬁeld in the sampling patterns (Ihrke

et al., 2016), while the techniques of acquiring depth

with camera array are rather similar to light ﬁeld (e.g.,

Depth-from-Defocus). Typically, camera arrays re-

quire large amount of cameras hence research have

not investigated its application in a cinematographic

context.

2.2.3 Neural Networks

Monocular depth estimation using neural networks

does not require additional equipment, the results are

also temporally consistent that could be applied in

many daily life scenarios. However, the supervised

and semi-supervised networks’ training need ground

truth depth input, which are costly to acquire; the

unsupervised networks either require moving camera

paths to acquire and reﬁne depth basing on the adja-

cent frames, or need stereo matching results for the

training (Ming et al., 2021).

2.2.4 Multi-view & Multi-baseline

Among all the depth enhancement technologies, the

improvement from the hardware side seems to be un-

avoidable, especially when precision and quality are

the primary goals. The multi-baseline stereo uses

more than one set of camera pairs with different base-

lines to reduce occlusion and produce better depth

(Honegger et al., 2017). Multi-view stereo, also

known as structure from motion (SfM) (Schonberger

and Frahm, 2016), acquires objects’ 3D structure

from a camera view’s temporally change. Most multi-

baseline and multi-view stereo methods could signif-

icantly improve the depth quality by adding cameras

or number of frames (Schonberger and Frahm, 2016;

Honegger et al., 2017). However, since the multi-

view stereo relies on temporal scanning, the dynamic

objects in a scene could corrupt the consistency thus

need to be removed or masked (Klodt and Vedaldi,

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

846

2018; Luo et al., 2020). In the multi-baseline side,

existing methods mostly arrange cameras on the same

axis due to the constraints from epipolar geometry,

where it requires many cameras and various base-

lines to reduce the occlusions, while the direction of

the occluded areas remain unchanged as the cameras

are setup on only one-axis. Therefore, the capabil-

ity of such system to improve depth quality is also

limited. Better results might be achieved with fewer

cameras and less variant in the baseline distances, but

from two different axes. In which case, the occlu-

sion that normally exists in one axis due to the single-

direction camera arrangement could be compensated

by the depth information acquired from the other di-

rection.

3 METHODOLOGY

Since the target scenario of our system is video post-

production, the disparity generated from our system

should have well-deﬁned depth information at the tar-

get’s edges for a relatively good matting result, and

a smooth depth gradient that could accurately reﬂect

the target’s 3D structure for the purpose of visual ef-

fects composition. Additionally, we expect the system

to automatically generate disparity sequences without

excessive manual interventions.

3.1 System Overview

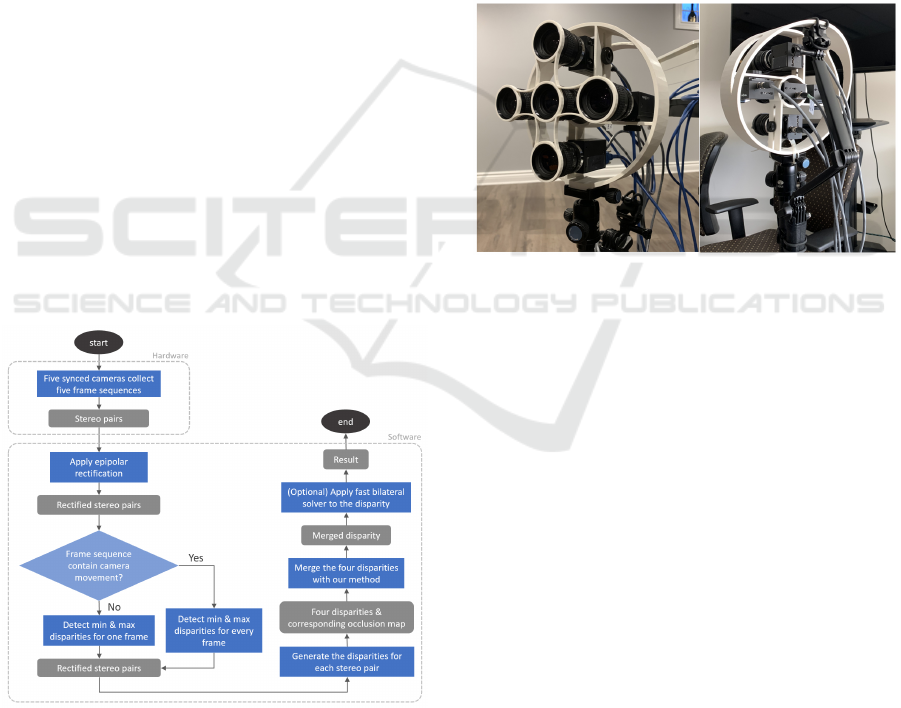

Figure 2: System overview.

As shown in Figure 2, our system consists of a

hardware setup from ﬁve computer vision cameras

and a framework for the disparity generation and re-

ﬁnement. As each secondary camera captures a stereo

pair with the primary camera, the system ﬁrst con-

ducts a two-axis rectiﬁcation on each stereo pair, then

estimate and merge the disparities to output an en-

hanced disparity map. Optionally, a bilateral ﬁlter

could be applied to create smoother visual result.

3.1.1 Hardware

For the hardware setup (Figure 3), we used ﬁve com-

puter vision cameras that are connected through GPIO

cables with synchronized imaging parameters, trig-

ger signal, and framerate. To deploy the ﬁve cameras

with our two-axis design pattern, we modelled and 3D

printed a mount that can ﬁx the cameras; and a lens

holder that could reduce unexpected rotation among

cameras to prevent massive distortion from rectiﬁca-

tion.

Figure 3: Hardware setup.

3.1.2 Development

On the software side, we developed a framework con-

taining a two-axis image rectiﬁcation method, an im-

plementation of cost-volume ﬁlter optimized Winner

Takes All (WTA) disparity estimation (Hosni et al.,

2012), and a disparity merging algorithm with helper

modules.

Two-axis Rectiﬁcation. To reduce the computational

cost in the correspondence matching, the stereo-

vision-based methods normally involve stereo pair

rectiﬁcation as a crucial step for reducing the cam-

eras’ intrinsic distortion and extrinsic positional de-

viation. Most multi-baseline stereo methods only ar-

range cameras on one axis (Kang et al., 2008; Yang

et al., 2014) due to the constrain of epipolar geome-

try. However, as our research set up the cameras on

two axes, we looked into non-epipolar methods like

correspondence-point-based rectiﬁcation (Ota et al.,

2009; Nozick, 2011). In the research of Nozick (Noz-

ick, 2011), he considers the image rectiﬁcation pro-

cess as a rotation around the optical center and an up-

date of the focal length, and simpliﬁed the problem to

ﬁnding the relations between the original image and

An Occlusion Aware Five-view Stereo System and Its Application in Video Post-production

847

the rectiﬁed image, which is represented as homogra-

phy matrix H

that satisﬁes the equation 1:

)

− y

= 0 (1)

where y

is the average y-coordinate of the k

recti-

ﬁed correspondence points, x

is the correspondence

points so the points are horizontally aligned to the

same y-coordinate (Nozick, 2011). However, it also

indicates that this method cannot be applied into our

system as we compute the depth for the cameras in

vertical directions by considering the y-axis as their

baselines, hence their y

would be the x

of the hori-

zontal cameras. In another word, the stereo pairs from

the two axes would be rectiﬁed based on different y

thus we cannot rectify the images from both direc-

tions at the same time. Otherwise, the rectiﬁed stereo

pairs would produce center disparities from different

image planes, where the objects do not align and the

results cannot be merged.

(a)

(d)

(b)

(c)

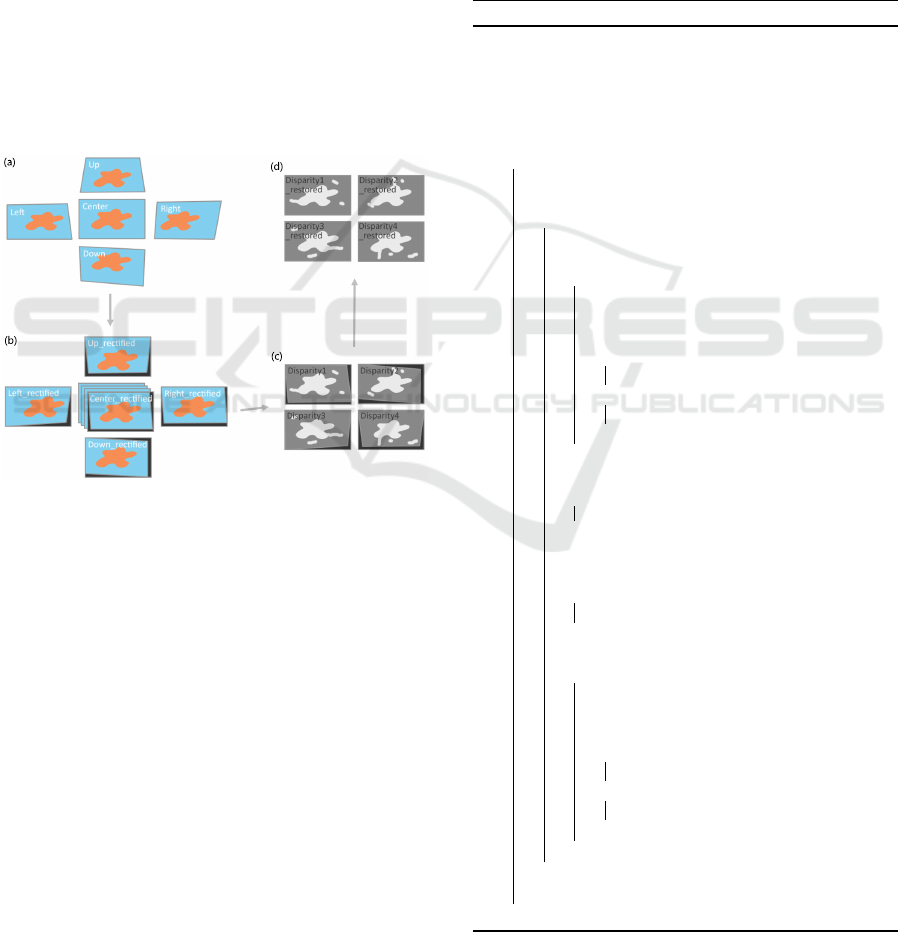

Figure 4: Our image rectiﬁcation procedure.

Beneﬁt from the pattern of our camera setup, we

resolved the problem in a simple way. As shown in

Figure 4, the two-axis rectiﬁcation procedure follows:

ﬁrstly (Figure 4 (a)(b)), using epipolar-geometrical-

based method (Fusiello and Irsara, 2008) to rectify

the images as four stereo pairs and keep a copy of

the homographies that were applied on each pair; sec-

ondly (Figure 4 (c)), generate disparities from them

as per pair, making sure the disparities always align

to the rectiﬁed center image, now the four disparity

maps are on different image planes; ﬁnally (Figure 4

(d)), calculate the reverse matrices for the previous

homographies and apply them on each disparity, so

the disparities are restored to the original center cam-

era’s image plane, where the object boundaries would

align, and the disparities are ready to be merged.

Occlusion Aware Disparity Merging. To determine

from which disparity map should we select the depth

value and save to the result, we used the occlusion

map as the guide information that regions occluded

in one stereo pair are patched with the depth values

from another pair, where the same region is not oc-

cluded hence the depth value is more reliable. We

also introduced a threshold inspired by the ratio test

in SIFT algorithm (Lowe, 2004) for ﬁltering the out-

lier depth values hence produces disparities with less

noises. The merging method is expected to fully use

the disparity information from the four disparities,

then compensate the disparity errors brought by oc-

clusion in the merged result. The detail of the merging

process is shown in Algorithm 1.

Algorithm 1: Occlusion Aware Disparity Merging.

Input: Sequence length SeqLength, threshold T ,

four disparity sequences Disp1

, Disp2

Disp3

, Disp4

and corresponding four

occlusion sequences.

Output: The merged disparity sequence Mrg

i = 0;

repeat

for each point’s depth value P

, ( j = 1, 2, 3, 4)

in the four disparity maps Disp1

, Disp2

Disp3

, Disp4

and occlusion maps. do

if P

is not occluded in all four disparities

or P

is all occluded in the four

disparities then

if one of the P

, (assume j = 1) is

(1 +T ) times larger or (1 − T ) times

smaller than the other three pixels

then

Mrg

= mean(P

, ( j = 2, 3, 4))

else

Mrg

= mean(P

, ( j = 1, 2, 3, 4))

end

if P

is occluded in three disparities,

assume only the P

is not occluded then

Mrg

= P

end

if P

is occluded in two disparities,

assume P

, P

are the two points not

occluded then

Mrg

= mean(P

, ( j = 1, 2))

end

if P

is occluded in only one disparities,

assume P

is the occluded point then

if one of the P

, (assume j = 3) is

(1 +T ) times larger or (1 − T ) times

smaller than the other two points

then

Mrg

= mean(P

, ( j = 1, 2))

else

Mrg

= mean(P

, ( j = 1, 2, 3))

end

i ++;

until i == SeqLength − 1;

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

848

Helper Modules (Min and Max Distances Detec-

tor & Fast Bilateral Solver). In the disparity esti-

mation procedure, it could speed up the correspon-

dence matching process if with known min and max

pixel distances among all corresponding points, as

they constrain the searching distance of the algorithm.

A moving camera shot or non-static element in the

scene would require dynamic min and max dispari-

ties information for more efﬁcient disparity estima-

tion. To ﬁt our system in such scenarios, we de-

veloped a simple min-max-disparities detector mod-

ule based on SURF and FLANN matching, where we

used SURF to compute the correspondence features

from a stereo pair and FLANN to ﬁlter the outlier

matches by using the Euclidean distances among the

descriptors of features. To produce smoother visual

output, we also adapted the fast bilateral solver from

Barron and Poole (Barron and Poole, 2016) as an op-

tional step in the framework, while we did not use the

disparities processed by the solver in the quantitative

evaluation to ensure the evaluation’s accuracy.

3.2 Experiment

To compare the binocular method with our method, as

well as to compare the matting results from the indus-

trial standard toolbox and our disparity matting, we

designed the experiment with two main comparisons:

1. A quantitative comparison (binocular disparity vs.

our disparity, Chromakey matting vs our matting):

using rendered image sequences from virtual en-

vironments to generate disparities and mattes, and

evaluating their accuracy with rendered disparities

and mattes ground truth;

2. A visual Comparison (binocular disparity vs. our

disparity, Chromakey matting vs our matting):

Using live-action image sequences, generating

disparity and matte sequences, compare the dis-

parity output with binocular stereo methods, and

compare the matting result with industry matting

tool;

For the binocular disparity, we selected the same dis-

parity estimation method (Hosni et al., 2012) used in

the system to ensure a consistent comparison.

3.2.1 Data Collection

To test and collect data with our ﬁve-camera setup, we

designed both virtual and live-action environments for

the data collection.

Computer Generated (CG) Data. The CG data are

collected through Maya, where we can easily sim-

ulate various virtual scenes and deviations, generate

ground truth depths and mattes for quantitative com-

parison. We created two virtual environments with

the ﬁve-view camera setup (virtual cameras) as the

system design. Each environment is split into three

scenarios, which are the ideal, the semi-realistic, and

the realistic scenarios. The three scenarios all have a

stereo version for disparity accuracy comparison and

a version with a green screen for the matting accuracy

comparison (see in Table 1).

Table 1: The virtual environment setup for disparity and

matting accuracy comparison.

Chromakey ver-

sion

Stereo version

Ideal

• No color-spill • Evenly lit up

• No shadow on the

screen

• Objects with obvi-

ous color difference

• No objects with

screen color

• No camera rotation

or translation

Semi-real

• No color-spill • Low light

• Has shadow on

the screen

• Objects with simi-

lar color and texture

• Has objects with

screen color

• No camera rotation

or translation

Realistic

• Has color-spill • Low light

• Has shadow on

the screen

• Objects with simi-

lar color and texture

• Has objects with

screen color

• Has camera rota-

tion and translation

Live-action Data. The live-action data are collected

with our ﬁve-camera system. We recorded videos

from eight scenes and selected the three best synchro-

nized with no corrupted or skipped frames. Due to

the fact that the ground truth for the live-action scenes

cannot be generated with available experiment tools,

they are shown in the visual comparison section and

the accompanying video.

3.2.2 Metrics

In the experiment, we involved two metrics for evalu-

ating our system output.

Disparity Accuracy. As applying the disparities

from our system in post-production is our primary

goal, the disparity accuracy is an essential factor

that could reﬂect the system’s performance. In the

evaluation of our disparity accuracy, we followed the

convention in existing disparity evaluation methods

(Scharstein et al., 2014) that we chose Root Mean

Square Error (RMSE) and Mean Absolute Percentage

Error (MAPE) as two of our main measures. Since

our objective is to apply the output to post-editing,

where the quality is mainly evaluated through human

visual system, we also included Structural Similarity

Index (SSIM) as it effectively measures image dif-

An Occlusion Aware Five-view Stereo System and Its Application in Video Post-production

849

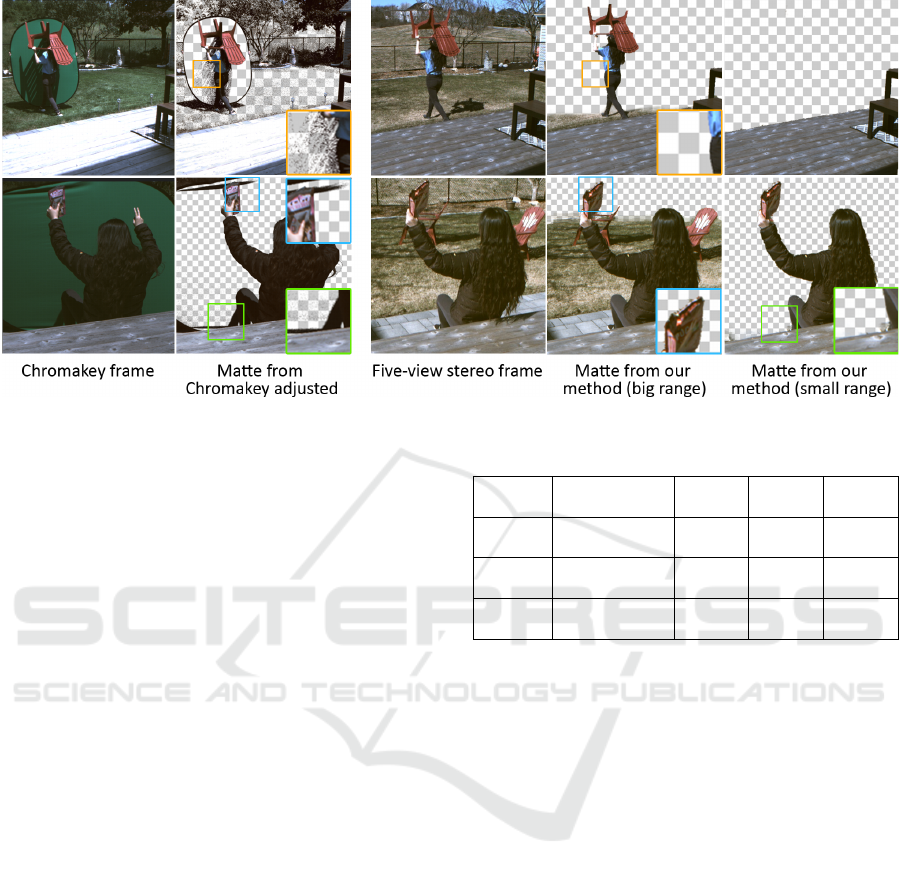

Figure 5: Visual comparison of matting between Chromakey and our result.

ference from a human visual perspective (Sara

et al., 2019).

Matting Accuracy. While generating matte from our

disparity bridges the research output and the post-

production process, the matting accuracy is another

key evaluating metric in our experiment. As is elab-

orated in Section 3.2, we compared the matte from

our disparity with an industrial color keyer Keylight

(Foundry, 2021). For the measures, we also used

RMSE, MAPE, and SSIM.

We animated the virtual environments with move-

ments applied on the objects or cameras for both dis-

parities and matting accuracy evaluations. Every se-

quence for each scenario is 100 frames long. Our

comparison took the mean value of each measure

from the 100 frames instead of the values from only

one frame.

4 RESULTS

4.1 Quantitative Comparison

4.1.1 Disparity Accuracy

As shown in Table 2, our method shows higher SSIM

result in all scenarios and remains stable in the realis-

tic scenario while the SSIM of the binocular method

drops signiﬁcantly when the camera relative rotation

and translation are introduced.

The RMSE and MAPE are error metrics that show

reverse behavior with SSIM. The disparity error gap

between our method and the binocular method are rel-

atively small in ideal and semi-realistic scenarios but

Table 2: The disparity accuracy comparison result.

Measure Method Ideal Semi-

realistic

Realistic

RMSE ↓

Our method 6.41 7.66 9.39

Binocular stereo 14.65 17.63 37.90

MAPE ↓

Our method 0.91% 0.96% 1.30%

Binocular stereo 1.56% 1.78% 9.64%

SSIM ↑

Our method 95.36% 94.88% 94.01%

Binocular stereo 93.12% 92.64% 78.50%

widen when it comes to a realistic scenario.

4.1.2 Matting Accuracy

The matting accuracy is also evaluated under ideal,

semi-realistic, and realistic scenarios. Chromakey’s

matting results are separated into raw and adjusted

versions for a more comprehensive comparison since

Keylight might reach a high matting accuracy with

some parameter changes. The raw version is simply

to extract the green screen color from the video with-

out any parameter adjustment, and the adjusted ver-

sion is the best Keylight matting accuracy we can get

by changing the parameters. The adjustment does not

involve any garbage matte or post-editing.

As can be observed from Table 3, it is not sur-

prising to see that adjusted Chromakey results show

higher SSIM and lower error rates than ours in ideal

and semi-realistic scenarios. However, our results

provide better performance in the realistic scenario,

and the unprocessed Chromakey matting results are

always less accurate than ours, which means Chro-

makey has to involve manual adjustments for a decent

output while our method performs well by running

automatically.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

850

Table 3: The matting accuracy comparison result.

Measure Method Ideal Semi-

realistic

Realistic

RMSE ↓

Our method 13.25 15.32 16.43

Keylight raw 9.22 19.64 49.23

Keylight adjusted 7.88 11.43 21.65

MAPE ↓

Our method 0.28% 0.37% 0.44%

Keylight raw 0.76% 0.32% 14.45%

Keylight adjusted 0.16% 0.24% 0.97%

SSIM ↑

Our method 98.80% 98.56% 98.45%

Keylight raw 83.71% 76.57% 44.28%

Keylight adjusted 99.33% 98.71% 96.05%

4.2 Visual Comparison

In the visual comparison for disparity, we gener-

ated depth sequences with both the binocular stereo

method and our method. In the comparison (Fig-

ure 6), our output shows cleaner edges, smoother

depth gradient, and has corrected many depth value

errors brought by occlusion. We also provided a vi-

sual comparison of matting between Chromakey and

our method.

Video frame Disparity from binocular

stereo

Disparity from our

method

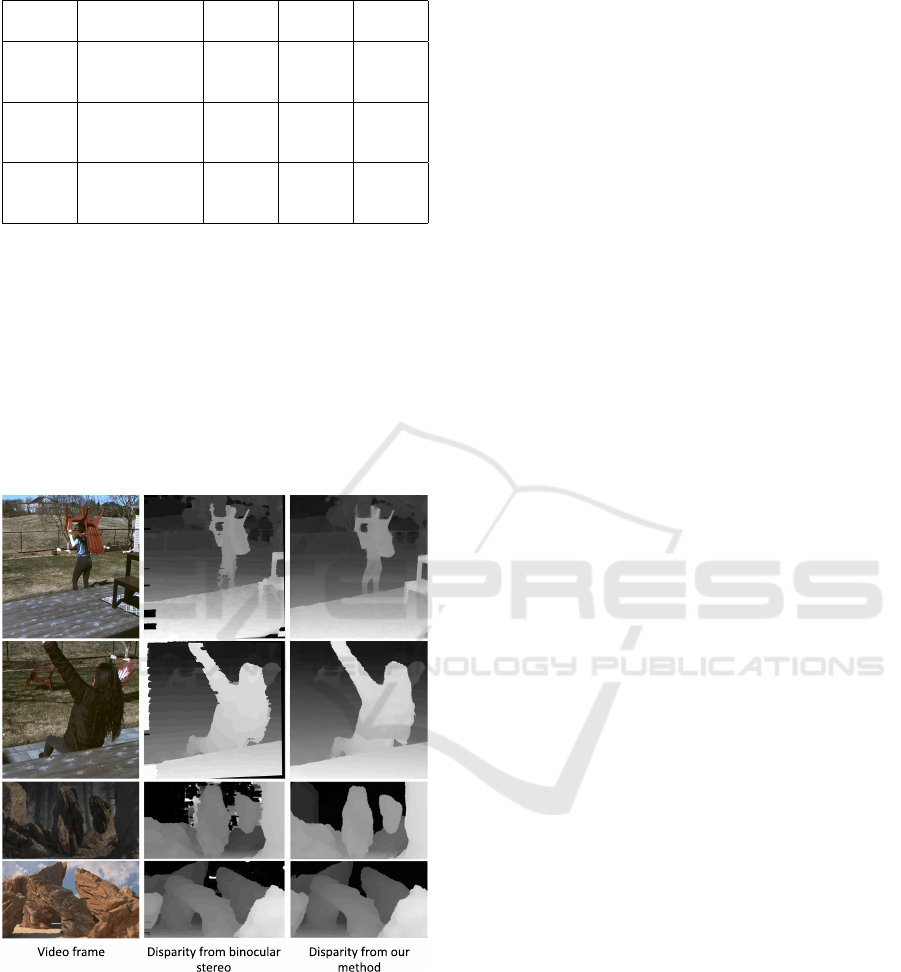

Figure 6: Visual comparison of disparity between binocular

stereo and our result.

For the depth-based-matting, we used our ﬁve-

view system to capture the screen-free scenes; for the

Chromakey-based matting, we replicated the move-

ments from the screen-free scenes but ﬁlmed with

green screen. The matting results (Figure 5) reveal

that even on the green screen covered regions, it is

hard to acquire a noise-free matte if there is a dense

shadow on the screen or any object with screen color

in the shots. Even the adjusted Chromakey matting

results require a large amount of garbage matte due to

green size limit and noises on the shadow area. On the

contrary, our method only requires selecting a range

of depth to create a matte. Also, we can select an ar-

bitrary range of depth from the disparity sequence to

mask out any part of the scene instead of only being

able to extract objects with a green screen behind.

4.3 Composition Test

To further demonstrate the matting capability of our

output, we composite visual effects into the videos

and compared it with the composition result from

Chromakey (more examples are included in the ac-

companying video).

As can be observed from Figure 7, since Chro-

makey only provides a two-layer matte that separates

the foreground and background as two planes, we can

only insert the effects as a single layer. However,

with disparity sequence, the scenes could be sliced

into multiple layers, where we can select a speciﬁc

range to insert the effects. When compositing ef-

fects that the amount of its opacity is inﬂuenced by

objects’ depth (e.g., ﬁre, explosion, sandstorm, fog),

having the disparity information of certain element

could help blend the visual effects into the live-action

shot for more vivid composition result.

4.4 Discussion

According to the results from our experiment, our

system generates disparity maps that have quantita-

tively and visually better performance than the tra-

ditional binocular disparity acquisition method, es-

pecially after the real-life challenges were added to

the experiment. Comparing the matting results be-

tween our method and the commercial color-keying

method, our disparity-based matting shows less ac-

curacy in an edge-detail-preserving perspective, but

provides outstanding matte accuracy within objects

though adding with highly inﬂuential challenges such

as camera’s positional deviations and color inconsis-

tency. Besides, our results reﬂect the depth gradient of

objects, which provides the post-production pipeline

with another option to composite effects regarding ob-

jects’ 3D structure, and the process is fully automated.

5 CONCLUSION

This research presents a stereo system that perceives a

scene from ﬁve views, where cameras from different

An Occlusion Aware Five-view Stereo System and Its Application in Video Post-production

851

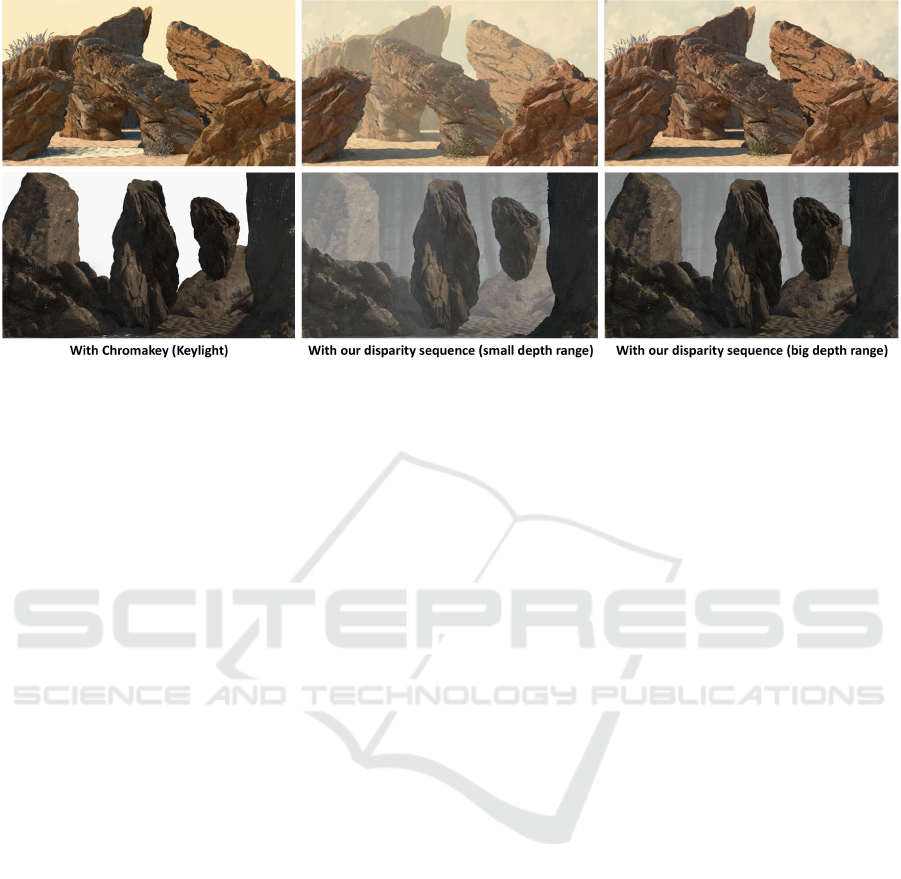

Figure 7: Insert effects into the virtual scenes.

directions ﬁll the blind spots that other cameras can-

not capture due to occlusion. The system is compat-

ible with both stationary and dynamic camera shots

and objects and has provided a new solution to live-

action elements’ extraction and visual effects compo-

sition. Throughout the research, we present a two-

axis image rectiﬁcation solution that efﬁciently re-

duced the difﬁculty of rectifying stereo pairs from var-

ious axes and have contributed the ﬁrst stereo dataset

that consists of ﬁve views in two axes, which are ap-

plicable in other multi-baseline or multi-view stereo

researches.

Our research is not free of limitations. Since our

research focuses more on solving the element extrac-

tion problem in the post-production, we compared the

matting results from our method with the the indus-

trial solutions. In the disparity side, we compared

our method with binocular stereo, but did not com-

pare with other multi-camera stereo methods, which

should be added in future for a more comprehensive

evaluation. We have not yet explored the disparity

matting for transparent or semi-transparent objects;

while it might be a frequently encountered task in

real-life video ﬁlming scenarios, we shall explore the

possibility of applying our method in such circum-

stances and replenish our system with new modules

for more complicated situations.

In the future work, we would like to attempt syn-

thesizing the stereo vision cameras and cinemato-

graphic camera, hence narrowing down the gap be-

tween the research and the industrial practices. On

the software side, we would like to explore the in-

tegration of image segmentation for reducing match-

ing errors caused by texture-less regions and the algo-

rithm’s lack of understanding of the semantics. Also,

learning-based temporal smoothing could be intro-

duced for more consistent depth output. On the appli-

cation side, by optimizing the procedure to real-time,

we can also explore the applications of this system in

VR and AR for providing a more interactive experi-

ence.

REFERENCES

Barron, J. T., Adams, A., Shih, Y., and Hern

andez, C.

(2015). Fast bilateral-space stereo for synthetic defo-

cus. In Proceedings of the IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 4466–

4474.

Barron, J. T. and Poole, B. (2016). The fast bilateral solver.

In European Conference on Computer Vision, pages

617–632. Springer.

Blackmagic (2021). Ultimatte.

Bleyer, M. and Breiteneder, C. (2013). Stereo

matching—state-of-the-art and research challenges.

In Advanced topics in computer vision, pages 143–

179. Springer.

Chuang, Y.-Y., Agarwala, A., Curless, B., Salesin, D. H.,

and Szeliski, R. (2002). Video matting of complex

scenes. In Proceedings of the 29th Annual Conference

on Computer Graphics and Interactive Techniques,

volume 50, pages 243–248, New York, NY, USA. As-

sociation for Computing Machinery.

Chung, C.-Y. and Chen, H. H. (2009). Video object ex-

traction via mrf-based contour tracking. IEEE trans-

actions on circuits and systems for video technology,

20(1):149–155.

Fehrman, B. and McGough, J. (2014). Depth mapping us-

ing a low-cost camera array. In 2014 Southwest sym-

posium on image analysis and interpretation, pages

101–104. IEEE.

Ferstl, D., Reinbacher, C., Ranftl, R., R

uther, M., and

Bischof, H. (2013). Image guided depth upsampling

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

852

using anisotropic total generalized variation. In Pro-

ceedings of the IEEE International Conference on

Computer Vision, pages 993–1000.

Foundry (2021). Keylight-foundry learn. website.

Fusiello, A. and Irsara, L. (2008). Quasi-euclidean uncal-

ibrated epipolar rectiﬁcation. In 2008 19th Interna-

tional Conference on Pattern Recognition, pages 1–4.

IEEE.

FXGuide (2014). The art of deep compositing. website.

Gvili, R., Kaplan, A., Ofek, E., and Yahav, G. (2003). Depth

keying. In Woods, A. J., Merritt, J. O., Benton, S. A.,

and Bolas, M. T., editors, Stereoscopic Displays and

Virtual Reality Systems X, volume 5006, pages 564–

574. SPIE.

Heber, S., Ranftl, R., and Pock, T. (2013). Variational shape

from light ﬁeld. In International Workshop on Energy

Minimization Methods in Computer Vision and Pat-

tern Recognition, pages 66–79. Springer.

Honegger, D., Sattler, T., and Pollefeys, M. (2017). Em-

bedded real-time multi-baseline stereo. In 2017 IEEE

International Conference on Robotics and Automation

(ICRA), pages 5245–5250. IEEE.

Hosni, A., Rhemann, C., Bleyer, M., Rother, C., and

Gelautz, M. (2012). Fast cost-volume ﬁltering for

visual correspondence and beyond. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

35(2):504–511.

Ihrke, I., Restrepo, J., and Mignard-Debise, L. (2016). Prin-

ciples of light ﬁeld imaging: Brieﬂy revisiting 25

years of research. IEEE Signal Processing Magazine,

33(5):59–69.

Jeon, H.-G., Park, J., Choe, G., Park, J., Bok, Y., Tai, Y.-W.,

and So Kweon, I. (2015). Accurate depth map estima-

tion from a lenslet light ﬁeld camera. In Proceedings

of the IEEE conference on computer vision and pat-

tern recognition, pages 1547–1555.

Kanade, Y., Yoshida, A., Oda, K., Kano, H., and Tanaka, M.

(1996). A stereo machine for video-rate dense depth

mapping and its new applications. In Proceedings

CVPR IEEE Computer Society Conference on Com-

puter Vision and Pattern Recognition, pages 196–202.

Kang, Y.-S., Lee, C., and Ho, Y.-S. (2008). An efﬁcient

rectiﬁcation algorithm for multi-view images in par-

allel camera array. In 2008 3DTV Conference: The

True Vision-Capture, Transmission and Display of 3D

Video, pages 61–64. IEEE.

Klodt, M. and Vedaldi, A. (2018). Supervising the new with

the old: learning sfm from sfm. In Proceedings of the

European Conference on Computer Vision (ECCV),

pages 698–713.

Kopf, J., Matzen, K., Alsisan, S., Quigley, O., Ge, F.,

Chong, Y., Patterson, J., Frahm, J.-M., Wu, S., Yu,

M., et al. (2020). One shot 3d photography. ACM

Transactions on Graphics (TOG), 39(4):76–1.

Levin, A., Lischinski, D., and Weiss, Y. (2008). A closed-

form solution to natural image matting. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

30(2):228–242.

Li, W., Viola, F., Starck, J., Brostow, G. J., and Campbell,

N. D. (2016). Roto++ accelerating professional roto-

scoping using shape manifolds. ACM Transactions on

Graphics (TOG), 35(4):1–15.

Li, Y., Sun, J., and Shum, H.-Y. (2005). Video object cut

and paste. In ACM SIGGRAPH 2005 Papers, pages

595–600.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International journal of computer

vision, 60(2):91–110.

Lu, T. and Li, S. (2012). Image matting with color

and depth information. In Proceedings of the

21st International Conference on Pattern Recognition

(ICPR2012), pages 3787–3790. IEEE.

Luo, X., Huang, J.-B., Szeliski, R., Matzen, K., and Kopf,

J. (2020). Consistent video depth estimation. ACM

Transactions on Graphics (TOG), 39(4):71–1.

Ma, F., Cavalheiro, G. V., and Karaman, S. (2019). Self-

supervised sparse-to-dense: Self-supervised depth

completion from lidar and monocular camera. In 2019

International Conference on Robotics and Automation

(ICRA), pages 3288–3295. IEEE.

Manakov, A., Restrepo, J., Klehm, O., Hegedus, R., Eise-

mann, E., Seidel, H.-P., and Ihrke, I. (2013). A recon-

ﬁgurable camera add-on for high dynamic range, mul-

tispectral, polarization, and light-ﬁeld imaging. ACM

Transactions on Graphics, 32(4):47–1.

Ming, Y., Meng, X., Fan, C., and Yu, H. (2021). Deep

learning for monocular depth estimation: A review.

Neurocomputing.

Nair, R., Ruhl, K., Lenzen, F., Meister, S., Sch

afer, H.,

Garbe, C. S., Eisemann, M., Magnor, M., and Kon-

dermann, D. (2013). A survey on time-of-ﬂight stereo

fusion. In Time-of-Flight and Depth Imaging. Sen-

sors, Algorithms, and Applications, pages 105–127.

Springer.

Nozick, V. (2011). Multiple view image rectiﬁcation. In

2011 1st International Symposium on Access Spaces

(ISAS), pages 277–282. IEEE.

Ota, M., Fukushima, N., Yendo, T., Tanimoto, M., and Fujii,

T. (2009). Rectiﬁcation of pure translation 2d camera

array. In Proceedings of the Korean Society of broad-

cast engineers conference, pages 659–663. The Ko-

rean Institute of Broadcast and Media Engineers.

Park, J., Kim, H., Tai, Y.-W., Brown, M. S., and Kweon, I.

(2011). High quality depth map upsampling for 3d-tof

cameras. In 2011 International Conference on Com-

puter Vision, pages 1623–1630. IEEE.

Park, K., Kim, S., and Sohn, K. (2018). High-precision

depth estimation with the 3d lidar and stereo fusion.

In 2018 IEEE International Conference on Robotics

and Automation (ICRA), pages 2156–2163. IEEE.

Sara, U., Akter, M., and Uddin, M. S. (2019). Image qual-

ity assessment through fsim, ssim, mse and psnr—a

comparative study. Journal of Computer and Commu-

nications, 7(3):8–18.

Scharstein, D., Hirschm

uller, H., Kitajima, Y., Krathwohl,

G., Ne

c, N., Wang, X., and Westling, P. (2014).

High-resolution stereo datasets with subpixel-accurate

ground truth. In German conference on pattern recog-

nition, pages 31–42. Springer.

An Occlusion Aware Five-view Stereo System and Its Application in Video Post-production

853

Schonberger, J. L. and Frahm, J.-M. (2016). Structure-

from-motion revisited. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 4104–4113.

Silberman, N. and Fergus, R. (2011). Indoor scene segmen-

tation using a structured light sensor. In 2011 IEEE in-

ternational conference on computer vision workshops

(ICCV workshops), pages 601–608. IEEE.

Tao, M. W., Srinivasan, P. P., Malik, J., Rusinkiewicz, S.,

and Ramamoorthi, R. (2015). Depth from shading,

defocus, and correspondence using light-ﬁeld angular

coherence. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

1940–1948.

Tao, T., Chen, Q., Feng, S., Hu, Y., and Zuo, C. (2018).

Active depth estimation from defocus using a camera

array. Applied optics, 57(18):4960–4967.

Vijayanarasimhan, S., Ricco, S., Schmid, C., Sukthankar,

R., and Fragkiadaki, K. (2017). Sfm-net: Learning

of structure and motion from video. arXiv preprint

arXiv:1704.07804.

Wang, L., Gong, M., Zhang, C., Yang, R., Zhang, C.,

and Yang, Y.-H. (2012). Automatic real-time video

matting using time-of-ﬂight camera and multichannel

poisson equations. International journal of computer

vision, 97(1):104–121.

Wu, G., Masia, B., Jarabo, A., Zhang, Y., Wang, L., Dai,

Q., Chai, T., and Liu, Y. (2017). Light ﬁeld image

processing: An overview. IEEE Journal of Selected

Topics in Signal Processing, 11(7):926–954.

Yang, J., Ding, Z., Guo, F., and Wang, H. (2014). Multi-

view image rectiﬁcation algorithm for parallel camera

arrays. Journal of Electronic Imaging, 23(3):033001.

Yang, Q., Yang, R., Davis, J., and Nist

er, D. (2007). Spatial-

depth super resolution for range images. In 2007 IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 1–8. IEEE.

Zhang, C. and Chen, T. (2004). A self-reconﬁgurable cam-

era array. In ACM SIGGRAPH 2004 Sketches, page

151.

Zhou, C., Lin, S., and Nayar, S. (2009). Coded aperture

pairs for depth from defocus. In 2009 IEEE 12th inter-

national conference on computer vision, pages 325–

332. IEEE.

Zhu, J., Wang, L., Yang, R., and Davis, J. (2008). Fusion

of time-of-ﬂight depth and stereo for high accuracy

depth maps. In 2008 IEEE Conference on Computer

Vision and Pattern Recognition, pages 1–8. IEEE.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

854
