Fusion of Different Features by Cross Cooperative Learning for

Semantic Segmentation

Ryota Ikedo and Kazuhiro Hotta

Meijo University, Japan

Keywords: Semantic Segmentation, Cooperative Learning, Multiple Backbones, Fusion of Different Features.

Abstract: Deep neural networks have achieved high accuracy in the ﬁeld of image recognition. Its technology is

expected to use the medical, autonomous driving and so on. Therefore, various deep learning methods have

been studied for many years. Recently, many studies used a backbone network as an encoder for feature

extraction. Of course, the extracted features are changed when we change backbone networks. This paper

focused on the differences in features extracted from two backbone networks. It will be possible to obtain the

information that cannot be obtained by a single backbone network, and we can get rich information to solve

a task. In addition, we use cross cooperative learning for fusing the features of different backbone networks

effectively. In experiments on two kinds of datasets for image segmentation, our proposed method achieved

better segmentation accuracy than conventional method using a single backbone network and the ensemble

of networks.

1 INTRODUCTION

Convolutional Neural Network (Krizhevsky, A.,

2012) achieved high accuracy in various kinds of

image recognition problems such as image

classiﬁcation (Szegedy, C.,2015)( Wang, F., 2017),

object detection (Redmon, J. 2016)( Liu, W.,2016),

pose estimation (Cao, Z., 2018) etc. In addition,

semantic segmentation assigns class labels to all

pixels in an input image. This task recognizes various

classes at pixel level. Semantic segmentation using

CNN is also applied to cartography (Isola, P., 2017)(

Ronneberger, O., 2015), automatic driving (Chen,

L.C., 2018) (Yang, M., 2018), medicine and cell

biology (Ji, X., 2015)(Havaei, M., 2017). Especially

in autonomous driving, it is necessary to instantly

predict various classes such as people, cars and signs

from in-vehicle images. Therefore, semantic

segmentation technology is important to realize

autonomous driving. In this paper, we work on

semantic segmentation task for autonomous driving.

We proposed cooperative learning method (Ryota, I.

2021) as conventional study. Neural network is

derived from the human brain structure. Cooperative

learning was based on the group learning of humans.

We used the learning method in a neural network.

Basic cooperative structure is showed Figure 1.

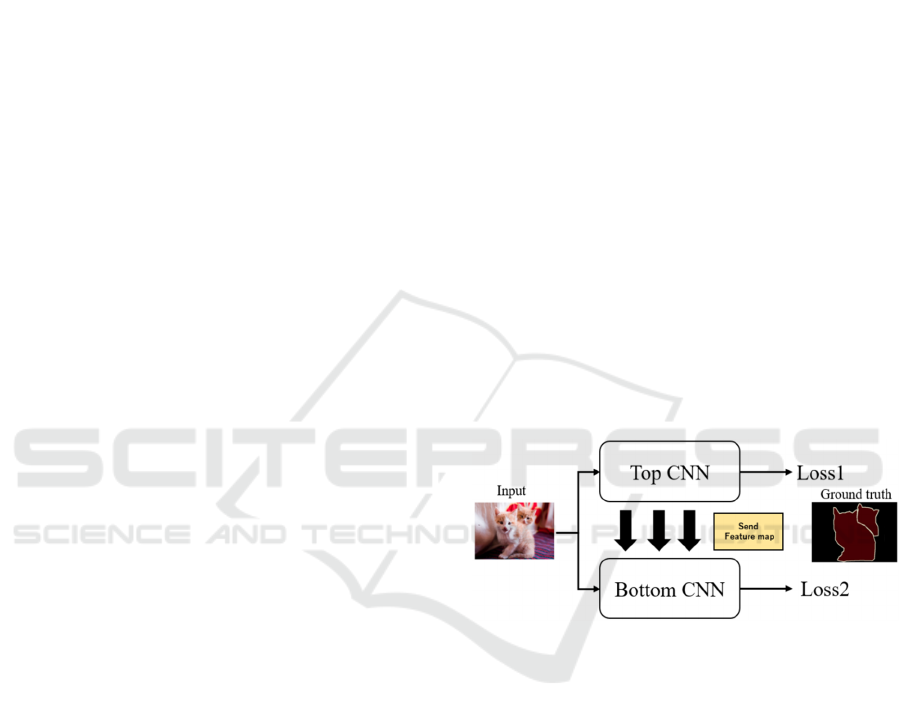

Figure 1: The structure of one-way cooperative network.

In Figure 1, we prepare two CNNs with the same

structure. Then, we introduce paths between two

networks for sending feature maps. Due to this

structure, bottom CNN can obtain new feature maps

from top network. Previous study used the exactly

same CNN structure. In other words, previous

cooperative learning is consulted with the same

person. There is a problem that bottom CNN cannot

get completely new information from top CNN.

Therefore, we propose to give completely different

feature maps in cooperative learning. We use two

kinds of backbone networks and extract different

features. Then, we use cross cooperative learning to

effectively fuse those features obtained from different

backbone networks. By sending the features

mutually, each network has rich features and

improves the accuracy.

582

Ikedo, R. and Hotta, K.

Fusion of Different Features by Cross Cooperative Learning for Semantic Segmentation.

DOI: 10.5220/0010889800003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

582-589

ISBN: 978-989-758-555-5; ISSN: 2184-4321

Figure 2: The overview of our cross cooperative network method.

We conducted the experiments on two kinds of

famous datasets. The first dataset is the Pascal VOC

2012 (Everingham, M., 2010). The second one is the

Cityscapes(Cordts, M., 2016) which is captured by

in-vehicle camera. We see that the proposed method

achieved higher accuracy than “single network”,”

previous cooperative network” and ”the ensemble of

networks”.

This paper is organized as follows. In section 2, we

describe related works. The details of proposed

method are explained in section 3. In section 4, we

evaluate our proposed cross cooperative learning on

segmentation tasks. Finally, we describe conclusions

in section 5.

Figure 3: The structure of DeepLabV3+.

2 RELATED WORKS

The state-of-the-art approaches for semantic

segmentation are based on CNNs. The famous

approach is based on Fully Convolutional Network

(FCN) such as SegNet (Badrinarayanan, V., 2017),

U-net (Ronneberger, O., 2015) and so on. They had

the simple structure of FCN but sharp accuracy

improvements have been achieved by new

architectures in recent years. One of the problems in

semantic segmentation is that CNN lost spatial

information by reducing the resolution in feature

extraction process. Dilated convolution was proposed

to solve this problem. It can extract the features while

preserving spatial information by expanding

receptive ﬁelds sparsely without reducing resolution.

In the other works, PSPNet (Zhao, H., 2017) and

DeepLab (Chen, L.C., 2018) proposed ASPP module.

This module aggregates feature information at

multiple scales. Thus, these works can get multi-scale

contextual information and achieved high accuracy.

Figure 4: Cross cooperative connection in our method.

Fusion of Different Features by Cross Cooperative Learning for Semantic Segmentation

583

In the latest semantic segmentation, they used

deep and large backbone network such as ResNet

(He, K., 2016), VGG (Simonyan, K., 2014),

Xception(Chollet, F., 2017). By using those backbone

networks, recent works achieved high accuracy. For

example, PSPNet used the ResNet101, and it showed

high accuracy in in-vehicle dataset. DeepLabV3+

used ResNet101 or Xception for feature extraction at

encoder. On the other hand, when we want to reduce

inference time, we should use light backbone

networks such as MobileNet (Sandler, M., 2018) and

EfficientNet (Tan, M., 2019). As described above,

many works use backbone network that suits their

purpose.

Basically, features are different when we changed

backbone networks. There is information which are

easy to extract and difficult to extract by the kind of

backbone network architecture. Therefore, it is

important for us to select backbone architecture. In

this paper, we focused on various information

obtained from different backbone networks. We

improved the segmentation accuracy by effectively

fusing the features of different backbones.

3 PROPOSED METHOD

3.1 Overview

Conventional cooperative learning (Ryota, I., 2021)

was used completely same two networks like figure1.

In other words, this structure is learning by two

exactly same persons. Thus, there was a problem that

networks have only similar information even if we

share feature maps between two CNNs. To overcome

the problem, we propose that not use the same

person's information but use the information of other

persons in new cooperative learning. The aim of new

cooperative learning is making a cooperative learning

that two networks are different like another person

each other. Therefore, we considered use different

backbones in cooperative network to obtain different

information in each network. In addition, we integrate

different features from each backbone network by

cooperative learning to solve a segmentation task.

In our method, we introduce different backbones.

Different backbone networks can extract different

features. But, there are easy to extract information

and hard to extract information for backbone

network. If we can supplement each with information

from two different backbones by using cooperative

learning, we can overcome this weakness.

In addition, using various kinds of features from

two backbones, our method can use the features that

a single backbone network cannot extract. From this

above, we thought our method improves the

segmentation accuracy.

We explain the details of networks in section 3.2.

We explain the connection methods between two

backbone networks in section 3.3.

3.2 Details of Network

Our proposed method was created based on

DeepLabV3+. We use the ResNet and the Xception

as backbones because the ResNet is used as the

backbone network in many tasks and the Xception is

higher extraction ability than the Resnet by separating

channel convolution and spatial convolution. We

show the overview of the proposed method in Figure

2. In particular, backbone1 is the Xception-65 and

backbone2 is the ResNet-101. We used two backbone

networks pretrained by ImageNet.

Next, we explain the structure of our cooperative

learning in Figure 2. Previous cooperative connection

was only one-way path from top network to bottom

network (Cordts, M., et. al.,2016). Our method uses

cross connections which can send feature maps each

other. We introduce the cross connection because we

would like to fuse two different information in top

and bottom networks. We used this connection at all

layers in decoders and ASPP module of

DeepLabV3+. By using the connection, top and

bottom networks are expected to obtain information

that single network cannot have. Therefore, cross

connection is more effective than conventional one-

way cooperative network. Finally, we obtain two

outputs from both CNNs for calculating losses. We

use these two losses to let the network learn

simultaneously for cooperative learning. We use

SoftMax Cross Entropy (CE) as a loss function.

Loss = Loss1 + Loss2 ・・・ (1)

where Loss1 is the CE loss for Top CNN and Loss2

is that for Bottom CNN. Both losses are optimized

simultaneously.

3.3 Connection Method

The structure of DeepLabv3+ is shown in Figure 3.

This model has backbone and ASPP as encoder, and

uses a decoder for predicting segmentation result. We

introduce cross cooperative connections to each layer

in the ASPP module and Decoder to effectively use

the features from different backbones.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

584

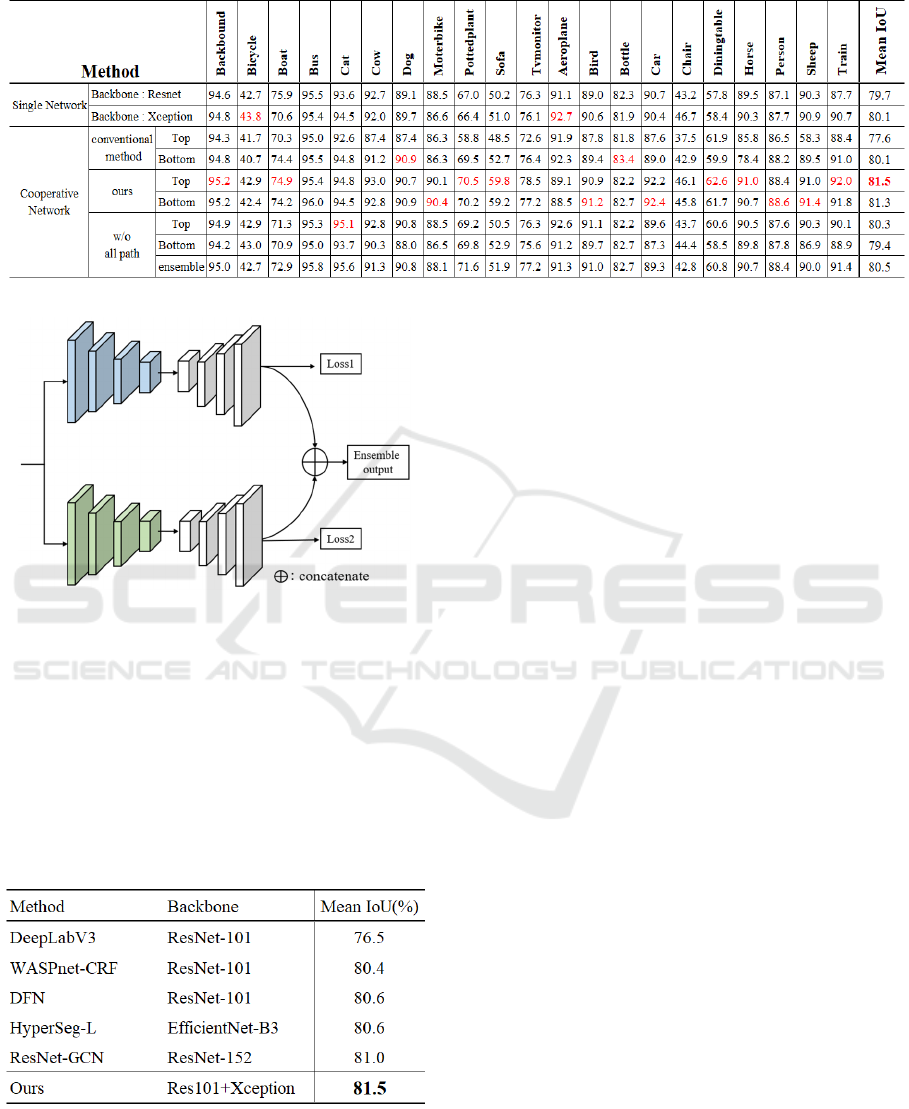

Table 1: Accuracy on the PASCAL VOC2012 dataset.

Figure 5: Ensemble output and ensemble method.

Connection1(Red Line) and Connection2(Blue

Line) in Figure 3 are the outputs from backbone

network and ASPP module. These connections have

original information extracted from the encoder.

Thus, if we also introduce cross cooperative

connections after Connection 1 and 2 as shown in

Figure 4, we can improve the accuracy further.

Table 2: Comparison with other models on the

PASCALVOC2012 val set.

Therefore, we also add cross cooperative

connections to the output of Connection 1 and 2.

Cross cooperative connection after Connection 1

gives the information from two different backbones

to each ASPP module. Cross cooperative connection

after Connection 2 gives the information that

enhanced by each ASPP to each decoder. This

structure can be expected to provide more useful

information for learning.

In experiments, we also evaluate the proposed

method without Connection 1 and 2 to investigate the

effectiveness of them.

4 EXPERIMENTS

In this section, we show experimental results. Section

4.1 describes the details of the dataset. Section 4.2

explains the implementation details. Section 4.3

shows the results on the PASCAL VOC dataset and

section 4.4 presents the results on the Cityscapes

dataset. Finally, in section 4.5, we show the

comparison results about the connections.

4.1 Datasets

In this paper, we evaluate the proposed method using

the PASCALVOC2012 and Cityscapes datasets. We

describe the two datasets as follows.

4.1.1 Pascal Voc2012

This dataset includes various kinds of images. There

are 10,582 images in training set, 1,449 images in

validation set and 1,456 images in test set. These

images involve 20 foreground object classes and one

background class. In this study, we use validation set

to get the best model. We evaluate the best model

determined by validation set for test set. In addition,

we randomly cropped the images of 513 × 513 pixels

from training set, and we cropped a center region in

validation and test phase.

Fusion of Different Features by Cross Cooperative Learning for Semantic Segmentation

585

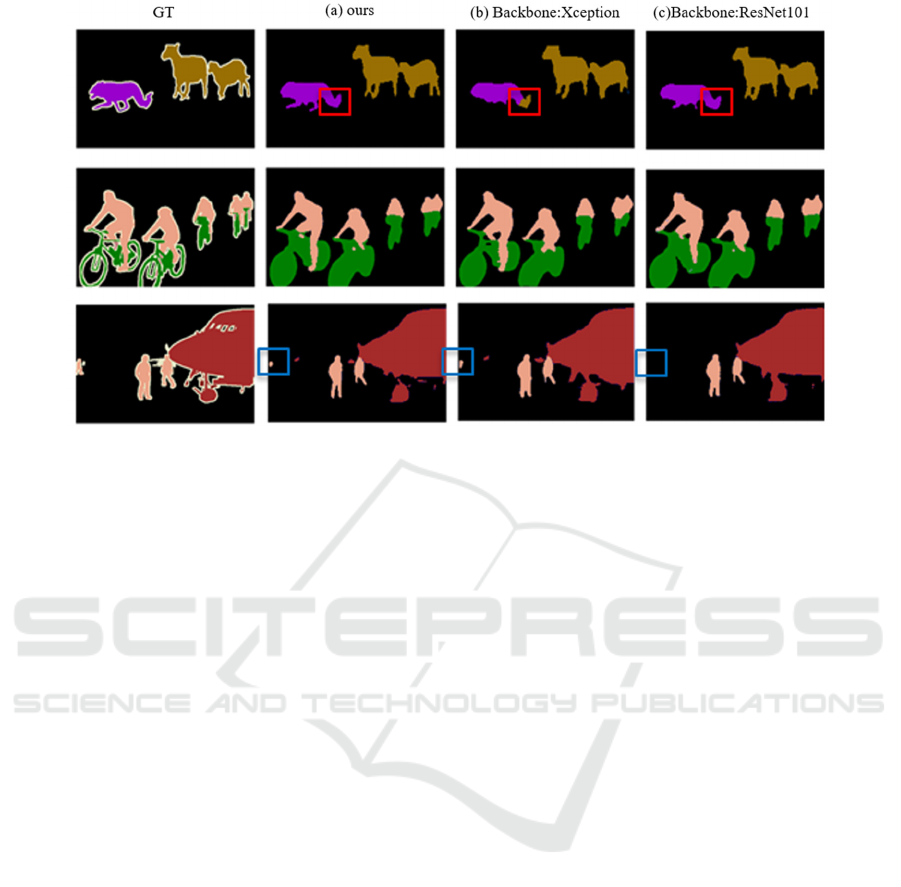

Figure 6: Segmentation result on the PASCALVOC 2012 dataset (val).

4.1.2 Cityscapes

This dataset includes the images captured by in-

vehicle camera in Germany. All images are 2048 ×

1024 pixels in which each pixel has high quality 19

class labels. There are 2,979 images in training set,

500 images in validation set. In this paper, we

randomly cropped images of 768×768 pixels and

used them for training.

4.2 Implementation Details

We implement our method by the Pytorch library and

cross cooperative learning based on DeepLabV3+. To

do fair comparison, we evaluated DeepLabV3+ and

the proposed method under the same conditions on

the same PC. We used single Deeplabv3+ (Resnet101

and Xception-65) and ensemble method model

(figure 5) as a baseline for comparison. In our

method, the batch size was fixed to 6 and SGD was

used as the optimizer. The learning rate was set to

0.007 for PASCALVOC and 0.035 for Cityscapes.

We used intersection over union (IoU) and mean IoU

(mIoU) as evaluation measures.

4.3 Evaluation Result on

Pascalvoc2012 Dataset

We evaluated the accuracy on validation set in the

PASCAL VOC dataset. We compared four methods;

a single network, the conventional cooperative

learning, our proposed method, and our method

without all cross cooperative paths between two

networks. Our method has two outputs from top and

bottom network. We have shown the results of each

output in the Table 1.

The red number in Table 1 represents the

maximum accuracy. We see that our proposed

method achieved the highest accuracy in Table 1. The

accuracy was improved more than 1.4% in

comparison with a single network (Deeplabv3+).

This result shows the effectiveness of the proposed

method which fuses the features extracted from

different backbones.

In conventional one-way cooperative learning

(Cordts, M., et. al.,2016), we send the feature maps in

top network to only bottom network. However, the

method induced the accuracy difference between top

and bottom networks, because top network cannot

receive additional feature maps. Here we introduce

cross connection to overcome the problem. Top

network can get information of bottom networks

Therefore, we achieved high accuracy in both

networks. We see that the proposed method

overcomes the weakness of the conventional method

and improved the accuracy. Next, we reveal the effect

of cooperative connection by comparing with the

ensemble of two networks as shown in Figure 5. The

ensemble method is just adding the final output to the

outputs of two networks. Table 1 showed that our

proposed method is 1.0% higher than the ensemble.

This result indicated more effective than standard

ensemble of two networks. Thus, our proposed cross

connection is useful for fusing the feature maps of

different backbone networks.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

586

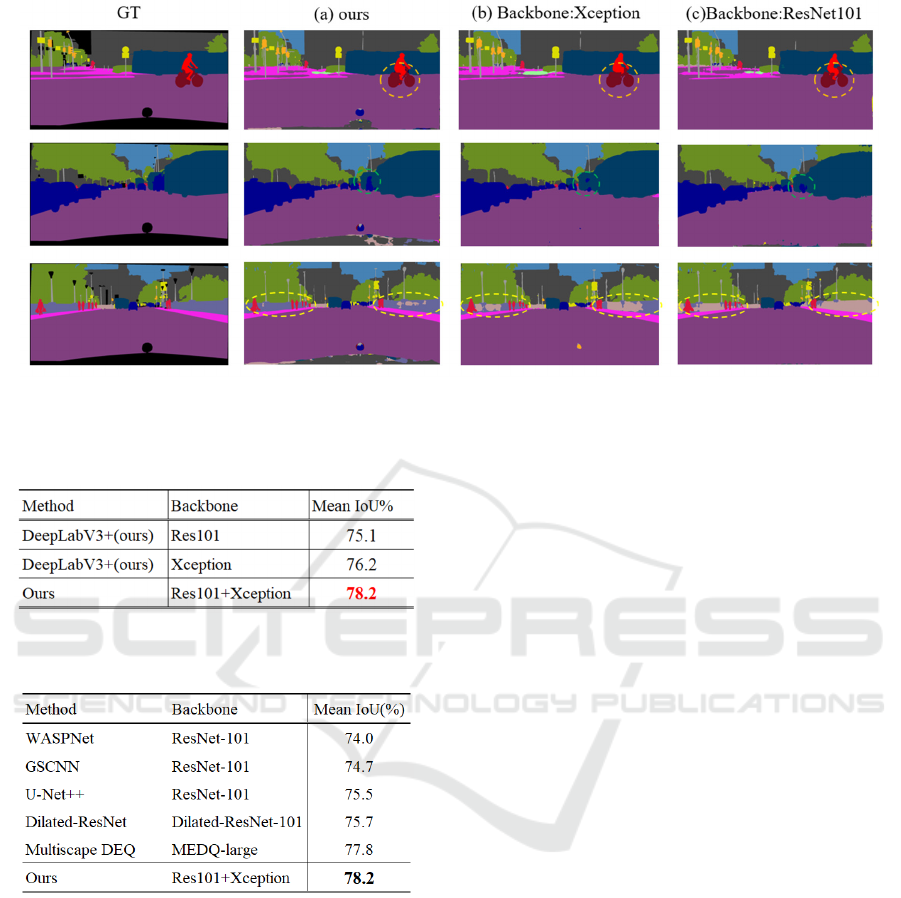

Figure 7: Segmentation results on the Cityscapes dataset (val).

Table 3: Accuracy on the Cityscapes dataset using

DeepLabV3+.

Table 4: Comparison with other models on the Cityscapes

val set.

We show the comparison results with other

segmentation models in Table 2. Conventional

segmentation models have only one backbone

network. Our method with two backbone networks

achieved higher accuracy than those methods. These

results demonstrated the effectiveness of the

proposed cross cooperative learning method.

Figure 6 shows the segmentation results. In the

first row, the red area is recognized correctly by

single Deeplabv3+ using Xception, but not

recognized by that with ResNet101. On the other

hand, the blue area is recognized correctly by that

with ResNet101 though Xception based Deeplabv3+

cannot recognize well. Many segmentation results

showed the improvement of our method though we

discovered a few results with bad influence. Thus,

qualitative results also demonstrated that our

proposed method could incorporate two feature maps

effectively.

4.4 Evaluation Result on Cityscapes

Dataset

We also evaluated the proposed method on the

Cityscapes dataset. For fair comparison under the

same condition, single Deeplabv3+ network was

evaluated with own implementation.

Comparison results with Deeplabv3+ are shown

in Table 3. Our method which uses DeepLabv3+ as a

baseline improved over 2% on mIoU than single

Deeplabv3+ using each backbone. Table 4 shows

comparison results with the other segmentation

models. Table 4 show that our method is higher

accuracy than the other models which use ResNet-

101 or Dilated-ResNet as backbone. These results

showed that our method using feature fusion is more

effective.

Figure 7 shows the segmentation results on the

Cityscapes dataset. Similarly with the PASCALVOC

2012 dataset, the proposed method can incorporate

the advantages of each backbone network. We can

show that our method was also useful for improving

the accuracy on another dataset.

4.5 Ablation Study

As introduced in Section 3-3, the proposed cross

cooperative learning contains two additional cross

cooperative connection at Connection 1 and 2.

Therefore, we study their contributions on

Fusion of Different Features by Cross Cooperative Learning for Semantic Segmentation

587

PASCALVOC2012 dataset. As shown in Table 5,

when we did not introduce additional connections, the

accuracy was 80.36%. The gain of cross cooperative

connection at Connection1 is 0.16%. When we add

cross connection at Connection2 to our method, it

boosted 1.15% in comparison with the proposed

method without additional connections. Especially,

ASPP improved the feature extraction ability by

performing some dilated convolutions and pooling,

and it can obtain beneficial feature maps. Therefore,

cross connection at Connection1 brings good effect to

ASPP and cross connection at Connection2 brings

good effect in decoding the extracted information.

These results demonstrated the effectiveness of the

additional cross cooperative connection.

5 CONCLUSION

In this paper, we proposed new cooperative learning

method by fusing the features of different backbone

networks for semantic segmentation. Especially, we

used cross cooperative learning with two different

backbones, and our method improved the

conventional cooperative learning. We confirmed

that our method improved the segmentation accuracy

on the PASCAL VOC2012 dataset and the Cityscapes

dataset.

The proposed cross cooperative network used

much calculation resource because our method needs

multiple backbone networks. Therefore, we would

like to realize the cross cooperative learning with

lower computational cost and high accuracy. This is

a subject for future works.

ACKNOWLEDGEMENTS

This paper is partially supported by JSPS KAKENHI

18K11382.

REFERENCES

Krizhevsky, A., Sutskever, I., Hinton, G.E.: Imagenet

classification with deep con-volutional neural

networks. In:Advances in Neural Information

Processing Sys-tems. 1097–1105 (2012)

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., Rabinovich,

A.: Going deeper with convolutions. In: Proceedings of

the IEEE conference on Computer Vision and Pattern

Recognition. pp. 1–9 (2015)

Wang, F., Jiang, M., Qian, C., Yang, S., Li, C., Zhang, H.,

Wang, X., Tang, X.: Residual attention network for

image classiﬁcation. In: Proceedings of the IEEE

Conference on Computer Vision and Pattern

Recognition. pp. 3156–3164 (2017)

Redmon, J., Divvala, S., Girshick, R., Farhadi, A.: You only

look once:uniﬁed, real-time object detection. In:

Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition. pp. 779–788 (2016)

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.Y., Berg, A.C.: Ssd: Single shot multibox

detector. In: Proceedings of the European Conference

on Computer Vision. pp. 21–37. Springer (2016)

Cao, Z., Hidalgo, G., Simon, T., Wei, S.E., Sheikh, Y.:

Openpose: realtime multi-person 2d pose estimation

using part aﬃnity ﬁelds. arXiv preprint

arXiv:1812.08008 (2018)

Cao, Z., Simon, T., Wei, S.E., Sheikh, Y.: Realtime multi-

person 2d pose estimation using part aﬃnity ﬁelds. In:

Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition. pp. 7291–7299 (2017)

Isola, P., Zhu, J.Y., Zhou, T., Efros, A.A.: Image-to-image

translation with conditional adversarial networks. In:

Proceedings of the IEEE conference on Computer

Vision and Pattern Recognition. pp. 1125–1134 (2017)

Ronneberger, O., Fischer, P., Brox, T.: U-net:

Convolutional networks for biomedical image

segmentation. In: International Conference on Medical

Image Computing and Computer-Assisted

Intervention. pp. 234–241. Springer (2015)

Chen, L.C., Collins, M., Zhu, Y., Papandreou, G., Zoph, B.,

Schroﬀ, F., Adam, H., Shlens, J.: Searching for eﬃcient

multi-scale architectures for dense image prediction. In:

Advances in Neural Information Processing Systems.

pp. 8699–8710 (2018)

Yang, M., Yu, K., Zhang, C., Li, Z., Yang, K.: Denseaspp

for semantic segmentation in street scenes. In:

Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition. pp. 3684–3692 (2018)

Havaei, M., Davy, A., Warde-Farley, D., Biard, A.,

Courville, A., Bengio, Y., Pal, C., Jodoin, P.M.,

Larochelle, H.: Brain tumor segmentation with deep

neural networks. Medical image analysis 35, 18–31

(2017)

Ji, X., Li, Y., Cheng, J., Yu, Y., Wang, M.: Cell image

segmentation based on an improved watershed

algorithm. In: 2015 8th International Congress on

Image and Signal Processing. pp. 433–437. (2015)

Ryota, I. and Kazuhiro, H.: Feature Sharing Cooperative

Network for Semantic Segmentation. In: Proceedings

of the 16th International Joint Conference on Computer

Vision, Imaging and Computer Graphics Theory and

Applications, pp. 577-584. (2021)

Cordts, M., Omran, M., Ramos, S., Rehfeld, T., Enzweiler,

M., Benenson, R., Franke, U., Roth, S., Schiele, B.: The

cityscapes dataset for semantic urban scene

understanding. In: Proceedings of the IEEE conference

on Computer Vision and Pattern Recognition. pp.

3213–3223 (2016)

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

588

Everingham, M., Van Gool, L., Williams, C.K., Winn, J.,

Zisserman, A.: The pascal visual object classes (voc)

challenge. International journal of computer vision

88(2), 303–338 (2010)

Badrinarayanan, V., Kendall, A., Cipolla, R.: Segnet: A

deep convolutional encoder-decoder architecture for

image segmentation. IEEE Transactions on Pattern

Analysis and Machine Intelligence 39(12), 2481–2495

(2017)

Ronneberger, O., Fischer, P., Brox, T.: U-net:

Convolutional networks for biomedical image

segmentation. In: International Conference on Medical

Image Computing and Computer-Assisted

Intervention. pp. 234–241. Springer (2015)

Zhao, H., Shi, J., Qi, X., Wang, X., Jia, J.: Pyramid scene

parsing network. In: Proceedings of the IEEE

Conference on Computer Vision and Pattern

Recognition. pp. 2881–2890 (2017)

Chen, L.C., Papandreou, G., Kokkinos, I., Murphy, K.,

Yuille, A.L.: Deeplab: Semantic image segmentation

with deep convolutional nets, atrous convolution, and

fully connected crfs. IEEE Transactions on Pattern

Analysis and Machine Intelligence 40(4), 834–848

(2017)

Chen, L.C., Papandreou, G., Schroﬀ, F., Adam, H.:

Rethinking atrous convolution for semantic image

segmentation. arXiv preprint arXiv:1706.05587 (2017)

Chen, L.C., Zhu, Y., Papandreou, G., Schroﬀ, F., Adam, H.:

Encoder-decoder with atrous separable convolution for

semantic image segmentation. In: Proceedings of the

European Conference on Computer Vision. pp. 801–

818 (2018)

He, K., Zhang, X., Ren, S., Sun, J: Deep residual learning

for image recognition. In: Proceedings of the IEEE

Conference on Computer Vision and Pattern

Recognition. pp. 770–778 (2016)

Simonyan, K., Zisserman, A.: Very deep convolutional

networks for large-scaleimage recognition. arXiv

preprint arXiv:1409.1556 (2014)

Chollet, F.: Xception: Deep learning with depthwise

separable convolutions. In: Proceedings of the IEEE

Conference on Computer Vision and Pattern

Recognition. pp. 1251–1258 (2017)

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., Chen,

L. C. Mobilenetv2: Inverted residuals and linear

bottlenecks. In Proceedings of the IEEE conference on

computer vision and pattern recognition pp. 4510-4520

(2018)

Tan, M., Le, Q. V: Efficientnet: Rethinking model scaling

for convolutional neural networks. In Proceedings of

the International conference on machie learning. pp.

6105-6114 (2019)

Artacho, B., Savakis, A.: Waterfall atrous spatial pooling

architecture for efficient semantic segmentation.

Sensors, 19(24), 5361 (2019).

Takikawa, T., Acuna, D., Jampani, V., Fidler, S. Gated-

scnn: Gated shape cnns for semantic segmentation. In

Proceedings of the IEEE International Conference on

Computer Vision pp. 5229-5238 (2019)

Zhou, Z., Siddiquee, M. M. R., Tajbakhsh, N., Liang, J.

Unet++: A nested u-net architecture for medical image

segmentation. In Deep learning in medical image

analysis and multimodal learning for clinical decision

support pp. 3-11(2018)

Bai, S., Koltun, V., Kolter, J. Z. Multiscale deep

equilibrium models. In Neural Information Processing

Systems, pp.33, (2020)

Yu, C., Wang, J., Peng, C., Gao, C., Yu, G., Sang, N.

Learning a discriminative feature network for semantic

segmentation. In Proceedings of the IEEE conference

on computer vision and pattern recognition (pp. 1857-

1866) (2018)

Nirkin, Y., Wolf, L., Hassner, T. Hyperseg: Patch-wise

hypernetwork for real-time semantic segmentation. In

Proceedings of the IEEE/CVF Conference on

Computer Vision and Pattern Recognition pp. 4061-

4070 (2021)

Peng, C., Zhang, X., Yu, G., Luo, G., Sun, J. Large kernel

matters--improve semantic segmentation by global

convolutional network. In Proceedings of the IEEE

conference on computer vision and pattern recognition

pp. 4353-4361 (2017)

Fusion of Different Features by Cross Cooperative Learning for Semantic Segmentation

589
