Cross-lingual Detection of Dysphonic Speech for Dutch and

Hungarian Datasets

Dávid Sztahó

, Miklós Gábriel Tulics

, Jinzi Qi

, Hugo Van Hamme

and Klára Vicsi

Department of Telecommunication and Media Informatics,

Budapest University of Technology and Economics,

Budapest, Hungary

KU Leuven, Department Electrical Engineering ESAT-PSI, Leuven, Belgium

Keywords: Dysphonia, Speech, Machine Learning, Speech Disorder, SVM.

Abstract: Dysphonic voices can be detected using features derived from speech samples. Works aiming at this topic

usually deal with mono-lingual experiments using a speech dataset in a single language. The present paper

targets extension to a cross-lingual scenario. A Hungarian and a Dutch speech dataset are used. Automatic

binary separation of normal and dysphonic speech and dysphonia severity level estimation are performed and

evaluated by various metrics. Various speech features are calculated specific to an entire speech sample and

to a given phoneme. Feature selection and model training is done on Hungarian and evaluated on the Dutch

dataset. The results show that cross-lingual detection of dysphonic speech may be possible on the applied

corpora. It was found that cross-lingual detection of dysphonic speech is indeed possible with acceptable

generalization ability, while features calculated on phoneme-level parts of speech can improve the results.

Considering cross-lingual classification test sets, 0.86 and 0.81 highest F1-scores can be achieved for feature

sets with the vowel /E/ included and excluded, respectively and 0.72 and 0.65 highest Pearson correlations

can be achieved or severity prediction using features sets with the vowel /E/ included and excluded,

respectively.

1 INTRODUCTION

Speech is becoming more and more popular as a

biomarker for detecting diseases. There are numerous

disorders that affect speech production (either by

changing the organs or affecting the neuro-motor

aspect) and therefore can be identified by acoustic-

phonetic features. Almost one third of the population

is, at some point in their life, affected by dysphonia

(Cohen et al., 2012). The term dysphonia is often

inter-charged with hoarseness, nevertheless this

terminology is inaccurate because hoarseness is a

symptom of altered voice quality reported by patients,

while dysphonia is typified by a clinically recognized

disturbance of voice production (Johns et al., 2010).

The concepts of voice disorder and dysphonia are not

the same. A voice disorder occurs when somebody’s

voice quality, pitch, and loudness are inappropriate

for an individual’s age, gender, cultural background,

or geographic location, while dysphonia considers

only the auditory-perceptual symptoms of these

(Boone et al., 2005).

There are numerous works that deal with the

automatic separation of dysphonic and normal speech

by means of machine learning methods. There exist

corpora containing sustained vowels, such as the

Arabic Voice Pathology Database (AVPD), the

German Saarbrücken Voice Database (SVD) and the

Massachusetts Eye and Ear Infirmary (MEEI) speech

database. However, speech databases containing

continuous dysphonic speech are not easy to find.

Various results have been shown on various datasets.

In Ali et al. (2017) researchers use the MEEI voice

disorder database to test their designed and

implemented health care software for the detection of

voice disorders in non-periodic speech signals. The

classification was done with a support vector machine

(SVM) and the maximum obtained accuracy was

96.21%. In their experiment, the sustained vowel /ah/

was used, vocalized by dysphonic patients and

healthy controls. In Al-Nasheri et al. (2017)

accuracies are reported to be 99.54%, 99.53%, and

96.02% for MEEI, SVD, and AVPD. In their study a

SVM was applied as a classifier on sustained vowel

/a/ extracted from the databases for both normal and

Sztahó, D., Tulics, M., Qi, J., Van Hamme, H. and Vicsi, K.

Cross-lingual Detection of Dysphonic Speech for Dutch and Hungarian Datasets.

DOI: 10.5220/0010890200003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 4: BIOSIGNALS, pages 215-220

ISBN: 978-989-758-552-4; ISSN: 2184-4305

215

pathological voices. Some of the works presented on

the MEEI voice disorder database reveal very high

results that led researchers to question the usefulness

of the database. Muhammad et al. in (Muhammad et

al., 2017) argue that the normal and pathological

voices are recorded in two different environments in

this database. Therefore, it is hard to distinguish

whether the system is classifying voice features or

environments. Using continuous speech is a different

matter. Vicsi and her colleagues (Vicsi et al., 2011)

used acoustic features measured from continuous

speech to classify 59 speakers into healthy (26

speakers) and dysphonia (33 speakers) groups. Their

classification accuracies were in the range of 86%-

88%. Thus, these evaluations aiming for automatic

separation of dysphonic and normal speech are hard

to compare, because of the different datasets they

used.

Multilingual evaluation of such experiments and

methods is rare. In (Shinohara et al., 2017), dysarthric

speech is considered for corpora in three languages.

The research uses only pitch related features and the

experiments are monolingual, meaning that detection

possibilities are evaluated on each dataset separately,

but not done in a cross-lingual way. The aim of this

work is to introduce a cross-language detection

evaluation done on dysphonic speech from Hungarian

and Dutch corpora. Beside the two-class decision,

cross-lingual experiments are done also for

estimating the severity of dysphonia. A support

vector machine is used for classification and support

vector regression (SVR) is used for severity

estimation.

In the next Section, the corpora and the methods

used are introduced along with the evaluation

scenarios. In Section 3, the results are detailed

followed by their discussion.

2 METHODS

2.1 Database

Two dysphonic speech datasets were used for the

study: a Hungarian and a Dutch containing the same

short tale (‘The North Wind and the Sun’) in each

language. All patients gave signed consent for their

voices to be recorded. Hungarian voice samples were

collected from patients during their appointments at

the Department of Head and Neck Surgery of the

National Institute of Oncology. Each patient was a

native speaker of Hungarian. A total of 148 patients

were recorded (75 females and 73 males). The RBH

scale (Wendler et al., 1986) was used for assessing

the state of the patients, which gives the severity of

dysphonia, where R stands for roughness, B for

breathiness and H for overall hoarseness. H was used

for severity labels for the Hungarian samples, ranging

from 0 to 3: 0 - no hoarseness, 1 - mild hoarseness, 2

- moderate hoarseness, 3 - severe hoarseness. Beside

the patient samples, 160 healthy samples were

recorded with the same age distribution. The

distribution of the H value in the dataset is shown in

Table 1.

Dutch samples were recorded at the university

hospital of KU Leuven, Belgium, from a total of 30

patients visiting their speech therapist. Samples were

assessed according to the GRBAS (Grade - overall

judgement of hoarseness, Roughness, Breathiness,

Asthenia, Strain) scale by Hirano’s study in 1981 in

the Anglo-Saxon and Japanese territory (Omori,

2011). The value G was used as severity labels, which

ranges from 0 to 3, where 0 is the lack of hoarseness

(normal), 1 is a slight degree, 2 is a medium degree,

and 3 is a high degree of hoarseness. Beside the

patient samples, 30 healthy samples were recorded

with the same age distribution. The distribution of the

G value in the dataset is shown in Table 1. Both H and

G values mean the hoarseness of the voice in the

different assessment protocols. For the sake of clarity,

throughout the paper we will use the notation ‘H’ for

the severity of both datasets.

Automatic segmentation of the corpora was done

by force-alignment automatic speech recognition

(ASR) using the available transcription for both

languages (Kiss et al., 2013).

Table 1: Hoarseness distribution of datasets.

hoarseness assessment

0 1 2 3

dataset

Hungarian 160 46 57 45

Dutch 30 10 17 3

2.2 Acoustic Features

The list of acoustic features used in the study is shown

in Table 2. It shows how each feature is summarized

for a sample (its mean value, standard deviation or

range). The calculation frame is also shown for each

feature. A feature can be calculated on the entire

sample without segmentation or only on phoneme /E/

(SAMPA alphabet) using phoneme level

segmentation. /E/ was selected because, apart from

the unstable schwa, it is the most frequent vowel in

Dutch and Hungarian. The exact calculation place is

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

216

Table 2: List of acoustic features and their calculation details.

Feature Calculation function for a sample Calculation frame Calculated on

intensity

mean, standard deviation, range

(full, 1, 5, 10, 25 percentile)

100 ms full sample, vowel /E/

pitch

mean, standard deviation, range

(full, 1, 5, 10, 25 percentile), slope

64 ms full sample, vowel /E/

mfcc mean 25 ms full sample, vowel /E/

jitter mean, standard deviation 64 ms full sample, vowel /E/

shimmer mean, standard deviation 64 ms full sample, vowel /E/

HNR mean, standard deviation 64 ms full sample, vowel /E/

SPI - 25 ms full sample, vowel /E/

first two formants and

their

andwi

ths

mean, standard deviation 25 ms vowel /E/

IMF_ENTROPY_RATIO full vowel vowel /E/

Table 3: Dysphonia classification results using model trained on Hungarian samples.

features case acc sens spec F1 AUC

with /E/

feature selection on Hun

arian sam

les 0.88 0.85 0.90 0.87 0.92

evaluation on Dutch samples 0.86 0.86 0.87 0.86 0.95

without /E/

feature selection on Hungarian samples 0.82 0.77 0.88 0.81 0.90

evaluation on Dutch samples 0.81 0.83 0.80 0.81 0.91

Table 4: Dysphonia severity estimation results using model trained on Hungarian samples.

features case Spearman Pearson RMSE

with /E/

feature selection on Hungarian samples 0.73 0.75 0.75

testing on Dutch samples 0.74 0.72 0.79

without /E/

feature selection on Hungarian samples 0.71 0.73 0.79

testing on Dutch samples 0.66 0.65 0.88

also noted in the table. Each feature was calculated

with a 10 ms timestep.

2.3 Classification and Regression

Binary classification (healthy vs. dysphonic speech)

was done by support vector machines (Chang & Lin,

2011) (c-SVM). SVM was chosen as it is a common

baseline classifier with appropriate performance and

generalization ability achieved on limited number of

data (Tulics et al., 2019). A linear kernel function was

used and the hyperparameter C (cost) was set to 1.

Severity of dysphonia was estimated by support

vector regression (epsilon-SVR). Also here, a linear

kernel function was applied with C set to 1. Cross-

lingual experiment scenarios were created in which

the Dutch corpus was applied as an independent test

dataset and the corpus of the Hungarian samples was

used as a training-development set in a 10-fold cross-

validation setup (folds are disjoint over the speaker

set). Because the Dutch corpus had a limited number

of samples, training a model with these samples is not

yet possible. Feature selection was done on the

training-development set by applying an evolutionary

algorithm (Jungermann, 2009) (parameters: 5 as

population size, 1 as minimum number of features, 30

as maximum number of generations). The

experiments were carried out in RapidMiner 9.2

(RapidMiner).

Performance of classification was evaluated by

the following metrics: accuracy, sensitivity,

specificity, F1-score and are under the curve (AUC)

score. Severity score estimation (regression) was

evaluated by Spearman and Pearson correlation and

root mean square error (RMSE).

Cross-lingual Detection of Dysphonic Speech for Dutch and Hungarian Datasets

217

3 RESULTS

Classification and regression tests were carried out to

evaluate the cross-lingual detection possibilities of

speech samples of dysphonia. The automatic

separation possibility of dysphonic speech was

examined through binary classification and automatic

severity level estimation was investigated by

regression. Due to the cross-lingual nature of the

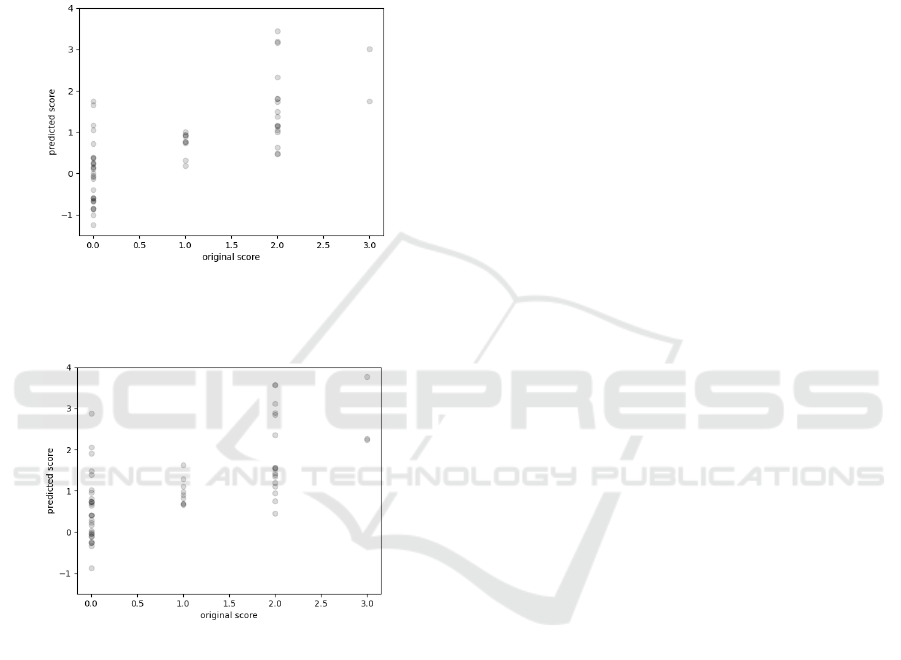

Figure 1: Scatter plot of original and the estimated H scores

for Hungarian-Dutch cross-lingual scenario with features

derived from the vowel /E/.

Figure 2: Scatter plot of original and the estimated H scores

for Hungarian-Dutch cross-lingual scenario without

features derived from the vowel /E/.

experiments, training and test samples differ in

language, so language specific features may reduce

performance. Therefore, two sets of initial feature sets

were applied: one including all features calculated

both on the entire sample and on the vowels /E/ (listed

in Table 1), and the other set was a reduced set

including only the features calculated on the entire

sample without applying any features resulting from

language specific pre-processing. Our aim was to

examine if language-dependent processing such as

phoneme-level segmentation and calculation of

features of phoneme /E/ could improve or worsen the

results.

3.1 Dysphonic Speech Classification

Results of classification evaluation are shown in

Table 3 for the two feature sets (with and without

features derived from vowel /E/, respectively).

Accuracy, sensitivity, specificity, F1-score and AUC

values are shown, in this order. Results on both the

training-development and the test sets are shown. If

both are equal or close, the generalization ability of

the trained model can be considered good in the

targeted language. As the table shows, training on

Hungarian samples, both feature sets have a good

generalization. Features using vowel /E/ performed

better in this case. Considering test sets, 0.86 and 0.81

highest F1-scores can be achieved for feature sets

with the vowel /E/ included and excluded,

respectively.

3.2 Dysphonic Severity Estimation

Similar to classification, results of severity score

estimation (regression) are shown in Table 4 for the

two feature sets (with and without features derived

from vowel /E/, respectively). Spearman, Pearson

correlations and root mean square error (RMSE)

values are shown, in this order. As expected, similar

tendencies can be observed for both cross-lingual

directions and feature sets. Training the model with

Hungarian samples and evaluating it on Dutch

samples shows a high generalization ability and a

reasonable accuracy, with better results using all

features. Considering test sets, 0.72 and 0.65 highest

Pearson correlations can be achieved for features sets

with the vowel /E/ included and excluded,

respectively. Figures 1 and 2 show the scatter plots of

original and the estimated H scores for the two

features sets. Markers are plotted with transparent

colours in order to see their distribution.

4 DISCUSSION

As the results show, cross-lingual detection of

dysphonic speech may be possible. There are two

main statements that can be derived from the analysis:

(1) an acceptable generalization ability can be

achieved and (2) phoneme-level features measured on

/E/ can enhance cross-lingual results.

The Hungarian sample set contains much more

samples than the Dutch set (~5 times more). This

surely has a significant effect on performance.

Results here are obtained by building models using

Hungarian samples and evaluating them on the Dutch

corpus, while the other direction is not possible due

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

218

to the low number of Dutch samples. It is clear that

30 samples are not enough for building a model, let

alone a model sufficient for cross-lingual purposes. It

may lead to overfitting and low generalization.

Training the model with the Hungarian set results in

comparable evaluation metrics on the development

and the test sets, showing a good generalization

ability. About 300 samples (the used Hungarian

corpus) seems to be sufficient to train a model for

cross-lingual usage. Here, the goal was not to

maximize the performance of one language, but to do

a preliminary study on cross-lingual detection

possibilities using the dataset. A comprehensive

study on the Hungarian sample set has been carried

out by Tulics et al. (2019).

Features calculated on phonemes also seem to

have an effect on cross-lingual performance. These

features can increase performance, as was seen with

models built on Hungarian samples. Segmentation

was done automatically by force-alignment ASR.

Naturally, this automatic method may have errors, but

it seems that performance increase is possible even

with such a fully automatic pipeline.

Regression results show the same tendency as

classification. A higher level of severity increases the

dysphonia separation ability of features.

Two languages are considered here, Dutch and

Hungarian, mainly because there were speech

samples available with same linguistic content.

However, we acknowledge that this somewhat limits

the cross-lingual generalization ability due to the

spectral similarities of the two languages. As a future

research, it would be good to extend the study with

languages with larger differences.

5 CONCLUSIONS

In the present work, cross-lingual experiments of

dysphonic voice detection and dysphonia severity

level estimation are carried out. The results show that

this is possible using the datasets presented. Various

acoustic features are calculated on the entire speech

samples and at the phoneme level.

It was found that cross-lingual detection of

dysphonic speech is indeed possible with acceptable

generalization ability and features calculated on

phoneme-level parts of speech can in improve the

results. Support vector machines and support vector

regression are used as classification and regression

methods. Feature selection and model training is done

on dataset using 10-fold cross validation of one

(source) language and evaluated on the other (target)

language. Considering cross-lingual classification

test sets, 0.86 and 0.81 highest F1-scores can be

achieved for features sets with the vowel /E/ included

and excluded, respectively and 0.72 and 0.65 highest

Pearson correlations can be achieved for features sets

with the vowel /E/ included and excluded,

respectively. In the future, cross-linguistic

experiments are considered using more language

independent feature extraction techniques and

extended datasets.

ACKNOWLEDGEMENTS

Project no. K128568 has been implemented with the

support provided from the National Research,

Development and Innovation Fund of Hungary,

financed under the K_18 funding scheme. The

research was partly funded by the CELSA

(CELSA/18/027) project titled: “Models of

Pathological Speech for Diagnosis and Speech

Recognition”.

REFERENCES

Ali, Z., Talha, M., & Alsulaiman, M. (2017). A practical

approach: Design and implementation of a healthcare

software for screening of dysphonic patients. IEEE

Access, 5, 5844–5857.

Al-Nasheri, A., Muhammad, G., Alsulaiman, M., Ali, Z.,

Malki, K. H., Mesallam, T. A., & Ibrahim, M. F. (2017).

Voice pathology detection and classification using

auto-correlation and entropy features in different

frequency regions. Ieee Access, 6, 6961–6974.

Boone, D. R., McFarlane, S. C., Von Berg, S. L., & Zraick,

R. I. (2005). The voice and voice therapy.

Chang, C.-C., & Lin, C.-J. (2011). LIBSVM: A library for

support vector machines. ACM Transactions on

Intelligent Systems and Technology, 2(3), 27:1-27:27.

Cohen, S. M., Kim, J., Roy, N., Asche, C., & Courey, M.

(2012). Prevalence and causes of dysphonia in a large

treatment-seeking population. The Laryngoscope,

122(2), 343–348.

Johns, M. M., Sataloff, R. T., Merati, A. L., & Rosen, C. A.

(2010). Shortfalls of the American Academy of

Otolaryngology–Head and Neck Surgery’s Clinical

practice guideline: Hoarseness (dysphonia).

Otolaryngology-Head and Neck Surgery, 143(2), 175–

177.

Jungermann, F. (2009). Information extraction with

rapidminer. Proceedings of the GSCL

Symposium’Sprachtechnologie Und EHumanities, 50–

61.

Kiss, G., Sztahó, D., & Vicsi, K. (2013). Language

independent automatic speech segmentation into

phoneme-like units on the base of acoustic distinctive

features. 2013 IEEE 4th International Conference on

Cross-lingual Detection of Dysphonic Speech for Dutch and Hungarian Datasets

219

Cognitive Infocommunications (CogInfoCom), 579-

582.

Muhammad, G., Alsulaiman, M., Ali, Z., Mesallam, T. A.,

Farahat, M., Malki, K. H., Al-nasheri, A., & Bencherif,

M. A. (2017). Voice pathology detection using

interlaced derivative pattern on glottal source

excitation. Biomedical Signal Processing and Control,

31, 156–164.

Omori, K. (2011). Diagnosis of voice disorders. JMAJ,

54(4), 248–253.

RapidMiner (9.2). (n.d.). [Computer software]. https://

rapidminer.com/

Shinohara, S., Omiya, Y., Nakamura, M., Hagiwara, N.,

Higuchi, M., Mitsuyoshi, S., & Tokuno, S. (2017).

Multilingual evaluation of voice disability index using

pitch rate. Adv. Sci. Technol. Eng. Syst. J, 2, 765–772.

Tulics, M. G., Szaszák, G., Mészáros, K., & Vicsi, K.

(2019). Artificial neural network and svm based voice

disorder classification. 2019 10th IEEE International

Conference on Cognitive Infocommunications

(CogInfoCom), 307–312.

Vicsi, K., Viktor, I., & Krisztina, M. (2011). Voice disorder

detection on the basis of continuous speech. 5th

European Conference of the International Federation

for Medical and Biological Engineering, 86–89.

Wendler, J., Rauhut, A., & Krüger, H. (1986).

Classification of voice qualities**Dedicated to Prof.

Dr. Med. Peter Biesalski on the occasion of his 70th

birthday. Journal of Phonetics, 14(3), 483–488. https://

doi.org/10.1016/S0095-4470(19)30694-1

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

220
