Recovering High Intensity Images from Sequential Low Light Images

Masahiro Hayashi

, Fumihiko Sakaue

, Jun Sato

Yoshiteru Koreeda

, Masakatsu Higashikubo

and Hidenori Yamamoto

Nagoya Institute of Technology, Japan

Sumitomo Electric System Solutions Co., Ltd., Japan

Keywords:

Low Light Images, High Intensity Images, Deep Learning, Number Plate Recognition, Sequential Images.

Abstract:

In this paper, we propose a method for recovering high intensity images from degraded low intensity images

taken in low light. In particular, we show that by using the sequence of low light images, the high intensity im-

age can be generated more accurately. For using the sequence of images, we have to deal with moving objects

in the image. We combine multiple networks for generating accurate high intensity images in the presence

of moving objects. We also introduce newly deﬁned loss called character recognition loss for obtaining more

accurate high intensity images.

1 INTRODUCTION

It is in general difﬁcult to clearly photograph moving

objects such as vehicles in low light situations such

as at night. When shooting with a long exposure time

to obtain a sufﬁcient amount of light, the motion of

the object causes a large amount of motion blur. On

the other hand, when shooting with a short exposure

time to avoid motion blur, large image noise occurs.

If we have such motion blur or image noise, we lose

high frequency information in the image. As a result,

it becomes for example difﬁcult to read the number

plate information, which is important for identifying

the vehicle from the image.

In order to solve such problems, various methods

have been proposed such as imaging techniques us-

ing special devices and image processing techniques

to recover high quality images from degraded im-

ages (Chakrabarti, 2016; Kupyn et al., 2018; Li et al.,

2015; Zhang et al., 2017; Remez et al., 2017; Chen

et al., 2018). However, the method of using special

device is expensive and limited in use. Therefore, in

this research, we propose a novel method for recover-

ing high quality images from degraded low light im-

ages by using a deep neural network.

Our method uses a sequence of images for recov-

ering high intensity image. The multiple sequential

images allow us to obtain more information on the

scene and enable us to recover more accurate high

intensity image. We also introduce brand new loss

called character recognition loss. The new loss en-

(a) low light image

(b) our result

Figure 1: High intensity image recovery. (b) shows a high

intensity image recovered from low light image in (a) by

using our method. Since the original low light image is too

dark, the low light image in (a) is shown with the intensity

increased.

ables us to recover high frequency components such

as characters in the image, improving the readability

of the characters in the recovered high intensity im-

age.

Our method can generate highly accurate high

intensity images like Fig. 1 (b) from degraded low

light images like Fig. 1 (a). The effectiveness of our

method is evaluated quantitatively as well as qual-

itatively. We show that by using our method, the

readability of vehicle number plates is drastically im-

proved.

2 RELATED WORK

There are some existing methods for recovering high

intensity images from degraded images taken in low

light. These existing methods can be divided into

two types. The ﬁrst is an approach that removes mo-

Hayashi, M., Sakaue, F., Sato, J., Koreeda, Y., Higashikubo, M. and Yamamoto, H.

Recovering High Intensity Images from Sequential Low Light Images.

DOI: 10.5220/0010891600003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

599-606

ISBN: 978-989-758-555-5; ISSN: 2184-4321

599

tion blur from images taken with a long exposure

time (Shan et al., 2008; Chakrabarti, 2016), and the

second is an approach that removes noise from im-

ages taken with a short exposure time (Li et al., 2015;

Zhang et al., 2017; Remez et al., 2017).

For removing the motion blur, many traditional

methods estimate point spread functions (PSF) which

represent motion blurs in images and remove the blurs

based on the estimated point spread functions (Shan

et al., 2008). Recent methods, on the other hand,

use deep neural networks for directly removing image

blurs without estimating PSFs (Chakrabarti, 2016;

Kupyn et al., 2018). However, it is difﬁcult to recover

the details of the image by either method.

For denoising low light images, some existing

methods estimate image noise ﬁrst and then enhance

low light images with denoising (Li et al., 2015). The

deep neural networks are also used for removing noise

and enhancing images directly (Zhang et al., 2017;

Remez et al., 2017). However, again it is difﬁcult to

recover the details of the image as with the deblurring

methods. As shown in these existing methods, it is a

very difﬁcult problem to recover accurate high inten-

sity images from degraded image taken in low light.

In recent years, a method has been proposed that

uses deep learning to recover a clearer high intensity

image from a single low light image compared to ex-

isting methods (Chen et al., 2018). This method has

succeeded in recovering relatively clear image details

even in the case of an image with a small amount of

noise. However, when there is a lot of noise in the

image, the image details cannot be recovered well,

and the restoration accuracy is insufﬁcient. This is

because the information of the object is largely lost

due to image noise, and the information necessary for

recovering a clear image is insufﬁcient.

Thus, in this paper, we propose a method that can

recover high intensity images with higher accuracy

by using multiple low light images. In the proposed

method, sequential images of the same object are used

as multiple low light images. As a result, information

on high frequency components required for accurate

recovery can be obtained from multiple images, and

as a result, it is expected that more accurate high in-

tensity image can be recovered. However, if we have

a moving object in the scene, the position of the ob-

ject changes in the sequential images. Thus, in this

paper, we propose a method for generating a high in-

tensity image while compensating for such a differ-

ence in position. We also introduce brand new loss

called character recognition loss, which enables us to

recover high frequency components and improve the

readability of the characters in the recovered high in-

tensity image.

3 PROPOSED METHOD

The network of the proposed method is shown in

Fig. 2. As shown in this ﬁgure, the proposed method

trains three different U-Nets (Ronneberger et al.,

2015), that is moving object U-Net, stationary object

U-Net and mask image U-Net.

3.1 Alignment of Moving Objects

When dealing with sequential images, point corre-

spondence of moving objects among the sequential

images is very important. In case of recovering a

high intensity image at time T from T time low light

images I

(i = 1, . . . , T ), the image recovery can be

performed more effectively, if the optical ﬂow of the

corresponding point is known. Thus, in this research,

the optical ﬂow in the sequential images is estimated

in advance and used for aligning the moving objects

roughly in the images from time 1 to time T . Fig. 3

shows an example of the alignment performed in our

method. As shown in this ﬁgure, the misalignment

of the moving object among the sequential images is

almost eliminated by this alignment procedure. By

using the sequential images aligned in this way, the

improvement of the accuracy in the high intensity im-

age recovery can be expected.

3.2 Generating High Intensity Images

from Sequential Low Light Images

In general, image noise occurs randomly for each

shot, so even if we shoot in the same scene, we can

obtain an image with different noise each time we

shoot. Therefore, by using multiple low light images,

we can obtain more accurate information about the

scene comparing with using only a single low light

image.

In this research, we consider a network that inputs

the low light images at T times I

(i = 1, . . . , T ) and

outputs a high intensity recovered image I

at time T,

which is the ﬁnal frame. Therefore, the network can

be regarded as the function F shown in the following

equation.

= F(I

, . . . , I

) (1)

In this research, U-Net is used as such a network

F. The input of the U-Net is the concat of sequen-

tial low light images, and output of the network is the

recovered high intensity image. In this way, the net-

work can learn the recovery of accurate high intensity

image from multiple noisy low light images.

Suppose the number of vertical pixels in the image

is H, the number of horizontal pixels is W , the number

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

600

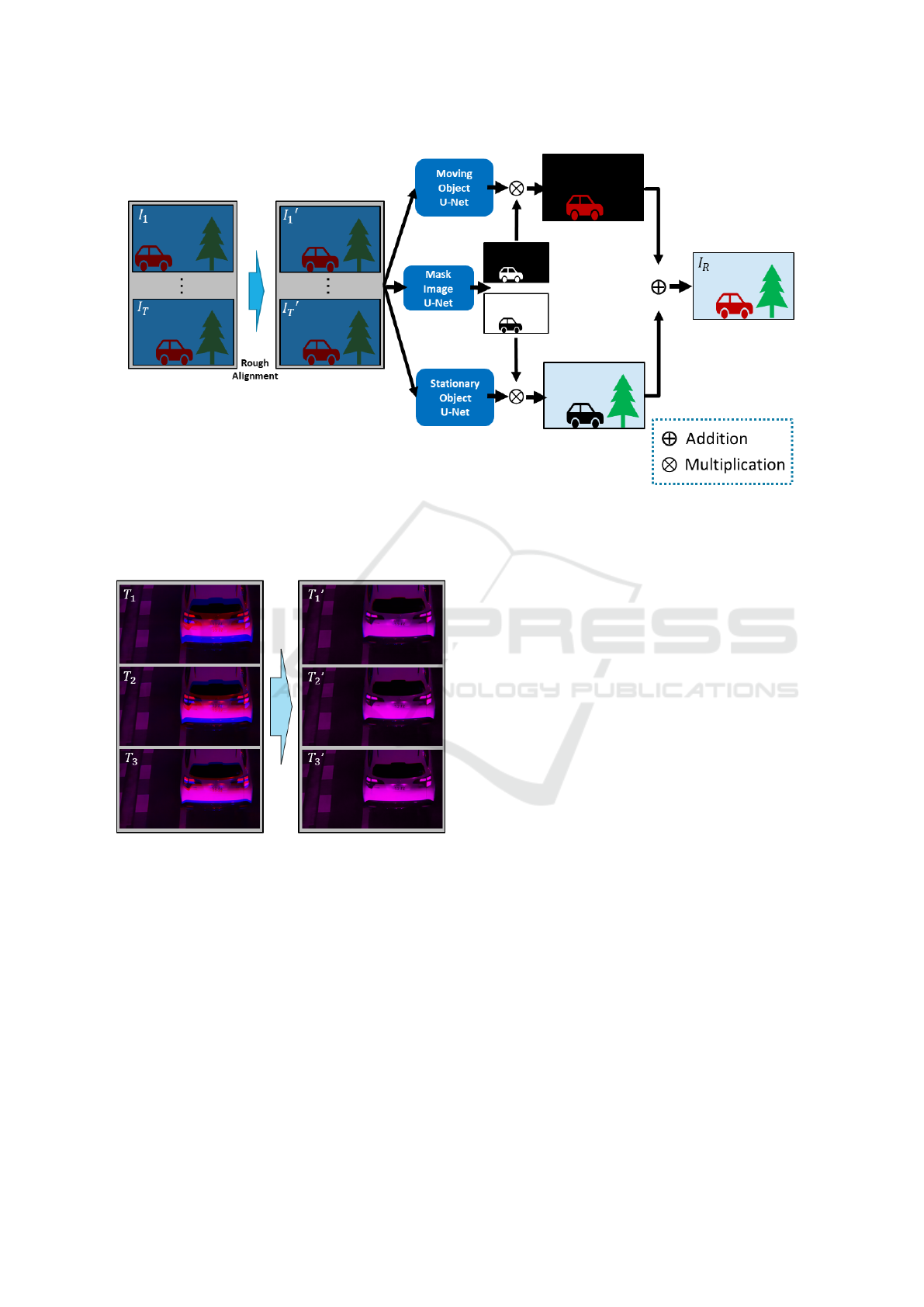

Figure 2: Network of the proposed method. Our network consists of three U-Nets. The moving object U-Net recovers moving

objects in the image and the stationary object U-Net recovers stationary objects in the image. The mask image U-Net allows

us to separate the image loss of moving objects from the image loss of stationary objects, allowing us to train stationary object

U-Net and moving object U-Net separately.

Figure 3: Examples of moving object alignment. The im-

ages at time T

, T

and T

were aligned with the image at

time T

by using the optic ﬂow estimation. In order to vi-

sualize the misalignment, the image at time T

is displayed

as R channel, and the images at time T

, T

and T

are dis-

played as B channel.

of channels is C, and the number of times is T . The

size of the network input is H ×W ×CT , and the size

of the network output is H × W × C. The detail of

the network conﬁguration of our U-Net is shown in

Fig. 4.

3.3 Multiple U-Nets for Moving and

Stationary Objects

Recovery of moving objects is in general more dif-

ﬁcult than recovery of stationary objects in sequen-

tial images. This is because stationary objects are

observed at the same position in sequential images,

while moving objects are observed at slightly differ-

ent positions even if they are aligned by using optical

ﬂow. Therefore, in this research, we use two different

U-Nets, one is for learning the recovery of moving

objects and the other is for learning the recovery of

stationary objects, and perform network training ac-

cording to the characteristics of each to recover the

entire image with higher accuracy. we call them mov-

ing object U-Net and stationary object U-Net.

For this objective, a mask image for the moving

objects and a mask image for the stationary objects

are derived by using the third U-Net. We call it mask

image U-Net. The network loss of the moving object

U-Net and the stationary object U-Net is computed

after masking each of the network output image and

the ground truth high intensity image with the mask

image derived from the mask image U-Net. By learn-

ing each of the moving object U-Net and the station-

ary object U-Net using the loss computed from the

mask image, these U-Nets can learn the recovery of

the moving object and the recovery of the stationary

object respectively.

Recovering High Intensity Images from Sequential Low Light Images

601

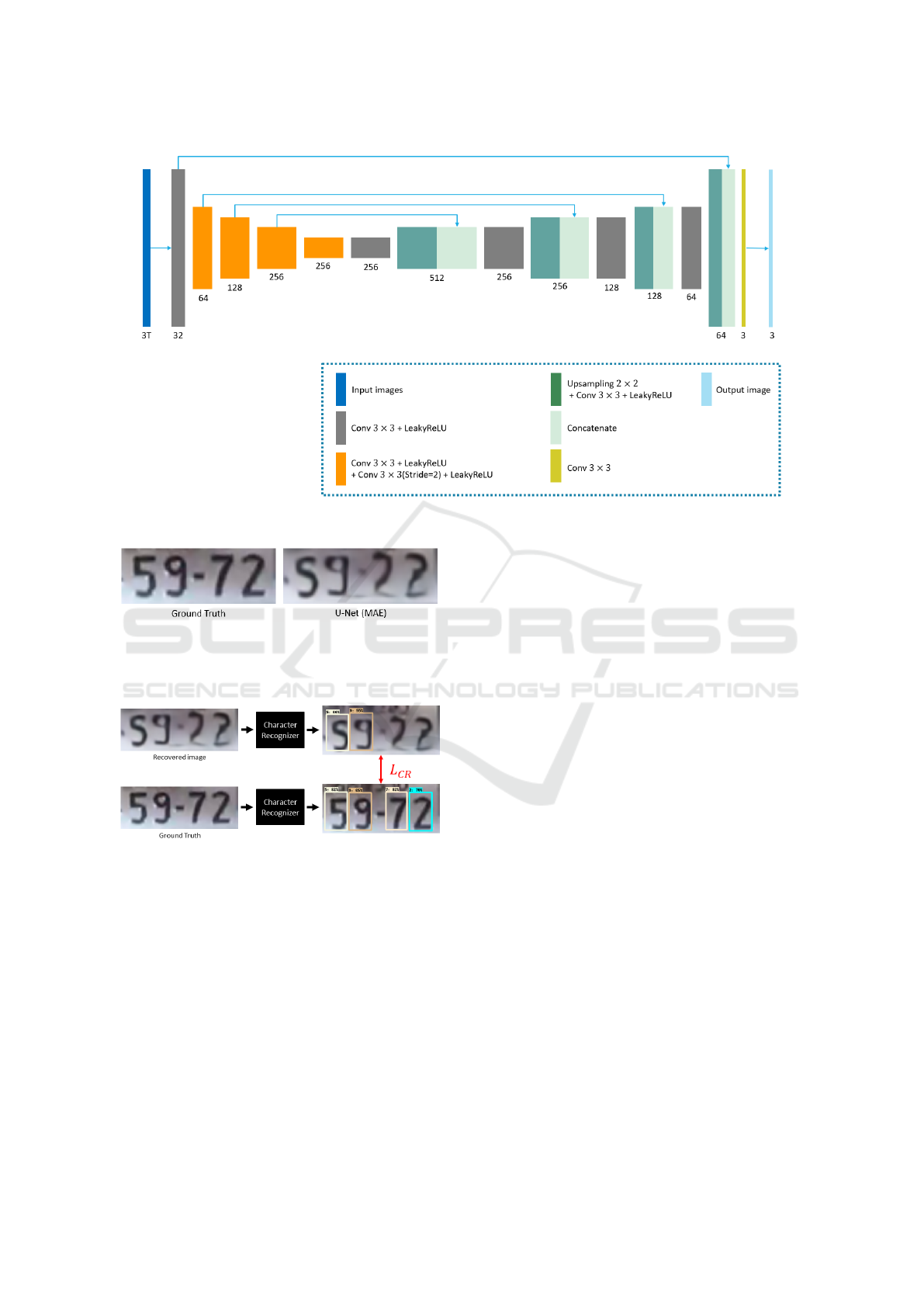

Figure 4: U-Net used in our method.

Figure 5: Example where the characters cannot be recov-

ered accurately. The number can be read as ”5922” in the

image recovered by using simple L1 loss, but it is actually

”5972” as shown in the ground truth image.

Figure 6: Character recognition loss. The character recog-

nition loss L

is computed based on the character recogni-

tion result when the ground truth image and the recovered

image are input to the pre-trained character recognizer.

The loss function for learning the stationary object

U-Net is L1 loss between the ground truth image I

and the output image I

as follows:

= ||I

− I

(2)

The loss function for learning the moving object U-

Net uses the L1 loss plus the character recognition

loss explained in the next section.

We also train the mask image U-Net that generates

a mask image from the input image. The loss function

for learning the mask image U-Net is the Binary Cross

Entropy L

BCE

between the ground truth mask image

and the generated mask image M

as follows:

BCE

= M

logM

+ (1 − M

)log (1 − M

) (3)

Since the moving object mask and the stationary ob-

ject mask have an exclusive relationship with each

other, only the moving object mask needs to be es-

timated by the mask image U-Net.

3.4 Character Recognition Loss

Images recovered by using simple L1 loss shown in

Eq. (2) are difﬁcult to recover characters accurately

as shown in Fig. 5. In this example, the number can

be read as ”5922” in the recovered image, but it is ac-

tually ”5972”. Thus, in this research, we introduce

character recognition loss in order to improve the ac-

curacy of character restoration, which is important for

identifying vehicles in low light images.

The character recognition loss is computed based

on the recognition result when the ground truth image

and the recovered image are input to the character rec-

ognizer, as shown in Fig. 6. In this research, we use

Retina Net (Lin et al., 2017) trained by using Street

View House Numbers (SVHN) Dataset (Netzer et al.,

2011) as a character recognizer. The output of this

character recognizer is a character class probability of

each extracted character in the input image. For ex-

ample, if the probability of all classes is less than 0.5,

it is considered as the background, and if the proba-

bility of ”9” is the highest and is more than 0.5, it is

considered as ”9”.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

602

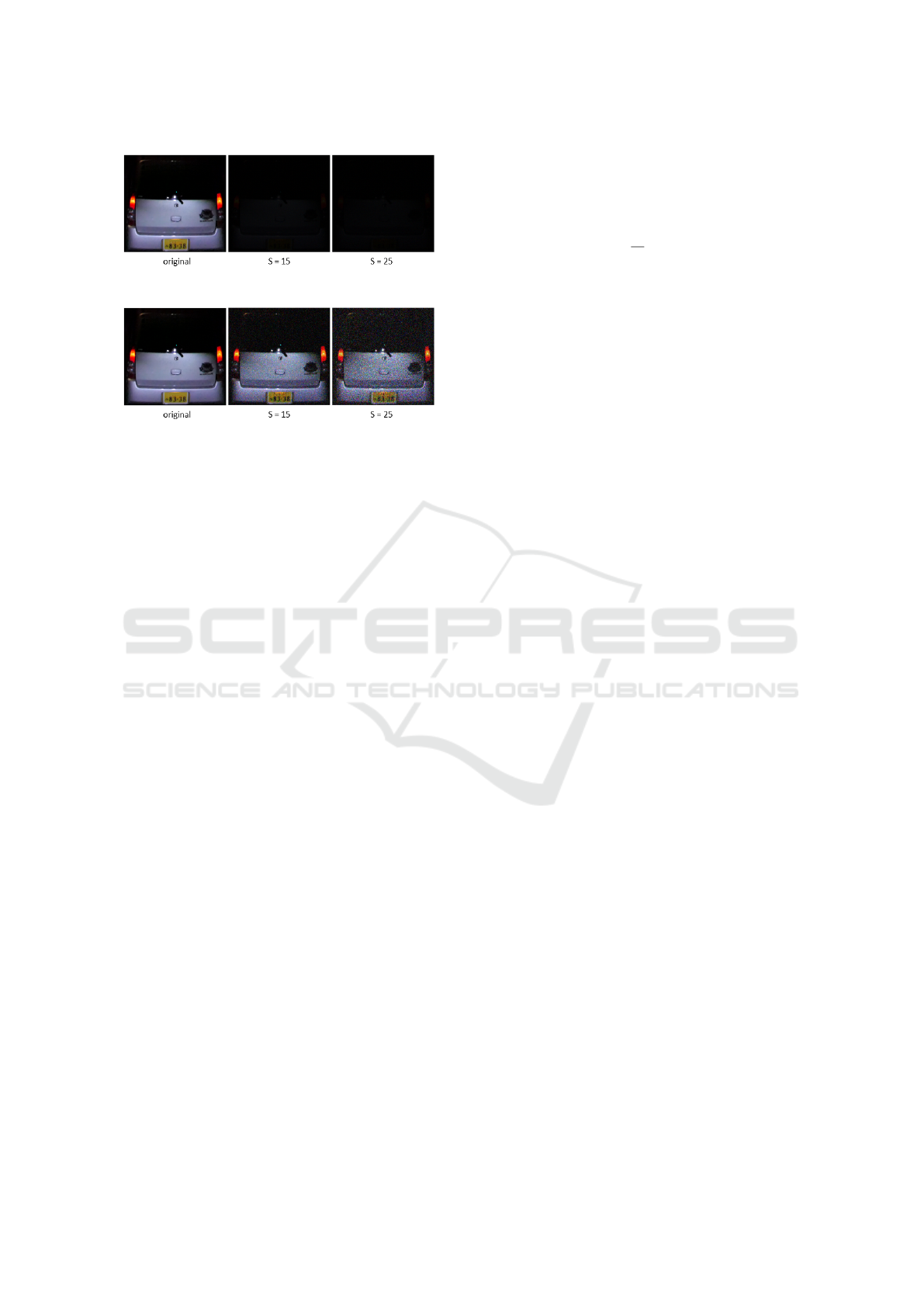

Figure 7: Generated low light images.

Figure 8: Generated low light images (gain up).

The character recognition loss L

is computed by

taking the L1 loss between the character class proba-

bility of the ground truth image P

and that of the

recovered image P

when the character class proba-

bility of the ground truth image P

is more than 0.5

as follows:

= ||P

0.5

− P

0.5

(4)

where, P

0.5

denotes P when the character class prob-

ability of the ground truth image P

is more than 0.5.

In this way, the background area can be ignored and

only the character area is considered in the character

recognition loss.

The loss function (Loss) of the moving object U-

Net is deﬁned by using L

in Eq. (2) and L

in Eq. (4)

as follows:

Loss = (1 − α)L

+ αL

(5)

In our experiment, we used α = 0.01.

In order to learn the network of the proposed

method, we need pairs of low light sequential image

and ground truth high intensity image. However, it

is difﬁcult to obtain such image pairs. Therefore, in

this research, a low light image with image noise is

synthesized from the high intensity image, and a pair

of low light image and high intensity image is created

and used for learning.

Let us consider a high intensity image I

of a

scene and an image I

of the same scene taken in low

light. Under low light, the S/N ratio of the image de-

creases, causing large image noise and changing the

RGB balance. Therefore, in this research, a low light

image with noise is generated by adding noise to the

high intensity image as shown below.

First, the high intensity image I

is divided by S

(S > 1) to generate a low intensity signal. Then, a

random Gaussian noise N of a certain magnitude is

added to the low intensity signal. Finally, the low in-

tensity signal is quantized to generate noisy low light

image. Thus, the low light image I

is generated as

follows:

= Q



+ N



(6)

where, Q (·) represents the function that performs

quantization.

By increasing the value S, an image with a shorter

exposure time and lower light is generated. In this re-

search, we create image pairs under various low light

conditions by changing the value S in Eq. (6) from a

single high intensity image. An example of the image

pair obtained in this way is shown in Fig. 7. Since

the generated low light images are too dark in this ﬁg-

ure, we show a ﬁgure in which the intensity of the

low light images is increased in Fig. 8. As shown in

Fig. 8, the generated low light image lacks informa-

tion as when it was taken with a short exposure.

4 EXPERIMENTS

We next show the experimental results obtained from

the proposed method. All the networks used in this

experiment learn 100 epochs with a learning rate of

0.001.

4.1 High Intensity Image Generation

We ﬁrst show high intensity images recovered from

the proposed method.

For obtaining ground truth high intensity images,

the sequential images of 530 moving vehicles were

taken using a ﬁxed camera. Of these, 500 vehicles

were used as training data and 30 vehicles were used

as test data. The corresponding low light images

were generated from each high intensity image by the

method described in the previous section. In our ex-

periment, low light images with ﬁve different values

of S in Eq. (6) were generate from a single high in-

tensity image, setting S = 20, 22, 25, 28, 30. For

training the network, we used 4 sequential low light

images generate with the same S as input of the net-

work and the corresponding high intensity image at

time 4 as output of the network. Using the network

trained in this way, the high intensity images were re-

covered from the noisy low light images of the test

data.

Fig. 9 shows a set of sequential input low light im-

ages and images with simply increased their intensity.

As shown in this ﬁgure, it is difﬁcult to read the char-

acters on the number plate in the increased intensity

Recovering High Intensity Images from Sequential Low Light Images

603

Figure 9: Test input sequential low light images used in our experiments. The ﬁrst low shows original low light images, and

the second low shows images obtained by enhancing their intensity.

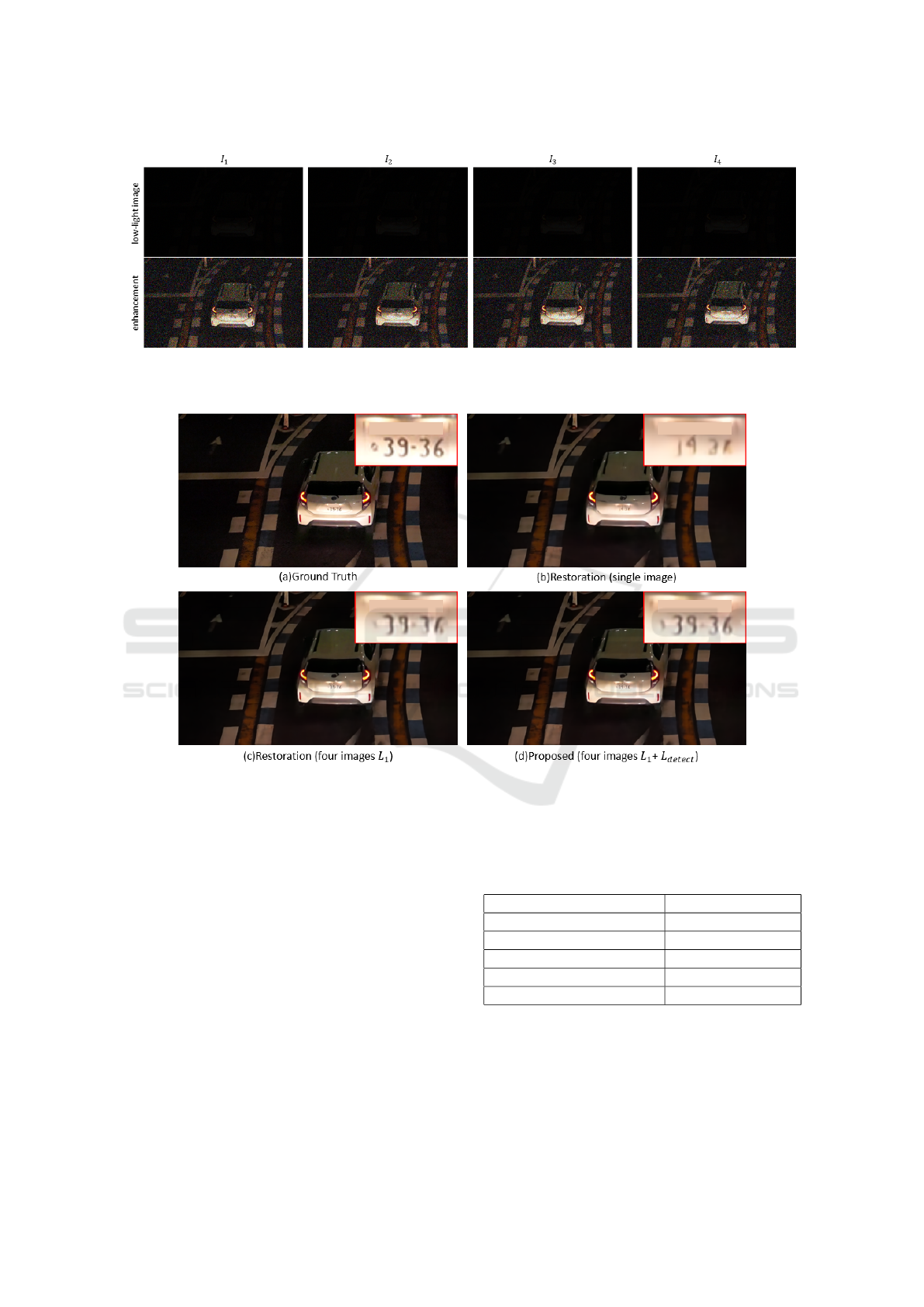

Figure 10: High intensity images recovered from the proposed method and existing methods. The readability of the number

plate shows the effectiveness of the proposed method.

images due to the large image noise. Next, we show

in Fig. 10 the high intensity image recovered from the

sequential low light images shown in Fig. 9 by using

the proposed method. Fig. 10 (a) shows the ground

truth high intensity image, and Fig. 10 (b) shows the

high intensity image recovered by using a single low

light image I

in Fig. 9. Fig. 10 (c) shows the high

intensity image recovered by using four low light im-

ages in Fig. 9 with simple L

loss, and Fig. 10 (d)

shows the result of the proposed method, that is the

high intensity image recovered by using the four low

light images with L

loss and L

loss. Note, a part

of the number plate is hidden in Fig. 10 for security

reasons.

As shown in this ﬁgure, the characters ”5972”

cannot be read properly in the result of the existing

single image based recovery, but it can be read prop-

erly in the result of the proposed method shown in

Fig. 10 (d). Also, we can see that the characters are re-

covered more accurately by using the character recog-

nition loss L

in the proposed method.

Fig. 11 and Fig. 12 shows the results from differ-

ent test data. Again, we can see that the readability of

characters is improved in the image derived from the

proposed method as shown in Fig. 12.

4.2 Accuracy Evaluation

We next evaluate the accuracy of the proposed method

quantitatively. In this experiment, we focused on the

restoration accuracy of the number plate characters of

the test data, and evaluated how correctly the char-

acters on the number plate in the recovered image

were recognized by the pre-trained character recog-

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

604

Figure 11: Test input sequential low light images used in our experiments. The ﬁrst low shows original low light images, and

the second low shows images obtained by enhancing their intensity.

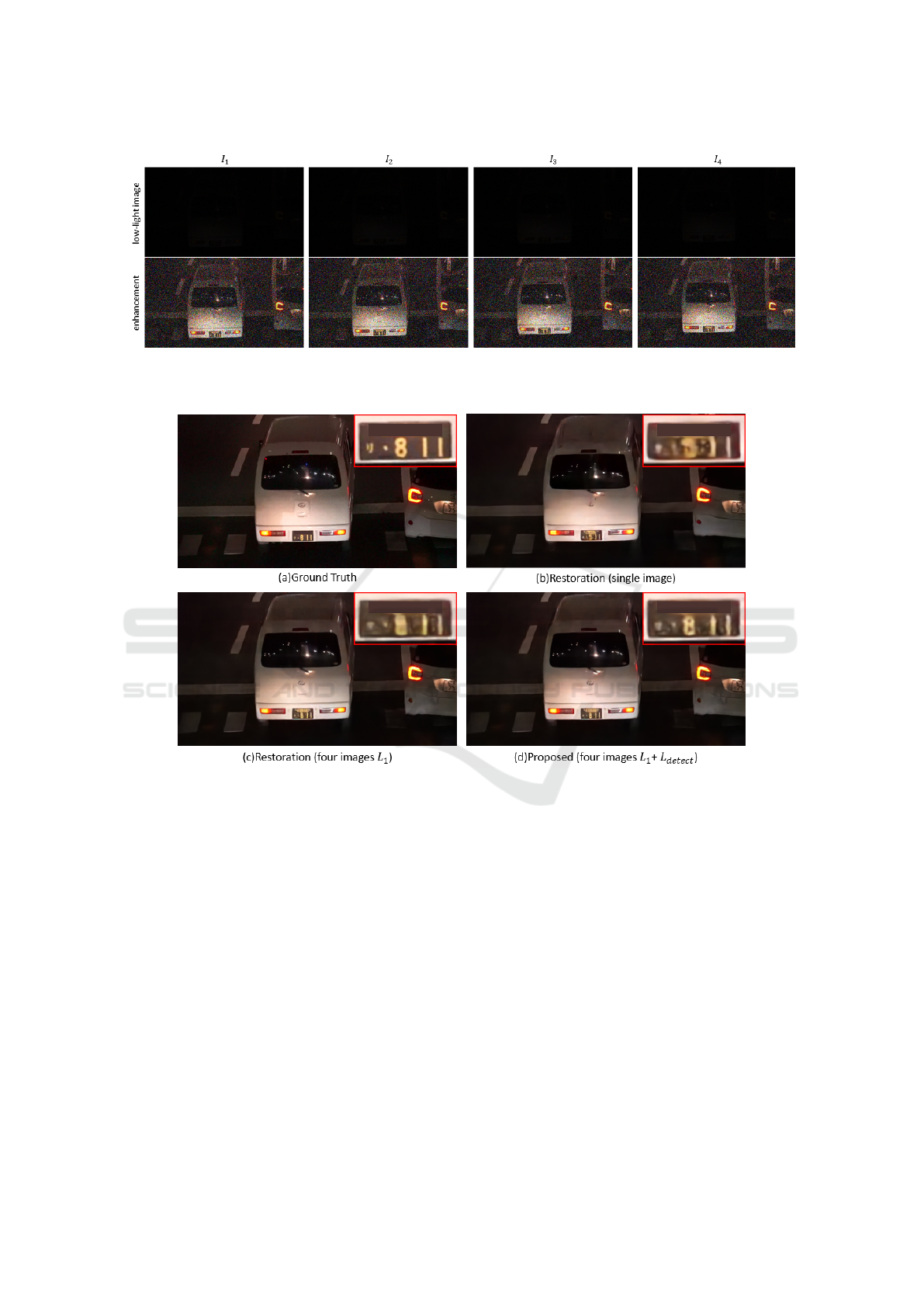

Figure 12: High intensity images recovered from the proposed method and existing methods. The readability of the number

plate shows the effectiveness of the proposed method.

nizer. The recovered high intensity images in the test

data were input to the pre-trained character recognizer

Retina Net (Lin et al., 2017) trained by using Street

View House Numbers Dataset (Netzer et al., 2011),

and the correct answer rate of the recognizer was eval-

uated. The correct answer rate is the number of cor-

rectly recognized characters divided by the total num-

ber of characters in the test data, i.e. 576.

The table 1 shows the correct answer rate of the

recognizer derived from the ground truth high inten-

sity images, single image based method with L

loss,

single image based method with L1 and L

loss, mul-

tiple image based method with L

loss and the pro-

posed method, that is multiple image based method

with L1 and L

loss. From this table, we ﬁnd that

the correct answer rate can be drastically improved

Table 1: Correct answer rate by trained character classi-

ﬁer. SIM denotes single image based method and MIM

denotes multiple image (sequential image) based method.

MIM L

+ L

is our proposed method.

correct answer rate

ground truth images 0.896

SIM L

0.384

SIM L

+ L

0.584

MIM L

0.544

MIM L

+ L

(proposed) 0.772

by using the sequential multiple images and by us-

ing the character recognition loss L

in the proposed

method. We can also ﬁnd that the correct answer rate

of the proposed method is close to that of the ground

truth high intensity images.

Recovering High Intensity Images from Sequential Low Light Images

605

5 CONCLUSION

In this paper, we proposed a novel method for re-

covering high intensity images from degraded images

taken in low light. We showed that by using the se-

quence of low light images, the high intensity image

can be generated accurately. For using the sequen-

tial images effectively, we used two different U-Nets,

one is for recovering stationary objects and the other

is for recovering moving objects in the image. The

mask image U-Net is also introduced for training the

stationary object U-Net and the moving object U-Net

efﬁciently. For obtaining more accurate high intensity

images, we used newly deﬁned loss called character

recognition loss. The experimental results show that

the proposed method can recover highly accurate high

intensity images from noisy low light images.

REFERENCES

Chakrabarti, A. (2016). A neural approach to blind motion

deblurring. In European conference on computer vi-

sion, pages 221–235. Springer.

Chen, C., Chen, Q., Xu, J., and Koltun, V. (2018). Learning

to see in the dark. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 3291–3300.

Kupyn, O., Budzan, V., Mykhailych, M., Mishkin, D., and

Matas, J. (2018). Deblurgan: Blind motion deblurring

using conditional adversarial networks. In Proceed-

ings of the IEEE conference on computer vision and

pattern recognition, pages 8183–8192.

Li, L., Wang, R., Wang, W., and Gao, W. (2015). A low-

light image enhancement method for both denoising

and contrast enlarging. In 2015 IEEE International

Conference on Image Processing (ICIP), pages 3730–

3734. IEEE.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Doll

ar, P.

(2017). Focal loss for dense object detection. In

Proceedings of the IEEE international conference on

computer vision, pages 2980–2988.

Netzer, Y., Wang, T., Coates, A., Bissacco, A., Wu, B., and

Ng, A. Y. (2011). Reading digits in natural images

with unsupervised feature learning. In NIPS Workshop

on Deep Learning and Unsupervised Feature Learn-

ing 2011.

Remez, T., Litany, O., Giryes, R., and Bronstein, A. M.

(2017). Deep convolutional denoising of low-light im-

ages. arXiv preprint arXiv:1701.01687.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Shan, Q., Jia, J., and Agarwala, A. (2008). High-quality

motion deblurring from a single image. Acm transac-

tions on graphics (tog), 27(3):1–10.

Zhang, K., Zuo, W., Chen, Y., Meng, D., and Zhang, L.

(2017). Beyond a gaussian denoiser: Residual learn-

ing of deep cnn for image denoising. IEEE Transac-

tions on Image Processing, 26(7):3142–3155.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

606
