Accelerated Airborne Virus Spread Simulation: Coupling Agent-based

Modeling with GPU-accelerated Computational Fluid Dynamics

Christoph Schinko

1,5 a

, Lin Shao

1,5 b

, Johannes Mueller-Roemer

2 c

, Daniel Weber

2 d

Xingzi Zhang

3 e

, Eugene Lee

, Bastian Sander

4,6 f

, Alexander Steinhardt

, Volker Settgast

1,5 g

Kan Chen

3 h

, Marius Erdt

and Eva Eggeling

1,5 i

Fraunhofer Austria Center for Data Driven Design, Graz, Austria

Fraunhofer Institute for Computer Graphics Research IGD & Technische Universit

at Darmstadt, Darmstadt, Germany

Fraunhofer Singapore & Nanyang Technological University, Fraunhofer IDM@NTU, Singapore

Fraunhofer Institute for Factory Operation and Automation IFF, Magdeburg, Germany

Graz University of Technology, Graz, Austria

University of Vienna, Vienna, Austria

Keywords:

Agent-based Modeling, Clustering, Computational Fluid Dynamics, Airborne Disease Transmission

Modeling.

Abstract:

The Coronavirus Disease 2019 (COVID-19) has shown us the necessity to understand its transmission mecha-

nisms in detail in order to establish practice in controlling such infectious diseases. An important instrument in

doing so are mathematical models. However, they do not account for the spatiotemporal heterogeneity intro-

duced by the movement and interaction of individuals with their surroundings. Computational ﬂuid dynamics

(CFD) simulations can be used to analyze transmission on micro- and mesostructure level, however become

infeasible in larger scale scenarios. Agent-based modeling (ABM) on the other hand is missing means to

simulate airborne virus transmission on a micro- and mesostructure level. Therefore, we present a system that

combines CFD simulations with the dynamics given by trajectories from an ABM to form a basis for produc-

ing deeper insights. The proposed system is still work in progress; thus we focus on the system architecture

and show preliminary results.

1 INTRODUCTION

The Coronavirus Disease 2019 (COVID-19) has

shown us, that a detailed, qualitative exploration of

epidemiological cases is necessary (Shao et al., 2021).

This means we have to understand its transmission

mechanisms in detail, especially to establish practice

in controlling such infectious diseases. COVID-19’s

https://orcid.org/0000-0001-5185-4565

https://orcid.org/0000-0002-5118-9515

https://orcid.org/0000-0002-0712-0457

https://orcid.org/0000-0001-6184-0570

https://orcid.org/0000-0003-3199-4434

https://orcid.org/0000-0003-1948-6621

https://orcid.org/0000-0003-3842-5349

https://orcid.org/0000-0003-3628-6699

https://orcid.org/0000-0001-6703-2865

Severe Acute Respiratory Syndrome Coronavirus 2

(SARS-CoV-2) is primarily spread through airborne

droplets and aerosols (Lu et al., 2020; Shen et al.,

2020). This transmission mechanism is more likely to

occur in indoor than outdoor settings, when individ-

uals are breathing, speaking, coughing, or perform-

ing any other form of exhalation (Qian et al., 2021;

Leclerc et al., 2020; Stadnytskyi et al., 2020). When

these particles are inhaled by other individuals (or

come into contact with mucosae), pathogen transmis-

sion can occur. To lower the infection risk for individ-

uals, recommendations for interventions have a focus

on reducing indoor transmission by use of face masks,

social distancing, and other measures. These general

intervention recommendations have been supported

by a number of mathematical models for indoor trans-

mission analysis. The role of small, aerosolized

278

Schinko, C., Shao, L., Mueller-Roemer, J., Weber, D., Zhang, X., Lee, E., Sander, B., Steinhardt, A., Settgast, V., Chen, K., Erdt, M. and Eggeling, E.

Accelerated Airborne Virus Spread Simulation: Coupling Agent-based Modeling with GPU-accelerated Computational Fluid Dynamics.

DOI: 10.5220/0010904500003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 1: GRAPP, pages

278-285

ISBN: 978-989-758-555-5; ISSN: 2184-4321

droplets in indoor transmission for different settings

has been determined by a number of models (Bha-

gat et al., 2020; Chen et al., 2020; Lelieveld et al.,

2020; Sun and Zhai, 2020). However, these models

do not account for the spatiotemporal heterogeneity

introduced by the movement and interaction of indi-

viduals with their surroundings.

On the other hand, related work in the ﬁelds of

computational ﬂuid dynamics (CFD) and agent-based

modelling is either infeasible due to a huge amount

of computation needed for larger scale scenarios, or

is missing means to simulate virus transmission on a

micro- and mesostructure level. For a more detailed

investigation of transmission effects, a combination of

CFD simulations and the dynamics given by trajecto-

ries from an ABM seems to be a promising way.

Thus, we describe a novel system that is a com-

bination of an agent-based model (ABM) with CFD

simulations. For a given scenario, trajectories and

aerosol-generating actions (e.g., coughing) are pro-

duced by an ABM. However, the sheer number of

agents and the length of the produced trajectories

would lead to huge computational effort on the CFD

side, when the simulation is carried out for the en-

tire scenario. This problem is tackled by intelligent

clustering and selection of relevant situations, greatly

reducing the input complexity for simulation.

The system lies the foundations for assessing indi-

vidual infection risks of the simulated scenario. This

can be done by applying risk models to the simulation

results. The resulting infection risks can be applied

back to their respective clusters enabling risk assess-

ment for different infection scenarios and subsequent

derivation of recommendations for safety precautions.

A ﬁrst contribution of this paper is the combina-

tion of an ABM with CFD simulation based on in-

telligent selection and clustering of situations. With

this approach, the complexity of a CFD simulation of

the entire scenario including movement of all agents

is reduced to small, but independent situations of rela-

tively short duration. An additional beneﬁt is the pos-

sibility to apply simulation results to similar situations

of other scenarios. A second contribution is the de-

velopment of a GPU-optimized, higher-order lattice

Boltzmann ﬂuid simulation for fast evaluation of the

different situations. Since the development of the pro-

posed system is still work in progress, we focus on the

system architecture and show preliminary results.

2 RELATED WORK

This section presents important work that relates to

our system architecture.

2.1 Agent-based Modeling

Generally, given two points on a model, we can ﬁnd

the optimal path between them in three steps. The

ﬁrst step is to construct a navigation mesh and turn

the model into a graph. In the graph, each polygon is

represented by a node and adjacent polygons are con-

nected by an edge. Then, graph search algorithms,

such as A* (Stout, 1996) and HPA* (Botea et al.,

2004), are applied to ﬁnd a series of adjacent nodes

(polygons) on the graph that the optimal path will go

through with the ﬁrst node and last node. After that,

path ﬁnding algorithms are used to ﬁnd the optimal

path, which is normally the shortest path, on the de-

rived polygons. One of the commonly-used methods

in path ﬁnding is the funnel-based method, e.g., Mod-

iﬁed Funnel Algorithm (Demyen and Buro, 2006).

The path ﬁnding algorithms can fulﬁll the ﬁrst re-

quirement, leading the agents to their goals without

colliding with any obstacles. To avoid collision with

other agents, collision avoidance algorithms are re-

quired to adjust the agents’ velocity when there is

danger of collision. Much research has been done in

this area, e.g., Optimal Reciprocal Collision Avoid-

ance (ORCA) (Van den Berg et al., 2008) and Pedes-

trian Velocity Obstacles (PedVO) (Curtis, 2013), and

open-source libraries such as RVO2 are available.

To achieve collision-free agent paths, we used the

Urho3D game engine

and incorporate widely-used

crowd simulation algorithms, e.g., Recast & Detour

for navigation mesh generation and path planning,

and modiﬁed Reciprocal Velocity Obstacle (RVO)

with adaptive sampling for collision avoidance.

2.2 Trajectory Similarity Measures and

Clustering

To compute the similarity between trajectories, usu-

ally multidimensional and spatiotemporal features,

e.g., position, speed, direction, and activity, have to

be considered. In (Magdy et al., 2015), similarity

measures for trajectories are roughly classiﬁed into

two classes: (1) spatial similarity — measurements

based on similar geometric shapes; and (2) spatio-

temporal — measurements that spatial and tempo-

ral dimensions into account. Well-known techniques

that consider spatial similarity are, for example,

the Euclidean Distance, Hausdorff Distance (Chen

Urho3D: https://urho3d.io/ (Accessed: 2021-10-28)

GitHub: https://github.com/recastnavigation/

recastnavigation (Accessed: 2021-10-28)

Digesting Duck: http://digestingduck.blogspot.com/

2010/10/rvo-sample-pattern.html (Accessed: 2021-10-28)

Accelerated Airborne Virus Spread Simulation: Coupling Agent-based Modeling with GPU-accelerated Computational Fluid Dynamics

279

et al., 2011), and Fr

echet Distance (Eiter and Man-

nila, 1994). Examples for spatio-temporal measure-

ments include the Longest Common Sub-Sequence

(LCSS) (Vlachos et al., 2004) and Dynamic Time

Warping (DTW) (Chen et al., 2005).

For trajectory clustering efﬁcient algorithms are

needed, which are scalable and ﬂexible. Therefore,

well-known clustering algorithms are often extended

for trajectory data. Especially for clustering mov-

ing object data, further cluster properties such as

spatial information (Palma et al., 2008), time de-

pendency (Nanni and Pedreschi, 2006) or local seg-

ments (Lee et al., 2007), may be considered. Due to

the large volume of trajectory data, we have decided

to use a very fast partition-based algorithm that uses

a spatial similarity measure, called minimum average

direct-ﬂip (MDF) distance (Garyfallidis et al., 2012).

2.3 Computational Fluid Dynamics

CFD simulations have proven to be an important tool

in the modeling of the spread of airborne pathogens

such as the novel SARS-CoV-2 virus (Vuorinen et al.,

2020). However, full-ﬂedged CFD simulations are

computationally expensive. To simulate a large num-

ber of situations within an acceptable time frame, we

examined massively parallel and approximate CFD

simulation approaches. While the popular ﬁnite vol-

ume approach allows for unconditionally stable sim-

ulation (Stam, 1999), it requires the compute- and

memory-intensive solution of a large linear system,

limiting throughput and/or resolution even when ad-

vanced solvers are used (Weber et al., 2015). Further-

more, this approach suffers from signiﬁcant numeri-

cal diffusion, limiting simulations to small Reynolds

numbers, while coughing and movement in a cluttered

environment result in highly turbulent ﬂow (i.e., very

high Reynolds numbers).

Therefore, we focus on the lattice Boltzmann

method (LBM) using a D3Q27 discretization. Recent

improvements to the LBM allow for highly turbulent

ﬂow with adaptive time steps for fast and stable simu-

lation, while decoupling obstacle geometry and ﬂuid

grid resolution (Li et al., 2020). Due to its locality,

the LBM is ideally suited to massively parallel simu-

lation on GPUs. Especially when coupled with semi-

analytic inversion of the collision operator, very low

compute costs are achievable (Chen et al., 2021).

We combine the state-of-the-art LBM simulation,

with a particle-based aerosol transport model (Guha,

2008). The particles are modeled with one-way

coupling with the background ﬂuid and no particle-

particle interaction, allowing for full use of the GPU’s

parallel computing power.

3 SCENARIO

While the proposed system is not tailored towards

a speciﬁc scenario, we are currently implementing

its components with a typical supermarket scenario

as a ﬁrst use case. It resembles a typical European

supermarket with one large customer area (approx.

19 × 52 m) with multiple shelves and counters. The

combined entrance and exit area is accessible through

a single door as it is common in many European su-

permarkets. Hence, customers entering the building

are near to others exiting. There are three counters

where customers need to check out before leaving the

supermarket. We use a simpliﬁed geometry for the

shelves and counters (see Figure 1).

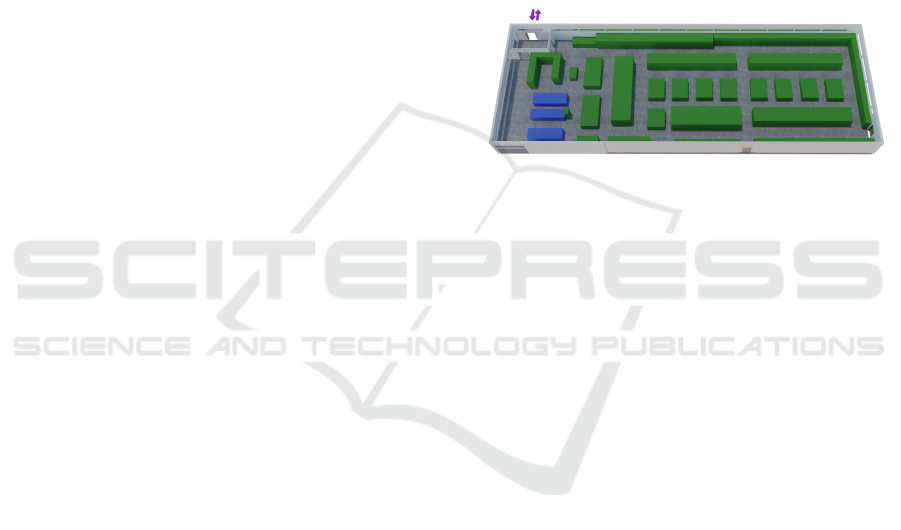

Figure 1: A typical supermarket serves as an example. The

simpliﬁed geometry contains shelves (green) and check-out

counters (blue). Entrance and exit are located at the top left.

For the ABM, information about the accessible ar-

eas, the position of the entrance and exit as well as

target spots at the shelves and the check-out counters

is created manually. To generate a sufﬁcient amount

of data, 88 agents are generated in front of the build-

ing with a random number of goals (items to shop).

To simulate the shopping process, agents move at a

typical pedestrian speed through the market, stopping

at their goals (locations at shelves) from time to time.

After all goals have been reached, each agent will go

to the check-out counter and then leave the market.

Also, there is a stationary agent at each of the three

check-out counters to represent a person working at

the supermarket.

4 SYSTEM ARCHITECTURE

The proposed system consists of three interacting

components: (1) The scenario is populated with

agents doing speciﬁc tasks while acting as similar as

possible (feasible) to real-world persons. The agent

simulation generates trajectories and aerosol events.

(2) Situations with agents are identiﬁed and clusters

are generated out of trajectory and aerosol event data.

Cluster representatives are identiﬁed. (3) The CFD

simulation is performed on selected representatives.

Particle trajectories are computed (spherical volume

GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications

280

around mouth and nose of an agent).

A set of interfaces ensures the interoperability of

the system components. We differentiate between

generic (mainly scenario-speciﬁc) input as well as in-

put and output of speciﬁc components. The geometry

of the simulated scenario and the reference coordinate

system are input to all components.

ABM-speciﬁc input parameters are the number of

agents to simulate, the starting positions of agents

and parameters deﬁning the agent’s goals: number

and positions of goal points, goal properties such as

max duration to stop for at each goal and a sequence,

which indicates the order of goals.

Next to the output produced by the ABM, clus-

tering and selection of situations is provided with a

target budget of situations to produce for the CFD

simulation. The generated output consists of identi-

ﬁed situations including participating agents as well

as their respective trajectories and aerosol events. It is

deﬁned by a bounding box and a time frame.

In addition to the underlying scene geometry and

the agent geometry, the mouth location/area must be

speciﬁed. Other parameters such as air density and

viscosity, aerosol particle drag factors, cough air ve-

locity proﬁles, and particle counts are chosen based

on the literature. Finally, the radius of the sphere

in which particles inhaled by “receiving” agents are

collected is required. Initially, we use a constant ra-

dius, but this could be extended to be based on the

inﬂow/breathing rate.

4.1 Agent-based Modeling

Normally in ABM, agent movement is steered by

goals. Given a supermarket scenario context, we de-

sign a goal sequence for the agents based on the com-

mon behaviors of in-store customers, which includes

ENTER, SHOP, QUEUE, PAY, and EXIT. The goal

points on the supermarket model are deﬁned that go-

ing to (or leaving) these goal points means starting

(or ﬁnishing) this goal. To meet the requirements of

both randomness and universality in customer behav-

ior, the target points for the goal SHOP are randomly

chosen and iterated multiple times, since customers

are likely to buy more than one item in the supermar-

ket. All scenario-speciﬁc information is predeﬁned

and provided as input for our modeling.

After generating the goal sequence, a series of

target points can be automatically selected for each

agent at run time. Then, a navigation mesh based on

the supermarket model can be build and the path ﬁnd-

ing method from the Detour library can be used to ﬁnd

the shortest path. However, scenarios which contain

narrow paths, e.g., a supermarket with narrow aisles,

often cause unrealistic behavior of agents such as get-

ting stuck, as shown in Figure 2. The reason for this is

that agents may have identical targets and go through

a narrow aisle from both directions at the same time.

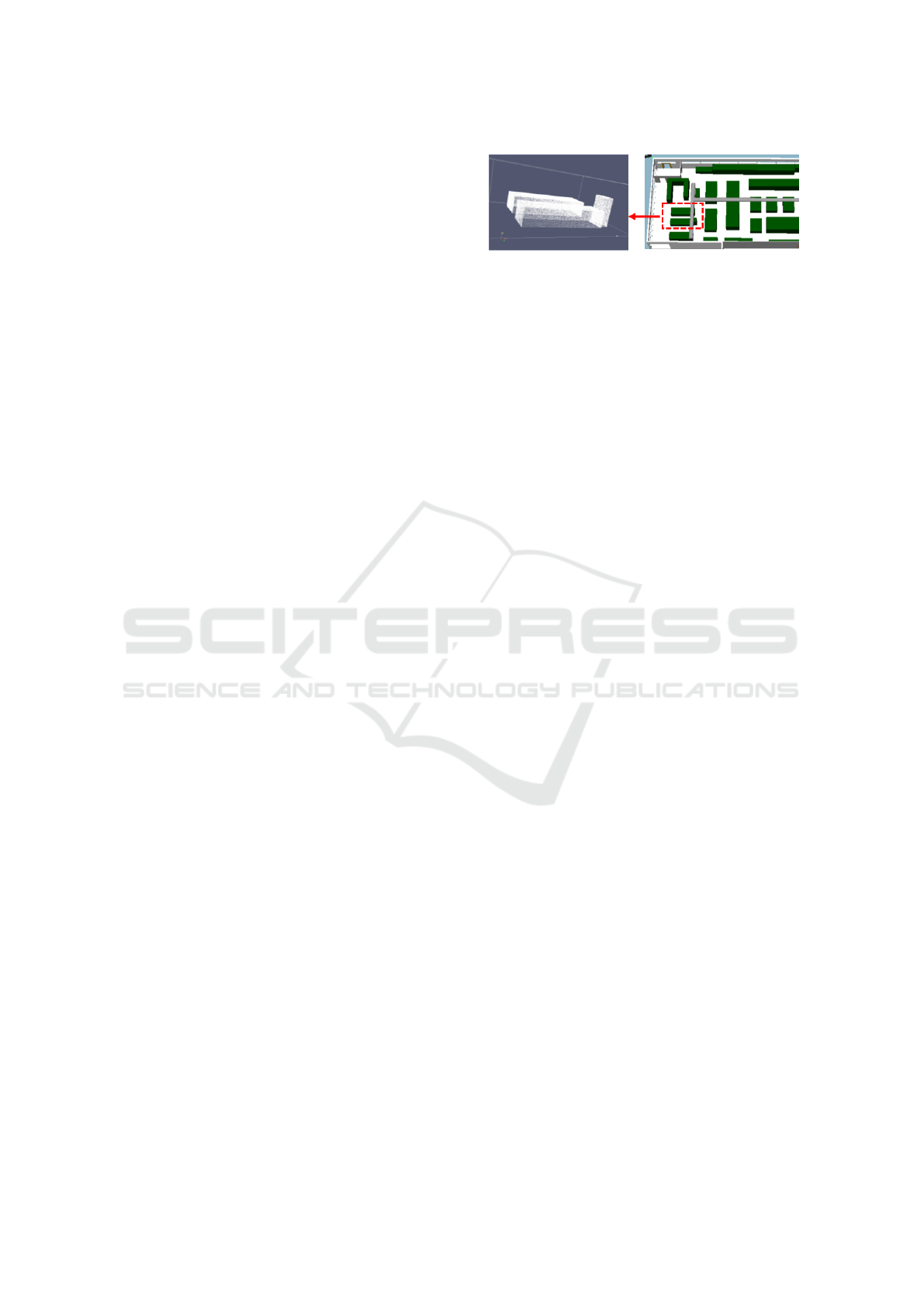

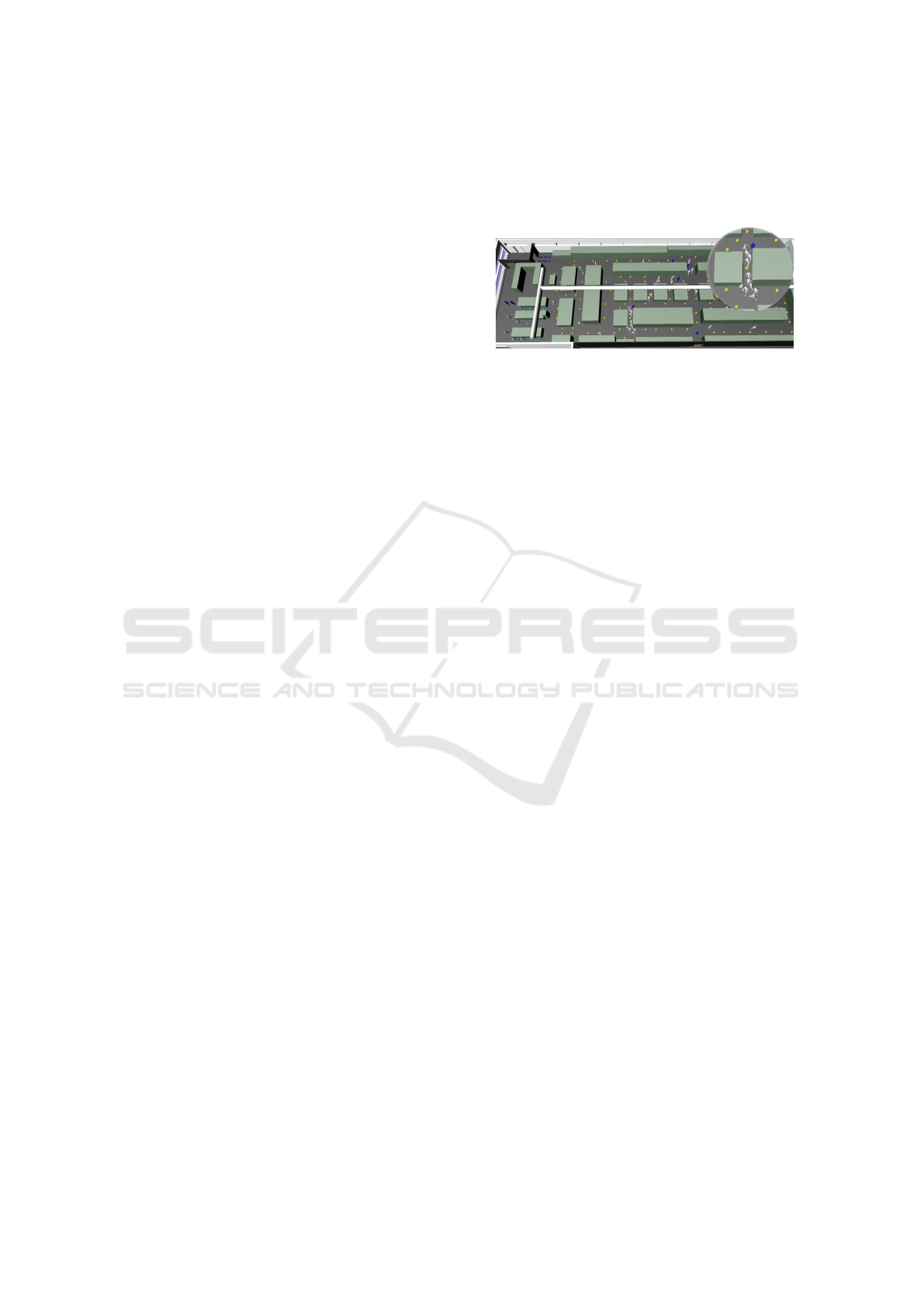

Figure 2: Agents tend to get stuck in narrow aisles if the

effect of agent density is not considered in path ﬁnding.

To avoid such situations, we incorporate the

Density-Cost algorithm in (Van Toll et al., 2012) into

A* search (Stout, 1996) to ﬁnd the optimal path be-

tween goal points. A density value is computed and

maintained for each polygon in the navigation mesh

that is proportional to the number of agents and in-

versely proportional to the area of a polygon.

Since agents move around, the density values may

vary constantly and cause re-planning agent paths on

the ﬂy. Instead of considering all the density val-

ues along the way, incremental path ﬁnding is im-

plemented by considering nearby density informa-

tion and ﬁnding intermediate points for navigation

to avoid unrealistic look-ahead in crowd situations.

To prevent indecisive behaviors caused by the rapid

change in density, when an agent reaches/leaves a

polygon, we delay adding/removing the agent’s den-

sity contribution to this polygon. Furthermore, a

threshold for the maximum number of agents per goal

is used to control the density of agents in each poly-

gon and help agents avoid congested routes.

Besides movement simulation, we generate the

aerosol-emitting events breathing (default), coughing,

and talking for each agent. Here, coughing and talk-

ing events are randomly triggered for each agent. Em-

pirically, once generated, coughing and talking events

last for 5 to 10 seconds.

4.2 Clustering and Selection of

Situations

The purpose of this component is to perform a cluster-

ing of the multidimensional data received from agent-

based modeling and a selection of cluster representa-

tives to be handed over to the simulation of airﬂow

and aerosol distribution.

The clustering of the agent-based simulation data

is performed in multiple stages.

Accelerated Airborne Virus Spread Simulation: Coupling Agent-based Modeling with GPU-accelerated Computational Fluid Dynamics

281

Situation Extraction: In a ﬁrst step, all situations are

extracted from input trajectory data. In the context of

this work, a situation is deﬁned as the continuous pe-

riod, where the distance between any two agents is

less than 2 meters. The resulting situations are as-

signed to 5 classes: very short, short, medium, long

and very long. Parameters for these classes are cho-

sen to ideally obtain an even distribution of situations.

A detailed overview of the situation classes for the su-

permarket scenario including number of trajectories

and duration is shown in Table 1.

Spatial Clustering: In a second step, the trajecto-

ries of each situation class are further clustered based

on the position and orientation to incorporate spatial

mappings of the supermarket. To consider subsequent

as well as oncoming trajectories, the QuickBundles

clustering algorithm (Garyfallidis et al., 2012) along

with the minimum average direct-ﬂip (MDF) distance

is used. QuickBundles is a clustering algorithm for

sequences of points in 3D space that considers both

directions, original and ﬂipped (swapped start and

end) versions of a path. For each situation, which

consists of two agents, the orientation of one agent

is rotated by 180 degrees to increase the weighting of

situations where agents meeting one another halfway.

Representative Selection: To choose a set of vary-

ing situations for the simulation of airﬂow and aerosol

distribution (cf. Section 4.3), different features like

aerosol events, spatial positions, and situation classes

need to be taken into consideration. Therefore, multi-

ple situations in each cluster and for each situation

class are computed as representatives. As criteria

for choosing the representatives, trajectories includ-

ing minimum, maximum, and the average number of

occurrences of the aerosol event talking and cough-

ing are considered. In the end, the set of represen-

tatives consists of situations with different trajectory

lengths (situation classes), spatial positions (clusters),

and aerosol events (criteria).

4.3 Simulation of Airﬂow and Aerosol

Distribution

In order to assess the infection probabilities, a sim-

ulation of the airﬂow and the aerosol distribution is

conducted using a GPU-accelerated LBM.

Integration: A part of the scenario is selected by

specifying its bounding box and the relevant geome-

try is extracted within the solver and used as boundary

condition as shown in Fig. 3. In addition, the agent

geometry and movement data are imported to be able

to reproduce agent interactions. A simulation run then

computes the creation and the movement of aerosol

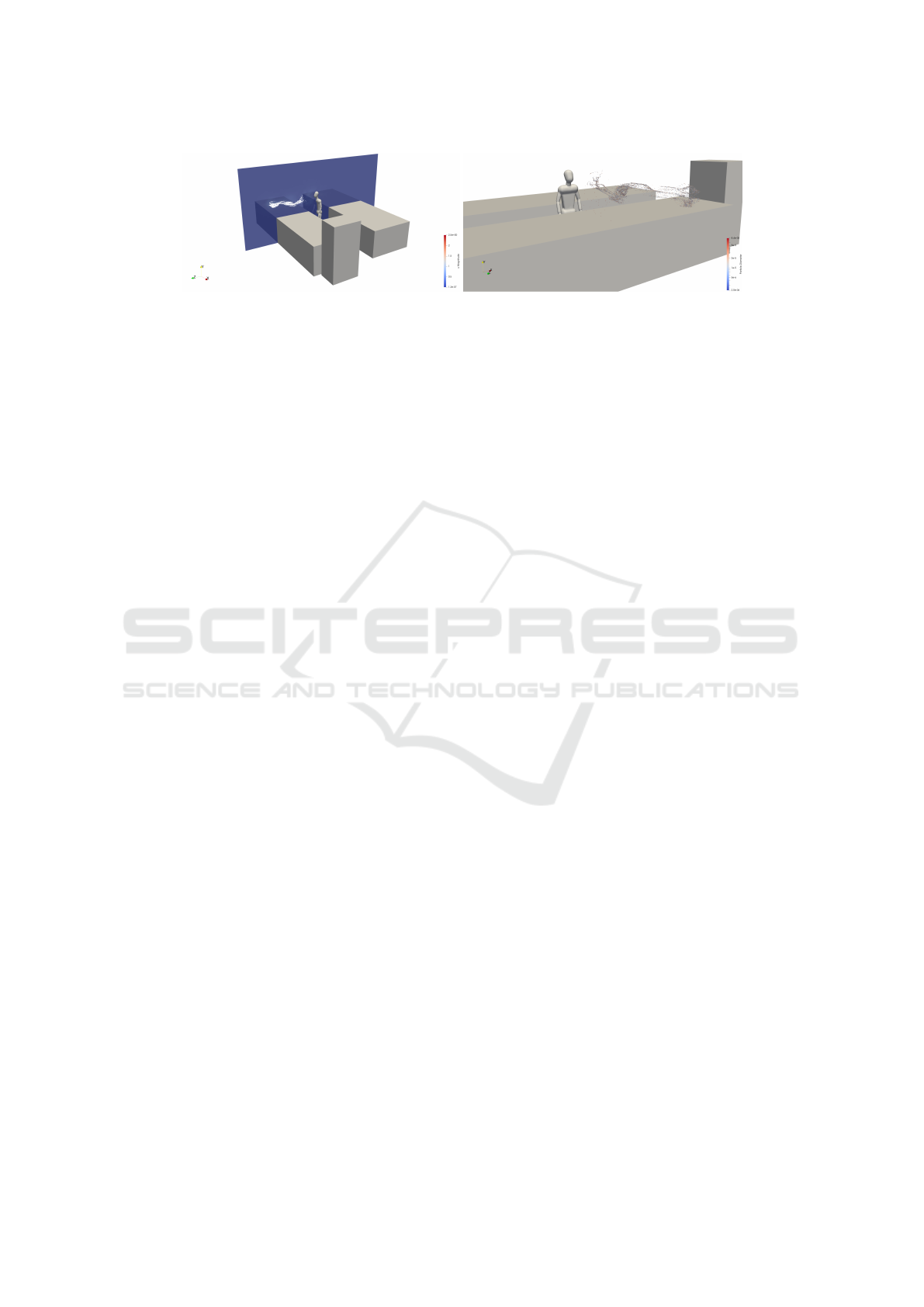

Figure 3: Specifying a bounding box, the corresponding ge-

ometry can be extracted and used as boundary conditions.

particles according to the input data (see Section be-

low). In order to assess infection probabilities, the

number and sizes of aerosol particles from the source

agent are counted (and deactivated) when they are in

proximity to another agent’s nose and mouth. The ac-

cumulated numbers can be used to approximate the

amount of inhaled aerosol and to eventually judge the

probability of infection. This mechanism allows to

select the infectious agents after the CFD simulation

to assess diverse infection scenarios.

CFD Simulation: We implemented a GPU-

optimized, higher-order LBM ﬂuid simulation code

based on the works of (Li et al., 2020; Chen

et al., 2021). The LBM discretizes the microscopic

(particle-level) Boltzmann equation using a particle

distribution f (x, c,t) with discretized locations x

(the

lattice nodes) and a discrete set of particle veloci-

ties c

. The developed code uses a D3Q27 discretiza-

tion, i.e., a three-dimensional lattice with 27 discrete

ﬂuid velocities c

= (0, 0,0)

, c

1,2

= (±1, 0, 0)

, . . . ,

7–10

= (±1, ±1, 0)

, . . . , c

20–27

= (±1, ±1, ±1)

for

∆x = ∆t = 1. These are advanced by alternating be-

tween a streaming (transport) kernel and a collision

(relaxation) kernel, which both operate locally, allow-

ing for full use of the GPUs massively parallel com-

pute power. Macroscopic Navier-Stokes variables can

be derived from the moments of the distribution.

The exterior boundary is modeled using extrap-

olating boundary conditions (Geier et al., 2015) for

the open boundary and slip boundary conditions for

the ﬂoor, implemented using the specular reﬂection

method (Li, 2011). Obstacles within the domain, in-

cluding the agents themselves, are modeled using the

immersed boundary method (Li et al., 2020). This

requires resampling geometry as a point cloud that

matches or exceeds the resolution of the grid using

Poisson disk sampling (Yuksel, 2015), as can be seen

in Fig. 3 on the left.

We combine the turbulent LBM ﬂuid simulation

with aerosol particle simulation using Lagrangian par-

ticles following the equations of motion described

in (Guha, 2008). Coupling to the ﬂuid is unidirec-

tional, and aerosol particles do not interact. These ap-

proximations are used to reduce computational load.

We model cough velocity proﬁles based on measure-

GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications

282

ments from (Gupta et al., 2009), while particle size

distributions follow (Wang et al., 2020).

Since the computation of the drag force in Guha’s

transport model includes division by a factor τ that

can become arbitrarily small, the model can cause

aerosol transport to become unstable when τ < 1 in

lattice units, since the velocity difference u

particle

−

ﬂuid

is over-corrected. However, this only applies to

particles with a very small diameter, which we then

model as massless particles, i.e., u

particle

← u

ﬂuid

. Al-

ternatively, time step subdivision could be used for

these particles. However, others have shown that the

behavior is sufﬁciently similar when using the mass-

less approximation (Vuorinen et al., 2020).

5 PRELIMINARY RESULTS

This section presents the results of preliminary exper-

iments with the proposed system.

For the supermarket scenario, the ABM compo-

nent described in Section 4.1 is used to simulate the

spawned agents. The agents spawn random in posi-

tion and interval in front of the entrance of the su-

permarket. Trajectories and aerosol-generating events

are recorded between entering and exiting the super-

market at an interval of 0.02 seconds. We deﬁne

the agent speed following a normal distribution with

mean 1.34 and standard deviation 0.16 to cover a typi-

cal range of walking speed of different ages. The cus-

tomer agents follow the same goal sequence, which is

ENTER, SHOP, QUEUE (optional), PAY and EXIT,

and the duration of each agent varies.

The situation extraction step, described in Sec-

tion 4.2, returns a total of 4494 situations, where two

agents are approaching each other with a distance of

less than 2 meters. All extracted situations are then

classiﬁed based on the trajectory lengths, see table 1.

The class very short contains situations of short en-

counters of agents within the range of 0.02–1.30 sec-

onds, whereas very long situations imply all encoun-

ters longer than 5.08 seconds (c.f. Table 1).

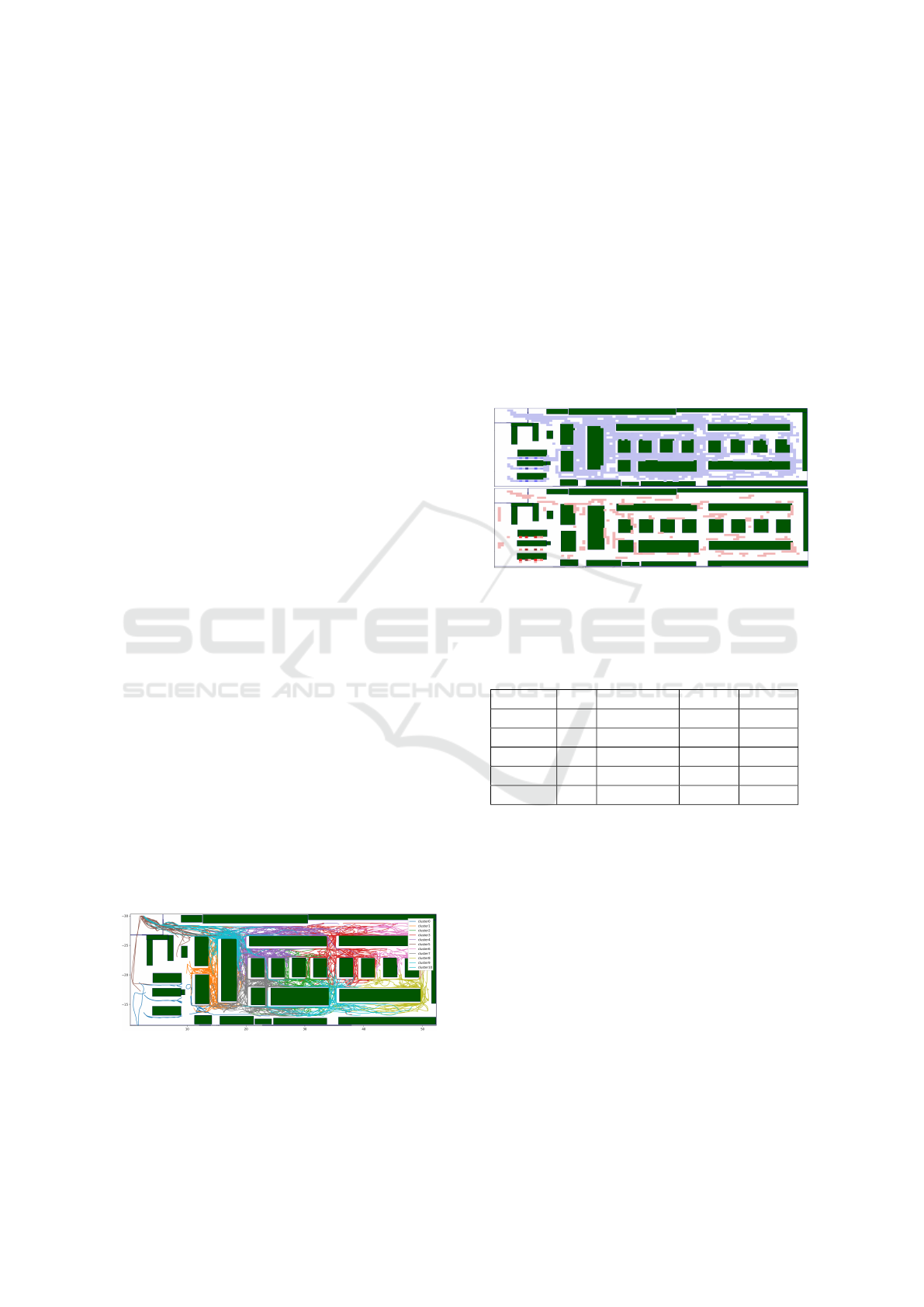

Figure 4: QuickBundles clustering results on trajectories of

the situation class very long.

The QB clustering is a partitioning-based algo-

rithm that relies on a distance threshold ζ, which

controls the heterogeneity of clusters inverse propor-

tional. In order to achieve a good spatial separation

of situations in the supermarket, a threshold ζ = 9m

is used, which subdivides the area of the supermarket

into 8 to 11 sub-areas (clusters) for the ﬁve different

situation classes. Figure 4 shows the spatial clustering

of situations with very long trajectories and Figure 5

the associated incidence of aerosol event 1 (talking)

and aerosol event 2 (coughing). One can see that the

overall area of the supermarket including meaning-

ful areas like entrance, checkout area and individual

supermarket sections, can be well covered by the 10

deﬁned clusters and that aerosol events are normally

distributed in the supermarket.

Figure 5: Incidence plots of the aerosol event 1 talking (top)

and 2 coughing (bottom).

Table 1: Details of situation extraction and spatial cluster-

ing. This table shows for each situation class the number of

trajectories, the duration of situations in seconds, the num-

ber of computed clusters and the computation time.

Situation Traj. Duration (s) Clusters Time (s)

very short 1802 0.02–1.30 9 11.66

short 1804 1.31–2.10 8 13.59

medium 1786 2.11–3.03 9 13.66

long 1798 3.04–5.07 11 15.29

very long 1798 > 5.08 10 19.57

Finally, the situations identiﬁed by the QB cluster-

ing are imported into the airﬂow and aerosol simula-

tion described in Section 4.3, by extracting the bound-

ing box and trajectory of the encounter. Figure 6

shows excerpts from a simulation of a cough event

near the cash registers. The simulation was computed

with ParaView-compatible ﬁle output for the ﬁgures

only, as ﬁle writing takes up signiﬁcantly more time

than the simulation itself (214s vs. 629s on a lap-

top equipped with an NVIDIA GeForce RTX 3070M

GPU). For the ﬁnal simulations, no particle and veloc-

ity output is written to disk, only particle histograms

over time near the at-risk agent’s mouth. The simu-

lation shown in Fig. 6 was computed at a resolution

of 133×49×99, with 207736 surface samples for the

immersed environment geometry, and 7213 surface

samples on the agent geometry. The ﬁgure shows the

Accelerated Airborne Virus Spread Simulation: Coupling Agent-based Modeling with GPU-accelerated Computational Fluid Dynamics

283

Figure 6: Aerosol transport simulation results for an agent standing at the cash registers. The left image visualizes the

velocity and the particle distribution 2.5s after a cough event. The right image shows a different viewpoint after 5s with

particles colored by diameter, showing that large particles drop down fairly close to the agent.

original geometry clipped to the situation bounding

box, not the surface samples (compare with Fig. 3).

6 CONCLUSION AND FUTURE

WORK

Previous work on SARS-CoV-2 transmission focused

either on CFD, or on ABM alone (Shao et al., 2021;

Farthing and Lanzas, 2021). Thus, we presented a

novel system that combines ABM with CFD simula-

tions by intelligent clustering and selection of relevant

situations for a given scenario. A typical supermar-

ket scenario is used as a ﬁrst test case. The combi-

nation of the sheer number of agents, the length of

the produced trajectories and the size of the scenario

would lead to huge computational effort on the CFD

side, if simulated as a whole. By selecting relevant

situations, the computational complexity for the CFD

simulation can be greatly reduced, but at the cost of

limited accuracy. Situations are simulated indepen-

dently from each other and only for selected cluster

representatives. A thorough investigation of the im-

pact on accuracy of our approach compared to a CFD

simulation of the entire scenario is planned for future

work (with ventilation added). Furthermore, we plan

to investigate situations with more than two partic-

ipating agents, which seems to be a non-trivial ex-

tension. Also we plan to add more variety into the

agent’s movement patterns (e.g., social forces), more

realistic behavior (such as sneezing or adding groups

of agents), and safety equipment (e.g., different face

masks).

While we showed preliminary results for the su-

permarket scenario, we are still in the process of sta-

bilizing our CFD code to produce airﬂow simula-

tion results. Also, this paper has presented neces-

sary groundwork to be applied to real scenarios, but

risk assessment has yet to be carried out. Both the

physics of relevant processes (e.g., advection, evapo-

ration, sedimentation) and the workﬂow are appropri-

ate to substantially assess infection risks. This can be

done with realistic spatial distributions of infectious

particles and inhalation rates (by changing respective

physical activity states).

In turn, spatially reﬁned and agent-dependent in-

fection risks are key to infer individual safety precau-

tions. Within a simulation scenario the relative effect

of a single or combined safety precautions are to be

evaluated. The most effective and least invasive com-

bination of precautions, which conforms with pro-

cesses speciﬁc to the scenario, must be favored. The

precautions can be applied locally, i.e., within spatial

sub-domains with high infection risk, or globally for

the entire scenario.

ACKNOWLEDGEMENTS

This research has received funding from the Fraun-

hofer Anti-Corona Project “AVATOR – Anti-Virus-

Aerosol: Testing, Operation, Reduction”. We would

like to thank Stefanie Samtleben for valuable feed-

back and discussions.

REFERENCES

Bhagat, R. K., Davies Wykes, M. S., Dalziel, S. B., and Lin-

den, P. F. (2020). Effects of ventilation on the indoor

spread of COVID-19. Journal of Fluid Mechanics.

Botea, A., M

uller, M., and Schaeffer, J. (2004). Near opti-

mal hierarchical path-ﬁnding. J. Game Dev., 1(1).

Chen, J., Wang, R., Liu, L., and Song, J. (2011). Clus-

tering of trajectories based on Hausdorff distance. In

2011 International Conference on Electronics, Com-

munications and Control (ICECC), pages 1940–1944.

Chen, L.,

Ozsu, M. T., and Oria, V. (2005). Robust and

fast similarity search for moving object trajectories. In

Proceedings of the 2005 ACM SIGMOD International

Conference on Management of Data, page 491–502.

Chen, W., Zhang, N., Wei, J., Yen, H.-L., and Li, Y. (2020).

Short-range airborne route dominates exposure of res-

piratory infection during close contact. Building and

Environment, 176:106859.

GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications

284

Chen, Y., Li, W., Fan, R., and Liu, X. (2021). GPU op-

timization for high-quality kinetic ﬂuid simulation.

IEEE Trans. Vis. Comput. Graph.

Curtis, S. (2013). Pedestrian velocity obstacles: Pedestrian

simulation through reasoning in velocity space. PhD

thesis, University of North Carolina at Chapel Hill.

Demyen, D. and Buro, M. (2006). Efﬁcient triangulation-

based pathﬁnding. In Aaai, volume 6, pages 942–947.

Eiter, T. and Mannila, H. (1994). Computing discrete

echet distance. Technical report, Technische Uni-

versit

at Wien. CD-TR 94/64.

Farthing, T. S. and Lanzas, C. (2021). Assessing the efﬁ-

cacy of interventions to control indoor SARS-CoV-

2 transmission: an agent-based modeling approach.

medRxiv.

Garyfallidis, E., Brett, M., Correia, M., Williams, G., and

Nimmo-Smith, I. (2012). Quickbundles, a method for

tractography simpliﬁcation. Front. Neurosci., 6:175.

Geier, M., Sch

onherr, M., Pasquali, A., and Krafczyk, M.

(2015). The cumulant lattice Boltzmann equation in

three dimensions: Theory and validation. Computers

& Mathematics with Applications, 70(4):507–547.

Guha, A. (2008). Transport and deposition of particles in

turbulent and laminar ﬂow. Annual Review of Fluid

Mechanics, 40(1):311–341.

Gupta, J. K., Lin, C.-H., and Chen, Q. (2009). Flow dy-

namics and characterization of a cough. Indoor Air,

19(6):517–525.

Leclerc, Q. J., Fuller, N. M., Knight, L. E., Funk, S., and

and, G. M. K. (2020). What settings have been linked

to SARS-CoV-2 transmission clusters? Wellcome

Open Research, 5(83).

Lee, J.-G., Han, J., and Whang, K.-Y. (2007). Trajec-

tory clustering: A partition-and-group framework. In

Proceedings of the 2007 ACM SIGMOD International

Conference on Management of Data, page 593–604.

Lelieveld, J., Helleis, F., Borrmann, S., Cheng, Y.,

Drewnick, F., Haug, G., Klimach, T., Sciare, J., Su,

H., and P

oschl, U. (2020). Model calculations of

aerosol transmission and infection risk of COVID-19

in indoor environments. Int. J. Environ. Res. Public

Health, 17(21).

Li, W., Chen, Y., Desbrun, M., Zheng, C., and Liu, X.

(2020). Fast and scalable turbulent ﬂow simulation

with two-way coupling. ACM Trans. Graph., 39(4).

Li, Y. (2011). An improved volumetric LBM boundary ap-

proach and its extension for sliding mesh simulation.

phdthesis, Iowa State University.

Lu, J., Gu, J., Li, K.-B., Xu, C., Su, W., Lai, Z., Zhou, D.,

Yu, C., Xu, B., and Yang, Z. (2020). COVID-19 out-

break associated with air conditioning in restaurant,

Guangzhou, China, 2020. Emerg. Infect. Dis., 26.

Magdy, N., Sakr, M. A., Mostafa, T., and El-Bahnasy, K.

(2015). Review on trajectory similarity measures. In

2015 IEEE Seventh International Conference on In-

telligent Computing and Information Systems.

Nanni, M. and Pedreschi, D. (2006). Time-focused clus-

tering of trajectories of moving objects. Journal of

Intelligent Information Systems, 27:267–289.

Palma, A. T., Bogorny, V., Kuijpers, B., and Alvares, L. O.

(2008). A clustering-based approach for discovering

interesting places in trajectories. In Proceedings of the

2008 ACM Symposium on Applied Computing.

Qian, H., Miao, T., Liu, L., Zheng, X., Luo, D., and Li, Y.

(2021). Indoor transmission of SARS-CoV-2. Indoor

Air, 31(3):639–645.

Shao, S., Zhou, D., He, R., Li, J., Zou, S., Mallery, K.,

Kumar, S., Yang, S., and Hong, J. (2021). Risk

assessment of airborne transmission of COVID-19

by asymptomatic individuals under different practical

settings. Journal of Aerosol Science, 151:105661.

Shen, Y., Li, C., Dong, H., Wang, Z., Martinez, L., Sun, Z.,

Handel, A., Chen, Z., Chen, E., Ebell, M. H., Wang,

F., Yi, B., Wang, H., Wang, X., Wang, A., Chen, B.,

Qi, Y., Liang, L., Li, Y., Ling, F., Chen, J., and Xu, G.

(2020). Community Outbreak Investigation of SARS-

CoV-2 Transmission Among Bus Riders in Eastern

China. JAMA Internal Medicine, 180(12):1665–1671.

Stadnytskyi, V., Bax, C. E., Bax, A., and Anﬁnrud, P.

(2020). The airborne lifetime of small speech droplets

and their potential importance in SARS-CoV-2 trans-

mission. Proceedings of the National Academy of Sci-

ences, 117(22):11875–11877.

Stam, J. (1999). Stable ﬂuids. In Proceedings of the 26th

annual conference on Computer graphics and inter-

active techniques, SIGGRAPH ’99. ACM Press.

Stout, B. (1996). Smart moves: Intelligent pathﬁnding.

Game developer magazine, 10:28–35.

Sun, C. and Zhai, Z. (2020). The efﬁcacy of social distance

and ventilation effectiveness in preventing COVID-19

transmission. Sustain. Cities Soc., 62:102390.

Van den Berg, J., Lin, M., and Manocha, D. (2008). Recip-

rocal velocity obstacles for real-time multi-agent nav-

igation. In 2008 IEEE International Conference on

Robotics and Automation, pages 1928–1935. IEEE.

Van Toll, W. G., Cook IV, A. F., and Geraerts, R. (2012).

Real-time density-based crowd simulation. Computer

Animation and Virtual Worlds, 23(1):59–69.

Vlachos, M., Hadjieleftheriou, M., Gunopulos, D., and

Keogh, E. J. (2004). Indexing multidimensional time-

series. The VLDB Journal, 15:1–20.

Vuorinen, V., Aarnio, M., Alava, M., Alopaeus, V., et al.

(2020). Modelling aerosol transport and virus expo-

sure with numerical simulations in relation to SARS-

CoV-2 transmission by inhalation indoors. Safety Sci-

ence, 130.

Wang, Y., Xu, G., and Huang, Y.-W. (2020). Modeling

the load of SARS-CoV-2 virus in human expelled

particles during coughing and speaking. PLoS One,

15(10).

Weber, D., Mueller-Roemer, J., Stork, A., and Fellner,

D. (2015). A cut-cell geometric multigrid Poisson

solver for ﬂuid simulation. Computer Graphics Fo-

rum, 34(2):481–491.

Yuksel, C. (2015). Sample elimination for generating Pois-

son disk sample sets. Computer Graphics Forum,

34(2):25–32.

Accelerated Airborne Virus Spread Simulation: Coupling Agent-based Modeling with GPU-accelerated Computational Fluid Dynamics

285
