Classification and Analysis of Liverwort Sperm by Integration-Net

Haruki Fujii

, Naoki Minamino

, Takashi Ueda

2,3

, Yohei Kondo

2,3,4

and Kazuhiro Hotta

Meijo University, 1-501 Shiogamaguchi, Tempaku-ku, Nagoya 468-8502, Japan

National Institute for Basic Biology, 38 Nishigounaka, Myoudaiji-cho, Okazaki 444-0867, Japan

The Graduate University for Advanced Studies, 1560-35 Syonankokusai-mura, Hayama-machi, Miura-gun, Japan

Exploratory Research Center on Life and Living Systems (ExCELLS),

5-1 Higashiyama, Myodaiji-cho, Okazaki, 444-8787, Japan

Keywords: Video Recognition,

3DCNN, Visualization, Liverwort.

Abstract: In this paper, we propose a method to classify the videos of wild-type and mutant sperm of liverwort using

deep learning and discover the differences between them. In traditional video classification, 3D-Convolution

was often used. However, when 3D CNN is used, the information of multiple frames is mixed. Therefore, it

is difficult to detect important frames and locations in a video. To solve this problem, we proposed a network

that retains video frame information using Depthwise Convolution and Skip Connection, and used gradient-

based visualization to analyze the difference between wild type and mutant sperm. In experiments, we

compared the proposed method with conventional 3DCNN and show the effectiveness of the proposed method.

1 INTRODUCTION

In recent years, there has been a lot of researches of

video recognition based on Convolutional Neural

Network (CNN). These techniques have been applied

not only to human behavior recognition (Dalal, N.,

Triggs, B., & Schmid, C., 2006), but also to animal

behavior (Anderson, D. J., & Perona, P., 2014). The

purpose of this paper is to classify two types of sperm

using CNN and to discover the differences between

two types of sperm (mutant and wild type) by

visualizing the important frames and locations in a

video.

We would like to visualize important frames and

locations in a video for classification. However, the

3DCNN used for video recognition collapses the

frame information as it goes through the layers.

Therefore, important frame information cannot be

analyzed by gradient-based approaches such as Grad-

CAM (Selvaraju, R. R., Cogswell, M., Das, A.,

Vedantam, R., Parikh, D., & Batra, D., 2017) and

Grad-CAM++ (Chattopadhay, A., Sarkar, A.,

Howlader, P., & Balasubramanian, V. N., 2018). It is

necessary to maintain the time-series information of

frames in the network to discover important frames

and locations in a video.

In this paper, we propose Integration-Net which is

the integrated network of two different networks

devised to maintain frame information. One network

in the integrated network has the structure in which

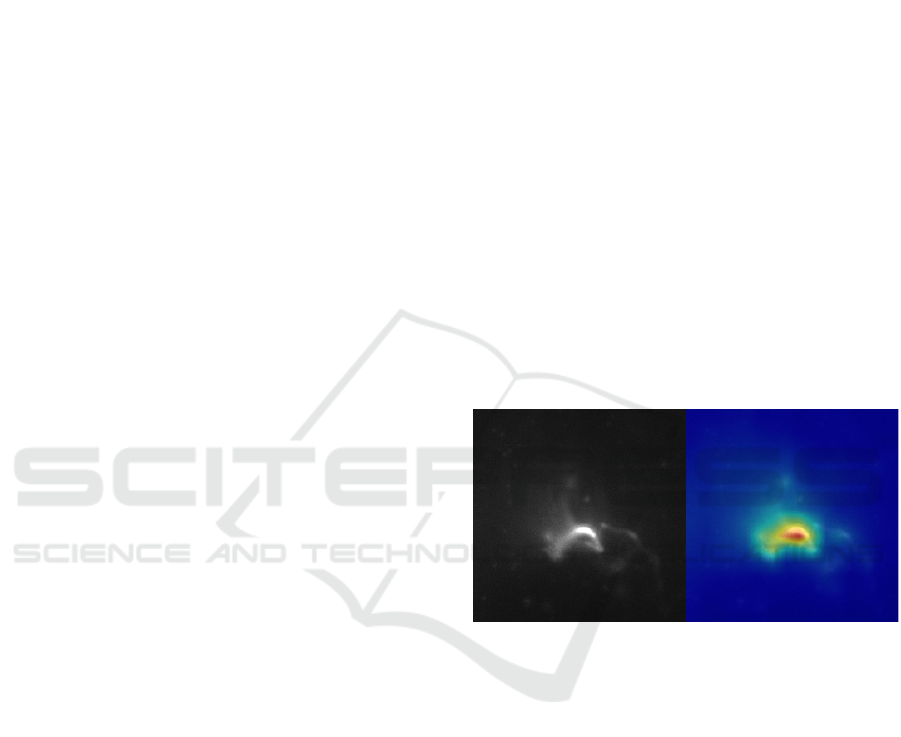

Figure 1: Example of visualization. Left shows an input

image and right shows the result of visualization.

the input frame information is transmitted to the

deeper layer by skip connection in order to maintain

the frame information. The other network uses the

Depthwise convolution. Since the Depthwise

convolution applies a single filter to each channel,

there is no risk for losing frame information. By

integrating the outputs of these two different

networks, we can use the advantages of ensemble

effect which is expected to improve the accuracy in

comparison with a single network.

When a video is classified, our method visualizes

which parts in the video are important for Integration-

Net to determine whether it is wild type or mutant.

We obtain feature maps whose channel is the same

number of frames as the input video, and calculate the

gradients from the outputs to visualize the important

locations and frames in a video.

Fujii, H., Minamino, N., Ueda, T., Kondo, Y. and Hotta, K.

Classiﬁcation and Analysis of Liverwort Sperm by Integration-Net.

DOI: 10.5220/0010915700003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

699-705

ISBN: 978-989-758-555-5; ISSN: 2184-4321

699

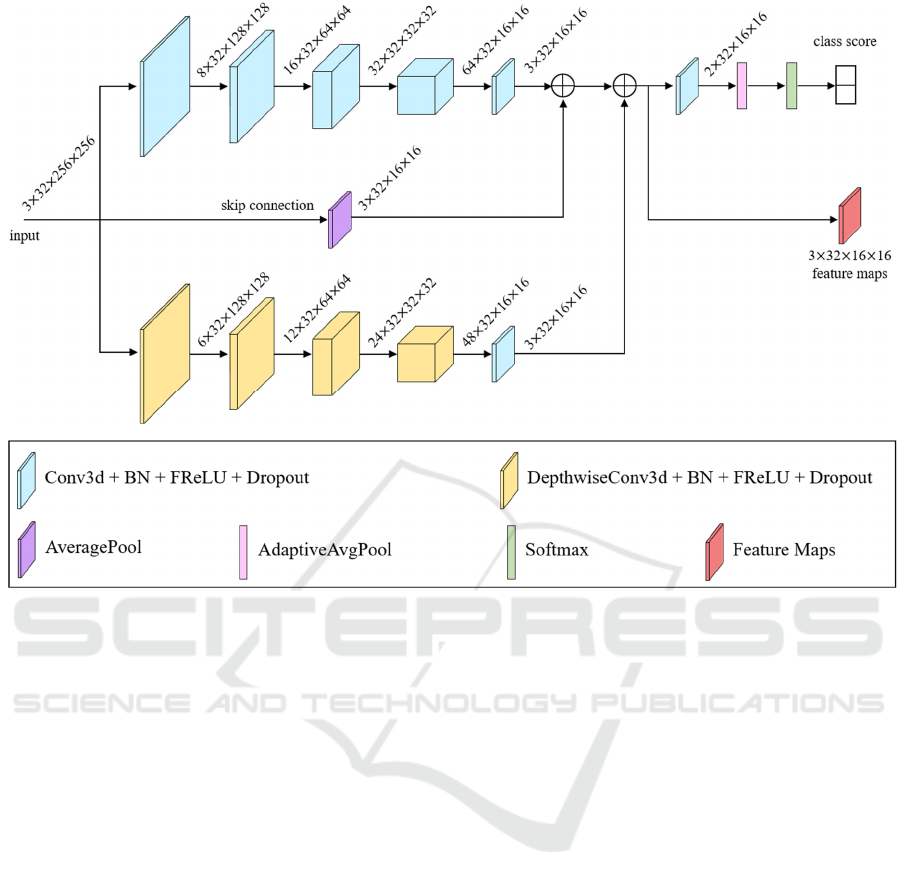

Figure 2: Network architecture of Integration-Net. The numbers in the figure represents the shape of feature maps. For

example, 3 × 32 × 256 × 256 at input represents 3 channels, 32 frames and a size of 256 × 256. BN represents batch

normalization.

In our experiments, we used the videos of

liverwort sperm to discriminate between wild type

and mutants, and achieved an average classification

accuracy 91.79%. In addition, from visualization

results, we confirmed that our method discovered

important frames and locations in a video for

classification. Figure 1 shows the visualization result

in which red indicates important locations and blue

indicates unimportant locations.

The organization of this paper is as follows. First,

section 2 describes related works. Section 3 explains

the proposed method. Section 4 describes the

experimental methods and shows the experimental

results. Finally, in section 5, we describe the

conclusion and future works.

2 RELATED WORKS

2.1 Video Recognition

In recent years, video recognition has been dominated

by CNN-based approaches as well as image

recognition. Since video has an additional dimension

in the time direction to images, and there is a

difference in the characteristics of mainly temporal

and spatial information. Therefore, simple time

dilation, which is an effective method for image

recognition, is not always effective for video

recognition.

3D CNN (Ji, S., Xu, W., Yang, M., & Yu, K.,

2012) is a method that considers the information in

temporal direction by 3D-convolutional processing,

which is the extension of 2D convolutional

processing to the temporal direction.

C3D (Tran, D., Bourdev, L., Fergus, R.,

Torresani, L., & Paluri, M., 2015) was proposed as a

pioneering method for 3DCNN. It can learn task-

appropriate spatio-temporal features in an end-to-end

manner.

In this paper, we propose the Integration-Net

which integrates two different networks. It can use

ensemble of two networks, and we can improve the

accuracy in comparison with a single network. In this

paper, we would like to classify sperm videos and

visualize the important frames and locations in a

video. However, conventional video classification

methods cannot visualize the important frames

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

700

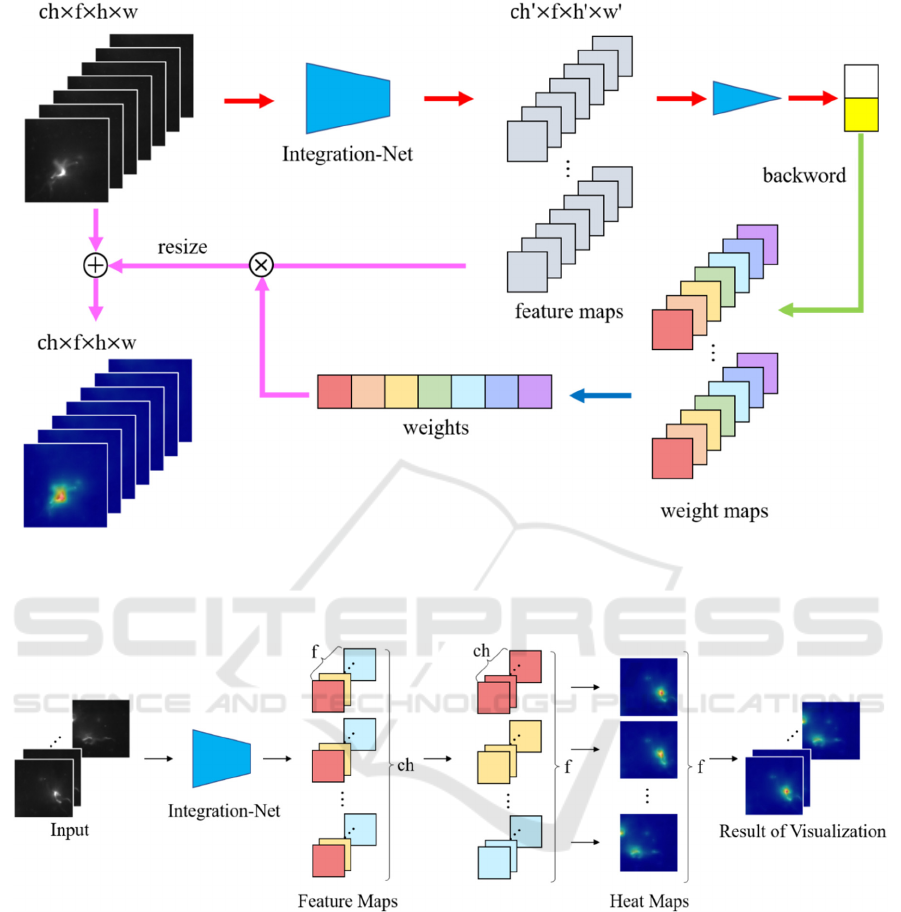

Figure 3: Overview of proposed method. We visualized the important frames and locations by weighting the gradients against

the network predictions. This allows us to show the differences between wild type and mutant sperm. We compute the gradient

of convolutional layer from the prediction result and create weight maps. Weights are calculated by averaging them in channel

direction at each frame of the weight maps. For each pixel, we calculate the product between the feature maps and the weights.

Figure 4: How to detect the differences by our method. The “f” and “ch” represent the number of frames and channels in the

feature maps. The dimension of the feature maps in the Integration-Net is channel x frame x height x width. We transposed

the channels and frames of the feature maps as a preprocessing step for visualization. This allows us to generate a heat map

for each frame.

because the number of output channels is different

from the number of input frames. Our proposed

Integration-Net solved this problem by skip

connection of input information and the Depthwise

convolution.

2.2 Visualization Method

There are researches that visualize where the network

pays attention to classification. If the classification

accuracy of the model is high, the visualization results

can help the people discover problems and new

phenomena. Some visualization methods have been

proposed; Guided backpropagation (Springenberg, J.

T., Dosovitskiy, A., Brox, T., & Riedmiller, M.,

2014) and deconvolution (Zeiler, M. D., & Fergus, R.,

2014) visualized CNN predictions by highlighting

important pixels. These methods emphasized the

details of the image at high resolution, but are unable

to identify classes. Grad-CAM (Selvaraju, R. R.,

Classiﬁcation and Analysis of Liverwort Sperm by Integration-Net

701

Cogswell, M., Das, A., Vedantam, R., Parikh, D., &

Batra, D., 2017) is a visualization method that

improved the problem. It is a technique for

visualizing important pixels for classification by

weighting their gradients with respect to the predicted

value. The weights are calculated by partially

differentiating the probability scores and all feature

maps are integrated by weighted average into a

saliency map. This means that positions that have a

large impact on the class decision have a large

probability score.

As shown in Figure 2, in the proposed method, the

feature maps from two different networks are

summed. To use gradient-based method such as

Grad-CAM for our method, we extract the summed

feature maps and classification results to visualize the

important parts. Grad-CAM gives the importance of

a pixel by summing in the channel (frames in a video)

direction. However, we would like to know the

important frames and locations. Thus, we must

modify Grad-CAM slightly.

3 PROPOSED METHOD

3.1 Overview of the Proposed Method

Figure 3 shows the overview of the proposed method.

Videos of 256 × 256 pixels and 32 frames are fed into

Integration-Net. As mentioned above, the number of

frames in the feature map used for visualization must

be the same as the number of frames in an input video.

To classify the videos, we used 1×1×1 convolution to

set the number of channels to the number of classes,

and then Adaptive Average Pooling was used. The

output with the highest probability is returned to

Integration-Net, where the important features that

affect the final probability score are calculated. In this

paper, a feature map that summed the outputs of two

networks was used for visualization, as shown in

Figure 2.

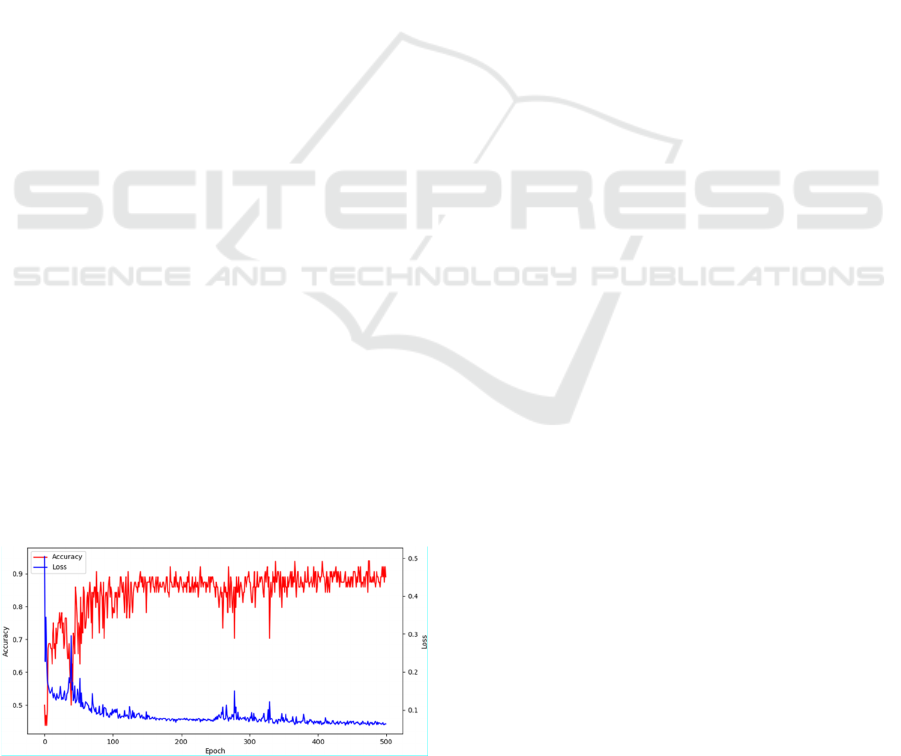

Figure 5: Accuracy and loss function for validation set.

3.2 Details of Network Architecture

Integration-Net is the integration of two different

networks. One of two networks has four

convolutional layers with 3D-Convolution, and the

input video is transmitted to the deeper layer by skip

connections. There is a difference in the resolution

and number of channels of the skip connection, and

we change the resolution of the input by average

pooling. The number of channels in the feature map

is also changed to the same number of channels in the

input video with 1 x 1 x 1 convolution. In general,

when we use 3D-Convolution, the information of

each frame is mixed up. If the frame information is

lost, the important frames cannot be identified when

we analyse important frames using gradient

information. Therefore, we compensate for the frame

information of input video by using skip connections

to convey the frame information of the input.

The other network uses the Depthwise

convolution. The reason for using the Depthwise

convolution is that it applies one filter to each

channel. Thus, frame information is not lost. It also

reduces the computational cost in comparison with

standard convolution. Integration with a network

using skip connections uses the sum of feature maps.

Therefore, the number of channels is also changed to

the same number of channels in the input video by

1×1×1 convolution before integration. This allows us

to align the shape of the output feature maps from the

two networks for integration.

In two networks, the kernel size and stride in the

frame direction for all convolutions were set to 1.

This allows us to keep the number of frames in the

network. After the convolution, batch normalization,

FReLU (Ma, N., Zhang, X., & Sun, J., 2020), and

dropout were used. FReLU is an activation function

specialized for image recognition. Unlike the

commonly used ReLU, the function can be changed

for each location as shown in equation (1).

y=maxx, T





 (1)

where T(∙) is Depthwise convolution. Therefore,

FReLU is able to learn spatial elements for each pixel,

and can decide whether to use the learned pixel or not

by max(∙).

3.3 Discover the Difference

Figure 4 shows how our method discover the

difference in sperm. The dimension of output feature

map in the Integration-Net is channel × frame ×

height × width. Since Grad-Cam used in image

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

702

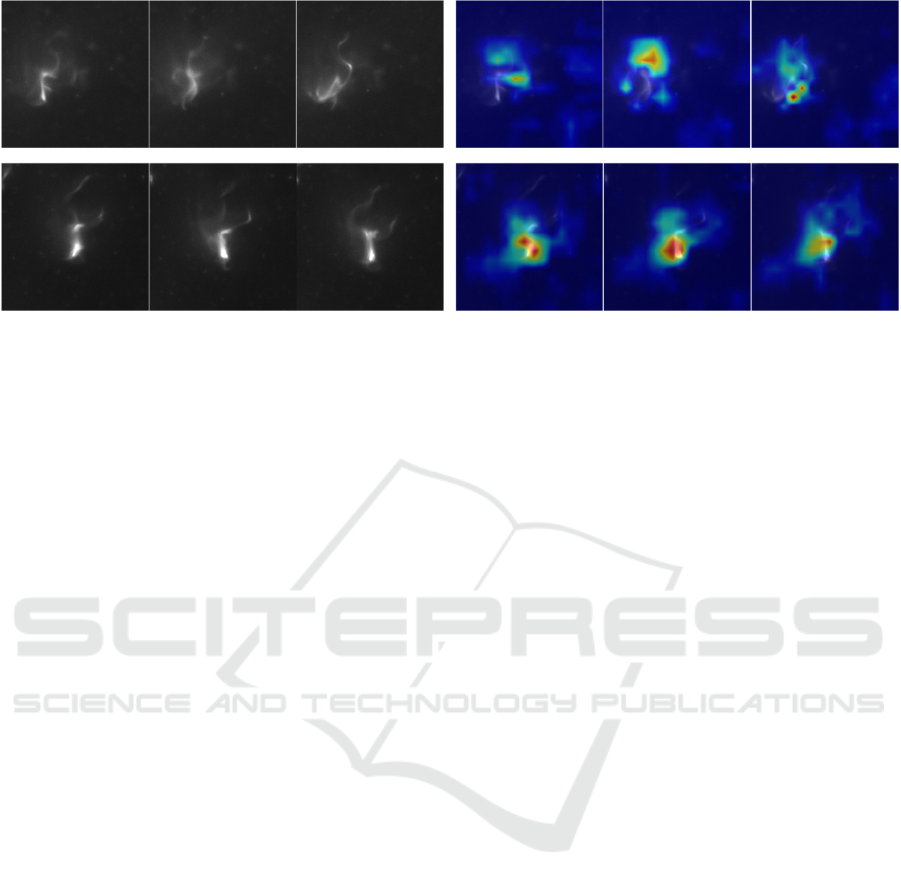

Figure 6: Results of difference discovery by our proposed method. The upper row is the wild type and the lower row is the

mutant. Left column shows the examples of input frames and right column shows the results of difference discovery.

classification is calculated by the weighted sum of

each channel, we cannot know the important frames.

Thus, as shown in Figure 4, the channels and frames

of the feature map are transposed as a preprocessing

step. This allows the channels corresponding to each

frame to be grouped together. For example, the first

frame of the feature map in Figure 4 is shown in red.

Thus, by computing the gradients of the feature map

and generating a heat map for each frame, we can

detect the differences between wild-type and mutant

sperm automatically. The difference shows important

frames and locations in a video for classification.

4 EXPERIMENTS

4.1 Datasets

In experiments, we used video datasets of liverwort

sperm. We cropped the areas including a single sperm

from videos and created 256 video clips. There is no

overlap for cropping areas. The size of video clips is

256 × 256 pixels, and the number of frames is 32.

There are two classes; wild type and mutant. We used

128 video clips for training, 64 for validation and 64

for test. We evaluate our method with 4-fold cross

validation.

4.2 Implementation Details

In this paper, we used the Pytorch library and trained

500 epochs using Adam optimizer. The initial

learning rate was set to 0.001, CosineAnnealingLR

was used as scheduler, T_0=250, T_mult=1.0,

eta_min=0.0, and the batch size was set to 32.

We used Focal Loss (Lin, T. Y., Goyal, P.,

Girshick, R., He, K., & Dollár, P., 2017) defined in

equation 2.

Focal Loss= -1-p



logp



(2)

where γ is a hyper-parameter and we set γ to 2

according to the original paper.

We chose the model with the lowest loss or the

highest accuracy for validation set. The model is used

for evaluation.

In experiments, six methods were evaluated as

comparison. Six methods are as follows. 3D-

ResNet50 (Hara, K., Kataoka, H., & Satoh, Y., 2017)

which is commonly used in video classification; Skip-

Net which introduces skip connections from the input

frame; Depthwise-Net which uses the Depthwise

convolution; SS-Integration-Net which integrates two

Skip-Nets. DD-Integration-Net which integrates two

Depthwise-Nets. Integration-Net which integrates

Skip-Net and Depthwise-Net.

4.3 Results of Experiments

Table 1 shows the evaluation results of each method

when we use the model with the lowest loss for

validation set. We see that our proposed Integration-

Net, which integrates Skip-Net and Depthwise-Net

gave the best accuracy. The proposed method

improved the accuracy by more than 38% from the

conventional 3D-ResNet50. This is because 3D-

ResNet50 has a large model and overfitting might

occur. Integration of two different networks also gave

better classification accuracy than the integration of

two same networks. This is because the integration of

the two different networks allowed us to use the

ensemble effect.

Classiﬁcation and Analysis of Liverwort Sperm by Integration-Net

703

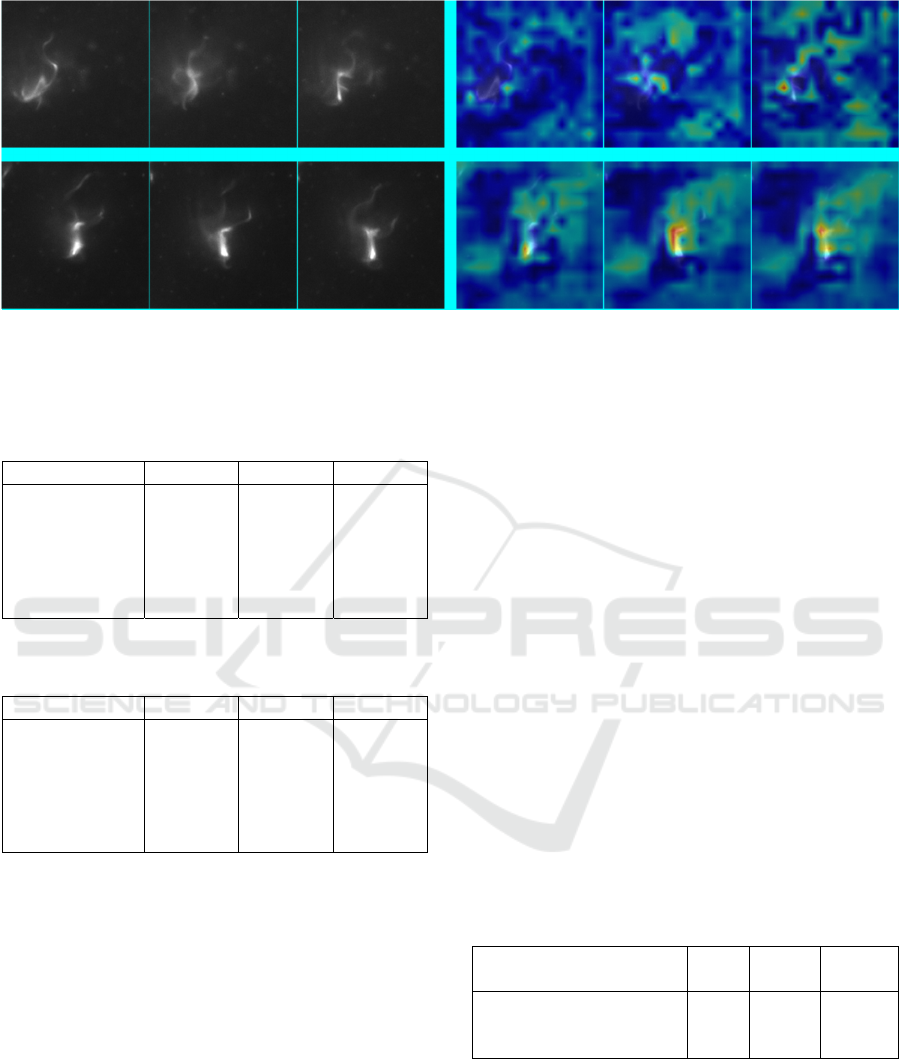

Figure 7: Results of difference discovery by our method when skip connection was removed. The upper row is the wild type

and the lower row is the mutant. Left column shows some frames in a video and right column shows the results of difference

discovery.

Table 1: Comparison results when the model with the

lowest loss for the validation set was chosen.

wild mutant Average

3D-ResNet50 60.94 46.10 53.52

Skip-Net 92.16 70.31 81.25

Depthwise-Net 88.28 89.84 89.06

SS-integration 67.97 93.75 80.86

DD-integration 89.06 91.41 90.24

SD-integration 89.84 93.75 91.79

Table 2: Comparison results when the model with the

highest accuracy for the validation set was chosen.

wild mutant average

3D-ResNet50 61.72 49.22 55.47

Skip-Net 87.50 69.53 78.52

Depthwise-Net 82.81 88.28 85.55

SS-integration 68.75 92.97 80.86

DD-integration 86.72 90.63 88.67

SD-integration 86.72 92.97 89.81

Table 2 shows the results when we choose the

model with the highest accuracy for validation set. In

comparison with the results in Table 1, the overall

accuracy became low. Figure 5 shows the graph of the

transition of accuracy and loss for the validation set.

The highest accuracy is achieved at around 350

epochs, but the loss function continues to be low until

the end of the training. Therefore, it is more accurate

to choose the model with the lowest loss for the

validation set.

Figure 6 shows the visualization results of

important frames and locations for classification by

our proposed method. Important parts are shown in

red and unimportant parts are shown in blue. In both

the wild type and the mutant classes, the flagella that

are used for swimming in water were discovered as

an important part for classification. This indicates that

the wild type and the mutant have the differences in

their flagella. The visualization results show that the

flagella of wild type is a distinctive feature compared

with the mutant’s flagella.

4.4 Ablation Study

In this section, we investigate the effectiveness of

FReLU and skip connections used in the proposed

method. In the experiment, three models were

compared. Three models are our proposed method,

the proposed method without the skip connection, and

the proposed method that the FReLU is replaced by

ReLU.

Table 3 shows the results of ablation study. We can

confirm that the accuracy was improved by more than

8% by using FReLU as the activation function.

FReLU is also effective in video classification using

3D-convolution.

Table 3: Results of the proposed method when skip

connection is not used and when the activation function

FReLU is replaced by ReLU.

skip

connection

activation

function

wild mutant average

FReLU 67.97 93.75 80.86

✓ ReLU 85.94 81.25 83.60

✓ FReLU 89.84 93.75 91.79

Evaluation results showed that the accuracy was

improved by more than 10% when the skip

connection was used. This is because the information

of each frame has been mixed up in the network.

Figure 7 shows the results of difference discovery

by our method without skip connection. In

comparison with Figure 5, the difference is

ambiguous. These results show that providing input

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

704

information to the feature map by skip connection is

effective for visualizing important frames.

5 CONCLUSION

This paper proposed the Integration-Net which

integrates different networks for classifying wild-

type and mutant sperm of liverwort. This allows

more accurate classification than conventional video

classification methods. We discover the difference

between the two types of sperm by using the gradients

of network. Our method discovered the difference of

the flagella automatically.

However, the heat map may be ambiguous or

blurry. Therefore, we would like to use visualization

methods that do not depend on gradient calculation

such as Score-CAM (Wang, H., Wang, Z., Du, M.,

Yang, F., Zhang, Z., Ding, S., Mardziel, P. & Hu, X.,

2020), or consider more detailed visualization

methods that refer to it.

In addition, we would like to use ConvLSTM

(Xingjian, S. H. I., Chen, Z., Wang, H., Yeung, D. Y.,

Wong, W. K., & Woo, W. C., 2015) to use motion

information effectively.

ACKNOWLEDGEMENT

This research is partially supported by JSPS

KAKENHI Grant Number 20H05427.

REFERENCES

Ji, S., Xu, W., Yang, M., & Yu, K., “3D convolutional

neural networks for human action recognition”, IEEE

Transactions on Pattern Analysis and Machine

Intelligence, Vol 35, pp. 221-231, 2013.

Dalal, N., Triggs, B., & Schmid, C., “Human detection

using oriented histograms of flow and appearance”, In

European Conference on Computer Vision, pp. 428-

441, 2006.

Selvaraju, R. R., Cogswell, M., Das, A., Vedantam, R.,

Parikh, D., & Batra, D., “Grad-CAM: Visual

explanations from deep networks via gradient-based

localization”, In IEEE International Conference on

Computer Vision, pp. 618-626, 2017.

Chattopadhay, A., Sarkar, A., Howlader, P., &

Balasubramanian, V. N., “Grad-cam++: Generalized

gradient-based visual explanations for deep

convolutional networks”, In IEEE Winter Conference

on Applications of Computer Vision, pp. 839-847, 2018.

Anderson, D. J., & Perona, P., “Toward a science of

computational ethology”, Neuron, Vol 84, pp.18-31,

2014.

Tran, D., Bourdev, L., Fergus, R., Torresani, L., & Paluri,

M. “Learning spatiotemporal features with 3d

convolutional networks”, In IEEE International

Conference on Computer Vision, pp. 4489-4497, 2015.

Springenberg, J. T., Dosovitskiy, A., Brox, T., &

Riedmiller, M., “Striving for simplicity: The all

convolutional net”, International Conference on

Learning Representations Workshops, 2015.

Zeiler, M. D., & Fergus, R., “Visualizing and understanding

convolutional networks”, In European Conference on

Computer Vision, pp. 818-833, 2014.

Ma, N., Zhang, X., & Sun, J., “Funnel activation for visual

recognition”, In European Conference on Computer

Vision, pp. 351-368, 2020.

Lin, T. Y., Goyal, P., Girshick, R., He, K., & Dollár, P.

“Focal loss for dense object detection”, In IEEE

International Conference on Computer Vision, pp.

2980-2988, 2017.

Hara, K., Kataoka, H., & Satoh, Y., “Learning spatio-

temporal features with 3d residual networks for action

recognition”, In Proceedings of the IEEE International

Conference on Computer Vision Workshops, pp. 3154-

3160, 2017.

Wang, H., Wang, Z., Du, M., Yang, F., Zhang, Z., Ding, S.,

Mardziel, P., & Hu, X., “Score-CAM: Score-weighted

visual explanations for convolutional neural networks”,

In IEEE Conference on Computer Vision and Pattern

Recognition Workshops, pp. 24-25, 2020.

Xingjian, S. H. I. Chen, Z., Wang, H., Yeung, D. Y., Wong,

W. K., & Woo, W. C., “Convolutional LSTM network:

A machine larning approach for precipitation

nowcasting”, In Advances in Neural Information

Processing Systems, pp. 802-810, 2015.

Classiﬁcation and Analysis of Liverwort Sperm by Integration-Net

705
