SparseDet: Towards End-to-End 3D Object Detection

Jianhong Han

, Zhaoyi Wan

, Zhe Liu

, Jie Feng

and Bingfeng Zhou

Wangxuan Institute of Computer Technology, Peking University, Beijing, China

University of Rochester, Rochester, U.S.A.

Huazhong University of Science and Technology, Wuhan, China

Keywords:

3D Deep Learning, Object Detection, Point Clouds, Scene and Object Understanding.

Abstract:

In this paper, we propose SparseDet for end-to-end 3D object detection from point cloud. Existing works on

3D object detection rely on dense object candidates over all locations in a 3D or 2D grid following the main-

stream methods for object detection in 2D images. However, this dense paradigm requires expertise in data to

fulﬁll the gap between label and detection. As a new detection paradigm, SparseDet maintains a ﬁxed set of

learnable proposals to represent latent candidates and directly perform classiﬁcation and localization for 3D

objects through stacked transformers. It demonstrates that effective 3D object detection can be achieved with

none of post-processing such as redundant removal and non-maximum suppression. With a properly designed

network, SparseDet achieves highly competitive detection accuracy while running with a more efﬁcient speed

of 34.5 FPS. We believe this end-to-end paradigm of SparseDet will inspire new thinking on the sparsity of

3D object detection.

1 INTRODUCTION

3D Object detection is a technology used to identify

the category and location of an object of interest in a

scene. As one of the fundamental topics in the ﬁeld of

computer vision, it plays a pivotal role in applications

for a wide range of scenarios, e.g., autonomous driv-

ing and augmented reality. With the advancement of

3D sensors, considerable research attention has been

paid to 3D object detection from point cloud in re-

cent years. Due to its representation power from a

low-resolution resampling of the real 3D world geom-

etry, point cloud scanned from LiDAR depth sensors

achieves remarkable success in this ﬁeld. Meanwhile,

the sparsity and irregularity of point cloud data pose

great challenges to accurate and robust 3D object de-

tection.

For the task of 3D object detection from point

cloud, we aim at representing an object with an ori-

ented 3D bounding box around it given the point

cloud of a scene as input. To this end, researchers

in 3D object detection have proposed various effec-

tive methods. Mainstream 3D object detectors per-

form dense regression from a large set of coarse pro-

posals or anchors in a rigid spatial grid. Despite the

success that this paradigm has achieved, it is limited

in several aspects. (1) The dense prediction requires

Table 1: Directly applying sparse prediction in a 3D

object detection algorithm VoxelNet (Zhou and Tuzel,

2018) suffers from signiﬁcant degradation of performance.

SparseDet makes the ﬁrst sparse 3D object detector and

demonstrates effectiveness and efﬁciency.

Method Easy Mod. Hard mAP

VoxelNet 81.98 65.46 62.85 70.10

sparse VoxelNet 61.17 56.73 56.61 58.17

SparseDet 88.36 78.45 77.03 81.28

and is sensitive to post-processing procedures, e.g.,

non-maximum suppression (NMS), to form the ﬁnal

detection. (2) Hyper-parameters such as sizes and

aspect ratios of anchors must be carefully tuned for

effective detection. (3) The gap between intermediate

representation and ﬁnal detection makes empirical la-

bel assignment strategies critical to detectors.

Drawing inspiration from object detection in 2D

images, we explore end-to-end 3D object detection in

a sparse manner in this paper. To ﬁt into the nature

of sparsity in point cloud, we propose to apply sparse

prediction for detection, thus making an end-to-end

paradigm for 3D object detection. Although end-to-

end detection is proven feasible in 2D images (Carion

et al., 2020), an effective design of sparse detector for

3D object in point cloud is non-trivial due to the chal-

Han, J., Wan, Z., Liu, Z., Feng, J. and Zhou, B.

SparseDet: Towards End-to-End 3D Object Detection.

DOI: 10.5220/0010918000003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

781-792

ISBN: 978-989-758-555-5; ISSN: 2184-4321

781

Feature Alignment Sparse HeadVoxelization Map to BEV3D Feature Extraction

SparseDet

Post ProcessingFeature Alignment Dense HeadMap to BEV3D Feature Extraction

Additional Information

Sparse RoI Head

Feature Alignment

Dense Head

Map to BEV

3D Feature Extraction

Post Processing

Dense-to-Sparse

Voxelization

Dense

Figure 1: Comparison with mainstream 3D object detection paradigms. Distinguishable from conventional dense and dense-

to-sparse approaches, SparseDet performs end-to-end detection without post-processing.

lenges and differences in tasks. As shown in Tab. 1,

intuitively applying sparse prediction in 3D object de-

tection thus suffers from signiﬁcant degradation of

detection accuracy. For the purpose of an effective

end-to-end 3D object detector, we closely investigate

the characteristics of detection in point cloud and ac-

cordingly design an algorithm that detects 3D objects

through sparse prediction, namely SparseDet.

SparseDet bears several major differences from

previous practices in 3D object detection. Firstly,

it discards the enumeration through the voxel grid

to generate dense proposals. Instead, it keeps the

sparsity by maintaining a set of learnable proposals

that are concentrated on the most possible regions

in the point cloud. Secondly, it produces object de-

tection without intermediate representation based on

label assignment. Thus, requirements of any post-

processing such as NMS are eliminated. Thirdly, it

relies on none of pre-deﬁned anchors but adaptively

learns proposal initialization from a statistics perspec-

tive. We conduct extensive experiments to demon-

strate the effectiveness of the proposed SparseDet.

Speciﬁcally, state-of-the-art detection accuracy per-

formance of 81.3% 3D mAP and efﬁciency perfor-

mance of 34.5 FPS is achieved in KITTI. Moreover,

exhaustive ablation studies are provided to reveal the

insights of our model design. What we prefer more

about the proposed sparse paradigm is it demonstrates

promising robustness, which is crucial to the applica-

ble value for a 3D object detector (see Sec. 4.2 for

details).

Our contribution in this paper can be summarized

as follows:

• We are the ﬁrst to conduct an end-to-end 3D ob-

ject detector in point cloud by applying a sparse

prediction paradigm.

• In the context of sparse prediction, we closely in-

vestigate the concepts for model design, including

a proper feature extractor and targeted loss func-

tions, which provide guidance for effective prac-

tice of end-to-end 3D object detection.

• Extensive experiments validate the effectiveness

of the proposed method: it is a trade-off between

accuracy and efﬁciency, and demonstrates superi-

ority in robustness.

2 RELATED WORK

According to the manner of generating boxes, the ex-

isting methods for 3D object detection are mainly di-

vided into two categories, including the dense and

dense-to-sparse methods. As shown in Fig. 1.

Dense 3D Object Detection. The early dense 3D

detectors mainly adopted the anchor-based design,

which requires manually setting anchors for each cat-

egory object. A typical representative method is Vox-

elNet (Zhou and Tuzel, 2018), which ﬁrst extracts

the voxel features by a Voxel Feature Encoding layer.

Then, a region proposal network (RPN) takes the

voxel feature as input and generates the dense 3D

boxes on the detection head. SECOND (Yan et al.,

2018) utilizes a more efﬁcient sparse convolution op-

eration to learn voxel feature representation for im-

proving VoxelNet. Based on SECOND, Pointpil-

lars (Lang et al., 2019) divides the point cloud as

a special voxel called pillars to further improve the

running speed. However, the pillar-based manner

inevitably loses some important context and spatial

information. Towards this goal, TANet (Liu et al.,

2020) proposes a TA module to obtain more robust

and distinguishable features. Recently, anchor-free

3D detector CenterPoint (Yin et al., 2021) regards ob-

jects as points and discards the hand-crafted anchor

boxes. Moreover, all these methods need NMS post-

processing operation through setting a suitable score

threshold to ﬁlter out the redundant boxes in infer-

ence. Which is a common disadvantage of the dense

3D detection paradigm.

Dense-to-Sparse 3D Object Detection. F-

PointNet (Qi et al., 2018), Frustum-ConvNet (Wang

and Jia, 2019) and SIFRNet (Zhao et al., 2019) ﬁrst

generate a set of 2D region proposals on a front

view image with the help of ofﬂine strong 2D detec-

tors (Liu et al., 2016; Redmon and Farhadi, 2018).

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

782

Then, each 2D proposal is converted into a 3D view-

ing frustum in point cloud. Finally, PointNets (Qi

et al., 2017a; Qi et al., 2017b) is applied to estimate

the ﬁnal 3D boxes for each 3D viewing frustum.

However, the manner is limited by the performance

of 2D detectors. Instead of F-PointNet (Qi et al.,

2018), (Shi et al., 2019; Yang et al., 2019b; Shi

et al., 2020; Chen et al., 2019; Huang et al., 2020;

Chen et al., 2017; Ku et al., 2018; Deng et al., 2020)

directly achieve the online dense-to-sparse paradigm.

Speciﬁcally, these methods ﬁrst produce a large

number of boxes via a RPN. Then, to provide the

high-quality boxes for the RCNN stage, the NMS

is also a necessary operation during the process

from the ﬁrst stage to the second stage. Finally,

the RCNN further estimates the ﬁnal 3D boxes via

reﬁning the sparse boxes from the RPN stage. These

approaches can usually obtain high performance but

a slower running speed compared with the dense

3D object detectors. In contrast, our SparseDet not

only abandons some tedious manual operation (e.g.

anchors and NMS ), but also can achieve comparable

results with a high running speed.

Sparse 2D Object Detection. Recently, with the

widespread application of transformers in computer

vision, sparse object detection methods have attracted

more and more attention. DETR (Carion et al.,

2020) builds the ﬁrst fully end-to-end 2D object de-

tector, which not only eliminates the anchor design

and NMS operation but also achieves comparable re-

sults with the existing detectors. Based on DETR, D-

DETR (Zhu et al., 2020) mitigates the slow conver-

gence and high complexity issues of DETR through

the proposed deformable attention module. Sparse

R-CNN (Sun et al., 2020) completely remove to ob-

ject candidates design and achieve better performance

and faster convergence through the learnable proposal

boxes and their corresponding features than DETR

and D-DETR. Motivated by these sparse methods, we

propose SparseDet in this paper, which aims to pro-

vide a strong and simple baseline serving for the 3D

object detection community.

3 SparseDet FOR 3D OBJECT

DETECTION

In this section, we describe the novel SparseDet to

explore the feasibility of a sparse detector from 3D

point cloud. The overall architecture is illustrated in

Fig. 1. The paradigm of SparseDet can be roughly di-

vided into three main components: a voxel-based fea-

ture extractor, a feature alignment module that reﬁnes

the extracted features, and a detection head perform-

ing detection in a sparse manner. In the following, we

introduce each of the components of SparseDet and

the loss functions for the objective of training in de-

tail.

3.1 Voxel Feature Extraction

Compared with two-stage point-based methods (Shi

et al., 2019; Huang et al., 2020), voxel-based ap-

proaches (Lang et al., 2019; Yan et al., 2018) occupy

a higher efﬁciency. Therefore, our method focus on

voxel-based methods. Speciﬁcally, We ﬁrst encode

the point cloud into a regular volume grid, namely

voxels, thus effectively compressing the representa-

tion with aggregated features. However, point cloud is

of uneven distribution since it is collected by LiDAR

sensors distant from targets. Therefore, the number of

points to be represented in each voxel varies dramat-

ically. To avoid being overwhelmed by voxels with

overly dense points, we limit the maximum number

of points as T in each voxel. The neutralization is im-

plemented by random sampling inside these voxels.

More formally, given a point cloud in the range of

L × W × H meters and voxel size of D

, D

, the

discrete voxel feature grid with the shape of S

×S

is obtained, where

= d

e,S

= d

e,S

= d

(1)

After voxelization, non-empty voxels are main-

tained and encoded as the mean of point-wise features

of all inside points.Then the voxel features are fed

into a stack of 3D sparse convolution layers (Graham,

2014; Graham, 2015; Graham and van der Maaten,

2017; Graham et al., 2018; Yan et al., 2018) to extract

rich features from the voxel representation.

3.2 Feature Alignment

We avoid directly exploiting the 3D voxel features for

prediction, which bring high computational cost. In-

stead, the features in 3D are collapsed into a ﬁxed

view, e.g., Birds’ Eye View (BEV), to align fea-

tures along the Z-axis. The conventional BEV fea-

ture alignment involves a downsample-and-upsample

schema: a sub-network that reduces the resolution

with stacked 2D convolutions and a multi-scale fea-

ture fusion sub-network.

Therefore, we introduce the Feature Pyramid Net-

work (FPN) (Lin et al., 2017a) and Pyramid Sam-

pling Aggregation (PSA) (Liu et al., 2020) modules as

the basis for our feature alignment. FPN is designed

to solve the problem of scale variance of which ob-

jects emerge in images. Although the scale of akin

SparseDet: Towards End-to-End 3D Object Detection

783

objects is consistent in point cloud due to the differ-

ences in sensors, point sparsity and reﬂection strength

decrease for objects far from the sensor. Therefore,

sparse 3D object detection beneﬁts from a pyramid

model structure to capture information from differ-

ent scales. Given the BEV features where the view

is ﬁxed, we obtain features with different solutions.

Speciﬁcally, 2x, 4x, and 8x downsampled features in

the top-down order are produced by three 4-layers

convolution modules, whose number of ﬁlters is 64,

128, and 256, respectively. The outputs of these

blocks are denoted as B

, B

and B

Then, three feature pyramids of each B−feature

are achieved through down-sampling and up-

sampling. Speciﬁcally, B

obtains its feature

pyramids with itself and 2x and 4x down-sampled

features. B

obtains its feature pyramids with its 2x

up-sampled feature, itself, and its 2x down-sampled

feature. Similarly, B

obtains its feature pyramids

with two up-sampling operations based on itself.

Now, each pyramid will have the same shape features.

Laterally concatenate the same size features of each

pyramid to get cross-layer features. Followed by

a fusion block convolution layer, the new feature

pyramid with multi-level information is fed into a

FPN-like structure inversely. Namely, the down-top

interpolated feature is added to the last hierarchy

lateral feature. Finally, we obtain an informative

feature list, which will be delivered to the sparse

detection head.

3.3 Sparse 3D Detection Head

Recently, the attention mechanism has achieved good

results in object detection in 2D images. DETR (Car-

ion et al., 2020) uses a sparse set of object queries,

to interact with the global image feature. Fea-

tures of each position in the image can obtain in-

formation of other positions, predictions without

any hand-crafted components are realized. Subse-

quently, DETR (Carion et al., 2020) is improved by

Deformable-DETR (Zhu et al., 2020) through reduc-

ing the range of feature search to facilitate the conver-

gence process. Sparse R-CNN (Sun et al., 2020) uses

a small number of boxes with features as the learning

region proposal. Via the self-attention of these pro-

posal features and their interaction with RoI features,

it achieves pleasing object feature learning.

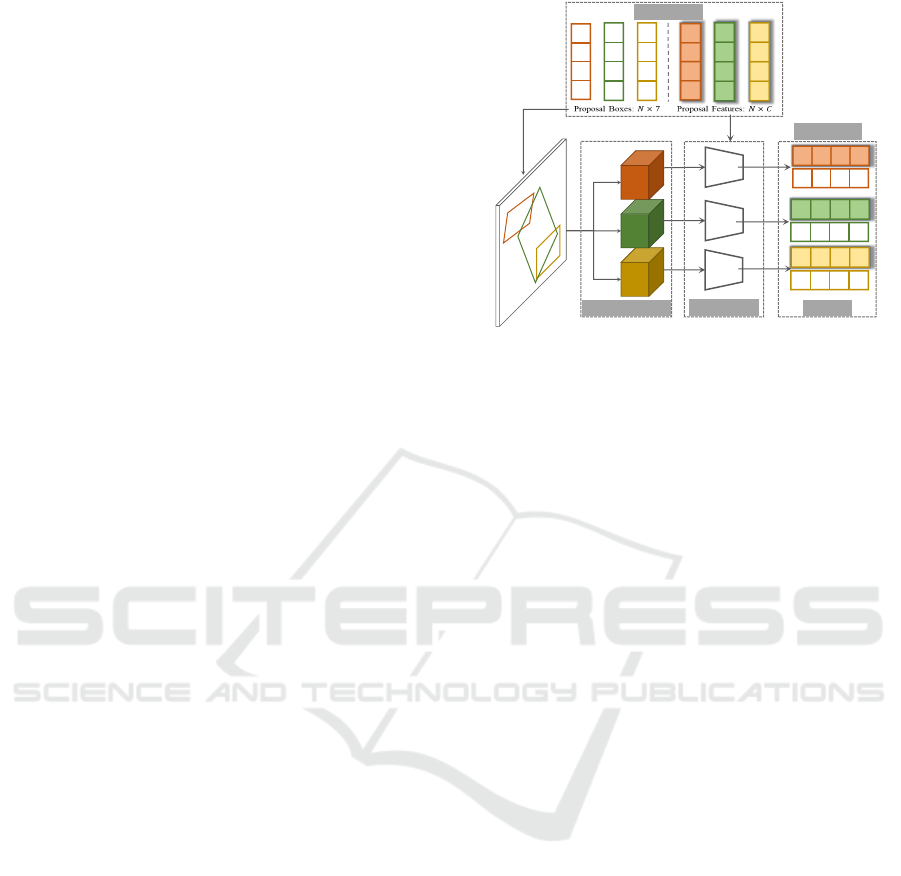

The model design of our sparse detection head is

illustrated in Fig. 2. Inspired by Sparse R-CNN (Sun

et al., 2020), we use a small set of learnable bound-

ing boxes with learnable features as object candidates.

These sparse candidates are used to extract the fea-

ture of Region of Interest (RoI), which avoids hun-

Stage K

Dynamic Heads

Stage K+1

Prediction

Rotated RoI Features

Figure 2: Model design of the sparse detection head, where

K represents the index number of stages. The learnable pro-

posals, identiﬁed by 3D boxes and feature vectors, interact

with the stacked dynamic heads to be reﬁned. Note the pro-

posals produced by the last stage of detection head directly

perform as the ﬁnal detection. Dynamic heads and predic-

tion layers are not shared by proposals.

dreds of thousands of candidates from prior anchors

or RPN. Speciﬁcally, we use N (e.g., 100) learnable

bounding boxes. Each box is represented as the 7-

D parameters (c

,h,w,l, θ), including its center

), size (w, l, h), and orientation θ that indi-

cates the heading angle around the up-axis. However,

the 3D bounding box is merely a rough representa-

tion of the object, lacking abundant semantic and ge-

ometric information. Thus the corresponding learn-

able proposal features of each box are proposed. Each

such feature is represented as a slightly higher dimen-

sion latent vector to capture more characteristics of

the object. The proposal boxes are initialized as the

whole point cloud size with no rotation for a larger

search space. The proposal features are randomly ini-

tialized.

The subsequent learning process will gradually

narrow the scope of these boxes until they match the

corresponding target. This initialization is effective

and reasonable. The parameters of proposal boxes

and proposal features will be optimized together with

other parameters in the whole network. In fact, what

these features eventually learn is the statistical char-

acteristics of the objects that may appear throughout

the data.

Then, given the proposal boxes, we can obtain the

orientated BEV 2D bounding boxes by discarding the

location and scale in the vertical direction. Each BEV

box can extract its corresponding feature from the fea-

ture map by utilizing the Rotated RoIAlign (He et al.,

2017) operation. So far, we have two types of fea-

tures: the proposal features and the RoI features. For

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

784

N proposal boxes, there are N proposal features, and

N × S ×S RoI features, in which S is the pooling reso-

lution. First, a multi-head attention module followed

by a LayerNorm layer is applied to the proposal fea-

tures to reason about the relations between objects.

Then, following Sparse R-CNN, each RoI feature will

interact with the corresponding proposal feature to ﬁl-

ter out ineffective bins through an exclusive Dynamic

Instance Interactive Module. The Dynamic Instance

Interactive Module is mainly used for making the RoI

features and the proposal features communicate with

each other to get more discriminate features. Speciﬁ-

cally, it is achieved by consecutive 1 × 1 convolution

with LayerNorm and ReLU activation function.

The output of the Dynamic Instance Interactive

Module will serve as the ﬁnal object features, which

are used to compute the classiﬁcation predictions and

7-D 3D bounding box regression predictions through

two Multi Layer Perception (MLP) with ReLU acti-

vation branches. The regression branch outputs a vec-

tor ∆ = (∆

,∆

) ∈ R

that represents

the residue from 3D proposal boxes to the ground

truth boxes following predecessors (Zhou and Tuzel,

2018; Yan et al., 2018; Lang et al., 2018; Shi et al.,

2019; Liu et al., 2020) :

∆

− x

,∆

− y

,∆

− z

∆

= log





,∆

= log





,∆

= log





∆

= θ

− θ

(2)

, where d

)

+ (l

)

. Then the residue vector

will be decoded to the last prediction box to compose

the new prediction.

The proposed Sparse head is stacked several times

to perform an iterative structure. The object boxes

prediction and object features of the previous stage

are fed into the next stage to serve as the proposal

boxes and proposal features. Each stacked head is su-

pervised to optimize the proposal boxes and features

at different stages.

3.4 Loss Function

Current 3D object detectors usually produce thou-

sands of candidates, which can lead to a large number

of near duplications. So the NMS post-processing is

applied to screen out the fairly good results which ex-

ceed a certain score threshold or IoU threshold. There

is no method to predict the ultimate objects directly

in 3D object detection. While SparseDet is post-

processing-free for it aims to predict the ﬁnal result

from the beginning.

When calculating loss, there are two stages. One

is the matching stage between the ﬁxed-size set of N

predictions and M ground truth objects, where N is

set to be signiﬁcantly larger than the typical num-

ber of objects in a point cloud. And the second

stage is the optimization of the matched M predictions

and ground truth pairs. Unlike the predecessors, our

sparse method does not have the concept of anchor,

so all losses are directly compared in the prediction

results and ground truth.

The N − M matching aims to ﬁlter out M com-

petitive candidates from all the N predictions, we

follow the bipartite matching loss approach (Carion

et al., 2020; Zhu et al., 2020; Sun et al., 2020; Yang

et al., 2019a; Stewart et al., 2016) based on the Hun-

garian algorithm (Kuhn, 1955) to compute the pair-

wise matching cost. Let us denote by y =

{

}

i=1

the

ground truth set of objects, and ˆy =

{

ˆy

}

i=1

the set of

N predictions. Where N>M. The matching cost is

deﬁned as follows:

C = argmin

i∈M, j∈N

match

( ˆy

) (3)

, in which the pair-wise loss is computed as:

match

= λ

cls

· L

cls

+ λ

· L

+ λ

IoU

· L

AA BEV IoU

(4)

cls

, λ

and λ

IoU

are coefﬁcients of each component.

cls

is focal loss(Lin et al., 2017b) of predicted clas-

siﬁcations and ground truth category labels.

As for regression loss, we ﬁnd it is crucial in 3D

sparse detection. It almost determines the perfor-

mance of the detector. For details, please refer to our

ablation in Sec.4.3. While general 3D detectors only

use L1 loss to constrain the regression, we ﬁnd it does

not work in 3D sparse detection. The reason may be

that sparse proposal is difﬁcult to ﬁnd the correspond-

ing target merely relying on L1 loss. Thus we adopt

the union of L 1 loss and IoU loss following(Carion

et al., 2020; Zhu et al., 2020; Sun et al., 2020). L

is L1 loss between the normalized predicted box and

ground truth box, which has two parts as following:

= L

reg θ

+ L

reg other

(5)

, L

reg other

is the regression loss for 3D center location

and box size. L

reg θ

is the regression loss of θ. We

ﬁnd that the angle has a great inﬂuence on matching

during the research. A proper angle matching method

plays a big role. Here Sine-Error loss is adopted fol-

lowing (Yan et al., 2018) to solve the adversarial ex-

ample problem between orientations of 0 and π.

In terms of IoU loss, it is used to constrain the

overlapping degree between boxes. For 3D oriented

box matching, it is natural to think of 3D rotated

IoU between boxes. But it is difﬁcult to optimize all

SparseDet: Towards End-to-End 3D Object Detection

785

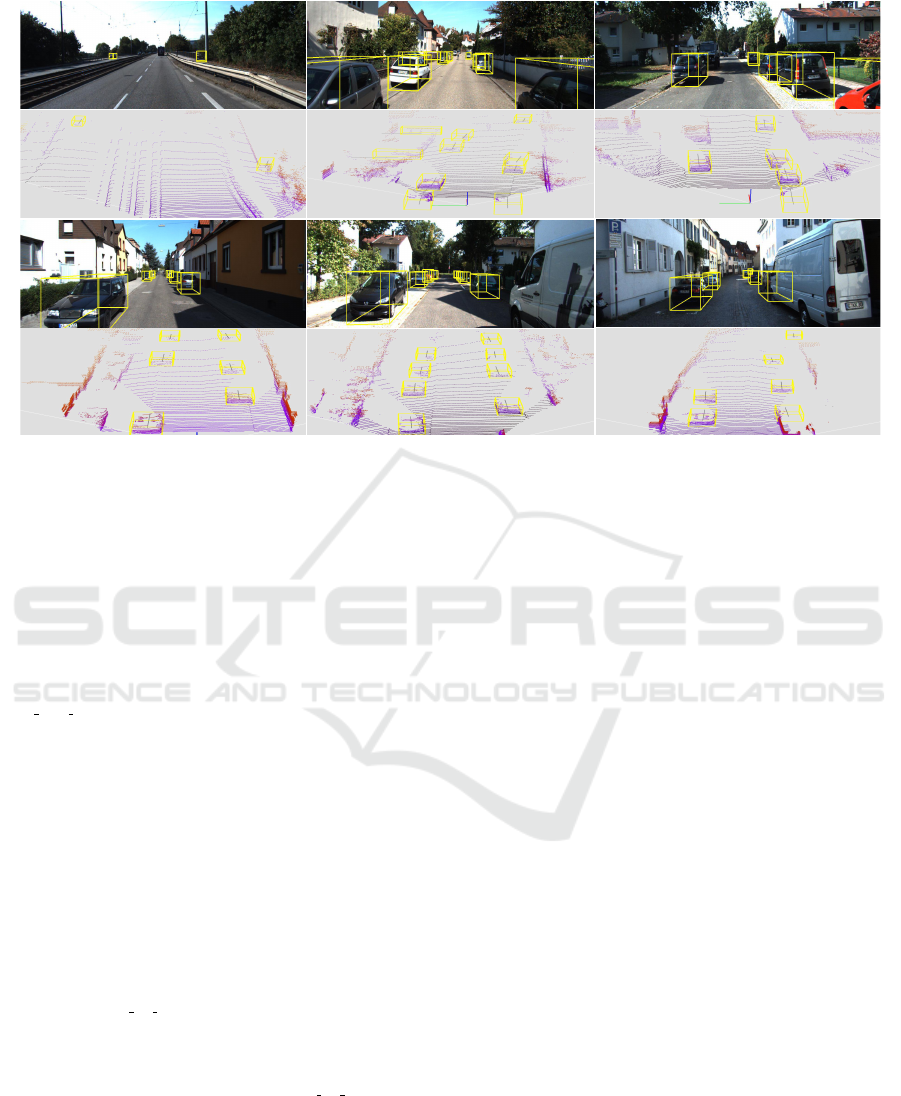

Figure 3: Qualitative results on the KITTI dataset. For each sample, the upper part is the image for just visualization and

the lower part is the point cloud corresponding to the image perspective. The detected objects are shown with yellow 3D

bounding boxes.

dimensions together, which makes the detector con-

fused. So we design a two-stage IoU matching style to

make it easier to learn the relationship between boxes.

At the matching stage, Axis-Aligned (AA) BEV

2D bounding box is used to compute the IoU loss

of prediction and ground truth box, denoted as

AA BEV IoU

. Axis-Aligned means turning the box to

X-axis or Y-axis according to the origin orientation

angle θ. BEV means the position and scale of the

bounding box on the Z-axis (height axis) are not con-

sidered. The purpose of these operations is to reduce

the difﬁculty of matching orientation and height with

other parameters at the same time, making it easier to

catch the rough shape. More accurate box matching

will be executed at the optimization stage of matched

pairs.

The training loss is only performed on matched

pairs. Which is almost the same as matching cost,

except the IoU loss adopts Rotated 3D DIoU loss

denoted as L

R 3D DIoU

. The Rotated 3D DIoU

loss (Zheng et al., 2020) encode the orientation and

height information to make the results more precise:

L = λ

cls

· L

cls

+ λ

· L

+ λ

IoU

· L

R 3D DIoU

(6)

The ﬁnal loss is the sum of all matched pairs nor-

malized by the number of ground truth objects inside

the batch.

4 EXPERIMENTS

In this section, we conduct extensive experiments to

demonstrate the effectiveness of SparseDet and re-

veal its design concepts. All the experiments are con-

ducted upon the popular KITTI (Geiger et al., 2012)

dataset. KITTI is a 3D object detection dataset for

autonomous driving in the wild with 7481 training

samples. Following F-PointNet (Qi et al., 2018), we

divide the training samples into a training set consist-

ing of 3717 samples and a validation set that contains

3769 samples. We evaluate models on the Car cat-

egory with the ofﬁcial evaluation protocol where the

IoU threshold is set as 0.7. Mean average precision

(mAP) with 11 recall positions under three difﬁculty

levels (Easy, Moderate and Hard) is reported for a fair

comparison with previous methods.

4.1 Implementation Details

Network Architecture. The raw point cloud range

is clipped into [0,70.4] m, [-40,40] m, and [-3,1] m

for the XYZ axes according to the FOV annotation of

KITTI Dataset. Then we adopt a voxel size of (0.05m,

0.05m, 0.1m) to discrete the whole point cloud into

regular grids. Standard data-augmentation for point

clouds is performed following the mainstream strate-

gies in (Yan et al., 2018; Lang et al., 2018; Shi

et al., 2019; Shi et al., 2020), etc. Speciﬁcally, it in-

cludes randomly sampling ground truth objects from

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

786

Table 2: Evaluation comparison with state-of-the-art on KITTI validation set. As a detector in the family of voxel-based

modality, SparseDet achieves clear and consistent improvements over akin methods. Theoretically, point-based methods can

be augmented with the sparse detection paradigm of SparseDet, although we choose voxel-based methods as our baseline in

consideration of inference efﬁciency. Data of other methods comes from their corresponding paper.

Method Modality

(IoU = 0.7) AP

BEV

(IoU = 0.7)

FPS Param. FLOPs

Mod. Hard mAP Mod. Hard mAP

MV3D RGB & LiDAR 62.68 56.56 63.51 78.10 76.67 80.44 2.78 - -

ContFuse RGB & LiDAR 73.25 67.81 75.79 87.34 82.43 88.40 16.67 - -

AVOD-FPN RGB & LiDAR 74.44 68.65 75.83 - - - 10.00 - -

F-PointNet RGB & LiDAR 70.92 63.65 72.78 84.02 76.44 82.87 5.88 - -

VoxelNet Voxel-based 65.46 62.85 70.07 84.81 78.57 84.33 4.35 - -

SECOND Voxel-based 76.48 69.10 77.67 87.07 79.66 85.56 20.00 5.33M 76.70G

TANet Voxel-based 77.85 75.62 80.56 - - - 28.78 - -

PointRCNN Point-based 78.63 77.38 81.63 87.89 85.51 87.87 8.33 4.04M 27.38G

Part-A

-f Point-based 78.96 78.36 81.93 88.05 85.85 88.04 12.50 59.23M -

Part-A

-a Point-based 79.47 78.54 82.49 88.61 87.31 88.78 12.50 63.81M -

SparseDet Voxel-based 78.45 77.03 81.28 88.02 86.49 88.11 34.48 25.10M 37.98G

Table 3: Evaluation results on KITTI Car detection under different IoU thresholds. In combination with sparse prediction,

SparseDet demonstrates signiﬁcant advantages in accurate localization. Data of other methods come from (Zhou et al., 2019).

Metric Method

IoU = 0.7 IoU = 0.75 IoU = 0.8

Easy Mod. Hard Easy Mod. Hard Easy Mod. Hard

PointPillars(Lang et al., 2019) 87.29 76.99 70.84 72.39 62.73 56.40 47.23 40.89 36.31

+3D IoU Loss(Zhou et al., 2019) 87.88 77.92 75.70 76.18 65.83 62.12 57.82 45.03 42.95

+3D GIoU Loss(Zhou et al., 2019) 88.43 78.15 76.34 76.93 66.36 63.68 56.36 44.43 42.72

Ours 88.36 78.45 77.03 77.58 68.02 65.61 63.38 52.56 47.22

BEV

PointRCNN(Shi et al., 2019) 88.14 77.58 75.36 73.27 63.54 61.08 44.21 38.88 34.62

+3D IoU Loss(Zhou et al., 2019) 88.83 78.80 78.18 77.42 67.83 66.85 58.22 49.09 45.38

+3D GIoU Loss(Zhou et al., 2019) 88.84 78.85 78.15 77.47 67.98 67.18 59.80 51.25 46.50

Ours 89.62 88.02 86.49 88.62 84.09 78.83 78.41 75.03 70.83

the database to join the current point cloud, randomly

ﬂipping points in a 3D bounding box along the X-

axis, global rotation and scaling, etc. The maximum

number of points T in each voxel is set as 5.

The 3D sparse convolution backbone does one

convolution block of its own resolution and three con-

secutive 2x down-sampling convolutions to obtain an

8x down-sampled feature map with ﬁlter numbers of

(16, 32, 48, 64) respectively. After the feature align-

ment process, three convolution block with 4 layers

in each is utilized to obtain a feature list consisting

of its origin, half and quarter resolution of the input

feature. The dimensions of these blocks are (64, 128,

256). Then the feature list is fed into the PSA-FPN

feature extractor, transformed as a new same resolu-

tion feature list with the dimension of (128, 128, 128).

As for the detection head, the proposal boxes number

N is set as 100, and the dimension of the proposal fea-

tures is 128. A single head is stacked 6 times. Layers

of the heads are initialized with Xavier (Glorot and

Bengio, 2010). The pooling resolution S is 7. We set

cls

, λ

, and λ

IoU

to 2.0, 5.0, 2.0 respectively follow-

ing (Carion et al., 2020; Sun et al., 2020).

Training Details. The whole framework of

SparseDet is optimized with the Adam optimizer in

an end-to-end manner. All models are trained with

8 GPUs for 320 epochs with batch size 48, which

takes around 6 hours. The learning rate is initialized

as 0.003 and updated by a cosine annealing strategy

for the learning rate decay.

Inference Details. At the inference process, the pro-

posed boxes processed by the stacked heads will be

directly used as the prediction result without any post-

processing. The score of classiﬁcation results shows

the conﬁdence of the prediction.

SparseDet: Towards End-to-End 3D Object Detection

787

Table 4: Robustness evaluation using metrics from (Liu

et al., 2020). SparseDet degrades slower with the number

of noise points growing.

Method +noise

(IoU = 0.7)

Mod. Hard mAP

PointRCNN 0 77.73 76.67 80.89

PointPillars 0 77.01 74.77 79.76

TANet 0 77.85 75.62 80.56

SECOND 0 78.43 77.13 81.43

SparseDet

0 78.45 77.03 81.28

PointRCNN 20 76.95 74.73 79.97

PointPillars 20 76.74 74.54 79.50

TANet 20 77.68 75.31 80.39

SECOND 20 78.19 76.81 81.17

SparseDet 20 78.52 76.93 81.33

PointRCNN 100 75.98 69.34 77.63

PointPillars 100 76.06 68.91 77.20

TANet 100 76.64 73.86 79.34

SECOND 100 77.27 73.35 79.7

SparseDet 100 77.69 74.44 80.12

4.2 Comparison with SOTA

Evaluation of 3D Object Detection on KITTI. We

compare our SparseDet with several state-of-the-art

methods on the 3D detection benchmark and the

bird’s eye view detection benchmark in Tab. 2. We

achieved 81.28% and 88.11% average precision in the

two tasks respectively with the real-time processing

frame rate (34.5 FPS).

In terms of accuracy, SparseDet outperforms pre-

vious multi-sensor methods with large margins by

only using LiDAR point clouds for the 3D detection

benchmark. For both two benchmarks, SparseDet

outperforms previous voxel-based methods, whose

backbone is more similar to ours. At the same time, it

is almost on par with the point-based methods. Which

directly take raw point clouds as their operation in-

puts instead of converting a point cloud into a regular

discrete representation. So the point-based methods

are generally more accurate than voxel-based meth-

ods due to their ﬁne-grained processing unit.

In terms of efﬁciency, our method is almost the

fastest due to its sparse and end-to-end nature. It

has an acceptable number of parameters and signiﬁ-

cantly fewer FLOPs. PointRCNN (Shi et al., 2019)

seems better in parameters and FLOPs, but the run-

ning time is relatively long due to their hard work of

point-wise operations. By comparison, our SparseDet

makes the best balance between effectiveness and ef-

ﬁciency among all the methods.

Table 5: Ablation studies on feature alignment. To coop-

erate with the sparse detection, the feature aligner is re-

devised.

Backbone Easy Mod. Hard mAP

Baseline 83.38 74.82 73.48 77.23

+PSA 84.29 75.80 73.93 78.01

+FPN 84.65 76.62 75.38 78.88

Ours 88.36 78.45 77.03 81.28

Table 6: Impact of terms on our loss function. The integra-

tion of both L1 and IoU loss into our formulation is crucial

for the effectiveness of SparseDet. The details are given in

Sec. 4.3

Class IoU `

Easy Mod. Hard mAP

X X × 0.00 0.00 0.00 0.00

X × X 11.63 13.50 14.25 13.13

X X X 88.36 78.45 77.03 81.28

Solidness. The performance of a detector will be

greatly affected by the hyper-parameters under a sin-

gle matching IoU threshold (Tychsen-Smith and Pe-

tersson, 2018). So we utilize three different match-

ing thresholds 0.70, 0.75, 0.80 for evaluation follow-

ing (Zhou et al., 2019). We compare the evaluation

results with PointPillars (Lang et al., 2018) family on

the 3D benchmark, and with PointRCNN (Shi et al.,

2019) family on the BEV benchmark in Tab. 3. The

results show that our method outperforms predeces-

sors when the IoU threshold is high, especially in the

BEV benchmark. It is proved that our method with-

out any hand-crafted prior is solid. At the same time,

BEV results are better than 3D results, which shows

that the Z-axis dimension in 3D detection is difﬁcult

to match.

Robustness. This method is more robust to noisy

input data because its accuracy has less relevance

to the input data variation due to its sparse prop-

erty. Following TANet (Liu et al., 2020), we in-

troduce noise points to each object to verify robust-

ness. As shown in Tab. 4, we add three different

numbers of noise points to the objects. The data

of PointRCNN (Shi et al., 2019), PointPillars (Lang

et al., 2018), and TANet (Liu et al., 2020) comes from

TANet (Liu et al., 2020) paper. While the data of

SECOND (Yan et al., 2018) is reproduced by us using

OpenPCDet (OpenPCDet, 2020).

After the noise points are added, the accuracy of

every method will decrease inevitably. Leaving aside

the speciﬁc accuracy number, we only observe the de-

clining trend of accuracy. In terms of hard category

and overall mAP, SECOND (Yan et al., 2018) is better

than SparseDet at the beginning, but with the increase

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

788

Proposals

Stage 1 Final Res ults

Proposals

Stage 1

Final Res ults

Figure 4: The proposal boxes behavior visualization. At ﬁrst, the learned proposals are randomly distributed in the point cloud

space. Then they match to GTs gradually with the stacked heads structure. The effectiveness of sparse detection is proved.

Table 7: Ablations on angle regression loss. Since the

sparse detection is performed without guidance from an-

chors nor voxel correspondence, a proper loss is demanded

to effectively supervise the angle regression.

Easy Mod. Hard mAP ∆

L1 81.69 72.86 72.92 75.82 −5.46

L1(sin, cos) 83.41 74.49 71.57 76.49 −4.79

Sin − Error 88.36 78.46 77.03 81.28 -

Table 8: Ablations on 3D box matching constraints for the

training of sparse prediction. Cost stands for the matching

cost, and Loss stands for the training loss of matched pairs.

−θ means discarding the angle constraint and −h means

discarding the height constraint. See Sec. 3.4 and 4.3 for

details.

Cost Loss Mod. Hard mAP ∆

3D 3D 0 0 0 −81.29

(-h) (-h) 59.15 58.03 60.55 −20.74

(-θ) (-θ) 76.91 75.55 79.24 −2.05

(-θ,-h) (-θ,-h) 77.24 75.55 79.64 −1.65

(-θ,-h) (-θ) 75.12 74.77 76.77 −4.51

(-θ,-h) 3D 78.48 77.03 81.29 -

of noise points, its accuracy is gradually surpassed

by SparseDet. The results show that the average de-

cline rates of mAP of the methods under discussion

are 1.36%, 1.08%, 0.51%, 0.71%, and 0.48% respec-

tively. The decline speed of our SparseDet is signif-

icantly lower than other methods. TANet (Liu et al.,

2020), which is specially designed to solve the prob-

lem of robustness, has a close descending speed as

ours because they add the point-wise, channel-wise,

and voxel-wise attention mechanism in the voxel fea-

ture extraction. So that the information of the input

point cloud can be more fully extracted. However, we

do not perform such complex interactions, and the re-

sult is still better than TANet (Liu et al., 2020), which

proves the pretty robustness of our method.

4.3 Ablation Studies

Feature alignment fashion and loss design for the

sparse detection head are the keys of SparseDet. In

this section, we explore how the key component in-

ﬂuence the ﬁnal performance with extensive ablation

experiments. All the ablation experiments are per-

formed on the car class of the KITTI 3D benchmark.

Importance of PSA-FPN Module. The widely used

feature aligner in predecessors is a simple module in a

conv-deconv way (Yan et al., 2018; Lang et al., 2018),

which is reproduced as a baseline. We remove the

two parts of our novel feature aligner one by one as a

comparative experiment to verify the effectiveness of

the overall design. The baseline achieves a 3D mAP

of 77.23%. With only PSA and only FPN structure,

the performance is boosted to 78.01% and 78.88%,

respectively. While the joint mechanism yields a 3D

mAP of 81.28%, outperforming the baseline model

by 5.24% and improving the accuracy of each cate-

gory steadily. It is obvious that our feature aligner is

more effective and robust. The detailed results of each

difﬁculty category are shown in Tab. 5.

Loss Ablations. There are three components of the

overall loss: classiﬁcation loss, `

bounding box dis-

tance loss, and IoU loss. We have executed extensive

ablation experiments to study the importance of each

component. First, we turn each component on and off

to evaluate the overall effect of each part. Then we

look into the speciﬁc part to study the effectiveness

by conducting different alternatives. Speciﬁcally, the

choice of θ loss and IoU loss of the matching cost and

the loss are deliberated respectively.

On the overall effect study of each loss compo-

nent, a model without the IoU loss and a model with-

out the L1 distance loss are trained respectively to

compare with the complete form. The corresponding

results are presented in Tab. 6. The model without L1

loss can not converge at all, leading to a complete fail-

ure on this task. While the model without IoU loss is

a little better with 13.13% mAP, but is still a failure.

The surprisingly poor results of the two incomplete

models show that each component is indispensable

SparseDet: Towards End-to-End 3D Object Detection

789

for 3D detection. And the L1 loss is at a more dom-

inant position. These results are quite different from

the situation of 2D images. Whose L1 loss and IoU

loss are a complement of each other, which would not

lead to the failure of the task, but only a slight de-

cline (Carion et al., 2020). This phenomenon reveals

that the 3D detection task has more challenges than

2D. Moreover, previous 3D detectors almost have no

IoU loss also show satisfying detection results. This

phenomenon reveals that sparse 3D detection is more

difﬁcult than dense fashion.

Then, we study the details of L1 loss and IoU loss

respectively. In terms of L1 loss, there are two parts

including (x, y, z,w, l,h) and θ of the regression results

as Equ.5. We calculate L1 distance directly with the

ﬁrst part because it is trivial without particularity. But

as for the second part θ, it has a great inﬂuence on

the detection effect for its periodicity. As shown in

Tab. 7, the most direct way is to subtract the angle

directly, it shows degradation of 6.72% of our ﬁnal

Sin-Error choice. Another alternative to solve the pe-

riodicity is to convert the angle into a vector encoded

by (sin, cos) pair (Ku et al., 2018). But in this way,

two angles corresponding to the same box may gener-

ate a large loss for that each radian has a unique code,

e.g. the 0 and π radians. A 5.89% degradation ap-

peared using this loss. While the Sin-Error only uses

the sin value of the angle difference, ﬁxing the adver-

sarial problem, which is more reasonable to constrain

the angle regression.

In terms of IoU loss, there are two stages of the

matching cost and the matched loss. As stated in

Set.3.4, the direct use of rotated 3D IoU cost and loss

would not work at all. While our coarse-to-ﬁne way

consists of 2D IoU loss without angle and 3D IoU

loss with angle exploiting a pretty good solution. To

illustrate the effectiveness of this design, we show the

comparison results by using different constraints in

Tab. 8. By alternatively discarding θ, height, or the

combination of them, we validate the success of our

design. The results inspire us that we should relax

the restrictions on some dimensions to achieve better

results sometimes.

4.4 Visualization

Qualitative Results. Some qualitative results of

our proposed SparseDet are shown in Fig.3. Our

SparseDet only takes the point cloud as input and

the image is just for better visualization. The score

threshold is set as 0.2 when drawing the prediction

boxes. We can ﬁnd that the detector is fairly smart

to discriminate the similar classes of Truck and Van

from the predicted target Car class.

The Proposal Boxes Behavior. Fig.4 shows the be-

havior of learned proposal boxes. We project the 3D

boxes onto the image for convenient visualization.

In the beginning, the proposals are rather big boxes,

including almost the whole point cloud in different

orientations. After continuous optimization of the

stacked heads, precise results are obtained. It demon-

strates that acceptable results can be produced even

at the ﬁrst head, which shows the effectiveness of the

sparse detection. Subsequent heads are used to reﬁne

the predictions gradually to generate the ﬁnal results.

5 CONCLUSIONS

In this paper, we present an end-to-end paradigm for

3D object detection in point cloud based on sparse

prediction, namely SparseDet. It maintains and itera-

tively reﬁnes a sparse set of proposals to directly pro-

duce ﬁnal object detection without redundant removal

and non-maximum suppression. To collaborate with

the sparse prediction, we closely investigate key com-

ponents for effective 3D object detection and properly

design the network. The proposed method achieves

competitive results in the KITTI dataset, with signif-

icant and consistent improvement over the baseline.

Moreover, the presented SparseDet is more robust to

noisy data in point cloud.

SparseDet demonstrates the potential of end-to-

end 3D object detection with sparse prediction. We

hope it will inspire more exploration into the sparsity

of 3D object detection and open up a new opportunity

in this ﬁeld. As one of the exploration directions, we

will next try to combine the sparse detection paradigm

with the point-based backbone to further improve the

accuracy of the prediction results.

ACKNOWLEDGEMENTS

This work was supported by National Key Research

and Development Program of China [grant num-

ber 2018YFB1403901] and National Natural Sci-

ence Foundation of China (NSFC) [grant number

61872014].

REFERENCES

Carion, N., Massa, F., Synnaeve, G., Usunier, N., Kirillov,

A., and Zagoruyko, S. (2020). End-to-end object de-

tection with transformers. In ECCV, pages 213–229.

Springer.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

790

Chen, X., Ma, H., Wan, J., Li, B., and Xia, T. (2017). Multi-

view 3d object detection network for autonomous

driving. In CVPR, pages 1907–1915.

Chen, Y., Liu, S., Shen, X., and Jia, J. (2019). Fast point

r-cnn. In ICCV, pages 9775–9784.

Deng, J., Shi, S., Li, P., Zhou, W., Zhang, Y., and

Li, H. (2020). Voxel r-cnn: Towards high perfor-

mance voxel-based 3d object detection. arXiv preprint

arXiv:2012.15712.

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we ready

for autonomous driving? the kitti vision benchmark

suite. In CVPR, pages 3354–3361. IEEE.

Glorot, X. and Bengio, Y. (2010). Understanding the difﬁ-

culty of training deep feedforward neural networks. In

AISTATS, pages 249–256. JMLR Workshop and Con-

ference Proceedings.

Graham, B. (2014). Spatially-sparse convolutional neural

networks. arXiv preprint arXiv:1409.6070.

Graham, B. (2015). Sparse 3d convolutional neural net-

works. arXiv preprint arXiv:1505.02890.

Graham, B., Engelcke, M., and Van Der Maaten, L. (2018).

3d semantic segmentation with submanifold sparse

convolutional networks. In CVPR, pages 9224–9232.

Graham, B. and van der Maaten, L. (2017). Submani-

fold sparse convolutional networks. arXiv preprint

arXiv:1706.01307.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask r-cnn. In ICCV, pages 2961–2969.

Huang, T., Liu, Z., Chen, X., and Bai, X. (2020). Epnet:

Enhancing point features with image semantics for 3d

object detection. In ECCV, pages 35–52. Springer.

Ku, J., Moziﬁan, M., Lee, J., Harakeh, A., and Waslander,

S. L. (2018). Joint 3d proposal generation and object

detection from view aggregation. In IROS, pages 1–8.

IEEE.

Kuhn, H. W. (1955). The hungarian method for the as-

signment problem. Naval research logistics quarterly,

2(1-2):83–97.

Lang, A. H., Vora, S., Caesar, H., Zhou, L., Yang, J., and

Beijbom, O. (2018). Pointpillars: Fast encoders for

object detection from point clouds. arXiv preprint

arXiv:1812.05784.

Lang, A. H., Vora, S., Caesar, H., Zhou, L., Yang, J., and

Beijbom, O. (2019). Pointpillars: Fast encoders for

object detection from point clouds. In CVPR, pages

12697–12705.

Lin, T.-Y., Doll

ar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017a). Feature pyramid networks

for object detection. In CVPR, pages 2117–2125.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Doll

ar, P.

(2017b). Focal loss for dense object detection. In

ICCV, pages 2980–2988.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). Ssd: Single shot

multibox detector. In ECCV, pages 21–37. Springer.

Liu, Z., Zhao, X., Huang, T., Hu, R., Zhou, Y., and Bai, X.

(2020). Tanet: Robust 3d object detection from point

clouds with triple attention. In AAAI, pages 11677–

11684.

OpenPCDet (2020). Openpcdet: An open-source tool-

box for 3d object detection from point clouds. https:

//github.com/open-mmlab/OpenPCDet.

Qi, C. R., Liu, W., Wu, C., Su, H., and Guibas, L. J. (2018).

Frustum pointnets for 3d object detection from rgb-d

data. In CVPR, pages 918–927.

Qi, C. R., Su, H., Mo, K., and Guibas, L. J. (2017a). Point-

net: Deep learning on point sets for 3d classiﬁcation

and segmentation. In CVPR, pages 652–660.

Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017b). Point-

net++: Deep hierarchical feature learning on point sets

in a metric space. In NeurIPS, pages 5099–5108.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv preprint arXiv:1804.02767.

Shi, S., Wang, X., and Li, H. (2019). Pointrcnn: 3d object

proposal generation and detection from point cloud.

In CVRR, pages 770–779.

Shi, S., Wang, Z., Shi, J., Wang, X., and Li, H. (2020).

From points to parts: 3d object detection from point

cloud with part-aware and part-aggregation network.

TPAMI.

Stewart, R., Andriluka, M., and Ng, A. Y. (2016). End-

to-end people detection in crowded scenes. In CVPR,

pages 2325–2333.

Sun, P., Zhang, R., Jiang, Y., Kong, T., Xu, C., Zhan,

W., Tomizuka, M., Li, L., Yuan, Z., Wang, C., and

Luo, P. (2020). SparseR-CNN: End-to-end object

detection with learnable proposals. arXiv preprint

arXiv:2011.12450.

Tychsen-Smith, L. and Petersson, L. (2018). Improving

object localization with ﬁtness nms and bounded iou

loss. In CVPR.

Wang, Z. and Jia, K. (2019). Frustum convnet: Sliding frus-

tums to aggregate local point-wise features for amodal

3d object detection. arXiv preprint arXiv:1903.01864.

Yan, Y., Mao, Y., and Li, B. (2018). Second:

Sparsely embedded convolutional detection. Sensors,

18(10):3337.

Yang, B., Wang, J., Clark, R., Hu, Q., Wang, S., Markham,

A., and Trigoni, N. (2019a). Learning object bounding

boxes for 3d instance segmentation on point clouds.

arXiv preprint arXiv:1906.01140.

Yang, Z., Sun, Y., Liu, S., Shen, X., and Jia, J. (2019b). Std:

Sparse-to-dense 3d object detector for point cloud. In

ICCV, pages 1951–1960.

Yin, T., Zhou, X., and Kr

ahenb

uhl, P. (2021). Center-based

3d object detection and tracking.

Zhao, X., Liu, Z., Hu, R., and Huang, K. (2019). 3d object

detection using scale invariant and feature reweighting

networks. In AAAI, volume 33, pages 9267–9274.

Zheng, Z., Wang, P., Liu, W., Li, J., Ye, R., and Ren, D.

(2020). Distance-iou loss: Faster and better learning

for bounding box regression. In AAAI, volume 34,

pages 12993–13000.

Zhou, D., Fang, J., Song, X., Guan, C., and Yang, R. (2019).

Iou loss for 2d/3d object detection. In 3DV.

Zhou, Y. and Tuzel, O. (2018). Voxelnet: End-to-end learn-

ing for point cloud based 3d object detection. In

CVPR, pages 4490–4499.

SparseDet: Towards End-to-End 3D Object Detection

791

Zhu, X., Su, W., Lu, L., Li, B., Wang, X., and Dai, J.

(2020). Deformable detr: Deformable transform-

ers for end-to-end object detection. arXiv preprint

arXiv:2010.04159.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

792
