Paroxysmal Atrial Fibrillation Detection by Combined Recurrent

Neural Network and Feature Extraction on ECG Signals

Xinqi Bao

, Fenghe Hu

, Yujia Xu

, Mohamed Trabelsi

and Ernest Kamavuako

Department of Engineering, King’s College London, London, U.K.

Department of Electronic and Communications Engineering, Kuwait College of Science and Technology, Kuwait

Keywords: Electrocardiogram (ECG), Paroxysmal Atrial Fibrillation (Afib), Recurrent Neural Network (RNN).

Abstract: Paroxysmal atrial fibrillation (AFib) or intermittent atrial fibrillation is one type of atrial fibrillation which

occurs rapidly and stops spontaneously within days. Its episodes can last several seconds, hours, or even days

before returning to normal sinus rhythm. A lack of intervention may lead the paroxysmal into persistent atrial

fibrillation, causing severe risk to human health. However, due to its intermittent characteristics, it is generally

neglected by patients. Therefore, real-time monitoring and accurate automatic algorithms are highly needed

for early screening. This study proposes a two-stage algorithm, including a BiLSTM network to classify

healthy and atrial fibrillation, followed by a feature-extraction-based neural network (NN) to identify the

persistent, paroxysmal atrial fibrillation onsets. The extracted features include the entropy and standard

deviation of the RR intervals. The two steps can achieve 90.14% and 92.56% accuracy in the validation sets

on small segments. This overall algorithm also has the advantage of the low computing load, which shows a

high potential for a portable embedded device.

1 INTRODUCTION

Atrial fibrillation (AFib) is an irregular heartbeat

(arrhythmia) caused by the ectopic impulses in the

atrium. It may lead to blood clots, stroke, and heart

failure, which are severe hidden dangers to human

lives. Furthermore, the AFib is a common issue for

approximately 2% of people younger than 65 and 9%

older than 65 (Kornej et al., 2020). The American

Heart Association guideline (January et al., 2014)

classified Afib into four types: paroxysmal AFib,

persistent AFib, long-standing persistent AFib, and

permanent AFib based on the duration and

recoverability. While in clinics, physicians usually

sort them into paroxysmal and persistent types only.

Paroxysmal AFib episodes can last several seconds,

hours, or even days before returning to normal sinus

rhythm. Lack of intervention may lead the

paroxysmal into persistent AFib, which is

irreversible. Due to the intermittent characteristics of

the paroxysmal AFib, it is generally neglected by

patients before deteriorating into a persistent type. As

a result, the all-cause mortality rate is approximately

https://orcid.org/0000-0002-7117-1267

https://orcid.org/0000-0001-6846-2090

6.3% on AFib patients (Lee et al, 2018). Therefore, it

is vital to have an algorithm that can work

automatically in the early screening to prevent the

paroxysmal AFib from worsening to persistent AFib

or more severe health issues.

Electrocardiogram (ECG) is the most commonly

used approach in cardiac diagnosis. It represents the

electrical activity of the heart. The whole electrical

process starts with the spontaneous impulse generated

at the Sinoatrial node (SA node), then propagates to

the atrioventricular node (AV node), causing the

squeezing of the atria as represented by the P wave.

Afterwards, the electrical signal is transmitted to the

His bundle and Purkinje fibres, causing the

contraction of the ventricles. The ventricles will be

repolarized and ready for the next heart cycle. The

QRS complex indicates the depolarization, and the T

wave shows the repolarization of the ventricles,

respectively. However, AFib is caused by irregular

fast squeezing of the atria leading the heart walls

quiver, or fibrillate. This phenomenon it is reflected

by disorganized electrical activity (ectopic impulses

instead of SA impulse) in the atrium, so its ECG

Bao, X., Hu, F., Xu, Y., Trabelsi, M. and Kamavuako, E.

Paroxysmal Atrial Fibrillation Detection by Combined Recurrent Neural Network and Feature Extraction on ECG Signals.

DOI: 10.5220/0010987300003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 4: BIOSIGNALS, pages 85-90

ISBN: 978-989-758-552-4; ISSN: 2184-4305

signal differs from normal, as shown in Figure 1.

Morphologically, the AFib ECG has irregular

intervals, a narrow QRS complex, and undulating P

waves. Thus, using ECG signals to identify the AFib

is a practical approach in designing automatic

classification algorithms.

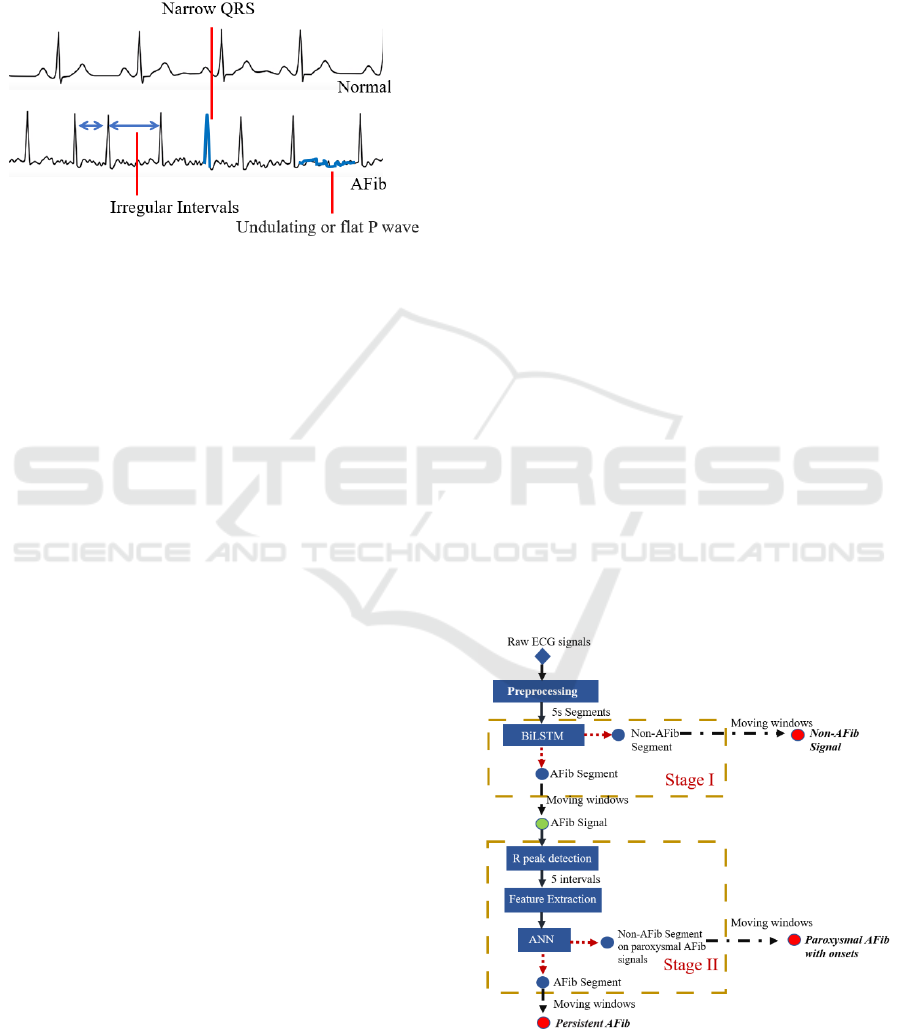

Figure 1: The cardiac cycles of normal and AFib ECG.

Computer-aided algorithms for AFib detection

have been developed for decades, and the proposed

algorithms covered the conventional machine

learning (ML) methods such as support vector

machine (SVM), k-nearest neighbours algorithm

(KNN), random forest, discriminant analysis, etc

(Zhou et al., 2015; De Giovanni et al., 2017; Kalidas

& Tamil,2019; Pourbabaee et al., 2018; Annavarapu

et al., 2016; Rizwan et al., 2020). These conventional

ML approaches relied on manually extracted features

such as average, standard deviation, and entropy of

RR intervals in the time domain (Liu et al., 2018),

power spectral density in the frequency domain, and

statistical features such as kurtosis and skewness

(Rizwan et al., 2020). With the development of deep

learning (DL) in recent years, approaches such as

convolutional neural network (CNN) and recurrent

neural network (RNN) have also been tested on AFib

detection (Xiong et al., 2017; Petmezas et al., 2021;

Ping et al., 2020). They hold the advantage of

neglecting feature extraction and using raw ECG

signals as input and have also achieved promising

performance. Though there are tons of researches

focusing on AFib classification, only few pieces of

research work have focused on paroxysmal AFib

detection due to the lack of suitable databases. As a

result, paroxysmal AFib is often unrecognized

(Michaud & Stevenson, 2021). Therefore, it is pretty

meaningful to explore the capability of the neural

network (NN) in the identification of paroxysmal

AFib.

In this study, the primary aim is to propose an

algorithm that can classify the non-AFib, persistent

AFib, paroxysmal AFib, and their onsets. The

secondary task is to constrain the computing load

while achieving comparable performance, making it

available for a standard laptop or embedded system.

All the findings will provide knowledge on using

NNs to classify paroxysmal AFib and contribute to

designing small-scale portable ECG devices which

can do real-time monitoring of the heart conditions.

2 METHODOLOGY

2.1 Database

The database used in this research was CPSC2021

(Wang et al., 2021). It includes 1436 ECG recordings

(475 Persistent AFib, 229 Paroxysmal AFib, 732

Non-AFib) from 100 subjects (24 Persistent AFib, 23

Paroxysmal AFib, 53 Non-AFib).

2.2 Proposed Algorithm

In this study, a two-stage algorithm was designed to

conduct the detection of paroxysmal AFib and its

onsets. The flowchart of the proposed algorithm is

shown in Figure 2. In Stage I, a Bidirectional Long

short-term memory (BiLSTM) network was used to

classify the ECG segments into Non-AFib and AFib

segments. Then the ECG signals consisting of AFib

segments were transferred to Stage II and classified

into Persistent AFib or Paroxysmal AFib. A moving

window was employed to classify the whole signal

and detect AFib onsets. The processing was

conducted in Matlab® R2021a environment, using a

laptop (CPU: i7-8650U, RAM: 16G, no GPU).

Figure 2: The flowchart of the designed algorithm.

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

2.2.1 Pre-processing

Before the two classification stages, the ECG signals

were pre-processed. The raw ECG signals were

normalized (z-score), filtered with 0.5 – 30 Hz

bandpass filter (3

order Butterworth), then

segmented into 5s segments for training (without

overlap). After segmentation, 699040 ECG segments

were generated (421022 Non-AFib, 212098

Persistent, and 65920 Paroxysmal) for training.

2.2.2 Stage I: BiLSTM

BiLSTM is one type of RNN algorithms that showed

outstanding performance in the sequence data, such

as speech and text recognition (Graves et al., 2005,

Liu & Guo, 2019). In the proposed algorithm, a

simplified structure with two layers of BiLSTM

(hidden units: 50) was applied. The inputs for the

BiLSTM layers were 5s segments. After BiLSTM, it

is connected with a fully connected layer to project

the results into Non-AFib (0) and AFib (1) two

classes. The overall structure of Stage I is shown in

Figure 3(a).

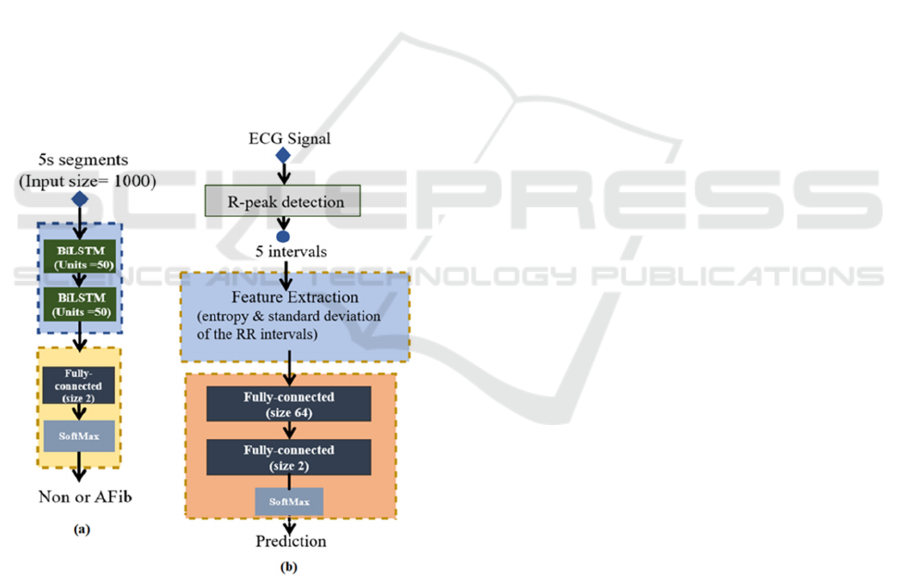

Figure 3: (a) The Stage I structure, (b) The Stage II

structure.

During training, the used training sets included

non-AFib segments labeled (0), persistent AFib

segments labeled (1), while paroxysmal AFib

segments were also labeled (1) to increase the

sensitivity. Training and Validation Proportion was

7:3. 20% recordings (285) were randomly left for the

whole signal testing, including 145 non-AFib, 95

persistent, and 45 paroxysmal recordings. The

optimizer selected in this study was stochastic

gradient descent with momentum (SGDM). The

initial learning rate was 0.001 with a drop factor of

0.2, the max epoch of 10, and the batch size of 256.

The network can identify the non-AFib segments

of the ECG signal. For the complete signal

classification, a moving window (size: 5s, slide: 1s)

was conducted on the signal to classify each segment.

A majority voting was applied to avoid sudden

incorrect classification. Each time frame was covered

by 5 sliding windows, so the time frame is only

labeled AFib when more than 3 windows (segments)

were classified as AFib.

2.2.3 Stage II: Feature Extraction & ANN

In the testing phase, the use of a relatively simplified

DL network (with two layers BiLSTM and three

Conventional layers structure, such as Stage I) didn’t

perform well in the identification of paroxysmal or

persistent AFib. The loss didn’t go down and the

training accuracy remained at 69.15%, which means

the network was uncapable to learn. Deeper and

complex network structure were excluded to avoid

increasing the computation burden. Therefore,

manual features extraction was applied in the

classification stage, where entropy and standard

deviation of RR intervals (which are commonly used

as input features for classification) were selected. The

process of Stage II is shown in Figure 3(b).

R-peaks were extracted by Pan–Tompkins

algorithm (Pan and Tompkins, 1985). Five RR

intervals were clipped as a segment, and the entropy

and standard deviation were extracted from the

segments. Afterward, they were sent to the fully

connected layers to classify into non-AFib or AFib

segments. Similar to Stage I, a moving window (size:

5 intervals, slide: 1 interval) was also applied to

identify the whole signal as persistent or paroxysmal.

The entropy calculation is given by the equation:

E𝑅 = 







𝑅





log P



𝑅





where E is the entropy of the segment, R

indicates

each RR interval length and P is the occurrence

probability.

The training sets were only persistent AFib

labelled (1), and paroxysmal AFib segments were

labelled according to the reference label. Because the

paroxysmal segments were approximately 30% of

persistent segments, and the non-AFib segments of

the paroxysmal are less. Therefore, a moving window

Paroxysmal Atrial Fibrillation Detection by Combined Recurrent Neural Network and Feature Extraction on ECG Signals

(size: 5 intervals, slide: 1 interval) was applied to

section more paroxysmal segments to balance the

data structure. The rest training settings were the

same as Stage I.

2.3 Evaluation Metrics

The validation accuracy of the two stages indicates

their capability to identify the small segments (within

windows). The overall performance of the algorithm

can be reflected by the score of the testing recordings.

In this paper, the CSPC2021 Challenge scoring

scheme is considered (Wang et al., 2021).

The score includes two parts: the first part (Ur)

classifies the AFib correctly, and the score matrix is

shown in Figure 4. The second part (Ue) is meant to

detect the AFib onsets. If the onsets and end of the

AFib episodes were detected within ±1 R-peak, Ue

+ 1, within ±2, Ue + 0.5.

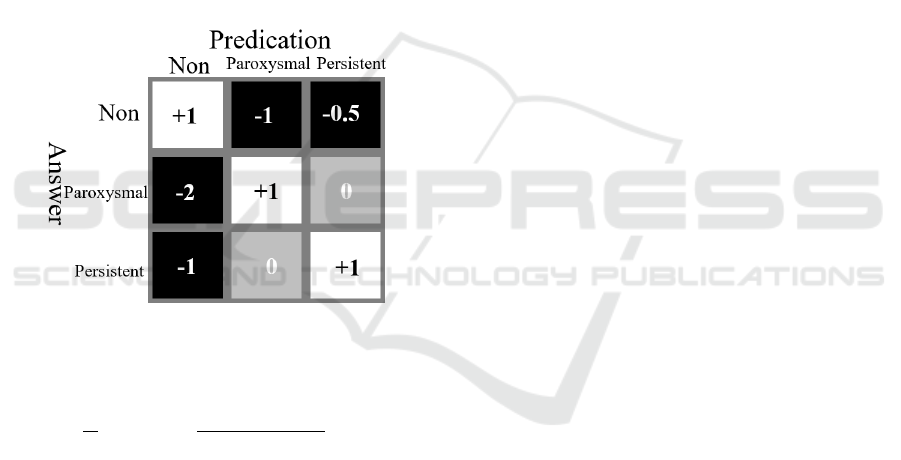

Figure 4: The score matrix for part one.

The overall score (U) is calculated by:

𝑈=

𝑁







𝑈𝑟



𝑀𝑎



𝑚𝑎𝑥



𝑀𝑟



,𝑀𝑎





×𝑈𝑒





3 RESULTS

For Stage I, the validation sets achieved 90.14%

accuracy to classify the non-AFib and AFib segments

with a specificity of 93.65% and sensitivity of

84.82%, respectively. The result indicated that Stage

I could identify the non-AFib segments well but may

miss some AFib segments. However, it wasn’t an

issue for the whole signal because the majority voting

and the appropriate threshold can improve the overall

performance and remedy the sensitivity. In the testing

phase, a 2.5% threshold was set which means if less

than 2.5% of the signal is classified as AFib, the

overall signal will be regarded as non-AFib. By this

approach, the accuracy of non-AFib signals

classification could be increased approximately from

92.62% to 96%. Theoretically, raising the threshold

can improve the non-AFib accuracy on validation to

almost 100%, but it will lose its sensitivity and

generalization.

For Stage II, on the validation sets, it did the

accuracy of 92.56% with a specificity of 86.24% and

sensitivity of 95.77% to classify non-AFib and AFib

segments on the AFib signals. The result showed that

Stage II might tend to classify the healthy segments

into AFib segments. However, because of the

considered two stages design, non-AFib signals have

been excluded before Stage II; thus, it won’t affect the

overall classification performance. It will only affect

the detection of the onset of the AFib.

During the testing recordings, the two-stages

method achieved 2.0953 overall mark, including

0.8714 Ur and 1.4039 Ue. It showed a satisfying

performance on the classification, while the onset

detection can be improved. Furthermore, the total

neural network is only about 1.6 MB in Matlab

(coding in Python can be smaller, approximately 500

k.), which is possible to use on a personal laptop or

embedded device.

4 DISCUSSION

This study aimed to design an algorithm using NNs

to detect paroxysmal AFib and make the computing

load small enough for a portable embedded ECG

device. This is done because patients typically neglect

paroxysmal AFib due to its intermittent

characteristics and lack of appropriate databases. In

this study, a two-stage algorithm was designed using

the CSCP2021 database, and it proofed its capability

to classify the AFib segments and onsets on the

validation sets.

Firstly, the use of a two-stage method rather than

one NN will be justified. Before the training, our

preconceived thought on paroxysmal AFib was like

intermittent non-AFib and AFib waveforms in the

ECG signals. However, it is not, or at least the

BiLSTM or Conventional Neural Network (CNN)

cannot easily learn it. For non-AFib or AFib segments

from the non/persistent AFib signals, the network in

Stage I can learn in a very short time within one

epoch, while the segments from paroxysmal could not

regress, and the loss didn’t go down (training

accuracy also stuck at 69.15%, which is

approximately equal to the data proportion). This may

indicate that the paroxysmal AFib may hold

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing

pathological characteristics even in the healthy

episodes and using a simplified network cannot

classify the non-AFib or AFib episodes. There is no

doubt that using the deeper neural network with

complex structure, such as adding lots of CNN layers

and attention layers, will learn the difference. Still, it

will make the computing load quite extensive, which

is contrary to the original intention. Therefore, a

second phase was included for the detection of the

paroxysmal onset.

Secondly, the use of Stage II to finish the whole

classification task is tested. However, the

performance was not satisfying due to the

oversensitivity of the Stage II network and its trend to

identify the segment as AFib. Besides, feature

extraction relies greatly on reliable and accurate R

peak detection. When the signal has massive motion

artefacts, the failed R peak detection will cause an

error in the algorithm. This is another advantage of

the two-stage structure.

Thirdly, there is still room for the improvement of

the overall performance. In the blind test of the

challenge, the overall mark is decreased from 2 to

approximately 1.7. This result showed that the

generalization needs to be improved, especially in

Stage II. Currently, only two features were used while

adding more features might be a solution to improve

the algorithm. Besides, appropriate window length

may also affect the result. Currently, a 5s window on

Stage I and five intervals on Stage II are used. Longer

window length may provide more information,

especially on the feature extraction of Stage II. Short

duration cannot maximize the feature difference.

5 CONCLUSIONS

This study proposed a two-stage neural network

algorithm that can detect paroxysmal AFib and its

onsets. For performance, it can achieve 90.14% and

92.56% accuracy on non-AFib and AFib segments

classification respectively in the two stages, got

2.0953 overall mark on our testing sets. As few

researches have focused on paroxysmal AFib

detection using NNs, the finding of this study will

provide knowledge for the further researches in this

area. In the meantime, the proposed method also

holds the advantage of a small computing load,

making it possible for embedded ECG devices.

ACKNOWLEDGEMENT

This work has been funded in part from KFAS,

Kuwait Foundation for Advancement of Sciences,

project no. CN20-13EE-01.

REFERENCES

January, C. T., Wann, L. S., Alpert, J. S., Calkins, H.,

Cigarroa, J. E., Cleveland, J. C., ... & Yancy, C. W.

(2014). 2014 AHA/ACC/HRS guideline for the

management of patients with atrial fibrillation: a report

of the American College of Cardiology/American Heart

Association Task Force on Practice Guidelines and the

Heart Rhythm Society. Journal of the American

College of Cardiology, 64(21), e1-e76.

Kornej, J., Börschel, C. S., Benjamin, E. J., & Schnabel, R.

B. (2020). Epidemiology of atrial fibrillation in the 21st

century: novel methods and new insights. Circulation

research, 127(1), 4-20.

Zhou, X., Ding, H., Wu, W., & Zhang, Y. (2015). A real-

time atrial fibrillation detection algorithm based on the

instantaneous state of heart rate. PloS one, 10(9),

e0136544.

De Giovanni, E., Aminifar, A., Luca, A., Yazdani, S.,

Vesin, J. M., & Atienza, D. (2017, September). A

patient-specific methodology for prediction of

paroxysmal atrial fibrillation onset. In 2017 Computing

in Cardiology (CinC) (pp. 1-4). IEEE.

Pourbabaee, B., Roshtkhari, M. J., & Khorasani, K. (2018).

Deep convolutional neural networks and learning ECG

features for screening paroxysmal atrial fibrillation

patients. IEEE Transactions on Systems, Man, and

Cybernetics: Systems, 48(12), 2095-2104.

Annavarapu, A., & Kora, P. (2016). ECG-based atrial

fibrillation detection using different orderings of

Conjugate Symmetric–Complex Hadamard Transform.

International Journal of the Cardiovascular Academy,

2(3), 151-154.

Rizwan, A., Zoha, A., Mabrouk, I. B., Sabbour, H. M., Al-

Sumaiti, A. S., Alomainy, A., ... & Abbasi, Q. H.

(2020). A review on the state of the art in atrial

fibrillation detection enabled by machine learning.

IEEE reviews in biomedical engineering, 14, 219-239.

Liu, C., Oster, J., Reinertsen, E., Li, Q., Zhao, L., Nemati,

S., & Clifford, G. D. (2018). A comparison of entropy

approaches for AF discrimination. Physiological

measurement, 39(7), 074002.

Kalidas, V., & Tamil, L. S. (2019). Detection of atrial

fibrillation using discrete-state Markov models and

Random Forests. Computers in biology and medicine,

113, 103386.

Xiong, Z., Stiles, M. K., & Zhao, J. (2017, September).

Robust ECG signal classification for detection of atrial

fibrillation using a novel neural network. In 2017

Computing in Cardiology (CinC) (pp. 1-4). IEEE.

Paroxysmal Atrial Fibrillation Detection by Combined Recurrent Neural Network and Feature Extraction on ECG Signals

Petmezas, G., Haris, K., Stefanopoulos, L., Kilintzis, V.,

Tzavelis, A., Rogers, J. A., ... & Maglaveras, N. (2021).

Automated atrial fibrillation detection using a hybrid

CNN-LSTM network on imbalanced ECG datasets.

Biomedical Signal Processing and Control, 63, 102194.

Ping, Y., Chen, C., Wu, L., Wang, Y., & Shu, M. (2020,

June). Automatic detection of atrial fibrillation based

on CNN-LSTM and shortcut connection. In Healthcare

(Vol. 8, No. 2, p. 139). Multidisciplinary Digital

Publishing Institute.

Michaud GF, Stevenson WG. (2021) Atrial Fibrillation. N

Engl J Med. , 384(4):353-361.

Wang, X., Ma, C., Zhang, X., Gao, H., Clifford, G., & Liu,

C. Paroxysmal Atrial Fibrillation Events Detection

from Dynamic ECG Recordings: The 4th China

Physiological Signal Challenge 2021.

Graves, A., Fernández, S., & Schmidhuber, J. (2005,

September). Bidirectional LSTM networks for

improved phoneme classification and recognition. In

International conference on artificial neural networks

(pp. 799-804). Springer, Berlin, Heidelberg.

Liu, G., & Guo, J. (2019). Bidirectional LSTM with

attention mechanism and convolutional layer for text

classification. Neurocomputing, 337, 325-338.

Pan, J., & Tompkins, W. J. (1985). A real-time QRS

detection algorithm. IEEE transactions on biomedical

engineering, (3), 230-236.

Lee, E., Choi, E. K., Han, K. D., Lee, H., Choe, W. S., Lee,

S. R., ... & Oh, S. (2018). Mortality and causes of death

in patients with atrial fibrillation: a nationwide

population-based study. PLoS One, 13(12), e0209687.

BIOSIGNALS 2022 - 15th International Conference on Bio-inspired Systems and Signal Processing
