Evaluation of a System for Named Entity Recognition in

a Knowledge Management Ecosystem

Philippe Tamla

1 a

, Florian Freund

1 b

, Matthias Hemmje

1 c

and Paul Mc Kevitt

2 d

University of Hagen, Faculty of Mathematics and Computer Science, 58097 Hagen, Germany

Ulster University, Faculty of Arts, Humanities and Social Sciences, Londonderry BT48 7JL, North Ireland

ﬂ

Keywords:

Named Entity Recognition, Semantic Text Analysis, Natural Language Processing, Knowledge Management

System, Data Annotation, User Interface.

Abstract:

In this research paper, the evaluation of a new system for machine learning-based Named Entity Recognition

is presented. After introducing our approach supporting two fundamental tasks for training Named Entity

Recognition models using machine learning (data cleanup and data annotation), our features, prototype and

evaluation methodologies are described. Also, the results of our performed quantitative and qualitative exper-

iments validating our approach and user interface are shown. Finally, our evaluation results are discussed to

derive challenges for future work.

1 INTRODUCTION

Named Entity Recognition (NER) is a method of In-

formation Extraction that aims at recognizing Named

Entity s (NEs) in a Natural Language (NL) full text

(Konkol, 2015). NEs are, “a word or sequence of

words that [are] used to refer to something of inter-

est in a particular application’’ (Croft et al., 2010).

A typical NE can refer to a real-world object such

as organization, person, or location. The identiﬁca-

tion and classiﬁcation of NEs is known as Named En-

tity Recognition and Classiﬁcation (NERC) (Nadeau

and Sekine, 2007). NER, being one of the most

fundamental tasks of Natural Language Processing

(NLP) (Jiang, 2012), is generally applied in systems

involving the semantic analysis of textual documents

and has found many applications in Information Dis-

covery (ID) (Dias et al., 2020) and Information Re-

trieval (IR) (Mahalakshmi, 2015). Techniques for

NER include hand-coded, based on human crafted

rules or dictionary lookups, and Machine Learning

(ML) (Nadeau and Sekine, 2007; Palshikar, 2013).

Our research particularly focuses on ML-based meth-

ods for NER as they have greatly evolved in recent

years and have been widely used in combination with

https://orcid.org/0000-0002-0786-4253

https://orcid.org/0000-0002-7344-6869

https://orcid.org/0000-0001-8293-2802

https://orcid.org/0000-0001-9715-1590

IR systems for accessing and retrieving various tex-

tual documents in domains like Software Engineering

(Liu et al., 2018), Social Media (Onal and Karagoz,

2015), and Medical Research (Nawroth et al., 2018).

“Machine Learning (ML) can be described as com-

putational approaches in which a speciﬁc function is

not programmed by a human being but by another

program, called learner, that uses existing example

data to generate programs called models, .... The pro-

cess of creating models is called training” (Swoboda,

2021). ML is an important method for performing

NER. However, applying it generally requires domain

speciﬁc knowledge in addition to software develop-

ment skills (Zhang and Tsai, 2003; Swoboda, 2021).

According to (Swoboda, 2021), training a ML

model for NER appears to be impossible without lin-

guistic skills and manually provided knowledge re-

sources. In the domain of NER, this may require

providing gold labels or deﬁning manual rules to ex-

tract NEs in the target domain (Christian, 2021). Peo-

ple with general software development knowledge

may not have sufﬁcient domain knowledge to provide

such labels or rules. The reason is that gold stan-

dard datasets required for model training are a con-

tinuous team effort involving domain experts and in-

formation modelers (Swoboda, 2021). Analogously,

domain experts may also lack the software engineer-

ing skills required for ML. However, such skills are a

prerequisite for ML as writing program codes (cod-

ing) to organize one’s domain data and being able

Tamla, P., Freund, F., Hemmje, M. and Kevitt, P.

Evaluation of a System for Named Entity Recognition in a Knowledge Management Ecosystem.

DOI: 10.5220/0011374000003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 2: KEOD, pages 19-31

ISBN: 978-989-758-614-9; ISSN: 2184-3228

to derive useful insights and patterns is often needed

(MSV, 2020). This may be a bottleneck and a very

difﬁcult task for domain experts without software en-

gineering background. We have recently designed

and developed a system for ML-based NER using

User Centered Design (UCD) methodology (Norman

and Draper, 1986). This included the analysis of re-

maining challenges in NER, covering aspects of do-

main, language, and entity types, resulting in the def-

inition of use cases, component models, and overall

architecture of the system. We addressed two ma-

jor tasks of NER, data cleanup and data annotation

(Tamla, 2022). An initial prototype of this system,

called Stanford Named Entity Recognition and Clas-

siﬁcation (SNERC), was integrated in an innovative

ecosystem for knowledge management and creation

called Knowledge Management - Ecosystem Portal

(KM-EP) (Salman et al., 2017). The goal of SNERC

was to enable the training and customization of NER

models for both experts and novice users (newbies)

and support knowledge management and retrieval in

KM-EP.

In this paper, we present the results of various

quantitative and qualitative evaluations demonstrating

the effectiveness, generality and adaptability of the

approach and implemented prototype. The paper is

organized as follows. We review related works (sec-

tion 2), summarize the implementation of SNERC,

(section 3). Next, we discuss our evaluation ﬁndings

(section 4) and conclude, discussing future work (sec-

tion 5).

2 STATE OF THE ART IN

SCIENCE AND TECHNOLOGY

2.1 Named Entity Recognition

Techniques for NER vary from hand-coded, over ML-

based, to hybrid methods. But, ML-based methods

are more efﬁcient on Web content, because they in-

clude statistical models that can automatically recog-

nize and classify named entities from very large and

heterogeneous content on the Web. Existing NER

techniques based on ML are often classiﬁed into Su-

pervised Learning (SL), Unsupervised Learning, and

Semi-supervised Learning. SL (Thenmalar et al.,

2015) is currently the dominant technique for address-

ing NER and can achieve promising performance if

enough high-quality training data is available. These

labeled data created by domain experts are called,

gold standard (Kang et al., 2012). Conditional Ran-

dom Fields (CRF) is a SL method based on statistical

algorithms (Zhang et al., 2020). It represents, “the

state of the art in sequence modeling and has also

been very effective at NER task” (Mao et al., 2007).

Training a NER model using ML is often very

challenging. It requires, besides substantial program-

ming knowledge, dealing with different technologies

and pipelines for text analysis, NLP, ML and rule-

based operations (Konkol, 2015). Errors in the ini-

tial stages of the pipeline can have snowballing ef-

fects on the pipeline’s end performance. A list of

remaining challenges in NER was already identiﬁed

and discussed in our recent research (Tamla, 2022).

These challenges cover aspects of language, domain,

addressing the portability and adaptiveness of NER

systems, entity types and gold-standard design and

creation, ML features selection, and quality of NER

preliminary steps, e.g., data cleanup, data annotation.

Following these challenges, it is necessary to efﬁ-

ciently design, develop, amd customize all necessary

preliminary steps in a NER pipeline in order to reduce

the effort of training new NER models whilst optimiz-

ing the performance of the whole system.

2.2 Knowledge Management System

A Knowledge Management System (KMS) is an

information system for organizing and managing

knowledge such that it can be easily accessible by

potential knowledge producers and consumers (Natek

et al., 2016). Systems for Knowledge Management

(KM) are often introduced to support the creation,

storage, retrieval, transfer, and application of Knowl-

edge (Alavi and Leidner, 2001). The architecture of

KMSs is described in (Gronau, 2002) and generally

includes a Taxonomy Management System (TMS) for

organizing informationd and documents, a content

management system, and a search engine for docu-

ment indexing. The European research project, Re-

alizing and Applied Gaming Ecosystem (RAGE) is

an innovative KMS and central online portal for ac-

cessing and retrieving reusable software components

and other related textual documents from the Web,

such as research publications, source code reposito-

ries, issues, and online discussions. RAGE is used

to support software reuse in the domain of applied

gaming. Applied games (AG) or serious games (SG)

aim at training, educating and motivating players, in-

stead of pure entertainment (David R. and Sandra L.,

2005). The RAGE system was developed as part of

KM-EP. This ecosystem uses various REST APIs to

enable the integration and import of text documents

from various social networks like Stack Exchange di-

alogs (“Hot questions”), or GitHub (“Build software

better”). It also includes an own developed TMS (Vu,

2020) enabling the classifying of text documents into

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

taxonomies. KM-EP users can easily import various

Web content like online discussions from, e.g., the

Stack Overﬂow social site, describe them with further

meta information, classify them “manually” using an

integrated taxonomy management system, and then ﬁ-

nally retrieve useful information with a faceted search

that enables drilling down large set of documents.

To enable semantic text analysis and automatic docu-

ment classiﬁcation of Web content, a new NER sys-

tem based on the Stanford CoreNLP (called SNERC)

was recently developed and integrated within KM-EP

(Tamla, 2022). SNERC facilitates the design, devel-

opment, customization, and management of domain-

speciﬁc models and can be used by both NER experts

and novice users to develop new NER models.

3 IMPLEMENTATION OF SNERC

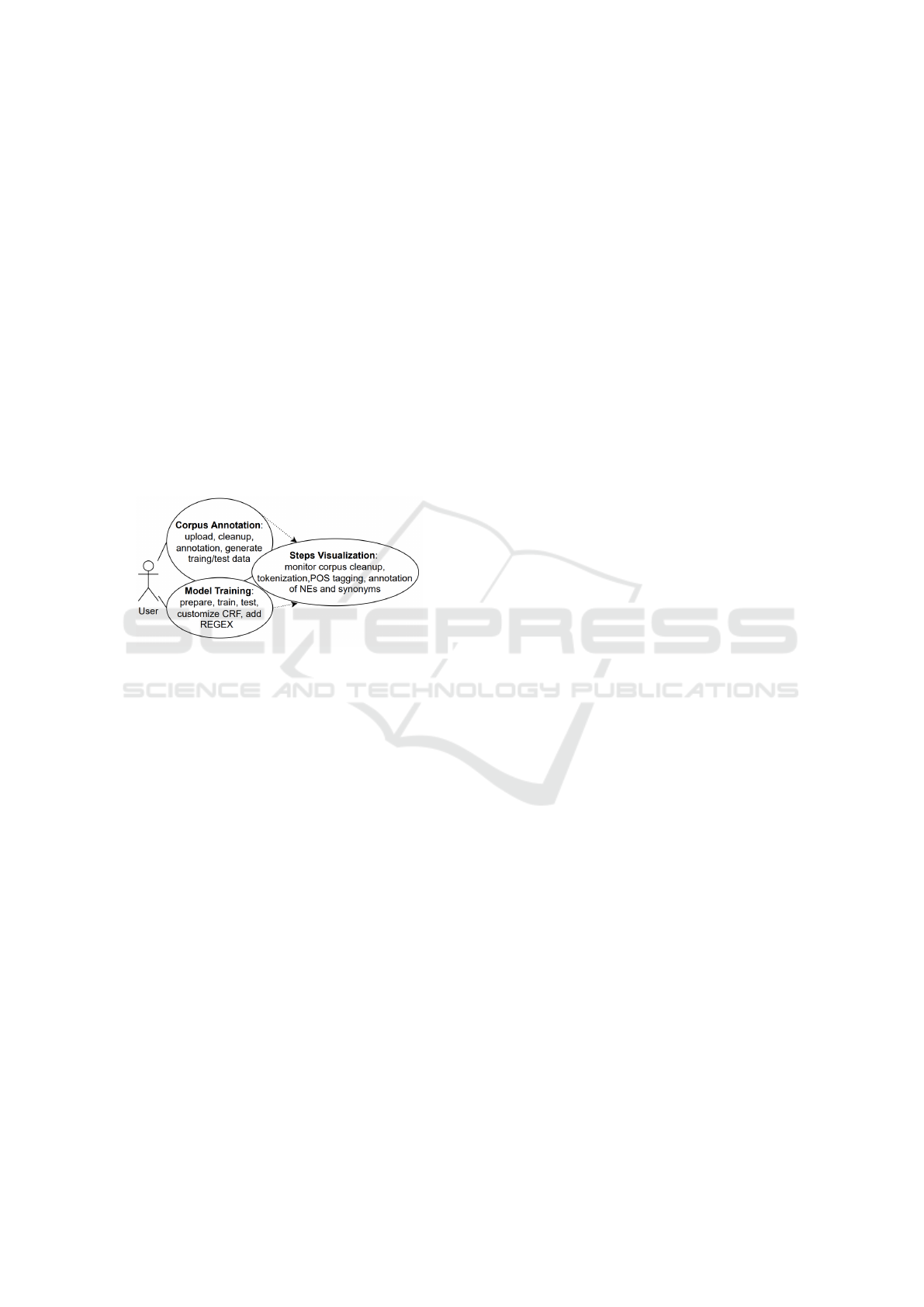

Figure 1: SNERC Use Cases for NER.

Our system, SNERC, was experimentally developed

using the well-known NLP framework of Stanford

university (Manning et al., 2014). This framework

supports most of the common NLP tasks used for

NER. We deﬁned several use cases for designing, de-

veloping and customizing ML-based NER models as

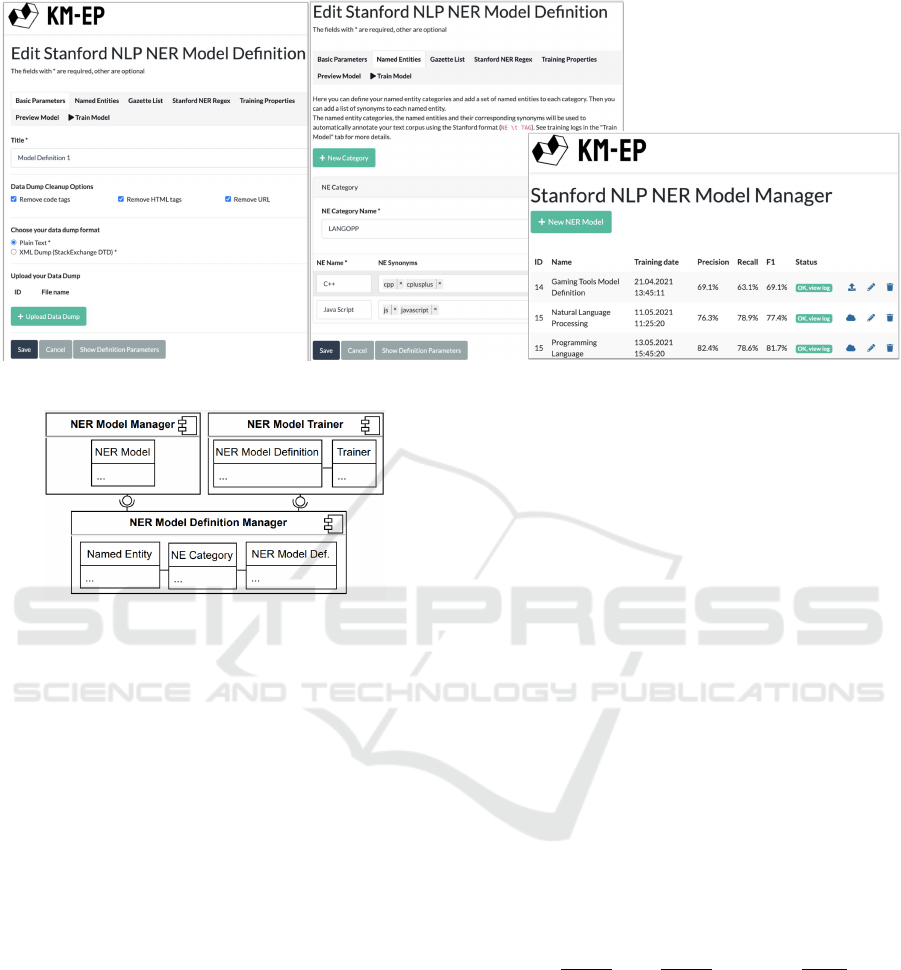

shown in Figure 1. Some GUI components of SNERC

with different tabs are presented in Figure 2. Using

SNERC, users can manage basic parameters and con-

ﬁguration steps, which we call NER model deﬁnition,

that are used to select, execute, and customize vari-

ous preliminary steps for training a NER model using

ML. For instance, users can upload a domain corpus

(data dump) and select various options for cleaning it

up. They can also execute the automatic annotation

of this domain corpus using the standard BIO format

for token annotation (Arellano et al., 2015). For the

system to annotate the corpus, users have to deﬁne

the original name of each NE (like Java Script) and, if

necessary, inform the system about the NE synonyms

and name variations of this NE (like js, JavaScript,

Javascript, Js). Also, the domain-speciﬁc NE cate-

gory (or label) that should be used to annotate this

NE and its synonyms, and name variations, must be

deﬁned. After the data is annotated, users can specify

how to split them to generate training and testing data

automatically. Domain experts can use this feature to

reduce the effort in creating their training and testing

data. Also, they have the possibility to review and up-

date the annotated data to avoid the problem of over-

ﬁtting which can lead to reduced performance of the

trained model (G

eron, 2019). Another feature avail-

able in SNERC is the deﬁnition of global and local

features. Various CRF parameters can be customized

for model training. One or more gazetteers can be

added to the NER pipeline to optimize the training

datasets. Regular Expressions (REs) can be also intro-

duced to the NER pipeline to detect complex NEs us-

ing handcrafted rules. All these features are available

in the NER pipeline and can be executed to train a new

model using ML. The execution of all NER prelimi-

nary steps before model training, e.g., data cleanup

and annotation, can be monitored using logs visual-

ization (of automatically cleaned data and annotated

tokens), which helps to check and optimize the qual-

ity of the model at an early stage. The standard eval-

uation metrics, Precision (P), Recall (R), and F-Score

), can be also visualized after each model training

to check the quality of each new model.

Based on our use cases, we have deﬁned three

main components related to them as seen in Figure

3. NER Model Deﬁnition Manager manages all the

necessary deﬁnitions and parameters for model train-

ing using ML. Its information model includes three

main classes. The ﬁrst two, Named Entity Cate-

gory and Named Entity, hold information about the

domain-speciﬁc NEs names and categories. The third

class, NER Model Deﬁnition, is used to store data in

the KM-EP database like model name, text corpus,

gazette lists, and regex rules. We use the Stanford

RegexNER API to construct and store complex rules,

as they can easily be combined with already trained

models. The NER Model Manager component con-

sists of the single NER Model class which is used for

storing trained NER models into the KM-EP ﬁlesys-

tem so that they can be used by other systems. If

a model was created using a NER Model Deﬁnition,

users can update the generated testing and training

data within the NER Model Manager to get better

P, R and F

scores. Also, regular expression rules

created using the Stanford Regex API can be edited

and updated. It is also possible to upload a Stanford

CoreNLP NER model that was trained with another

system and use it in KM-EP.

The NER Model Trainer component is used to ex-

ecute the training of a NER model using ML. This

includes the automatic annotation of the domain text

corpus based on the previously deﬁned NE categories,

NE names and synonyms. SNERC is also able to au-

Evaluation of a System for Named Entity Recognition in a Knowledge Management Ecosystem

Tab 1

Tab 2

List of trained NER Models

Figure 2: SNERC GUI components.

Figure 3: SNERC components for NER.

tomatically split the annotated text corpus into testing

and training data. However, the testing data, needs to

be reviewed by a human expert and uploaded again

to avoid overﬁtting, and thus a realistic calculation

of P, R and F

scores. When this is done, the NER

Model Trainer component is used to execute the task

for training a NER model using jobs and Stanford

CoreNLP. Its information model deﬁnes two classes.

The ﬁrst class, NER Model Deﬁnition, holds the same

basic information provided in the NER Model Deﬁni-

tion Manager component which is needed for model

training. The second class, Trainer, is used to control

the training process whether the model is in the pre-

pared or trained state. It is also used to store the ref-

erence to each trained model in the KM-EP database.

Further detail on all components of SNERC can be

found in (Tamla, 2022).

4 EVALUATION OF SNERC

To validate our research, we need to prove the feasi-

bility, usability, usefulness and efﬁciency of our ap-

proach and implemented SNERC prototype. Hence,

this work aims at evaluating various aspects of our

solution using qualitative and quantitative methods.

There are different evaluation methodologies used

for software applications (Kitchenham, 1996). A

well-known method to measure the efﬁciency or ef-

fectivity of a system is a Controlled Experiment, a

qualitative evaluation methodology relying on hy-

pothesis testing (Helander, 2014). Controlled experi-

ments have clear and precise goals where all partici-

pants have a ﬁx set of tasks to complete. The evalua-

tion results are then assessed to check whether or not

the previously deﬁned research goals were reached.

Participants in a controlled experiment generally have

various proﬁles and can thus be clustered into differ-

ent groups of users based on their background or ex-

pertise. The well-known metrics P, R, and F

(Pow-

ers, 2020) can also be used to evaluate the results, if

the tasks require the participants to choose items out

of a set of possible solutions. When a prototype so-

lution is available, it becomes easy to compare the

results of each group of users. Let s1 be the set of

correctly chosen items (hits), s2 the set of prototype

solution items that were not chosen (misses), and s3

the set of incorrectly chosen items (false alarms). The

standard metrics P, R, F

are calculated as follows:

P =

∪ s

, R =

∪ s

, F

= 2 ×

P × R

P + R

(1)

The initial evaluation (section 4.2) is a controlled

experiment for assessing the efﬁciency of our ap-

proach. It evaluates our features supporting two fun-

damental tasks of NER, “data cleanup” and “data an-

notation”. Our two user groups including NER ex-

perts and novice users (newbies) are taking part of

this evaluation. We use prototype solutions and the

standard metrics (P, R, and F

) to assess our sup-

ported features while comparing the results of our

user groups.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

In the second evaluation (section 4.3), a walk-

through approach (including surveys and question-

naires) (Finstad, 2010; Lund, 2001; Thielsch and

Stegem

oller, 2014) is used as the evaluation method-

ology to validate the GUI features of our prototype.

Following a predeﬁned tutorial, NER experts and

newbies are asked to train a new NER model. Our

goal is to evaluate and check the feasibility, usability

and usefulness of SNERC GUI components in sup-

porting the tasks of NER in a real-world environment.

4.1 Evaluation Setup and Pretesting

The experiments presented were guided by a tutorial

document. This document consisted of sections for

assessing our NER approach and implemented proto-

type. Each of these sections included an introduction

with the structure and goal of the experiment, exam-

ples highlighting our approaches and features, and a

doing phase with tasks to be completed by the partici-

pants. Before our participants commenced the exper-

iments, they were asked to complete an initial survey

questionnaire, which helped us to collect information

about their background and experience in program-

ming languages, ML, NER. Based on this informa-

tion, we were able to classify our participants into the

categories NER experts and newbies.

We created an evaluation document, including tu-

torial, guidelines, and description of tasks, and sent

it to a NER expert to perform a pretesting of our

approaches and provide feedback. This NER expert

completed his Ph.D. research in the domain of emerg-

ing Named Entity (eNE) and has more than 5 years

experience in the development of ML projects. The

result of the pretesting did not lead to signiﬁcant im-

provements in the evaluation guidelines and tutorial

document. After the review of the evaluation docu-

ment, we sent its ﬁnal version to all the participants

together with credentials, usernames and passwords,

for accessing the KM-EP portal.

For our evaluations, we focus on two groups of

users having different backgrounds and educations:

Newbies (group 1) and Experts (group 2). Newbies

are normal users, who might or might not have knowl-

edge about NER. Experts are deﬁned as skillful peo-

ple having experience in ML-based NER. Our partic-

ipants were chosen from the domain of software en-

gineering and data science, which also includes ML

experts. Our group of newbies consists of 4 software

engineers, who have a master’s degree in computer

science. These users do not have experience in NER

and ML. The group of experts consists of 4 users (2

Ph.D.s and 2 Ph.D. candidates), all having at least

3 years experience in using and developing ML and

NLP systems, including NER. The job of all these

users was to perform all evaluations.

4.2 Qualitative Evaluation of the NER

Approach

The concept of this evaluation is to let newbies and

experts do the same, completing various preliminary

tasks for training a NER model, then compare the re-

sults to validate if newbies can achieve similar or even

better results than experts.

4.2.1 Evaluation Setup

To execute this evaluation, a document, can be down-

loaded from Google Drive

, including tutorial, guide-

lines, and description of tasks was presented to the

participants. This document also described the do-

main corpus and labels we used to execute the ex-

periment. Finally, the document included ques-

tions for gathering direct feedback from all partici-

pants about our approach supporting the NER pre-

liminary steps of, “data cleanup” and “data annota-

tion”. The domain corpus that is used in this ex-

periment contains a list of discussion posts about

programming languages found in the Stack Over-

ﬂow social network. Such discussion posts gener-

ally contain various types of NEs, related to ofﬁ-

cial names of programming languages (like “Java

Script”), their synonyms (like “js”), and name varia-

tions (like “javascript”, “JavaScript”, “Javascript”) as

it was initially analyzed in our previous preliminary

study (Tamla et al., 2019).

Table 1 shows a set of documents from our se-

lected domain corpus. Column 1 shows some sen-

tences of each discussion post. We can identify

HTML and code snippets in some of these discus-

sions. Column 2 shows the NEs identiﬁed in the

documents together with their synonyms and name

variations used by online users (like Java Script,

Javascript, JS). Column 3 shows a reference ID to

each Stack Overﬂow post. As we are dealing with

programming languages, our selected domain labels,

or NE category names, are deﬁned based on com-

mon programming paradigms. For the sake of sim-

plicity, we only consider ﬁve programming paradigms

with a respective label, as they are very popular

in programming: Declarative (LANGDECL), Func-

tional (LANGFUNC), Imperative (LANGIMP), Ob-

ject Oriented (LANGOOP) and Procedural (LANG-

PROC) programming languages.

https://drive.google.com/ﬁle/d/1FCKuX GY1Xm

Rxe8IkAR1oN15aDXcRSh

Evaluation of a System for Named Entity Recognition in a Knowledge Management Ecosystem

Table 1: Subset of Documents about Serious Games (SG)-related Posts in Stack Overﬂow.

Document Identiﬁed

NEs and

synonyms

Stack ID

What is the difference between String and string in C#? C# #7074

How can I decrypt an “encrypted string with java” in c sharp? C Sharp #22742097

Is Java “pass-by-reference” or “pass-by-value”? Java #40480

javascript code to change the background color onclicking more buttons javascript #67365586

Check out ⟨a href=“...”⟩Unobtrusive JavaScript⟨/a⟩ and Progressive enhance-

ment (both Wikipedia).

JavaScript #134845

Are there any coding standards for JavaScript? ⟨code⟩...if . . . else ...⟨/code⟩ JavaScript #211795

Parse an HTML string with JS JS #10585029

javascript code to change the background color onclicking more buttons javascript #67365586

Finding duplicate values in a SQL table SQL #2594829

Learning COBOL Without Access to Mainframe COBOL #4433165

4.2.2 Procedure

In the ﬁrst task of this experiment (Task 1.1), users are

asked to apply a set of options to clean up our selected

domain corpus consisting of Stack Overﬂow discus-

sion posts about programming languages. SNERC

supports a variety of options for cleaning up data from

a Web document, which might not be relevant for

training a model in the target domain. For instance, if

the initial domain corpus is a HTML document, users

may choose to remove all the HTML markups, im-

ages, code snippets, and links, whilst keeping only

the textual information containing the relevant NEs

in the target domain. The cleaned-up document can

then be easily annotated to create the gold standard for

model training. After explaining our cleanup features

and providing concrete examples how to apply them

on the example documents, a doing-phase including

multiple clean up tasks was presented to the users to

complete them. Users were asked to choose features

to clean up documents about programming languages,

which we also collected from Stack Overﬂow. As

we wanted to compare the qualitative performance of

newbies with the performance of experts, both groups

performed the same task of “data cleanup”. A proto-

type solution for this task was also deﬁned (see Table

2). Based on these prototype solutions and the an-

swers provided by the participants, we could compare

all the results of newbies and experts using the stan-

dard metrics P, R, and F

The second task of this experiment (Task 1.2) was

related to “data annotation”, which is another funda-

mental step for model training in NER. Our approach

provides features to automatically annotate a domain

corpus. It relies on Computational Natural Language

Learning (CoNLL) (Sang and De Meulder, 2003), a

widely used data format for generating testing and

training data (Pinto et al., 2016). CoNLL uses the

standard BIO format for token annotation in NER.

BIO (short for Beginning, Inside, Outside) is the de-

facto standard format for tagging tokens in many NLP

frameworks (Arellano et al., 2015). After explaining

with appropriate examples, the concept of token anno-

tation using BIO, users were asked to annotate a set of

documents including different types of NEs, such as,

single-word NEs (like “Java”, “HTML”), multi-word

NEs (like “C sharp”, “Java Script”), and extended

NEs (like “C sharp 5.0”). We should note that some

of the documents included the ofﬁcial names of pro-

gramming languages, with their synonyms and name

variations used in the crowd (like “csharp”, “c#” or

“c sharp”). Thus, users had to provide the appropri-

ate BIO annotations to label them. For comparing the

results of newbies and experts, a prototype solution

(see Table 3) was also deﬁned, which enabled us to

compare all the results using the standard metrics P,

R, and F

as in the ﬁrst task.

Finally, we introduced the following three open

questions to collect direct feedback about our ap-

proach supporting “data cleanup” and “data annota-

tion” in NER:

• Are the offered annotation features for the cre-

ation of training and testing data sufﬁcient?

• Do you use a data format which is different from

the provided CoNLL 2003 format? If yes, which

one?

• What are you missing?

4.2.3 Evaluation Results

Table 4 shows the calculated metrics P, R, and F

for

each user completing Task 1.1. All experts performed

with a Precision of 100% and a Recall greater than

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

Table 2: Prototype Solution for Task 1.1.

Document Remove

Code Tags

Remove

HTML

Remove

URL

For-each over an array in ⟨a href=“#”⟩JavaScript⟨/a⟩ No Yes Yes

Are there any coding standards for JavaScript?⟨code⟩...if . . . else

...⟨/code⟩

Yes No No

Parse an HTML string with ⟨bold⟩JS⟨/bold⟩ No Yes No

Remove the ⟨style=“text-color:#ff0000”⟩?⟨/style⟩at the end of this C

sharp code ⟨code⟩...player.run();?⟨/code⟩ to solve your compilation

error?

Yes Yes No

Table 3: Prototype Solution for Task 1.2.

Token NE Category

Name

NE type

This O

limitation O

found O

in O

your O

Java B-LANGFUNC

multi-word

Script I-LANGFUNC

code O

is O

also O

found O

in O

Java B-LANGOOP single-word

and O

C B-LANGOOP extended,

sharp I-LANGOOP synonym

5.0 I-LANGOOP of c#

, O

C# B-LANGOOP

extended

5.0 I-LANGOOP

and O

the O

latest O

COBOL B-LANGPROC single-word

Version O

66%, while all newbies obtained a Recall of 100%

and a Precision greater than 85%. The best result is

from participant Newbie3 with a Precision of 100%

and a Recall of 100%, which means that he or she

performed even better than all the experts in this task.

The average P, R, and F

scores for each user

group is displayed in Table 5. It shows that while

newbies have performed with the highest Recall of

100%, experts have performed with the highest Preci-

sion of 100%. Considering the F

score, we can say

that newbies (having a F

of 92.58%) have better per-

formed compared to experts, having a F

of 88.18%,

in this task.

Table 4: Precision, Recall and F

of Task 1.1.

Participant Precision (%) Recall (%) F

(%)

Newbie1 85.71 100.00 92.31

Newbie2 75.00 100.00 85.71

Newbie3 100.00 100.00 100.00

Newbie4 85.71 100.00 92.31

Expert1 100.00 83.33 90.91

Expert2 100.00 66.67 80.00

Expert3 100.00 83.33 90.91

Expert4 100.00 83.33 90.91

Table 5: Average Precision, Recall and F

for Task 1.1 for

each User Group.

Precision (%) Recall (%) F

(%)

Newbies 86.61 100.00 92.58

Experts 100.00 79.17 88.18

Table 6 displays the scores for each user complet-

ing Task 1.2. It shows that 3 experts and 1 newbie

obtained the highest Precision and Recall of 100%.

Only one expert had a lower Precision of 72.73% and

a lower Recall of 88.89%. Newbie2 and Newbie4

performed poorly which had a negative effect on the

overall score of newbies compared to experts.

Table 6: Precision, Recall and F

for Task 1.2.

Participant Precision (%) Recall (%) F

(%)

Newbie1 100.00 100.00 100.00

Newbie2 83.33 55.56 66.67

Newbie3 100.00 77.78 87.50

Newbie4 88.89 88.89 88.89

Expert1 72.73 88.89 80.00

Expert2 100.00 100.00 100.00

Expert3 100.00 100.00 100.00

Expert4 100.00 100.00 100.00

The average scores for each user group are dis-

played in Table 7. We can see that experts have per-

formed with a 10% higher F

, concluding that experts

are better in this task.

Evaluation of a System for Named Entity Recognition in a Knowledge Management Ecosystem

Table 7: Average Precision, Recall and F

for Task 1.2 for

each User Group.

Precision (%) Recall (%) F

(%)

Newbies 93.06 80.56 85.77

Experts 93.18 97.22 95.00

The answers provided in the open questions re-

vealed that our approach supporting “data cleanup”

and “data annotation” is sufﬁcient for most of our

participants. However, two experts found that the

CoNLL data format and BIO labels used for token

annotation in NER is not enough. From their per-

spective, supporting other data formats such as JSON,

XML, or making use of a standard library for NLP re-

lated tasks (like spaCy

) could be helpful to make our

application more ﬂexible. The next section evaluates

our SNERC GUI components enabling NER model

training in KM-EP.

4.3 Quantitative Evaluation of SNERC

This experiment based on walkthrough methodology

aims at validating the feasibility, usability, and ef-

ﬁciency of our implemented SNERC prototype by

gathering feedback on its GUI components, features

and functionality. SNERC is a sub-module of KM-EP

and its features supporting NER were already sum-

marized in section 3. Also, the GUI components of

SNERC were already shown in Figure 2. In this ex-

periment, we want to validate if our participants can

use our system to train new NER models in their re-

spective domains by collecting various quantitative

factors of our prototype, such as how good the imple-

mented components are. The stakeholders of KM-EP

are different user groups and communities who will

be affected by and will be using the services and pos-

sibilities of the system developed and provided during

the project. As the participants of the ﬁrst evaluation

were selected from the software engineering, ML, and

data science ﬁelds, those are also valid stakeholders of

KM-EP and have hence been selected for this evalu-

ation. KM-EP users, including NER experts or new-

bies, may want to train a new NER model to extract

NEs in their particular domains. To complete this

experiment, a document, which can be downloaded

from Google Drive

, including tutorial, guidelines,

and description of tasks was prepared and provided

to the participants.

https://www.spacy.io

https://drive.google.com/ﬁle/d/1FCKuX GY1Xm

Rxe8IkAR1oN15aDXcRSh

4.3.1 Evaluation Setup

A walkthrough requires setting up the environment

and preparing various data for the evaluation. To

walk through our NER features, data was cloned and

provided to all the participants’ KM-EP instances.

We created 10 user accounts (including usernames,

passwords), 8 for the participants and 2 for the ad-

mins managing all the evaluation data of this walk-

through. The usernames and passwords were sent to

the participants via E-Mail with a link to download

the document tutorial including instructions to exe-

cute this walkthrough. As in the ﬁrst evaluation, our

evaluation document included instructions about our

SNERC features used for training a new NER model.

It also introduced the participants to the domain cor-

pus used to execute this walkthrough. Finally, this

document included questions for gathering informa-

tion about our features supporting NER.

4.3.2 Procedure

Our evaluation includes a combination of questions

from standardized questionnaires UMUX (Finstad,

2010), USE (Lund, 2001) and M

unsteraner Frage-

bogen zur Evaluation – Zusatzmodul Diskussion

(Thielsch and Stegem

oller, 2014) and open ques-

tions targeting the functionality of SNERC. Our sur-

vey largely covered questions to be answered on

a 7-point-likert-scale from strongly disagree (1) to

strongly agree (7). Also, we added three open ques-

tions at the end of the survey to collect information

concerning the improvement of the prototype and the

quality of the tutorial. Overall, our questions were

divided into four categories: Usability, Usefulness,

User Interface and NER features of SNERC. Data on

the evaluation categories was collected as follows:

Usability: We used the UMUX questionnaire (Fin-

stad, 2010) for a general assessment of the usability

with 4 items as shown in Table 8:

Table 8: Question about Usability.

Id Text

Usab1 This tool’s capabilities meet my require-

ments.

Usab2 Using this tool is a frustrating experi-

ence.

Usab3 This tool is easy to use.

Usab4 I have to spend too much time correcting

things with this tool.

Usefulness: For evaluating the usefulness of SNERC,

one scale with 8 items from USE (Lund, 2001) was

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

adopted. Responses were provided on the same 7-

point rating scale as for the UMUX (Table 9).

Table 9: Question about Usefulness.

Id Text

Usef1 It helps me be more effective.

Usef2 It helps me be more productive.

Usef3 It is useful.

Usef4 It gives me more control over the activi-

ties in my work.

Usef5 It makes the things I want to accomplish

easier to get done.

Usef6 It saves me time when I use it.

Usef7 It meets my needs.

Usef8 It does everything I would expect it to do.

User Interface: This category aims at gathering in-

formation about how fast SNERC works and how

the user interface feels. We included questions con-

cerning the buttons, icons, images, and texts in the

questionnaire. To ensure consistency with the other

scales/categories, we included 5 items affecting the

user interface to be answered on a 7-point rating scale

(Table 10).

Table 10: Questions about User Interface.

Id Text

Ui1 All SNERC-components work fast.

Ui2 The user interface feels good.

Ui3 Buttons, images, and texts are in the

right position.

Ui4 Enough information and explanations

are presented.

Ui5 The images and icons look good.

NER Features of SNERC: To evaluate the NER com-

ponents of SNERC, 5 items answered on a 7-point-

rating scale dealt with the ﬂexibility and visualization

of the NER features available in SNERC (Table 11).

Besides the questions with answers on a 7-point

rating scale, 3 open questions were asked concerning

improvements of SNERC and the tutorial (Table 12).

The answers were interpreted separately.

To get familiar with SNERC, speciﬁc tasks were

prepared, to make sure that all the participants work

with SNERC consistently. Completing this walk-

through experiment took approximately around 1.5

hours, up to 2 hours for unexperienced users, includ-

ing the time to go through the provided tutorial and

complete the survey.

Table 11: Questions about NE Features of SNERC.

Id Text

NERf1 I spent a lot of time testing the NER

Model Deﬁnition Manager.

NERf2 The NER Model Deﬁnition Manager

guided me through the process of train-

ing a custom NER model.

NERf3 I need more ﬂexibility for customizing

the training pipeline.

NERf4 The CoreNLP based pipeline is a sufﬁ-

cient basis.

NERf5 The “Preview” feature is helpful to get

short round trips, while customizing pa-

rameters.

Table 12: Questions about Improvement.

Id Text

Imp1 Which functions or aspects are lacking

in the current solution in your opinion?

Imp2 Do you have ideas for improvements or

alterations of SNERC?.

Imp3 Do you think the support materials (man-

uals, tutorials, etc.) are sufﬁcient? If not,

what is missing?

4.3.3 Evaluation Results

The results of this chapter will be used to demonstrate

whether our prototype can be used to enable NER in

a real-world scenario. Also, these results can be used

as a starting point for further R&D work.

Results related to Demographics: 8 users (includ-

ing 4 experts and 4 newbies) completed both experi-

ments. All respondents hold at least a master degree

and had worked at least for 5 years as professional

software engineers or data scientists. One expert has

worked for 10 years as a data scientist and another one

has completed a Ph.D. in the domain of eNE. All 4 ex-

perts have at least 3 years of experience in developing

and applying ML-NER systems.

Results Related to Usability: All participants had

to ﬁll out a questionnaire regarding the usability of

SNERC, which included 4 items (Usab1 to Usab4).

The responses on these items are presented in Ta-

ble 13. Figure 4 depicts the average values of all

participants providing answers to the usability ques-

tions. It shows that in average 62.5% of the partici-

pants disagreed to have a frustrating experience with

SNERC (Usab2), while 50% agreed that SNERC is

easy to use (Usab3). However, we can also observe

that there is quite a high spread in the answers for

Evaluation of a System for Named Entity Recognition in a Knowledge Management Ecosystem

Table 13: Responses (%) for the Usability Questionnaire.

Scale

Usab1

(%)

Usab2

(%)

Usab3

(%)

Usab4

(%)

Strongly

agree

12.5 0.0 0.0 0.0

agree 25.0 0.0 25.0 0.0

somewhat

agree

25.0 0.0 50.0 25.0

neither

agree nor

disagree

12.5 12.5 12.5 12.5

somewhat

disagree

12.5 12.5 0.0 50.0

disagree 12.5 62.50 12.5 12.5

strongly

disagree

0.0 12.5 0.0 12.5

Usab4, which might reﬂect the demographics of the

participants as they have different background knowl-

edge about methods and tools for NER and ML.

0% 20% 40%

60%

80% 100%

Usab1

Usab2

Usab3

Usab4

strongly disagree

disagree

somewhat disagree

neither agree nor disagree

somewhat agree

agree

strongly agree

Figure 4: Average Values of the Answers of the Usability

Questionnaire.

Figure 5 shows a bar plot with the usability an-

swers divided by our user groups (newbies and ex-

perts). We can see that SNERC is usable and easy to

use for both user groups as they selected on average

“agree” for the two statements “This tool’s capabili-

ties meet my requirements“ (Usab1) and “This tool is

easy to use“ (Usab3). From this diagram we can also

see that newbies seem to need more time to get famil-

iar with this tool than NER experts. We conclude this

from their answers provided in Usab2 and Usab4.

Usab1 Usab2 Usab3 Usab4

Strongly disagree (1)

- Strongly agree (7)

Expert

Newbies

Figure 5: Average Values of the Usability Answers divided

by User Groups.

Results Related to Usefulness: All participants had

to ﬁll out a questionnaire regarding the usefulness of

SNERC, which included 8 items (Usef1 to Usef8).

The responses of these items are presented in Table

14. Figure 6 shows the answers to the questions re-

lated to the usefulness in a bar plot. We can see that

most answers are positive which indicates that our

tool is useful to enable NER. There is one user who

gave a negative feedback (disagree), but unfortunately

no additional comment was provided. Hence, it is not

clear which feature the user was missing.

0% 20% 40%

60%

80% 100%

Usef1

Usef2

Usef3

Usef4

Usef5

Usef6

Usef7

Usef8

strongly disagree

disagree

somewhat disagree

neither agree nor disagree

somewhat agree

agree

strongly agree

Figure 6: Average Values of the Answers of the Usefulness

Questionnaire.

Figure 7 shows the average answers for our two

user groups to the usefulness questions. The most

positive answers are for the question ”It is useful”

(Usef3), 5.75 for experts and 5.5 for newbies, and ”It

saves me time when I use it” (Usef6), 5.75 for ex-

perts and 5.25 for newbies. As we can see, there is

no signiﬁcant difference between the two user groups.

We can only see sightly smaller scores for the group

of newbies (especially Usef1, Usef2, Usef7) which

might be related to their lack of experience in the do-

main of NER. This result shows that our tool is useful

for both, NER experts and newbies.

Usef1 Usef2 Usef3 Usef4 Usef5 Usef6 Usef7 Usef8

Strongly disagree (1)

- Strongly agree (7)

Expert

Newbies

Figure 7: Average Values of the Usefulness Answers di-

vided by User Groups.

Results Related to User Interface: Our participants

had to ﬁll out a questionnaire regarding the quality

of the user interface of SNERC. This questionnaire

included ﬁve items (Ui1 to Ui5). The responses of

these items are presented in Table 15.

Figure 8 depicts the average values of all partici-

pants’ answers to the user interface questionnaire. It

shows that all participants gave only positive answers

to these questions as they agree that the user interface

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

Table 14: Responses (%) for the Usefulness Questionnaire.

Scale

Usef1

(%)

Usef2

(%)

Usef3

(%)

Usef4

(%)

Usef5

(%)

Usef6

(%)

Usef7

(%)

Usef8

(%)

strongly agree 12.5 12.5 37.5 0.0 25.0 37.5 12.5 25.0

agree 37.5 25.0 50.0 25.0 0.0 12.5 12.5 37.5

somewhat agree 12.5 25.0 0.0 25.0 62.5 37.5 37.5 25.0

neither agree nor disagree 25.0 25.0 0.0 25.0 0.0 0.0 25.0 0.0

somewhat disagree 0.0 0.0 0.0 12.5 0.0 0.0 0.0 0.0

disagree 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5

strongly disagree 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

Table 15: Responses (%) for the User Interface Question-

naire.

Scale

Ui1

(%)

Ui2

(%)

Ui3

(%)

Ui4

(%)

Ui5

(%)

strongly

agree

37.5 12.5 25.0 0.0 37.5

agree 37.5 62.5 37.5 37.5 37.5

somewhat

agree

12.5 25.0 12.5 62.5 25.0

neither

agree nor

disagree

12.5 0.0 25.0 0.0 0.0

somewhat

disagree

0.0 0.0 0.0 0.0 0.0

disagree 0.0 0.0 0.0 0.0 0.0

strongly

disagree

0.0 0.0 0.0 0.0 0.0

of SNERC feels good (Ui2), has enough information

are provided (Ui4), and works fast (Ui1).

0% 20% 40%

60%

80% 100%

Ui1

Ui2

Ui3

Ui4

Ui5

strongly disagree

disagree

somewhat disagree

neither agree nor disagree

somewhat agree

agree

strongly agree

Figure 8: Average Values of the Answers of the User Inter-

face Questionnaire.

Figure 9 shows the average answers divided by

user groups. We can see no signiﬁcant differences

between newbies and experts which indicate that they

are all satisﬁed with our user interface.

Results Related to NER Features of SNERC: Our

participants had to ﬁll out a questionnaire regarding

the NER features of SNERC, which included 5 items

(NERf1 to NERf5). The responses of these items are

presented in Table 16.

Ui1 Ui2 Ui3 Ui4 Ui5

Strongly disagree (1)

- Strongly agree (7)

Expert

Newbies

Figure 9: Average Values of the User Interface Answers

divided by User Groups.

Figure 10 depicts the average values of all par-

ticipants’ answers for the NER features category. It

shows 37.5% of the participants agree that the “NER

Model Deﬁnition Manager” of SNERC guided them

through the process of training a custom NER model

(NERf2) which indicates that our tool is a valid tool to

complete this task. Also, 50% of the participants are

happy with the preview feature (NERf5) as it helps

them to check the results and quality of their trained

model after customizing various parameters. While

SNERC seems to be very useful to support NER, half

of the participants are neutral about its ﬂexibility and

customization capability. The same portion of partici-

pants somewhat agree that CoreNLP-based pipeline is

a sufﬁcient basis. These answers are also reﬂected in

Figure 11 where no signiﬁcant differences are shown

between NER experts and newbies.

0% 20% 40%

60%

80% 100%

NERf1

NERf2

NERf3

NERf4

NERf5

strongly disagree

disagree

somewhat disagree

neither agree nor disagree

somewhat agree

agree

strongly agree

Figure 10: Average Values of the Answers of the NER Fea-

tures Questionnaire.

Results Related to Improvement: Participants were

asked to ﬁll out a questionnaire concerning possible

short comings (Imp1), ideas for improving SNERC

Evaluation of a System for Named Entity Recognition in a Knowledge Management Ecosystem

Table 16: Responses (%) for the NER Features Questionnaire.

Scale NERf1 (%) NERf2 (%) NERf3 (%) NERf4 (%) NERf5 (%)

strongly agree 0.00 12.5 0.00 0.00 0.00

agree 0.00 37.5 0.00 37.5 50.0

somewhat agree 12.5 25.0 37.5 50.0 12.5

neither agree nor disagree 50.0 0.00 50.0 0.00 25.0

somewhat disagree 37.5 0.00 0.00 0.00 0.00

disagree 0.00 12.5 12.5 12.5 0.00

strongly disagree 0.00 0.00 0.00 0.00 0.00

NERf1 NERf2 NERf3 NERf4 NERf5

Strongly disagree (1)

- Strongly agree (7)

Expert

Newbies

Figure 11: Average Values of the Answers of the NER Fea-

tures Questionnaire divided by User Groups.

(Imp2), and quality of support materials (including

the provided tutorial) (Imp3). For item Imp3 (qual-

ity of support materials), all participants stated that

the support materials and provided tutorials were sat-

isfactory and sufﬁcient.

5 CONCLUSION

This paper discusses the results of quantitative and

qualitative experiments validating our approach for

ML-based NER in an innovative Knowledge Manage-

ment System for Applied Gaming. Two groups of

users including NER experts and novice users (new-

bies) participated in this research project.

Our initial evaluation is based on controlled ex-

periments and aimed at comparing results of the par-

ticipants performing two fundamental tasks of NER

model training, namely “data cleanup” and “data an-

notation”. The results of this evaluation revealed

that both groups performed nearly identical in both

tasks while designing and developing a new NER

model in their domain. Our second evaluation re-

lied on a walkthrough experiment and used question-

naires to collect answers about the usability, useful-

ness, user interface and NER features of SNERC. It

was found that SNERC, which is currently based on

the CoreNLP framework, is a valid tool for NER. It

provides a rich set of features with various GUI com-

ponents to design, develop, train, and monitor NER

models while supporting various preliminary steps

of ML-based model training. Our evaluation results

also revealed that supporting other data formats such

as JSON, XML or making use of a standard library

for NLP related tasks (like spaCy) could be helpful

to make our application more ﬂexible. Future work

would consider developing a more agnostic approach,

to enable using and combining various NLP frame-

works easily adapting to new requirements, such as

multiple data formats for data annotation and model

training tasks.

REFERENCES

Alavi, M. and Leidner, D. E. (2001). Knowledge manage-

ment and knowledge management systems: Concep-

tual foundations and research issues. MIS quarterly,

pages 107–136.

Arellano, A., Zontek-Carney, E., and Austin, M. A. (2015).

Frameworks for natural language processing of textual

requirements. International Journal On Advances in

Systems and Measurements, 8:230–240.

Christian, N. (2021). Supporting Information Retrieval for

Emerging Knowledge and Argumentation. Phd.

Croft, W. B., Metzler, D., and Strohman, T. (2010). Search

engines: Information retrieval in practice, volume

520. Addison-Wesley Reading.

David R. and Sandra L. (2005). Serious games: Games that

educate, train, and inform. ACM.

Dias, M., Bon

e, J., Ferreira, J. C., Ribeiro, R., and

Maia, R. (2020). Named entity recognition for sen-

sitive data discovery in portuguese. Applied Sciences,

10(7):2303.

Finstad, K. (2010). The Usability Metric for User Experi-

ence. Interacting with Computers, 22(5):323–327.

eron, A. (2019). Hands-on machine learning with Scikit-

Learn, Keras, and TensorFlow: Concepts, tools, and

techniques to build intelligent systems. O’Reilly Me-

dia.

Gronau, N. (2002). The knowledge caf

e–a knowledge man-

agement system and its application to hospitality and

tourism. Journal of Quality Assurance in Hospitality

& Tourism, 3(3-4):75–88.

Helander, M. G. (2014). Handbook of human-computer in-

teraction. Elsevier.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

Jiang, J. (2012). Information extraction from text. In Mining

text data, pages 11–41. Springer.

Kang, N., van Mulligen, E. M., and Kors, J. A. (2012).

Training text chunkers on a silver standard corpus: can

silver replace gold? BMC bioinformatics, 13(1):1–6.

Kitchenham, B. A. (1996). Evaluating software engineering

methods and tool part 1: The evaluation context and

evaluation methods. ACM SIGSOFT Software Engi-

neering Notes, 21(1):11–14.

Konkol, I. (2015). Named entity recognition. Phd.

Liu, M., Peng, X., Jiang, Q., Marcus, A., Yang, J., and

Zhao, W., editors (2018). Searching StackOverﬂow

Questions with Multi-Faceted Categorization. ACM.

Lund, A. M. (2001). Measuring usability with the use ques-

tionnaire12. Usability interface, 8(2):3–6.

Mahalakshmi, G. S. (2015). Content-based information re-

trieval by named entity recognition and verb semantic

role labelling. Journal of universal computer science,

21(13):1830.

Manning, C. D., Surdeanu, M., Bauer, J., Finkel, J. R.,

Bethard, S., and McClosky, D. (2014). The stanford

corenlp natural language processing toolkit. In Pro-

ceedings of 52nd annual meeting of the association

for computational linguistics: system demonstrations,

pages 55–60.

Mao, X., Xu, W., Dong, Y., He, S., and Wang, H. (2007).

Using non-local features to improve named entity

recognition recall. In Proceedings of the Korean Soci-

ety for Language and Information Conference, pages

303–310. Korean Society for Language and Informa-

tion.

MSV, J. (2020). Why do developers ﬁnd it hard to learn

machine learning?

Nadeau, D. and Sekine, S. (2007). A survey of named entity

recognition and classiﬁcation. Lingvisticae Investiga-

tiones, 30:3–26.

Natek, S., Zwilling, M., et al. (2016). Knowledge man-

agement systems support seci model of knowledge-

creating process. In Joint International Conference,

pages 1123–1131.

Nawroth, C., Engel, F., Eljasik-Swoboda, T., and Hemmje,

M. L. (2018). Towards enabling emerging named en-

tity recognition as a clinical information and argumen-

tation support. In DATA, pages 47–55.

Norman, D. A. and Draper, S. W. (1986). User Cen-

tered System Design; New Perspectives on Human-

Computer Interaction. L. Erlbaum Associates Inc.

Onal, K. D. and Karagoz, P. (2015). Named entity recog-

nition from scratch on social media. In Proceedings

of 6th International Workshop on Mining Ubiquitous

and Social Environments (MUSE), co-located with the

ECML PKDD, volume 104.

Palshikar, G. K. (2013). Techniques for named entity

recognition: a survey. In Bioinformatics: Concepts,

Methodologies, Tools, and Applications, pages 400–

426. IGI Global.

Pinto, A., Gonc¸alo Oliveira, H., and Oliveira Alves, A.

(2016). Comparing the performance of different nlp

toolkits in formal and social media text. In 5th Sym-

posium on Languages, Applications and Technologies

(SLATE’16). Schloss Dagstuhl-Leibniz-Zentrum fuer

Informatik.

Powers, D. M. (2020). Evaluation: from precision, recall

and f-measure to roc, informedness, markedness and

correlation. arXiv preprint arXiv:2010.16061.

Salman, M., Mertens, J., Vu, B., Fuchs, M., Heutel-

beck, D., and Hemmje, M. (2017). Social network-

based knowledge, content, and software asset man-

agement supporting collaborative and co-creative in-

novation. In Collaborative European Research Con-

ference: CERC 2017, pages 16–25.

Sang, E. F. and De Meulder, F. (2003). Introduction to

the conll-2003 shared task: Language-independent

named entity recognition. arXiv preprint cs/0306050.

Swoboda, Eljasik, T. (2021). Bootstrapping Explain-

able Text Categorization in Emergent Knowledge-

Domains. Phd.

Tamla, P. (2022). Supporting Access to Textual Resources

Using Named Entity Recognition and Document Clas-

siﬁcation. PhD thesis.

Tamla, P., B

ohm, T., Hemmje, M., and Fuchs, M., editors

(2019). Named Entity Recognition supporting Serious

Games Development in Stack Overﬂow Social Con-

tent. International Journal of Games Based Learning.

Thenmalar, S., Balaji, J., and Geetha, T. (2015). Semi-

supervised bootstrapping approach for named entity

recognition. arXiv:1511.06833.

Thielsch, M. and Stegem

oller, I. (2014). M

unsteraner

fragebogen zur evaluation-zusatzmodul diskussion. In

Zusammenstellung sozialwissenschaftlicher Items und

Skalen.

Vu, B. (2020). A Taxonomy Management System Support-

ing Crowd-based Taxonomy Generation, Evolution,

and Management. PhD thesis, University of Hagen,

Germany.

Zhang, D. and Tsai, J. J. (2003). Machine learning

and software engineering. Software Quality Journal,

11(2):87–119.

Zhang, M., Geng, G., and Chen, J. (2020). Semi-supervised

bidirectional long short-term memory and conditional

random ﬁelds model for named-entity recognition us-

ing embeddings from language models representa-

tions. Entropy, 22(2):252.

Evaluation of a System for Named Entity Recognition in a Knowledge Management Ecosystem
