Two-dimensional Motif Extraction from Images: A Study using an

Electrocardiogram

Hanadi Aldosari

1,4

, Frans Coenen

, Gregory Y. H. Lip

and Yalin Zheng

2,3

Department of Computer Science, University of Liverpool, Liverpool, U.K.

Liverpool Centre for Cardiovascular Science, University of Liverpool and Liverpool Heart & Chest Hospital,

Liverpool, U.K.

Department of Eye and Vision Science, University of Liverpool, Liverpool, U.K.

College of Computer Science and Engineering, Taibah University, Madinah, Saudi Arabia

Keywords:

2D Motifs, ECG Classiﬁcation.

Abstract:

A mechanism using the concept of 2D motifs to classify Electrocardiogram (ECG) data is presented. The

motivation is that existing techniques typically ﬁrst transform ECG data into a 1D signal (waveform) format

and then extract a small number of features from this format for classiﬁcation purposes. The transformation

into the waveform format introduces an approximation of the data, and the consequent feature selection means

that only a small part of the coarsened signal is utilised. The proposed approach works directly with the image

format, no transformation takes place, features (motifs) are selected by considering the entire ECG image. It

is argued that this produces a better classiﬁcation than that which can be achieve using the waveform format.

The proposed 2D Motif extraction approach is fully described and evaluated. Good results are returned, a best

accuracy 85% in comparison with a best accuracy of 70% using a comparable 1D waveform approach. An

analysis is also presented with respect to the augmentation of 2D motifs with 2D discords.

1 INTRODUCTION

Cardiovascular Disease (CVD) has become one of the

most common fatal disease of the 21st century. Over

the last thirty years deaths and disability from CVD

have steadily increased. It has been estimated that

in 2019 CVD attributed to one third of deaths world

wide (Roth et al., 2020). CVD is most commonly

caused by irregularities of the rhythm of the heart.

The Electrocardiogram (ECG) is a standard informa-

tion source for diagnosing CVDs. An ECG is an in-

dicator of cardiac electrical activity and this provides

important information about heart conditions. Given

the increasing prevalence of CVD, coupled with the

resource and skills required to analyze ECG records,

there has been a corresponding need for computer

aided support for ECG analysis. Consequently, there

has been signiﬁcant work directed at using the tools

and techniques of machine learning to classify ECG

data (Ebrahimi et al., 2020; Houssein et al., 2017; Liu

et al., 2021).

The challenge of applying machine learning to

ECG data, as in the case of machine learning in gen-

eral, is the acquisition of suitable training data. Tradi-

tionally, ECG machines produced hard copy printouts

which were then interpreted by a Cardiologist (focus-

ing on what are called the P wave, the QRS complex,

and the T wave). More modern machines can, in ad-

dition, produce digital formats. However, most of the

available data still tends to be in paper print-out for-

mat. The practice is to scan the paper print-out into a

digitised form and then transform it into a 1D signal

(waveform) format. However, the transformation pro-

cess involves information loss as the data is approx-

imated so as to obtain the desired waveform format.

The information loss is compounded if the original

scan is not of good quality; frequently the case. Once

the transformation has taken place the next stage, typ-

ically, is to extract certain features from within the

signal data (features associated with the P wave, the

QRS complex, and the T wave) (Gupta et al., 2021;

Kar and Das, 2011; Mir and Singh, 2021; Seena and

Yomas, 2014). The consequence, it is argued in this

paper, is that the resulting classiﬁcation is not as good

as it might be because it is based on approximations

and a small number of features.

To address the above, the solution presented in this

paper moves away both from the idea of applying ma-

Aldosari, H., Coenen, F., Lip, G. and Zheng, Y.

Two-dimensional Motif Extraction from Images: A Study using an Electrocardiogram.

DOI: 10.5220/0011380500003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 1: KDIR, pages 19-28

ISBN: 978-989-758-614-9; ISSN: 2184-3228

chine learning to a small number of features extracted

from ECG data that has ﬁrst been transformed into a

1D waveform format, by considering the ECG data

in its entirety as an image. Inﬂuenced by the work

presented in (Aldosari et al., 2021a), where time se-

ries motifs were extracted as features from ID wave-

form ECG signals, the idea presented in this paper

is to extract 2D motifs directly from the ECG image

data. A motif is a frequently repeated pattern. In 1D

this is a sub-sequence of points in a point (time) se-

ries. In 2D this is rectangular sub-matrix, a pixel sub-

matrix in the case of image data. It is argued in (Apos-

tolico et al., 2008; Furfaro et al., 2017), although not

in the context of ECG data, that 2D motifs can pro-

duced high quality image classiﬁcations. The work

presented in this paper is thus directed at using 2D

motifs as features, extracted from scanned paper ECG

records.

The application focus for the paper is Atrial Fib-

rillation (AF); a common form of CVD that is in-

dicated by an irregular, and often an unusually fast,

heart rate. We extracted 2D motifs from ECG scanned

images that featured a AF and that featured the normal

rhythm of the heart; thus both positive and negative

examples. A support vector machine (SVM) model, a

widely used machine learning technique for 1D wave-

form ECG data classiﬁcation (Sm

sek, 2016), was

them applied to the identiﬁed 2D ECG motifs.

The remainder of this paper is structured as fol-

lows. A review of existing work relevant to this paper

is presented in Section 2. A formalism is the pre-

sented in Section 3, and the proposed approach in

Section 4. The evaluation of the proposed approach

is presented and discussed in Section 5. The paper is

concluded in Section 6 with a summary of the main

ﬁndings and some suggestions for future work.

2 PREVIOUS WORK

As noted in the introduction to this paper ECG data

typically comes in a paper format, although increas-

ingly ECG machines that can also produce digitised

ECG data are available. However, up until the end of

the 20th century ECG machines could only produce

“print-outs”; it is only more modern machines that

can produce digital formats. Thus, for longitudinal

studies the reliance is on paper format ECG data. The

ﬁrst step in applying machine learning to such ECG

data thus entails scanning (digitising) the paper for-

mat data into a 2D image format of some kind. In the

context of CVD classiﬁcation, the practice is then to

transform the 2D digitised ECG data into a 1D wave-

form format. There are a range ECG tools available

to convert 2D digitised ECG to the 1D waveform for-

mat, some directly from a paper scan others from a

digitised image (Badilini et al., 2005; Baydoun et al.,

2019; Chung et al., 2018; Fortune et al., 2021; Khleaf

et al., 2013; Loresco and Africa, 2018; Ravichandran

et al., 2013). The majority of digitisation algorithms

commence with: (i) “skew correction”, to account for

rotated scans, and (ii) “grid removal” to separate the

ECG signal from the paper grid by using techniques

such as histogram ﬁltering. In some cases, further ad-

ditional processing is applied before the extraction of

ECG signals and their storage in a digitised storage

format (Waits and Soliman, 2017). The digitisation

tool used with respect to the work presented in this

paper was that presented in (Fortune et al., 2021).

Digitised ECG signals, allow for the application of

range of techniques. Some speciﬁc examples can be

found in (Thanapatay et al., 2010), (Jayaraman et al.,

2012) and (Mishra et al., 2021). All three used digi-

tisation tools to ﬁrst convert 2D scanned ECG images

into a 1D waveform format; and all three used some

form of feature extraction as a precursor to classi-

ﬁcation. In (Thanapatay et al., 2010) a SVM clas-

siﬁcation model was applied. In (Jayaraman et al.,

2012) morphological features were extracted from the

digitised signals to which two classiﬁcation models

were applied, kNN coupled with Dynamic time warp-

ing (DTW) and Adaboost, to detect three different

types of cardiovascular abnormality. In (Mishra et al.,

2021) ECG data was used as the input into a three

layer deep learning model to classify different types

of abnormalities. Further examples of feature extrac-

tion from 1D waveform as a precursor to classiﬁca-

tion can be found in (Gupta et al., 2021; Kar and

Das, 2011; Mir and Singh, 2021; Seena and Yomas,

2014). Although good results have been reported with

respect to waveform CVD classiﬁcation, the approxi-

mations that the transformation into a waveform for-

mat entails, and the reliance on a small number of fea-

tures, remains problematic.

An alternative to the waveform format, and that

explored in this paper, is to extract salient features

directly from 2D ECG scanned images. Once such

a set of features has been identiﬁed established ma-

chine learning techniques, similar to those used in the

context of waveform ECG data, can be applied. The

challenge is then the nature of the features to be ex-

tracted from the ECG image data. Low level image

features such as colour or texture are not applicable

for the effective application of CVD disease classiﬁ-

cation (Bosch et al., 2007). More sophisticated fea-

ture extraction mechanisms are required. This paper

proposes the use of 2D motifs, motifs are repeating

patterns found in data that can be used in tasks like

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

clustering, classiﬁcation and anomaly detection. The

motivation is that the use of 1D motifs has provided

promising results in the context of 1D time series

analysis (Torkamani and Lohweg, 2017; Truong and

Anh, 2019; Wankhedkar and Jain, 2019). The signif-

icance is that time series data is analogous to wave-

form data. The idea of 2D motifs, to the best knowl-

edge of the authors, was ﬁrst proposed in (Apostolico

et al., 2008) and used in (Furfaro et al., 2017) for the

purpose of classify digital images of buildings and im-

ages extracted from video news clippings, using a K-

Nearest Neighbors (kNN) classiﬁcation model.

3 FORMALISM

The following deﬁnitions are used with respect to the

remainder of this paper.

Digital ECG Image: An ECG image I is a n × m

pixel matrix such that p

i j

is the pixel at row i and

column j. Each image will be associated with a

class label c drawn from a set of classes C. A dig-

ital image set D is a set of images with associated

class labels D = {hI

, c

i, hI

, c

i, .. . }. The set

D = {D

, D

, . . . } is the set D segmented accord-

ing to class, such that the sub-set of documents D

is associated with the class c

2D Motifs: A 2D motif M = p × q is a sub-matrix

of an image I, of width p and height q, that oc-

curs with maximal frequency. A motif set, M =

, M

, . . . }, is a set of 2D motifs extracted from

an image set D, segmented according to class. Not

all the motifs in M will be good discriminators of

class, so we prune M to give M

and then M

2D Discords: A 2D discord S = p ×q is a sub-matrix

of an image I, of width p and height q, that oc-

curs with minimal frequency (thus the opposite of

a motif). A discord set, S = {S

, S

, . . . }, is set of

2D discords extracted from an image data set D,

segmented according to class. Again, not all the

discords in S will be good discriminators of class,

so we prune S to give S

, and then S

Further discussion concerning the pruning of the sets

M and S is presented in Sections 4.2.4 and 4.2.5.

4 PROPOSED APPROACH

This section presents the proposed approach. The ap-

proach comprises three stages:

1. ECG image data cleaning.

2. 2D motif extraction.

3. Feature vector generation.

Detail concerning each of these three stages is pre-

sented in the following three sub-sections, Sub-

sections 4.1, 4.2 and 4.3.

4.1 ECG Image Data Cleaning

For the application of the proposed approach a four-

step data cleaning process was adopted: (i) cropping,

(ii) conversion to gray scale, (iii) grid removal and (iv)

noise removal. The input was a set of ECG scanned

images. The output was a set of “clean” ECG images

of the form D = {hI

, c

i, hI

, c

i, . . . }, where I

is a

cleaned ECG image and c

is a class label taken from

a set of class labels C. Each of the four steps is con-

sidered in further detail below.

Cropping: Scanned ECG images often include spu-

rious information round the edges of the scan. The

ﬁrst step was therefore to crop the image so that

only the ECG signals were retained.

Conversion to Gray Scale: The cropped RGB im-

age was then converted to a gray-scale intensity

image. For the evaluation presented later in this

paper routines within the Python OpenCV library

were used for this purposes.

Grid Removal: The third step was directed at re-

moving all spurious data in the gray-scale ECG

data, particularly the background graphical grid

which is a frequent feature of ECG digital im-

ages. This was achieved using the application of

a “binarization” operation designed so that pix-

els related to the ECG traces were allocated the

value 255 (white) and the rest of the image pix-

els the value 0 (black). The desired effect was

that the graphical grid, and the majority spurious

data points, would all be encoded as black pixels.

The challenge was deciding the value of the bina-

rization threshold to be applied to the gray-scale

image. To decide the nature of this threshold,

histograms for a selection ECG image ﬁles were

generated. From these histograms it was found

out that the high intensity (background) gray scale

values were in the range 150 − 255, the threshold

value was therefore set at 150. Thus, the proposed

binarization process assigned a value of 0 to each

gray scale pixel whose value was greater than the

150 threshold, and a value of 255 otherwise, as

shown below.

binary(x, y) =



0 if grayscale(x, y) > thresh

255 otherwise

(1)

Two-dimensional Motif Extraction from Images: A Study using an Electrocardiogram

Noise Removal: The anticipation was that that some

spurious small patches of white pixels (white

noise) would be retained after the application of

the binarization. To remove this white noise

a morphological erosion operation was applied

whereby the pixels on the boundary of white ob-

jects were removed. This would also have the ef-

fect of reducing the thickness of the ECG traces.

Thus, on completion of the erosion operation a

morphological dilation operation was applied to

add pixels back to the boundaries of the retained

white objects.

4.2 2D Motif Extraction

This section presents the proposed 2D Motif extrac-

tion (dicovery) process. The top-level algorithm is

given in Algorithm 1. The input is: (i) the ECG image

set D = {hI

, c

i, hI

, c

i, . . . } from the pre-processing

stage (c

is a class label taken from the set of classes

C), (ii) the set C, (iii) the required 2D motif (discord)

width p and height q, (iv) a pre-speciﬁed similarity

threshold σ used to determine whether two pixel sub-

matrices are the same or not, and (v) k the number of

motifs (dicords) to be selected. The output is a set of

motifs and a set of discords, M

and S

, which are

deemed to be good discriminators of class, to be used

in the desired feature vector representation (Stage 3).

The set D = {D

, D

, . . . } is populated in lines 3 to 5

so that D is segmented according to class. Note that

for the evaluation presented in Section 5, |C| = 2 was

used, hence D = {D

, D

The set D is then processed to identify the mo-

tifs and discords held in the images associated with

each class (lines 6 to 14). This involves calls to a

number of sub-processes which will be discussed in

further detail later in this sub-section. The output is

the set M = {M

, M

, . . . } and the S = {S

, S

, . . . };

where M

is the set of motifs associated with class

∈ C, and S

is the set of discords associated with

class c

∈ C. For the evaluation presented in Sec-

tion 5, |C| = 2 was used, hence M = {M

, M

}, and

S = {S

, S

}. Note the proposed approach may result

in the same motif being identiﬁed in several images,

thus M and S are likely to contain repeat occurrences

of motifs and discords. The intuition here for the be-

ing retained was that they would be given more signif-

icance with respect to the generation of the intended

prediction model; conceptually they would be given

a higher weighting. This is one of the novel aspects

of the proposed motif (discord) generation approach

presented here.

The sets M = {M

, M

, . . . } and S = {S

, S

, . . . }

are likely to hold some motifs and discords that are

unique to only one image. It was anticipated, that

these would not be good discriminators of class,

hence, for each set of motifs M

∈ M associated with

a class c

∈ C, and each set set of discords S

∈ S

associated with a class c

∈ C, unique motifs and

discords were removed, and the reaming motifs and

discords stored in the sets M

= {M

, M

, . . . } and

= {S

, S

, . . . } respectively (line 15 in Algorithm

1).

The last step in Algorithm 1 was to remove mo-

tifs and discords from M

and S

that were associated

with more than one class and hence not useful for dis-

tinguishing between classes (line 16 in Algorithm 1).

The result was a set of motifs M

= {m

, m

, . . . }, and

a set of discords S

= {s

, s

, . . . }, that were consid-

ered to be good discriminators of class.

Algorithm 1: 2D Motif Extraction.

1: Input D,C, p, q, σ, k

2: Output M

, S

3: for ∀hI

, c

i ∈ D do

4: D

∈ D ← D

∈ D ∪I

, j = i

5: end for

6: for ∀D

∈ D do

7: for ∀I

∈ D

8: χ ← genSubMatrices(I

, p, q) 

Algorithm 2

9: M

← getCandidate2Dmotifs(χ, σ) 

Algorithm 3

10: M

, S

←

get2DmotifsAndDiscords(M

, k)  Algorithm4

11: M ← M ∪ M

12: S ← S ∪ S

13: end for

14: end for

15: M

, S

← intraClassPruning(M, S, σ) 

Algorithm 5

16: M

, S

← interClassPruning(M

, S

, σ) 

Algorithm 6

17: return M

, S

From Algorithm 1, it can be seen that the pro-

posed 2D motif extraction process comprises ﬁve sub-

processes: (i) Generate sub-matrices, (ii) Generate

candidate 2D motifs, (iii) Get Top k 2D motifs and

discords, (iv) Intra-class pruning and (v) Inter-class

pruning. Each of these is discussed in further detail in

the following sub-sections.

4.2.1 Sub-matrix Generation

The sub-matrix generation sub-process is given in Al-

gorithm 2. The inputs are a pre-processed image I

associated with a particular class, and the desired sub-

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

matrix window width d and height q. The sub-matrix

window is slide over the image I pixel by pixel. The

output is a set of sub-matrices χ = {M

, M

, . . . }. The

algorithm commences, line 2, by deﬁning the empty

set χ in which to hold the extracted sub-matrices.

Then, lines 3 to 7, the p ×q sub-matrices in I are pro-

cessed. We are only interested in sub-matrices that

contain the ECG trace. It was also found that the sub-

matrices located at the edge of the image tended to be

poor discriminators of class. Thus, sub-matrices that

feature only black pixels and those located at the edge

of the input I were not selected for inclusion in χ. We

test for this on line 4. At the end of the process χ is

returned (line 8). Note that if there are only “black”

images in I, the set χ will be empty.

Algorithm 2: Generate Sub-Matrices.

1: Input I, p, q

2: χ =

3: for ∀sub

of size p × q ∈ I do

4: if sub

6= black and sub

6= located on the edge

of I then

5: χ = χ ∪ sub

6: end if

7: end for

8: Return χ

4.2.2 Candidate 2D Motifs

The sub-process for generating candidate 2D motifs

is given in Algorithm 3. The inputs are the set χ

of p × q sub-matrices, generated in the previous step

(Algorithm 2), and the similarity threshold σ. The al-

gorithm returns a set of candidate motifs of the form

M = {hm

, count

i, hm

, count

i, . . . } where m

is a

candidate motif and count is the corresponding oc-

currence count. The algorithm commences, lines 3,

by deﬁning the set M. The algorithm then processes

each sub-matrix m

in χ (lines 4 to 13). First a counter,

count

, is deﬁned and set to 0 (line 5), and hm

, count

added to the set M (line 6). Sub-matrix m

is then

compared to every other sub-matrix m

in χ and if

found to be similar the count updated and m

removed

from χ (so that the same sub-matrix is not counted

again later in the process). The similarity between the

sub-matrices, m

and m

, is determined by calculat-

ing the Euclidean distance between the two matrices

using Equation 2. Euclidean distance measurement

is frequently used for 1D motif similarity checking

(Torkamani and Lohweg, 2017). The calculated Eu-

clidean distance is then compared using the threshold

σ, if the result is less than or equal to σ, m

and m

are

deemed to be similar.

dist (m

, m

) =

h=(p×q)

∑

h=1



− m



(2)

Algorithm 3: Candidate 2D motifs.

1: Input χ, σ

2: Output M

3: M ←

4: for ∀m

∈ χ do

5: count

← 0

6: M ← M ∪ hm

, count

7: for ∀m

∈ χ, j 6= i do

8: if dist (m

, m

) ≤ σ then

9: count

= count

+ 1

10: χ ← χ with m

removed

11: end if

12: end for

13: end for

14: Return M

4.2.3 Top K 2D Motifs and Discords

Once a set of candidate frequent 2D motifs M has

been identiﬁed, even after “black sub-matrix” and

“edge matrix” removal, the number of remaining mo-

tifs in M is likely still to be large. It is therefore

proposed that the number of candidate frequent 2D

motifs be limited to the top k most frequent candi-

dates. We were also interested in discords, candi-

dates that only occur once. The third sub-process

in Algorithm 1 is thus the identiﬁcation of the top

k motifs and the discords. The was conducted us-

ing Algorithm 4. The inputs are the set of motifs

M = {hm

, count

i, hm

, count

i, . . . } associated with

a given image, generated by the previous sub-process,

and the threshold k. The algorithm proceeds by ﬁrst

ordering the candidate motifs in M according to their

occurrence count (line 3). The top k are then selected

as the chosen motifs (line 4). Any candidate mo-

tifs with a count of 1 are deemed to be discords and

placed in S (line 5). The sets M = {m

, m

, . . . } and

S = {s

, s

, . . . } are then returned (line 6).

Algorithm 4: Get Top K 2D motifs.

1: input M, k

2: output M, S

3: M ← M sorted in descending order

4: M ← top k motifs

5: S ← motifs with a count of 1

6: Return M, S

4.2.4 Intra-class Pruning

We are interested in motifs and discords that are good

discriminators of class. We are therefore not inter-

Two-dimensional Motif Extraction from Images: A Study using an Electrocardiogram

ested in motifs and discords that only appear in one

image. Thus, we wish to remove motifs and discords,

from the sets M = {M

, M

, . . . } and S = {S

, S

, . . . }

respectively, that appear in only one image (intra-

class pruning). The sub-process for achieving this is

shown in Algorithm 5. The inputs are the sets M and

S, and the similarity threshold σ. The algorithm com-

mences by declaring the sets M

and S

to hold the re-

vised sets of motifs and discords (lines 3 and 4). The

set M is processed ﬁrst, lines 5 to 11. For each motif

in the set M

∈ M (the set of motifs associated with

class c

∈ C), if m

does nor appear anywhere else in

the motif is discarded, otherwise it is added to M

A similar process is followed for the set S, lines 12

to 18. At the end of the process the sets M

and S

will be returned. Note that it might be the case that

the sets M

and S

are empty. Note also that to de-

termine whether a motif appears only in a single im-

age requires similarity comparison with the motifs for

all the other images associated with the current class.

This requires our similarity threshold σ.

Algorithm 5: Intra-class pruning.

1: input M, S, σ

2: output M

, S

3: M

← {M

, M

, . . . M

|C|

}

4: S

← {S

, S

, . . . S

|C|

}

5: for ∀M

∈ M do

6: for ∀m

∈ M

7: if m

appears in more than one image in

then

8: M

← M

∪ m

9: end if

10: end for

11: end for

12: for ∀S

∈ S do

13: for ∀s

∈ S

14: if s

appears in more than one image in S

then

15: S

← S

∪ m

16: end if

17: end for

18: end for

19: Return M

, S

4.2.5 Inter-class Pruning

The last step is to remove motifs and discords from

and S

that are not good discriminators of class.

In other words, motifs and discords associated with

more than one class. The sub-process is as shown

in Algorithm 6. The inputs are the sets M

, M

, . . . } and S

= {S

, S

, . . . } from the previ-

ous sub-process, and the similarity threshold σ. The

outputs are the sets M

= {m

, m

, . . . }, and S

, s

, . . . }, where m

is a motif and s

is a discord.

The algorithm commences by declaring the sets M

and S

to hold the “double” pruned sets of motifs and

discords. The set M

is process ﬁrst (lines 5 to 11),

and the set S

second (lines 12 to 18). Line 7 states

that if the the motif m

does not appear in the set

of motifs associated with some other class, then m

should be added to M

. Line 14 should be interpreted

in a similar manner but with respect to discords. On

completion, line 19, M

, and S

are returned. To de-

termine whether a motif or discord appears in the con-

text of another class again requires similarity check-

ing, which again entails the threshold σ to determine

whether two motifs (discords) are the same or not.

Algorithm 6: Inter-class pruning.

1: input M

, S

, σ

2: output M

, S

3: M

←

4: S

←

5: for ∀M

∈ M

6: for ∀m

∈ M

7: if ∀M

∈ M, k 6= i, m

6∈ M

then

8: M

← M

∪ m

9: end if

10: end for

11: end for

12: for ∀S

∈ S

13: for ∀s

∈ S

14: if ∀S

∈ S, k 6= i, S

6∈ S

then

15: S

← S

∪ s

16: end if

17: end for

18: end for

19: return M

, S

4.3 Feature Vector Generation

The last process in the proposed approach is the gen-

eration of a set of feature vectors H = {V

, . . . }.

Each V

∈ H is of the form {v

, v

, . . . , c} where v

a numerical occurrence count of a motif in M

or a

discord in S

, in an ECG scanned image I

. The ﬁnal

element c is a class label taken from a set of classes C.

A previously unseen record will have a null value for

the variable c as this is the value we wish to predict.

5 EVALUATION

The evaluation of the proposed 2D motif feature se-

lection mechanism is presented in this section. For

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

the evaluation the Guangzhou Heart Study data set

was used (Deng et al., 2018). Some detail concerning

this data set is provided in Sub-section 5.1. A SVM

classiﬁcation model, with Grid Search, was used for

the evaluation. The metrics used were accuracy, pre-

cision, recall and F1 score; Ten-fold cross-validation

was used throughout. The objectives of the evaluation

were:

1. To identify the appropriate values for the parame-

ters σ, k, p, and q.

2. To justify the hypothesis that the retention of du-

plicate motifs and/or discords will have a positive

affect.

3. To compare the operation of the proposed ap-

proach when the motif set is augmented in various

ways.

4. To compare the operation of the proposed ap-

proach with “traditional” a 1D waveform ap-

proach.

Each of these objectives is discussed in further detail

in Sub-sections 5.2, 5.3, 5.4 and 5.5.

5.1 Data Set

The Guangzhou Heart Study data set, used for the

evaluation presented here, comprised 1172 patients;

each patient record was associated with a 12-leads

ECG scanned image and included a diagnosis cover-

ing sinus rhythm and eleven arrhythmia types, such as

atrial ﬁbrillation, atrial ﬂutter, sinus bradycardia, pac-

ing rhythm. Sinus rhythm is the medical term used

to describe the normal rhythm of the heart. For the

evaluation presented here a subset of this database

was used, focused only on two labels, sinus rhythm

and atrial ﬁbrillation. The image resolution was 300

dpi (dots per inch) and each image was stored using

JPEG compression, ﬁgure 1, is an example of an ECG

scanned image. All the used images were associated

with only one class.

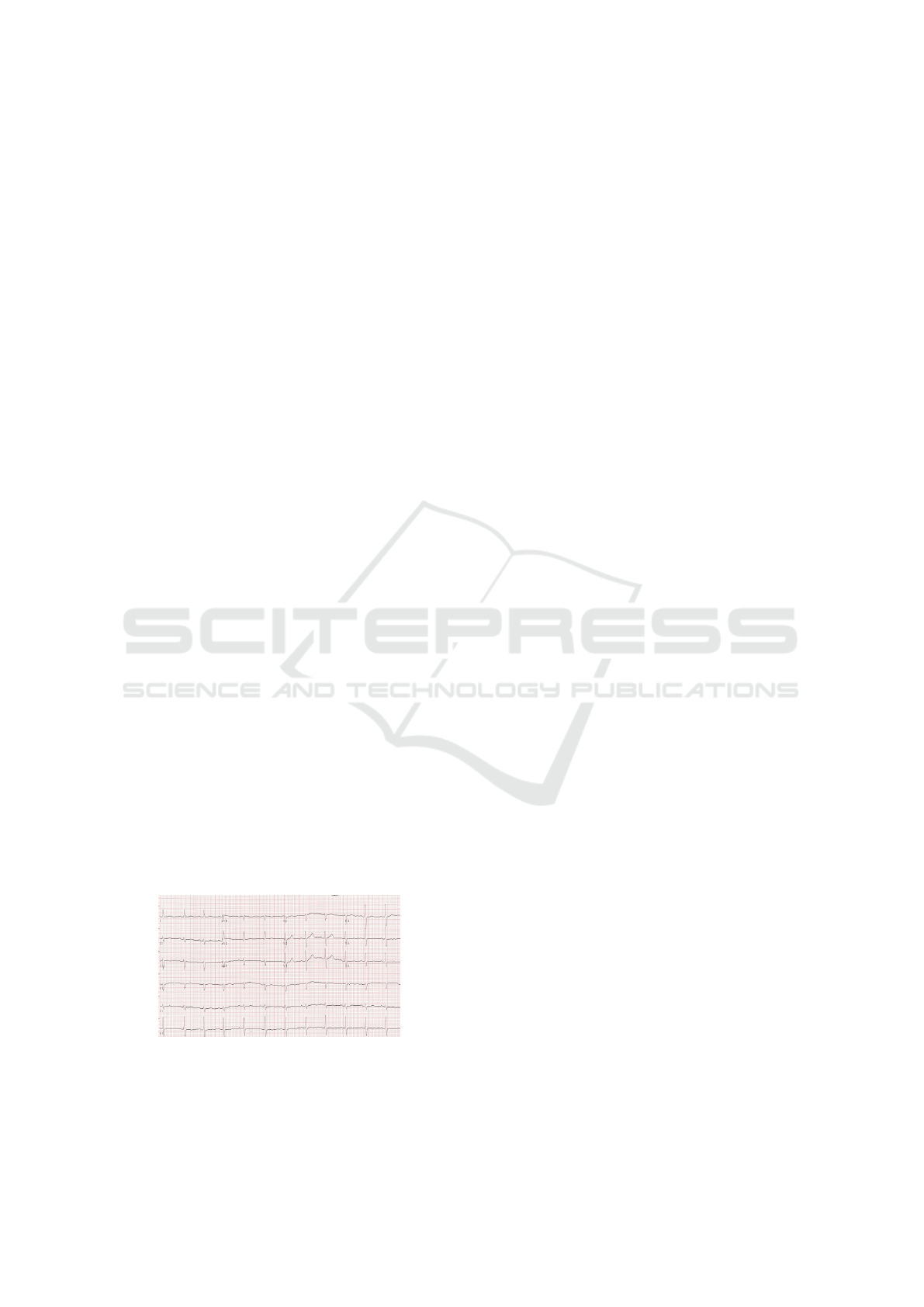

Figure 1: Example of the ECG scanned image.

5.2 Parameter Setting for 2D Motifs

Discovery

The proposed 2D motif (discord) discovery process

required four parameters:

• σ: The similarity threshold used to compare two

motifs, the maximum distance between two mo-

tifs.

• k: The number of the ﬁnal frequent motifs to be

selected from each image.

• p: the row size of the 2D motif matrix

• q: the column size of the 2D motif matrix

The values for these parameters dictate the number of

selected motifs (discords) that will be identiﬁed and

selected, and consequently the quality of any further

utilisation of the motifs. The lower the σ threshold

value the more strict the similarity requirement. It

was anticipated that as p and q increased, the num-

ber of selected motifs (discords) would decrease as

there would be fewer sub-matrices to choose candi-

date motifs (discords) from. The values for k would

also affect the number of identiﬁed candidate frequent

motifs.

To identify the appropriate values for p and q, a

range of values were considered. According to (Dau

and Keogh, 2017), to choose a good candidate 1D

motif the sub-sequence length must be less than 1/20

of the total length. The image lengths and widths

were n = 2420 and m = 815 respectively. Accord-

ingly, using this heuristic, seven parings for p and q

were considered, p = 5, 10, 15, 20, 25, 30, 35, 40 and

q = 15, 30, 45, 60, 75, 90, 105, 120. For the evaluation

σ = 0.2 and k = 5 were used because preliminary ex-

periments (not recorded here) had demonstrated that

these produced good results. The results obtained are

presented in Table 1; best results in bold font. From,

the table, it can be seen that a best accuracy was ob-

tained using p = 30 and q = 90. These were thus the

values used for the further experiments reported on in

the following sub-sections.

To determine the appropriate value for σ, the sim-

ilarity threshold used when matching motifs, a se-

quence of experiments was conducted using a range

of values for σ from 0.05 to 0.50 incrementing in

steps of 0.05. The values p = 30 and q = 90 were

used because they had been shown to produce best re-

sults (see above). The parameter k was again set to

5. The results are presented in Table 2; again best

results shown in bold font. Inspection of the results

indicates that best values were obtained using σ = 0.2

(a recorded F1 score of 84.01%).

The last parameter to consider was k, the number

of top motifs to be selected. Experiments were con-

Two-dimensional Motif Extraction from Images: A Study using an Electrocardiogram

Table 1: Ten fold cross validation classiﬁcation perfor-

mance using a range of p and q value pairings.

p × q Acc. Prec. Rec. F1

% % % %

5×15 60.25 70.95 60.25 65.16

10×30 61.25 76.11 61.25 67.87

15×45 67.50 70.71 67.50 69.06

20×60 75.00 81.71 75.00 78.21

25×75 81.25 87.88 81.25 84.44

30×90 85.00 89.19 85.00 87.04

35×105 73.75 81.08 73.75 77.72

40×120 73.25 79.27 73.25 76.14

Table 2: Ten fold cross validation classiﬁcation perfor-

mance for 2D Motif Discovery process using range of σ

values.

σ Acc. Prec. Rec. F1

% % % %

0.05 56.2 60.37 70.00 64.83

0.1 71.25 76.21 71.25 73.64

0.15 78.75 83.58 78.75 81.09

0.2 85.00 89.19 85.00 87.04

0.25 80.00 84.70 80.00 82.28

0.3 75.00 81.58 75.00 78.15

0.35 72.50 78.98 72.50 75.6

0.4 72.50 76.82 72.50 74.59

0.45 62.50 67.67 62.50 64.98

0.5 61.25 72.95 61.25 66.58

ducted using k = {3, 5, 8}; and using p = 30, q = 90

and σ = 0.2 because earlier experiments (see above)

had indicated that these values tended to produce a

best performance. The results are presented in Table

3 (best results presented in bold font). From the table

it can be seen that k = 5 produced the best results.

5.3 Duplicate Removal

As noted earlier in Sub-section 4.2, the proposed mo-

tif generation mechanism, may result in the same mo-

tif (discord) appearing in the ﬁnal set of motifs (dis-

cords) more than once. The hypothesis here was that

these duplicates should be retained so that a greater

weighting would be attributed to them during model

generation. The second evaluation objective was thus

to demonstrate that this hypothesis was correct. Ex-

Table 3: Ten fold cross validation classiﬁcation perfor-

mance for 2D Motif Discovery process using k = {3, 5, 8}.

k Acc. Preci. Rec. F1

% % % %

3 68.75 76.30 68.75 72.33

5 85.00 89.19 85.00 87.04

8 83.75 89.00 83.75 86.30

Table 4: Ten fold cross validation classiﬁcation perfor-

mance for 2D Motif Discovery process when increasing the

motif weight.

Proposed Acc. Prec. Rec. F1

Approach % % % %

No duplicate 71.25 76.50 71.25 73.78

With duplicate 85.00 89.19 85.00 87.04

Table 5: Evaluation Results when motif features are aug-

mented with motifs extracted from the edge of ECG images.

Proposed Acc. Prec. Rec. F1

Approach % % % %

2D motifs (M) 85.00 89.19 85.00 87.04

2D motifs plus 76.25 83.90 76.25 79.89

periments were conducted comparing the proposed

approach to one where duplicates were removed. The

results are given in Table 4. From the table it can be

seen that the result indicated that the potential inclu-

sion of multiple instances of motifs and discords had

a signiﬁcant positive impact on the effectiveness of

the classiﬁcation, an accuracy of 85.00% compared

to 71.25%. Thus it was concluded that the hypothesis

was correct, duplicates should be retained.

5.4 Analysis of Proposed Approach

The proposed approach generated motifs by exclud-

ing motifs from matrices located at the edge of an

ECG image. The hypothesis was that these would

not contribute to a good classiﬁcation. To test this

hypothesis experiments were conducted using motifs

that could have been extracted from the edge of an

image (2D Motifs Plus). The results are presented in

Table 5. From the table it can be seen that this hy-

pothesis was also correct, better results were obtained

when motifs were not extracted from the edge of an

ECG image.

Experiments were also conducted using only dis-

cords, and where the motif features were augmented

with discord features (M+S). The results are pre-

sented in Table 6. Comparing these results, it can be

seen that using motifs on their own (M), produces a

best classiﬁcation.

Table 6: Evaluation Results when motif features are aug-

mented with discords.

Proposed Acc. Prec. Rec. F1

Approach % % % %

M 85.00 89.19 85.00 87.04

S 45.00 45.00 43.00 43.98

M+S 77.50 82.92 77.50 80.11

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

5.5 Comparison of 1D and 2D Motifs

Discovery Approaches

In the introduction to this paper the disadvantages of

using 1D waveform representations of ECG data was

noted. Indeed, this was the motivation underpinning

the work presented in this paper. It was hypothesised

that using 2D motifs extracted from untransformed

ECG images would produce a better classiﬁcation

than that obtained using features selected from 1D

transformed waveform representations of ECG data.

To test this hypothesis the operation of the proposed

approach was tested against a transformed waveform

format approach. The scanned images were trans-

formed into a time series format using a recent algo-

rithm for achieving this (Fortune et al., 2021). Once

the image set had been transformed the 1D motif ap-

proach proposed in (Aldosari et al., 2021b) was used.

Experiments were also conducted using 1D discords

(S), and 1D motifs augmented with discords (M+S).

The results are given in Table 7. For convenience of

comparison the results from Tables 5 have been incor-

porated into the table. The 1D waveform approach,

using motifs as features, was found to work well in

comparison to other 1D waveform approaches that

used “traditional” P wave, QRS complex and the T

wave features (Aldosari et al., 2021a; Aldosari et al.,

2021b). However, from Table 7, it can be seem that a

best performance when using the proposed 2D motif

approach.

Table 7: Comparisons of 1D and 2D approaches.

1D Approach 2D Approach

Rep. Acc. Prec. Rec. F1 Acc. Prec. Rec. F1

% % % % % % % %

M 68.48 70.00 68.48 69.88 85.00 89.19 85.00 87.04

S 67.59 76.60 66.59 71.24 45.00 45.00 43.00 43.98

M+S 72.35 78.74 72.50 75.49 77.50 82.92 77.50 80.11

6 CONCLUSION

In this paper an approach to ECG classiﬁcation using

2D motifs was proposed and investigated. The hy-

pothesis was that the “traditional” approach to ECG

classiﬁcation, using transformation to a waveform

format and usage of a limited set of features, re-

sulted in loss of information because of the associ-

ated approximations used, and that a better classiﬁ-

cation could be obtained if the classiﬁcation model

was built using the original image data without any

transformation. To investigate this idea an approach

founded on 2D motifs was proposed. An idea mo-

tivated by work on 1D motifs as applied to time se-

ries data. The approach utilised four parameters: (i)

a similarity threshold σ used to compare motifs, (ii)

a parameter k that speciﬁed the number motifs to be

selected and (iii) the pixel width p and height q of

the 2D motifs to be extracted. The reported evalu-

ation indicated best parameter settings of: σ = 0.2,

k = 5, p = 30 and q = 90. Novel aspects of the pro-

posed approach were that duplicate motifs should be

retained and that motifs should not be extracted from

image edges, the reported evaluation indicated that

this was indeed beneﬁcial. The potential of includ-

ing discords as features was also investigated, but this

was found not to provide any beneﬁt. Most impor-

tantly, the reported evaluation demonstrated that the

hypothesis that more effective classiﬁcation could be

undertaken when 2D motifs extracted from an entire

image were used as features, then when the image was

transformed into a 1D waveform format and 1D mo-

tifs used as features, was correct. A best accuracy of

85% was obtained using the proposed approach, in

comparison with a best accuracy of 70% using a 1D

waveform format. For future work the authors intend

to investigate improving the performance of 2D motif

extraction from scanned images, and to apply the idea

to alternative application domains.

REFERENCES

Aldosari, H., Coenen, F., Lip, G. Y., and Zheng, Y. (2021a).

Addressing the challenge of data heterogeneity using

a homogeneous feature vector representation: A study

using time series and cardiovascular disease classi-

ﬁcation. In International Conference on Innovative

Techniques and Applications of Artiﬁcial Intelligence,

pages 254–266. Springer.

Aldosari, H., Coenen, F., Lip, G. Y., and Zheng, Y. (2021b).

Motif based feature vectors: towards a homogeneous

data representation for cardiovascular diseases clas-

siﬁcation. In International Conference on Big Data

Analytics and Knowledge Discovery, pages 235–241.

Springer.

Apostolico, A., Parida, L., and Rombo, S. E. (2008). Mo-

tif patterns in 2d. Theoretical Computer Science,

390(1):40–55.

Badilini, F., Erdem, T., Zareba, W., and Moss, A. J. (2005).

Ecgscan: a method for conversion of paper electro-

cardiographic printouts to digital electrocardiographic

ﬁles. Journal of electrocardiology, 38(4):310–318.

Baydoun, M., Safatly, L., Abou Hassan, O. K., Ghaziri, H.,

El Hajj, A., and Isma’eel, H. (2019). High precision

digitization of paper-based ecg records: a step toward

machine learning. IEEE journal of translational engi-

neering in health and medicine, 7:1–8.

Bosch, A., Munoz, X., and Marti, R. (2007). Which is the

best way to organize/classify images by content? Im-

age and vision computing, 25(6):778–791.

Two-dimensional Motif Extraction from Images: A Study using an Electrocardiogram

Chung, D., Choi, J., Jang, J.-H., Kim, T. Y., Byun, J., Park,

H., Lim, H.-S., Park, R. W., and Yoon, D. (2018).

Construction of an electrocardiogram database includ-

ing 12 lead waveforms. Healthcare informatics re-

search, 24(3):242–246.

Dau, H. A. and Keogh, E. (2017). Matrix proﬁle V: A

generic technique to incorporate domain knowledge

into motif discovery. In Proceedings of the 23rd

ACM SIGKDD International Conference on Knowl-

edge Discovery and Data Mining, pages 125–134.

Deng, H., Guo, P., Zheng, M., Huang, J., Xue, Y., Zhan,

X., Wang, F., Liu, Y., Fang, X., Liao, H., et al.

(2018). Epidemiological characteristics of atrial ﬁbril-

lation in southern china: results from the guangzhou

heart study. Scientiﬁc reports, 8(1):1–10.

Ebrahimi, Z., Loni, M., Daneshtalab, M., and Gharehbaghi,

A. (2020). A review on deep learning methods for ecg

arrhythmia classiﬁcation. Expert Systems with Appli-

cations: X, 7:100033.

Fortune, J., Coppa, N., Haq, K. T., Patel, H., and

Tereshchenko, L. G. (2021). Digitizing ecg image:

new fully automated method and open-source soft-

ware code. medRxiv.

Furfaro, A., Groccia, M. C., and Rombo, S. E. (2017). 2d

motif basis applied to the classiﬁcation of digital im-

ages. The Computer Journal, 60(7):1096–1109.

Gupta, V., Mittal, M., Mittal, V., and Saxena, N. K. (2021).

A critical review of feature extraction techniques for

ecg signal analysis. Journal of The Institution of En-

gineers (India): Series B, pages 1–12.

Houssein, E. H., Kilany, M., and Hassanien, A. E.

(2017). Ecg signals classiﬁcation: a review. Interna-

tional Journal of Intelligent Engineering Informatics,

5(4):376–396.

Jayaraman, S., Swamy, P., Damodaran, V., and Venkatesh,

N. (2012). A novel technique for ecg morphology in-

terpretation and arrhythmia detection based on time

series signal extracted from scanned ecg record. Ad-

vances in Electrocardiograms-Methods and Analysis,

pages 127–140.

Kar, A. and Das, L. (2011). A technical review on statisti-

cal feature extraction of ecg signal. In IJCA Special

Issue on 2nd National Conference-Computing, Com-

munication and Sensor Network, CCSN, pages 35–40.

Khleaf, H. K., Ghazali, K. H., and Abdalla, A. N. (2013).

Features extraction technique for ecg recording paper.

In Proceeding of the International Conference on Ar-

tiﬁcial Intelligence in Computer Science and ICT.

Liu, X., Wang, H., Li, Z., and Qin, L. (2021). Deep learning

in ecg diagnosis: A review. Knowledge-Based Sys-

tems, 227:107187.

Loresco, P. J. M. and Africa, A. D. (2018). Ecg print-out

features extraction using spatial-oriented image pro-

cessing techniques. Journal of Telecommunication,

Electronic and Computer Engineering (JTEC), 10(1-

5):15–20.

Mir, H. Y. and Singh, O. (2021). Ecg denoising and feature

extraction techniques–a review. Journal of medical

engineering & technology, 45(8):672–684.

Mishra, S., Khatwani, G., Patil, R., Sapariya, D., Shah, V.,

Parmar, D., Dinesh, S., Daphal, P., and Mehendale, N.

(2021). Ecg paper record digitization and diagnosis

using deep learning. Journal of Medical and Biologi-

cal Engineering, pages 1–11.

Ravichandran, L., Harless, C., Shah, A. J., Wick, C. A.,

Mcclellan, J. H., and Tridandapani, S. (2013). Novel

tool for complete digitization of paper electrocardiog-

raphy data. IEEE journal of translational engineering

in health and medicine, 1:1800107–1800107.

Roth, G. A., Mensah, G. A., and et al., C. O. J. (2020).

Global burden of cardiovascular diseases and risk

factors, 1990–2019: Update from the gbd 2019

study. Journal of The American College of Cariology,

(25):2982–3201.

Seena, V. and Yomas, J. (2014). A review on feature extrac-

tion and denoising of ecg signal using wavelet trans-

form. In 2014 2nd international conference on de-

vices, circuits and systems (ICDCS), pages 1–6. IEEE.

sek, R. (2016). Ecg signal classiﬁcation based on svm.

Biomedical Engineering, (1):365–369.

Thanapatay, D., Suwansaroj, C., and Thanawattano, C.

(2010). Ecg beat classiﬁcation method for ecg printout

with principle components analysis and support vector

machines. In 2010 International Conference on Elec-

tronics and Information Engineering, volume 1, pages

V1–72. IEEE.

Torkamani, S. and Lohweg, V. (2017). Survey on time se-

ries motif discovery. Wiley Interdisciplinary Reviews:

Data Mining and Knowledge Discovery, 7(2):e1199.

Truong, C. D. and Anh, D. T. (2019). A survey on time

series motif discovery. International Journal of Busi-

ness Intelligence and Data Mining, 15(2):204–227.

Waits, G. S. and Soliman, E. Z. (2017). Digitizing paper

electrocardiograms: Status and challenges. Journal of

electrocardiology, 50(1):123–130.

Wankhedkar, R. and Jain, S. K. (2019). A brief survey on

techniques used in discovering time series motifs. In

Proceedings of the International Conference on Ad-

vances in Electronics, Electrical & Computational In-

telligence (ICAEEC).

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval
