Adaptive and Collaborative Inference: Towards a No-compromise

Framework for Distributed Intelligent Systems

Alireza Furutanpey

and Schahram Dustdar

Distributed Systems Group, TU Wien, Argentinierstrasse 8, Vienna, Austria

Keywords:

Edge Computing, Edge Intelligence, Dynamic Neural Networks, Split Computing.

Abstract:

Deep Neural Networks (DNNs) are the backbone of virtually all complex, intelligent systems. However,

networks which achieve state-of-the-art accuracy cannot execute inference tasks within a reasonable time on

commodity hardware. Consequently, latency-sensitive mobile and Internet of Things (IoT) applications must

compromise by executing a heavily compressed model locally or ofﬂoading their inference task to a remote

server. Sacriﬁcing accuracy is unacceptable for critical applications, such as anomaly detection. Ofﬂoading

inference tasks requires ideal network conditions and harbours privacy risks. In this position paper, we in-

troduce a series of planned research work with the overarching aim to provide a (close to) no compromise

framework for accurate and fast inference. Speciﬁcally, we envision a composition of solutions that leverage

the upsides of different computing paradigms while overcoming their downsides through collaboration and

adaptive methods that maximise resource efﬁciency.

1 INTRODUCTION

From computer vision (CV) to natural language

processing (NLP), Deep Learning (DL) methods

achieved unprecedented improvement in a wide range

of areas. The consistent improvements gave rise to

intelligent systems capable of performing complex

tasks, such as understanding voice commands and de-

tecting anomalies from a visual feed. However, Deep

Neural Network (DNN) models which can reliably

execute inference tasks incur high resource consump-

tion on most available hardware. Accordingly, both

academia and industry dedicate much attention to

conceiving solutions to accommodate local inference

tasks in constrained environments. They range from

devising novel compact architectures (Sandler et al.,

2018) to altering existing architectures via quantisa-

tion, pruning, or Knowledge Distillation (Deng et al.,

2020). An inherent shared trait of all such approaches

is their performance and model capacity trade-offs.

Alternatively, mobile applications can ofﬂoad the in-

ference tasks to a cloud server where we assume un-

limited resources capable of fast inference regardless

of load. Here, the bottleneck is transferring the input

data to a remote server. Especially for CV tasks, there

https://orcid.org/0000-0001-5621-7899

https://orcid.org/0000-0001-6872-8821

remain three caveats. First, sensitive private data is

exposed to application operators and third-party cloud

providers. Second, continuous visual data streams

must compete for limited bandwidth. Third, trans-

ferring the input data results in unacceptable end-to-

end latency for time-critical DL-enabled applications.

Another alternative is to bring resources to an edge

server near the clients. Ideally, such edge servers

are equipped with specialised hardware capable of

accommodating large models. Nevertheless, simply

moving models from the cloud to the edge introduces

other limitations. Unlike with cloud servers, we can-

not effortlessly horizontally scale edge resources, im-

posing a hard cap on throughput. Moreover, most

approaches disregard ﬂuctuating network conditions

in dense urban areas, i.e. even with servers in close

proximity, it is difﬁcult to ensure smooth operations

regardless of the current load. Lastly, privacy-related

concerns are not entirely resolved. Table 1 sum-

Table 1: Strength and Limitations of each compute

paradigm. (X: Acceptable for critical applications, ∼: Lim-

ited, ×: Unsuitable for critical applications).

LC EC CC

Latency X ∼ ×

Accuracy × X X

Privacy X ∼ ×

Throughput × ∼ X

144

Furutanpey, A. and Dustdar, S.

Adaptive and Collaborative Inference: Towards a No-compromise Framework for Distributed Intelligent Systems.

DOI: 10.5220/0011547800003318

In Proceedings of the 18th International Conference on Web Information Systems and Technologies (WEBIST 2022), pages 144-151

ISBN: 978-989-758-613-2; ISSN: 2184-3252

marises the strengths and limitations of local comput-

ing (LC), edge computing (EC) and cloud computing

(CC).

Conclusively, neither standalone local, edge, nor

cloud computing is a viable solution to satisfy com-

mon performance requirements simultaneously. In-

stead, we advocate for methods that facilitate col-

laboration between the computing paradigms. More

broadly, edge intelligence (EI) has emerged as a re-

search area that situates EC as the central component

of a hierarchical network spanning the cloud, the edge

and end devices (Zhou et al., 2019). We believe that

the edge-centric view of EI is the correct way forward

for solving the challenges of intelligent distributed

systems.

This position paper presents a series of planned re-

search work based on Split Computing (SC) and dy-

namic neural networks for collaborative and adaptive

inference. SC refers to distributing a DNN over a hi-

erarchical network. Dynamic neural networks have

dynamic computational graphs that can adapt to dif-

ferent inputs and conditions during inference. The

role of SC is to break the narrow view of solutions

which view each paradigm in isolation. Dynamic

neural networks complement SC approaches by max-

imising the usage of the available resources to ensure

consistent performance in ﬂuctuating conditions. The

paradigms intersect in enabling powerful networks to

execute their tasks efﬁciently without over-applying

crippling compression techniques.

Section 2 introduces the relevant concepts and

summarises existing literature to provide context.

Then, Section 3 discusses open problems, which we

aim to address with a series of planned research work.

Lastly, Section 4 concludes our work by summarising

our main insights.

2 LITERATURE REVIEW

2.1 Split Computing

Consider a DNN D(.) as a stack of functions y =

(n)

. . . f

(2)

( f

(1)

(x)). . . ). Each function is either a

ﬁne-grained layer or a more coarse-grained block

which consists of multiple layers. The input x is

some data, such as a 3-dimensional image tensor

C × H × W , and y is the result of some task, such as

the one-hot-encoded vector for image classiﬁcation.

SC divides D(.) into a head D

and tail D

portion

s.t. y = D

(x)) where the head is deployed on an

end device and the tail on a remote server. Then, in-

stead of either computing y locally or sending x over

some network, the end device computes the interme-

diate features z = D

(x)) locally before sending it to a

remote server to compute y = D

(z). The idea stems

from the observation that the input data tends to re-

duce as it progresses through the layers. Applying

this observation to SC was ﬁrst thoroughly explored

by Kang et al. Their method Neurosurgeon is a sched-

uler that proﬁles each layer by computational cost and

output data size and ideally splits the network to opti-

mise latency or energy efﬁciency (Kang et al., 2017).

For an overview on SC, see the recent survey by

Matsubara et al (Matsubara et al., 2021). In the fol-

lowing, we focus on work relevant to our discussion

in Section 3.

2.1.1 Head Distillation and Neural Compression

of Intermediate Features

Early work on SC focused on seeking ideal splitting

points of existing DNN models without any consider-

able modiﬁcations to their architecture (Jeong et al.,

2018). However, as pointed out by Kang et al., naive

SC is only sensible for networks with a natural bot-

tleneck at earlier layers, excluding many recent DNN

architectures. For example, ResNet-50 does not de-

crease the input until its third last residual block (He

et al., 2016). Since such models shift most work to the

end device, it is pointless to split them. Consequently,

more recent work focuses on modifying existing ar-

chitectures with artiﬁcial bottlenecks. The objective

is to introduce and train learnable autoencoder-based

neural compression models (Mentzer et al., 2018) at

the desired split point of the DNN.

Autoencoders consist of an encoder and a de-

coder. The encoder compresses the input to a low-

dimensional representation while the decoder recon-

structs it. The advantage of autoencoders is twofold.

First, autoencoders can learn to extract useful features

for downstream tasks without labels (i.e. unsuper-

vised). Second, they introduce a bottleneck provid-

ing an ideal partition point. Typically, the architec-

ture of autoencoders is symmetric, i.e. the layers in

the decoder are inverse to the layers in the encoder.

To mirror the unbalanced computational resources be-

tween the client and the server, it is possible to achieve

comparable results with an asymmetric architecture

where more of the computational burden is shifted to-

wards the decoder (Yao et al., 2020). Additionally,

we can ﬁne-tune autoencoder modules embedded in a

larger DNN to achieve the best inference result rather

than reconstructing an input for human perception.

Clearly, compression techniques with learnable pa-

rameters will outperform conventional compression

techniques.

Eshratifar et al. were some of the ﬁrst to intro-

duce artiﬁcial bottlenecks by injecting an autoencoder

Adaptive and Collaborative Inference: Towards a No-compromise Framework for Distributed Intelligent Systems

145

into an existing model (Eshratifar et al., 2019). Shao

and Zang continued their work and conducted experi-

ments with over-compressed features in channels with

varying conditions (Shao and Zhang, 2020). More re-

cently, Yao et al. introduced a general framework for

such approaches (Yao et al., 2020).

Matsubara et al. were the ﬁrst to propose Head

network Distillation (HDN), which only modiﬁes the

head portion of the model by replacing it with a dis-

tilled version (Matsubara et al., 2019). They further

build on their initial work, such as introducing a gen-

eralised HDN method for object detection tasks and

novel training methods for compressing intermediate

features (Matsubara et al., 2022b).

Note the distinction between methods that embed

autoencoders within a model and methods that in-

troduce artiﬁcial bottlenecks by modifying existing

model parts. Both objectives are to minimise the

head’s computational load and compress transferred

data with an encoder-decoder structure, but there is a

crucial distinction. The former injects an asymmet-

ric autoencoder into the model to compress and re-

construct an input. The advantage of this approach is

its generic application, but it trades a non-negligible

amount of accuracy for compression strength. Con-

trastingly, the latter remodels the existing architecture

of the head and the ﬁrst blocks of the tail to function

akin to an encoder-decoder structure. This approach

can virtually retain the accuracy of the original model

even for a substantial amount of compression but re-

quires careful consideration for each model (Matsub-

ara et al., 2022a).

2.1.2 Privacy Preserving Properties of Split

Computing

The importance of protecting sensitive data is increas-

ingly seeping into public consciousness, and various

regions incrementally put it into law. Therefore, ap-

plications which require processing sensitive data are

often constrained to local computing. Since SC pro-

cesses the original input before sending it over a net-

work, it possesses some privacy-preserving proper-

ties. Hence, privacy is a common justiﬁcation for

SC, but almost all work neglects to evaluate privacy-

related claims. Presumably, this is due to the difﬁ-

culty of quantifying the privacy-preserving properties

of intermediate features.

Privacy-preserving claims were not entirely unjus-

tiﬁed. Most literature on privacy exploits of DNNs

focuses on the training data. In contrast, the recon-

struction of inference data is more challenging since

they do not contribute to the trained model parame-

ters. Additionally, inference samples do not follow

the same distribution, i.e. it is difﬁcult to retrieve sta-

tistical information from them (He et al., 2019).

Oh & Lee performed an image reconstruction at-

tack, targeting the reconstruction of the intermediate

features back to the original input (Oh and Lee, 2019).

Their attack requires access to the original model, and

their results show that their attack only fails on models

split at the deeper layers or complex models. Neither

solution is satisfactory in practical scenarios. Split-

ting at a deeper layer shifts more computational bur-

den on the end device, defeating the purpose of SC al-

together. Furthermore, the current state-of-the-art fo-

cuses on simplifying the head model as aggressively

as possible without sacriﬁcing accuracy.

He et al. have shown that with no access to the

model structure, it is still possible to accurately and

reliably perform an image inversion attack. They

suggest protective measures such as differential pri-

vacy by adding noise to the original input or inter-

mediate features (He et al., 2019). However, they

conducted their experiments on a small model with

simple datasets and did not evaluate the suggested

defence mechanisms. Wu et al. conceived a simi-

lar attack and have shown promising results on sim-

ple models by introducing noise to model parame-

ters instead of to the input or intermediate represen-

tation (Wu et al., 2021).

2.2 Dynamic Neural Networks

The main advantage of Dynamic Neural Networks is

their capability to allocate computational resources on

demand by activating a subset of the model compo-

nents depending on the input complexity and other

constraints. The core assumption of this paradigm is

that some tasks are easier to process than others. For

example, a cluttered image where the object is barely

visible is intuitively more difﬁcult to classify than

one where the object is well-centred and easily dis-

tinguishable from the background. Dynamic Neural

Networks encompass a broad class of different meth-

ods and architectures. For a complete overview, we

recommend the work by Han et al. (Han et al., 2021)

Here, we focus on speciﬁc classes of Dynamic Neu-

ral Networks we believe are most compatible with EC

and SC.

2.2.1 Early Exiting

Most work on early exiting (EE) is based on the work

by Teerapittayanon et al. They extend existing archi-

tectures with intermediate classiﬁers to process easy

samples without passing them through the entire net-

work (Teerapittayanon et al., 2016). Superﬁcially, this

method appears to tie well with SC since we can sim-

ply place an early exit at an end device. However,

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

146

in practice, it is a challenging problem with diverg-

ing objectives. For instance, the ideal splitting and

branching locations do not necessarily coincide (Chi-

ang et al., 2021). Teerapittayanon et al. extend their

work on BranchyNet to conceive a framework for

a distributed DNN deployed over a hierarchical net-

work where a device can perform early inference with

an intermediate classiﬁer at each network layer (Teer-

apittayanon et al., 2017). Li et al. introduced Ed-

gent and proposed combining SC with EE but only

in a limited capacity, which does not distinguish be-

tween the complexity of the tasks (Li et al., 2019).

Moreover, their experiments only considered a sim-

ple model with a small data set, which does not nec-

essarily generalise to real-life scenarios. Laskaridis

et al. introduced SPINN, which improves on Edgent

by classifying simple tasks early and incorporates

learned compression methods and have shown that

this approach works on more recent models trained

on larger datasets (Laskaridis et al., 2020).

2.2.2 Dynamic Depth and Width

While EE approaches are based on the assumption

that some tasks are easier to classify than others, static

pruning approaches assume that neural networks are

overparameterised and that not all parts of the model

attribute equally to the ﬁnal classiﬁcation task. EE

increases inference speed by only executing parts of

the DNN sequence but requires tuning the threshold

value, the placement of the branches and training of

the intermediate classiﬁers. The correct implementa-

tion of intermediate classiﬁers is non-trivial and will

lead to a drop in accuracy without careful calibra-

tion (Pacheco et al., 2021). Pruning increases in-

ference speed by permanently removing parts of the

model but permanently reducing its capacity.

In a sense, DNNs with dynamic depth and width

combine the assumptions of approaches to selectively

skip redundant layers and channels based on the prop-

erties of the current input. In principle, such networks

should achieve comparable speed-ups as pruning and

EE without their downsides. For instance, a pruning

algorithm removes parts of a model which were only

necessary for edge cases and will subsequently per-

manently fail to classify such cases. Conversely, a dy-

namic neural network could skip the same parts and

only activate them for the edge case it would other-

wise misclassify.

Layer skipping approaches are especially promis-

ing on residual networks since they behave similarly

to an ensemble of shallow networks (Veit et al., 2016).

That is, individual blocks are removable without af-

fecting other layers and learn features which are pos-

sibly relevant only for a subset of samples. How-

ever, layer skipping requires a discrete decision func-

tion which is not differentiable, i.e. we cannot com-

pute the gradients needed for backpropagation during

the training phase. Veit and Belongie (Veit and Be-

longie, 2018) propose a solution where they apply the

Gumbel softmax trick (Jang et al., 2016) to a gating

mechanism. Hermann et al. show that the same idea

is transferable to dynamic width, where they use the

same trick to learn a function skipping ﬁlters instead

of blocks (Herrmann et al., 2020). Note that network

depth and width are not orthogonal parameters and

correlate. Hence, we additionally consider methods

which combine multiple approaches, such as the work

by Xia et al (Xia et al., 2021).

Lastly, we observe that combining SC with dy-

namic parameters is less obvious, which is presum-

ably why there is no substantial work on it yet. Later,

we discuss how we intend to bridge the concepts.

3 DISCUSSION

3.1 Deployment Abstractions for Split

Computing

Although end-to-end systems to partition, deploy and

monitor DNNs over a hierarchical network already

exist, they still lack a layer of abstraction to decou-

ple the runtime system and the intricacies of SC to

application developers. Ideally, we could provide a

framework that allows developers to implement their

DNNs in a manner that is agnostic towards its deploy-

ment.

To this end, we propose combining SC with the

Function-as-a-Service (FaaS) paradigm by introduc-

ing serverless abstractions (Aslanpour et al., 2021).

The idea is for application developers to organise

DNNs into blocks such that a scheduler can deploy

the functions with all or only a subset of the blocks.

Then, the input is processed by a series of recur-

sive function calls, i.e. each call executes one block

taking the result of the previous block as its input.

This approach has two advantages: First, the server-

less abstraction seamlessly combines LC, EC and CC,

i.e. developers can implement their DNNs agnostic

towards where each block ends up being deployed

or executed. Second, splitting DNNs becomes com-

pletely dynamic. For each input, at each step, the run-

time can decide whether it executes the next step of

the recursion at the current machine or passes it to an-

other. Figure 1 shows a concept sketch of our planned

work. A DNN with n blocks is deployed as a function,

and each function call executes the next unprocessed

block, starting at block 1 up on the client-side. Then,

Adaptive and Collaborative Inference: Towards a No-compromise Framework for Distributed Intelligent Systems

147

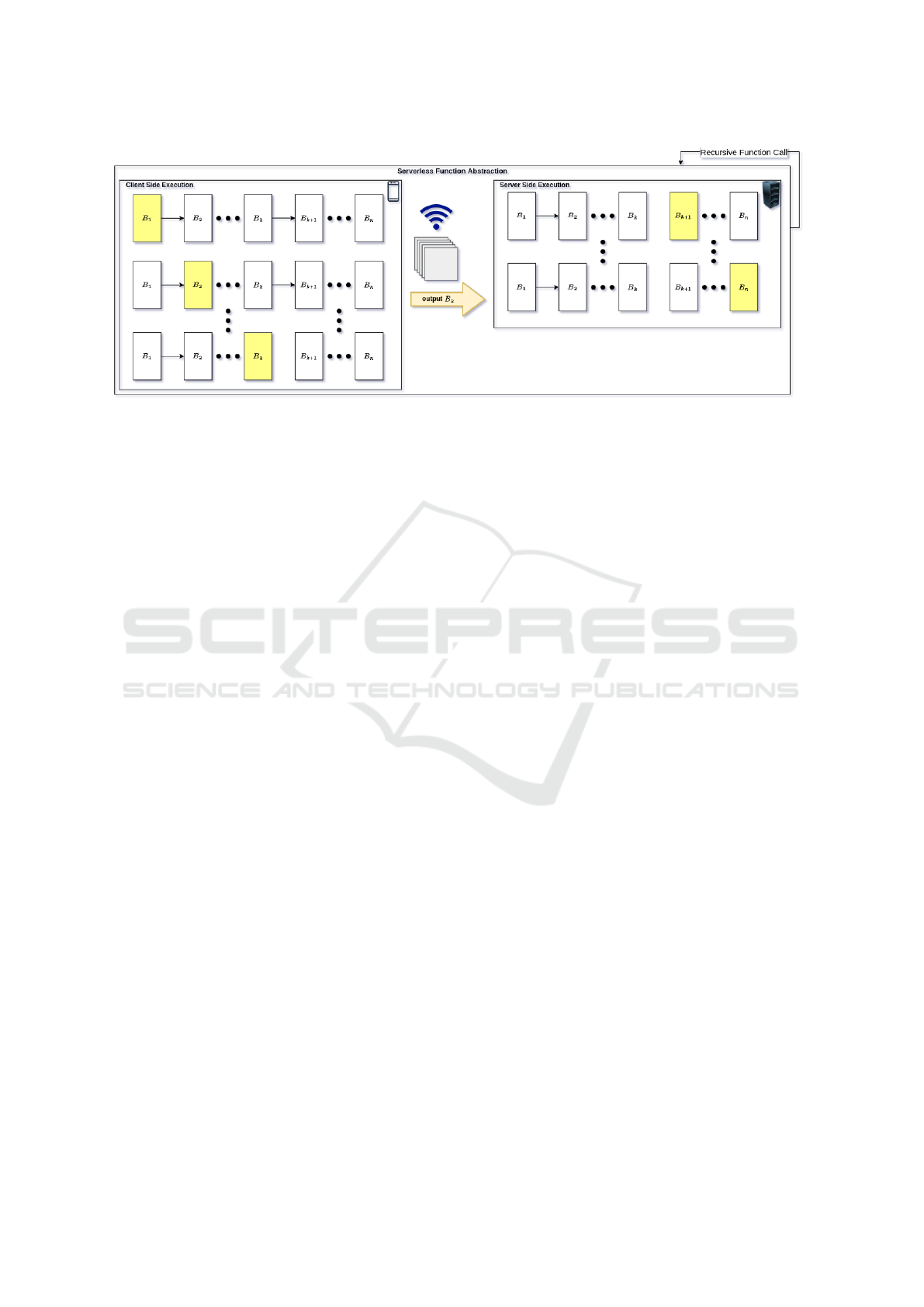

Figure 1: Concept sketch of SC with recursive function calls, where the runtime decides to ofﬂoad at block B

n−k

the runtime determines that block k is the right place

to ofﬂoad the features, and the execution continues at

block k + 1 on the server-side. In the following, we

describe two planned research directions based on the

serverless abstraction.

3.1.1 Dynamic Width and Depth for Split

Neural Networks

As stated in Section 2.2.2, no substantial work com-

bines SC approaches with dynamic neural networks

other than intermediate classiﬁers for early exiting.

Since skipping particular layers and channels can shift

the ideal moment to ofﬂoad, there is a polarisation

between most methods which decide the correct split-

ting point during an ofﬂine proﬁling step. However,

with our proposed abstraction, the system can choose

to ofﬂoad intermediate features depending on the cur-

rent task and not just based on static parameters, nat-

urally bridging SC to DNNs with dynamic width and

depth.

To emphasise this advantage, consider two DNNs

with identical architectures, except where one is static

and the other is dynamic. For the former, the decision

to transfer intermediate features is statically parame-

terised by the network conditions, i.e. the task must

be processed by a ﬁxed number of blocks. The latter

is further parameterised by the intrinsic properties of

the input, where the gating module variably reduces

its size, such that the intermediate features are trans-

ferable considerably earlier.

3.1.2 Split Dynamic Neural Networks with

Intermediate Classiﬁers

The proposed abstraction is trivially compatible with

EE approaches described in Section 2.2.1. At each

step of the recursion, the results of an intermedi-

ate classiﬁer can trigger a decision for the function

to terminate or continue processing. However, we

are also interested in investigating their compatibil-

ity with layer and channel skipping approaches. Our

interest stems from the ﬁndings of Veit et al., who

have shown that residual networks exhibit ensemble-

like behaviour, i.e. we can view networks with resid-

ual connections as a collection of paths rather than a

single deep network. The implication is that the paths

do not depend on each other despite being jointly

trained (Veit et al., 2016).

Each block is responsible for extracting different

features with varying relevance to the inputs, which

does not necessarily coincide with block depth. Such

ﬁndings suggest that the underpinning assumption of

EE is ﬂawed. Most work considers strictly sequential

dependency of blocks rather than how each input de-

pends on different activation of non-sequential paths.

Therefore, intermediate classiﬁers will needlessly ex-

ecute some earlier blocks but miss out on potentially

necessary features they could have gotten from a later

block. Speciﬁcally, we hypothesise that a network

capable of executing only the necessary blocks for

inputs should be able to integrate intermediate clas-

siﬁers more efﬁciently than conventional sequential

networks.

Most EE methods discard the computed features

from a branch if the intermediate classiﬁer’s con-

ﬁdence is below a statically conﬁgured threshold

value, incurring needless overheads for samples that

branches cannot classify. If our hypothesis is correct,

then a network which can dynamically select the most

relevant paths of each input should achieve higher ac-

curacy at the intermediate classiﬁer. Additionally, it

should minimise redundant execution by only con-

sidering branches for paths which involve a speciﬁc

number or combination of blocks. For instance, con-

sider a branchy network with L blocks and N (inter-

mediate) classiﬁers. Figure 2a shows a regular view

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

148

of a network with residual connections, which only

considers sequential processing of the blocks. Cur-

rent methods will always execute C

and toss away

the results if the conﬁdence is below a set threshold.

Contrarily, Figure 2b shows an unravelled view of the

same network, with 2

implicit paths, i.e. each block

doubles the number of possible paths. For brevity, the

ﬁgure only shows the 2

paths of the ﬁrst three blocks,

with one intermediate classiﬁer placed at block 3.

With this view, it is possible to conﬁgure the network

only to execute C

if the bolded path processes the

input.

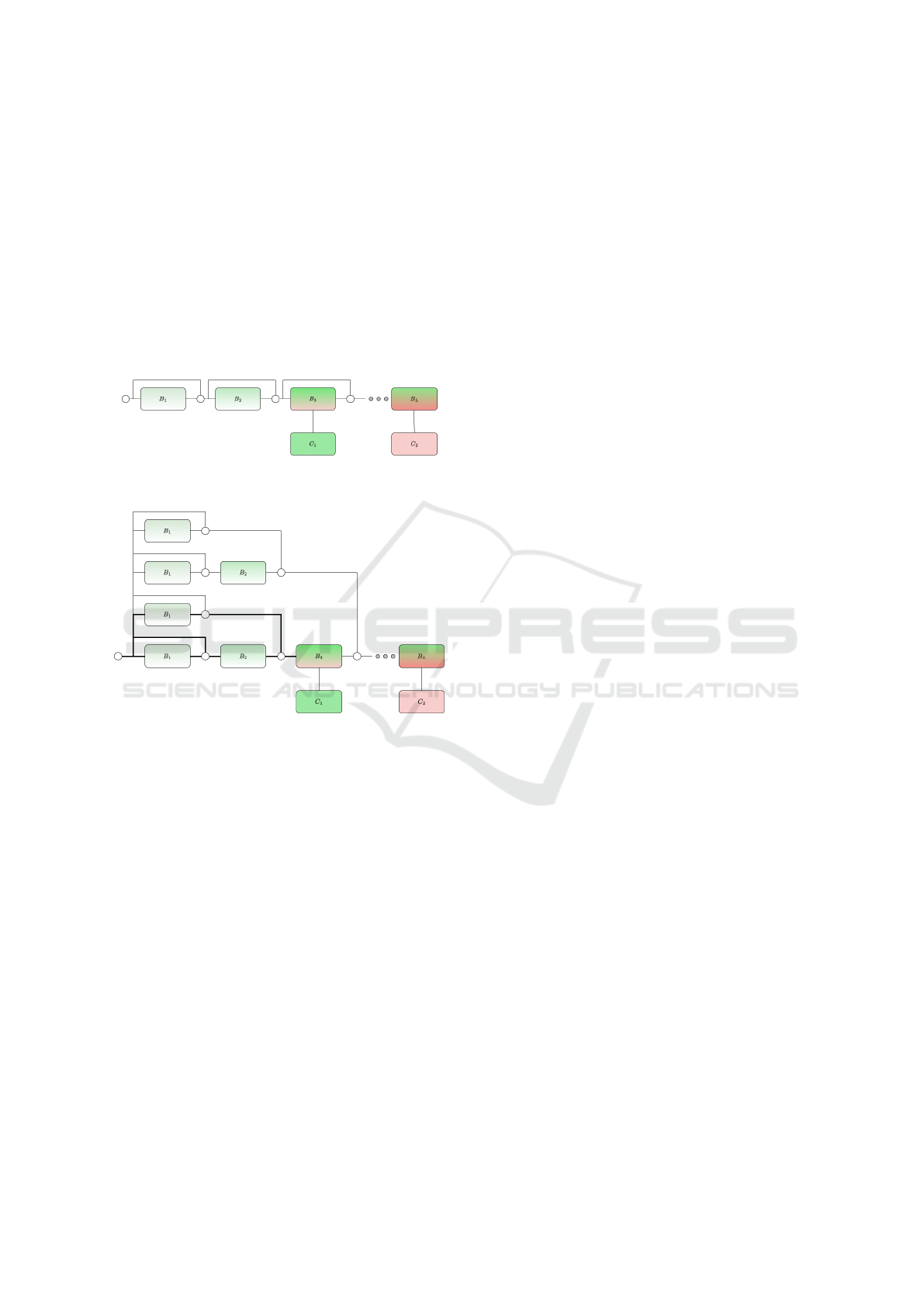

(a) Regular view on a branchy network.

(b) Unraveled view on the same network.

Figure 2: Modiﬁed ﬁgure from (Veit et al., 2016) to include

branches.

3.2 Computational Reuse with

Intermediate Features

The idea of computational reuse is to exploit the

spatio-temporal locality of inputs, i.e. nearby during

the same time interval are highly likely to send similar

requests. For instance, consider a cognitive assistance

application that provides descriptions of observed ob-

jects where multiple clients perform similar observa-

tions, such as viewing the same animal from a differ-

ent angle. Then, we can eliminate redundant compu-

tation by executing the tasks once by storing them in

a cache for reuse. It is out of the scope of this work

to give a more detailed explanation of edge caching

for computational reuse. We recommend the recent

work by Al Azad & Mastorakis, where they provide

a brief overview of existing methods (Al Azad and

Mastorakis, 2022). Here, we focus on reusing the

computation of inference-related tasks and their chal-

lenges. Traditional computation elimination meth-

ods rely on trivial exact matching methods, such as

URIs for cached web content or hash keys for content-

addressable storage. Conversely, input images are vir-

tually never identical. Instead, we leverage that se-

mantically correlating images map to the same out-

put (Guo et al., 2018). Therefore, we require approx-

imate methods which are non-trivial for several rea-

sons. For one, the methods must ﬁnd the similarity

among high-dimensional input that matches them ac-

cording to their correct classiﬁcation result. Addition-

ally, the method must be fast enough for a cache miss

to not noticeably increase the perceived latency and

scale for sufﬁciently large cache size. Moreover, due

to the approximate nature of the method, we need to

consider that cache misses can happen even if a suit-

able object is present. Lastly, for similar reasons, we

must deal with false cache hits, i.e. when the input has

a different label than the objects found in the cache. In

other words, when we conceive a solution, we need to

leverage trade-offs between cache size, latency, sensi-

tivity and precision.

Current methods only consider non-learned fea-

ture extractors combined with simple classiﬁers or de-

couple computing of the matching key and the actual

task.

We identify two problems with such approaches.

First, tossing away intermediate features is computa-

tional waste, leading to performance degradation un-

der conditions that lead to increased cache misses.

Second, hand-crafted feature extractors cannot be

ﬁne-tuned towards the distribution of the expected in-

put.

To solve the abovementioned problems, we pro-

pose a method that utilises the intermediate features

of a split DNN as the cache key to eliminating com-

putational waste. The work by Venugopal et al. shows

promising results with a semantic cache based on neu-

ral feature extractors but decouples it from the actual

classiﬁcation model (Venugopal et al., 2018). More-

over, we hypothesise that by utilising current state-

of-the-art HDN approaches (Section 2.1.1), it is pos-

sible to create signiﬁcantly more space-efﬁcient and

reliable query keys. Speciﬁcally, we can exploit the

properties of the head model to reduce the dimension-

ality of input data while maximising the retention of

relevant information for the current task. In short, by

leveraging the properties of DNNs with bottleneck in-

jection, we can produce keys with minimal noise and

negligible overhead. Figure 3 describes the architec-

ture of the planned system.

Adaptive and Collaborative Inference: Towards a No-compromise Framework for Distributed Intelligent Systems

149

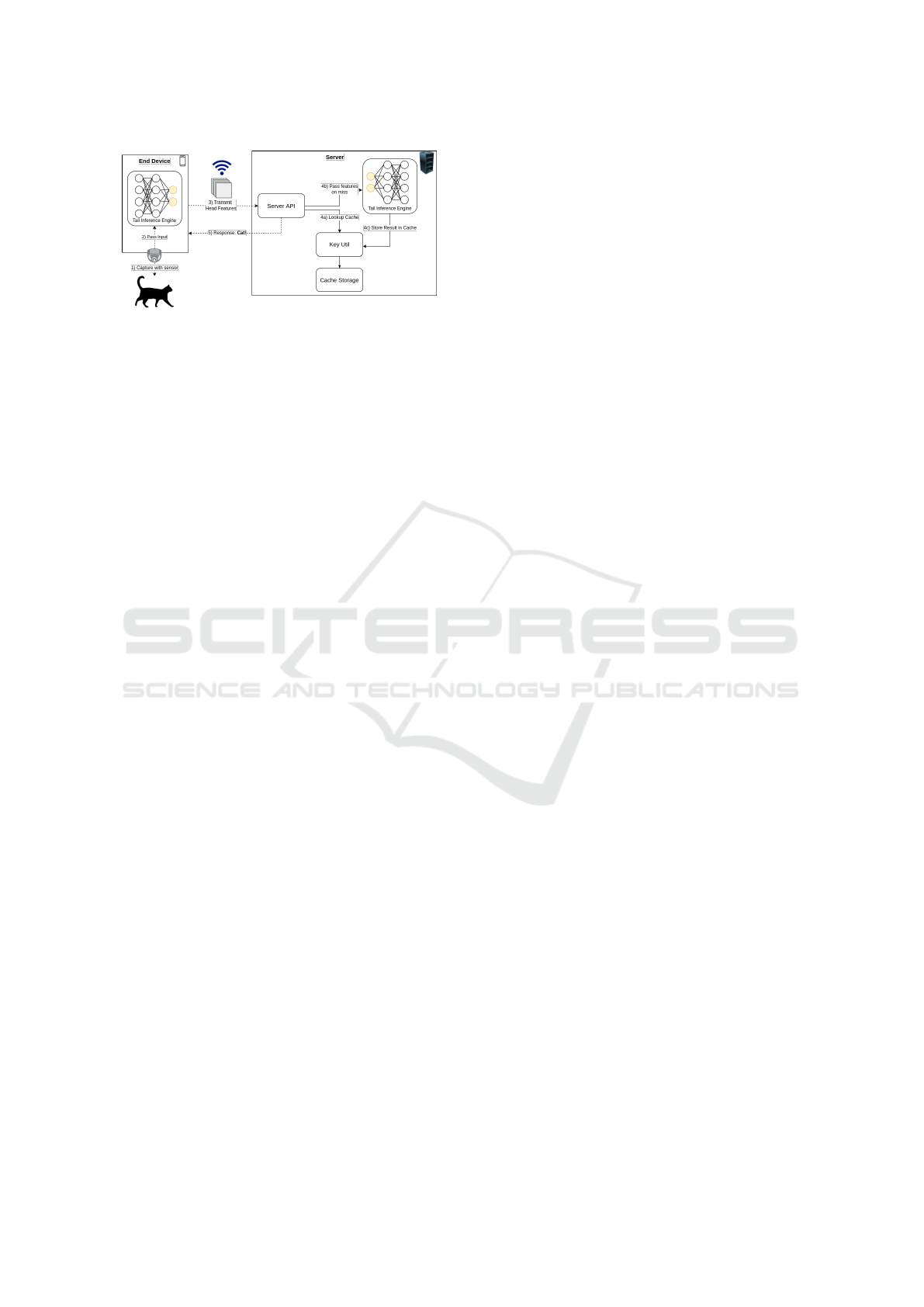

Figure 3: Conceptual system architecture of an inference

execution engine with a cache for computational reuse. Step

4 b) and 4 c) are only performed on a cache miss.

3.3 Defensive Mechanisms for Split

Computing

There is an inherent risk with exposing sensitive

data to third parties. Even trustworthy providers are

susceptible to malicious attacks or accidental leak-

age through negligence. Section 2.3 presented work

demonstrating how reducing exposure of sensitive

data by allowing the server only to store and pro-

cess intermediate input representations is not a sat-

isfactory solution. However, all of the introduced at-

tacks were targeted toward unmodiﬁed models, which

do not represent the current state-of-the-art methods

in SC. Since most SC approaches focus on simpli-

fying the head model and compressing the interme-

diate features by minimising redundant information,

we suspect the success of most inversion attacks.

Nevertheless, to evaluate the efﬁcacy of counter-

measurements, it is essential to create a proper threat

assessment by ﬁrst carrying out input inversion at-

tacks on SC models introduced in recent work. Once

we have assessed the threat level of inversion attacks,

we can start conceiving solutions tailored toward SC

models. The most promising defensive mechanisms

suggest that stochastic methods introduce noise on ei-

ther the model parameters or intermediate features.

Therefore, we propose introducing a stochastic layer

at the artiﬁcial bottleneck. Speciﬁcally, we aim to

conceive a method which injects the artiﬁcial bottle-

neck based on variational autoencoders (Kingma and

Welling, 2013) instead of conventional ones.

We base our method on the observation that most

inversion attacks use a loss function that minimises

the distance between the features produced by the tar-

get model and the inverse model. With a stochastic

layer, the decoder reconstructs the input by sampling

from a distribution, i.e. adversaries cannot rely on

creating models that aim to learn weights for invers-

ing deterministic functions. Moreover, we predict that

introducing a stochastic layer in existing SC mod-

els should only incur a negligible accuracy penalty.

However, we cannot apply the same training methods

since training variational bottlenecks is less straight-

forward.

4 CONCLUSION

Traditional methods of compressing models or task

ofﬂoading are bound to unacceptable trade-offs. To

satisfy the requirements of critical AI applications, we

have summarised existing work on promising meth-

ods to bridge the gap between isolated computing

paradigms, and maximise network efﬁciency. Ad-

ditionally, we have introduced a series of planned

research that leverage the presented literature. We

do not claim that completing our proposed methods

is sufﬁcient to overcome all the challenges we have

identiﬁed in this work. However, we believe that

successfully implementing the planned system, is a

considerable step toward conceiving an end-to-end

framework for demanding applications which cannot

afford compromises.

REFERENCES

Al Azad, M. W. and Mastorakis, S. (2022). Reservoir:

Named data for pervasive computation reuse at the

network edge. In 2022 IEEE International Conference

on Pervasive Computing and Communications (Per-

Com), pages 141–151. IEEE.

Aslanpour, M. S., Toosi, A. N., Cicconetti, C., Javadi, B.,

Sbarski, P., Taibi, D., Assuncao, M., Gill, S. S., Gaire,

R., and Dustdar, S. (2021). Serverless edge com-

puting: Vision and challenges. In 2021 Australasian

Computer Science Week Multiconference, ACSW ’21,

New York, NY, USA. Association for Computing Ma-

chinery.

Chiang, C.-H., Liu, P., Wang, D.-W., Hong, D.-Y., and

Wu, J.-J. (2021). Optimal branch location for cost-

effective inference on branchynet. In 2021 IEEE In-

ternational Conference on Big Data (Big Data), pages

5071–5080. IEEE.

Deng, L., Li, G., Han, S., Shi, L., and Xie, Y. (2020). Model

compression and hardware acceleration for neural net-

works: A comprehensive survey. Proceedings of the

IEEE, 108(4):485–532.

Eshratifar, A. E., Esmaili, A., and Pedram, M. (2019). Bot-

tlenet: A deep learning architecture for intelligent mo-

bile cloud computing services. In 2019 IEEE/ACM In-

ternational Symposium on Low Power Electronics and

Design (ISLPED), pages 1–6. IEEE.

Guo, P., Hu, B., Li, R., and Hu, W. (2018). Foggycache:

Cross-device approximate computation reuse. In Pro-

ceedings of the 24th annual international conference

on mobile computing and networking, pages 19–34.

Han, Y., Huang, G., Song, S., Yang, L., Wang, H., and

Wang, Y. (2021). Dynamic neural networks: A survey.

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

150

IEEE Transactions on Pattern Analysis and Machine

Intelligence.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

He, Z., Zhang, T., and Lee, R. B. (2019). Model inversion

attacks against collaborative inference. In Proceed-

ings of the 35th Annual Computer Security Applica-

tions Conference, pages 148–162.

Herrmann, C., Bowen, R. S., and Zabih, R. (2020). Channel

selection using gumbel softmax. In European Confer-

ence on Computer Vision, pages 241–257. Springer.

Jang, E., Gu, S., and Poole, B. (2016). Categorical repa-

rameterization with gumbel-softmax. arXiv preprint

arXiv:1611.01144.

Jeong, H.-J., Lee, H.-J., Shin, C. H., and Moon, S.-

M. (2018). Ionn: Incremental ofﬂoading of neural

network computations from mobile devices to edge

servers. In Proceedings of the ACM Symposium on

Cloud Computing, pages 401–411.

Kang, Y., Hauswald, J., Gao, C., Rovinski, A., Mudge, T.,

Mars, J., and Tang, L. (2017). Neurosurgeon: Col-

laborative intelligence between the cloud and mobile

edge. ACM SIGARCH Computer Architecture News,

45(1):615–629.

Kingma, D. P. and Welling, M. (2013). Auto-encoding vari-

ational bayes. arXiv preprint arXiv:1312.6114.

Laskaridis, S., Venieris, S. I., Almeida, M., Leontiadis,

I., and Lane, N. D. (2020). Spinn: synergistic pro-

gressive inference of neural networks over device and

cloud. In Proceedings of the 26th annual interna-

tional conference on mobile computing and network-

ing, pages 1–15.

Li, E., Zeng, L., Zhou, Z., and Chen, X. (2019). Edge

ai: On-demand accelerating deep neural network in-

ference via edge computing. IEEE Transactions on

Wireless Communications, 19(1):447–457.

Matsubara, Y., Baidya, S., Callegaro, D., Levorato, M., and

Singh, S. (2019). Distilled split deep neural networks

for edge-assisted real-time systems. In Proceedings of

the 2019 Workshop on Hot Topics in Video Analytics

and Intelligent Edges, pages 21–26.

Matsubara, Y., Callegaro, D., Singh, S., Levorato, M.,

and Restuccia, F. (2022a). Bottleﬁt: Learning com-

pressed representations in deep neural networks for

effective and efﬁcient split computing. arXiv preprint

arXiv:2201.02693.

Matsubara, Y., Levorato, M., and Restuccia, F. (2021). Split

computing and early exiting for deep learning applica-

tions: Survey and research challenges. ACM Comput-

ing Surveys (CSUR).

Matsubara, Y., Yang, R., Levorato, M., and Mandt,

S. (2022b). Supervised compression for resource-

constrained edge computing systems. In Proceedings

of the IEEE/CVF Winter Conference on Applications

of Computer Vision, pages 2685–2695.

Mentzer, F., Agustsson, E., Tschannen, M., Timofte, R., and

Van Gool, L. (2018). Conditional probability mod-

els for deep image compression. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 4394–4402.

Oh, H. and Lee, Y. (2019). Exploring image reconstruc-

tion attack in deep learning computation ofﬂoading.

The 3rd International Workshop on Deep Learning for

Mobile Systems and Applications - EMDL ’19.

Pacheco, R. G., Couto, R. S., and Simeone, O. (2021).

Calibration-aided edge inference ofﬂoading via adap-

tive model partitioning of deep neural networks. In

ICC 2021-IEEE International Conference on Commu-

nications, pages 1–6. IEEE.

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., and

Chen, L.-C. (2018). Mobilenetv2: Inverted residu-

als and linear bottlenecks. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 4510–4520.

Shao, J. and Zhang, J. (2020). Bottlenet++: An end-to-end

approach for feature compression in device-edge co-

inference systems. In 2020 IEEE International Con-

ference on Communications Workshops (ICC Work-

shops), pages 1–6. IEEE.

Teerapittayanon, S., McDanel, B., and Kung, H.-T. (2016).

Branchynet: Fast inference via early exiting from

deep neural networks. In 2016 23rd International

Conference on Pattern Recognition (ICPR), pages

2464–2469. IEEE.

Teerapittayanon, S., McDanel, B., and Kung, H.-T. (2017).

Distributed deep neural networks over the cloud, the

edge and end devices. In 2017 IEEE 37th interna-

tional conference on distributed computing systems

(ICDCS), pages 328–339. IEEE.

Veit, A. and Belongie, S. (2018). Convolutional networks

with adaptive inference graphs. In Proceedings of the

European Conference on Computer Vision (ECCV),

pages 3–18.

Veit, A., Wilber, M. J., and Belongie, S. (2016). Residual

networks behave like ensembles of relatively shallow

networks. Advances in neural information processing

systems, 29.

Venugopal, S., Gazzetti, M., Gkoufas, Y., and Katrinis,

K. (2018). Shadow puppets: Cloud-level accurate

{AI} inference at the speed and economy of edge. In

USENIX Workshop on Hot Topics in Edge Computing

(HotEdge 18).

Wu, M., Ye, D., Zhang, C., and Yu, R. (2021). Spears

and shields: attacking and defending deep model

co-inference in vehicular crowdsensing networks.

EURASIP Journal on Advances in Signal Processing,

2021(1):1–21.

Xia, W., Yin, H., Dai, X., and Jha, N. K. (2021). Fully

dynamic inference with deep neural networks. IEEE

Transactions on Emerging Topics in Computing.

Yao, S., Li, J., Liu, D., Wang, T., Liu, S., Shao, H., and

Abdelzaher, T. (2020). Deep compressive ofﬂoading:

Speeding up neural network inference by trading edge

computation for network latency. In Proceedings of

the 18th Conference on Embedded Networked Sensor

Systems, pages 476–488.

Zhou, Z., Chen, X., Li, E., Zeng, L., Luo, K., and Zhang, J.

(2019). Edge intelligence: Paving the last mile of arti-

ﬁcial intelligence with edge computing. Proceedings

of the IEEE, 107(8):1738–1762.

Adaptive and Collaborative Inference: Towards a No-compromise Framework for Distributed Intelligent Systems

151
