An Ontology for Ontology Metrics: Creating a Shared Understanding

of Measurable Attributes for Humans and Machines

Achim Reiz

and Kurt Sandkuhl

Rostock University, 18051 Rostock, Germany

Keywords: Ontology Metrics, NEOntometrics, OntoMetrics, OWL, Ontology Quality.

Abstract: Measuring ontologies using metrics requires specialized software. While the past years saw various

developments regarding tools and frameworks, these efforts mainly stayed isolated in their applied

assessments. A paper measuring an ontology using the oQual framework is hardly comparable to one that

applies the metrics from OntoQA. First, the performed calculations are often bound to the used tools, and

second, the correct interpretation of ontology metrics requires a deep understanding of their measured aspects.

Our research tackles these challenges by providing an ontology for ontology metrics. This artifact (A.) collects

the various proposed ontology measurement frameworks with human-readable descriptions. It lets users

quickly inform themselves on the assessments and aspects one can measure. (B) it formalizes the metric

calculations. The framework metrics are connected to shared measurable elements, homogenizing the

notations and languages. At last, (C.) the ontology is the backbone of the newly developed NEOntometrics

application. The software uses the formalized metric descriptions to set up the calculations for the various

frameworks. We believe our research can break the silos of different measurements, enable knowledge

engineers to calculate various metrics quickly, and researchers to put new measurements into use through

simple adaption of the metric ontology.

1 INTRODUCTION

Computational ontologies are complex

interconnected graphs with description logics as

underpinnings. They can capture knowledge, allow to

infer implicit facts, and generate a shared

understanding between human and computational

actors. However, their development is far from a

trivial task: there are countless ways to create an

ontology. The developer has to make many modeling

decisions until the artifact is completed. The first

development decision is whether and which ontology

shall be reused. Afterward, change assessment on the

ontology as a whole gets more into focus: What kind

of elements are affected in particular, is the change

aligned with the overall set goals, and how does a

change affect the structure?

Ontology metrics can guide these assessments.

They provide an objective and reproducible way to

grasp the attributes of ontologies (or ontology

versions), allow the development team to set and

https://orcid.org/0000-0003-1446-9670

https://orcid.org/0000-0002-7431-8412

pursue KPIs, and help the ontology engineer

understand the change implications.

There are several metrics one can measure in

ontologies. Selecting the proper measure for the job

requires a deep understanding of the modeling goals

and the logical foundations on which ontologies are

built. Metric frameworks can guide making these

decisions. Over the past years, several of these metric

frameworks have been proposed. They set the atomic

measurement points into context (e.g., axiom/class

ratio) and often offer interpretations for the results or

associate them with quality dimensions like

reusability or readability.

While these frameworks aid the use and usability

of metrics, one could argue that they also amplify the

problem of metric selection. Now there are even more

metrics to choose from. Furthermore, while a few of

the frameworks build on each other, the proposed

frameworks are often isolated, mainly because a

study made with Framework A is not easily

comparable to one made with Framework B, often

Reiz, A. and Sandkuhl, K.

An Ontology for Ontology Metrics: Creating a Shared Understanding of Measurable Attributes for Humans and Machines.

DOI: 10.5220/0011551500003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 2: KEOD, pages 193-199

ISBN: 978-989-758-614-9; ISSN: 2184-3228

193

due to the different terminologies.

The following research tackles this heterogeneity

by proposing an ontology for ontology metrics. We

collected information on (at the time of publication)

seven metric frameworks, extracted their metric

descriptions and interpretations (if applicable), and

formalized the underlying measurements.

It allows human actors to inform themselves on

the various measurable attributes in an ontology and

possible interpretations and guides the selection of

metrics and metric frameworks without having to

read all of the underlying specifications. The aligned

terminology makes the different frameworks more

easily comparable.

For computational actors, the ontology provides

the necessary formalization to set up an automatic

calculation. New compositional metrics can be

implemented by simply modeling them, thus

reducing the implementation time and complexity.

The rest of the paper is structured as follows:

Section two is concerned with the related work,

followed by an overview of the modeled metric

frameworks. Section four describes the newly created

ontology with its relations and classes. Before the

conclusion, section five describes how the

NEOntometrics application uses this ontology to

automatically set up and orchestrate the calculation

service with its frontend, backend, and API.

There are many different approaches to evaluate

an ontology based on the corpus, the given tasks, or

predefined criteria. (Raad & Cruz, 2015) provides an

extensive overview of available methodologies. This

research, however, only considers automatically

calculated criteria-based evaluation methods based

solely on the ontologies' structure.

2 RELATED WORK

To the best of our knowledge, the idea of creating an

ontology for ontology metrics is an endeavor without

precedence. However, there have been other related

work that either contributed to this research or

researched comparable approaches. Most

categorization papers developed smaller theoretical

frameworks for ontology evaluation.

(Klein, 2004, p. 83) studied in his Ph.D. changes

and change management in distributed ontology

environments. Part of the thesis is a formalized UML

meta-model of the web ontology language. Even

though it is not directly linked to evolution efforts, the

meta-model provides valuable information on the

various (measurable) aspects of OWL-based

ontologies.

In his thesis, (Vrandecic, 2010, p. 38) developed

a theoretical framework for ontology evaluation. He

organized evaluation methods and ontology

evaluation with the concepts of ontologies, their

ontology documents, and the conceptualizations that

the ontologies represent.

The abstract model for ontology evaluation by

(Verma, 2016) shows how ontology metrics can be

categorized along the various hierarchical categories.

(Jarosław, 2018) conceptualized (in an ontology)

the various methods and tools for a successful

ontology evaluation process. Here, ontology metrics

are one part of the evaluation process. Unfortunately,

the ontology is not available for further analysis.

Further significant are papers reviewing the state-

of-the-art in ontology metrics. Here are relevant the

paper by (Lourdusamy & John, 2018), which is

concerned with ontology metrics in general. Based on

this literature review, the authors assembled 27

metrics in the categories complexity, graph,

knowledge base, and schema.

(Porn et al., 2016) performed a systematic

literature review on OWL-based ontology evaluation.

They extracted quality criteria and categorized and

organized the paper according to their evaluation

technique and criteria.

(McDaniel & Storey, 2019) collected approaches

specifically for domain ontologies. The authors

gathered evaluation criteria for domain/task fit, error

checking, libraries, modularization, and metrics.

3 ONTOLOGY METRIC

FRAMEWORKS

At the time of the publication, the metric ontology

contains information on seven measurement

frameworks. As the research is open source, we invite

the community to participate and add frameworks.

Thus, in the future, the research presented in this

section might not be exhaustive.

OntoQA, developed by (Tartir et al., 2005),

proposes 17 measurements for assessing structure and

population. OntoQA proposes metrics measuring the

ontology as a whole and for specific classes and

relations.

oQual, introduced by (Gangemi et al., 2005), is

the largest of the introduced frameworks. It contains

(among other criteria) 34 structural assessments

measuring mostly graph-related attributes like depth,

breadth, and leaf cardinality. The authors further

propose some non-exhaustive quality dimensions and

link them to quality metrics.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

194

As part of a study on ontology characteristics,

(Fernández et al., 2009) developed 12 measurements,

assessing depth and breadth similar to oQual and the

number of classes, properties, and instances.

(Yao et al., 2005) described three metrics

concerning the cohesion of ontologies: The number

of root classes, leaf classes, and the average depth of

the inheritance tree of leaf nodes.

The evaluation of the complexity of ontologies

using metrics was researched by (Zhang et al., 2006).

They propose seven ontology metrics that build on

one another. The paper assesses the Gene Ontology

and measures the complexity through the number of

subclass relations and paths.

(Orme et al., 2007) measures quality, stability,

and completeness. They proposed six measurements

assessing mainly graph-related attributes. Some of

their metrics are similar to the cohesion metrics by

(Yao et al., 2005).

OQuaRE, which transfers the SQuaRE software

quality framework to ontologies, was first proposed

by (Duque-Ramos et al., 2011) and has since been

used by several publications, always involving the

same group of authors. While implementing the

framework, we discovered heterogeneities in these

publications. In our ontology, we use the calculation

published in the resulting homogenization effort

(Reiz & Sandkuhl, 2022). OQuaRE provides linkages

to quality dimensions.

4 THE METRIC ONTOLOGY

The metric ontology is available online

as part of the

NEOntometrics repository. It has three

interconnected main parts: Two classes (including

their subclass elements) Elemental Metrics and

Quality Frameworks, and individuals.

The Elemental Metrics contain the atomic, directly

measurable elements of the ontology, like the number

of axioms, individuals, and sub-class declarations.

Examples of these elements are Axioms (the number of

defined axioms in the ontology) and the Maximum

Depth (the depth of the inheritance tree).

All subclasses of this category contain human-

readable annotations through the custom annotation

properties metricDescription, metricDefinition, and

metricInterpretation. These annotations are created

by the ontology authors and further explain the

measured attribute with human-readable information.

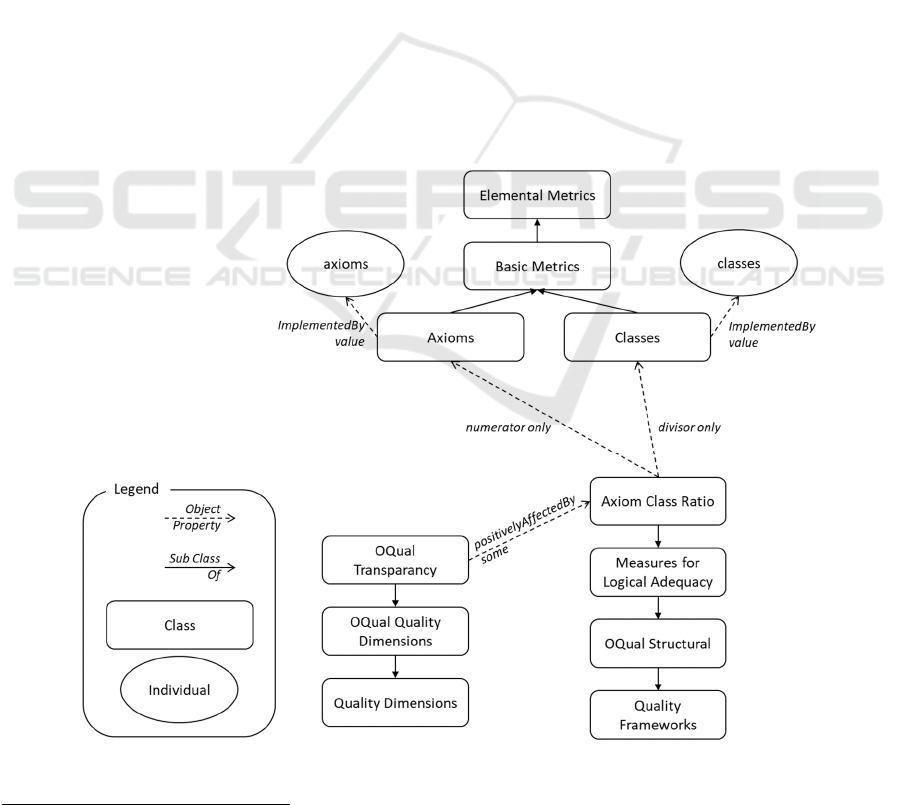

Figure 1: Excerpt of the metric ontology with the example of the metric axiom class ratio (without annotation properties).

http://ontology.neontometrics.com

An Ontology for Ontology Metrics: Creating a Shared Understanding of Measurable Attributes for Humans and Machines

195

The metrics are connected to individuals using the

object property implementedBy. The connected

individuals represent calculated metric values in the

database of NEOntometrics. Not all Elemental

Metrics have an implementation in the application.

Thus, not all Elemental Metrics are connected to

individuals — more on the automatic setup in the

upcoming section. The separation of implementation

(individuals) and definition (Elemental Metrics)

allows for a comprehensive knowledge base, even

though not all metrics have been implemented yet.

The subclasses of the class Quality Frameworks

capture the various metric proposals of the

frameworks listed in the previous section. Here, all

presented information mirrors the contents of the

corresponding papers (linked with rdf:seeAlso

annotations). This content mirroring has the effect

that some elements have thorough descriptions while

others lack them.

At first, the metrics proposed by the Quality

Frameworks look rather diverse. The metrics are

heavily different in their naming conventions or

design and description of the metrics. At their core,

however, they often use the same building blocks but

name them differently. An example is the depth of the

graph, which is named Maximal Depth by (Gangemi

et al., 2005), while (Zhang et al., 2006) describe it as

Max Path Length. Connecting the Quality

Frameworks to the Elemental Metrics solves the

challenge of differently named elements.

Some of the Quality Frameworks directly use

attributes, For example, the Maximum Depth metrics.

These attributes are connected to the elemental

metrics using the object property directlyUsesMetric.

The resulting relationship thus is

oQual_MaximalDepth subClassOf

directlyUsesMetric only MaximumDepth.

Other metrics, however, calculate ratios. E.g., the

oQual Axiom Class Ratio divides the number of

Axioms by the number of Classes. We set up object

properties for this relation, capturing the

mathematical coherence. The object property division

has the sub-properties divisor and numerator. Thus,

the oQual_AxiomClassRatio is connected to the

elemental metrics by making it a subClassOf (divisor

only Classes) and (numerator only Axioms). More

object properties are available for the primary

arithmetic operations like addition, subtraction, and

multiplication.

Some metric frameworks not only propose

metrics but link them to abstract quality dimensions

1 http s://gi thub. com/ach iminat or/NEOn tometri cs

https://github.com/achiminator/NEOntometrics

http://neontometrics.com

like Transparency, Organizational Fitness (oQual),

Reusability, or Readability (OQuaRE). These rather

abstract quality implications are separated from the

metrics using the class Quality Dimensions. They are

connected to the metrics via the relations

negativeAffectedBy and positiveAffectedBy. An

example is the dimension Transparency of the oQual

framework, which is (among others)

positiveAffectedBy some AnonymousClassesRatio.

5 NEOntometrics

NEOntometrics is the primary ontology consumer. It

provides a public endpoint to evaluate ontologies and

inform on the over 160 available ontology metrics.

The software is open

source

and available online

The following section states how NEOntometrics

uses the ontology for setting up its API for metric

retrieval. Further information on the application,

especially the calculation engine, is available on its

web pages.

The sequence diagram in Figure 2 outlines how

the ontology augments the start-up procedure. In the

beginning, the Django

-based backend first runs an

initial SPARQL query, retrieving the information on

available metrics and corresponding calculation

information (1-2). It is followed by a second query (3-

4) for retrieving the structure for the help page.

In the next step (5), the system transforms the

results of the first query from the tabular query result

structure into a list of python dictionaries

, consisting

of the basic information on each metric, like the

descriptions and the corresponding metric category.

If the metrics are implemented in the system (thus, if

individuals are attached to the given Elemental

Metrics), a string containing the calculation function

is generated (6). Taking the example of the Axiom

Class Ratio, the function field contains

“axioms/classes”, with axioms and classes named

consistently with the corresponding database fields.

After this step, an internal python object contains

all the information necessary for the automated metric

calculation. As a next step, this object is integrated

into a hierarchical structure for the help pages using

the results of the second query, which requested the

superclasses of metric elements. The superclasses

allow the building of a tree-like structure, which the

Django framework serializes to a nested JSON

representation (7) for consumption in the frontend,

primarily the metric explorer (cf. Figure 4).

https://www.django-rest-framework.org/

A python dictionary stores key-value pairs.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

196

Figure 2: The start-up process of NEOntometrics. The ontology augments the database model and provides human-readable

information for the frontend.

After the application has retrieved all the required

ontology data and converted it into a more usable data

representation, it starts with the augmentation of the

calculation service. First, the object-relational

mapping (ORM) of the Django framework is

extended with the elements of the Quality

Frameworks (8-9). The naming of elements in the

previously created calculation function is equivalent

to the database objects, and the created function

strings are injected into the database model. The

newly created elements (like

OQual_AxiomClassRatio) behave like ordinary

database objects, except that they are read-only.

After the ORM mapping is extended, its elements

are registered in the GraphQL API (10-11). The API

uses the metricDefinition, or if it is not available, the

An Ontology for Ontology Metrics: Creating a Shared Understanding of Measurable Attributes for Humans and Machines

197

metricDescription annotation for describing a

resource. This operation completes the initial start-up,

and the NEOntometrics application is ready to receive

a request from either the frontend or other

applications.

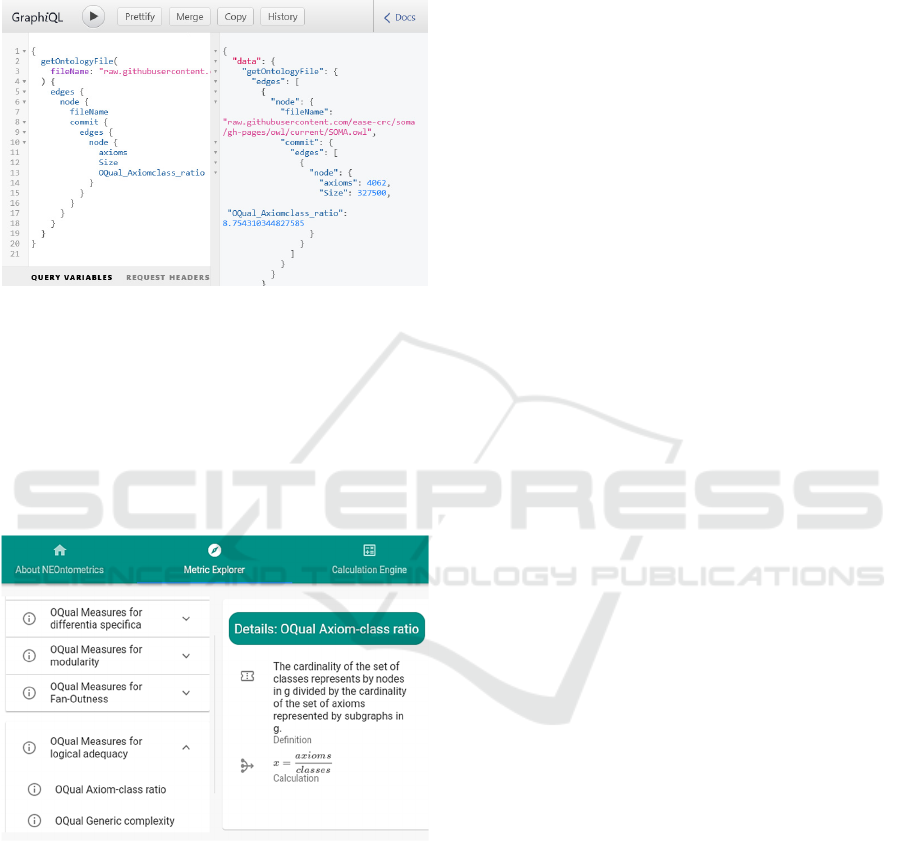

Figure 3: GraphQL-endpoint with the automatically

configured metrics.

The web application queries the tree-based metric

manual when opening the webpage. This information

fills the Metric Explorer as shown in Figure 4 and the

settings page Calculation Engine. The latter allows

the selection of precisely the metrics that are needed.

The selection is then translated into a GraphQL

request and returns the requested data.

Figure 4: The Metric Explorer. The interactive ontology

metrics manual builds on the metric ontology.

6 CONCLUSION

Various academic and business disciplines use

ontologies with different requirements and ideas on

how an ideal ontology should look. This diversity is

also present in the proposed evaluation methods.

Even though the technology behind ontologies is

standardized, the calculation frameworks vary widely

in their vocabulary, descriptions, and syntax.

This research collected and formalized various

metric calculation approaches into a shared

representation. By providing a common, interactive

one-stop resource on ontology metrics, we hope it

helps knowledge engineers to select the correct

measurements for their use cases. It entangles the

heterogeneous metric names of the various proposals

by linking them to common underlying vocabulary

and breaking up formerly isolated frameworks: If one

ontology is calculated using the oQual framework, it

can be downloaded for all other modeled frameworks

as well.

The underlying ontology not only stores

knowledge on existing approaches. It also allows the

quick implementation of additional metrics. Thus,

organizations can collect and build their individual set

of ontology metrics without having to alter the

underlying calculation code.

As part of the bigger picture, we believe that this

metric ontology has the potential to increase

understanding of the different observable attributes in

an ontology and can strengthen the use of ontology

metrics.

REFERENCES

Duque-Ramos, A., Fernández-Breis, J. T., Stevens, R., &

Aussenac-Gilles, N. (2011). OQuaRE: A square-based

approach for evaluating the quality of ontologies.

Journal of Research and Practice in Information

Technology, 43(2), 159–176. https://www.scopus.com/

inward/record.uri?eid=2-s2.0-84860428632&partner

ID=40&md5=dcb393aa78ee79eca9bfe365b38ed0f1

Fernández, M., Overbeeke, C., Sabou, M., & Motta, E.

(2009). What Makes a Good Ontology? A Case-Study

in Fine-Grained Knowledge Reuse. In A. Gómez-Pérez,

Y. Yu, & Y. Ding (Eds.), Lecture notes in computer

science: Vol. 5926, The semantic web: Fourth Asian

conference, ASWC 2009, Shanghai, China, December

6-9, 2009; proceedings (pp. 61–75). Springer.

https://doi.org/10.1007/978-3-642-10871-6_5

Gangemi, A., Catenacci, C., Ciaramita, M., Lehmann, J.,

Gil, R., Bolici, F., & Strignano Onofrio. (2005).

Ontology evaluation and validation: An integrated

formal model for the quality diagnostic task. Trentino,

Italy.

Jarosław, W. (2018). An Attempt to Knowledge

Conceptualization of Methods and Tools Supporting

Ontology Evaluation Process. Procedia Computer

Science, 126, 2238–2247. https://doi.org/10.1016/

j.procs.2018.07.225

Klein, M. (2004). Change Management for Distributed

Ontologies [Ph.D. Thesis, Vrije Universiteit

Amsterdam, Amsterdam, NL]. BibTeX.

KEOD 2022 - 14th International Conference on Knowledge Engineering and Ontology Development

198

Lourdusamy, R., & John, A. (2018). A review on metrics

for ontology evaluation. In Proceedings of the 2nd

International Conference on Inventive Systems and

Control (ICISC) (pp. 1415–1421). IEEE.

https://doi.org/10.1109/ICISC.2018.8399041

McDaniel, M., & Storey, V. C. (2019). Evaluating Domain

Ontologies. ACM Computing Surveys, 52(4), 1–44.

https://doi.org/10.1145/3329124

Orme, A. M., Yao, H., & Etzkorn, L. H. (2007). Indicating

ontology data quality, stability, and completeness

throughout ontology evolution. Journal of Software

Maintenance and Evolution, 19(1), 49–75.

https://doi.org/10.1002/smr.341

Porn, A. M., Huve, C. A. G., Peres, L. M., & Direne, A. I.

(2016). A systematic Literature Review of OWL

Ontology Evaluation. In P. Isaías & L. Rodrigues (Eds.),

Proceedings of the 15th International Conference

WWW/Internet 2016: Mannheim, Germany, October

28-30, 2016. IADIS Press.

Raad, J., & Cruz, C. (2015). A Survey on Ontology

Evaluation Methods. In A. Fred (Ed.), Proceedings of

the 7th International Joint Conference on Knowledge

Discovery, Knowledge Engineering and Knowledge

Management: Lisbon, Portugal, November 12 - 14,

2015 (pp. 179–186). SciTePress. https://doi.org/10.52

20/0005591001790186

Reiz, A., & Sandkuhl, K. (2022). Harmonizing the

OQuaRE Quality Framework. In Proceedings of the

24th International Conference on Enterprise

Information Systems, online.

Tartir, S., Arpinar, I. B., Moore, M., Sheth, A. P., &

Aleman-Meza, B. (2005). OntoQA: Metric-Based

Ontology Quality Analysis. In D. Caragea, V. Honavar,

I. Muslea, & R. Ramakrishnan (Chairs), IEEE

Workshop on Knowledge Acquisition from Distributed,

Autonomous, Semantically Heterogeneous Data and

Knowledge Sources, Houston.

Verma, A. (2016). An abstract framework for ontology

evaluation. In G. S. Kumar & K. P. Jacob (Eds.),

Proceedings, 2016 International Conference on Data

Science & Engineering (ICDSE): August 23-25, 2016,

Cochin University of Science and Technology (pp. 1–6).

IEEE. https://doi.org/10.1109/ICDSE.2016.7823945

Vrandecic, D. (2010). Ontology Evaluation [Dr. rer. pol.].

Karlsruhe Institute of Technology, Karlsuhe.

Yao, H., Orme, A. M., & Etzkorn, L. (2005). Cohesion

Metrics for Ontology Design and Application. Journal

of Computer Science, 1(1), 107–113. https://doi.org/

10.3844/jcssp.2005.107.113

Zhang, D., Ye, C., & Yang, Z. (2006). An Evaluation

Method for Ontology Complexity Analysis in Ontology

Evolution. In S. Staab & V. Svátek (Chairs),

International Conference on Knowledge Engineering

and Knowledge Management, Poděbrady, Czech

Republic.

An Ontology for Ontology Metrics: Creating a Shared Understanding of Measurable Attributes for Humans and Machines

199
