Digital Twin-enabled Application Architecture for the

Process Industry

Christoph Nölle

, Asier Arteaga

, Joseba Egia

, Antonio Salis

, Gabriele De Luca

and Norbert Holzknecht

VDEh-Betriebsforschungsinstitut (BFI), Sohnstraße 69, 40237 Düsseldorf, Germany

Sidenor I+D, Barrio Urgate, 48970 Basauri, Spain

Mondragón Sistemas, S.COOP., Ama Kandida Etorbidea 21, 20140 Andoain, Spain

Engineering Ingegneria Informatica S.p.A., Loc. Sa Illetta, SS195 km 2,3, I-09123 Cagliari, Italy

Engineering Ingegneria Informatica S.p.A. Via Monteroni s.n., C/O Edificio Dhitech, Ecotekne, I-73100, Lecce, Italy

jegia@msigrupo.com, {antonio.salis, gabriele.deluca}@eng.it

Keywords: Digital Twin, Process Industry, Steel, Ontology, Cognitive Solution, Open Source.

Abstract: We develop a software platform architecture for the integration of heterogeneous software applications in the

process industries, ranging from physical simulation models to data-driven AI applications and visualizations.

Digital twins play a key role in this architecture, providing harmonised interfaces to a diverse set of data

sources, based on a domain-specific data model rooted in standard ontologies. We investigate the applicability

of existing standards and open-source software, demonstrating on the one hand their immense potential for

software-based innovations in the process industries, but also highlighting some shortcomings and the need

for further developments. Finally, a concrete implementation and data model for the production of steel long

products is presented.

1 INTRODUCTION

Process industries nowadays collect large amounts of

process data from sensors and machines, which can

be exploited for various software-based innovations,

in particular when combined with additional data

sources, such as the enterprise resource planning

system (ERP). Applications include among other

advanced analytics, such as root cause analysis for

defects and anomaly detection, process control,

planning optimizations, such as predictive

maintenance, and in general an improved

observability of the processes based on visualizations

and real time simulations (Mowbray et al., 2022).

In practice, several obstacles need to be overcome

to make best use of the available data and allow for

its efficient usage, such as different communication

protocols and data formats used by different systems

and a lack of semantic information or missing context

information. Raw sensor data is usually time-based,

but for many types of analyses an asset-centric view

https://orcid.org/0000-0001-5851-8548

https://orcid.org/0000-0002-4012-7490

of the data is needed, referring for instance to the

product id and a position on the product surface,

instead of time. Such conversions can be difficult,

error-prone, or impossible to implement for

application developers at all. For example, in the steel

production, the tracking of individual products

through the complete process chain is an important

prerequisite for such a conversion.

The concept of Digital Twins encompasses,

among other aspects, an asset-centric view on the

data. They are meant to break up the existing

information silos by providing a common interface to

data originating from a diverse set of sources, provide

a runtime for models related to the asset, and offer

services to other twins, applications, and the user of

the system (Jacoby et al., 2021). Digital Twins can

thus serve as an important enabling technology for

innovative software applications in the process

industries. In this paper we outline the design of a

modular software platform architecture that centers

around Digital Twins.

Nölle, C., Arteaga, A., Egia, J., Salis, A., De Luca, G. and Holzknecht, N.

Digital Twin-enabled Application Architecture for the Process Industry.

DOI: 10.5220/0011561800003329

In Proceedings of the 3rd International Conference on Innovative Intelligent Industrial Production and Logistics (IN4PL 2022), pages 255-266

ISBN: 978-989-758-612-5; ISSN: 2184-9285

255

The main goal of the platform is to enable the

development of various kinds of applications, from

data-driven to physical simulation models and from

pure visualizations to machine controllers and

optimizations. We emphasize that particular attention

should be paid to the design of the application

programming interfaces (APIs) offered by the system

(Autiosalo et al., 2021). While on the one hand they

should be kept as simple as possible to enable

efficient app development, they need to fulfil several

important additional requirements:

 provide access to different types of data, such as

structured data, timeseries, or multimedia

 enable filtering of data by different categories,

such as product ids and product properties,

machine ids or time (geo-spatial properties

could be considered as well, but are less relevant

in our use case)

 provide semantic information and metadata,

based on a well-defined domain-specific data

model

 provide separate views of an asset related for

instance to different life cycle phases, such as

design, engineering, production, commissioning,

operations, maintenance, service and end of life

(Boss et al., 2020)

 allow for fine-grained access-control rules

 be easily extensible (in backwards-compatible

ways, where possible) and modular

 be interoperable with existing tools, by

leveraging on standards and best practices

Process industry companies planning to setup a

central data access platform have several

implementation options to consider. These include

proprietary IoT platforms, offered for instance by the

big cloud providers, open-source data brokers and

streaming platforms, such as the tools from the

Apache ecosystem (Kafka, Spark, Flink,

StreamPipes, NIFI, etc) or more specific solutions

with a more limited scope, such as an OPC UA server.

In the final section of the paper, we present one

concrete implementation based mostly on open-

source components that has been developed in the

CAPRI project for a steel production plant.

2 INTERFACES AND DATA

MODEL

Since our software platform is meant to allow for a

modular development of digital twins and to serve

various kinds of applications, a particular emphasis

must be placed on the application programming

interfaces (APIs).

2.1 Data Types

Different types of data arise in the context of a

production plant, including

a) Structured data

b) Temporal data, i.e., data that changes in time,

such as measurement values

c) Timeseries data, including historical data and

forecasts

d) Multimedia data, including audio and video

streams

Both classical timeseries and multimedia data

should support an asset-centric interface (access via

Digital Twins, possibly both machine twins, product

twins and others), besides a simple time-based filter.

For instance, out of a stream of images taken by a

camera, a user or application might want to work with

those images showing a particular product, and this

filtering capability would ideally be implemented by

a dedicated platform module and not by the

consuming application. We will hence need advanced

filtering possibilities; a simple file download

capability would be insufficient.

Geo-spatial data is often added as a further

category but is not universally required.

2.2 Protocols

Due to the ubiquity of HTTP-based REST services

and the JSON data format on the internet-era software

world the use of HTTP as a transport protocol and

JSON as a serialization format, at least for structured

data, should be undisputed. In addition, the JSON

Linked Data (JSON-LD) may be used for providing

context information.

For event-based access methods HTTP alone is

not sufficient, however. Websockets and MQTT

seem to be the major competitors in this field. Given

that the websocket protocol is defined as an extension

of HTTP it appears as the most obvious choice for an

event-based API.

Another important aspect of an API is the query

language. As mentioned before, the API must support

complex filtering operations, which also depend on

the type of data requested. Whereas developers from

an ontological background may prefer the SPARQL

query language, ease of use in a variety of

applications seems to dictate the use of JSON-based

mechanisms for queries as well. The most common

approach for complex filters should be to define

ETCIIM 2022 - International Workshop on Emerging Trends and Case-Studies in Industry 4.0 and Intelligent Manufacturing

256

queries as JSON objects in the HTTP body of a POST

request.

Another interesting model for query languages

that plays nicely with JSON is Facebook’s GraphQL.

It is particularly suitable for data represented in the

form of graphs and allows the user to specify the data

representation in a very flexible way, adapted to the

needs of the application. Although it is not as

common as REST interfaces, it has quite a significant

user base and good tool support and is a promising

technology for empowering data-driven applications

on graph-structured data. GraphQL has been explored

in the context of Digital Twin applications before, see

for example (Autiosalo et al., 2021).

2.3 Standards

Different initiatives exist which develop standardized

APIs for Digital Twins and related technologies,

including the Asset Administration Shell (AAS)

(Boss et al., 2020), (Plattform Industrie 4.0, 2021),

the NGSI-LD standard by ETSI (ETSI, 2021), which

has its roots in the FIWARE initiative (FIWARE

Foundation, 2021), and the Web of Things (WoT)

developed by W3C (W3C, 2020).

Proprietary platforms targeted at Industrial IoT

and Digital Twin applications are, among other and in

alphabetical order, Amazon AWS IoT, Bosch IoT

Suite, Hitachi Lumada, Microsoft Azure IoT, PTC

ThingWorx, Siemens MindSphere, and Software

AG’s Cumulocity IoT platform. In our case there is a

requirement to base the platform on open-source

components to avoid a lock-in effect and to enable

market access to small and medium sized companies,

which is why we will not further investigate these

commercial platforms here. A comparative

evaluation including them will be an interesting

proposal for future work.

It should be noted that Microsoft has published a

specification called Digital Twin Definition

Language (DTDL) (Microsoft, 2019), which

describes the modeling principles behind Azure IoT

services and is somewhat similar in nature to the

NGSI-LD model. Whereas the open publication of

the specification is certainly useful and (Jacoby &

Usländer, 2020) include it in their analysis, we

decided not to include this proprietary model here.

On the one hand, the generic nature of standard

interfaces can be useful from the point of view of

interoperability. On the other hand, these interfaces

are typically not domain-specific and not tailored to

the situation at hand, possibly leading to inefficient

and non-obvious query patterns, which is why

domain-specific interfaces are generally considered a

good-practice in software development. In the case of

NGSI-LD, the proposed way to enhance the interface

with domain-specific information is to provide a

separate domain model describing the possible

properties and relationships that entities can have, in

terms of JSON schema files. A similar approach can

be taken for the AAS. This does not remedy all the

problems with the generic nature of the interfaces,

however. WoT takes a different approach in that it

provides an interface description language which can

be used to support multiple different APIs. The idea

behind this approach is to integrate multiple devices

which already come equipped with an API of their

own. This setting appears to be less relevant to our

scenario.

An analysis of different standards from the point

of view of digital twin applications has been

published in (Jacoby & Usländer, 2020). Among

other criteria, they considered the support for

different data types (geo-spatial, temporal, and

timeseries, besides normal structured data), the

possibility to describe custom events and services,

and the query language.

The survey finds that NGSI-LD has good support

for different data types (geo-spatial, temporal and

timeseries) and a reasonable metamodel, but falls

short of describing custom services and events, an

aspect we consider of lower importance for our case.

AAS on the other hand, lacks in support for data

types, but covers services and events descriptions for

submodels (Plattform Industrie 4.0, 2021).

The handling of multimedia data seems not to be

covered by the existing standards, but to fully

integrate with the asset-centric Digital Twin platform,

advanced filtering possibilities will be needed, and it

could be beneficial to standardise those as well

(BDVA, 2017).

All the standards investigated in (Jacoby &

Usländer, 2020) support JSON via HTTP, and the

JSON-LD is also commonly used. For filtering, both

NGSI-LD and AAS mainly rely on query parameters

instead of request bodies, and AAS even defines

several query parameters as BASE64-encoded,

complex JSON objects. NGSI-LD on the other hand

provides an alternative query interface that accepts

POST requests with filters in the body. The query

objects are only partially adapted to this setting,

however, and may still require lengthy and error-

prone string concatenations for complex queries.

A GraphQL interface is not foreseen by any of the

specifications mentioned above, but since the NGSI-

LD metamodel already assumes a graph-like structure,

these two technologies might still be a good fit.

Digital Twin-enabled Application Architecture for the Process Industry

257

2.4 Semantics

A digital twin aims to provide an accurate

representation of a physical or logical asset. The

underlying data model of this representation will

cover several technical and possibly business

concepts at different levels of detail, depending on the

context and aims of the platform. The data model

should be clear and consistent, and modular in the

sense that concepts relevant to a particular subdomain

can be properly encapsulated. All submodels should

be based on a common top-level model, however,

providing generic concepts such identities,

timestamps and locations (ETSI, 2019), and possibly

also one or multiple standardised domain-specific

base models (ETSI, 2019), (DKE, 2020). Generic top-

level models could include the oneM2M base

ontology (oneM2M, 2019) or the NGSI-LD cross

domain ontology (ETSI, 2021).

Standardized domain-specific models for industrial

applications include SAREF4INMA (ETSI, 2020),

AutomationML

, OPC UA

, IEC 61360 Common Data

Dictionary (CDD)

, and ECLASS

If automated reasoning or formal model validation

is a requirement for the digital twin platform, then

instead of a simple data model the use of ontologies

and supporting technologies should be mandated. We

will however not pursue this aspect here.

Tooling to support the usage of the data model in

applications include machine-readable documentation,

based for instance on JSON schema and OpenAPI, and

clients or software development kits (SDKs) for

specific programming languages. The OpenAPI

approach is advocated for by FIWARE and the

Smartdatamodels initiative (FIWARE Foundation,

2021). An alternative or supplementary model

description can be realized in terms of a GraphQL

schema, mandatory for developing a GraphQL

interface, which emphasizes the possible relationships

between entities.

3 PLATFORM ARCHITECTURE

An overview of the proposed software architecture is

shown in

Figure 1. At its core is the Digital Twin

platform, which provides APIs to the twin

applications; the actual twins of machines, products

and possibly other assets are composed of these

applications, while their state is stored in the twin

persistence layer, labeled Twin DB in the figure.

https://www.automationml.org

https://opcfoundation.org

Partly, this state may consist of references to the raw

data, stored in the Raw DB layer.

3.1 Types of Applications

We consider three types of applications at different

positions of the architecture. Edge apps run close to

the actual IoT devices, for instance on an IoT gateway

or on a device itself. Typical examples of this class

are applications with low latency requirements, or

those that process large amounts of raw data which

shall not be forwarded as a whole to the upper

platform components. An example from our steel use

case could be an app that recognizes id tags attached

to steel products from a camera stream. The id

information and possibly some information about the

recognition quality will be forwarded to the data

broker and digital twin, but not necessarily the raw

image data. Edge apps access data in the format it is

available and do not require tailored APIs, which is

why we are not going to consider them further in this

work.

Broker apps operate at the next level, being

connected to the data broker. They typically operate

on the raw data before it is being persisted and do not

use the Digital Twin APIs. Examples can include data

quality validation tools, which attach metadata to the

raw data stream. Broker apps may have higher

processing requirements than edge apps and may

need to access data from multiple sources.

Finally, we have the Twin apps, which provide

the core of the Digital Twin functionality, making use

of the APIs provided by the twin platform. We

consider this the default case, where the application

developer will not need specific knowledge about

implementation details of the platform, instead use

only well-documented interfaces.

The category of twin apps is very broad and could

be further subdivided, for instance into visualizations,

simulations, external data connectors, etc.

3.2 Data Interfaces

As discussed in Chapter 2 the twin platform offers a

set of data-centric APIs to the twin applications:

1. REST CRUD API, or Twin API: the basic

interface for retrieval, creation, and updates of

digital twins.

2. GraphQL API: provides a graph-based view

of the digital twins, particularly suited for

representing complex relationships between

https://cdd.iec.ch

https://eclass.eu/

ETCIIM 2022 - International Workshop on Emerging Trends and Case-Studies in Industry 4.0 and Intelligent Manufacturing

258

Figure 1: Overview of the system architecture with a focus on the Digital Twin platform and its application and user interfaces.

Data from the IoT devices flows into a central data broker, where it can be accessed by streaming applications, performing

for instance a plausbility analysis. It is then stored in a dedicated storage layer labelled Raw DB, consisting of one or multiple

databases. The Digital Twin platform accesses the raw data via these databases, and potentially also directly via the broker

for real-time access (serving the Events API). Since the data flow from broker and raw db layer to the twin platform happens

on-demand, it is visualized by means of dashed arrows originating from the platform, as opposed to the continuous stream of

data from the devices to the broker shown as solid lines.

multiple assets. This may be realised as a read-

only interface.

3. Events API: allows applications to register

listeners on individual data points or classes of

data points, enabling a push-based or reactive

programming style. This is a read-only interface.

4. Timeseries API: receives queries for historical

data, forecasts, etc., offering among others

filtering and aggregation capabilities. Access to

historical process data is typically read-only,

whereas forecasts and other kinds of timeseries

require write-access, too.

5. Multimedia API: allows for the retrieval of

image, video, or sound data, offering filtering

capabilities aligned with the twin structure.

Depending on the setup, this may be realized as

a read-only interface.

The Twin API (1) provides references to the

timeseries API (4) and multimedia API (5), where

appropriate, so that applications can find out how to

access timeseries and multimedia data relevant to an

asset, and it also needs to indicate which data points

are eligible for access via the Events API (3).

Documentation of the Twin API should include a data

model description for the structure of the twins

(pertaining to the REST API and GraphQL API).

Depending on the data sources available and the

use cases to be realized with the platform, not all of

the APIs need to be present in every implementation,

in particular the GraphQL API and the multimedia

API can be considered optional.

3.3 User Interfaces

The user interaction with the twin platform typically

centers around two concepts, a graphical user

interface (GUI), actively controlled by the user, and

an alarming facility that informs the user about

unwanted or unexpected system states. Given the

modular nature of our twin platform it is clear that the

user interfaces need to be configurable and extensible

by applications as well. The technology of choice for

modern GUIs is the web platform, so the twin

platform should provide a means of registering web

applications, and likewise for registering alarm and/or

notification targets.

Graphical user interfaces in the simplest case

access the twin APIs for their data access. For

example, an application that generates a forecast of

the temperature evolution of a steel product on a

cooling bed may store these forecasts in the twin

platform via the timeseries API. The visualization

provided by the same app would access this data via

the timeseries API, as well. This mechanism will not

always be sufficient, however, with a need for some

applications to provide custom service interfaces to

their web apps. In our example, the temperature

forecast app could provide a means to simulate

Digital Twin-enabled Application Architecture for the Process Industry

259

certain “what if” scenarios, allowing the user to

trigger a simulation with custom parameters and

displaying the results on the web interface, without

necessarily storing the results in the platform.

3.4 Interaction between Twin

Applications

The modular nature of the twin platform, with

functionalities provided by potentially many

applications, raises the question of how these

applications can interact with each other.

In the simplest case, different applications interact

only via properties of the digital twins. For instance,

App1 may set the value of a property

expectedLifetime of a machine twin via the REST

CRUD API, while App2 listens to changes of the

same property via the Events API and reacts to the

changes. This method will not cover every use case

involving multiple independent applications, but

where it is applicable it is an excellent approach in

terms of interoperability and simplicity.

Where this is not sufficient, dedicated aggregation

apps may serve the purpose to provide combined

services, for instance running two simulations in

sequence, where the results of the first simulation are

used as input for the second. The drawback of this

approach is that it only allows for static combinations

of apps, which must all be known to the aggregator.

One can also conceive of more a sophisticated

platform which enables discoverability of custom

services and standardizes the service interfaces, so

that applications can in principle interact in a (semi-

)autonomous way. For instance, one could think of an

autonomous production planning service which

interacts with the digital twins of different machines

to find the optimum processing route for products,

querying requirements and constraints from the order

book and capabilities from the machine twins. While

our architecture does not preclude such an approach,

we do consider it a secondary priority for process

industry scenarios. Similarly, it would be feasible to

extend the platform to a co-simulation platform,

enabling the user to combine and configure different

simulations that would all need to adhere to a

common specification, such as the Functional Mock-

up Interface (FMI) (Modelica Association, 2022) for

input and output data. This kind of advanced

functionality should be kept out-of-scope for the basic

platform and should rather be realized in terms of

add-on modules, if needed.

https://owasp.org/

3.5 Security

The applications foreseen for the presented concept

providing information that belongs to a company’s

corporate secrets because deep insights to the

production are given. Therefore, security is a main

concern. As a first step, the platform and applications

should only be accessible from within a companies’

protected network, if possible, behind a firewall to the

internet, so that only registered users can get access

via an encrypted VPN tunnel. In addition, the zero-

trust paradigm demands that all communication with

and between services be protected.

Following the first law for web-programmers

(“The user is not your friend”) several techniques to

improve the security are foreseen. Besides transport

layer security (TLS) also authorization,

authentication, and access controls need to be

implemented. The principle of least privileges can

ensure that not everyone has access to everything and

performs only those actions they have authorization

for. Depending on the company’s security concept

open-source tools for multi-factor authentication like

Keycloak (Keycloak, 2022), PrivacyIDEA

(privacyIDEA, 2022) or Google2FA (Google Two-

Factor Authentication for PHP, 2022) can be used for

increased authentication security avoiding ‘lost’

passwords due to social engineering.

Finally, already during the development the

security must be considered using, e.g., application

security best practices, such as the OWASP

guidelines

, patch management, etc.

4 OPEN-SOURCE

IMPLEMENTATION

In the Horizon2020 project CAPRI (Cognitive

Automation Platform for European PRocess Industry

digital transformation) a reference architecture for

cognitive-enabled automation platforms (CAPs) has

been developed (Salis et al., 2022) along with three

implementations for different process industry

domains: asphalt, steel, and pharma. Here we report

on how the digital twin concept has been integrated

into the CAP for the steel domain.

Figure 2 above shows the data flow architecture

proposed for the steel use case, with the following

three main elements:

ETCIIM 2022 - International Workshop on Emerging Trends and Case-Studies in Industry 4.0 and Intelligent Manufacturing

260

Figure 2: CAP implementation.

 the data capture through agents from the

existing automation system

 the CAP, where the data ingestion, validation,

storage, aggregation, and accessing is

performed

 the Apps, which consume the raw and/or

aggregated data from the CAP and return results

to be consumed by other Apps

For the data capture the idea is to use Debian

based Edge IIoT type equipment in which the main

service is Node-RED. This free software based on

Node.JS is a development tool based on flows for

visual programming designed to facilitate the

integration of hardware devices, APIs and online

services as part of the Internet of Things. There is a

very participative community that has developed and

maintains libraries for communication with industrial

devices and protocols of any kind, making it a very

agile tool for development and testing but also

allowing fast and easy replicability. In addition, the

use of Node-RED has made it possible to recreate the

data capture architecture in the form of a simulation

of the process in a transparent way for the CAP,

especially interesting in the development and

validation stages of the apps.

The communication of the data captured on the

Edge devices to the CAP has been implemented using

MQTT TLS, the most widely used protocol for IIoT

data transmission to which an end-to-end encryption

layer has been added. In the CAP, once again Node-

RED was selected to perform the functions of an

ETL, as it allows to parallelize the work of ingesting

the three types of data:

 Events and data in motion

 Timeseries

 Structured data

These three types of data are validated,

transformed in Node-RED and finally stored in their

corresponding databases respectively:

 Redis: in-memory data structure store, used as

the key-value database of the data in motion.

 InfluxDB: a database for storing and retrieving

time series data, very resource-efficient when

dealing with large volumes of historical data.

 PostgreSQL: relational database management

system that emphasizes extensibility and SQL

compliance.

Finally, with the goal to allow different

applications to access the data, a REST API has been

developed and implemented, including endpoints for

structured data (the twin API) and timeseries, as well

as an events interface. The multimedia API proposed

in Section 2.1 was foreseen initially, since the billet

and bar tracking system installed in the plant

generates images of the QR codes on tracked products

that need to be analyzed. For the scope of this project,

it was decided to perform the QR code recognition

solely on dedicted edge computers installed at the

shop floor, however, eliminating the need for any

handling of images, videos, or sound files via the twin

platform. It was hence decided that the multimedia

API will not be provided in this project but might be

added in a future expansion. The addition of a

GraphQL interface is planned, too, it is already shown

Figure

This service requires authentication by a token

previously generated in the server, in which the

corresponding read, write or r/w permissions are

Digital Twin-enabled Application Architecture for the Process Industry

261

assigned for each type of data and database table and

token.

The necessary classes have been developed in

such a way that the data consumers can obtain, in the

three existing data types, the structures of the tables.

Then, the classes for reading and writing these data

types have been developed, each of them with their

corresponding query structure requirements.

In addition to all this, the integration with the

Kafka broker has also been implemented to make the

CSS5 developments able to receive the process data

in real time.

Finally, to complete the CAP architecture, several

process monitoring visualizations have been created

using Grafana (for time series) and Apache Superset

(for aggregated and structured data). Both data

visualization platforms are open-source and are

gradually becoming standard services in the industry.

4.1 Data Model

The data model in our approach describes the

structure of entities accessible via the REST API. It is

specified in terms of JSON schema files, as advocated

by the Smartdatamodels initiative and the FIWARE

community (https://smartdatamodels.org/). The

JSON schema files can be used to generate both

OpenAPI/Swagger-compatible interface descriptions

and a JSON-LD context file, which can then be

served from the API web server. This way,

interoperability with a variety of existing software

tools and compatibility with the semantic web

principles is ensured.

As the base ontology for our model, we selected

the NGSI-LD cross domain ontology (ETSI, 2021),

and the domain-specific model is based on

SAREF4INMA, the SAREF for industry and

manufacturing ontology (ETSI, 2020), with some

adaptations to meet the needs of our specific use case.

Figure 3 shows the high-level view of the model. One

central class in the model is ProductionResource,

which encompasses all the resources and (semi-

)products used and produced in the process, such as

the batches of hot, liquid steel transported in a ladle

(class LadleHeat) and steel billets and bars (classes

Billet and Bar). The sub-hierarchy of

ProductionResources is shown in Figure 4. Another

important class is ProductionEquipment, which

models machines and plants. ProductionResources

keep a reference to the equipment they have been

treated with, but not vice versa. These references may

also contain additional properties and are themselves

submodels of the Transformation class.

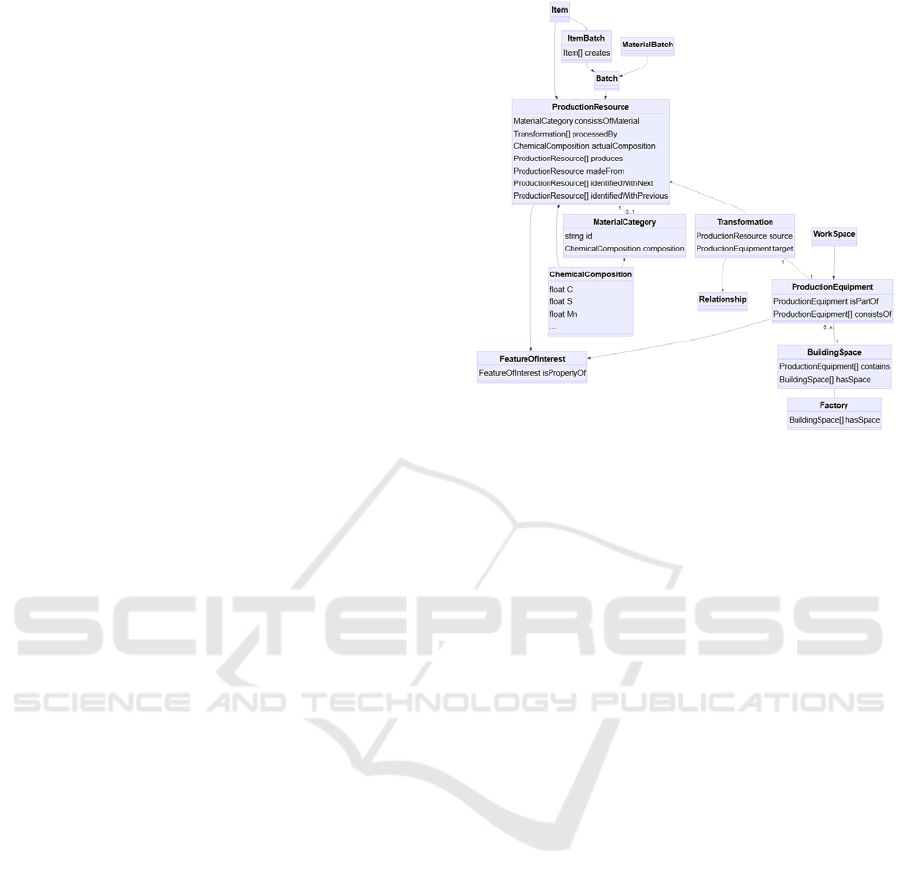

Figure 3: High-level data model for the steel production,

loosely based on SAREF4INMA (ETSI, 2020).

One specific feature of our use case is the tracking

uncertainty for steel billets and bars. After billets are

cut from the casting strand of the continuous casting

machine, they are usually stored for several days in a

large storage facility before being further processed

in the hot rolling mill. Similarly, steel bars created

from the rolled billets in the hot rolling mill first go

to a cooling bed and storage before being transported

to the finishing line. A tracking system has been

installed in the plant for identifying the individual

billet, resp. bar, when entering the hot rolling mill,

resp. finishing line, but due to the harsh conditions

within the steel mill the tracking system cannot

identify every item correctly, and a significant error

rate remains. In the model we handle this problem by

maintaining separate digital twins for billets from the

casting machine and those in the hot rolling mill, and

by means of references between the two, dubbed

identifiedWithNext and identifiedWithPrevious.

These references can be multi-valued to deal with the

possibility of tracking errors, although there should in

principle be a 1-1 correspondence between the two.

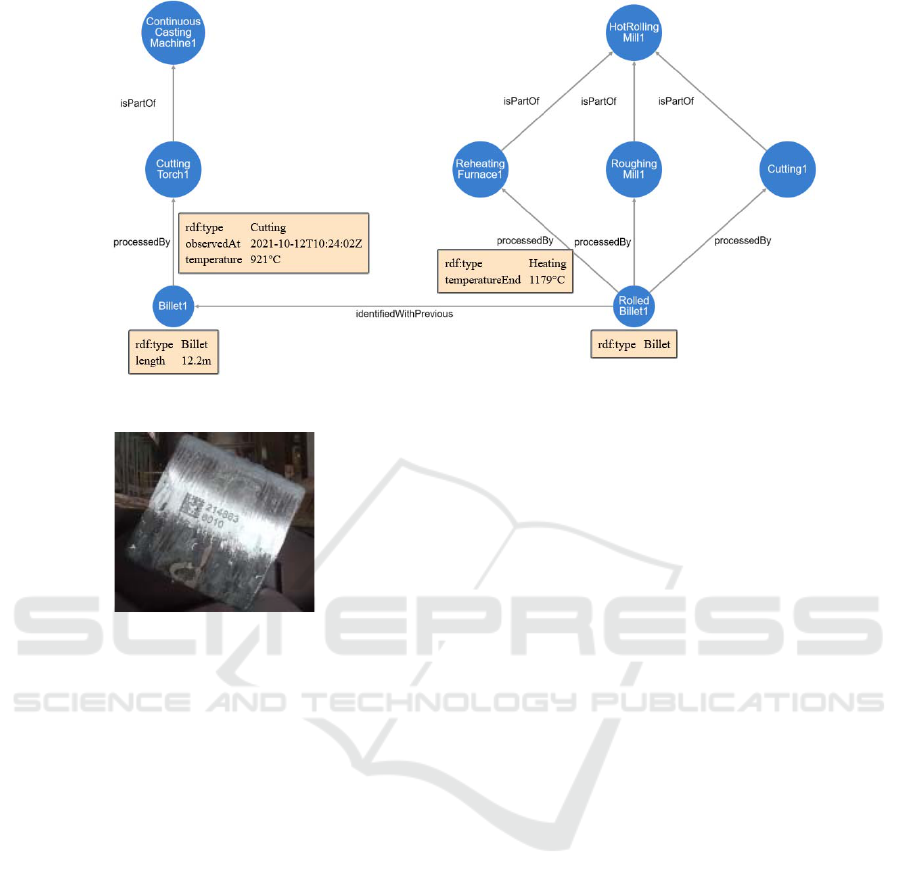

Since our model allows for references of different

kinds, it can be represented as a graph. Furthermore,

since both entities and relationships, i.e., nodes and

edges of the graph, can have properties, it is a

property graph. An example is shown in Figure 5. The

natural representation of the model in terms of a graph

imply that a GraphQL-based API is very suitable for

the development of applications.

It is therefore planned to add such an interface to

the existing REST, timeseries and events interfaces.

ETCIIM 2022 - International Workshop on Emerging Trends and Case-Studies in Industry 4.0 and Intelligent Manufacturing

262

Figure 4: The ProductionResource hierarchy, showing some

steel (semi-)products, such as Billets and Bars, at the top.

4.2 Applications

Being competitive in the worldwide steel sector is of

great importance for the European steel companies.

One solution for a differentiation is the production of

high-quality products. For that a detailed knowledge

of the actual state of each individual (semi-)product

from the very beginning combined with an early

detection of a risk for quality deficiencies will lead to

an advantage. To reach this aim the following

applications are being developed in the project:

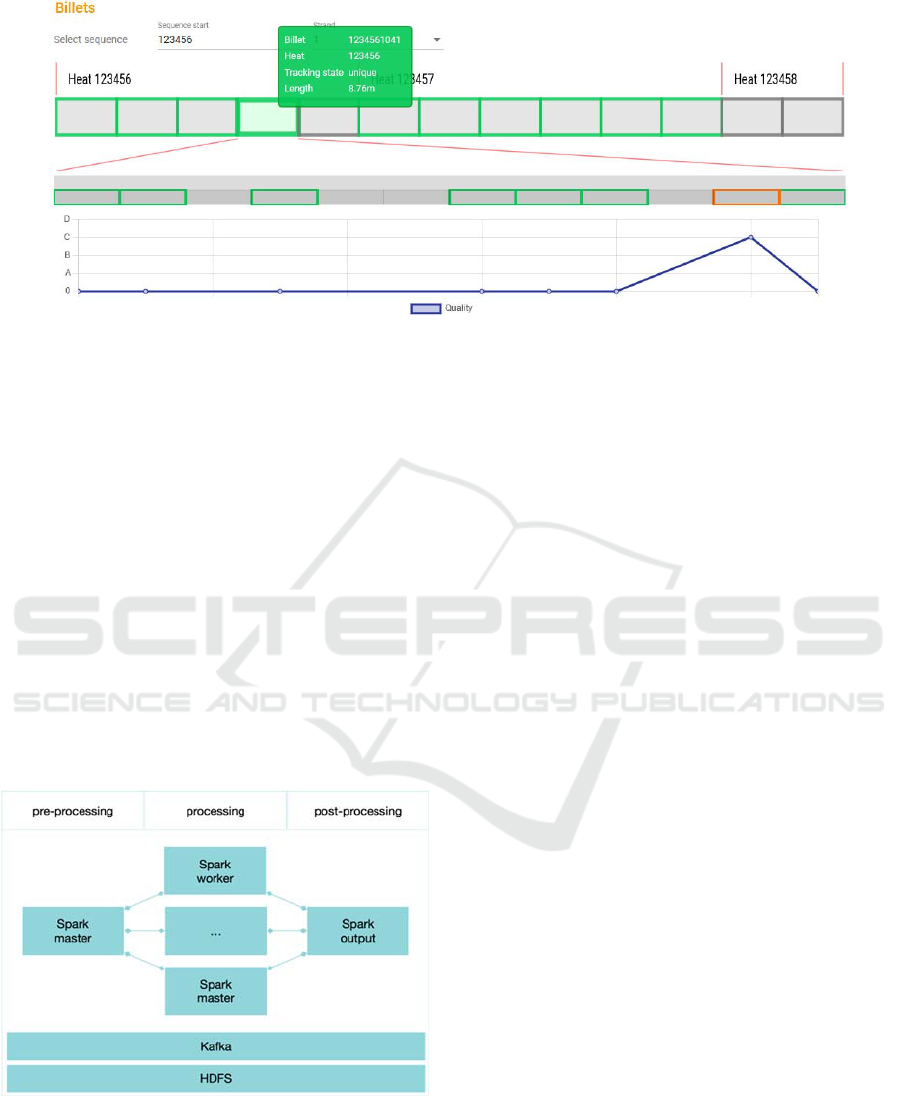

 Product tracking (CSS1): the tracking of the

products along the production chain considering

the changes in the product geometry. This is

mainly realized as an edge application, i.e., the

relevant software is installed near the marking

and reading hardware.

 Data enrichment: soft sensors for steel

solidification in the continuous casting machine

(CSS2), internal temperature development in the

hot rolling mill (CSS3) and scale development

(CSS4). These are realized as twin applications,

i.e., they use the APIs of the CAP for data

access.

 Risk sensor (CSS5): online evaluation of the

available information to early detect a risk for

degraded product surface quality. This is

realized as a broker app, i.e., it operates directly

on the incoming data streams within the CAP.

The tracking system in the steel production has

been improved within the scope of this CAPRI

project, and this is a helpful tool for the Digital Twin

architecture application, as the steel goes through

severe transformations during the global process from

liquid steel to final bar, with an intermediate step of

billet, in this case. The initial state was a tracking to

the heat level: every billet and bar had a clear

identification tracked up to the liquid steel moment.

This way, the chemical composition and most critical

parameters are tracked and ensured. Nonetheless,

there are some other parameters that depend on

process data that vary within one heat as they are

produced in the solid phase, so different bars from the

same heat number can have different casting speeds

or reheating processes.

A more detailed tracking was designed to be able

to identify in each of the final bars the significant

parameters happening in the different moments of the

process.

The concept of this tracking is based on a

combination of hardware and software tools to

produce a bridge of the material in each of the

transformations and a clear identification after it. The

main difficulties arise from the temperature

conditions and, in some cases, the speed of the

process. The approach followed is to mark every

billet in a hot state after it is cut at the end of the

Casting Machine, engraving a QR code by means of

a laser (see

Figure 6). In the next step this billet,

already identified, is read in the entrance of the

Rolling Mill, goes through the rolling transformation

into a bar and each bar is marked again, with billet

and bar identification, in hot conditions. Finally, the

bar, in cold conditions, is read in the finishing units

that check quality bar by bar. The last part of the

system was successfully tried but not fully

implemented as the Rolling Mill was revamped and

the new conditions required an important adaptation

of the marking system.

Apart from the hardware itself, the tracking

requires important software considerations.

First of all, the Level 2 systems involved have to

transmit the relevant new information and

communicate with the markers. Reading cameras on

Digital Twin-enabled Application Architecture for the Process Industry

263

Figure 5: Excerpt of a data graph for the CAPRI steel use case.

Figure 6: A marked steel billet.

the other hand feed the Level 2 systems with the

information obtained from the reading of the

identified QR codes. However, there is another

important aspect that has been addressed: the

transformation from the time series data to the

product-based data. Effectively, in the Casting

Machine, for example, there are several billets in the

different parts of the machine and at the same time

one billet is in the mould, another one in the

secondary cooling and another one, maybe from the

previous heat, in the straightening unit. The

transformation from the time series data to the billet-

based data, has to be done strand by strand; it is

important to correctly feed the Digital Twin; and it is

a direct consequence of the tracking improvement, as

previously, the only possible consideration was the

average value for the whole heat.

The Digital Twins concept is implemented in our

use case for the steel billets and bars, and it is heavily

rooted in the improved tracking system. An example

of billet and bar twins with an indication of their

tracking status (successful, missed, duplicate) is

shown in Figure 7.

The realization of broker apps, notably the risk

sensor CSS5, in the platform is based on the coupling

of Kafka data streams and Spark jobs running the

applications. Kafka data streams comprise different

data streams, including metallurgy, casting and hot

rolling data, which arrive at different frequencies and

volumes. Kafka jobs requests are structured in

different topics.

The broker applications are organized as a set of

spark jobs in three different steps, see also Figure 8:

 Pre-processing: this runs on the spark master

and is in charge of collecting data coming

from different sources (metallurgy and casting

data), synchronizing data streams, loading to a

HDFS and coded with a heatnumber.

Algorithm correctness is ensured by the

correct association of metallurgy and billet

data in the correct sequence.

 Once both casting and metallurgy data are

available the processing step can start.

 Processing: this part is in charge of receiving

Kafka jobs. Each time the topics contain a new

job, the spark job consumes it by accessing

HDFS for data, and once all data is available, it

fires the cognitive solution processing on

different worker machines in parallel,

leveraging on the CAP capabilities.

 Post-processing: once the output is generated

to the spark worker node, the data is stored in

the CAP persistence layer and sent back to the

requester through a Kafka topic. The data

stored will be later used to visualize all

generated data. Custom dashboards can be

designed and implemented allowing users to

consume real-time and historical data for

monitoring and decision support. Furthermore,

a bidirectional interaction is supported,

ETCIIM 2022 - International Workshop on Emerging Trends and Case-Studies in Industry 4.0 and Intelligent Manufacturing

264

Figure 7: Visualization of billet and bar twins in the steel use case. Rectangles in the upper row represent billets (steel semi-

products) and those in the middle row represent bars (the final products) made from a single billet. Colors indicate the tracking

status (green: successful, grey: missed, orange: duplicate).

enabling the control functionalities through the

communication with the brokering layer as an

intermediary for the southbound devices.

5 CONCLUSIONS

We have outlined the software architecture for a

modular Digital Twin application platform for the

process industries, along with an implementation in

terms of open-source components that has been

created for a producer of steel long products. We

emphasized the need to support different types of

applications and to provide well-documented and

simple to use interfaces, enriched with semantic

information and cross-referencing each other.

Figure 8: Detail view of the broker application runtime.

An analysis of the existing standards landscape

for digital twins reveals the existence of promising

initiatives, such as the Asset Administration Shell

(AAS) or the NGSI-LD specification, but we also

identified gaps and a few questionable design

decisions in these rather new technologies, which

ultimately drove our decision for a custom interface

specification. Future iterations of these standards may

improve on this and make them a good basis for

achieving interoperability between systems.

The importance of product tracking for the

application of Digital Twins concepts in the process

industries cannot be overestimated. A novel tracking

system for steel long products has been deployed in

the steel plant considered, and our twin platform has

been equipped with a data model that is well capable

of representing tracking errors and uncertainties.

As a next step the platform and applications will

be fitted for online operation and be deployed to the

plant network. The goal is to significantly reduce the

amount of surface defects, resp. to detect defective

products early on, in order to avoid the costs incurred

by the further processing and to reduce the impact on

the environment. A set of KPIs has been defined to

quantify the impact of these solutions.

Surface defects on the bars, as final products

considered here, can originate from different

processes in the steel mill, in particular from

inclusions that occurred during the casting of steel or

from problems in the hot rolling mill. The digital twin

concept based on the new tracking system will allow

us to retrieve the relevant datasets applicable to an

individual bar, to analyse them for irregularities and

potentially to identify the root cause of the problem.

ACKNOWLEDGEMENTS

This work has been supported by the CAPRI project,

which has received funding from the European

Digital Twin-enabled Application Architecture for the Process Industry

265

Union’s Horizon 2020 research and innovation

programme under grant agreement No. 870062.

REFERENCES

Autiosalo, J., Ala-Laurinaho, R., Mittal, J., Valtonen, M.,

Peltoranta, V., & Tammi, K. (2021). Towards

Integrated Digital Twins for Industrial Products: Case

Study on an Overhead Crane. In: Applied Sciences,

11(2), 683. https://doi.org/10.3390/app11020683

Big Data Value Association (BDVA) (2017). Strategic

Research and Innovation Agenda. http://bdva.eu/

sites/default/files/BDVA_SRIA_v4_Ed1.1.pdf

Boss, B., Malakuti, S., Lin, S.-W., Usländer, T., Clauer, E.,

Hoffmeister, M., & Stojanovic, L. (2020). Digital Twin

and Asset Administration Shell Concepts and

Application in the Industrial Internet and Industrie 4.0.

An Industrial Internet Consortium and Plattform

Industrie 4.0 Joint Whitepaper. https://www.plattform-

i40.de/IP/Redaktion/DE/Downloads/Publikation/Digital

-Twin-and-Asset-Administration-Shell-Concepts.html

DKE (2020). Industry 4.0 Standardization

Roadmap. https://www.dke.de/en/areas-of-work/

industry/standardization-roadmap-industry-40

Microsoft (2019). Digital Twin Definition Language

https://github.com/Azure/opendigitaltwins-dtdl

ETSI (2019). ETSI TR 103 535 SmartM2M; Guidelines for

using semantic interoperability in the industry.

https://www.etsi.org/deliver/etsi_tr/103500_103599/1

03535/01.01.01_60/tr_103535v010101p.pdf

ETSI (2020). ETSI TS 103 410-5 SmartM2M; Extension to

SAREF; Part 5: Industry and Manufacturing Domains.

https://saref.etsi.org/saref4inma

ETSI (2021). ETSI GS CIM 009 Context Information

Management (CIM); NGSI-LD API. https://

www.etsi.org/deliver/etsi_gs/CIM/001_099/009/01.04.

02_60/gs_CIM009v010402p.pdf

FIWARE Foundation (2021). FIWARE for Digital

Twins. https://www.fiware.org/wp-content/uploads/

FF_PositionPaper_FIWARE4DigitalTwins.pdf

Google Two-Factor Authentication for PHP [Computer

software]. (2022). https://github.com/antonioribeiro/

google2fa

Industrial Internet Consortium (2020). Digital Twins for

Industrial Applications. Definition, Business Values,

Design Aspects, Standards and Use Cases.

https://www.iiconsortium.org/pdf/IIC_Digital_Twins_

Industrial_Apps_White_Paper_2020-02-18.pdf

Jacoby, M., & Usländer, T. (2020). Digital Twin and

Internet of Things - Current Standards Landscape. In:

Applied Sciences, 10(18), 6519. https://doi.org/

10.3390/app10186519

Jacoby, M., Jovicic, B., Stojanovic, L., & Stojanovic, N.

(2021). An Approach for Realizing Hybrid Digital

Twins Using Asset Administration Shells and Apache

StreamPipes. In: Information, 12(6), 217.

https://doi.org/10.3390/info12060217

Keycloak (Open Source Identity and Access Management)

[Computer software]. (2022). https://www.keycloak.org/

Mowbray, M., Vallerio, M., Perez-Galvan, C., Zhang, D.,

Del Rio Chanona, A., Navarro-Brull, F.J. (2022),

Industrial data science – a review of machine learning

applications for chemical and process industries. In:

React. Chem. Eng., 7, 1471-1509. https://doi.org/

10.1039/D1RE00541C

Modelica Association (2022). Functional Mock-up

Interface (FMI). https://fmi-standard.org/

oneM2M (2019). Base Ontology. https://www.

onem2m.org/images/pdf/TS-0012-Base_Ontology-

V3_7_3.pdf

Plattform Industrie 4.0 (2021). Details of the Asset

Administration Shell - Part 2. Interoperability at

Runtime – Exchanging Information via Application

Programming Interfaces. https://www.plattform-

i40.de/IP/Redaktion/EN/Downloads/Publikation/Detai

ls_of_the_Asset_Administration_Shell_Part2_V1.html

privacyIDEA (Flexible, Open Source Multi Factor

Authentication (2FA)) [Computer software] (2022).

https://www.privacyidea.org/

Salis, A. Marguglio, A., De Luca, G., Gusmeroli, S. and

Razzetti, S. (2022). An Edge-Cloud based Reference

Architecture to support cognitive solutions in the

Process Industry. https://arxiv.org/abs/2202.06622

W3C (2020). Web of Things (WoT) Thing Description.

https://www.w3.org/TR/2020/REC-wot-thing-

description-202004.

ETCIIM 2022 - International Workshop on Emerging Trends and Case-Studies in Industry 4.0 and Intelligent Manufacturing

266
