Incorporating the User Attention in User Interface Logs

A. Mart

ınez-Rojas

1 a

, A. Jim

enez-Ram

ırez

1 b

, J. G. Enr

ıquez

1 c

and D. Lizcano-Casas

2 d

Departamento de Lenguajes y Sistemas Inform

aticos, Escuela T

ecnica Superior de Ingenier

ıa Inform

atica,

Avenida Reina Mercedes, s/n. 41012, Sevilla, Spain

Universidad a Distancia de Madrid, UDIMA, V

ıa de Servicio A-6, 15, 28400 Collado Villalba, Madrid, Spain

Keywords:

Robotic Process Automation, Noise Filtering, Eye Tracker, Gaze Analysis, Human-Computer Interaction,

Feature Extraction

Abstract:

Business process analysis is a key factor in the lifecycle of Robotic Process Automation. Currently, task

mining techniques provide mechanisms to analyze information about the process tasks to be automated, e.g.,

identify repetitive tasks or process variations. Existing proposals mainly rely on the user interactions with the

UIs of the system (i.e., keyboard and mouse level) and information that can be gathered from them (e.g., the

window name) which is stored in a UI event log. In some contexts, the latter information is limited because the

system is accessed through virtualized environments (e.g., Citrix or Teamviewer). Other approaches extend

the UI Log, including screenshots to address this issue. Regardless of the context, the aim is to store as much

information as possible in the UI Log so that is can be analyzed later on, e.g., by extracting features from

the screenshots. This amount of information can introduce much noise in the log that messes up what is

relevant to the process. To amend this, the current approach proposes a method to include a gaze analyzer,

which helps to identify which is process-relevant information between all the information. More precisely, the

proposal extends the UI Log deﬁnition with the attention change level, which records when the user’s attention

changes from one element on the screen to another. This paper sets the research settings for the approach and

enumerates the future steps to conduct it.

1 INTRODUCTION

Over the last decade, the industry has embraced

Robotic Process Automation (RPA) as a new level of

process automation aimed at mimicking the behavior

of humans interacting with user interfaces (UI) rather

than orchestrating sequences of API calls (van der

Aalst, 2016). It is recognized that a successful RPA

adoption goes beyond simple cost savings but also

contributes to improved agility and quality (Asatiani

and Penttinen, 2016; Capgemini, 2017; Lacity and

Willcocks, 2015). Most RPA projects start by observ-

ing human workers performing the later automated

process. Recently, terms such as Robotic Process

Mining (Leno et al., 2020; Agostinelli et al., 2020)

and Task Mining (Reinkemeyer., 2020; Mayr et al.,

2022) have been coined to refer to the application of

process mining techniques (van der Aalst, 2016) for

https://orcid.org/0000-0002-2782-9893

https://orcid.org/0000-0001-8657-992X

https://orcid.org/0000-0002-2631-5890

https://orcid.org/0000-0001-7928-5237

the discovery of the processes behind human behav-

ior. To this end, interactions with the user interface

are recorded in what is known as a UI Log (i.e., a

series of mouse and keyboard events). These meth-

ods have become very convenient in helping analysts

to identify candidate processes to be robotized, their

different variants and their decision points efﬁciently

(Jimenez-Ramirez et al., 2019).

However, human work is sometimes based on in-

formation that is displayed on the screen (cf. Fig.

1 a, where the same activity is shown with differ-

ent properties, i.e., the ﬁrst includes a checkbox se-

lected while the checkbox is not selected in the sec-

ond one) but not captured in the UI Log since there

is not a mouse or keyboard event over it. In order

to understand this human behavior, screen captures

can be obtained along with each event in the UI Log

(Jimenez-Ramirez et al., 2019). Then, features can be

extracted to enrich the UI Log information (Mart

ınez-

Rojas et al., 2022) as additional columns for each

event (cf. Fig. 1 b). These feature extraction meth-

ods extract information regarding all the UI elements

in the screen (e.g., position, type, or text), thus po-

Martínez-Rojas, A., Jiménez-Ramírez, A., Enríquez, J. and Lizcano-Casas, D.

Incorporating the User Attention in User Interface Logs.

DOI: 10.5220/0011568000003318

In Proceedings of the 18th International Conference on Web Information Systems and Technologies (WEBIST 2022), pages 415-421

ISBN: 978-989-758-613-2; ISSN: 2184-3252

415

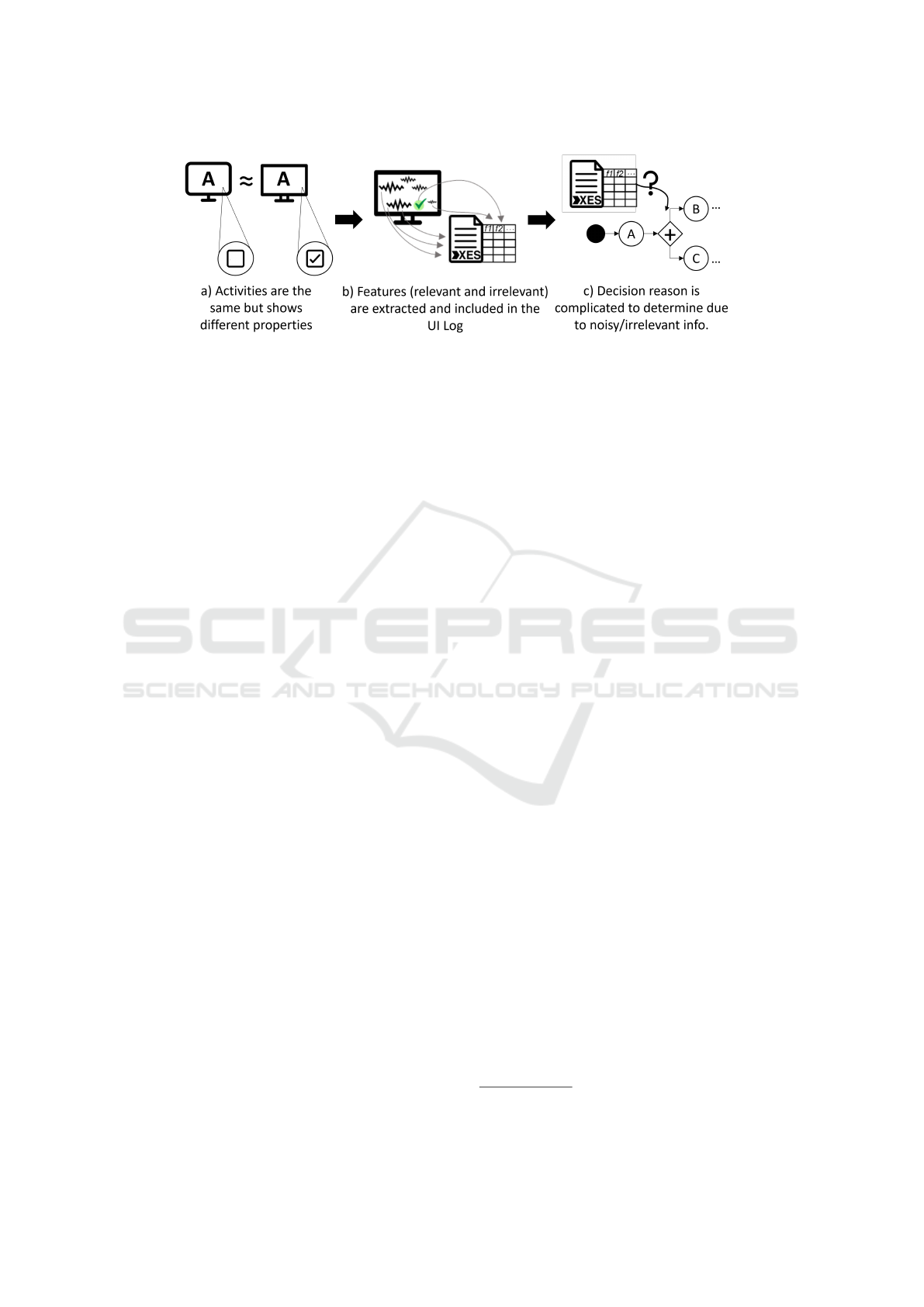

Figure 1: Motivation problem.

tentially including the immense number of columns

in the log. Moreover, only a tiny fraction of these

features can explain the worker’s behavior. The rest

is irrelevant information. Therefore, when trying to

explain this behavior, all this irrelevant information

introduces noise, which negatively impacts the accu-

racy of the discovered models.

To address this issue, this work proposes a ﬁltering

mechanism that wipes out the process-irrelevant in-

formation from the UI Log. For this, the worker’s at-

tention is obtained using a gaze analysis tool, includ-

ing this information as new events in the log. Then,

only the features related to the elements that the user

has looked at are those that will be considered rele-

vant, from those present in the log.

The current paper sets the research settings and

evaluates the approach over a running example. The

initial results show a considerable noise reduction in

such an example and point out the future research line.

The rest of the paper is organized as follows. Sec-

tion 2 brieﬂy summarizes related work. Section 3 de-

scribes the proposed approach. Section 4 presents

an application example of the proposal Section 5

presents a critical discussion. Finally, Section 6 con-

cludes the paper and describes future work.

2 RELATED WORK

To capture the attention of users through gaze anal-

ysis, there are several proposals, all of them related

to eye-tracking. Most of the eye-tracking studies on

business processes focus on understanding the pro-

cess models (Petrusel and Mendling, 2013; Tallon

et al., 2019; Zimoch et al., 2017; Duarte et al., 2020).

Other proposals focus on combining user interac-

tions with gaze data from eye trackers. They aim to

associate this information with key objects in the in-

terface and be able to extract features to predict the

intentionality, for example, to use the user’s attention

for the UI adaptation (Feit et al., 2020), or to study

the user’s behavior in a more accurate way (Loyola

et al., 2015; Slanzi et al., 2017). However, these pro-

posals are focused on the web domain, which entails

that most of the tools used are limited to the browser.

On the other hand, if we focus on the context of

RPA, there are proposals to identify and ﬁlter events

that do not belong to any action, i.e. noise ﬁltering

(Agostinelli et al., 2020; Leno et al., 2020). But they

do not propose methods to ﬁlter out non-relevant fea-

tures associated with the same event.

Conversely, our proposal focuses on the use of eye

tracking as a new source of information to store the

worker’s attention as events. These are used to ﬁlter

out non-relevant features related to each event, inde-

pendently of any system and application.

3 APPROACH

This proposal focuses on ﬁnding the process-relevant

information based on the user’s attention. For this

purpose, it is assumed that relevant information will

be the one the user interacts with through her gaze. In

this way, to recede the noise introduced by irrelevant

information, we will focus on storing only the infor-

mation related to the elements observed by the user.

To do so, the following steps are necessary.

First, the user behavior is monitored (cf. Fig.

2.a). The mouse and keyboard actions are recorded in

a UI Log associated with the screenshots taken dur-

ing process monitoring. This can be done using tools

such as RPA-logger (L

opez-Carnicer et al., 2020). In

addition, during the recording session, the activity at

the gaze level is recorded through tools for monitor-

ing the user’s gaze (i.e., eye-trackers), such as Tobii

Pro Lab

. They provide a gaze log with the X and

Y coordinates where the user looks at every process

moment.

Source: https://www.tobiipro.com/product-listing/

tobii-pro-lab/

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

416

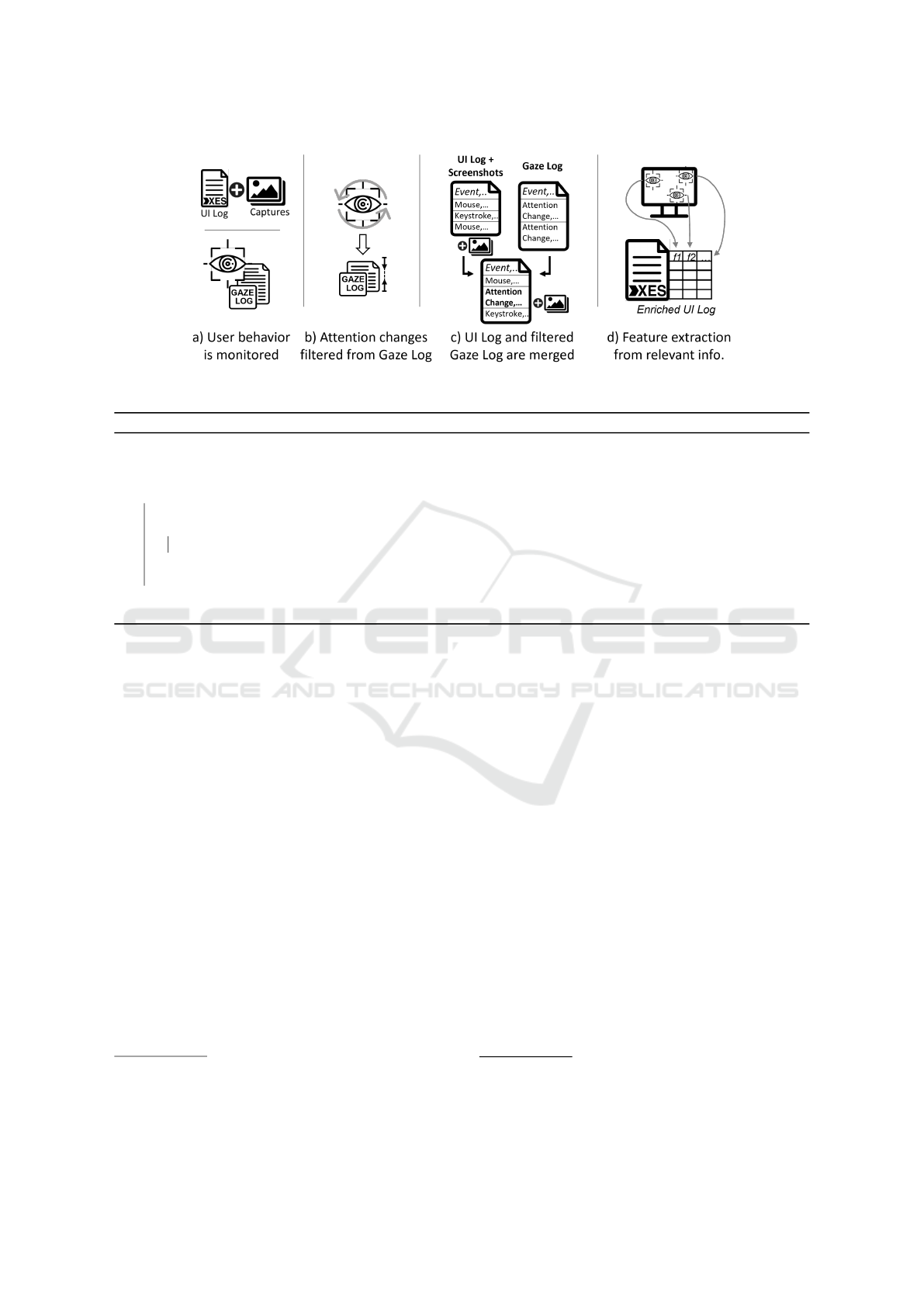

Figure 2: Approach.

Algorithm 1: Filtering Gaze Log.

1 fontsize= Input : GazeLog gazeLog, int thresholdDistance

Output: GazeLog f ilteredGazeLog

2 GazeLog f ilteredGazeLog ← copyGazeLog(gazeLog) double lastGazeX = 0 double lastGazeY = 0 for

event in ﬁlteredGL do

3 double distanceToT heLast ← distanceBetween([event.gazeX, event.gazeY ], [lastGazeX, lastGazeY ]) if

thresholdDistance ≥ distanceToTheLast then

4 f ilteredGazeLog.remove(event)

5 end

6 lastGazeX = event.gazeX lastGazeY = event.gazeY

7 end

8 return f ilteredGazeLog

In second place, attention changes are ﬁltered

from gaze log (cf. Fig. 2.b). A threshold is set

to determine the percentage of screen resolution that

must be present between one coordinate and the next

for considered an attention change. This means that,

given two coordinates that exceed this distance, it will

be considered that the gaze has changed its focus and,

therefore, exists an attention change. This process is

detailed in Algorithm 1. As a result, the gaze log is

converted into a ﬁltered gaze log with only the coor-

dinates of the attention changes.

Continuing in third place, the UI Log and ﬁltered

gaze log are merged (cf. Fig. 2.c) to obtain a User

Behaviour Log (cf. Deﬁnition 3.1) as a result. This

means that it extends the information stored in the UI

Log, adding a new event type, the attention change

event. To obtain this UB Log, the procedure detailed

in Alg. 2 is followed. Here, attention change events

are combined with the UI Log ones, sorted by their

timestamp. These events will have the same general

properties (i.e. screenshot, nameapp, etc.) as the im-

mediately following UI Log event in terms of times-

tamp.

Thus, a log is obtained with information of

This is due to the way screenshots are taken. They

are taken just before the event is processed. So, the event

occurs on the screenshot itself. Attention change events, do

not generate screenshots. Therefore, its associated capture

the keyboard and mouse events, as well as screen-

shots and the user’s attention change events, sorted

by timestamp. This log will be called hereafter User

Behavior Log, i.e. UB Log.

Deﬁnition 3.1. An User Behaviour Log (UB Log) is

a log that stores the aggregate of the responses, reac-

tions, or movements made by an user interacting with

an information system.

Finally, the information stored in the UB Log is

used to perform a feature extraction of the relevant

information (cf. Fig. 2.d). That is, from all the pos-

sible features that can be extracted from the screen-

shots, only those to which the user has paid attention

are considered. Obtaining an a result an enriched log

with the process-relevant information.

How the features are extracted depends on the ob-

jective of the research. For instance, these logs can

be used to apply task mining techniques or decision

model discovery (Mart

ınez-Rojas et al., 2022). In this

case the features extracted consist of the number of UI

elements of each type, present in the screenshot. So

those whose position does not receive attention will

not be counted.

will be that of the subsequent event, that is the next one to

be captured.

Based on behaviour deﬁnition: https://www.wordnik.

com/words/behaviour

Incorporating the User Attention in User Interface Logs

417

Algorithm 2: Building User Behaviour Log from Filtered Gaze Log and UI Log.

Input : UILog uiLog, GazeLog filteredGazeLog

Output: UserBehaviourLog result

1 UBLog ubLog ← copyAsUBlog(uiLog)

2 for gEvent in ﬁlteredGL do

3 UILogEvent uiLogEvent, int position ← eventTimestampGreaterT han(uiLog, gEvent.timestamp)

4 uiLogEvent.removeProperties([keystroke, mouseX, mouseY, eventType])

5 uiLog.addProperties({

EventType

AttentionalChange

GazeX

: gEvent.gazeX,

GazeY

: gEvent.gazeY })

6 ubLog.setEventPreceding(position, uiLogEvent)

7 end

8 return ubLog

4 APPLICATION EXAMPLE

This section details the application of the proposal to

a use case based on the mortgage approval process

in the context of a banking company. This proof of

concept consists of an artiﬁcial business case selected

simply to illustrate the gaze analysis approach.

Fig. 3 shows the main screenshots of the process.

In this process, the user checks the list of mortgage

applications (Activity A, not present in Fig. 3) and

navigates to one of the pending applications. Here,

the user must validate whether the customer’s ﬁnan-

cial information is consistent with the amount re-

quested (cf. Act.B, Fig. 3). Speciﬁcally, the percent-

age of income relative to the customer’s debt (DTI)

must be below a given threshold. If it is below, the

mortgage application is pre-approved (cf. Act.C, Fig.

3). If it exceeds the threshold, the mortgage appli-

cation is rejected, and an email is sent to the client

indicating the reason (cf. Act.D, Fig. 3). The user

repeats this process as many times a day as the mort-

gage applications she has in the queue.

The UI and the Gaze Logs are obtained after the

execution of the ﬁrst part of this proposal (cf. Fig.2.a).

These logs consist of the user interactions at mouse

and keyboard level on the one hand and at gaze level

on the other hand.

In the Gaze Log, it can be observed that there

are many events whose coordinates are located in the

same area of the screen (cf. highlighted groups in

Fig.5). In this example, a threshold of 5% of the reso-

lution is set, so assuming a resolution of 1920x1080,

we have a threshold distance of 96 pixels on the X-

axis and 54 on the Y. Therefore, it can be determined

that all distances greater than this are considered an

attention change. As a result, the gaze log is ﬁltered,

remaining only attention changes events as shown in

Fig. 5.

Then, following the procedure of Alg. 2, the UI

and the Gaze Logs are merged to give rise to the UB

Log. An extract of this UB Log is shown in Fig.

6. It can be observed that all the events of attention

changes take the same nameapp and screenshot as the

immediately following event since attention changes

take place in this screenshot.

Using this UB Log, ﬁltering can be performed.

Some of the existing techniques to crop and detect

components, such as (Xu et al., 2017; Moran et al.,

2018) can be used. So, we can extract the information

of the bounding box associated with each component

in the screenshot and the type of UI element (e.g.,

checkbox or button) to which it corresponds. These

are helpful to cross the data with the gaze information

of the UB Log. Only if there is a point (i.e., [Gaze-

PointX, GazePointY]) inside the bounding box associ-

ated to the UI element, features are extracted from it.

In this case, if we focus on the screenshot 2 img.png,

it can be seen how crossing the data shows those UI

elements that the user has checked (cf. Fig. 7).

Subsequently, a feature extraction technique has

to be selected to be applied to extract information

from the ﬁelds “Customer Email”, “29/06/1989”,

“$170000” and “3%” followed by a checked. Which

are those that are considered relevant by this ap-

proach.

Finally, using all data present in the UB Log, it is

possible to conclude that having a percentage higher

than 35%, the application is rejected. Therefore, the

reason for the decision taken is discovered, proving to

be a promising approach.

5 DISCUSSION

This study establishes the basis for developing a

method to improve the way of retrieving information

from the user human-computer interaction, including

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

418

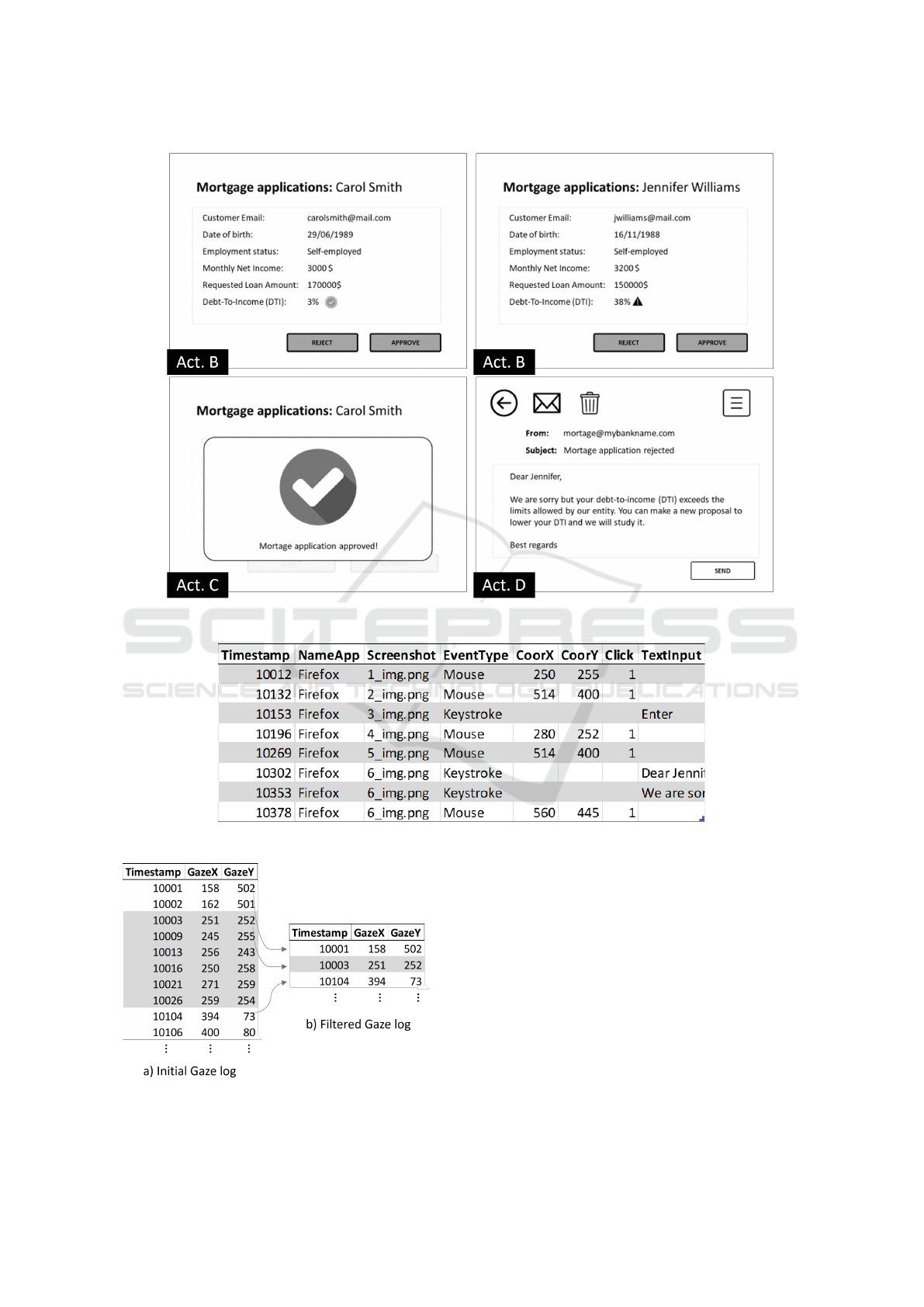

Figure 3: Screenshots associated with the example process.

Figure 4: Excerpt of a UI Log obtained form a keylogger.

Figure 5: Exceprt of Gaze Log obtained from an eyetracker.

a gaze analyzer. The main goal of this approach is

to discard irrelevant information to produce a higher-

quality UB Log to be later processed.

There are several ways to store the information

provided by the gaze analyzer. One of them could

be to store this information as new columns of the UB

Log. In this way, we could store each event change

(i.e., gaze attention) in a new column, similar to a

mouse click coordinates or text input in a keystroke

event. Through this alternative, it is possible to obtain

better performance indicators when executing the ﬂat-

tening of the UB Log. However, relevant information

associated with the timestamp of each event would be

lost (e.g., the order in which events occur). To mit-

Incorporating the User Attention in User Interface Logs

419

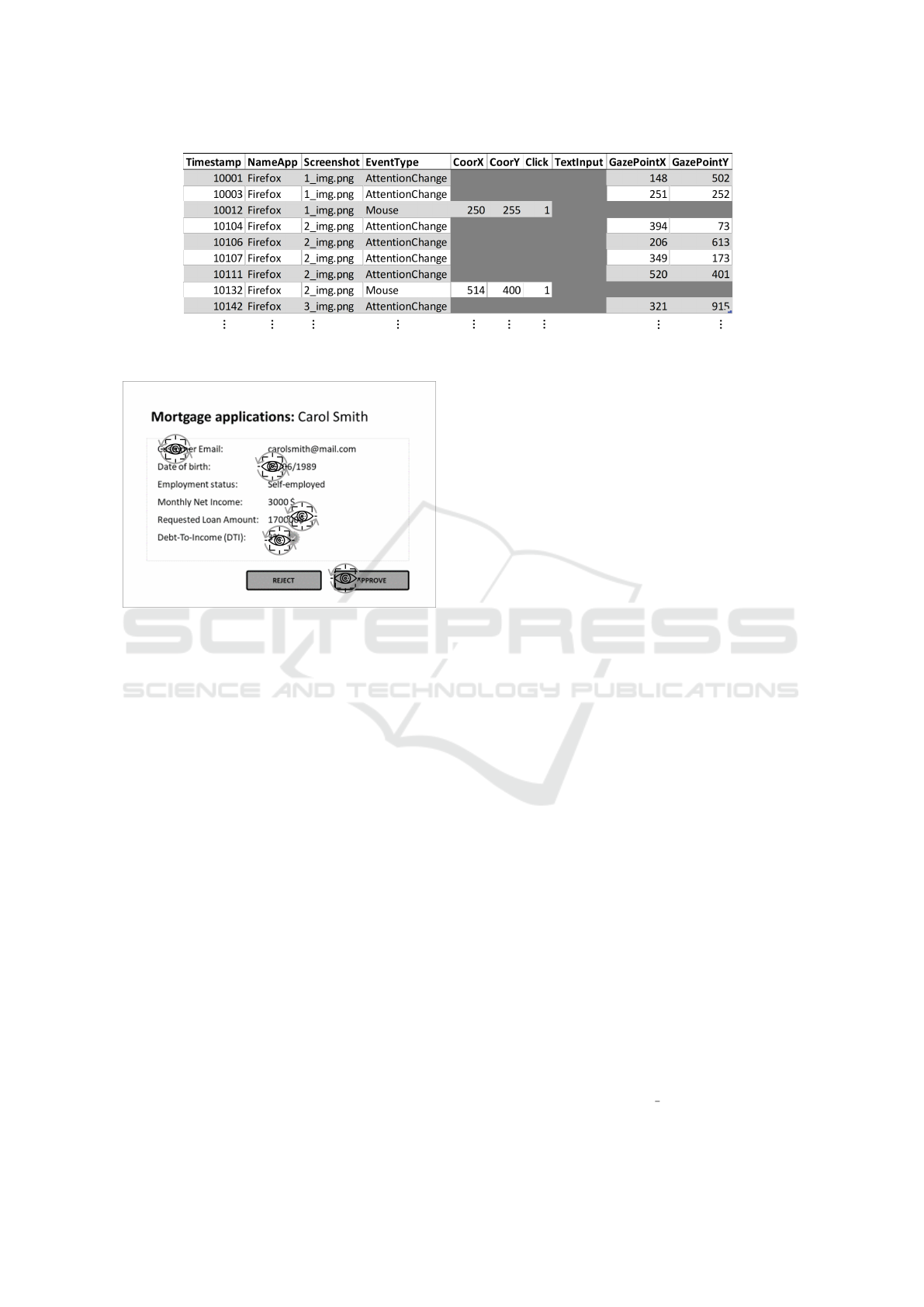

Figure 6: User Behaviuor Log (UB Log) associated to example process.

Figure 7: Attention changes highlighted on screenshot.

igate this threat, this solution proposes to store the

attention change events as a new event type (i.e., at-

tention change), including as many rows as you need

when generating the UI Log.

Due to the incipient nature of the proposal, this

solution does not consider anomalous user behavior

during the recording session that results in the gaze

log. In this sense, this approach delegates gaze analy-

sis tools to detect these most common behaviors (e.g.,

pupil dilation due to ambient light change or operator

fatigue effect).

Moreover, the extraction of features from the UB

Log can be done in several ways, not only as indicated

in this proposal. For instance, it would be possible to

extract plain text or features from the exact position of

each type of UI element on the screen to store them as

columns of the log. Our proposal is applicable to any

of the approaches, since the features can be ﬁltered as

long as we can determine if the position of the UI ele-

ment from which it comes coincides with an attention

change event.

Finally, the most important threat we have de-

tected in the development of our study is its valida-

tion. So far, we have laid the foundations for the

proposal and instantiated it on a simple and synthetic

example. To mitigate this threat, we will propose as

future work the execution of more robust experimen-

tation to check the robustness and effectiveness of the

proposal.

6 CONCLUSIONS AND FUTURE

WORK

This paper presents a novel approach for generating

a higher quality UI Log (i.e., UB Log) using gaze

tracking techniques to ﬁlter the most relevant user in-

teraction features. Although in the literature, there

are some proposals related to this topic (Loyola et al.,

2015; Slanzi et al., 2017), the major drawback we

found is that they are focused on web environments.

Conversely, our approach contributes to the use of any

application. The proposed method has been conceptu-

ally tested in a synthetic example, obtaining promis-

ing results. The present solution, in addition, could

be used for work in progress research such as the one

presented in (Mart

ınez-Rojas et al., 2022).

As further future work, we plan: (1) as exposed

in the discussion, to validate the proposal on a real

industry-driven use case. (2) to analyze results ob-

tained using different values of the threshold distance

to identify attentional changes. (3) to consider cases,

such as the use of all-in-one applications, where atten-

tion change events can lead to an activity change. (4)

to evaluate the information provided by the different

eyetrackers and based on this determine if the results

are improved by including some additional column to

the X and Y coordinates of the gaze.

ACKNOWLEDGEMENTS

This publication is part of the project

PID2019-105455GB-C31, funded by MCIN/

AEI/10.13039/501100011033/ and by the “European

Union” and the project P20

00644, funded by Junta

de Andaluc

ıa; Moreover, the ﬁrst author of this work

WEBIST 2022 - 18th International Conference on Web Information Systems and Technologies

420

is currently supported by the FPU scholarship pro-

gram, granted by the Spanish Ministry of Education

and Vocational Training (FPU20/05984).

REFERENCES

Agostinelli, S., Lupia, M., Marrella, A., and Mecella,

M. (2020). Automated generation of executable rpa

scripts from user interface logs. In International Con-

ference on Business Process Management, pages 116–

131. Springer.

Asatiani, A. and Penttinen, E. (2016). Turning robotic

process automation into commercial success - Case

OpusCapita. Journal of Information Technology

Teaching Cases, 6(2):67–74.

Capgemini, C. (2017). Robotic Process Automation -

Robots conquer business processes in back ofﬁces.

Duarte, R. B., da Silveira, D. S., de Albuquerque Brito, V.,

and Lopes, C. S. (2020). A systematic literature re-

view on the usage of eye-tracking in understanding

process models. Business Process Management Jour-

nal.

Feit, A. M., Vordemann, L., Park, S., Berube, C., and

Hilliges, O. (2020). Detecting relevance during

decision-making from eye movements for ui adapta-

tion. In ACM Symposium on Eye Tracking Research

and Applications, ETRA ’20 Full Papers, New York,

NY, USA. Association for Computing Machinery.

Jimenez-Ramirez, A., Reijers, H. A., Barba, I., and

Del Valle, C. (2019). A method to improve the early

stages of the robotic process automation lifecycle. In

CAiSE 2019, pages 446–461. Springer.

Lacity, M. and Willcocks, L. (2015). What Knowledge

Workers Stand to Gain from Automation. Harvard

Business Review.

Leno, V., Polyvyanyy, A., Dumas, M., La Rosa, M., and

Maggi, F. M. (2020). Robotic Process Mining Vision

and Challenges. Business & Information Systems En-

gineering.

opez-Carnicer, J. M., del Valle, C., and Enr

ıquez, J. G.

(2020). Towards an opensource logger for the analysis

of rpa projects. In International Conference on Busi-

ness Process Management, pages 176–184. Springer.

Loyola, P., Martinez, G., Mu

noz, K., Vel

asquez, J. D.,

Maldonado, P., and Couve, A. (2015). Combining

eye tracking and pupillary dilation analysis to identify

website key objects. Neurocomputing, 168:179–189.

Mart

ınez-Rojas, A., Jim

enez-Ram

ırez, A., Enr

ıquez, J., and

Reijers, H. (2022). Analyzing variable human actions

for robotic process automation. In International Con-

ference on Business Process Management, pages 75–

90. Springer.

Mayr, A., Herm, L.-V., Wanner, J., and Janiesch, C. (2022).

Applications and challenges of task mining: A litera-

ture review.

Moran, K., Bernal-C

ardenas, C., Curcio, M., Bonett, R.,

and Poshyvanyk, D. (2018). Machine learning-based

prototyping of graphical user interfaces for mobile

apps. IEEE Transactions on Software Engineering,

46(2):196–221.

Petrusel, R. and Mendling, J. (2013). Eye-tracking the fac-

tors of process model comprehension tasks. In In-

ternational Conference on Advanced Information Sys-

tems Engineering, pages 224–239. Springer.

Reinkemeyer., L. (2020). Process Mining in Action. Princi-

ples, Use Cases and Outlook. Springer.

Slanzi, G., Balazs, J. A., and Vel

asquez, J. D. (2017). Com-

bining eye tracking, pupil dilation and eeg analysis for

predicting web users click intention. Information Fu-

sion, 35:51–57.

Tallon, M., Winter, M., Pryss, R., Rakoczy, K., Reichert,

M., Greenlee, M. W., and Frick, U. (2019). Compre-

hension of business process models: Insight into cog-

nitive strategies via eye tracking. Expert Systems with

Applications, 136:145–158.

van der Aalst, W. M. P. (2016). Process mining: data sci-

ence in action. Springer, Heidelberg.

Xu, Z., Baojie, X., and Guoxin, W. (2017). Canny edge de-

tection based on open cv. In 2017 13th ICEMI, pages

53–56.

Zimoch, M., Pryss, R., Schobel, J., and Reichert, M. (2017).

Eye tracking experiments on process model compre-

hension: Lessons learned. In Reinhartz-Berger, I.,

Gulden, J., Nurcan, S., Gu

edria, W., and Bera, P., ed-

itors, Enterprise, Business-Process and Information

Systems Modeling, pages 153–168, Cham. Springer

International Publishing.

Incorporating the User Attention in User Interface Logs

421
