Assessing the Impact of Deep End-to-End Architectures in Ensemble

Learning for Histopathological Breast Cancer Classification

Hasnae Zerouaoui

, Ali Idri

1,2 b

and Omar El Alaoui

Modeling, Simulation and Data Analysis, Mohammed VI Polytechnic University, Benguerir, Morocco

Software Project Management Research Team, ENSIAS, Mohammed V University in Rabat, Morocco

Keywords: Deep Learning, Machine Learning, Ensemble Learning, Computer Vision, Breast Cancer, Whole Slide

Images.

Abstract: One of the most significant public health issues in the world and a major factor in women's mortality is breast

cancer (BC). Early diagnosis and detection can significantly improve the likelihood of survival. Therefore,

this study suggests a deep end-to-end heterogeneous ensemble approach by using deep learning (DL) models

for breast histological images classification tested on the BreakHis dataset. The proposed approach showed a

significant increase of performances compared to their base learners. Thus, seven DL architectures (VGG16,

VGG19, ResNet50, Inception_V3, Inception_ResNet_V2, Xception, and MobileNet) were trained using 5-

fold cross-validation. Thereafter, deep end-to-end heterogeneous ensembles of two up to seven base learners

were constructed based on accuracy using majority and weighted voting. Results showed the effectiveness of

deep end-to-end ensemble learning techniques for breast cancer images classification into malignant or

benign. The ensembles designed with weighted voting method exceeded the others with an accuracy value

reaching 93.8%, 93.4%, 93.3%, and 91.8% through the BreakHis dataset's four magnification factors: 40X,

100X, 200X, and 400X respectively.

1 INTRODUCTION

Cancer is considered among the most serious health

issues in the world. In 2020, more than 19.3 million

new cancer cases are diagnosed and nearly 10 million

deaths are declared (Sung et al., 2021). By far the

most eminent and leading cause of death in women

worldwide is breast cancer (BC), with 2.3 million

women affected by it in 2020 (Sung et al., 2021).

Early detection and diagnosis of this disease are

essential to minimise morbidity in women. Even

though X-ray, MRI (Magnetic Resonance Imaging),

ultrasound, and other imaging techniques have been

used for more than 40 years to detect breast cancer

(Stenkvist et al., 1978), biopsy techniques have

always been the most commonly used method for

correctly diagnosing breast cancer. The procedure

entails collecting tissue samples, mounting them on

microscopic glass slides, and staining them for

visualization purposes (Mitko Veta, 2014).

Pathologists then examine and diagnose the

https://orcid.org/0000-0001-7268-8404

https://orcid.org/0000-0002-4586-4158

https://orcid.org/0000-0002-4395-9989

histopathological images to affirm the diagnosis of

breast cancer. (Mitko Veta, 2014). Manual

examination of large-scale histological images,

however, is a difficult process due to changes in

appearance, structure, and textures(Li et al., 2019), it

is time-consuming, and usually depends on human

subjective interpretation since the level of experience

of the pathologists involved may have an impact on

the results of the analysis. Therefore, computer-aided

(Aswathy and Jagannath, 2017) analysis of

histological images are crucial in the diagnosis of

breast cancer.

Deep learning (DL) has recently outperformed a

variety of machine learning (ML) models for the

medical image analysis tasks, such as classification

(Mardanisamani et al., 2019), detection (Herent et al.,

2019), and segmentation (Lateef and Ruichek, 2019).

When compared to other types of ML classifiers, DL

has the advantage of being able to achieve results that

are similar or better than human performance. DL

techniques have been used in computer vision (Xie et

Zerouaoui, H., Idri, A. and El Alaoui, O.

Assessing the Impact of Deep End-to-End Architectures in Ensemble Learning for Histopathological Breast Cancer Classiﬁcation.

DOI: 10.5220/0011574400003335

In Proceedings of the 14th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2022) - Volume 1: KDIR, pages 109-118

ISBN: 978-989-758-614-9; ISSN: 2184-3228

109

al., 2018), biological science (Gulshan et al., 2016),

and many other domains to solve problems of

traditional feature extraction. More specifically the

Deep convolutional neural networks (DCNNs) have

been widely recognized as one of the most efficient

tools for image classification since they provide

numerous advantages over traditional solutions,

including an end-to-end architecture that relieves

users from hand-crafted feature extraction tasks. (Jia

et al., 2020).

Despite its popularity, a single DCNNs model can

only extract a limited amount of discriminative

features, resulting in suboptimal classification

performance. To improve classification accuracy,

ensembles of DCNN architectures have been

designed to learn the representation of

histopathological images from various perspectives.

Since then, many researchers started investigating

deep ensemble learning techniques to ameliorate the

performances. For instance, the study (El Ouassif et

al., 2021), proposed multiple heterogeneous

ensembles for breast cancer classification on three

datasets (WDBC, Wisconsin, WPBC). From seven

classifiers (KNN, Decision Three, MLP, SVM, SVM-

PUK, SVM-RBF, S-LK, SVM-NP), the authors,

selected and constructed ensembles based on two

selection strategies: (1) selection by accuracy and

diversity, and (2) selection by only accuracy. Then,

the constructed ensembles were combined using the

majority voting method. According to the findings of

this study, investigating both accuracy and diversity

to select ensemble members often resulted in better

performance than designing and building ensembles

without member selection. In (Vo et al., 2019),

authors proposed an ensemble constructed with three

DL models for breast cancer classification tested on

the BreakHis and Bioimaging-205 datasets.

Inception_ResNet_V2 was used to extract features

and gradient boosting trees for classification. the

classifiers were combined using the majority voting

strategy to improve the performance. The accuracy

values reached: 95.1%, 96.3%, 96.9%, 93.8% and

86.75% for the magnification factors (MF) MFs of the

BreakHis dataset and bioimaging dataset respectively.

Some limitations have been revealed in the

studies(Idri et al., 2020),(Vo et al., 2019): (1) the

design of heterogenous ensemble using only one

combination method, (2) except of the study (El

Ouassif et al., 2021), a lack of statistical analysis to

select the outperforming proposed model is

noticeable.

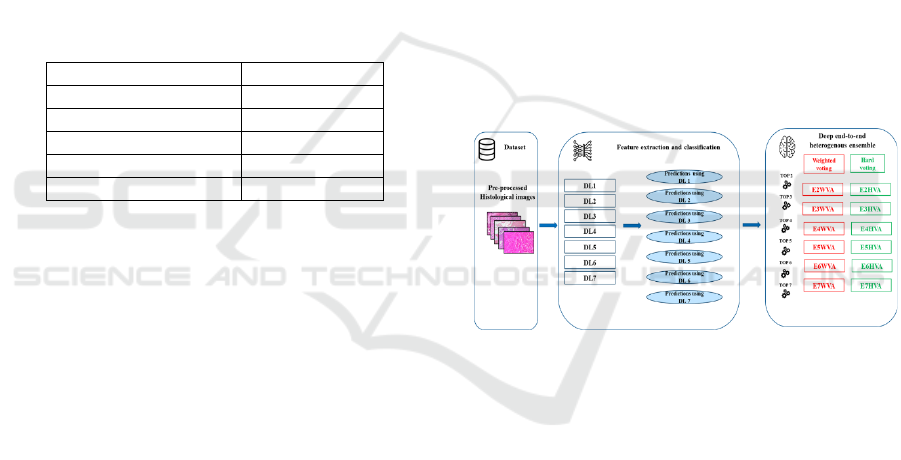

To elevate the burden of those limitations, this

study proposes a deep end-to-end heterogenous

ensemble technique (DEHtE) using seven end-to-end

DL models as base learners for breast

histopathological images classification over the

BreakHis dataset. The proposed approach consists of

combing seven DL techniques of two up to seven DL

models as base learners, based on accuracy using two

voting methods: majority voting by taking the mode

of the distribution of predicted labels, and weighted

voting by taking the average of predicted

probabilities. The seven DL techniques were based on

fine-tunned VGG16, VGG19, ResNet50,

Inception_V3, Inception_ResNet_V2, Xception, and

MobileNet, using a 5-fold cross-validation evaluation

technique.

The performance of the proposed approach was

evaluated using four classification performance

measures (Hosni et al., 2019; Zerouaoui and Idri,

2021a) (accuracy, precision, recall, and F1-score),

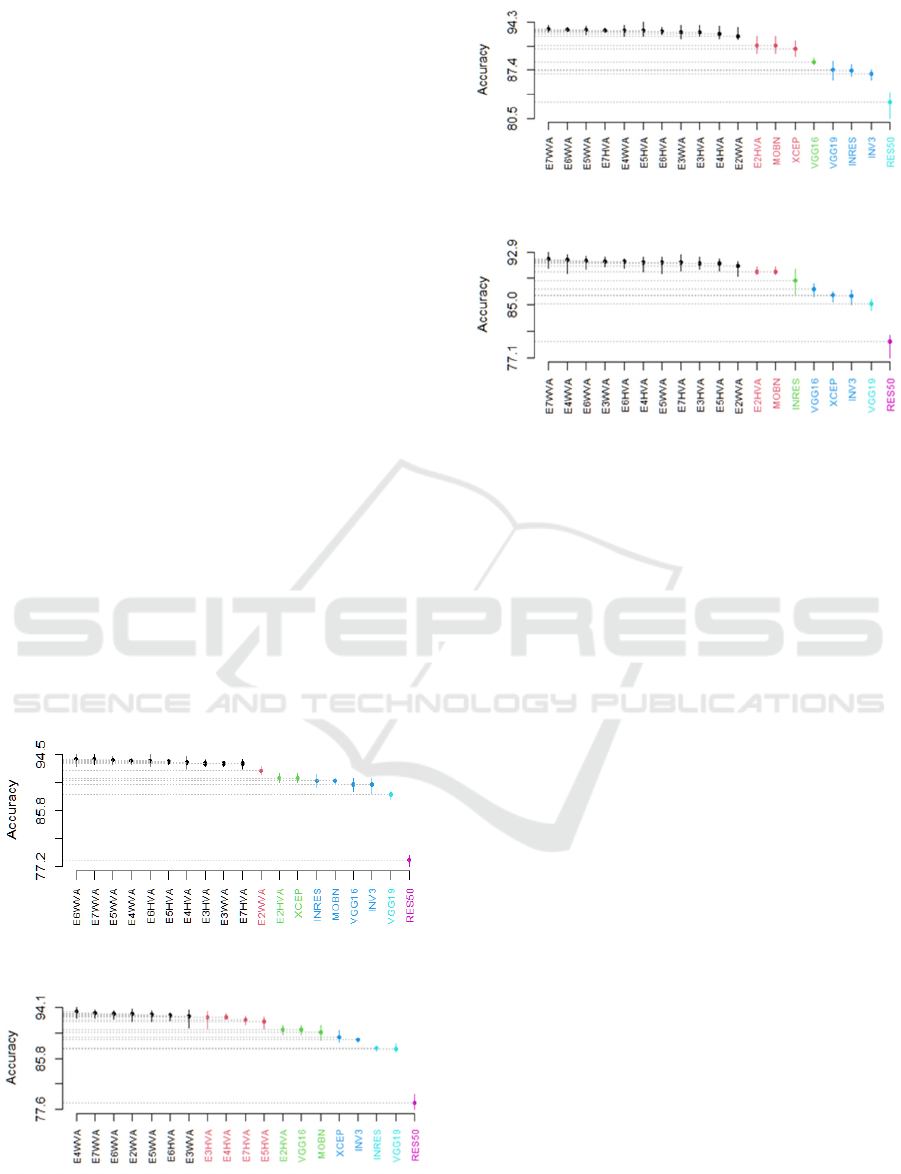

Scott Knott (SK) statistical test to group the proposed

ensembles and identify the best cluster, and the Borda

Count voting method to sort and identify the best

performing ensemble. So far as we are

knowledgeable, this study is the first to construct

DEHtE of DL models as base learners based on

accuracy and combined with two voting methods for

histopathological BC classification.

The current study focuses on two research

questions. (RQs):

- (RQ1): Does the deep end-to-end heterogenous

ensembles using voting methods outperform

their base learners?

- (RQ2): What are the suitable number of base

learners to design the deep end-to-end

heterogenous ensembles and the suitable voting

combination method used?

The following are the study's main contributions:

1. Assessing and comparing the performance of the

seven fine-tunned DL end-to-end architectures

over the BreakHis dataset.

2. Constructing DEHtE using one selection criteria:

selection by accuracy.

3. Combining the constructed ensembles using

majority and weighted voting methods.

4. Assessing and comparing the performance of the

designed DEHtE with their base learners over the

BreakHis dataset.

The remainder of this paper is structured as

follows: Section 2 provides an overview of the deep

learning models and ensemble learning techniques

used to develop the proposed approach. Section 3

presents data preparation process. Section 4 provides

the details of the experiment configuration, the

empirical methodology and the abbreviations

followed in this empirical study. Section 5 reports and

discusses the empirical results. Section 6 covers the

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

110

threats of validity of this study. Lastly, Section 7

Outlines the conclusion and ongoing work.

2 BACKGROUND

This section delves into some of the key principles

used in this empirical study, starting with the concept

underlying the experiment's various DCNN

architectures, then discussing ensemble learning

techniques.

2.1 DCNNS Architectures

This subsection introduces and defines the different

DCNNs used in this proposal.

VGGNet (2014): VGGNet finished first in the

2014 ImageNet Challenge (Simonyan and Zisserman,

2015). There is a total of six VGGNet architectures.

The most common are VGG-16 and VGG-19. The

VGG architectures are made up of convolutional

layers with the ReLU, one max pooling layer, and

multiple fully connected layers.

ResNet (2015): Resnet was designed to avoid the

vanishing gradient problem that previous deep

learning models had. (He and Sun, 2016). ResNet is

built with a variety of layer counts: 34, 50, 101, 152,

and 1202. ResNet50. The most popular ResNet have

49 convolution layers and one fully connected layer

at the end.

Inception_V3: Inception V3 is a member of the

Inception deep architectures, has the same

architecture as InceptionV1 and InceptionV2 with a

few changes. Inception V3 has 42 layers anwithd a

fixed input size of 299x299 by default (Szegedy et al.,

2014). It has a parallel convolutional layer block with

three different filter sizes (1x1, 3x3, 5x5).

Inception_ResNet_V2: Inception ResNet V2 is a

convolutional neural network with 164 layers and an

input size of 299x299. It is based on a combination of

the Inception architecture and the Residual

connection. Multiple convolutional filters are

combined with residual connections in this

architecture(Szegedy et al., n.d.).

MobileNet_V2: As a source of non-linearity,

MobileNet V2 filters features using lightweight

depthwise convolution layers. It begins with a fully

convolutional layer with 32 filters, then proceeds to

19 residual bottleneck layers(Sandler et al., 2018).

Xception: Xception is an architecture with 36

convolutional layers that serve as the network's

feature extraction foundation. It consists of a linear

stack of separable depth-wise convolution layers with

residual connections. This makes it very simple to

define and modify the architecture. Xception has a

total of 22.8 million trainable parameters. (Chollet,

2017).

2.2 Ensemble Learning

In 1965, Ensemble Learning was proposed for

classification tasks(Nilsson, 1965). It is based on the

concept of training several base learners as ensemble

members and combining their predictions into a

single output that should outperform any other

ensemble member with uncorrelated error on the

target dataset on average(Zhou, 2012). An ensemble

is composed of several base learners. A base learning

algorithm, which can be a decision tree, a neural

network, or another type of learning algorithm, is

typically used to generate base learners from training

data. Learners of the same type, leads to

homogeneous ensembles, and learner of different

algorithms are leading to heterogenous ensembles.

An ensemble's generalization ability is commonly

much higher than that of base learners.

The current study uses heterogenous ensembles with

majority and weighted voting methods to combine

predictions of the DL base learners. Every classifier

vote for one class label in majority voting, and the

final output class label is the one that receives more

than half of the votes. Weighted voting, on the other

hand, takes into account the probabilities thrown by

each classifier; these probabilities are weighted and

averaged, and the winning class is the one with the

highest weighted and averaged probability. (Zhou,

2012)

3 DATA PREPARATION

In this section, we will present the process to prepare

the histological BreakHis dataset consisting of five

steps: data acquisition, data pre-processing using

Contrast Limited Adaptive Histogram Equalization

(CLAHE), intensity normalization and data

augmentation. Since the same process was followed

in the studies (Zerouaoui et al., 2021; Zerouaoui and

Idri, 2022), we therefore summarize it as described

below.

The BreakHis dataset contains haematoxylin-eosin-

stained breast histological slides which refer to

microscopic examination of a biopsy to study the

appearances of the cancer. It is constituted of 7,909

breast histopathological images collected from 82

patients at different magnification factors (MF) such

as 40X, 100X, 200X, and 400X with effective pixel

sizes of 0.49 m, 0.20 m, 0.10 m, and 0.05 m All

images are stored in TrueColor (24-bit colour depth,

8 bits per colour channel) three channel format

Assessing the Impact of Deep End-to-End Architectures in Ensemble Learning for Histopathological Breast Cancer Classiﬁcation

111

(RGB). A pathologist examined the images and

identified the most relevant region of interest,

excluding out-of-focus images and images with

undesirable areas such as black borders or text

annotations. Each image's final size is 700x460 pixels

in PNG format (Gandomkar et al., 2018)(Spanhol et

al., 2016). The dataset is divided into benign tumor

(adenosis, fibroadenoma, phyllodes tumor, and

tubular adenoma) and malignant tumor (ductal

carcinoma, lobular carcinoma, mucinous carcinoma,

and papillary carcinoma) (Zhu et al., 2019). One of

the benefits of the BreakHis dataset is the use of four

magnification factors, which allows for the detection

of various cancer types and subtypes (Alom et al.,

2019).

We used intensity normalization and CLAHE

(Zerouaoui and Idri, 2021b, 2022) to improve the

image quality. The data augmentation was used to

deal with the imbalanced data by incorporating

geometric transformations (Jiang et al., 2019)(Hosni

et al., 2019) since the number of images in each

category non-cancerous (2480 images) and cancerous

(5429 images) are imbalanced with 70% of the

images represent the malignant class.

4 EMPIRICAL DESIGN

In this section, the empirical design proposed to build

the DEHtE is provided, starting with the process

tailed to construct and evaluate the designed proposed

approach including the experiment configuration and

the statistical tests such as Scott Knott (SK) and borda

count voting method (Bhering et al., 2008; Black,

1976). Next, the abbreviations employed to refer to

the designed ensembles and their base learners are

given. At last, a framework of the experiment and the

empirical design will be described.

4.1 Experiment Configuration

After preprocessing, the data is divided into two sets

(train and test sets) with partitions of (80%, 20%),

respectively. Then, using transfer learning for fine-

tunning, seven DL techniques (VGG16, VGG19,

ResNet50, Inception V3, Inception ResNet V2,

Xception, and MobileNet) were trained for each MF

of the BreakHis dataset (Nguyen et al., 2020). The

models were trained on the train set and tested on the

test set using stratified K-fold cross validation with

k=5.

The seven DL techniques were trained using the

following configurations:

1. The histological images were resized to 224x224

pixels for all DL architectures except for both

Inception_V3 and Inception-ResNet_V2 that

was resized to 299x299 pixels.

2. The transfer learning technique for fine tuning

was used for the training of the seven DL models.

The pre-trained architecture's top convolutional

layers were frozen (ImageNet weights were used)

and the extracted features were fed to an

Artificial neural network (ANN) classifier.

3. The ANN classifier used is built with a fully

connected layer of 256 neurons with RELU

activation function. To avoid overfitting, we

added a dropout layer with rate set to 50%, a

dense layer of two neurons with SoftMax

activation function, and a dense layer of two

neurons with SoftMax activation function. The

batch size was set to 32 and the number of epochs

to 200. As for the optimization, we used the

Adam optimizer with a learning rate of 0.0001

that decreases during training. Finally, we added

L2 regularization to penalize large weight values

and reducing model overfitting.

The end-to-end architectures of this experiment are

trained and tested in Python using the Keras and

Tensorflow deep learning frameworks and run on a

TPU processing unit with 8 cores, 35 GB of RAM,

and a Linux-based OS provided by Google in Colab

Notebook. The training process of the seven DL

models is depicted in Figure 1.

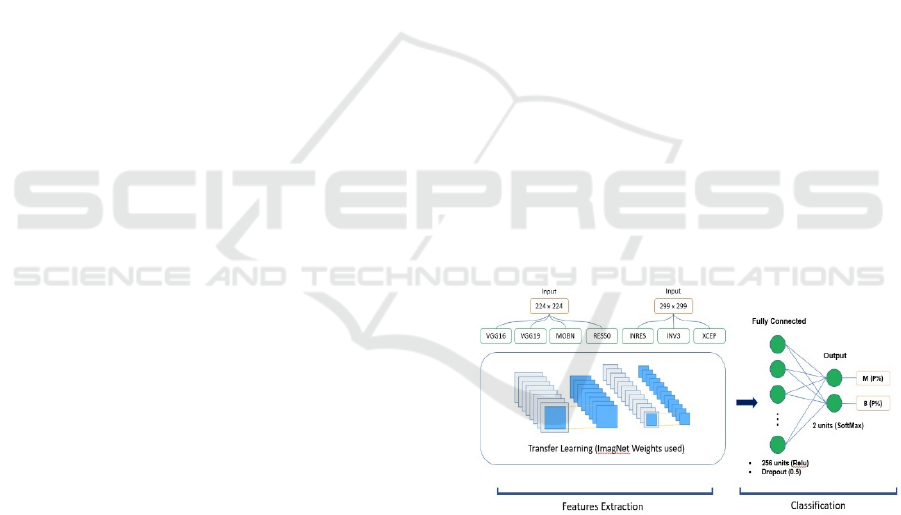

Figure 1: Training process of the seven DL techniques.

4.2 Statistical Tests

Scott Knott (SK) is a hierarchical clustering algorithm

proposed by Scott and Knott in 1974 (Idri et al.,

2018). It is a quick and efficient way to perform

multiple comparisons with no ambiguity (Bhering et

al., 2008). Because of its simplicity and robustness,

the SK test is the most commonly used hierarchical

clustering algorithm when compared to other

statistical tests (Spanhol et al., 2016)(Hamza and

Larocque, 2005). The SK test was used in this study

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

112

to cluster the base learners and DEHtE techniques

based on accuracy to see if there was a significant

difference between them.

Borda count is a single-winner election method in

which candidates are assigned points in descending

order based on their ranking. The point values for all

ranks and votes are added up, and the candidate with

the most points is declared the winner (Emerson,

2013). The Borda count method was used in this

study to find the best performing DEHtE based on

four classification performance measures with equal

weights (accuracy, precision, recall, and f1-score).

4.3 Abbreviation

To help the reader and abbreviate the names of the

various techniques used in this research, we shorten

the names of each DL technique as described in Table

Table 1: The abbreviation of the DL architectures

DL architecture Abbreviations

Xception XCEP

ResNet50 RES50

MobileNet MOBN

Inception_ResNet_V2 INRESV2

Inception_V3 INV3

As for the DEHtE names the following abbreviations

were chosen:

EnHVA: Ensemble of size n combined with hard

voting method and constructed with selection by

accuracy strategy.

EnWVA: Ensemble of size n combined with

weighted voting method and constructed with

selection by accuracy strategy.

Exemple: Ensemble of 6 base learners using weighted

voting with the selection by accuracy strategy is

E6WVA

4.4 Empirical Design

This subsection describes the methodology followed

for the DEHtE method. This experiment consists of

the following seven steps:

• Step 1: evaluating the performance of the seven

deep learning techniques based on accuracy.

• Step 2: Constructing for each MF, DEHtE of 2

up to 7 DL models used as base learners

(combinations of 2, 3, 4, 5, 6, and 7) following

the selection by accuracy strategy which consists

of ranking the seven DL techniques with Borda

count in terms of accuracy, precision, recall and

f1-score, then from top to down constructing

combinations of two, four, five, six and seven. At

the end of this step, we obtain 6 DEHtE for each

MF.

• Step 3: For each MF, apply the majority and

weighted voting methods on all combinations

obtained in step 2, to obtain then, 12 ensembles

for each MF (6 DL end-to-end architecture x 2

voting methods). Then, evaluate their

performance in term of accuracy.

• Step 4: For each MF, apply the SK test on each

12-ensemble obtained in step 3 with the seven

DL end-to-end architectures based on accuracy.

• Step 5: This step entails using Borda count to

rank the variants of the best clusters (obtained in

step 4) based on accuracy, precision, recall, and

F1-score.

Figure 2 describes the process to design the

DEHtE, it consists of three main steps: 1) data

preprocessing, 2) DL models training for both feature

extraction and classification and 3) combining the

DEHtE using the selection by accuracy strategy and

using the two com bination rules: majority (Idri et al.,

2020) and weighted voting .

Figure 2: The main steps to design the deep ent-to-end

heterogenous ensemble.

5 RESULTS AND DISCUSSION

This section describes and compares the performance

of the DEHtE designed using the selection by

accuracy strategy and their base learners over the four

MFs of the BreakHis dataset (40X, 100X, 200X and

400X) and defines the suitable number of base

learners and voting combination methods. To do so,

(1) the performances were analyzed and compared

based on accuracy of all DEHtE, then (2) the

difference of performances was observed using SK

statistical test, (3) the best clusters obtained using SK

test were ranked using Borda count voting method.

Assessing the Impact of Deep End-to-End Architectures in Ensemble Learning for Histopathological Breast Cancer Classiﬁcation

113

5.1 Performance of Deep End-to-End

Heterogenous Ensembles

In a previous study (Alaoui et al., 2022), the seven

DL architectures including VGG16, VGG19,

ResNet50, Inception_V3, Inception_ResNet_V2,

Xception, and MobileNet were evaluated and

compared using the BreakHis dataset. The main

results have showed that the DL end-to-end

architecture XCEP achieved the highest accuracy

using the 40X MF with a value of 90.91 %, the DL

end-to-end architecture VGG16 achieved 90.43 % on

100X MF, and the DL end-to-end architecture

MOBN performed best on 200X and 400X with

accuracy values of 90.90 % and 89.91 %,

respectively. Furthermore, it is noticeable that the DL

model RES50 underperformed compared to the other

architectures regardless the MF used.

To assess and compare the performances of DEHtE

constructed based on the selection by accuracy

strategy and combined using two voting techniques

(majority and weighted voting), we first rank the

seven DL architectures based on accuracy and then

combine them using majority and weighted voting

following the ranking presented in Table 2. As results

we obtained DEHtE of 2, 3, 4, 5, 6 and 7 DL models

as base learners.

Table 2: The ranking of the seven DL models to design the

DEHtE based on the selection by accuracy strategy.

Rank 40X 100X 200X 400X

1 XCEP VGG16 MOBN MOBN

2 MOBN MOBN XCEP INRES

3 INRES XCEP VGG16 VGG16

4 VGG16 INV3 VGG19 XCEP

5 INV3 INRES INRES INV3

6 VGG19 VGG19 INV3 VGG19

7 RES50 RES50 RES50 RES50

Table 3 indicates the accuracy values of the DEHtE

selected by accuracy using majority and weighted

voting methods over the BreakHis dataset four MFs.

It is revealed that:

- For 40X MF, the best accuracy value obtained

using majority voting was 93.5% reached by

ensemble of size six, and the best accuracy

obtained using weighted voting was 93.8%

reached by ensembles of size six and seven.

Moreover, ensemble of size two shows the worst

accuracy value in both voting methods: majority

and weighted voting with values: 90.9% and 92%,

respectively.

- For 100X MF, the best accuracy value obtained

using majority voting was 92.8% reached by

ensemble of size six, and the best accuracy value

obtained using weighted voting was 93.4%

reached by ensemble of size four. Moreover, the

worst accuracy value obtained using majority

voting was 90.4% reached by ensemble of size

two, and the worst accuracy value obtained using

weighted voting was 92.5% reached by ensemble

of size three.

- For 200X MF, ensemble of size seven shows the

best accuracy value in both voting methods:

majority and weighted voting with values: 93.1%

and 93.3%, respectively. Moreover, ensemble of

size two shows the worst accuracy value in both

voting methods: majority and weighted voting

with values: 90.9% and 92.3%, respectively.

- For 400X MF, the best accuracy value obtained

using majority voting was 91.5% reached by

ensemble of size six, and the best accuracy

obtained using weighted voting was 91.8%

reached by ensembles of size four and seven.

Moreover, ensemble of size two shows the worst

accuracy value in both voting methods: majority

and weighted voting with values: 89.9% and

90.9%, respectively.

Table 3: Results based on accuracy of DEHtE selected by

accuracy over the BreakHis dataset.

40X 100X 200X 400X

E2HVA 90.90 % 90.40% 90.90% 89.90%

E3HVA 93.20% 92.50% 92.80% 91.30%

E4HVA 93.30% 92.50% 92.70% 91.40%

E5HVA 93.40% 91.80% 93.00% 91.30%

E6HVA 93.50% 92.80% 93.00% 91.50%

E7HVA 93.00% 92.10% 93.10% 91.40%

E2WVA 92.00% 93.00% 92.30% 90.90%

E3WVA 93.20% 92.70% 92.90% 91.50%

E4WVA 93.50% 93.40% 93.00% 91.80%

E5WVA 93.70% 92.90% 93.20% 91.40%

E6WVA 93.80% 93.00% 93.20% 91.60%

E7WVA 93.80% 93.10% 93.30% 91.80%

In order to determine whether the DEHtE outperform

their singles, we clustered the constructed ensembles

following the selection by accuracy strategy and

using two voting methods (majority and weighted

voting) with their seven DL models used as base

learners. Figure 3 illustrates the outcomes of the SK

statistical test on the BreakHis dataset. It is observed

that:

- For 40X MF, 6 SK clusters were obtained. The

best cluster includes 10 ensembles out of 12 (all

ensembles except E2WVA which belongs to the

second cluster, and E2HVA which belongs to the

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

114

third cluster with the DL model XCEP). The

fourth cluster contains VGG16, INRES, MOBN

and INV3. Moreover, the fifth and the last

clusters contain VGG19 and ResNe50,

respectively.

- For 100X MF, 6 SK clusters were obtained. The

best cluster involves 7 ensembles out of 12

(E7WVA, E6WVA, E5WVA, E4WVA,

E3WVA, E2WVA, E6HVA). The second cluster

contains 4 ensembles (E7HVA, E5HVA,

E4HVA, and E3HVA). E2HVA belongs to the

third cluster with VGG16 and MOBN, the fourth

cluster contains XCEP and INV3. Moreover,

INRES and VGG19 belong to the fifth cluster,

and the last cluster contains RES50.

- For 200X MF, 5 SK clusters were obtained. The

best SK cluster groups 11 ensembles out of 12

(all ensembles except E2HVA which was shown

in the second cluster with MOBN and XCEP).

The third cluster contains VGG16. The fourth

cluster contains VGG19, INRES and INV3.

Lately, RES50 was presented in the last cluster.

- For 400X MF, 6 SK clusters were obtained. The

best SK cluster comprises 11 ensembles out of 12

(all ensembles except E2HVA which was shown

in the second cluster with MOBN). The third

cluster contains INRES. The fourth cluster

contains VGG16, XCEP and INV3. The fifth and

the last clusters contain VGG19 and ResNe50,

respectively.

A) 40X

B) 100X

C) 200X

D) 400X

Figure 3: The SK test of ensembles selected by accuracy

over BreakHis dataset.

To sum up the obtained results, the SK test showed

that:

- For 40X, 10 out of 12 ensembles gave significant

results compared to their base learners (all

ensembles except E2HVA and E2WVA).

- For 100X, 7 out 12 ensembles gave significant

results compared to their base learners (E7WVA,

E6WVA, E5WVA, E6HVA, E4WVA, E3WVA,

E2WVA).

- For 200X and 400X MFs, all ensembles except

E2HVA gave significant results compared to

singles.

The analysis above proves that the designed DEHtE

significantly outperformed their base learners since

they almost always belong to the best or second-best

SK cluster. As results it is recommended to use the

proposed approach to ameliorate the performances.

5.2 Number of Base Learners and

Combination Rule to Use

This subsection is to determine the suitable number

of base learners and combination rule to use in the

design of the DEHtE. To do so, Borda Count voting

method was applied on the basis of the four

performance measures to rank the ensembles

belonging to the best SK cluster. Table 4 displays the

ranking results for the BreakHis dataset.

Assessing the Impact of Deep End-to-End Architectures in Ensemble Learning for Histopathological Breast Cancer Classiﬁcation

115

Table 4: Borda Count Ranking of Ensembles Selected by

Accuracy on Breakhis.

Ensembles 40X 100X 200X 400X

E7WVA 1 2 1 1

E6WVA 2 3 2 3

E5WVA 3 5 3 6

E6HVA 4 6 4 5

E4WVA 4 1 5 2

E4HVA 5 --- 8 7

E5HVA 6 --- 5 10

E7HVA 7 --- 4 8

E3WVA 7 7 6 4

E3HVA 8 --- 7 9

E2WVA --- 4 9 11

As a summary, the Borda count voting method

showed that E7WVA outperformed all other DEHtE

over the BreakHis dataset MFs, since it was ranked

top one on the three dataset MF (40X, 200X, and

400X) and ranked second for the 100X MF. As results

this study has shown the importance of designing

DEHtE to ameliorate the performances of the

histopathological classification for BC diagnosis

compared to the 7 DL models used as base learners.

Furthermore, it showed that the number of base

learners to design DEHtE plays a significant role

since the ensemble of 7 base learners outperformed

the others, and the ensembles of two base learners

underperformed compared to the others.

Finally, the best combination rule to design the

DEHtE is the weighted voting since the ensemble

E7WVA outperformed the others and achieved an

accuracy of 93.8%, 93.3%, 93.1%, and 91.8% over

the MFS values 40X, 100X, 200X and 400X,

respectively of the BreakHis dataset.

6 THREATS OF VALIDITY

Internal Validity: This study applied a 5-fold cross

validation evaluation technique, which is commonly

used in machine learning to assess a model's ability to

predict new data points(Hosni et al., 2019). Another

internal threat is the use of transfer learning for fine

tuning, which involves freezing all convolutional

base layers with ImageNet weights. Freezing or

tuning some convolutional layers may affect the

performance of classifiers.

External Validity: The external threat's aim is to see

if the study's findings are applicable to other

contexts(Idri et al., 2016). Since this study used only

one dataset of histological images with four

magnification factors, we cannot generalize the

results to all datasets of the same image type. As a

consequence, it is essential to test this study on other

public or private datasets in order to confirm or refute

the study's findings.

Construct Validity: The construct validity seeks to

provide an answer to the measurement validity

question(Hosni et al., 2018), or, more precisely, the

reliability of the measurements chosen to assess the

performance of the proposed techniques. As a result,

this study employs four performance measures

(accuracy, precision, recall, and F1-score), the SK test

to cluster statistically indifferent models and the

Borda count voting technique, which takes into

account the four-evaluation metrics, ensures that no

performance metric is favored over another.

7 CONCLUSION

This paper addresses the problem of breast

histopathological images binary classification over

the BreakHis dataset. It designed and proposed a deep

end-to-end heterogenous ensemble learning approach

based on seven DL models using fine-tuned VGG16,

VGG19, RES50, INV3, INRESV2, XCEP, and

MOBN. The proposed approach consists of using two

voting methods (majority and weighted voting) and

constructing DEHtE of two up to seven models based

on the selection by accuracy strategy. The following

evaluation techniques were used to assess and rank

the proposed ensembles over the BreakHis dataset:

four classification performance criteria (accuracy,

precision, recall, and F1-score), SK statistical test,

and Borda Count. The following are the study's main

findings:

(RQ1): Does the heterogenous ensembles using

voting methods outperform the singles?

The deep end-to-end heterogeneous ensembles

outperformed the DL base learners in all dataset MFs,

with the accuracy value increasing from 90.91 % (the

best accuracy value achieved on 40X by XCEP) to

93.8 % when using weighted voting. For 100X MF,

the accuracy value increased by 3.07% (from 90.43%

to 93.5% achieved by ensemble of six when using

weighted voting). For 200X and 400X MFs, the

accuracy value increased from 90.9%, 89.91% to

93.3%, 91.8%, respectively. As a result, the DEHtE

outperformed their base learners significantly.

(RQ2): What are the suitable number of base

learners to design the deep end-to-end heterogenous

ensembles and the suitable voting combination

method used?

The results have proved that the deep end-to-end

heterogenous ensemble designed using the weighted

voting combination rule outperformed the ones with

majority voting. In addition to that, the increase of

number of base learners to design the DEHtE plays an

important role in the amelioration of the

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

116

performances since the best performing designed

DEHtE is the E7WVA across the BreakHis Mf

values.

Ongoing works will focus on proposing DEHtE

techniques using different selection strategies such as

selection by diversity and selection by both accuracy

and diversity, in order to determine the best criteria to

select the base learners in order to propose the most

performing DEHtE.

ACKNOWLEDGEMENTS

This work was conducted under the research project

“Machine Learning based Breast Cancer Diagnosis

and Treatment”, 2020-2023. The authors would like

to thank the Moroccan Ministry of Higher Education

and Scientific Research, Digital Development

Agency (ADD), CNRST, and UM6P for their

support.

This study was funded by Mohammed VI polytechnic

university at Ben Guerir Morocco.

Compliance with ethical standards.

Conflicts of interest/competing interests Not

applicable.

Code availability not applicable.

REFERENCES

Alaoui, O. El, Zerouaoui, H. and Idri, A. (n.d.). “Deep

stacked ensemble for breast cancer diagnosis”, pp. 1–

10.

Alom, M.Z., Yakopcic, C., Nasrin, M.S., Taha, T.M. and

Asari, V.K. (2019), “Breast Cancer Classification from

Histopathological Images with Inception Recurrent

Residual Convolutional Neural Network”, Journal of

Digital Imaging, Journal of Digital Imaging, available

at:https://doi.org/10.1007/s10278-019-00182-7.

Aswathy, M.A. and Jagannath, M. (2017), “Detection of

breast cancer on digital histopathology images: Present

status and future possibilities”, Informatics in Medicine

Unlocked, Elsevier Ltd, Vol. 8 No. October 2016, pp.

74–79.

Bhering, L.L., Cruz, C.D., De Vasconcelos, E.S., Ferreira,

A. and De Resende, M.F.R. (2008), “Alternative

methodology for Scott-Knott test”, Crop Breeding and

Applied Biotechnology, Vol. 8 No. 1, available

at:https://doi.org/10.12702/1984-7033.v08n01a02.

Black, D. (1976), “Partial justification of the Borda count”,

Public Choice, Vol. 28 No. 1, pp. 1–15.

Chollet, F. (2017), “Xception: Deep learning with

depthwise separable convolutions”, Proceedings - 30th

IEEE Conference on Computer Vision and Pattern

Recognition, CVPR 2017, Vol. 2017-Janua, available

at:https://doi.org/10.1109/CVPR.2017.195.

Emerson, P. (2013), “The original Borda count and partial

voting”, Social Choice and Welfare, Vol. 40 No. 2, pp.

353–358.

Gandomkar, Z., Brennan, P.C. and Mello-Thoms, C.

(2018), “MuDeRN: Multi-category classification of

breast histopathological image using deep residual

networks”, Artificial Intelligence in Medicine, Elsevier

B.V., Vol. 88, pp. 14–24.

Gulshan, V., Peng, L., Coram, M., Stumpe, M.C., Wu, D.,

Narayanaswamy, A., Venugopalan, S., et al. (2016),

“Development and validation of a deep learning

algorithm for detection of diabetic retinopathy in retinal

fundus photographs”, JAMA - Journal of the American

Medical Association, Vol. 316 No. 22, available

at:https://doi.org/10.1001/jama.2016.17216.

Hamza, M. and Larocque, D. (2005), “An empirical

comparison of ensemble methods based on

classification trees”, Journal of Statistical Computation

and Simulation, Vol. 75 No. 8, pp. 629–643.

He, K. and Sun, J. (2016), “Deep Residual Learning for

Image Recognition”, available

at:https://doi.org/10.1109/CVPR.2016.90.

Herent, P., Schmauch, B., Jehanno, P., Dehaene, O.,

Saillard, C., Balleyguier, C., Arfi-Rouche, J., et al.

(2019), “Detection and characterization of MRI breast

lesions using deep learning”, Diagnostic and

Interventional Imaging, Société française de radiologie,

Vol. 100 No. 4, pp. 219–225.

Hosni, M., Abnane, I., Idri, A., Carrillo de Gea, J.M. and

Fernández Alemán, J.L. (2019), “Reviewing ensemble

classification methods in breast cancer”, Computer

Methods and Programs in Biomedicine, Vol. 177, pp.

89–112.

Hosni, M., Idri, A., Abran, A. and Nassif, A.B. (2018), “On

the value of parameter tuning in heterogeneous

ensembles effort estimation”, Soft Computing, Vol. 22

No. 18, available at:https://doi.org/10.1007/s00500-

017-2945-4.

Idri, A., Abnane, I. and Abran, A. (2018), “Evaluating

Pred(p) and standardized accuracy criteria in software

development effort estimation”, Journal of Software:

Evolution and Process, Vol. 30 No. 4, pp. 1–15.

Idri, A., Bouchra, E.O., Hosni, M. and Abnane, I. (2020),

“Assessing the impact of parameters tuning in ensemble

based breast Cancer classification”, Health and

Technology, Health and Technology, Vol. 10 No. 5, pp.

1239–1255.

Idri, A., Hosni, M. and Abran, A. (2016), “Improved

estimation of software development effort using

Classical and Fuzzy Analogy ensembles”, Applied Soft

Computing Journal, Elsevier B.V., Vol. 49, pp. 990–

1019.

Jia, H., Xia, Y., Song, Y., Zhang, D., Huang, H., Zhang, Y.

and Cai, W. (2020), “3D APA-Net: 3D Adversarial

Pyramid Anisotropic Convolutional Network for

Prostate Segmentation in MR Images”, IEEE

Transactions on Medical Imaging, Vol. 39 No. 2,

available

at:https://doi.org/10.1109/TMI.2019.2928056.

Assessing the Impact of Deep End-to-End Architectures in Ensemble Learning for Histopathological Breast Cancer Classiﬁcation

117

Jiang, Y., Chen, L., Zhang, H. and Xiao, X. (2019), “Breast

cancer histopathological image classification using

convolutional neural networks with small SE-ResNet

module”, PLoS ONE, Vol. 14 No. 3, pp. 1–21.

Lateef, F. and Ruichek, Y. (2019), “Survey on semantic

segmentation using deep learning techniques”,

Neurocomputing, Vol. 338, available

at:https://doi.org/10.1016/j.neucom.2019.02.003.

Li, C., Wang, X., Liu, W., Latecki, L.J., Wang, B. and

Huang, J. (2019), “Weakly supervised mitosis detection

in breast histopathology images using concentric loss”,

Medical Image Analysis, Elsevier B.V., Vol. 53, pp.

165–178.

Mardanisamani, S., Maleki, F., Kassani, S.H., Rajapaksa,

S., Duddu, H., Wang, M., Shirtliffe, S., et al. (2019),

“Crop lodging prediction from UAV-acquired images

of wheat and canola using a DCNN augmented with

handcrafted texture features”, IEEE Computer Society

Conference on Computer Vision and Pattern

Recognition Workshops, Vol. 2019-June, available

at:https://doi.org/10.1109/CVPRW.2019.00322.

Mendel, K., Li, H., Sheth, D. and Giger, M. (2019),

“Transfer Learning From Convolutional Neural

Networks for Computer-Aided Diagnosis: A

Comparison of Digital Breast Tomosynthesis and Full-

Field Digital Mammography”, Academic Radiology,

Elsevier Inc., Vol. 26 No. 6, pp. 735–743.

Mitko Veta. (2014), Breast Cancer Histopathology Image

Analysis, Vol. 6.

Nguyen, M.-T., Le, D.T., Son, N.H., Minh, B.C., Duong,

D.H.T. and Linh, L.T. (2020), “Understanding

Transformers for Information Extraction with Limited

Data”, Proceedings of the 34th Pacific Asia Conference

on Language, Information and Computation, No.

October, pp. 478–487.

Nilsson, N.J. (1965), “Learning machines; foundations of

trainable pattern-classifying systems”, McGraw-Hill

Series in Systems Science.

El Ouassif, B., Idri, A. and Hosni, M. (2021), “Investigating

Accuracy and Diversity in Heterogeneous Ensembles

for Breast Cancer Classification”, pp. 263–281.

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A. and

Chen, L.C. (2018), “MobileNetV2: Inverted Residuals

and Linear Bottlenecks”, Proceedings of the IEEE

Computer Society Conference on Computer Vision and

Pattern Recognition, IEEE, pp. 4510–4520.

Simonyan, K. and Zisserman, A. (2015), “Very deep

convolutional networks for large-scale image

recognition”, 3rd International Conference on

Learning Representations, ICLR 2015 - Conference

Track Proceedings, pp. 1–14.

Spanhol, F.A., Oliveira, L.S., Petitjean, C. and Heutte, L.

(2016), “A Dataset for Breast Cancer Histopathological

Image Classification”, IEEE Transactions on

Biomedical Engineering, Vol. 63 No. 7, pp. 1455–1462.

Stenkvist, B., Westman-Naeser, S., Holmquist, J., Nordin,

B., Bengtsson, E., Veaelius, J., Eriksson, O., et al.

(1978), “Computerized Nuclear Morphometry as an

Objective Method for Characterizing Human Cancer

Cell Populations”, Cancer Research, Vol. 38 No. 12,

pp. 4688–4697.

Sung, H., Ferlay, J., Siegel, R.L., Laversanne, M.,

Soerjomataram, I., Jemal, A. and Bray, F. (2021),

“Global Cancer Statistics 2020: GLOBOCAN

Estimates of Incidence and Mortality Worldwide for 36

Cancers in 185 Countries”, CA: A Cancer Journal for

Clinicians, Vol. 71 No. 3, pp. 209–249.

Szegedy, C., Ioffe, S., Vanhoucke, V. and Alemi, A.A.

(n.d.). “the Impact of Residual Connections on

Learning”, pp. 4278–4284.

Szegedy, C., Vanhoucke, V., Shlens, J. and Wojna, Z.

(2014), “Rethinking the Inception Architecture for

Computer Vision”.

Vo, D.M., Nguyen, N.Q. and Lee, S.W. (2019),

“Classification of breast cancer histology images using

incremental boosting convolution networks”,

Information Sciences, Vol. 482, available

at:https://doi.org/10.1016/j.ins.2018.12.089.

Xie, J., Hou, Q., Shi, Y., Lü, P., Jing, L., Zhuang, F., Zhang,

J., et al. (2018), “The Automatic Identification of

Butterfly Species”, Jisuanji Yanjiu Yu

Fazhan/Computer Research and Development, Vol. 55

No. 8, available at:https://doi.org/10.7544/issn1000-

1239.2018.20180181.

Zerouaoui, H. and Idri, A. (2021a), “Reviewing Machine

Learning and Image Processing Based Decision-

Making Systems for Breast Cancer Imaging”, Journal

of Medical Systems.

Zerouaoui, H. and Idri, A. (2021b), “Reviewing Machine

Learning and Image Processing Based Decision-

Making Systems for Breast Cancer Imaging”, Journal

of Medical Systems, Vol. 45 No. 1, p. 8.

Zerouaoui, H. and Idri, A. (2022), “Biomedical Signal

Processing and Control Deep hybrid architectures for

binary classification of medical breast cancer images”,

Biomedical Signal Processing and Control, Elsevier

Ltd, Vol. 71 No. PB, p. 103226.

Zerouaoui, H., Idri, A., Nakach, F.Z. and Hadri, R. El.

(2021), “Breast Fine Needle Cytological Classification

Using Deep Hybrid Architectures BT - Computational

Science and Its Applications – ICCSA 2021”, in

Gervasi, O., Murgante, B., Misra, S., Garau, C., Blečić,

I., Taniar, D., Apduhan, B.O., et al. (Eds.), , Springer

International Publishing, Cham, pp. 186–202.

Zhou, Z.H. (2012), Ensemble Methods: Foundations and

Algorithms, Ensemble Methods: Foundations and

Algorithms, available

at:https://doi.org/10.1201/b12207.

Zhu, C., Song, F., Wang, Y., Dong, H., Guo, Y. and Liu, J.

(2019), “Breast cancer histopathology image

classification through assembling multiple compact

CNNs”, BMC Medical Informatics and Decision

Making, Vol. 19 No. 1, pp. 1–17.

KDIR 2022 - 14th International Conference on Knowledge Discovery and Information Retrieval

118
